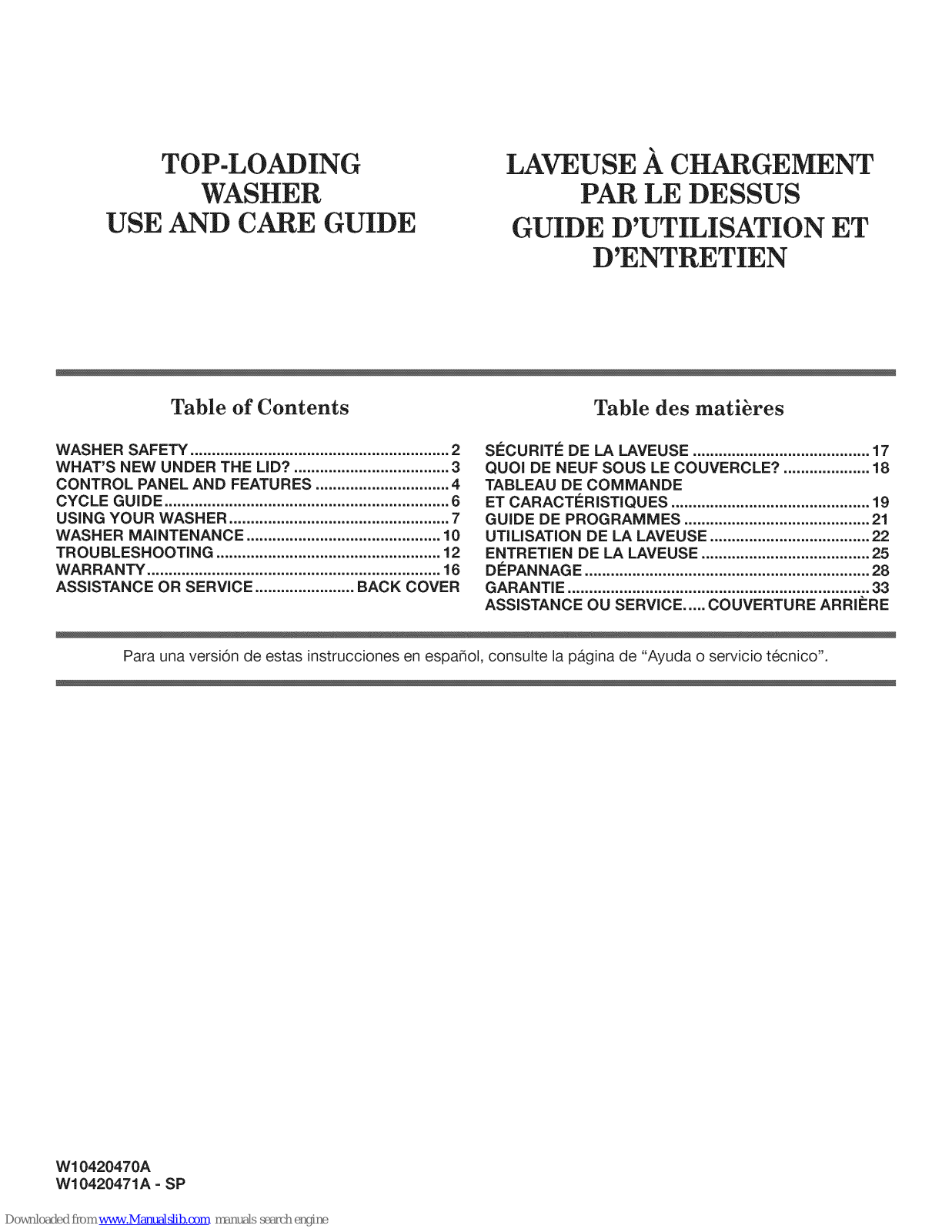

TOP-LOADING
LAVEUSEA CHARGEMENT
WASHER
USE AND CARE GUIDE
Table of Contents
WASHER SAFETY ............................................................ 2
WHAT'S NEW UNDER THE LiD? .................................... 3
CONTROL PANEL AND FEATURES ............................... 4
CYCLE GUIDE .................................................................. 6

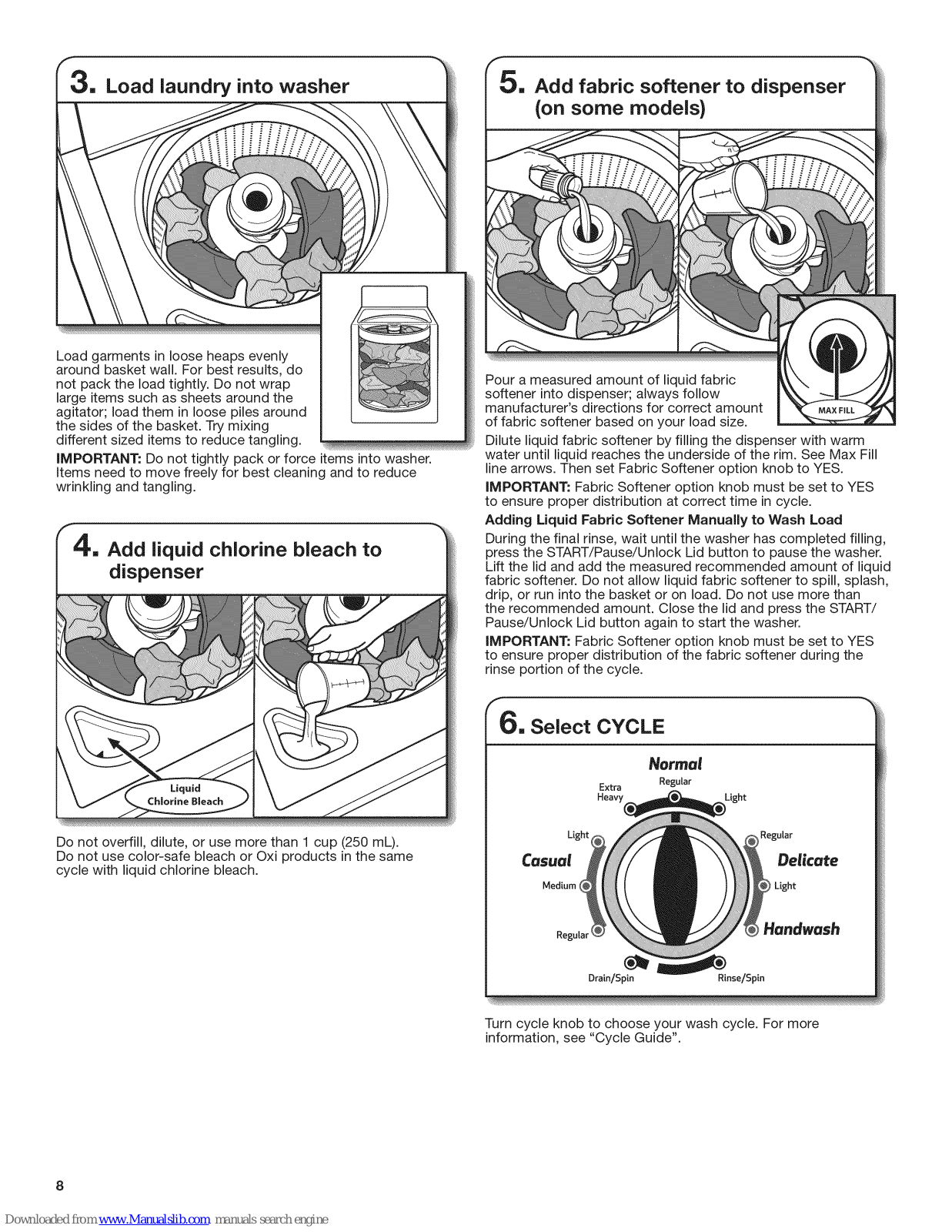

USING YOUR WASHER ................................................... 7

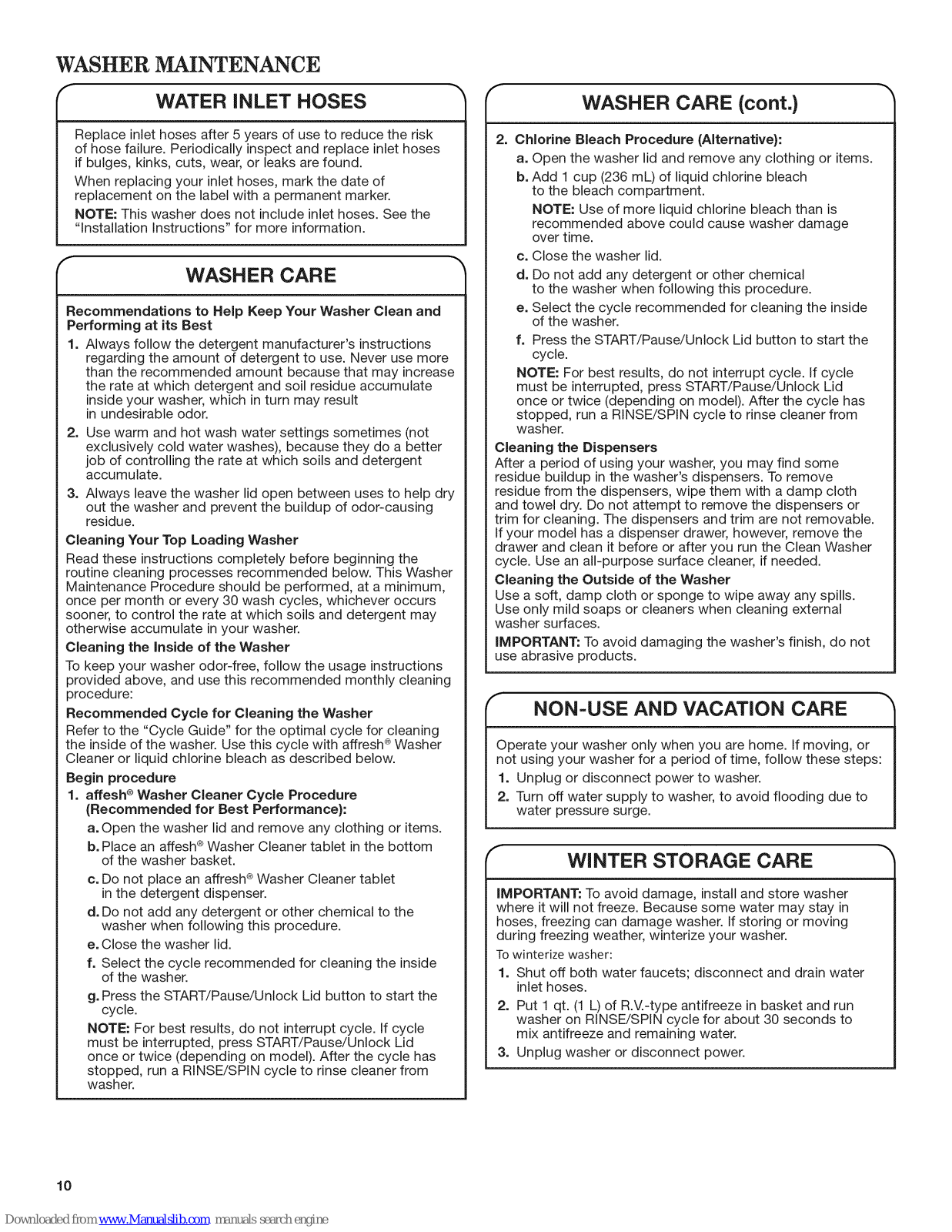

WASHER MAINTENANCE ............................................. 10

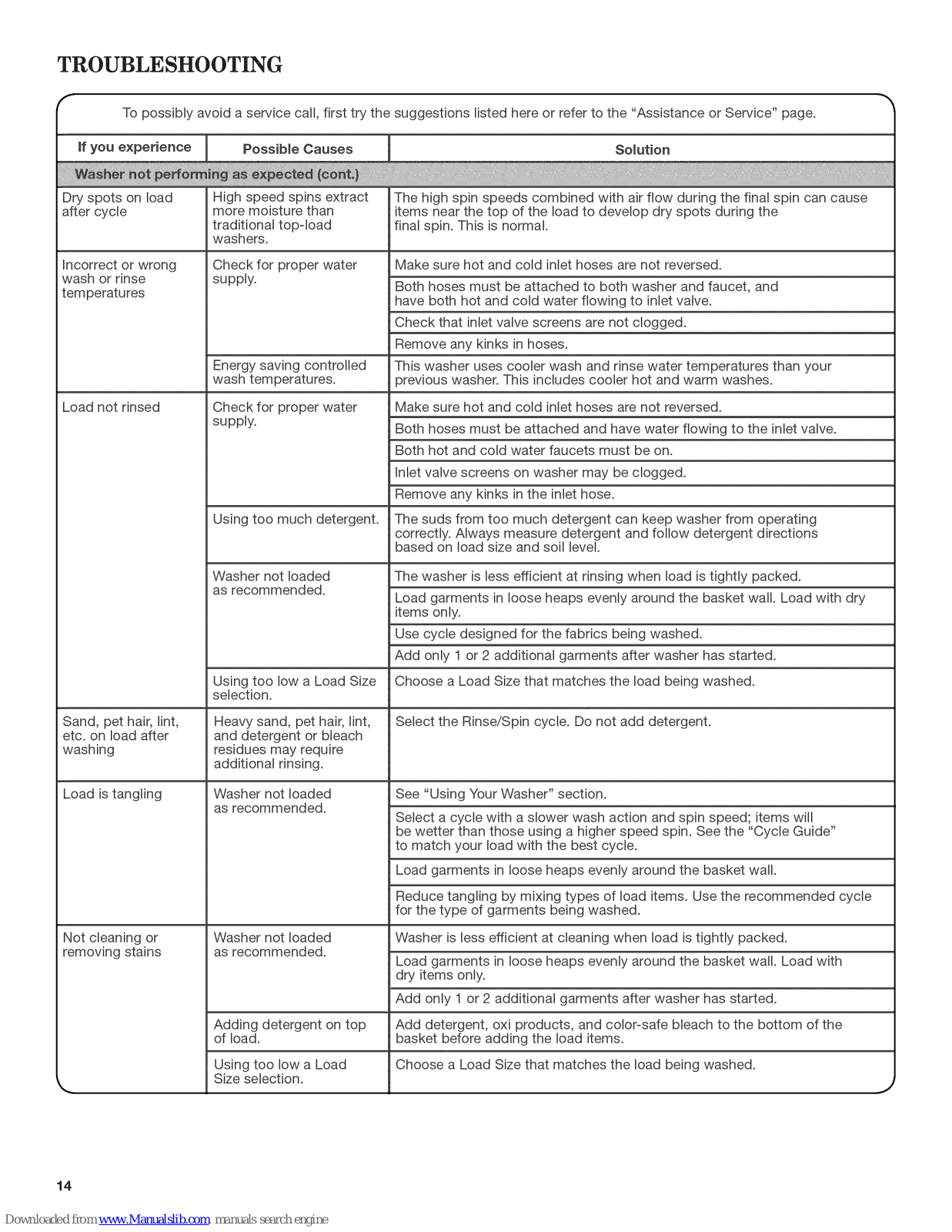

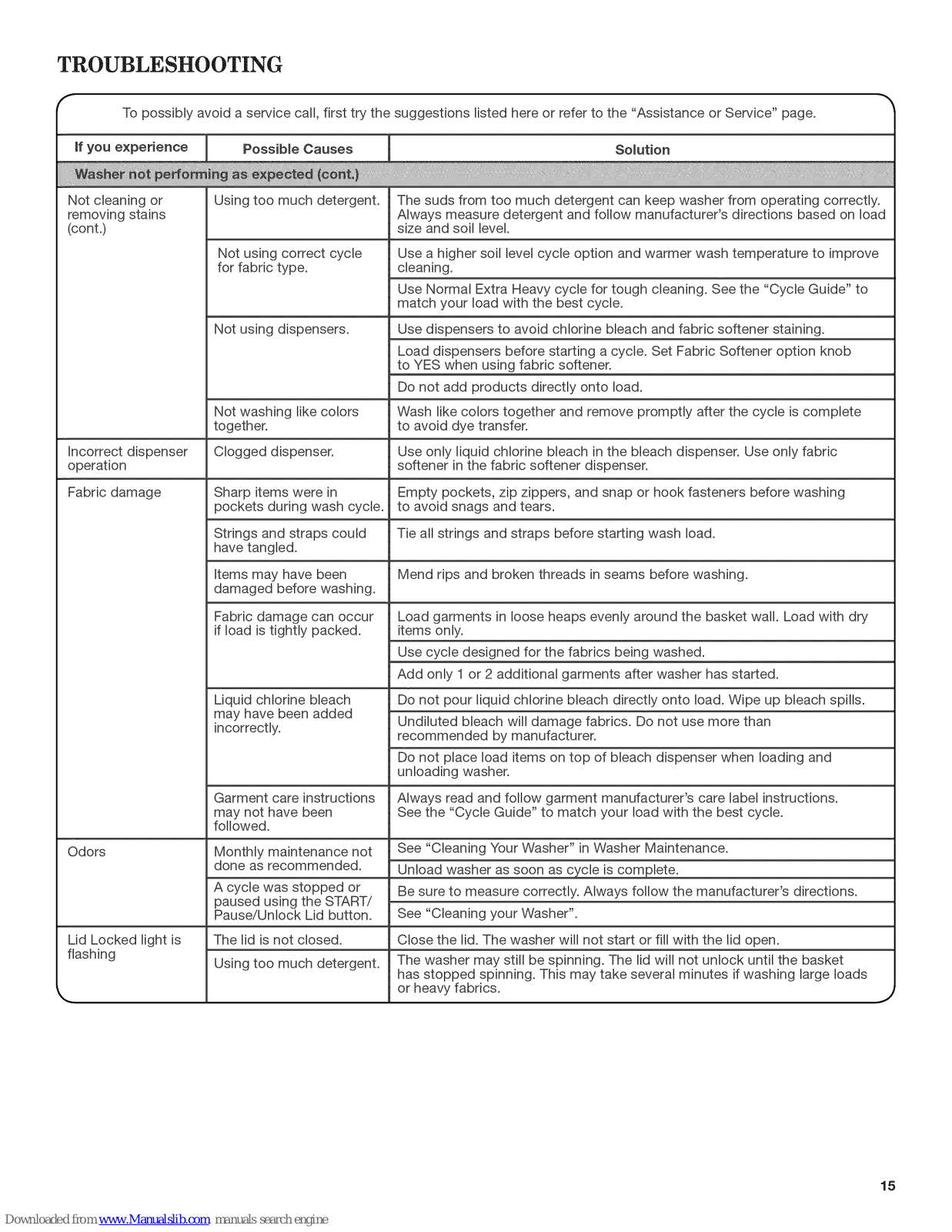

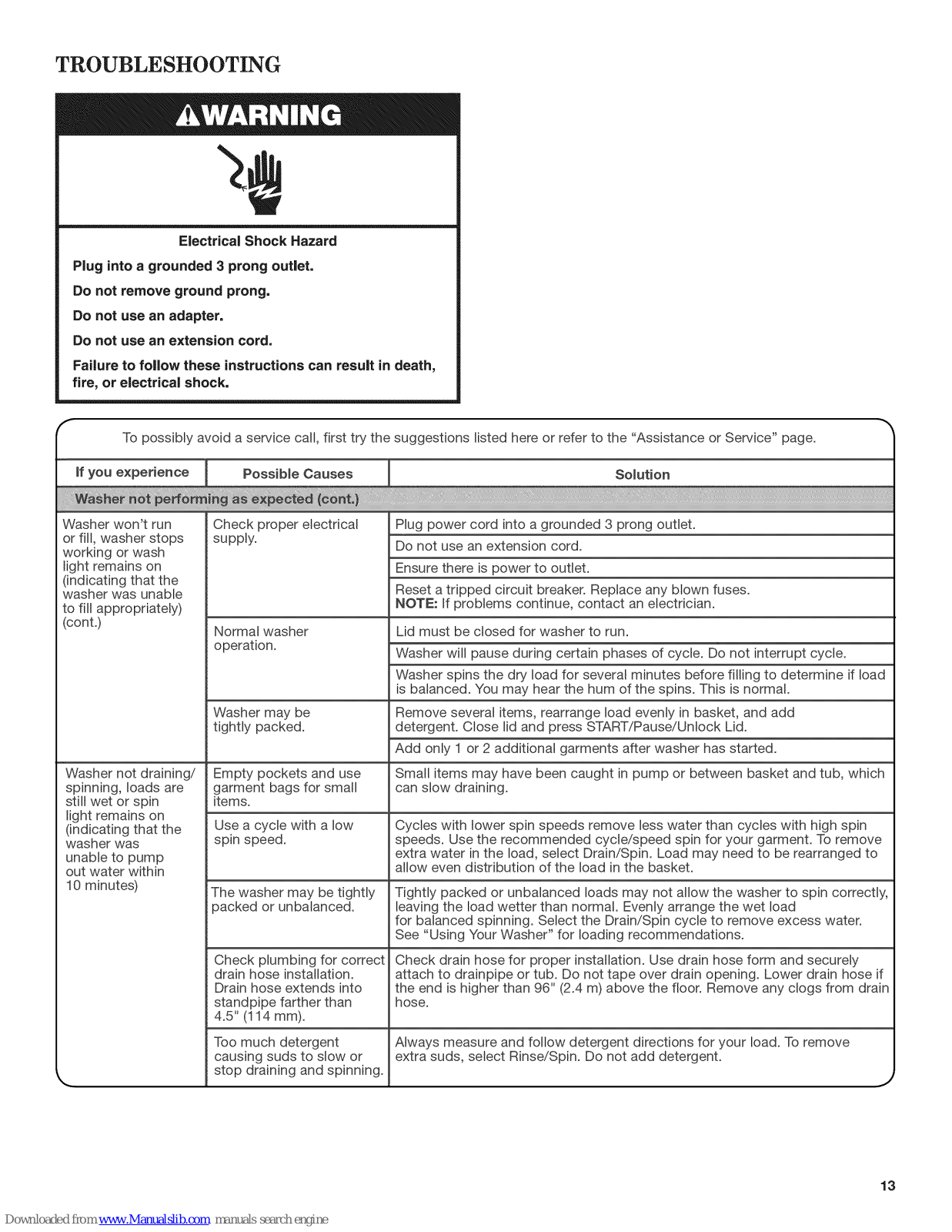

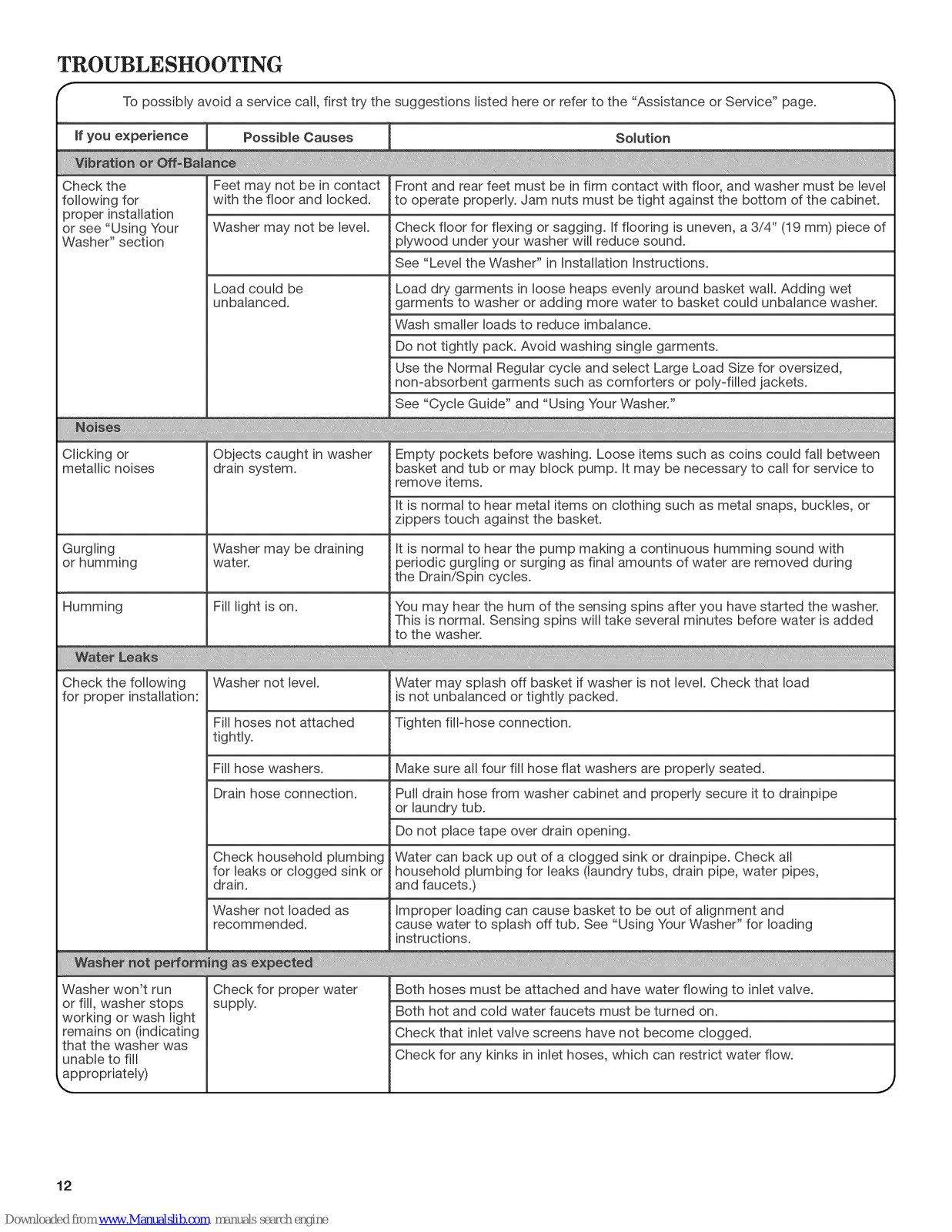

TROUBLESHOOTING .................................................... 12

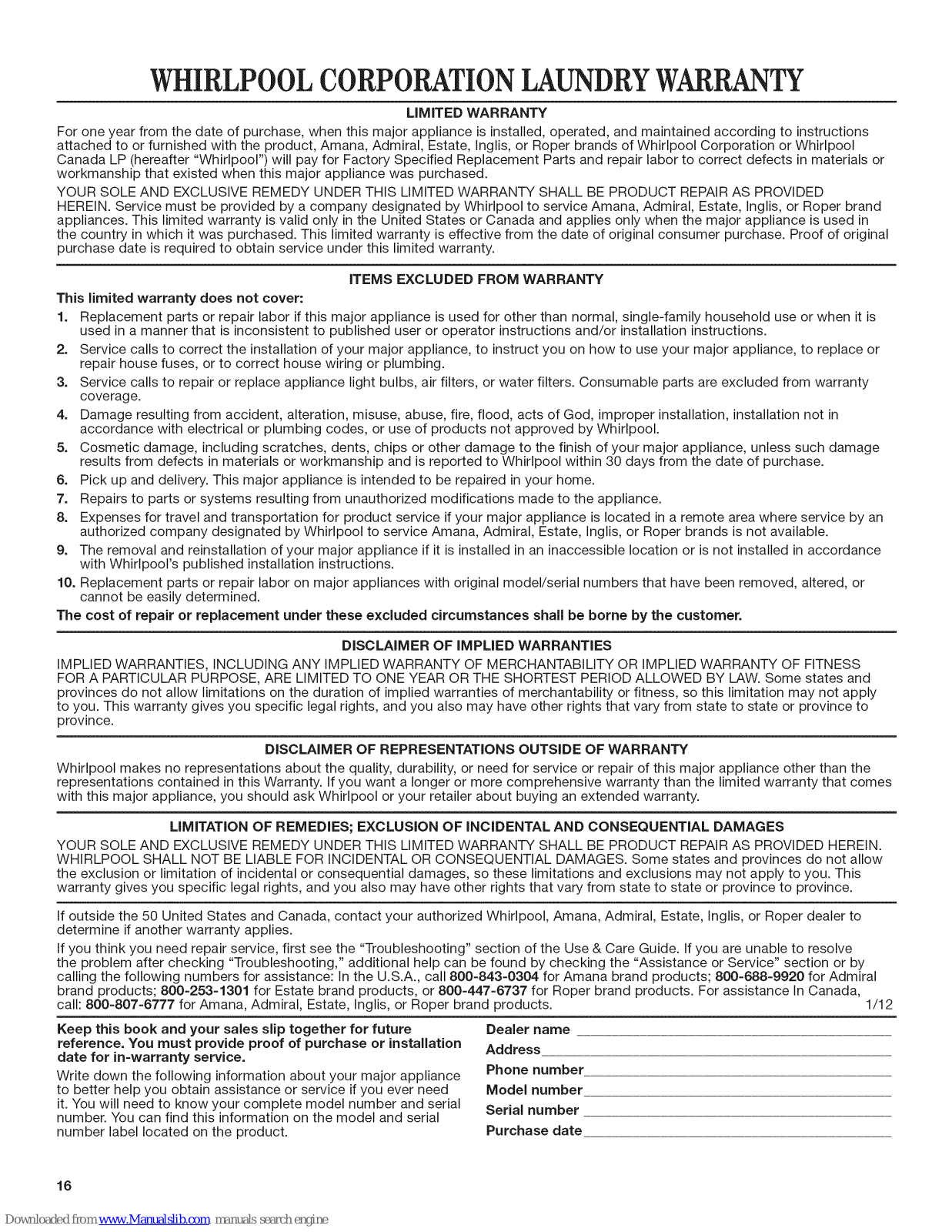

WARRANTY .................................................................... 16

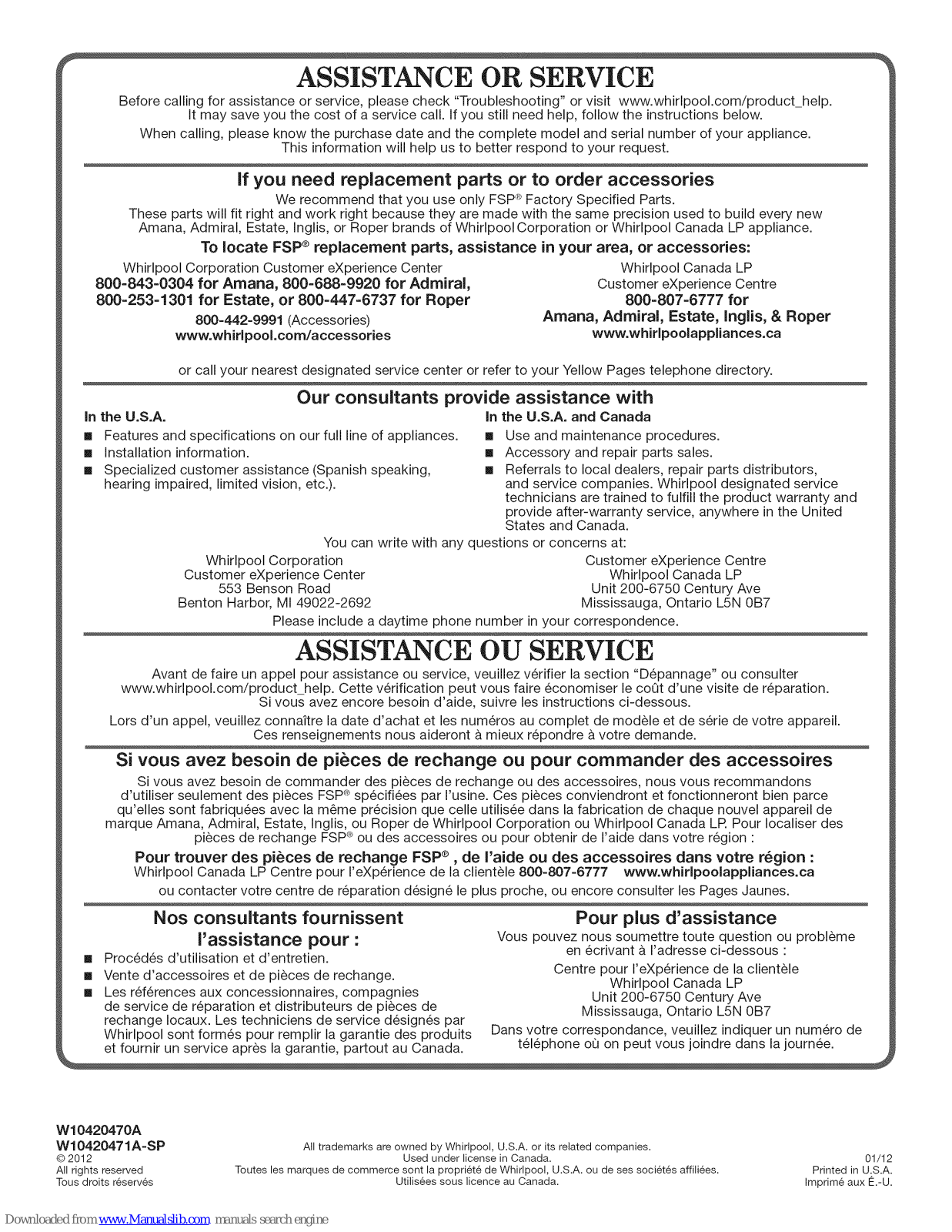

ASSISTANCE OR SERVICE ....................... BACK COVER
PAR LE DESSUS
GUIDE D'UTILISATION ET
D'ENTRETIEN
Table des mati_res
SECURIT¢: DE LA LAVEUSE ......................................... 17

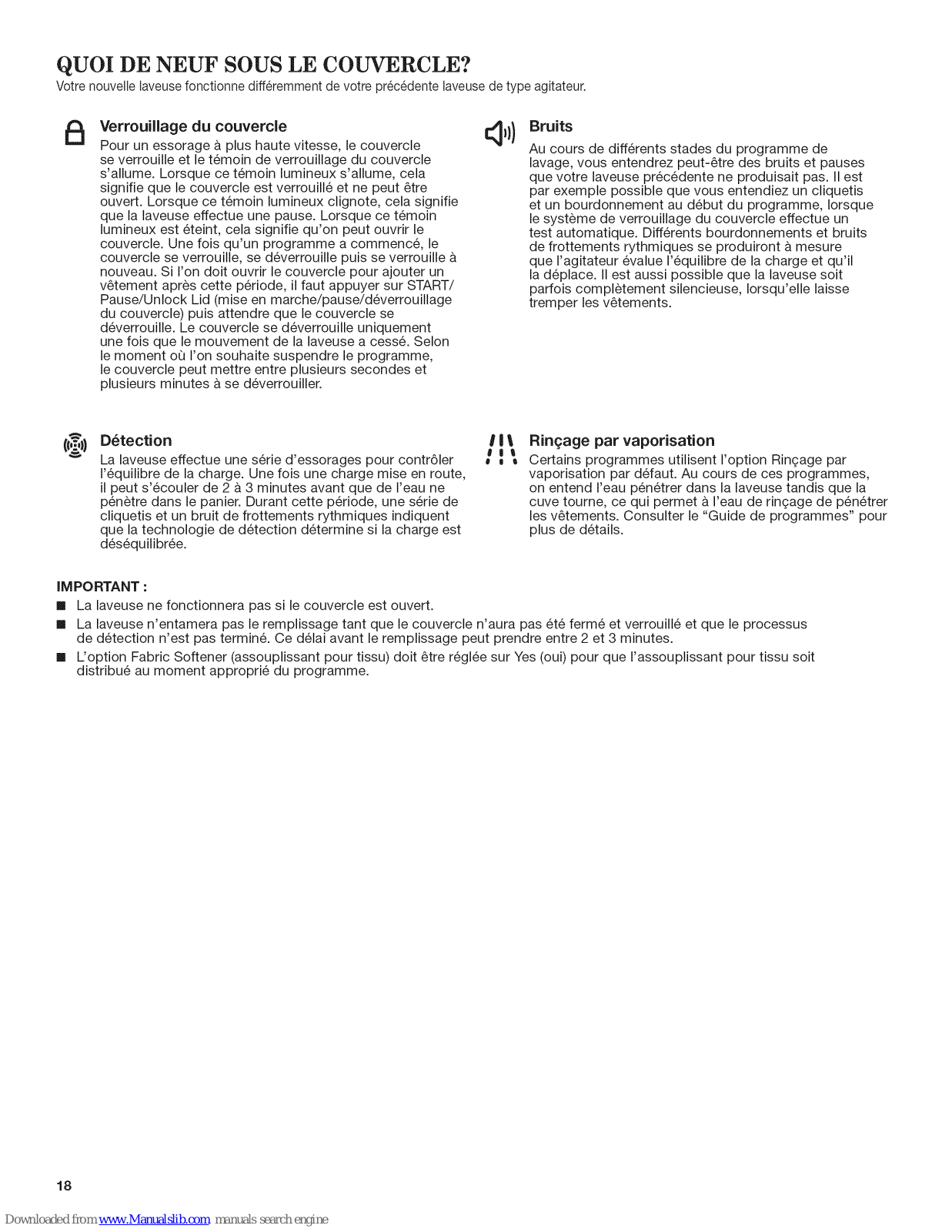

QUOI DE NEUF SOUS LE COUVERCLE? .................... 18

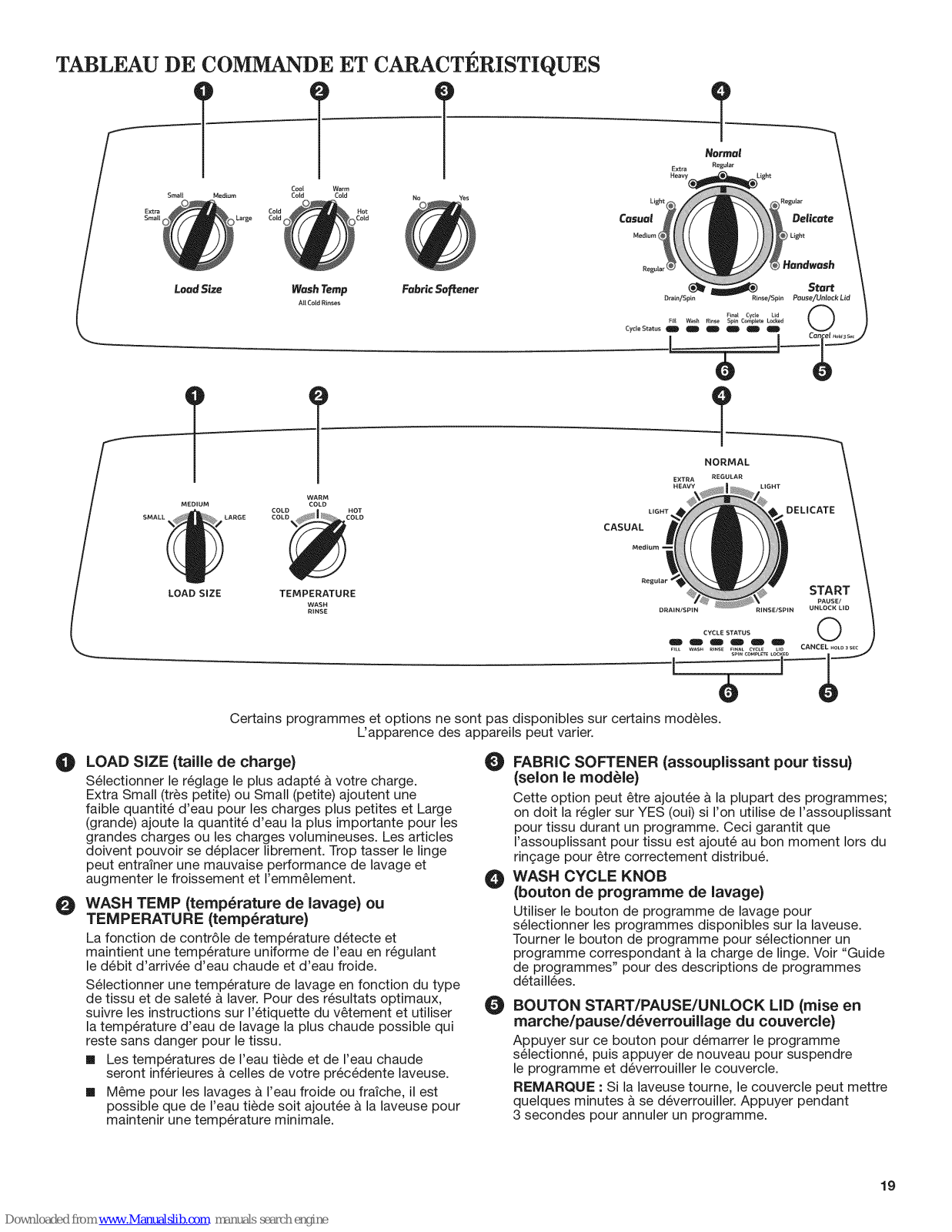

TABLEAU DE COMMANDE
ET CARACTC:RISTIQUES .............................................. 19

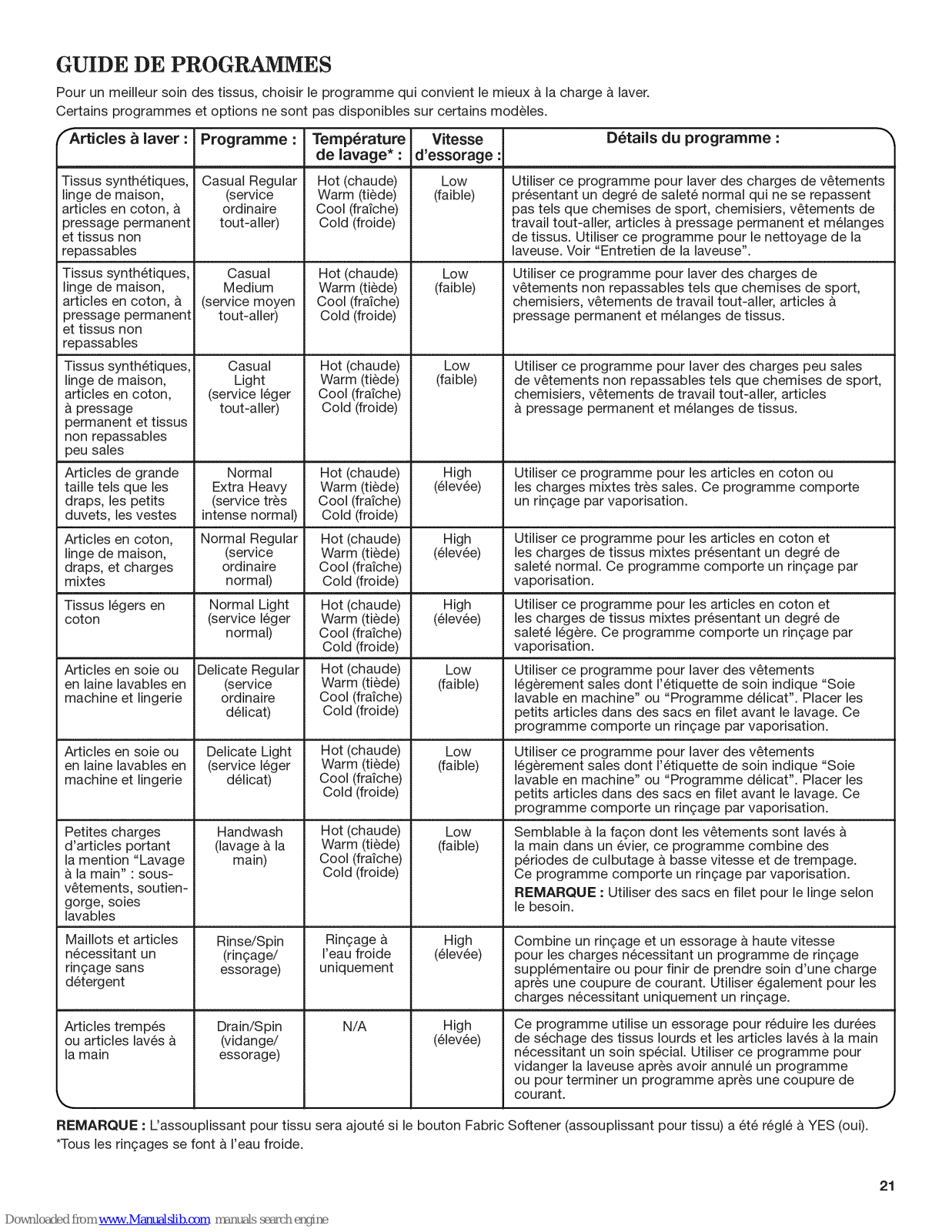

GUIDE DE PROGRAMMES ........................................... 21
UTILISATION DE LA LAVEUSE ..................................... 22

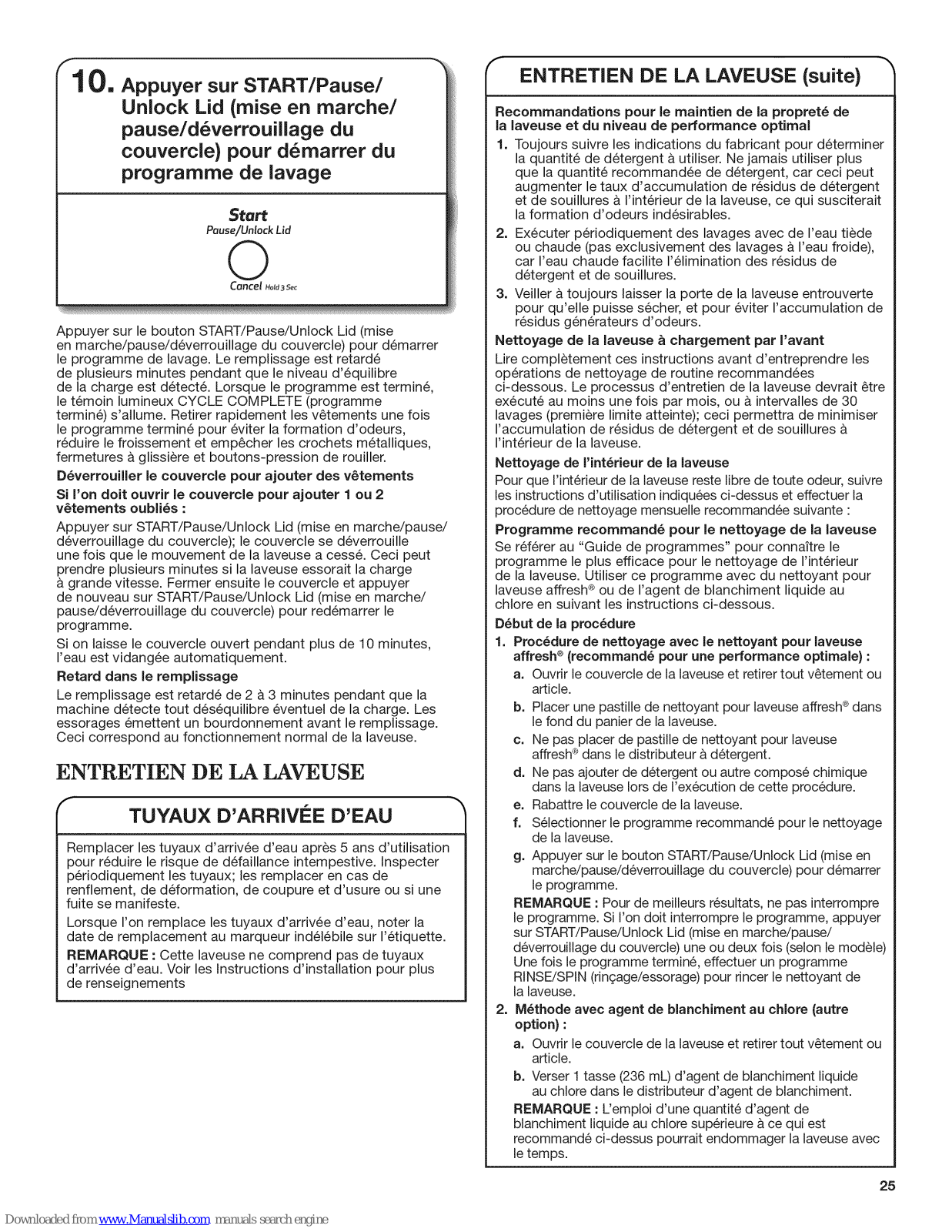

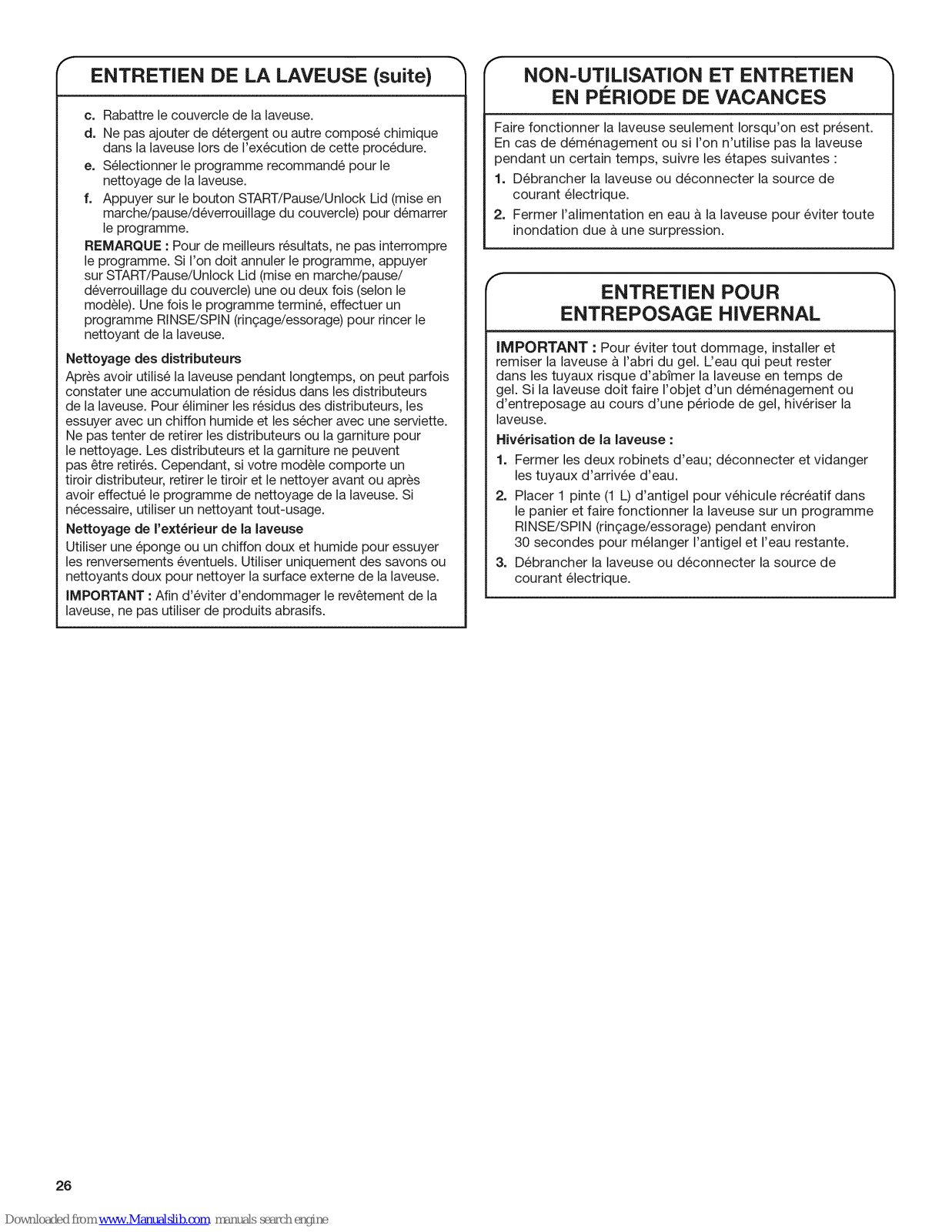

ENTRETIEN DE LA LAVEUSE ....................................... 25

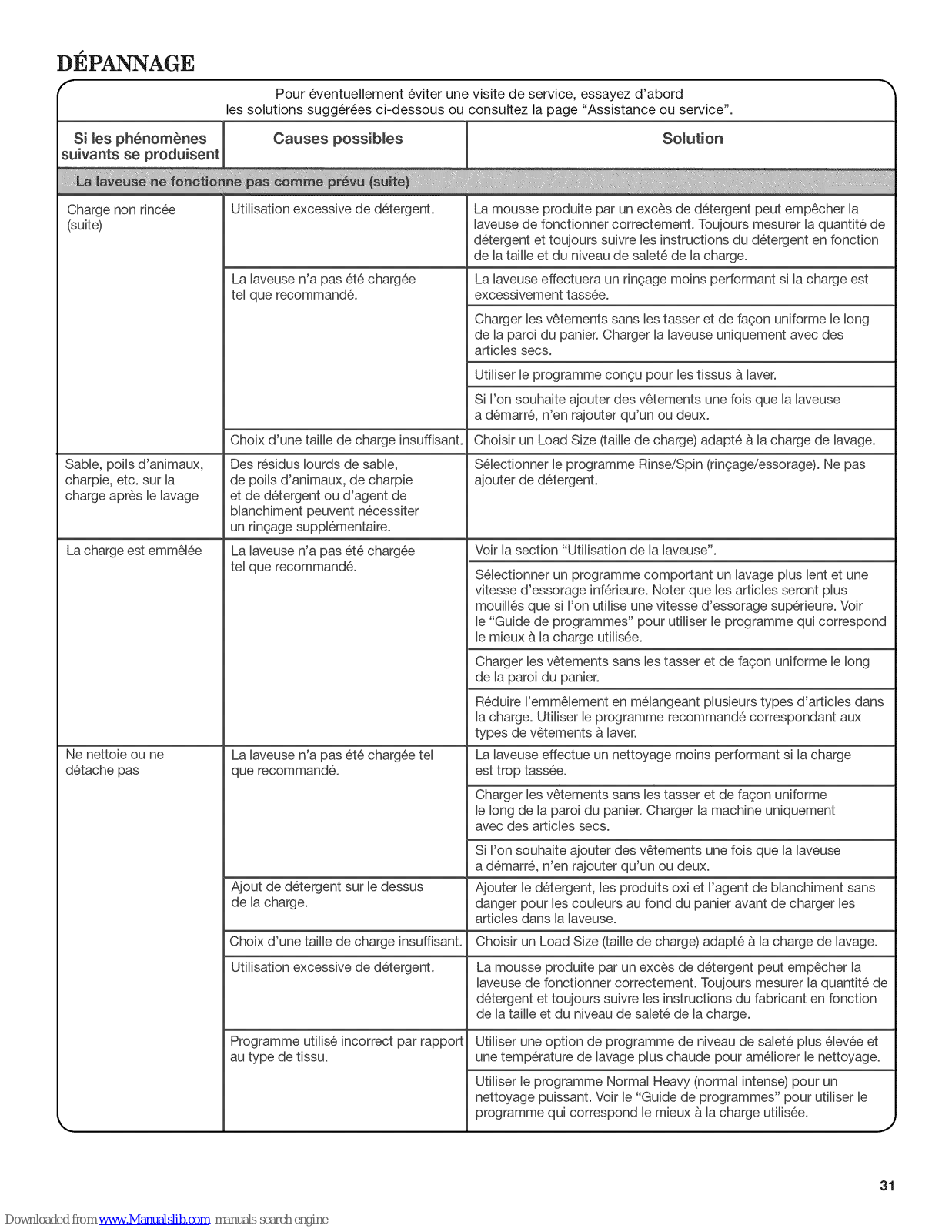

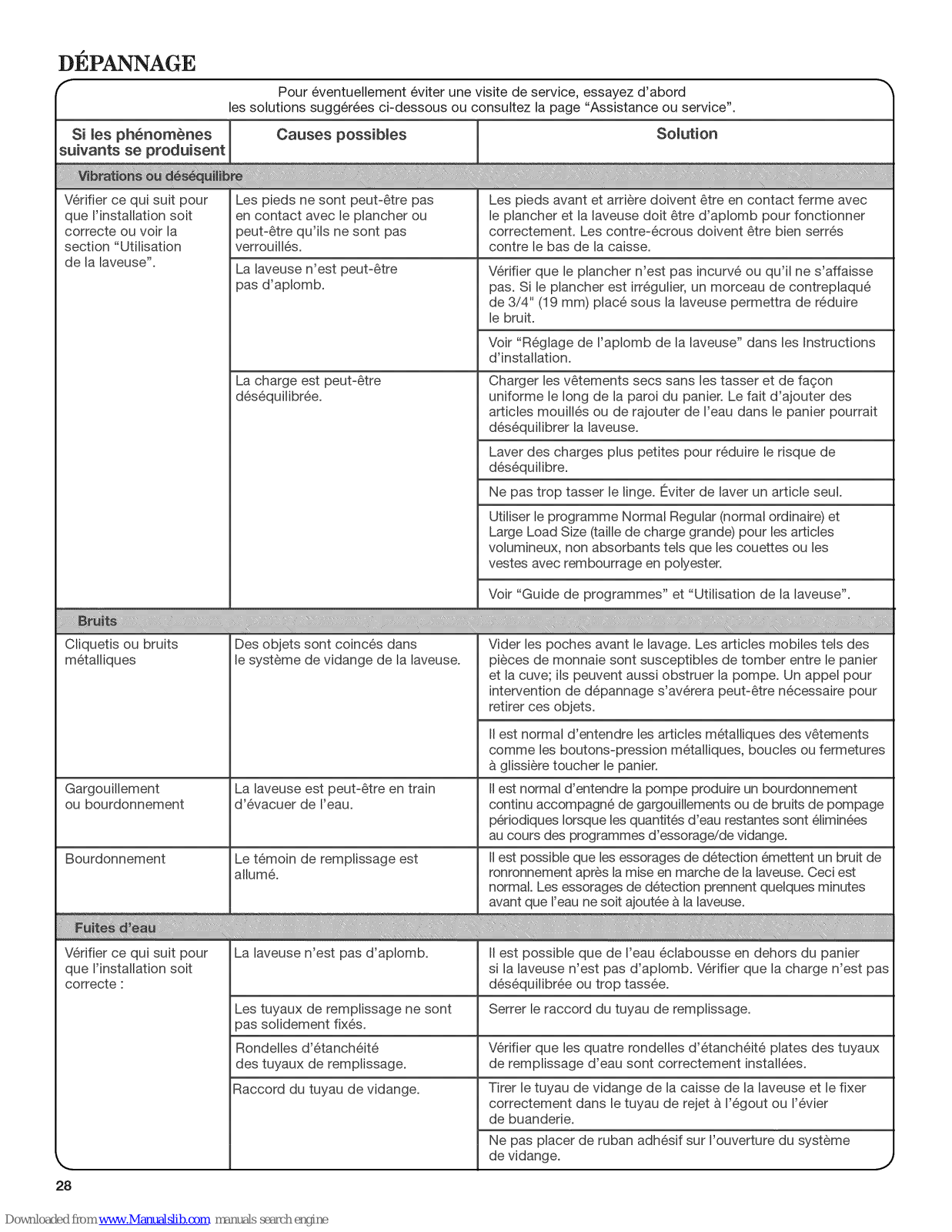

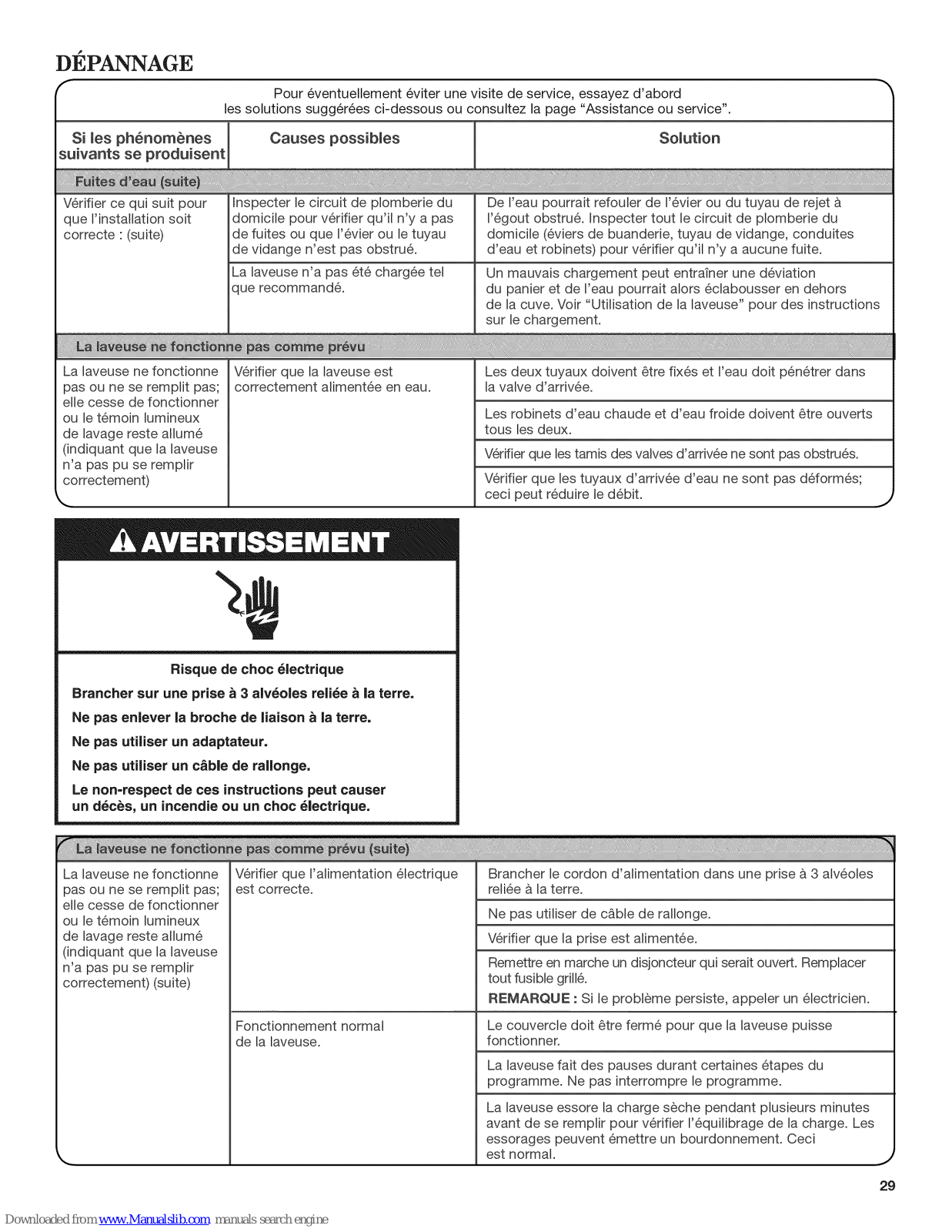

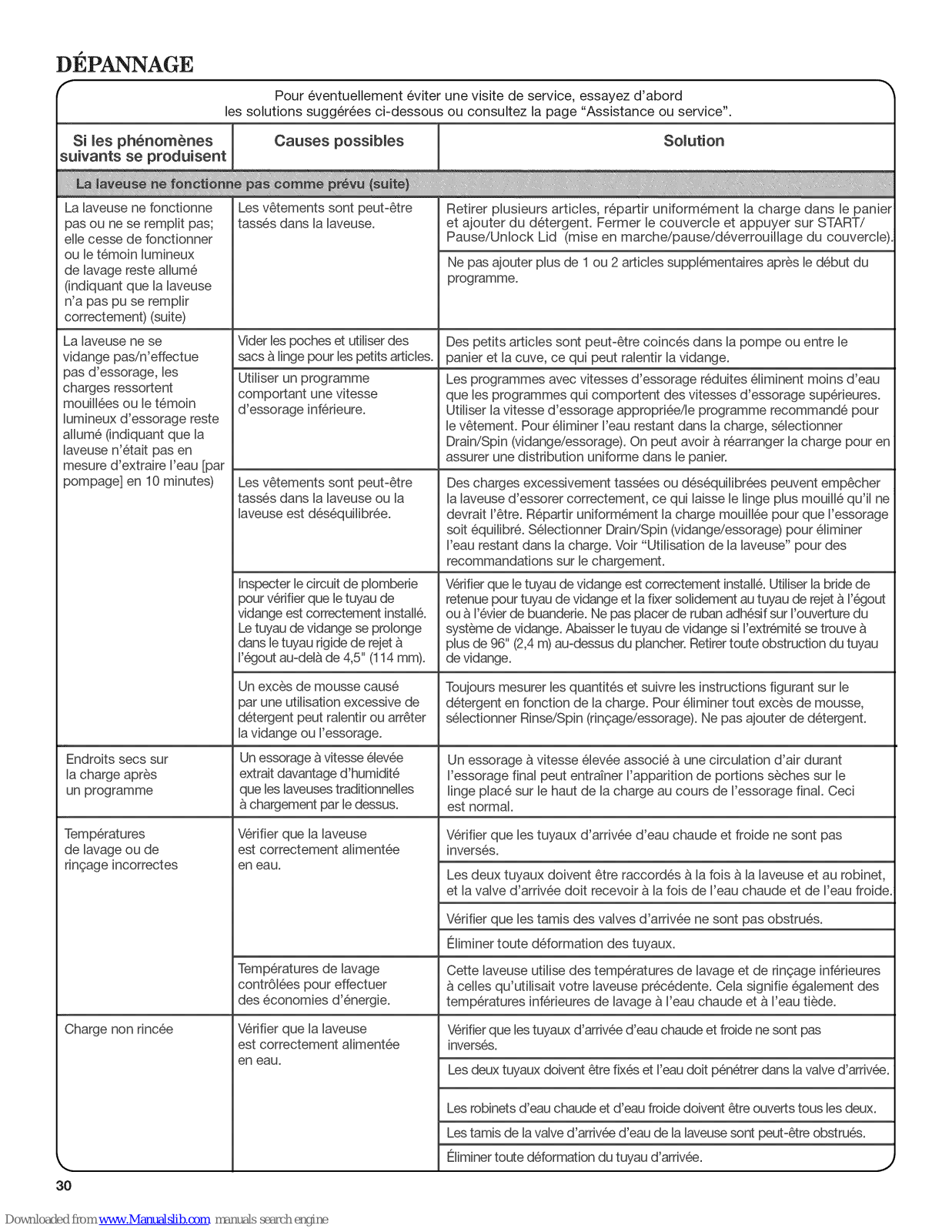

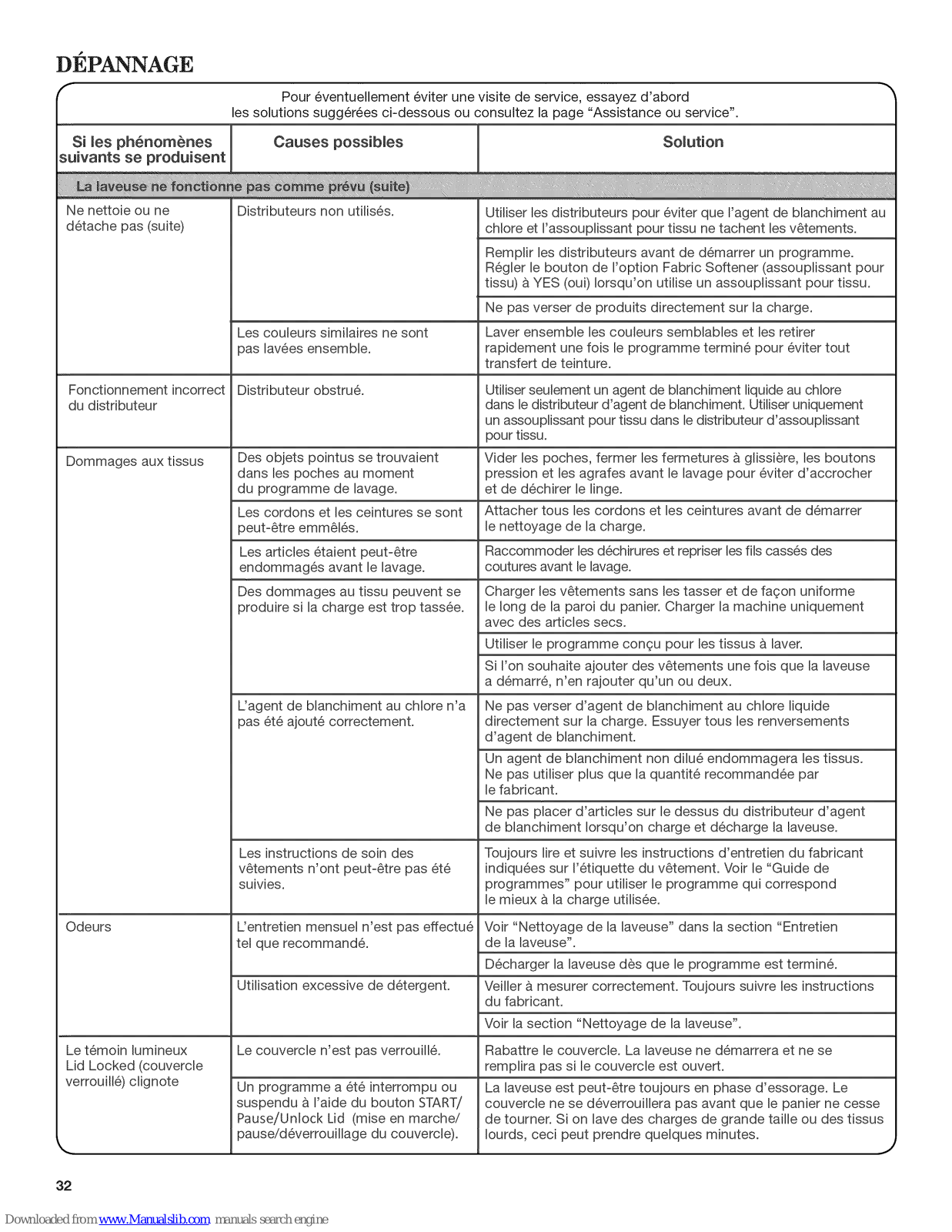

DF:I:PANNAG E .................................................................. 28

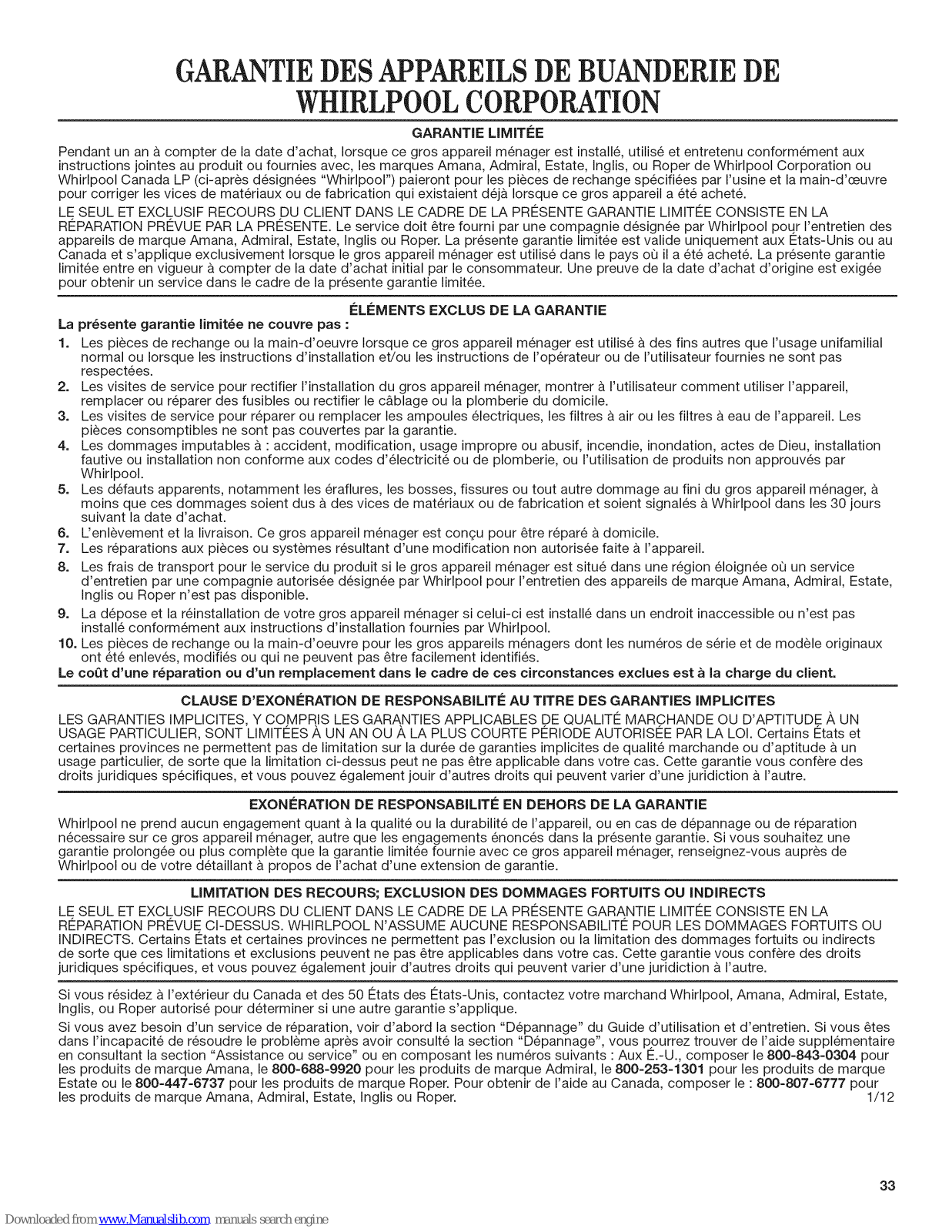

GARANTIE ...................................................................... 33
ASSISTANCE OU SERVICE ..... COUVERTURE ARRI#RE
Para una versi6n de estas instrucciones en espaSol, consulte la pagina de "Ayuda o servicio tecnico'.
W10420470A
W10420471A - SP

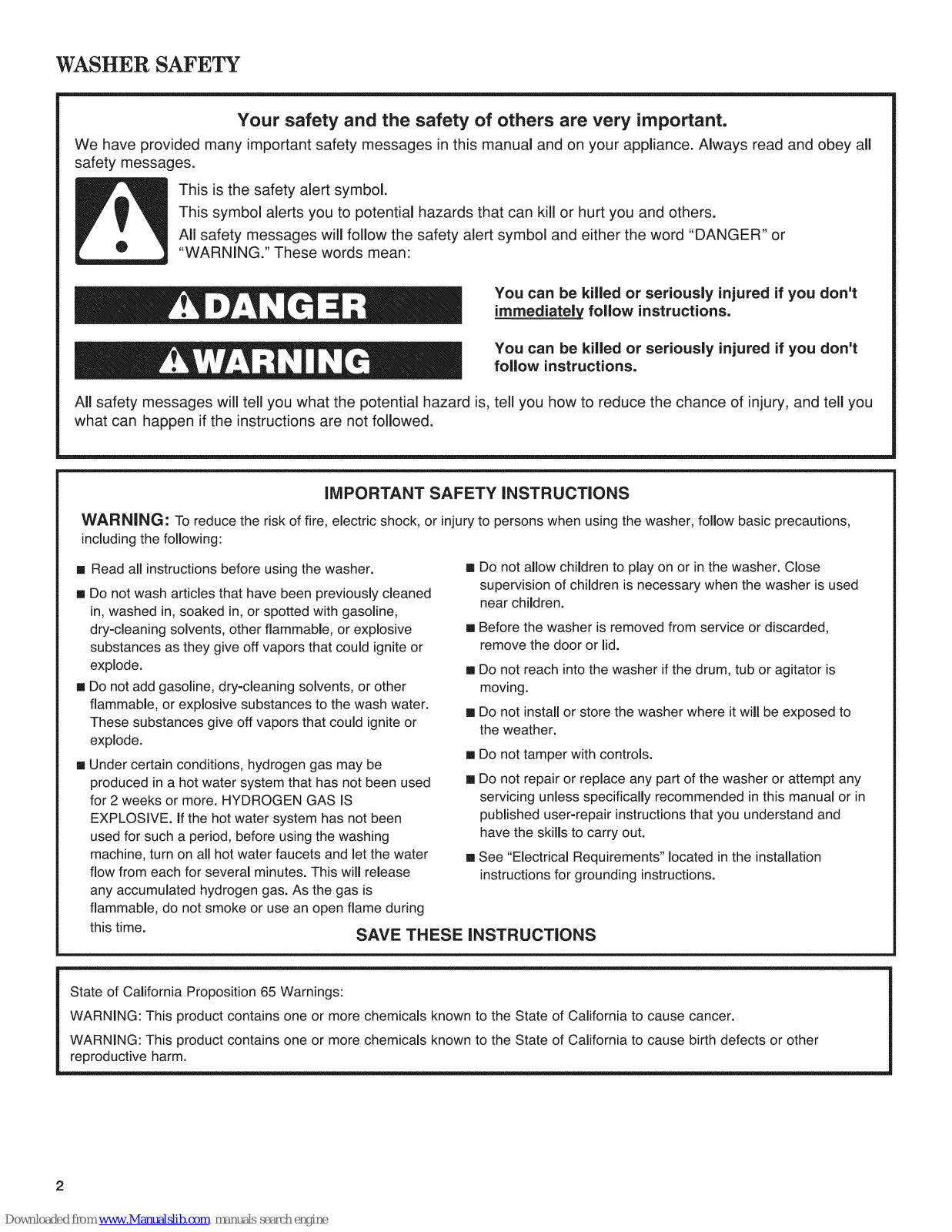

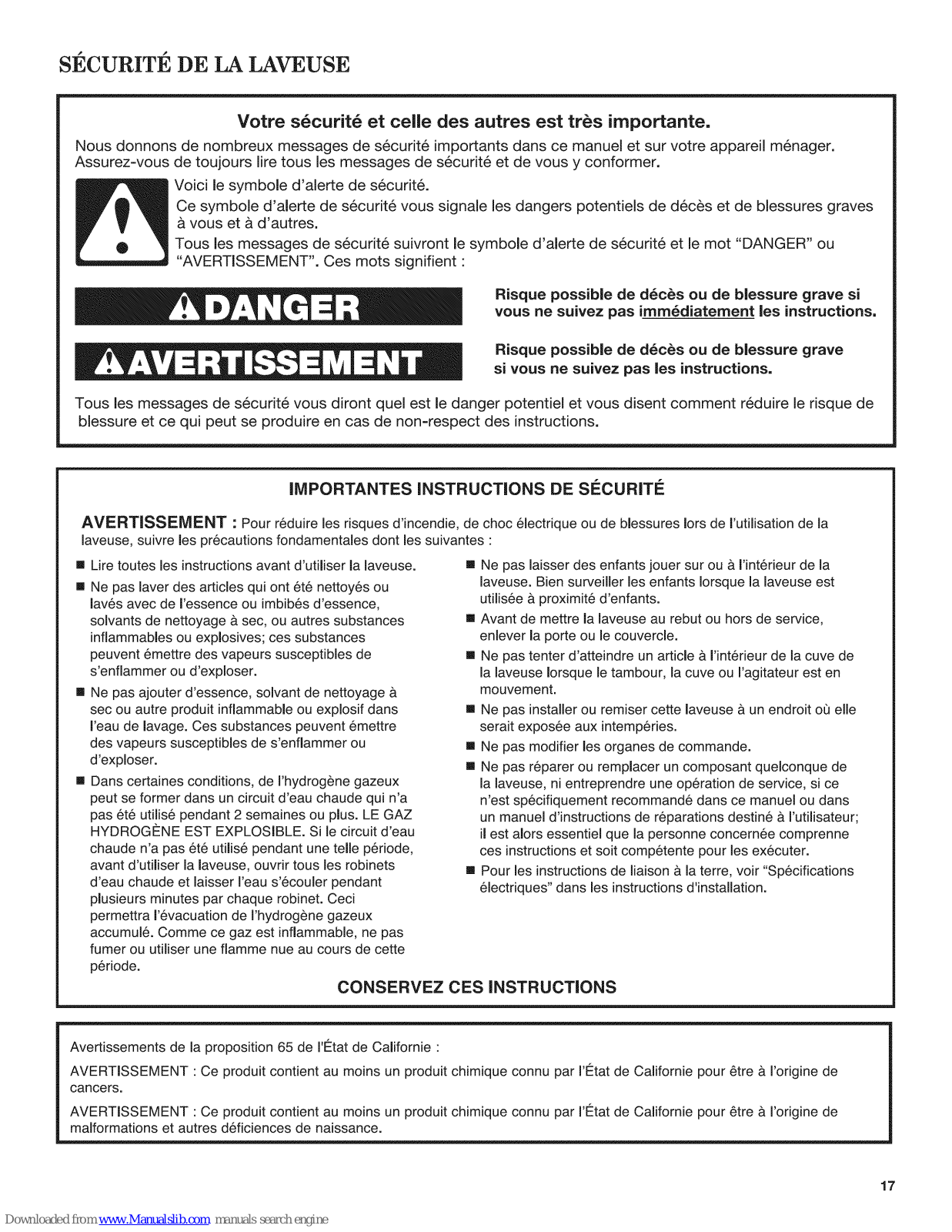

WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,
including the following:
[] Read all instructions before using the washer.
[] Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not add gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
[] Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. Ifthe hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during
this time.
SAVE THESE INSTRUCTIONS
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near cHdren.
Before the washer is removed from service or discarded,
remove the door or lid.
[] Do not reach into the washer if the drum, tub or agitator is
moving.
[] Do not install or store the washer where it will be exposed to
the weather.
[] Do not tamper with controls.
[] Do not repair or replace any part of the washer or attempt any
servicing unless specifically recommended in this manual or in
published user-repair instructions that you understand and
have the skills to carry out.
[] See "Electrical Requirements" located in the installation
instructions for grounding instructions.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
2

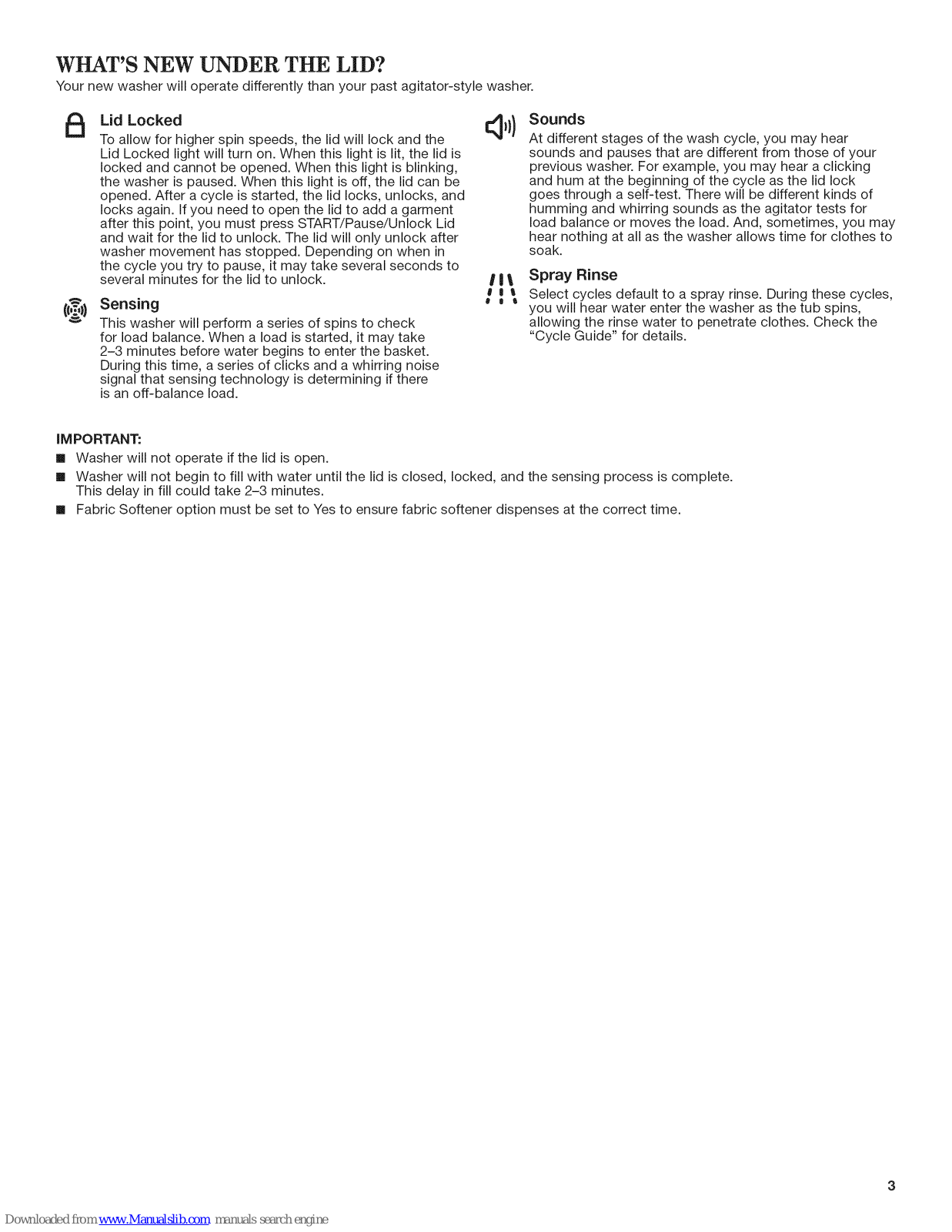

WHAT'S NEW UNDER THE LID?
Your new washer will operate differently than your past agitator-style washer.
Lid,oc.ed @)
To allow for higher spin speeds, the lid will lock and the
Lid Locked light will turn on. When this light is lit, the lid is
locked and cannot be opened. When this light is blinking,
the washer is paused. When this light is off, the lid can be
opened. After a cycle is started, the lid locks, unlocks, and
locks again, if you need to open the lid to add a garment
after this point, you must press START/Pause/Unlock Lid
and wait for the lid to unlock. The lid will only unlock after
washer movement has stopped. Depending on when in
the cycle you try to pause, it may take several seconds to
several minutes for the lid to unlock.
Sensing
÷
This washer will perform a series of spins to check
for load balance. When a load is started, it may take
2-3 minutes before water begins to enter the basket.
During this time, a series of clicks and a whirring noise
signal that sensing technology is determining if there
is an off-balance load.
IMPORTANT:
[] Washer will not operate if the lid is open.
[] Washer will not begin to fill with water until the lid is closed, locked, and the sensing process is complete.
This delay in fill could take 2-3 minutes.
[] Fabric Softener option must be set to Yes to ensure fabric softener dispenses at the correct time.
Sounds
At different stages of the wash cycle, you may hear
sounds and pauses that are different from those of your
previous washer. For example, you may hear a clicking
and hum at the beginning of the cycle as the lid lock
goes through a self-test. There will be different kinds of
humming and whirring sounds as the agitator tests for
load balance or moves the load. And, sometimes, you may
hear nothing at all as the washer allows time for clothes to
soak.
Spray Rinse
Ill
QII
Select cycles default to a spray rinse. During these cycles,
you will hear water enter the washer as the tub spins,
allowing the rinse water to penetrate clothes. Check the
"Cycle Guide" for details.

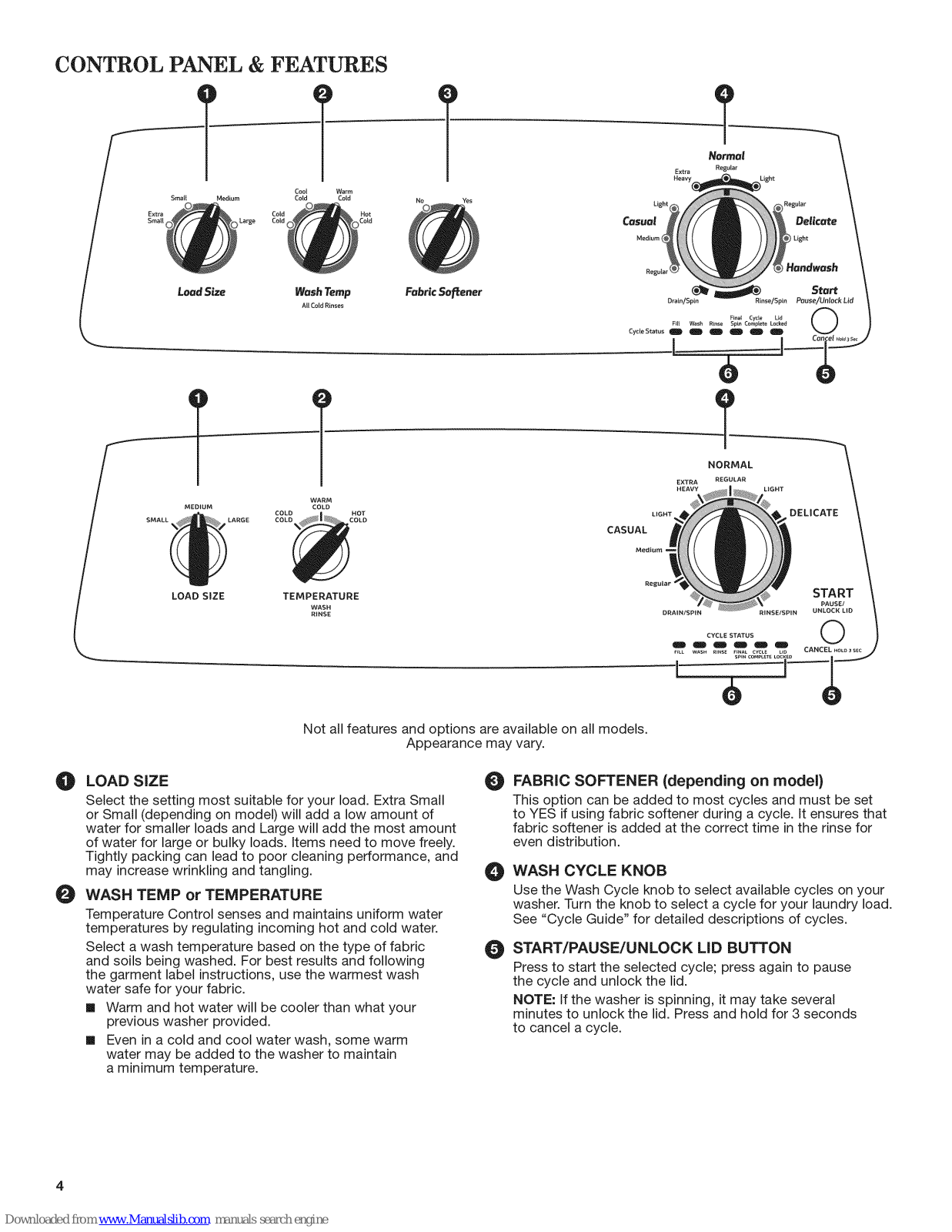

CONTROL PANEL & FEATURES
Small Cold Cold
Medium
Extra Cold
Load 5ize Wash Temp
_! HOT
Large
Cool Warm
All Cold Rinses
Fabric Softener
Not all features and options are available on all models.
O LOAD SiZE
Select the setting most suitable for your load. Extra Small
or Small (depending on model) will add a low amount of
water for smaller loads and Large will add the most amount
of water for large or bulky loads. Items need to move freely.
Tightly packing can lead to poor cleaning performance, and
may increase wrinkling and tangling.
WASH TEMP or TEMPERATURE
Temperature Control senses and maintains uniform water
temperatures by regulating incoming hot and cold water.
Select a wash temperature based on the type of fabric
and soils being washed. For best results and following
the garment label instructions, use the warmest wash
water safe for your fabric.
[] Warm and hot water will be cooler than what your
previous washer provided.
[] Even in a cold and cool water wash, some warm
water may be added to the washer to maintain
a minimum temperature.
Appearance may vary.
FABRIC SOFTENER (depending on model)
This option can be added to most cycles and must be set
to YES if using fabric softener during a cycle. It ensures that
fabric softener is added at the correct time in the rinse for
even distribution.
WASH CYCLE KNOB
Use the Wash Cycle knob to select available cycles on your
washer. Turn the knob to select a cycle for your laundry load.
See "Cycle Guide" for detailed descriptions of cycles.
START/PAUSE/UNLOCK LiD BUTTON
Press to start the selected cycle; press again to pause
the cycle and unlock the lid.
NOTE: If the washer is spinning, it may take several
minutes to unlock the lid. Press and hold for 3 seconds
to cancel a cycle.
4

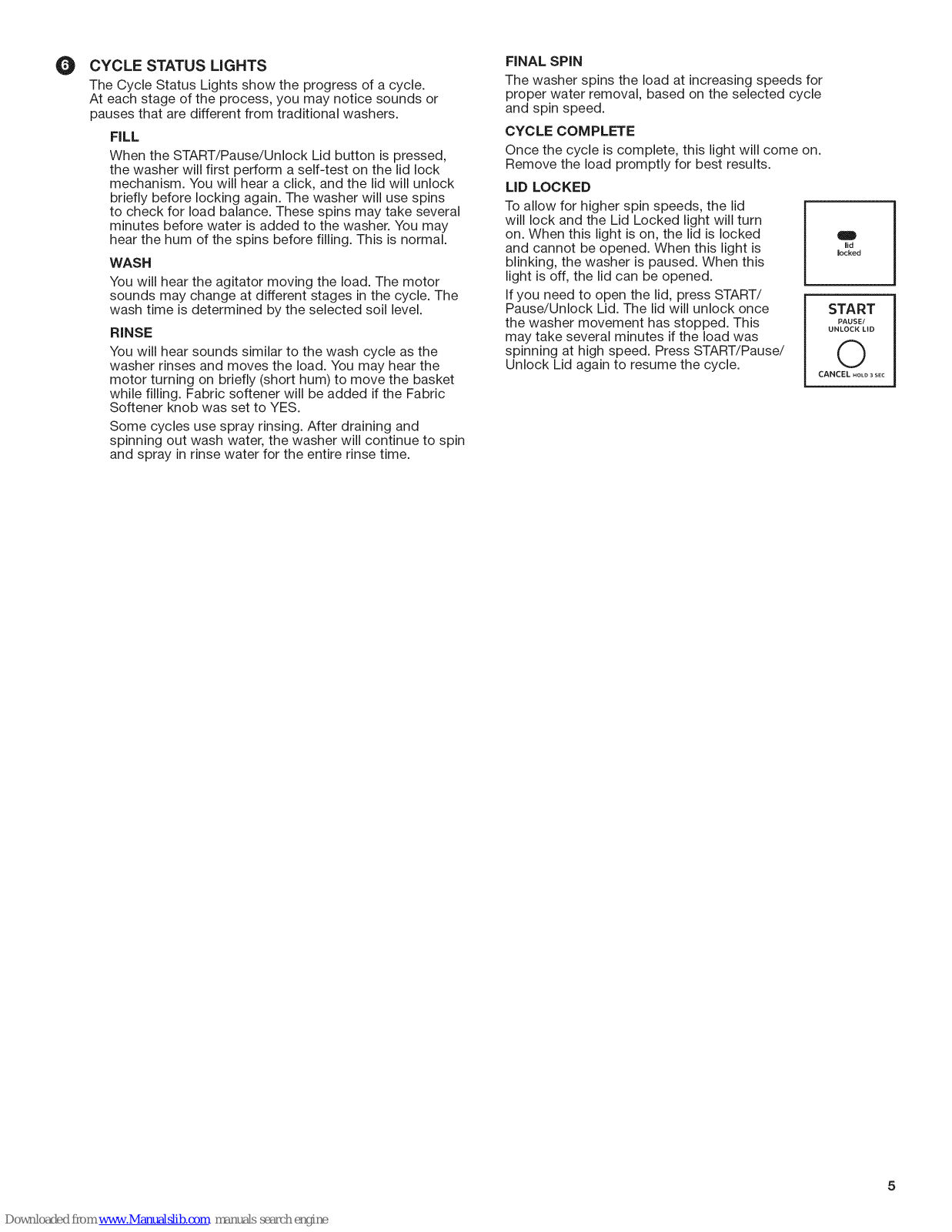

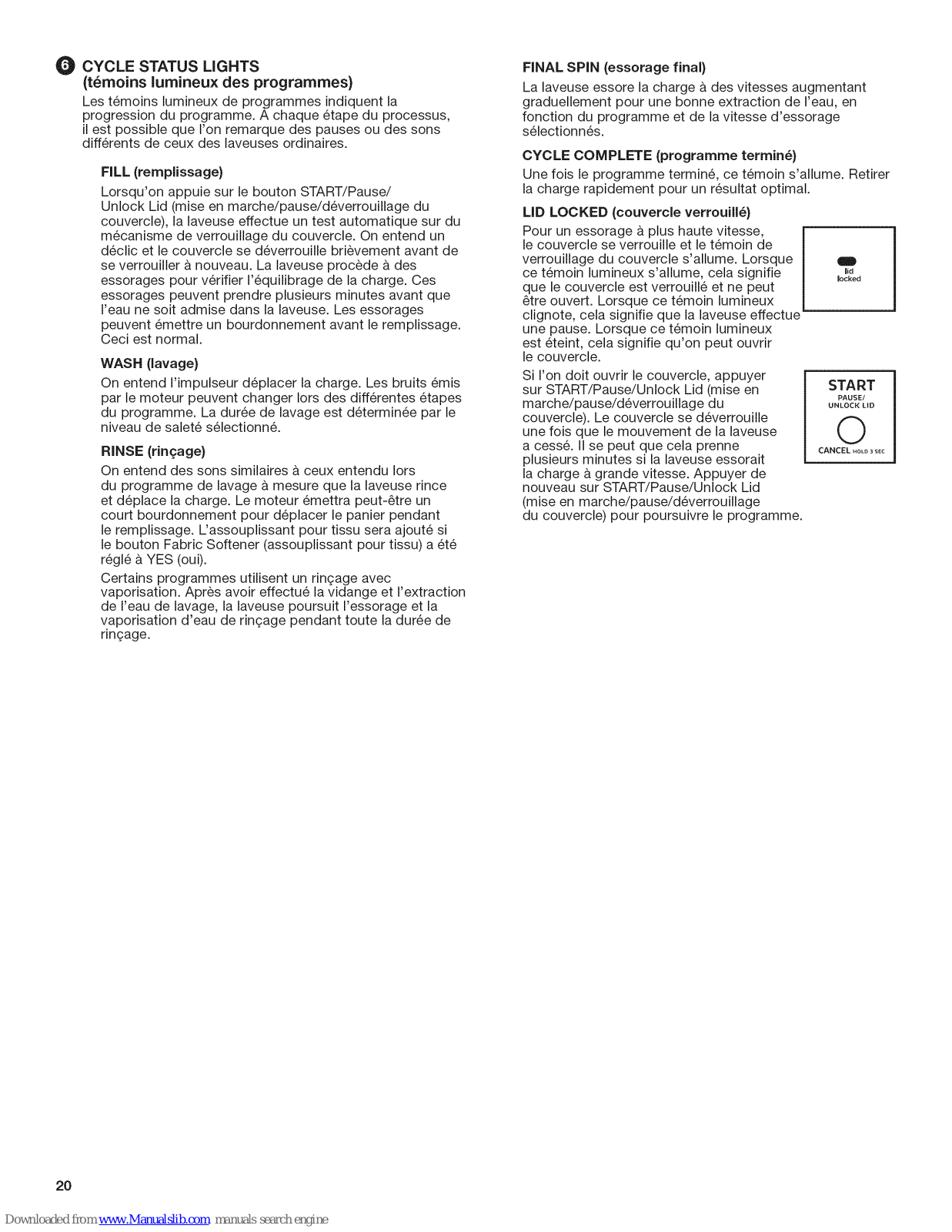

CYCLE STATUS LIGHTS
@
The Cycle Status Lights show the progress of a cycle.
At each stage of the process, you may notice sounds or
pauses that are different from traditional washers.
FILL
When the START/Pause/Unlock Lid button is pressed,
the washer will first perform a self-test on the lid lock
mechanism. You will hear a click, and the lid will unlock
briefly before locking again. The washer will use spins
to check for load balance. These spins may take several
minutes before water is added to the washer. You may
hear the hum of the spins before filling. This is normal.
WASH
You will hear the agitator moving the load. The motor
sounds may change at different stages in the cycle. The
wash time is determined by the selected soil level.
RINSE
You will hear sounds similar to the wash cycle as the
washer rinses and moves the load. You may hear the
motor turning on briefly (short hum) to move the basket
while filling. Fabric softener will be added if the Fabric
Softener knob was set to YES.
Some cycles use spray rinsing. After draining and
spinning out wash water, the washer will continue to spin
and spray in rinse water for the entire rinse time.
FINAL SPIN
The washer spins the load at increasing speeds for
proper water removal, based on the selected cycle
and spin speed.
CYCLE COMPLETE
Once the cycle is complete, this light will come on.
Remove the load promptly for best results.
LID LOCKED
To allow for higher spin speeds, the lid
will lock and the Lid Locked light will turn
on. When this light is on, the lid is locked
and cannot be opened. When this light is
blinking, the washer is paused. When this
light is off, the lid can be opened.
If you need to open the lid, press START/
Pause/Unlock Lid. The lid will unlock once
the washer movement has stopped. This
may take several minutes if the load was
spinning at high speed. Press START/Pause/
Unlock Lid again to resume the cycle.
O
lid
locked
START
PAUSE/
UNLOCK LID
©
CANCEL _OLO 3 SEC

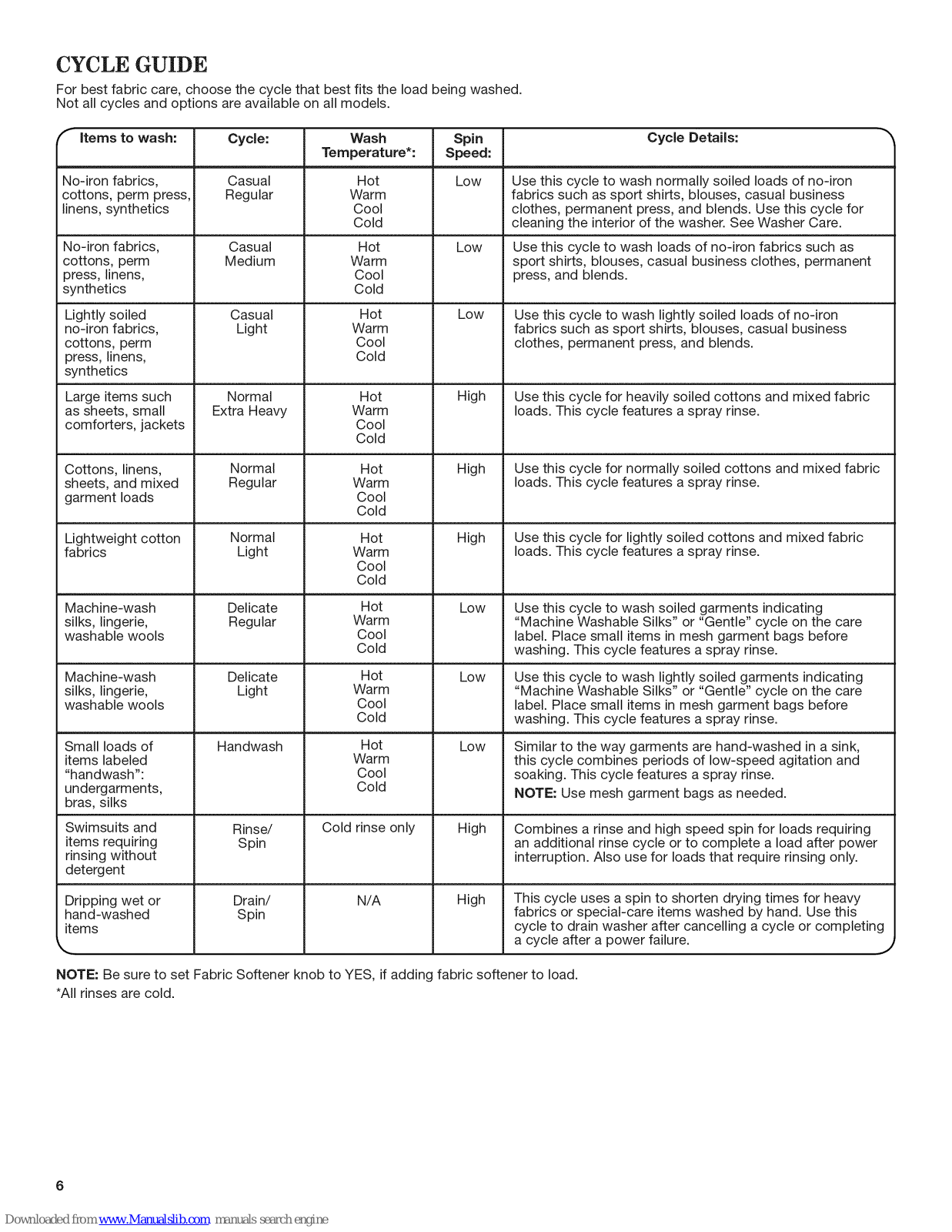

CYCLE GUIDE
For best fabric care, choose the cycle that best fits the load being washed.
Not all cycles and options are available on all models.
f items to wash:
No-iron fabrics,
cottons, perm press,
linens, synthetics
No-iron fabrics,
cottons, perm
press, linens,
synthetics
Lightly soiled
no-iron fabrics,
cottons, perm
press, linens,
synthetics
Large items such
as sheets, small
comforters, jackets
Cottons, linens,
sheets, and mixed
garment loads
Lightweight cotton
fabrics
Machine-wash
silks, lingerie,
washable wools
Machine-wash
silks, lingerie,
washable wools
Small loads of
items labeled
"handwash":
undergarments,
bras, silks
Swimsuits and
items requiring
rinsing without
detergent
Cycle:
Casual
Regular
Casual
Medium
Casual
Light
Normal
Extra Heavy
Normal
Regular
Normal
Light
Delicate
Regular
Delicate
Light
Handwash
Rinse/
Spin
Wash
Temperature*:
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Hot
Warm
Cool
Cold
Cold rinse only
Spin
Speed:
Low
Low
Low
High
High
High
Low
Low
Low
High
Cycle Details:
Use this cycle to wash normally soiled loads of no-iron
fabrics such as sport shirts, blouses, casual business
clothes, permanent press, and blends. Use this cycle for
cleaning the interior of the washer. See Washer Care.
Use this cycle to wash loads of no-iron fabrics such as
sport shirts, blouses, casual business clothes, permanent
press, and blends.
Use this cycle to wash lightly soiled loads of no-iron
fabrics such as sport shirts, blouses, casual business
clothes, permanent press, and blends.
Use this cycle for heavily soiled cottons and mixed fabric
loads. This cycle features a spray rinse.
Use this cycle for normally soiled cottons and mixed fabric
loads. This cycle features a spray rinse.
Use this cycle for lightly soiled cottons and mixed fabric
loads. This cycle features a spray rinse.
Use this cycle to wash soiled garments indicating
"Machine Washable Silks" or "Gentle" cycle on the care
label. Place small items in mesh garment bags before
washing. This cycle features a spray rinse.
Use this cycle to wash lightly soiled garments indicating
"Machine Washable Silks" or "Gentle" cycle on the care
label. Place small items in mesh garment bags before
washing. This cycle features a spray rinse.
Similar to the way garments are hand-washed in a sink,
this cycle combines periods of low-speed agitation and
soaking. This cycle features a spray rinse.
NOTE: Use mesh garment bags as needed.
Combines a rinse and high speed spin for loads requiring
an additional rinse cycle or to complete a load after power
interruption. Also use for loads that require rinsing only.
Dripping wet or
hand-washed
items
NOTE: Be sure to set Fabric Softener knob to YES, if adding fabric softener to load.
*All rinses are cold.
6
Drain/
Spin
N/A
High
This cycle uses a spin to shorten drying times for heavy
fabrics or special-care items washed by hand. Use this
cycle to drain washer after cancelling a cycle or completing
a cycle after a power failure, j

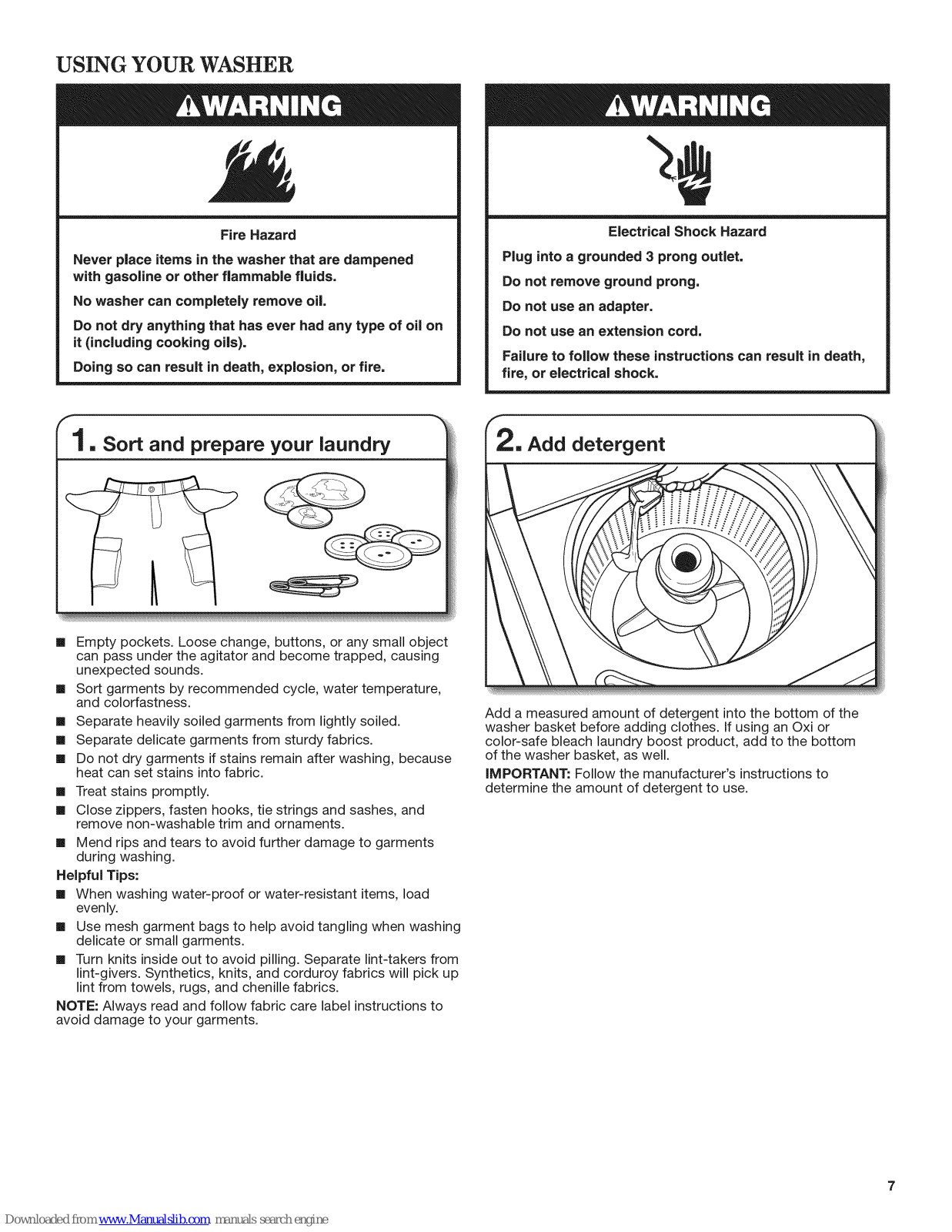

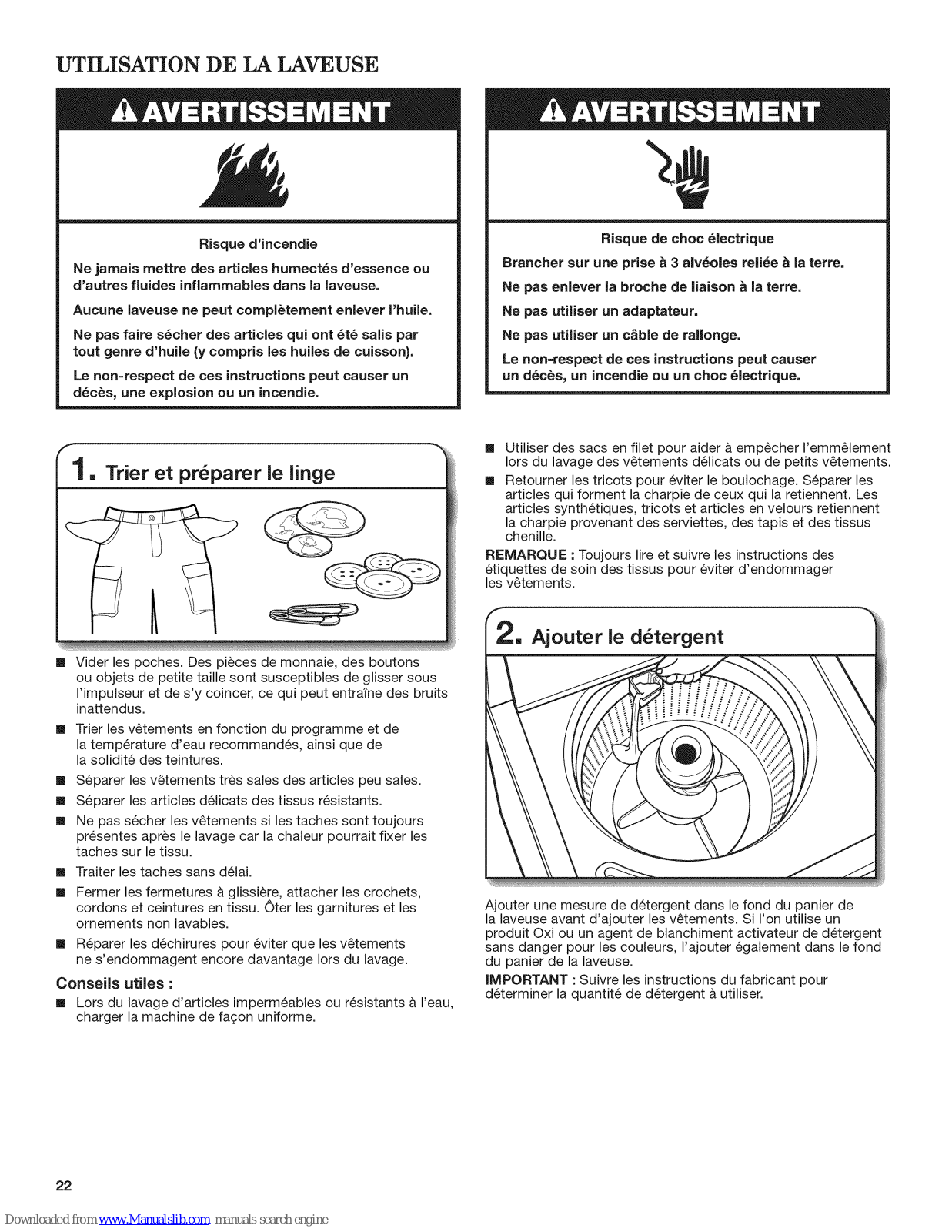

USING YOUR WASHER
Fire Hazard
Never place items in the washer that are dampened
with gasoline or other flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it (including cooking oils).
Doing so can result in death, explosion, or fire.
, Sort and prepare your laundry
@
[] Empty pockets. Loose change, buttons, or any small object
can pass under the agitator and become trapped, causing
unexpected sounds.
[] Sort garments by recommended cycle, water temperature,
and colorfastness.
[] Separate heavily soiled garments from lightly soiled.
[] Separate delicate garments from sturdy fabrics.
[] Do not dry garments if stains remain after washing, because
heat can set stains into fabric.
[] Treat stains promptly.
[] Close zippers, fasten hooks, tie strings and sashes, and
remove non-washable trim and ornaments.
[] Mend rips and tears to avoid further damage to garments
during washing.
Helpful Tips:
[] When washing water-proof or water-resistant items, load
evenly.
[] Use mesh garment bags to help avoid tangling when washing
delicate or small garments.
[] Turn knits inside out to avoid pilling. Separate lint-takers from
lint-givers. Synthetics, knits, and corduroy fabrics will pick up
lint from towels, rugs, and chenille fabrics.
NOTE: Always read and follow fabric care label instructions to
avoid damage to your garments.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Add detergent
Add a measured amount of detergent into the bottom of the
washer basket before adding clothes. If using an Oxi or
color-safe bleach laundry boost product, add to the bottom
of the washer basket, as well.
iMPORTANT: Follow the manufacturer's instructions to
determine the amount of detergent to use.

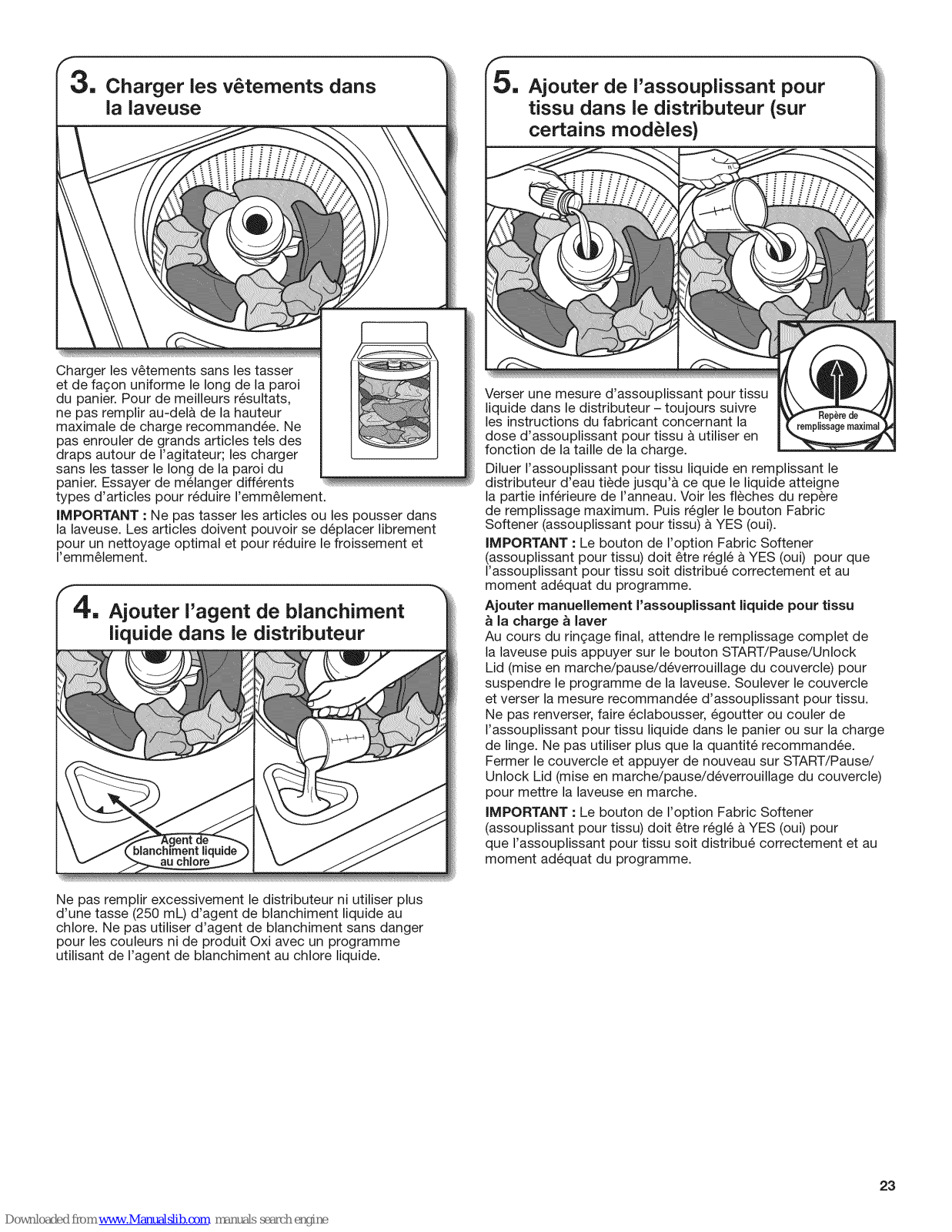

Load garments in loose heaps evenly
around basket wall. For best results, do
not pack the load tightly. Do not wrap
large items such as sheets around the
agitator; load them in loose piles around
the sides of the basket. Try mixing
different sized items to reduce tangling
IMPORTANT: Do not tightly pack or force items into washer.
Items need to move freely for best cleaning and to reduce
wrinkling and tangling.
dispenser
(on some models)
Pour a measured amount of liquid fabric
softener into dispenser; always follow
manufacturer's directions for correct amount
of fabric softener based on your load size.
Dilute liquid fabric softener by filling the dispenser with warm
water until liquid reaches the underside of the rim. See Max Fill
line arrows. Then set Fabric Softener option knob to YES.
IMPORTANT: Fabric Softener option knob must be set to YES
to ensure proper distribution at correct time in cycle.
Adding Liquid Fabric Softener Manually to Wash Load
During the final rinse, wait until the washer has completed filling,
press the START/Pause/Unlock Lid button to pause the washer.
Lift the lid and add the measured recommended amount of liquid
fabric softener. Do not allow liquid fabric softener to spill, splash,
drip, or run into the basket or on load. Do not use more than
the recommended amount. Close the lid and press the START/
Pause/Unlock Lid button again to start the washer.
IMPORTANT: Fabric Softener option knob must be set to YES
to ensure proper distribution of the fabric softener during the
rinse portion of the cycle.
Chlorine Bleach
Do not overfill, dilute, or use more than 1 cup (250 mL).
Do not use color-safe bleach or Oxi products in the same
cycle with liquid chlorine bleach.

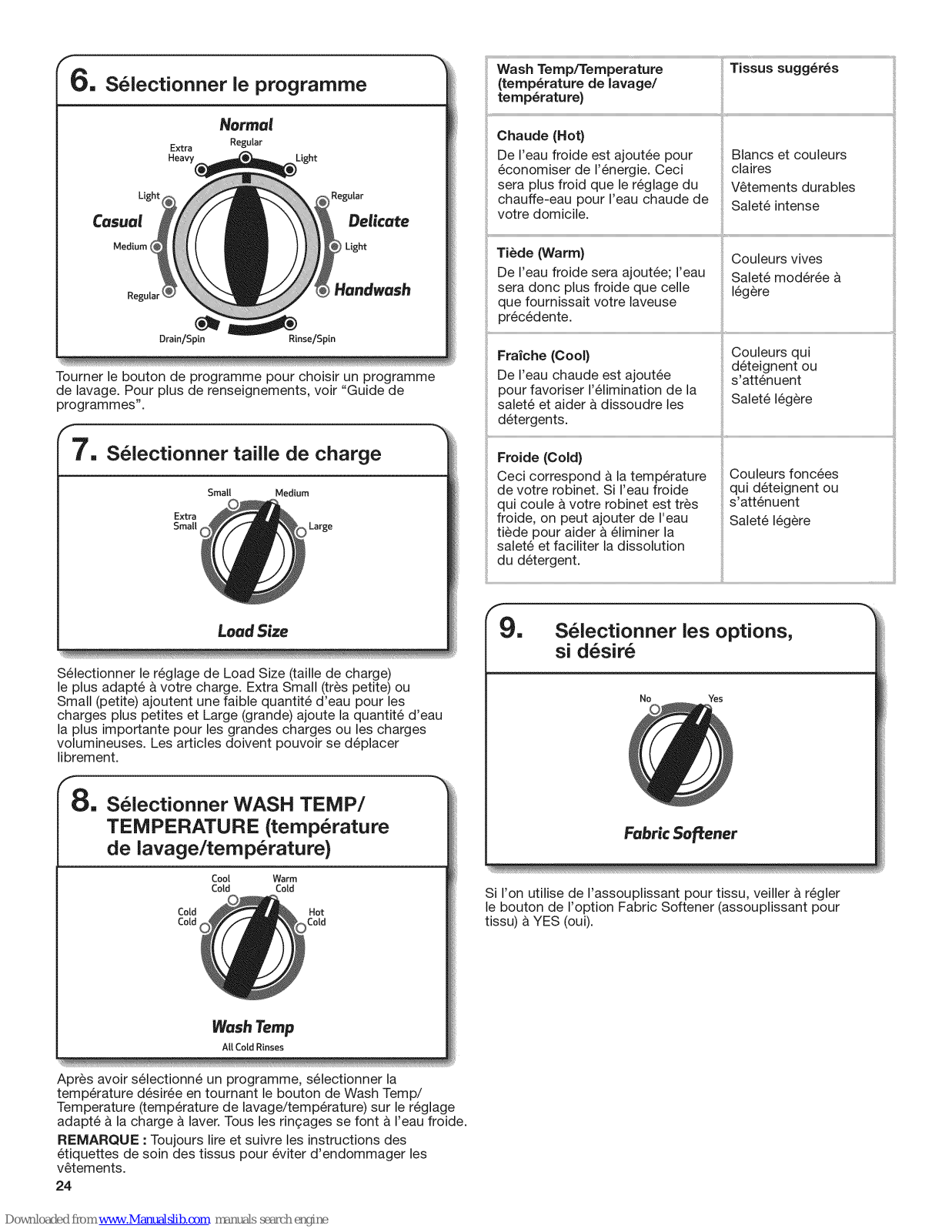

Select CYCLE
Norrna_
Extra Regu[ar
Heavy Light
Light
CasuaR
Medium
Regular
Drain/Spin Rinse/Spin
Turn cycle knob to choose your wash cycle. For more
information, see "Cycle Guide".
Regular
Delicate
Light
8

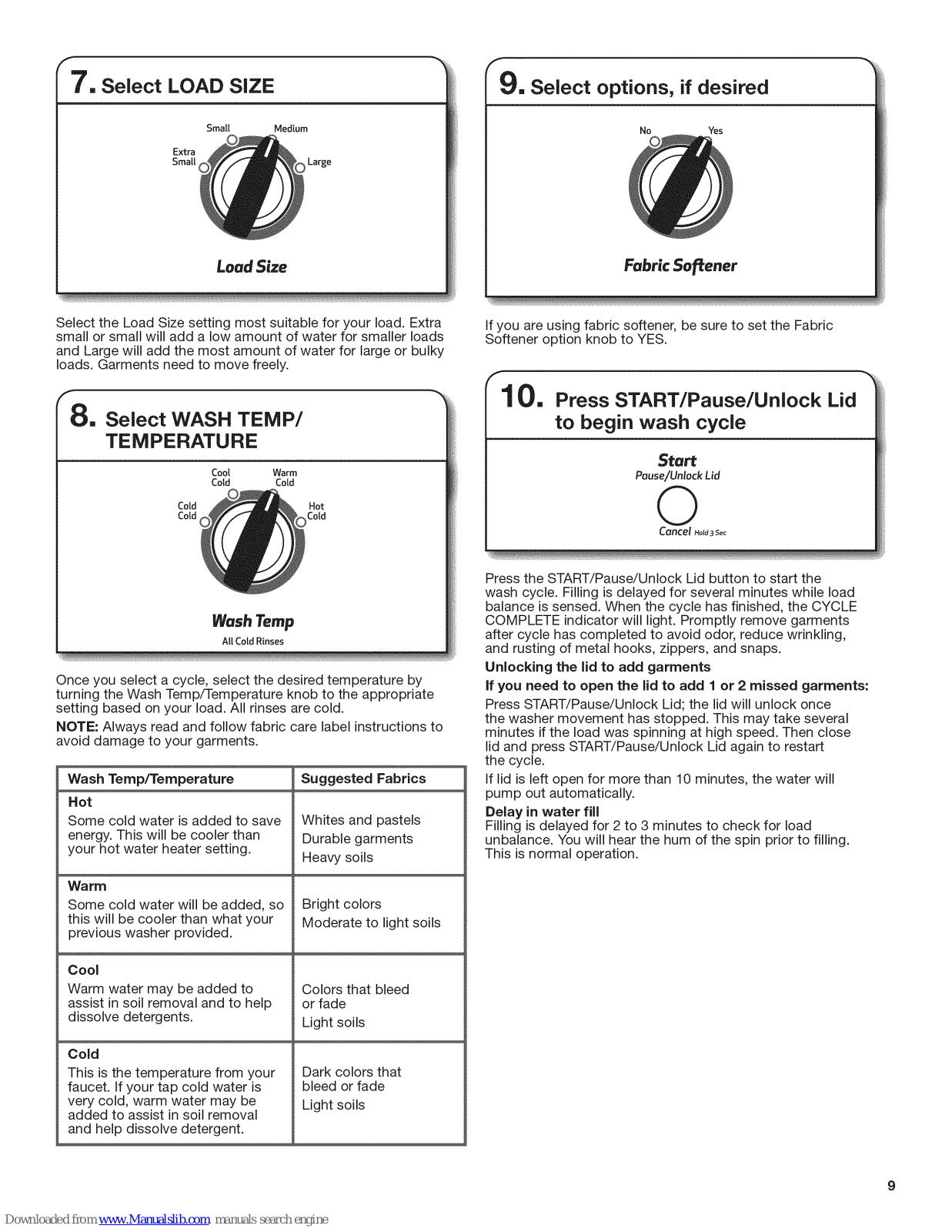

7, Select LOAD SIZE
9, Select options, if desired
Small Medium
Extra
Small Large
Select the Load Size setting most suitable for your load. Extra
small or small will add a low amount of water for smaller loads
and Large will add the most amount of water for large or bulky
loads. Garments need to move freely.
Select WASH TEMP/
TEMPERATURE
Cool Warm
Cold Cold
Cold
Cold
Wash Tamp
All Cold Rinses
Once you select a cycle, select the desired temperature by
turning the Wash Tamp/Temperature knob to the appropriate
setting based on your load. All rinses are cold.
NOTE: Always read and follow fabric care label instructions to
avoid damage to your garments.
Wash Tamp/Temperature
Hot
Some cold water is added to save
energy. This will be cooler than
your hot water heater setting.
Hot
Cold
Suggested Fabrics
Whites and pastels
Durable garments
Heaw soils
No Yes
If you are using fabric softener, be sure to set the Fabric
Softener option knob to YES.
Press START/Pause/Unlock Lid
to begin wash cycle
Press the START/Pause/Unlock Lid button to start the
wash cycle. Filling is delayed for several minutes while load
balance is sensed. When the cycle has finished, the CYCLE
COMPLETE indicator will light. Promptly remove garments
after cycle has completed to avoid odor, reduce wrinkling,
and rusting of metal hooks, zippers, and snaps.
Unlocking the lid to add garments
If you need to open the lid to add 1 or 2 missed garments:
Press START/Pause/Unlock Lid; the lid will unlock once
the washer movement has stopped. This may take several
minutes if the load was spinning at high speed. Then close
lid and press START/Pause/Unlock Lid again to restart
the cycle.
If lid is left open for more than 10 minutes, the water will
pump out automatically.
Delay in water fill
Filling is delayed for 2 to 3 minutes to check for load
unbalance. You will hear the hum of the spin prior to filling.
This is normal operation.
Warm
Some cold water will be added, so
this will be cooler than what your
previous washer provided.
Cool
Warm water may be added to
assist in soil removal and to help
dissolve detergents.
Bright colors
Moderate to light soils
Colors that bleed
or fade
Light soils
Cold
This is the temperature from your
faucet. If your tap cold water is
very cold, warm water may be
added to assist in soil removal
Dark colors that
bleed or fade
Light soils
and help dissolve detergent.
WASHER MAINTENANCE
WATER iNLET HOSES
Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Periodically inspect and replace inlet hoses
if bulges, kinks, cuts, wear, or leaks are found.
When replacing your inlet hoses, mark the date of
replacement on the label with a permanent marker.
NOTE: This washer does not include inlet hoses. See the
"installation Instructions" for more information.
r
WASHER CARE
Recommendations to Help Keep Your Washer Clean and
Performing at its Best
1. Always follow the detergent manufacturer's instructions
regarding the amount of detergent to use. Never use more
than the recommended amount because that may increase
the rate at which detergent and soil residue accumulate
inside your washer, which in turn may result
in undesirable odor.
2. Use warm and hot wash water settings sometimes (not
exclusively cold water washes), because they do a better
job of controlling the rate at which soils and detergent
accumulate.
3. Always leave the washer lid open between uses to help dry
out the washer and prevent the buildup of odor-causing
residue.
Cleaning Your Top Loading Washer
Read these instructions completely before beginning the
routine cleaning processes recommended below. This Washer
Maintenance Procedure should be performed, at a minimum,
once per month or every 30 wash cycles, whichever occurs
sooner, to control the rate at which soils and detergent may
otherwise accumulate in your washer.
Cleaning the Inside of the Washer
To keep your washer odor-free, follow the usage instructions
provided above, and use this recommended monthly cleaning
procedure:
Recommended Cycle for Cleaning the Washer
Refer to the "Cycle Guide" for the optimal cycle for cleaning
the inside of the washer. Use this cycle with affresh ®Washer
Cleaner or liquid chlorine bleach as described below.
Begin procedure
1. afresh ®Washer Cleaner Cycle Procedure
(Recommended for Best Performance):
aoOpen the washer lid and remove any clothing or items.
boPlace an afresh ®Washer Cleaner tablet in the bottom
of the washer basket.
coDo not place an affresh ®Washer Cleaner tablet
in the detergent dispenser.
d. Do not add any detergent or other chemical to the
washer when following this procedure.
eoClose the washer lid.
f. Select the cycle recommended for cleaning the inside
of the washer.
goPress the START/Pause/Unlock Lid button to start the
cycle.
NOTE: For best results, do not interrupt cycle. If cycle
must be interrupted, press START/Pause/Unlock Lid
once or twice (depending on model). After the cycle has
stopped, run a RINSE/SPIN cycle to rinse cleaner from
washer.
F WASHER CARE (cont.)
2. Chlorine Bleach Procedure (Alternative):
a. Open the washer lid and remove any clothing or items.
b. Add 1 cup (236 mL) of liquid chlorine bleach
to the bleach compartment.
NOTE: Use of more liquid chlorine bleach than is
recommended above could cause washer damage
over time.
coClose the washer lid.
d. Do not add any detergent or other chemical
to the washer when following this procedure.
eoSelect the cycle recommended for cleaning the inside
of the washer.
fo Press the START/Pause/Unlock Lid button to start the
cycle.
NOTE: For best results, do not interrupt cycle. If cycle
must be interrupted, press START/Pause/Unlock Lid
once or twice (depending on model). After the cycle has
stopped, run a RINSE/SPIN cycle to rinse cleaner from
washer.
Cleaning the Dispensers
After a period of using your washer, you may find some
residue buildup in the washer's dispensers. To remove
residue from the dispensers, wipe them with a damp cloth
and towel dry. Do not attempt to remove the dispensers or
trim for cleaning. The dispensers and trim are not removable.
If your model has a dispenser drawer, however, remove the
drawer and clean it before or after you run the Clean Washer
cycle. Use an all-purpose surface cleaner, if needed.
Cleaning the Outside of the Washer
Use a soft, damp cloth or sponge to wipe away any spills.
Use only mild soaps or cleaners when cleaning external
washer surfaces.
IMPORTANT: To avoid damaging the washer's finish, do not
use abrasive products.
NON-USE AND VACATION CARE
Operate your washer only when you are home. If moving, or
not using your washer for a period of time, follow these steps:
1. Unplug or disconnect power to washer.
2. Turn off water supply to washer, to avoid flooding due to
water pressure surge.
f WINTER STORAGE CARE
IMPORTANT: To avoid damage, install and store washer
where it will not freeze. Because some water may stay in
hoses, freezing can damage washer. If storing or moving
during freezing weather, winterize your washer.
Towinterize washer:
1. Shut off both water faucets; disconnect and drain water
inlet hoses.
2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and run
washer on RINSE/SPIN cycle for about 30 seconds to
mix antifreeze and remaining water.
3. Unplug washer or disconnect power.
10

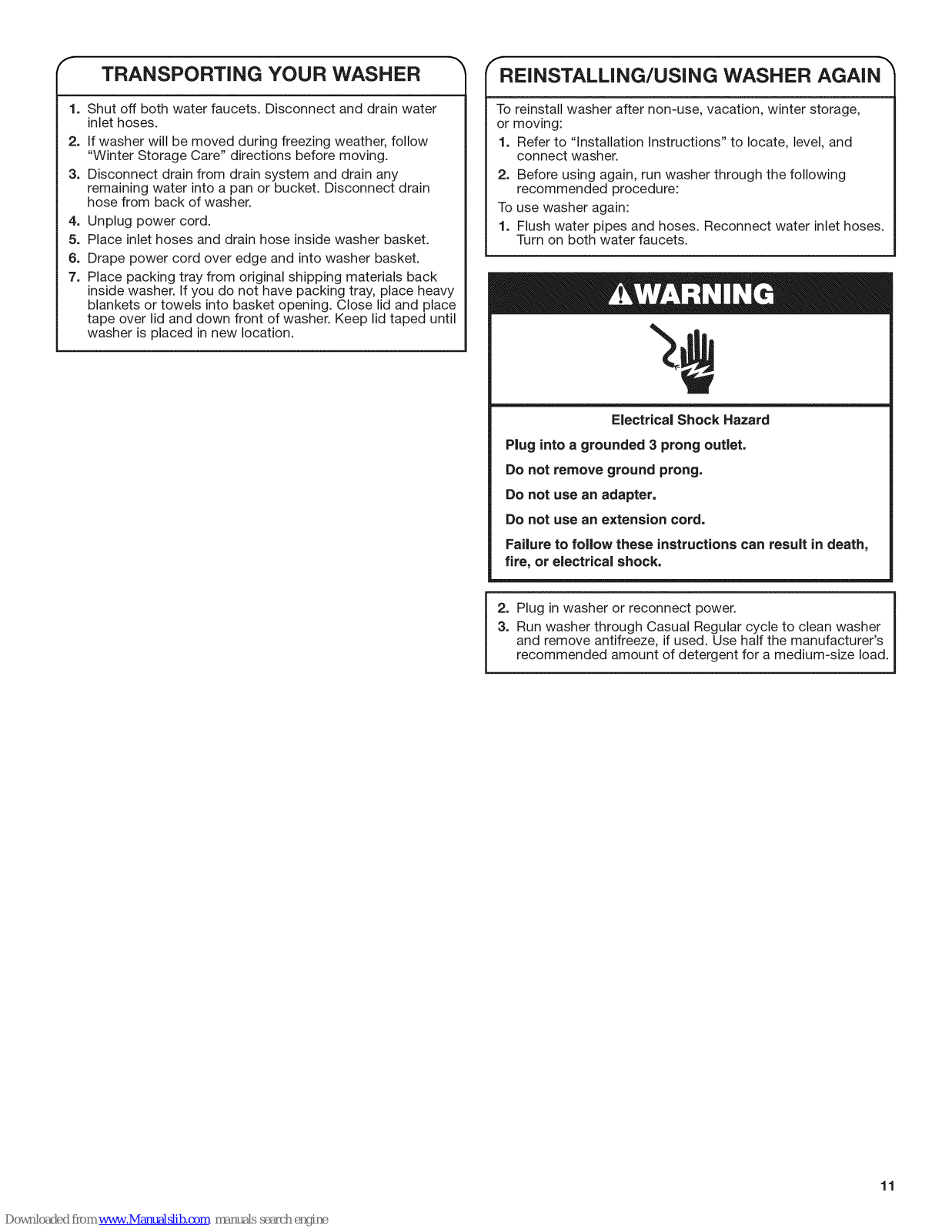

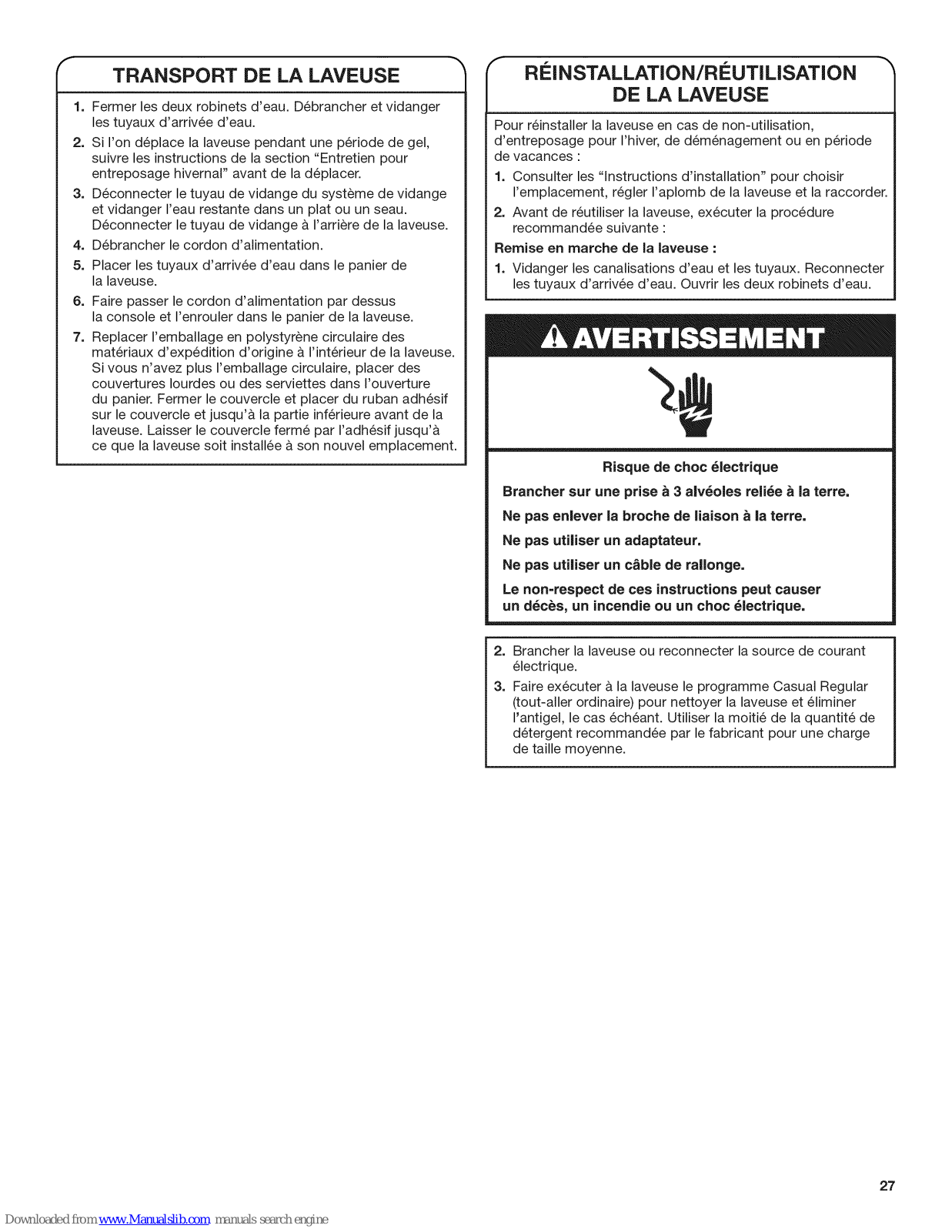

TRANSPORTING YOUR WASHER
REINSTALLING/USING WASHER AGAIN
1. Shut off both water faucets. Disconnect and drain water
inlet hoses.
2. If washer will be moved during freezing weather, follow
"Winter Storage Care" directions before moving.
3. Disconnect drain from drain system and drain any
remaining water into a pan or bucket. Disconnect drain
hose from back of washer.
4. Unplug power cord.
5. Place inlet hoses and drain hose inside washer basket.
6. Drape power cord over edge and into washer basket.
7. Place packing tray from original shipping materials back
inside washer. If you do not have packing tray, place heavy
blankets or towels into basket opening. Close lid and place
tape over lid and down front of washer. Keep lid taped until
washer is placed in new location.
To reinstall washer after non-use, vacation, winter storage,
or moving:
1. Refer to "Installation Instructions" to locate, level, and
connect washer.
2. Before using again, run washer through the following
recommended procedure:
To use washer again:
1. Flush water pipes and hoses. Reconnect water inlet hoses.
Turn on both water faucets.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
2. Plug in washer or reconnect power.
3. Run washer through Casual Regular cycle to clean washer
and remove antifreeze, if used. Use half the manufacturer's
recommended amount of detergent for a medium-size load.
11
Loading...
