A Note To You
Important Safety
Instructions
Parts And Features 6
Using Your Range 7
2
3

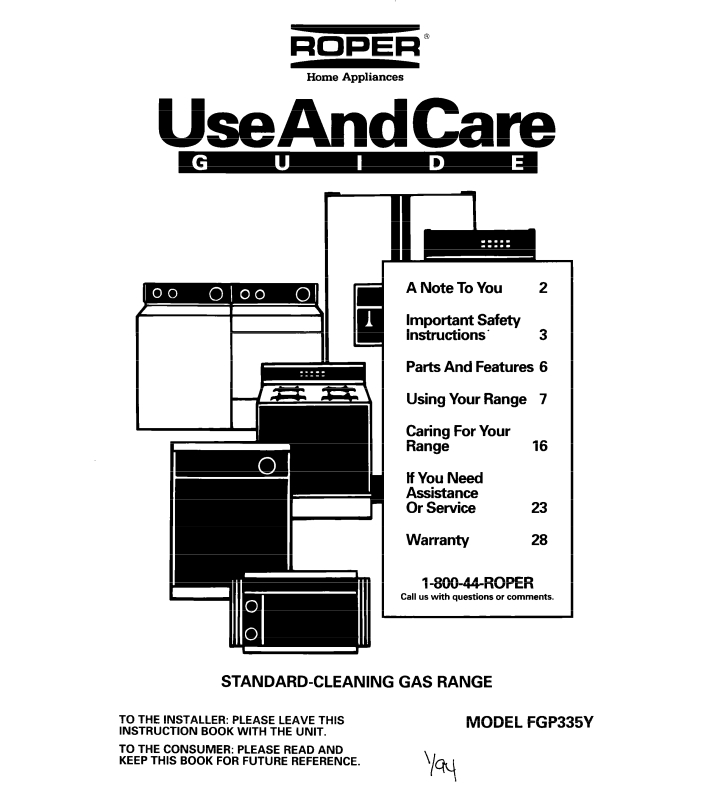

STANDARD-CLEANING GAS RANGE
TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND
KEEP THIS BOOK FOR FUTURE REFERENCE.
Caring For Your
Range
If You Need
Assistance
Or Service
Warranty
I-800~&ROPER
Call us with questions or comments.
MODEL FGP335Y
\
16
23
28
A Note To You
Thank you for buying a Roper@ appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience
have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free
operation, we have developed this Use and Care Guide. It is full of valuable information on
how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury burns fire
1 and electrical shock. ’ ’ ~~
1 u 1 INSTRUCTIONS.
For further information, see “The anti-tip bracket” on page 15.
1
I
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property,
@ALL RANGES CAN TIP.
*INJURY TO PERSONS
COULD RESULT.
l
INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE.
l
SEE INSTALLATION
Our toll-free number, I-SOO-44-ROPER (l-800-447-6737), is
available 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 23. If you need further help, feel free to call
us. When calling, you will need to know your appliance’s complete model number and serial
number. You can find this information on the model and serial number plate (see diagram on
page 6). For your convenience, we have included a handy place below for you to record these
numbers, the purchase date from the sales slip and your dealer’s name and telephone
number. Keep this book and the sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
2
Dealer Name
Dealer Phone
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Gas ranges have been thoroughly tested for safe and efficient operation. However, as with
any appliance, there are specific installation and safety precautions which must be followed
to ensure safe and satisfactory operation.
To reduce the risk of fire, electrical shock, injury to persons,
or damage when using the range, follow basic precautions,
including the following:
WARNING: If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage, personal
injury or death.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
l
Do not try to light any appliance.
l
Do not touch any electrical switch; do not use any phone in your
building.
l
Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
l
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
General
l
Install or locate the range only in accordance with the provided Installation
Instructions. The range must be installed
by a qualified installer. The range must be
properly connected to the proper gas
supply and checked for leaks. The range
must also be properly connected to
electrical supply and grounded.
l
Gas fuels and their use in appliances can
cause minor exposures to benzene,
formaldehyde, carbon monoxide and
soot, primarily from incomplete combustion. Significant exposure to these
substances can cause cancer or reproductive harm. Properly adjusted burners
with a blue, rather than a yellow, flame will
minimize incomplete combustion. Venting
with a hood or an open window will further
minimize exposure.
l
Do not store things children might want
above the range. Children could be burned
or injured while climbing on it.
l
Do not leave children alone or unattended
in area where the range is in use. They
should never be allowed to sit or stand on
any part of the range. They could be
burned or injured.
l
Do not operate the range if it is damaged
or not working properly.
continued on next page
3
l Do not use the range for warming or
heating the room. Persons could be
burned or injured, or a fire could start.
l Do not attempt to light the oven burner
during a power failure. Personal injury
could result. Reset oven controls to the
off position in the event of a power
failure.
l Use the range only for its intended use
as described in this manual.
l Do not touch surface burners, areas
near surface burners or interior surfaces
of oven. Areas near surface burners and
interior surfaces of an oven become hot
enough to cause burns. During and after
use, do not touch, or let clothing or other
flammable materials contact surface
burners, areas near surface burners or
interior surfaces of oven until they have
had sufficient time to cool. Other surfaces of the range, such as the oven
vent opening, the surface near the vent
opening, the cooktop, the oven door and
window, could also become hot enough
to cause burns.
l Do not wear loose or hanging garments
when using the range. They could ignite
if they touch an open flame and you
could be burned.
l Use only dry potholders. Moist or damp
potholders on hot surfaces may result in
burns from steam. Do not let potholder
touch an open flame. Do not use a towel
or bulky cloth for a potholder. It could
catch on fire.
l Keep range vents unobstructed.
l Do not heat unopened containers. They
could explode. The hot contents could
cause burns and container particles
could cause injury.
l Do not store flammable materials on or
near the range. The fumes can create an
explosion and/or fire hazard.
l Do not use the oven for storage.
l Never use a match or other flame to look
for a gas leak. Explosion and injury could
result.
l Know where your main gas shutoff valve
is located.
When using the cooktop
l Make sure the utensils you use are large
enough to contain food and avoid
boilovers and spillovers. Heavy splattering or spillovers left on a range can ignite
and burn you. Pan size is especially
important in deep fat frying.
l Check to be sure glass cooking utensils
are safe for use on the range. Only
certain types of glass, glass-ceramic,
ceramic, earthenware or other glazed
utensils are suitable for cooktops without
breaking due to the sudden change in
temperature.
l Never leave surface burners unattended
at high heat settings. A boilover could
result and cause smoking and greasy
spillovers that may ignite.
4
l Turn pan handles inward, but not over
other surface burners. This will help
reduce the chance of burns, igniting of
flammable materials, and spills due to
bumping of the pan.
l Do not use decorative covers or trivets
over the surface burners.
When using the oven
l Always position the oven rack(s) in
desired location while oven is cool.
l Use care when opening oven door. Let
hot air or steam escape before removing
or replacing food.
Grease
l Grease is flammable. Do not allow
grease to collect around cooktop or in
vents. Wipe spillovers immediately.
Care and cleaning
l Do not clean door heat seal. It is essential
for a good seal. Care should be taken not
to rub, damage or move the seal. Clean
only parts recommended in this Use and
Care Guide.
l Do not repair or replace any part of the
range unless specifically recommended in
this manual. All other servicing should be
referred to a qualified technician.
l Any additions, changes or conversions
required in order for this appliance to
satisfactorily meet the application needs
must be made by a Roper Distributor or
Qualified Agency.
l Disconnect the electrical supply and the
gas supply at the shutoff valve near the
range before servicing the range.
l Do not use water on grease fires. Never
pick up a flaming pan. Smother flaming
pan by covering with a well-fitted lid,
cookie sheet or flat tray. Flaming grease
outside of pan can be extinguished with
baking soda or, if available, a multipurpose dry chemical or foam-type extin-
guisher.
- READ AND SAVE THESE INSTRUCTIONS -
5
Parts And Features
This section contains captioned illustrations of your range. Use them to become familiar with
the location and appearance of all parts and features.
Manual oven light switch
\
Oven vent
Surface burners, grates and
reflector pans
Model and serial
number plate
(under cooktop)
Automatic oven
light switch
Anti-tip bracket
Broiler drawer
-
R
I ‘.-%
Clock/
Minute Timer
Surface burner
control panel
Oven burner
(not shown)
Surface ’
burner
markers
6
Left rear
control
knob
‘Left front
control
knob
Hour and minute
buttons
&en temperature control
Display
Cl&k/timer
switch
Rigit rear
control
knob
kight front
control
knob
Using Your Range
In This Section
Page
Using the surface
Positioning
For best air circulation
Setting the clock
Using the
Baking/roasting
To obtain the best cooking results possible, you must operate your range properly. This
section gives you important information for efficient and safe use of your range.
Minute Timer . . . . . s . . . . . . . . . . . . . . 11
burners . . . . . . . . . . . . . . . . . 7
racks and
pans . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . 10
.,.............................
..*..............*..............
Adjusting the oven temperature
control
Broiling
Energy saving tips
11
The oven vent
The anti-tip bracket
12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
Page
Using the surface burners
Your range is equipped with electric ignitors.
Electric ignitors automatically light the
burners each time they are used.
Push in the control knob and turn
counterclockwise to the LITE position. The
clicking sound is the ignitor sparking.
Visually check that burner has lit.
To stop the clicking sound after the burner
lights, turn the control knob to the desired
setting. You can set the control knob any-
where between HI and LO.
I
13
13
14
15
15
Surface burner markers
The solid dot in the surface burner marker
shows which surface burner is turned on by
that knob.
Burner heat settings
Use correct burner heat settings (see next
page). If the heat setting is too high, it can:
l Char bacon and cause curling.
l Make eggs tough and crisp at the edges.
l Toughen liver, fish and seafood
l Scorch delicate sauces and custards.
l Cause a boilover.
Until you get used to the settings, use
the following as a guide. For best results,
start cooking at the high setting; then turn
the control knob down to continue cooking.
SETTING RECOMMENDED USE
LITE
l To light the burner. After the
burner lights, turn control
back to a desired setting.
HI
l To start foods cooking.
l To bring liquids to a boil.
Medium l To hold a rapid boil.
l To fry chicken or pancakes.
l For gravy, pudding and
icing.
l To cook large amounts of
vegetables.
LO
l To keep food warm until
ready to serve.
Burn, Fire and Explosion Hazard
l Burner flame should not extend
beyond the edge of the cooking
utensil. The flame could burn you and
cause poor cooking results.
l Be sure all control knobs are turned to
OFF when you are not cooking.
Someone could be burned or a fire
could start if a burner is accidentally
left ON.
l If the flame should go out while
cooking, or if there is a strong gas
odor, turn the burners OFF. Wait five
minutes for the gas odor to disappear
before relighting burner. If gas odor is
still present, see safety note on page
3. Failure to follow these precautions
could result in explosion or fire.
NOTE: Do not cook with the control in the
LITE position.
In case of a prolonged power
failure
Surface burners can be manually lighted.
Hold a lit match near a burner and turn the
control knob to the LITE position. After the
burner lights, turn the control knob to the
desired setting.
Product Damage Hazard
Do not leave an empty utensil, or one
which has boiled dry, on a hot surface
burner.
The utensil could overheat and could
damage the utensil or cooking product.
Cookware tips
No one brand of cookware is best for all
people. Knowing something about pan
materials and construction will help you
select the correct cookware for your needs.
l NOTE: For best results and greater fuel
efficiency, use only flat-bottomed cookware in good condition.
l The pan should have straight sides and a
tight-fitting lid.
l Choose medium to heavy gauge (thick-
ness) pans that are fairly lightweight.
l The pan material (metal or glass) affects
how fast heat transfers from the surface
burners through the pan material and how
evenly heat spreads over the pan bottom.
Choose pans that provide the best cooking
results.
l Handles should be made of a sturdy, heat-
resistant material and be securely attached
to the pan.
l Pans should be easy to clean. Check to be
sure there are no crevices, rough edges or
areas where food might collect.
l Be sure pans do not tip, whether they are
full or empty.
l Use cookware only as it was intended to
be used. Follow pan instructions. This is
very important for glass cookware because
some should be used only in the oven.
Other pans are’marked as flameware and
may be used on the surface burners.
Home canning information
The large diameter of most water-bath or
pressure canners combined with high heat
settings for long periods of time can cause
damage to the cooktop.
To protect your range:
l For best results, use a canner which can
be centered over the surface burner.
l Do not place canner on two surface
burners at the same time. Too much heat
will build up and will damage the cooktop.
l Start with hot water. This reduces the
time the control is set on high. Reduce
heat setting to lowest position needed to
keep water boiling.
l Keep reflector pans clean for best heat
reflection.
Positioning racks and pans
For baking/roasting with one rack, place
the rack so the top of the food will be
centered in the oven.
Rack placement for specific foods:
FOOD
Frozen pies, large
roasts, turkeys
RACK POSITION
1st or 2nd rack
guide from bottom
Angel and bundt cakes, 2nd rack guide
most quick breads,
from bottom
yeast breads, casseroles, meats
Cookies, biscuits,
muffins, cakes,
2nd or 3rd rack
guide from bottom
nonfrozen pies
When baking on two racks, arrange racks
on first and third rack guides from bottom.
*Always position oven rack(s) in
desired location before turning oven
on. Be sure the rack(s) is level.
l If rack(s) must be moved while oven
is hot, use potholders or oven mitts to
protect hands.
l Do not place items on the open oven
door.
l Be careful when installing and remov-
ing large food items from sixth rack
position. Food will be close to hot
surfaces, including oven bottom and
sides.
Failure to follow the above precautions
could result in personal injury.
Personal Injury Hazard
6th oven rack position
(roasting rack)
When roasting food too larqe to be placed in
oven with rack in lowest position, place rack
on bottom of oven.
For proper roasting, follow these
guidelines:
l The rack must be level
l Use adequate amount of liquid (meat
juices or water) so food does not get
overdone.
l Do not try to pull rack out over door.
Rack will be at the same level as door
when door is opened.
For best air circulation
Hot air must circulate around the pans in the
oven for even heat to reach all parts of the
oven. This results in better baking.
l Place the pans so that one is not directly
over the other.
l For best results, allow 1 l/2-2 inches
(4-5 cm) of space around each pan and
between pans and oven walls. There must
be a minimum space of 1 inch (2.5 cm).
l Use only one cookie sheet in the oven at
one time.
\
6th oven rack position
Use the following as a guide to determine
where to place the pans:
One pan
Place in the center of the oven rack.
Two pans
Place in opposite corners of the oven rack.
Three or four pans
Place in opposite corners on each oven rack.
Stagger pans so no pan is directly over
another.
10
Setting the clock
When the range is first plugged in, or
following a power outage, “12:OO” will flash
on the display.
1. Slide the ClockITimer Switch to the
CLOCK position.
CLOCK
l
:-I
a
0
TIMER
2. Push in and hold the Hour button until
the correct hour appears on the display.
(The numbers wiil only count forward.)
3. Push in and hold the Minute button until
the correct minutes appear on the display.
Using the Minute Timer
The Minute Timer does not start or stop the
oven. It works like a kitchen timer. Set it in
minutes up to 1 hour, 59 minutes. The control
will beep when the set time is up.
1. Slide the Clock/Timer switch to the TIMER
position. The display will show “059”
(59 minutes).
2. To set a time more than 59 minutes,
push in and release the Hour button. The
display will show “159”. The time can now
be adjusted down by pushing in and holding
the Minute button until the correct time
shows on the display.
HOUR
MINUTE
CLOCK
TIMER
MINUTE
To set a time less than 59 minutes, push
in and hold the Minute button until the
correct time shows on the display.
The Minute Timer will automatically start
when the Minute button is released.
3. When the set time has passed, the
display will show “0:OO” and the control will
beep continuously. Slide the Clock/Timer
Switch to the CLOCK position to cancel the
Minute Timer and return to the clock mode.
CLOCK
TIMER
11
Loading...
