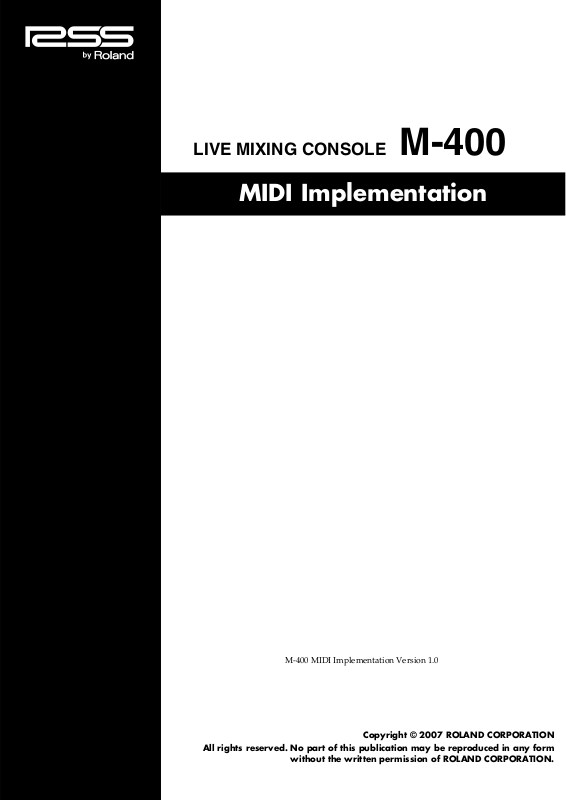

Roland M-400, RSS M-400 Midi Implementation Manual

LIVE MIXING CONSOLE

MIDI Implementation

M-400

M-400 MIDI Implementation Version 1.0

without the written permission of ROLAND CORPORATION.

■

●

MIDI Implementation

Model M-400 Version 1.00 Nov. 09, 2007

1. TRANSMITTED DATA AND RECOGNIZED RECEIVE DATA

Channel Voice Message

Control Change

If the RECEIVE item “FADER, MUTE Change (CC)” (SYSTEM > REMOTE > MIDI or USB MIDI) is selected, the M-400 will receive control change message, and will control channel fader or mute switch.

If the SEND item “FADER, MUTE Change (CC)” (SYSTEM > REMOTE > MIDI or USB MIDI) is selected, the M-400 will transmit control change message when a channel fader or a mute switch is operated.

Status BnH mmH llH

n = MIDI Channel No: 0H, 1H, EH (see below) mm = Controller No: 00H - 7FH (see below) ll = Controller Value: 00H - 7FH (*1)

+—————+—————+—————————————++—————+—————+—————————————+ | n | mm | || n | mm | | +—————+—————+—————————————++—————+—————+—————————————+ | 0H | 01H |CH1 FADER || 0H | 40H |CH1 MUTE | | 0H | 02H |CH2 FADER || 0H | 41H |CH2 MUTE | | 0H | 03H |CH3 FADER || 0H | 42H |CH3 MUTE | | 0H | 04H |CH4 FADER || 0H | 43H |CH4 MUTE | | 0H | 05H |CH5 FADER || 0H | 44H |CH5 MUTE | | 0H | 06H |CH6 FADER || 0H | 45H |CH6 MUTE | | 0H | 07H |CH7 FADER || 0H | 46H |CH7 MUTE | | 0H | 08H |CH8 FADER || 0H | 47H |CH8 MUTE | | 0H | 09H |CH9 FADER || 0H | 48H |CH9 MUTE | | 0H | 0AH |CH10 FADER || 0H | 49H |CH10 MUTE | | 0H | 0BH |CH11 FADER || 0H | 4AH |CH11 MUTE | | 0H | 0CH |CH12 FADER || 0H | 4BH |CH12 MUTE | | 0H | 0DH |CH13 FADER || 0H | 4CH |CH13 MUTE | | 0H | 0EH |CH14 FADER || 0H | 4DH |CH14 MUTE | | 0H | 0FH |CH15 FADER || 0H | 4EH |CH15 MUTE | | 0H | 10H |CH16 FADER || 0H | 4FH |CH16 MUTE | | 0H | 11H |CH17 FADER || 0H | 50H |CH17 MUTE | | 0H | 12H |CH18 FADER || 0H | 51H |CH18 MUTE | | 0H | 13H |CH19 FADER || 0H | 52H |CH19 MUTE | | 0H | 14H |CH20 FADER || 0H | 53H |CH20 MUTE | | 0H | 15H |CH21 FADER || 0H | 54H |CH21 MUTE | | 0H | 16H |CH22 FADER || 0H | 55H |CH22 MUTE | | 0H | 17H |CH23 FADER || 0H | 56H |CH23 MUTE | | 0H | 18H |CH24 FADER || 0H | 57H |CH24 MUTE | +—————+—————+—————————————++—————+—————+—————————————+ | 1H | 01H |CH25 FADER || 1H | 40H |CH25 MUTE | | 1H | 02H |CH26 FADER || 1H | 41H |CH26 MUTE | | 1H | 03H |CH27 FADER || 1H | 42H |CH27 MUTE | | 1H | 04H |CH28 FADER || 1H | 43H |CH28 MUTE | | 1H | 05H |CH29 FADER || 1H | 44H |CH29 MUTE | | 1H | 06H |CH30 FADER || 1H | 45H |CH30 MUTE | | 1H | 07H |CH31 FADER || 1H | 46H |CH31 MUTE | | 1H | 08H |CH32 FADER || 1H | 47H |CH32 MUTE | | 1H | 09H |CH33 FADER || 1H | 48H |CH33 MUTE | | 1H | 0AH |CH34 FADER || 1H | 49H |CH34 MUTE | | 1H | 0BH |CH35 FADER || 1H | 4AH |CH35 MUTE | | 1H | 0CH |CH36 FADER || 1H | 4BH |CH36 MUTE | | 1H | 0DH |CH37 FADER || 1H | 4CH |CH37 MUTE | | 1H | 0EH |CH38 FADER || 1H | 4DH |CH38 MUTE | | 1H | 0FH |CH39 FADER || 1H | 4EH |CH39 MUTE | | 1H | 10H |CH40 FADER || 1H | 4FH |CH40 MUTE | | 1H | 11H |CH41 FADER || 1H | 50H |CH41 MUTE | | 1H | 12H |CH42 FADER || 1H | 51H |CH42 MUTE | | 1H | 13H |CH43 FADER || 1H | 52H |CH43 MUTE | | 1H | 14H |CH44 FADER || 1H | 53H |CH44 MUTE | | 1H | 15H |CH45 FADER || 1H | 54H |CH45 MUTE | | 1H | 16H |CH46 FADER || 1H | 55H |CH46 MUTE | | 1H | 17H |CH47 FADER || 1H | 56H |CH47 MUTE | | 1H | 18H |CH48 FADER || 1H | 57H |CH48 MUTE | +—————+—————+—————————————++—————+—————+—————————————+ | EH | 01H |AUX1 FADER || EH | 40H |AUX1 MUTE | | EH | 02H |AUX2 FADER || EH | 41H |AUX2 MUTE | | EH | 03H |AUX3 FADER || EH | 42H |AUX3 MUTE | | EH | 04H |AUX4 FADER || EH | 43H |AUX4 MUTE | | EH | 05H |AUX5 FADER || EH | 44H |AUX5 MUTE | | EH | 06H |AUX6 FADER || EH | 45H |AUX6 MUTE | | EH | 07H |AUX7 FADER || EH | 46H |AUX7 MUTE | | EH | 08H |AUX8 FADER || EH | 47H |AUX8 MUTE | | EH | 09H |AUX9 FADER || EH | 48H |AUX9 MUTE | | EH | 0AH |AUX10 FADER || EH | 49H |AUX10 MUTE | | EH | 0BH |AUX11 FADER || EH | 4AH |AUX11 MUTE | | EH | 0CH |AUX12 FADER || EH | 4BH |AUX12 MUTE | | EH | 0DH |AUX13 FADER || EH | 4CH |AUX13 MUTE | | EH | 0EH |AUX14 FADER || EH | 4DH |AUX14 MUTE | | EH | 0FH |AUX15 FADER || EH | 4EH |AUX15 MUTE | | EH | 10H |AUX16 FADER || EH | 4FH |AUX16 MUTE | +—————+—————+—————————————++—————+—————+—————————————+ | FH | 01H |MAIN FADER || FH | 40H |MAIN MUTE | +—————+—————+—————————————++—————+—————+—————————————+

(*1) 00H = 0FF, 01H = ON for mute.

Second Third

Value and fader level corresponds as follows.

Fader Level Table

+—————+————————++—————+————————++—————+————————++—————+————————+ |Value| Lev(dB)||Value| Lev(dB)||Value| Lev(dB)||Data | Lev(dB)| +—————+————————++—————+————————++—————+————————++—————+————————+ | 0 | — Inf || 32 | —33.1 || 64 | —11.3 || 96 | — 0.3 | | 1 | —80.0 || 33 | —32.3 || 65 | —10.7 || 97 | 0.0 | | 2 | —76.7 || 34 | —31.5 || 66 | —10.3 || 98 | 0.3 | | 3 | —73.3 || 35 | —30.8 || 67 | —10.0 || 99 | 0.7 | | 4 | —70.0 || 36 | —30.0 || 68 | — 9.7 || 100 | 1.0 | | 5 | —66.7 || 37 | —29.3 || 69 | — 9.3 || 101 | 1.3 | | 6 | —63.3 || 38 | —28.7 || 70 | — 9.0 || 102 | 1.7 | | 7 | —60.0 || 39 | —28.0 || 71 | — 8.7 || 103 | 2.0 | | 8 | —58.6 || 40 | —27.3 || 72 | — 8.3 || 104 | 2.3 | | 9 | —57.1 || 41 | —26.7 || 73 | — 8.0 || 105 | 2.7 | | 10 | —55.7 || 42 | —26.0 || 74 | — 7.7 || 106 | 3.0 | | 11 | —54.3 || 43 | —25.3 || 75 | — 7.3 || 107 | 3.3 | | 12 | —52.9 || 44 | —24.7 || 76 | — 7.0 || 108 | 3.7 | | 13 | —51.4 || 45 | —24.0 || 77 | — 6.7 || 109 | 4.0 | | 14 | —50.0 || 46 | —23.3 || 78 | — 6.3 || 110 | 4.3 | | 15 | —48.9 || 47 | —22.7 || 79 | — 6.0 || 111 | 4.7 | | 16 | —47.8 || 48 | —22.0 || 80 | — 5.7 || 112 | 5.0 | | 17 | —46.7 || 49 | —21.3 || 81 | — 5.3 || 113 | 5.3 | | 18 | —45.6 || 50 | —20.7 || 82 | — 5.0 || 114 | 5.7 | | 19 | —44.4 || 51 | —20.0 || 83 | — 4.7 || 115 | 6.0 | | 20 | —43.3 || 52 | —19.3 || 84 | — 4.3 || 116 | 6.3 | | 21 | —42.2 || 53 | —18.7 || 85 | — 4.0 || 117 | 6.7 | | 22 | —41.1 || 54 | —18.0 || 86 | — 3.7 || 118 | 7.0 | | 23 | —40.0 || 55 | —17.3 || 87 | — 3.3 || 119 | 7.3 | | 24 | —39.2 || 56 | —16.7 || 88 | — 3.0 || 120 | 7.7 | | 25 | —38.5 || 57 | —16.0 || 89 | — 2.7 || 121 | 8.0 | | 26 | —37.7 || 58 | —15.3 || 90 | — 2.3 || 122 | 8.3 | | 27 | —36.9 || 59 | —14.7 || 91 | — 2.0 || 123 | 8.7 | | 28 | —36.2 || 60 | —14.0 || 92 | — 1.7 || 124 | 9.0 | | 29 | —35.4 || 61 | —13.3 || 93 | — 1.3 || 125 | 9.3 | | 30 | —34.6 || 62 | —12.7 || 94 | — 1.0 || 126 | 9.7 | | 31 | —33.8 || 63 | —12.0 || 95 | — 0.7 || 127 | 10.0 | +—————+————————++—————+————————++—————+————————++—————+————————+

Program Change

If the RECEIVE item “SCENE Change (PC)” (SYSTEM > REMOTE > MIDI or USB MIDI) is selected, the M-400 will receive program change message, and will recall the corresponding scene.

If the SEND item “SCENE Change (PC)”(SYSTEM > REMOTE > MIDI or USB MIDI) is selected, the M-400 will transmit program change message when a scene is recalled.

Status CnH ppH

n = MIDI Channel No: 0H - 2H (ch.1 - ch.3) pp = Program No: 00H - 7FH (0 - 127)

Program number and scene corresponds as follows.

+—————+—————————————————————+—————————————————————+ | n | mm | SCENE NUMBER | +—————+—————————————————————+—————————————————————+ | 0H | 00H — 7FH (0 — 127) | 000 — 127 | | 1H | 00H — 7FH (0 — 127) | 128 — 255 | | 2H | 00H — 2BH (0 — 43) | 256 — 299 | +—————+—————————————————————+—————————————————————+

Second

3

■

❍

●

❍

●

❍

MIDI Implementation

System Exclusive Message

Status F0H iiH,ddH, ...,eeH F7H

Byte Description F0H Status of System Exclusive Message iiH Manufacturer ID

ddH Data: 00H - 7FH (0-127) :: eeH Data F7H EOX (End of System Exclusive message)

The M-400 can transfer and receive the internal parameters information using system exclusive messages. The M-400 can transmit and receive Universal System Exclusive messages, Data Request (RQ1) and Data set (DT1) as the System Exclsive Message.

About Model ID

The Model ID of the M-400 is 00H, 00H, 24H as for Data Request (RQ1) and Data set (DT1).

About Device ID

System Exclusive messages are not assigned to any particular MIDI channel. Instead, they have their own special control parameter called device ID. The roland system exclusive messages use device DIs to specify multiple M-400 units. The M-400 sends system exclusive messages using 00H-1FH, and receives the system exclusive messages whose device ID is same as its device DI and 7FH. The value of the device ID is the value set on the REMOTE popup’s Dev ID minus one.

Unidersal System Exclusive Message

Identity Request

Status Data Byte Status F0H 7EH,Dev,06H,01H F7H

Byte Description F0H Status of System Exclusive Message 7EH Universal System Exclusive message Non Real-time header Dev Device ID (or 7FH) 06H General Information (sub-ID #1) 01H Identity Request (sub-ID #2) F7H EOX (End of System Exclusive message)

The message is used to request the particular information of the M-400. The M-400 does not transmit the message. If the M-400 received the message and the device ID of the message is same as its device ID or 7FH, the M-400 transmits the following Identity Reply message.

Data Byte Status

41H Roland’s Manufacturer ID 7EH Universal Non Real-time Message 7FH Universal Real-time Message

MIDI Machine Control Commands

Status F0H 7FH,Dev,06H,aaH, ...,bbH F7H

Byte Description F0H Status of System Exclusive Message 7FH Universal System Exclusive message Real-time header Dev Device ID (or 7FH) 06H MMC Command Message aaH Command :: bbH Command F7H EOX (End of System Exclusive message)

(*) See “2. MIDI Machine Control“

Data Byte Status

Data Transfer (RQ1, DT1)

Data Request (RQ1)

Status F0H 41H,Dev,00H,00H,24H,11H,aaH,bbH, F7H

Byte Description F0H Status of System Exclusive Message 41H Manufacturer ID (Roland) Dev Device ID 00H 00H 24H Model ID (M-400) 11H Command ID (RQ1) aaH Address MSB bbH Address ccH Address ddH Address LSB ssH Size MSB ssH Size ssH Size ssH Size LSB Sum Check Sum F7H EOX (End of System Exclusive message)

This messages is used to request parameters from the M-400. When this message is received, the requested data will be transmitted if the following conditions are satisfied.

1. The address specified by RQ1 corresponds to one of the applicable parameter base addressed of the M-400.

2. The requested size is 1 or grater.

If the above conditions are satisfied, the corresponding parameters will be transmitted in the form described in Data Set (DT1).

Data Byte Status

ccH,ddH,ssH,ssH,ssH,ssH,Sum

Identity Reply

Status Data Byte Status F0H 7EH,Dev,06H,02H,41H,mmH,mmH, F7H

00H,00H,00H,00H,ssH,ssH

Byte Description F0H Status of System Exclusive Message 7EH Universal System Exclusive message Non Real-time header Dev Device ID (or 7FH) 06H General Information (sub-ID #1) 02H Identity Reply (sub-ID #2) 41H Manufacturer ID (Roland) mmH mmH Device Family Code (M-400) 00H 00H Device Family No. 00H 00H ssH ssH Software Revision Level F7H EOX (End of System Exclusive message)

When M-400, the value of the device family code is 24H 02H.

4

Data Set (DT1)

Status F0H 41H,Dev,00H,00H,24H,12H,aaH,bbH, F7H

Byte Description F0H Status of System Exclusive Message 41H Manufacturer ID (Roland) Dev Device ID 00H 00H 24H Model ID (M-400) 12H Command ID (DT1) aaH Address MSB bbH Address ccH Address ddH Address LSB eeH Data Sum Check Sum F7H EOX (End of System Exclusive message)

The message is received under the following condition.

If the device ID on the message is same as that of the received device, and the address on the message correspond to the specified parameter base address, the received data are stored form the specified parameter base address.

Data Byte Status

ccH,ddH, ...,eeH,Sum

■

●

MIDI Implementation

2. Data Transfer Address map

(*) Addresses with a “#” are ignored, even when sent as the Start Addresses. Transmit the Data Set(DT1) or Data Request (RQ1) message with the specified size to the address without “#” mark.

Address Block

Addresses are expressed in 7bit hexadecimal values.

Address MSB LSB Binary 0aaa aaaa 0bbb bbbb 0ccc cccc 0ddd dddd 7 Bit Hex AA BB CC DD

+—————————————————————————————————————————————————————————————————+ | Start | | | address | Contents and remarks | |=============+===================================================| | 00 00 00 00 | INPUT BOARD PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 01 00 00 00 | OUTPUT BOARD PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 02 00 00 00 | INPUT PATCHBAY PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 03 00 00 00 | INPUT CHANNEL PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 04 00 00 00 | TALKBACK/OSCILLATOR PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 05 00 00 00 | AUX CHANNEL PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 06 00 00 00 | MAIN CHANNEL PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 07 00 00 00 | MONITOR PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 08 00 00 00 | MUTE GROUP PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 09 00 00 00 | DCA GROUP PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 0A 00 00 00 | OUTPUT PATCHBAY PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 0B 00 00 00 | EFFECT PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 0B 10 00 00 | 31 BAND GEQ PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 0B 20 00 00 | EXTERNAL EFFECT PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 0C 00 00 00 | USB MEMORY RECORDER PARAMETERS | |—————————————+———————————————————————————————————————————————————| | 10 00 00 00 | SYSTEM PARAMETERS | +—————————————————————————————————————————————————————————————————+

Input Board Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 00 00 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 00 00 01 | 00 — 37 | SI—AD4 GAIN | | | | 0,,,55 = —10dBu,,,—65dBu (PAD = OFF) | | | | 0,,,55 = +10dBu,,,—45dBu (PAD = ON ) | | | | | | | 00 — 01 | SI—AES4 INPUT A LOCK (*1) OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 00 00 02 | 00 — 01 | SI—AD4 PAD OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 00 00 03 | 00 — 01 | SI—AD4 PHANTOM OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 00 00 04 | 00 — 01 | SI—AD4 LINK (*1) OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 00 00 05 | 00 | (Reserved) | : : : | 00 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 01 00 00 | 00 — | REAC A INPUT2 Parameter Area | | | | (similat to 00 00 00 00 — 00 00 7F 7F) | : : : | 00 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : |—————————————+—————————+—————————————————————————————————————————| | 00 28 00 00 | 00 — | REAC A INPUT40 Parameter Area | | | | (similat to 00 00 00 00 — 00 00 7F 7F) | : : : | 00 28 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 00 29 00 00 | 00 — | REAC B INPUT1 Parameter Area | | | | (similat to 00 00 00 00 — 00 00 7F 7F) | : : : | 00 29 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : |—————————————+—————————+—————————————————————————————————————————| | 00 4F 00 00 | 00 — | REAC B INPUT40 Parameter Area | | | | (similat to 00 00 00 00 — 00 00 7F 7F) | : : : | 00 4F 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 00 50 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 50 00 01 | 00 — 37 | CONSOLE INTPUT1 GAIN | | | | 0,,,55 = —10dBu,,,—65dBu (PAD = OFF) |

| | | +10dBu,,,—45dBu (PAD = ON) | |—————————————+—————————+—————————————————————————————————————————| | 00 50 00 02 | 00 — 01 | CONSOLE INTPUT1 PAD OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 50 00 03 | 00 — 01 | CONSOLE INTPUT1 PHANTOM OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 50 00 04 | 00 | (Reserved) | : : : | 00 50 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 51 00 00 | 00 — | CONSOLE INTPUT2 | | | | (similat to 00 50 00 00 — 00 50 7F 7F) | : : : | 00 51 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : |—————————————+—————————+—————————————————————————————————————————| | 00 57 00 00 | 00 — | CONSOLE INTPUT8 | | | | (similat to 00 50 00 00 — 00 50 7F 7F) | : : : | 00 57 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 00 58 00 00 | 05 | STEREO IN L TYPE 5 = STEREO IN | |—————————————+—————————+—————————————————————————————————————————| | 00 58 00 01 | 00 — 12 | STEREO IN L GAIN | | | | 0,,,18 = 0dBu,,,—18dBu | |—————————————+—————————+—————————————————————————————————————————| | 00 58 00 02 | 00 | (Reserved) | : : : | 00 58 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 59 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 59 00 01 | 00 — 12 | STEREO IN R GAIN | | | | 0,,,18 = 0dBu,,,—18dBu | |—————————————+—————————+—————————————————————————————————————————| | 00 59 00 02 | 00 | (Reserved) | : : : | 00 59 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 5A 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 5A 00 01 | 00 — 28 | TALKBACK GAIN (*1) | | | | 0,,,40 = —10dBu,,,—55dBu | |—————————————+—————————+—————————————————————————————————————————| | 00 5A 00 02 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 00 5A 00 03 | 00 — 01 | TALKBACK PHANTOM OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 00 5A 00 04 | 00 | (Reserved) | : : : | 00 5A 7F 7F | 00 | (Reserved) | +—————————————————————————————————————————————————————————————————+

(*1) This is read-only.

Output Board Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 01 00 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 01 00 00 03 | 00 | (Reserved) | : : : | 01 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 01 01 00 00 | 00 — | REAC A OUTPUT2 Parameter Area | | | | (similat to 01 00 00 00 — 01 00 7F 7F) | : : : | 01 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : |—————————————+—————————+—————————————————————————————————————————| | 01 28 00 00 | 00 — | REAC A OUTPUT40 Parameter Area | | | | (similat to 01 00 00 00 — 01 00 7F 7F) | : : : | 01 28 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 01 29 00 00 | 00 — | REAC B OUTPUT1 Parameter Area | | | | (similat to 01 00 00 00 — 01 00 7F 7F) | : : : | 01 29 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : |—————————————+—————————+—————————————————————————————————————————| | 01 4F 00 00 | 00 — | REAC B OUTPUT40 Parameter Area | | | | (similat to 01 00 00 00 — 01 00 7F 7F) | : : : | 01 4F 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

(*1) This is read-only.

Input Patchbay Parameter

5

MIDI Implementation

●

| | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 02 00 00 01 | 00 | (Reserved) | : : : | 02 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 02 01 00 00 | 00 — | CHANNEL2 | | | | (similar to 02 00 00 00 — 02 00 7F 7F) | : : : | 02 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 02 2F 00 00 | 00 — | CHANNEL48 | | | | (similar to 02 00 00 00 — 02 00 7F 7F) | : : : | 02 2F 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

Input Channel Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 03 00 00 00 | 20 — 7F | CHANNEL1 NAME—1 (ASCII) | | 03 00 00 01#| 20 — 7F | CHANNEL1 NAME—2 (ASCII) | | 03 00 00 02#| 20 — 7F | CHANNEL1 NAME—3 (ASCII) | | 03 00 00 03#| 20 — 7F | CHANNEL1 NAME—4 (ASCII) | | 03 00 00 04#| 20 — 7F | CHANNEL1 NAME—5 (ASCII) | | 03 00 00 05#| 20 — 7F | CHANNEL1 NAME—6 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 06 | 00 — 07 | CHANNEL1 NAME COLOR | | | | 0,,,7 = Navy,Blue,Brown,Red,Yellow, | | | | Green,Aqua,Purple | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 08 | 00 — 01 | CHANNEL1 LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 09 | 00 — 01 | CHANNEL1 PHASE NRM,INV | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 0A | 0aaaaaaa| CHANNEL1 ATT | | 03 00 00 0B#| 0bbbbbbb| —480,,,240 = —48.0,,,+24.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 0C | 00 — 01 | CHANNEL1 MUTE OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 0D | 00 — 01 | CHANNEL1 SOLO OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 0E | 0aaaaaaa| CHANNEL1 FADER LEVEL | | 03 00 00 0F#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 10 | 01 — 7F | CHANNEL1 PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 11 | 00 — 01 | CHANNEL1 MAIN SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 12 | 00 | (Reserved) | : : : | 03 00 00 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 20 | 00 — 01 | CHANNEL1 FILTER SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 21 | 00 — 03 | CHANNEL1 FILTER TYPE | | | | HI PASS,NOTCH,BAND PASS,LO PASS | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 22 | 0aaaaaaa| CHANNEL1 FILTER ATT | | 03 00 00 23#| 0bbbbbbb| —480,,,150 = —48.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 24 | 0aaaaaaa| CHANNEL1 FILTER FREQ 20Hz,,,20000Hz | | 03 00 00 25#| 0bbbbbbb| | | 03 00 00 26#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 27 | 0aaaaaaa| CHANNEL1 FILTER Q | | 03 00 00 28#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 29 | 00 | (Reserved) | : : : | 03 00 00 2F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 30 | 00 — 01 | CHANNEL1 GATE SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 31 | 00 — 7F | CHANNEL1 GATE KEY—IN | | | | 0,,,47 = CH1,,,CH48 | | | | 127 = SELF | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 32 | 00 — 02 | CHANNEL1 GATE MODE | | | | EXPANDER,GATE,DUCKING | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 33 | 0aaaaaaa| CHANNEL1 GATE THRESHOLD | | 03 00 00 34#| 0bbbbbbb| —800,,,0 = —80.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 35 | 00 — 0D | CHANNEL1 GATE RATIO | | | | 1.00:1,,,Inf:1 (*1) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 36 | 00 — 09 | CHANNEL1 GATE KNEE | | | | HARD, SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 37 | 0aaaaaaa| CHANNEL1 GATE RANGE | | 03 00 00 38#| 0bbbbbbb| less than —905,—905,,,0 = | | | | —Inf,—90.5,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 39 | 0aaaaaaa| CHANNEL1 GATE ATTACK | | 03 00 00 3A#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 3B | 0aaaaaaa| CHANNEL1 GATE RELEASE | | 03 00 00 3C#| 0bbbbbbb| 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 3D | 0aaaaaaa| CHANNEL1 GATE HOLD | | 03 00 00 3E#| 0bbbbbbb| 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 3F | 00 | (Reserved) |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 40 | 00 — 01 | CHANNEL1 COMPRESSOR SWITCH OFF,ON |

|—————————————+—————————+—————————————————————————————————————————| | 03 00 00 41 | 00 — 7F | CHANNEL1 COMPRESSOR KEY—IN | | | | 0,,,47 = CH1,,,CH48 | | | | 127 = SELF | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 42 | 0aaaaaaa| CHANNEL1 COMPRESSOR THRESHOLD | | 03 00 00 43#| 0bbbbbbb| —400,,,0 = —40.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 44 | 00 — 0D | CHANNEL1 COMPRESSOR RATIO | | | | 1.00:1,,,Inf:1 (*1) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 45 | 00 — 09 | CHANNEL1 COMPRESSOR KNEE | | | | HARD, SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 46 | 0aaaaaaa| CHANNEL1 COMPRESSOR ATTACK | | 03 00 00 47#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 48 | 0aaaaaaa| CHANNEL1 COMPRESSOR RELEASE | | 03 00 00 49#| 0bbbbbbb| 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 4A | 0aaaaaaa| CHANNEL1 COMPRESSOR GAIN | | 03 00 00 4B#| 0bbbbbbb| —400,,,400 = —40.0,,,+40.0dB(A.GAIN=OFF)| | | 0bbbbbbb| —400,,,60 = —40.0,,, +6.0dB(A.GAIN=ON) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 4C | 00 — 01 | CHANNEL1 COMPRESSOR AUTO GAIN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 4D | 00 | (Reserved) | : : : | 03 00 00 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 50 | 00 — 01 | CHANNEL1 EQ SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 51 | 0aaaaaaa| CHANNEL1 EQ ATT | | 03 00 00 52#| 0bbbbbbb| —480,,,150 = —48.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 53 | 0aaaaaaa| CHANNEL1 EQ LO GAIN | | 03 00 00 54#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 55 | 0aaaaaaa| CHANNEL1 EQ LO FREQ 20Hz,,,1000Hz | | 03 00 00 56#| 0bbbbbbb| | | 03 00 00 57#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 58 | 0aaaaaaa| CHANNEL1 EQ LO—MID GAIN | | 03 00 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 5A | 0aaaaaaa| CHANNEL1 EQ LO—MID FREQ 20Hz,,,20000Hz | | 03 00 00 5B#| 0bbbbbbb| | | 03 00 00 5C#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 5D | 0aaaaaaa| CHANNEL1 EQ LO—MID Q | | 03 00 00 5E#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 5F | 0aaaaaaa| CHANNEL1 EQ HI—MID GAIN | | 03 00 00 60#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 61 | 0aaaaaaa| CHANNEL1 EQ HI—MID FREQ 20Hz,,,20000Hz | | 03 00 00 62#| 0bbbbbbb| | | 03 00 00 63#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 64 | 0aaaaaaa| CHANNEL1 EQ HI—MID Q | | 03 00 00 65#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 66 | 0aaaaaaa| CHANNEL1 EQ HI GAIN | | 03 00 00 67#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 68 | 0aaaaaaa| CHANNEL1 EQ HI FREQ 1000Hz,,,20000Hz | | 03 00 00 69#| 0bbbbbbb| | | 03 00 00 6A#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 03 00 00 6B | 00 | (Reserved) | : : : | 03 00 00 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 00 | 00 — 01 | CHANNEL1 AUX1 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 01 | 00 — 02 | CHANNEL1 AUX1 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 02 | 0aaaaaaa| CHANNEL1 AUX1 SEND LEVEL | | 03 00 01 03#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 04 | 01 — 7F | CHANNEL1 AUX1 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 05 | 00 — 01 | CHANNEL1 AUX1 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 06 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 08 | 00 — 01 | CHANNEL1 AUX2 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 09 | 00 — 02 | CHANNEL1 AUX2 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 0A | 0aaaaaaa| CHANNEL1 AUX2 SEND LEVEL | | 03 00 01 0B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 0C | 01 — 7F | CHANNEL1 AUX2 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 0D | 00 — 01 | CHANNEL1 AUX2 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 0E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 0F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 10 | 00 — 01 | CHANNEL1 AUX3 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 11 | 00 — 02 | CHANNEL1 AUX3 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 12 | 0aaaaaaa| CHANNEL1 AUX3 SEND LEVEL | | 03 00 01 13#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB |

6

MIDI Implementation

|—————————————+—————————+—————————————————————————————————————————| | 03 00 01 14 | 01 — 7F | CHANNEL1 AUX3 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 15 | 00 — 01 | CHANNEL1 AUX3 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 16 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 17 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 18 | 00 — 01 | CHANNEL1 AUX4 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 19 | 00 — 02 | CHANNEL1 AUX4 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 1A | 0aaaaaaa| CHANNEL1 AUX4 SEND LEVEL | | 03 00 01 1B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 1C | 01 — 7F | CHANNEL1 AUX4 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 1D | 00 — 01 | CHANNEL1 AUX4 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 1E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 20 | 00 — 01 | CHANNEL1 AUX5 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 21 | 00 — 02 | CHANNEL1 AUX5 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 22 | 0aaaaaaa| CHANNEL1 AUX5 SEND LEVEL | | 03 00 01 23#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 24 | 01 — 7F | CHANNEL1 AUX5 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 25 | 00 — 01 | CHANNEL1 AUX5 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 26 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 27 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 28 | 00 — 01 | CHANNEL1 AUX6 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 29 | 00 — 02 | CHANNEL1 AUX6 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 2A | 0aaaaaaa| CHANNEL1 AUX6 SEND LEVEL | | 03 00 01 2B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 2C | 01 — 7F | CHANNEL1 AUX6 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 2D | 00 — 01 | CHANNEL1 AUX6 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 2E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 2F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 30 | 00 — 01 | CHANNEL1 AUX7 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 31 | 00 — 02 | CHANNEL1 AUX7 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 32 | 0aaaaaaa| CHANNEL1 AUX7 SEND LEVEL | | 03 00 01 33#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 34 | 01 — 7F | CHANNEL1 AUX7 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 35 | 00 — 01 | CHANNEL1 AUX7 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 36 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 37 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 38 | 00 — 01 | CHANNEL1 AUX8 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 39 | 00 — 02 | CHANNEL1 AUX8 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 3A | 0aaaaaaa| CHANNEL1 AUX8 SEND LEVEL | | 03 00 01 3B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 3C | 01 — 7F | CHANNEL1 AUX8 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 3D | 00 — 01 | CHANNEL1 AUX8 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 3E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 3F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 40 | 00 — 01 | CHANNEL1 AUX9 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 41 | 00 — 02 | CHANNEL1 AUX9 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 42 | 0aaaaaaa| CHANNEL1 AUX9 SEND LEVEL | | 03 00 01 43#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 44 | 01 — 7F | CHANNEL1 AUX9 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 45 | 00 — 01 | CHANNEL1 AUX9 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 46 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 47 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 48 | 00 — 01 | CHANNEL1 AUX10 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 49 | 00 — 02 | CHANNEL1 AUX10 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER |

|—————————————+—————————+—————————————————————————————————————————| | 03 00 01 4A | 0aaaaaaa| CHANNEL1 AUX10 SEND LEVEL | | 03 00 01 4B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 4C | 01 — 7F | CHANNEL1 AUX10 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 4D | 00 — 01 | CHANNEL1 AUX10 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 4E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 50 | 00 — 01 | CHANNEL1 AUX11 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 51 | 00 — 02 | CHANNEL1 AUX11 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 52 | 0aaaaaaa| CHANNEL1 AUX11 SEND LEVEL | | 03 00 01 53#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 54 | 01 — 7F | CHANNEL1 AUX11 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 55 | 00 — 01 | CHANNEL1 AUX11 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 56 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 57 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 58 | 00 — 01 | CHANNEL1 AUX12 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 59 | 00 — 02 | CHANNEL1 AUX12 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 5A | 0aaaaaaa| CHANNEL1 AUX12 SEND LEVEL | | 03 00 01 5B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 5C | 01 — 7F | CHANNEL1 AUX12 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 5D | 00 — 01 | CHANNEL1 AUX12 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 5E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 5F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 60 | 00 — 01 | CHANNEL1 AUX13 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 61 | 00 — 02 | CHANNEL1 AUX13 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 62 | 0aaaaaaa| CHANNEL1 AUX13 SEND LEVEL | | 03 00 01 63#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 64 | 01 — 7F | CHANNEL1 AUX13 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 65 | 00 — 01 | CHANNEL1 AUX13 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 66 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 67 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 68 | 00 — 01 | CHANNEL1 AUX14 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 69 | 00 — 02 | CHANNEL1 AUX14 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 6A | 0aaaaaaa| CHANNEL1 AUX14 SEND LEVEL | | 03 00 01 6B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 6C | 01 — 7F | CHANNEL1 AUX14 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 6D | 00 — 01 | CHANNEL1 AUX14 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 6E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 6F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 70 | 00 — 01 | CHANNEL1 AUX15 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 71 | 00 — 02 | CHANNEL1 AUX15 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 72 | 0aaaaaaa| CHANNEL1 AUX15 SEND LEVEL | | 03 00 01 73#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 74 | 01 — 7F | CHANNEL1 AUX15 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 75 | 00 — 01 | CHANNEL1 AUX15 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 76 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 77 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 78 | 00 — 01 | CHANNEL1 AUX16 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 79 | 00 — 02 | CHANNEL1 AUX16 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 7A | 0aaaaaaa| CHANNEL1 AUX16 SEND LEVEL | | 03 00 01 7B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 7C | 01 — 7F | CHANNEL1 AUX16 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 7D | 00 — 01 | CHANNEL1 AUX16 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 7E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 00 01 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————|

7

MIDI Implementation

●

| 03 00 02 00 | 00 | (Reserved) | : : : | 03 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 03 01 00 00 | 00 — | CHANNEL2 | | | | (similar to 03 00 00 00 — 03 00 7F 7F) | : : : | 03 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 03 2F 00 00 | 00 — | CHANNEL48 | | | | (similar to 03 00 00 00 — 03 00 7F 7F) | : : : | 03 2F 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

(*1) Dynamics Ratio Table

+——————+————————+ | Data | RATIO | +——————+————————+ | 0 | 1—00:1 | | 1 | 1—12:1 | | 2 | 1—25:1 | | 3 | 1—40:1 | | 4 | 1—60:1 | | 5 | 1—80:1 | | 6 | 2—00:1 | | 7 | 2—50:1 | | 8 | 3—20:1 | | 9 | 4—00:1 | | 10 | 5—60:1 | | 11 | 8—00:1 | | 12 | 16—0:1 | | 13 | Inf:1 | +——————+————————+

Talkback/Oscillator Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 04 00 00 00 | 00 — 01 | TALKBACK SWITCH (*1) OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 01 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 02 | 0aaaaaaa| TALKBACK LEVEL | | 04 00 00 03#| 0bbbbbbb| less than —905,—905,,,0 = | | | | —Inf,—90.5,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 04 | 00 | (Reserved) | : : : | 04 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 08 | 00 — 01 | TALKBACK MAIN L SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 09 | 00 — 01 | TALKBACK MAIN R SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0A | 00 — 01 | TALKBACK AUX1 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0B | 00 — 01 | TALKBACK AUX2 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0C | 00 — 01 | TALKBACK AUX3 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0D | 00 — 01 | TALKBACK AUX4 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0E | 00 — 01 | TALKBACK AUX5 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 0F | 00 — 01 | TALKBACK AUX6 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 10 | 00 — 01 | TALKBACK AUX7 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 11 | 00 — 01 | TALKBACK AUX8 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 12 | 00 — 01 | TALKBACK AUX9 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 13 | 00 — 01 | TALKBACK AUX10 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 14 | 00 — 01 | TALKBACK AUX11 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 15 | 00 — 01 | TALKBACK AUX12 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 16 | 00 — 01 | TALKBACK AUX13 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 17 | 00 — 01 | TALKBACK AUX14 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 18 | 00 — 01 | TALKBACK AUX15 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 19 | 00 — 01 | TALKBACK AUX16 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 00 1A | 00 | (Reserved) | : : : | 04 00 00 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 00 | 00 — 01 | OSCILLATOR SWITCH OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 01 | 00 — 02 | OSCILLATOR TYPE | | | | SINE WAVE,PINK NOISE,WHITE NOISE | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 02 | 0aaaaaaa| OSCILLATOR LEVEL | | 04 00 01 03#| 0bbbbbbb| less than —905,—905,,,0 = | | | | —Inf,—90.5,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 04 | 0aaaaaaa| OSCILLATOR FREQ 20,,,20000Hz | | 04 00 01 05#| 0bbbbbbb| | | 04 00 01 06#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 08 | 00 — 01 | OSCILLATOR MAIN L SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 09 | 00 — 01 | OSCILLATOR MAIN R SEND OFF, ON |

|—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0A | 00 — 01 | OSCILLATOR AUX1 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0B | 00 — 01 | OSCILLATOR AUX2 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0C | 00 — 01 | OSCILLATOR AUX3 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0D | 00 — 01 | OSCILLATOR AUX4 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0E | 00 — 01 | OSCILLATOR AUX5 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 0F | 00 — 01 | OSCILLATOR AUX6 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 10 | 00 — 01 | OSCILLATOR AUX7 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 11 | 00 — 01 | OSCILLATOR AUX8 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 12 | 00 — 01 | OSCILLATOR AUX9 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 13 | 00 — 01 | OSCILLATOR AUX10 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 14 | 00 — 01 | OSCILLATOR AUX11 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 15 | 00 — 01 | OSCILLATOR AUX12 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 16 | 00 — 01 | OSCILLATOR AUX13 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 17 | 00 — 01 | OSCILLATOR AUX14 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 18 | 00 — 01 | OSCILLATOR AUX15 SEND OFF, ON | |—————————————+—————————+—————————————————————————————————————————| | 04 00 01 19 | 00 — 01 | OSCILLATOR AUX16 SEND OFF, ON | +—————————————————————————————————————————————————————————————————+

(*1) This is read-only.

AUX Channel Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 05 00 00 00 | 20 — 7F | AUX1 NAME—1 (ASCII) | | 05 00 00 01#| 20 — 7F | AUX1 NAME—2 (ASCII) | | 05 00 00 02#| 20 — 7F | AUX1 NAME—3 (ASCII) | | 05 00 00 03#| 20 — 7F | AUX1 NAME—4 (ASCII) | | 05 00 00 04#| 20 — 7F | AUX1 NAME—5 (ASCII) | | 05 00 00 05#| 20 — 7F | AUX1 NAME—6 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 06 | 00 — 07 | AUX1 NAME COLOR | | | | 0,,,7 = Navy,Blue,Brown,Red,Yellow, | | | | Green,Aqua,Purple | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 08 | 00 — 01 | AUX1 LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 09 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 0A | 00 — 08 | AUX1 ATT | | | | —8,,,0 = —48.0,,,0dB (6dB Step)| |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 0B | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 0C | 00 — 01 | AUX1 MUTE OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 0D | 00 — 01 | AUX1 SOLO OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 0E | 0aaaaaaa| AUX1 FADER LEVEL | | 05 00 00 0F#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 10 | 01 — 7F | AUX1 BALANCE L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 11 | 00 | (Reserved) | : : : | 05 00 00 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 50 | 00 — 01 | AUX1 EQ SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 51 | 0aaaaaaa| AUX1 EQ ATT | | 05 00 00 52#| 0bbbbbbb| —480,,,150 = —48.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 53 | 0aaaaaaa| AUX1 EQ LO GAIN | | 05 00 00 54#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 55 | 0aaaaaaa| AUX1 EQ LO FREQ 20Hz,,,1000Hz | | 05 00 00 56#| 0bbbbbbb| | | 05 00 00 57#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 58 | 0aaaaaaa| AUX1 EQ LO—MID GAIN | | 05 00 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 5A | 0aaaaaaa| AUX1 EQ LO—MID FREQ 20Hz,,,20000Hz | | 05 00 00 5B#| 0bbbbbbb| | | 05 00 00 5C#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 5D | 0aaaaaaa| AUX1 EQ LO—MID Q | | 05 00 00 5E#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 5F | 0aaaaaaa| AUX1 EQ HI—MID GAIN | | 05 00 00 60#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 61 | 0aaaaaaa| AUX1 EQ HI—MID FREQ 20Hz,,,20000Hz | | 05 00 00 62#| 0bbbbbbb| | | 05 00 00 63#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 64 | 0aaaaaaa| AUX1 EQ HI—MID Q | | 05 00 00 65#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 66 | 0aaaaaaa| AUX1 EQ HI GAIN | | 05 00 00 67#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 68 | 0aaaaaaa| AUX1 EQ HI FREQ 1000Hz,,,20000Hz |

8

●

MIDI Implementation

| 05 00 00 69#| 0bbbbbbb| | | 05 00 00 6A#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 6B | 00 | (Reserved) | : : : | 05 00 00 6F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 70 | 00 — 01 | AUX1 LIMITER SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 71 | 0aaaaaaa| AUX1 LIMITER THRESHOLD | | 05 00 00 72#| 0bbbbbbb| —400,,,0 = —40.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 73 | 00 — 09 | AUX1 LIMITER KNEE | | | | HARD, SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 74 | 0aaaaaaa| AUX1 LIMITER ATTACK | | 05 00 00 75#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 76 | 0aaaaaaa| AUX1 LIMITER RELEASE | | 05 00 00 77#| 0bbbbbbb| 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 05 00 00 78 | 00 | (Reserved) | : : : | 05 00 01 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 00 02 00 | 00 — 01 | AUX1 MAIN SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 05 00 02 01 | 00 — 02 | AUX1 MAIN SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 05 00 02 02 | 0aaaaaaa| AUX1 MAIN SEND LEVEL | | 05 00 02 03#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 05 00 02 04 | 01 — 7F | AUX1 MAIN SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 05 00 02 05 | 00 | (Reserved) | : : : | 05 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 05 01 00 00 | 00 — | AUX2 | | | | (similar to 05 00 00 00 — 05 00 7F 7F) | : : : | 05 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 05 15 00 00 | 00 — | AUX16 | | | | (similar to 05 00 00 00 — 05 00 7F 7F) | : : : | 05 15 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

MAIN Channel Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 06 00 00 00 | 20 — 7F | MAIN L NAME—1 (ASCII) | | 06 00 00 01#| 20 — 7F | MAIN L NAME—2 (ASCII) | | 06 00 00 02#| 20 — 7F | MAIN L NAME—3 (ASCII) | | 06 00 00 03#| 20 — 7F | MAIN L NAME—4 (ASCII) | | 06 00 00 04#| 20 — 7F | MAIN L NAME—5 (ASCII) | | 06 00 00 05#| 20 — 7F | MAIN L NAME—6 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 06 | 00 — 07 | MAIN L NAME COLOR | | | | 0,,,7 = Navy,Blue,Brown,Red,Yellow, | | | | Green,Aqua,Purple | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 07 | 00 | (Reserved) | : : : | 06 00 00 09 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 0A | 00 — 08 | MAIN L ATT | | | | —8,,,0 = —48.0,,,0dB (6dB Step)| |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 0B | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 0C | 00 — 01 | MAIN L MUTE OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 0D | 00 — 01 | MAIN L SOLO OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 0E | 0aaaaaaa| MAIN L FADER LEVEL | | 06 00 00 0F#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 10 | 01 — 7F | MAIN L BALANCE L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 11 | 00 | (Reserved) | : : : | 06 00 00 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 50 | 00 — 01 | MAIN L EQ SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 51 | 0aaaaaaa| MAIN L EQ ATT | | 06 00 00 52#| 0bbbbbbb| —480,,,150 = —48.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 53 | 0aaaaaaa| MAIN L EQ LO GAIN | | 06 00 00 54#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 55 | 0aaaaaaa| MAIN L EQ LO FREQ 20Hz,,,1000Hz | | 06 00 00 56#| 0bbbbbbb| | | 06 00 00 57#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 58 | 0aaaaaaa| MAIN L EQ LO—MID GAIN | | 06 00 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 5A | 0aaaaaaa| MAIN L EQ LO—MID FREQ 20Hz,,,20000Hz | | 06 00 00 5B#| 0bbbbbbb| | | 06 00 00 5C#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 5D | 0aaaaaaa| MAIN L EQ LO—MID Q | | 06 00 00 5E#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 |

|—————————————+—————————+—————————————————————————————————————————| | 06 00 00 5F | 0aaaaaaa| MAIN L EQ HI—MID GAIN | | 06 00 00 60#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 61 | 0aaaaaaa| MAIN L EQ HI—MID FREQ 20Hz,,,20000Hz | | 06 00 00 62#| 0bbbbbbb| | | 06 00 00 63#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 64 | 0aaaaaaa| MAIN L EQ HI—MID Q | | 06 00 00 65#| 0bbbbbbb| 36,,,1600 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 66 | 0aaaaaaa| MAIN L EQ HI GAIN | | 06 00 00 67#| 0bbbbbbb| —150,,,150 = —15.0,,,+15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 68 | 0aaaaaaa| MAIN L EQ HI FREQ 1000Hz,,,20000Hz | | 06 00 00 69#| 0bbbbbbb| | | 06 00 00 6A#| 0ccccccc| | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 6B | 00 | (Reserved) | : : : | 06 00 00 6F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 70 | 00 — 01 | MAIN L LIMITER SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 71 | 0aaaaaaa| MAIN L LIMITER THRESHOLD | | 06 00 00 72#| 0bbbbbbb| —400,,,0 = —40.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 73 | 00 — 09 | MAIN L LIMITER KNEE | | | | HARD, SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 74 | 0aaaaaaa| MAIN L LIMITER ATTACK | | 06 00 00 75#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 76 | 0aaaaaaa| MAIN L LIMITER RELEASE | | 06 00 00 77#| 0bbbbbbb| 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 06 00 00 78 | 00 | (Reserved) | : : : | 06 00 00 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 00 | 00 — 01 | MAIN L AUX1 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 01 | 00 — 02 | MAIN L AUX1 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 02 | 0aaaaaaa| MAIN L AUX1 SEND LEVEL | | 06 00 01 03#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 04 | 01 — 7F | MAIN L AUX1 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 05 | 00 — 01 | MAIN L AUX1 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 06 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 08 | 00 — 01 | MAIN L AUX2 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 09 | 00 — 02 | MAIN L AUX2 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 0A | 0aaaaaaa| MAIN L AUX2 SEND LEVEL | | 06 00 01 0B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 0C | 01 — 7F | MAIN L AUX2 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 0D | 00 — 01 | MAIN L AUX2 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 0E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 0F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 10 | 00 — 01 | MAIN L AUX3 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 11 | 00 — 02 | MAIN L AUX3 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 12 | 0aaaaaaa| MAIN L AUX3 SEND LEVEL | | 06 00 01 13#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 14 | 01 — 7F | MAIN L AUX3 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 15 | 00 — 01 | MAIN L AUX3 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 16 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 17 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 18 | 00 — 01 | MAIN L AUX4 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 19 | 00 — 02 | MAIN L AUX4 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 1A | 0aaaaaaa| MAIN L AUX4 SEND LEVEL | | 06 00 01 1B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 1C | 01 — 7F | MAIN L AUX4 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 1D | 00 — 01 | MAIN L AUX4 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 1E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 20 | 00 — 01 | MAIN L AUX5 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 21 | 00 — 02 | MAIN L AUX5 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 22 | 0aaaaaaa| MAIN L AUX5 SEND LEVEL | | 06 00 01 23#| 0bbbbbbb| less than —905,—905,,,100 = |

9

MIDI Implementation

●

| | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 24 | 01 — 7F | MAIN L AUX5 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 25 | 00 — 01 | MAIN L AUX5 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 26 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 27 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 28 | 00 — 01 | MAIN L AUX6 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 29 | 00 — 02 | MAIN L AUX6 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 2A | 0aaaaaaa| MAIN L AUX6 SEND LEVEL | | 06 00 01 2B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 2C | 01 — 7F | MAIN L AUX6 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 2D | 00 — 01 | MAIN L AUX6 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 2E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 2F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 30 | 00 — 01 | MAIN L AUX7 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 31 | 00 — 02 | MAIN L AUX7 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 32 | 0aaaaaaa| MAIN L AUX7 SEND LEVEL | | 06 00 01 33#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 34 | 01 — 7F | MAIN L AUX7 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 35 | 00 — 01 | MAIN L AUX7 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 36 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 37 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 38 | 00 — 01 | MAIN L AUX8 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 39 | 00 — 02 | MAIN L AUX8 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 3A | 0aaaaaaa| MAIN L AUX8 SEND LEVEL | | 06 00 01 3B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 3C | 01 — 7F | MAIN L AUX8 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 3D | 00 — 01 | MAIN L AUX8 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 3E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 3F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 40 | 00 — 01 | MAIN L AUX9 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 41 | 00 — 02 | MAIN L AUX9 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 42 | 0aaaaaaa| MAIN L AUX9 SEND LEVEL | | 06 00 01 43#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 44 | 01 — 7F | MAIN L AUX9 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 45 | 00 — 01 | MAIN L AUX9 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 46 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 47 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 48 | 00 — 01 | MAIN L AUX10 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 49 | 00 — 02 | MAIN L AUX10 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 4A | 0aaaaaaa| MAIN L AUX10 SEND LEVEL | | 06 00 01 4B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 4C | 01 — 7F | MAIN L AUX10 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 4D | 00 — 01 | MAIN L AUX10 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 4E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 50 | 00 — 01 | MAIN L AUX11 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 51 | 00 — 02 | MAIN L AUX11 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 52 | 0aaaaaaa| MAIN L AUX11 SEND LEVEL | | 06 00 01 53#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 54 | 01 — 7F | MAIN L AUX11 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 55 | 00 — 01 | MAIN L AUX11 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 56 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 57 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 58 | 00 — 01 | MAIN L AUX12 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 59 | 00 — 02 | MAIN L AUX12 SEND POSITION |

| | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 5A | 0aaaaaaa| MAIN L AUX12 SEND LEVEL | | 06 00 01 5B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 5C | 01 — 7F | MAIN L AUX12 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 5D | 00 — 01 | MAIN L AUX12 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 5E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 5F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 60 | 00 — 01 | MAIN L AUX13 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 61 | 00 — 02 | MAIN L AUX13 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 62 | 0aaaaaaa| MAIN L AUX13 SEND LEVEL | | 06 00 01 63#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 64 | 01 — 7F | MAIN L AUX13 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 65 | 00 — 01 | MAIN L AUX13 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 66 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 67 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 68 | 00 — 01 | MAIN L AUX14 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 69 | 00 — 02 | MAIN L AUX14 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 6A | 0aaaaaaa| MAIN L AUX14 SEND LEVEL | | 06 00 01 6B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 6C | 01 — 7F | MAIN L AUX14 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 6D | 00 — 01 | MAIN L AUX14 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 6E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 6F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 70 | 00 — 01 | MAIN L AUX15 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 71 | 00 — 02 | MAIN L AUX15 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 72 | 0aaaaaaa| MAIN L AUX15 SEND LEVEL | | 06 00 01 73#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 74 | 01 — 7F | MAIN L AUX15 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 75 | 00 — 01 | MAIN L AUX15 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 76 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 77 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 78 | 00 — 01 | MAIN L AUX16 SEND SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 79 | 00 — 02 | MAIN L AUX16 SEND POSITION | | | | PRE EQ, PRE FADER, POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 7A | 0aaaaaaa| MAIN L AUX16 SEND LEVEL | | 06 00 01 7B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 7C | 01 — 7F | MAIN L AUX16 SEND PAN L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 7D | 00 — 01 | MAIN L AUX16 SEND PAN LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 06 00 01 7E | 00 | (Reserved) | : : : | 06 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 06 01 00 00 | 00 — | MAIN R | | | | (similar to 06 00 00 00 — 06 00 7F 7F) | : : : | 06 01 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

Monitor Parameter

(*1) This is read-only.

Mute Group Parameter

10

●

MIDI Implementation

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 08 00 00 00 | 20 — 7F | MUTE GROUP1 NAME—1 (ASCII) | | 08 00 00 01#| 20 — 7F | MUTE GROUP1 NAME—2 (ASCII) | | 08 00 00 02#| 20 — 7F | MUTE GROUP1 NAME—3 (ASCII) | | 08 00 00 03#| 20 — 7F | MUTE GROUP1 NAME—4 (ASCII) | | 08 00 00 04#| 20 — 7F | MUTE GROUP1 NAME—5 (ASCII) | | 08 00 00 05#| 20 — 7F | MUTE GROUP1 NAME—6 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 06 | 00 — 07 | MUTE GROUP1 NAME COLOR | | | | 0,,,7 = Navy,Blue,Brown,Red,Yellow, | | | | Green,Aqua,Purple | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 08 | 00 — 01 | MUTE GROUP1 MASTER SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 09 | 00 | (Reserved) | : : : | 08 00 00 0B | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 0C | 00 — 01 | MUTE GROUP1 CH1 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 0D | 00 — 01 | MUTE GROUP1 CH2 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 0E | 00 — 01 | MUTE GROUP1 CH3 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 0F | 00 — 01 | MUTE GROUP1 CH4 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 10 | 00 — 01 | MUTE GROUP1 CH5 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 11 | 00 — 01 | MUTE GROUP1 CH6 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 12 | 00 — 01 | MUTE GROUP1 CH7 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 13 | 00 — 01 | MUTE GROUP1 CH8 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 14 | 00 — 01 | MUTE GROUP1 CH9 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 15 | 00 — 01 | MUTE GROUP1 CH10 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 16 | 00 — 01 | MUTE GROUP1 CH11 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 17 | 00 — 01 | MUTE GROUP1 CH12 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 18 | 00 — 01 | MUTE GROUP1 CH13 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 19 | 00 — 01 | MUTE GROUP1 CH14 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1A | 00 — 01 | MUTE GROUP1 CH15 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1B | 00 — 01 | MUTE GROUP1 CH16 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1C | 00 — 01 | MUTE GROUP1 CH17 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1D | 00 — 01 | MUTE GROUP1 CH18 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1E | 00 — 01 | MUTE GROUP1 CH19 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 1F | 00 — 01 | MUTE GROUP1 CH20 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 20 | 00 — 01 | MUTE GROUP1 CH21 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 21 | 00 — 01 | MUTE GROUP1 CH22 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 22 | 00 — 01 | MUTE GROUP1 CH23 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 23 | 00 — 01 | MUTE GROUP1 CH24 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 24 | 00 — 01 | MUTE GROUP1 CH25 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 25 | 00 — 01 | MUTE GROUP1 CH26 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 26 | 00 — 01 | MUTE GROUP1 CH27 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 27 | 00 — 01 | MUTE GROUP1 CH28 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 28 | 00 — 01 | MUTE GROUP1 CH29 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 29 | 00 — 01 | MUTE GROUP1 CH30 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2A | 00 — 01 | MUTE GROUP1 CH31 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2B | 00 — 01 | MUTE GROUP1 CH32 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2C | 00 — 01 | MUTE GROUP1 CH33 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2D | 00 — 01 | MUTE GROUP1 CH34 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2E | 00 — 01 | MUTE GROUP1 CH35 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 2F | 00 — 01 | MUTE GROUP1 CH36 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 30 | 00 — 01 | MUTE GROUP1 CH37 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 31 | 00 — 01 | MUTE GROUP1 CH38 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 32 | 00 — 01 | MUTE GROUP1 CH39 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 33 | 00 — 01 | MUTE GROUP1 CH40 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 34 | 00 — 01 | MUTE GROUP1 CH41 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 35 | 00 — 01 | MUTE GROUP1 CH42 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 36 | 00 — 01 | MUTE GROUP1 CH43 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 37 | 00 — 01 | MUTE GROUP1 CH44 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 38 | 00 — 01 | MUTE GROUP1 CH45 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 39 | 00 — 01 | MUTE GROUP1 CH46 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————|

| 08 00 00 3A | 00 — 01 | MUTE GROUP1 CH47 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 3B | 00 — 01 | MUTE GROUP1 CH48 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 3C | 00 — 01 | MUTE GROUP1 AUX1 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 3D | 00 — 01 | MUTE GROUP1 AUX2 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 3E | 00 — 01 | MUTE GROUP1 AUX3 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 3F | 00 — 01 | MUTE GROUP1 AUX4 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 40 | 00 — 01 | MUTE GROUP1 AUX5 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 41 | 00 — 01 | MUTE GROUP1 AUX6 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 42 | 00 — 01 | MUTE GROUP1 AUX7 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 43 | 00 — 01 | MUTE GROUP1 AUX8 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 44 | 00 — 01 | MUTE GROUP1 AUX9 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 45 | 00 — 01 | MUTE GROUP1 AUX10 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 46 | 00 — 01 | MUTE GROUP1 AUX11 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 47 | 00 — 01 | MUTE GROUP1 AUX12 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 48 | 00 — 01 | MUTE GROUP1 AUX13 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 49 | 00 — 01 | MUTE GROUP1 AUX14 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 4A | 00 — 01 | MUTE GROUP1 AUX15 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 4B | 00 — 01 | MUTE GROUP1 AUX16 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 4C | 00 — 01 | MUTE GROUP1 MAIN ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 08 00 00 4D | 00 | (Reserved) | : : : | 08 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 08 01 00 00 | 00 — | MUTE GROUP2 | | | | (similar to 08 00 00 00 — 03 00 7F 7F) | : : : | 08 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 08 07 00 00 | 00 — | MUTE GROUP8 | | | | (similar to 08 00 00 00 — 03 00 7F 7F) | : : : | 08 07 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

DCA Group Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 09 00 00 00 | 20 — 7F | DCA GROUP1 NAME—1 (ASCII) | | 09 00 00 01#| 20 — 7F | DCA GROUP1 NAME—2 (ASCII) | | 09 00 00 02#| 20 — 7F | DCA GROUP1 NAME—3 (ASCII) | | 09 00 00 03#| 20 — 7F | DCA GROUP1 NAME—4 (ASCII) | | 09 00 00 04#| 20 — 7F | DCA GROUP1 NAME—5 (ASCII) | | 09 00 00 05#| 20 — 7F | DCA GROUP1 NAME—6 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 06 | 00 — 07 | DCA GROUP1 NAME COLOR | | | | 0,,,7 = Navy,Blue,Brown,Red,Yellow, | | | | Green,Aqua,Purple | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 08 | 00 — 01 | DCA GROUP1 MUTE OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 09 | 00 — 01 | DCA GROUP1 SOLO OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 0A | 0aaaaaaa| DCA GROUP FADER LEVEL | | 09 00 00 0B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 0C | 00 — 01 | DCA GROUP1 CH1 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 0D | 00 — 01 | DCA GROUP1 CH2 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 0E | 00 — 01 | DCA GROUP1 CH3 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 0F | 00 — 01 | DCA GROUP1 CH4 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 10 | 00 — 01 | DCA GROUP1 CH5 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 11 | 00 — 01 | DCA GROUP1 CH6 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 12 | 00 — 01 | DCA GROUP1 CH7 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 13 | 00 — 01 | DCA GROUP1 CH8 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 14 | 00 — 01 | DCA GROUP1 CH9 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 15 | 00 — 01 | DCA GROUP1 CH10 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 16 | 00 — 01 | DCA GROUP1 CH11 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 17 | 00 — 01 | DCA GROUP1 CH12 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 18 | 00 — 01 | DCA GROUP1 CH13 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 19 | 00 — 01 | DCA GROUP1 CH14 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 1A | 00 — 01 | DCA GROUP1 CH15 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 1B | 00 — 01 | DCA GROUP1 CH16 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————|

11

MIDI Implementation

●

| 09 00 00 1C | 00 — 01 | DCA GROUP1 CH17 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 1D | 00 — 01 | DCA GROUP1 CH18 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 1E | 00 — 01 | DCA GROUP1 CH19 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 1F | 00 — 01 | DCA GROUP1 CH20 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 20 | 00 — 01 | DCA GROUP1 CH21 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 21 | 00 — 01 | DCA GROUP1 CH22 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 22 | 00 — 01 | DCA GROUP1 CH23 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 23 | 00 — 01 | DCA GROUP1 CH24 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 24 | 00 — 01 | DCA GROUP1 CH25 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 25 | 00 — 01 | DCA GROUP1 CH26 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 26 | 00 — 01 | DCA GROUP1 CH27 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 27 | 00 — 01 | DCA GROUP1 CH28 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 28 | 00 — 01 | DCA GROUP1 CH29 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 29 | 00 — 01 | DCA GROUP1 CH30 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2A | 00 — 01 | DCA GROUP1 CH31 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2B | 00 — 01 | DCA GROUP1 CH32 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2C | 00 — 01 | DCA GROUP1 CH33 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2D | 00 — 01 | DCA GROUP1 CH34 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2E | 00 — 01 | DCA GROUP1 CH35 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 2F | 00 — 01 | DCA GROUP1 CH36 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 30 | 00 — 01 | DCA GROUP1 CH37 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 31 | 00 — 01 | DCA GROUP1 CH38 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 32 | 00 — 01 | DCA GROUP1 CH39 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 33 | 00 — 01 | DCA GROUP1 CH40 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 34 | 00 — 01 | DCA GROUP1 CH41 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 35 | 00 — 01 | DCA GROUP1 CH42 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 36 | 00 — 01 | DCA GROUP1 CH43 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 37 | 00 — 01 | DCA GROUP1 CH44 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 38 | 00 — 01 | DCA GROUP1 CH45 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 39 | 00 — 01 | DCA GROUP1 CH46 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3A | 00 — 01 | DCA GROUP1 CH47 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3B | 00 — 01 | DCA GROUP1 CH48 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3C | 00 — 01 | DCA GROUP1 AUX1 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3D | 00 — 01 | DCA GROUP1 AUX2 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3E | 00 — 01 | DCA GROUP1 AUX3 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 3F | 00 — 01 | DCA GROUP1 AUX4 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 40 | 00 — 01 | DCA GROUP1 AUX5 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 41 | 00 — 01 | DCA GROUP1 AUX6 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 42 | 00 — 01 | DCA GROUP1 AUX7 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 43 | 00 — 01 | DCA GROUP1 AUX8 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 44 | 00 — 01 | DCA GROUP1 AUX9 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 45 | 00 — 01 | DCA GROUP1 AUX10 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 46 | 00 — 01 | DCA GROUP1 AUX11 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 47 | 00 — 01 | DCA GROUP1 AUX12 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 48 | 00 — 01 | DCA GROUP1 AUX13 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 49 | 00 — 01 | DCA GROUP1 AUX14 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 4A | 00 — 01 | DCA GROUP1 AUX15 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 4B | 00 — 01 | DCA GROUP1 AUX16 ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 4C | 00 — 01 | DCA GROUP1 MAIN ASSIGN OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 09 00 00 4D | 00 | (Reserved) | : : : | 09 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 09 01 00 00 | 00 — | DCA GROUP2 | | | | (similar to 09 00 00 00 — 03 00 7F 7F) | : : : | 09 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 09 07 00 00 | 00 — | DCA GROUP8 | | | | (similar to 09 00 00 00 — 03 00 7F 7F) | : : : | 09 07 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

Output Patchbay Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0A 00 00 00 | 00 — 67 | REAC A OUT1 SOURCE | | | | 0,1 = MAIN L OUT, MAIN R OUT | | | | 2 = MAIN MONO OUT | | | | 3,,,18 = AUX1 OUT, AUX16 OUT | | | | 19,20 = REC L OUT, REC R OUT | | | | 21,22 = MONITOR L OUT, MONITOR R OUT | | | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 0A 00 00 01 | 00 | (Reserved) | : : : | 0A 00 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0A 01 00 00 | 00 — | REAC A OUT2 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0A 27 00 00 | 00 — | REAC A OUT40 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 27 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 0A 28 00 00 | 00 — | REAC B OUT1 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 28 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0A 4F 00 00 | 00 — | REAC B OUT40 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 4F 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 0A 50 00 00 | 00 — | CONSOLE OUT1 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 50 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0A 57 00 00 | 00 — | CONSOLE OUT8 | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 57 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 0A 58 00 00 | 00 — | DIGITAL OUT L | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 58 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 0A 59 00 00 | 00 — | DIGITAL OUT R | | | | (similar to 0A 00 00 00 — 0A 00 7F 7F) | : : : | 0A 59 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

Effect Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 00 | 00 — 01 | FX1 LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 01 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 02 | 00 — 01 | FX1 BYPASS L OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 03 | 00 — 01 | FX1 BYPASS R OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 04 | 00 — 7F | FX1 INSERT/SOURCE L | | | | 0,,,48 = CH1 INS,,,CH48 INS | | | | 49,50 = MAIN L INS,MAIN R INS | | | | 51,,,66 = AUX1 INS,,,AUX16 INS | | | | 67,,,84 = AUX1 OUT,,,AUX16 OUT | | | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 05 | 00 — 7F | FX1 INSERT/SOURCE R | | | | 0,,,48 = CH1 INS,,,CH48 INS | | | | 49,50 = MAIN L INS,MAIN R INS | | | | 51,,,66 = AUX1 INS,,,AUX16 INS | | | | 67,,,84 = AUX1 OUT,,,AUX16 OUT | | | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 06 | 00 | (Reserved) | : : : | 0B 00 00 0F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 10 | 20 — 7F | FX1 NAME—1 (ASCII) | | 0B 00 00 11#| 20 — 7F | FX1 NAME—2 (ASCII) | | 0B 00 00 12#| 20 — 7F | FX1 NAME—3 (ASCII) | | 0B 00 00 13#| 20 — 7F | FX1 NAME—4 (ASCII) | | 0B 00 00 14#| 20 — 7F | FX1 NAME—5 (ASCII) | | 0B 00 00 15#| 20 — 7F | FX1 NAME—6 (ASCII) | | 0B 00 00 16#| 20 — 7F | FX1 NAME—7 (ASCII) | | 0B 00 00 17#| 20 — 7F | FX1 NAME—8 (ASCII) | | 0B 00 00 18#| 20 — 7F | FX1 NAME—9 (ASCII) | | 0B 00 00 19#| 20 — 7F | FX1 NAME—10 (ASCII) | | 0B 00 00 1A#| 20 — 7F | FX1 NAME—11 (ASCII) | | 0B 00 00 1B#| 20 — 7F | FX1 NAME—12 (ASCII) | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 1C | 0aaaaaaa| FX1 ALGORITHM TYPE | | 0B 00 00 1D#| 0bbbbbbb| aaaaaaabbbbbbb = | | | | 0: Dual GEQ | | | | 1: Stereo Reverb | | | | 2: Reverb with Gate | | | | 3: Dual Delay | | | | 4: Long Delay | | | | 5: Multi Tap Delay |

12

❍

MIDI Implementation

| | | 6: X Mod Delay | | | | 7: Stereo Chorus | | | | 8: Stereo Flanger | | | | 9: Stereo Phaser | | | | 10: Dual Pitch Shift | | | | 11: Dual Ch Strip | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 1E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 20 | 00 — | FX1 Parameter Area (See Below) | : : : | 0B 00 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| | 0B 01 00 00 | 00 — | FX2 | | | | (similar to 0B 00 00 00 — 0B 00 7F 7F) | : : : | 0B 01 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0B 03 00 00 | 00 — | FX4 | | | | (similar to 0B 00 00 00 — 0B 00 7F 7F) | : : : | 0B 03 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

(*) A meaning of the parameter area changes correspond with the top of parameter of EFFECT TYPE. See the following tables. The address shows at FX1.

Dual GEQ

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| GEQ A: ATT | | 0B 00 00 21#| 0bbbbbbb| —420,,,150 = —42.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| GEQ A: 20Hz LEVEL | | 0B 00 00 23#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| GEQ A: 25Hz LEVEL | | 0B 00 00 25#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| GEQ A: 32Hz LEVEL | | 0B 00 00 27#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| GEQ A: 40Hz LEVEL | | 0B 00 00 29#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| GEQ A: 50Hz LEVEL | | 0B 00 00 2B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| GEQ A: 63Hz LEVEL | | 0B 00 00 2D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| GEQ A: 80Hz LEVEL | | 0B 00 00 2F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| GEQ A: 100Hz LEVEL | | 0B 00 00 31#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| GEQ A: 125Hz LEVEL | | 0B 00 00 33#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| GEQ A: 160Hz LEVEL | | 0B 00 00 35#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| GEQ A: 200Hz LEVEL | | 0B 00 00 37#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| GEQ A: 250Hz LEVEL | | 0B 00 00 39#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| GEQ A: 315Hz LEVEL | | 0B 00 00 3B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| GEQ A: 400Hz LEVEL | | 0B 00 00 3D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| GEQ A: 500Hz LEVEL | | 0B 00 00 3F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| GEQ A: 630Hz LEVEL | | 0B 00 00 41#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| GEQ A: 800Hz LEVEL | | 0B 00 00 43#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 44 | 0aaaaaaa| GEQ A: 1.00kHz LEVEL | | 0B 00 00 45#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 46 | 0aaaaaaa| GEQ A: 1.25kHz LEVEL | | 0B 00 00 47#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 48 | 0aaaaaaa| GEQ A: 1.60kHz LEVEL | | 0B 00 00 49#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4A | 0aaaaaaa| GEQ A: 2.00kHz LEVEL | | 0B 00 00 4B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4C | 0aaaaaaa| GEQ A: 2.50kHz LEVEL | | 0B 00 00 4D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4E | 0aaaaaaa| GEQ A: 3.15kHz LEVEL | | 0B 00 00 4F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 50 | 0aaaaaaa| GEQ A: 4.00kHz LEVEL | | 0B 00 00 51#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 52 | 0aaaaaaa| GEQ A: 5.00kHz LEVEL | | 0B 00 00 53#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB |

|—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 54 | 0aaaaaaa| GEQ A: 6.30kHz LEVEL | | 0B 00 00 55#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 56 | 0aaaaaaa| GEQ A: 8.00kHz LEVEL | | 0B 00 00 57#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 58 | 0aaaaaaa| GEQ A: 10.0kHz LEVEL | | 0B 00 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5A | 0aaaaaaa| GEQ A: 12.5kHz LEVEL | | 0B 00 00 5B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5C | 0aaaaaaa| GEQ A: 16.0kHz LEVEL | | 0B 00 00 5D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5E | 0aaaaaaa| GEQ A: 20.0kHz LEVEL | | 0B 00 00 5F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 60 | 0aaaaaaa| DELAY A: SWITCH | | 0B 00 00 61#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 62 | 0aaaaaaa| DELAY A: TIME | | 0B 00 00 63#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 64 | 0aaaaaaa| DELAY A: FB | | 0B 00 00 65#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 66 | 0aaaaaaa| DELAY A: LO FREQ DAMP GAIN | | 0B 00 00 67#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 68 | 0aaaaaaa| DELAY A: LO FREQ DAMP FREQ (*3) | | 0B 00 00 69#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6A | 0aaaaaaa| DELAY A: HI FREQ DAMP GAIN | | 0B 00 00 6B#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6C | 0aaaaaaa| DELAY A: HI FREQ DAMP FREQ (*3) | | 0B 00 00 6D#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6E | 0aaaaaaa| DELAY A: WET POSITION | | 0B 00 00 6F#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 70 | 0aaaaaaa| DELAY A: WET LEVEL (*1) | | 0B 00 00 71#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 72 | 0aaaaaaa| DELAY A: DRY LEVEL (*1) | | 0B 00 00 73#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 74 | 0aaaaaaa| GEQ B: ATT | | 0B 00 00 75#| 0bbbbbbb| —420,,,150 = —42.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 76 | 0aaaaaaa| GEQ B: 20Hz LEVEL | | 0B 00 00 77#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 78 | 0aaaaaaa| GEQ B: 25Hz LEVEL | | 0B 00 00 79#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7A | 0aaaaaaa| GEQ B: 32Hz LEVEL | | 0B 00 00 7B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7C | 0aaaaaaa| GEQ B: 40Hz LEVEL | | 0B 00 00 7D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7E | 0aaaaaaa| GEQ B: 50Hz LEVEL | | 0B 00 00 7F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 00 | 0aaaaaaa| GEQ B: 63Hz LEVEL | | 0B 00 01 01#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 02 | 0aaaaaaa| GEQ B: 80Hz LEVEL | | 0B 00 01 03#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 04 | 0aaaaaaa| GEQ B: 100Hz LEVEL | | 0B 00 01 05#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 06 | 0aaaaaaa| GEQ B: 125Hz LEVEL | | 0B 00 01 07#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 08 | 0aaaaaaa| GEQ B: 160Hz LEVEL | | 0B 00 01 09#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0A | 0aaaaaaa| GEQ B: 200Hz LEVEL | | 0B 00 01 0B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0C | 0aaaaaaa| GEQ B: 250Hz LEVEL | | 0B 00 01 0D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0E | 0aaaaaaa| GEQ B: 315Hz LEVEL | | 0B 00 01 0F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 10 | 0aaaaaaa| GEQ B: 400Hz LEVEL | | 0B 00 01 11#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 12 | 0aaaaaaa| GEQ B: 500Hz LEVEL | | 0B 00 01 13#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 14 | 0aaaaaaa| GEQ B: 630Hz LEVEL | | 0B 00 01 15#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 16 | 0aaaaaaa| GEQ B: 800Hz LEVEL | | 0B 00 01 17#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 18 | 0aaaaaaa| GEQ B: 1.00kHz LEVEL | | 0B 00 01 19#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1A | 0aaaaaaa| GEQ B: 1.25kHz LEVEL | | 0B 00 01 1B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1C | 0aaaaaaa| GEQ B: 1.60kHz LEVEL | | 0B 00 01 1D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1E | 0aaaaaaa| GEQ B: 2.00kHz LEVEL | | 0B 00 01 1F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————|

13

MIDI Implementation

❍

| 0B 00 01 20 | 0aaaaaaa| GEQ B: 2.50kHz LEVEL | | 0B 00 01 21#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 22 | 0aaaaaaa| GEQ B: 3.15kHz LEVEL | | 0B 00 01 23#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 24 | 0aaaaaaa| GEQ B: 4.00kHz LEVEL | | 0B 00 01 25#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 26 | 0aaaaaaa| GEQ B: 5.00kHz LEVEL | | 0B 00 01 27#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 28 | 0aaaaaaa| GEQ B: 6.30kHz LEVEL | | 0B 00 01 29#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2A | 0aaaaaaa| GEQ B: 8.00kHz LEVEL | | 0B 00 01 2B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2C | 0aaaaaaa| GEQ B: 10.0kHz LEVEL | | 0B 00 01 2D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2E | 0aaaaaaa| GEQ B: 12.5kHz LEVEL | | 0B 00 01 2F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 30 | 0aaaaaaa| GEQ B: 16.0kHz LEVEL | | 0B 00 01 31#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 32 | 0aaaaaaa| GEQ B: 20.0kHz LEVEL | | 0B 00 01 33#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 34 | 0aaaaaaa| DELAY B: SWITCH | | 0B 00 01 35#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 36 | 0aaaaaaa| DELAY B: TIME | | 0B 00 01 37#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 38 | 0aaaaaaa| DELAY B: FB | | 0B 00 01 39#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3A | 0aaaaaaa| DELAY B: LO FREQ DAMP GAIN | | 0B 00 01 3B#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3C | 0aaaaaaa| DELAY B: LO FREQ DAMP FREQ (*3) | | 0B 00 01 3D#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3E | 0aaaaaaa| DELAY B: HI FREQ DAMP GAIN | | 0B 00 01 3F#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 40 | 0aaaaaaa| DELAY B: HI FREQ DAMP FREQ (*3) | | 0B 00 01 41#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 42 | 0aaaaaaa| DELAY B: WET POSITION | | 0B 00 01 43#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 44 | 0aaaaaaa| DELAY B: WET LEVEL (*1) | | 0B 00 01 45#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 46 | 0aaaaaaa| DELAY B: DRY LEVEL (*1) | | 0B 00 01 47#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | +—————————————————————————————————————————————————————————————————+

St.REVERB (Stereo Reverb)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| REVERB: TYPE | | 0B 00 00 21#| 0bbbbbbb| 0: ROOM1 | | | | 1: ROOM2 | | | | 2: HALL1 | | | | 3: HALL2 | | | | 4: PLATE | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| REVERB: SIZE | | 0B 00 00 23#| 0bbbbbbb| 5,,,40m | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| REVERB: TIME | | 0B 00 00 25#| 0bbbbbbb| 1,,,320 = 0.1,,,32.0s | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| REVERB: PRE DELAY | | 0B 00 00 27#| 0bbbbbbb| 0,,,200 = 0,,,200ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| REVERB: ER LEVEL (*1) | | 0B 00 00 29#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| REVERB: DIFFUSION | | 0B 00 00 2B#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| REVERB: DENSITY | | 0B 00 00 2D#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| REVERB: LO FREQ DAMP GAIN | | 0B 00 00 2F#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| REVERB: LO FREQ DAMP FREQ (*3) | | 0B 00 00 31#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| REVERB: HI FREQ DAMP GAIN | | 0B 00 00 33#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| REVERB: HI FREQ DAMP FREQ (*3) | | 0B 00 00 35#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| REVERB: HI CUT (*3) | | 0B 00 00 37#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| REVERB: WET LEVEL (*1) | | 0B 00 00 39#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| REVERB: DRY LEVEL (*1) | | 0B 00 00 3B#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| REVERB: LR BALANCE | | 0B 00 00 3D#| 0bbbbbbb| 1,,,127 = L63,,,R63 |

|—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| EQ: SWITCH | | 0B 00 00 3F#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| EQ: ATT | | 0B 00 00 41#| 0bbbbbbb| —420,,,60 = —42.0,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| EQ: LO TYPE | | 0B 00 00 43#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 44 | 0aaaaaaa| EQ: LO GAIN | | 0B 00 00 45#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 46 | 0aaaaaaa| EQ: LO FREQ (*3) | | 0B 00 00 47#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 48 | 0aaaaaaa| EQ: LO Q (*4) | | 0B 00 00 49#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4A | 0aaaaaaa| EQ: LO—MID TYPE | | 0B 00 00 4B#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4C | 0aaaaaaa| EQ: LO—MID GAIN | | 0B 00 00 4D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4E | 0aaaaaaa| EQ: LO—MID FREQ (*3) | | 0B 00 00 4F#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 50 | 0aaaaaaa| EQ: LO—MID Q (*4) | | 0B 00 00 51#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 52 | 0aaaaaaa| EQ: HI—MID TYPE | | 0B 00 00 53#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 54 | 0aaaaaaa| EQ: HI—MID GAIN | | 0B 00 00 55#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 56 | 0aaaaaaa| EQ: HI—MID FREQ (*3) | | 0B 00 00 57#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 58 | 0aaaaaaa| EQ: HI—MID Q (*4) | | 0B 00 00 59#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5A | 0aaaaaaa| EQ: HI TYPE | | 0B 00 00 5B#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5C | 0aaaaaaa| EQ: HI GAIN | | 0B 00 00 5D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5E | 0aaaaaaa| EQ: HI FREQ (*3) | | 0B 00 00 5F#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 60 | 0aaaaaaa| EQ: HI Q (*4) | | 0B 00 00 61#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | +—————————————————————————————————————————————————————————————————+

REVERB+GATE

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| REVERB: SIZE | | 0B 00 00 21#| 0bbbbbbb| 5,,,40m | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| REVERB: TIME | | 0B 00 00 23#| 0bbbbbbb| 1,,,320 = 0.1,,,32.0s | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| REVERB: PRE DELAY | | 0B 00 00 25#| 0bbbbbbb| 0,,,200 = 0,,,200ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| REVERB: ER LEVEL (*1) | | 0B 00 00 27#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| REVERB: DIFFUSION | | 0B 00 00 29#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| REVERB: DENSITY | | 0B 00 00 2B#| 0bbbbbbb| 0,,,100 |

14

❍

MIDI Implementation

|—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| REVERB: LO FREQ DAMP GAIN | | 0B 00 00 2D#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| REVERB: LO FREQ DAMP FREQ (*3) | | 0B 00 00 2F#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| REVERB: HI FREQ DAMP GAIN | | 0B 00 00 31#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| REVERB: HI FREQ DAMP FREQ (*3) | | 0B 00 00 33#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| REVERB: HI CUT (*3) | | 0B 00 00 35#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| REVERB: WET LEVEL (*1) | | 0B 00 00 37#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| REVERB: DRY LEVEL (*1) | | 0B 00 00 39#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| EQ: SWITCH | | 0B 00 00 3B#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| EQ: ATT | | 0B 00 00 3D#| 0bbbbbbb| —420,,,60 = —42.0,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| EQ: LO TYPE | | 0B 00 00 3F#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| EQ: LO GAIN | | 0B 00 00 41#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| EQ: LO FREQ (*3) | | 0B 00 00 43#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 44 | 0aaaaaaa| EQ: LO Q (*4) | | 0B 00 00 45#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 46 | 0aaaaaaa| EQ: LO—MID TYPE | | 0B 00 00 47#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 48 | 0aaaaaaa| EQ: LO—MID GAIN | | 0B 00 00 49#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4A | 0aaaaaaa| EQ: LO—MID FREQ (*3) | | 0B 00 00 4B#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4C | 0aaaaaaa| EQ: LO—MID Q (*4) | | 0B 00 00 4D#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4E | 0aaaaaaa| EQ: HI—MID TYPE | | 0B 00 00 4F#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 50 | 0aaaaaaa| EQ: HI—MID GAIN | | 0B 00 00 51#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 52 | 0aaaaaaa| EQ: HI—MID FREQ (*3) | | 0B 00 00 53#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 54 | 0aaaaaaa| EQ: HI—MID Q (*4) | | 0B 00 00 55#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 56 | 0aaaaaaa| EQ: HI TYPE | | 0B 00 00 57#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 58 | 0aaaaaaa| EQ: HI GAIN | | 0B 00 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5A | 0aaaaaaa| EQ: HI FREQ (*3) | | 0B 00 00 5B#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5C | 0aaaaaaa| EQ: HI Q (*4) | | 0B 00 00 5D#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5E | 0aaaaaaa| GATE: SWITCH | | 0B 00 00 5F#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————|

| 0B 00 00 60 | 0aaaaaaa| GATE: MODE 0 = GATE | | 0B 00 00 61#| 0bbbbbbb| 1 = DUCKING | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 62 | 0aaaaaaa| GATE: THRESHOLD (*1) | | 0B 00 00 63#| 0bbbbbbb| 1,,,100 = —80.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 64 | 0aaaaaaa| GATE: RANGE (*1) | | 0B 00 00 65#| 0bbbbbbb| 0,,,100 = —Inf,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 66 | 0aaaaaaa| GATE: ATTACK TIME (*2) | | 0B 00 00 67#| 0bbbbbbb| 0,,,124 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 68 | 0aaaaaaa| GATE: RELEASE TIME (*2) | | 0B 00 00 69#| 0bbbbbbb| 0,,,124 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6A | 0aaaaaaa| GATE: HOLD TIME (*2) | | 0B 00 00 6B#| 0bbbbbbb| 0,,,124 = 0,,,8000ms | +—————————————————————————————————————————————————————————————————+

DELAYx2

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| DELAY A: TIME | | 0B 00 00 21#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| DELAY A: FB | | 0B 00 00 23#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| DELAY A: LO FREQ DAMP GAIN | | 0B 00 00 25#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| DELAY A: LO FREQ DAMP FREQ (*3) | | 0B 00 00 27#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| DELAY A: HI FREQ DAMP GAIN | | 0B 00 00 29#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| DELAY A: HI FREQ DAMP FREQ (*3) | | 0B 00 00 2B#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| DELAY A: WET POSITION | | 0B 00 00 2D#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| DELAY A: WET LEVEL (*1) | | 0B 00 00 2F#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| DELAY A: DRY LEVEL (*1) | | 0B 00 00 31#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| DELAY B: TIME | | 0B 00 00 33#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| DELAY B: FB | | 0B 00 00 35#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| DELAY B: LO FREQ DAMP GAIN | | 0B 00 00 37#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| DELAY B: LO FREQ DAMP FREQ (*3) | | 0B 00 00 39#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| DELAY B: HI FREQ DAMP GAIN | | 0B 00 00 3B#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| DELAY B: HI FREQ DAMP FREQ (*3) | | 0B 00 00 3D#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| DELAY B: WET POSITION | | 0B 00 00 3F#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| DELAY B: WET LEVEL (*1) | | 0B 00 00 41#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| DELAY B: DRY LEVEL (*1) | | 0B 00 00 43#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | +—————————————————————————————————————————————————————————————————+

LONG DELAY

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| DELAY: TIME L | | 0B 00 00 21#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| DELAY: TIME R | | 0B 00 00 23#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| DELAY: FEEDBACK TIME | | 0B 00 00 25#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| DELAY: FEEDBACK LEVEL | | 0B 00 00 27#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| DELAY: LO FREQ DAMP GAIN | | 0B 00 00 29#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| DELAY: LO FREQ DAMP FREQ (*3) | | 0B 00 00 2B#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| DELAY: HI FREQ DAMP GAIN | | 0B 00 00 2D#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| DELAY: HI FREQ DAMP FREQ (*3) | | 0B 00 00 2F#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| DELAY: WET LEVEL (*1) | | 0B 00 00 31#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| DELAY: DRY LEVEL (*1) | | 0B 00 00 33#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB |

15

MIDI Implementation

❍

+—————————————————————————————————————————————————————————————————+

M.TAP DELAY (Multi Tap Delay)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| DELAY: TIME 1 | | 0B 00 00 21#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| DELAY: TIME 2 | | 0B 00 00 23#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| DELAY: TIME 3 | | 0B 00 00 25#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| DELAY: TIME 4 | | 0B 00 00 27#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| DELAY: TIME 5 | | 0B 00 00 29#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| DELAY: TIME 6 | | 0B 00 00 2B#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| DELAY: TIME 7 | | 0B 00 00 2D#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| DELAY: TIME 8 | | 0B 00 00 2F#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| DELAY: TIME 9 | | 0B 00 00 31#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| DELAY: TIME 10 | | 0B 00 00 33#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| DELAY: TIME 11 | | 0B 00 00 35#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| DELAY: TIME 12 | | 0B 00 00 37#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| DELAY: LEVEL 1 (*1) | | 0B 00 00 39#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| DELAY: LEVEL 2 (*1) | | 0B 00 00 3B#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| DELAY: LEVEL 3 (*1) | | 0B 00 00 3D#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| DELAY: LEVEL 4 (*1) | | 0B 00 00 3F#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| DELAY: LEVEL 5 (*1) | | 0B 00 00 41#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| DELAY: LEVEL 6 (*1) | | 0B 00 00 43#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 44 | 0aaaaaaa| DELAY: LEVEL 7 (*1) | | 0B 00 00 45#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 46 | 0aaaaaaa| DELAY: LEVEL 8 (*1) | | 0B 00 00 47 | 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 48 | 0aaaaaaa| DELAY: LEVEL 9 (*1) | | 0B 00 00 49#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4A | 0aaaaaaa| DELAY: LEVEL 10 (*1) | | 0B 00 00 4B#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4C | 0aaaaaaa| DELAY: LEVEL 11 (*1) | | 0B 00 00 4D#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4E | 0aaaaaaa| DELAY: LEVEL 12 (*1) | | 0B 00 00 4F#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 50 | 0aaaaaaa| DELAY: PAN1 | | 0B 00 00 51#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 52 | 0aaaaaaa| DELAY: PAN2 | | 0B 00 00 53#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 54 | 0aaaaaaa| DELAY: PAN3 | | 0B 00 00 55#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 56 | 0aaaaaaa| DELAY: PAN4 | | 0B 00 00 57#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 58 | 0aaaaaaa| DELAY: PAN5 | | 0B 00 00 59#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5A | 0aaaaaaa| DELAY: PAN6 | | 0B 00 00 5B#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5C | 0aaaaaaa| DELAY: PAN7 | | 0B 00 00 5D#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5E | 0aaaaaaa| DELAY: PAN8 | | 0B 00 00 5F#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 60 | 0aaaaaaa| DELAY: PAN9 | | 0B 00 00 61#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 62 | 0aaaaaaa| DELAY: PAN10 | | 0B 00 00 63#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 64 | 0aaaaaaa| DELAY: PAN11 | | 0B 00 00 65#| 0bbbbbbb| 1,,,127 = L63,,,R63 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 66 | 0aaaaaaa| DELAY: PAN12 | | 0B 00 00 67#| 0bbbbbbb| 1,,,127 = L63,,,R63 |

|—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 68 | 0aaaaaaa| DELAY: FEEDBACK TIME | | 0B 00 00 69#| 0bbbbbbb| 0,,,2700ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6A | 0aaaaaaa| DELAY: FEEDBACK LEVEL | | 0B 00 00 6B#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6C | 0aaaaaaa| DELAY: LO FREQ DAMP GAIN | | 0B 00 00 6D#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6E | 0aaaaaaa| DELAY: LO FREQ DAMP FREQ (*3) | | 0B 00 00 6F#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 70 | 0aaaaaaa| DELAY: HI FREQ DAMP GAIN | | 0B 00 00 71#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 72 | 0aaaaaaa| DELAY: HI FREQ DAMP FREQ (*3) | | 0B 00 00 73#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 74 | 0aaaaaaa| DELAY: WET LEVEL (*1) | | 0B 00 00 75#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 76 | 0aaaaaaa| DELAY: DRY LEVEL (*1) | | 0B 00 00 77#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | +—————————————————————————————————————————————————————————————————+

X.MOD DELAY (Cross-modulation Delay)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| DELAY: MODULATION WAVE 0 = SIN | | 0B 00 00 21#| 0bbbbbbb| 1 = SQR | | | | 2 = EXP+ | | | | 3 = EXP— | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| DELAY: MODULATION RATE | | 0B 00 00 23#| 0bbbbbbb| 1,,,100 = 0.1,,,10.0Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| DELAY: MODULATION DEPTH | | 0B 00 00 25#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| DELAY: MODULATION PHASE SHIFT | | 0B 00 00 27#| 0bbbbbbb| —180,,,180deg | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| DELAY: TIME L | | 0B 00 00 29#| 0bbbbbbb| 0,,,1000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| DELAY: TIME R | | 0B 00 00 2B#| 0bbbbbbb| 0,,,1000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| DELAY: FEEDBACK LEVEL | | 0B 00 00 2D#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| DELAY: CROSS FEEDBACK LEVEL | | 0B 00 00 2F#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| DELAY: LO FREQ DAMP GAIN | | 0B 00 00 31#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| DELAY: LO FREQ DAMP FREQ (*3) | | 0B 00 00 33#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| DELAY: HI FREQ DAMP GAIN | | 0B 00 00 35#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| DELAY: HI FREQ DAMP FREQ (*3) | | 0B 00 00 37#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| DELAY: WET POSITION | | 0B 00 00 39#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| DELAY: WET LEVEL (*1) | | 0B 00 00 3B#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| DELAY: DRY LEVEL (*1) | | 0B 00 00 3D#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | +—————————————————————————————————————————————————————————————————+

St.CHORUS (Stereo Chorus)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| CHORUS: RATE | | 0B 00 00 21#| 0bbbbbbb| 1,,,100 = 0.1,,,10.0Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| CHORUS: DEPTH | | 0B 00 00 23#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| CHORUS: PRE DELAY | | 0B 00 00 25#| 0bbbbbbb| 0,,,100ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| CHORUS: CROSS MIX LEVEL | | 0B 00 00 27#| 0bbbbbbb| —100,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| CHORUS: LEVEL | | 0B 00 00 29#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| CHORUS: DIRECT SWITCH | | 0B 00 00 2B#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| CHORUS: EFFECT SWITCH | | 0B 00 00 2D#| 0bbbbbbb| 0,1 = OFF,ON | +—————————————————————————————————————————————————————————————————+

16

❍

MIDI Implementation

St.FLANGER (Stereo Flanger)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| FLANGER: RATE (*6) | | 0B 00 00 21#| 0bbbbbbb| 1,,,88 = 0.01,,,10.0Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| FLANGER: DEPTH | | 0B 00 00 23#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| FLANGER: MANUAL | | 0B 00 00 25#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| FLANGER: LFO PHASE SHIFT | | 0B 00 00 27#| 0bbbbbbb| —180,,,180deg | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| FLANGER: FEEDBACK LEVEL | | 0B 00 00 29#| 0bbbbbbb| —100,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| FLANGER: CROSS FEEDBACK LEVEL | | 0B 00 00 2B#| 0bbbbbbb| —100,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| FLANGER: LEVEL | | 0B 00 00 2D#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| FLANGER: DIRECT SWITCH | | 0B 00 00 2F#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| FLANGER: EFFECT SWITCH | | 0B 00 00 31#| 0bbbbbbb| 0,1 = OFF,ON | +—————————————————————————————————————————————————————————————————+

St.PHASER (Stereo Phaser)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| PHASER: RATE (*6) | | 0B 00 00 21#| 0bbbbbbb| 1,,,88 = 0.01,,,10.0Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| PHASER: DEPTH | | 0B 00 00 23#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| PHASER: MANUAL | | 0B 00 00 25#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| PHASER: LFO PHASE SHIFT | | 0B 00 00 27#| 0bbbbbbb| —180,,,180deg | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| PHASER: FEEDBACK LEVEL | | 0B 00 00 29#| 0bbbbbbb| —100,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| PHASER: CROSS FEEDBACK LEVEL | | 0B 00 00 2B#| 0bbbbbbb| —100,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| PHASER: LEVEL | | 0B 00 00 2D#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| PHASER: MODE | | 0B 00 00 2F#| 0bbbbbbb| 0 = 4STAGE | | | | 1 = 8STAGE | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| PHASER: DIRECT SWITCH | | 0B 00 00 31#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| PHASER: EFFECT SWITCH | | 0B 00 00 33#| 0bbbbbbb| 0,1 = OFF,ON | +—————————————————————————————————————————————————————————————————+

P.SHIFTERx2 (Pitch Shifter x2)

+—————————————————————————————————————————————————————————————————+

CH STRIPx2 (Channel Strip x2)

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 00 00 20 | 0aaaaaaa| GATE A: SWITCH | | 0B 00 00 21#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 22 | 0aaaaaaa| GATE A: MODE 0 = GATE | | 0B 00 00 23#| 0bbbbbbb| 1 = EXPANDER | | | | 2 = DUCKING | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 24 | 0aaaaaaa| GATE A: THRESHOLD | | 0B 00 00 25#| 0bbbbbbb| —800,,,0 = —80.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 26 | 0aaaaaaa| GATE A: RATIO (*5) | | 0B 00 00 27#| 0bbbbbbb| 0,,,13 = 1.00:1,,,Inf:1 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 28 | 0aaaaaaa| GATE A: KNEE | | 0B 00 00 29#| 0bbbbbbb| 0 = HARD | | | | 1,,,9 = SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2A | 0aaaaaaa| GATE A: RANGE | | 0B 00 00 2B#| 0bbbbbbb| less than —905,—905,,,0 = | | | | —Inf,—90.5,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2C | 0aaaaaaa| GATE A: ATTACK TIME | | 0B 00 00 2D#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 2E | 0aaaaaaa| GATE A: RELEASE TIME | | 0B 00 00 2F#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 30 | 0aaaaaaa| GATE A: HOLD TIME | | 0B 00 00 31#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 32 | 0aaaaaaa| COMPRESSOR A: SWITCH | | 0B 00 00 33#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 34 | 0aaaaaaa| COMPRESSOR A: THRESHOLD | | 0B 00 00 35#| 0bbbbbbb| —400,,,0 = —40.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 36 | 0aaaaaaa| COMPRESSOR A: RATIO (*5) | | 0B 00 00 37#| 0bbbbbbb| 0,,,13 = 1.00:1,,,Inf:1 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 38 | 0aaaaaaa| COMPRESSOR A: KNEE | | 0B 00 00 39#| 0bbbbbbb| 0 = HARD | | | | 1,,,9 = SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3A | 0aaaaaaa| COMPRESSOR A: ATTACK TIME | | 0B 00 00 3B#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3C | 0aaaaaaa| COMPRESSOR A: RELEASE TIME | | 0B 00 00 3D#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 3E | 0aaaaaaa| COMPRESSOR A: GAIN | | 0B 00 00 3F#| 0bbbbbbb| —400,,,400 = —40.0,,,+40.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 40 | 0aaaaaaa| COMPRESSOR A: AUTO GAIN | | 0B 00 00 41#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 42 | 0aaaaaaa| ENHANCER/DE—ESSER A: SWITCH | | 0B 00 00 43#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 44 | 0aaaaaaa| ENHANCER/DE—ESSER A: MODE | | 0B 00 00 45#| 0bbbbbbb| 0 = ENHANCER | | | | 1 = DE—ESSER | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 46 | 0aaaaaaa| ENHANCER/DE—ESSER A: FREQ (*3) | | 0B 00 00 47#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 48 | 0aaaaaaa| ENHANCER/DE—ESSER A: ENHENCER SENSE | | 0B 00 00 49#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4A | 0aaaaaaa| ENHANCER/DE—ESSER A: ENHANCER MIX LEVEL | | 0B 00 00 4B#| 0bbbbbbb| 0,,,120 = 0.0,,,+12.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4C | 0aaaaaaa| ENHANCER/DE—ESSER A: DE—ESSER THRESHOLD | | 0B 00 00 4D#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 4E | 0aaaaaaa| EQ A: SWITCH | | 0B 00 00 4F#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 50 | 0aaaaaaa| EQ A: ATT | | 0B 00 00 51#| 0bbbbbbb| —420,,,60 = —42.0,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 52 | 0aaaaaaa| EQ A: LO TYPE | | 0B 00 00 53#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 54 | 0aaaaaaa| EQ A: LO GAIN | | 0B 00 00 55#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 56 | 0aaaaaaa| EQ A: LO FREQ (*3) | | 0B 00 00 57#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 58 | 0aaaaaaa| EQ A: LO Q (*4) | | 0B 00 00 59#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5A | 0aaaaaaa| EQ A: LO—MID TYPE | | 0B 00 00 5B#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st |

17

MIDI Implementation

| | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5C | 0aaaaaaa| EQ A: LO—MID GAIN | | 0B 00 00 5D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 5E | 0aaaaaaa| EQ A: LO—MID FREQ (*3) | | 0B 00 00 5F#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 60 | 0aaaaaaa| EQ A: LO—MID Q (*4) | | 0B 00 00 61#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 62 | 0aaaaaaa| EQ A: HI—MID TYPE | | 0B 00 00 63#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 64 | 0aaaaaaa| EQ A: HI—MID GAIN | | 0B 00 00 65#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 66 | 0aaaaaaa| EQ A: HI—MID FREQ (*3) | | 0B 00 00 67#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 68 | 0aaaaaaa| EQ A: HI—MID Q (*4) | | 0B 00 00 69#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6A | 0aaaaaaa| EQ A: HI TYPE | | 0B 00 00 6B#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6C | 0aaaaaaa| EQ A: HI GAIN | | 0B 00 00 6D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 6E | 0aaaaaaa| EQ A: HI FREQ (*3) | | 0B 00 00 6F#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 70 | 0aaaaaaa| EQ A: HI Q (*4) | | 0B 00 00 71#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 72 | 0aaaaaaa| DELAY A: SWITCH | | 0B 00 00 73#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 74 | 0aaaaaaa| DELAY A: TIME | | 0B 00 00 75#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 76 | 0aaaaaaa| DELAY A: FB | | 0B 00 00 77#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 78 | 0aaaaaaa| DELAY A: LO FREQ DAMP GAIN | | 0B 00 00 79#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7A | 0aaaaaaa| DELAY A: LO FREQ DAMP FREQ (*3) | | 0B 00 00 7B#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7C | 0aaaaaaa| DELAY A: HI FREQ DAMP GAIN | | 0B 00 00 7D#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 00 7E | 0aaaaaaa| DELAY A: HI FREQ DAMP FREQ (*3) | | 0B 00 00 7F#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 00 | 0aaaaaaa| DELAY A: WET POSITION | | 0B 00 01 01#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 02 | 0aaaaaaa| DELAY A: WET LEVEL (*1) | | 0B 00 01 03#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 04 | 0aaaaaaa| DELAY A: DRY LEVEL (*1) | | 0B 00 01 05#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 06 | 0aaaaaaa| GATE B: SWITCH | | 0B 00 01 07#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 08 | 0aaaaaaa| GATE B: MODE 0 = EXPANDER | | 0B 00 01 09#| 0bbbbbbb| 1 = GATE | | | | 2 = DUCKING | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0A | 0aaaaaaa| GATE B: THRESHOLD | | 0B 00 01 0B#| 0bbbbbbb| —800,,,0 = —80.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0C | 0aaaaaaa| GATE B: RATIO (*5) | | 0B 00 01 0D#| 0bbbbbbb| 0,,,13 = 1.00:1,,,Inf:1 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 0E | 0aaaaaaa| GATE B: KNEE | | 0B 00 01 0F#| 0bbbbbbb| 0 = HARD | | | | 1,,,9 = SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 10 | 0aaaaaaa| GATE B: RANGE | | 0B 00 01 11#| 0bbbbbbb| less than —905,—905,,,0 = | | | | —Inf,—90.5,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 12 | 0aaaaaaa| GATE B: ATTACK TIME | | 0B 00 01 13#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 14 | 0aaaaaaa| GATE B: RELEASE TIME | | 0B 00 01 15#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 16 | 0aaaaaaa| GATE B: HOLD TIME |

| 0B 00 01 17#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 18 | 0aaaaaaa| COMPRESSOR B: SWITCH | | 0B 00 01 19#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1A | 0aaaaaaa| COMPRESSOR B: THRESHOLD | | 0B 00 01 1B#| 0bbbbbbb| —400,,,0 = —40.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1C | 0aaaaaaa| COMPRESSOR B: RATIO (*5) | | 0B 00 01 1D#| 0bbbbbbb| 0,,,13 = 1.00:1,,,Inf:1 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 1E | 0aaaaaaa| COMPRESSOR B: KNEE | | 0B 00 01 1F#| 0bbbbbbb| 0 = HARD | | | | 1,,,9 = SOFT1,,,SOFT9 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 20 | 0aaaaaaa| COMPRESSOR B: ATTACK TIME | | 0B 00 01 21#| 0bbbbbbb| 0,,,8000 = 0.0,,,800.0ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 22 | 0aaaaaaa| COMPRESSOR B: RELEASE TIME | | 0B 00 01 23#| 0bbbbbbb| 0,,,8000 = 0,,,8000ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 24 | 0aaaaaaa| COMPRESSOR B: GAIN | | 0B 00 01 25#| 0bbbbbbb| —400,,,400 = —40.0,,,+40.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 26 | 0aaaaaaa| COMPRESSOR B: AUTO GAIN | | 0B 00 01 27#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 28 | 0aaaaaaa| ENHANCER/DE—ESSER B: SWITCH | | 0B 00 01 29#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2A | 0aaaaaaa| ENHANCER/DE—ESSER B: MODE | | 0B 00 01 2B#| 0bbbbbbb| 0 = ENHANCER | | | | 1 = DE—ESSER | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2C | 0aaaaaaa| ENHANCER/DE—ESSER B: FREQ (*3) | | 0B 00 01 2D#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 2E | 0aaaaaaa| ENHANCER/DE—ESSER B: ENHENCER SENSE | | 0B 00 01 2F#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 30 | 0aaaaaaa| ENHANCER/DE—ESSER B: ENHANCER MIX LEVEL | | 0B 00 01 31#| 0bbbbbbb| 0,,,120 = 0.0,,,+12.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 32 | 0aaaaaaa| ENHANCER/DE—ESSER B: DE—ESSER THRESHOLD | | 0B 00 01 33#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 34 | 0aaaaaaa| EQ B: SWITCH | | 0B 00 01 35#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 36 | 0aaaaaaa| EQ B: ATT | | 0B 00 01 37#| 0bbbbbbb| —420,,,60 = —42.0,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 38 | 0aaaaaaa| EQ B: LO TYPE | | 0B 00 01 39#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3A | 0aaaaaaa| EQ B: LO GAIN | | 0B 00 01 3B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3C | 0aaaaaaa| EQ B: LO FREQ (*3) | | 0B 00 01 3D#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 3E | 0aaaaaaa| EQ B: LO Q (*4) | | 0B 00 01 3F#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 40 | 0aaaaaaa| EQ B: LO—MID TYPE | | 0B 00 01 41#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 42 | 0aaaaaaa| EQ B: LO—MID GAIN | | 0B 00 01 43#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 44 | 0aaaaaaa| EQ B: LO—MID FREQ (*3) | | 0B 00 01 45#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 46 | 0aaaaaaa| EQ B: LO—MID Q (*4) | | 0B 00 01 47#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 48 | 0aaaaaaa| EQ B: HI—MID TYPE | | 0B 00 01 49#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 4A | 0aaaaaaa| EQ B: HI—MID GAIN | | 0B 00 01 4B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 4C | 0aaaaaaa| EQ B: HI—MID FREQ (*3) | | 0B 00 01 4D#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 4E | 0aaaaaaa| EQ B: HI—MID Q (*4) | | 0B 00 01 4F#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————|

18

MIDI Implementation

| 0B 00 01 50 | 0aaaaaaa| EQ B: HI TYPE | | 0B 00 01 51#| 0bbbbbbb| 0: PEAKING | | | | 1: LO SHELVING | | | | 2: HI SHELVING | | | | 3: LO PASS 1st | | | | 4: HI PASS 1st | | | | 5: LO PASS 2nd | | | | 6: HI PASS 2nd | | | | 7: BAND PASS | | | | 8: BAND ELIMINATION| | | | 9: THRU | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 52 | 0aaaaaaa| EQ B: HI GAIN | | 0B 00 01 53#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 54 | 0aaaaaaa| EQ B: HI FREQ (*3) | | 0B 00 01 55#| 0bbbbbbb| 20,,,140 = 20,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 56 | 0aaaaaaa| EQ B: HI Q (*4) | | 0B 00 01 57#| 0bbbbbbb| 30,,,96 = 0.36,,,16.00 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 58 | 0aaaaaaa| DELAY B: SWITCH | | 0B 00 01 59#| 0bbbbbbb| 0,1 = OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 5A | 0aaaaaaa| DELAY B: TIME | | 0B 00 01 5B#| 0bbbbbbb| 0,,,1350ms | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 5C | 0aaaaaaa| DELAY B: FB | | 0B 00 01 5D#| 0bbbbbbb| 0,,,100 | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 5E | 0aaaaaaa| DELAY B: LO FREQ DAMP GAIN | | 0B 00 01 5F#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 60 | 0aaaaaaa| DELAY B: LO FREQ DAMP FREQ (*3) | | 0B 00 01 61#| 0bbbbbbb| 20,,,100 = 20,,,2000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 62 | 0aaaaaaa| DELAY B: HI FREQ DAMP GAIN | | 0B 00 01 63#| 0bbbbbbb| —360,,,0 = —36.0,,,0.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 64 | 0aaaaaaa| DELAY B: HI FREQ DAMP FREQ (*3) | | 0B 00 01 65#| 0bbbbbbb| 60,,,140 = 200,,,20000Hz | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 66 | 0aaaaaaa| DELAY B: WET POSITION | | 0B 00 01 67#| 0bbbbbbb| 0,1 = PRE DPF,POST DPF | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 68 | 0aaaaaaa| DELAY B: WET LEVEL (*1) | | 0B 00 01 69#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 00 01 6A | 0aaaaaaa| DELAY B: DRY LEVEL (*1) | | 0B 00 01 6B#| 0bbbbbbb| 0,,,127 = —Inf,,,6.0dB | +—————————————————————————————————————————————————————————————————+

(*1) Effect Level Table

+—————+————————++—————+————————++—————+————————++—————+————————+ |Data | Lev(dB)||Data | Lev(dB)||Data | Lev(dB)||Data | Lev(dB)| +—————+————————++—————+————————++—————+————————++—————+————————+ | 0 | — Inf || 32 | —21.2 || 64 | — 9.3 || 96 | — 0.8 | | 1 | —80.0 || 33 | —20.8 || 65 | — 9.0 || 97 | — 0.6 | | 2 | —68.0 || 34 | —20.4 || 66 | — 8.8 || 98 | — 0.4 | | 3 | —60.0 || 35 | —20.0 || 67 | — 8.6 || 99 | — 0.2 | | 4 | —56.0 || 36 | —19.6 || 68 | — 8.4 || 100 | 0.0 | | 5 | —53.0 || 37 | —19.2 || 69 | — 8.2 || 101 | 0.2 | | 6 | —50.0 || 38 | —18.8 || 70 | — 8.0 || 102 | 0.4 | | 7 | —48.0 || 39 | —18.4 || 71 | — 7.6 || 103 | 0.6 | | 8 | —46.0 || 40 | —18.0 || 72 | — 7.3 || 104 | 0.8 | | 9 | —44.0 || 41 | —17.6 || 73 | — 7.0 || 105 | 1.0 | | 10 | —42.0 || 42 | —17.2 || 74 | — 6.6 || 106 | 1.3 | | 11 | —40.0 || 43 | —16.8 || 75 | — 6.3 || 107 | 1.5 | | 12 | —38.0 || 44 | —16.4 || 76 | — 6.0 || 108 | 1.8 | | 13 | —36.0 || 45 | —16.0 || 77 | — 5.8 || 109 | 2.0 | | 14 | —34.5 || 46 | —15.6 || 78 | — 5.5 || 110 | 2.3 | | 15 | —33.0 || 47 | —15.2 || 79 | — 5.3 || 111 | 2.5 | | 16 | —32.0 || 48 | —14.8 || 80 | — 5.0 || 112 | 2.8 | | 17 | —31.0 || 49 | —14.4 || 81 | — 4.8 || 113 | 3.0 | | 18 | —30.0 || 50 | —14.0 || 82 | — 4.6 || 114 | 3.3 | | 19 | —29.0 || 51 | —13.6 || 83 | — 4.4 || 115 | 3.5 | | 20 | —28.0 || 52 | —13.2 || 84 | — 4.2 || 116 | 3.8 | | 21 | —27.2 || 53 | —12.8 || 85 | — 4.0 || 117 | 4.0 | | 22 | —26.4 || 54 | —12.4 || 86 | — 3.6 || 118 | 4.2 | | 23 | —25.6 || 55 | —12.0 || 87 | — 3.3 || 119 | 4.4 | | 24 | —24.8 || 56 | —11.6 || 88 | — 3.0 || 120 | 4.6 | | 25 | —24.0 || 57 | —11.3 || 89 | — 2.6 || 121 | 4.8 | | 26 | —23.6 || 58 | —11.0 || 90 | — 2.3 || 122 | 5.0 | | 27 | —23.2 || 59 | —10.6 || 91 | — 2.0 || 123 | 5.2 | | 28 | —22.8 || 60 | —10.3 || 92 | — 1.8 || 124 | 5.4 | | 29 | —22.4 || 61 | —10.0 || 93 | — 1.5 || 125 | 5.6 | | 30 | —22.0 || 62 | — 9.8 || 94 | — 1.3 || 126 | 5.8 | | 31 | —21.6 || 63 | — 9.5 || 95 | — 1.0 || 127 | 6.0 | +—————+————————++—————+————————++—————+————————++—————+————————+

(*2) Dynamics Attack/Release/Hold time Table

+—————+—————+—————++—————+——————+—————++—————+———————+——————+ | Data| Atk | Rel/|| Data| Atk | Rel/|| Data| Atk | Rel/| | | | Hold|| | | Hold|| | | Hold| | | (ms)| (ms)|| | (ms)| (ms)|| | (ms)| (ms)| +—————+—————+—————++—————+——————+—————++—————+———————+——————+ | 0 | 0.0 | 0 || 42 | 7.1 | 71 || 84 | 80.0 | 800 | | 1 | 0.1 | 1 || 43 | 7.5 | 75 || 85 | 84.0 | 840 | | 2 | 0.2 | 2 || 44 | 8.0 | 80 || 86 | 90.0 | 900 | | 3 | 0.3 | 3 || 45 | 8.4 | 84 || 87 | 94.4 | 944 | | 4 | 0.4 | 4 || 46 | 9.0 | 90 || 88 | 100.0 | 1000 | | 5 | 0.5 | 5 || 47 | 9.4 | 94 || 89 | 106.0 | 1060 | | 6 | 0.6 | 6 || 48 | 10.0 | 100 || 90 | 112.0 | 1120 | | 7 | 0.7 | 7 || 49 | 10.6 | 106 || 91 | 120.0 | 1200 | | 8 | 0.8 | 8 || 50 | 11.2 | 112 || 92 | 125.0 | 1250 | | 9 | 0.9 | 9 || 51 | 12.0 | 120 || 93 | 133.0 | 1330 | | 10 | 1.0 | 10 || 52 | 12.5 | 125 || 94 | 140.0 | 1400 | | 11 | 1.1 | 11 || 53 | 13.3 | 133 || 95 | 150.0 | 1500 | | 12 | 1.2 | 12 || 54 | 14.0 | 140 || 96 | 160.0 | 1600 | | 13 | 1.3 | 13 || 55 | 15.0 | 150 || 97 | 170.0 | 1700 | | 14 | 1.4 | 14 || 56 | 16.0 | 160 || 98 | 180.0 | 1800 | | 15 | 1.5 | 15 || 57 | 17.0 | 170 || 99 | 190.0 | 1900 | | 16 | 1.6 | 16 || 58 | 18.0 | 180 || 100 | 200.0 | 2000 | | 17 | 1.7 | 17 || 59 | 19.0 | 190 || 101 | 210.0 | 2100 | | 18 | 1.8 | 18 || 60 | 20.0 | 200 || 102 | 224.0 | 2240 | | 19 | 1.9 | 19 || 61 | 21.0 | 210 || 103 | 237.0 | 2370 | | 20 | 2.0 | 20 || 62 | 22.4 | 224 || 104 | 250.0 | 2500 | | 21 | 2.1 | 21 || 63 | 23.7 | 237 || 105 | 266.0 | 2660 | | 22 | 2.2 | 22 || 64 | 25.0 | 250 || 106 | 280.0 | 2800 | | 23 | 2.4 | 24 || 65 | 26.6 | 266 || 107 | 300.0 | 3000 | | 24 | 2.5 | 25 || 66 | 28.0 | 280 || 108 | 315.0 | 3150 | | 25 | 2.7 | 27 || 67 | 30.0 | 300 || 109 | 335.0 | 3350 | | 26 | 2.8 | 28 || 68 | 31.5 | 315 || 110 | 355.0 | 3550 | | 27 | 3.0 | 30 || 69 | 33.5 | 335 || 111 | 376.0 | 3760 | | 28 | 3.2 | 32 || 70 | 35.5 | 355 || 112 | 400.0 | 4000 | | 29 | 3.3 | 33 || 71 | 37.6 | 376 || 113 | 422.0 | 4220 | | 30 | 3.6 | 36 || 72 | 40.0 | 400 || 114 | 450.0 | 4500 | | 31 | 3.8 | 38 || 73 | 42.2 | 422 || 115 | 473.0 | 4730 | | 32 | 4.0 | 40 || 74 | 45.0 | 450 || 116 | 500.0 | 5000 | | 33 | 4.2 | 42 || 75 | 47.3 | 473 || 117 | 530.0 | 5300 | | 34 | 4.5 | 45 || 76 | 50.0 | 500 || 118 | 560.0 | 5600 | | 35 | 4.7 | 47 || 77 | 53.0 | 530 || 119 | 600.0 | 6000 | | 36 | 5.0 | 50 || 78 | 56.0 | 560 || 120 | 630.0 | 6300 | | 37 | 5.3 | 53 || 79 | 60.0 | 600 || 121 | 670.0 | 6700 | | 38 | 5.6 | 56 || 80 | 63.0 | 630 || 122 | 710.0 | 7100 | | 39 | 6.0 | 60 || 81 | 67.0 | 670 || 123 | 750.0 | 7500 | | 40 | 6.3 | 63 || 82 | 71.0 | 710 || 124 | 800.0 | 8000 | | 41 | 6.7 | 67 || 83 | 75.0 | 750 || | | | +—————+—————+—————++—————+——————+—————++—————+———————+——————+

19

MIDI Implementation

●

(*3) Mixer Frequency Table

+——————+————————++——————+————————++——————+————————+ | Data |Freq(Hz)|| Data |Freq(Hz)|| Data |Freq(Hz)| +——————+————————++——————+————————++——————+————————+ | 20 | 20 || 62 | 224 || 104 | 2.50k | | 21 | 21 || 63 | 237 || 105 | 2.66k | | 22 | 22 || 64 | 250 || 106 | 2.80k | | 23 | 24 || 65 | 266 || 107 | 3.00k | | 24 | 25 || 66 | 280 || 108 | 3.15k | | 25 | 27 || 67 | 300 || 109 | 3.35k | | 26 | 28 || 68 | 315 || 110 | 3.55k | | 27 | 30 || 69 | 335 || 111 | 3.76k | | 28 | 32 || 70 | 355 || 112 | 4.00k | | 29 | 33 || 71 | 376 || 113 | 4.22k | | 30 | 36 || 72 | 400 || 114 | 4.50k | | 31 | 38 || 73 | 422 || 115 | 4.73k | | 32 | 40 || 74 | 450 || 116 | 5.00k | | 33 | 42 || 75 | 473 || 117 | 5.30k | | 34 | 45 || 76 | 500 || 118 | 5.60k | | 35 | 47 || 77 | 530 || 119 | 6.00k | | 36 | 50 || 78 | 560 || 120 | 6.30k | | 37 | 53 || 79 | 600 || 121 | 6.70k | | 38 | 56 || 80 | 630 || 122 | 7.10k | | 39 | 60 || 81 | 670 || 123 | 7.50k | | 40 | 63 || 82 | 710 || 124 | 8.00k | | 41 | 67 || 83 | 750 || 125 | 8.40k | | 42 | 71 || 84 | 800 || 126 | 9.00k | | 43 | 75 || 85 | 840 || 127 | 9.44k | | 44 | 80 || 86 | 900 || 128 | 10.0k | | 45 | 84 || 87 | 944 || 129 | 10.6k | | 46 | 90 || 88 | 1.00k || 130 | 11.2k | | 47 | 94 || 89 | 1.06k || 131 | 12.0k | | 48 | 100 || 90 | 1.12k || 132 | 12.5k | | 49 | 106 || 91 | 1.20k || 133 | 13.3k | | 50 | 112 || 92 | 1.25k || 134 | 14.0k | | 51 | 120 || 93 | 1.33k || 135 | 15.0k | | 52 | 125 || 94 | 1.40k || 136 | 16.0k | | 53 | 133 || 95 | 1.50k || 137 | 17.0k | | 54 | 140 || 96 | 1.60k || 138 | 18.0k | | 55 | 150 || 97 | 1.70k || 139 | 19.0k | | 56 | 160 || 98 | 1.80k || 140 | 20.0k | | 57 | 170 || 99 | 1.90k |+——————+————————+ | 58 | 180 || 100 | 2.00k | | 59 | 190 || 101 | 2.10k | | 60 | 200 || 102 | 2.24k | | 61 | 210 || 103 | 2.37k | +——————+————————++——————+————————+

(*6) Modulation Rate Table

+—————+———————++—————+———————++—————+———————+ | | Rate || | Rate || Data| Rate | | Data| (Hz) || Data| (Hz) || | (Hz) | +—————+———————++—————+———————++—————+———————+ | | || 42 | 0.71 || 84 | 8.00 | | 1 | 0.01 || 43 | 0.75 || 85 | 8.40 | | 2 | 0.02 || 44 | 0.80 || 86 | 9.00 | | 3 | 0.03 || 45 | 0.84 || 87 | 9.44 | | 4 | 0.04 || 46 | 0.90 || 88 | 10.0 | | 5 | 0.05 || 47 | 0.94 |+—————+———————+ | 6 | 0.06 || 48 | 1.00 | | 7 | 0.07 || 49 | 1.06 | | 8 | 0.08 || 50 | 1.12 | | 9 | 0.09 || 51 | 1.20 | | 10 | 0.10 || 52 | 1.25 | | 11 | 0.11 || 53 | 1.33 | | 12 | 0.12 || 54 | 1.40 | | 13 | 0.13 || 55 | 1.50 | | 14 | 0.14 || 56 | 1.60 | | 15 | 0.15 || 57 | 1.70 | | 16 | 0.16 || 58 | 1.80 | | 17 | 0.17 || 59 | 1.90 | | 18 | 0.18 || 60 | 2.00 | | 19 | 0.19 || 61 | 2.10 | | 20 | 0.20 || 62 | 2.24 | | 21 | 0.21 || 63 | 2.37 | | 22 | 0.22 || 64 | 2.50 | | 23 | 0.24 || 65 | 2.66 | | 24 | 0.25 || 66 | 2.80 | | 25 | 0.27 || 67 | 3.00 | | 26 | 0.28 || 68 | 3.15 | | 27 | 0.30 || 69 | 3.35 | | 28 | 0.32 || 70 | 3.55 | | 29 | 0.33 || 71 | 3.76 | | 30 | 0.36 || 72 | 4.00 | | 31 | 0.38 || 73 | 4.22 | | 32 | 0.40 || 74 | 4.50 | | 33 | 0.42 || 75 | 4.73 | | 34 | 0.45 || 76 | 5.00 | | 35 | 0.47 || 77 | 5.30 | | 36 | 0.50 || 78 | 5.60 | | 37 | 0.53 || 79 | 6.00 | | 38 | 0.56 || 80 | 6.30 | | 39 | 0.60 || 81 | 6.70 | | 40 | 0.63 || 82 | 7.10 | | 41 | 0.67 || 83 | 7.50 | +—————+———————++—————+———————+

(*4) Mixer Q Table

+——————+———————++——————+———————++——————+———————++——————+———————+ | Data | Q || Data | Q || Data | Q || Data | Q | +——————+———————++——————+———————++——————+———————++——————+———————+ | 30 | 0.36 || 50 | 1.12 || 70 | 3.55 || 90 | 11.2 | | 31 | 0.38 || 51 | 1.20 || 71 | 3.76 || 91 | 12.0 | | 32 | 0.40 || 52 | 1.25 || 72 | 4.00 || 92 | 12.5 | | 33 | 0.42 || 53 | 1.33 || 73 | 4.22 || 93 | 13.3 | | 34 | 0.45 || 54 | 1.40 || 74 | 4.50 || 94 | 14.0 | | 35 | 0.47 || 55 | 1.50 || 75 | 4.73 || 95 | 15.0 | | 36 | 0.50 || 56 | 1.60 || 76 | 5.00 || 96 | 16.0 | | 37 | 0.53 || 57 | 1.70 || 77 | 5.30 |+——————+———————+ | 38 | 0.56 || 58 | 1.80 || 78 | 5.60 | | 39 | 0.60 || 59 | 1.90 || 79 | 6.00 | | 40 | 0.63 || 60 | 2.00 || 80 | 6.30 | | 41 | 0.67 || 61 | 2.10 || 81 | 6.70 | | 42 | 0.71 || 62 | 2.24 || 82 | 7.10 | | 43 | 0.75 || 63 | 2.37 || 83 | 7.50 | | 44 | 0.80 || 64 | 2.50 || 84 | 8.00 | | 45 | 0.84 || 65 | 2.66 || 85 | 8.40 | | 46 | 0.90 || 66 | 2.80 || 86 | 9.00 | | 47 | 0.94 || 67 | 3.00 || 87 | 9.44 | | 48 | 1.00 || 68 | 3.15 || 88 | 10.0 | | 49 | 1.06 || 69 | 3.35 || 89 | 10.6 | +——————+———————++——————+———————++——————+———————+

(*5) Dynamics Ratio Table

+——————+————————+ | Data | RATIO | +——————+————————+ | 0 | 1—00:1 | | 1 | 1—12:1 | | 2 | 1—25:1 | | 3 | 1—40:1 | | 4 | 1—60:1 | | 5 | 1—80:1 | | 6 | 2—00:1 | | 7 | 2—50:1 | | 8 | 3—20:1 | | 9 | 4—00:1 | | 10 | 5—60:1 | | 11 | 8—00:1 | | 12 | 16—0:1 | | 13 | Inf:1 | +——————+————————+

31Band GEQ Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 10 00 00 | 00 — 01 | GEQ1: LINK OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 01 | 00 — 01 | GEQ1: BYPASS OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 02 | 00 — 11 | GEQ1: INSERT | | | | 0,1 = MAIN L INS,MAIN R INS | | | | 2,,,17 = AUX1 INS,,,AUX16 INS | | | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 03 | 00 | (Reserved) | : : : | 0B 10 00 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 20 | 0aaaaaaa| GEQ1: ATT | | 0B 10 00 21#| 0bbbbbbb| —420,,,150 = —42.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 22 | 0aaaaaaa| GEQ1: 20Hz LEVEL | | 0B 10 00 23#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 24 | 0aaaaaaa| GEQ1: 25Hz LEVEL | | 0B 10 00 25#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 26 | 0aaaaaaa| GEQ1: 32Hz LEVEL | | 0B 10 00 27#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 28 | 0aaaaaaa| GEQ1: 40Hz LEVEL | | 0B 10 00 29#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 2A | 0aaaaaaa| GEQ1: 50Hz LEVEL | | 0B 10 00 2B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 2C | 0aaaaaaa| GEQ1: 63Hz LEVEL | | 0B 10 00 2D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 2E | 0aaaaaaa| GEQ1: 80Hz LEVEL | | 0B 10 00 2F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 30 | 0aaaaaaa| GEQ1: 100Hz LEVEL | | 0B 10 00 31#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 32 | 0aaaaaaa| GEQ1: 125Hz LEVEL | | 0B 10 00 33#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 34 | 0aaaaaaa| GEQ1: 160Hz LEVEL | | 0B 10 00 35#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 36 | 0aaaaaaa| GEQ1: 200Hz LEVEL | | 0B 10 00 37#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 38 | 0aaaaaaa| GEQ1: 250Hz LEVEL | | 0B 10 00 39#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 3A | 0aaaaaaa| GEQ1: 315Hz LEVEL | | 0B 10 00 3B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 3C | 0aaaaaaa| GEQ1: 400Hz LEVEL |

20

●

MIDI Implementation

| 0B 10 00 3D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 3E | 0aaaaaaa| GEQ1: 500Hz LEVEL | | 0B 10 00 3F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 40 | 0aaaaaaa| GEQ1: 630Hz LEVEL | | 0B 10 00 41#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 42 | 0aaaaaaa| GEQ1: 800Hz LEVEL | | 0B 10 00 43#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 44 | 0aaaaaaa| GEQ1: 1.00kHz LEVEL | | 0B 10 00 45#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 46 | 0aaaaaaa| GEQ1: 1.25kHz LEVEL | | 0B 10 00 47#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 48 | 0aaaaaaa| GEQ1: 1.60kHz LEVEL | | 0B 10 00 49#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 4A | 0aaaaaaa| GEQ1: 2.00kHz LEVEL | | 0B 10 00 4B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 4C | 0aaaaaaa| GEQ1: 2.50kHz LEVEL | | 0B 10 00 4D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 4E | 0aaaaaaa| GEQ1: 3.15kHz LEVEL | | 0B 10 00 4F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 50 | 0aaaaaaa| GEQ1: 4.00kHz LEVEL | | 0B 10 00 51#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 52 | 0aaaaaaa| GEQ1: 5.00kHz LEVEL | | 0B 10 00 53#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 54 | 0aaaaaaa| GEQ1: 6.30kHz LEVEL | | 0B 10 00 55#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 56 | 0aaaaaaa| GEQ1: 8.00kHz LEVEL | | 0B 10 00 57#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 58 | 0aaaaaaa| GEQ1: 10.0kHz LEVEL | | 0B 10 00 59#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 5A | 0aaaaaaa| GEQ1: 12.5kHz LEVEL | | 0B 10 00 5B#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 5C | 0aaaaaaa| GEQ1: 16.0kHz LEVEL | | 0B 10 00 5D#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 5E | 0aaaaaaa| GEQ1: 20.0kHz LEVEL | | 0B 10 00 5F#| 0bbbbbbb| —150,,,150 = —15.0,,,15.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 10 00 20 | 00 | (Reserved) | : : : | 0B 10 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 11 00 00 | 00 — | GEQ2 | | | | (similar to 0B 10 00 00 — 0B 10 7F 7F) | : : : | 0B 11 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0B 13 00 00 | 00 — | GEQ4 | | | | (similar to 0B 10 00 00 — 0B 10 7F 7F) | : : : | 0B 13 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

External Effect Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0B 20 00 00 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 01 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 02 | 00 — 01 | EXT FX1 SWITCH OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 03 | 00 — 42 | EXT FX1 INSERT | | | | 0,,,48 = CH1 INS,,,CH48 INS | | | | 49,50 = MAIN L INS,MAIN R INS | | | | 51,,,66 = AUX1 INS,,,AUX16 INS | | | | 127 = NONE | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 04 | 0aaaaaaa| EXT FX1 RETURN LEVEL | | 0B 20 00 05#| 0bbbbbbb| less than —905,—905,,,60 = | | | | —Inf,—90.5,,,+6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 06 | 0aaaaaaa| EXT FX1 SEND LEVEL | | 0B 20 00 07#| 0bbbbbbb| less than —905,—905,,,60 = | | | | —Inf,—90.5,,,+6.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0B 20 00 08 | 00 | (Reserved) | : : : | 0B 20 7F 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 0B 21 00 00 | 00 — | EXT FX2 | | | | (similar to 0B 20 00 00 — 0B 20 7F 7F) | : : : | 0B 21 7F 7F | 00 — | | |—————————————+—————————+—————————————————————————————————————————| : : : | 0B 27 00 00 | 00 — | EXT FX8 | | | | (similar to 0B 20 00 00 — 0B 20 7F 7F) | : : : | 0B 27 7F 7F | 00 — | | +—————————————————————————————————————————————————————————————————+

USB Memory Recorder Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 0C 00 00 00 | 00 — 7F | REC SOURCE L | | | | 0,1 = MAIN L OUT,MAIN R OUT | | | | 2 = MAIN MONO OUT | | | | 3,,,18 = AUX1 OUT,,,AUX16 OUT | |—————————————+—————————+—————————————————————————————————————————| | 0C 00 00 01 | 00 — 7F | REC SOURCE R | | | | 0,1 = MAIN L OUT,MAIN R OUT | | | | 2 = MAIN MONO OUT | | | | 3,,,18 = AUX1 OUT,,,AUX16 OUT | |—————————————+—————————+—————————————————————————————————————————| | 0C 00 00 02 | 0aaaaaaa| REC LEVEL | | 0C 00 00 03#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 0C 00 00 00 | 00 | (Reserved) | +—————————————————————————————————————————————————————————————————+

System Parameter

+—————————————————————————————————————————————————————————————————+ | Start | | | | address | Data | Contents and remarks | |=============+=========+=========================================| | 10 00 00 00 | 0aaaaaaa| METER OVER LEVEL | | 10 00 00 01#| 0bbbbbbb| aaaaaaabbbbbbb = —18,,,0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 02 | 00 — 04 | METER PEAK HOLD TIME | | | | 0,,,3 = 0,,,4sec | | | | 4 = Continuous | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 03 | 00 — 01 | METER PEAK HOLD OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 04 | 00 — 02 | METER CH METERING POINT | | | | PREAMP,PRE FADER,POST FADER | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 05 | 00 — 02 | METER AUX/MAIN METERING POINT | | | | PRE EQ,PRE FADER,OUT LEVEL | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 06 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 07 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 08 | 00 — 03 | RECORDER PLAY MODE | | | | PLAY ONE, PLAY ONE REPEAT, | | | | PLAY ALL, PLAY ALL REPEAT | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 09 | 00 | (Reserved) | : : : | 10 00 00 0F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 10 | 00 — 01 | SCENE SCOPE CH1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 11 | 00 — 01 | SCENE SCOPE CH2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 12 | 00 — 01 | SCENE SCOPE CH3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 13 | 00 — 01 | SCENE SCOPE CH4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 14 | 00 — 01 | SCENE SCOPE CH5 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 15 | 00 — 01 | SCENE SCOPE CH6 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 16 | 00 — 01 | SCENE SCOPE CH7 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 17 | 00 — 01 | SCENE SCOPE CH8 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 18 | 00 — 01 | SCENE SCOPE CH9 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 19 | 00 — 01 | SCENE SCOPE CH10 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1A | 00 — 01 | SCENE SCOPE CH11 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1B | 00 — 01 | SCENE SCOPE CH12 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1C | 00 — 01 | SCENE SCOPE CH13 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1D | 00 — 01 | SCENE SCOPE CH14 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1E | 00 — 01 | SCENE SCOPE CH15 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1F | 00 — 01 | SCENE SCOPE CH16 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 20 | 00 — 01 | SCENE SCOPE CH17 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 21 | 00 — 01 | SCENE SCOPE CH18 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 22 | 00 — 01 | SCENE SCOPE CH19 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 23 | 00 — 01 | SCENE SCOPE CH20 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 24 | 00 — 01 | SCENE SCOPE CH21 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 25 | 00 — 01 | SCENE SCOPE CH22 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 26 | 00 — 01 | SCENE SCOPE CH23 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 27 | 00 — 01 | SCENE SCOPE CH24 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 28 | 00 — 01 | SCENE SCOPE CH25 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 29 | 00 — 01 | SCENE SCOPE CH26 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2A | 00 — 01 | SCENE SCOPE CH27 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2B | 00 — 01 | SCENE SCOPE CH28 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2C | 00 — 01 | SCENE SCOPE CH29 ON,OFF |

21

MIDI Implementation

|—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2D | 00 — 01 | SCENE SCOPE CH30 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2E | 00 — 01 | SCENE SCOPE CH31 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 2F | 00 — 01 | SCENE SCOPE CH32 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 30 | 00 — 01 | SCENE SCOPE CH33 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 31 | 00 — 01 | SCENE SCOPE CH34 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 32 | 00 — 01 | SCENE SCOPE CH35 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 33 | 00 — 01 | SCENE SCOPE CH36 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 34 | 00 — 01 | SCENE SCOPE CH37 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 35 | 00 — 01 | SCENE SCOPE CH38 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 36 | 00 — 01 | SCENE SCOPE CH39 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 37 | 00 — 01 | SCENE SCOPE CH40 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 38 | 00 — 01 | SCENE SCOPE CH41 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 39 | 00 — 01 | SCENE SCOPE CH42 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3A | 00 — 01 | SCENE SCOPE CH43 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3B | 00 — 01 | SCENE SCOPE CH44 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3C | 00 — 01 | SCENE SCOPE CH45 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3D | 00 — 01 | SCENE SCOPE CH46 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3E | 00 — 01 | SCENE SCOPE CH47 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 3F | 00 — 01 | SCENE SCOPE CH48 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 40 | 00 — 01 | SCENE SCOPE AUX1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 41 | 00 — 01 | SCENE SCOPE AUX2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 42 | 00 — 01 | SCENE SCOPE AUX3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 43 | 00 — 01 | SCENE SCOPE AUX4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 44 | 00 — 01 | SCENE SCOPE AUX5 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 45 | 00 — 01 | SCENE SCOPE AUX6 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 46 | 00 — 01 | SCENE SCOPE AUX7 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 47 | 00 — 01 | SCENE SCOPE AUX8 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 48 | 00 — 01 | SCENE SCOPE AUX9 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 49 | 00 — 01 | SCENE SCOPE AUX10 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4A | 00 — 01 | SCENE SCOPE AUX11 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4B | 00 — 01 | SCENE SCOPE AUX12 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4C | 00 — 01 | SCENE SCOPE AUX13 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4D | 00 — 01 | SCENE SCOPE AUX14 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4E | 00 — 01 | SCENE SCOPE AUX15 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 4F | 00 — 01 | SCENE SCOPE AUX16 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 50 | 00 — 01 | SCENE SCOPE MAIN L ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 51 | 00 — 01 | SCENE SCOPE MAIN R ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 52 | 00 | (Reserved) | : : : | 10 00 00 57 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 58 | 00 — 01 | SCENE SCOPE DCA GROUP1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 59 | 00 — 01 | SCENE SCOPE DCA GROUP2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5A | 00 — 01 | SCENE SCOPE DCA GROUP3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5B | 00 — 01 | SCENE SCOPE DCA GROUP4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5C | 00 — 01 | SCENE SCOPE DCA GROUP5 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5D | 00 — 01 | SCENE SCOPE DCA GROUP6 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5E | 00 — 01 | SCENE SCOPE DCA GROUP7 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 5F | 00 — 01 | SCENE SCOPE DCA GROUP8 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 60 | 00 — 01 | SCENE SCOPE MUTE GROUP1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 61 | 00 — 01 | SCENE SCOPE MUTE GROUP2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 62 | 00 — 01 | SCENE SCOPE MUTE GROUP3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 63 | 00 — 01 | SCENE SCOPE MUTE GROUP4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 64 | 00 — 01 | SCENE SCOPE MUTE GROUP5 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 65 | 00 — 01 | SCENE SCOPE MUTE GROUP6 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 66 | 00 — 01 | SCENE SCOPE MUTE GROUP7 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 67 | 00 — 01 | SCENE SCOPE MUTE GROUP8 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 68 | 00 — 01 | SCENE SCOPE FX1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 69 | 00 — 01 | SCENE SCOPE FX2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————|

| 10 00 00 6A | 00 — 01 | SCENE SCOPE FX3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 6B | 00 — 01 | SCENE SCOPE FX4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 6C | 00 — 01 | SCENE SCOPE GEQ1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 6D | 00 — 01 | SCENE SCOPE GEQ2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 6E | 00 — 01 | SCENE SCOPE GEQ3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 6F | 00 — 01 | SCENE SCOPE GEQ4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 70 | 00 — 01 | SCENE SCOPE EXT FX1 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 71 | 00 — 01 | SCENE SCOPE EXT FX2 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 72 | 00 — 01 | SCENE SCOPE EXT FX3 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 73 | 00 — 01 | SCENE SCOPE EXT FX4 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 74 | 00 — 01 | SCENE SCOPE EXT FX5 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 75 | 00 — 01 | SCENE SCOPE EXT FX6 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 76 | 00 — 01 | SCENE SCOPE EXT FX7 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 77 | 00 — 01 | SCENE SCOPE EXT FX8 ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 78 | 00 — 01 | SCENE SCOPE INPUT PATCH ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 79 | 00 — 01 | SCENE SCOPE INPUT NAME ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 7A | 00 — 01 | SCENE SCOPE OUTPUT PATCH ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 7B | 00 — 01 | SCENE SCOPE OUTPUT NAME ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 7C | 00 | (Reserved) | : : : | 10 00 00 7F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 00 | 00 — 01 | SCENE SCOPE CH PREAMP ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 01 | 00 — 01 | SCENE SCOPE CH PHASE ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 02 | 00 — 01 | SCENE SCOPE CH ATT ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 03 | 00 — 01 | SCENE SCOPE CH FILTER ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 04 | 00 — 01 | SCENE SCOPE CH GATE ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 05 | 00 — 01 | SCENE SCOPE CH COMP ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 06 | 00 — 01 | SCENE SCOPE CH EQ ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 07 | 00 — 01 | SCENE SCOPE CH SENDS ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 08 | 00 — 01 | SCENE SCOPE CH LEVEL ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 09 | 00 — 01 | SCENE SCOPE CH PAN ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0A | 00 — 01 | SCENE SCOPE AUX/MAIN ATT ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0B | 00 — 01 | SCENE SCOPE AUX/MAIN EQ ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0C | 00 — 01 | SCENE SCOPE AUX/MAIN SENDS ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0D | 00 — 01 | SCENE SCOPE AUX/MAIN LEVEL ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0E | 00 — 01 | SCENE SCOPE AUX/MAIN BALANCE ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 0F | 00 — 01 | SCENE SCOPE AUX/MAIN LIMITER ON,OFF | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 10 | 00 — 01 | MIDI CONTROL CHANGE Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 11 | 00 — 01 | MIDI PROGRAM CHANGE Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 12 | 00 — 01 | MIDI SYS EX Rx (*1) OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 13 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 14 | 00 — 01 | MIDI MMC Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 15 | 00 — 01 | MIDI CONTROL CHANGE Tx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 16 | 00 — 01 | MIDI PROGRAM CHANGE Tx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 17 | 00 — 01 | MIDI SYS EX Tx (*1) OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 18 | 00 | (Reserved) | : : : | 10 00 00 1B | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 1C | 00 — 01 | MIDI OUT OUT,THRU | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 1D | 00 — 06 | RS—232C RS—232C RATE (*1) | | | | 0: 4800bps | | | | 1: 9600bps | | | | 2: 14400bps | | | | 3: 31250bps | | | | 4: 38400bps | | | | 5: 57600bps | | | | 6: 115200bps | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 1E | 00 — 7F | DEVICE ID (*1) 0 — 31 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 00 1F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 20 | 00 — 01 | USB MIDI CONTROL CHANGE Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 21 | 00 — 01 | USB MIDI PROGRAM CHANGE Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 22 | 00 — 01 | USB MIDI SYS EX Rx (*1) OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 23 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————|

22

MIDI Implementation

| 10 00 01 24 | 00 — 01 | USB MIDI MMC Rx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 25 | 00 — 01 | USB MIDI CONTROL CHANGE Tx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 26 | 00 — 01 | USB MIDI PROGRAM CHANGE Tx OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 27 | 00 — 01 | USB MIDI SYS EX Tx (*1) OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 28 | 00 | (Reserved) | : : : | 10 00 01 2E | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 2F | 00 — 01 | V—LINK SWITCH (*1) OFF,ON | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 30 | 00 — 2F | V—LINK VIDEO1 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 31 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 32 | 0aaaaaaa| V—LINK VIDEO1 MAX LEVEL | | 10 00 01 33#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 34 | 0aaaaaaa| V—LINK VIDEO1 MIN LEVEL | | 10 00 01 35#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 36 | 00 — 2F | V—LINK VIDEO2 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 37 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 38 | 0aaaaaaa| V—LINK VIDEO2 MAX LEVEL | | 10 00 01 39#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 3A | 0aaaaaaa| V—LINK VIDEO2 MIN LEVEL | | 10 00 01 3B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 3C | 00 — 2F | V—LINK VIDEO3 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 3D | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 3E | 0aaaaaaa| V—LINK VIDEO3 MAX LEVEL | | 10 00 01 3F#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 40 | 0aaaaaaa| V—LINK VIDEO3 MIN LEVEL | | 10 00 01 41#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 42 | 00 — 2F | V—LINK VIDEO4 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 43 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 44 | 0aaaaaaa| V—LINK VIDEO4 MAX LEVEL | | 10 00 01 45#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 46 | 0aaaaaaa| V—LINK VIDEO4 MIN LEVEL | | 10 00 01 47#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 48 | 00 — 2F | V—LINK VIDEO5 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 49 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 4A | 0aaaaaaa| V—LINK VIDEO5 MAX LEVEL | | 10 00 01 4B#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 4C | 0aaaaaaa| V—LINK VIDEO5 MIN LEVEL | | 10 00 01 4D#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 4E | 00 — 2F | V—LINK VIDEO6 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 4F | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 50 | 0aaaaaaa| V—LINK VIDEO6 MAX LEVEL | | 10 00 01 51#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 52 | 0aaaaaaa| V—LINK VIDEO6 MIN LEVEL | | 10 00 01 53#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 54 | 00 — 2F | V—LINK VIDEO7 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 55 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 56 | 0aaaaaaa| V—LINK VIDEO7 MAX LEVEL | | 10 00 01 57#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 58 | 0aaaaaaa| V—LINK VIDEO7 MIN LEVEL | | 10 00 01 59#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 5A | 00 — 2F | V—LINK VIDEO8 SOURCE | | | | 0,,,48 = CH1,,,CH48 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 5B | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 5C | 0aaaaaaa| V—LINK VIDEO8 MAX LEVEL | | 10 00 01 5D#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 5E | 0aaaaaaa| V—LINK VIDEO8 MIN LEVEL |

| 10 00 01 5F#| 0bbbbbbb| less than —905,—905,,,100 = | | | | —Inf,—90.5,,,+10.0dB | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 60 | 00 — 03 | REAC CONFIG SETUP (*1) | | | | 0: FOH | | | | 1: MONITOR/BROADCAST A | | | | 2: (Reserved) | | | | 3: BACKUP(S—4000S) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 61 | 00 | (Reserved) | : : : | 10 00 01 67 | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 68 | 00 — 01 | SAMPLING FREQ (*1) 48, 44.1kHz | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 69 | 00 — 0A | PANEL BRIGHTNESS 0,,,10 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6A | 00 — 0A | LAMP BRIGHTNESS 0,,,10 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6B | 00 — 0A | DISPLAY BRIGHTNESS 0,,,10 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6C | 00 — 02 | DATE FORMAT | | | | 0: MM/DD/YYYY | | | | 1: DD/MM/YYYY | | | | 2: YYYY/MM/DD | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6D | 00 | (Reserved) | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6E | 00 — 0A | FADER TOUCH SENSITIVITY 0,,,10 | |—————————————+—————————+—————————————————————————————————————————| | 10 00 01 6F | 00 — 01 | SOLO CH AFL OFF, ON | +—————————————————————————————————————————————————————————————————+ | 10 00 01 70 | 00 — 01 | SOLO MODE ADD ON, LAST | +—————————————————————————————————————————————————————————————————+

(*1) This is read-only.

23

MIDI Implementation

■

●

3. MIDI Machine Control

The M-400 will receive MIDI Machine Control messages when the RECEIVE item “MMC” (SYSTEM > REMOTE > MIDI or USB MIDI) is selected.

MIDI Machine Control Details

STOP (MCS)

Status Data Byte Status F0H 7FH,Dev,06H,01H F7H

Byte Description F0H Status of System Exclusive Message 7FH Universal System Exclusive Real-time Header Dev Device ID (or 7FH) 06H MMC Command Message 01H STOP(MCS) F7H EOX (End of System Exclusive message)

PLAY(MCS)

Status Data Byte Status F0H 7FH,Dev,06H,02H F7H

Byte Description F0H Status of System Exclusive Message 7FH Universal System Exclusive Real-time Header Dev Device ID (or 7FH) 06H MMC Command Message 02H PLAY(MCS) F7H EOX (End of System Exclusive message)

DEFERRED PLAY(MCS)

Status Data Byte Status F0H 7FH,Dev,06H,03H F7H

4. V-LINK RECOGNIZED RECEIVE DATA

The M-400 will receive the messages from external video devices when V-LINK button (SYSTEM > REMOTE > V-LINK)is on.

■SYSTEM EXCLUSIVE MESSAGES

●V-LINK Audio Mixer Channel 1-8 Level

Status Data Byte Status F0H 41H,dev,00H,51H,12H, F7H

20H,20H,ddH,eeH,ffH,Sum

Byte Description F0H Status of System Exclusive Message 41H Manufacturer ID (Roland) Dev Device ID (or 7FH) 00H 51H Model ID (V-LINK) 12H Command ID (DT1) 20H Address MSB 20H Address ddH Address LSB (*1) ddH eeH 0000H - 0768H (Level 0.0 - 100.0%) Sum Check Sum F7H EOX (End of System Exclusive message)

(*1) 00H: Channel 1 (Source 1) 02H: Channel 2 (Source 2) 04H: Channel 3 (Source 3) 06H: Channel 4 (Source 4) 08H: Channel 5 (Source 5) 0AH: Channel 6 (Source 6) 0CH: Channel 7 (Source 7) 0EH: Channel 8 (Source 8)

Byte Description F0H Status of System Exclusive Message 7FH Universal System Exclusive Real-time Header Dev Device ID (or 7FH) 06H MMC Command Message 03H DEFERRED PLAY(MCS) F7H EOX (End of System Exclusive message)

●RECORD STROBE

Status Data Byte Status F0H 7FH,Dev,06H,06H F7H

Byte Description F0H Status of System Exclusive Message 7FH Universal System Exclusive Real-time Header Dev Device ID (or 7FH) 06H MMC Command Message 06H RECORD STROBE F7H EOX (End of System Exclusive message)

24

MIDI Implementation

5. Appendices

●Decimal and Hexadecimal table

(Hexadecimal number is shown with H.)

+—————+—————++—————+—————++—————+—————++—————+—————+ | D | H || D | H || D | H || D | H | +—————+—————++—————+—————++—————+—————++—————+—————+ | 0 | 00H || 32 | 20H || 64 | 40H || 96 | 60H | | 1 | 01H || 33 | 21H || 65 | 41H || 97 | 61H | | 2 | 02H || 34 | 22H || 66 | 42H || 98 | 62H | | 3 | 03H || 35 | 23H || 67 | 43H || 99 | 63H | | 4 | 04H || 36 | 24H || 68 | 44H || 100 | 64H | | 5 | 05H || 37 | 25H || 69 | 45H || 101 | 65H | | 6 | 06H || 38 | 26H || 70 | 46H || 102 | 66H | | 7 | 07H || 39 | 27H || 71 | 47H || 103 | 67H | | 8 | 08H || 40 | 28H || 72 | 48H || 104 | 68H | | 9 | 09H || 41 | 29H || 73 | 49H || 105 | 69H | | 10 | 0AH || 42 | 2AH || 74 | 4AH || 106 | 6AH | | 11 | 0BH || 43 | 2BH || 75 | 4BH || 107 | 6BH | | 12 | 0CH || 44 | 2CH || 76 | 4CH || 108 | 6CH | | 13 | 0DH || 45 | 2DH || 77 | 4DH || 109 | 6DH | | 14 | 0EH || 46 | 2EH || 78 | 4EH || 110 | 6EH | | 15 | 0FH || 47 | 2FH || 79 | 4FH || 111 | 6FH | | 16 | 10H || 48 | 30H || 80 | 50H || 112 | 70H | | 17 | 11H || 49 | 31H || 81 | 51H || 113 | 71H | | 18 | 12H || 50 | 32H || 82 | 52H || 114 | 72H | | 19 | 13H || 51 | 33H || 83 | 53H || 115 | 73H | | 20 | 14H || 52 | 34H || 84 | 54H || 116 | 74H | | 21 | 15H || 53 | 35H || 85 | 55H || 117 | 75H | | 22 | 16H || 54 | 36H || 86 | 56H || 118 | 76H | | 23 | 17H || 55 | 37H || 87 | 57H || 119 | 77H | | 24 | 18H || 56 | 38H || 88 | 58H || 120 | 78H | | 25 | 19H || 57 | 39H || 89 | 59H || 121 | 79H | | 26 | 1AH || 58 | 3AH || 90 | 5AH || 122 | 7AH | | 27 | 1BH || 59 | 3BH || 91 | 5BH || 123 | 7BH | | 28 | 1CH || 60 | 3CH || 92 | 5CH || 124 | 7CH | | 29 | 1DH || 61 | 3DH || 93 | 5DH || 125 | 7DH | | 30 | 1EH || 62 | 3EH || 94 | 5EH || 126 | 7EH | | 31 | 1FH || 63 | 3FH || 95 | 5FH || 127 | 7FH | +—————+—————++—————+—————++—————+—————++—————+—————+

D: decimal H: hexadecimal

In MIDI documentation, data values and addresses/sizes of system exclusive messages etc. are expressed as hexadecimal values for each 7 bits. The following table shows how these correspond to decimal numbers.

●Example of system exclusive message and Checksum calculation

On Roland system exclusive message (DT1), checksum is added at the end of transmitted data (in front of F7) to check the message is received correctly. Value of checksum is defined by address and data (or size) of the system exclusive message to be transmitted. .

❍How to calculate checksum (Hexadecimal number is shown with H.)

checksum is a value which lower 7 bit of the sum of address, size and checksum itself turns to be 0. If the address of the system exclusive message to be transmitted is aa bb ccH and data or size is dd ee ffH,

aa + bb + cc + dd + ee + ff = sum sum /128 = quotient and odd When odd is 0, 0 = checksum When odd is other than 0, 128 - odd = checksum.

■MIDI Machine Control (MMC) Command

●Command Recognized

Command Action

------------------------------------ -------------01H STOP STOP 02H PLAY PLAY 03H DEFERRED PLAY 06H RECORD STROBE REC

●Commands Transmitted

The M-400 does not transmit MMC commands.

(*) Decimal values such as MIDI channel, bank select, and program change are listed as one(1) greater than the values given in the above table.

(*) A 7-bit byte can express data in the range of 128 steps. For data where greater precision is required, we must use two or more bytes. For example, two hexadecimal numbers aa bbH expression two 7-bit bytes would indicate a value of aa x 128 + bb.

(*) In the case of values which have a +/- sign, 40H=-64, 00H=0, 3FH=+63, so that the decimal expression would be 64 less than the value given in the above chart. In the case of two types, 40 00H = -8192, 00 00H = 0, 3F 7FH = +8191.

(*) Data marked ÅgnibbledÅh is expressed in hexadecimal in 4-bit units. A value expressed as a 20byte nibble 0a 0bH has the value of a x 16 + b.

<Ex.1> What 5AH in decimal system? 5AH = 90 according to the above table.

<Ex.2> What in decimal system is 12034H in hexadecimal of every 7 bit? 12H = 18, 34H = 52 according to the above table. So 18 x 128 + 52 = 2356.

<Ex.3> What in decimal system is 0A 03 09 0D in nibble system? 0AH = 10, 03H = 3, 09H = 9, 0DH = 13 according to the above table. So ((10 x 16 + 3) x 16 + 9) x 16 + 3 = 41885.

<Ex.4> What in nibble system is 1258 in decimal system?

16)1258

16) 78 ... 10

16) 4 ... 14

0 ... 4 0 = 00H, 4 = 04H, 14 = 0EH, 10 = 0AH according to the above table. So it is 00 04 0E 0AH.
