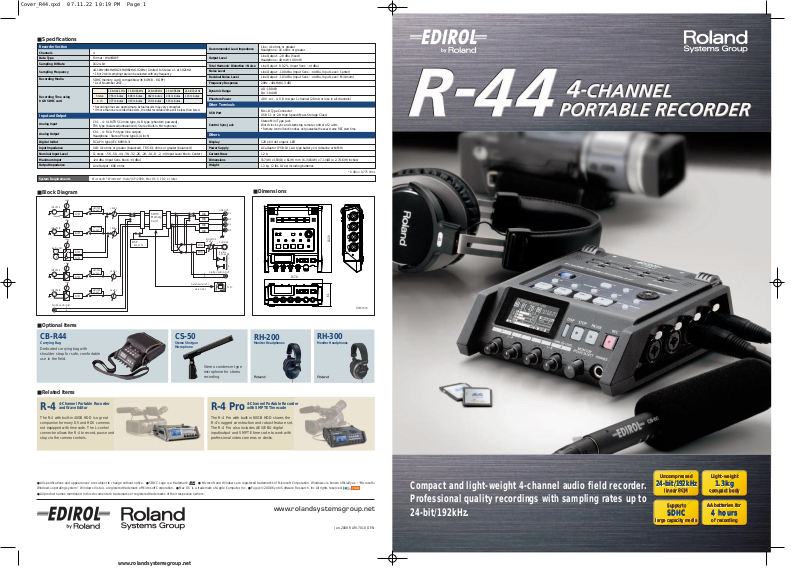

Roland R-44 User Manual

AA batteries for

4 hours

of recording

Light-weight

1.3kg

compact body

Supports

SDHC

large capacity media

Uncompressed

24-bit/192kHz

linear PCM

Uncompressed

24-bit/192kHz

linear PCM

Light-weight

1.3kg

compact body

Light-weight

1.3kg

compact body

Supports

SDHC

large capacity media

AA batteries for

4 hours

of recording

AA batteries for

4 hours

of recording

Uncompressed

24-bit/192kHz

linear PCM

Supports

SDHC

large capacity media

Channels
Data Type
Sampling Bit Rate

Sampling Frequency

Recording Media

Recording Time using
8 GB SDHC card

Analog Input

Analog Output

Digital In/Out
Input Impedance
Nominal Input Level
Maximum Input
Output Impedance

Recommended Load Impedance

Output Level

Total Harmonic Distortion + Noise
Noise Level
Residual Noise Level
Frequency Response

Dynamic Range

Phantom Power

USB Port

Control Sync Jack

Display
Power Supply
Current Draw
Dimensions
Weight

4
Format : WAV/BWF
16/24-bit

44.1kHz/48kHz/88.2kHz/96kHz/192kHz (Limited to Stereo x 1 at 192kHz)
* 16 or 24-bit sampling rate can be selected with any frequency

SDHC memory card (compatible with 64 MB - 8 GB*)
* As of November 2007.

* Recording times are approximate. Actual results may vary somewhat.
* If more than one recorded file exists, the total recordable time will be less than listed.

Ch 1 - 4 : XLR/TRS Combo type, XLR type (phantom powered),
TRS type (balanced/unbalanced), Stereo Built-in Microphones

Ch 1 - 4 : RCA Pin type (line output)
Headphone : Stereo Phone type (1/4 inch)

RCA Pin type (IEC 60958-3)
XLR: 4k ohms or greater (balanced), TRS: 6k ohms or greater (balanced)
11 steps : -56, -50, -44, -38, -32, -26, -20, -14, -8, -2, +4 (Input Level Knob : Center)
+24 dBu (Input Sens Knob: +4 dBu)
Line Output : 600 ohms

Line : 4k ohms or greater
Headphone : 16 ohms or greater

Line Output : -20 dBu (fixed)
Headphone : 40 mW + 40 mW

Line Output : 0.02 % (Input Sens : +4 dBu)
Line Output : -100 dBu (Input Sens : +4 dBu, Input Level : Center)
Line Output : -103 dBu (Input Sens : +4 dBu, Input Level : Minimum)
20Hz - 40kHz(0/-3 dB)
AD : 100 dB

DA : 104 dB
48 V + or - 4 V, 8 mA per 1 channel (20 mA or less in all channels)

Mini-B Type Connecter
USB 1.1 or 2.0 High Speed (Mass Storage Class)

Stereo Mini Type Jack
Word clock sync and start/stop remote control of 2 units
* Remote control function does not guarantee the exact same REC start time

128 x 64 dot organic LED
AC adaptor (PSB-1U), AA type battery x 4 (Alkaline or NiMH)

1.2 A
157(W) x 183(D) x 61(H) mm (6-3/16(W) x 7-1/4(D) x 2-7/16(H) inches)

1.3 kg (2 lbs 14 oz) including batteries

* 0 dBu = 0.775 Vrms

Others

■

Specifications

16 bit/44.1kHz

755 minutes
377

minutes

16 bit/48kHz

694 minutes
347

minutes

24 bit/48kHz

462 minutes
231

minutes

24 bit/96kHz

231 minutes
115

minutes

24 bit/192kHz

115 minutes

Stereo

4 ch

Other Terminals

Input and Output

Recorder Section

System Requirements

Microsoft® Windows® Vista®/XP/2000, Mac OS X 10.2 or later

INPUT2/R

INPUT1/L

SDHC
Memory
Card

INPUT4/R

INPUT3/L

DIGITAL AUDIO IN

L
R

LINE OUT

1/L

2/R

DIGITAL AUDIO OUT

L
R

Built-in MIC

DSP

EFFECTS

SENS

SENS

SENS

SENS

To P C

LEVEL

LEVEL

LEVEL

LEVEL

L

R

D/A

PHONES

L

R

Built-in
SPEAKER

MONITOR
LEVEL

3/L

4/R

D/A
D/A

D/A

D/A

L
R

LIMITER
Lo-Cut

LIMITER
Lo-Cut

LIMITER
Lo-Cut

LIMITER
Lo-Cut

D/A

SENS

A/D

A/D

A/D

A/D

A/D

A/D

USB 2.0/1.1

DataTransfer to PC

■

Block Diagram

■

Optional Items

■

Dimensions

182.9

157.0

61

Unit: mm

CB-R44

Carrying Bag

Dedicated carrying bag with
shoulder strap for safe, comfortable
use in the field.

■

Related Items

●All specifications and appearances are subject to change without notice. ● SDHC Logo is a trademark. ● Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows®is known officially as : “Microsoft
Windows®operating system.” Windows Vista is a registered trademark of Microsoft Corporation. ●Mac OS is a trademark of Apple Computer, Inc. ●Fugue© 2008 Kyoto Software Research, Inc All rights reserved.

●All product names mentioned in this document are trademarks or registered trademarks of their respective owners.

4-Channel Portable Recorder
and Wave Editor

R-4

The R-4 with built-in 40GB HDD is a great
companion for many DV and HDV cameras
not equipped with time code. The L-control
connector allows the R-4 to record, pause and
stop via the camera controls.

CS-50

Stereo Shotgun
Microphone

RH-200

Monitor Headphones

Stereo condenser type
microphone for stereo
recording.

4-Channel Portable Recorder

R-4 Pro

The R-4 Pro with built-in 80GB HDD shares the
R-4’s rugged construction and robust feature set.
The R-4 Pro also includes AES/EBU digital
input/output and SMPTE time code to work with
professional video cameras or decks.

with SMPTE Timecode

www.rolandsystemsgroup.net

RH-300

Monitor Headphones

Jan.2008 RAM-7010 GEN

®

Compact and light-weight 4-channel audio field recorder.
Professional quality recordings with sampling rates up to
24-bit/192kHz.

■

Pro quality four channels recordings
to large capacity SDHC cards.

Built-in limiter, low-cut filter
and studio class effects.

Pre-Record function ensures you never
miss that important moment again.

Combo type analog jacks and digital output
enables connection with a variety of devices.

High-contrast Organic LED display
and operation-oriented user interface.

Capture eight channels by linking
two units.

Four hours of recording with four
AA batteries.

Link to computer via
high speed USB.

Built-in stereo microphones
and monitor speakers.

■

Bulit-In Effects

3-band parametric EQ ; allows precise equalization with
high/low shelving and peaking

6 point frequency band equalization; ideal for recording
Minimizes noise during low audio levels, cuts low

frequency noise
Cleary defines and enhances sound; good for dialogue
Cuts hissing, smoothens the sound, makes audio level

uniform
Generates stereo mix with specified spread from inputs

of Mid-Side Microphones

3-Band EQ
6-Band Graphic EQ
Noise Gate
Enhancer
Comp & DeEsser

MS Mic Mixing

* Effects can be applied on both input and output
* Effects are not available while sample rate is set to 192kHz

Built-in mics

Stereo microphones. Input sensitivity knob and high
response meter enable precise level adjustment.

■

Phantom Power Switches

On/Off switch to control the phantom power supply to
XLR input jacks. Independent control of each input.

■

Hold Switch

Prevents unintentional operations by locking the top and
front panel buttons.

■

Exit Button

Returns to previous screen or cancels current operation.

■

Effects Button

Calls up on-board studio class effects. Assign to inputs
and outputs as well as individual channels.

■

Marker/Cursor Buttons

Pressing the MARK button adds markers to the project
enabling quick access to points of playback. The 4
buttons also work as cursor control while a menu is
selected.

■

A-B Repeat Button

Set A-B points in a project to repeat playback between
loop points.

■

Display

Organic LED provides high contrast and quick response
with benefits of wide angle visibility.

■

Input Sensitivity & Level Knobs

Dual type knobs adjusts both input sensitivities and levels
for Ch 1-4 independently.

■

Built-in speakers

Speakers for stand-alone monitoring.

■

Limiter Switch

Suppresses sudden audio peaks and compresses signal
to a threshold level. Independent On/Off or stereo link of
channels 1-2 and 3-4 is possible.

■

Low-Cut Switch

Rolls off low frequencies within input signals to prevent
noise such as mic handling, breath pops or wind noise.

■

Scrub Dial

Enables speedy selection of parameters or changing
values within menus. Moves current position forward or
backward during playback or pause.

■

Menu Button

Calls up menu screen for REC/PLAY setup or other
system preferences.

■

ENTER/FINDER Button

Use to set a value or parameter selection. This also calls
up the Finder function allowing file management
functions such as Delete, Copy, Move, etc.

■

PREV/NEXT/PLAY Buttons

PREV and NEXT buttons allow selection of the previous
or next file. Hold down these buttons for rewind or fast­forward. PLAY button lights in blue during playback.

■

Display Button

Switches current contents to be shown on display.

■

STOP/PAUSE/REC Buttons

REC button lights in red during recording and blinks in
standby mode. The slanted panel provides smooth and
easy access.

■

Phone Jack & Level knob

1/4 inch stereo phone jack for headphone connection and
level adjustment knob.

A compact, solid state,
four channel field recorder.

The Edirol R-44 is designed for professional use
within a very conveniently sized package. Capture up
to 4 channels of uncompressed audio with selectable
bit depths (16-bit or 24-bit) and sampling frequencies
(44.1kHz/48kHz/88.2kHz/96kHz). R-44 employs SD
cards or large capacity SDHC
cards as the recording media.
No moving parts enables the
most silent and reliable
operation possible.

Although the R-44 is compact, all the necessary
functions are included. Built-in high quality
microphones and speakers make recording and
monitoring without external devices possible.

An on-board limiter helps suppress sudden peaks in
sound from an input source. Alow-cut filter is
included to help prevent things like wind noise or mic
handling noise. Studio class effects such as 3-Band
EQ, 6-Band GEQ, Enhancer or DeEsser can be used
as tools to greatly improve audio quality. Effects can
be applied while recording or simply for
monitoring/playback.

The Pre-Record function buffers input signals for a
certain amount of time. When the REC button is
pressed, the material from the previous few seconds
(selectable) is included. This also helps reduce sound
bites at the beginning of a recording by not having to
start the recorder too early.

The combo input jacks (4)
supports the connection of both
XLR and 1/4 inch plugs.
XLR inputs are equipped with
phantom power. Eleven steps
of input sensitivity enable the
connection of various devices
with a variety of inputs levels

■

Memory Card Slot

For SD and large capacity SDHC cards.

■

Control Sync

Link two R-44 units together for
8-channel recording.

■

Digital Output

Digital coaxial type connector for
output to external digital devices
such as speakers/mixers.

■

Digital Input

Digital coaxial type connector for
inputting digital signals.

■

Line Output Terminals

Four RCA jacks for independent monitoring of all
channels.

from microphones to musical instruments. High quality
analog circuitry in the preamp ensures superior
recording results.

The high contrast, high
response organic LED
screen, viewable from wide
angles ensures fluid
operation in field recording

▲Mixer Display

situations. The high
response of level meters
makes precise level
adjustments possible. All
the necessary switches and

▲6-Band Graphic EQ Display

knobs are located on the
top and front panels. Self-lit
buttons on all the key
controls enable clear-cut
recording operations.

▲Recording Setup Display

■

USB Port

Mini B type port for computer connection.
Enables copying files to or from computers.

The Control Sync terminal enables synchronized
operation of 2 units. Control the second unit from the
master by simply connecting two with a stereo mini
cable. The master unit can remotely control REC
standby, REC start and REC stop of the slave unit.
This function
enables
8-channel
recording in a
compact space
and at an
affordable price.

The R-44 can be mounted on computers with a
simple USB 2.0 connection. It is seen as an USB

■

Combo Type Input Terminals

Support both balanced (XLR/TRS type) and unbalanced (standard type)
inputs. Phantom power can be supplied to each XLR jack.

Windows Vista®/Windows®XP/2000

Mac OS X

storage device on a
computer. You can copy
data back and forth
with a simple drag &
drop operation.

The R-44 can be operated
with 3 types of power supply,
AC adaptor, external battery
and AA batteries.
Four hours* of operation is
possible with NiMH or

batteries.

alkaline

* at 16-bit/44.1kHz stereo. No phantom power and pre-record disabled.
