Owner’s Manual

Bedienungsanleitung

Mode d’emploi

Manuale d’uso

Manual del usuario

Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (p. 2; p. 5). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s Manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

any form without the written permission of ROLAND CORPORATION.

Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.

Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.

* Material damage refers to damage or

other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

The symbol alerts the user to important instructions or warnings.The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.

The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.

001

• Before using this unit, make sure to read the instructions below, and the Owner’s Manual.

..................................................................................................

002c

• Do not open (or modify in any way) the unit or its AC adaptor.

..................................................................................................

003

• Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

..................................................................................................

004

• Never use or store the unit in places that are:

• Subject to temperature extremes

(e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are

• Damp (e.g., baths, washrooms, on wet

floors); or are

• Humid; or are

• Exposed to rain; or are

• Dusty; or are

• Subject to high levels of vibration.

..................................................................................................

007

• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

..................................................................................................

008c

• Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor’s body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

..................................................................................................

008e

• Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.

..................................................................................................

009

• Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

..................................................................................................

010

• This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

..................................................................................................

011

• Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

..................................................................................................

012b

• Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Edirol/Roland distributor, as listed on the “Information” page when:

• The AC adaptor, the power-supply cord,

or the plug has been damaged; or

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been

spilled onto the unit; or

• The unit has been exposed to rain (or

otherwise has become wet); or

• The unit does not appear to operate

normally or exhibits a marked change in performance.

..................................................................................................

013

• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

015

• Do not force the unit’s power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord’s outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

..................................................................................................

016

• Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Edirol/Roland distributor, as listed on the “Information” page.

..................................................................................................

019

• Batteries must never be recharged, heated, taken apart, or thrown into fire or water.

..................................................................................................

014

• Protect the unit from strong impact. (Do not drop it!)

..................................................................................................

101b

• The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

..................................................................................................

102c

• Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

..................................................................................................

103b

• At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

..................................................................................................

104

• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

..................................................................................................

106

• Never climb on top of, nor place heavy objects on the unit.

..................................................................................................

107c

• Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

..................................................................................................

108b

• Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

110b

• Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

..................................................................................................

111: Selection

• If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions (P. 20).

• Carefully follow the installation

instructions for batteries, and make sure you observe the correct polarity.

• Avoid using new batteries together with

used ones. In addition, avoid mixing different types of batteries.

• Remove the batteries whenever the unit is

to remain unused for an extended period of time.

• If a battery has leaked, use a soft piece of

cloth or paper towel to wipe all remnants of the discharge from the battery compartment. Then install new batteries. To avoid inflammation of the skin, make sure that none of the battery discharge gets onto your hands or skin. Exercise the utmost caution so that none of the discharge gets near your eyes. Immediately rinse the affected area with running water if any of the discharge has entered the eyes.

• Never keep batteries together with metallic

objects such as ballpoint pens, necklaces, hairpins, etc.

..................................................................................................

112

• Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.

..................................................................................................

109b

• Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (P. 19).

..................................................................................................

IMPORTANTS NOTES

291a

In addition to the items listed under “USING THE UNIT SAFELY” on page 5, please read and observe the following:

Power Supply

301

• Do not connect this unit to same electrical

outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.

302

• The AC adaptor will begin to generate heat

after long hours of consecutive use. This is normal, and is not a cause for concern.

303a

• Since this device draws a relatively large

amount of electrical current, we recommend that you use it with the AC adaptor unless AC power is unavailable. Should you prefer to use batteries, please use the alkaline type.

304a

• When installing or replacing batteries, always

turn off the power on this unit and disconnect any other devices you may have connected. This way, you can prevent malfunction and/ or damage to speakers or other devices.

307

• Before connecting this unit to other devices,

turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

Placement

351

• Using the unit near power amplifiers (or other

equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.

352a

• This device may interfere with radio and

television reception. Do not use this device in the vicinity of such receivers.

352b

• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.

354a

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.

355b

• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.

Maintenance

401a

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.

402

• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and Data

452

• Please be aware that all data contained in the unit’s memory may be lost when the unit is sent for repairs. Important data should always be written down on paper (when possible). During repairs, due care is taken to avoid the loss of data. However, in certain cases (such as when circuitry related to memory itself is out of order), we regret that it may not be possible to restore the data, and Roland assumes no liability concerning such loss of data.

IMPORTANTS NOTES

Additional Precautions

551

• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically save a backup copy of important data you have stored in the unit’s memory on a hard disk.

552

• Unfortunately, it may be impossible to restore the contents of data that was stored on a memory card once it has been lost. Roland Corporation assumes no liability concerning such loss of data.

553

• Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

554

• Never strike or apply strong pressure to the display.

555

•A small amount of noise may be heard from the display during normal operation.

556

• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable’s internal elements.

558a

• To avoid disturbing your neighbors, try to keep the unit’s volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).

559a

• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.

562

• Use a cable from Roland to make the connection. If using some other make of connection cable, please note the following precautions.

• Some connection cables contain resistors.

Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Before Using Cards

Using DATA Cards

704

• Carefully insert the DATA card all the way in—until it is firmly in place.

fig.M512-Insert

CompactFlash™

705

• Never touch the terminals of the DATA card. Also, avoid getting the terminals dirty.

707

• This unit’s memory card slot accepts CompactFlash memory cards. Microdrive storage media are not compatible.

708

• CompactFlash cards are constructed using precision components; handle the cards carefully, paying particular note to the following.

• To prevent damage to the cards from static

electricity, be sure to discharge any static electricity from your own body before handling the cards.

• Do not touch or allow metal to come into

contact with the contact portion of the cards.

• Do not bend, drop, or subject cards to

strong shock or vibration.

• Do not keep cards in direct sunlight, in

closed vehicles, or other such locations (storage temperature: -25 to 85˚ C).

• Do not allow cards to become wet.

• Do not disassemble or modify the cards.

851

• Unauthorized recording, distribution, sale, lending, public performance, broadcasting, or the like, in whole or in part, of a work (musical composition, video, broadcast, public performance, or the like) whose copyright is held by a third party is prohibited by law.

852b

• When transmitting audio signals to an external device via a digital connection, this device is able to transmit data without being subjected to certain restrictions of the Serial Copy Management System (SCMS). This is because the unit is intended solely for musical production, and is designed not to be subject to restrictions as long as it is used to record works (such as your own compositions) that do not infringe on the copyrights of others. (SCMS is a feature that prohibits secondgeneration and later copying through a digital connection. It is built into MD recorders and other consumer digital-audio equipment as a copyright-protection feature.)

853

• Do not use this unit for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this unit.

IMPORTANTS NOTES

204

* Microsoft and Windows are registered trademarks of Microsoft Corporation.

206j

* Windows® is known officially as: “Microsoft® Windows® operating system.”

209

* Mac OS is a trademark of Apple Computer, Inc.

234

* CompactFlash and are trademarks of SanDisk Corporation and licensed by Compact-

Flash association.

235

* Roland Corporation is an authorized licensee of the CompactFlash™ and CF logo ( )

trademarks.

add

* PortalPlayer and the PortalPlayer logo are trademarks owned by PortalPlay-

er, Inc.

add

* MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS

and Thomson multimedia.

Checking the included items

The R-1 comes with the following items. Immediately after opening the package, please check that you have all of these items. If any items are missing, please contact the dealer where you purchased the R-1.

■

R-1

fig.r-1

■

AC adaptor

This AC adaptor is designed specifically for the R-1. Do not attempt to use any other adaptor with the R-1.

“Connecting the AC adaptor and

■

USB cable

turning on the power”

(p. 19)

(mini B type: 1 meter)

You can use this cable to connect the R-1 to the USB connector of your computer.

“Connecting the R-1 to your computer”

* If the AC adaptor or USB cable becomes

damaged or if you need a replacement for any reason, please contact one of the Service Centers listed in the “Information” section at the end of this manual.

(p. 44)

■

CompactFlash card (64 MB)

You can use this memory card to carry out recording and playback on the R-1.

“Memory card handling”

■

Carrying case

You can use this case to protect the R-1 while it is being transported or stored.

■

Owner’s manual

This is the document you’re reading. Keep it at hand for easy reference.

(p. 25)

Contents

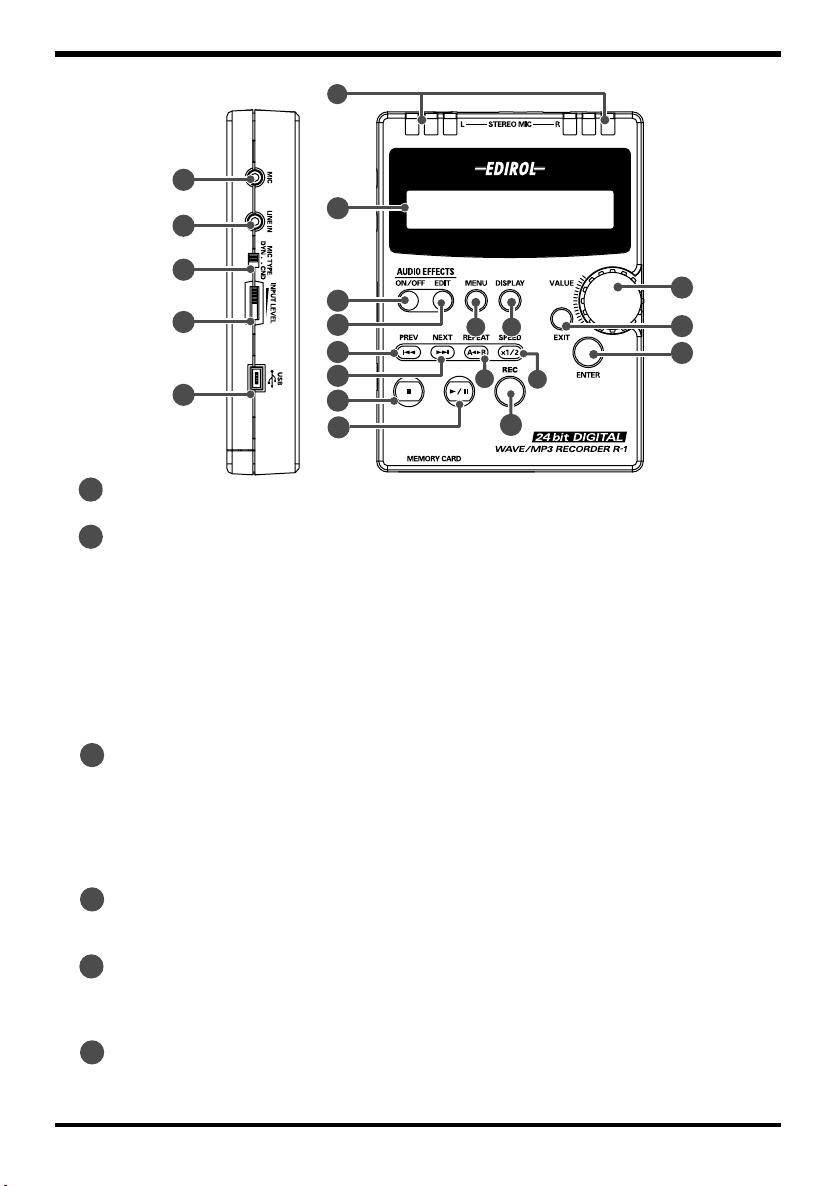

Checking the included items 8 The R-1’s controls and connectors 12 Getting ready to use the R-1 18

Basic connections ...................................................................................................... 18

Connecting the AC adaptor and turning on the power............................... 19

Installing the batteries and turning on the power ........................................ 20

Connecting headphones ................................................................................... 22

Connecting digital speakers (digital devices)................................................ 23

Connecting analog speakers (analog devices)............................................... 24

Memory card handling ............................................................................................ 25

Types of files that the R-1 can handle.................................................................... 28

Basic recording methods 29

Recording with the internal microphone .............................................................. 29

Recording with an external microphone............................................................... 32

Recording from a cassette tape or CD ................................................................... 35

Playback methods 38

Normal playback ...................................................................................................... 38

REPEAT A-B (Repeat playback)............................................................................. 40

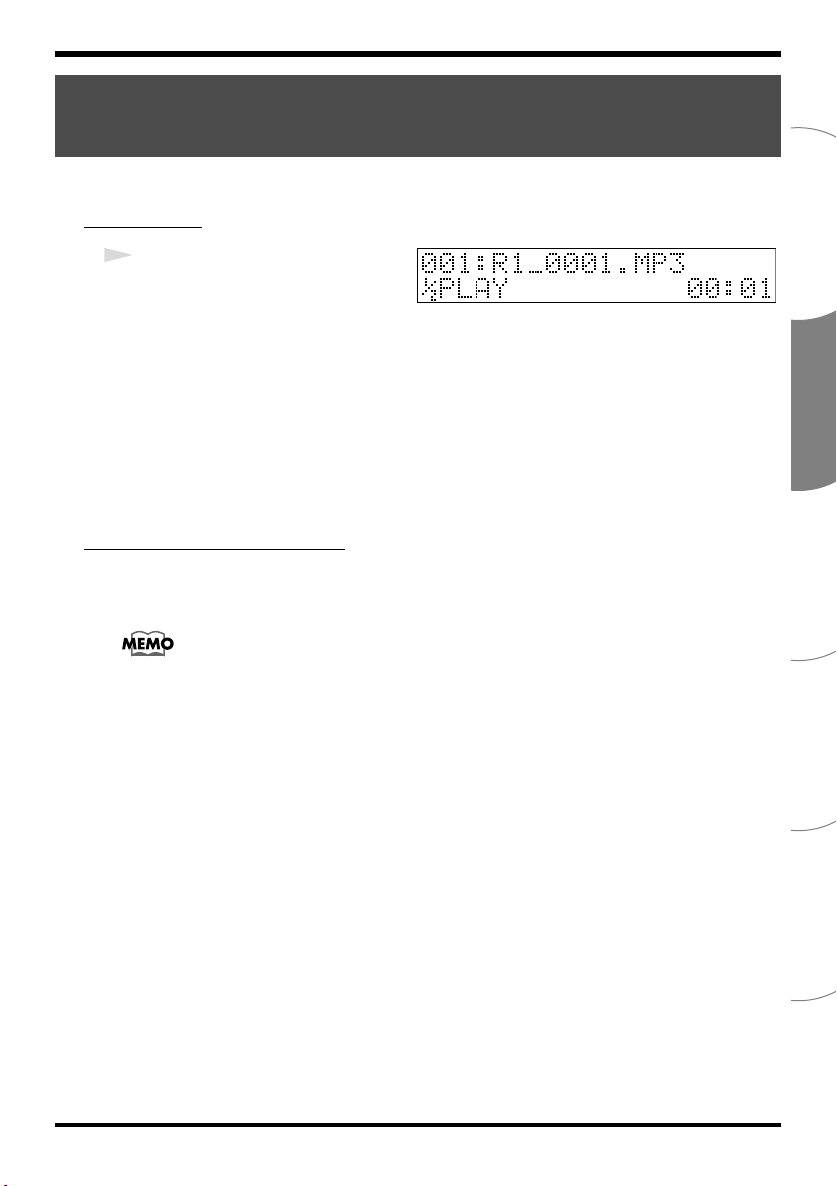

1/2 PLAY (Half-speed playback)........................................................................... 42

PLAY MODE (Playback mode) .............................................................................. 43

Using the R-1 with your computer 44

Connecting the R-1 to your computer ................................................................... 44

Disconnecting the R-1 from your computer ......................................................... 45

Using effects 46

Effect list.....................................................................................................................47

Applying an effect .................................................................................................... 52

Various settings 54

System settings (Setup mode)................................................................................. 54

Restoring the factory settings.................................................................................. 65

List of messages 66 Troubleshooting 67

Problems with recording ......................................................................................... 67

Problems with playback .......................................................................................... 69

Other problems ......................................................................................................... 70

Deutsch

Bedienung und Anschlüsse des R-1 72

Contents

Français

Vorbereitungen zum Einsatz des R-1 78

Formatieren einer CompactFlash-Karte ......................................................... 78

Einfache Aufnahmemethoden 79

Aufnahmen mit dem Einbaumikrofon.................................................................. 79

Aufnehmen mit externem Mikrofon...................................................................... 82

Wiedergabemethoden 85

Normale Wiedergabe ............................................................................................... 85

REPEAT A-B (Wiedergabewiederholung)............................................................ 86

1/2 PLAY (halbierte Wiedergabegeschwindigkeit) ............................................ 87

PLAY MODE (Wiedergabemodus)........................................................................ 88

Einsatz von Effekten 89

Anwenden eines Effekts .......................................................................................... 89

Verschiedene Einstellungen 90

Systemeinstellungen (Konfigurationsmodus)...................................................... 90

Commandes et connecteurs 92 Préparatifs avant utilisation du R-1 98

Formatage d’une carte CompactFlash............................................................ 98

Méthodes d’enregistrement 99

Enregistrement à l’aide du micro intégré.............................................................. 99

Enregistrement avec microphone externe........................................................... 102

Modes de lecture 105

Lecture normale ...................................................................................................... 105

REPEAT A-B (lecture en boucle) .......................................................................... 106

1/2 PLAY (lecture en mode demi-vitesse).......................................................... 107

PLAY MODE (modes de lecture) ......................................................................... 108

Utilisation des effets 109

Application d’un effet ............................................................................................ 109

Paramétrages divers 110

Paramétrage système (mode Setup)..................................................................... 110

Italiano

Controlli e connettori dell’R-1 112 Preparazione all’utilizzo dell’R-1 118

Formattazione di una scheda CompactFlash............................................... 118

Metodi di registrazione di base 119

Registrazione mediante il microfono interno ..................................................... 119

Registrazione mediante un microfono esterno................................................... 122

Metodi di riproduzione 125

Riproduzione normale ........................................................................................... 125

REPEAT A-B (Riproduzione ripetuta)................................................................. 126

1/2 PLAY (Riproduzione a velocità dimezzata)................................................ 127

PLAY MODE (Modalità riproduzione) ............................................................... 128

Utilizzo degli effetti 129

Applicazione di un effetto..................................................................................... 129

Impostazioni 130

Impostazioni del sistema (Setup mode) .............................................................. 130

Español

Controles y conectores de la unidad R-1 132 Preparación para el uso de la unidad R-1 138

Formateado de una tarjeta CompactFlash ................................................... 138

Métodos básicos de grabación 139

Grabación con el micrófono interno..................................................................... 139

Grabación con un micrófono externo .................................................................. 142

Métodos de reproducción 145

Reproducción normal............................................................................................. 145

REPETICIÓN A-B (repetición de la reproducción) ........................................... 146

REPRODUCCIÓN 1/2 (reproducción a la mitad de velocidad) ..................... 147

PLAY MODE (Modo de reproducción)............................................................... 148

Utilización de los efectos 149

Aplicación de un efecto.......................................................................................... 149

Algunos parámetros 150

Configuración del sistema (modo Setup (Configuración))............................... 150

Contents

Main specifications 152 Index 154

The R-1’s controls and connectors

fig.panel-1

Internal mic

3 4

7 8

5 6

This is a stereo microphone that’s built into the R-1. You can’t use the internal microphone if a microphone or other device is connected to the

mic jacks

line input jacks

. If you want to use the internal microphone,

don’t connect anything to the other input jacks.

Display

Various information about the R-1’s operating state is shown here.

EFFECT button

Press the

EFFECT button

to switch the effect on/off. This button will light red when the effect is on. If you turn this on before or during playback, the effect will be applied to the sound that is being played back. If you turn this on before or during recording, the effect will be applied to the sound that is being input; i.e., the sound that has been processed by the effect will be recorded. The R-1 provides various effects that let you modify the sound being played back or recorded, giving the sound more impact or allowing more comfortable listening. You can also transform the sound to give it a totally new character.

EDIT button

Use this button to make effect settings. For details on the effects, refer to regardless of whether the

MENU button

“Using effects”

EFFECT button

(p. 46). You can make effect settings

is on or off.

This button selects Setup mode, where you can make various settings for the R-1. Here you can adjust the LCD contrast, specify the recording quality, and make various other overall settings for the R-1. For details, refer to

“Various settings”

(p. 54)

The R-1’s controls and connectors

Song

DISPLAY button

This switches the contents of the R-1’s display. In PLAY mode, this button will cycle through the playback time, the remaining playback time in the current song (file), the type of song (file), and the bit rate. Press the

PREV button

Use this button to move to the beginning of the song or to select the preceding song. Pressing this button in the middle of a song will move to the beginning of that song. If you are already at the beginning (00:00) of the song, pressing this button will take you to the preceding song. You can press and hold down this button to rewind. These operations are available while playing or stopped.

NEXT button

Use this button to select the next song. You can press and hold down this button to fastforward. These operations are available while playing or stopped.

REPEAT button

This button lets you play repeatedly between two points (A - B) you specify in the song. Press this button once to mark point “A” and press it again to mark point “B.” To cancel repeat playback, press the repeat playback, points A and B will both be cancelled.

fig.repeat-a

DISPLAY button

to switch the contents of the display.

REPEAT button

During playback, press the

REPEAT button

once. That point will be the beginning (point A) of the repeated playback.

once again. When you cancel

EnglishDeutschFrançaisItalianoEspañol

fig.repeat-b

Press the

REPEAT button

once again. That point

will be the end (point B) of the repeated playback.

fig.repeat-ab

Playback will occur repeatedly over the range you specified in steps 1 and 2. To cancel repeat playback, press the

SPEED button

REPEAT button

once again.

This button slows the playback to half-speed. Press it once again to return to normal speed. This is useful when you are playing along with music at an uncomfortably fast tempo, or when listening to rapid speech.

The R-1’s controls and connectors

fig.panel-2

STOP button

4 7

5 6

This button stops playback or recording.

PLAY/PAUSE button

This button starts playback. It also pauses recording or playback. If you press this button while playing, playback will pause, and the R-1’s display will indicate

PLAY-PAUSE

. Press the

PLAY/PAUSE button

once again to resume playback. Similarly, if you press this button while recording, recording will pause. The R-1’s display will indicate To resume recording from the Rec Standby condition, press the (or press the

REC button

PLAY/PAUSE button

When stopped, pressing the The R-1's display will indicate To begin recording from recording-standby mode, press the press the

VALUE dial

PLAY/PAUSE button

REC-PAUSE

REC button

REC STANDBY

, and the

REC button

will blink red.

REC button

). The

REC button

lights red during recording.

will put the R-1 in recording-standby mode.

, and the

REC button

). During recording, the

REC button

once again

will blink red.

once again (or

will light red.

Use this dial to select songs, to specify effect types and values, and to select setup mode items.

EXIT button

Use this button to return to the previous item in Effect Edit or Setup mode. In Setup mode, your value changes will be cancelled if you press the pressing the

ENTER button

EXIT button

before

Use this button to select an item or finalize a change in Effect Edit or Setup mode.

15 16

Mic input jack

Accepts connection of a microphone.

If a cable is plugged into the line input jack, audio will not be input through the mic input jack.

The R-1’s controls and connectors

Set the

mic type select switch

to the appropriate position depending on whether the connected microphone is a dynamic microphone or a plugin-powered miniature condenser microphone. Stereo microphones are supported; use a stereo mini-type cable to make connections. If you use a monaural microphone, set the Setup mode

MONO

. For details on this setting, refer to

Line input jack

“System settings (Setup mode)”

“10 Input Select”

setting to

If you want to input an audio signal from an audio device or electronic musical instrument into the R-1, use a stereo mini-plug cable to connect it to this jack.

Mic type select switch

Set this switch to the appropriate position according to the type of microphone you’ve connected to the

DYN

CND

Input volume

mic input jack

Use this setting if you’ve connected a dynamic microphone. Use this setting if you’ve connected a miniature condenser microphone that re-

quires a power supply. You must use a “plug-in powered” microphone. This jack supplies a voltage of 2 V. * If this switch is set to CND, do not connect any microphone or device other than a “plug-in powered” microphone. Any other type of microphone or device may be damaged.

This adjusts the input volume of the sound from the built-in mics ,

, or

line input jack

Use the procedure described in

“Adjusting the input level”

mic input jack

(p. 30) to adjust this while

watching the input level.

USB connector

You can use the included USB cable to connect this connector to your computer. If the R-1 is connected to your computer, the song files you record can be transferred or copied to your computer. You can also transfer or copy MP3 or WAV files from your computer to the R-1 so that these files can be played on the R-1. This connector supports USB 2.0 (hi-speed USB), allowing files to be transferred rapidly. If you want to connect the R-1 to your computer, please refer to

to your computer”

(p. 44).

“Connecting the R-1

When your computer has correctly recognized the R-1, the R-1’s display will indicate

Connected via USB

EnglishDeutschFrançaisItalianoEspañol

(p. 54).

While the R-1 is connected to a computer, all functionality of the R-1 (other than its power switch) is disabled; operating the buttons or switches will not do anything.

The R-1’s controls and connectors

fig.panel-3

Power switch

24 25 2623

This turns the power on/off. Do not turn off the power during playback or recording. You must make sure that playback or recording is stopped before you turn off the power.

• If you accidentally turn off the power during recording, the data being recorded will not be saved to the CompactFlash card.

• The CompactFlash card may be damaged if you turn off the R-1’s power while data is being read or written, such as during playback or recording.

• If you turn off the R-1’s power while the “Now working...” indication is shown during effect editing or while saving a setting you’ve changed, the R-1 will become unstable, and may become unable to start up. Be very careful to never turn off the power when the unit is in such states.

AC adaptor jack

Connect the included AC adaptor to this jack.

HOLD switch

If you set the

HOLD switch

to the ON position, button presses on the R-1 will be disabled; this is a convenient way to prevent the R-1 from being operated accidentally. However, even when the

volume

Output volume

power switch

This adjusts the volume that is sent from the

output jack

Headphone/line output/digital output jack

. However, the volume of the digital output is not adjustable.

HOLD switch

, and

is ON, the

output volume

mic type select switch

will still be operable.

headphone/line output/digital

This jack outputs audio from the R-1 to headphones or external speakers. If you want to output a digital signal, use a round optical mini-type digital cable.

Eject button

Press this to eject the CompactFlash card inserted in the

Memory card slot

memory card slot

Insert a CompactFlash card into this slot. CompactFlash is the only type of memory card that the R-1 can use. It can use CompactFlash cards up to 2 GB in size.

input

The R-1’s controls and connectors

fig.panel-4

Battery compartment

If you want to operate the R-1 on batteries, install the batteries here. If you are operating the R-1 with its AC adaptor, you don’t need to install batteries. You must switch off the R-1’s power before changing from AC adaptor operation to battery operation, or from battery operation to AC adaptor operation. Please read the R-1.

Memory card slot cover

This cover prevents the CompactFlash card from being removed accidentally. When you open the cover, you will see the

“Installing the batteries and turning on the power”

memory card slot

and

(p. 20) before you use

eject button

EnglishDeutschFrançaisItalianoEspañol

Getting ready to use the R-1

Basic connections

* Before making connections with other equipment, you must minimize the volume and turn

off the power of all of your equipment in order to prevent malfunction and/or speaker damage.

* If you use a cable with a built-in resistor, the volume of the device connected to the line input

jack (LINE IN) may be too low. If so, you should use a connection cable that does not contain a resistor.

fig.basic_50

MD player or similar for recording

Headphones

DIGITAL IN

Stereo mic

LINE OUT

CD/MD player for playback

MIC

LINE IN

USB

PHONES

(OPTICAL)

AC adaptor

DC IN

USB

Computer

The R-1 does not have built-in speakers. In order to hear the playback, you will need to provide headphones or speakers. You can use the R-1’s headphone jack as a digital output (optical out) for connection to a digital device, or as a line output for connection to an analog device. Use the appropriate cable for your device. For details, refer to

(digital devices)”

“Connecting headphones”

(p. 23), or

“Connecting analog speakers (analog devices)”

(p. 22),

“Connecting digital speakers

* Howling could be produced depending on the location of microphones relative to speakers.

This can be remedied by:

1. Changing the orientation of the microphone(s).

2. Relocating microphone(s) at a greater distance from speakers.

3. Lowering volume levels.

(p. 24).

Getting ready to use the R-1

Connecting the AC adaptor and turning on the power

941

* Once the connections have been completed (p. 18), turn on power to your various devices in

the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

942

* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power

up is required before the unit will operate normally.

* If batteries are installed and the AC adaptor is also connected, the power will be supplied

from the AC adaptor.

Turn off the R-1’s

fig.off

OFF

Connect the DC plug of the AC adaptor to the DC IN jack on the rear panel of the R-1.

* Use only the AC adaptor supplied with the R-1.

Plug the AC adaptor into an AC outlet.

Turn on the R-1’s

fig.on-off

power switch

EnglishDeutschFrançaisItalianoEspañol

* If batteries are installed and the AC adaptor is also connected, the power will be supplied

from the AC adaptor.

Getting ready to use the R-1

Installing the batteries and turning on the power

Types of batteries you can use:

• AA alkaline batteries (LR6)

• AA nickel metal hydride batteries (HR15/51)

* The R-1 itself is not able to charge nickel metal hydride batteries; you will need to use a

separate battery charger.

fig.battery

Turn off the R-1’s

Detach the battery compartment cover located on the bottom panel of the R-1.

Insert two AA batteries into the battery compartment, making sure to observe the correct polarity (+ and indications).

Close the battery compartment cover.

fig.on-2

Turn on the R-1’s

power switch

Note when using the R-1 on batteries

• We recommend using alkaline batteries which have a longer life.

• Don’t mix new batteries with used batteries or batteries of different types.

• If you won’t be using the R-1 for an extended period of time, you should remove

the batteries to prevent them from leaking and damaging the unit.

• If the R-1 is running on batteries, the display may turn off (the Sleep function) or

the LCD backlight may turn off to save power. If you want to change these settings, proceed as described in “System settings (Setup mode)” (p. 54). If you’re using the AC adaptor, these settings are not used.

• When connecting the R-1 to your computer via a USB cable, you must use the AC

adaptor to prevent the batteries from running down while connected.

Getting ready to use the R-1

About the remaining battery capacity

When the batteries run low, a battery icon ( ) is displayed blinking in the upper right of the display. When this message appears, replace the batteries as soon as possible. If you continue using the unit when the batteries have run low, the following screen will appear, and all of the R-1’s functionality will stop.

fig.battery.eps

Turn off the power switch and replace the batteries with fresh ones.

Battery life

(When using alkaline batteries, MP3 192 kbps, and a 256 MB CompactFlash card)

Continuous playback Continuous recording

* The battery life indicated above is approximate. Battery life will vary depending on the

environment in which you are using the R-1 and your method of use.

* The battery life will be shorter if you allow display backlighting to remain on or if you use

numerous effects.

approximately 5.5 hours approximately 2 hours

EnglishDeutschFrançaisItalianoEspañol

Getting ready to use the R-1

Connecting headphones

Here’s how to connect headphones.

fig.phones

Headphone jack

Headphones

Turn off the power of the R-1.

Turn the

Connect your headphones to the

output volume

Output volume

all the way toward the left to minimize the volume.

headphone jack

Now you can use the R-1 to record or play back as described in

methods”

Even if the song (file) was recorded at an appropriate recording level, you may hear distortion or crackling during loud passages of the song if the output volume is too high.

(p. 29) or

“Playback methods”

(p. 38).

“Basic recording

Getting ready to use the R-1

Connecting digital speakers (digital devices)

Here’s how to connect amplified speakers that have digital input jacks.

fig.speaker

Digital output jack

Optical cable

Rectangular optical plug

Amplified speakers

Turn off the power of the R-1.

Set the volume of the speakers to the minimum setting.

* If you’re using a digital connection, the R-1’s

volume.

* The digital output has a sampling frequency of 44.1 kHz.

Connect the Use a cable with a round optical mini-plug to connect to the R-1’s digital output

jack. Cables are not included; you will need to provide them separately.

digital output jack

Round optical mini-plug

DIGITAL IN (OPTICAL)

output volume

to your digital-compatible amplified speakers.

control will not affect the

EnglishDeutschFrançaisItalianoEspañol

Now you can use the R-1 to record or play back as described in

methods”

(p. 29) or

Gradually raise the speaker volume to an appropriate listening level. If you’re using a digital connection, the R-1’s

the volume.

“Playback methods”

(p. 38).

output volume

“Basic recording

control will not affect

Getting ready to use the R-1

Connecting analog speakers (analog devices)

fig.analog

Output volume

Line output jack

Audio cable

Amplified speakers

Turn off the power of the R-1.

Turn the output volume all the way toward the left to minimize the volume.

Connect the R-1’s You will need an audio cable for connection to the R-1's line output jack.

Cables are not included; you will need to provide them separately.

Now you can use the R-1 for recording or playback as described in

methods”

(p. 29) or

line output jack

“Playback methods”

LINE IN

to your amplified speakers.

“Basic recording

(p. 38).

Gradually turn the You can also adjust the volume of your speakers.

output volume

toward the right to increase the volume.

Getting ready to use the R-1

Memory card handling

The R-1 uses CompactFlash memory cards.

Types of CompactFlash that you can use

• You can use CompactFlash cards up to 2 GB (gigabytes) in capacity.

• Depending on the manufacturer or model, some CompactFlash cards may not be

capable of successful recording or playback on the R-1.

• Micro Drives cannot be used. If you inadvertently use a Micro Drive, we can take

no responsibility for any damage or malfunctions that may occur to the Micro Drive or to the R-1.

930

* Never insert or remove a CompactFlash card while this unit’s power is on. Doing so may

corrupt the unit’s data or the data on the CompactFlash card.

931

* Carefully insert the CompactFlash card all the way in-until it is firmly in place.

Recordable times on a CompactFlash card

The following table shows the approximate lengths of time you can record using CompactFlash cards.

EnglishDeutschFrançaisItalianoEspañol

Recordable times (approximate)

CompactFlash size

File type 64 MB 256 MB 512 MB 2 GB

130

5 26 32 43 52 65 86

15 31 125

23 47 188 102 208 831 128 260 1,039 170 346 1,386 205 416 1,663 256 520 2,079 341 693 2,772 512 1,040 4,158

WAV, 24 bit/44.1 kHz WAV, 16 bit/44.1 kHz MP3, 16 bit/320 kbps MP3, 16 bit/256 kbps MP3, 16 bit/192 kbps MP3, 16 bit/160 kbps MP3, 16 bit/128 kbps MP3, 16 bit/ 96 kbps MP3, 16 bit/ 64 kbps

Units: minutes

* The recording times listed above are approximate. The actual length of time you are able to

record may be slightly different than shown here, so please allow some leeway in your

recording plans. * Use the R-1 itself to format the CompactFlash card. * Use the included AC adaptor when recording continuously for an extended time. * If there are multiple files, the total time that can actually be recorded will be less than the

time shown above.

Getting ready to use the R-1

Inserting and removing a card

fig.CFslot

Inserting

Turn off the power of the R-1.

Open the

and insert the CompactFlash card with

its back side facing upward.

Push the CompactFlash card all the way

into the slot.

Close the

Removing

fig.CFslot2

Turn off the power of the R-1.

Open the

Push the

CompactFlash card.

memory card slot cover

eject button

and remove the

Push the eject button

With the back of the CompactFlash card facing upward, push it all the way into the slot

Getting ready to use the R-1

Formatting a CompactFlash card

You must format a CompactFlash card before you can use it with the R-1. You must use the R-1 itself to format the CompactFlash card. Follow the procedure explained on page 60 of “System settings (Setup mode).” CompactFlash cards formatted by a device other than the R-1 may not work correctly with the R-1.

Turn off the power of the R-1.

Insert the CompactFlash card into the R-1’s

fig.startup.epsfig.no-song.eps

Turn on the power of the R-1.

If the CompactFlash card contains

no songs (files) that the R-1 is able

to play, the display will indicate No

Song. If the card contains songs

(files), the play mode screen will

appear.

Press the

* If you decide to cancel the procedure,

press the

return to the previous screen.

fig.format-disp.eps

Turn the

Format Card

Press the

fig.format.eps

When the display shown here

appears, press the

MENU button

EXIT button

VALUE dial

ENTER button

. You will

to select

memory card slot

EnglishDeutschFrançaisItalianoEspañol

fig.sure.eps

The screen will ask you to confirm

that you really want to format the

card. To format the card, press the

ENTER button

* If you decide not to format the card, press the

Never remove the CompactFlash card while formatting is in progress. Doing so may damage the CompactFlash card.

fig.complete.eps

Formatting is completed when the

display indicates

Press the

You will return to the main screen (play mode).

Completed!

MENU button

EXIT button

. You will return to step 5.

Getting ready to use the R-1

Types of files that the R-1 can handle

The R-1 can handle the following types of files. Choose the type of file that is appropriate for your needs, depending on whether audio quality or recording time is more important for your situation.

Bit rate (kbps)

8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256, 320, VBR

64, 96, 128, 160, 192, 256, 320

bit depth (bits)

8, 16, 24

16, 24

MP3

WAV

Playback

Recording

Playback

Recording

Sampling frequency (kHz)

8, 11.025, 16, 22.050, 24, 32, 44.1, 48 * All converted to 44.1 kHz for playback

44.1

Sampling frequency (kHz)

8, 11.025, 16, 22.050, 24, 32, 44.1, 48 * All converted to 44.1 kHz for playback

44.1

* Recording is always in stereo.

WAV files are not compressed; they capture all of the information in the recorded sound. This means that they will have better audio quality than MP3 files. However, WAV files are also much larger than MP3 files.

What is Bit Rate?

Bit Rate indicates the speed at which data is transferred. This is given in units of “bps” (bits per second). Higher bit rates will deliver better audio quality. A higher bit rate conveys more information, meaning that the sound will be represented more accurately; but this also means that the file size will increase. With a lower bit rate, the audio quality will be lower but the file size will also be smaller.

What is VBR?

VBR stands for Variable Bit Rate. This means that the bit rate is varied according to the type of sound at each moment in the recording. A higher bit rate is used when there is a larger amount of sonic information to be captured, and a lower bit rate is used when there is a lesser amount.

Basic recording methods

The following table shows the approximate lengths of time you can record using CompactFlash cards.

Recordable times on a CompactFlash card

Recordable times (approximate)

CompactFlash size File type 64 MB 256 MB 512 MB 2 GB WAV, 24 bit/44.1 kHz WAV, 16 bit/44.1 kHz MP3, 16 bit/320 kbps MP3, 16 bit/256 kbps MP3, 16 bit/192 kbps MP3, 16 bit/160 kbps MP3, 16 bit/128 kbps MP3, 16 bit/ 96 kbps MP3, 16 bit/ 64 kbps

* The recording times listed above are approximate. The actual length of time you are able to record

may be slightly different than shown here, so please allow some leeway in your recording plans. * Use the R-1 itself to format the CompactFlash card. * Use the included AC adaptor when recording continuously for an extended time. * If there are multiple files, the total time that can actually be recorded will be less than the time

shown above.

5 26 32 43 52 65 86

130

Recording with the internal microphone

fig.mic-LR.eps

The R-1’s internal microphone is stereo. Audio entering the microphone at the right side of the R-1 is recorded on the right (R) channel, while the audio picked up by the left microphone is recorded on the left (L) channel.

If you want to use the internal microphone, don’t connect anything to the mic input jack or line input jack. If a microphone or cable is connected to the mic input jack or line input jack, these inputs will take priority, and the internal microphone will not be used.

Make sure that the R-1’s power is turned off. Also set the minimum position.

If you want to hear (monitor) the sound while recording from the internal microphone, connect a set of headphones to the phones jack and use them for monitoring. If you connect external speakers and attempt to use them for monitoring, acoustic feedback will occur, so don’t attempt to monitor through speakers.

Units: minutes

15 31 125

23 47 188 102 208 831 128 260 1,039 170 346 1,386 205 416 1,663 256 520 2,079 341 693 2,772 512 1,040 4,158

input volume

L R

to the

EnglishDeutschFrançaisItalianoEspañol

Basic recording methods

Turn on the R-1’s power as described in

turning on the power”

Refer to

“Types of files that the R-1 can handle”

file that you want to record. To make your selection or to check the current selection, use Setup mode

Adjust the input level as follows.

Adjusting the input level

fig.rec-1.eps

1. Press the REC button.

The R-1 enters recordingstandby mode. The display indicates the remaining amount of time that the R-1 can record for the type of file (recording quality) you’ve selected.

fig.rec-2.eps

2. Press the DISPLAY button.

3. Play (or perform) the sounds

that you actually intend to record, and position the R-1’s internal microphone where it can pick up the sound.

* If you want to apply an effect to the sound while you record it, adjust the input level while

the effect is turned on (i.e., applied).

fig.rec-3.eps

4. While the sound plays,

gradually increase the input volume.

Adjust the level so that the ■ input level indicators shown in the display do not reach the righmost ■. If the recording level is too low, you won’t be able to record very soft sounds. If the recording level is too high, loud sounds will be distorted, causing crackles in the recorded sound.

* If the material you are recording occasionally contains sudden loud sounds, such as the

attack of a drum in a band performance or sudden laughter during a quiet conversation, we recommend that you use the Limiter (06 Limiter, p. 54). When doing so, adjust the input level appropriately for the principal type of sound you are recording—not for the sudden loud sounds that sometimes occur. If you want to use the limiter, you should first finish adjusting the input level, then press the STOP button to temporarily exit recordingstandby mode, and then turn the limiter on.

(p. 19).

07 Record Mode

“Connecting the AC adaptor and

(p. 28), and specify the type of

(p. 54).

Remaining recording time

* The song name shown in Record Standby mode is the name of the file that will be newly

created when recording is finished.

* The file name is created automatically, using this format:

will be the number that follows the highest-numbered file existing on the CompactFlash card.

R1_0001.MP3

. The

0001

portion
