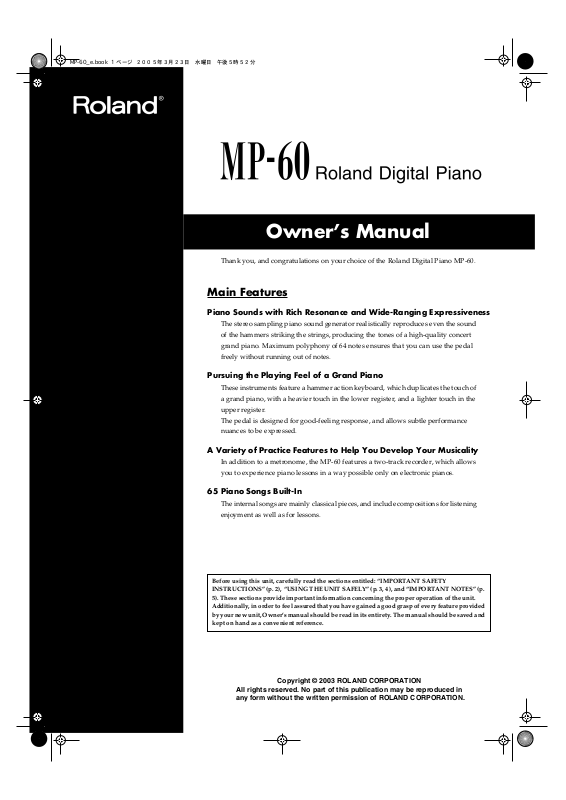

Owner’s Manual

Thank you, and congratulations on your choice of the Roland Digital Piano MP-60.

Main Features

Piano Sounds with Rich Resonance and Wide-Ranging Expressiveness

The stereo sampling piano sound generator realistically reproduces even the sound of the hammers striking the strings, producing the tones of a high-quality concert grand piano. Maximum polyphony of 64 notes ensures that you can use the pedal freely without running out of notes.

Pursuing the Playing Feel of a Grand Piano

These instruments feature a hammer action keyboard, which duplicates the touch of a grand piano, with a heavier touch in the lower register, and a lighter touch in the upper register. The pedal is designed for good-feeling response, and allows subtle performance nuances to be expressed.

A Variety of Practice Features to Help You Develop Your Musicality

In addition to a metronome, the MP-60 features a two-track recorder, which allows you to experience piano lessons in a way possible only on electronic pianos.

65 Piano Songs Built-In

The internal songs are mainly classical pieces, and include compositions for listening enjoyment as well as for lessons.

Before using this unit, carefully read the sections entitled: “IMPORTANT SAFETY INSTRUCTIONS” (p. 2), “USING THE UNIT SAFELY” (p. 3, 4), and “IMPORTANT NOTES” (p.

5). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

any form without the written permission of ROLAND CORPORATION.

Page 2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING - When using electric products, basic precautions should always be followed, including the following:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: BROWN:

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

NEUTRAL LIVE

For the U.K.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Page 3

USING THE UNIT SAFELY

Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.

Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.

* Material damage refers to damage or

other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

001

• Before using this unit, make sure to read the instructions below, and the Owner’s Manual.

..........................................................................................................

002a

• Do not open or perform any internal modifications on the unit.

..........................................................................................................

003

• Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

..........................................................................................................

004

• Never use or store the unit in places that are:

• Subject to temperature extremes (e.g., direct

sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are

• Damp (e.g., baths, washrooms, on wet floors);

or are

• Humid; or are

• Exposed to rain; or are

• Dusty; or are

• Subject to high levels of vibration.

..........................................................................................................

007

• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

..........................................................................................................

008a

• The unit should be connected to a power supply only of the type described in the operating instructions, or as marked on the bottom of unit.

..........................................................................................................

008e

• Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.

..........................................................................................................

The symbol alerts the user to important instructions or warnings.The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.

The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.

009

• Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

..........................................................................................................

010

• This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

..........................................................................................................

011

• Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

..........................................................................................................

012a:

• Immediately turn the power off, remove the power cord from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page when:

• The power-supply cord, or the plug has been

damaged; or

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been

spilled onto the unit; or

• The unit has been exposed to rain (or otherwise

has become wet); or

• The unit does not appear to operate normally or

exhibits a marked change in performance.

..........................................................................................................

Page 4

013

• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

..........................................................................................................

014

• Protect the unit from strong impact.

(Do not drop it!)

..........................................................................................................

015

• Do not force the unit’s power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord’s outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

..........................................................................................................

016

• Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

..........................................................................................................

026

• Do not put anything that contains water (e.g., flower vases) on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

..........................................................................................................

101a

• The unit should be located so that its location or position does not interfere with its proper ventilation.

..........................................................................................................

102b

• Always grasp only the plug on the power-supply cord when plugging into, or unplugging from, an outlet or this unit.

..........................................................................................................

103a:

• At regular intervals, you should unplug the power plug and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

..........................................................................................................

104

• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

..........................................................................................................

106

• Never climb on top of, nor place heavy objects on the unit.

107b

• Never handle the power cord or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

..........................................................................................................

108d: Selection

• If you need to move the instrument, take note of the precautions listed below. At least two persons are required to safely lift and move the unit. It should be handled carefully, all the while keeping it level. Make sure to have a firm grip, to protect yourself from injury and the instrument from damage.

• Check to make sure the screws securing the unit

to the stand have not become loose. Fasten them again securely whenever you notice any loosening.

• Disconnect the power cord.

• Disconnect all cords coming from external

devices.

• Close the lid.

• Remove the music stand.

..........................................................................................................

109a

• Before cleaning the unit, turn off the power and unplug the power cord from the outlet (p. 8).

..........................................................................................................

110a

• Whenever you suspect the possibility of lightning in your area, pull the plug on the power cord out of the outlet.

..........................................................................................................

116

• Be careful when opening/closing the lid so you do not get your fingers pinched (p. 8). Adult supervision is recommended whenever small children use the unit.

..........................................................................................................

118

• Should you remove screws, make sure to put them in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

..........................................................................................................

Page 5

IMPORTANT NOTES

291b

In addition to the items listed under “IMPORTANT SAFETY INSTRUCTIONS” and “USING THE UNIT SAFELY” on pages 3 and 4, please read and observe the following:

Power Supply

301

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.

307

• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/ or damage to speakers or other devices.

308

• Although the LCD and LEDs are switched off when the POWER switch is switched off, this does not mean that the unit has been completely disconnected from the source of power. If you need to turn off the power completely, first turn off the POWER switch, then unplug the power cord from the power outlet. For this reason, the outlet into which you choose to connect the power cord's plug should be one that is within easy reach and readily accessible.

Placement

351

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.

352a

• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.

352b

• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.

354b

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Also, do not allow lighting devices that normally are used while their light source is very close to the unit (such as a piano light), or powerful spotlights to shine upon the same area of the unit for extended periods of time. Excessive heat can deform or discolor the unit.

355b

• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.

356

• Do not allow rubber, vinyl, or similar materials to remain on the unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.

358

• Do not allow objects to remain on top of the keyboard. This can be the cause of malfunction, such as keys ceasing to produce sound.

359

• Do not paste stickers, decals, or the like to this instrument. Peeling such matter off the instrument may damage the exterior finish.

• The pedals of this unit are made of brass. Brass eventually darkens as the result of the natural oxidization process. If the brass becomes tarnished, polish it using commercially available metal polisher.

Maintenance

401b

• To clean the unit, use a dry, soft cloth; or one that is slightly dampened. Try to wipe the entire surface using an equal amount of strength, moving the cloth along with the grain of the wood. Rubbing too hard in the same area can damage the finish.

402

• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

552

• Unfortunately, it may be impossible to restore the contents of data that was stored in the unit’s memory once it has been lost. Roland Corporation assumes no liability concerning such loss of data.

553

• Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

556

• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable’s internal elements.

557

• A small amount of heat will radiate from the unit during normal operation.

558a

• To avoid disturbing your neighbors, try to keep the unit’s volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).

559b

• When you need to transport the unit, pack it in shockabsorbent material. Transporting the unit without doing so can cause it to become scratched or damaged, and could lead to malfunction.

562

• Use a cable from Roland to make the connection. If using some other make of connection cable, please note the following precautions.

• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

• Before opening or closing the keyboard lid, always make sure that no pets or other small animals are located on top of the instrument (in particular, they should be kept away from the keyboard and its lid). Otherwise, due to the structural design of this instrument, small pets or other animals could end up getting trapped inside it. If such a situation is encountered, you must immediately switch off the power and disconnect the power cord from the outlet. You should then consult with the retailer from whom the instrument was purchased, or contact the nearest Roland Service Center.

Page 6

USING THE UNIT SAFELY .............................................................3

IMPORTANT NOTES .......................................................................5

Panel Descriptions....................................................7

Front Panel ..........................................................................................7

Rear Panel............................................................................................7

Before You Start Playing ..........................................8

Connect the Pedal Cable ...................................................................8

Connect the Power Cord...................................................................8

Setting Up the Music Stand ..............................................................8

Opening/Closing the Lid .................................................................8

Connecting Headphones...................................................................8

Turning the Power On and Off........................................................9

Adjusting the Sound’s Volume and Brilliance...............................9

About the Pedals ................................................................................9

Chapter 1.

Enjoying the Internal Songs...................................10

Listening to Internal Songs.............................................................10

Playing Back All Songs Continuously (All Song Play)........10

Selecting a Song and Playing It...............................................10

Chapter 2.

Performance ............................................................11

Performing with a Variety of Sounds ...........................................11

Playing Two Tones Together (Dual Play).....................................12

Adjusting the Volume Balance in Dual Play

(Dual Balance)............................................................................12

Playing Different Tones with the Left and Right Hands

(Split Play).........................................................................................13

Changing the Keyboard’s Split Point.....................................14

Using Metronome ............................................................................14

Sounding the Metronome........................................................14

Changing the Metronome Volume.........................................15

Changing the Metronome Sound ...........................................16

Applying Effects to the Sound .......................................................16

Adding Reverberation to the Sound (Reverb)......................16

Changing the Amount of Effect Applied ..............................16

Transposing the Key of the Keyboard (Transpose).....................17

Adjusting the Keyboard Touch (Key Touch)...............................18

Chapter 3.

Playing Along with the Internal Songs..................19

Changing the Tempo .......................................................................19

Adding a Count-in to Match the Timing (Count-In) ...........19

Playing Each Hand Separately.......................................................20

Chapter 4.

Recording Your Performance ............................... 21

Notes Regarding Recording ....................................................21

Recording a New Song....................................................................22

Recording Along with a Song ........................................................23

Selecting and Recording the Track for Each Hand

Separately..........................................................................................24

Erasing Recorded Performances....................................................25

Erasing a Performance from the Specified Track .................25

Erasing a Song ...........................................................................25

Chapter 5.

Changing Various Settings ................................... 26

Changing the Damper Pedal’s Resonance....................................26

Making Detailed Settings (Function).............................................26

Tuning to Other Instruments’ Pitches (Master Tuning)......27

Changing the Temperament....................................................27

Setting the Tuning Curve (Stretch Tuning)...........................28

Applying the Damper Pedal to the Left-hand

Keyboard Area...........................................................................28

Preventing the Settings from Changing During

Performance ......................................................................................28

Disabling Everything Except Piano Play (Panel Lock)........28

Disabling the Buttons When Using a Tone Other Than

Piano (Tone Lock) .....................................................................28

Chapter 6.

Connecting External Devices................................ 29

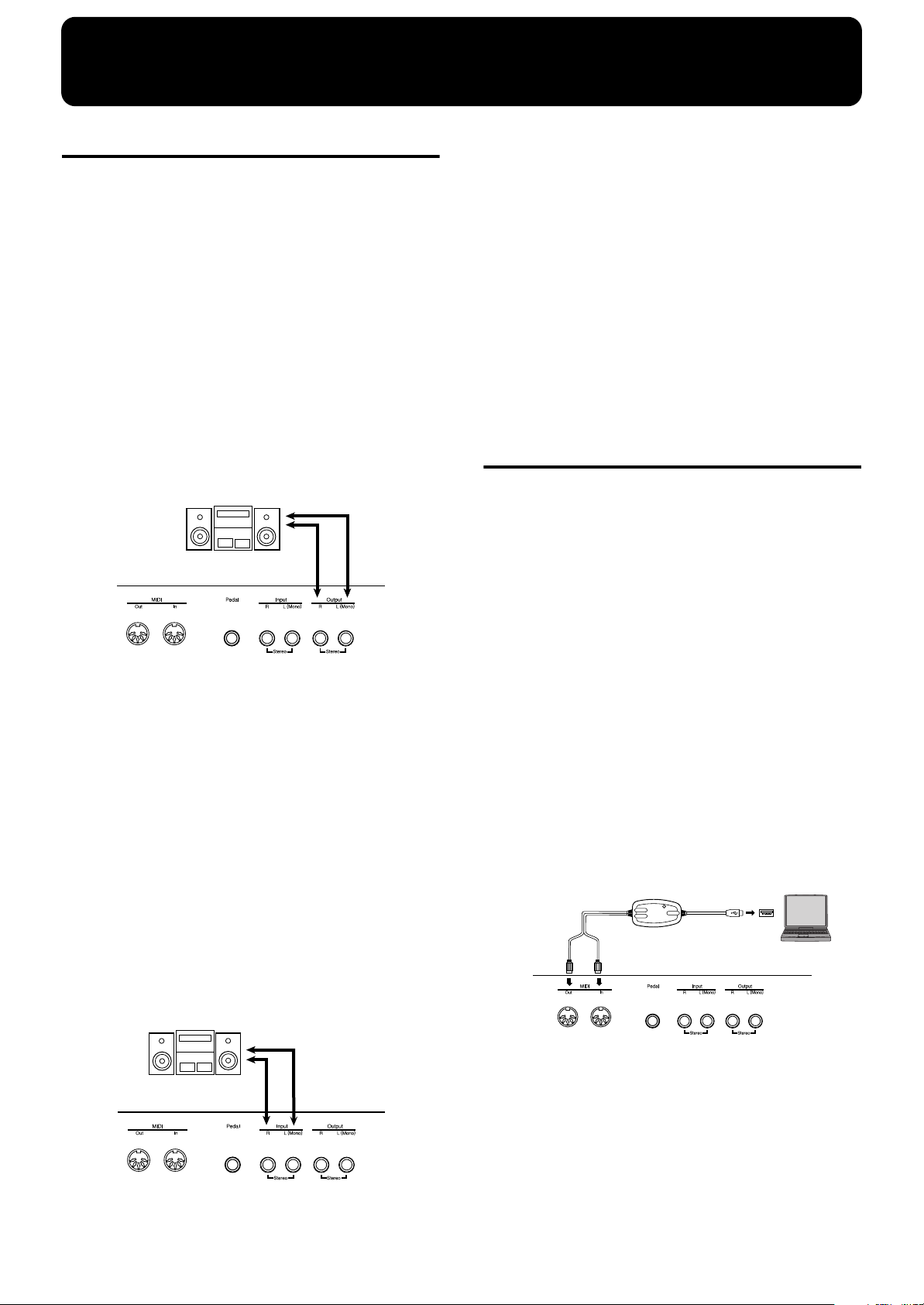

Connecting to Audio Equipment...................................................29

Connecting to a Computer..............................................................29

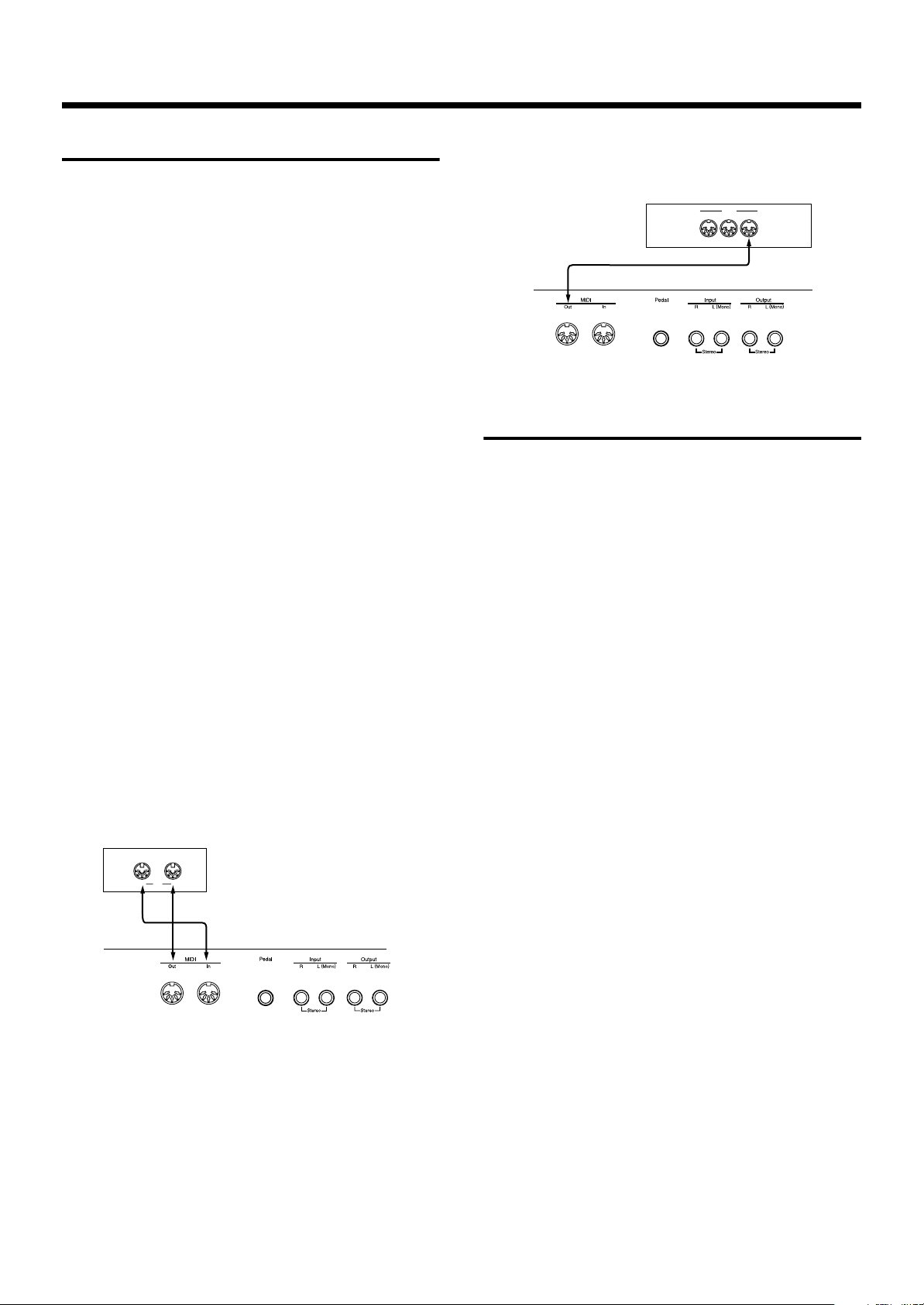

Connecting MIDI Devices...............................................................30

What’s MIDI?.............................................................................30

Making MIDI-related Settings........................................................30

MIDI Send Channel Settings ...................................................31

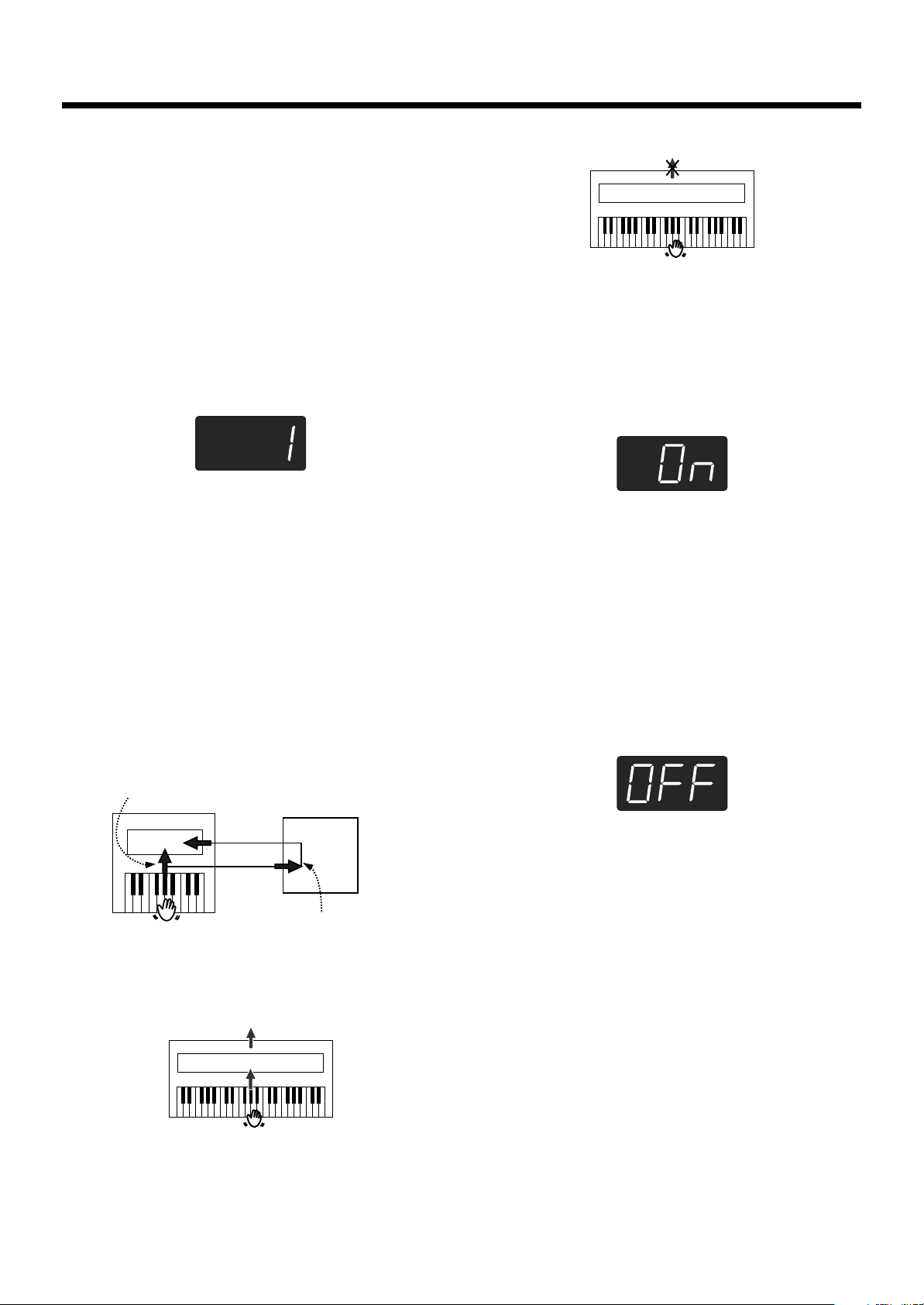

Switching Local Control on and Off.......................................31

Transmitting a Performance You Recorded..........................31

Appendices............................................................. 32

Troubleshooting ...............................................................................32

Error Messages/Other Messages...................................................33

Tone List ............................................................................................34

Internal Song List .............................................................................35

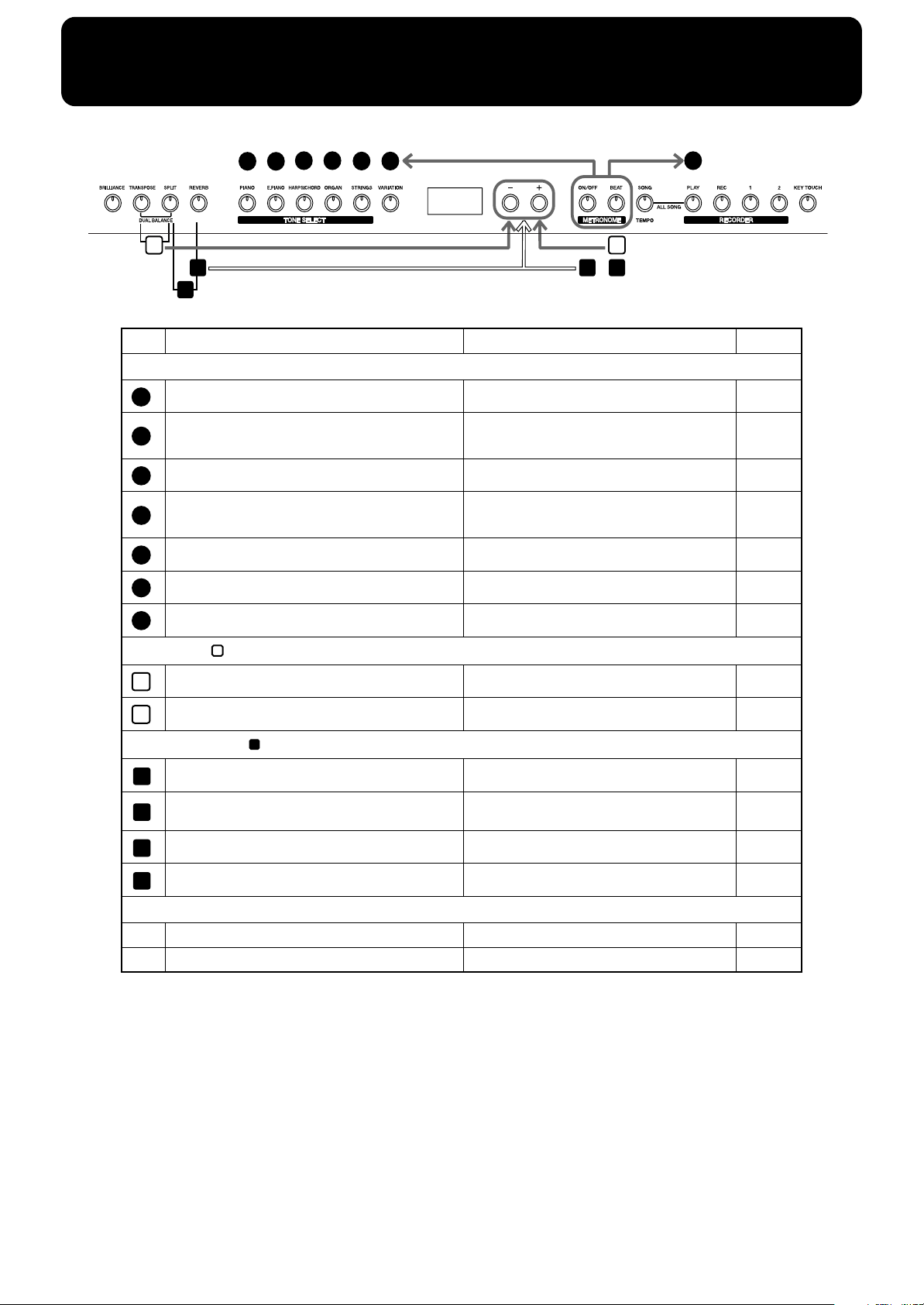

Easy Operation List..........................................................................37

MIDI Implementation Chart...........................................................38

Main Specifications ..........................................................................39

Index........................................................................ 40

MEMO................................................................................................41

Page 7

Panel Descriptions

Front Panel

2 3 4 5 6 7 8 91011 12 13 14 15 16 17

Power

[Power] switch

Turns the power on/off (p. 9).

[VOLUME] knob

Adjusts the overall volume level (p. 9).

[BRILLIANCE] button

Adjusts the tone brightness (p. 9).

[TRANSPOSE] button

Transposes the pitch of the keyboard (p. 17).

[SPLIT] button

Divides the keyboard into right-hand and left-hand areas, allowing you to play a different sound in each area (p. 13).

[REVERB] button

Adds reverberation to the sound (p. 16).

TONE SELECT buttons

They are used to choose the kinds of tones (tone groups) played by the keyboard (p. 11).

Display

Displays information such as the song number, tempo, beat, and parameter settings values.

[+] [-] buttons

Allow you to select the value of various settings. Pressing both the [+] and [-] buttons simultaneously returns the setting of a particular item or function to its original value.

METRONOME

Turns the metronome on/off or makes settings.

[ON/OFF] Button

Turns the metronome on/off (p. 14). By holding down this button and the [BEAT] button, and pressing other specified button, you can make settings for various functions (p. 26–p. 28, p. 30–p. 31).

[BEAT] button

Hold down this button and press the [+] or [-] button to specify the time signature (beat) (p. 15).

[SONG/TEMPO] Button

Used to select from the internal songs (p. 10, p. 19). Each time you press this button, the song number and the tempo will be displayed alternately. While the song number is displayed, the button indicator will light in red. While the tempo is displayed, it will light in green.

RECORDER

Plays back or records a performance.

[PLAY] button

Starts and stops playback of internal songs and recorded performances (p. 10, p. 19). Also starts/stops recording of a performance (p. 22–p. 24).

[REC] button

Puts the MP-60 in recording-standby mode (p. 21–p. 25).

[1] button

Plays back or records a performance separately for each hand. (p. 20, p. 23–p. 25). The left-hand performances of the internal songs are assigned to this button. This button and the following [2] button are collectively referred to as the “track buttons.”

[2] button

Plays back or records a performance separately for each hand (p. 20, p. 23–p. 25). The right-hand performances of the internal songs are assigned to this button.

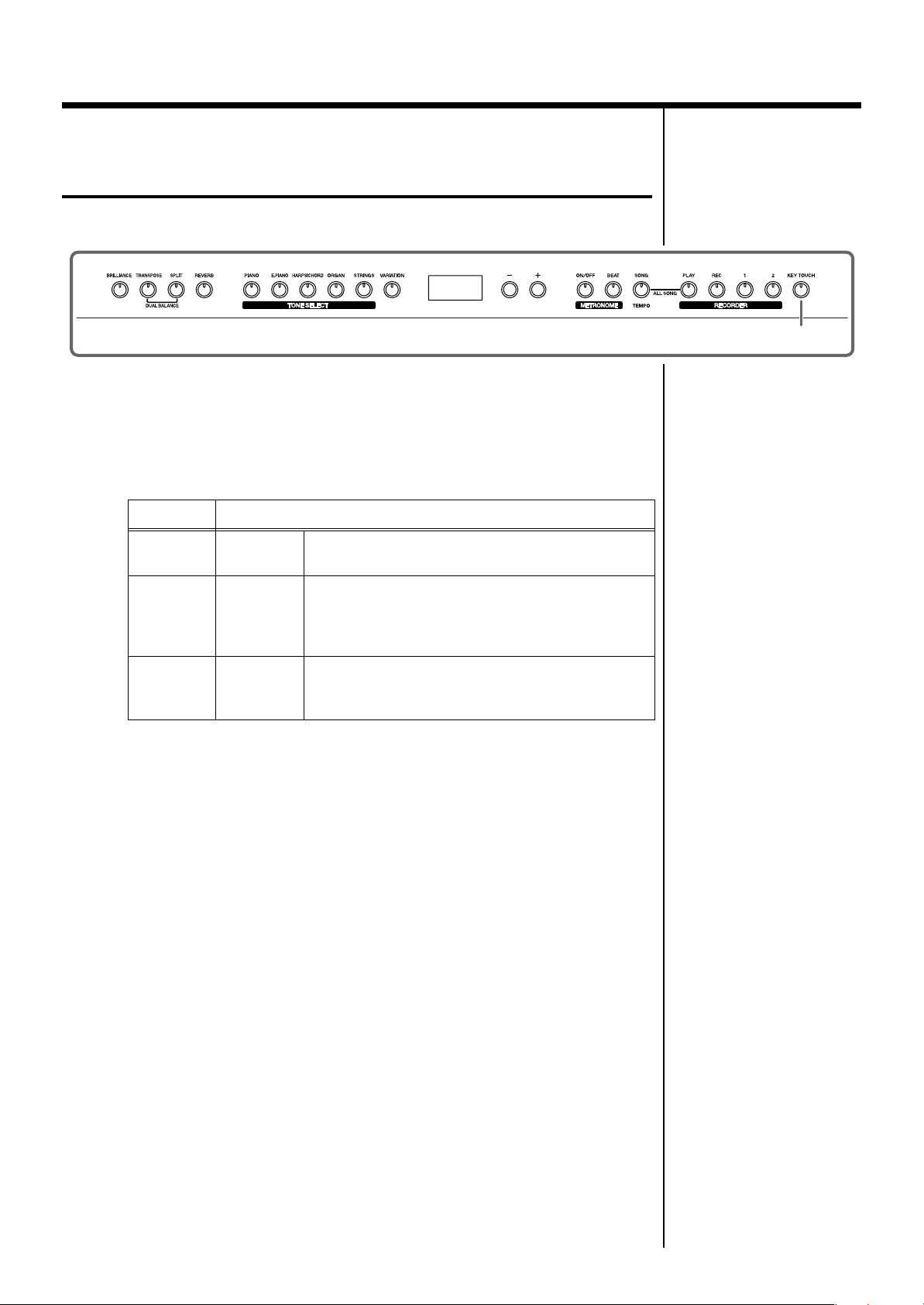

[KEY TOUCH] button

Modifies the playing feel of the keyboard (p. 18).

Rear Panel

1234

MIDI Out/In connectors

Connect to external MIDI devices to exchange performance data (p. 30).

Pedal connector

Connect the pedal cable of the special stand to this connector (p. 8).

Input jacks

These jacks can be connected to another sound generating device or an audio device, so that the sound of that device will be output from the MP-60’s speakers (p. 29).

Output jacks

Allows you to output the piano’s sound to sound reinforcement equipment to obtain a more powerful sound. These can also be connected to a tape recorder or other recording device to record a performance (p. 29).

Page 8

Before You Start Playing

Connect the Pedal Cable

Insert the pedal cable into the Pedal jack on the rear

panel of the MP-60.

fig.00-01

Connect the Power Cord

Insert the included power cord into the AC inlet on the

bottom panel of the MP-60, and then plug it into an

electrical outlet.

NOTE

Be sure to use the supplied power cord.

fig.00-02

Opening/Closing the Lid

To open the lid, use both hands to lift it lightly, and

slide it away from yourself.

To close the lid, pull it gently toward yourself, and

lower it softly after it has been fully extended.

fig.00-05

NOTE

When opening and closing the lid, be careful not to let your fingers get caught. If small children will be using the MP-60, adult supervision should be provided.

NOTE

If you need to move the piano, make sure the lid is closed first to prevent accidents.

Connecting Headphones

The MP-60 has two jacks for plugging in headphones. This allows two people to listen through headphones simultaneously, making it very useful for lessons and when performing piano pieces for four hands. Additionally, this allows you to play without having to worry about bothering others around you, even at night.

Setting Up the Music Stand

Insert the music stand into the two holes as shown in

the following diagram.

fig.00-03

NOTE

Before moving the piano, be sure to remove the music stand to prevent accidents.

Plug the headphones into the Phones jack located at the

bottom left of the piano.

Connecting headphones will automatically mute the sound from the internal speakers. The headphone volume is adjusted by the [VOLUME] knob (p. 9) of the MP-60.

fig.00-04.e

Phones plug x 2

P h o n e

NOTE

Use Stereo headphones.

Some notes on using headphones

• To prevent damage to the cord, handle the headphones only by the headset or the plug.

• Connecting the headphones when the volume of connected equipment is turned up may result in damage to the headphones. Lower the volume on the MP-60 before plugging in the headphones.

• Listening at excessively high volume levels will not only damage the headphones, but may also cause hearing loss. Use the headphones at a moderate volume level.

Page 9

Before You Start Playing

Power Indicator

Power

Turning the Power On and Off

NOTE

Turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

To turn the power on, turn the [VOLUME] knob all the

way down, and then press the [Power] switch.

The power will turn on, and the Power indicator at the left front of the MP-60 will light. After a few seconds, you will be able to play the keyboard to produce sound. Use the [VOLUME] knob to adjust the volume.

NOTE

This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

fig.00-06.e

fig.00-07.e

About the Pedals

The pedals have the following functions, and are used mainly for piano performance.

fig.00-08.e

Soft Pedal

Sostenuto Pedal

Damper pedal (right pedal)

While this pedal is pressed, notes will be sustained even after you take your fingers off the keys.

On an acoustic piano, holding down the damper pedal will allow the remaining strings to resonate in sympathy with the sounds that you played from the keyboard, adding a rich resonance.

The MP-60 simulates this sympathetic resonance.

Damper Pedal

To turn the power off, turn the [VOLUME] knob all the

way to the left, and press the [Power] switch.

The Power indicator at the left front of the MP-60 will go dark, and the power will be turned off.

NOTE

If you need to turn off the power completely, first turn off the POWER switch, then unplug the power cord from the power outlet. Refer to

Power Supply

(p. 5).

Adjusting the Sound’s Volume and Brilliance

Turn the [VOLUME] knob to adjust the overall volume.

Press the [BRILLIANCE] button to adjust the

brightness of the sound.

Select one of the three available settings to obtain the desired brilliance.

[BRILLIANCE]

button’s indicator

Off Red Green

You can change the amount of resonance applied with the damper pedal. Please refer to “Changing the Damper Pedal’s Resonance” (p. 26).

Sostenuto pedal (center pedal)

This pedal sustains only the sounds of the keys that were already played when you pressed the pedal.

Soft pedal (left pedal)

When you hold down this pedal and play the keyboard, the sound will have a softer tone.

About the adjuster

When you move the MP-60 or if you feel that the pedals are unstable, adjust the adjuster located below the pedals as follows.

❍

Rotate the adjuster to lower it so that it is in firm contact with the floor. If there is a gap between the pedals and the floor, the pedals may be damaged. In particular when placing the instrument on carpet, adjust this so that the pedals firmly contact the floor.

fig.00-09.j

Brilliance

Medium Mellow Bright

Adjuster

Page 10

Chapter 1.

When an internal song is played back, the metronome sounds the ordinary metronome sound.

Enjoying the Internal Songs

Listening to Internal Songs

The MP-60 comes with 65 piano songs onboard.

Playing Back All Songs Continuously (All Song Play)

■

The internal songs can be played back consecutively.

fig.panel1-1

Hold down the [SONG/TEMPO] button, and press the [PLAY] button.

The [SONG/TEMPO] button’s indicator will light, the [PLAY] button’s indicator will blink, and the songs will play back successively, starting with the currently selected song. The song number appears in the display. You can press the [+] or [-] button to select the song that you want to play back. When all songs have been played, playback will return to the first song and resume.

Stopping the playback

Press the [PLAY] button.

Playback will stop.

“Chapter 3. Playing Along with the Internal Songs” (p. 19)

“Internal Song List” (p. 35)

When you play back an internal song, the reverb effect will automatically be turned on (the button’s indicator lights).

■

Selecting a Song and Playing It

fig.panel1-2

3, 42 1

Choosing the song to play back

Press the [SONG/TEMPO] button, getting its indicator to light in red.

The song number appears in the display.

fig.disp-USr

Press the [+] or [-] button to select a song.

Holding down the button causes the numbers to change continuously.

Playing back

Press the [PLAY] button.

The button’s indicator will light, and the selected song will play.

bout the display for the

internal songs

USr (user) … The location where you can record your performance. (For details on recording → p. 22) Numbers with a “d.” … internal songs.

Stopping the playback

Press the [PLAY] button.

The button’s indicator goes out, and playback stops. The next time you press the [PLAY] button, the song that was stopped is played from

the beginning.

Page 11

Chapter 2. Performance

When Dual play (p. 12) or Split play (p. 13) is used, only sound number 1 or 2 can be selected. If you use Dual play or Split play with a TONE SELECT button for which tone number 3 is selected, tone number 1 will be selected for that TONE SELECT button.

Performing with a Variety of Sounds

The MP-60 contains 15 different internal tones. The tones are organized into five tone groups, which are assigned to the TONE SELECT buttons.

fig.panel2-1

1 2

Selecting a tone group

Press any TONE SELECT button.

The indicator of the button you pressed will light.

When you play the keyboard, you will hear a sound in the selected tone group.

Selecting variation tones

Press the [VARIATION] button.

Three different tones (numbered 1–3) are assigned to each TONE SELECT button. Use the [VARIATION] button to select among them.

Each time you press the [VARIATION] button, the button’s indicator will change color, and the three sounds will be selected successively.

Tone number

[VARIATION] button’s indicator

Some of the number 3 tones form pairs, which can be layered and sounded together.

The tone you’ve selected is heard when you finger the keyboard.

1 2 3

Off

Red Green

For more details, refer to “Tone List” (p. 34).

Page 12

Chapter 2. Performance

Playing Two Tones Together (Dual Play)

Simultaneously playing two tones when one key is pressed is called “Dual play.”

Simultaneously press the two TONE SELECT buttons that you want to

play together.

The indicator of the button you pressed will light.

When you play the keyboard, the tones of the two TONE SELECT buttons you selected will sound simultaneously.

To cancel Dual play, press any TONE SELECT button.

To change the tone of the right button of the two selected tones

Press the [VARIATION] button.

Dual play now features the tone of the left side’s TONE SELECT button along with the newly selected tone.

To change the tone of the left button of the two selected tones

Cancel the Dual play, and then re-select the tone.

■

Adjusting the Volume Balance in Dual Play (Dual Balance)

You can change the volume balance between the two layered sounds in Dual play.

fig.panel2-2

When Dual play is used, the [VARIATION] button’s indicator will light to indicate the selection of the right button of the two selected tones.

When Dual play is used, only sound number 1 or 2 can be selected. If you use Dual play with a TONE SELECT button for which tone number 3 is selected, tone number 1 will be selected for that TONE SELECT button.

Hold down the [TRANSPOSE] button and press the [SPLIT] button.

The indicators of the buttons you pressed will blink. The current volume balance appears in the display.

Press the [+] or [-] button to change the value.

The volume balance will change. To return to the original volume balance, press the [+] and [-] buttons simultaneously.

fig.disp-dualbal.e

Volume of the left button tone Volume of the right button tone

Press the [TRANSPOSE] or [SPLIT] button, and the button’s indicator will return to the previous state.

When the power is turned on, this will be set to “8-2” (volume of the left button tone

- volume of the right button tone).

Page 13

Playing Different Tones with the Left

When using Dual play, press the [SPLIT] button

The right hand will play the tone of the left button of Dual play, and the left hand will play a suitable match for the right-hand tone.

Chapter 2. Performance

and Right Hands (Split Play)

Dividing the keyboard into right-hand and left-hand areas, then playing different sounds in each is called “Split play.” The boundary key is called the “split point.”

fig.splitpoint.e

Split Point (set to F 3, when the power is turned on.)

C1 D1 E1 F1 G1 A1 B1A0 B0 C2 C3 C4 C5 C8B7

Left-hand Tone Right-hand Tone

fig.panel2-3

Press the [SPLIT] button.

The button’s indicator will light.

…

The split point key is included in the left-hand keyboard area.

When Split play is used, only tone numbers 1 or 2 can be selected. If you use Split play with a TONE SELECT button for which tone numbers 3 is selected, tone number 1 will be selected for that TONE SELECT button.

The keyboard is divided into right-hand and left-hand areas.

The tone you were playing before you pressed the [SPLIT] button will be selected for the right-hand area. A tone that is a suitable match for the right-hand tone will be selected for the left-hand area.

To cancel Split play, press the [SPLIT] button, getting its indicator to go dark.

Changing tone played by the left hand

Press the [VARIATION] button.

Each time you press the [VARIATION] button, the button’s indicator will change color, and the left-hand tone will change.

Some tones assign the tone that had been selected before you pressed the [SPLIT] button to the left hand area of the keyboard.

Changing tone played by the right hand

Press the TONE SELECT button.

The tone of the right-hand area will change. A tone that is a suitable match for the right-hand tone will be selected for the left-hand area.

If you want to change the variation for the right-hand tone, cancel Split play and then re-select the tone.

For information about the tones that can be selected for the left hand section, refer to the “Tone List” (p. 34).

The selected left hand tone is remembered for each TONE SELECT button. When you turn off the power, it will return to the original setting.

In Split play, the damper pedal will be applied only to the right-hand area of the keyboard. If you want the damper pedal to be applied to the left-hand area, refer to “Applying the Damper Pedal to the Left-hand Keyboard Area” (p. 28).

Page 14

Chapter 2. Performance

■

Changing the Keyboard’s Split Point

You can change the location where the keyboard is divided (the split point) within the range of B1 through B6.

While continuing to hold the [SPLIT] button, press the key that you want

The setting is at “F#3” when the piano is powered up.

to specify as the split point.

The key you pressed becomes the split point, and belongs to the left-hand section of the keyboard.

You can also change the setting by pressing the [+] or [-] button while continuing to hold down the [SPLIT] button.

If you hold down the [SPLIT] button and simultaneously press the [+] and [-] buttons, the setting will return to its original value (F#3).

fig.disp-splitpoint

Using Metronome

■

Sounding the Metronome

The MP-60 features a built-in metronome.

While a song plays back, the metronome will sound at the tempo and time signature (Beat) of that song.

fig.panel2-4

The split point key is displayed as follows.

Display

C d_ d E_

Letter

C D D E

name

Display

E F F G

Letter

E F F G

name

Display

A_ A b_ b

Letter

A A B B

name

When you continue holding the [SPLIT] button, the currently specified split point will be displayed.

1, 52, 4 3

Sounding the metronome

Press the [ON/OFF] button.

The metronome will sound.

The button flashes in red and green in time with the beat selected at that time. The indicator lights in red on the downbeats, and in green on weak beats.

Changing the tempo

Press the [+] or [-] button to adjust the tempo.

When the [SONG/TEMPO]

utton’s indicator lights in red,

press the [SONG/TEMPO]

utton getting its indicator to light in green, then adjust the tempo.

Page 15

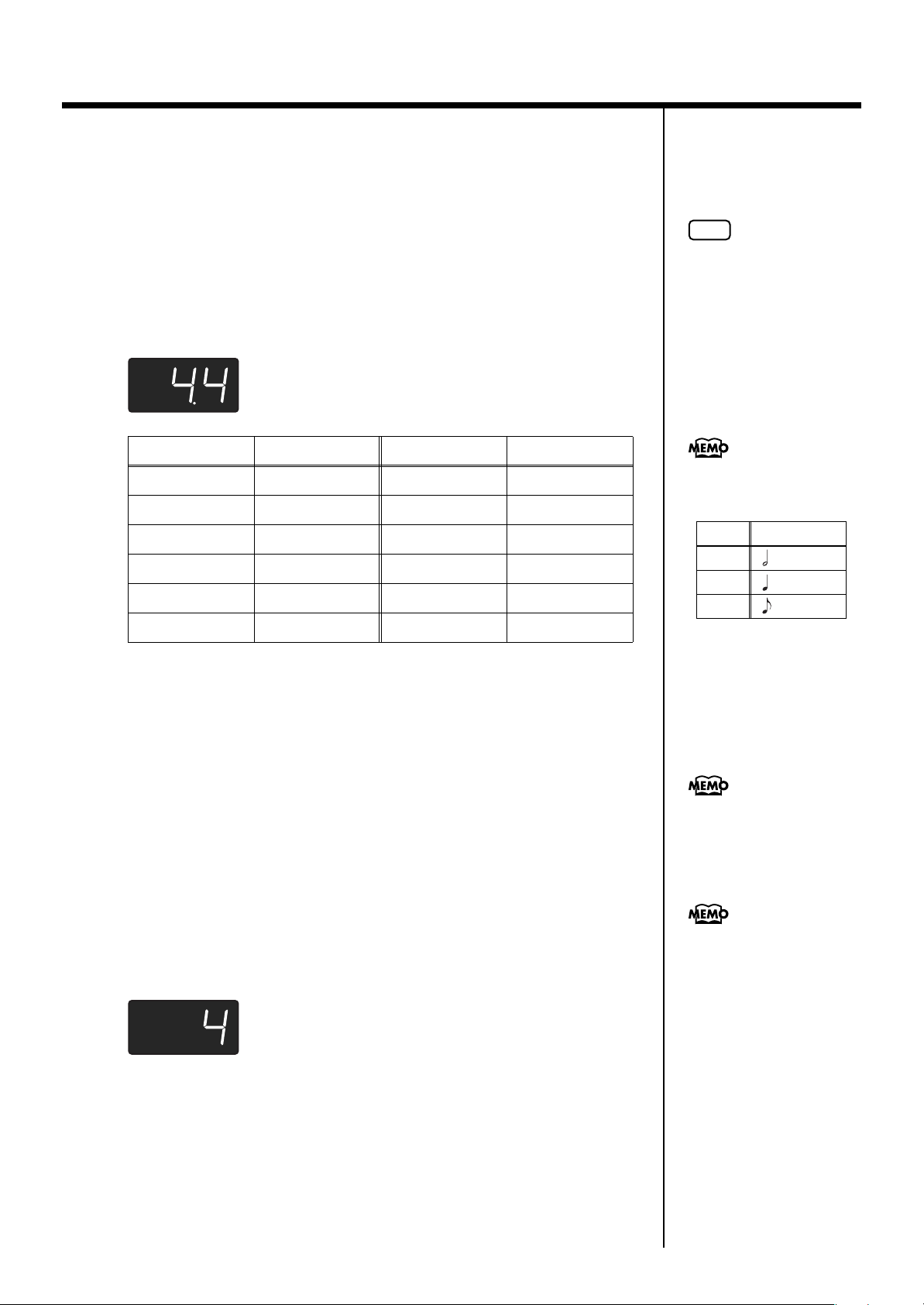

Changing the beat of metronome

Correspondence between beat and tempo display

Press the [BEAT] button.

The currently selected beat will be displayed.

Press the [+] or [-] button.

The beat will change.

If you press the [+] and [-] buttons simultaneously, the beat will go back to what it was before you changed it.

fig.disp-beat

Chapter 2. Performance

NOTE

It is not possible to change the

eat during song playback or recording.

Display

2.2

0.4

2.4

3.4

4.4

5.4

beat Display beat

2/2

Only weak beats

2/4

3/4

4/4

5/4

6.4

7.4

3.8

6.8

9.8

12.8

Stopping the metronome

Once again press the [ON/OFF] button, getting its indicator to go dark.

The metronome will stop.

■

Changing the Metronome Volume

The volume of the metronome can be adjusted, with eight volume levels available.

Hold down the [ON/OFF] button and press the [+] or [-] button.

The metronome will sound, and the currently specified volume will be displayed.

6/4

7/4

3/8

6/8

9/8

12/8

Beat Tempo Value

2/2 =10–125

x/4 =20–250

x /8 =40–500

This is set to “4” when the instrument is turned on.

Continue to hold down the [ON/OFF] button, and press the [+] or [-]

button once again.

The metronome volume will change.

fig.disp-metrovol

When you hold down the [ON/OFF] button, the currently specified metronome volume will be displayed.

Page 16

Chapter 2. Performance

■

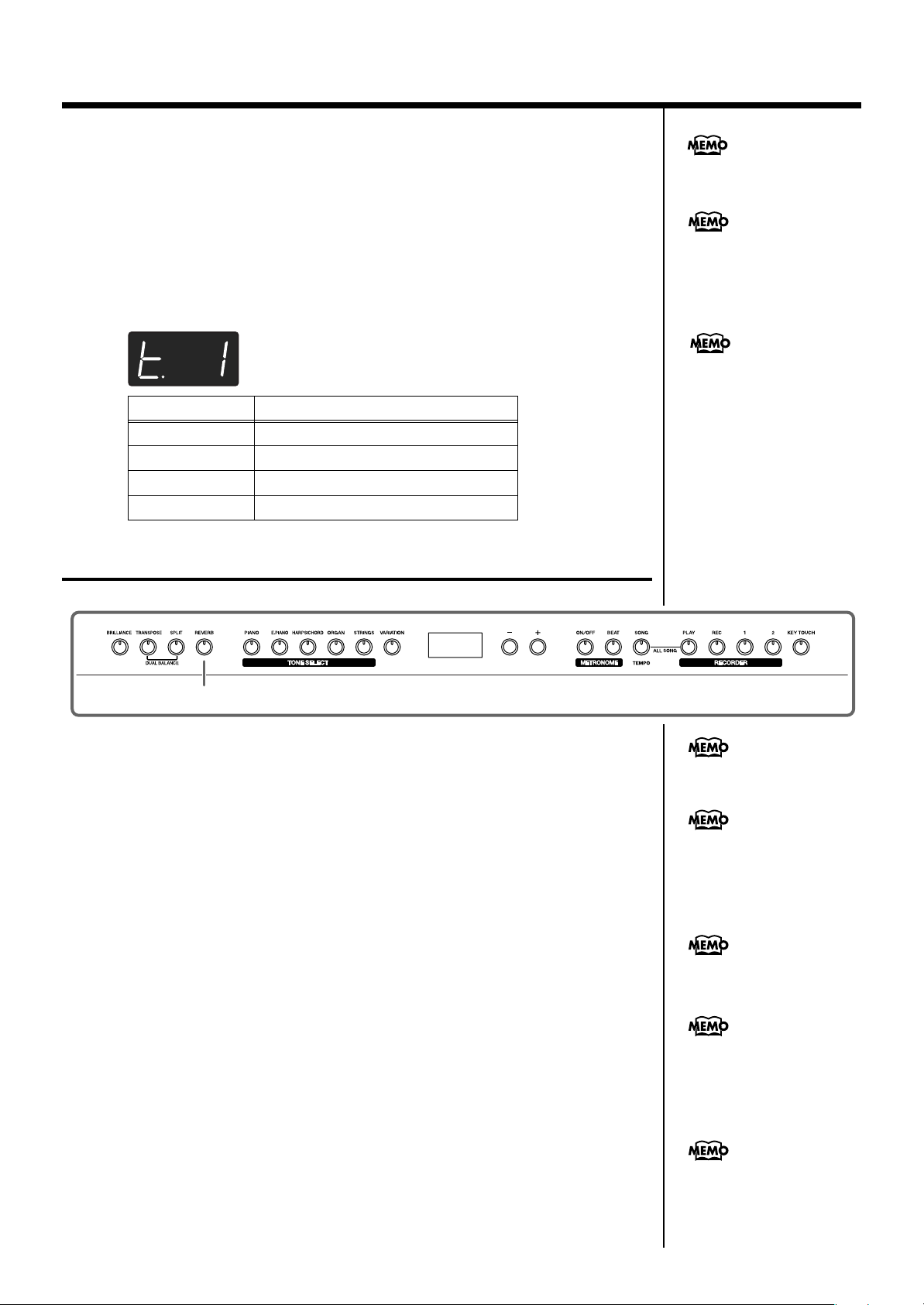

Changing the Metronome Sound

Hold down the [BEAT] button and press the [+] or [-] button.

The metronome will sound, and the currently specified sound number will displayed.

Continue to hold down the [BEAT] button, and press the [+] or [-] button

once again.

The metronome sound will change.

t. 1

t. 2

t. 3

t. 4

Display

Ordinary metronome sound Dog and cat cries A voice counting “1, 2, 3” in English A voice counting “1, 2, 3” in Japanese

beat

Applying Effects to the Sound

fig.panel2-5

This is set to “t. 1” when the instrument is turned on.

When you hold down the [BEAT] button, the currently specified sound number will be displayed.

When an internal song is played back, the metronome sounds the ordinary metronome sound. When a recorded performance is played back, the metronome sounds the sound that was selected when the recording was made.

■

Adding Reverberation to the Sound (Reverb)

By applying the reverb effect you can produce a pleasant reverberation, making it sound as though you were performing in a concert hall.

Press the [REVERB] button.

The button’s indicator will light, and a reverb effect will be applied to the sound. To cancel the reverb effect, press the [REVERB] button, getting its indicator to go

dark.

■

Changing the Amount of Effect Applied

The depth of the reverb effect can be adjusted over eight steps.

Changing the depth of the reverb effect

Hold down the [REVERB] button and press the [+] or [-] button.

The currently specified value will be displayed.

Continue to hold down the [REVERB] button, and press the [+] or [-]

button once again.

The depth of the reverb effect will change. Higher values will produce a deeper effect.

The reverb effect setting for each tone is not remembered.

When you play back an internal song, the reverb effect will automatically be turned on (the button’s indicator lights).

When the power is turned on, reverb is set to “4.”

When you hold down the [REVERB] button, the currently specified reverb depth value will be displayed.

The depth of the reverb effect for each tone is not remembered.

Page 17

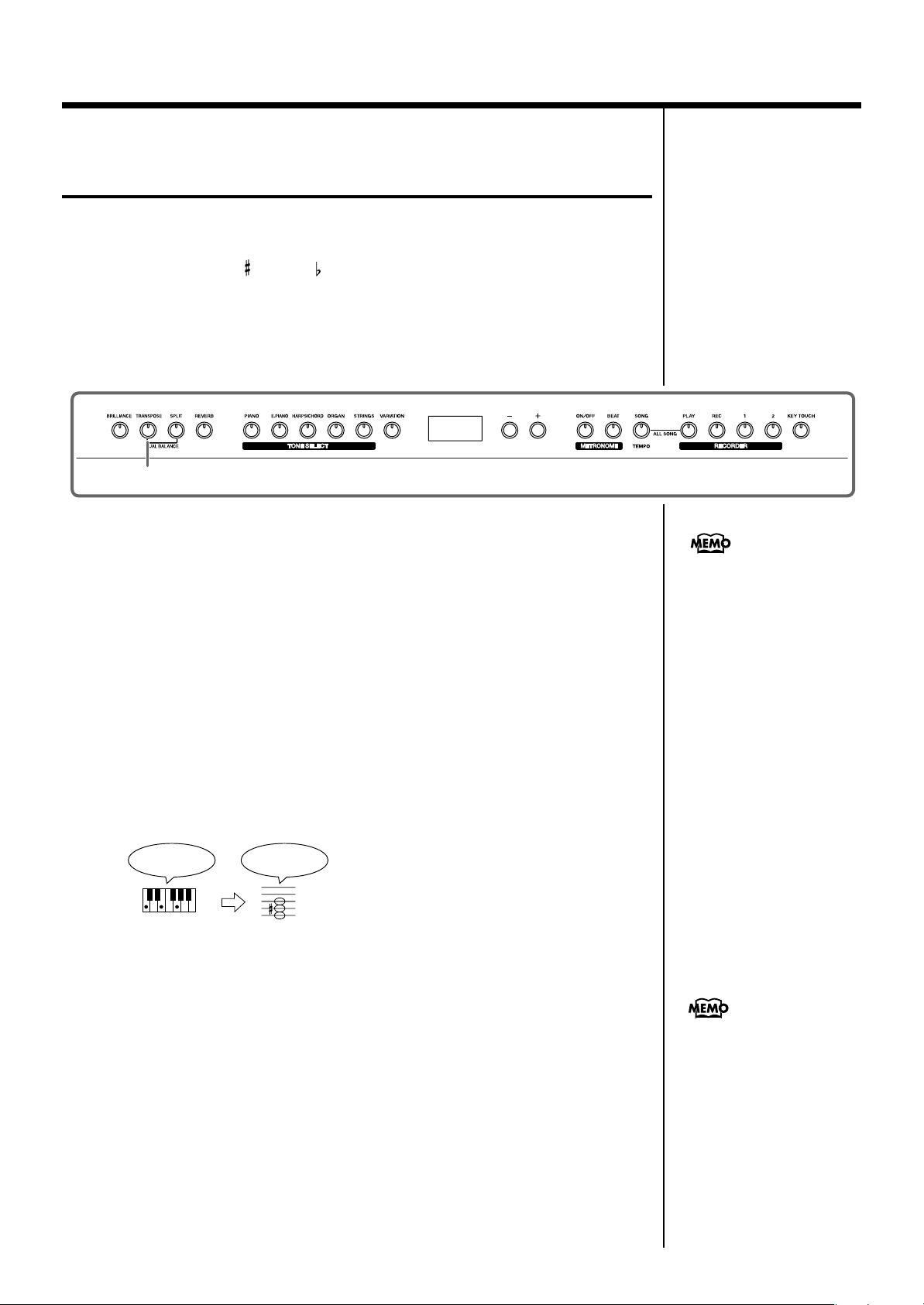

Transposing the Key of the Keyboard

When you hold down the [TRANSPOSE] button, the currently specified value will be displayed.

(Transpose)

By using the “Transpose function,” you can transpose your performance without changing the notes you play. For example, even if the song is in a difficult key with

numerous sharps ( ) or flats ( ), you can transpose it to a key that is easier for you to play.

When accompanying a vocalist, you can easily transpose the pitch to a range that is comfortable for the singer, while still playing the notes as written (i.e., with the same fingering positions).

fig.panel2-6

Chapter 2. Performance

Continue to hold down the [TRANSPOSE] button, and press a note to

indicate the tonic of the key to which you want to transpose.

The button’s indicator will light, and the keyboard will be transposed.

You can also transpose by holding down the [TRANSPOSE] button and pressing the [+] or [-] button.

If you hold down the [TRANSPOSE] button and press the [+] and [-] buttons simultaneously, the setting will return to the original value (0).

This can be set in a range of -6–0–5 (semitone steps).

For example, if you want the E pitch to sound when you play the C key, hold down the [TRANSPOSE] button and press the E key.

Counting from C as a reference point, one moves up four keys, including the black keys, to reach E, thus “4” appears in the display.

fig.trans.e

If you play C E G It will sound E G# B

To cancel the transpose function, press the [TRANSPOSE] button,

extinguishing its indicator.

When you press the [TRANSPOSE] button once again, getting its indicator to light, the keyboard will be transposed to the note you specified here.

When the transpose value is set to “0,” the button’s indicator will remain dark even if you press the [TRANSPOSE] button.

This setting returns to the original value (0) when you turn off the power.

Page 18

Chapter 2. Performance

Adjusting the Keyboard Touch (Key Touch)

You can adjust the touch (playing feel) of the keyboard.

fig.panel2-7

Press the [KEY TOUCH] button.

The button’s indicator will light, and the feel of the keyboard will change.

Each time you press the [KEY TOUCH] button, the button’s indicator will change color, and the feel of the keyboard will change.

Indicator

Off

Red

Green

Settings

Medium

Heavy

Light

This allows you to play using the most natural touch. This is the closest to the touch of an acoustic piano.

Fortissimo (ff) cannot be produced unless you play more strongly than usual, making the keyboard feel heavier. Dynamic fingering adds even more feeling to what you play.

Fortissimo (ff) can be produced by playing less strongly than usual, making the keyboard feel lighter. This setting makes it easy to play, even for children.

Page 19

Chapter 3.

Indication of the tempo during song playback

While the song is playing, the initial tempo of the song will continue to be displayed, regardless of tempo changes during the song.

Playing Along with the Internal Songs

Here’s how you can play along with the internal songs.

You can slow down the playback tempo of the song, or play back each hand separately.

Before you try playing the song, listen to it several times to get a general feel for the song.

For details on operation, refer to “Selecting a Song and Playing It” (p. 10).

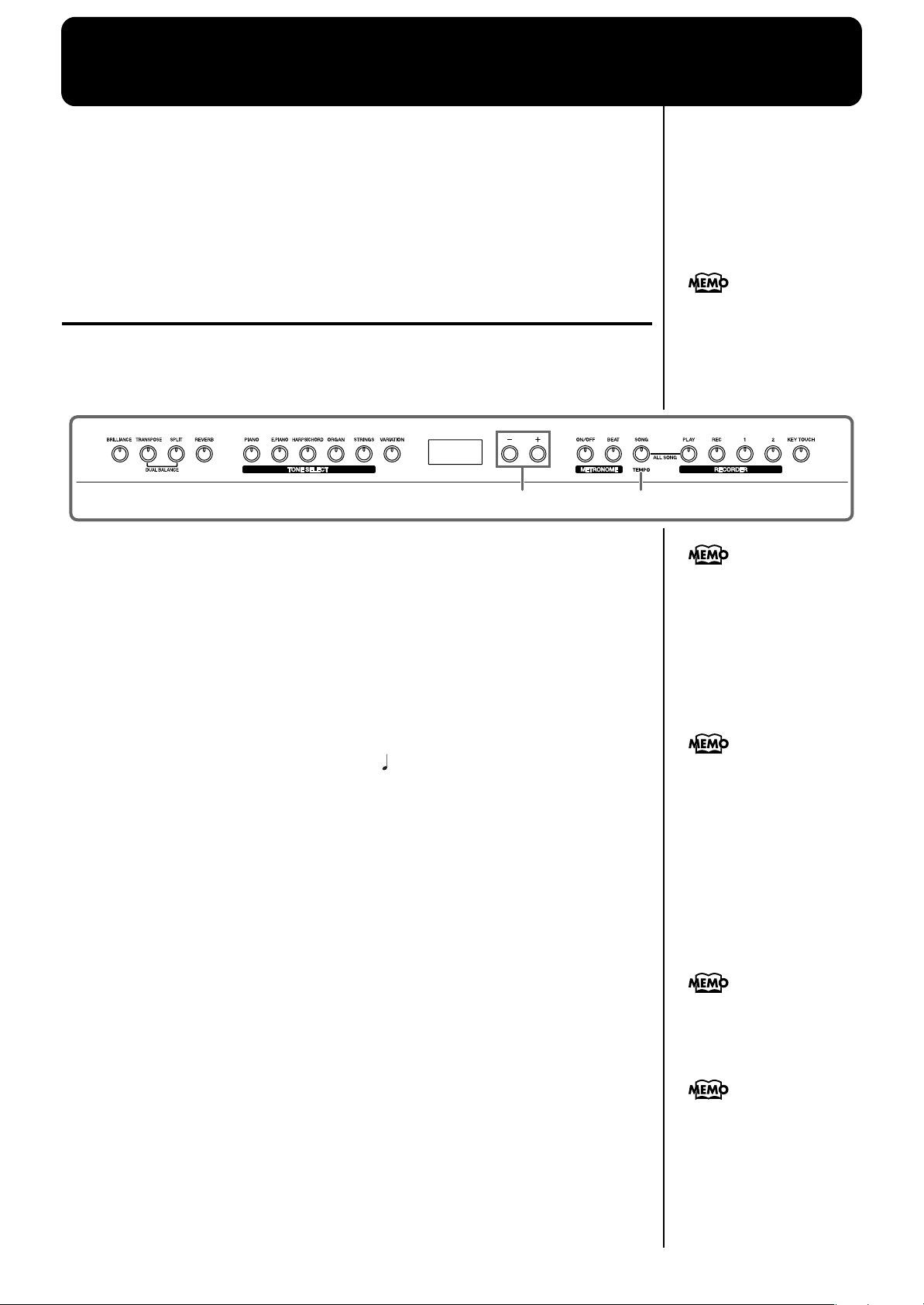

Changing the Tempo

If the song has a rapid tempo, you can slow down the tempo so that you can practice it more easily. It is effective to gradually raise the tempo as you practice.

fig.panel3-1

Press the [SONG/TEMPO] button, getting its indicator to light in green.

The tempo appears in the display.

Each time you press the [SONG/TEMPO] button, the tempo and the currently selected song number (prefixed by “d.”) will be displayed alternately.

While the tempo is displayed, the [SONG/TEMPO] button indicator will light in green. While the song number is displayed, it will light in red.

Press the [+] or [-] button to adjust the tempo.

If you turn on the metronome while the song plays back, the metronome will sound at the

eat and tempo of the song.

2 1

The tempo can be adjusted in a range of =20–250.

You can also change the tempo during playback.

Pressing the [+] button once increases the tempo by one unit. Holding down the button increases the tempo continuously.

Pressing the [-] button once decreases the tempo by one unit. Holding down the button makes the tempo change (slow down) continuously.

If you press the [+] and [-] buttons simultaneously, you will return to the basic tempo of the song (the tempo before you modified it).

■

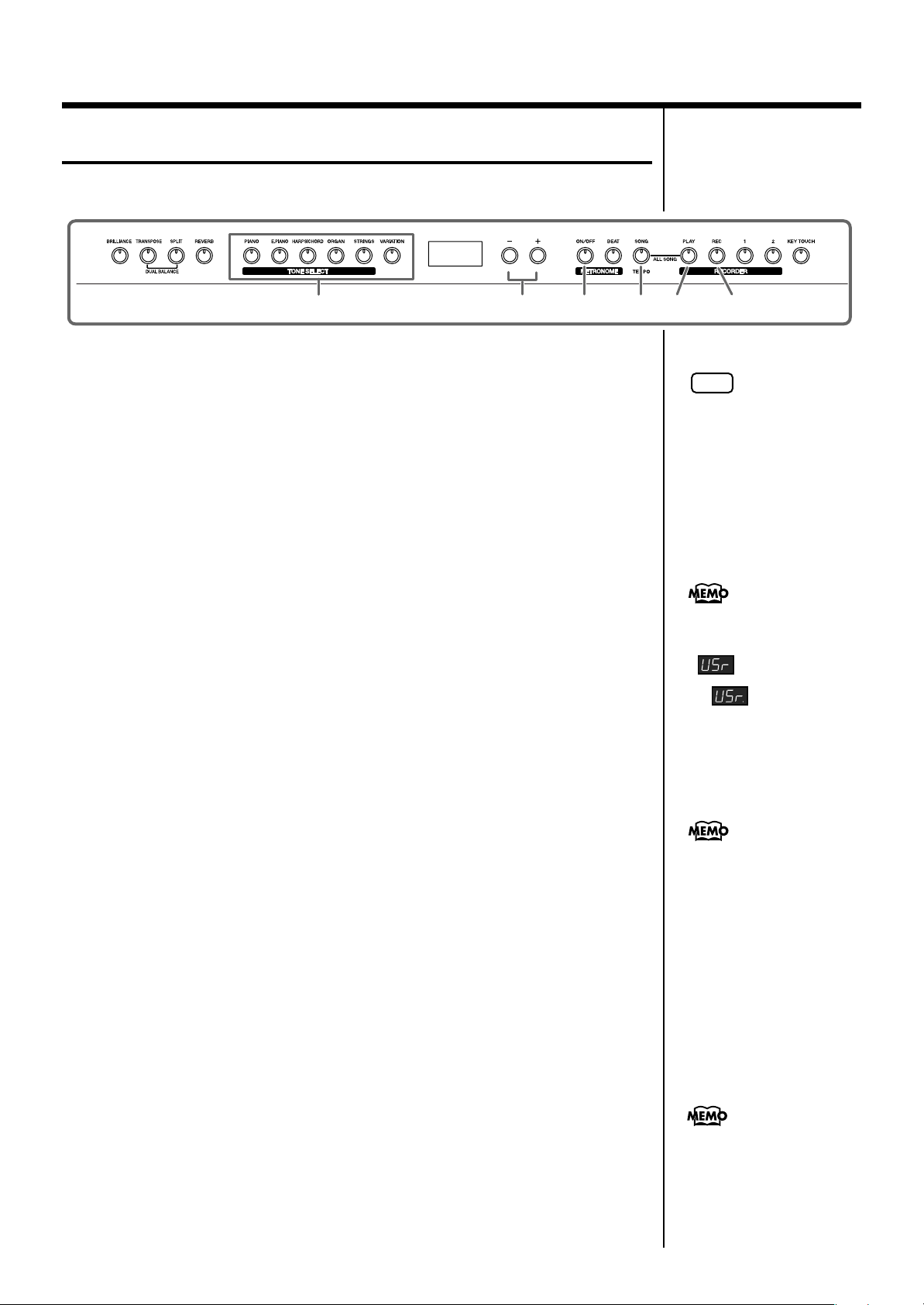

Adding a Count-in to Match the Timing (Count-In)

When you’re playing along with a song, you can make sure that your playing is in time with the song by sounding a count before the song starts playing.

Sounding a “count sound” leading up to playback of a song is called “Count-In.”

On the MP-60, if you playback a song while the metronome is sounding, two measures of lead-in count will be heard at the beginning of the song.

bout the display for the

internal songs

USr (user) … The location where you can record your performance. (For details on recording → p. 22) Numbers with a “d.” … internal songs.

During the count-in, the count measure is indicated in the display as “-2” then “-1.”

“Sounding the Metronome” (p. 14)

Page 20

Chapter 3. Playing Along with the Internal Songs

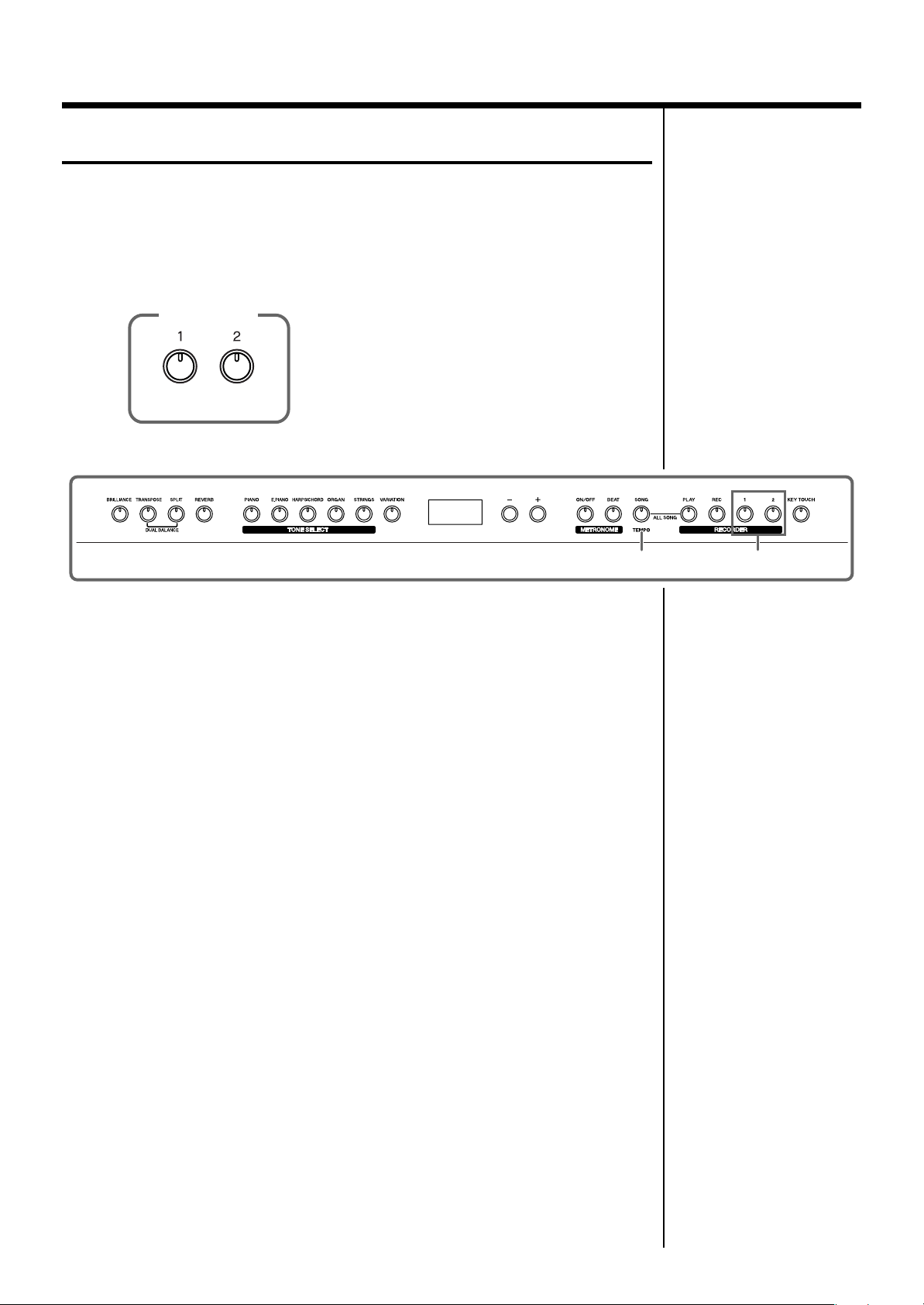

Playing Each Hand Separately

The internal songs allow you to select the performance part that will be played back.

The left-hand performance of the internal songs is assigned to the [1] button, while the right-hand performance is assigned to the [2] button. The place where each part of the performance is held is called a “track,” and the [1] and [2] buttons are called “track buttons.”

fig.trackbuttons.e

Track buttons

Left-hand

Part

Here’s how to practice each hand separately along with the song.

fig.panel3-2

First select the song that you want to play back (p. 10).

Selecting the part that you yourself will play

Press the [1] or [2] button.

The indicator of the button you’ve pressed goes out, and the sound of the selected part will no longer be heard.

For example, if you want to practice the right hand, press button [2] and get its indicator to go dark.

When you play back the song, the right-hand performance will not sound. Practice your right-hand performance along with the left-hand playback.

Right-hand

Part

2, 3

Playing back a song

Press the [PLAY] button.

The song will begin playing back.

The part you selected in step 1 will not sound.

Once again press the button you selected in step 1. The button’s indicator will light, and the sound will be heard once again.

Even while the song is playing, you can press the track buttons to mute or un-mute the sound.

Stopping the song

Press the [PLAY] button.

The song will stop.

Page 21

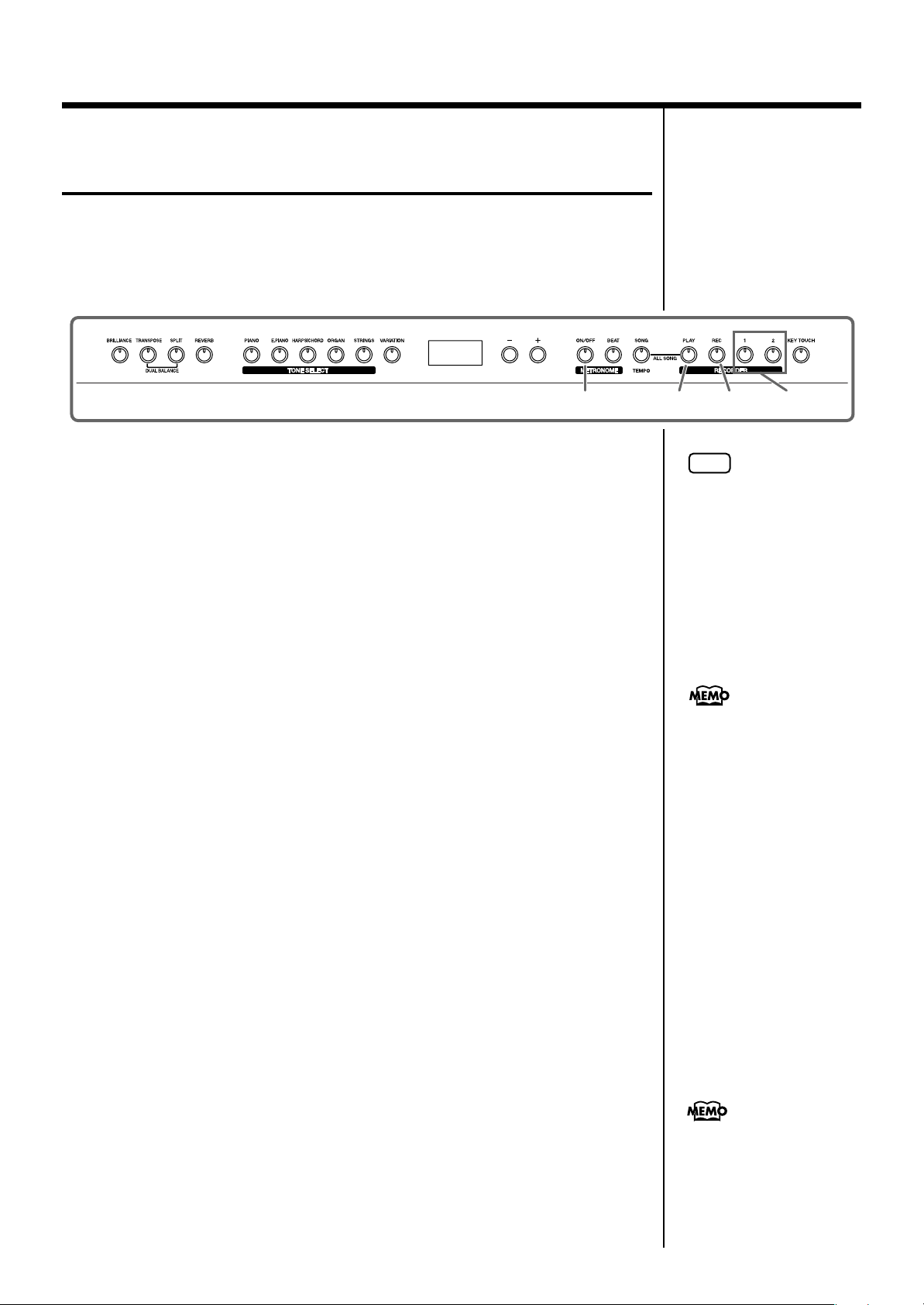

Chapter 4. Recording Your Performance

You can easily record your performances.

A recorded performance can be played back to hear your own playing, or to add additional parts.

The following types of recording can be done using the MP-60.

• Recording just your own keyboard performance (→ “Recording a New Song” (p. 22))

• Recording along with an internal song (→ “Recording Along with a Song” (p.

23))

• Recording each hand separately (→ “Selecting and Recording the Track for Each Hand Separately” (p. 24))

■

Notes Regarding Recording

• Only one song can be recorded.

• Recorded performances are erased when the power is turned off. If you want to keep your performance, you can either record it on an external audio device, or use an external MIDI device to save the performance data on a floppy disk. For details, refer to “Chapter 6. Connecting External Devices” (p. 29).

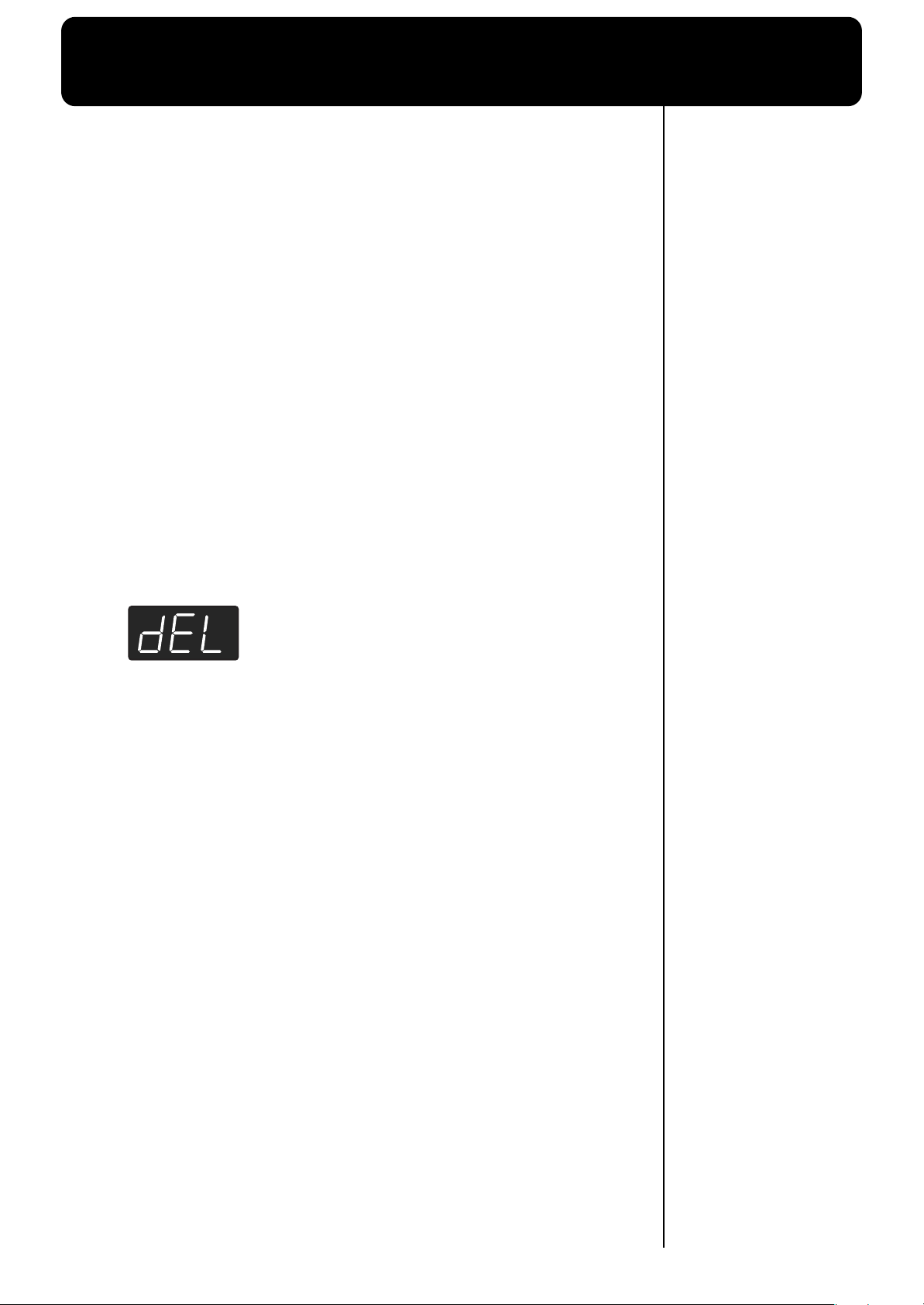

If you see the following...

If you attempt to record using a different internal song when a performance has already been recorded, the following will appear, and the [REC] button’s indicator will blink.

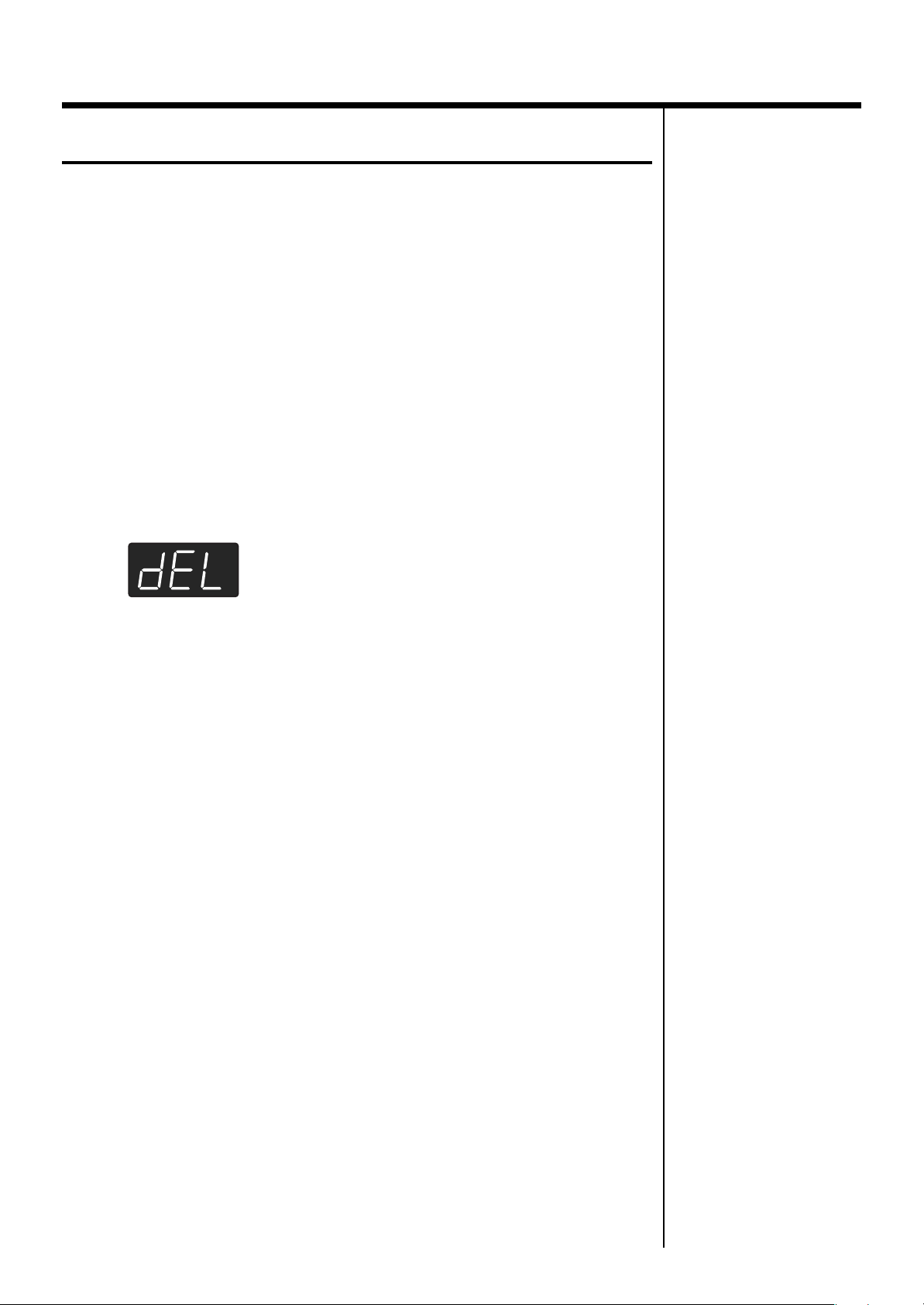

fig.disp-del

If it is OK to erase the performance, press the [REC] button.

If you do not want to erase the performance, press the [PLAY] button.

Page 22

Chapter 4. Recording Your Performance

About the “USr” display

When you stop recording, the

“ ” display will change

to “ ”. The “.” in the lower right of the display indicates that there is already a recorded performance.

Recording a New Song

Record only the keyboard performance without playing along with an internal song.

fig.panel4-1

Recording settings (select “USr”)

Press the [SONG/TEMPO] button, getting its indicator to light in red.

The song number appears in the display.

Press [+] and [-] buttons simultaneously, and “USr” appears in the

display.

Specifying the tone and tempo for recording

Select the tone that you want to play (p. 11).

If necessary, turn on the metronome.

Sound the metronome while you set the tempo and beat of the song (p. 14).

Press the [REC] button.

The [REC] button’s indicator will light, the [PLAY] button’s indicator will blink, and you will be in recording-standby mode.

6, 8

5, 72 4 1

NOTE

If you layer a newly recorded performance without erasing the recorded song, the song tempo and beat will be stored with the settings that were recorded first.

Start recording

Recording will start when you either press the [PLAY] button or play the

keyboard.

The MP-60 counts down two measures, then recording starts. Note that recording will also begin as soon as you play anything on the keyboard, even if you do not press the [PLAY] button. There is no count sound played when you start in this manner. When recording begins, the [PLAY] button and [REC] button indicators will light. Go ahead and perform on the keyboard.

Stop recording

Press the [PLAY] or [REC] button.

The indicators for the [PLAY] and [REC] buttons will go dark.

Play back the recorded performance

Press the [PLAY] button.

You will hear the recorded performance. Once again press the [PLAY] button, and playback will stop.

If you record without specifying the recording track, the performance will be recorded to the [1] button. If you want to record the right and left hands separately on separate recording tracks, refer to “Selecting and Recording the Track for Each Hand Separately” (p. 24).

When a recorded performance is played back, the metronome sounds the sound that was selected when the recording was made.

Page 23

Chapter 4. Recording Your Performance

If “dEL” appears in the display, refer to p. 21.

Recording Along with a Song

You can record a performance that you play along with an internal song.

Using the [1] or [2] buttons, you can (for example) perform and record just the righthand part of a song while listening to the left-hand playback of an internal song.

fig.panel4-3

Selecting the song to record

Press the [SONG/TEMPO] button, getting its indicator to light in red.

The display will indicate the song number.

Use the [+] or [-] button to select the song that you want to play.

As necessary, set the metronome and tempo (p. 14).

Press the [REC] button.

The [REC] button’s indicator will light.

Selecting the track to record

Press the [1] or [2] button.

When you want to record the left-hand performance, press the [1] button; to record that of the right hand, press the [2] button.

The indicators of the button you pressed and of the [PLAY] button will blink, and the MP-60 enters recording-standby mode.

6, 8

4, 72 3 1

Starting to record

Stop recording

Play back the recorded performance

Press the [PLAY] button.

Recording begins after two measures of count sound. Play along with the song.

Press the [PLAY] or [REC] button.

Recording will stop, and the indicators for the [PLAY] and [REC] buttons will go dark.

The recorded performance is stored in “USr (User).”

Press the [PLAY] button.

You will hear the recorded performance. Once again press the [PLAY] button, and playback will stop.

When a recorded performance is played back, the metronome sounds the ordinary metronome sound.

Page 24

Chapter 4. Recording Your Performance

If you go on to record additional material without erasing the recorded song, the song tempo, beat, and metronome settings of the original recording will be used for the new material as well.

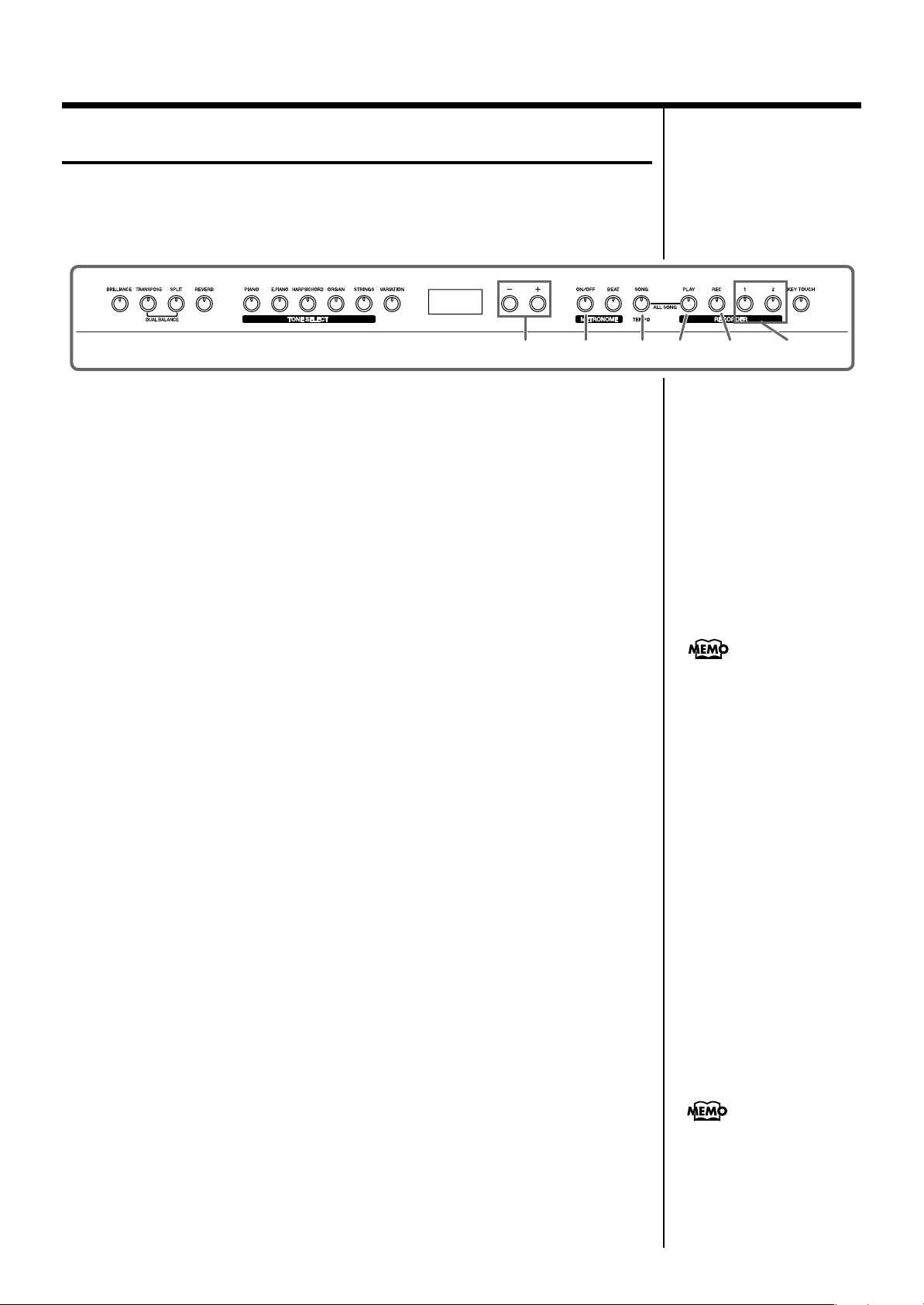

Selecting and Recording the Track for Each Hand Separately

The recorder of the MP-60 has two recording tracks, allowing you to record the right and left hands separately. Use the [1] button or [2] button to specify the recording track. If you want to re-do the recording, you can re-record just a specific track.

fig.panel4-4

As described in steps 1 and 2 of “Recording a New Song” (p. 22), select “USr” before you continue.

As necessary, turn on the metronome (p. 14).

Press the [REC] button.

The [REC] button’s indicator will light. The button indicators of tracks that are already recorded will light. The track button for which you will next be recording will be blinking.

Selecting the track to record

Press the [1] or [2] button to select the track that you want to record.

The indicator of the button you pressed will blink, and the MP-60 enters recordingstandby mode.

Start recording

Press the [PLAY] button.

4, 6

2, 51

NOTE

The track buttons allow you to record to either the [1] or the [2] button, one at a time.

Stop recording

Press the [PLAY] or [REC] button.

Recording will stop, and the indicators for the [PLAY] and [REC] buttons will go dark. Your performance has been recorded to the specified track button. If you want to record on the other track, return to step 2 to record your performance again. You can record while you listen to the previously recorded performance.

Play back the recorded performance

Press the [PLAY] button.

You will hear the recorded performance. Press the [PLAY] button once again, and playback will stop.

When a recorded performance is played back, the metronome sounds the sound that was selected when the recording was made.

Page 25

Chapter 4. Recording Your Performance

Erasing Recorded Performances

You can erase a recorded performance.

■

Erasing a Performance from the Specified Track

You can select a recorded track and erase it.

Hold down either the [1] or [2] button and press the [REC] button.

The indicator of the button you pressed will go dark, and the performance of the selected track will be erased.

■

Erasing a Song

You can erase a song you’ve recorded.

Hold down the [SONG/TEMPO] button and press the [REC] button.

The following display will appear, and the [REC] button’s indicator will blink.

fig.disp-del

Once again press the [REC] button.

The recorded performance is erased.

If you decide not to erase the performance, press the [PLAY] or [SONG/TEMPO] button.

Page 26

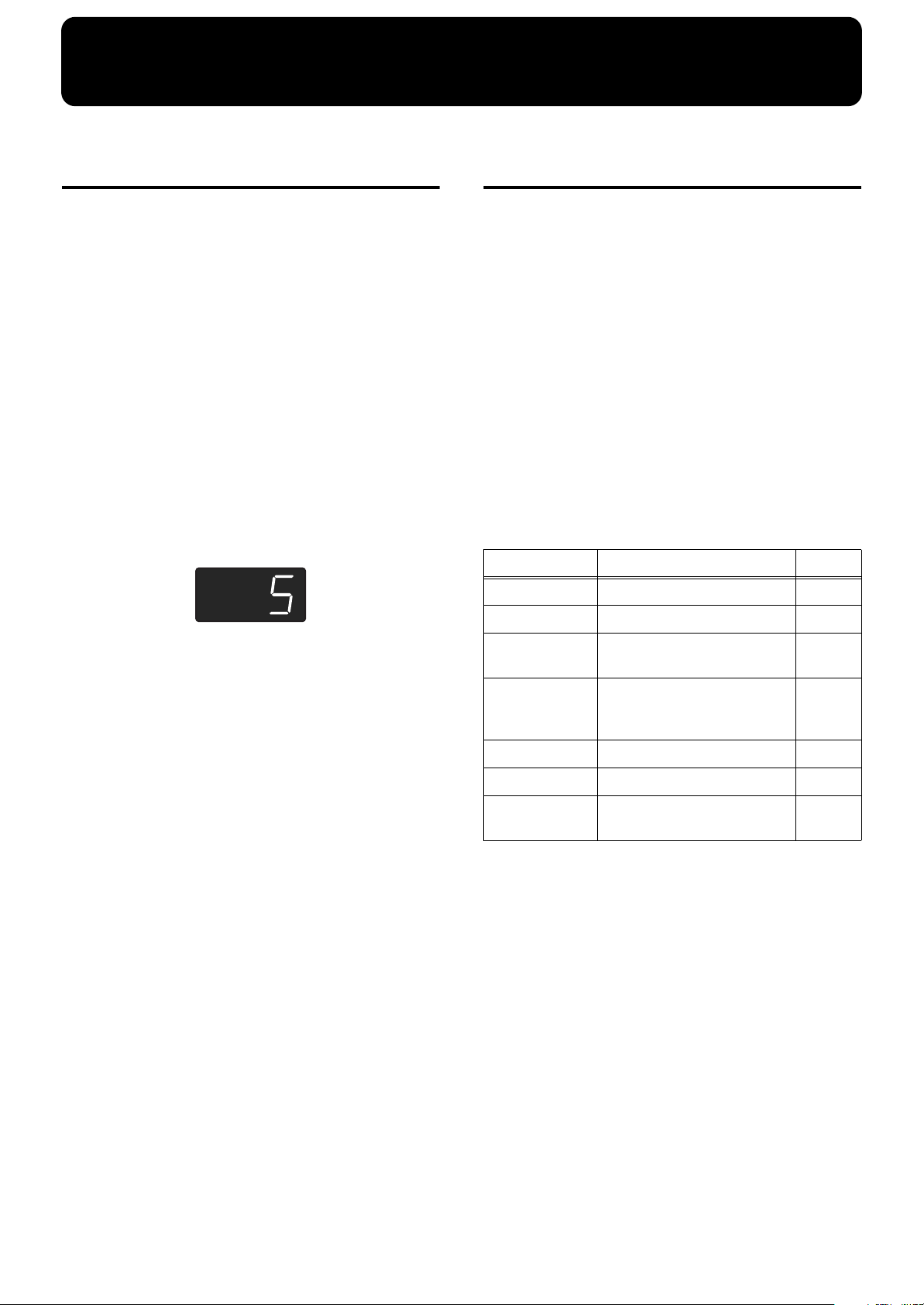

Chapter 5. Changing Various Settings

Changing the Damper Pedal’s Resonance

On an acoustic piano, depressing the damper pedal makes the notes you play resonate with other strings, adding rich reverberations and fatness to the sound. The damper pedal on the MP-60 recreates this resonance (sympathetic resonance) when depressed.

You can select from eight levels of depth for the resonant sound (resonance level).

This is set to “5” when the instrument is turned on.

* This setting is valid only for some piano tones. It cannot be made for

other tones.

Hold down the [REVERB] button and [SPLIT] button,

and press the [-] or [+] button.

The currently specified value will be displayed.

Larger values will produce a deeper effect.

fig.disp-reso

Making Detailed Settings (Function)

You can make performance-related settings such as tuning and temperament.

How to enter function mode

Hold down the [ON/OFF] button, and press the [BEAT]

button.

The indicators of the buttons you pressed will blink, and you will enter function mode.

The display will indicate the value of the currently selected function.

Setting the various functions

Press the button to which the desired function is

assigned.

The indicator of the button you pressed will blink.

Button Function Page

[PIANO]

Master Tuning p. 27

[E. PIANO]

[HARPSICHORD]

[ORGAN]

[STRINGS]

[VARIATION]

[PLAY]

For details on each function, refer to the explanations below.

Press the [+] or [-] button to change the value.

If you press the [+] and [-] buttons simultaneously, the value will return to the power-up default setting.

Temperament

Stretch Tuning

Applying the damper pedal to the left-hand keyboard area

MIDI send channel

Local Control

Transmitting a recorded performance

How to exit function mode

Press the [ON/OFF] or [BEAT] button.

The button’s indicator will return to the previous state.

p. 27

p. 28

p. 31

Page 27

■

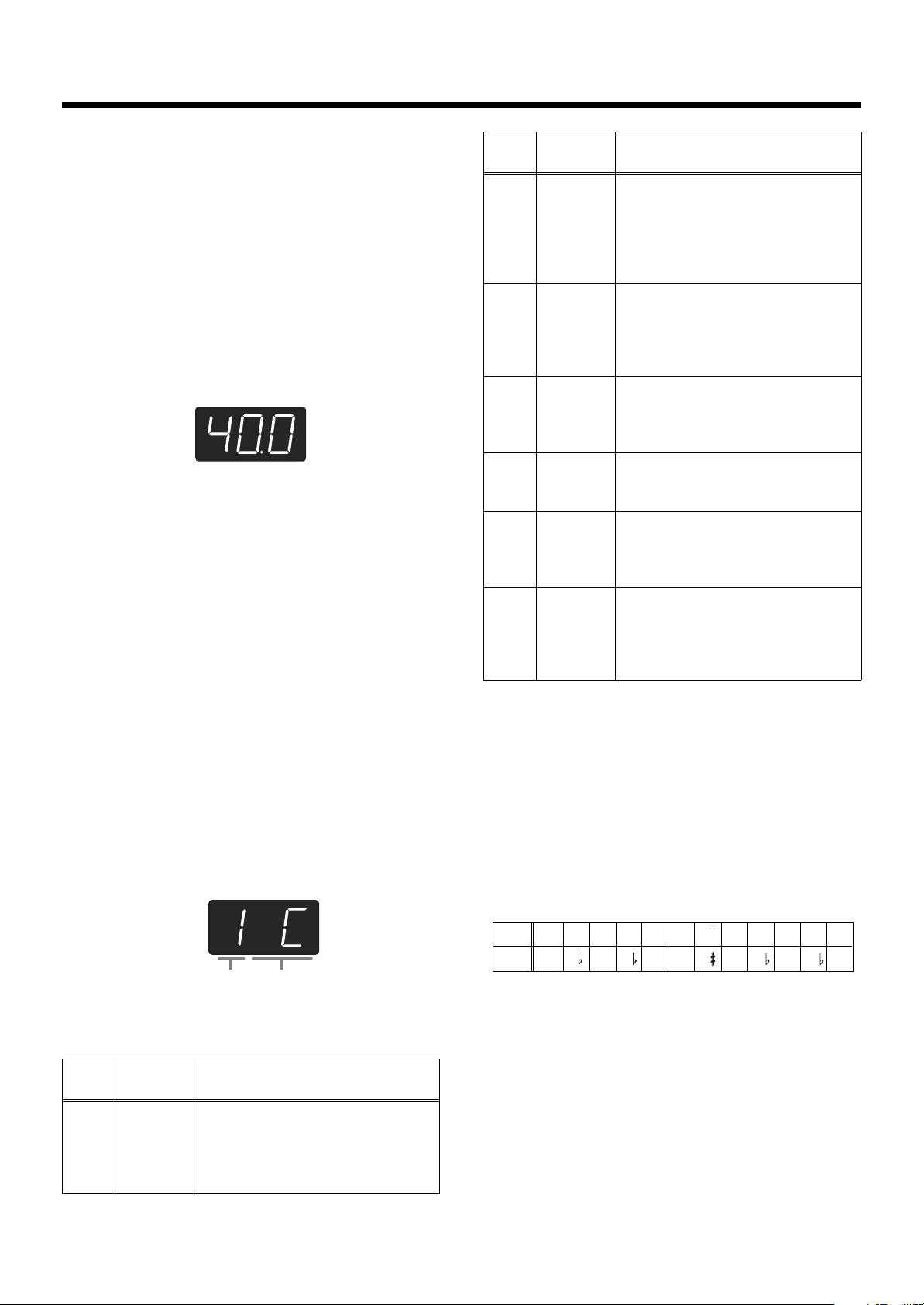

Tuning to Other Instruments’ Pitches (Master Tuning)

In situations such as when playing ensemble with other instruments, you can tune the MP-60’s reference pitch to the pitch of another instrument. The standard pitch generally refers to the pitch of the note that’s played when you finger the middle A key. This tuning of all the instruments to a standard pitch is called “tuning.”

If you press Detailed Settings (Function)” (p. 26), a display like the following will appear.

fig.disp-tune

The last three digits are indicated in the display. “440.0 Hz” is indicated in the figure above.

Value

Power-up default setting

This setting remains in effect until you turn off the power.

■

Changing the Temperament

You can play classical styles such as Baroque using historic temperaments (tuning methods).

Today, compositions are generally created with equal temperament in mind and are played using equal temperament. However in past ages of classical music, a variety of temperaments were used. Playing a composition with its original tuning lets you enjoy the sonorities of the chords that the composer originally intended.

If you press Detailed Settings (Function)” (p. 26), a display like the following will appear.

fig.disp-temp.j

You can choose from among the seven temperaments described below.

Display

the [PIANO] button

415.3 Hz–440.0 Hz–466.2 Hz

440.0 Hz

the [E. PIANO] button

Temperament Tonic

Temperament

Equal

Qualities

In this tuning, each octave is divided into twelve equal steps. Every interval produces about the same amount of slight dissonance. This setting is in effect when you turn on the power.

in step 2 of “Making

Chapter 5. Changing Various Settings

Display

Power-up default setting

Tonic

When playing with tuning other than equal temperament, you need to specify the keynote for tuning the song to be performed (that is, the note that corresponds to C for a major key or to A for a minor key).

While hold down to specify the desired tonic key.

The tonic note you specify will be displayed as follows.

fig.Chart_note2.j

Display

Letter name

If you choose an equal temperament, there’s no need to select a keynote.

* If you record with a temperament other than equal temperament

* When performing in ensemble with other instruments, be aware that

Temperament

Pythagor ean

Just Major

Just Minor

Mean Tone

Werckmeister

Kirnberger

C d_ d E_ E F F G A_ A b_ b

C D D E E F F G A A B B

selected, and then want to play back that performance, use this setting

to select the same temperament for playback as the temperament you

used when recording.

depending on the key, there may be some shifting of the pitch. Tune the

MP-60 to the fundamental pitch of the other instruments.

Qualities

This tuning, devised by the philosopher Pythagoras, eliminates dissonance in fourths and fifths. Dissonance is produced by third-interval chords, but melodies are euphonious.

This tuning eliminates ambiguities in the fifths and thirds. It is unsuited to playing melodies and cannot be transposed, but is capable of beautiful sonorities.

The Just tunings differ from major and minor keys. You can get the same effect with the minor scale as with the major scale.

This scale makes some compromises in just intonation, enabling transposition to other keys.

This temperament combines the Mean Tone and Pythagorean tunings. Performances are possible in all keys (first technique, III).

This is an improvement of the Mean Tone and Just tunings that provides a high degree of freedom of modulation. Performances are possible in all keys (III).

1 C

the [E. PIANO] button

, and press

a note

Page 28

Chapter 5. Changing Various Settings

■

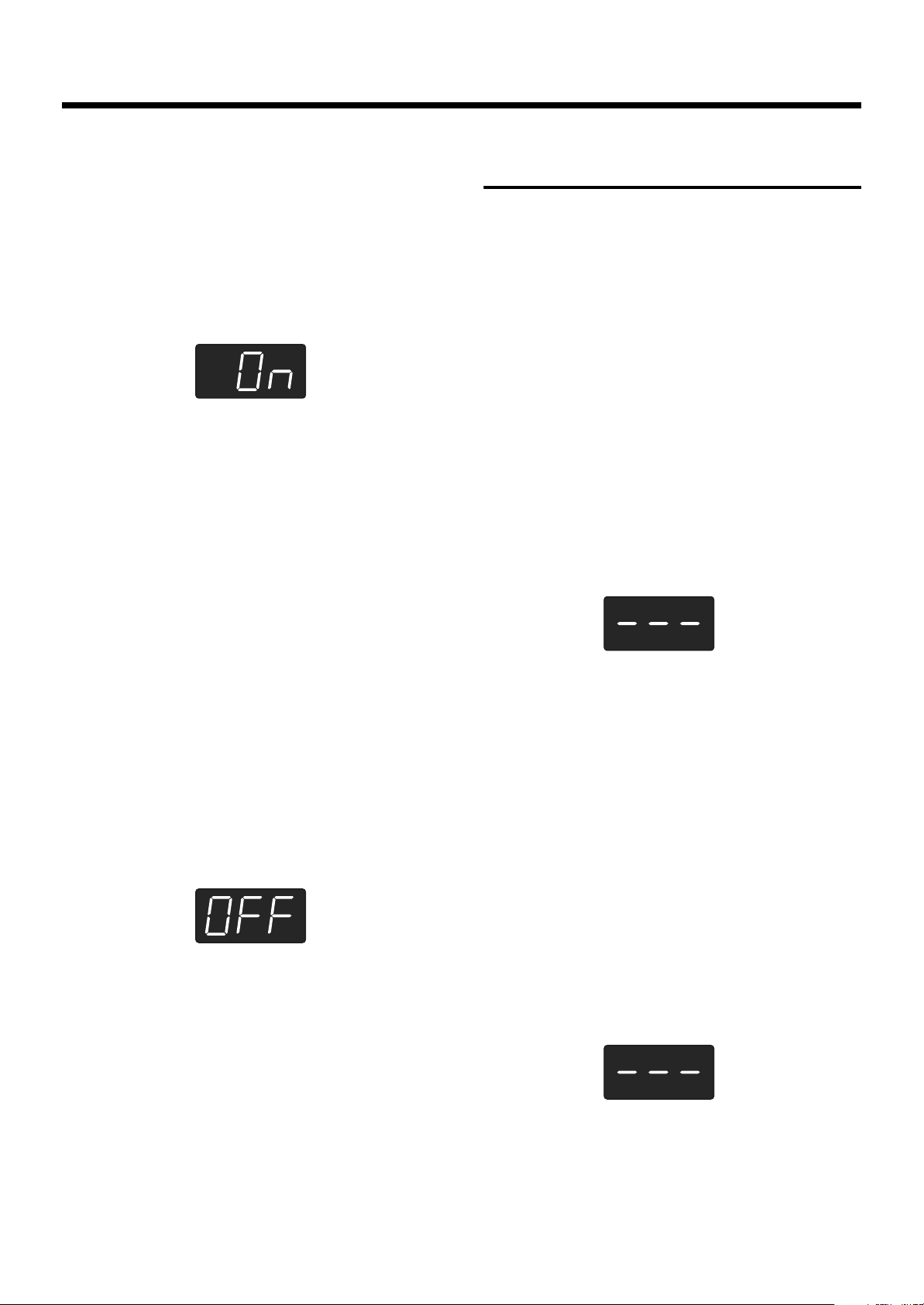

Setting the Tuning Curve (Stretch Tuning)

A piano is generally tuned to a pitch with a lower bass range and a higher treble range than equal temperament. This special tuning method for pianos is called “Stretch Tuning.”

If you press “Making Detailed Settings (Function)” (p. 26), a display like the following will appear.

fig.disp-On

Values

OFF This is the standard tuning curve. This is the right

On This tuning curve expands the bass and treble

Power-up default setting

the [HARPSICHORD] button

choice when using Dual play (p. 12), or when playing in ensemble with other instruments.

ends somewhat. It is suitable for performances such as piano solos. This setting is in effect when you turn on the power.

in step 2 of

Preventing the Settings from Changing During Performance

■

Disabling Everything Except Piano Play (Panel Lock)

The “Panel Lock” function locks the MP-60 in a state where only piano performance can be used, and all buttons will be disabled. That way, you won’t get switched to the wrong settings if you inadvertently press a few buttons while you’re playing. In the Panel Lock state, only the grand piano sound can be played.

Turn the volume to the minimum, and press the

[Power] switch to turn off the power.

Hold down the [PIANO] button and press the [Power]

switch to turn on the power.

Then, continue to hold down these two buttons for a few seconds. The following display will appear.

fig.disp—-

→

This effect works only with the piano tones.

■

Applying the Damper Pedal to the Left-hand Keyboard Area

When you are using Split play (p. 13), you can apply the damper pedal effect to the sound played by the left-hand keyboard range.

If you press Detailed Settings (Function)” (p. 26), a display like the following will appear.

fig.disp-Off

Values

On The damper pedal effect will be applied to the

OFF The damper pedal effect will not be applied to the

Power-up default setting

the [ORGAN] button

sound of the left and right hand keyboard area.

sound of the left-hand keyboard area.

in step 2 of “Making

OFF

All buttons are disabled. Adjust the volume. When you play the keyboard, the grand piano sound will be heard. To defeat the Panel Lock function, turn the volume down to the minimum, and turn on the power once again.

■

Disabling the Buttons When Using a Tone Other Than Piano (Tone Lock)

Even when using Tones other than the Piano, you can set the instrument so all of its buttons are disabled (the settings in effect at that time will be maintained).

Hold down the [BRILLIANCE] button and press the

[KEY TOUCH] button.

The song or the metronome sound that is playing will stop. The following will appear in the display:

fig.disp—-

All buttons are disabled while the instrument is set like this. To cancel the Tone Lock function, once again hold down the [BRILLIANCE] button while you press the [KEY TOUCH] button. Alternatively, you can lower the instrument’s volume all the way and switch its power off. Then, turn it on again.

Page 29

Chapter 6. Connecting External Devices

MP-60

Input R/L

(Line In, Aux In)

❍

Connecting to Audio Equipment

You can connect audio devices to play the sound of the MP60 through the speakers of your audio system, or to record your performance on a tape recorder or other recording device.

When connecting, please use an audio cable with a standard phone plug (sold separately).

Connection Examples

Use the following procedure when turning on the power.

Turn on the power of the connected device.

Turn on the power of the MP-60.

Adjust the volume of each device.

Turning off the power

Set the volume of the MP-60 and of the connected

devices to the minimum position.

* To prevent malfunction and/or damage to speakers or other devices,

always turn down the volume, and turn off the power on all devices

before making any connections.

Playing the sound of the MP-60 through the speakers of an audio system/Recording the performance of the MP-60 on a recording device

fig.audio1.e

❍

Use the following procedure when turning on the power.

Turn on the power of the MP-60.

Turn on the power of the connected device.

Adjust the volume of each device.

Turn off the power to the MP-60.

Turn off the connected equipment.

Connecting to a Computer

You can use a USB MIDI interface cable (sold separately) to connect the MP-60 to your computer.

If the MP-60 is connected to a computer in which sequencer software such as Roland’s “Visual MT” is installed, a song you’ve recorded on the MP-60 can be saved on your computer.

Connection Examples

* To prevent malfunction and/or damage to speakers or other devices,

always turn down the volume, and turn off the power on all devices

before making any connections.

* In order to make connections to your computer, you must install

“MIDI driver” software on your computer. For details, refer to the

owner’s manual for your MIDI interface.

When Recording MP-60 Performances on a Recording Device

Start recording with the connected device.

Perform on the MP-60.

When the performance ends, stop recording on the

connected equipment.

Playing the sound of an audio device through the speakers of the MP-60

fig.audio2.e

Output R/L

(Line Out, Aux Out)

MP-60

Use a USB MIDI interface cable to connect the USB connector of your computer to the MIDI connectors of the MP-60.

fig.comp.e

USB Connector of your Computer

UM-1 etc.

MIDI OUT

MIDI IN

MP-60

Computer

Page 30

Chapter 6. Connecting External Devices

Connecting MIDI Devices

By connecting an external MIDI device and exchanging performance data, you can control the performances on one device from the other. For instance, you can output sound from the other instrument or switch tones on the other instrument.

■

What’s MIDI?

MIDI stands for Musical Instrument Digital Interface, an international standard which allows performance information to be communicated among electronic musical instruments and computers.

The MP-60 provides MIDI connectors, which allow performance data to be exchanged with external devices. When these connectors are used to connect the MP-60 to external devices, an even wider range of possibilities becomes available.

* A separate publication titled “MIDI Implementation” is also available.

It provides complete details concerning the way MIDI has been

implemented on this unit. If you should require this publication (such

as when you intend to carry out byte-level programming), please

contact the nearest Roland Service Center or authorized Roland

distributor.

Connection Examples

Perform on the MP-60 to play a MIDI sound generator

fig.midi1.e

Sound Module

MIDI OUTTHRU IN

MP-60

Making MIDI-related Settings

Here’s how you can set the transmit channel and other MIDIrelated settings.

How to enter function mode

Hold down the [ON/OFF] button and press the [BEAT]

button.

The indicators of the buttons you pressed will blink, and you will enter function mode.

The display will indicate the value of the currently selected function.

* To prevent malfunction and/or damage to speakers or other devices,

always turn down the volume, and turn off the power on all devices

before making any connections.

Playing the MP-60 from a MIDI sequencer/ Recording an MP-60 performance on a MIDI sequencer

fig.midi2.e

MT Series

* MT-90s has no MIDI Out connector.

MIDI

InOut

MP-60

* Set Local Off if you have connected the MP-60 to a MIDI sequencer.

Refer to “Switching Local Control on and Off” (p. 31). Also set your

MIDI sequencer to MIDI Thru mode (so that messages received at

MIDI IN will be re-transmitted without change from MIDI OUT).

For details, refer to the owner’s manual of your MIDI sequencer.

Setting various functions

Press the button to which the desired function is

assigned.

The indicator of the button you pressed will blink.

For details on the contents of each function, refer to the explanations that follow.

Press the [+] or [-] button to change the value.

If you press the [+] and [-] buttons simultaneously, the setting will return to the original value.

How to exit function mode

Press either the [ON/OFF] button or the [BEAT] button.

The button’s indicator will return to the previous state.

Page 31

Chapter 6. Connecting External Devices

■

MIDI Send Channel Settings

MIDI features sixteen MIDI channels, numbered 1–16. Simply connecting a cable is not enough for communication to take place. The connected devices must be set to use the same MIDI channels. Otherwise, no sound will be produced, and no sounds can be selected.

* The MP-60 receives all channels 1–16.

* If you are using Dual play (p. 12) or Split play (p. 13) on the MP-60,

only the channel you specify here will be transmitted.

If you press

the [STRINGS] button

in step 2 of “Making MIDI-related Settings” (p. 30), a display like the following will appear.

fig.disp-1

Value

Power-up default setting

■

Switching Local Control on and

1–16 1

Off

When connecting a MIDI sequencer, set Local Control to “Off.”

As illustrated, information describing what has been played on the keyboard is passed to the internal sound generator over two different routes, (1) and (2). As a result, you hear overlapping or intermittent sounds. To prevent this from happening, route (1) must be severed, by setting the unit to what is known as “Local Off.”

fig.localcont.e

Local On

(1)

Sequencer

MIDI

Sound

Generator

Each note played

is sounded twice

Local Control ON: The keyboard and the internal sound generator are in a linked state.

fig.localon.e

Local Control OFF: The keyboard and the internal sound generator are in an unlinked state. No sound will be produced by the keyboard when it is played.

MIDI

MIDI OUT

Sound is emitted

Sound Generator

Local On

OUT

Memory

MIDI

Thru function On

(2)

fig.localoff.e

No sound produced

Sound Generator

Local Off

* When a Roland MT series instrument is connected, it is not necessary

to make the Local Off setting. MT units transmit Local Off messages

when their power is switched on. If you turn on the power in the order

of the MP-60 → MT series, Local Off will be set automatically.

If you press

the [VARIATION] button

in step 2 of “Making MIDI-related Settings” (p. 30), a display like the following will appear.

fig.disp-on

Value

Power-up default setting

■

Transmitting a Performance

On, OFF On

You Recorded

If you want to transmit a performance recorded on the MP-60 to an external MIDI device or computer, turn this setting “On.” If this is “Off,” the data will not be transmitted.

If you press related Settings” (p. 30), display like the following will appear.

fig.disp-Off

Value

Power-up default setting

If you wish to use your MIDI sequence to save the performance, use the following procedure. In this situation, your external sequencer is set its MIDI Thru feature to be OFF. For details, refer to the owner’s manual of your MIDI sequencer.

1 2 3 4 5 6

the [PLAY] button

in step 2 of “Making MIDI-

On, OFF OFF

Connect a MIDI sequencer such as the MT series (p. 30).

Record the performance on the MP-60 (p. 21).

Set this setting to “On.”

Start recording with the connected MIDI device.

Start playback of the recorded song on the MP-60.

When playback ends, stop recording with the connected MIDI device.

Use a connected MIDI sequencer to save the data on a floppy disk or other media.

Page 32

Appen dices

Troubleshooting

If you think there’s a problem, read this first.

Case

The power doesn’t

come on

The button doesn’t

work

No sound is heard

(when a MIDI in-

strument is con-

nected)

Sounds are heard

twice (doubled)

when the keyboard

is played

The tone has

changed in the

Split or Dual play

Tone doesn’t

change

Not all played

notes are sounded

Is the power cord connected and plugged in correctly? (p. 8)

Is the panel locked? (p. 28) Turn the power off, then back on.

Is the volume level of the MP-60 turned all the way down? (p. 9)

Are headphones plugged in? (p. 8) Has a plug remained connected to the Phones jack? When headphones are connected, the keyboard’s speaker stops playing.

Is Local Off selected? When Local Control is set to OFF, no sound is produced by playing the keyboard. Set Local Control to “ON” (p. 31).

Have all devices been switched on?

Are the MIDI cables connected correctly?

Does the MIDI channel match the connected instrument? (p. 31)

Is the MP-60 in Dual play? (p. 12)

When the MP-60 is connected to an external sequencer, set it to the Local OFF mode (p. 31). Alternatively, the sequencer could be set so its MIDI Thru feature is OFF.

If you use Dual play or Split play with a TONE SELECT button for which tone number 3 is selected, tone number 1 will be selected for that TONE SELECT button (p. 11).

Some tones assign the tone that had been selected before you pressed the [SPLIT] button to the left hand area of the keyboard. Please refer to “Tone List” (p. 34).

Is the panel locked? (p. 28) Turn the power off, then back on.

Are the indicators for the [ON/OFF] and [BEAT] buttons flashing? Setting of functions is in progress. Press the [ON/OFF] or [BEAT] button to exit function mode (p. 26, p. 30).

The maximum number of notes that the MP60 can play simultaneously is 64. Frequent use of the damper pedal when playing along with a song may result in performance data with too many notes, causing some notes to drop out.

Cause/Remedy

Case

The tuning or pitch

of the keyboard or

song is off

Song doesn’t play

back/ Only the

sound of a particu-

lar instrument in a

song does not play

Can’t record

Tempo of recorded

song or metronome

is off

The metronome

sound doesn’t

change

The recorded per-

formance has dis-

appeared

Depressing a pedal

has no effect, or

the pedal effect

doesn’t stop

The pedal rattles

Reverberation still

audible even with

Reverb turned off

Cause/Remedy

Have you set Transpose? (p. 17)

Are the settings for the “Temperament” and “Stretch Tuning” correct? (p. 27)

Is the setting for the “Master Tuning” correct? (p. 27)

Are the indicator for the Track buttons ([1] and [2] buttons) extinguished? (p. 20) If the button indicator is out, the music on that track is not heard. Press the track button so the indicator is illuminated.

Has one of the track buttons for recording been selected? (p. 23–p. 24)

If you select an internal song in which the tempo changes during the song, and then record, the tempo will change in the same way for the performances. The tempo of the metronome will also change in the same way.

If you record additional material without erasing the previously recorded song, the song will be recorded at the first-recorded tempo. Please erase the previously recorded song before you re-record (p. 25).

Any performance that has been recorded is deleted when the power to the MP-60 is turned off. A performance cannot be restored once it’s been deleted.

Is the pedal connected correctly? Make sure the pedal cord extending from the stand is securely connected to the pedal jack on the rear of the unit (p. 8).

Adjust the adjuster underneath the pedal so that the pedal presses firmly against the floor surface (p. 9).

Since the MP-60’s piano sounds faithfully reproduce the sense of spaciousness and reverberation of an actual acoustic piano’s sound, a certain amount of reverberation is still perceptible, even with the reverb effect deactivated.

Page 33

Appendices

Case

In the upper range,

the sound changes

abruptly beyond a

certain key

A High-pitched

whine is produced

Cause/Remedy

On an acoustic piano, notes in the upper one and a half octaves of the keyboard continue to sound until they decay naturally, regardless of the damper pedal. There is a difference in the timbre as well. Roland pianos faithfully simulate such characteristics of the acoustic piano. On the MP-60, the range that is unaffected by the damper pedal will change depending on the Key Transpose setting.

When listening through headphones:

Some of the more flamboyant and effervescent piano tones feature an ample high-end component, which may make the sound appear to have metallic reverberation added. Since this reverberation becomes particularly audible when supplemented by heavy reverb, you may be able to diminish the problem by reducing the amount of reverb applied to the sound.

When listening through speakers:

Here, a different cause (such as resonance produced by the MP-60) would be suspect. Consult your Roland dealer or nearest Roland Service Center.

Case

The bass range

sounds odd, or

there is a vibrating

resonance

The volume level of

the instrument con-

nected to Input

jacks is too low

Cause/Remedy

When listening through speakers:

Playing at loud volumes may cause instruments near the MP-60 to resonate. Resonation can also occur with fluorescent light tubes, glass doors, and other objects. In particular, this problem occurs more easily when the bass component is increased, and when the sound is played at higher volumes. Use the following measures to suppress such resonance.

• Place speakers so they are 10–15 cm from walls and other surfaces.

• Reduce the volume.

• Move the speakers away from any resonating objects.

When listening through headphones:

Here, a different cause (such as resonance produced by the MP-60) would be suspect. Consult your Roland dealer or nearest Roland Service Center.

Could you be using a connection cable that contains a resistor? Use a connection cable that does not contain a resistor.

Error Messages/Other Messages

Display Meaning

USr

Usr.

dEL

E.32

E.41

* Error messages are indicated by an “E.” before the number. Press any button, and you can cancel the error message.

User. Stores recorded performances (p. 22).

The “.” in the display indicates that there is performance material already recorded (p. 22).

Internal song number (p. 10).

Metronome sound number (p. 16).

This appears when a song with a pickup (a song that does not start on the first beat) is played back.

This appears when you attempt to delete a recorded song (p. 21, p. 25).

The amount of performance information is too large, and further recording is not possible.

A problem such as a loose MIDI cable occurred. Make sure the MIDI cables are correctly hooked up.

Page 34

Tone List

Button name

[PIANO]

[E. PIANO]

[HARPSICHORD]

[ORGAN]

[STRINGS]

[SPLIT] Off

[VARIA-

TION]

Dark

Red Grand Piano2

Green Piano + Strings

Dark

Red Electric Piano2

Green Vibraphone

Dark

Red Organ Flute

Green Clavi

Dark

Red Rotary Organ

Green Jazz Organ

Dark

Red Slow Strings

Green Choir

Tone

Grand Piano1

Electric Piano1

Harpsichord

Church Organ

Strings

[SPLIT] On

[VARIATION] Dark [VARIATION] Red [VARIATION] Green

Grand Piano1

/Acoustic Bass

Grand Piano2

/Acoustic Bass

Electric Piano1

/Electric Bass

Electric Piano2

/Electric Bass

Harpsichord

/Strings

Organ Flute

/Organ Bass

Church Organ

/Organ Bass

Rotary Organ

/Lower Organ

Strings

/Pizzicato

Slow Strings

/Pizzicato

Grand Piano1

/Acoustic Bass &

Cymbal

Grand Piano2

/Acoustic Bass &

Cymbal

Electric Piano1

/Acoustic Bass

Electric Piano2

/Acoustic Bass

Harpsichord

/Organ Flute

Organ Flute

/Strings

Church Organ

/Strings

Rotary Organ

/Electric Bass

Strings

/Choir

Slow Strings

/Choir

Grand Piano1

/Strings

Grand Piano2

/Strings

Electric Piano1

/Strings

Electric Piano2

/Strings

Clavi

/Electric Bass

Organ Flute

/Choir

Church Organ

/Choir

Jazz Organ

/Rotary Organ

Oboe

/Strings

Flute

/Slow Strings

* A+B: simultaneously playing two tones

You can change the volume balance between the two tones, refer to “Adjusting the Volume Balance in Dual Play (Dual Balance)” (p. 12).

A/B: A, the right-hand tone; and B, the left-hand tone in Split play

Page 35

Internal Song List

Song

No.

d. 1

d. 2

d. 3

d. 4

d. 5

d. 6

d. 7

d. 8

d. 9

d. 10

d. 11

d. 12

d. 13

d. 14

d. 15

d. 16

d. 17

d. 18

d. 19

d. 20

d. 21

d. 22

d. 23

d. 24

d. 25

d. 26

d. 27

d. 28

d. 29

d. 30

d. 31

d. 32

d. 33

d. 34

d. 35

d. 36

d. 37

d. 38

d. 39

d. 40

d. 41

d. 42

d. 43

d. 44

Song Name Composer Copyright

1ére Arabesque C. Debussy

Late Night Chopin

Sonate für Klavier No. 15 W. A. Mozart

Fly Free J. Maul

Liebesträume III F. Liszt

Étude, op.10-3 F. Chopin

Je te veux E. Satie

Valse, op.64-1 F. Chopin

Golliwog’s Cake walk C. Debussy

Fantaisie-Impromptu F. Chopin

An der schönen, blauen Donau J. Strauss

Auf Flügeln des Gesanges F. Mendelsshon

Mazurka No.5 F. Chopin

1ère Gymnopédie E. Satie

Étude, op.25-1 F. Chopin

Clair de Lune C. Debussy

Étude, op.10-5 F. Chopin

Doctor Gradus ad Parnassum C. Debussy

Grande Valse Brillante F. Chopin

La prière d’une Vierge T. Badarzewska

Course en Troïka P. Tchaikovsky

To The Spring E. Grieg

Valse, op.64-2 F. Chopin

Radetzky Marsch J. Strauss

Träumerei R. Schumann

Moments Musicaux III F. Schubert

Prélude, op.28-15 F. Chopin

The harmonious blacksmith G. Handel

Ungarische Tänze V J. Brahms

Türkischer Marsch (Beethoven) L. v. Beethoven

Nocturne No.2 F. Chopin

Frühlingslied F. Mendelsshon

Präludium J. S. Bach

Jägerlied F. Mendelsshon

Menuet Antique M. Ravel

Für Elise L. v. Beethoven

Türkischer Marsch (Mozart) W. A. Mozart

Ständchen F. Schubert

Humoreske A. Dvorjak

Blumenlied G. Lange

Alpenglöckchen T. Oesten

Menuett G dur (Beethoven) L. v. Beethoven

Venezianisches Gondellied F. Mendelsshon

Alpenabendröte T. Oesten

F. Chopin/ Arranged by John Maul

Page 36

Appendices

Song

No.

d. 45

d. 46

d. 47

d. 48

d. 49

d. 50

d. 51

d. 52

d. 53

d. 54

d. 55

d. 56

d. 57

d. 58

d. 59

d. 60

d. 61

d. 62

d. 63

d. 64

d. 65

Song Name Composer Copyright

Farewell to the Piano L. v. Beethoven

Brautchor W. Wagner

Battle of Waterloo W. Anderson

Wiener Marsch C. Czerny

Le Coucou L. C. Daquin

Menuett G dur (Bach) J. S. Bach

Spinnerlied A. Ellmenreich

Gavotte F. Gossec

Heidenröslein G. Lange

Zigeuner Tanz H. Lichner

La Cinquantaine G. Marie

Csikos Post H. Necke

Dolly’s Dreaming Awakening T. Oesten

La Violette L. Streabbog

Fröhlicher Landmann R. Schumann

Sonatine op.36-1 (Clementi) M. Clementi

Sonatine op.20-1 (Kuhlau) F. Kuhlau

Sonatine No.5 (Beethoven) L. v. Beethoven

Hungarian Rag: Hungarian Dance No. 5 Ragtime Arrangement For Solo Piano

Paganoogie Variation: Jazz Variation Based on “Caprice No. 24 in A Minor”

L’éveil del l’amour

J. Brahms/ Arranged by John Maul

N. Paganini/ Arranged by John Maul

Masashi & Kazuko Hirashita

Page 37

Easy Operation List

No. You want to Buttons Page

Press the [ON/OFF] and [BEAT] buttons simultaneously, and press the [●] button.

Master Tuning

Selecting a temperament

Specifying the keynote

Stretch tuning

Applying the damper pedal to the left-hand

keyboard area

MIDI send channel settings

Local Control

Transmitting a recorded performance

[ON/OFF]+ [BEAT] → [PIANO] p. 27

[ON/OFF] + [BEAT] → [E. PIANO]

→

[E. PIANO] + key

[ON/OFF] + [BEAT] → [HARPSICHORD] p. 28

[ON/OFF] + [BEAT] → [ORGAN] p. 28

[ON/OFF] + [BEAT] → [STRINGS] p. 31

[ON/OFF] + [BEAT] → [VARIATION] p. 31

[ON/OFF]+ [BEAT] → [PLAY] p. 31

p. 27

Press the [ ] button, and press the [-] or [+] button.

Beat of metronome

[BEAT] → [-] [+] p. 15

Dual Balance

[TRANSPOSE] + [SPLIT] → [-][+] p. 12

Hold down the [ ] button and press the [-] or [+] button.

Metronome volume

Metronome sound

Depth of the Reverb effect

Damper pedal’s resonance level

[ON/OFF] + [-] [+] p. 15

[BEAT] + [-] [+] p. 16

[REVERB] + [-] [+] p. 16

[REVERB] + [SPLIT] + [-] [+] p. 26

Hold down the [SPLIT] or [TRANSPOSE] button and press the key.

Split Point Key Transpose

[SPLIT] + key p. 14

[TRANSPOSE] + key p. 17

Page 38

Function...

Basic Channel

Mode

Note Number :

Velocity

After Touch

Pitch Bend

Control Change

Prog Change

System Exclusive

System Common

System Real Time

Aux Message

Notes

Transmitted Recognized Remarks

Default Changed

Default Messages Altered

True Voice

Note ON Note OFF

Key’s Ch’s

6, 38

7 11 64 66 67 91 93

100, 101

: True Number

: Song Pos : Song Sel : Tune

: Clock : Commands

: All sound off :

Reset all controllers : Local Control : All Notes OFF : Active Sense : Reset

1 1

–16

Mode 3 x

O x 8n v=64

15–113

x x

O x x O O O O O O

O O O O O O O O O

O (0...117)

**************

x x x

x x

x x x x O x

1 1–16

Mode 3 x

O x

0–127 15–113

x x

O (0–127)

0...117

x x x

x x

x O O O (123–127) O x

Data entry Volume Expression Hold 1 Sostenuto Soft Effect 1 (Reverb) Effect 3 (Chorus) RPN LSB, MSB

DIGITAL PIANO

Model MP-60

Date : July. 1, 2003

Version : 1.00

MIDI Implementation Chart

**************

Mode 1 : OMNI ON, POLY

Mode 3 : OMNI OFF, POLY

Mode 2 : OMNI ON, MONO

Mode 4 : OMNI OFF, MONO

O : Yes

X : No

MIDI Implementation Chart

Appendices

Page 39

Main Specifications

Keyboard

Touch Sensitivity

Keyboard Modes

Sound Generator

Max. Polyphony

Tones

Temperament

Stretched Tuning

Master Tuning

Transpose

Effects

Metronome

Beat

Volume

Recorder

Tracks

Song

Note Storage

Tempo

Resolution

Control

Preset Songs

Others

Rated Power Output

Speakers

Display

Control

Pedals

Other Functions

Connectors

Power Supply

Power Consumption

Dimensions

(including piano stand)

Weights

(including piano stand)

Accessories

88 keys Hammer Action Keyboard Preset 3 levels Whole, Dual (adjustable dual balance), Split (adjustable split point)

64 voices 15 tones in 5 groups 7 types, selectable tonic 2 types

415.3 Hz–466.2 Hz (adjustable in increments of 0.1 Hz) Key Transpose (-6–+5 in units of semitone) Reverb (8 levels), Chorus (for E. Piano only), Sympathetic Resonance (for Piano only, 8 levels)

2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8 8 levels

2 tracks 1 song Approx. 5,000 notes Quarter note = 20–250 96 ticks per quarter note Play/Stop, Rec, Tempo, All Song Play, Track Select 65 songs

20 W x 2 12 cm x 2 7-segment, 3-digit LED Volume, Brilliance (3 levels) Damper, Soft, Sostenuto Panel Lock, Tone Lock Output jacks (L/Mono, R), Input jacks (L/Mono, R), Headphones jack x 2 (Stereo),

MIDI In/MIDI Out connectors, Pedal jack AC 117 V/AC 230 V/AC 240 V 40 W 1,392 (W) x 422 (D) x 818 (H) mm / 54-13/16 (W) x 16-5/8 (D) x 32-1/4 (H) inches 1,392 (W) x 422 (D) x 987 (H) mm / 54-13/16 (W) x 16-5/8 (D) x 38-7/8 (H) inches

(including music stand)

42 kg/92 lbs 10 oz

Owner’s manual, Power cord, Headphones

* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Page 40

Index

AC inlet ............................................................................. 8

Adjuster ............................................................................ 9

All Song Play .................................................................. 10

Audio Equipment .......................................................... 29

Beat .................................................................................. 15

[BRILLIANCE] knob ....................................................... 9

Computer ....................................................................... 29

Count-In .......................................................................... 19

Damper pedal ............................................................ 9, 28

Resonance ................................................................. 26

Dual Balance .................................................................. 12

Dual Play ........................................................................ 12

Effects (Reverb) .............................................................. 16

Erase ................................................................................ 25

Function .......................................................................... 26

Headphones ..................................................................... 8

Internal Song .................................................................. 10

Key Touch ...................................................................... 18

Lid ...................................................................................... 8

Local Control ................................................................. 31

Master Tuning ............................................................... 27

Metronome ..................................................................... 14

MIDI ................................................................................ 30

MIDI channel ................................................................. 31

MIDI Devices ................................................................. 30

Music Stand ...................................................................... 8

Panel Lock ...................................................................... 28

Pedal .................................................................................. 9

Pedal Cable ....................................................................... 8

Pedal jack .......................................................................... 8

Phones jack ....................................................................... 8

Play

All Songs Continuously .......................................... 10

Along with the internal songs ................................ 19

Each Hand ................................................................ 20

Selecting a song ........................................................ 10

Power ................................................................................ 9

Power Cord ...................................................................... 8

[Power] switch ................................................................. 9

Record ............................................................................. 21

Along with a Song ................................................... 23

Each Hand ................................................................ 24

Erasing Performances ............................................. 25

New Song .................................................................. 22

Reverb ............................................................................. 16

Depth ......................................................................... 16

Soft pedal .......................................................................... 9

Sostenuto pedal ............................................................... 9

Split Play ......................................................................... 13

Split Point ....................................................................... 14

Stretch Tuning ................................................................ 28

Sympathetic Resonance .................................................. 9

Temperament ................................................................. 27

Tempo ....................................................................... 14, 19

Tone Lock ....................................................................... 28

TONE SELECT button .................................................. 11

Track button ............................................................. 20, 24

Transpose ........................................................................ 17

[TRANSPOSE] button ................................................... 17

Tuning Curve ................................................................. 28

Variation tone ................................................................ 11

Volume

Metronome ............................................................... 15

[VOLUME] knob ............................................................. 9

Page 41

MEMO

Page 42

Information When you need repair service, call your nearest Roland Service Center or authorized Roland

distributor in your country as shown below.

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar A1 Askalany Street, ARD E1 Golf, Heliopolis, Cairo 11341, EGYPT TEL: 20-2-417-1828

REUNION

Maison FO - YAM Marcel

25 Rue Jules Hermann, Chaudron - BP79 97 491 Ste Clotilde Cedex, REUNION ISLAND TEL: (0262) 218-429

SOUTH AFRICA

That Other Music Shop(PTY)Ltd.

11 Melle St., Braamfontein, Johannesbourg, SOUTH AFRICA TEL: (011) 403 4105 FAX: (011) 403 1234

Paul Bothner(PTY)Ltd.

17 Werdmuller Centre, Main Road, Claremont 7708 SOUTH AFRICA

TEL: (021) 674 4030

ASIA

CHINA

Roland Shanghai Electronics Co.,Ltd.

5F. No.1500 Pingliang Road Shanghai 200090, CHINA TEL: (021) 5580-0800

Roland Shanghai Electronics Co.,Ltd. (BEIJING OFFICE)

10F. No.18 3 Section Anhuaxili Chaoyang District Beijing 100011 CHINA TEL: (010) 6426-5050

Roland Shanghai Electronics Co.,Ltd. (GUANGZHOU OFFICE)

2/F., No.30 Si You Nan Er Jie Yi Xiang, Wu Yang Xin Cheng, Guangzhou 510600, CHINA TEL: (020) 8736-0428

HONG KONG

Tom Lee Music Co., Ltd. Service Division

22-32 Pun Shan Street, Tsuen Wan, New Territories, HONG KONG TEL: 2415 0911

Parsons Music Ltd.

8th Floor, Railway Plaza, 39 Chatham Road South, T.S.T, Kowloon, HONG KONG TEL: 2333 1863

INDIA

Rivera Digitec (India) Pvt. Ltd.

409, Nirman Kendra Mahalaxmi Flats Compound Off. Dr. Edwin Moses Road, Mumbai-400011, INDIA TEL: (022) 2493 9051

INDONESIA

PT Citra IntiRama

J1. Cideng Timur No. 15J-150 Jakarta Pusat INDONESIA TEL: (021) 6324170

KOREA

Cosmos Corporation

1461-9, Seocho-Dong, Seocho Ku, Seoul, KOREA TEL: (02) 3486-8855

MALAYSIA

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TEL: (03) 7805-3263

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gil J. Puyat Avenue Makati, Metro Manila 1200, PHILIPPINES TEL: (02) 899 9801

SINGAPORE

SWEE LEE MUSIC COMPANY PTE. LTD.

150 Sims Drive, SINGAPORE 387381 TEL: 6846-3676

CRISTOFORI MUSIC PTE LTD

Blk 3014, Bedok Industrial Park E, #02-2148, SINGAPORE 489980 TEL: 6243-9555

TAIWAN

ROLAND TAIWAN ENTERPRISE CO., LTD.

Room 5, 9fl. No. 112 Chung Shan N.Road Sec.2, Taipei, TAIWAN, R.O.C. TEL: (02) 2561 3339

THAILAND

Theera Music Co. , Ltd.

330 Verng NakornKasem, Soi 2, Bangkok 10100, THAILAND TEL: (02) 2248821

VIETNAM

Saigon Music

Suite DP-8 40 Ba Huyen Thanh Quan Street Hochiminh City, VIETNAM TEL: (08) 930-1969

AUSTRALIA/ NEW ZEALAND

Roland Corporation Australia Pty.,Ltd.

38 Campbell Avenue Dee Why West. NSW 2099 AUSTRALIA

For Australia Tel: (02) 9982 8266 For New Zealand Tel: (09) 3098 715

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055 (1123) Buenos Aires ARGENTINA TEL: (011) 4508-2700

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park Wildey, St.Michael, Barbados TEL: (246)430-1100

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 780 Sala B Parque Industrial San Jose Cotia - Sao Paulo - SP, BRAZIL TEL: (011) 4615 5666

CHILE

Comercial Fancy II S.A.

Rut.: 96.919.420-1 Nataniel Cox #739, 4th Floor Santiago - Centro, CHILE TEL: (02) 688-9540

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9 Medellin, Colombia TEL: (574)3812529

COSTA RICA

JUAN Bansbach Instrumentos Musicales

Ave.1. Calle 11, Apartado 10237, San Jose, COSTA RICA TEL: 258-0211

CURACAO

Zeelandia Music Center Inc.

Orionweg 30 Curacao, Netherland Antilles TEL:(305)5926866

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

Calle Proyecto Central No.3 Ens.La Esperilla Santo Domingo, Dominican Republic TEL:(809) 683 0305

ECUADOR

Mas Musika

Rumichaca 822 y Zaruma Guayaquil - Ecuador

TEL:(593-4)2302364

EL SALVADOR

OMNI MUSIC

75 Avenida Norte y Final Alameda Juan Pablo II, Edificio No.4010 San Salvador, EL SALVADOR TEL: 262-0788

GUATEMALA

Casa Instrumental

Calzada Roosevelt 34-01,zona 11 Ciudad de Guatemala Guatemala TEL:(502) 599-2888

HONDURAS

Almacen Pajaro Azul S.A. de C.V.

BO.Paz Barahona 3 Ave.11 Calle S.O San Pedro Sula, Honduras TEL: (504) 553-2029

MARTINIQUE

Musique & Son

Z.I.Les Mangle 97232 Le Lamantin Martinique F.W.I. TEL: 596 596 426860

Gigamusic SARL

10 Rte De La Folie 97200 Fort De France Martinique F.W.I. TEL: 596 596 715222

MEXICO

Casa Veerkamp, s.a. de c.v.

Av. Toluca No. 323, Col. Olivar de los Padres 01780 Mexico D.F. MEXICO TEL: (55) 5668-6699

NICARAGUA

Bansbach Instrumentos Musicales Nicaragua

Altamira D'Este Calle Principal de la Farmacia 5ta.Avenida 1 Cuadra al Lago.#503 Managua, Nicaragua TEL: (505)277-2557

PANAMA

SUPRO MUNDIAL, S.A.

Boulevard Andrews, Albrook, Panama City, REP. DE PANAMA TEL: 315-0101

PARAGUAY

Distribuidora De Instrumentos Musicales

J.E. Olear y ESQ. Manduvira Asuncion PARAGUAY TEL: (595) 21 492147

PERU

Audionet

Distribuciones Musicales SAC Juan Fanning 530 Miraflores Lima - Peru TEL: (511) 4461388

TRINIDAD

AMR Ltd

Ground Floor Maritime Plaza Barataria Trinidad W.I. TEL: (868)638 6385

URUGUAY

Todo Musica S.A.

Francisco Acuna de Figueroa 1771 C.P.: 11.800 Montevideo, URUGUAY TEL: (02) 924-2335

VENEZUELA

Instrumentos Musicales Allegro,C.A.

Av.las industrias edf.Guitar import #7 zona Industrial de Turumo Caracas, Venezuela TEL: (212) 244-1122

EUROPE

AUSTRIA

Roland Elektronische Musikinstrumente HmbH. Austrian Office

Eduard-Bodem-Gasse 8, A-6020 Innsbruck, AUSTRIA TEL: (0512) 26 44 260

BELGIUM/FRANCE/ HOLLAND/ LUXEMBOURG

Roland Central Europe N.V.

Houtstraat 3, B-2260, Oevel (Westerlo) BELGIUM TEL: (014) 575811

CZECH REP.

K-AUDIO

Kardasovska 626. CZ-198 00 Praha 9, CZECH REP. TEL: (2) 666 10529

DENMARK

Roland Scandinavia A/S

Nordhavnsvej 7, Postbox 880, DK-2100 Copenhagen DENMARK TEL: 3916 6200

FINLAND

Roland Scandinavia As, Filial Finland

Elannontie 5 FIN-01510 Vantaa, FINLAND TEL: (0)9 68 24 020

GERMANY

Roland Elektronische Musikinstrumente HmbH.

Oststrasse 96, 22844 Norderstedt, GERMANY TEL: (040) 52 60090

GREECE

STOLLAS S.A. Music Sound Light

155, New National Road Patras 26442, GREECE TEL: 2610 435400

HUNGARY

Roland East Europe Ltd.

Warehouse Area ‘DEPO’ Pf.83 H-2046 Torokbalint, HUNGARY TEL: (23) 511011

IRELAND

Roland Ireland

G2 Calmount Park, Calmount Avenue, Dublin 12 Republic of IRELAND TEL: (01) 4294444

ITALY

Roland Italy S. p. A.

Viale delle Industrie 8, 20020 Arese, Milano, ITALY TEL: (02) 937-78300

NORWAY

Roland Scandinavia Avd. Kontor Norge

Lilleakerveien 2 Postboks 95 Lilleaker N-0216 Oslo NORWAY TEL: 2273 0074

POLAND

MX MUSIC SP.Z.O.O.

UL. Gibraltarska 4. PL-03664 Warszawa POLAND TEL: (022) 679 44 19

PORTUGAL

Roland Iberia, S.L. Portugal Office

Cais das Pedras, 8/9-1 Dto 4050-465, Porto, PORTUGAL TEL: 22 608 00 60

ROMANIA

FBS LINES

Piata Libertatii 1, 535500 Gheorgheni, ROMANIA TEL: (266) 364 609

RUSSIA

MuTek

3-Bogatyrskaya Str. 1.k.l 107 564 Moscow, RUSSIA TEL: (095) 169 5043

SPAIN

Roland Iberia, S.L.

Paseo García Faria, 33-35 08005 Barcelona SPAIN TEL: 93 493 91 00

SWEDEN

Roland Scandinavia A/S SWEDISH SALES OFFICE

Danvik Center 28, 2 tr. S-131 30 Nacka SWEDEN TEL: (0)8 702 00 20

SWITZERLAND

Roland (Switzerland) AG

Landstrasse 5, Postfach, CH-4452 Itingen, SWITZERLAND TEL: (061) 927-8383

UKRAINE

TIC-TAC

Mira Str. 19/108 P.O. Box 180 295400 Munkachevo, UKRAINE TEL: (03131) 414-40

UNITED KINGDOM

Roland (U.K.) Ltd.

Atlantic Close, Swansea Enterprise Park, SWANSEA SA7 9FJ, UNITED KINGDOM TEL: (01792) 702701

MIDDLE EAST

BAHRAIN

Moon Stores

No.16, Bab Al Bahrain Avenue, P.O.Box 247, Manama 304, State of BAHRAIN TEL: 17 211 005

CYPRUS

Radex Sound Equipment Ltd.

17, Diagorou Street, Nicosia, CYPRUS TEL: (022) 66-9426

IRAN

MOCO INC.

No.41 Nike St., Dr.Shariyati Ave., Roberoye Cerahe Mirdamad Tehran, IRAN TEL: (021) 285-4169

ISRAEL

Halilit P. Greenspoon & Sons Ltd.

8 Retzif Ha'aliya Hashnya St. Tel-Aviv-Yafo ISRAEL TEL: (03) 6823666

JORDAN

AMMAN Trading Agency

245 Prince Mohammad St., Amman 1118, JORDAN TEL: (06) 464-1200

KUWAIT

EASA HUSAIN AL-YOUSIFI & SONS CO.

Abdullah Salem Street, Safat, KUWAIT TEL: 243-6399

LEBANON

Chahine S.A.L.

Gerge Zeidan St., Chahine Bldg., Achrafieh, P.O.Box: 165857 Beirut, LEBANON TEL: (01) 20-1441

OMAN

TALENTZ CENTRE L.L.C.

P.O. BOX 37, MUSCAT, POSTAL CODE 113 TEL: 931-3705

QATAR

Al Emadi Co. (Badie Studio & Stores)

P.O. Box 62, Doha, QATAR TEL: 4423-554

SAUDI ARABIA

aDawliah Universal Electronics APL

Corniche Road, Aldossary Bldg., 1st Floor, Alkhobar, SAUDI ARABIA

P.O.Box 2154, Alkhobar 31952 SAUDI ARABIA TEL: (03) 898 2081

SYRIA

Technical Light & Sound Center

Rawda, Abdul Qader Jazairi St. Bldg. No. 21, P.O.BOX 13520, Damascus, SYRIA TEL: (011) 223-5384

TURKEY

Ant Muzik Aletleri Ithalat Ve Ihracat Ltd Sti

Siraselviler Caddesi Siraselviler Pasaji No:74/20 Taksim - Istanbul, TURKEY TEL: (0212) 2449624

U.A.E.

Zak Electronics & Musical Instruments Co. L.L.C.

Zabeel Road, Al Sherooq Bldg., No. 14, Grand Floor, Dubai, U.A.E. TEL: (04) 3360715

NORTH AMERICA

CANADA

Roland Canada Music Ltd. (Head Office)

5480 Parkwood Way Richmond B. C., V6V 2M4 CANADA TEL: (604) 270 6626

Roland Canada Music Ltd. (Toronto Office)

170 Admiral Boulevard Mississauga On L5T 2N6 CANADA TEL: (905) 362 9707

U. S. A.

Roland Corporation U.S.

5100 S. Eastern Avenue Los Angeles, CA 90040-2938, U. S. A. TEL: (323) 890 3700

As of January 15, 2005 (ROLAND)

Page 43

For EU Countries

This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC.

For the USA

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment. This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Page 44

Contents

No. Name Qty.

1 Instrument 1

2 Music Stand 1

3 Manual Set 1

4 Power Cord Set 1

This owner’s manual is printed on recycled paper.

03344767 ’05-4-6N
