ROHM BU94607AKV Technical data

A
AAC/WMA/MP3+SD Memory Card +iPod+CD-ROM
BU94607AKV
Description BU94607AKV is WAV/AAC/WMA/MP3 decoder IC which contains program download function from external serial Flash ROM and contains USB host, SD card I/F, CD-ROM I/F, audio DAC, system controller, regulator for internal CORE power supply.
For using of this LSI, it is necessary to become a licensee of Apple Inc. regarding "Made for iPod/iPhone/iPad License".
Features
1) USB2.0 Full Speed host I/F function contained.
2) SD card I/F function contained.
2
3) I
4) MP3 decode function contained. (available for MPEG1, 2 and 2.5, Layer 1, 2 and 3)
5) WMA decode function contained. (available for WMA9 standard and not available for DRM)
6) AAC decode function contained. (available for MPEG4 AAC-LC and not available for DRM)
7) WAV format file playing function contained.
8) Sample Rate Converter contained.
9) System Controller contained.
10) FAT analysis function contained.
11) CD-ROM I/F function and CD-ROM decode function contained.
12) Browsing function of other File Names, Folder Names on music playing contained.
13) ID3TAG and WMATAG and AACTAG Analysis.
14) Fast forward playing and fast backward playing function contained.
15) KEY function can control. (STAND ALONE MODE)
16) External processor can control. (SLAVE MODE)
17) Resume function contained.
18) Audio DAC contained.
19) Sound Effect function contained.
20) Digital Audio Out(I
21) Program download function from external serial Flash ROM contained.
22) Regulator for internal CORE power supply contained.
23) VQFP80pin(0.5mm pitch)
Applications
Audio products, etc.
C format I/F function contained.
2
S, EIAJ, S/PDIF) function contained.
No.12080EAT05
www.rohm.com
1/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Absolute maximum ratings (Ta = 25℃)
Parameter Symbol Limits Unit Comment
Supply voltage(Analog, I/O) VDD1MAX
Input voltage VIN Storage temperature range TSTG Operating temperature range TOPR Power dissipation *1 PD 900
*1In the case of use at Ta=25 or more, 7.5mW should be reduced per 1. Radiation resistance design is not arranged.
Operating conditions (Ta = 25℃)
Parameter Symbol Limits Unit Comment
Supply voltage(Analog, I/O) VDD1
-0.34.5
DVDDIO, VDD_PLL, DAVDD, AVDDC
-0.3 VDD1 + 0.3
-55125
-4085
mW
3.03.6 V DVDDIO,VDD_PLL,
DAVDD, AVDDC
Technical Note
www.rohm.com
2/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
1. Electrical characteristics
Unless specified, Ta=25℃、VDD1=3.3V, DVSS=AVSSC=VSS_PLL=DAVSS=0V, XIN_PLL=16.9344MHz)
Parameter Symbol
MIN. TYP. MAX.
Limits
Unit Condition
<Total > Circuit current (VDD1 USB1) IDD1USB1
- 60 90
mA *1 When USB memory is played. Circuit current (VDD1 SD1) IDD1SD1 - 35 60 mA *1 When SD card is played. <Digital block> H-Level input voltage VIH VDD1*0.7 VDD1 V *3 L-Level input voltage H-Level output voltage1 L-Level output voltage1 L-Level output voltage2 H-Level output voltage3 L-Level output voltage3 H-Level output voltage4 L-Level output voltage4
VIL DVSS VDD1*0.3 V *3
VOH1 VDD1-0.4 VDD1 V IOH=-1.6mA, *4
VOL1 0 0.4 V IOL=1.6mA. *4 VOL2 0 0.4 V IOL=3.6mA, *5
VOH3 VDD1-0.4 VDD1 V IOH=-0.6mA, *6
VOL3 0 0.4 V IOL=0.6mA, *6
VOH4 VDD1-1.0 VDD1 V IOH=-0.6mA, *7
VOL4 0 1.0 V IOL=0.6mA, *7
<USB-HOST >
H-Level input
VIHUSB VDD1*0.6 VDD1 V *8
voltage
L-Level input voltage
VILUSB AVSSC VDD1*0.3 V *8 Output impedance(H) ZOH 22.0 45.0 60.0 Ω *8 Output impedance(L) ZOL 22.0 45.0 60.0 Ω *8
H-Level output
VOHUSB VDD1-0.5 VDD1 V *8
voltage
L-Level output voltage
VOLUSB 0 0.3 V *8 Rise/Fall time Tr/Tf 11 ns *8, Output capacity 50pF Voltage of crossing point VCRS VDD1/2 V *8, Output capacity 50pF Range of differential input VDIFF 0.8 2.5 V *8 Differential input sensitivity VSENS 0.2 V *8 Pull-down resistance RPD 14.25 20.0 24.8 kΩ *8 <Audio DAC> Distortion rate THD 0.005 % 1kHz, 0dB, sine, *9 Dynamic range DR 90 dB 1kHz, -60dB, sine, *9 S/N ratio S/N 95 - dB *9 Max output level VSMAX 0.67 Vrms 1kHz, 0dB, sine, *9
*1 3.3V system I/O, Analog Power supply(VDD1), 1kHz, 0dB, sine-wave playing *3 1, 3, 4-9, 14-23, 29, 31-32, 34-35, 61-63, 71-76 pin *4 9, 11-12, 14-15, 18-20, 30, 36, 58-60, 61-67, 69-70 pin *5 2, 3, 17 pin *6 24-26, 28, 29 pin *7 49 pin *8 41, 42 pin *9 53, 55 pin
www.rohm.com
3/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
2. Block diagram
Technical Note
Block diagram
www.rohm.com
4/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
3. Description of Terminals
STAND ALONE MODE (MODE1) SLAVE MODE (MODE2)
No Pin Name
1 RESETX A I PU
2 TEST15 I O *3
3 TEST16 I I/O *3
4 SEL_SLAVE B I
SEL_MP3/
5
INREQI
SEL_DOUT/
6
LRCKI
SEL_VOL/
7
BCKI
SEL_APLAY/
8
SDATAI
SEL_UTPKT/
9
BFULLO
10 DVSS - - - GND terminal - - GND terminal
11 IRPTO B O - OPEN O - Connection interrupt output terminal
12 SEARCH B O - OPEN O - Search flag output terminal
13 DVDDIO - - IO power (VDD1) terminal - - IO power (VDD1) terminal
KEY_ROW1/
14
MCHNG
KEY_ROW2/
15
BUSY
KEY_ROW3/
16
SCL
KEY_ROW4/
17
SDA
KEY_COL1/
18
A0
KEY_COL2/
19
A1
KEY_COL3/
20
SEL_I2C
21 SD_WP B I PU SD card I/F WP detection terminal
22 SD_CON B I PU
23 SD_DO B I - SD card I/F data input terminal
24 SD_CLK B O - SD card I/F clock output terminal
25 SD_DI B O - SD card I/F data output terminal
26 SD_CS B O - SD card I/F chip select output terminal
27 DVSS - - - GND terminal - - GND terminal
28 FL_CS B O -
TEST/
29
CLK12MO
30 TEST5 B O - Test mode terminal. Use it as OPEN.
31 TEST6 H I -
32 TEST7 H I -
33 DVDDIO - - - IO power (VDD1) terminal - - IO power (VDD1) terminal
IO
IO PU Function IO PU Function
Cir
H: Release RESET, L: RESET
Test mode terminal Pull it up at VDD1 power.
Test mode terminal Pull it up at VDD1 power.
PU
H: STAND ALONE, L:SLAVE
*1
B I
B I
B I
B I
B I
B PU KEY ROW key command input O - File play end flag output terminal
B PU KEY ROW key command input O -
I *3 KEY ROW key command input I *3 I2C slave clock input terminal
I *3 KEY ROW key command input I/O *3 I2C slave data I/O terminal
B -
B -
B -
B I PU
PU *1H: PLAY MP3 ONLY,
L: PLAY MP1,MP2 and MP3
PU *1H: ANALOG DAC Output,
L: Digital Output
PU *1H: Volume controll valid,
L: Volume control invalid
PU *1H: Auto Play OFF ,
L: Auto Play
PU *1H: Normal Operation
L: USB Test Packet Output
KEY COLUMN1 Key command output
KEY COLUMN2 Key command output
KEY COLUMN3 Key command output
SD card I/F connection detection terminal
Serial Flash ROM chip select output terminal
Test mode terminal. Pull it up at VDD1 power.
Test mode terminal Pull it up at VDD1 power.
Test mode terminal Pull it up at VDD1 power.
O *3
I/O *3
I - Input data valid terminal
I -
I - Digital Audio bit clock input terminal
I -
O - Input buffer full flag output terminal
I - I2C slave address setting terminal
I - I2C slave address setting terminal
I -
O - 12MHz CLK Output.
Digital Audio channel clock input terminal
Digital Audio channel data input terminal
Command analysis BUSY output temrinal
Test mode terminal. Pull it up at VDD1 power.
www.rohm.com
5/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
34 TEST8 H I -
35 TEST9 H I -
36 TEST10 B O -
37 DVSS - - - GND terminal - - GND terminal
38 DVDD_M2 - - -
39 ATEST1 - O - USB test terminal (OPEN)
40 AVDDC - - - USB power (VDD1) terminal
41 USB_DM C I/O - USB D-I/O terminal
42 USB_DP C I/O - USB D+ I/O terminal
43 AVSSC - - - USB GND terminal
44 REXTI D O -
45 VOREFI - O - USB test terminal (OPEN)
46 VSS_PLL - - - PLL GND terminal.
47 TEST_PLL1 - I - PLL test terminal. (OPEN)
48 XIN_PLL E I -
49 XOUT_PLL E O -
50 TEST_PLL2 - I -
51 VDD_PLL - - - PLL power (VDD1) terminal.
52 DAVSS - - - Audio DAC GND terminal
53 RDACO F O - Audio DAC Rch line output terminal
54 VCDACO F O -
55 LDACO F O - Audio DAC Lch line output terminal
56 DAVDD - - - Audio DAC power (VDD1) terminal
57 DVSS - - - GND terminal - - GND terminal
58 AMUTE G O -
59 TEST11 B O - Test mode terminal. Use it as OPEN.
60 TEST12 B O - Test mode terminal. Use it as OPEN. /Master Clock output(16.9344MHz)
LED_ERROR/
61
SS_CS
LED_PLAY/
62
SS_DI
LED_PSD/
63
SS_CLK
LED_PUSB/
64
SS_DO
LED_ACCESS/
65
LRCKO
LED_RANDO
66
M/BCKO
LED_REPEAT/
67
SDARAO
68 DVDDIO - - - IO power (VDD1) terminal - - I/O power (VDD1) terminal
69 TEST13 B O - Test mode terminal Use it as OPEN.
70 TEST14 B O - Test mode terminal Use it as OPEN.
71 SEL_USB B I PU Preference detection device select
B O - [LED] Error LED ON output PU SIO Slave CS input terminal
B O - [LED] Play LED ON output I - SIO Slave DATA input terminal
B O - [LED] SD device select LED ON output I - SIO Slave clock input terminal
B O -
B O - [LED] Device access LED blink output O -
B O - [LED] Randum play LED ON output O - [BCKO] Digital Audio bit clock output
B O - [LED] Repeat LED ON output O - [DATAO] Digital Audio data output
Test mode terminal Pull it up at VDD1 power.
Test mode terminal Pull it up at VDD1 power.
Test mode terminal (IPL ERROR status). Use it as OPEN.
CORE power (VDD2) monitor terminal Short-circuit to DVDD_M1. Connect bypass capacitor.
USB reference voltage output terminal Connect to AVSSC terminal using USB bias resistor (12kΩ).
X'tal (16.9344MHz) connection input terminal.
X'tal (16.9344MHz) connection output
terminal.
PLL test terminal. Pull it up at VDD1 power.
Audio DAC reference voltage output terminal
Audio mute output (H: Mute OFF, L: Mute ON) terminal
[LED] USB device select LED ON output
CORE power (VDD2) monitor terminal
- -
O - SIO Slave DATA output terminal
Short-circuit to DVDD_M1. Connect bypass capacitor.
[LRCKO] Digital Audio channel clock
output, SPDIF output
www.rohm.com
6/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
*1 (H: USB, L: SD)
72 TEST4 H I -
Test mode terminal Pull it up at VDD1 power.
Test mode terminal
73 TEST3 H I -
(IPL WRITE MODE1)
Pull it up at VDD1 power.
Test mode terminal
74 TEST2 H I -
(IPL WRITE MODE2)
Pull it up at VDD1 power.
75 TEST1 H I -
76 TMODE H I -
Test mode terminal Pull it up at VDD1 power.
Test mode terminal Connect it to GND.
77 DVSS - - - GND terminal - - GND terminal
78 DVDD_M1 - - -
CORE power (VDD2) monitor terminal Connect it to bypass capacitor.
79 DVDDIO - - - IO power (VDD1) terminal - - IO power (VDD1) terminal
80 TEST0 - I -
Test mode terminal Connect it to GND.
*1 Pull-Up turns OFF when L is input.
*2 In STAND ALONE MODE (MODE1):
It turns OFF when ANALOG DAC output is selected (SEL_DOUT=H).
It performs I2S format audio output when Digital output is selected (SEL_DOUT=L).
*3 An external pull-up resistor is required because of Open Drain IO.
4. Terminal equivalent circuit diagram
A B C D
DVDDIO
DVDDIO
DVDDIO
DVDDIO
D P
D M
AVDDC
AVDDC
15KΩ
DVSSIO
DVSSIO
15KΩ
AVSSCAVSSC
AVSSC
E F G H
DVDDIO
DVSSIO
XIN
VDD_PLL
VSS_PLL
VDD_PLL
XOUT
VSS_PLL
DAVDD
DVDDIO
DAVSS
DVSSIO
I
DVSSIO
I/O terminal equivalent circuit diagram
www.rohm.com
7/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5. I/O Signal Specifications
5.1 Clock and Reset
Clock
Clock name I/O Function Remarks
XIN_PLL I X'tal (16.9344MHz) connection input terminal
XOUT_PLL O X'tal (16.9344MHz) connection terminal
Reset
Signal name I/O Function Remarks
RESETX I System reset input terminal
Please release the reset signal continue L input for more than 100 us after clock input from the oscillation I/O terminal becomes stable. (See Figure 5.1.)
Power supply
XIN_PLL
RESETX
Item Code
W aitin g tim e fo r
oscillation stabilization
min typ max
clk
f
tRS T X

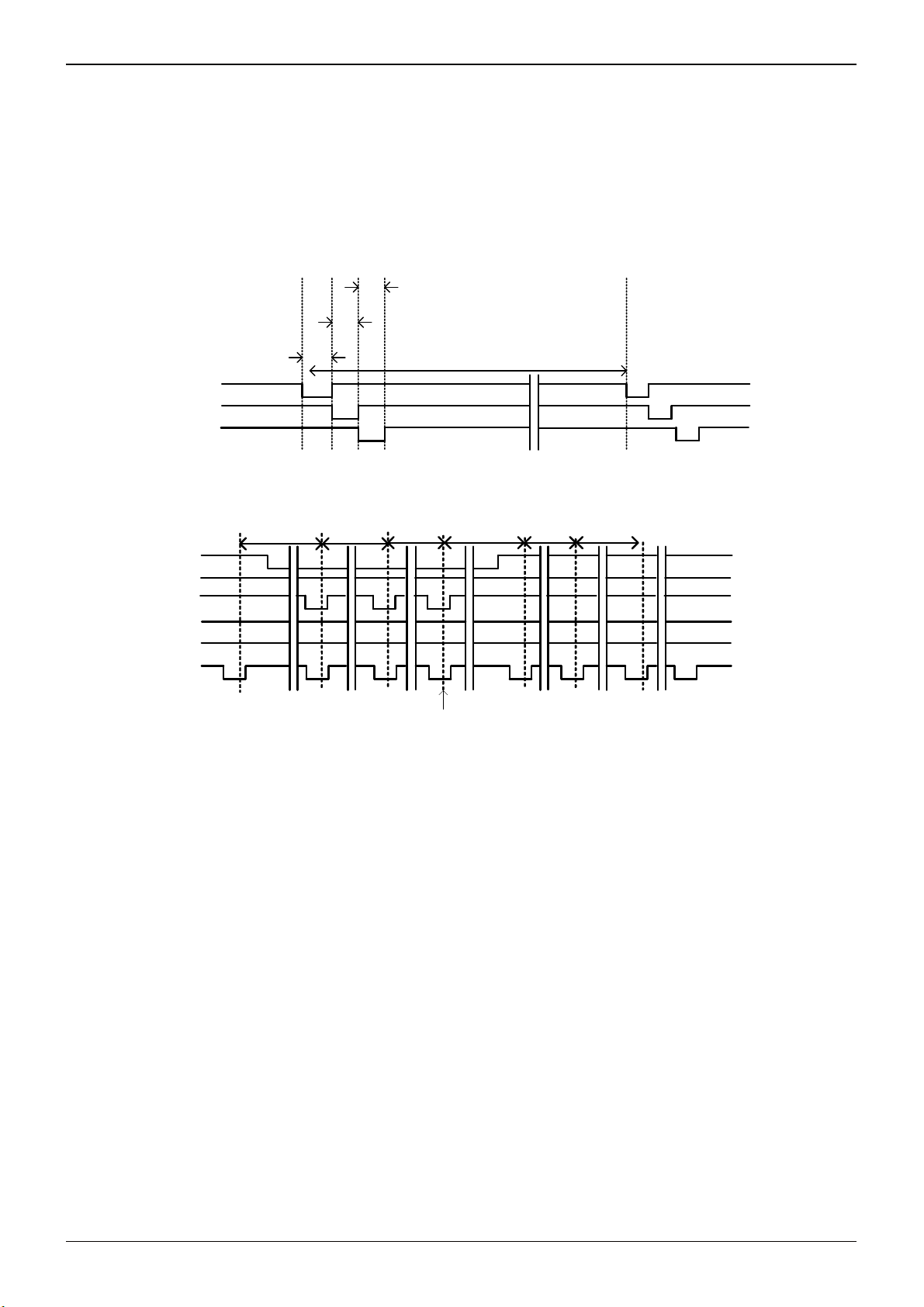

Figure 5.1 Reset Timing
Rating
Technical Note
Unit Remarks
Clock frequency f
Reset L interval t
16.9302 16.9344 16.9386 MHz
CLK
100 - - us
RSTX
5.2 SEL_SLAVE MODE1/MODE2 selection input signal
Signal name I/O Function Remarks
SEL_SLAVE I Selection between MODE1 and MODE2 H: MODE1, L: MODE2
SEL_SLAVE allows you to select MODE1 (Stand-alone Mode) or MODE2 (Slave Mode). SEL_SLAVE is set only at power ON. Note that selection change will be ignored after power ON.
5.3 SEL_MP3
MPEG Audio Layer 1, 2 and 3 play selection signal
Signal name I/O Function Remarks
SEL_MP3 I MPEG Audio Layer selection H: Only MP3 is playable. L: MP1,MP2 and MP3 are playable.
SEL_MP3 allows you to select the layer of MPEG audio to be played. It is available in MODE1 only. Enter L to make all the files having file extensions of mp1, mp2 and mp3 playable. Enter H to play mp3 file only. SEL_MP3 is set only at power ON. Note that selection change will be ignored after power ON.
www.rohm.com
8/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
p
5.4 SEL_DOUT
Audio output selection signal
Signal name I/O Function Remarks
SEL_DOUT I Audio output selection H: Line output, L: I2S three-line serial output
SEL_DOUT selects the audio output signal. It is available in MODE1 only. Audio outputs in each MODE are shown in Table 5.4.1 “Audio Output”. Output formats used in each MODE are shown in Table 5.4.2 “I2S_fs”. See Chapter 6 for commands. Because TEST terminal is an output terminal, use it as OPEN.
Pin.
53 Line Out Rch HiZ Line Out Rch HiZ HiZ
55 Line Out Lch HiZ Line Out Lch HiZ HiZ
65 LED_ACCESS I2S LR CLOCK TEST terminal LR CLOCK SPDIF
66 LED_RANDOM I2S BIT CLOCK TEST terminal BIT CLOCK TEST terminal
67 LED_REPEAT I2S LRDATA TEST terminal LRDATA TEST terminal
SEL_DOUT is set only at power ON. Note that selection change will be ignored after power ON.
5.5 SEL_VOL
Volume control selection signal
Signal name I/O Function Remarks
SEL_VOL I Volume control selection H: Volume control ON, L: Volume control OFF
SEL_VOL allows you to select volume control ON/OFF. It is available in MODE1 only. When SEL_VOL=H, volume control becomes enabled. The initial value is –25.6dB at power ON. When SEL_VOL=L, volume control becomes disabled. Audio output is fixed to 0 dB. Figure 5.5 shows the relationship between audio outputs and volume steps. SEL_VOL is set only at power ON. Note that selection change will be ignored after power ON.
Table 5.4.1 Audio Output
MODE1 MODE2
SEL_DOUT=H SEL_DOUT=L ANALOG
Table 5.4.2 I2S_fs
MODE1 32fs I2S
MODE2 Selectable by commands
Technical Note
DIGTAL
SPDIF OFF SPDIF ON
0
-10
-20
-30
Initial value: -25.6dB
-40
Audio output (dB)
-50
(when SEL_VOL=H)
-
-60 02468101214161820222426283032
Volume ste
Figure 5.5 Volume Step Function
www.rohm.com
9/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5.6 SEL_APLAY Auto play selection signal at power ON and at device recognition
Signal name I/O Function Remarks
SEL_APLAY I
SEL_APLAY selects whether the audio data in the memory is to be automatically played when a memory device (USB memory or SD card) is inserted at power ON or when the system recognizes the memory device inserted. SEL_APLAY is selectable in MODE1 only. In MODE2, the operation stops after device recognition. Use a command to select the operation.
5.7 SEL_UTPKT USB test packet
Signal name I/O Function Remarks
SEL_UTPKT I USB test packet send H: Invalid, L: USB test packet send
When L is input in SEL_UTPKT at power ON, test packet signals are output from USB_DP and USB_DM terminals. SEL_UTPKT is available in MODE1 only. Test packet signals are continuously output until the power is turned OFF. You can use this signal to evaluate the USB terminal. In other cases, you can use it with Pull-up.
5.8 USB I/F USB I/O interface
Signal name I/O Function Remarks
USB_DP I/O USB D+ I/O terminal -
USB_DM I/O USB D- I/O terminal -
REXTI O USB bias resistor connection terminal Connect a resistor of 12 k±1% to GND.
This interface communicates with the USB device using USB_DP and USB_DM differential signals. REXTI terminal is used to connect to the bias resistor in the USB-PHY block.
5.9 SD I/F SD memory card SPI interface
Signal name I/O Function Remarks
FL_CS O Serial flash ROM chip select -
SD_CS O SD chip select -
SD_CLK O SPI clock -
SD_DI O SPI data input -
SD_DO I SPI data output -
SD_CON I SD card connect detection terminal
SD_WP I SD card write-protect detection terminal
This interface connects to the SD memory card slot to communicate with the SD memory device. Since the SD memory card slot needs to detect the insertion status of the SD memory device and the write-protect status, be sure to use the slot having the SD memory card insertion status detection terminal and the WP terminal and connect it to the terminals. The SD_CON terminal is pulled up within the device and detects “SD card connect” when L is input. The SD_WP terminal is pulled up within the device and detects “SD card no-write-protect” when L is input. SD I/F is also used as an external serial flash ROM I/F.
5.10 Audio line output Audio line output
Signal name I/O Function Remarks
LDACO O Lch audio line output -
RDACO O Rch audio line output -
This is a line output of decoded music data.
Auto play selection at device recognition
Technical Note
H: Stop after device recognition, L: Play after device recognition
H: Do not detect SD card connect, L: Detect SD card connect
H: SD write-protect valid, L: SD write-protect invalid
www.rohm.com
10/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
In MODE1, the output turns ON when SEL_DOUT terminal is selected. In MODE2, it turns ON when line output is selected by a command.
5.11 MUTE control output Audio MUTE
Signal name I/O Function Remarks
AMUTE O Audio mute control terminal H: At audio output , L: At mute
This control terminal is used to mute audio output when power is ON or in the silence mode such as FF or FB. It outputs H at audio output and L at mute. Figure 5.11 shows the operation waveforms.
At start of play At stop of play
AMUTE
23 ms at 0dB
LDACO, RDACO
Figure 5.11 Waveform at Audio Mute
5.12 Serial audio output Three-line serial audio interface
Signal name I/O Function Remarks
LRCK O LR clock output (fs=44.1kHz) -
BCK O Bit clock output -
DATA O Data output -
This is a serial audio output interface terminal. In MODE1, it becomes enabled by inputting L to SEL_DOUT terminal. In MODE2, it becomes enabled by using the appropriate command. When serial audio output is selected, the data is output in I2S format of 32fs in MODE1. In MODE2, the output format can be selected from the EIAJ format or I2S format of 32fs, 48fs or 64fs. Figures 5.12.1, 5.12.2, 5.12.3, 5.12.4, 5.12.5 and 5.12.6 show the output formats.
LRCK
BCK(32fs)
DATA
LRCK Left Channel Right Channel
BCK(48fs)
DATA
LRCK
BCK(64fs)
DATA
Left Channel
0 15 14 13 12 11 10 9 8 7 6 5 4 3 2 11 0
Figure 5.12.1 I2S Output Timing (32fs)
15 14 12 11 10 9 8 7 6 5 4 3 2 1 0 15 1413
Figure 5.12.2 I2S Output Timing (48fs)
Left Channel Right Channel
13 1215 14 11 8 710 9 6 3 25 4 1 0 13 1215 14
Figure 5.12.3 I2S Output Timing (64fs)
23 ms at 0dB
Right Channel
15
www.rohm.com
11/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
LRCK
BCK(32fs)
DATA
Left Channel
Right Channel
1415 14 13 12 11 10 9 8 7 6 5 4 3 2 10 0
15
Figure 5.12.4 EIAJ Output Timing (32fs)
LRCK Left Channel Right Channel
BCK(48fs)
DATA
15 14 12 11 10 9 8 7 6 5 4 3 2 1 01 0 13
Figure 5.12.5 EIAJ Output Timing (48fs)
LRCK
BCK(64fs)
DATA
Left Channel Right Channel
13 1215 14 11 8 710 9 6 3 25 4 1 01 02
Figure 5.12.6 EIAJ Output Timing (64fs)
5.13 SPDIF output Digital audio interface
Signal Name I/O Function Remarks
SPDIF O Digital audio output -
SPDIF output become enabled by setting it in MODE2 using the appropriate command. Figure 5.13 shows the digital audio signal output format.
034 1112 2728293031
Source code
Synchronous preamble
Source code(4-31)
SPDIF output
Synchronous
preamble
Synchronous
preamble
0 0 0 0 0 0 0 0 1 0 1 1 0 1
all 0 Audio data(16bit)
(B pattern)
(M pattern)
(W pattern)
LSB MSB
V U C P
Figure 5.13 SPDIF Output Format
One sub frame of SPDIF consists of synchronous preambles, 16-bit audio data, V bit (validity flag), U bit (user data), C bit (channel status) and P bit (parity bit). Output rate is fixed to 1X speed. SPDIF outputs synchronous preambles (source code 0-3) as they are, and other elements (source code 4-31) as the biphase output. While the operation stops, L output is enabled. Synchronous preambles and C bit use 32 frames (4.4 ms) for one cycle. The data formats are shown in Tables 5.13.1 and 5.13.2. V bit is fixed to L. U bit uses 98 frames (13.3 ms) for one cycle.
www.rohm.com
12/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
P bit is set to 1 if the number of “1” contained in source codes 4-30 is odd, and set to 0 if the number is even. Therefore, the number of source codes to be set to 1 for one data must be even, SPDIF ends with L output, and preamble output always starts in the same direction.
Technical Note
Table 5.13.1 Synchronous Preamble Pattern
L0 R0 L1 R1 L2 R2 L3 R3 L4 R4 L5 R5
0 B W M W M W M W M W M W
1 M W M W M W M W M W M W
: : : : : : : : : : : : :
31 M W M W M W M W M W M W
Table 5.13.2 C Bit Format
L0 R0 L1 R1 L2 R2 L3 R3 L4 R4 L5 R5
0 0 0 Copy 0 0 0
1 0 0 1 0 0 0
2 0 0 0 Lbit 0 0
3 0 0 1 0 0 1 0 0
4 0 0 0 0 0 0
5 0 0 0 0 0 0
: : : : : : :
31 0 0 0 0 0 0
Table 5.13.3 U Bit Format
L0 R0 L1 R1 L2 R2 L3 R3 L4 R4 L5 R5
0 0 0 0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0 0 0 0
2 1 0 0 0 0 0 0 0 0 0 0 0
3 1 0 0 0 0 0 0 0 0 0 0 0
: : : : : : : : : : : : :
97 1 0 0 0 0 0 0 0 0 0 0 0
www.rohm.com
13/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5.14 KEY input I/F
3x4 matrix command I/O
Signal name I/O Function Remarks
KEY_ROW1 I
KEY_ROW2 I -
KEY_ROW3 I External pull-up resistor is required.
KEY_ROW4 I External pull-up resistor is required.
KEY_COL1 O -
KEY_COL2 O -
KEY_COL3 O -
Configure the circuit of the matrix signal terminal for KEY commands as shown in Application Circuit Diagram in Figure 5.14. The interface performs the operations for KEY pressed in this circuit. Chapter 6 in this document details each operation.
Technical Note
-
KEY matrix I/O signals
REPEAT RANDOM CHG_DEV+10
VOL+ FOL- FOL+VOL-
KEY_
ROW1
KEY_
ROW2
PLAY/ PAUSE
STOP
KEY_
ROW3
KEY_
ROW4
FFFB
KEY_
COL1
KEY_
COL2
KEY_
COL3
Figure 5.14 KEY Matrix Application Circuit Diagram
www.rohm.com
14/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5.15 I2C command interface Slave I2C serial interface
Signal name I/O Function Remarks
SCL I I2C interface clock input External pull-up resistor is required.
SDA I/O I2C interface data I/O External pull-up resistor is required.
A0 I Slave address selection terminal Slave address [0] bit setting terminal
A1 I Slave address selection terminal Slave address [1] bit setting terminal
This is an I2C serial interface terminal to communicate with the microcomputer (master). The interface becomes enabled by inputting L in SEL_SLAVE terminal (in MODE2). It supports slave I2C operations.
5.15.1 I2C protocol When the I2C bus is in the IDLE state, SDA and SCL are set to H by the external Pull-up resistor. To start communications, the master sets SDA to L while SCL set to H (Start condition). To finish
communications, the master sets SDA to H while SCL set to H (Stop condition). During transfer, the master changes SDA only while SCL is L. Figure 5.15.1 shows Start condition and Stop condition of I2C.
Technical Note
SCL
SDA
Start condition
12
MSB
8
LSB ACK
9 1
ACK
9
Stop condition
Figure 5.15.1 I2C Start and Stop Conditions
5.15.2 Slave address
I2C bus slave addresses support the 7-bit addressing mode. By inputting to terminals A0 and A1, the bus slave address can be selected as shown in Table 5.15.2. Figure 5.15.2 shows the slave address transfer format.
S A6 A5 A4 A3 A2 A1 A0 R/W ACK
Start
condition
Slave Address
R / W = Read / Write Pulse
ACK = Acknowledge
sent by
slave
Figure 5.15.2 Slave Address Transfer Format
Table 5.15.2 Settable Slave Addresses
MSB
A6
A5 A4 A3 A2
A1
terminal
LSB
A0
terminal
1 0 0 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 0 1 0 1 0 0 0 0 1 1
5.15.3 Protocol to write from the master
When sending commands from the master using the I2C bus, be sure to conform to the transfer protocol shown in Figure 5.15.3. For details on each command, see Chapter 6.
S Slave Address A Data(8bit)R/W A Data(8bit) A Data(8bit) PA/A
"0"(write)
From Master to Slave
From Slave to Master
A = Acknowledge(SDA low) A = No Acknowledge(SDA high) S = Start Condition P = Stop condition
Figure 5.15.3 Command Send Protocol
5.15.4 Protocol to read to the master
When sending the received data from the slave to the master using the I2C bus, be sure to conform to the transfer
www.rohm.com
15/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
protocol shown in Figure 5.15.4.1. First, transfer the status read command (step1). Then, input SCL clock of required bytes in step2 to read the status. If the device status is BUSY when receiving the device status or the data within the memory, the I2C bus may be occupied by the device in BUSY. This LSI transfers the data to the master to avoid such occupation of the bus. However, as the BUSY status still exists internally, the proper data may not be transferred in BUSY. To cope with this situation, the first byte of the transfer data (step2) is used to judge whether the transferred data is valid or invalid. After addressing from the master to the slave, if the 0 bit of the first byte of the transfer data immediately after requiring the data transfer is 0, the data transferred from the slave is valid. If the 0 bit of the first byte is 1, it shows the BUSY status. Thus, judge all the transferred data to be invalid. If this happens, retry Step1 to send commands to read the status. The first byte of the transferred data (step2) can be readable as the BUSY byte even without sending the status read command (step1). In addition, internal statuses other than BUSY shown in Table 5.15.4 can be read.
Figure 5.15.4.2 shows the relationship between the transferred data and BUSY. * For details on BUSY, see 5.16.
Table 5.15.4 BUSY Byte Structure
bit STATUS
7 0 6 0 5 0 4 PRECOM 3 IRPTO 2 SEARCH 1 MCHNG 0 BUSY
Step1
S Slave Address A Data(8bit)R/W A Data(8bit) PA/A
Step2
S Slave Address A BUSY(8bit)R/W A Data(8bit) P A
From Master to Slave
From Slave to Master
"0"(write)
Data(8bit) A
"1"(read)
A = Acknowledge(SDA low) A = No Acknowledge(SDA high) S = Start Condition P = Stop condition
Figure 5.15.4.1 Status Reception Protocol
Technical Note
Step1 command S Slave Address A 0xFF A Data(8bit) P AData(8bit) AR
I2C
BUSY
Step1 command S Slave Address A 0x00 A Data(8bit) P AData(8bit) AR
BUSY byte
BUSY byte for Status
Figure 5.15.4.2 Relationship between Transferred Data and BUSY
www.rohm.com
16/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
5.15.5 I2C Bus line timing
SDA and SCL bus-line characteristic (Unless specified, Ta=25, Vcc=3.3V)
Parameter Code Min. Max. Unit
1 SDA, SCL H input voltage VIH VDD*0.7 VDD V
2 SDA, SCL L input voltage VIL DVSS VDD*0.3 V
3 SDA H output voltage VOH VDD-0.4 VDD V
4 SDA L output voltage VOL 0 0.4 V
5 SCL clock frequency fSCL 0 400 kHz
Bus-free-time between "Stop" condition and
6
"Start" condition
Hold time for "Start" condition
7
After this, the first clock pulse is generated.
tBUF 1.3 us
tHD;STA 0.6 us
8 LOW status hold-time of SCL clock tLOW 1.3 us
9 HIGH status hold-time of SCL clock tHIGH 0.6 us
10 Data-hold-time tHD;DAT 0* us
11 Date-setup-time tSU;DAT 100 ns
12 Rising time of SDA and SCL signal tR 20+0.1*Cb 300 ns
13 Fall time of SDA and SCL signal tF 20+0.1*Cb 300 ns
14 Setup time of "Stop" condition tSU;STO 0.6 us
15 Capacitive load of each bus-line Cb 400 pF
The above-mentioned numerical values are all the values corresponding to V
IH min
and V
IL max
level. *To exceed an undefined area on falling edged of SCL, transmission device should internally offer the hold-time of 300ns or more for SDA signal (V
of SCL signal).
IH min
Because the "Repeated Start" condition to send "Start" condition without sending "Stop" condition doesn't correspond, after sending "Start" condition, always send "Stop" condition.
Neither terminal SCL nor terminal SDA correspond to 5V tolerant.
SDA
t
BUF
t
LOW
t
t
R
F
SCL
t
HD;STA
SP
t
HD;DAT
t
HIGH
t
SU;DAT
t
SU;STO
P
www.rohm.com
17/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5.16 BUSY BUSY status detection output
Signal name I/O Function Remarks
BUSY O BUSY status detection output signal H: Busy, L: Not Busy
This is output to indicate that the LSI is in the BUSY status. A BUSY signal outputs H untill analyzing a command from the master and starting the command operation. This LSI ignores command input during BUSY.
5.17 MCHNG Tune number change detection output
Signal name I/O Function Remarks
MCHNG O Tune number change detection output signal H: During playing, L: At the end or stop of tune
This signal outputs the information which tells that the file within the memory is being played or the file to be played is changed. Precisely, the signal outputs H during the internal decode sequence operation, and L at stop of the operation.
5.18 SEARCH SEARCH status detection output
Signal name I/O Function Remarks
SEARCH O SEARCH status detection output signal H: SEARCH, L: Not SEARCH
This is output to indicate that the LSI is in the SEARCH status. A SEARCH signal becomes H at the time of memory mount, file search, TAG analysis and TOC analysis. The LSI ignores command input during SEARCH. However, it can accept only ABORT, STOP and staus read commands even during SEARCH and can execute them command.
5.19 IRPTO Interrupt output to microcomputer
Signal name I/O Function Remarks
IRPTO O Interrupt output to microcomputer H: Interrupt, L: Not Interrupt
This is output to indicate that the LSI is now requiring interruption to the microcomputer. Change from L to H shows that an interruption has occurred.
Technical Note
www.rohm.com
18/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
5.21 CD INPUT interface Three-line serial audio input interface
Signal name I/O Function Remarks
LRCKI I LR clock input -
BCKI I BIT clock input -
SDATAI I Data input -
INREQI I Input data valid H: Input data valid, L: Input data invalid
BFULLO O Internal buffer FULL output H: Internal buffer FULL, L: Not FULL
This is a three-line serial audio input interface terminal from a CD. The interface is available in MODE2. 4X max input speed supports.
5.21.1 Input format You can select the input format from the EIAJ format and I2S format of 16 bits. You can select the BIT clock from 32fs, 48fs and 64fs. You can select the input sampling frequency from 32 kHz, 44.1 kHz and 48 kHz. Perform the required settings using commands before inputting data.
LRCK
BCK(48fs)
DATA
INREQI
Tlrck1
Tda1
Tinreqi1
Tbck1 Tbck2
Tda2
15 14 12 11 10 9 8 7 6 5 4 3 2 1 0 15 1413
Left Channel Right Channel
Tbck
Tlrck2
Figure 5.21.1.1 I2S Input Timing (48fs)
LRCK Left Channel Right Channel
BCK(48fs)
DATA
15 14 12 11 10 9 8 7 6 5 4 3 2 1 01 0 13
Figure 5.21.1.2 EIAJ Input Timing (48fs)
timing(ns)
Item sign MIN TYP MAX
LRCKI
BCKI
SDATAI
setup Tlrck1 41 Tbck/2 ­hold Tlrck2 41 Tbck/2 ­L section Tbck1 41 Tbck/2 ­H section Tbck2 41 Tbck/2 ­setup Tda1 41 Tbck/2 ­hold Tda2 41 Tbck/2 -
INREQI setup Tinreqi1 200 - -
CD I/F input timing regulation
www.rohm.com
19/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
5.21.2 INREQI INREQI inputs H from the microcomputer when the input data is valid. When INREQIH and BFULLOL, the IC fetches the input data to the internal buffer.
5.21.3 BFULLO BFULLO outputs H when the internal buffer becomes FULL because the data input speed is too fast to manage the internal decoding. When BFULLO=H, the microcomputer set to INREQI=L. When INREQIH and BFULLOL, the IC fetches the input data to the internal buffer.
5.22 Serial interface Slave SPI serial interface
Signal name I/O Function Remarks
SS_CS I Slave SPI chip select input -
SS_CLK I Slave SPI clock input -
SS_DI I Slave SPI data input -
SS_DO O Slave SPI data output -
This is a slave serial SPI interface terminal. The interface is available in MODE2. It supports the SPI format (MODE0,1,2 and 3). You can select the data width from 8, 16 and 32 bit. An input clock is 2MHz at the maximum. The interface is available to read and write the specific file data from/to the memory.
Technical Note
Figure 5.22.1 SPI MODE0 Serial Timing
timing(ns)
Item sign MIN TYP MAX setup Tcs1 500 - -
SS_CS
hold Tcs2 250 - ­H section Tcsh 0 - ­L section Tclk1 250 - -
SS_CLK
H section Tclk2 250 - ­pulse width controlled - - - 100
SS_DI
SS_DO
setup Tdi1 100 - ­hold Tdi2 100 - ­output delay Tdo1 - 150 ­output delay Tdo2 - 150 -
SPI I/F input timing regulation
www.rohm.com
20/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
5.23 SEL_USB
Signal name I/O Function Remarks
Figure 5.22.2 SPI MODE1 Serial Timing
Preference device detection selection signal
SEL_USB I Preference device detection selection signal H: USB, L: SD
The signal selects which device should be detected with the highest priority at power ON. When SEL_USB=H, the microcomputer detects the preference device from USB. When SEL_USB=L, it detects the preference device from SD. SEL_USB is set only at power ON only. Note that selection change will be ignored after power ON.
www.rohm.com
21/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6Functions and Operations
6.1 File search
6.1.1 Function
- The file search function supports file system of FAT32, FAT16 and FAT12. (NTFS is not supported.)
- The number of maximum playable files per folder follows the specification of FAT.
The number of files described above includes folders and files other than playable files (WAV/AAC/WMA/MP3). Thus, if non-playable files or folders contain in the above folders and the number of total files exceeds the maximum limit, all the playable files may not be played.
- Less than 100 files in the order of FAT within each folder are sorted according to UNICODE. More than 100 files, if any, will be sorted in the FAT order. The same rule is applied when sorting sub-folders. More than 100 sub-folders, if any, will be sorted in the FAT order. In MODE2, a sorting function can be selected valid or invalid with a command. In MODE1, a sorting function is always effective.
- The folder hierarchies up to 16 hierarchies whose full path including the file name is within 260 characters can be searched.
6.1.2 Playable file The playable file extension is *.WAV for the WAV file, *.M4A, *.3GP and *.MP4 for the AAC file, *.ASF and *.WMA for the WMA file, and *.MP3, *.MP2 and *.MP1 for the MP3 file. (There is no distinction between upper case letters and lower case letters.) Note that the file operation differs in the following cases [1] SEL_MP3: For details, see SEL_MP3. [2] Attribute: Files with hidden attributes are also playable. Files with system attributes cannot be played. [3] File name: The file name, including its size, does not depend on playability. [4] File size: A file with file size "0" is not recognized as a playable file.
6.1.3 File playing sequence
The file playing sequence depends on the following rules when sort function valid. See Figure 6.1.3.
[1] Files of 1 to 100, in the order written to FAT (FAT order) in each folder, are sorted in the order of UNICODE (see
6.1.4). Files more than 100 are played in the FAT order. The same rule is applied when sorting sub-folders. MP3 files are sorted for MP3 which conforms to SEL_MP3. All the folders including null ones and those to which no playable file is written are sorted. If over 100 playable files or sub-folders are contained in the folder, they are played in the order written to the FAT directory entries. The writing method of directory entries will not help understand the file play order because the method depends
on the OS operation at writing. [2] When a playable file exists in the root folder (the top hierarchy), the file is to be played first. [3] After all the playable files within the root folder have been played, playable files in the folder in the lower
hierarchy, if any, are played. [4] If another folder exists in the lower hierarchy, playable files within this folder are played. If not, the LSI searches
other folders in the same hierarchy. If another folder exists there, the LSI plays that folder. [5] After playing all the files, the LSI returns to the root folder as in [2] and play the files starting with the top sorted
one.
Technical Note
Table6.1.1 Maximum Playable Files per Folder
Root folder Sub folder
FAT12 512 65534 FAT16 512 65534 FAT32 65536 65534
www.rohm.com
22/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.1.4 Folder/File sort The LSI sorts the sub-folders and files in the following sequence:
[1] Obtain up to 100 sub-folders and files each in the order written to FAT within selected folder. [2] Compare the obtained folder/file names for 14 characters (28 bytes) from the beginning in UNICODE (2-byte
character) and sort them in the ascending order. *
[3] If there are files/folders with same character strings: follow the order of MP3, WMA, AAC and WAV when the
extension is different; and, otherwise, follow the order written to FAT. [4] 101 or more files or sub-folders follow the order written to FAT. * The processing of the file name and the folder name is shown in the following.
1) When a LFN (long file name) entry exists, 2 bytes are treated as one character.
2) When no LFN entry exists, the SFN(short file name) entry is processed as follows.
2-a) When the first appeared character code is within the range of 0x00-0x7F (US-ASCII), the LSI treats one byte
2-b) For a case other than 2-a), practically, the LSI treat these 2 bytes as one character.
*For details on LFN and SFN, see the FAT file system specifications.
Technical Note
as one character, and adds '0x00' to the upper of the character to expand the entire character to an UNICODE.
[Root
Folder]
E.mp3 F.mp3 G.mp3 H.mp3
J.mp3
L.mp3 M.mp3 N.mp3 O.doc P.xls Q.mp3
S.txt T.txt
V.mp3 W.mp3 X.mp3 Y.mp3 Z.mp3
A.mp3 B.mp3 C.mp3
D.mp3
A_FOLDER
B_FODER
C_FOLDER
R.txt
D_FOLDER
E_FOLDER
I.mp3
K.mp3
U.mp3
Figure 6.1.3 Example of Folder/File Structure within the Memory Device
www.rohm.com
23/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
rchy
Technical Note
Table 6.1.3 File Play Sequence for Folder/File Structure in Figure 6.1.3
Play order
1 A.mp3 2 B.mp3
3 C.mp3
4 D.mp3 5 E.mp3 6 F.mp3 7 G.mp3 8 H.mp3
9 I.mp3 10 J.mp3 11 K.mp3 12 L.mp3 13 M.mp3 14 N.mp3 15 Q.mp3 -Unplayable files are ignored. 16 U.mp3 17 V.mp3 18 W.mp3 19 X.mp3 20 Y.mp3
21 Z.mp3
6.1.5 Search within multi-drive and multi-partition If a device is a multi-drive type, the LSI recognizes the drive having the smaller LUN (Logical Unit Number) for the supporting FAT.
Only one drive is recognized and the other drive is not. For the multi-partition, the LSI recognizes only the first read FAT-supported partition. Files in other partitions cannot be read.
6.1.6 External HUB search When the USB connector is connected to a HUB, and a FAT-supported drive is connected ahead of the HUB at mounting the USB for this LSI, only one drive is recognized. The LSI does not support external HUBs, it cannot detect plugging/unplugging of the drive ahead of the HUB after the USB is mounted.
File to be
ed
pla
-The LSI first starts playing the playable files in the root folder, if any.
-The files are played in the ascending order of UNICODE given to each file name.
-After playing all the playable files in the root folder, the LSI searches folders in the lower hierarchy.
-The folders are searched in the
ascending order of UNICODE given to each folder name.
-After playing all the playable files
including those in A_FOLDER and in its lower hierarchy, the LSI moves to the hierarchy in which A FOLDER exists and searches files.
-In this case, since no playable file exists in D FOLDER, which is in the same hierarchy of A_FOLDER, the LSI plays the playable files in E FOLDER in the further lower hiera
Remarks
.
www.rohm.com
24/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.2 Playing files
6.2.1 Function For the files judged to be playable through the file search function, the LSI automatically switches the decoder using the file extension and decodes these files. Fast forward play and rewinding play operations are available. Also, repeat play and random play are available.
6.2.2 Playable file formats
6.2.2.1 MP3 file format
This format supports MPEG Audio 1, 2, 2.5 and Layer 1, 2, 3. It supports sample rates of 8 kHz, 16 kHz, 32 kHz, 11.025 kHz, 22.05 kHz, 44.1 kHz, 12 kHz, 24 kHz and 48kHz. It supports bit rates of 8 to 320kbps and VBR (Variable Bit Rate).
6.2.2.2 WMA file format
This format supports WMA Ver.9 Standard. It supports sample rates of 8 kHz, 16 kHz, 32 kHz, 11.025 kHz , 22.05 kHz, 44.1 kHz, 12 kHz, 24 kHz and 48 kHz. It supports bit rates of 5 to 384kbps and VBR (Variable Bit Rate). It does not support DRM. It supports ASF files including audio streams only.
6.2.2.3 AAC file format
This format supports MPEG4 AAC-LC. It conforms to ITunes and 3GPP TS 26.244. It supports file types of m4a, mp42 and 3gpX. (X is an arbitrary numeric value.) ITunes is validated in the following versions: 4.*, 5.*, 6.* and 7.0-7.5. It supports sample rates of 8 kHz, 16 kHz, 32 kHz, 11.025 kHz, 22.05 kHz, 44.1 kHz, 12 kHz, 24 kHz and 48 kHz. It supports bit rates of 8 to 320kbps and VBR (Variable Bit Rate). It does not support DRM.
6.2.2.4 WAV file format
This format supports RIFF WAVE. It supports sample rates of 8 kHz, 16 kHz, 32 kHz, 11.025 kHz, 22.05 kHz, 44.1 kHz, 12 kHz, 24 kHz and 48k Hz.
If you try to play a file created in any format other than above, the LSI immediately terminates decoding it.
6.2.3 Playing files having damaged data If the data section of the MP3 file is damaged, the LSI plays the music data in the possible range instead of ceasing to play the entire file. It mutes the unplayable section. However, AMUTE terminal remains H output. If the data section of the WAV file is damaged, noises are output. The LSI executes other files within the playable range and stops playing. Then, it skips to the next tune. If a part of the data header is damaged, the LSI immediately terminates playing and skips to the next tune.
If the file’s extension is playable but its file’s data does not have a format supporting to the extension, the LSI immediately terminates playing and skips to the next tune. If the file does not have a file format, the LSI immediately terminates playing and skips to the next tune. However, when the file data is structured in a format other than MP3 and its file extension is *.MP3, *.MP2 or *.MP1, the LSI plays it in the silence mode basically. However, if the LSI can read any playable data, it plays the file partially. In this case, the time information which is output as the serial status also becomes unstable. The time information is then partially output but you cannot obtain the correct information.
Technical Note
www.rohm.com
25/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.2.4 NEXT playing mode and Repeat playing mode You can select the operation as shown below depending on the next playing mode, repeat mode and random mode.
Next playing mode [1] PLAY_NEXT: Automatically searches the next tune after the tune being played ends and starts playing
[2] PLAY_ALL_STOP: After the last tune being played within the memory ends, stops upon completion of search
[3] PLAY_FOL_STOP: After the last tune being played within the folder ends, stops upon completion of
[4] PLAY_TUN_STOP: After the tune being played ends, stops upon completion of search for the next tune.
Repeat mode [1] REPEAT_ALL: After playing all the tunes within the memory in process, starts playing them from the
[2] REPEAT_FOL: Repeats playing tunes within the folder in process. [3] REPEAT_TUN: Repeats playing the tune in process.
[4] RANDOM_ALL: Plays the range of 128 files from the current tune being played at random within the
[5] RANDOM_FOL: Plays the range of 128 files from the current tune being played at random within the
Select one operation from next play mode and repeat mode respectively to determine the operation. When repeat mode is REPEAT_FOL, the PLAY_ALL_STOP becomes invalid, and serves as PLAY_NEXT. When repeat mode is [3][4][5], the PLAY_ALL_STOP and PLAY_FOL_STOP becomes invalid, and serves as PLAY_NEXT. In MODE1, the Next playing mode is fixed to [1] and you cannot select others. In MODE1, you cannot select the repeat mode [5].
REPEAT_ALL REPEAT_FOL REPEAT_TUN RANDOM_ALL RANDOM_FOL PLAY_NEXT PLAY_ALL_STOP × × × × PLAY_FOL_STOP × × × PLAY_TUN_STOP
6.2.5 resume playing function The LSI can read the resume information to the microcomputer in MODE2, the resume playing will be enabled using this information. The resume information includes the playing time when it has been read. Thus, in MODE2, the LSI resumes from previous playing time of the tune. Resume playing is not supported in MODE1.
Technical Note
the next tune.
for the next tune. Starts playing the next tune by the play command issued subsequently.
search for the next tune. Starts playing the next tune by the play command issued subsequently.
Starts playing the next tune by the play command issued subsequently.
beginning of the memory.
memory.
folder in process.
www.rohm.com
26/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.3 MODE1
6.3.1 KEY command operation
6.3.1.1 KEY SCAN (signal mode)
KEY_COL1
KEY_COL2
KEY_COL3
Technical Note
KEY SCAN operates in the following sequence on the circuit configuration as shown in Figure 5.14. [1] KEY_COL1 to 3 output waveforms at timing as shown in Figure 6.3.1. [2] By pressing the KEY switch, KEY_ROW 1 to 4 are set to L at timing when KEY_COL 1 to 3 are L. [3] When detecting L input from KEY_ROW 1 to 4 three times, the master judges that KEY has been pressed.
Then, the master starts the KEY operation.
Figure 6.3.2 shows the waveforms when PLAY KEY has been pressed.
1us
1us
1us
20ms
Figure 6.3.1 KEY SCAN Waveforms
20ms 20ms 20ms 20ms 20ms 20ms
PLAY
KEY_ROW1
KEY_ROW2
KEY_ROW3
KEY_ROW4
KEY_COL1
Determine that the KEY has been pressed and start the corresponding KEY command.
Figure 6.3.2 Operation Waveforms when KEY is Pressed
6.3.1.2 KEY SCAN (Hold Mode) KEY SCAN operates in the following sequence on the circuit configuration as shown in Figure 5.14.
[1] KEY_COL1 to 3 output waveforms at timing as shown in Figure 6.3.1. [2] By pressing KEY switch, KEY_ROW 1 to 4 are set to L at timing when KEY_COL 1 to 3 are L. [3] When detecting L input from KEY_ROW 1 to 4 three times, the master judges that KEY has been pressed.
Then, the master starts judging status of holded KEY.
[4] When pressed KEY’s decision (L input from KEY_ROW 1 to 4 three times) is detected consecutive 15
times, the master judges that KEY Mode is Hold Mode.
[5] When KEY release is detected in judging status of holded KEY, the master judges that KEY Mode is Single
Mode. Then, the master starts the KEY operation.
[6] When Hold Mode is detected, the master starts the KEY operation in Hold Mode. When KEY release is
detected in Hold Mode, the master finish the KEY operation. KEYS corresponding to Hold Down operations are FF, FB, VOL+ and VOL-.
www.rohm.com
27/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
FF
KEY_COL
KEY_ROW
Technical Note
60ms
Determine that KEY is
pressed (1).
KEY
20ms
Determine that KEY is
pressed (2).
KEY
Determine that KEY is
pressed (16).
KEY押
pressed.
KEY下を確定
Determine that KEY is
released.
Determine that KEY is
KEYリ
Determine that KEY is pressed.
KEY下を確定
Judging that KEY is held down.
長押し判定
Determine that KEY is held down. KEY operates under
長押作中
Hold Down Mode
長押
Figure 6.3.3 Operation Waveforms when KEY Is Held
Note 1: Based on the above sequence, the master determines that KEY is pressed and starts the operation of the pressed KEY, pressing multiple KEYs at the same time will produce different operations depending on the KEY combinations. Therefore, you cannot regulate the operation sequence correctly even simultaneously pressing multiple KEYs will not cause any problems. In Hold Mode, Other pressed KEY is disregarded. Note 2: Because the KEY input does not have a buffering function, KEY inputs other than those described below are ignored.
www.rohm.com
28/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.3.1.3 KEY commands
Table 6.3.1.3.1 shows the types and operations of KEY commands. Table 6.3.1.3.2 shows valid and invalid statuses of KEY commands.
Table 6.3.1.3.1 KEY Commands and Operations
KEY COMMAND Operations
-When receiving PLAY/PAUSE KEY during stop, the LSI starts playing the top file sorted for the
PLAY/PAUSE
STOP
FF
FB
FOL+
FOL-
+10
recognized device.
-When receiving PLAY/PAUSE KEY during play, the LSI pauses playing the file. When receiving PLAY/PAUSE KEY again, it restarts playing.
-When receiving STOP KEY during play, pause or file search, the LSI stops playing, pausing or searching a file.
-When receiving FF KEY (single) during play or pause, the LSI searches the next playable file in the sort order of files being played or paused. Upon completion of search, it starts playing.
-During play of the final file, the LSI returns to the top file in the sort order and starts playing.
-When repeat or random mode is set up, LSI searches the next file following to setup in this mode. However, when one music repeat is set up, LSI searches the next file following to setup in memory repeat mode within a memory.
-When receiving FF KEY (Hold Down) during play or pause, the LSI starts fast forward operations from the position being played. When detecting FF KEY release, the LSI returns to normal play.
-When a tune ends during FF KEY (Hold Down), the LSI starts fast forward operations from the top of the next tune in the sort order. However, if repeat is preset, the LSI follows the setting and starts fast forward operations from the top of the next tune. When detecting FF KEY release, it returns to normal play.
-When receiving FB KEY (single) during play or pause, the LSI searches the previous AAC/WMA/MP3 file in the sort order of files being played or paused. Upon completion of search, it starts playing.
-During play of the top file, the LSI plays the last file sorted.
-When repeat or random mode is set up, LSI searches the next file following to setup in this mode. However, when one music repeat is set up, LSI searches the next file following to setup in memory repeat mode within a memory.
-When receiving FB KEY (single) in 1 seconds after start of play, the LSI plays the previous tune sorted. When receiving FB KEY after 1 second pasts, the LSI returns to the top of the file being played and restarts playing.
-When receiving FB KEY (Hold Down) during play or pause, the LSI rewinds the file from the present position of the tune being played. When detecting FB KEY release, it returns to normal play. When a tune ends during FB KEY (Hold Down), the LSI starts rewinding the previous tune sorted from its end. However, if repeat is preset, the LSI follows the setting and starts rewinding the previous tune from its end. When detecting FB KEY release, it returns to normal play.
-When receiving FOL+ KEY during play or pause, the LSI searches files in the next folder in the sort order, where the files being played or paused exits. Upon completion of search, the LSI plays the file.
-While playing a file in the last folder in the sort order, the LSI plays the top file in the sort order.
-When receiving FOL-KEY during play or pause, the LSI search files in the previous folder in the order of sort of the folder where the files being played or paused exits. Upon completion of search, the LSI plays the file.
-While playing files in the top folder in the sort order, the LSI plays the top file in the last folder in the sort order.
-When receiving +10 KEY during play or pause, the LSI searches the file 10 files ahead of the current one in the sort order of the files being played or paused. Upon completion of search, the LSI starts playing the file.
-When the remaining number of files to be played in the sort order becomes less than 10, the LSI plays the top file.
-When repeat or random mode is set up, LSI searches the next file following to setup in this mode. However, when one music repeat is set up, LSI searches the next file following to setup in memory repeat mode within a memory.
Technical Note
www.rohm.com
29/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
(
VOL+/VOL-
CHNG_DEV
REPEAT
RANDOM
Technical Note
-When receiving VOL+/VOL- KEY with SEL_VOL terminal set to H, the LSI controls the sound volume.
-The volume is controlled in 32 steps between - (minimum volume) to 0 dB (maximum volume).
-VOL+/VOL- KEY turns UP/DOWN the volume by one step at the timing when the KEY is pressed (single). When Hold Downing KEY for more than 1 second, the LSI judges the operation as a Hold Down and then continuously turns UP/DOWN the volume while the KEY is held down. Thus, VOL_KEY can be held down.
-The master selects the device between USB memory and SD memory card. To do this, both devices should be connected or one device should correspond to the other (USB to SD or SD to USB). Otherwise, this key operation is ignored.
-Stop after selecting the device at the top tune of the device.
-REPEAT and RANDOM settings return to the initial values.
-When inserting both USB Memory and SD Memory card, or neither USB Memory and SD Memory card, the master precedes USB Memory.
-REPEAT KEY changes the repeat play mode.
-By pressing REPEAT KEY, the LSI toggles “Repeat all tunes within the memory“ “Repeat one tune” “Repeat within folder”.
-”Repeat within folder” repeats files within the folder being played. “Repeat all tunes within the memory” is set by default
-RANDOM KEY plays in the range of ±128 files in the sort order at random.
-RANDOM KEY can change the mode only during play, pause or stop.
Table 6.3.1.3.2 KEY Operation Valid/Invalid
After recognized device
PLAY/
PAUSE
STOP × × × ○ × ×
FF × × × × × ×
FB × × × × × ×
FOLDER+ × × × × × ×
FOLDER- × × × × × ×
VOL+ ×
VOL- ×
+10 × × × × × ×
CHNG_DEV × × × ×
REPEAT × × ×
RANDOM × × ×
= Valid, × = Invalid
Stop after searching)
recognized either USB
or SD
× × ×
recognized
both USB
and SD
During playing device
recognized either USB
orSD
recognized
both USB
and SD
STOP recognized
During search
Error condition
either USB
or SD
recognized
both USB
and SD
www.rohm.com
30/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.3.2 LED operations
To display the LSI operation status, 7 types of LED controls are provided. The type of LEDs and their statuses are shown in Figure 6.3.2.
Type of LEDs Operations
LED_ERROR
LED_PLAY The LED lights during play. It blinks during pause.
LED_PSD
LED_PUSB
LED_ACCESS The LED lights during access to the USB memory or SD memory card.
LED_RANDOM The LED lights during random play.
LED_REPEAT
Technical Note
Table 6.3.2 Types and Operations of LEDs
-The LED lights when an error occurs. The following cases cause errors. [1] Neither USB memory nor SD memory is connected, or there is no playable file even if the memory is connected. [2] Communication error in the memory being played, or communication disconnection.
-The LED blinks when USB HUB or un-supported device. [1] USB HUB; Blink in a cycle of 500ms after 30sec from insertion. [2] un-supported device; Blink in a cycle of 200ms.
The LED lights when the SD memory card is connected and it is being played. The LED blinks when the SD memory card is connected but it is not selected. The LED goes off when the SD memory card is not connected. The LED lights when the USB memory is connected and it is being played. The LED blinks when the USB memory is connected but it is not selected. The LED goes off when the USB memory is not connected.
The LED lights while repeating a folder. The LED blinks while repeating one tune. The LED goes off while repeating all tunes.
www.rohm.com
31/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4 MODE2
6.4.1 Command operations
The LSI allows command operations from an external microcomputer via a slave I2C serial interface. This is enabled by inputting L to SEL_SLAVE to set MODE2. The command length to be sent varies depending on the command. Table 6.4.1.1 shows the command specifications. Table 6.4.1.2 shows enabled/disabled state of each command.
Technical Note
Table 6.4.1.1 Command Operations
Command name
1st 2nd 3rd 4th
CONFIG
CHG_SYSTEM_M ODE
STOP 2 0x60 0x01 - -
ABORT 4 0x60 0x02 N 0x00
Comm and
Command Explanation of operation
4 0x60 0x00 N 0x00
Set up System Operation Mode. Please choose 3rd byte N from the following. The other setup does
not receive a command.
N= 0x00 ; CONFIG Mode N= 0x01 ; PLAYER Mode N= 0x02 ; FILE RW Mode N= 0x03 ; PLAY LIST Mode
N= 0x05 ; CD-ROM Mode
N= 0x07 ; IPL WRITE Mode The initial setting is N= 0x00.
When receiving the STOP command, end the present processing and shift to the initial state in each system operation mode. Playing of a file will be stopped when receiving the STOP command during Playing, a stop, and file search. Playing of a file will be stopped when receiving the STOP command during fast forward or fast back Playing. After stopping playing the file, the LSI restarts playing it from the tune being stopped. However, if the memory is removed and new one is inserted before restarting, the LSI returns to the top tune of the memory. This command suspends the current analysis such as TAG analysis and folder analysis. The LSI suspends analysis only and continues playing the file when receiving the ABORT command. Select N at the 3 considered to specify N=0x01. Specify the operation to be suspended at N.
N=0x00: Suspends TAG analysis before playing. The LSI continues
playing the file. N=0x01: Suspends folder analysis. Since this sets the unanalyzed status after suspension, be sure to send the ANALYZE_ROOT command to redo analysis before obtaining the file contents.
rd
byte from the following. Any other settings are
www.rohm.com
32/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
CHG_DEV 2 0x60 0x03 - -
DIS_WDT 2 0x60 0x04 - -
SET_WDT 2 0x60 0x05 - -
SET_SORT 4 0x60 0x06 N 0x00
SET_12MOUT 4 0x60 0x07 N M
SET_LANG 4 0x60 0x08 N M
SET_MP3 4 0x60 0x09 N 0x00
SET_BROWSE_N UM
SET_PLAYINFO_ NUM
4 0x60
4 0x60
0x0
A
0x0
B
N 0x00
N 0x00
Technical Note
This command select device between USB memory and SD memory
card.
To do this, both devices must be connected or one device is provided
against the other (USB memory against SD memory card, and vice versa). Any other cases will be ignored.
After the device is selected, the system operation mode remains the previous mode (before selecting) and goes to the initial state. The setting values of the individual commands remain as they are. However, those of the REPEAT and RANDOM commands return to the initial values
This command disables Watch dog Timer. Initial setting is that Watch dog Timer function is effective. This command writes “1” to STATUS WDT_RFLG when it is
executed.
Set up file sorting operation in a memory. Select N at the 3rd byte from the following. Any setting other than
N=0x00 is considered to specify N=0x01. N=0x00: Disables sorting of files/folders.
Data is read out in the order that is written to FAT.
N=0x01: Enables sorting of files/folders.
Initial setting is N= 0x01. A sorting function is effective. Set up CLKOUT12 terminal and a TEST12 terminal output. Select N at the 3
accept the command. N=0x00: Disables 12 MHz clock output from the CLKOUT12
terminal. N=0x01: Enables 12 MHz clock output from the CLKOUT12 terminal. Select M at the 4 not accept the command. M=0x00: Disables 16.9344 MHz clock output from the TEST12 terminal. M=0x01: Enables 16.9344 MHz clock output from the TEST12 terminal. The 16.9344 MHz clock is a clock which buffers the input from the XIN_PLL terminal.
initial setting is N= 0x00 and M= 0x00. Output is invalid. Set up a NATIVE language. Select N and M at the 3
setting is considered to specify {M,N}={0x00,0x00}: ASCII.
{ M, N }= { 0x03, 0xA4 }: SHIFT-JIS(CP932)
{ M, N }= { 0x03, 0x52 }: OEM_850
Initial setting is {M , N} = {0x03, 0xA4} ; SHIFT JIS(CP932). Select the layer of the MPEG audio to play. Select N at the 3
N=0x00 is considered to specify N=0x01. N=0x00: Plays all the files having extension mp1, mp2, and mp3. N=0x01: Plays the files having extension mp3 only. Initial setting is N= 0x00. All the files of mp1, mp2, and mp3 are reproduced.
Specify the number of entries (a file or folder) when enabling a browsing function which carries out prediction analysis. Specify N at the 3 Any other settings will not accept the command.
The LSI analyzes entries in the number specified by N. Since even (0-N) can specify with the parameter of
'READ_BROWSE_INFO', N+1 entry information can be acquired at the maximum.
Initial setting is N=0x0A=10 entry prediction analysis. Specify the number of files predicted by the READ_PFILE_NAME
command. A READ_PFILE_NAME command can be predicted only within the same folder. Specify N at the 3
other settings will not accept the command. The LSI looks ahead
files in the number specified by N.
rd
byte from the following. Any other settings will not
th
byte from the following. Any other settings will
rd
and 4th bytes from the following. Any other
rd
byte from the following. Any setting other than
rd
byte within the range from 0x00 to 0x14(20).
rd
byte within the range from 0x00 to 0x5. Any
www.rohm.com
33/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
Since READ_PFILE_NAME allows you to specify in a range of 0 to N, you can obtain the information of up to N+1 files. Initial setting is N=0x03 file prediction analysis.
SET_LBIT 4 0x60
SET_IPL_UNIT 4 0x60
SET_UTPKT 4 0x60
GET_DEV_FREE 4 0x60 0x10
SET_LANG2 4 0x60 0x11
SET_OUTLANG 4 0x60 0x12
SET_TOUT_TUR 4 0x60 0x18
0x0
D
0x0
E
0x0
F
N 0x00
N 0x00
N 0x00
0x0
0x00
0
0x0
N
0
0x0
N
0
0x0
N
1
Set up LBIT and a copy bit when SPDIF output. Select N at the 3
rd
byte from the following. Any setting other than N=0x01 is considered to specify N=0x00. N=0x00: SPDIF LBIT=1, copy bit = 0 (copy disabled). N=0x01: SPDIF LBIT=0, copy bit = 1 (copy enabled).
Initial value is N= 0x00, (ban on a copy). Set up the unit which rewrites FLASH ROM when IPLWrite. Select N at the 3
rd
byte from the following. Any setting other than N=0x00 is considered to specify N=0x01. N=0x00: Writes to FLASH by page. N=0x01: Writes to FLASH by byte.
Initial value is N= 0x00. It is page unit writing. Set up a USB terminal output. Select N at the 3
rd
byte from the following. Any other setting is considered to specify N=0x01. N=0x00: Normally operating terminal N=0x01: Outputs a test packet from the USB terminal.
Initial value is N= 0x00. Analyze the availability of the media selected now. The LSI starts analyzing the free space after receiving the
command. During analysis, SEARCH=0x1 is set. Upon completion of analysis, SEARCH=0x0 is set. After analyzing the free space, you can use the READ_DEV_FREE command to obtain the current free space. The LSI does not monitor the free space automatically. Whenever changing the system operation mode or the selected media, you should restart analysis.
Set up the character encoding conversion mode inside a file system.
Please choose N from the following values.The other setup is not
received.
N= 0x00 : Character encoding conversion is performed inside a file
system.
N= 0x01 : Character encoding conversion is not performed inside a
file system. When N= 0x01 is set up, an action changes as follows. the path information which Read(s) -- the data in media -- it becomes binary data as it is The other delimiter and reservation character of path information turns into a character of UTF-16 encoding. After a receptionist, when this command performs changes in system mode, it becomes effective.
An initial value is N= 0x00. Set up whether UTF8/UTF16 conversion is performed when the
character string status output of a file and a folder name. Please choose N from the following values.The other setup is not received.
N= 0x00 : With a setup of SET_LANG, it outputs without changing. N= 0x01 : It changes and outputs to UTF-8 at the time of an output. N= 0x02 : It changes and outputs to UTF-16 at the time of an output.
An initial value is N= 0x00.
Set up the wait time after Test Unit Ready command transmission at
the time of USB memory recognition. When the response to Test Unit Ready is failure, re-try of Test Unit Ready is performed after the setting value Nx2 (msec).
Re-try is performed to 375 times. A timeout occurs after the setting value Nx750 (msec). An initial value is 191sec (setting value N=0xFF).
www.rohm.com
34/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
0x00
0x00
0x00
0x0
2
0x0
B
0x0
0
0x0
0
0x0
0
0x00
N
0x00
0x00
0x00
SET_IDL_TIME 6 0x60 0x18
SET_TUR_PASS 4 0x60 0x18
SET_THR1 12
SET_THR2 12
SET_THR3 12
0x6
F
0x6
F
0x6
F
PLAY control
PLAY 2 0x61 0x01 - -
PAUSE 2 0x61 0x02 - -
HOME 4 0x61 0x03 N 0x00
PLAYMODE 4 0x61 0x04 N 0x00
Technical Note
Set up the idle time after USB memory bus reset. Set a setup as the 5 - 6th byte with a little endian. Setting value {6 th=M, 5 th=N} x0.167 (usec) becomes wait time. As for an initial value, 220usec (setting value N=1325= {M=x05,
N=x2D}) is set up. Please set a setting value as the range of 300 (50usec)-9000 (1.5msec). Operation after timeout generating with the Test Unit Ready command is set up at the time of USB memory recognition. Please choose 4th byte N from the following. A setup of those other than the following operates as that to which 0x01 was set.
N= 0x00: It is referred to as ERROR as memory recognition failure after a timeout. N= 0x01: When the number of effective LUN is one, after a timeout, the response of Test Unit Ready is disregarded and the next memory recognition processing is performed.
An initial value is N= 0x00. Setup which performs the through output to I2S output from I2S
input. Please set up 8 bytes from the 5th byte of following. 0x00 0x00 0x30 0xD0 0x1E 0x00 0x00 0x00 When you perform a through output, please set up SET_THR1, SET_THR2, and SET_THR3. Setup which performs the through output to I2S output from I2S input. Please set up 8 bytes from the 5th byte of following. Through output invalidity; 0x00 0x00 0xB0 0xD0 0x01 0x00 0x00 0x00 Through output effective; 0x00 0x00 0xB0 0xD0 0x05 0x00 0x00 0x00 When you perform a through output, please set up SET_THR1, SET_THR2, and SET_THR3. Setup which performs the through output to I2S output from I2S input. Please set up 8 bytes from the 5th byte of following. EIAJ input; 0x00 0x00 0x40 0xE0 0x00 0x00 0x00 0x00 I2S input; 0x00 0x00 0x40 0xE0 0x30 0x00 0x00 0x00 When you perform a through output, please set up SET_THR1, SET_THR2, and SET_THR3.
When receiving the PLAY command during stop, the LSI starts
playing the file currently selected.
When receiving the PLAY command during pause, the LSI starts
playing the file at the paused time.
When receiving the PLAY command in the CONFIG mode, the LSI automatically goes to the PLAYER mode and plays the first tune in the sort order. When receiving the PAUSE command during play, the LSI pauses playing of the file When receiving the HOME command, the LSI searches files of the first tune within the memory.
TAG analysis, if it is enabled, is performed. Select N at the 3
N=0x00 is considered to specify N=0x01. N=0x00: Stops after search is completed. N=0x01: Starts playing after search is completed.
When receiving the PLAYMODE command, the LSI changes play mode in accordance with the setting of N in the 3
During play, the play mode is immediately changed. During stop, this
command cannot start playing the file.
Select N at the 3
accept the command. N=0x00: Changes to normal play. N=0x01: Changes to fast forward. N=0x02: Changes to rewind.
rd
byte from the following. Any setting other than
rd
byte.
rd
byte from the following. Any other settings will not
www.rohm.com
35/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
VOL+ 4 0x61 0x06
VOL- 4 0x61 0x06
REPEAT 4 0x61 0x06
RANDOM 4 0x61 0x06
0x0
1
0x0
2
0x0
3
0x0
4
0x00
0x00
0x00
0x00
FF 4 0x61 0x07 M N
FB 4 0x61 0x08 M N
Technical Note
Initial setting is N= 0x00. It is normal Playing.
When receiving the VOL+ command, the LSI controls the sound
volume step by incrementing by 1. The sound volume is controlled in 32 steps from -∞ (minimum volume) to 0 dB (maximum volume). When receiving the VOL- command, the LSI controls the volume step by decrementing by 1. The sound volume is controlled in 32 steps from -∞ (minimum volume) to 0 dB (maximum volume).
This command changes the mode for repeat. REPEAT command toggles as: memory repeat ->1 music repeat ->
folder repeat. For the settings of the REPEAT, RANDOM, and SET_REPRAND commands, the one finally set becomes enabled.
Initial setting is the all-songs repeat in a memory. This command changes the mode for random play. If random play is enabled, the LSI plays the currently-played file at
random in the area of ±128 files in the sort order. The RANDOM command toggles as: Normal play→Repeat all the tunes within the memory. For the settings of the REPEAT, RANDOM and SET_REPRAND commands, the one finally set becomes enabled. When receiving the FF command during play, pause, or stop, the
LSI searches the file N tunes ahead from the file being played or paused in the sort order.
If the number of remaining files is less than N in the sort order, the LSI searches back to the first file.
If N=0, the LSI searches the current file. If REPEAT or RANDOM is set, the LSI searches the next file in
accordance with the setting. However, if “repeat 1 tune” is set, the LSI searches the next file in accordance with the repeat setting within the memory.
If TAG analysis is enabled, the LSI also performs that analysis. After searching, the LSI operates in accordance with the setting in
M=0x01: Starts playing after search is completed.
The number of tunes to be searched depends on the setting of N in
When receiving the FB command during play, pause, or stop, the
When the LSI play is playing a tune in less than N files from the top
in the sort order, it searches the first tune. However, only when the file to be searched is the first tune within the memory in the “repeat within the memory” setting, the LSI searches the file across the last tune within the memory to the first one. If the file to be searched is the first file within the folder in the “repeat within the folder” setting, the LSI searches the file within the same folder.
If N=0, the LSI searches the top of the current file. However if it
If REPEAT or RANDOM is set, the LSI searches files in accordance
rd
byte.
the 3
Select M at the 3
rd
byte from the following. Any setting other than
M=0x00 is considered to specify M=0x01.
M=0x00: Stops after search is completed.
the 4th byte.
LSI searches the file, N tunes back from the file being played, paused or stopped, in the sort order.
receives the FB command with N=0 when the play time is within 1 second, the LSI searches the top of the previous tune.
with the setting. However, if “repeat one tune” is set, the LSI searches files in accordance with the “repeat within the memory” setting.
www.rohm.com
36/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
FOL+ 4 0x61 0x09 M N
FOL- 4 0x61
PLAY_RESUME 46 0x61
0x0
A
0x0
B
M N
0x0
0x00
0
PLAY Setting
SET_DOUT 4 0x61 0x10
0x0
0
N
Technical Note
If TAG analysis is enabled, the LSI also performs that analysis. After searching, the LSI operates in accordance with the setting in
M=0x00: Stops after search is completed. M=0x01: Starts playing after search is completed. The number of tunes to be searched depends on the setting of N in the 4th byte.
When receiving the FOL+ command during play, pause, or stop, the
If the remaining folders are less than N in the sort order, the LSI
returns to the first folder.
Even if REPEAT or RANDOM is set, the LSI searches the folder in a
If N=0, the LSI searches the top of the current folder. If TAG analysis is enabled, the LSI also performs that analysis. After searching, the LSI operates in accordance with the setting in
M=0x00: Stops after search is completed. M=0x01: Starts playing after search is completed. The number of tunes to be searched depends on the setting of N in the 4th byte.
When receiving the FOL- command during play, pause, or stop, the
When playing a tune less than N folders from the top in the sort
order, the LSI returns to the first folder. However, when playing a file within the first folder, the LSI searches the folder across the last tune within the memory. Even if REPEAT or RANDOM is set, the LSI searches the folder in the status where “repeat within the memory” is set.
If N=0, the LSI searches the top of the current folder. If TAG analysis is enabled, the LSI also performs that analysis. After searching, the LSI operates in accordance with the setting in
M=0x00: Stops after search is completed. M=0x01: Starts playing after search is completed.
The number of folders to be searched depends on the setting of N in
the 4th byte.
This command sets 42-byte data obtained by the
Set the data in ascending order of the offsets obtained by the
After writing the command, the LSI starts resume play. If the resume target cannot be searched, the LSI searches the first
tune of in the device and plays.
This command sets audio output. Select N at the 4
not accept the command. N=0x00: Outputs via analog line. N=0x01: Outputs using the digital audio interface (SPDIF). N=0x02: Outputs in I2S(32fs) format. N=0x03: Outputs in I2S(48fs) format. N=0x04: Outputs in I2S(64fs) format. N=0x05: Outputs in EIAJ(32fs) format. N=0x06: Outputs in EIAJ (48fs) format. N=0x07: Outputs in EIAJ (64fs) format. By default, N=0x00: "Analog line output" is set.
rd
byte. Select M at the 3rd byte from the following. Any
the 3 setting other than M=0x00 is considered to specify M=0x01.
LSI searches the folder N tunes ahead from the one having the file being played, paused or stopped in the sort order.
status where “repeat within the memory” is set.
rd
byte. Select M at the 3rd byte from the following. Any
the 3 setting other than M=0x00 is considered to specify M=0x01.
LSI searches the folder N tunes back from the one having the file being played or paused in the sort order.
rd
byte. Select M at the 3rd byte from the following. Any
the 3 setting other than M=0x00 is considered to specify M=0x01.
th
READ_RESUME_INFO command to 5
-46th bytes.
READ_RESUME_INFO command.
th
byte from the following. Any other settings will
www.rohm.com
37/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
SET_EQ 4 0x61 0x10
SET_VOL 4 0x61 0x10
SET_NEXT 4 0x61 0x10
SET_REPRAND 4 0x61 0x10
0x0
1
0x0
2
0x0
3
0x0
4
This command sets the equalizer. Set N at the 4
th
byte from the following. Any other settings will not accept the command. N=0x00: EQ OFF N=0x01: POPS N=0x02: JAZZ N=0x03: ROCK N=0x04: CLASSIC N=0x05: R&B
N
N=0x07: EQ OFF N=0x08: BASS BOOST1 N=0x09: POPS + BASS BOOST1 N=0x0A: JAZZ + BASS BOOST1 N=0x0B: ROCK + BASS BOOST1 N=0x0C: CLASSIC + BASS BOOST1 N=0x0D: R&B + BASS BOOST1 N=0x0F: BASS BOOST2
By default, N=0x00: EQ OFF is set. This command sets the sound volume with the value of N at the 4
byte in 32 steps from 0x00 to 0x1F.
N
Setting range outside 0x00 to 0x1F will not accept the command. By default, N=0x06 is set. This command sets next tune play mode. Select N at the 4
th
byte from the following. Any settings other than
N=0x04 will not accept the command. N=0x00: PLAY_NEXT: After the tune being played is completed, the LSI automatically
searches the next tune and starts playing it. N=0x01: PLAY_ALL_STOP: After the last tune within the memory being played is completed, the LSI reaches the next tune and stops. When the play command is issued again, the LSI starts playing the next tune. N=0x02: PLAY_FOL_STOP: After the last tune within the folder being played is completed, the
LSI searches the next tune and stops. When the play command is issued again, the LSI starts playing the next tune. N=0x03: PLAY_TUN_STOP:
N
After the tune being played is completed, the LSI searches the next tune and stops. When the play command is issued again, the LSI starts playing the next tune.
By default, N=0x00 is set. If the repeat mode is set to “repeat within folder”, operation setting
N=0x01 will become disabled. The LSI searches the next tune and
then starts playing it. If the repeat mode is set to “repeat one tune”, operation settings
N=0x01 and 0x02 will become disabled. The LSI searches the next
tune and then starts playing it. If the repeat mode is set to “random within memory” or “random
within folder”, the operation settings N=0x01 and 0x02 will become
disabled. The LSI searches the next tune and then starts playing it. When system operation mode is PLAYLIST mode, operation in a
folder of N= 0x02 setup becomes invalid, and does not receive a
command.
This command sets repeat mode. Select N at the 4
th
byte from the following. Any other settings will not accept the command. N=0x00: REPEAT_ALL: Repeats within the memory Repeats all the tunes within the memory being played. N=0x01: REPEAT_FOL: Repeats within the folder
N
Repeats the tunes within the folder being played. N=0x02: REPEAT_TUN: Repeats one tune Repeats the tune being played.
A setup of the repeat in the memory is followed whenFF and FB command. N=0x03: REPEAT_TUN: Repeats one tune
th
www.rohm.com
38/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
SET_TAG 4 0x61 0x10
SET_TOC 4 0x61 0x10
SET_PRM 8 0x61 0x10
0x0
5
0x0
6
0x0
7
N
N
L
BROWSING
Technical Note
Repeats the tune being played. A setup of the repeat in the memory is followed whenFF and FB command. N=0x04: RANDOM_ALL: Random within the memory Plays tunes at random starting from the one being played, in a range 128 tunes ahead and back of the tune. N=0x05: RANDOM_FOL: Random within the folder Plays tunes at random within the folder starting from the one being played, in a range 128 tunes ahead and back of the tune.
By default, N=0x00 is set. For the settings of the REPEAT, RANDOM and SET_REPRAND
commands, the one finally set becomes enabled. When system operation mode is PLAYLIST mode, operation in a folder of N= 0x01 and 0x05 setup becomes invalid, and does not receive a command.
This command sets TAG analysis mode. Select N at the 4
N=0x00 will be considered to specify N=0x01. N=0x00: Does not perform TAG analysis. N=0x01: Performs TAG analysis.
TAG analysis is performed immediately before the LSI starts playing
a tune, and started from the file to be searched after the setting is enabled. After TAG analysis is completed, the LSI writes the result to the status register.
By default, N=0x01: "Performs TAG analysis" is set. This command sets TOC analysis mode. Select N at the 4
N=0x00 will be considered to specify N=0x01. N=0x00: Does not perform TOC analysis. N=0x01: Performs TOC analysis. When receiving the command, inserting or changing the device, the LSI analyzes the total number of folders within the device (all the folders including root folders) and the total number of playable files. When receiving a command, TOC analysis is performed only at change from OFF to ON.
The total number of files conforms to the SEL_MP3 command. After TOC analysis is completed, the LSI writes the result to the
status register, and stops at the first tune in the device.
By default, N=0x00: "Does not perform TOC analysis" is set. This command sets play time (M) and skip time (N) for fast forward
and rewind. Play time is a period of time to make sound. Skip time is a period of time to skip during search.
For fast forward and rewind, a cycle of {play time (M) + skip time (N)
+ error (O)} is repeated. The error is determined by the difference between the minimum
decode unit and the rounding error between the play time and the real time requiring to search the skip time. The error varies depending on the file and memory structure.
Play time is set to M[15:0]= [6th byte, 5th byte], and skip time to
N[15:0]= [8th byte, 7th byte]. The unit is msec. By default, play time is 300ms=M[15:0]= [6th byte=x01,5th byte=x2C], and skip time is 2100ms=N[15:0]= [8th byte=x08,7th byte=x34]. Specifying 0x0 sets the default. Set play time to 300ms or more, and skip time to (play time×16) or less. 0xL in the 4
rewind. The allowable level is -6dB X[4th byte]. Allowable setting range is from 0x00 to 0x10. By default, 0x02=-12dB is set. Setting of 0x10 is equivalent to MUTE.
th
byte from the following. Any settings other than
th
byte from the following. Any setting other than
th
byte sets the attenuation level during fast forward and
www.rohm.com
39/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
ANALYZE_ROOT 4 0x62 0x00
PLAY_CURSOR 4 0x62 0x01
GET_TAG_CURS OR
GET_PATH_CURS OR
PLAY_DIRECT 10 0x62 0x01
MOV_NEXT 4 0x62 0x02
MOV_PREV 4 0x62 0x02
MOV_UP 4 0x62 0x02
MOV_DOWN 4 0x62 0x02
MOV_HOME 4 0x62 0x02
MOV_PLAYING 4 0x62 0x02
4 0x62 0x01
4 0x62 0x01
0x0
0
0x0
0
0x0
1
0x0
3
0x0
4
0x0
1
0x0
2
0x0
3
0x0
4
0x0
5
0x0
6
Technical Note
The LSI starts analyzing the root folder immediately after receiving the command. The analysis is performed for the information of the entries (files or
0x00
subfolders) set by the SET_BROWSE_NUM command. Upon completion of analysis, the cursor position for browsing within
the memory is set to the first entry (file or subfolder) within the root
folder. This command selects the file being pointed by the memory browsing cursor. If a playable file is selected, the LSI starts playing it.
0x00
If a folder or unplayable file is selected, this command will not be
accepted. This command performs TAG analysis for the file being pointed by
the memory browsing cursor. When a file is pointed by the memory browsing cursor, the LSI
0x00
immediately starts TAG analysis through the file. Upon completion of analysis, the LSI writes the result to the status register. When a folder is pointed by the memory browsing cursor, this
command will not be accepted. This command analyzes the full path (within the memory) of the
0x00
entry pointed by the memory browsing cursor.
This command starts playing the file specified by the access data. If the access data does not specify a playable file, the LSI searches
0x00
the first tune in the device and stops.
The position of the memory browsing cursor does not change. Set the access data at the 5This command moves the memory browsing cursor from the current
position to the position N ahead in the sort order. The analysis is performed for the information of the entries specified
by the SET_BROWSE_NUM command, starting from the move
destination. After the analysis is completed, the LSI writes the result
N
to the status register. If there are less than N files after the current memory browsing
cursor position in the folder, the cursor position goes to the end of
the folder. If the sort function (SET_SORT) is OFF, the cursor moves in the FAT order. This command moves the memory browsing cursor from the current
position to the position N backward in the sort order. The analysis is performed for the information of the entries specified by the SET_BROWSE_NUM command, starting from the move destination. After the analysis is completed, the LSI writes the result
N
to the status register. If there are less than N files from the top of the folder to the current
memory browsing cursor position, the cursor position goes to the top
of the folder. If the sort function (SET_SORT) is OFF, the cursor moves in the FAT order. This command moves the memory browsing cursor to a higher-level folder.
0x00
After moving, the LSI analyzes the folder. If the cursor is in the highest layer (root), nothing will be done.
This command selects the lower-level holder pointed by the memory
browsing cursor to move. After moving, the LSI analyzes the folder. When a folder is selected, the LSI starts analyzing it.
0x00
When a file is selected, the LSI does not accept the command. If the cursor selects the folder in the lowest layer, nothing will be
done. This command moves the memory browsing cursor to the top of the
0x00
root folder.
After moving, the LSI analyzes the folder.
This command moves the memory browsing cursor to the tune being
played.
0x00
After moving, the LSI analyzes the folder. During stop or search, the LSI does not accept the command.
th
-10th bytes.
www.rohm.com
40/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
MOV_DIRECT 10 0x62 0x02
SET_EXTENSION 4 0x62 0x04
0x0
7
0x0
0
N
N
PLAYLIST
SET_PLAYLIST 260 0x62 0x10
SET_PLAYLIST_D IRECT
SET_PLAYLIST_C URSOR
10 0x62 0x11
4 0x62 0x12
0x0
0
0x0
0
0x0
0
N
N
N
Technical Note
This command moves the memory browsing cursor to the position specified by the access data.
After moving, the LSI starts analyzing at this position. Set the access data at the 5Select the operation after moving with N in the 4th byte. Select N
from the following. Any setting other than N=0x00 will be considered to specify N=0x01. N=0x00: Only moves the cursor and analyzes. N=0x01: If moving to a file, starts playing it.
This command sets the type of file to be output to the status register when browsing within the memory (analyzing the folder). Select N at the 4
th
byte from the following. Any other settings will
not accept the command. N=0x00: Playable file N=0x01: Play list file N=0x02: All files N=0x03: Folder only (Does not browsing files.) The initial value depends on the mode. In PLAYER mode: N=0x00: Playable file In PLAYLIST mode: N=0x01: Play list file In FILE RW: N=0x02: All files In other cases: N=0x00: Playable file The setting of this command is reflected only when the
ANALYZE_ROOT command is executed. After setting the
command again, be sure to execute the ANALYZE_ROOT
command.
This command selects the play list file by full path and file name.
The full path is 256 bytes at maximum (including drive letter (A:\), file
name and extension). Set this at the 5 If the length is less than 256 bytes, insert 0x00 at the end.
Insert ”\”(0x5C) for the delimiter between folder layers.
The drive letter is "A:\" for USB and "B:\" for SD.
You can also specify the path in a format without drive letter. In this
case, the length is 253 bytes at maximum. If the full path has a drive letter different from the one for the memory being selected, an error occurs. (For example, "B:\" is set for the full path when USB is selected.) The setting for MUSIC/playllist/playlist.m3u will be: x4D 55 53 49 43 5C 70 6C 61 79 6C 69 73 74 5C 70 6C 61 79 6C 69 73 74 2E 6D 33 75 00. The operation after search conforms to the setting of N in the 4
byte. Select N from the following. Any setting other than N=0x00
will be considered to specify N=0x01. N=0x00: Searches the first tune and then stops. N=0x01: Searches the first tune and then starts playing it. After executing this command, the position of the play list browsing
cursor is reset to the top.
This command selects a play list file by access data. The LSI does nothing if the access data is other than play list file. Set the access data at the 5The operation after search conforms to the setting of N in the 4th
byte. Select N from the following. Any setting other than N=0x00 will be considered to specify N=0x01. N=0x00: Searches the first tune and then stops. N=0x01: Searches the first tune and then starts playing it. After executing this command, the position of the play list browsing cursor is reset to the top.
This command specifies the entry pointed by the play list browsing cursor as play list.
The LSI does nothing if a file other than the play list is specified. The operation after search conforms to the setting of N in the 4
byte. Select N from the following. Any setting other than N=0x00 will be considered to specify N=0x01. N=0x00: Searches the first tune and then stops. N=0x01: Searches the first tune and then starts playing it.
th
-10th bytes.
th
th
-10th bytes.
-260th bytes.
th
th
www.rohm.com
41/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
After executing this command, the position of the play list browsing cursor is reset to the top.
PLST_PLAY_CUR SOR
PLST_GET_TAG_ CURSOR
4 0x62 0x13
4 0x62 0x13
PLST_MOV_NEXT 4 0x62 0x14
PLST_MOV_PREV 4 0x62 0x14
PLST_MOV_HOM E
PLST_MOV_PLAY ING
4 0x62 0x14
4 0x62 0x14
0x0
0
0x0
1
0x0
0
0x0
1
0x0
2
0x0
3
0x00
0x00
N
N
0x00
0x00
FILE RW
FOPEN_R 260 0x63 0x01
FOPEN_R_CURS OR
FOPEN_R_DIREC T
4 0x63 0x01
10 0x63 0x01
0x0
0
0x0
1
0x0
2
0x00
0x00
0x00
This command plays the file pointed by the play list browsing cursor.
If any play list is not selected, the command will not be accepted.
This command starts TAG analysis for the file pointed by the play list
browsing cursor.
If any play list is not selected, the command will not be accepted. This command moves the play list browsing cursor to the position N
ahead from the current position. The LSI analyzes the information as much as the files (or folders) set by the SET_BROWSE_NUM command. After analysis, the LSI writes the result to the status register.
If any play list is not selected, the command will not be accepted. This command moves the play list browsing cursor to the position N
backward from the current position. The LSI analyzes the information as much as the files (or folders) set by the SET_BROWSE_NUM command. After analysis, the LSI writes the result to the status register.
If any play list is not selected, the command will not be accepted. This command moves the play list browsing cursor to the top. The LSI analyzes the information as much as the files (or folders)
set by the SET_BROWSE_NUM command. After analysis, the LSI writes the result to the status register.
If any play list is not selected, the command will not be accepted.
This command moves the play list browsing cursor to the tune being
played. The LSI analyzes the information as much as the files (or folders) set by the SET_BROWSE_NUM command. After analysis, the LSI writes the result to the status register.
If any play list is not selected, the command will not be accepted.
This command specifies the full path and name of the file to be read
from the memory using the File Read function.
If a file exists after receiving the command, open the specified file.
The full path is 256 bytes at maximum (including drive letter (A:\), file
name and extension). Set this at the 5
th
-260th bytes. If the length is less than 256 bytes, insert 0x00 at the end. Insert ”\”(0x5C) for the delimiter between folder layers.
The drive letter is "A:\" for USB and "B:\" for SD.
You can also specify the path in a format without drive letter. In this
case, the length is 253 bytes at maximum. If the full path has a drive letter different from the one for the memory being selected, an error occurs. (For example, "B:\" is set for the full path when USB is selected.) This command specifies the file pointed by the memory browsing cursor for the one to be read from the memory using the File Read function.
If a file exists after receiving the command, open the specified file.This command specifies the access data of the file to be read from
the memory using the File Read function. The access data is 6 bytes. Set it at the 5
th
-10th bytes.
If a file exists after receiving the command, open the specified file.
www.rohm.com
42/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
FOPEN_W 266 0x63 0x02
FCLOSE 4 0x63 0x03
0x0
0
0x0
0
0x00
0x00
SET_FRW_BUS 4 0x63 0x04 N M
FWRITE_DAT 4/260 0x63 0x05 N N
FREAD_DAT 6 0x63 0x06 N N
Technical Note
This command specifies the full path, name, and update date information of the file to be written to the memory using the File Write function.
After receiving the command, open the specified file.
You can set the update date information in terms of year, month, day
and time.
Set the update date information at the 5
the order of year (upper), year (lower), month, day, hour, and minute. If all the data of the update date information is set to 0x00, the LSI considers that 0x20, 0x09, 0x01,0x01, 0x12, and 0x00 are specified when processing the data.
The full path is 256 bytes at maximum (including drive letter (A:\), file
name and extension). Set this at the 11 If the length is less than 256 bytes, insert 0x00 at the end. Insert ”\”(0x5C) for the delimiter between folder layers.
The drive letter is "A:\" for USB and "B:\" for SD.
You can also specify the path in a format without drive letter. In this
case, the length is 253 bytes at maximum. If the full path has a drive letter different from the one for the memory being selected, an error occurs. (For example, "B:\" is set for the full path when USB is selected.)
If the specified file does not exist, it should be created. A file with the same name that already exists will be deleted. After creating a file, the structure of the file creation folder (including
the intermediate folders) is changed. Thus, when using the browsing function, you should start over browsing analysis.
This command closes the file. After the File Read/Write function is completed, CLOSE the file. This command selects the BUS to be used with the File Read/Write
function. When selecting the I2C bus, data of up to 256 bytes can be read/written at one transfer. When selecting the SPI bus, data up to 4 Kbytes can be read/written at one transfer. Set the BUS type to be used with N at the 3
the following. Any other settings will not accept the command. N=0x00: Uses the I2C bus. N=0x01: Uses the 8-bit SPI bus. N=0x02: Uses the 16-bit SPI bus. N=0x03: Uses the 32-bit SPI bus.
Set a SPI mode with M at the 4
th
the following. If any other setting is specified, the LSI does nothing. If N=0x00, the following M values will become disabled. M=0x00: Uses SPI mode 0. M=0x01: Uses SPI mode 1. M=0x02: Uses SPI mode 2. M=0x03: Uses SPI mode 3.
By default, N=0x00: "Uses the I2C bus" is set (M=0x00). This command specifies data size to be written and the data itself. At 0xN(16bit) in the 3
rd
and 4th bytes, specify the data size to be
written at one transfer in Little Endian format.
When using the I2C bus, set the data at the 5
up to 256 bytes can be sent at one time.
When using the SPI bus, the LSI waits until the FWRREADY bit
turns 1 after this command is sent, and then starts transferring the data through that bus. When the transferred data reaches the data size specified by SPI transfer, the LSI starts writing the data to the memory. Data of up to 4096 bytes can be sent at one time.
If the specified data size does not match the data size actually sent, this command is assumed to be an error. This command specifies the position of data to be read from the file
at File Read.
Specify the data position to be read in the 3 Endian format. When using the I2C bus, send this command and then check that
the FRDREADY bit turns 1. Then, send the READ_FR_DATA command. Data of up to 256 bytes can be read at one time.
When using the SPI bus, send this command and then check that
th
-10th bytes in BCD format in
th
-266th bytes.
rd
byte. Select N from
byte. Select M at the 4th byte from
th
-260th bytes. Data of
rd
to 6th bytes in Little
www.rohm.com
43/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
FDEL 260 0x63 0x07
FDEL_CURSOR 4 0x63 0x07
0x0
0
0x0
1
0x00
0x00
CD-ROM
START_CDROM 4 0x65 0x00 N M
STOP_CDROM 4 0x65 0x01
START_CDANA 4 or8 0x65 0x01
0x0
1
0x0
2
0x00
0x00
Technical Note
the FRDREADYA bit turns 1. Then, read the data from the SPI bus. Data of up to 4096 bytes can be read at one time.
This command deletes the file or folder specified by the full path.
The full path is 256 bytes at maximum (including drive letter (A:\), file
name and extension). Set this at the 5 less than 256 bytes, insert 0x00 at the end. Insert ”\”(0x5C) for the delimiter between folder layers.
The drive letter is "A:\" for USB and "B:\" for SD.
You can also specify the path in a format without drive letter. In this
case, the length is 253 bytes at maximum. If the full path has a drive letter different from the one for the memory being selected, an error occurs. (For example, "B:\" is set for the full path when USB is selected.) The command deletes a folder only when there is no file (or folder) in it. After deleting a file or folder, the structure of the folder where the deleted file (or folder) existed is changed. Thus, when using the browsing function, you should start over browsing analysis. This function deletes the file or folder being pointed by the memory
browsing cursor.
The command deletes a folder only when there is no file in it. After deletion, the cursor positions at the top of the folder where the
deleted file or folder existed. Then, the LSI analyzes the folder.
This command enables CD-ROM input. Set the ECC retry count with N at the 3
range from 0x00 to 0x0F. Any other settings will not accept the command. When N=0x00, error correction is performed only for EDC. When N=0x01 to 0x0F, the LSI executes EDC and then executes ECC as many times as specified (retry specification).
Set the format of the input from CD with M at the 4th byte. Select M
from the following. Any other settings will not accept the command. M=0x00: Inputs in I2S (32fs) format.
M=0x01: Inputs in I2S (48fs) format.
M=0x02: Inputs in I2S (64fs) format.
M=0x04: Inputs in EIAJ (32fs) format. M=0x05: Inputs in EIAJ (48fs) format.
M=0x06: Inputs in EIAJ (64fs) format. By default, N=0x03: "ECC retry count 3" and M=0x05: "Inputs in EIAJ (48fs) format" are set.
By default, CD-ROM input is disabled. This command disables CD-ROM input. The command cancels the SEEK request (necessary LBN request).When the LSI is analyzing the CD-ROM file system, the command
stops analysis. When the LSI is playing or copying a CD-ROM file, the command
forcibly stop the operation.
This command starts analyzing the CD-ROM file system. After receiving the command, the LSI requests the necessary LBN.When the necessary LBN data is input, the LSI analyzes the data.
After analysis, it outputs the analyzed result to the status register. If the command length is less than 8 bytes, the LSI searches the CD-ROM file system information starting from LBN=0. To analyze the file system information after the 2 multi-session disk, you must specify the starting LBN. In this case, specify the LBN in which the file system information resides (after the start position of this session) at the 5 format. Reset the acquisition state of a file/folder information.
th
-260th bytes. If the length is
rd
byte. Specify N within the
nd
session on the
th-8th
bytes in Little Endian
www.rohm.com
44/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
STOP_CDANA 4 0x65 0x01
CD_SET_VD 4 0x65 0x02
CD_SET_LBN 12- 0x65 0x03
Table 6.4.1.2 Command enable/disable in each system operation mode
0x0
3
0x0
0
0x0
0
This command stops or suspends analysis of the CD-ROM file
0x00
system.
If the file system analysis is not completed, you can restart it. This command set Volume Descriptor, which is preferred during the
CD-ROM file system analysis, at the 4th byte.
Select N at the 4
N
accept the command.
th
byte from the following. Any other settings will not
N=0x00: PVD preferred N=0x01: SVD preferred
By default, N=0x00: "PVD preferred" is set. This command sets the information on the file to be played (first
LBN, file size, file name and file kind).
Select N at the 4
th
byte from the following. Any other settings will not
accept the command.
N=0x01:MP3 , N=0x02:WMA, N=0x03:AAC , N=0x04:WAV
Please specify the value read by the READ_CD_FILE command as
it is.
Set the LBN data at the 5th-8th bytes in Little Endian format.
N
Set the size data at the 9th-12th bytes in Little Endian format. ・Set the file name at the 13th and following bytes with NUL (0x00) at
the end. If the command length is less than 14 bytes, do not set the file name. In this case, the file name is obtained as a null character string with some commands such as READ_PFILE_NAME. After receiving the command, the LSI requests necessary LBN.
When the valid data is input, the LSI starts decoding the data.
Command Command enable/disable in
each system operation mode
CONFIG PLAYER FILE
RW
PLAYL IST
Command enable/disable
in each status
IPL WRITE
CD-R OM
STOP PLAY SEAR
CH (mode)
SEAR CH (file)
Analy ze
Write ERRO
R
CONFIG CHG_SYSTEM_M
ODE
× × × ×
STOP ABORT ×
CHG_DEV × × × × DIS_WDT × × × × × × SET_WDT × × × × × SET_SORT × × × × × × SET_12MOUT × × × × × SET_LANG × × × × × ○ × × × × × × SET_MP3 × × × × × ○ × × × × × × SET_BROWSE_N
UM SET_PLAYINFO_N
UM
○ × × × × × ×
○ × × × × × ×
SET_LBIT × × × × × SET_IPL_UNIT × × × SET_UTPKT × × × × × ○ × × × × × × GET_DEV_FREE × × × × × × SET_LANG2 × × × × × ○ × × × × × × SET_OUTLANG × × × × × ○ × × × × × × SET_TOUT_TUR × × × × × ○ × × × × × × SET_IDL_TIME × × × × × ○ × × × × × × SET_TUR_PASS × × × × × ○ × × × × × × SET_THR1 × × × × × ○ × × × × × × SET_THR2 × × × × × ○ × × × × × × SET_THR3 × × × × × ○ × × × × × × PLAY control
www.rohm.com
45/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
PLAY × × × × × × × PAUSE × ○ × ○ × ○ ○ × × × × × HOME × ○ × ○ × × ○ × × × × × PLAYMODE × ○ × ○ × ○ ○ × × × × × VOL+ × × × × VOL- × × × × REPEAT × ○ × ○ × ○ ○ × × × × × RANDOM × ○ × ○ × ○ ○ × × × × × FF × ○ × ○ × ○ ○ × × × × × FB × ○ × ○ × ○ ○ × × × × × FOL+ × ○ × × × ○ ○ × × × × × FOL- × ○ × × × ○ ○ × × × × × PLAY_RESUME × ○ × ○ × × ○ × × × × × PLAY Setting SET_DOUT × × × × SET_EQ × × × × SET_VOL × × × × SET_NEXT × ○ × ○ × ○ ○ × × × × × SET_REPRAND × ○ × ○ × ○ ○ × × × × × SET_TAG × ○ × ○ × ○ ○ × × × × × SET_TOC × ○ × × × ○ ○ × × × × × SET_PRM × ○ × ○ × ○ ○ × × × × × BROWSING ANALYZE_ROOT × × × ○ × × × PLAY_CURSOR × ○ × × × × × × × GET_TAG_CURSO
R GET_PATH_CURS
OR PLAY_DIRECT × ○ × × × × × × ×
MOV_NEXT × ○ × × MOV_PREV × ○ × × ○ × × × MOV_UP × ○ × × ○ × × ×
MOV_DOWN × ○ × × MOV_HOME × ○ × × ○ × × × MOV_PLAYING × ○ × × × × × × × × ×
MOV_DIRECT × ○ × ○ × × SET_EXTENSION × × × × × PLAYLIST SET_PLAYLIST × × × ○ × × ○ × × × × × SET_PLAYLIST_DI
RECT SET_PLAYLIST_C
URSOR PLST_PLAY_CUR
SOR PLST_GET_TAG_
CURSOR PLST_MOV_NEXT × × × × × ○ × × × × × PLST_MOV_PREV × × × × × ○ × × × × × PLST_MOV_HOME × × × × × ○ × × × × × PLST_MOV_PLAYI
NG FILE RW FOPEN_R × × ○ × × × ○ × × × × × × FOPEN_R_CURSO
R FOPEN_R_DIREC
T
× × × × ×
× × × ○ × × ×
× × × × × ○ × × × × ×
× × × × × ○ × × × × ×
× × × × × ○ × × × × ×
× × × × × ○ × × × × ×
× × × × × ○ × × × × ×
× × × × × ○ × × × × × ×
× × × × × ○ × × × × × ×
× × ×
× × ×
× × ×
× × ×
Technical Note
www.rohm.com
46/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
FOPEN_W × × ○ × × × ○ × × × × × × FCLOSE × × ○ × × × ○ × × × × × × SET_FRW_BUS × × ○ × × × ○ × × × × × × FWRITE_DAT × × ○ × × × ○ × × × × × × FREAD_DAT × × ○ × × × ○ × × × × × × FDEL × × ○ × × × ○ × × × × × × FDEL_CURSOR × × ○ × × × ○ × × × × × × CD-ROM START_CDROM × × × × × ○ × × × × × × STOP_CDROM × × × × × × × START_CDANA × × × × × × × × × × STOP_CDANA × × × × × × × × × × CD_SET_VD × × × × × × × × × × × CD_SET_LBN × × × × × × × × × ×
=enable×=disable
Technical Note
www.rohm.com
47/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.2 Status output The operation information, such as internal statuses, play time, folders, files and Tags, is output using a I2C interface. The statuses shown in Table 6.4.2.1 MODE2 Status Register Map are output. When reading status via I2C, the OFFSET position is automatically incremented after reading byte data. However, by issuing the I2C start condition, the OFFSET position is reset to OFFSET specified by the previous command. To read statuses, two methods are available: to specify OFFSET of the status register map and read any bytes continuously from the OFFSET position; and to read byte data by a command without specifying the OFFSET position. Table 6.4.2.2 shows the status output commands. Byte data, when reading via I2C, is output in Little Endian format. When read over OFFSET=0x140, OFFSET does not return to 0x00, therefore the read value turns into an unfixed value.
Technical Note
Table 6.4.2.1 MODE2 Status Register Map
OFFSE
T
(MSB) (LSB)
0x00 STATUS1 ERROR SEARCH BUSY MCHNG STOP PAUSE PLAY 0x01 STATUS2 IRPTO 0 STOP_INF
0x02 STATUS3 USBINS SDINS USBFILE SDFILE MDEVUSB MDEVSD PDEVUSB PDEVSD 0x03 STATUS4 SEL_TOC TINFUSB TINFSD SET_TAG ANA_TAG TAGINFO 0x04 STATUS5 0 SEL_USBSD FBP FFP PLAYFILE
0x05 STATUS6 PRECOMS
0x06 VOLINF 0 0 0 VOLINF 0x07 DOUTINF EQINF DOUTINF 0x08 PMODEINF REPEATIN
0x09 SEL_MP3 0 0 0 0 WDT_RFLG 12MOUT SET_SORT SET_MP3 0x0A PSEC PSECH PSECL 0x0B PMINL PMINLH PMINLL 0x0C PMINH PMIHH PMINHL 0x0D TSEC TSECH TSECL 0x0E TMINL TMINLH TMINLL 0x0F TMINH TMINHH TMINHL 0x10 LANGL LANGL 0x11 LANGH LANGH 0x12 PFOLNL PFOLNL 0x13 PFOLNH PFOLNH 0x14 PFILENFLL PFILENLL 0x15 PFILENFLH PFILENLH 0x16 PFILENFHL PFILENHL 0x17 PFILENFHH PFILENHH 0x18 PFILENMLL PFILENLL 0x19 PFILENMLH PFILENLH 0x1A PFILENMHL PFILENHL 0x1B PFILENMHH PFILENHH 0x1C TFOLMEML TFOLMEML 0x1D TFOLMEMH TFOLMEM
0x1E TFILEMEMLL TFILEMEM
0x1F TFILEMEMLH TFILEMEM
0x20 TFILEMEMHL TFILEMEM
0x21 TFILEMEMHH TFILEMEM
0x22 BROWSESTAT ANA_ERR 0 GET_PATH
0x23 NUMANAFOLLL NUMANAF
0x24 NUMANAFOLLH NUMANAF
0x25 NUMANAFOLHL NUMANAF
0x26 NUMANAFOLHH NUMANAF
0x27 TFILEANAFOLL
Status bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
O
TAT
TFILEANAF
L
SETNEXTI
F
H
LL
LH
HL
HH
_END
OLLL
OLLH
OLHL
OLHH
OLLL
INIT_END PRECOM RES_ERR DEC_ERR
GET_TAG_
END
NF
GET_TAG_ID ANA_CUR
www.rohm.com
48/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
0x28 TFILEANAFOLL
H
0x29 TFILEANAFOLH
L
0x2A TFILEANAFOLH
H
0x2B TFOLANAFOLL TFOLANAF
0x2C TFOLANAFOLH TFOLANAF
0x2D TFOLANAHEIRL TFOLANAF
0x2E PLISTPLAY PLIST_GTA
0x2F FIOSTAT FIOERR 0 FIORW FIOOPEN FRDREADY FWRREADY FIOSEARCH FIOMODE
0x30 FIOSET FIOBUS FIOSPIMD FIOOPE 0x31 IPLWMODE 0 IPLWUNIT IPLWMODE
0x32 ENCON 0 0 0 0 0 0 0 0 0x33 COMPON 0 0 0 0 0 0
0x34 ENC_PLAY 0 0 0x35 ENC_BITRATE 0 0 0x36 CDROMON BUFFULL 0 SEEK CDROMAN
0x37 MEMINFO MEMINFO 0 0 IRPTOINT IRPTODEVI
0x38 - COMAREA COMAREA 0x13F
TFILEANAF
TFILEANAF
TFILEANAF
G_END
PLIST_TAG
_EXIST
OLLH
OLHL
OLHH
OLL
OLH
OLL
PLIST_BR_
ERR
ACT
PLIST_BR_
BSY
IPLWMODE
END
AERR
PLISTERR 0 PLISTOPEN PLISTPLAY
IPLWEERR IPLWEXIST IPLSERCH IPLWMODE
0
CDROMAN
AEND
CDROMAN
ABUSY
CDROMON
CE
0
www.rohm.com
49/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
OFFSE
T
0x00 STATUS1 7 ERROR ERROR situation 0 ; Nothing error, 1 ; Error
6:5 SEARCH
4 BUSY BUSY situation 0: non-BUSY , 1:BUSY
3 MCHNG
2 STOP STOP state 0: not stopped, 1: Under a stop 1 PAUSE PAUSE state 0: not stopped, 1: Under a stop 0 PLAY Playing state 0: not reproducing, 1: Under Playing
0x01 STATUS2 7 IRPTO IRPTO interruption state 0: Nothing interruption, 1;interruption
6 0 0
5:4 STOP_INFO
3 INIT_END
2 PRECOM
1 RES_ERR Resume error 0: With no error, 1: Error 0 DEC_ERR Decoding error 0: With no error, 1: Error
0x02 STATUS3 7 USBINS
6 SDINS
5 USBFILE Playable file existence in a USB memory 0;Nothing, 1;existence 4 SDFILE Playable file existence in a SD memory 0;Nothing, 1;existence 3 MDEVUSB USB memory recognition situation 0: Un-recognizing, 1: Recognition 2 MDEVSD SD memory recognition situation 0: Un-recognizing, 1: Recognition
1 PDEVUSB
0 PDEVSD SD memory situation 0: Under a stop, 1: Under Playing/TAG analysis
0x03 STATUS4 7 SEL_TOC TOC analysis setup 0:TOC analysis OFF , 1:TOC analisis ON
6 TINFUSB
5 TINFSD
4 SET_TAG TAG analysis setup 0:TAG analysis OFF, 1:TAG analysis ON 3 ANA_TAG TAG analysis situation 0;TAG analysis stop, 1;Under TAG analysis
2:0 TAGINFO
0x04 STATUS5 7 0 0
6 SEL_USBSD Device recognition priority situation 0:SD>USB 1:USB>SD 5 FBP Fast back Playing situation 0: normal Playing, 1:fast-back Playing
4 FFP
3:0 PLAYFILE Playing file information 1:MP3, 2:WMA, 3:AAC, 4:WAV
0x05 STATUS6 7:0
0x06 VOLINF 7:5 0 0
4:0 VOLINF
0x07 DOUTINF 7:4 EQINF EQ setting information. The value set up by SET_EQ [3:0] is outputted.
3:0 DOUTINF
0x08 PMODEINF 7:4 REPEATINF REPEAT MODE setting information. The value set up by
Status bit NAME Contents
SEARCH situation 0: Search stop, 1: Under a search (file search) , 2: Under a search (under device recognition)
Music change detection 0: Under a music end / stop, 1: Stop after search/ Playing.
Stop state detailed information 0: It is except during the stop/stop after device mount, 1: Stop pulled [ music ] out the head, 2: Error stop, 3: Stop by the RPT_OFF function The completion situation of initialization 0: Incomplete 1: When a program is normally loaded from FLASH completed and (set to 1 at the time of either of the followings) connected and a program is normally downloaded from the host who has connected The last command situation 0;Normal receptionist, 1;Abnormalities (un-receiving)
USB connection detection 0:USB un-connecting, 1:USB connection detection SD connection detection 0:SD un-connecting, 1:SD connection detection
USB memory situation 0: Under a stop, 1: Under Playing/TAG analysis
Acquisition of total file/folder number in a USB memory. 0: Un-acquiring, 1: Finishing acquisition Acquisition of total file/folder number in a SD memory. 0: Un-acquiring, 1: Finishing acquisition
Existence TAG kind 0:ID 3V1, 1:ID 3V2, 2;With WMA, 3;AAC, 4:WAV, and 7: no TAG information
Fast forward Playing situation 0: normal Playing, 1:fast-forward Playing
The last command receptionist situation detailed information ; The last command outputs whether it received normally.
PRECOMSTA
T
A state is held to the following command. A state is not cleared by the lead command. The 0th bit is the same as that of PRECOM status. They are the contents at the time of abnormalities except it.
Volume setting information. The value set up by SET_VOL [4:0] is outputted.
Audio output setting information. The value set up by SET_DOUT [3:0] is outputted.
Technical Note
www.rohm.com
50/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
SET_REPRAND [3:0] is outputted.
3:0 SETNEXTINF
0x09 SEL_MP3 7 0 0
6 0 0 5 0 0 4 0 0 3 WDT_RFLG Monitor register for WDT 0:after RESET 2 12MOUT 12MHz clock output 0:OFF, 1:ON
1 SET_SORT
0 SET_MP3
0x0A PSEC 7:4 PSECH Playing time second information [7:4] x 10 seconds
3:0 PSECL Playing time second information [3:0] x 1 second
0x0B PMINL 7:4 PMINLH Playing time minutes information [7:4] x 10 minutes
3:0 PMINLL Playing time minutes information [3:0] x 1 minute
0x0C PMINH 7:4 PMINHH Playing time minutes information [7:4] x 1000 minutes
3:0 PMINHL Playing time minutes information [3:0] x 100 minutes
0x0D TSEC 7:4 TSECH 1 track time second information [7:4] x 10 seconds
3:0 TSECL 1 track time second information [3:0] x 1 second
0x0E TMINL 7:4 TMINLH 1 track time minutes information [7:4] x 10 minutes
3:0 TMINLL 1 track time minutes information [3:0] x 1 minute
0x0F TMINH 7:4 TMINHH 1 track time minutes information [7:4] x 1000 minutes
3:0 TMINHL 1 track time minutes information [3:0] x 100 minutes 0x10 LANGL 7:0 LANGL TAG character code information lower byte [7:0] 0x11 LANGH 7:0 LANGH TAG character code information higher byte [15:8]
0x12 PFOLNL 7:0 PFOLNL
0x13 PFOLNH 7:0 PFOLNH Playing folder number in memory. Higher rank byte [15:8]
0x14 PFILENFLL 7:0 PFILENLL
0x15 PFILENFLH 7:0 PFILENLH Playing file number in the present folder. [15:0], Higher rank byte [15:8] 0x16 PFILENFHL 7:0 PFILENHL Playing file number in the present folder. [31:16], Low rank byte [23:16]
0x17 PFILENFHH 7:0 PFILENHH
0x18 PFILENMLL 7:0 PFILENLL Playing file number in the memory. [15:0] Low rank byte [7:0] 0x19 PFILENMLH 7:0 PFILENLH Playing file number in the memory. [15:0] Higher rank byte [15:8] 0x1A PFILENMHL 7:0 PFILENHL Playing file number in the memory. [31:16] Low rank byte [23:16] 0x1B PFILENMHH 7:0 PFILENHH Playing file number in the memory. [31:16] Higher rank byte [31:24] 0x1C TFOLMEML 7:0 TFOLMEML The number of total folders in a memory. low rank byte [7:0] 0x1D TFOLMEMH 7:0 TFOLMEMH The number of total folders in a memory. higher rank byte [15:8]
0x1E
0x1F
0x20
0x21
0x22
TFILEMEML
L
TFILEMEML
H
TFILEMEMH
L
TFILEMEMH
H
BROWSEST
AT
6 0 -
5
4
3:1 GET_TAG_ID
0 ANA_CUR Cursor position entry analysis. 0;Analysis stop, 1;Under analysis
7:0 TFILEMEMLL The number of total files in memory. [15:0] low-rank byte [7:0]
7:0 TFILEMEMLH The number of total files in memory. [15:0] higher-rank [15:8]
7:0 TFILEMEMHL The number of total files in memory. [31:16] low-rank byte [23:16]
7:0 TFILEMEMHH The number of total files in memory. [31:16] higher-rank byte [31:24]
7 ANA_ERR
GET_PATH_E
ND
GET_TAG_EN
D
PLAY NEXT MODE setting information. The value set up by SET_NEXT [3:0] is outputted.
file sorting functional setup 0;SORT function OFF, 1;SORT function effective MP3 file Playing setup 0;Extensions mp1 and mp2, mp3 Playing, 1;Reproduce only extension mp3.
Playing folder number in memory. Lower byte [7:0] ROOT becomes No.1. A number is shaken in order of sorting.
Playing file number in the present folder. [15:0], lower byte [7:0], a number is shaken from No.1 in order of sorting.
Playing file number in the present folder. [31:16], Higher rank byte [31:24]
browsing analysis Error 0: With no error 1: Error-generate in analysis.
Cursor position folder path analysis situation 0;Under folder path un-analyzing/analysis, 1;Finishing of folder path analysis Cursor position TAG analysis situation 0: Under TAG un-analyzing/analysis, 1: Finishing of TAG analysis Existence TAG kind 0:ID 3V1, 1:ID 3V2, 2;With WMA, 3;AAC, 4:WAV, and 7: no TAG information
Technical Note
www.rohm.com
51/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Cursor position number in a cursor existence folder [15:0]
0x23
0x24
0x25
0x26
0x27
0x28
0x29
0x2A
0x2B
0x2C
0x2D
0x2E PLISTPLAY 7
0x2F FIOSTAT 7 FIOERR FILE IO Error situation 0: With no Error, 1:Error
0x30 FIOSET 7:6 FIOBUS
0x31 IPLWMODE 7 0 0
NUMANAFO
LLL
NUMANAFO
LLH
NUMANAFO
LHL
NUMANAFO
LHH
TFILEANAF
OLLL
TFILEANAF
OLLH
TFILEANAF
OLHL
TFILEANAF
OLHH
TFOLANAF
OLL
TFOLANAF
OLH
TFOLANAH
EIRL
6
5
4
3 PLISTERR Situation support to Play LIST. 0: With no error, 1: format Error.
2 0 0
1 PLISTOPEN PLAY LIST file setting situation. 0;Un-setting up, 1;Play List setuped
0 PLISTPLAY
6 0 0
5 FIORW FILE IO Read/Write mode 0:Read mode, 1:Write mode
4 FIOOPEN FILE OPEN state 0: Un-open 1;during file open
3 FRDREADY
2 FWRREADY
1 FIOSEARCH FILE IO processing situation 0:Processing stop, 1:Under processing
0 FIOMODE FILE IO mode effective/invalid 0;invalid 1; effective
5:4 FIOSPIMD
3:0 FIOOPE
6 IPLWUNIT IPL FLASH ROM rewriting unit setup. 0;Page unit, 1;Byte unit
5
4
3 IPLWEERR IPL FLASH ROM Write Error Situation. 0;With no Error, 1;Write Error
2 IPLWEXIST
1 IPLSERCH
0 IPLWMODE IPL FLASH ROM rewriting mode effective/invalid 0;invalid, 1,effective
NUMANAFOL
7:0
NUMANAFOL
7:0
NUMANAFOL
7:0
NUMANAFOL
7:0
TFILEANAFOL
7:0
TFILEANAFOL
7:0
TFILEANAFOL
7:0
TFILEANAFOL
7:0
TFOLANAFOL
7:0
TFOLANAFOL
7:0
TFOLANAHEI
7:0
PLIST_GTAG_
PLIST_TAG_E
PLIST_BR_ER
PLIST_BR_BS
IPLWMODEA
IPLWMODEE
LL
LH
HL
HH
LL
LH
HL
HH
L
H
RL
END
XIST
R
Y
CT
ND
The entry number which the cursor within the folder in which low rank byte [7:0] cursor exists has pointed out is outputted. A number is shaken from No.1 in order of sorting in a folder.
Cursor position number in a cursor existence folder [15:0] Higher rank byte [15:8]
Cursor position number in a cursor existence folder [31:16] Low rank byte [23:16]
Cursor position number in a cursor existence folder [31:16] Higher rank byte [31:24]
The number of files total in a cursor existence folder [15:0] Low rank byte [7:0]
The number of files total in a cursor existence folder [15:0] Higher rank byte [15:8]
The number of files total in a cursor existence folder [31:16] Low rank byte [23:16]
The number of files total in a cursor existence folder [31:16] Higher rank byte [31:24]
The number of subfolders total in a cursor existence folder [15:0] Low rank byte [7:0]
The number of subfolders total in a cursor existence folder [15:0] Higher rank byte [15:8]
The classes number of cursor existence folder [7:0] A ROOT class is set to 1.
TAG analysis situation on Browsing cursor position in Play LIST 0: Under TAG un-analyzing / analysis , 1:End of TAG analysis TAG existence situation on Browsing cursor position in Play LIST 0: With no TAG, 1: with TAG
Browsing error situation in Play LIST. 0: Normal end 1: Error
Browsing BUSY situation in Play LIST 0:Not-BUSY, 1:BUSY (under analysis)
PLAY LIST MODE effective/invalid. 0: invalid, 1 :P LAY LIST MODE is effective
Read-out FIFO preparation situation 0:Under preparation, 1:Preparation O.K. Write-in FIFO preparation situation 0:Under preparation, 1:Preparation O.K. (it is used only at the time of SPI bus use)
FILE IO use BUS kind setup. 0:I2C, 1:SPI (8 bits), 2:SPI (16 bits), 2:SPI (32 bits) FILE IO SPI mode setup. 0:SPI MODE0, 1:SPI MODE1, 2:SPI MODE2, 3:SPI MODE3 The contents situation of FILE IO processing 0;With no processing , 1;OPEN, 2;Read, 3;Write, 4;Close, 5;Delete
IPL FLASH ROM rewriting operation situation. 0;Stop, 1;Under operation
IPL FLASH ROM rewriting processing end situation. 0;during operation, 1;End
File existence situation for rewriting in a memory. 0;With no file, 1;with a file File search situation for rewriting in a memory. 0;Search stop, 1;Under search
Technical Note
www.rohm.com
52/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
0x32 ENCON 7:4 ENCERR Encode Error situation 0;With no Error , 1;Error
3:0 ENCON Encoding mode effective/invalid 0;invalid , 1; effective 0x33 COMPON 7:4 TAGW 0
3:0 COMPON 0 0x34 ENC_PLAY 7:4 ENC_INFORM 0
3:0 ENC_PLAY 0
0x35
0x36 CDROMON 7 BUFFULL Inside buffer state of CD input 0;not FULL, 1;FULL
0x37 MEMINFO 7:4 MEMINFO Memory device information chosen now
0x38 COMAREA 7:0 COMAREA
0x13F
ENC_BITRA
TE
3:0
6 0 0
5 SEEK CD-ROM function SEEK demand situation. 0;Nothing, 1:SEEK request
4
3:2
1
0 CDROMON CD-ROM mode effective/invalid 0;invalid , 1;effective
3 0 0
2 0 0
1 IRPTOINT Interrupt packet existence flag 0;Nothing, 1;with a packet
0 IRPTODEVICE
-
7:4 ENC_INSR 0
ENC_BITRAT
E
CDROMANAE
RR
CDROMANAE
ND
CDROMANAB
USY
0
CD-ROM file analysis error situation 0;no Error, 1: with Error
CD-ROM file analysis end situation 0;Un-analyzing , 2: Analysis end
CD-ROM file analysis situation 0;Stop, 1;Under analysis
Device with two or more Config(s) 0:Config singular number, 1:Config plurality
Data common area The contents change with status read-out commands. (When read-out exceeding OFFSET=0x140 is performed, OFFSET does not return to 0x00, but the value read becomes unfixed)
Technical Note
www.rohm.com
53/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Table 6.4.2.2 MODE2 Status Output Commands
Command name
READ_BUFF 4 0x6C 0x00 N M Arbitrary
READ_STATUS 4 0x6D 0x00 0x00 0x00 6
READ_PSET 4 0x6D 0x00 0x01 0x00 4
READ_PTIME 4 0x6D 0x00 0x02 0x00 6
READ_LANG 4 0x6D 0x00 0x02 0x01 2
READ_PNUM 4 0x6D 0x00 0x02 0x02 10
READ_TNUM 4 0x6D 0x00 0x02 0x03 6
READ_FNUM 4 0x6D 0x00 0x02 0x04 4
READ_PFILE_NAM E
READ_PFOL_NAM E
READ_PFILE_TAG 4 0x6D 0x00 0x05 N 130
READ_RESUME_IN FO
READ_DEV_FREE 4 0x6D 0x00 0x07 N 8
READ_DEVDESC 4 0x6D 0x00 0x08 0x00 18
READ_CONDESC 4 0x6D 0x00 0x08 0x01 32
READ_INQUIRY 4 0x6D 0x00 0x08 0x02 36
READ_BROWSE_S TATUS
Comma nd
Byte length
Com man
Status STATUS
d
1st 2nd 3rd 4th
4 0x6D 0x00 0x03 N 130
4 0x6D 0x00 0x04 0x00 130
4 0x6D 0x00 0x06 0x00 42
4 0x6D 0x01 0x00 0x00 1
The number of output bytes
Output the arbitrary number data of bytes from the OFFSET position
where the status register map was specified.
OFFSET is 3rd and 4
(M, N= 0x00, 0x00 to 0x01, 0xFF).
Output about internal status. Output about OFFSET 0x00-0x05 of a status buffer.
Output about setting information. Output about OFFSET 0x06-0x09 of a status buffer.
Output about Playing time information. Output about OFFSET 0x0A-0x0F of a status buffer.
Output about TAG character code information. Output about OFFSET 0x10-0x11 of a status buffer.
Output about the number under Playing. Output about OFFSET 0x12-0x1B of a status buffer. An exact value cannot be acquired when music is specified by cursor
and access data, such as a PLAY_CURSOR command.
Output about the file in a memory, and the number of folders. Output about OFFSET 0x1C-0x21 of a status buffer.
Output the number of files which is in a folder during the present
Playing.
Output the file name of the file of the +Nth file during the present
Playing. Specify N from 0x00 to 0x04. N=0x00 is the present file. Output is enabled only when the Nth file is within the same folder where the one being played resides. If the Nth file is in a different folder, “0” is output
Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Output the folder name of the file being played. Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Outputs the data which is written to TAG of the file being played. Specify TAG type with 0xN at the 4
from the following. Any other settings will not accept the command. N=0x00: TITLE , N=0x01: ARTIST , N=0x02: ALBUM , N=0x03: GENRE
Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Outputs the data required to execute resume play. The data is output in Little Endian format. See 6.4.5 for the output format. Outputs the free space analysis results of the file analyzed by the
GET_DEV_FREE command.
Specify the space type to be output with N at the 4
at the 4 considered to specify N=0x01. N=0x00: Outputs the free space of the selected media by the byte. N=0x01: Outputs the TOTAL space of the selected media by the byte.
If the GET_DEV_FREE command has not been sent, this command
outputs “0”.
Output a Device Descripter value when the USB memory is inserted
and chosen.
Output a Configration Descripter value when the USB memory has
been recognized.
Output a MSC Inquiry value when the USB memory has been
recognized.
Output about the browsing analysis status in a memory. Output about OFFSET 0x22- of a status buffer.
Technical Note
th
byte. It is specified as a byte by Little Endian
th
bytes. Select N at the 4th byte
th
th
byte from the following. Any other settings will be
byte. Select N
www.rohm.com
54/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
READ_BROWSE_P NUM
READ_BORWSE_T NUM
READ_BROWSE_F OL_INFO
READ_BROWSE_E NTRY_INFO
READ_BROWSE_T AG
READ_BROWSE_P ATH
4 0x6D 0x01 0x00 0x01 4
4 0x6D 0x01 0x00 0x02 7
4 0x6D 0x01 0x01 0x00 76
4 0x6D 0x01 0x02 N 76
4 0x6D 0x01 0x03 N 130
4 0x6D 0x01 0x04 0x00 258
READ_PLIST_STAT US
4 0x6D 0x02 0x00 0x00 1
READ_PLIST_TAG 4 0x6D 0x02 0x01 N 130
READ_PLIST_PATH 4 0x6D 0x02 0x02 N 258
READ_PLIST_NAM E
READ_PLIST_PLAY _PATH
READ_PLIST_PLAY _NAME
READ_PLIST_TNU M READ_PLIST_PNU M
4 0x6D 0x02 0x03 N 130
4 0x6D 0x02 0x04 N 258
4 0x6D 0x02 0x05 N 130
4 0x6D 0x02 0x06 0x00 4
4 0x6D 0x02 0x07 0x00 4
READ_FR_STATUS 4 0x6D 0x03 0x00 0x00 2
Output about the cursor position number of browsing in a memory. Output about OFFSET 0x23-0x26 of a status buffer.
Output about the number of entries in the folder in which the cursor of
browsing in a memory exists, and the number of classes.
Output about OFFSET 0x27-0x2D of a status buffer.
Outputs the information on the folder where the entry being pointed by
the memory browsing cursor resides.
See 6.4.7 for the output format.
Outputs the information on the Nth entry ahead from the one being
pointed by the memory browsing cursor.
Specify N at the 4
th
byte. Specify N in the range from 0x00 to 0x13.
See 6.4.7 for the output format.
Outputs the TAG analysis results of the file analyzed by the
GET_TAG_CURSOR command.
Specify the TAG type with N at the 4
Select N at the 4
th
byte from the following. Any other settings will not
th
byte.
accept the command.
N=0x00: TITLE, N=0x01: ARTIST, N=0x02: ALBUM, N=0x03: GENRE
Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Outputs the full path (including drive letter (A:\)) of the entry pointed
by the cursor analyzed by the GET_PATH_CURSOR command.
The drive letter is "A:\" for USB and "B:\" for SD. Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Output about play list mode status. Output about OFFSET 0 x2E-x31 of a status buffer. Outputs the TAG analysis results of the file analyzed by the
PLST_GET_TAG_CURSOR command.
Specify the TAG type with N at the 4
th
byte. Select N at the 4th byte
from the following. Any other settings will not accept the command.
N=0x00: TITLE, N=0x01: ARTIST, N=0x02: ALBUM, N=0x03: GENRE
Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Outputs the full path (including drive letter (A:\)) of the Nth entry
ahead from the one pointed by the play list browsing cursor.
The drive letter is "A:\" for USB and "B:\" for SD. Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Specify N at the 4
th
byte. Specify N in the range from 0x00 to 0x13
("0x00" indicates the current entry).
Outputs the name of the Nth file ahead from the entry pointed by the
play list browsing cursor.
Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Specify N at the 4
th
byte. Specify N in the range from 0x00 to 0x13
("0x00" indicates the current entry).
Outputs the full path (including drive letter (A:\)) of the Nth entry
ahead from the one being played.
The drive letter is "A:\" for USB and "B:\" for SD. Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Specify N at the 4
th
byte. Specify N in the range from 0x00 to 0x04
(0x00 indicates the current entry).
Outputs the name of the Nth file ahead from the entry being played. Output data has the preposed data ID (2 bytes). See 6.4.6 for the
output format.
Specify N at the 4
th
byte. Specify N in the range from 0x00 to 0x04
(0x00 indicates the current entry).
Outputs the currently set number of files within the play list.
Outputs the currently set cursor position within the play list.
Output about a file read and file write functional status. Output about OFFSET 0 x2F-0x30 of a status buffer.
www.rohm.com
55/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
READ_FR_SIZE 4 0x6D 0x03 0x01 0x00 4
READ_FR_DATA 4 0x6D 0x03 0x02 0x00 260
READ_IPL_STATUS 4 0x6D 0x05 0x00 0x00 1
READ_CD_STATUS 4 0x6D 0x07 0x00 0x00 1
READ_CD_SLBN 4 0x6D 0x07 0x01 0x00 4
READ_CD_PLBN 4 0x6D 0x07 0x01 0x01 4
READ_CD_FINUM 4 0x6D 0x07 0x01 0x02 6
READ_CD_FONUM 4 0x6D 0x07 0x01 0x03 6
READ_CD_FILE 4 0x6D 0x08 N M 64
READ_CD_FOL 4 0x6D 0x09 N M 64
READ_SYSMODE 4 0x6D 0x0A 0x00 0x00 1
READ_MEMINFO 4 0x6D 0x0A 0x02 0x00 1
READ_CKSUM 4 0x6D 0x0A 0x03 0x00 5
READ_MOUNT_ER ROR
4 0x6D 0x0A 0x04 0x00 14
Output the file size of the file specified by the file read function. A unit is a byte. It outputs by LittleEndian.
Reads the data of the file specified by the File Read function. Up to 256 bytes of data can be read at one time. The leading 4 bytes are file offset. They are output in Little Endian
format.
Output about IPL Write status. Output about OFFSET 0x31-x34 of a status buffer.
Output about CD-ROM mode status. Output about OFFSET 0x36 of a status buffer.
Output about the LBN number demanded by SEEK request. Output by LittleEndian.
Output about the LBN number of the present input data. Output by LittleEndian.
Outputs the number of files in the file system analysis result. Outputs the value in Little Endian format. 1st-2nd byte : the file information acquirable number of a file system
analysis result (n). The file information to this number can be read at 'READ_CD_FILE'.
3rd-4th byte : The file number (m) of the head which can carry out
information acquisition is outputted.
5th-6th byte :The total file number of a file system analysis result is
outputted.When analysis is not completed, the number of files which analysis has ended is outputted.
Outputs the number of folders in the file system analysis result. Outputs the value in Little Endian format. 1st-2nd byte : the folder information acquirable number of a file
system analysis result (n). The folder information to this number can be read at 'READ_CD_FOL’.
3rd-4th byte : The folder number (n) of the head which can carry out
information acquisition is outputted.
5th-6th byte :The total folder number of a file system analysis result is
outputted. When analysis is not completed, the number of folders which analysis has ended is outputted.
Outputs information of the L[15:0]={M, N}
analysis result. (For L, Please set up L between file information acquirable numbers [1st-2nd byte of 'REDA_CD_FINUM'] from 1.)
The information is output in Little Endian format.
When file system analysis is not completed, the maximum of specified
L is recorded as information read-out completion. The acquired information may become invalid when analysis is resumed.
Outputs information of the L[15:0]={M, N}
analysis result. (For L, Please set up L between file information acquirable numbers [1st-2nd byte of 'REDA_CD_FONUM'] from 1.)
The information is output in Little Endian format. If L=0 is specified, the command outputs the information on CD
volume.
When file system analysis is not completed, the maximum of specified
L is recorded as information read-out completion. The acquired information may become invalid when analysis is resumed.
Output about the present system operation mode.
Output about the present memory information. Output about OFFSET 0x37 of a status buffer. Output the CHECK SUM calculation result when IPL download. Output a 1st byte= comparison result. When the 1st byte is 0x0, it
show that comparison result is coincidence. When the 1st byte is 0x1, it show that comparison result is disagreement.
Output a 2nd-3th byte are calculation result and 3th-5th byte are the
value currently written in FLASH ROM.
Output the information on which stage of media mount went wrong
when ERROR generating.
1st byte:The state whenUSB enumeration is outputted. 2nd byte:The state when SD initialization is outputted.
th
file in the file system
th
folder in the file system
www.rohm.com
56/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
READ_FW_VER 4 0x6D 0xFF 0x00 0x00 4
READ_IPL_VER 4 0x6D 0xFF 0x01 0x00 12
10th byte:The state when file system analysis is outputted. Other bytes should be disregarded. Please read this value only when ERROR=1. Also at the time, although a value is read, it is usually the information
on ERROR=0 for which the value was performed at the end.
Please refer to process information about the details of a read-out
value at the time of a back clause media mount error.
Output about a firmware version. Output to 0x06, 0x00, 0x02, 0x00 Output about the image version in Flash.
1st-2nd byte= model number "W1" =0x57 0x31, 3th-4th= year (lower 2
figures), 5th-8th= manufacture days and months, and 9th-12th="FLAS"=0x46 0x4C0x41 0x53 is outputted.
Technical Note
Table 6.4.2.3 Command enable/disable in each system operation mode
Command
CONFIG
READ_BUFF
READ_STATUS
READ_PSET
READ_PTIME × × × × ×
READ_LANG × × × × ×
READ_PNUM × × × × ×
READ_TNUM × × × × ×
READ_FNUM × ○ × × × ○ ○ × × × × ×
READ_PFILE_NAM E
READ_PFOL_NAM E
READ_PFILE_TAG × × × × × × × ×
READ_RESUME_IN FO
READ_DEV_FREE × × × × × ×
READ_DEVDESC × × × × × ×
READ_CONDESC × × × × × ×
READ_INQUIRY × × × × × ×
READ_BROWSE _STATUS
READ_BROWSE _PNUM
READ_BORWSE_T NUM
READ_BROWSE_F OL _INFO
READ_BROWSE _ENTRY_INFO
READ_BROWSE_T AG
READ_BROWSE_P ATH
READ_PLIST_STAT US
READ_PLIST_TAG × × × × × ○ × × × × ×
READ_PLIST_PAT H
READ_PLIST_NAM E
Command enable/disable in each system operation mode
PLAYER FILE
RW
× × × × × × × × ×
× × × × × × × × ×
× × × × ○ × × × × ×
×
× × × ○ × × × × ×
× × × ○ × × × × ×
× × × ○ × × × × ×
× × × ○ × × × × ×
× × × × ○ × × × × ×
× × × ○ × × × × ×
× × × ○ × × ○ × × × × ×
× × × ○ × × ○ × × × × ×
PLAYLI ST
IPL WRITE
CD-RO M
Command enable/disable in each status
STOP PLAY
SEARC H (device)
SEAR CH (FILE)
Analyz e
Write
ERRO R
www.rohm.com
57/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
READ_PLIST _PLAY_PATH
READ_PLIST _PLAY_NAME
READ_PLIST_TNU M
READ_PLIST_PNU M
READ_FR_STATUS
READ_FR_SIZE × × ○ × × × ○ × × × × × ×
READ_FR_DATA × × ○ × × × ○ × × × × × ×
READ_IPL_STATU S
READ_CD_STATUS
READ_CD_SLBN × × × × × ○ × × × × ×
READ_CD_PLBN × × × × × ○ × × × × ×
READ_CD_FINUM × × × × × × × × × ×
READ_CD_FONUM × × × × × × × × × ×
READ_CD_FILE × × × × × ○ × × × × ×
READ_CD_FOL × × × × × ○ × × × × ×
READ_SYSMODE
READ_MEMINFO
READ_CKSUM
READ_MOUNT_ER ROR
READ_FW_VER
READ_IPL_VER
× × × ○ × ×
× × × ○ × ×
× × × ○ × × ○ × × × × ×
× × × ○ × × ○ × × × × ×
× × × × ×
× × × × ×
=enable×=disable
www.rohm.com
58/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.3 System Operation MODE
The LSI starts operation by setting up System Operation MODE after download of the program by IPL after a power supply and reset release.
Possible operation changes with each modes of operation.
Only the one mode can set up mode of operation with a command. The mode which is simultaneously different cannot be set up. A microcomputer sets up the change in System Operation MODE with a command. The changes state in System Operation MODE is shown in Fig. 6.4.3.1.
Command CHG_SYSTEM_MODE
N=0x00 ; CONFIG MODE It is in the state which changes after a power supply and download of the program by IPL.
It is the mode which performs initial setting of a system.
Please change to the mode of other operation after setting up with an initial-setting command.
In this mode, even if it detects insertion of a memory, mount of a memory is not performed. The mount of a memory carried out behind each mode changes.
N=0x01 ; PLAYER MODE
It is the mode which performs decoding play of the file in a memory. File browsing (structural analysis in a memory) can be performed.
N=0x02 ; FILE RW MODE
It is the mode which Reading/Writing can perform about the specific file in a memory. A specific file can be deleted. File browsing (structural analysis in a memory) can be performed.
N=0x03 ; PLAY LIST MODE It is the mode which play according to the specific playlist file in a memory.
N=0x05 ; CD-ROM Decode MODE
It is the mode which analyzes and play(decoding) the input from CD-ROM.
N=0x07 ; IPL WRITE MODE
It is the mode which upload to outside serial Flash ROM from the specific data in a memory. A data file is offered from ROHM.
The reset to the LSI is required for after data rewriting.
Technical Note
www.rohm.com
59/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A

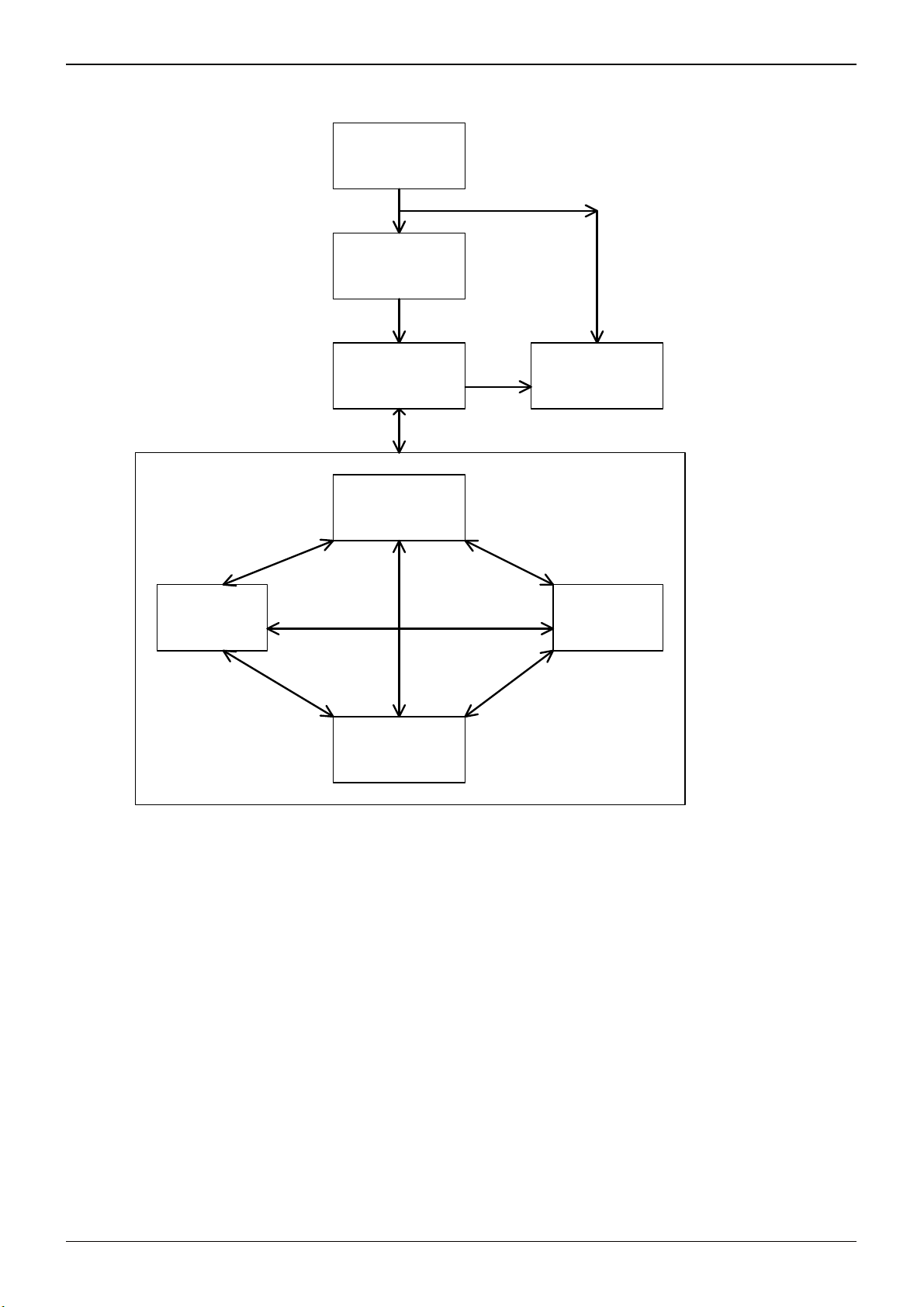

POWER ON
& RESET
IPL
Down Load
Technical Note
TEST2=L , TEST3=L
CONFIG
IPL WRITE
PLAYER
FILE RW
PLAYLIST
Fig. 6.4.3.1. The changes state in System Operation MODE
CD-ROM
www.rohm.com
60/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.4 Equalizers You can select audio line output from 5 types of equalizers and 2 types of bus boosts, using commands. (See Table
6.4.1.1.) You can use a combination of an equalizer and bus boost 1. Even when line output is not selected, the equalizer setting is valid. However, for digital output, the equalizer cannot change the sound quality. Figures 6.4.4.1 to 6.4.4.6 show frequency characteristics of each filter.

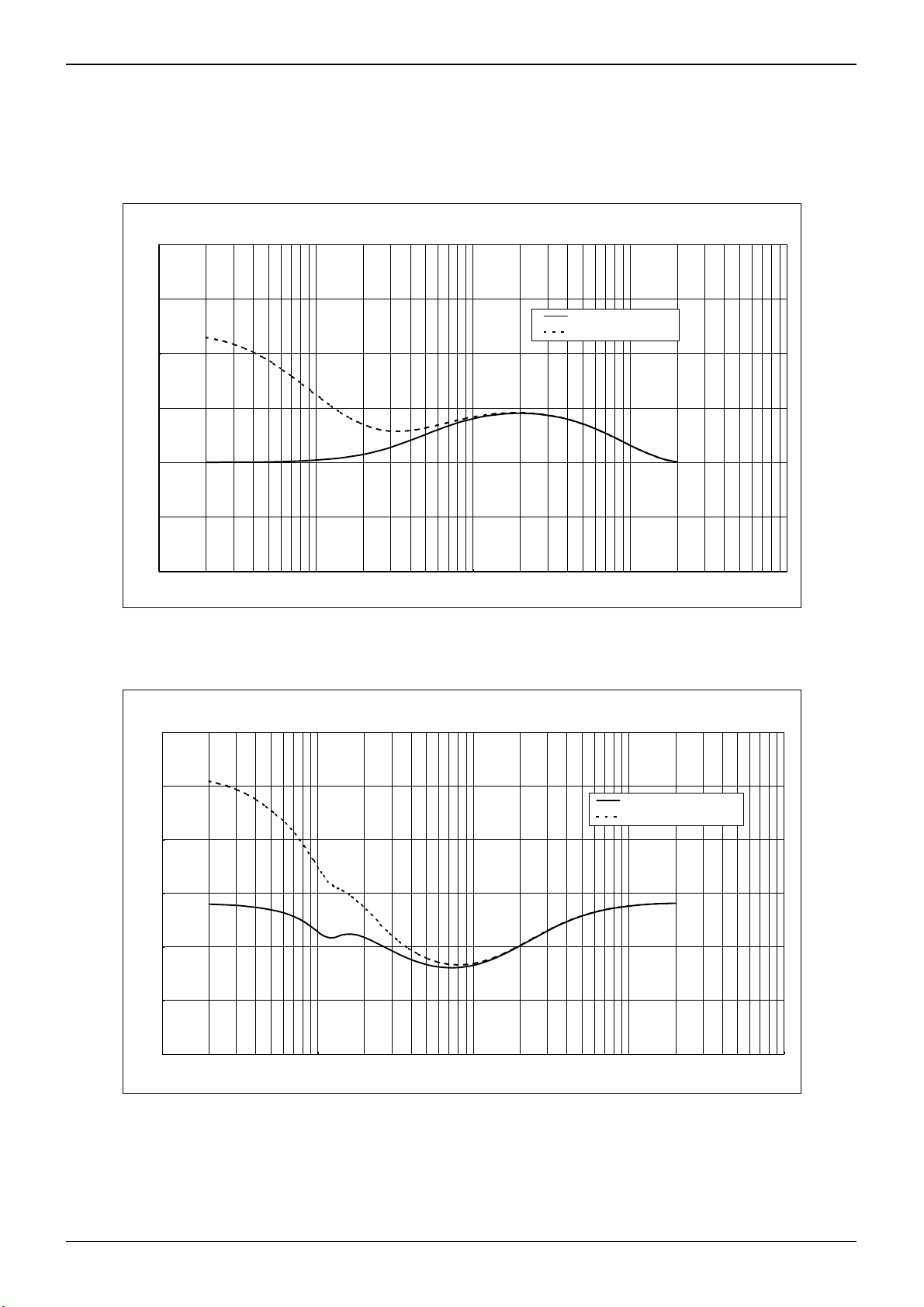

20
15
10
5
Mag.(dB)
0
Technical Note
POPS
POPS(0x52, 0x01)
POPS+BassBoost1(0x52, 0x09)
-5
-10 10 100 1000 10000 100000
Freq.(Hz)
Figure 6.4.4.1 POPS Frequency Characteristics
JAZZ
20
15
10
5
Mag.(dB)
0
JAZZ(0x52, 0x02)
JAZZ+BassBoost1(0x52, 0x0A)
-5
-10
10 100 1000 10000 100000
Freq.(Hz)
Figure 6.4.4.2 JAZZ Frequency Characteristics
www.rohm.com
61/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A

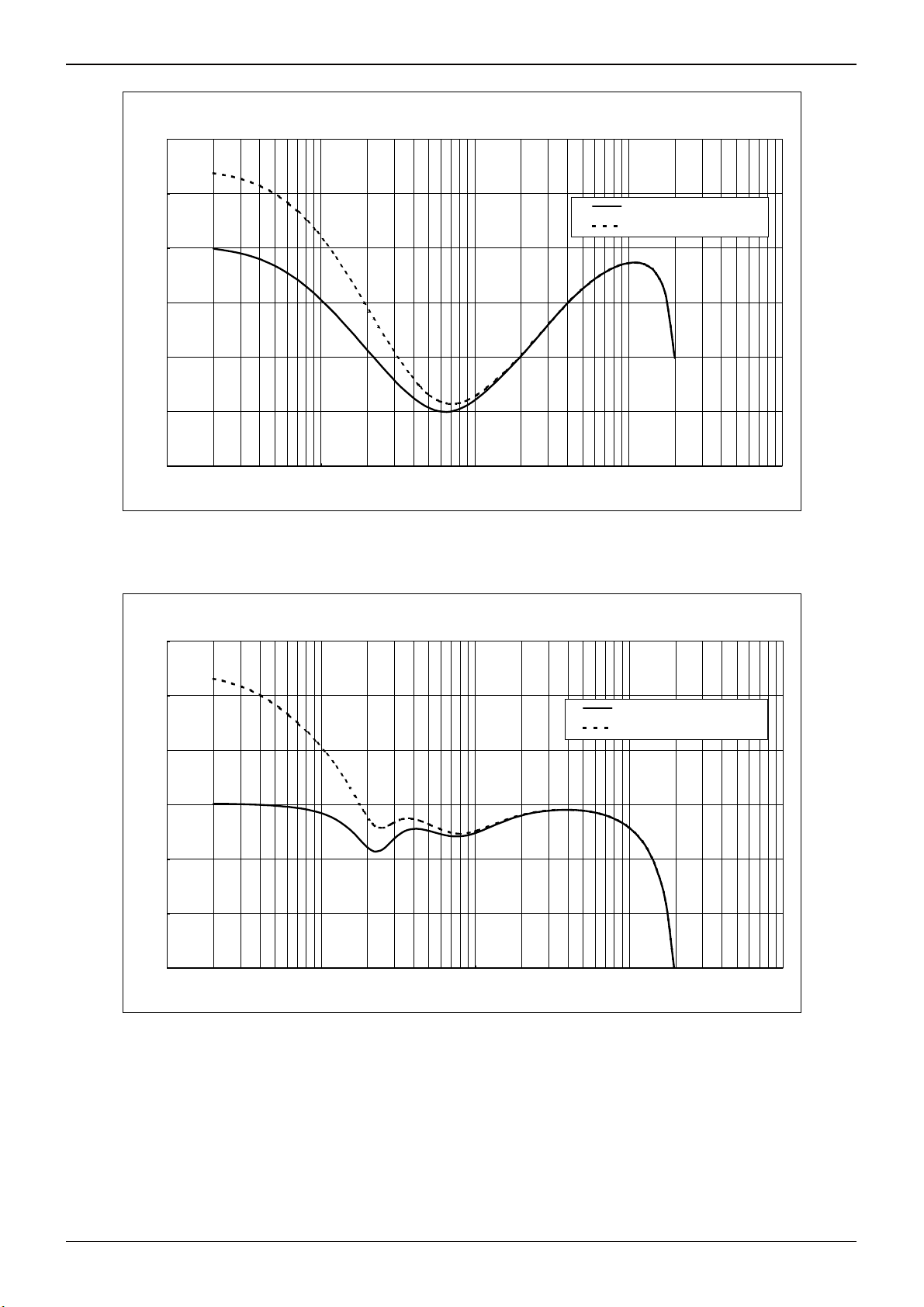

20
Technical Note
Rock
15
10
5
Mag.(dB)
0
-5
-10 10 100 1000 10000 100000
Freq.(Hz)
ROCK(0x52, 0x03)
ROCK+BassBoost1(0x52, 0x0B)
Figure 6.4.4.3 ROCK Frequency Characteristics
Classic
20
15
10
5
Mag.(dB)
0
-5
-10 10 100 1000 10000 100000
Freq.(Hz)
CLASSIC(0x52, 0x04)
CLASSIC+BassBoost1(0x52, 0x0C)
Figure 6.4.4.4 CLASSIC Frequency Characteristics
www.rohm.com
62/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A

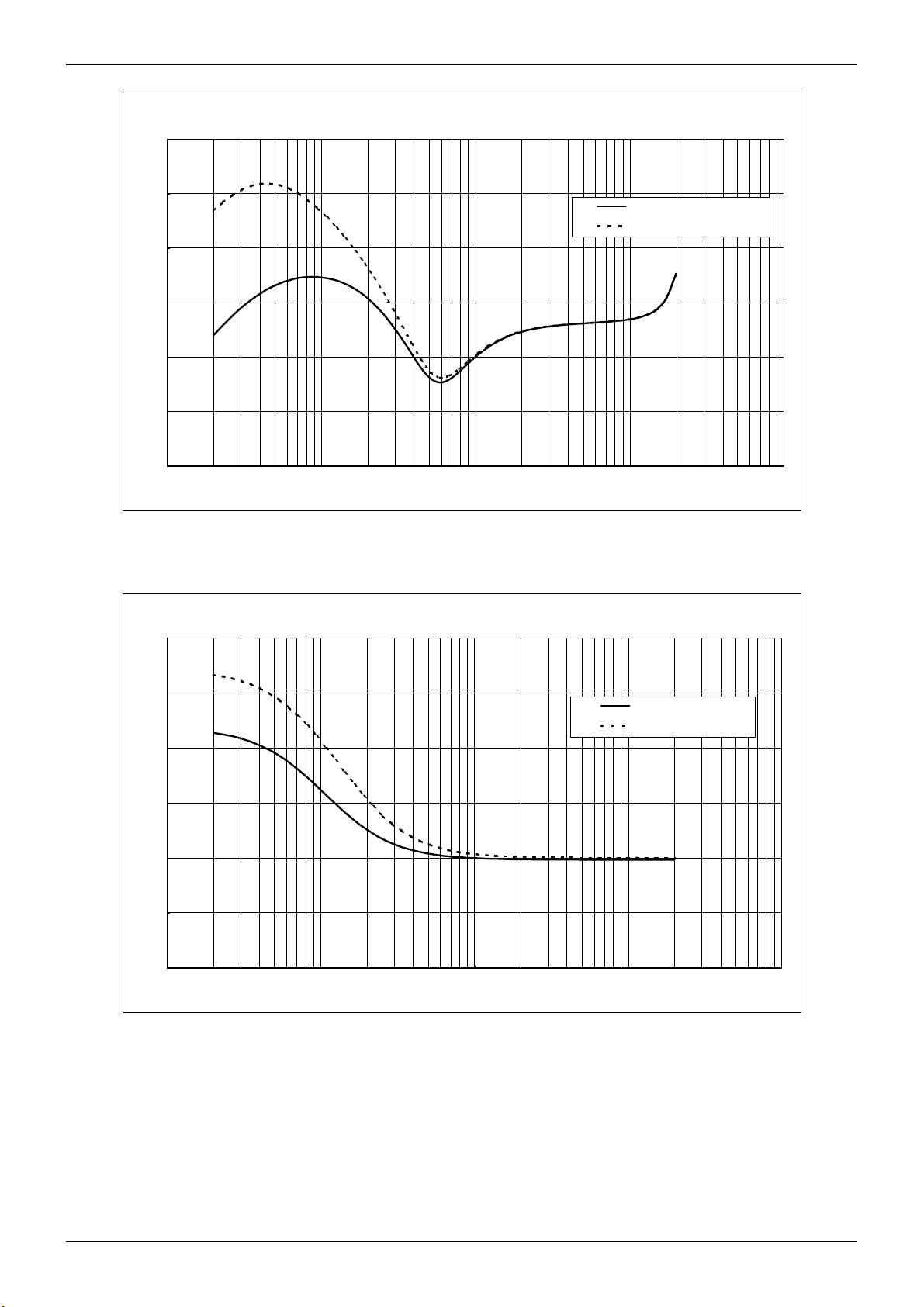

20
Technical Note
R&B
15
10
5
Mag.(dB)
0
-5
-10 10 100 1000 10000 100000
Freq.(Hz)
R&B(0x52, 0x05)
R&B+BassBoost1(0x52, 0x0D)
Figure 6.4.4.5 R&B
BassBoost
20
15
10
5
Mag.(dB)
0
-5
-10 10 100 1000 10000 100000
Freq.(Hz)
BassBoost1(0x52, 0x08)
BassBoost2(0x52, 0x0F)
Figure 6.4.4.6 Bass Boost
www.rohm.com
63/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
y
6.4.5 resume information This LSI outputs the information for resume function, using READ_RESUME_INFO command.
Technical Note
Table 6.4.5.1 Resume information register structure
Status
OFFSET
0x38-0x61 42
The above resume information has a LSI-unique structure and is used when executing resume play. Therefore, you should use the data contents as they are without rewriting. The resume function is implemented by writing the resume information read by READ_RESUME_INFO command to PLAY_RESUME command. After writing to PLAY_RESUME, the LSI automatically searches the resume file and plays it. After reading READ_RESUME_INFO command during file play, the LSI resumes the file from the time READ_RESUME_INFO has been read. The data contents read by READ_RESUME_INFO command cannot assure the operations when executing PLAY_RESUME which has been rewritten due to the positional information within the memory. If the resume information does not match because of change of memory, the LSI starts playing the first tune.
6.4.6 File Name, Folder Name, TAG Information A file name, a folder name, and TAG information are outputted to a status register.
The first 2 bytes to be output indicate file data ID information. The target data is outputted from the 3rd byte. A file name, a folder name, and TAG information status register structure are shown in Table 6.4.6.1.
The
number of
tes
b
NAME Contents
This data shows the information on the file being played and on the
Resume information
data
Table 6.4.6.1 File (folder, TAG) information register structure
play position. The data has a LSI-unique structure. The resume information data is data of 42 bytes. It outputs with a little endian.
Status
OFFSET
0x38 1 Data type
0x39 1 Encoding
0x3A-0xB9 128
The
number of
b
tes
NAME Contents
File name
(Folder name, TAG)
The type of data is outputted. 0x00; TEXT- NUL (0x00) Terminated character string 0x01; BYTE- Unsigned 1 byte integer
Encoding of a character string is outputted. 0x00 ; ISO8859-1(Latin1) 0x01 : UTF-16(with BOM) 0x02 : UTF-16BE 0x03 : UTF-8 0x49 : UTF-16LE When a data type is except 0x00:TEXT, data length (byte unit) is outputted.
A file name (or a folder name, TAG) is outputted by left fitting. Up to 128 bytes can be output. If the data is less than 128 bytes, it terminates with 0x00.
www.rohm.com
64/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
The full path within the memory to which a file exists is outputted to a status register. File path information status register structure is shown in Table 6.4.6.2.
Technical Note
Table 6.4.6.2 File path information register structure
Status
OFFSET
0x38 1 Data type
0x39 1 Encoding
0x3A-0x139 256 File path
The character code information on TAG information is outputted to a status register. Character code information status register structure is shown in Table 6.4.6.3.
The
number of
tes
b
LANGH
OFFSET=0x11
0x00 0x00 ID3V1 TAG or ISO8859-1(ID3V2 TAG)
0x00 0x01 UTF-16 (ID3V2 TAG)
0x00 0x02 UTF-16BE (ID3V2 TAG
0x00 0x03 UTF-8 (ID3V2 TAG or AAC TAG iTunes Meta-data)
0x00 0x49 UTF-16LE (WMA TAG)
NAME Contents
The type of data is outputted. 0x00; TEXT- NUL (0x00) Terminated character string 0x01; BYTE- Unsigned 1 byte integer
Encoding of a character string is outputted. 0x00 ; ISO8859-1(Latin1) 0x01 : UTF-16(with BOM) 0x02 : UTF-16BE 0x03 : UTF-8 0x49 : UTF-16LE When a data type is except 0x00:TEXT, data length (byte unit) is outputted.
A file path is outputted. The delimiter between folder layers is ”\” (0x5C). Up to 256 bytes can be output. If the data is less than 256 bytes, it terminates with 0x00. For USB, the data starts with ”A:\”; for SD, with ”B:\”.
Table 6.4.6.3 Character code information register structure
LANGL
OFFSET=0x10
Language Code
www.rohm.com
65/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
6.4.7 File browsing within memory
The LSI can analyzing and reading of the entry information of files and subfolders within a folder which is different from the one having the current tune while the current tune is being played or stopped. Since the read information contains access data to be used to select tunes, the LSI enables to directly select and play tunes using this data. File Browsing within the memory will be enabled by: operating the cursor position which can be controlled separately from the position of the tune being played and analyzing the folder to read the information on folders. When sending the command to move the cursor, the LSI can analyze and read the information of 10 entries (files or folders) from the move destination. (The number of entries can be changed by the setting of SET_BROWSE_NUM.) The cursor movement conforms to the sort order determined by the sort function. If the sort function is enabled, the system first reads the files, and then the subfolders, in the sort order. If the sort function is disabled, the LSI reads the files and subfolders in the order that they are written to FAT.
A file browsing function becomes effective after ANALYSE_ROOT command is send, and starts the analysis in a root
folder.
The file information status register structure which can be read by the file browsing function in a memory is shown in Table 6.4.7.1.
Technical Note
Table 6.4.7.1 File (folder) information register structure
Status
OFFSET
0x38-0x3D 6 Access data
0x3E 1 Entry type
0x3F 1 - 0x00
0x40-0x43 4 Cluster number
0x44-0x84 64
Cautions)
If browsing operation is frequently performed during music plaing, music skipping may occur by the memory with a slow access speed.
The
number of
b
tes
NAME Contents
File name
(Folder name)
The position in the memory in which a file and folder information are written is shown. Direct song selection is possible from a microcomputer using this data.
The type of file is outputted. 0x0Y= file-native (LFN, SFN), 0x1Y= folder-native (LFN, SFN) 0x8Y= file-UTF16LE (LFN), 0x9Y= folder-UTF16LE (LFN) Y become the following cases. 0x1=MP3, 0x2=WMA, 0x3=AAC, 0x4=WAV , 0x5=PLAY LIST, 0x6-0xE=reserve, 0xF,0x0=other file
The cluster number in the memory in which a file and folder information are written is shown.
A file name (folder name) is outputted by left fitting.
www.rohm.com
66/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A

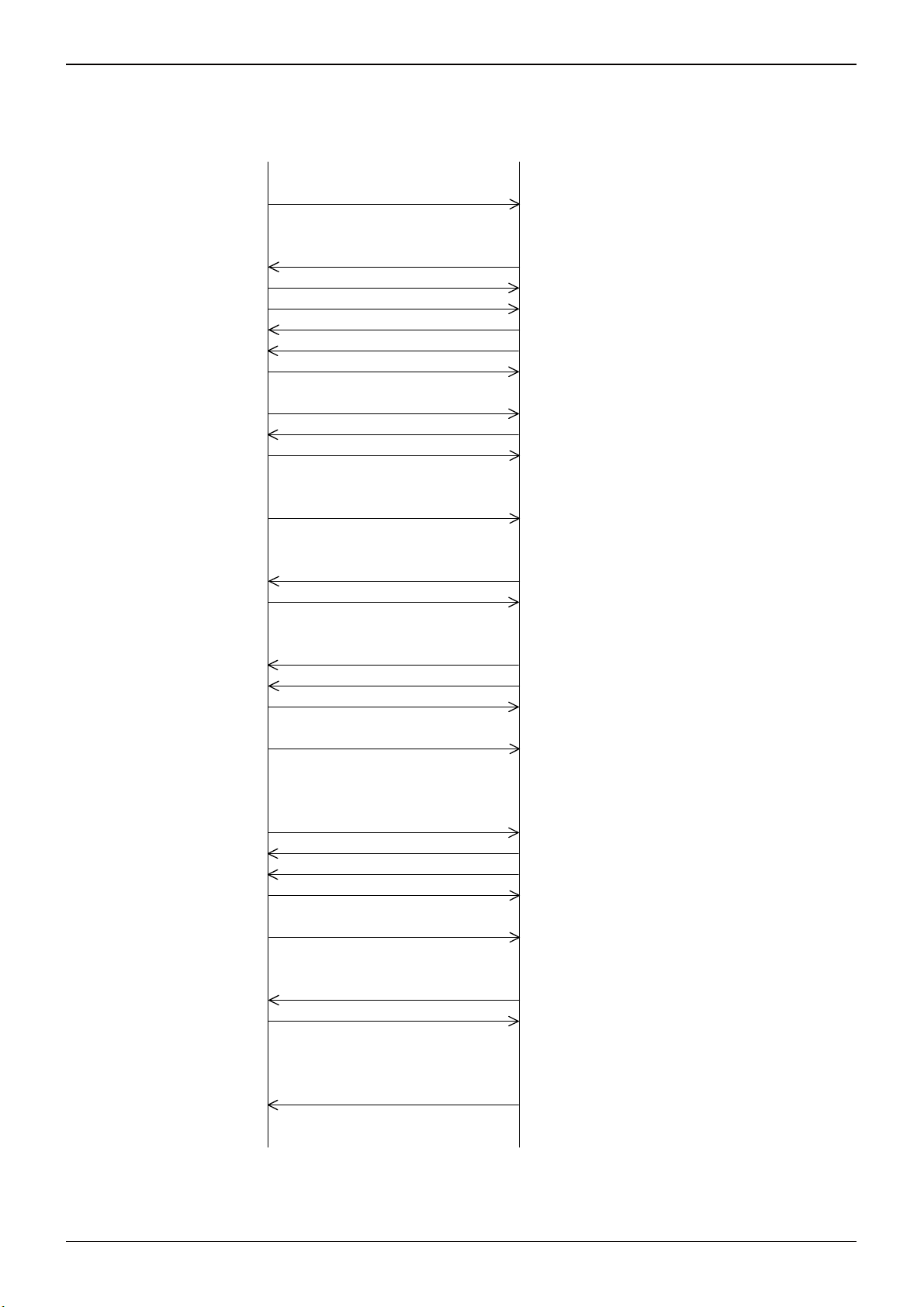

MICOM
CONFIG MODE
The number of
analyses is set as 10.
Change to PLAYER MODE
Get status
Get file number in folder
Get folder information
Get entry information
Get file information
N=0 to N=9
Get status
Browsing outline flow
This LSI
CHG_SYSTEM_MODE
SET_BROWS_NUM
CHG_SYSTEM_MODE
SEARCH=0x02
SEARCH=0x01
SEARCH=0x00
ANALYZE_ROOT ROOT folder analysis start
ANA_CUR=H
READ_BROWSE_STATUS
READ_BROWSE_TNUM
READ_BROWSE_FOL_INFO
READ_BROWSE_ENTRY_INFO
READ_BROWSE_ENTRY_INFO
READ_BROWSE_STATUS
Memory mount start
Memory Mount complete
Analysis completeANA_CUR=L Internal cursor is set to 1st (it sets to file1)
Output file information N=0 to N=9
The example of the structure in memory
ROOT Folder(file number=15,subfolder=10)
- file1 - file15 (file)
- folder1 (folder)
- file101 - file120 (file)
-folder2 - folder10 (folder)
Analyze files and folder number Analyze information from file1 to file10
Technical Note
Get entry information
Get entry information
Move cursor N=+10
Get status
Move cursor N=+10
Get status
Move cursor to file2
TAG analysis of file2 GET_TAG_CURSOR
Get TAG ingormation
MOV_NEXT
READ_BROWSE_ENTRY_INFO
READ_BROWSE_STATUS
MOV_NEXT
READ_BROWSE_ENTRY_INFO
READ_BROWSE_STATUS
MOV_DIRECT
READ_BROWSE_ENTRY_INFO
READ_BROWSE_TAG
Figure 6.4.7.1 File browsing outline flow ( analyze root folder )
ANA_CUR=H
ANA_CUR=L
ANA_CUR=H
ANA_CUR=L
ANA_CUR=H
ANA_CUR=L
GET_TAG_END=H
Internal cursor is set to 11th (it sets to file11) Analyze information from file11 to file15,
folder1 to folder5
Analysis complete
Internal cursor is set to 21th (it sets to folder6)
Analyze information from folder6 to folder10
Analysis complete
Internal cursor is set to 2nd (it sets to file2)
Analyze information from file2 to file11
Analysis complete
Start TAG analysis
Analysis complete
www.rohm.com
67/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A

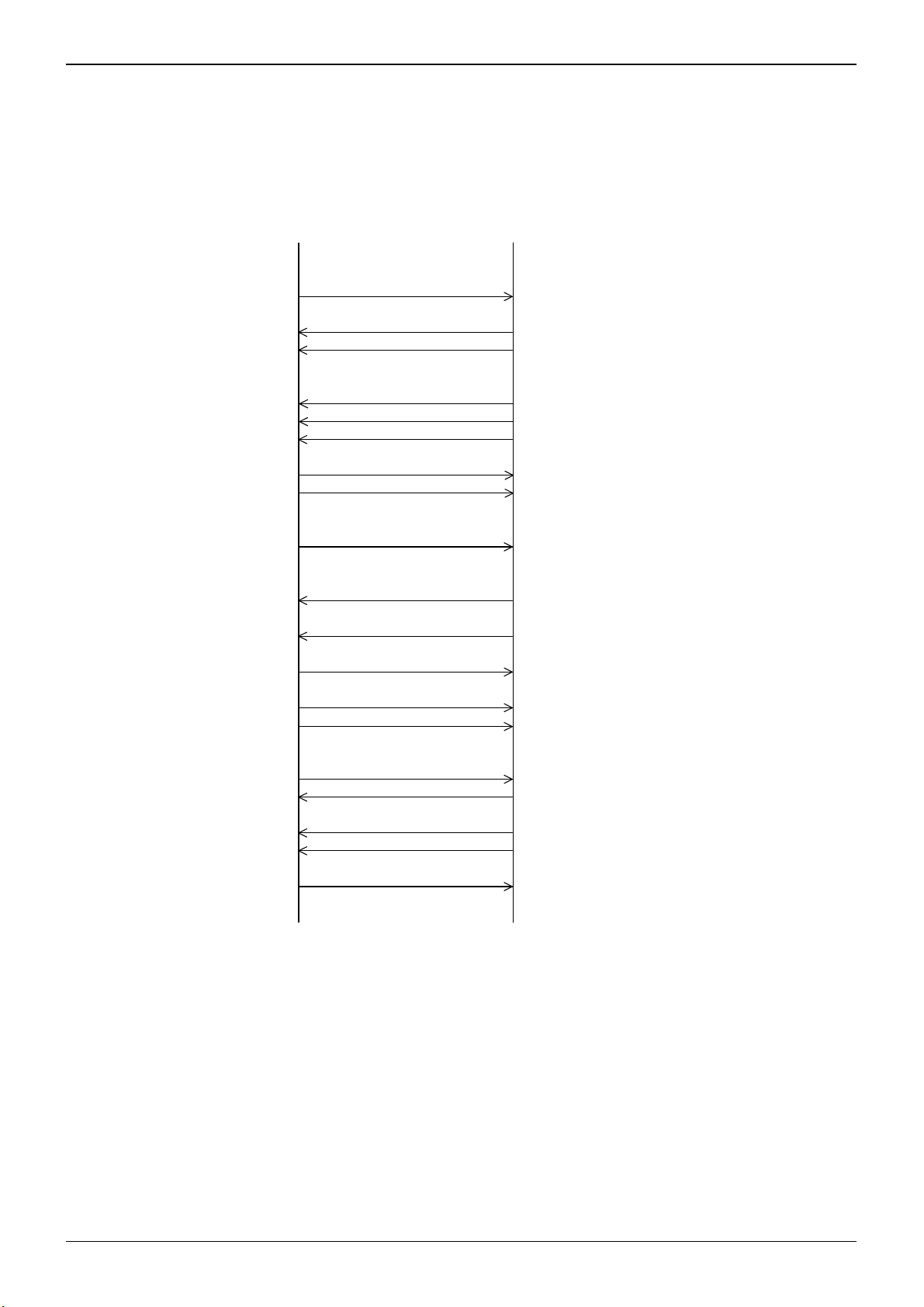

MICOM
CONFIG MODE
The number of
analyses is set as 10
Change to
PLAYER MODE
Browsing outline flow
CHG_SYSTEM_MODE
SET_BROWS_NUM
CHG_SYSTEM_MODE
SEARCH 0x02
SEARCH 0x01
SEARCH 0x00
Technical Note
This LSI
The example of the structure in memory
ROOT Folder file number=15,subfolder=10)
- file1 - file15 (file)
- folder1 (folder)
- file101 - file120 (file)
-folder2 - folder10 (folder)
Start memory mount
Complete memory mount
Get status
After root folder analysis
The cursor position is to file1
Move cursor N=+15
Move into folder1
Get file number in folder
Get folder information
Get entry information
Get file information
N=0 to N=9
Move cursor N=+10
Get entry information
Get status
READ_BROWSE_STATUS
MOV_NEXT
MOV_DOWN
READ_BROWSE_TNUM
READ_BROWSE_FOL_INFO
READ_BROWSE_ENTRY_INFO
READ_BROWSE_ENTRY_INFO
MOV_NEXT
READ_BROWSE_ENTRY_INFO
READ_BROWSE_STATUS
ANA_CUR H
ANA_CUR L
ANA_CUR H
ANA_CUR L
ANA_CUR H
ANA_CUR L
Analyze information from folder1 to folder10 Internal cursor is set to 16th (it sets to folder1)
Analysis complete
Internal cursor is set to 1st into folder1 (it sets to file101)
Analyze files and folder number Analyze information from file101 to file110 Analysis complete
Output file information file101 to file110
Internal cursor is set to 11th(it sets to file111)
Analyze information from file111 to file120 Analysis complete
Move cursor N=-6
Get status
Play file105
Get status
MOV_PREV
READ_BROWSE_STATUS
PLAY_CURSOR
READ_STATUS
ANA_CUR H
ANA_CUR L
SEARCH=0x01
SEARCH=0x00
PLAY=H
Internal cursor is set to 5th(it sets to file105)
Analyze information from file105 to file114
Analysis complete
Start file105 playing
Figure 6.4.7.2 File browsing outline flow ( analyze folder1 )
www.rohm.com
68/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.8 Play list play
The LSI can search the play list in the specified folder within the memory and output the play list information. When the microcomputer selects the play list, the LSI plays the selected tunes in the order written to the play list. Also, the LSI can output the file information in the selected play list. Available playlist file should have an extension of M3U or PLS and be described in full path using ASCII or SHIFT-JIS. The full path of a file described in the playlist should be within 256 bytes and within 16 hierarchies. If the play list format is other than the above or the path does not match, the LSI skip playing tunes. While playing the tunes in the playlist, PLAY, STOP, PAUSE, FF and FB commands can be used to control the list. The music file described during the play list is treated as what exists in the flat of one class (only root folder) within a memory irrespective of the place (path) where the file exists really. For this reason, it becomes invalid a folder repeat and a folder random command, and it becomes effective the repeat in a memory, an one music repeat, and random in a memory setting up a repeat setup by the SET_REPRAND command.
specifies the full path
MICOM
Change to
PLAY LIST MODE
Get status
of a play list file
Playing start
Play List outline flow
CHG_SYSTEM_MODE
READ_PLIST_STATUS
SET_PLAYLIST
PLAY
PLAY=H
PLISTPALY=H
SEARCH=0x1
SEARCH=0x0
PLISTOPEN=H
SEARCH=0x1
SEARCH=0x0
Technical Note
This LSI
Change to PLAY LIST MODE
STATUS output
Search Play list file
Play List file OPEN
Analyze 1st to 10th music into Play List
Play list cursor is set to 1st
Playing start
Get file name
Get folder name
Get TAG info
Get TIME info
Browse file name into play list
Get file name 1st to 10th music
Move Play list cursor to N=+10
Get file name 11st to 20th music
Move Play list cursor to N=-3
Play 8th music
READ_PFILE_NAME
READ_PFOL_NAME
READ_PFILE_TAG
READ_PTIME
READ_PLIST_NAME
PLIST_MOV_NEXT
READ_PLIST_NAME
PLIST_MOV_PREV
PLIST_PLAY_CURSOR
PLAY=L
PLAY=H
PLIST_BR_BSY=H
PLIST_BR_BSY=L
PLIST_BR_BSY=H
PLIST_BR_BSY=L
SEARCH=0x1
SEARCH=0x0
STATUS output
Play list cursor is set to 11th
Analyze 11st to 20th music into Play List
Play list cursor is set to 8th
Analyze 8st to 17th music into Play List
Play 8th music
Figure 6.4.8.1 Play List playing outline flow
www.rohm.com
69/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.9 File data write and File data read
It is possible to read the contents of data of the specification file in a memory. It is possible to create a data file in a memory. Specification of a file name is specified by the full path (less than 256 bytes) including a file name and an extension. A full path including a file name and an extension supports to 16 classes within 256 bytes. A full path is acquirable with browsing operation. Deletion of a file is possible at the time of browsing operation.
The above-operation can be performed when system operation mode is FILE RW mode.
MICOM
Technical Note
File Write outline flow
This LSI
Change to FILE RW MODE
Setup by SPI BUS
Specifies file and Open file FOPEN_W
Get status
Data writing start
Specifies
the data size of a block
Write data of block by SPI
Specifies
the data size of a block
Write data of block by SPI
CHG_SYSTEM_MODE
SET_FRW_BUS
READ_FW_STATUS
FWRITE_DAT
FWRITE_DAT
FWRREADY=L
FWRREADY=L
FIOMODE H
FIOSEARCH H
FIOSEARCH L
FIOOPEN H
FWRREADY L
FIOSEARCH H
FIOSEARCH LFWRREADY=H
FIOSEARCH H
FIOSEARCH L
FIOSEARCH H
FIOSEARCH LFWRREADY=H
FIOSEARCH H
FIOSEARCH L
Change to FILE RW MODE
Start File open
Complete File open
STATUS output
Complete FIFO preparation
Write to memory from FIFO
Complete FIFO preparation
Write to memory from FIFO
FCLOSEFinish File writing
FIOSEARCH H
FIOSEARCH L
FIOOPEN L
Close File
Complete File close
Figure 6.4.9.1 File write function outline flow
www.rohm.com
70/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
MICOM
Technical Note
File Read outline flow
This LSI
Change to FILE RW MODE
Setup by I2C BUS
Specifies file and Open file
Get status
Get file sze
(Get 1kByte)
Start data reading
Specifies offset in file
(=0)
Read block data (256byte)
Specifies offset in file
(+256)
Read block data (256byte)
Specifies offset in file
(+256)
Read block data (256byte)
Specifies offset in file
(+256)
Read block data (256byte)
CHG_SYSTEM_MODE
SET_FRW_BUS
FOPEN_R
READ_FR_STATUS
READ_FR_SIZE
FREAD_DAT
READ_FR_DATA
FREAD_DAT
READ_FR_DATA
FREAD_DAT
READ_FR_DATA
FREAD_DAT
READ_FR_DATA
FRDREADY L
FRDREADY L
FRDREADY L
FRDREADY L
FIOMODE H
FIOSEARCH H
FIOSEARCH L
FIOOPEN H
FIOSERCH H
FIOSERCH H
FIOSERCH H
FIOSERCH H
Change to FILE RW MODE
Vaild File reading function
Search specified file
Complete file search
STATUS output
Move block data (256byte)
FIOSERCH LFRDREADY H
to FIFO from memory
FIOSERCH LFRDREADY H
FIOSERCH LFRDREADY H
FIOSERCH LFRDREADY H
Move block data (256byte) to FIFO from memory
Move block data (256byte) to FIFO from memory
Move block data (256byte) to FIFO from memory
FCLOSEFinish File reading
FIOSEARCH H
FIOSEARCH L
FIOOPEN L
Close File
Figure 6.4.9.2 File read function outline flow
www.rohm.com
71/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
6.4.10 CD-ROM Decoder
File system analysis and decoding of data are performed to 3 line serial input data from CD-ROM format. The result of file system analysis holds the maximum about 350 entry (folders+ files) grade to an internal buffer, when a file name or a folder name consists of 48 bytes as a standard. When 32 bytes or less are constituted, an analysis result holds the maximum about 450 entry grade to an internal buffer. An analysis result is outputted to status. The entry which was not able to be held to the buffer domain for analysis cannot be played after file system analysis. Moreover, since analysis is performed from the class of a higher rank, when the buffer domain for analysis is set to FULL before the analysis of a playable file by the reasons of a higher rank class having many folders, it may be unable to play depending on the structure in CD-ROM. The number of entries which can be held to the buffer for analysis changes depending on the contents of composition of each CD-ROM. The input data buffer of about 100 kB is built in. (A file system analysis result is also included.) CD-ROM ECC and the EDC function are supported. Refer to the CD data ripping for CD input data format and input terminal specification.
6.4.10.1 Support File System
CD-ROM Mode1, Mode2 form1, and Mode2 form2 are supported. The file system supports ISO9660 level 1 and 2. Remeo and Joliet extension are supported. The folder class which can be searched support by 8 classes. A folder name and a file name are acquirable to 48 bytes.
6.4.10.2 SEEK request The status of the LBN of required data is outputted when a file analysis start and file selection.
Furthermore, SEEK request interruption is outputted from an IRPTO terminal to a microcomputer at this time. When a SEEK request occurs, a microcomputer should perform playing from at least 1 sector before from requested LBN. If a request sector is inputted, it will be automatic, connection operation will be performed and subsequent data will be processed.
6.4.10.3 File, Folder, CD Volume Information The status of the CD file system analysis result is outputted by READ_CD_FOL and a READ_CD_FILE
command.
If the 0th is specified by the READ_CD_FOL command, the volume information on CD will be outputted.
A file, a folder, and volume information status register structure are shown below.
Technical Note
Table 6.4.10.3.1 CD file information register structure
Status
OFFSET
0x38-0x39 2 Parent folder number
0x3A-0x3B 2 File number A file number is outputted.
0x3C-0x3F 4 File size File size is outputted.
0x40-0x43 4 File LBN LBN of the file head is outputted.
0x44 1 Extension type
0x45 1 Identifier length The identifier length (byte) recorded on DISC is outputted.
0x46 1 - 0x01
0x47 1 Data length Data length is outputted.
0x48-0x77 48 File name
The
number of
tes
b
NAME Contents
A parent folder number is outputted. A route becomes No. 1.
An extension (file kind) is outputted. 0x01 : MP 3 0x02 : WMA 0x03 : AAC 0x04 : WAV 0x05 : Play list file 0x06-0x0E : Reserved 0x00 and 0x0F : Other files
A file name is outputted by left fitted. Up to 48 bytes can be output. A data type is outputted as BYTE.
www.rohm.com
72/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
y
Technical Note
Table 6.4.10.3.2 CD folder information register structure
Status
OFFSET
0x38-0x39 2
0x3A-0x3B 2
0x3C-0x3D 2 Parent folder number
0x3E-0x3F 2 Folder number The present folder number is outputted.
0x40-0x43 4 Folder LBN LBN of the folder head is outputted.
0x44 1 - reserve
0x45 1 Identifier length The identifier length (byte) recorded on DISC is outputted.
0x46 1 - 0x01
0x47 1 Data length Data length is outputted.
0x48-0x77 48 Folder name
The
number of
bytes
NAME Contents
The number of
subfolders
The number of
playable files
The number of subfolders is outputted.
The number of playable files is outputted.
A parent folder number is outputted. A route becomes No. 1.
A folder name is outputted by left stuffing. Up to 48 bytes can be output. A data type is outputted as BYTE.
Table 6.4.10.3.3 CD volume information register structure
Status
OFFSET
0x38?0x39 2
0x3A-0x3B 2
0x3C-0x3F 4 Path table LBN
0x40-0x43 4 Root folder LBN LBN of the root folder head is outputted.
0x44 1 VD type
0x45 1 Identifier length The identifier length (byte) recorded on DISC is outputted.
0x46 1 - 0x01
0x47 1 Data length Data length is outputted.
0x48-0x67 32 Volume name
The
number of
tes
b
NAME Contents
The number of total
folders
The number of total
playable files
The number of total folders is outputted.
The number of total playable files is outputted.
LBN of the path table (L type) currently recorded on effective VD is outputted
VD type is outputted.
0x00 : PVD 0x01 : SVD
A volume name is outputted by left stuffing. Up to 32bytes can be output. A data type is outputted as BYTE.
www.rohm.com
73/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Technical Note
CD-ROM Decoder outline flow
MICOM
Change to CD-ROM MODE
Setup for enabling
CD-ROM function
Get status READ_CD_STATUS
Start FS analysis
Read data LBN
Control CD track
Get status
CHG_SYSTEM_MODE
INREQI L
START_CDROM
START_CDANA
READ_CD_SLBN
INREQI H
READ_CD_STATUS
BFULLO H
CDROMON H
BFULLO L
SEEK HIRPTO H
CDROMANABUSY H
This LSI
Change to CD-ROM MODE
Valid CD-ROM function
Request data LBN
Valid input data data LBN are in agreement write data to internal buffer
Start analysis
Detect analysis finish
Detect buffer FULL
Control INREQI PIN
Get analysis result READ_CD_FILE
Specifies file and play file
Specifies start LBN
Read data LBN
Control CD track
Get status
Get status
INREQI L
CD_SET_LBN
READ_CD_SLBN
INREQI H
READ_CD_STATUS
CDROMANAEND H
BFULLO H
BFULLO L
SEEK HIRPTO H
PLAY H
STOP H
Complete analysis
Invalid input data and Stop writting to internal buffer
Request data LBN
Valid input data data LBN are in agreement write data to internal buffer
Start decoding
Finish decoding
Figure 6.4.10.1 File read function outline flow
www.rohm.com
74/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.11 Interruption IRPTO Terminal to Microcomputer An IRPTO terminal generates an interrupt request to a microcomputer.
Interruption becomes active by H. The contents of interruption change with the states where it is operating mode. The contents are shown below. We encourage detecting a standup in the interruption port of a microcomputer.
PLAYER MODE ERROR
FILE RW MODE
File read
State Interruption Contents
An interrupt occurs when memory connection error or communication error.
Clear conditions; interruption is cleared by extraction and insertion of a memory.
An interrupt occurs when a specification file is searched and
FRDREADY
read-out is ready.
Clear conditions; interruption is cleared by data are read (block unit).
Technical Note
FILE RW MODE
File write
PLAY LIST MODE ERROR
CD-ROM MODE SEEK
IPL WRITE MODE IPLMODEEND
6.4.12 Previous Command Processing Situation The previous command processing situation is outputted as status register STATUS6 (OFFSET=0x05)
PRECOMSTAT. Bit0 of STATUS6(OFFSET=0x05) and Bit2 of STATUS2 (OFFSET=0x01) is the same value. When Bit2 of STATUS2 set to "0", the previous command is normally processed. When Bit2 of STATUS2 set to "1", the previous command is not processed. The following shows the value descriptions.
Value NAME Cause of being unprocessed 0x01 UNCLASSIFIED Non classification error
0x03 UNKNOWN CMD Undefined command 0x05 SEARCH Searching now 0x07 INVALID ARG Invalid parameter is detected. 0x09 WRONG MODE Invalid command in the current system operation mode 0x0B NOT READY Initialization is not completed. 0x0F NOT IMPLEMENTED The function is not mounted. 0x11 WRITE PROTECTED The device is write-protected. 0x13 DISK FULL The memory has no free space. 0x15 DEVICE ERROR Device error
FWRREADY
An interrupt occurs when read-in is ready with memory.
Clear conditions; interruption is cleared by data are write (block unit).
An interrupt occurs when memory connection error or communication error.
Clear conditions; interruption is cleared by extraction and insertion of a memory.
An interrupt occurs when requiring necessary data (LBN).
Clear conditions; interruption is cleared by required data are inputted.
An interrupt occurs when FLASH ROM rewriting end.
Clear conditions; interruption is cleared by reset.
www.rohm.com
75/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.4.13 Selected memory information The kind and information on a device which are selected now are outputted by the READ_MEMINFO command.
The details of an output value are shown below.
Value[7:4] Contents 0x0 Mounted USB device (playable device) 0x1 NO-Mounted USB device (file system un-support, etc) 0x2 USB LOW SPEED device 0x3 USB device with two or more DEVICE CONFIGRATION 0x4 USB device which cannot be recognized 0x5 -
0x6 - 0x7 SD Card 0x8-0xF It means that there is HUB, when Bit7 is H.
6.4.14 Process information when a media mount error The information on in which stage of media mount it failed with the READ_MOUNT_ERROR command is outputted.
After being set to ERROR=1, by reading this command shows in detail whether the error has occurred during which process execution. For example, when ERROR=1 and 1st byte=0x08 or 0x09 of READ_MOUNT_ERROR command, since a response mistake is made from the device in the process of TEST UNIT READY or REQUEST SENSE, it becomes a mount error. The details of an output value are shown below.
1st byte (offset=0) of a read value outputs the process state at the time of USB mount.
Read value Process state Read value Process state 0x00 Before a start of operation 0x10 GET_DEVSTATUS 0x01 Device descriptor 0x11 Sector read command send 0x02 SET_ADDRESS 0x12 Sector read command recive 0x03 Configuration descriptor 0x13 Sector read status recive
0x04 End Point connect 0x14 Sector write command send 0x05 SET_Configuration 0x15 Sector write command recive 0x06 GET MAX LUN 0x16 Sector write status recive 0x07 CLEAR_FEATURE 0x17 Not-supported Device Subclass 0x08 INQUARY 0x18 HUB only 0x09 TEST UNIT READY 0x19 LOW DEVICE detect 0x0A REQUEST SENSE - ­0x0B READ_CAPACITY - ­0x0C CLEAR_PORT_FEATURE - ­0x0D GET_PORT_STATUS - ­0x0E SET_PORT_FEATURE - ­0x0F HUB descriptor - -
Technical Note
www.rohm.com
76/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
2nd byte (offset=1) of a read-out value outputs the process state at the time of SD initialization.
Read value Process state 0x00 Before a start of operation 0x01 CMD0 Response 0x02 CMD8 Response 0x04 CMD55 Response 0x08 CMD41 Response 0x10 CMD58 Response
0x20 CMD1 Response
10th byte (offset=9) of a read-out value outputs the process state at the time of FAT filesystem analysis.
Read value Process state 0x00 Before a start of operation
0x01 MBR read 0x02 MBR Analysis 0x03 BPB Analysis 0x04 FAT table check
6.5 Watch Dog Timer The LSI incorporates Watch Dog Timer, which monitors the system hang-up and resets whenever it occurs.
After resetting hang-up, WDT (Watch Dog Timer) becomes available in either MODE1 or MODE2. In MODE1, WDT keeps valid all the time. In MODE2, you can disable WDT using DIS_WDT command. Once WDT is disabled, it cannot be enabled until reset is input. When WDT, in the valid status, detects a hang-up within the LSI regardless of external situations (on the microcomputer), the LSI resets the system internally.
To monitor whether the LSI is reset by WDT from the master microcomputer (external), use SET_WDT command to write H to STATUS WDT_RFLG and monitor this status. After reset, this status is read as L. This helps you judge that WDT has reset the LSI by reading out L when reading the status regularly after writing H using SET_WDT command.
Technical Note
www.rohm.com
77/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
6.6 IPL support to external serial FLASH ROM Once reset, the LSI needs to download the program to a part of the internal program area from the external serial FLASH ROM. However, it is also possible to write in data from a microcomputer without connecting external serial FLASH ROM. The download function from the external serial FLASH ROM enables to add and change the system functions simply by rewriting the external serial FLASH ROM. The program is downloaded automatically after reset. After download is completed, it shifts to CONFIG mode.
MICOM
RESETX
release
Language setup
MP3 setup
etc
RESETX=H
Initialization outline flow
SET_LANG
SET_MP3
BUSY H
SEARCH L
BUSY L
INIT_END H
This LSI
IPL download startSEARCH H
IPL download complete
Shift to CONFIG MODE
The state which can be command operated
Technical Note
System Operation MODE
This LSI supports to serial FLASH ROM to 8 bit-Command, 24 bit-ADDRESS, and clock MIN=15MHz by minimum size 2Mbit. This LSI supports to serial FLASH ROM to Write Status Register cycle time MAX.= 500msec, Page Program cycle time MAX.= 500msec, and Chip Erase cycle time MAX.= 180sec. The download time of the program from serial FLASH ROM is about 0.6 secs. This time changes with contents of the program writed in serial FLASH ROM.
The LSI supports a mode which enables to write the program data written to the memory (USB or SD) to the external serial FLASH ROM. By executing the command to enable the FLASH ROM write mode, the LSI searches in the memory and rewrites the external serial FLASH ROM. After rewriting the FLASH ROM, you should reset the LSI.
Change
PLAYER
Play setting
etc
Play command
playing time, etc.
Status get
CHG_SYSTEM_MODE
READ_STATUS status get
SET_VOL, etc
READ_STATUS status get
PLAY
READ_STATUS status get
PLAY=H
Shift to PLAYER MODE
Memory mount
SEARCH H
Memory mount
SEARCH L
complete
1st music search start,
SEARCH H
TAG analysis start
1st music search complete,
SEARCH L
TAG analysis complete
1st music playing start
The state which can be command operated
www.rohm.com
78/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Notes for use
1) Power on Reset Please keep the terminal RESETX at the Low level when the power supply starts. After completely starting up 3.3V system power supply , afterwards, please make the terminal RESETX High level after 100us after the oscillation of the system clock is steady. Moreover, please make the terminal RESETX Low level during 100us or more when resetting it while operating..
2) About compatibility in USB memory device and SD memory card
According to the file structure and communication speed of an USB memory, SD memory card, this LSI might not
play back correctly.
3) About turning on the power supply Current rush might flow momentarily by the order of turning on the power supply and the delay in IC with two or more power supplies, and note the capacity of the power supply coupling, the power supply, and width and drawing the GND pattern wiring.
4) About absolute maximum rating
When the absolute maximum rating such as the applied voltage and the ranges of the operating temperature is exceeded, LSI might be destroyed. Please apply neither voltage nor the temperature that exceeds the absolute maximum rating. Please execute physical measures for safety such as fuse when it is thought to exceed the absolute maximum rating, and examine it so that the condition to exceed the absolute maximum rating is not applied to LSI.
5) About GND Voltage In any state of operation must be the lowest voltage about the voltage of the terminal GND. Please actually confirm the voltage of each terminal is not a voltage that is lower than the terminal GND including excessive phenomenon.
6) About design of overheating malfunction preventive circuit
Please design overheating malfunction preventive circuit with an enough margin in consideration of a permissible
loss in the state of using actually.
7) About the short between terminals and the mounting by mistake Please note the direction and the gap of position of LSI enough about LSI when you mount on the substrate. LSI might be destroyed when mounting by mistake and energizing. Moreover, LSI might be destroyed when short-circuited by entering of the foreign substances between the terminal and GND, between terminals, between the terminal and the power supply of LSI.
8) About operation in strong electromagnetic field
Use in strong electromagnetic field has the possibility of malfunctioning and evaluate it enough, please.
9) Power off or memory disconnection under memory writing
The sudden power off or memory disconnection during recording or file write operation to a memory may break the
data in a memory.
10) Browsing operation With a memory with slow access speed, Browsing operation during music playing may generate skipping.
11) CD-ROM playing CD-ROM playing operation is premised on data being inputted so that an internal data buffer may not become
empty.
When an input does not meet the deadline and internal data buffers become empty, skipping occurs.
12) Playing time of MP3 file The playing time of an MP3 file may shift when fast forward playing, rewinding playing, and VBR playing.
13) Write-in operation exceeding memory size When memory size is exceeded, IC will stop writing to a file and will be in an error condition.
14) Write-in operation of the file size exceeding FAT specification When file size is exceeded, IC will stop writing to a file and will be in an error condition.
15) About WMA Windows Media Audio is the music compression technology which Microsoft Corp. developed. Windows Media is the registered trademark of U.S. Microsoft Corporation in the U.S., and other countries.
16) About I
2
C format I/F
Although this LSI has adopted the I
2
C format, the level shifter circuit is not built in.
For this reason, level shifter is needed for connection with the device besides the range of operating power supply
voltage of this LSI.
Technical Note
www.rohm.com
79/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Ordering part number
B U 9 4 6 0 7 A K V - E 2
Part No.
Part No.
Physical Dimension Tape and Reel Information
VQFP80
60
14.0± 0.2
12.0± 0.1
41
4061
12.0± 0.1
14.0± 0.2
1.6MAX
1.4± 0.05
VQFP80
1.25
80
0.1±0.05
1
0.5± 0.1
1PIN MARK
+0.05
0.2
-
0.04
1.25
21
20
0.145
+6
4
4
-
0.08 S
M
0.08
+0.05
-
0.03 S
0.5± 0.15
1.0± 0.2
(Unit : mm)
60
14.0± 0.2
12.0± 0.1
41
4061
1.25
80
1
1PIN MARK
1.6MAX
1.4± 0.05
0.1±0.05
0.5± 0.1
External dimension
14.0±0.2
12.0±0.1
61
0.2
+0.05
-
0.04
1.25
21
20
0.145
+6
4
4
-
0.08 S
M
0.08
+0.05
-
0.03
S
0.5± 0.15
1.0± 0.2
(Unit : mm)
4160
40
12.0± 0.1
14.0± 0.2
BU94607AKV
12.0±0.1
14.0±0.2
80
Lot No.
1.25
21
1.25
1
1 PIN mark
1.6MAX
1.4±0.05
0.1±0.05
20
0.145
+0.05
-0.03
S
+6゜
4゜
-4゜
0.08
0.08
S
M
+0.05
-0.04
0.20.5±0.1
<Tape and Reel information>
Embossed carrier tape (with dry pack)Tape
Quantity
Direction of feed
1000pcs E2
The direction is the 1pin of product is at the upper left when you hold
()
reel on the left hand and you pull out the tape on the right hand
1pin
Reel
<Tape and Reel information>
Tray (with dry pack)Container Quantity Direction of feed
1pin
0.5±0.15
1.0±0.2
1000pcs
Direction of product is fixed in a tray
Package KV: VQFP80
Packaging and forming specification E2: Embossed tape and reel
None: Tray, Tube
Direction of feed
Order quantity needs to be multiple of the minimum quantity.
Order quantity needs to be multiple of the minimum quantity.
Technical Note
www.rohm.com
80/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
BU94607AKV
A
Revision history
Date Revision Changes
01.Apr.2012 A New Release
Technical Note
www.rohm.com
81/81
© 2012 ROHM Co., Ltd. All rights reserved.
2012.04 - Rev.
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd.
The content specied herein is subject to change for improvement without notice.
The content specied herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specications, which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specied in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage.
The technical information specied herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information.
The Products specied in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, of ce-automation equipment, commu­nication devices, electronic appliances and amusement devices).
The Products specied in this document are not designed to be radiation tolerant.
While ROHM always makes effor ts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, re or any other damage caused in the event of the failure of any Product, such as derating, redundancy, re control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel­controller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing.
If you intend to export or ship overseas any Product or technology specied herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law.
Notice
Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved.
http://www.rohm.com/contact/
R1120
A
Notes
No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd.
The content specied herein is subject to change for improvement without notice.
The content specied herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specications, which can be obtained from ROHM upon request.
Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production.
Great care was taken in ensuring the accuracy of the information specied in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage.
The technical information specied herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information.
The Products specied in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, of ce-automation equipment, commu­nication devices, electronic appliances and amusement devices).
The Products specied in this document are not designed to be radiation tolerant.
While ROHM always makes effor ts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons.
Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, re or any other damage caused in the event of the failure of any Product, such as derating, redundancy, re control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual.
The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel­controller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing.
If you intend to export or ship overseas any Product or technology specied herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law.
Notice
Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved.
http://www.rohm.com/contact/
R1120
A
Loading...
