ROHM BA6842BFS, BA6840BFS, BA6840BFP-Y, BA6840BFP Datasheet

Motor driver ICs
3-phase motor driver
BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
The BA6840BFS, BA6840BFP-Y , BA6840BFP , and BA6842BFS are one-chip ICs designed for driving CD-ROM motors. They are high performance-ICs with a 3-phase, full-wave, pseudo-linear drive system.
Applications CD-ROM/RW, DVD-ROM/PLAYER
Features
1) 3-phase, full-wave, pseudo-linear drive system.
2) Start / stop pin; power saving during stop mode.
3) Internal current limit circuit.
Block diagram
4) Internal thermal shutdown circuit.
5) Internal hall bias circuit.
523
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
FAbsolute maximum ratings (Ta = 25_C)
FRecommended operating conditions
524
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 5V, VM = 12V)
525
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS

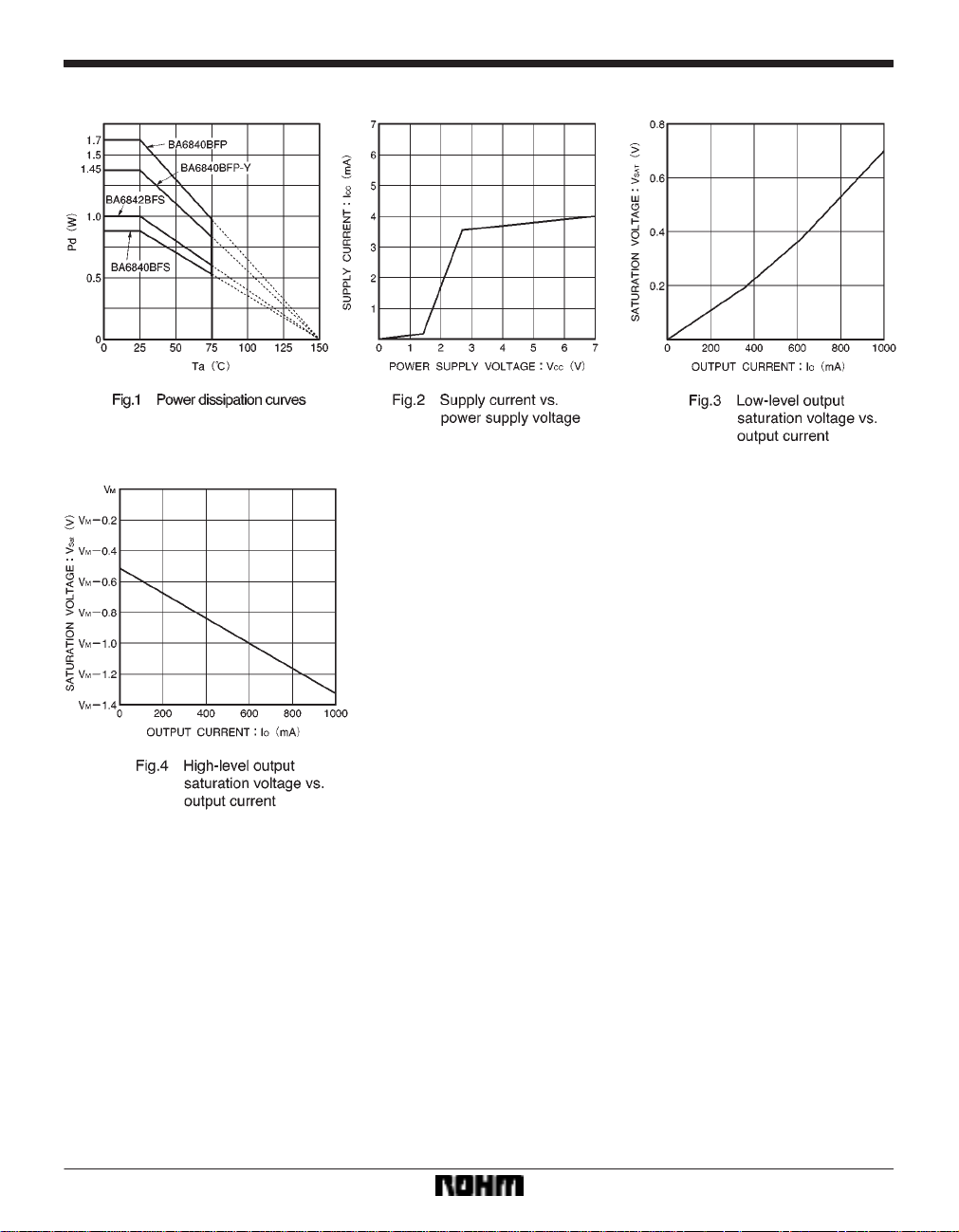

Electrical characteristic curves
526
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS

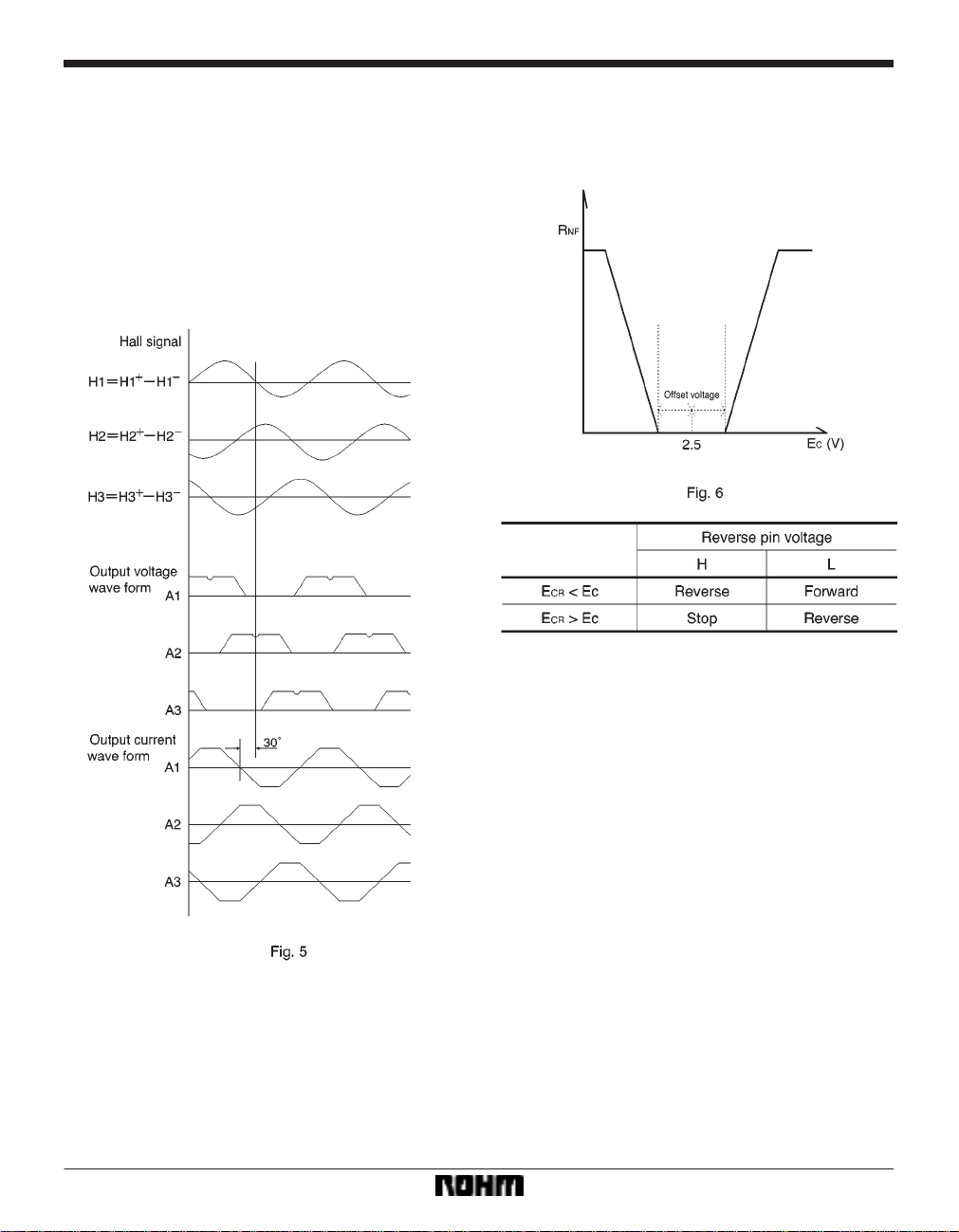

Circuit operation (1) Hall input output The 3-phase Hall signal is amplified in the hall amplifiers and sent to the matrix section, where the signal is further amplified and combined. After the signal is converted to a current in the amplitude control circuit, the current is supplied to the output driver, which then provides a motor drive current. The phases of the Hall input signal, output voltage, and output current are shown in Fig. 5.
(2) Torque control pin The R
NF-pin current depends on the torque control input
voltage (EC) as shown in Fig. 6.
(3) Start / stop pin The motor is in the run mode when the pin input voltage is 3.5V or more, and in the idle mode (all output transis­tors are off) when the voltage is 1.5V or less.
(4) Power ground pin (R
NF pin is the output stage ground pin. Connect a re-
The R
NF pin)
sistor (0.5 recommended) between this pin and the ground to monitor the output current.
(5) Phase compensation pin (C
NF pin)
Connect and adjust a capacitor between this pin and the ground if the output tends to oscillate.
527
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
Pin descriptions
Input / output circuits
(1) Start / stop (2) Reversing pin (3) Hall bias
528
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
(4) Torque control input
(6) Hall input (H1
)
, H1*, H2), H2*, H3), H3*)
(5) Coil output
FOperation notes (1) Start / stop The I / O equivalent circuit of the start / stop pin is shown in Fig. 7. The pin has a temperature dependence of *7mV / _C, and the resistance can vary ±30%. T ake the temperature effect into consideration when designing your application. (2) Hall input The Hall input equivalent circuit is shown in Fig. 12. The Hall devices can be connected in either series or parallel. (3) Thermal shutdown circuit (TSD) The circuit puts the coil outputs (A
1, A2, and A3) to the
open state at the temperature of 175_C (typical). There is a temperature difference of about 15_C between the temperatures at which the circuit is activated and deacti­vated.
529
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS
Application example
530
Motor driver ICs BA6840BFS / BA6840BFP-Y / BA6840BFP / BA6842BFS

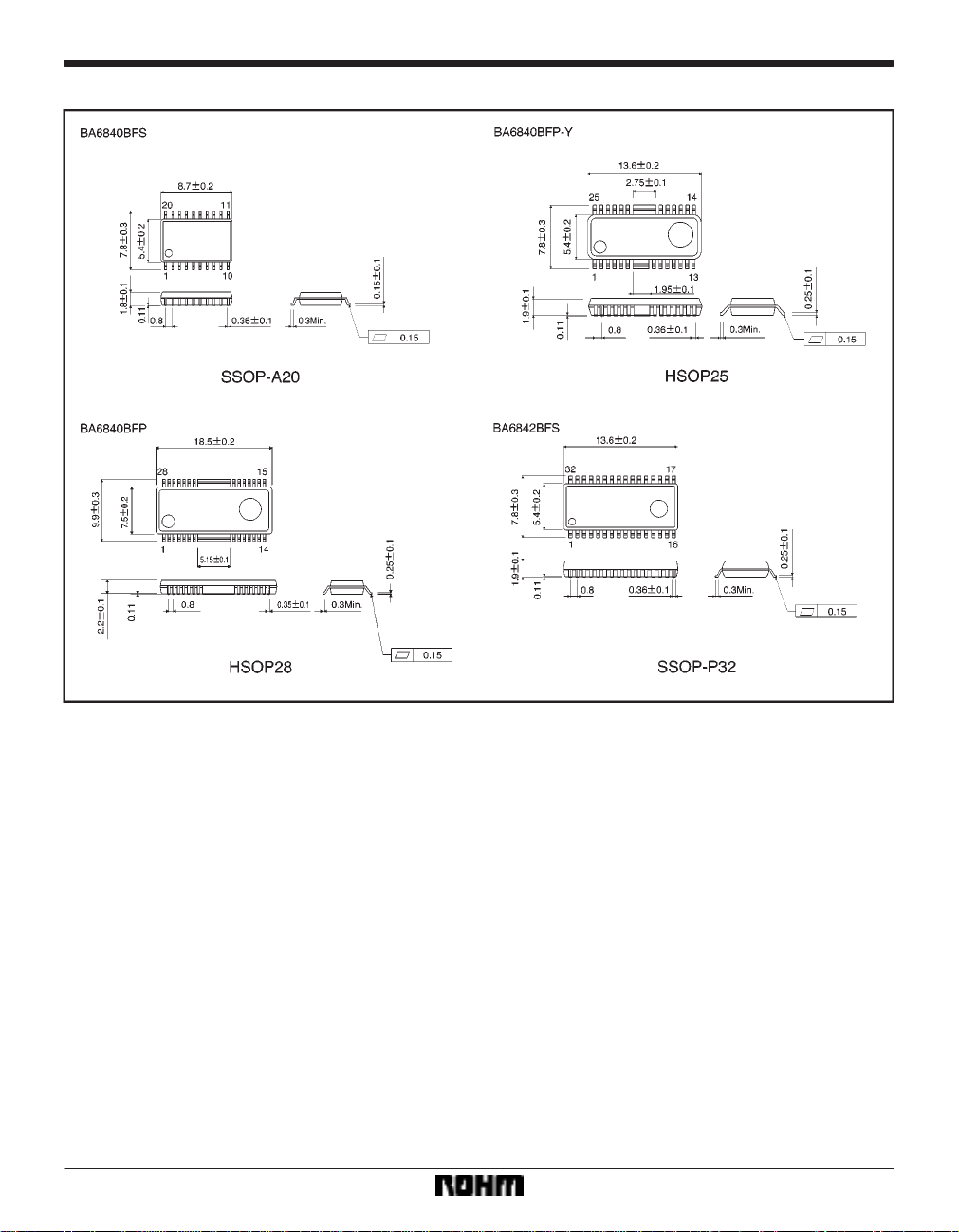

External dimensions (Units: mm)
