Optical disc ICs
4-channel BTL driver for CD players
BA6398FP
The BA6398FP is a 4-channel BTL driver for CD player motors and actuators. This IC has an internal 5V regulator , and
is suited to a wide range of applications.
Applications
CD players and CD-ROM drives
Features
1) 28-pin HSOP package allows for miniaturization of
applications.
2) Low number of external components.
3) Driver gain is adjustable with a single attached resistor.
Absolute maximum ratings (Ta = 25C)
4) Internal 5V regulator. (requires attached PNP transistor)
5) Internal standard operational amplifier.
6) Internal thermal shutdown circuit.
Recommended operating conditions (Ta = 25C)
340
Optical disc ICs BA6398FP
Block diagram
341
Optical disc ICs BA6398FP
Pin descriptions
342
Optical disc ICs BA6398FP
Input/output circuits
343
Optical disc ICs BA6398FP
Electrical characteristics (unless otherwise noted, Ta = 25C, VCC = 8V, f = 1kHz, RL = 8Ω)
Circuit operation
(1) Driver
Inputs to the IC are the focus tracking error signal from
the servo preamplifier and the control signal from the motor. The input signals, which normally center on 2.5V , are
V /I converted by the preamplifier, generating a current
corresponding to the input voltage. This current is
344
passed through a resistor and into the internal reference
voltage component, the preamplifier output being a signal centering on the internal reference voltage. Two systems (positive phase and negative phase) are created
during V /I conversion, generating BTL output via the
driver buffer.
Optical disc ICs BA6398FP
(2) Regulator
This is a typical series regulator that generates a reference voltage internally . A PNP low saturation types transistor must be connected.
(3) Operational amplifier
A standard 4558 type.

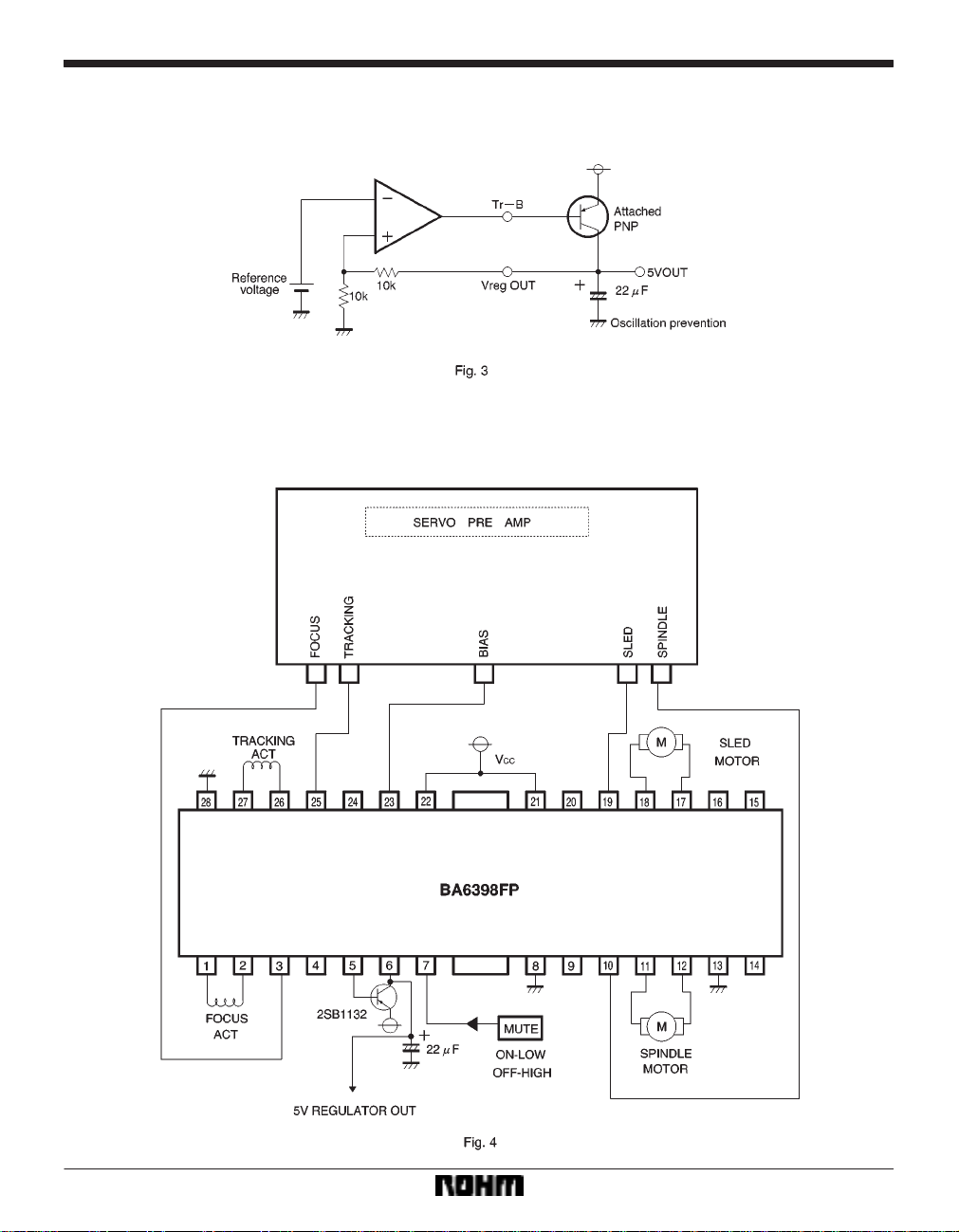

Application example
345
Optical disc ICs BA6398FP
Operation notes
(1) The BA6398FP has an internal thermal shutdown
circuit. Output current is muted when the chip temperature exceeds 175C (typically).
(2) If the mute pin (pin 7) voltage is opened or lowered
below 0.5V , the output current will be muted. Pin 7 should
be pulled up above 2.0V during normal use.
(3) The bias pin (pin 23) is muted when lowered below
1.4V (typically). Make sure it stays above 1.6V during
normal use.
(4) The driver circuit shuts down when the supply voltage drops below 4.5V (typically), and starts up again
when the voltage rises above 4.7V (typically).
(5) Muting occurs during thermal shutdown, mute-on
operations or a drop in the bias pin voltage or supply voltage. In each case, only the drivers are muted. During
muting, the output pins remain at the internal bias voltage, roughly (V
Electrical characteristic curves
CC–VF)/2.
(6) The internal input resistor has a positive temperature coefficient of roughly 2000ppm / degree, and so
when changing the gain using an attached resistor, gain
will also change at a rate of roughly 2000ppm / degree.
There is virtually no gain variation due to temperature
when using the internal input resistor.
(7) Be sure to connect the IC to a 0.1µF bypass capacitor to the power supply, at the base of the IC.
(8) The radiating fin is connected to the package’s internal GND, but should also be connected to an external
ground.
(9) The capacitor between regulator output (pin 6) and
GND also serves to prevent oscillation of the IC, so select
one with good temperature characteristics.
346
Optical disc ICs BA6398FP
Electrical characteristic curves
External dimensions (Units: mm)
347
