Active Rod Antenna R&S® HE010; Power Supply Unit R&S® IN115
Brief description
Active rod antenna
The excellent characteristics of active
receiving antennas are a result of
carefully matching the passive antenna
structure to the active circuitry.
Power Supply Unit R&S IN110,
R&S IN115
The Power Supply Units R&S IN110 and
R&S IN115 power active receiving
antennas via the inner conductor of the
RF cable.
◆ Wide frequency range
◆ Optimized for maximum dynamic
range (high sensitivity, excellent largesignal characteristics)
◆ Small in size
◆ For use under extreme conditions
(R&S HE010)
◆ High immunity to nearby lightning
strikes
◆ Length of radiator adjustable
(R&S HE011)
◆ AC supply or battery operation
◆ Short-circuit-proof
◆ Three DC-feed sections for up to three
active antennas (R&S IN115)

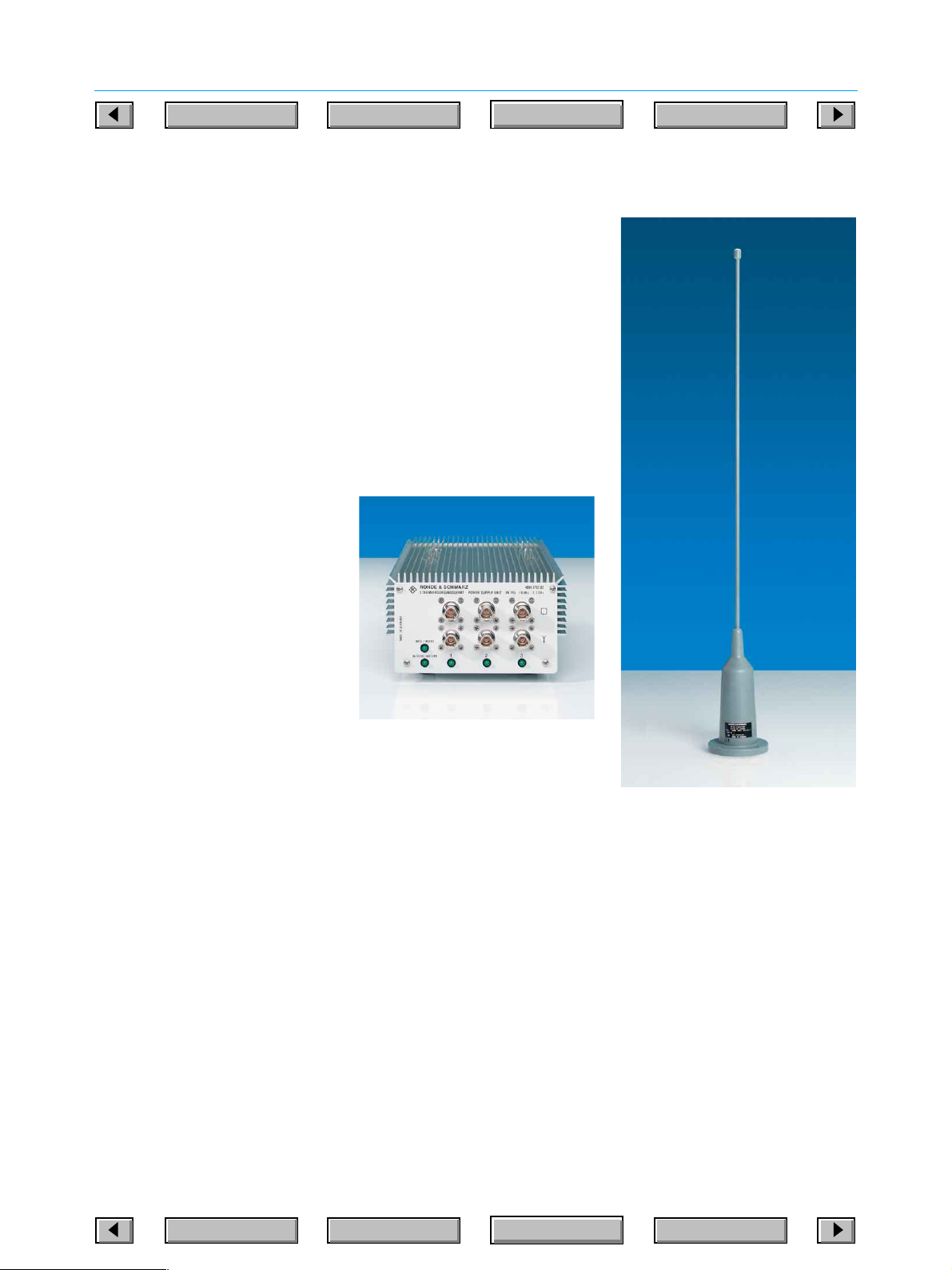

Power Supply Unit R&S IN115 (photo 43887-1)
Specifications
Frequency range 10 kHz to 80 (120) MHz
Impedance 50 Ω
VSWR 50 kHz to 120 MHz
VSWR 10 kHz to 50 kHz
Antenna factor 17 dB
Intercept point
2nd order ≥50 dBm (60 dBm typ.)
3rd order ≥30 dBm
Crossmodulation 12 V/m up to 30 MHz, 6 V/m from
Power supply 21 V to 26 V DC
Current drain 170 mA
Connector N female
Permissible wind speed 188 km/h
Operating temp. range −40°C to +65°C
Max. length with radiator 1000 mm
Max. diameter 120 mm
Weight 0.9 kg
<2
<3
30 MHz to 80 MHz
(Power Supply Unit R&S IN110 or
R&S IN115 recommended)
Photo 43901
Power Supply Unit
DC supply 24 V DC +35/−20%
AC supply 115/125/220/235 V AC
±10%, 50 VA max.
Output voltage
with AC operation 3 × 24 V ±5%
with battery operation 3 × 18 V ±5%
Max. load current 500 mA/output
Short-circuit current 200 mA
RF frequency range 10 kHz to 1.3 GHz
Connectors N female
Operating temp. range −25°C to +55°C
Dimensions in mm
W × H × D 170 × 125 × 350
Weight 5.5 kg
Ordering information
Active Rod Antenna R&S HE010 0523.1414.13
Recommended extra
Power Supply Unit R&S IN115 4004.1707.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 3
Global Communications 68
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
Active Antenna System R&S® HE016
10 kHz to 80 MHz (vertical)
600 kHz to 40 MHz (horizontal)
Omnidirectional reception also for
horizontally polarized waves
Type Index

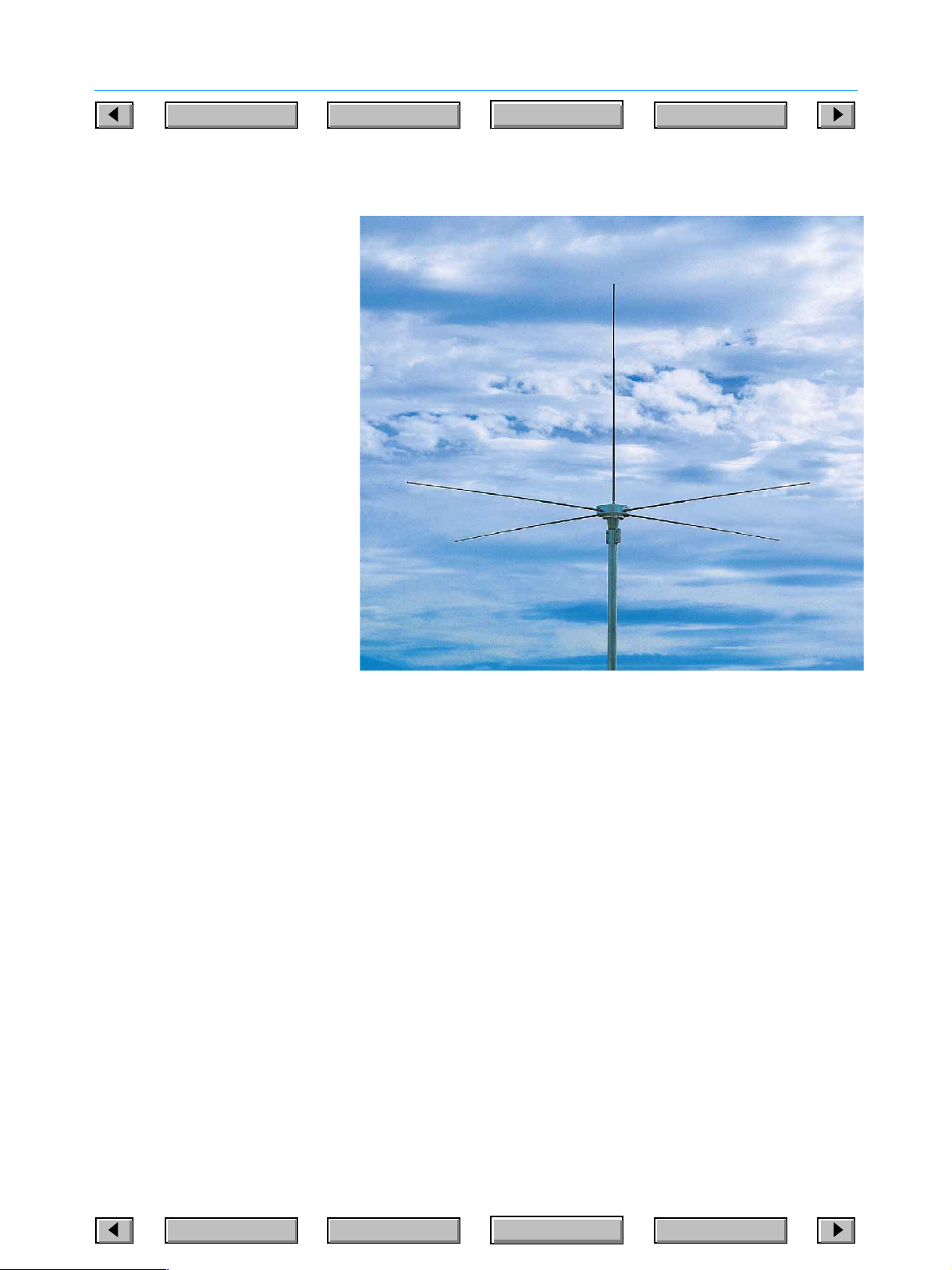

Photo 43061
Brief description
This antenna system is a combination of
the Active Rod Antenna R&S HE010 and
two crossed HF dipole antennas. The two
horizontal dipole antennas are combined
via a 90° coupler to produce an omnidirectional antenna pattern for the reception of horizontally polarized signals.
Special features
◆ Extremely small dimensions
◆ High sensitivity – same system sensi-
tivity as comparable passive antennas
with more than three times the size
◆ High linearity
◆ High immunity to nearby lightning
strikes
Specifications
Frequency range
Vertical polarization 10 kHz to 80 (120) MHz
Horizontal polarization 600 kHz to 40 MHz
Nominal impedance 50
VSWR <2 (10 kHz to 20 kHz: <3)
Intercept point
2nd order
3rd order
Power supply 21 V to 26 V DC (460 mA)
Connector 2 × N female
Operating temperature range
Max. wind speed 188 km/h (without ice deposit)
Dimensions (dia. × H) 3 m × 1.4 m
Weight 3 kg
Ω
≥50 dBm up to 30 MHz
≥30 dBm up to 30 MHz
−40°C to +65°C
◆ Optimum results under any receiving
conditions with minimum space
requirement
◆ Omnidirectional reception of horizon-
tally and vertically polarized signals
Ordering information
Active Antenna System R&S HE016 4051.8504.02
Recommended extras
Power Supply Unit R&S IN115 4004.1707.02
6 m Plug-In Mast R&S KM011 0273.9116.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 4
Global Communications 69
HF Antennas and Extras
12
Contents Overview R&S Addresses
Chapter Overview
HF Receiving Antennas R&S® HA105, R&S® HA230
Type Index

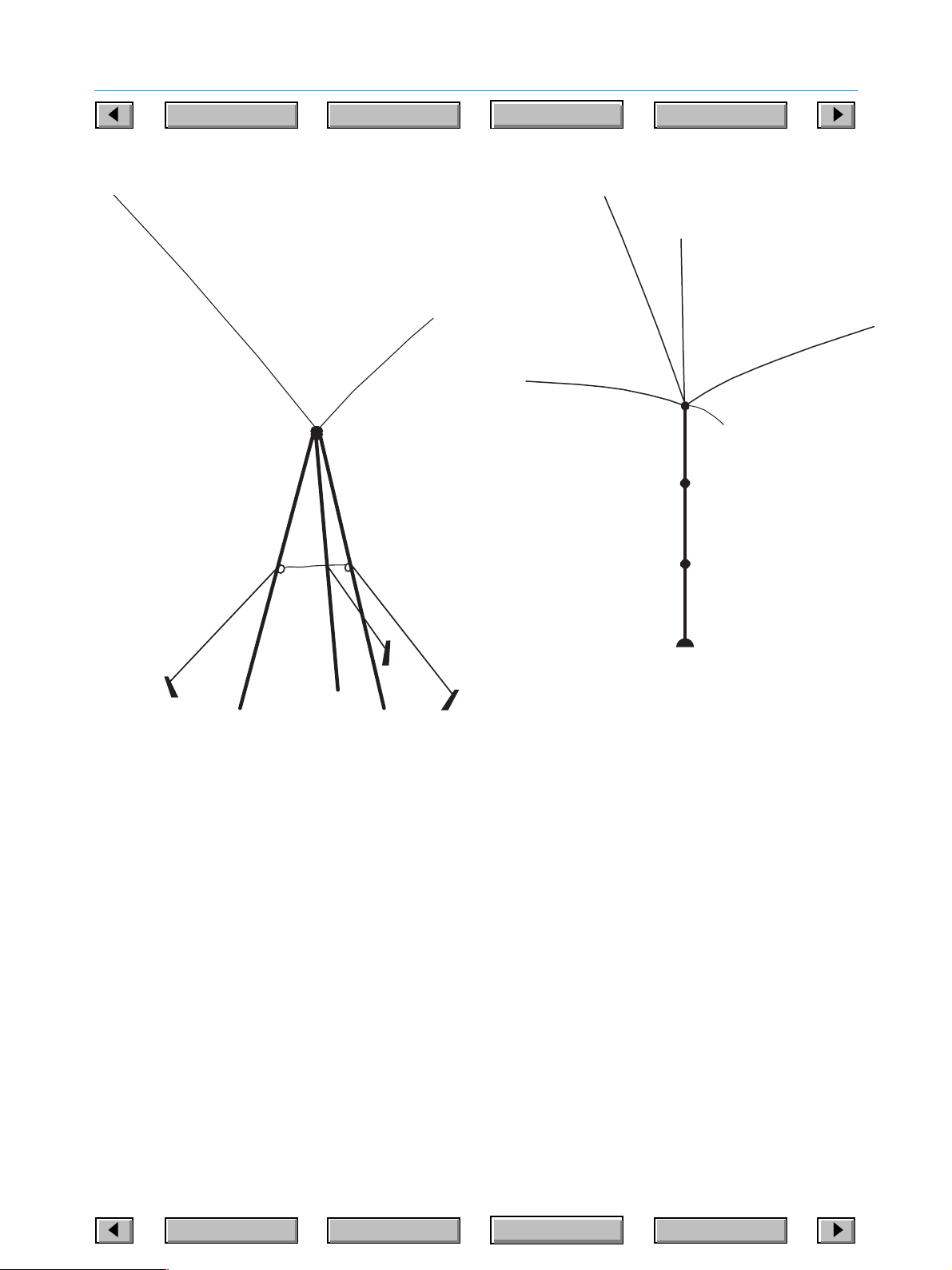

R&S HA105
Brief description
Due to its small size and low weight, the
HF Receiving Antenna R&S HA105 is particularly suitable for use in mobile stations and on ships. The V-shaped
arrangement of the radiators enables this
antenna to be used for the reception of
both horizontally and vertically polarized
signals.
◆ Wide frequency range, small size
◆ Omnidirectional horizontal pattern for
reception of high-angle signals
◆ Suitable for mobile and stationary use
The HF Receiving Antenna R&S HA230 is a
versatile shortwave antenna for both horizontally and vertically polarized waves.
Made up of electrically isolated and
Specifications
Frequency range 1.5 MHz to 30 MHz 1.5 MHz to 30 MHz
Polarization horizontal and vertical horizontal and vertical
Nominal impedance 50 Ω 50 Ω
Connector N female 3 × N female
Weight 14 kg (with stand) 85 kg
Particularly suitable for mobile use stationary use
Length of radiators 3.5 m 5 m
Height 5.5 m (incl. mast) 11 m
R&S HA105/1/50 R&S HA230/403
R&S HA230
decoupled individual elements, this
antenna is particularly suitable for polarization-diversity reception.
◆ Individual radiators for horizontal and
vertical polarization
◆ Suitable for polarization-diversity
reception
◆ For mobile and stationary use
Ordering information
HF Receiving Antenna 0111.5816.11 0101.1176.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 5
Global Communications 70
HF Antennas and Extras
Contents Overview R&S Addresses
HF Dipole R&S® HX002
Brief description
HF dipole
The HF Dipole R&S HX002 permits optimum coverage of all distance ranges and
is designed for both transmission and
reception.
The fully automatic tuning unit integrated
in the antenna provides perfect matching
to the transmitting system.
◆ No skip zone
◆ Omnidirectional coverage with both
low- and high-angle radiation (NVIS)
◆ Operational close to neighbouring
antennas due to selectivity of
integrated antenna tuner
◆ Fully automatic operation
◆ Silent tuning possible
◆ Single-mast installation, e.g. compact
roof mounting
Chapter Overview
R&S HX002

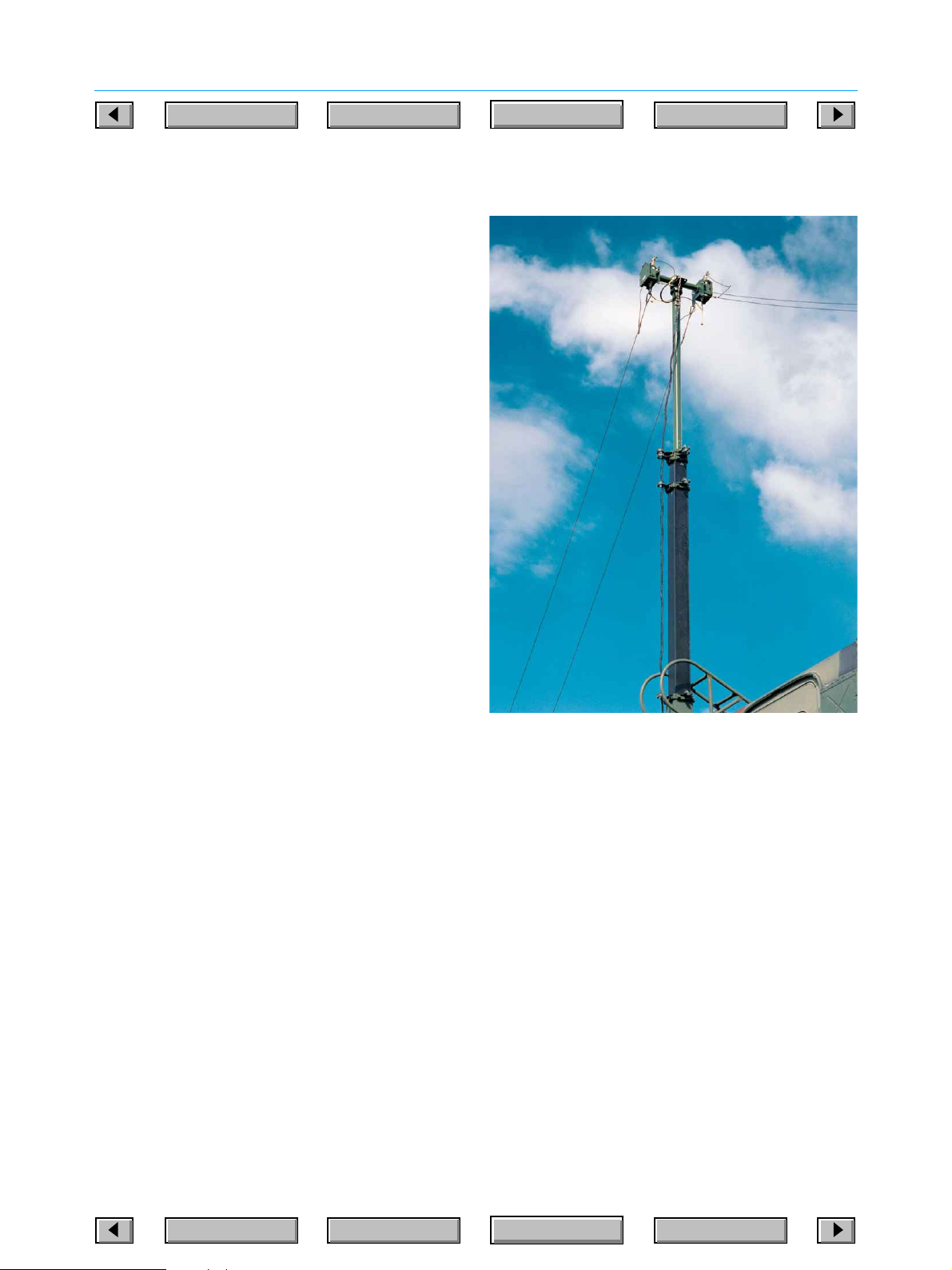

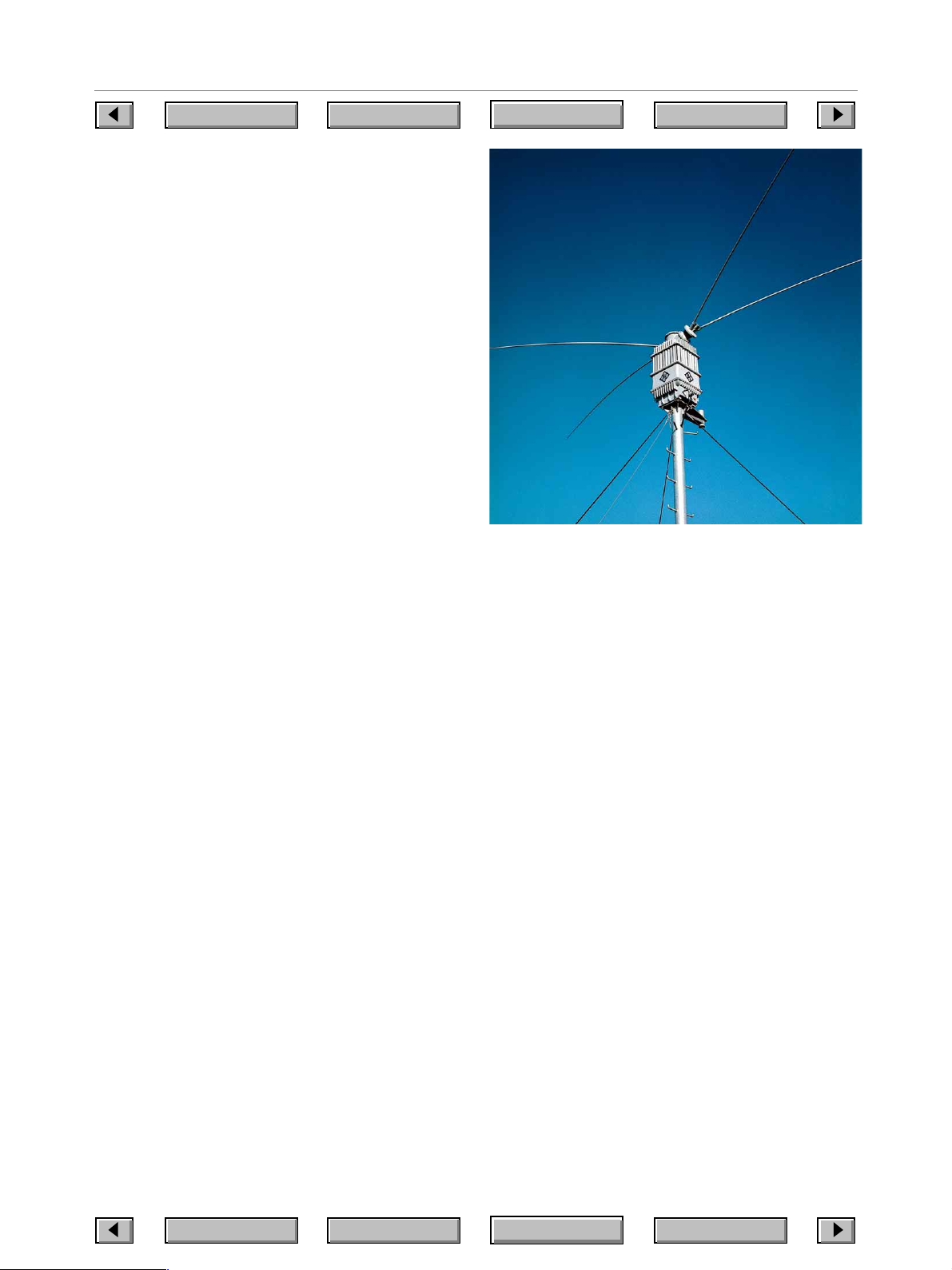

(photo 35834-4)
Type Index
Specifications
Frequency range 2 MHz to 30 MHz
Nominal impedance 50 Ω
VSWR ≤1.5, ≤1.1 typ.
Permissible input power 1.15 kW CW and PEP
Tuning time
Without retuning 70 ms to 500 ms
Silent tuning ≤60 ms, 56 ms typ.
(with R&S HF850 or process controller)
With retuning 2 s typ.
First tuning <15 s typ.
Efficiency at 2 MHz >20%
Efficiency at 5 MHz to 30 MHz >75%
Power supply 21 V to 32 V DC (6 A max., 2.5 A at 28 V)
Connector N female
Permissible wind speed 150 km/h (without ice desposit)
Operating temperature range −30 °C to +50°C
Dimensions
Length of dipole 10 m
Height 1.13 m
Tuning unit (L × W) 0.51 m × 0.51 m
Weight 103 kg
MTBF 6.500 h
Ordering information
HF Dipole R&S HX002 0682.3010.24
Recommended extras
Frequency Range Extension
(down to 1.6 MHz) R&S HX 002F 4017.9053.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 6
Global Communications 71
HF Antennas and Extras
12
Contents Overview R&S Addresses
Chapter Overview
150 W HF Dipole R&S® HX002A1
1.5 MHz to 30 MHz
Coverage over all distances, suitable for both
transmission and reception
Type Index

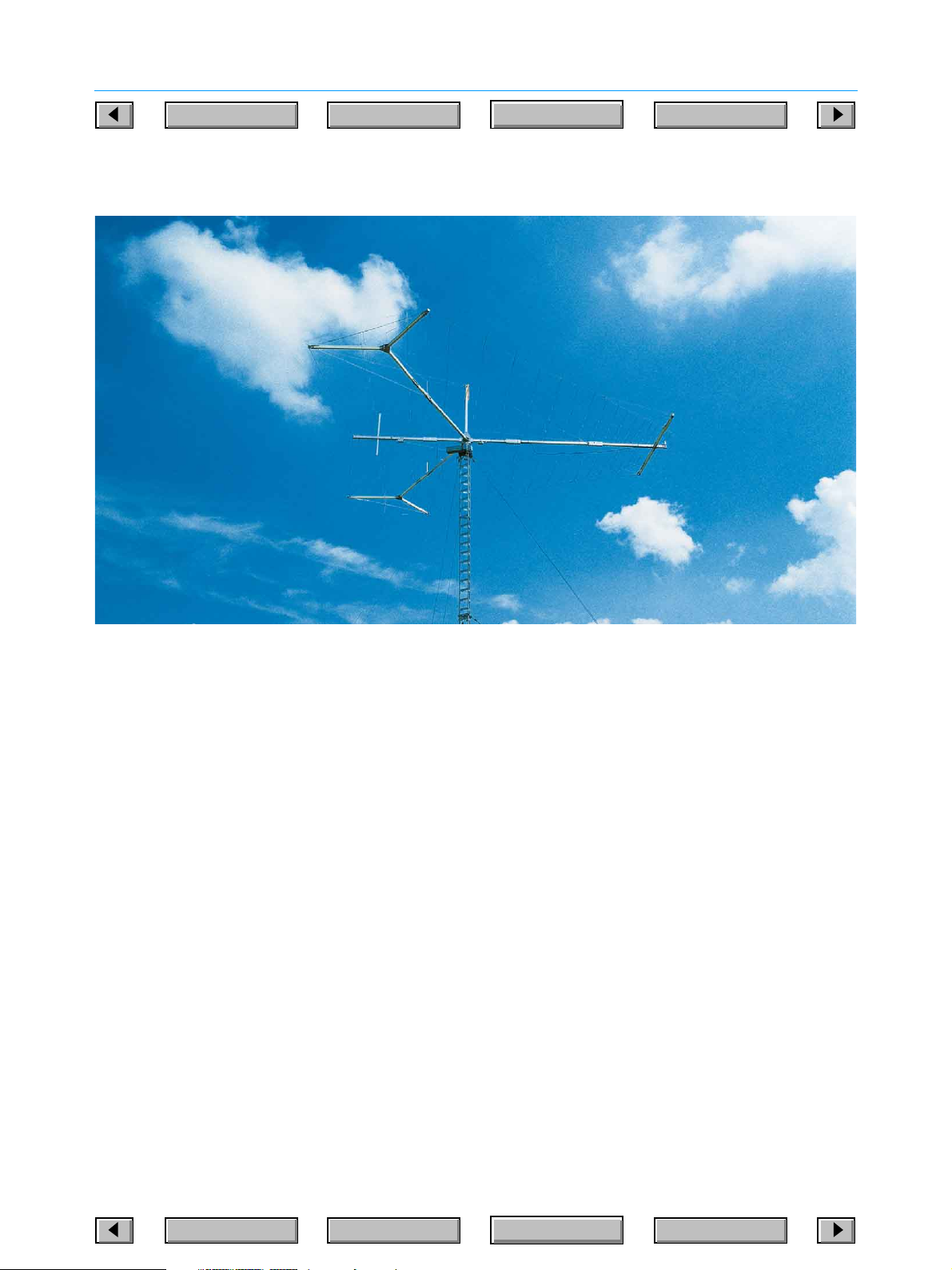

Photo 41579
The HF Dipole R&S HX002A1 can be connected directly to the HF
Transceivers R&S XK2100. For connection to other transceivers,
the Junction Unit R&S GX002A1 is available to provide power
supply and tuning control.
Brief description
The HF Dipole R&S HX002A1 provides good coverage over all distances. In contrast to rod antennas, it features high transmission
reliability especially over short and medium distances due to
NVIS radiation which eliminates the skip zone of vertical
antennas.
The antenna can easily be integrated into existing systems since
no control line is required. All the control signals and the ATU
supply are fed via the coaxial cable.
Specifications
Frequency range 1.5 MHz to 30 MHz
Polarization horizontal
Nominal impedance 50
VSWR ≤1.5, ≤1.3 typ.
Max. input power 150 W PEP/100 W CW
Tuning time 200 ms typ.
Initial tuning
Silent tuning
Tuning power 30 W to 100 W
with R&S GX002A1 50 W to 100 W
Power supply via R&S GX002A1
AC supply 100/120/230 V
Battery +22 V to +32 V, 2.5 A typ. at +24 V
Connector N female
Operating temperature range
Ω
≤6 s, 3 s typ.
≤30 ms
±10 %,
47 Hz to 63 Hz (100 VA)
−25°C to +55°C
Special features
◆ No skip zone
◆ Omnidirectional coverage with high-angle radiation (NVIS)
◆ Only little separation from neighbouring antennas required
◆ Automatic adaptive operation
◆ No control line required
◆ Silent tuning
◆ Single-mast installation
Max. wind speed 188 km/h (without ice deposit)
Wind load (at 188 km/h) 960 N
Dipole length 10 m
Weight 35 kg
MTBF 8.000 h
Ordering information
HF Dipole R&S HX002A1 4031.8009.02
Recommended extras
Junction Unit R&S GX002A1 4031.9005.02
5 m Tiltable Mast
for roofmounting R&S KM002A1 4035.7359.02
Auxiliary Mast for R&S KM002A1 R&S HX002Z1 4031.7002.02
15 m Lattice Mast R&S KM451B2 4028.3400.02
Mast Adapter for 15 m Mast R&S KM451Z5 4039.8308.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 7
Global Communications 72
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
Naval HF Dipole R&S® HX002M1
Especially designed for shipboard
communication
Brief description
The Naval HF Dipole R&S HX002M1
enables optimum coverage over all
distance ranges. It is particularly advantageous for radiocommunication over
short and medium distances, since below
1000 km rod antennas cannot guarantee
sufficient transmission reliability because
of their skip zone.
The HF Dipole R&S HX002M1 provides
high-angle radiation (NVIS: near vertical
incident skywave) to ensure omnidirectional coverage at suitable frequencies,
i.e. between 2 MHz and 8 MHz. The
antenna operates below 2 MHz as a topfed monopole, thus ensuring omnidirectional coverage with ground waves in the
frequency range suitable for this purpose.
Type Index
The HF Dipole R&S HX002M1 is designed
for both transmission and reception. The
fully automatic tuning unit, integrated in
the antenna head, ensures continuous
matching to the transmitting system with
a VSWR of less than 1.5 if used in R&S
XK2100 systems. No control signals are
required from the transmitter for tuning.
Conventional antennas: the problems
Conventional antennas for operation on
ships such as rod antennas and loop
antennas often cause communication
problems and are incompatible with
other systems on the ship (EMI).
Rod antennas:
◆ Unfavourable radiation pattern over
short and medium distances (skip
zone)

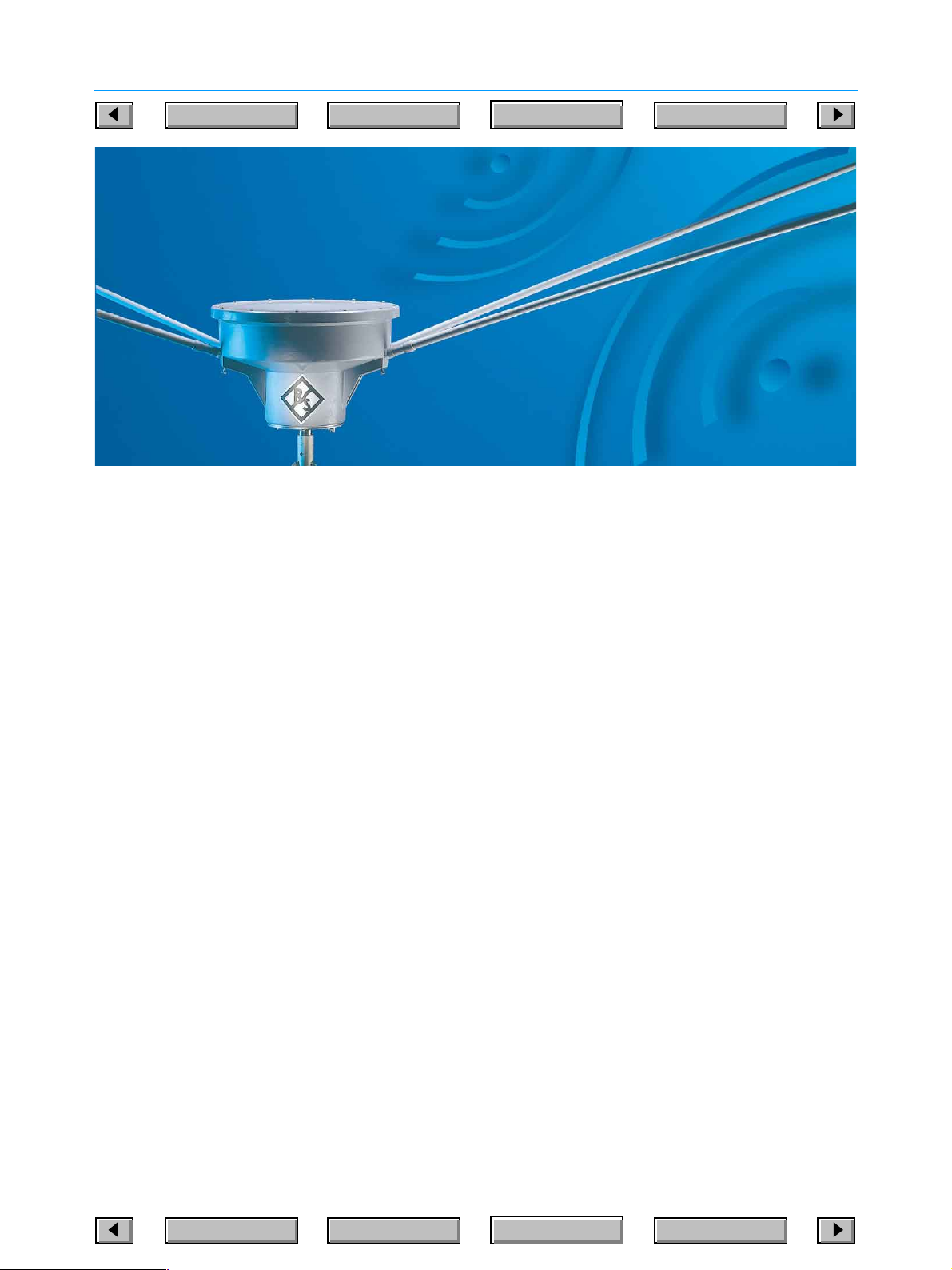

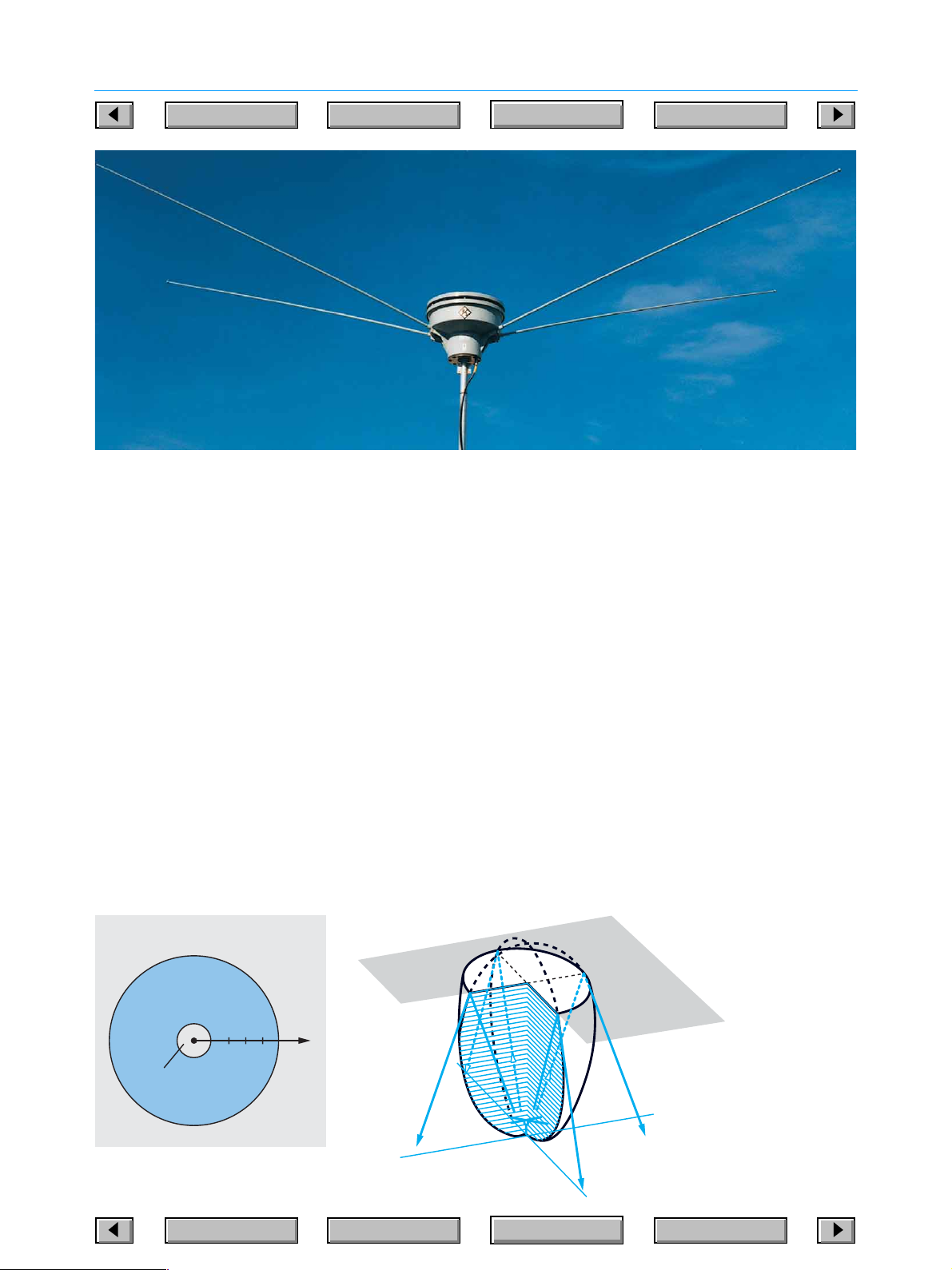

Photo 42826
◆ Poor electromagnetic compatibility
with other systems on board, since for
rod antennas the ship's structure acts
as a ground plane
Loop antennas:
◆ Poor efficiency → low transmission
reliability
◆ Small bandwidths
R&S HX002M1: the solution
The 150 W Dipole R&S HX002M1 solves
such problems since the reactive power
has been minimized in the antenna feed
system. The antenna does not need a
counterbalance – a particular advantage
in GRP ships such as mine sweepers and
patrol craft.
Area covered by skywaves
Skip zone
200
300
100
Area covered
by ground waves
Skip zone at HF produced by vertically
polarized antenna
Contents Overview R&S Addresses
400
distance d
500
km
Chapter Overview
Ionosphere
Full coverage using high-angle
radiation antenna (NVIS) with threedimensional radiation pattern
Type Index
Page 8
Global Communications 73
HF Antennas and Extras
12
Contents Overview R&S Addresses
It has therefore the following features:
◆ No skip zone
◆ Compact design
◆ High efficiency
◆ No ground plane required
◆ Good EMC – even on GRP vessels

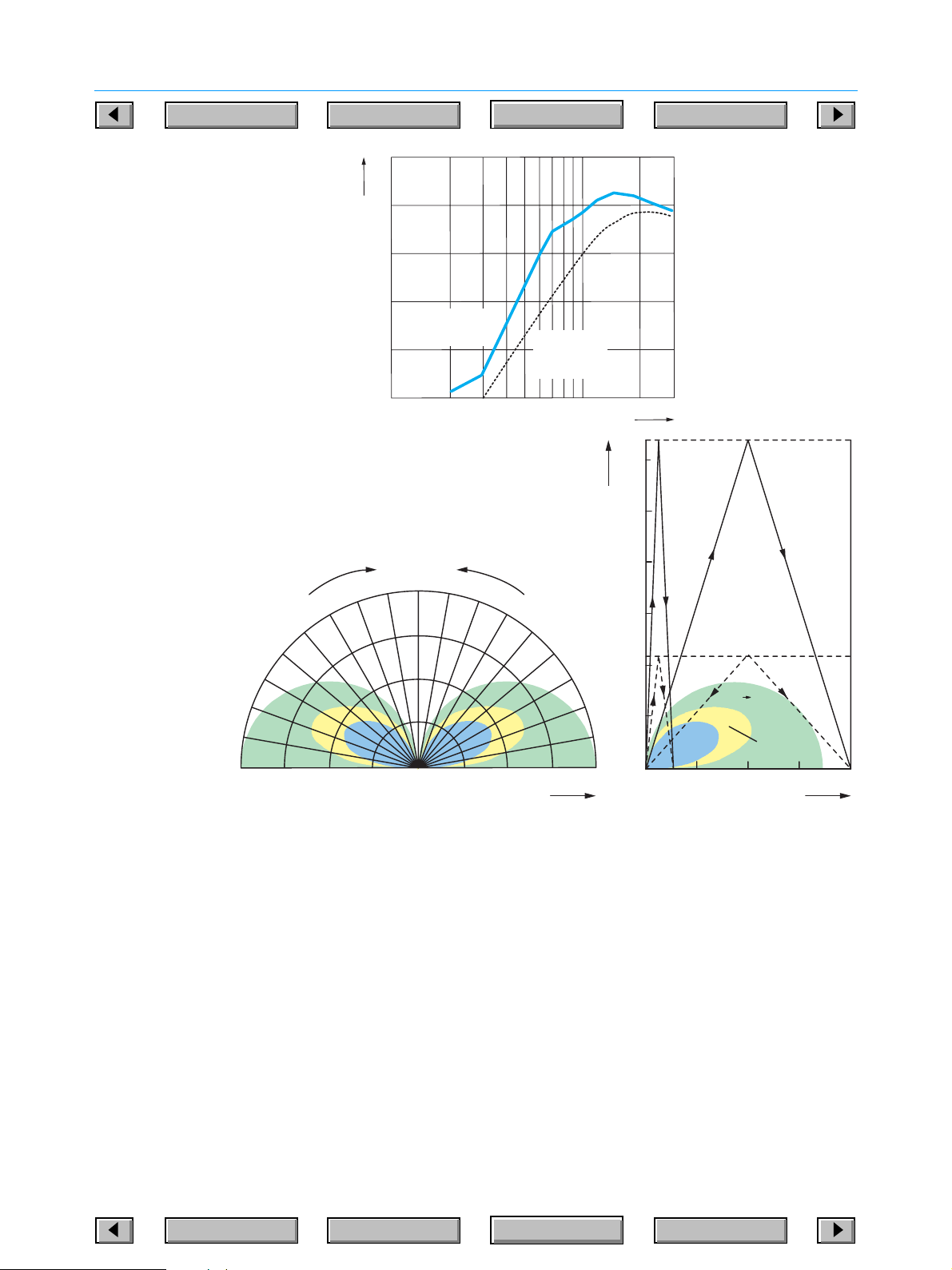

Vertical radiation pattern of
λ/4 vertical antenna and transmission
path for high-angle radiation
δ'
50˚
40˚
30˚
20˚
10˚
Chapter Overview
70˚
60˚
10
5
Gain in dB
0
–5
–10
–15
1
80˚
R&S HX 002 M1,
6 m above perfectly
conducting ground
90˚
80˚
Type Index
Gain of 150 W HF Dipole
R&S HX002M1 compared to that
of loop antenna
Loop antenna
1.4 m × 1.4 m,
6 m above perfectly
conducting ground
10 20 30
Frequency in MHz
km
300
250
Height of layer
200
70˚
δ'
60˚
50˚
40˚
150
100
30˚
20˚
50
10˚
10
–3
1
−−−−
Ω x m
F2 layer
E layer
S
8
1
–2
−−−−
10
Ω x m
00.250.50.75 0.25 0.5 0.751.0
Specifications
Frequency range 1.5 MHz to 30 MHz
Max. permissible transmitting power 150 W PEP, 100 W CW
Input impedance 50 Ω nominal
SWR <1.3 typ., max. 1.5
Gain see diagram above
Tuning time
Initial tuning 3 s typ., max. 6 s
Retuning <0.2 s typ.
Silent tuning <30 ms
Tuning power 30 W to 50 W
RF connector N female
Power supply from R&S XK2100 or via R&S GX002A1
AC supply 100/120/220/230 V ± 10 %
Battery 22 V to 32 V, approx. 2.5 A at 24 V
Mechanical data, environmental conditions
Dimensions dipole length 5.2 m
Connection to mast peg, 30 mm dia
Weight approx. 34 kg
Contents Overview R&S Addresses
50 W to 100 W with R&S GX002A1
47 Hz to 63 Hz (100 VA)
23 V to 32 V when a 60 m cable
of type RG213/U is used
Chapter Overview
E/E
1.0
max
0 50 100 150 200km
d
Dimensions of ATU (H × W × D) 133 mm × 483 mm × 390 mm
Permissible wind speed
without ice deposit 188 km/h
with radial ice deposit 130 km/h
Operating temperature range –30°C to 55°C to MIL-STD-810E
meth. 501.3 and 502.3
Storage temperature range –40°C to 85° C to MIL-STD-810E
meth. 501.3 and 502.3
Relative humidity 95 % up to 41°C, to MIL-STD-810E
meth. 507.3
Resistance to vibration to MIL-STD-810E meth. 514.4, random
80 Hz to 350 Hz, 0.04 g
2
/Hz
20 Hz to 80 Hz, 3dB/octave
350 Hz to 2000 Hz, –6 dB/octave
Resistance to shock 40 g, spectrum 45 Hz to 2000 Hz acc. to
MIL-STD-810E meth. 516.4
Resistance to salt fog to MIL-STD-810E
Resistance to sand and dust to MIL-STD-810E
EMP protection lightning and NEMP protection
integrated
EMC to MIL-STD-461B
Ordering information
Naval HF Dipole R&S HX002M1 4021.6003.02
Type Index
Page 9
Global Communications 74
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
HF Rod Antennas R&S® HA104, R&S® HA175

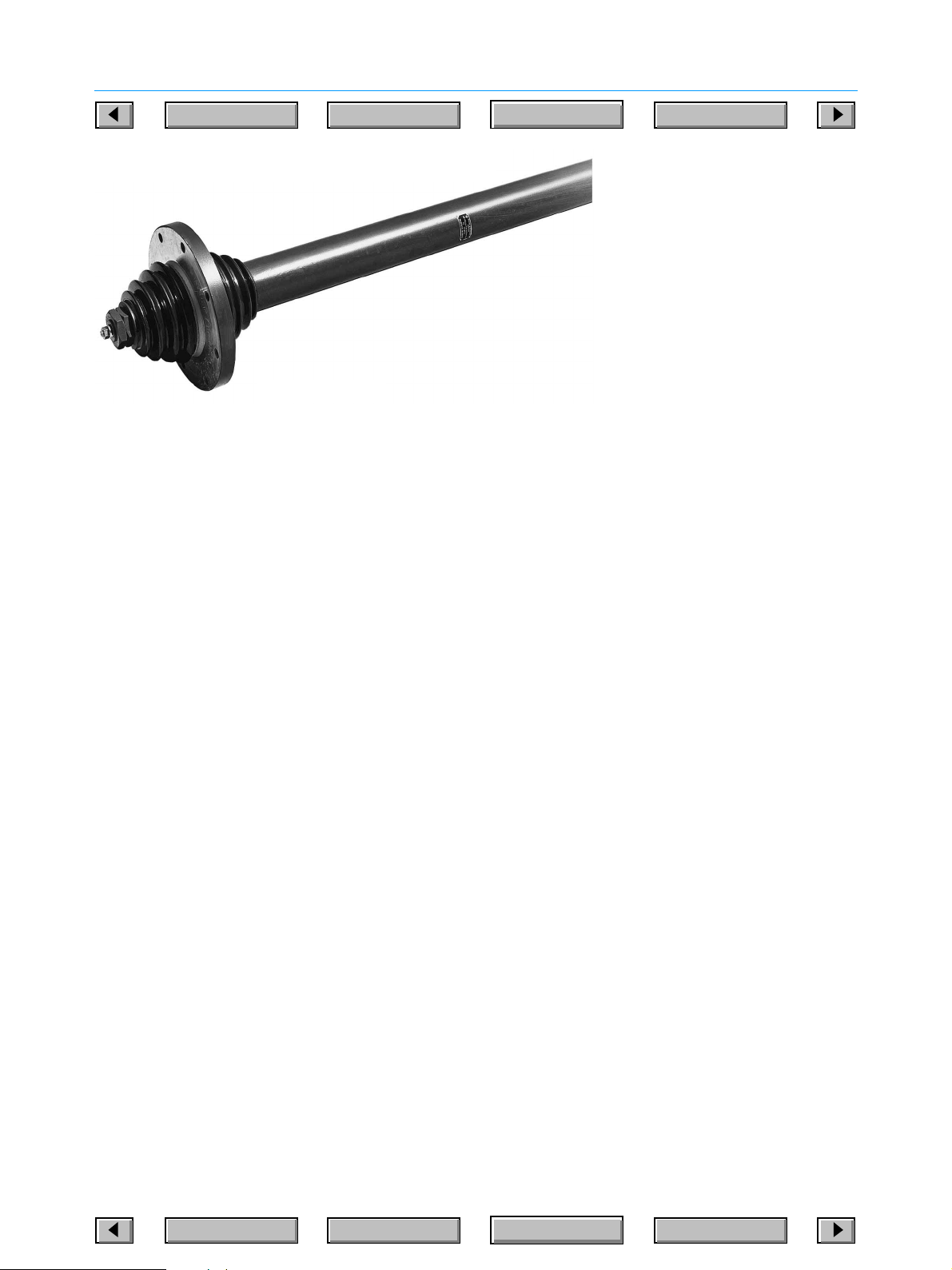

R&S HA175 (photo 11116)
Brief description
The HF rod antennas are suitable for
vertically polarized ground waves and
low-angle skywaves. In conjunction with
an antenna tuning unit, they can also be
used for transmission.
◆ Sturdy construction
◆ Shock- and vibration-proof
◆ For mobile use (R&S HA104)
◆ For stationary and shipboard use
(R&S HA175)
Specifications
Frequency range
Reception 10 kHz to 30 MHz 10 kHz to 10 MHz
Transmission (with ATU) 1.5 MHz to 30 MHz 1.5 MHz to 30 MHz
Polarization vertical vertical
Permissible input power 150 W CW and PEP 1 kW CW and PEP
Horizontal pattern omnidirectional omnidirectional
Connector screw terminal screw terminal
Permissible wind speed 150 km/h
Height of antenna 5 m 7 m
Dismantling possible yes
Weight 4 kg 27 kg
Type Index
R&S HA104 R&S HA175
without ice desposit
185 km/h
without ice desposit
The antenna is available
with base protection
against salt deposits for
shipboard use
Ordering information
HF Rod Antenna 0156.2039.02 0101.1101.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 10
Global Communications 75
HF Antennas and Extras
12
Contents Overview R&S Addresses
Chapter Overview
Type Index
Mobile HF Antenna Systems R&S® AK501, R&S® AK501A4, R&S® AK503
Special features of R&S AK503
◆ Coverage of all distance ranges
◆ No skip zone
◆ Omnidirectional coverage with
high-angle radiation (NVIS)
◆ Null fill-in plus omnidirectional
coverage up to 1000 km
◆ Installation time approx. 10 min

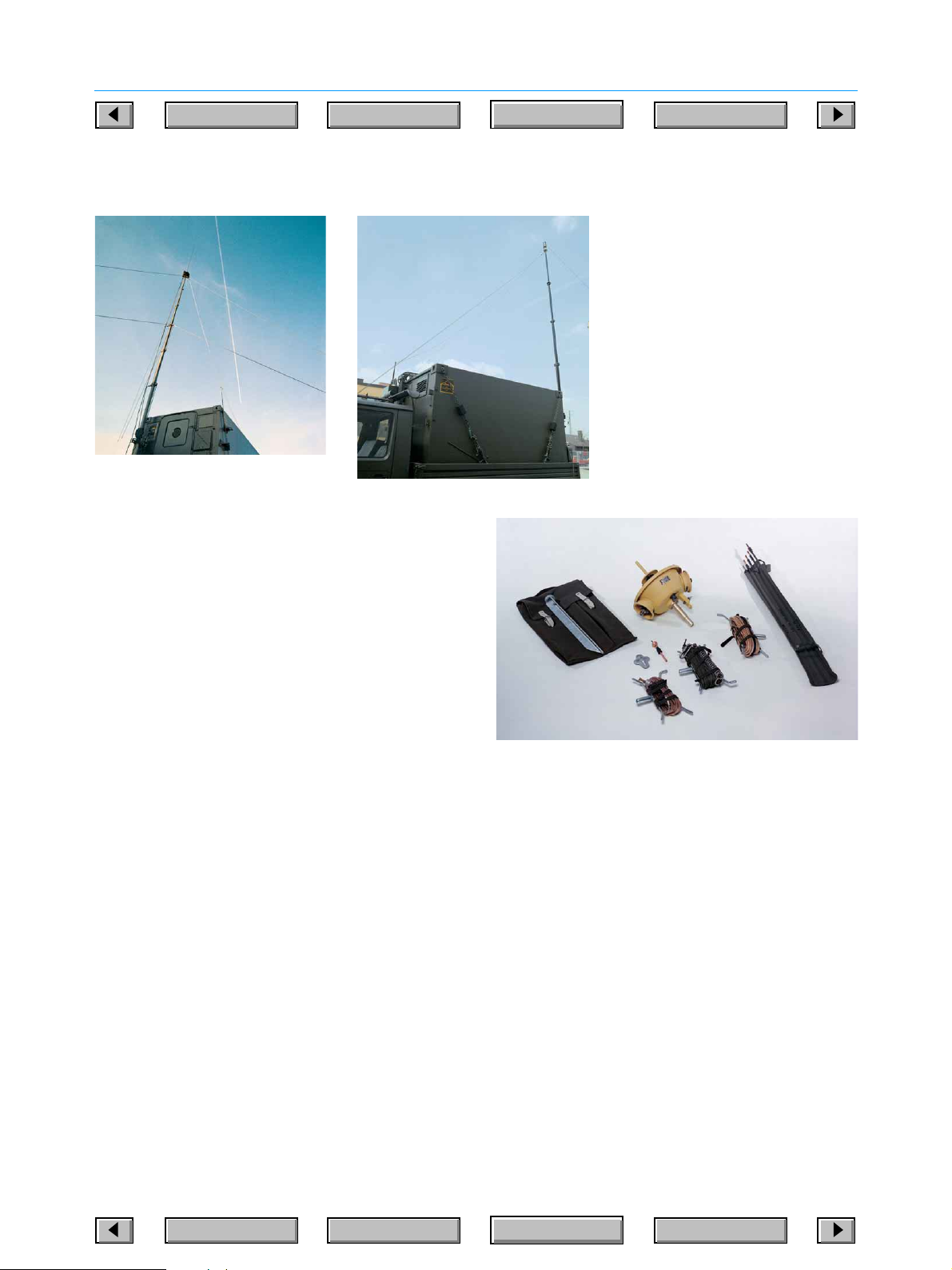

R&S AK501 (photo 30646-1)
R&S AK503 (photo 33165-4)
Brief description
These HF antenna systems have been
especially designed for mobile use. They
combine short erection and disassembly
times, little space requirement for installation and transportation with highgrade electrical characteristics. By optimum tailoring to the propagation conditions in the RF and shortwave range, the
antenna systems ensure exceptionally
high-quality mobile radiocommunication. The Antenna Systems R&S AK501
and R&S AK501A4 consist of two antennas (high-angle antenna and vertical
antenna), which can be selected by
remote control.
Special features of R&S AK501,
R&S AK501A4
◆ Reliable radiocommunication over
any distance, no skip zone
◆ Complete omnidirectional coverage
even at medium distances due to null
fill-in
◆ Fixed operation using high-angle
antenna and vertical antenna as well
as mobile operation using whip
antenna
R&S AK501A4,
disassembled
(photo 31865-1)
Specifications
Frequency range 1.5 MHz to 30 MHz 1.5 MHz to 30 MHz 1.5 MHz to 30 MHz
Polarization, switchable horizontal or vertical horizontal or vertical
Nominal impedance 50 Ω with ATU 50 Ω with ATU 50 Ω with ATU
VSWR <1.5 with R&S FK859
Permissible input power 1.15 kW CW and PEP 400 W CW and PEP 150 W CW and PEP
Permissible wind speed 100 km/h (without ice) 100 km/h (without ice) 120 km/h (without ice)
Operating temperature
range
Operating mode 1 1.5 MHz to 30 MHz
Operating mode 2 optimized for 6 to 26 MHz
Operating mode 3 for ground-wave commu-
Mode selection by movable clamp
Length of guy rope 57 m 46 m 35 m
Height 16.5 m 11.5 m 7 m to 11 m
Weight 30 kg 12 kg 6 kg
R&S AK501 R&S AK501A4 R&S AK 503
depending on type of ATU depending on type of ATU
(1.1 typ.)
−40°C to +55°C −40°C to +55 °C −40°C to +55°C
Ordering information
Mobile HF Antenna
System 0280.4816.11 0425.8721.04 0448.3226.02
nications and distances
>2000 km
Recommended extras
Antenna Tuning Unit R&S FK859 0682.1018.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 11
Global Communications 76
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
Mobile TFD Broadband Antennas
®
R&S
1.5 MHz to 30 MHz
For skywave transmission over short, medium and
global distances
Brief description
The TFD (terminated folded dipole) antenna operates as a loop
antenna on which travelling waves are generated by means of a
termination. A tuning unit is not required to attain the specified
VSWR. The antenna is configured as an inverted V so that only
one antenna support is needed.
HD420, R&S® HD421
Type Index

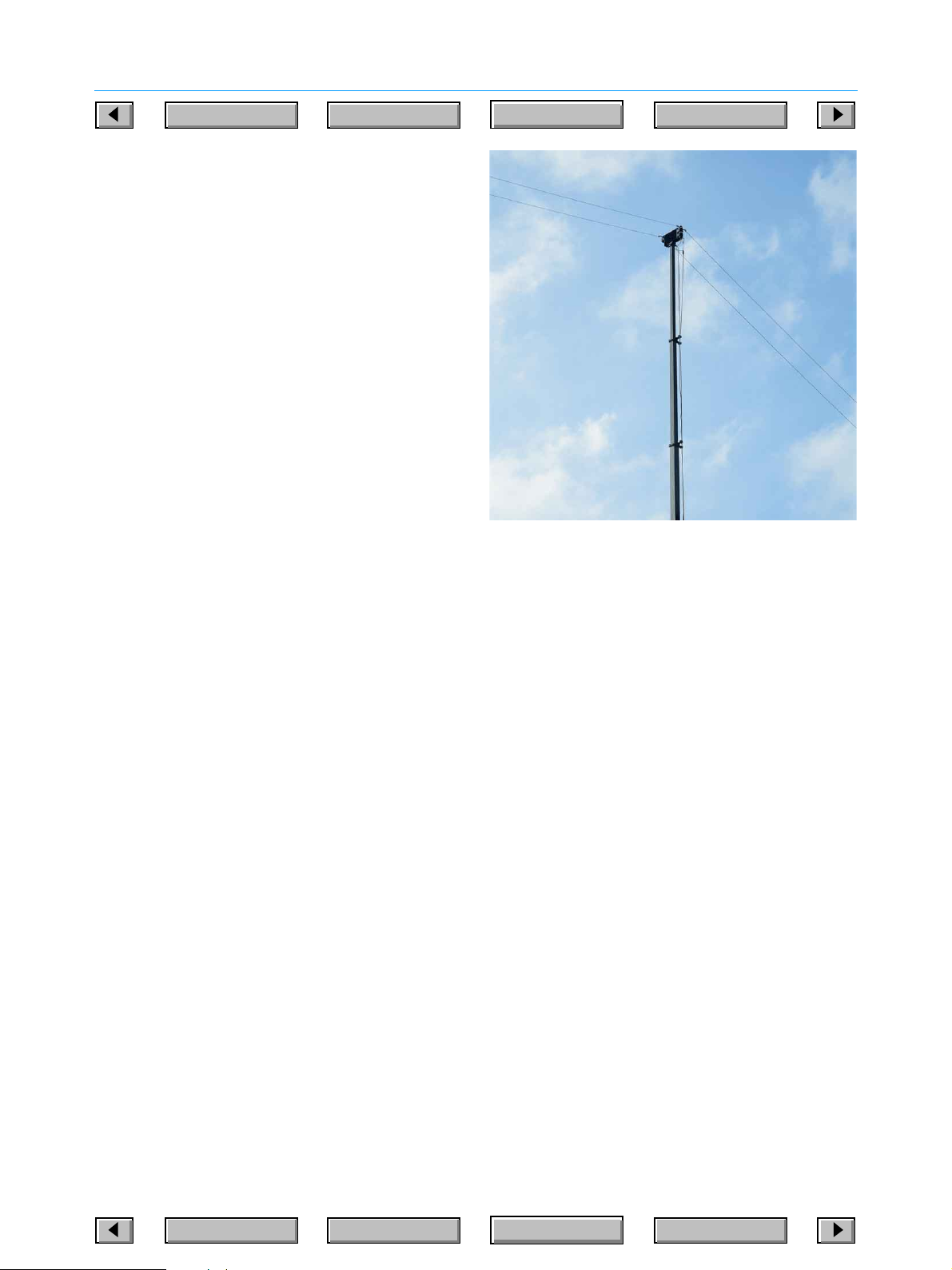

Photo 43262-1
Special features
Where space is limited, the length of the antenna can be
reduced considerably by using two lateral 4 m masts.
Signals are fed in at the highest point in the middle of the
antenna via a transformer. Corresponding to its geometry, the
TFD antenna radiates horizontally polarized waves and is thus
suitable for transmission of skywaves over any distance.
Specifications
Frequency range 1.5 MHz to 30 MHz
Polarization horizontal
Nominal impedance 50 Ω
VSWR ≤3 typ.
Max. input power
R&S HD420 400 W
R&S HD421 1 kW
Connector N female
Operating temperature range −40 °C to +55°C
Dimensions
Length approx. 90 m
approx. 30 m with 2 × R&S KM420A2
Recommended height of feedpoint approx. 10 m
Mechanical interface for R&S KM420A1 and for 10 m tower
from Geroh
Max. wind speed 180 km/h (without ice deposit) with
R&S KM420A1 and 2 × R&S KM420A2
Weight (without mast)
R&S HD420 13 kg
R&S HD421 17 kg
◆ Broadband operation
◆ No tuning unit required
◆ Coverage of any distance
◆ Omnidirectional coverage through high-angle radiation (NVIS)
◆ Quick assembly/disassembly (approx. 30 min)
◆ Extremely favourable price
◆ Suitable for stationary use
Ordering information
Mobile TFD Broadband Antenna R&S HD420 4053.2503.02
Mobile TFD Broadband Antenna R&S HD421 4053.3500.02
Recommended extras
Tiltable Mast 10 m R&S KM420A1 4054.1023.00
Tiltable Mast 4 m R&S KM420A2 4054.1423.00
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 12
Global Communications 77
HF Antennas
12
Contents Overview R&S Addresses
Chapter Overview
Type Index
Mobile TFD Broadband Antennas R&S® HD520, R&S® HD521
1.5 MHz to 30 MHz
For skywave transmission over short, medium and
global distances
Brief description
The TFD (terminated folded dipole) antenna operates as a loop
antenna on which travelling waves are generated by means of a
termination. A tuning unit is not required to attain the specified
VSWR. The antenna is configured as an inverted V so that only
one antenna support is needed. Signals are fed in at the highest
point in the middle of the antenna via a transformer. As a protection against infrared detection, the termination is located in the
shelter and connected to the antenna via a coaxial cable and a
transformer. Corresponding to its geometry, the TFD antenna
radiates horizontally polarized waves and is thus suitable for
transmission of skywaves over any distance.
Special features
◆ Broadband operation
◆ No tuning unit required
◆ Coverage of any distance
◆ Omnidirectional coverage through high-angle radiation (NVIS)
◆ Quick assembly/disassembly (approx. 30 min)
◆ Protection against infrared detection
Specifications
Frequency range 1.5 MHz to 30 MHz
Polarization horizontal
Nominal impedance 50 Ω
VSWR ≤2.4
Max. input power
R&S HD520 150 W
R&S HD521 1 kW
Connector N female
Operating temperature range −40 °C to +55°C
Dimensions
Length approx. 90 m
Recommended height of
feedpoint approx. 10 m
Mechanical interface for 10 m tower from Geroh
Max. wind speed 108 km/h (without ice deposit)
Weight (without mast)
R&S HD520 44 kg
R&S HD521 72 kg
Photo 42863-9
Ordering information
Mobile TFD Broadband Antenna R&S HD 520 4050.2002.03
Mobile TFD Broadband Antenna R&S HD 521 4050.1006.03
Recommended extra
10 m tower from Geroh
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 13
Global Communications 78
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
Type Index

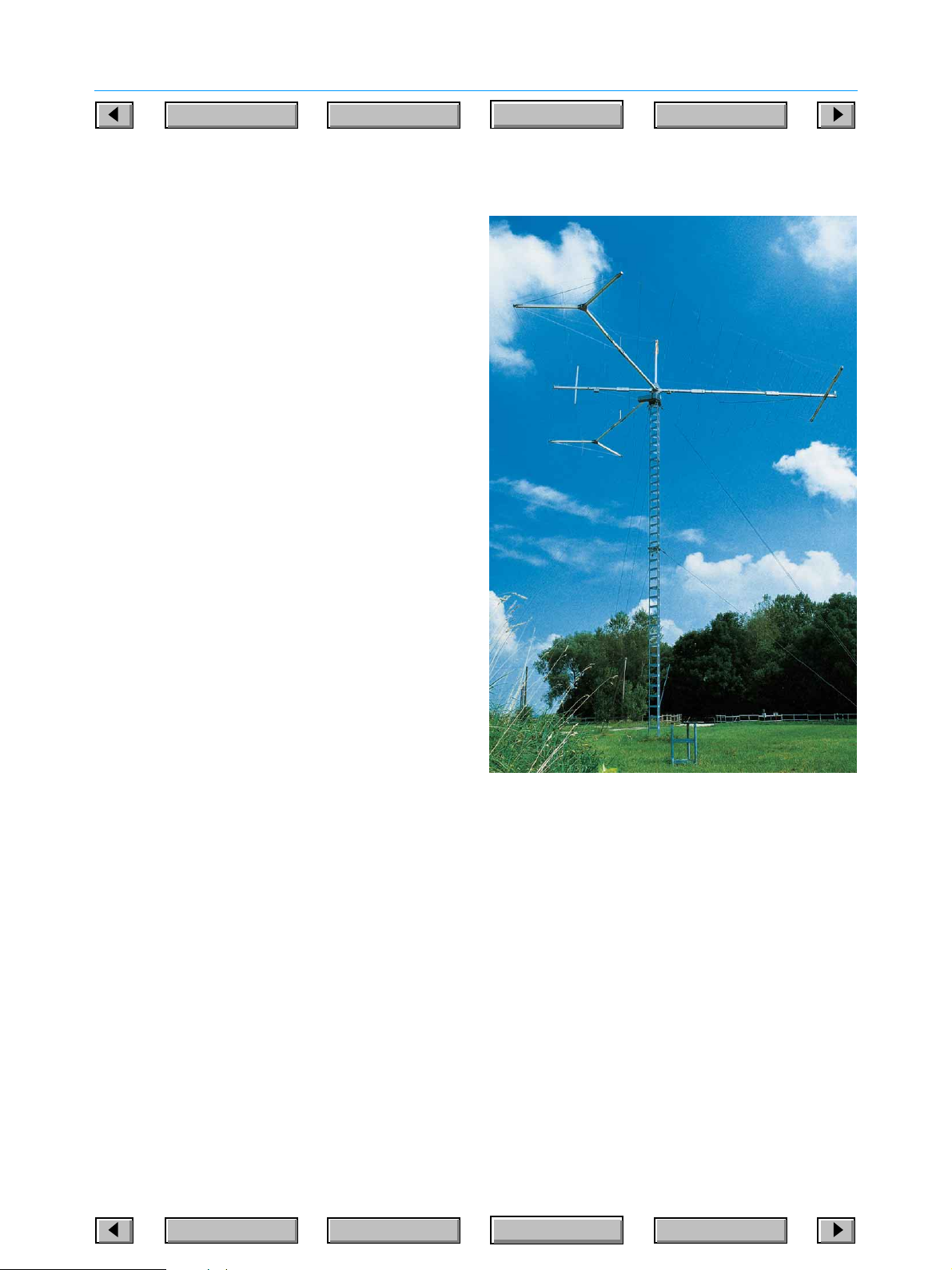

Rotatable Log-Periodic Antenna System R&S® AK451
5 MHz to 30 MHz
For transmission and reception of horizontally polarized
waves over medium to long distances
Brief description
The compact Rotatable Log-Periodic Antenna System R&S AK451
is used for the transmission and reception of horizontally polarized waves. Due to a transmission frequency range from 5 MHz
to 30 MHz, the antenna system is particularly suitable for operation over medium to long distances despite its extremely small
size. Reception is possible from 2 MHz, thus covering all
distances.
Special features
◆ Extremely small dimensions (size of loaded log-periodic
antenna for 6.2 MHz to 30 MHz)
◆ Transmission from 5 MHz, reception from 2 MHz
◆ Unrestricted half-wave elements leading to high antenna gain
◆ Easy and quick assembly
◆ Little maintenance required
Specifications
Frequency range 5 MHz to 30 MHz
Polarization horizontal
Nominal impedance 50
VSWR ≤2
Max. input power 1 kW
Gain 6 dBi to 12.5 dBi
Radius of rotation 8.3 m
Range of rotation
Max. wind speed 180 km/h (without ice deposit)
MTBF
Dimensions
Length of antenna 15 m
Width of antenna 16 m
Weight of antenna 260 kg
(reception 2 MHz to 30 MHz)
Ω
±(n × 360°)
>100000 h
Photo 36608-2
Ordering information
Rotable Log-Periodic Antenna
System R&S HL451 0733.8507.02
Recommended extras
Lattice Mast
15 m (standard) R&S KM 451B2 4028.3400.02
10 m (for rooftop mounting) R&S KM 451B1 4028.3351.02
Antenna Rotator R&S RD 130 4059.8503.02
Adaption Set/Rotary Joint R&S RD 008Z1 0720.6400.02
Control Unit R&S GB130 4059.8755.02
Other configurations on request.
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 14
Global Communications 79
HF Antennas and Extras
12
Contents Overview R&S Addresses
Chapter Overview

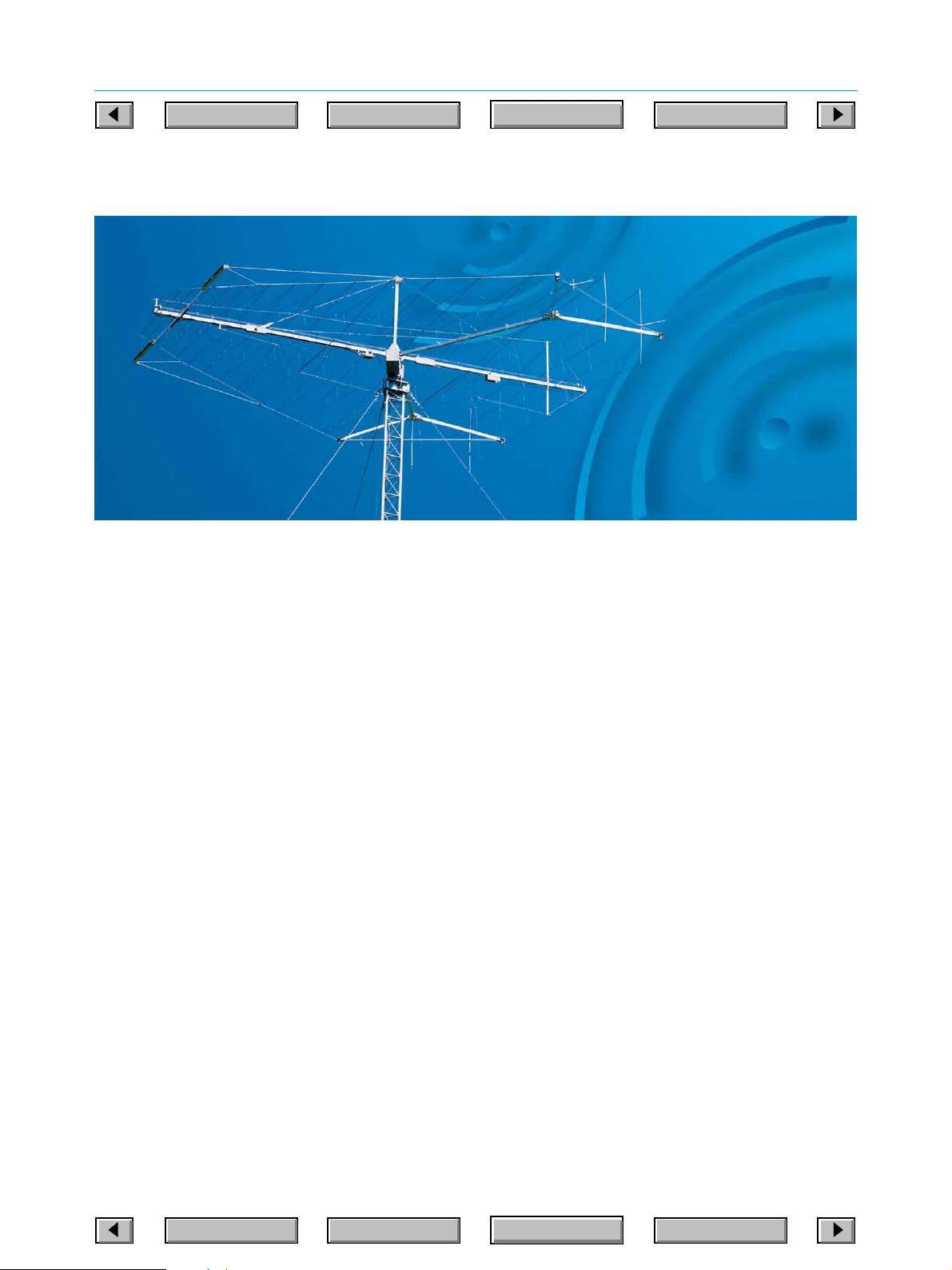

Rotatable Log-Periodic Antenna System R&S® AK471
7 MHz to 30 MHz
Type Index
Photo 43205-3
For transmission and reception of horizontally polarized
waves especially over long distances
Brief description
The compact Rotatable Log-Periodic Antenna System R&S
AK471 is used for the transmission and reception of horizontally
polarized waves. Due to its transmission frequency range from 7
MHz to 30 MHz it is used especially over long distances. Reception is possible from 3 MHz to 30 MHz, leading to coverage of
almost all distances. Its low weight and small size make the
antenna system ideal for installation on roofs.
Specifications
Frequency range 7 MHz to 30 MHz
Polarization horizontal
Nominal impedance 50 Ω
VSWR
Max. input power 1 kW
Gain (with 15 m mast)
7 MHz to 8 MHz 0 dBi to 6 dBi
8 MHz to 30 MHz 6 dBi to 12.5 dBi
Radius of rotation 5 m
Range of rotation
Max. wind speed 180 km/h (without ice deposit)
MTBF
Dimensions
Length of antenna 8.8 m
Width of antenna 11 m
Weight of antenna 100 kg
(reception 3 MHz to 30 MHz)
≤2
±(n × 360°)
>100000 h
Special features
◆ Extremely small dimensions
◆ Low weight
◆ Easy and quick assembly
◆ Little maintenance required
Ordering information
Rotatable Log-Periodic Antenna
System R&S HL471 0755.3008.02
Recommended extras
Lattice Mast
15 m (standard) R&S KM 451B2 4028.3400.02
10 m (for rooftop mounting) R&S KM 451B1 4028.3351.02
Antenna Rotator R&S RD 130 4059.8503.02
Adaption Set/Rotary Joint R&S RD 008Z1 0720.6400.02
Control Unit R&S GB130 4059.8755.02
Other configurations on request.
Contents Overview R&S Addresses
Chapter Overview
Type Index
Page 15
Global Communications 80
HF Antennas and Extras
Contents Overview R&S Addresses
Chapter Overview
1 kW HF Postselector R&S® FK859X1
Brief description
This filter with a power rating of 1000 W
is used together with the Transceivers
R&S XK2500L and R&S XK2900L for suppressing mutual interference that may
occur with co-sited transmit and receive
antennas. Above all it is used for shipboard applications in order to meet co-
Specifications
Frequency range 1.5 MHz to 30 MHz
Max. RF input power 1000 W CW and PEP
Input impedance 50 Ω
Max. VSWR 1.4:1
Stopband attenuation
1.5 MHz to 15 MHz, f
15 MHz to 30 MHz, f
Operating temperature range –25 °C to +55°C
Storage temperature range –40°C to +85°C
±10% >30 dB
o
±10% >20 dB
o
location requirements if space for antennas is limited. Connected between the
transceiver and the ATU, the filter effectively suppresses spurious emissions due
to its high selectivity of 30 dB (20 dB for f
>15 MHz) at f
means of RF relays. The short tuning time
Type Index
±10%. Tuning is digital by
o
Dimensions
(19" rackmount, W × H × D) 483 mm × 355 mm × 655 mm
Weight 37 kg
MTBF 5.600 h
Ordering information
1 kW HF Postselector R&S FK859X1 6012.5498.02
of 100 ms makes the R&S FK859X1 suitable also for frequency-agile systems.
The frequency information is derived from
the control line to the ATU which is
looped through the filter. Alternatively,
o
the frequency information can be derived
directly from the RF signal.
150 W HF Postselector R&S® FK2101X
Brief description
The R&S FK2101X is a postselector especially designed for the HF Transceiver
R&S XK2100. Since the R&S XK2100 is
capable of tuning without using a sepa-
Specifications
Electrical data
Frequency range 1.5 MHz to 29.999 MHz
Maximum input power 100 W + 1 dB CW
Transmission loss
without modem bypass <1 dB
with modem bypass <1.5 dB
Stopband attenuation
1.5 MHz to 29.999 MHz, f
Input impedance 50 Ω
Tuning time 50 ms
Power Supply (from R&S IN2100) 26.5 V
Current input ≤3 A
± 10% ≥8 dB
o
150 W + 1 dB PEP
rate control line to the ATU, the control
data transmitted together with the RF
signal is taken via a modem bypass in the
R&S FK2101X. Featuring short tuning
time (<50 ms), the filter is suitable for
frequency-agile applications. The filter is
controlled via the External Control
Interface R&S GV2110.
Mechanical and environmental data
Dimensions (W × H × D) 483 mm × 177 mm × 358 mm
Depth over all 413 mm
Weight 11 kg
Colour RAL 7035
Safe shock load 30 g, 11 ms
Vibration 10 Hz to 55 Hz, 0.3 mm double amplifier
Ordering information
150 W HF Postselector R&S FK2101X 6079.2010.02
Contents Overview R&S Addresses
Chapter Overview
Type Index
Loading...
