Page 1
R&S®FSV3-K30 Noise Figure Measurements User Manual
1178943202 Version 09
Page 2
This manual applies to the following R&S®FSV3000 and R&S®FSVA3000 models with firmware version
1.90 and higher:
●
R&S®FSV3004 (1330.5000K04) / R&S®FSVA3004 (1330.5000K05)
●
R&S®FSV3007 (1330.5000K07) / R&S®FSVA3007 (1330.5000K08)
●
R&S®FSV3013 (1330.5000K13) / R&S®FSVA3013 (1330.5000K14)
●
R&S®FSV3030 (1330.5000K30) / R&S®FSVA3030 (1330.5000K31)
●
R&S®FSV3044 (1330.5000K43) / R&S®FSVA3044 (1330.5000K44)
●
R&S®FSV3050 (1330.5000K50) / R&S®FSVA3050 (1330.5000K51)
The following firmware options are described:
●
R&S FSV/A-K30 (1330.5045.02)
© 2022 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Muenchen, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com Subject to change – data without tolerance limits is not binding. R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners.
1178.9432.02 | Version 09 | R&S®FSV3-K30
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. R&S®FSV3 is indicated as R&S FSV3.
Page 3
R&S®FSV3-K30
1 Preface.................................................................................................... 7
1.1 About this manual.........................................................................................................7
1.2 Conventions used in the documentation....................................................................8
1.2.1 Typographical conventions..............................................................................................8
1.2.2 Conventions for procedure descriptions..........................................................................8
1.2.3 Notes on screenshots..................................................................................................... 8
2 Welcome to the noise figure measurement application.....................9
2.1 Starting the noise application......................................................................................9

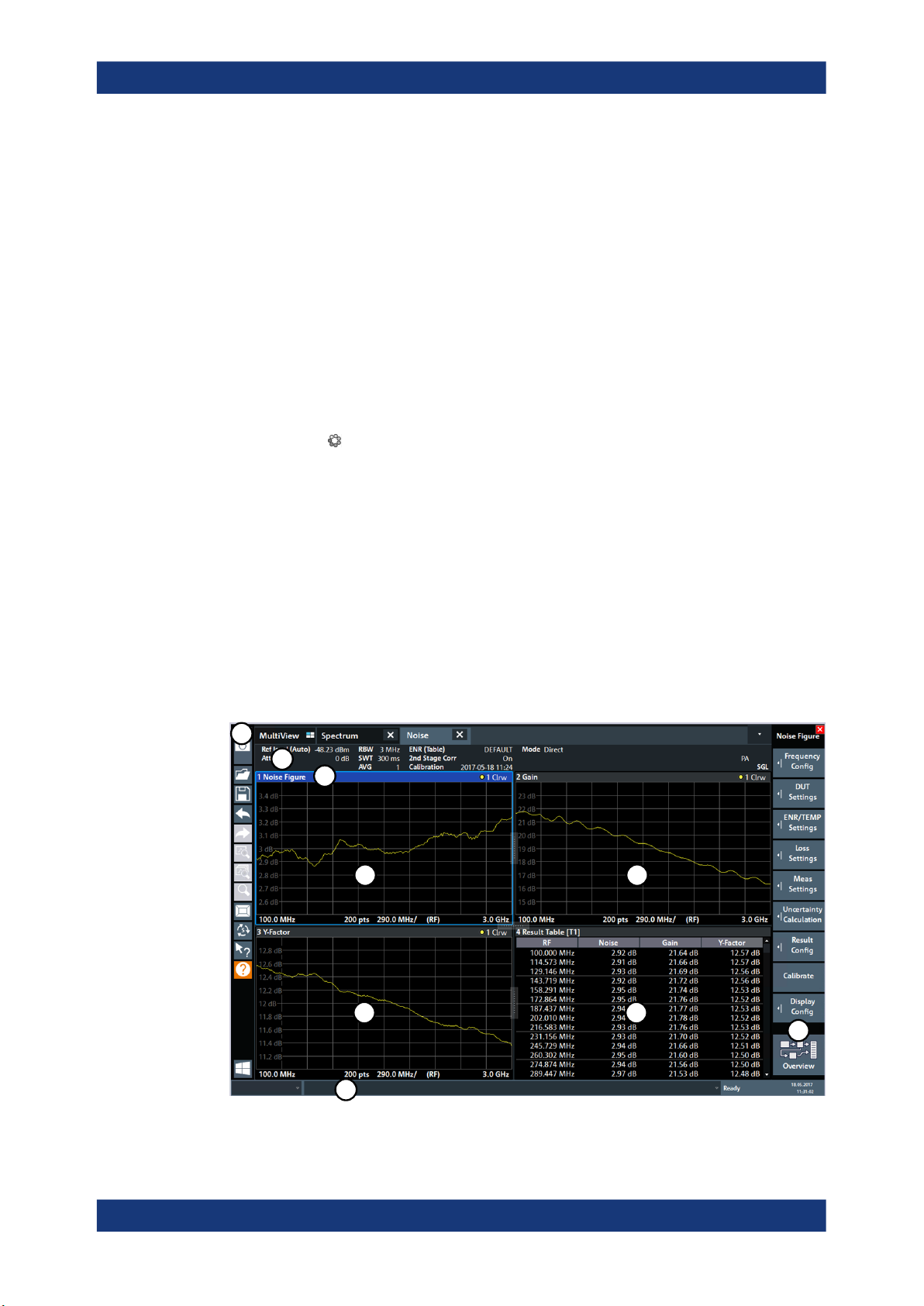

2.2 Understanding the display information.................................................................... 10

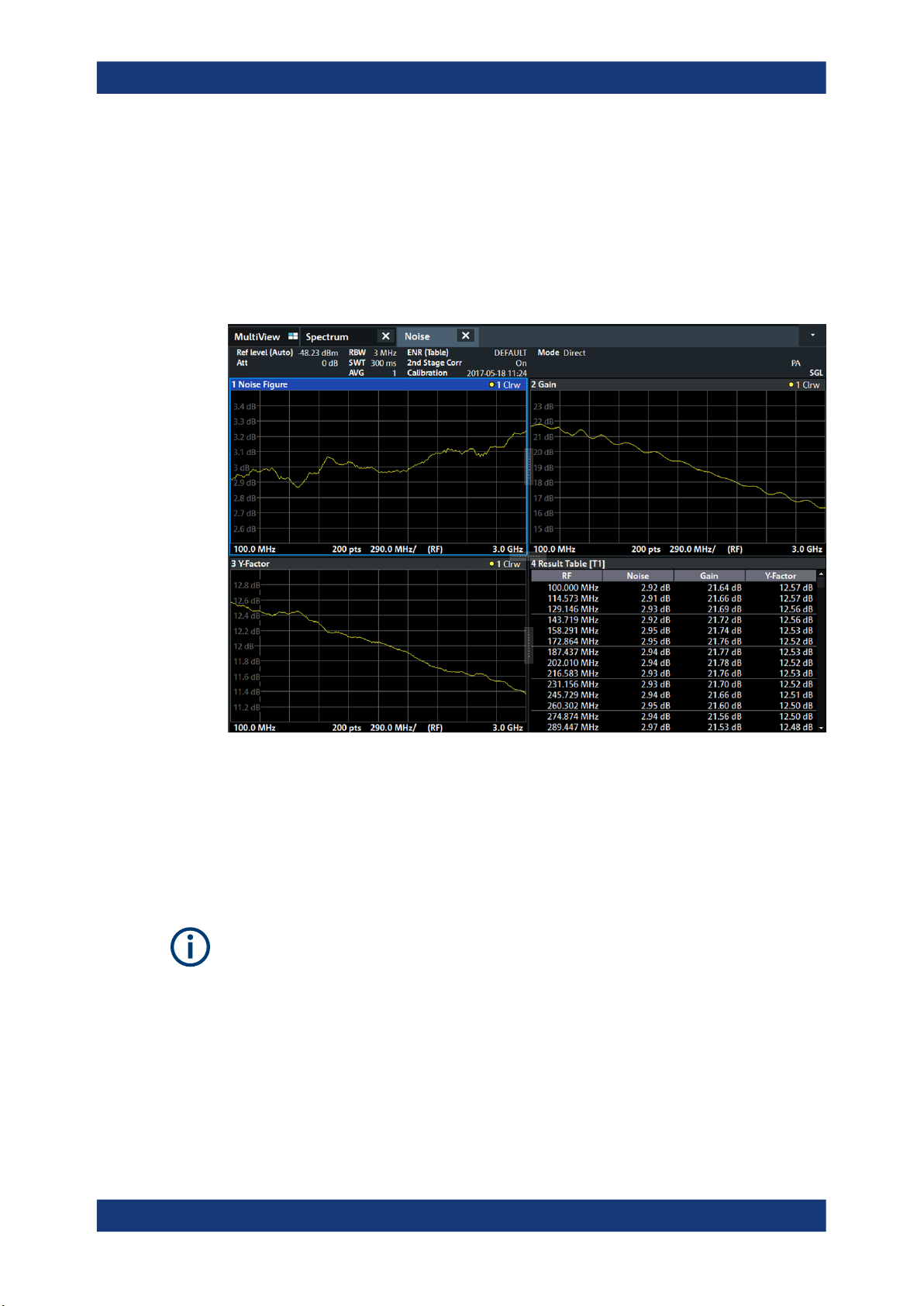

3 Measurements and result displays.................................................... 13

Contents

Contents
4 Measurement basics............................................................................22
4.1 Tuning modes..............................................................................................................22
4.1.1 Swept measurements................................................................................................... 23
4.1.2 Frequency table measurements....................................................................................23
4.1.3 Single frequency measurements...................................................................................23
4.2 Measurement modes.................................................................................................. 24
4.3 DUT types.................................................................................................................... 26
4.3.1 Measurements on linear DUTs (direct measurement)...................................................26
4.3.2 Measurements on frequency converting DUTs............................................................. 26
4.4 External generator control......................................................................................... 27

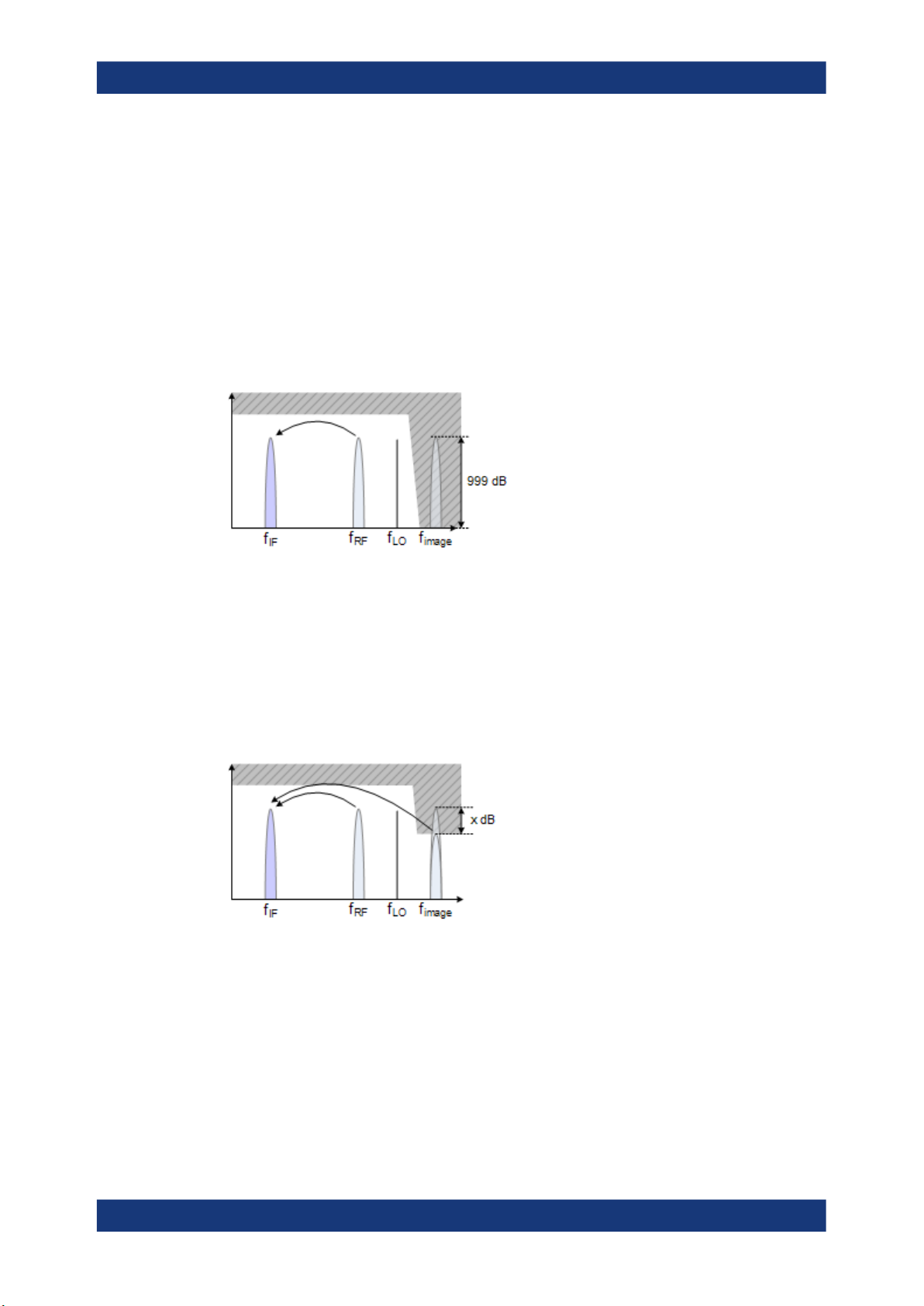

4.5 Image frequency rejection..........................................................................................29
4.6 Calibration (2nd stage correction).............................................................................31
4.7 Using smart noise sources........................................................................................ 34
4.8 Separating signals by selecting an appropriate resolution bandwidth................. 35
4.9 Analyzing several traces - trace mode......................................................................36
4.10 Using markers............................................................................................................. 37
5 Configuration........................................................................................39
5.1 Configuration overview.............................................................................................. 39
5.2 Defining the measurement frequency.......................................................................41
5.2.1 Defining a frequency set............................................................................................... 41
3User Manual 1178.9432.02 ─ 09
Page 4
R&S®FSV3-K30
5.2.2 Configuring single frequency measurements................................................................44
5.2.3 Using a frequency table................................................................................................ 45
5.3 Selecting DUT characteristics................................................................................... 48
5.4 Configuring the noise source.................................................................................... 49
5.4.1 Defining the noise source characteristics......................................................................49
5.4.2 Using an ENR or temperature table.............................................................................. 53
5.5 Configuring additional loss........................................................................................57
5.5.1 Defining loss..................................................................................................................57
5.5.2 Using a loss table..........................................................................................................60
5.6 Configuring the analyzer............................................................................................ 62
5.7 Using the uncertainty calculator............................................................................... 66
5.7.1 Configuring noise source characteristics...................................................................... 68
5.7.2 Configuring DUT characteristics................................................................................... 69
Contents
5.7.3 Configuring analyzer characteristics............................................................................. 70
5.7.4 Guidelines and results...................................................................................................71
5.8 Performing measurements.........................................................................................72
5.9 Configuring inputs and outputs of the R&S FSV/A..................................................75
5.9.1 Radio frequency (RF) input........................................................................................... 75
5.9.2 External generator.........................................................................................................77
5.9.2.1 Interface configuration settings..................................................................................... 77
5.9.2.2 Measurement configuration...........................................................................................78
6 Analysis................................................................................................ 82
6.1 Configuring the display.............................................................................................. 82
6.1.1 Configuring graphical results.........................................................................................82
6.1.2 Configuring numerical results........................................................................................84
6.2 Working with traces.................................................................................................... 85
6.3 Using markers............................................................................................................. 88
6.3.1 Marker configuration..................................................................................................... 88
6.3.2 Marker positioning.........................................................................................................91
6.4 Limit line settings and functions............................................................................... 93
6.4.1 Limit line management.................................................................................................. 93
6.4.2 Limit line details.............................................................................................................95
7 Remote control commands for noise figure measurements........... 98
4User Manual 1178.9432.02 ─ 09
Page 5
R&S®FSV3-K30
7.1 Common suffixes........................................................................................................ 99
7.2 Introduction................................................................................................................. 99
7.2.1 Conventions used in descriptions............................................................................... 100
7.2.2 Long and short form.................................................................................................... 100
7.2.3 Numeric suffixes..........................................................................................................101
7.2.4 Optional keywords.......................................................................................................101
7.2.5 Alternative keywords................................................................................................... 101
7.2.6 SCPI parameters.........................................................................................................102
7.2.6.1 Numeric values........................................................................................................... 102
7.2.6.2 Boolean....................................................................................................................... 103
7.2.6.3 Character data............................................................................................................ 103
7.2.6.4 Character strings.........................................................................................................104
7.2.6.5 Block data................................................................................................................... 104
Contents
7.3 Controlling the noise figure measurement channel.............................................. 104
7.4 Working with windows in the display......................................................................108
7.5 General window commands.....................................................................................114
7.6 Retrieving measurement results..............................................................................115
7.7 Defining the measurement frequency..................................................................... 116
7.8 Selecting DUT characteristics................................................................................. 121
7.9 Configuring the noise source.................................................................................. 123
7.10 Configuring additional loss......................................................................................131
7.11 Configuring the analyzer..........................................................................................138
7.12 Using the uncertainty calculator............................................................................. 145
7.13 Performing measurements.......................................................................................155
7.14 Configuring the inputs and outputs........................................................................ 160
7.14.1 Radio frequency (RF) input......................................................................................... 160
7.14.2 External mixer............................................................................................................. 162
7.14.3 External generator.......................................................................................................174
7.15 Configuring the display............................................................................................ 177
7.16 Working with traces.................................................................................................. 180
7.17 Working with limit lines............................................................................................ 185
7.17.1 Defining general characteristics of a limit line............................................................. 186
7.17.2 Defining horizontal data points....................................................................................187
5User Manual 1178.9432.02 ─ 09
Page 6
R&S®FSV3-K30
7.17.3 Controlling lower limit lines..........................................................................................189
7.17.4 Controlling upper limit lines......................................................................................... 190
7.17.5 Managing limit lines.....................................................................................................191
7.17.6 Controlling limit checks............................................................................................... 192
7.18 Working with markers...............................................................................................194
7.18.1 Using markers............................................................................................................. 195
7.18.2 Using delta markers.................................................................................................... 197
7.18.3 Configuring markers....................................................................................................200
7.18.4 Positioning markers.....................................................................................................201
7.18.5 Positioning delta markers............................................................................................203
7.19 Using the status register.......................................................................................... 205
7.19.1 Status registers for noise figure measurements..........................................................206
7.19.1.1 STATus:OPERation register........................................................................................208
Contents
7.19.1.2 STATus:QUEStionable register...................................................................................208
7.19.1.3 STATus:QUEStionable:LIMit register.......................................................................... 209
7.19.1.4 STATus:QUEStionable:CORRection register..............................................................209
7.19.1.5 Status register remote commands.............................................................................. 210
7.20 Deprecated remote commands for noise figure measurements.......................... 212
7.21 Programming example: measuring a noise figure.................................................213
Annex.................................................................................................. 214
A Reference: frequency table file format.............................................214
List of Commands (Noise Figure).....................................................215
Index....................................................................................................221
6User Manual 1178.9432.02 ─ 09
Page 7
R&S®FSV3-K30

1 Preface

1.1 About this manual

Preface
About this manual
This User Manual provides all the information specific to the application. All general instrument functions and settings common to all applications and operating modes are described in the main R&S FSV/A User Manual.
The main focus in this manual is on the measurement results and the tasks required to obtain them. The following topics are included:
●
Welcome to the "Noise Figure" Application
Introduction to and getting familiar with the application
●
Typical applications
Example measurement scenarios in which the application is frequently used.
●
Measurements and Result Displays
Details on supported measurements and their result types
●
"Noise Figure" Measurement Basics
Background information on basic terms and principles in the context of the mea­surement
●
"Noise Figure" Measurement Configuration + Analysis
A concise description of all functions and settings available to configure measure­ments and analyze results with their corresponding remote control command
●
How to Perform Measurements with the "Noise Figure" Application
The basic procedure to perform each measurement and step-by-step instructions for more complex tasks or alternative methods
●
Measurement Examples
Detailed measurement examples to guide you through typical measurement sce­narios and allow you to try out the application immediately
●
Optimizing and Troubleshooting the Measurement
Hints and tips on how to handle errors and optimize the test setup
●
Remote Commands for "Noise Figure" Measurements
Remote commands required to configure and perform "noise figure" measurements in a remote environment, sorted by tasks (Commands required to set up the environment or to perform common tasks on the instrument are provided in the main R&S FSV/A User Manual) Programming examples demonstrate the use of many commands and can usually be executed directly for test purposes
●
Annex
Reference material
●
List of remote commands
Alphabetical list of all remote commands described in the manual
●
Index
7User Manual 1178.9432.02 ─ 09
Page 8
R&S®FSV3-K30

1.2 Conventions used in the documentation

1.2.1 Typographical conventions

Preface
Conventions used in the documentation
The following text markers are used throughout this documentation:
Convention Description
"Graphical user interface ele­ments"
[Keys] Key and knob names are enclosed by square brackets.
Filenames, commands, program code
Input Input to be entered by the user is displayed in italics.
Links Links that you can click are displayed in blue font.
"References" References to other parts of the documentation are enclosed by quota-
All names of graphical user interface elements on the screen, such as dialog boxes, menus, options, buttons, and softkeys are enclosed by quotation marks.
Filenames, commands, coding samples and screen output are distin­guished by their font.
tion marks.

1.2.2 Conventions for procedure descriptions

When operating the instrument, several alternative methods may be available to per­form the same task. In this case, the procedure using the touchscreen is described. Any elements that can be activated by touching can also be clicked using an addition­ally connected mouse. The alternative procedure using the keys on the instrument or the on-screen keyboard is only described if it deviates from the standard operating pro­cedures.
The term "select" may refer to any of the described methods, i.e. using a finger on the touchscreen, a mouse pointer in the display, or a key on the instrument or on a key­board.

1.2.3 Notes on screenshots

When describing the functions of the product, we use sample screenshots. These screenshots are meant to illustrate as many as possible of the provided functions and possible interdependencies between parameters. The shown values may not represent realistic usage scenarios.
The screenshots usually show a fully equipped product, that is: with all options instal­led. Thus, some functions shown in the screenshots may not be available in your par­ticular product configuration.
8User Manual 1178.9432.02 ─ 09
Page 9
R&S®FSV3-K30
2 Welcome to the noise figure measurement

Welcome to the noise figure measurement application

Starting the noise application
application
The R&S FSV3-K30 is a firmware application that adds functionality to perform "noise figure" measurements to the R&S FSV/A.
Noise Source Control
The Noise Source Control connector on the R&S FSV/A is a prerequisite for the R&S FSV3 Noise measurements application.
This user manual contains a description of the functionality that the application pro­vides, including remote control operation.
Functions that are not discussed in this manual are the same as in the Spectrum appli­cation and are described in the R&S FSV/A user manual.
The latest versions of the manuals are available for download at the product home­page.
http://www.rohde-schwarz.com/product/FSV3000.html.
Installation
Find detailed installing instructions in the getting started or the release notes of the R&S FSV/A.
● Starting the noise application....................................................................................9
● Understanding the display information....................................................................10

2.1 Starting the noise application

The "noise figure" measurement application adds a new type of measurement to the R&S FSV/A.
To activate the R&S FSV3 Noise measurements application
1. Select the [MODE] key. A dialog box opens that contains all operating modes and applications currently
available on your R&S FSV/A.
2. Select the "Noise Figure" item.
The R&S FSV/A opens a new measurement channel for the "noise figure" mea­surement application. All settings specific to "noise figure" measurements are in their default state.
9User Manual 1178.9432.02 ─ 09
Page 10
R&S®FSV3-K30
Welcome to the noise figure measurement application
Understanding the display information
Multiple Channels and Sequencer Function
When you activate an application, a new channel is created which determines the measurement settings for that application ("Channel"). The same application can be activated with different measurement settings by creating several "Channel"s for the same application.
The number of channels that can be configured at the same time depends on the avail­able memory on the instrument.
Only one measurement can be performed at any time, namely the one in the currently active channel. However, to perform the configured measurements consecutively, a Sequencer function is provided.
If activated, the measurements configured in the currently defined "Channel"s are per­formed one after the other in the order of the tabs. The currently active measurement is indicated by a
The result displays of the individual channels are updated in the tabs (as well as the "MultiView") as the measurements are performed. Sequential operation itself is inde­pendent of the currently displayed tab.
symbol in the tab label.
For details on the Sequencer function, see the R&S FSV/A user manual.

2.2 Understanding the display information

The following figure shows the display as it looks for "noise figure" measurements. All different information areas are labeled. They are explained in more detail in the follow­ing sections.
1
2
3
4
4
4 4
6
Figure 2-1: Screen layout of the noise figure measurement application
5
10User Manual 1178.9432.02 ─ 09
Page 11
R&S®FSV3-K30
Welcome to the noise figure measurement application
Understanding the display information
1 = Toolbar 2 = Channel bar 3 = Diagram header 4 = Result display 5 = Softkey bar 6 = Status bar
Channel bar information
In the R&S FSV3 Noise measurements application, the R&S FSV/A shows the follow­ing settings:
Ref Level Reference level of the R&S FSV/A.
Att Attenuation of the R&S FSV/A.
RBW Resolution bandwidth
SWT Sweep time
AVG Number of averages
ENR Excess noise ratio
For smart noise sources: also the provided temperature
2nd Stage Corr State of the 2nd stage correction.
Calibration Data Date and time of the current calibration data.
Mode Currently selected measurement mode.
Window title bar information
For each diagram, the header provides the following information:
Figure 2-2: Window title bar information for the R&S FSV3 Noise measurements application
1 = Window number 2 = Window type 3 = Trace color and number 4 = Trace mode
Status bar information
Global instrument settings, the instrument status and any irregularities are indicated in the status bar beneath the diagram. Furthermore, the progress of the current operation is displayed in the status bar.
11User Manual 1178.9432.02 ─ 09
Page 12
R&S®FSV3-K30
Welcome to the noise figure measurement application
Understanding the display information
Risk of damaging the instrument
Make sure not to overload the input mixer during calibration and the measurement. An overload condition can damage or destroy the input mixer.
If an overload condition occurs, the R&S FSV/A shows a corresponding message in the status line ("RF OVLD" or "IF OVLD").
To avoid an overload during calibration or measurement, do one or more of the follow­ing:
●
Check and adjust the DUT "gain" settings
●
Check and adjust the ENR settings
●
Increase the reference level.
12User Manual 1178.9432.02 ─ 09
Page 13
R&S®FSV3-K30

3 Measurements and result displays

Measurements and result displays
The R&S FSV3-K30 measures the "noise figure" of a DUT and displays the results graphically and numerically. Each graphical result display shows the "noise figure" from a different perspective. In the default configuration, the application shows the "noise figure" of the DUT, the "gain" of the DUT and the corresponding "y-factor". In addition, it shows the numerical results of the measurement.
The scale of the horizontal axis depends on the tuning mode.
Frequency list and swept measurements
In all graphical result displays, the horizontal axis represents the frequency. The dis­played frequency is either the RF (radio frequency) or the IF (intermediate frequency). The range depends on the frequency set you have currently defined. Because the application only measures selected frequencies, it connects the results to draw a trace.
Negative "noise figure" and "noise temperature"
From a physical point of view, the "noise figure" and the "noise temperature" levels have a positive range (including zero).
Due to the mathematical operations the application performs, the results can be nega­tive. Sometimes this happens due to incorrect calibration or variance of measurement values.
13User Manual 1178.9432.02 ─ 09
Page 14
R&S®FSV3-K30
out
in
SNR
SNR
Figure Noise
Measurements and result displays
Single frequency measurements
In all graphical result displays, the horizontal axis represents a chronological order of measurement results for the frequency you are testing. The axis has no unit, but is made up out of several index values that represent time. Each index value represents one measurement point and therefore one measurement on the single frequency you are analyzing. The size of the index (and thus number of results) depends on the num­ber of (Measurement) Points that you have defined. Because the application only measures at certain points in time, it connects the results to draw a trace.
The right diagram border represents the present (index = 0), values to the left repre­sent past measurement results (index = -<x>). As soon as the application finishes a single measurement, the measurement points are moved to the left, the new result is added on the right. All other measurement points are moved down one position with the most obsolete result falling out of the diagram (like in the roll mode of an oscillo­scope).
Selecting the result display
►
Select the
icon in the toolbar or press the [MEAS] key.
The application enters the SmartGrid configuration mode. For more information on the SmartGrid functionality, see the R&S FSV/A Getting Started.
Noise Figure..................................................................................................................14
Gain...............................................................................................................................15
Noise Temperature........................................................................................................15
Y-Factor.........................................................................................................................16
ENR Measured..............................................................................................................17
Power (Hot)...................................................................................................................18
Power (Cold)................................................................................................................. 18
Cal Y-Factor.................................................................................................................. 19
Cal Power (Hot).............................................................................................................19
Cal Power (Cold)...........................................................................................................20
Result Table.................................................................................................................. 20
Current Values...............................................................................................................21
Marker Table................................................................................................................. 21
Noise Figure
Shows the "noise figure" of the DUT. The "noise figure" is the ratio of the signal-to-noise ratio at the DUT input to the signal-
to-noise ratio at the DUT output.
The vertical axis shows the level of the "noise figure" in dB. The scale depends on the settings in the "Display Configuration" dialog box.
14User Manual 1178.9432.02 ─ 09
Page 15
R&S®FSV3-K30
Measurements and result displays
Remote command: LAY:ADD:WIND? '2',RIGH,NOIS see LAYout:ADD[:WINDow]? on page 108 Results:TRACe<t>[:DATA]? <Trace>,NOISe
Gain
Shows the "gain" characteristics of the DUT. The vertical axis shows the level of the "gain" in dB. The scale depends on the settings
in the "Display Configuration" dialog box.
Remote command: LAY:ADD:WIND? '2',RIGH,GAIN see LAYout:ADD[:WINDow]? on page 108 Results:TRACe<t>[:DATA]? <Trace>,GAIN
Noise Temperature
Shows the "noise temperature" characteristics of the DUT.
15User Manual 1178.9432.02 ─ 09
Page 16
R&S®FSV3-K30
constant Boltzmannk
BandwidthB
PowerP
with
eTemperatur Noise
kB
P
off source noise with[dB] power Noise
on source noise with[dB] power Noise
with
FactorY
off
on
off
on
N
N
N
N
Measurements and result displays
The vertical axis shows the "noise temperature" in Kelvin. The scale depends on the settings in the "Display Configuration" dialog box.
Remote command: LAY:ADD:WIND? '2',RIGH,TEMP see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,TEMPerature
Y-Factor
Shows the ratio of the hot and the cold power of the DUT. The "Y-factor" indicates the quality of measurement tolerances and uncertainties. To
get the result, the application measures the DUT power with the noise source turned on (hot power) and the noise source turned off (cold power).
The vertical axis shows the linear relation. The scale depends on the settings in the "Display Configuration" dialog box.
16User Manual 1178.9432.02 ─ 09
Page 17
R&S®FSV3-K30
Measurements and result displays
Remote command: LAY:ADD:WIND? '2',RIGH,YFAC see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,YFACtor
ENR Measured
Shows the results of the ENR measurement. To measure the ENR of a noise source, first attach a noise source with known ENR to
the device, enter the ENR of this noise source to the calibration ENR table and cali­brate using this one. Then, attach the unknown noise source to the device and perform a measurement ("Run Single") with this one. The graph shown in the ENR Measured display and the results for ENR Measured in the Result Summary will be the ENR of the noise source at the measured frequencies. The vertical axis shows the level of the measured ENR in dB. The scale depends on the settings in the "Display Configuration" dialog box.
17User Manual 1178.9432.02 ─ 09
Page 18
R&S®FSV3-K30
Measurements and result displays
Remote command: LAY:ADD:WIND? '2',RIGH,ENR see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,ENR
Power (Hot)
Shows the absolute power characteristics at the instrument input. The noise source is turned on.
The vertical axis shows the power in dBm. The scale depends on the settings in the "Display Configuration" dialog box.
Remote command: LAY:ADD:WIND? '2',RIGH,PHOT see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,PHOT
Power (Cold)
Shows the absolute power characteristics at the instrument input. The noise source is turned off.
The vertical axis shows the power in dBm. The scale depends on the settings in the "Display Configuration" dialog box.
18User Manual 1178.9432.02 ─ 09
Page 19
R&S®FSV3-K30
off source noise with[dB] power Noise
on source noise with[dB] power Noise
with
FactorY
off
on
off
on
N
N
N
N
Measurements and result displays
Remote command: LAY:ADD:WIND? '2',RIGH,PCOL see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,PCOLd
Cal Y-Factor
Shows the ratio of the hot and the cold power measured during calibration.
The "Y-factor" indicates the quality of measurement tolerances and uncertainties. To get the result, the application measures the power with the noise source turned on (hot power) and the noise source turned off (cold power), but without the DUT inserted.
The vertical axis shows the linear relation. The scale depends on the settings in the "Display Configuration" dialog box.
Remote command: LAY:ADD:WIND? '2',RIGH,CYF see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,CYFactor
Cal Power (Hot)
Shows the absolute power characteristics at the instrument input during the calibration measurement. The noise source is turned on, the DUT is not inserted.
The vertical axis shows the power in dBm. The scale depends on the settings in the "Display Configuration" dialog box.
19User Manual 1178.9432.02 ─ 09
Page 20
R&S®FSV3-K30
Measurements and result displays
Remote command: LAY:ADD:WIND? '2',RIGH,CPH see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,CPHot
Cal Power (Cold)
Shows the absolute power characteristics at the instrument input during the calibration measurement. The noise source is turned off, the DUT is not inserted.
The vertical axis shows the power in dBm. The scale depends on the settings in the "Display Configuration" dialog box.
Remote command: LAY:ADD:WIND? '2',RIGH,CPC see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<t>[:DATA]? <Trace>,CPCold
Result Table
Shows the measurement results in numerical form in a table. The contents of the table depend on the "Display Settings". By default it shows the
"noise figure", "gain" and "y-factor" results. Each row represents one measurement point. Each column represents one result type. The first column shows the measure­ment frequency.
If you display the uncertainty result, it is displayed in the "Noise" column next to the "Noise Figure" result. Note that the uncertainty is displayed only after you have turned on the uncertainty calculation and also include the result in the display.
The result table shows either the RF or the IF, depending on your selection. For more information, see Chapter 6.1.2, "Configuring numerical results", on page 84.
Remote command: LAY:ADD:WIND? '2',RIGH,RES see LAYout:ADD[:WINDow]? on page 108 Results: TRACe<n>[:DATA]? on page 115 Table items: DISPlay[:WINDow<n>]:TABLe:ITEM on page 177
20User Manual 1178.9432.02 ─ 09
Page 21
R&S®FSV3-K30
Measurements and result displays
Current Values
Shows the result at the current measurement point. The contents of the "Current" result display are updated as soon as a new measure-
ment point is analyzed. The result types shown in the table depend on the "Display Settings". By default it
shows the results for the "Noise Figure", "Gain" and "Y-Factor" result type. Each row represents one result type. The first column shows the result type, the second column shows the result.
For more information, see Chapter 6.1.2, "Configuring numerical results", on page 84.
Marker Table
Shows the marker characteristics in numerical form in a table. The size of the table depends on the number of active markers and the way you have
configured the table in the "Result Config" dialog box. For more information, see Chap-
ter 6.3, "Using markers", on page 88 and Chapter 6.1.2, "Configuring numerical results", on page 84.
The first four columns of the table are fix.
●
Type Shows the marker type. 'M' represents a normal marker, 'D' represents a delta marker.
●
Ref Shows the reference marker for relative delta markers.
●
Trc Shows the trace that the marker is positioned on.
●
X-value Shows the horizontal position (frequency) of the marker. For normal markers, the position is an absolute value. The position of delta mark­ers is relative to another marker.
●
<Result> Shows the measurement result at the marker position. For normal markers, the result is an absolute value. Results for delta markers are relative to another marker.
Remote command: LAY:ADD:WIND? '2',RIGH,MTAB see LAYout:ADD[:WINDow]? on page 108 Results:
CALCulate<n>:MARKer<m>:Y? on page 196 CALCulate<n>:DELTamarker<m>:Y? on page 199
21User Manual 1178.9432.02 ─ 09
Page 22
R&S®FSV3-K30

4 Measurement basics

Measurement basics
Tuning modes
The measurement basics contain background information on the terminology and prin­ciples of "noise figure" measurements.
"Noise figure" measurements determine the noise that a device under test (DUT) adds to a signal as that signal passes through the DUT.
● Tuning modes......................................................................................................... 22
● Measurement modes.............................................................................................. 24
● DUT types............................................................................................................... 26
● External generator control.......................................................................................27
● Image frequency rejection.......................................................................................29
● Calibration (2nd stage correction)...........................................................................31
● Using smart noise sources......................................................................................34
● Separating signals by selecting an appropriate resolution bandwidth.................... 35
● Analyzing several traces - trace mode....................................................................36
● Using markers.........................................................................................................37

4.1 Tuning modes

Basically, the application calculates the "noise figure" of a DUT based on the character­istics of the DUT that have been measured and a noise source whose properties are known. Therefore, the Noise Source Control connector on the R&S FSV/A is a prereq­uisite for the R&S FSV3 Noise measurements application.
In addition to the noise characteristics of a DUT, the application is also able to deter­mine several more DUT characteristics like its "gain" or its "noise temperature" charac­teristics.
The application provides several measurement modes or tuning modes.
DUT
Noise Source
● Swept measurements............................................................................................. 23
● Frequency table measurements..............................................................................23
● Single frequency measurements.............................................................................23
22User Manual 1178.9432.02 ─ 09
Page 23
R&S®FSV3-K30

4.1.1 Swept measurements

Measurement basics
Tuning modes
The sweep tuning mode performs measurements on a set of discrete frequencies based on the frequency parameters. Each measurement analyzes the noise character­istics of the corresponding frequency or measurement point.
For swept measurements, the application automatically determines the measurement frequencies and combines them in a frequency list.
Such a frequency set is the result of the frequency and span information that you have provided. The frequency and span information is made up out of the center frequency, the span, the start and the stop frequency. In combination with the measurement points or the frequency table step size, the application calculates the contents of the fre­quency table.
The center frequency is the frequency in the center of the frequency band you are measuring. Thus, it is defined either by the span, or the start and stop frequencies.
The measurement points is the number of entries in a frequency list and thus the number of measurements that the application performs during a "noise figure" mea­surement.
The stepsize defines the distance between two measurement points. It is constant for all measurement points.
If the stepsize is larger than the distance between start and stop frequency, the fre­quency table consists of the start and stop frequencies only.

4.1.2 Frequency table measurements

The frequency table tuning mode also performs measurements on a set of frequen­cies based on the contents of a frequency list. Each measurement analyzes the noise characteristics of the corresponding frequency.
Compared to a swept measurement, you can customize the contents of the frequency list. Thus, you can add frequencies that are independent of the frequency stepsize and the number of measurement points.
Frequency tables also allow you to define a variable RBW and sweep time, depending on the current frequency of the sweep point (see "Variable RBW and sweep time for
low-frequency measurements" on page 35 and Chapter 5.2.3, "Using a frequency table", on page 45).

4.1.3 Single frequency measurements

The single frequency tuning mode performs one or several consecutive measure­ments on a single frequency. You can perform the measurement on any frequency that is supported by the hardware you are using.
23User Manual 1178.9432.02 ─ 09
Page 24
R&S®FSV3-K30
Measurement basics
Measurement modes
Single frequency measurements are a way to facilitate manual adjustments for "noise figure" measurements. They also allow you to get an idea about how the "noise figure" at a particular frequency change over time.
Note that sweep lists or frequency tables are not considered in this measurement mode.
Single frequency measurement results
For single frequency measurements, the same set of graphical result displays is availa­ble as for frequency list measurements ("Noise Figure", "Gain" etc.). Note, however, that the x-axis has no unit, but shows a series of results taken for a single frequency. The number of displayed results depends on the number of measurement points you have defined.
For more information, see Chapter 3, "Measurements and result displays", on page 13.
In addition, you can also view the results in the Result Table in numerical form.
Single frequency measurements are not available when you are using a resistor as a noise source.

4.2 Measurement modes

In some cases, the Power (Hot) and Power (Cold) results require two different noise sources with different temperature characteristics (cold and hot). Measurements with a resistor noise source are such a case.
Usually, noise sources with diode characteristics are used for "Noise Figure" measure­ments. These noise sources have two states, on and off. When they are supplied with power (state = on), the application measures the hot power, when they are not supplied with power (state = off), it measures the cold power. Turning the noise source on and off is automatically done by the application, so that you can get the hot and cold power characteristics in a single step.
This automatic measurement mode is the default measurement mode of the R&S FSV3 Noise measurements application.
A resistor noise source, however, requires two resistors, one hot and one cold. You have to substitute the hot resistor by the cold resistor to measure first the hot and then the cold power. For these cases, the application provides a manual measurement mode. This measurement mode is automatically selected when you select a "Noise
Source" on page 51 with resistor characteristics, but is not restricted to those cases.
The manual measurement mode is available for measurements and the calibration stage.
Performing a manual measurement
In manual measurement mode, you have to measure (or calibrate) the hot and cold power characteristics of the DUT separately. When you start the measurement, the application opens a dialog box that allows you to select the type of measurement to perform next.
24User Manual 1178.9432.02 ─ 09
Page 25
R&S®FSV3-K30
Measurement basics
Measurement modes
Recommended order of measurements
Note that it is recommended that you begin with the hot power measurement. Furthermore, calibration always begins with the hot power measurement. In case the hot power has to be measured first, the cold power measurement is
unavailable:
When the first measurement is done, you can change the test setup by connecting the other resistor. Then start the second measurement.
In the dialog box, the measurement stage that is already done is labeled green.
In addition, the application shows the missing calibration and measurement steps in the channel bar.
Clearing results
To replace the previous calibration or measurement results, clear the currently stored data using the "Clear Calibration Results" or "Clear Measurement Results" function.
25User Manual 1178.9432.02 ─ 09
Page 26
R&S®FSV3-K30

4.3 DUT types

Measurement basics
DUT types
Returning to automatic measurement mode
When you are in automatic measurement mode and select a noise source with resistor characteristics, the application automatically selects the manual measurement mode.
When you are in manual measurement mode and select a noise source with diode characteristics, you have to select the automatic measurement mode deliberately in the "Sweep" menu.
"Noise figure" measurements are possible on DUTs with a wide variety of characteris­tics. The DUT characteristics not only affect the test setup, but also determine the way the application populates the frequency list for swept measurements.
The R&S FSV3 Noise measurements application supports measurements on DUTs that work on a fixed frequency as well as measurements on frequency-converting DUTs.
● Measurements on linear DUTs (direct measurement).............................................26
● Measurements on frequency converting DUTs....................................................... 26

4.3.1 Measurements on linear DUTs (direct measurement)

For a linear DUT, the RF frequency remains the same between its input and output. For measurements on such DUTs, it is sufficient to measure the signal's RF frequency without any additional equipment (like a local oscillator). A typical linear DUT is an amplifier, for example.
The test setup for measurements on such DUTs usually consists of the noise source, the DUT and an analyzer. If necessary, the measurement also considers loss that occurs somewhere in the measurement path.
For linear DUTs, the contents and layout of the "Overview" dialog box represents the configuration of a typical test setup.

4.3.2 Measurements on frequency converting DUTs

A frequency converting DUT converts the RF frequency to an intermediate frequency (IF) using the local oscillator (LO). A frequency-converting DUT either converts the RF frequency to a lower IF (down-conversion) or a higher IF (up-conversion).
The conversion process requires a local oscillator in the test setup. You can generate the LO signal in two ways.
●
An external generator controlled by the analyzer via IEC bus.
●
A VCO controlled by a voltage source.
26User Manual 1178.9432.02 ─ 09
Page 27
R&S®FSV3-K30
Measurement basics
External generator control
If you have selected a frequency-converting DUT measurement mode, the layout of the "Overview" dialog box adds the local oscillator to the test setup.
The local oscillator can have a fixed or a variable frequency. If the LO frequency is fixed, the intermediate frequency (IF) resulting from the conversion process is variable (depending on the input signal). If the LO frequency is variable, the IF has to be fixed.
The R&S FSV3 Noise measurements application provides measurement for both mea­surement scenarios.
Fixed intermediate frequency
If you select one of the fixed IF measurement modes, the IF is the same for all entries in the frequency list. The LO frequency for each entry is variable and is the result of the equation the selected mode is based on.
●
fRF - fIF for up-converters
●
fRF + fIF for down-converters
The fixed IF measurement modes are, for example, useful for measurements on mix­ers.
Note that fixed IF measurements are only possible if the R&S FSV/A is equipped with the optional External Generator Control hardware. For more information, see Chap-
ter 4.4, "External generator control", on page 27.
Fixed LO frequency
If you select one of the fixed LO measurement modes, the LO frequency is the same for all entries in the frequency list. The IF frequency for each entry is variable and is the result of the equation the selected mode is based on.
●
fRF + fLO for up-converters
●
fRF - fLO for down-converters
The fixed LO measurement modes are, for example, required for measurements on satellite converters.

4.4 External generator control

To perform fixed IF measurements with the R&S FSV3 Noise measurements applica­tion, you have to install the optional External Generator Control hardware. This option allows you to control an external generator and the type of signal it generates.
27User Manual 1178.9432.02 ─ 09
Page 28
R&S®FSV3-K30
Measurement basics
External generator control
The typical measurement setup for such measurements includes the R&S FSV/A equipped with the optional R&S FSV3 Noise measurements application, a signal gen­erator and the DUT. The signal generator is controlled via the LAN connection.
To enhance the measurement accuracy, it is recommended to use a common refer­ence frequency for both R&S FSV/A and signal generator in the measurement setup.
If you have no 10 MHz reference frequency on hand, you can use the internal refer­ence signal of the R&S FSV/A or signal generator. For more information, see the docu­mentation of the R&S FSV/A or the signal generator.
Signal generator support
The R&S FSV/A-B10 supports various signal generators. A list is available in the user interface (see Generator Type) and in the documentation of the R&S FSV/A.
Note that you have to select the generator specifically for the R&S FSV3 Noise mea­surements application. It does not inherit the generator settings from other applica­tions.
It is also possible to add new signal generators to that list. To do so, you have to copy a custom signal generator setup file with the file extension .gen to the R&S FSV/A. The setup file defines the frequency and power ranges supported by the generator, as well as information required for communication. You can use a setup file of the signal generators already supported as a template. After you copy it to the R&S FSV/A, the new generator model is added to the dropdown menu.
The existing setup files can be displayed in an editor in read-only mode directly from the Interface Configuration dialog box.
Make sure to adhere to the required syntax and commands and only change the val­ues of the parameters. Errors are only detected and displayed when you try to use the custom generator.
Error and status messages
The following status and error messages can occur during external generator control.
Message Description
"Ext. Generator TCPIP Handshake Error!" / "Ext. Generator TTL Handshake Error!"
"Ext. Generator Limits Exceeded!" The allowed frequency or power ranges for the generator
"Reverse Sweep via min. Ext. Generator Fre­quency!"
"Ext. Generator File Syntax Error!" Syntax error in the generator setup file.
"Ext. Generator Command Error!" Missing or wrong command in the generator setup file.
"Ext. Generator Visa Error!!" Error with Visa driver provided with installation (very
Connection to the generator is not possible, e.g. due to a cable damage or loose connection or wrong address.
were exceeded.
Reverse sweep is performed; frequencies are reduced to the minimum frequency, then increased again.
unlikely).
28User Manual 1178.9432.02 ─ 09
Page 29
R&S®FSV3-K30
Measurement basics
Image frequency rejection
Risk of damage to the instrument
To allow for highest sensitivity during the measurement, the R&S FSV3 Noise mea­surements application automatically sets the input attenuation to 0 dB.
Because this configuration minimizes the overrange reserve, make sure that the signal you apply does not cause an overload condition. In particular, consider the LO feed­through. An overload condition can damage or destroy the input mixer.
The R&S FSV/A shows a corresponding message in the status line if an overload occurs ("RF OVLD" or "IF OVLD").
To avoid an overload, do one of the following:
●
Reduce the LO feedthrough of the mixer device.
●
Increase the reference level.

4.5 Image frequency rejection

Frequency converting DUTs convert a radio frequency (RF) to an intermediate fre­quency (IF). The IF is lower than the RF for down-converting DUTs, and higher than the RF for up-converting DUTs.
In a basic test setup, the image frequency of the RF signal is also converted to the IF. Depending on the DUT, this effect can be wanted or even necessary, or not. To avoid measurement errors of the "noise figure" and "gain" of up to 3 dB, make sure to use the appropriate measurement configuration.
Basically, you can distinguish between single sideband (SSB) mixers, double sideband (DSB) mixers, and mixers that partly suppress a sideband. If a sideband is not needed or only partly needed, you can reject the image frequency. If you do so, the application activates a filter that suppresses the image frequency to a certain extent.
The following illustrations help you configure the measurement correctly.
For more information on how to configure image rejection, see "Image Rejection" on page 49.
Double sideband measurements
Double sideband mixers use both sidebands to the same extent. Both RF and image frequency are converted. In that case, turn off image rejection.
29User Manual 1178.9432.02 ─ 09
Page 30
R&S®FSV3-K30
Measurement basics
Image frequency rejection
fLO= frequency of the local oscillator fIF= intermediate frequency = fRF ± f fRF= lower sideband = fLO - f f
= upper sideband = fLO + f
LO
IF
IF
If image rejection is on, the results have a 3 dB error. That means "noise figure" results are 3 dB lower than they should be. "Gain" results are 3 dB higher.
Single sideband measurements
Single sideband mixers use a single sideband only. In that case, you have to suppress the sideband that is not required. If you do so, the measurement is like on an amplifier.
To suppress a sideband completely, it is best to set the image rejection to the maxi­mum amount possible (999.99 dB).
Partial sideband suppression
For measurements on mixers with a low image frequency rejection, there are two test scenarios.
●
Mixers whose image rejection is known.
●
Mixers whose image rejection is unknown.
For mixers whose image rejection is known, define the magnitude of image rejection in dB as accurately as possible. Otherwise, measurement results ("noise figure" and "gain") deviate between 0 dB to 3 dB.
If you do not know the image rejection characteristics of a mixer, use a custom test setup including an additional filter. You also have to know the "gain" characteristics of the DUT.
30User Manual 1178.9432.02 ─ 09
Page 31
R&S®FSV3-K30
Measurement basics
Calibration (2nd stage correction)
(1) = Test setup for calibration (2) = Test setup for "noise figure" measurement
In the test setup shown above, a lowpass filter prevents unwanted noise from being fed in at the image frequency.
Depending on the position of the frequency bands, you might need a highpass or bandpass filter for the RF frequency instead of the lowpass filter. The important point is that unwanted noise is not converted by a further receive path of the mixer. The unwanted noise at the receive frequency must not be reduced. The insertion loss must be considered, if applicable.
With this test setup, the measurement on a mixer without sideband suppression is the same as SSB measurements.
To take the characteristics of the filter into account, include the insertion loss of the fil­ter at the RF. To consider the actual filter suppression at the image frequency, include the actual attenuation for the image rejection.
Harmonics mixer measurement
For a harmonics mixer, the input signals are not only converted to the IF by the wanted harmonic. The harmonic of the LO signal produced in the mixer is also converted. Often, the mixer even features a lower conversion loss for unwanted harmonics. For measurements on this type of mixer, you have to use a bandpass filter. The filter ensures that there is only noise at the desired frequency at the input of the DUT. This measurement is similar to measurements on a mixer with an average sideband sup­pression.

4.6 Calibration (2nd stage correction)

The calibration procedure of the application measures the inherent noise of the R&S FSV/A you are using. Performing calibration is therefore recommended, as it increases the accuracy of measurement results. The results get more accurate because the application takes the inherent noise of the analyzer into account while it calculates the results.
Calibration for "noise figure" measurements is also known as 2nd stage correction. This term is used because in a typical "noise figure" test setup, the DUT represents the first stage and the analyzer the second stage in the test setup.
31User Manual 1178.9432.02 ─ 09
Page 32
R&S®FSV3-K30
Measurement basics
Calibration (2nd stage correction)
The 2nd stage correction is a calibration that is specific to "noise figure" measure­ments. It is independent of the overall calibration state of the analyzer and does not calibrate the analyzer.
For successful calibration, you need additional equipment.
●
Noise source The noise source is like a calibration standard. It provides a reference with known noise characteristics that allows the application to determine the inherent noise of the analyzer you are using.
During the calibration, the application measures the inherent noise characteristics of the analyzer at the set of measurement frequencies.
Thus, the 2nd stage correction is valid for a particular instrument configuration, the room temperature and the instrument temperature. As long as this configuration stays the same, calibration data remains valid.
Calibrating single frequency measurements
Like for all other measurements of the R&S FSV3 Noise measurements application, perform a calibration before a single frequency measurement for increased accuracy.
There is an easy way to calibrate single frequency measurements, if you already cali­brated the application for swept or list measurements. If the single frequency is part of the frequency list, the measurement is already calibrated for that frequency and no fur­ther steps are necessary. The application recalls the last calibration values when you switch back to sweep mode or frequency table mode.
Only if you use a single frequency that is not part of the frequency list, you must cali­brate this frequency point first.
●
Interpolation If you change the frequency, while the frequency span stays the same or is reduced, the application interpolates the correction data for the new measurement points. A new calibration is not required. However, measurements based on interpolated data can result in an increased measurement uncertainty. Highly accurate measurements that are conform to the values specified in the data sheet are only possible at calibrated measurement points. Note that useful interpolation is possible only if essential calibration parameters (e.g. impedance or attenuation) change only slightly. This is the case if the distance between the original calibration points is sufficiently small. If the span increases compared to the span during calibration, a new calibration is necessary. If the application interpolates the calibration data, it shows a corresponding label in the channel bar and a warning message in the status bar.
●
Invalid calibration If you change one of the amplitude parameters (e.g. the attenuation), calibration is labeled invalid. In that case, calibration is not accurate, because the settings are not in line with the settings at the time the R&S FSV/A has been calibrated. If cali-
32User Manual 1178.9432.02 ─ 09
Page 33
R&S®FSV3-K30
Measurement basics
Calibration (2nd stage correction)
bration is invalid, repeat the calibration or restore the settings as they were during the calibration.
Saving calibration data
If you save the current configuration or measurement results to a data set, calibration data is part of that data set.
For more information on saving and restoring data sets, see the "Storing and Recalling Instrument Settings and Measurement Data" chapter in the R&S FSV/A user manual.
The picture below shows a typical calibration setup that includes a noise source.
Noise Source
Figure 4-1: Noise figure calibration setup
1. Connect the noise source directly and without a cable to the RF input of the ana­lyzer.
2. Connect the noise source to the +28 V voltage supply (Noise Source Control con­nector) on the back of the R&S FSV/A. To connect the noise source to the voltage supply, you need a coaxial cable.
After you have set up calibration, there are several ways to start calibration.
●
In the "Noise Overview" dialog box, press the "Calibrate" button.
●
In the "Sweep" menu, press the "Calibrate" softkey.
Calibration Save
If the user has performed a valid calibration on the instrument, the calibration results can be saved by using the "Calibration Save" button in the "Export" dialog. This pro­vides the possibility to use once stored calibration results at a later point.
Remote command:
[SENSe:]CORRection:SAVE on page 141
33User Manual 1178.9432.02 ─ 09
Page 34
R&S®FSV3-K30
Measurement basics
Using smart noise sources
Calibration Recall
Calibration results that have been stored once on the instrument can be recalled by using the "Calibration Recall" button in the "Import" dialog.
To achieve a valid calibration by importing a saved one, all parameters of R&S FSV/A­K30 must match exactly to the ones that have been used for the calibration. At the import of a calibration, a preview dialog is shown which contains all relevant parame­ters of the calibration to be imported and an indication (green / red) if they match to the current instrument and option settings. Only if the calibration context summary is green, the calibration import can be done. If the calibration context summary is red, importing the calibration results would lead to an invalid calibration status for the cur­rent settings. Thus the calibration results cannot be imported in this case. If the calibra­tion context summary is green but some of the individual entries are red (i.e. they differ from the current settings), the calibration results still can be imported. The import will then overwrite the red marked settings with the ones from the stored calibration to ensure the settings match.
Remote command:
[SENSe:]CORRection:RECall on page 140

4.7 Using smart noise sources

A smart noise source (SNS) provides its own ENR and uncertainty tables and a tem­perature value from an internal measurement. Thus, accuracy is improved and less configuration efforts are required.
34User Manual 1178.9432.02 ─ 09
Page 35
R&S®FSV3-K30
Measurement basics

Separating signals by selecting an appropriate resolution bandwidth

When you connect a smart noise source, the R&S FSV/A automatically loads its ENR table and stores it for future measurements. The ENR table remains stored on the instrument even after the noise source is disconnected. If the table already exists on the R&S FSV/A, the contents are updated, if necessary. The contents of the most recently loaded SNS ENR table are also stored as the "default" ENR table. Thus, they remain available even if the noise source type is changed, for example to "noise diode". The ENR tables for smart noise sources are shown for reference only and can­not be edited in the R&S FSV3 Noise measurements application. The name of each ENR table contains the serial number of the SNS.
Test Setup
Connect the smart noise source to the Lemosa Power Sensor / Noise Source Control connector on the R&S FSV/A. (For models without a Lemosa connector, connect the SNS to the BNC Noise source control connector and a USB connector on the R&S FSV/A.) Then connect the SNS output to the DUT or the RF Input connector on the R&S FSV/A. Only one SNS can be active on the R&S FSV/A at any time.
The identification and setup procedure after connecting the FS-SNS may take up to 10 seconds.
4.8 Separating signals by selecting an appropriate reso­lution bandwidth
The resolution bandwidth defines the 3 dB bandwidth of the resolution filter to be used. An RF sinusoidal signal is displayed according to the passband characteristic of the resolution filter (RBW), i.e. the signal display reflects the shape of the filter.
The highest sensitivity is obtained at the smallest bandwidth (1 Hz). If the bandwidth is increased, the reduction in sensitivity is proportional to the change in bandwidth. Increasing the bandwidth by a factor of 3 increases the displayed noise by approx. 5 dB (4.77 dB precisely). If the bandwidth is increased by a factor of 10, the displayed noise increases by a factor of 10, i.e. 10 dB.
The higher spectral resolution with smaller bandwidths is won by longer sweep times for the same span. The sweep time has to allow the resolution filters to settle during a sweep at all signal levels and frequencies to be displayed.
If the RBW is too large, signal parts that are very far away (e.g. from a different signal) are considered in the measurement and distort the results. The displayed noise increa­ses.
If the RBW is too small, the measurement time increases.
Variable RBW and sweep time for low-frequency measurements
Usually, a constant RBW and sweep time is used for the entire measurement. How­ever, for low-frequency measurements (under 10 MHz), smaller bandwidths and longer sweep times are required to improve accuracy of the results. Using a small RBW and long sweep time for the entire span would increase measurement time significantly. In this case, a variable RBW and sweep time can be defined for lower frequencies,
35User Manual 1178.9432.02 ─ 09
Page 36
R&S®FSV3-K30

4.9 Analyzing several traces - trace mode

Measurement basics
Analyzing several traces - trace mode
depending on the current frequency of the sweep point. The variable RBW and sweep times are defined in the frequency table (see Chapter 5.2.3, "Using a frequency table", on page 45). The defined RBW and sweep times are also included in a table export. In the channel bar, the bandwidth and sweep time range of the variable values is indi­cated.
The trace mode determines the way the data is processed and displayed. The applica­tion provides the following trace modes.
Table 4-1: Overview of available trace modes
Trace Mode Description
Blank Hides the selected trace.
Clear Write Overwrite mode: the trace is overwritten by each sweep. This is the default setting.
View The current contents of the trace memory are frozen and displayed.
Each time the trace mode is changed, the selected trace memory is cleared.
The default trace mode for the first trace is Clear/Write. For trace 2-4, the default trace mode is "Blank". If you require another mode, you have to set it manually.
As you can have up to four traces simultaneously, you can compare the results with different measurement configurations. For example, freeze a trace and use it as a ref­erence trace.
If you change the scaling of the y-axis, the R&S FSV/A automatically adapts the trace data to the changed display range. Thus, you can perform an amplitude zoom after the measurement to show details of the trace.
36User Manual 1178.9432.02 ─ 09
Page 37
R&S®FSV3-K30

4.10 Using markers

Measurement basics
Using markers
Markers are used to mark points on traces, to read out the results of a particular mea­surement point or compare results of different traces. The noise application provides four markers.
When you activate a marker, the application automatically positions it on the first mea­surement point (left border of the diagram) of trace 1, regardless of how many traces are active. A marker is always positioned on the same horizontal position in all active measurement windows. If you change the position of a marker in one window, the application adjusts the position of that marker in all other measurement windows. Thus, the marker results for a specific marker are always for the same frequency, which makes it easier to compare results.
Markers in single frequency mode
When you use a marker for single frequency measurements, the marker is positioned on a particular index value and not a particular measurement point. This means that during continuous measurements, the marker remains on the index value you have put it on. It does not move down the line with the results.
To move a marker, you can use several methods.
●
Enter a particular measurement frequency in the input field that opens when you activate a marker.
●
Move the marker around with the rotary knob or the cursor keys.
●
Drag the marker around using the touchscreen.
All markers can be used either as normal markers or delta markers. A normal marker indicates the absolute signal value at the defined position in the diagram. A delta marker indicates the value of the marker relative to the specified reference marker (by default marker 1).
The application always positions the marker on the trace with the lowest number that is in Clear/Write trace mode. To set the marker on another trace, use the "Marker to Trace" function. With this function, you can also position a marker on a trace that is in
37User Manual 1178.9432.02 ─ 09
Page 38
R&S®FSV3-K30
Measurement basics
Using markers
"View" trace mode, e.g. to compare measurement results. Note that at least one active marker has to be a normal marker.
The application shows the results at the marker position directly in the diagram area (up to two markers) or in the marker table (if you use more than two markers).
Marker information in diagram area
By default, the results of the last two markers or delta markers that were activated are displayed in the diagram area.
The following information is displayed there:
●
The marker type (M for normal, D for delta, or special function name)
●
The marker number (1 to 4)
●
The assigned trace number in square brackets [ ]
●
The marker value on the y-axis
●
The marker position on the x-axis
Marker information in marker table
In addition to the marker information displayed within the diagram area, a marker table can be displayed in a separate window. For more information on the contents of the marker table, see "Marker Table" on page 21.
38User Manual 1178.9432.02 ─ 09
Page 39
R&S®FSV3-K30

5 Configuration

Configuration
Configuration overview
"Noise figure" measurements require a special application on the R&S FSV/A, which you activate using the [MODE] key.
The Noise Source Control connector on the R&S FSV/A is also a prerequisite for the R&S FSV3 Noise measurements application. Without this connector, no measurement can be performed.
When you activate a measurement channel in the R&S FSV3 Noise measurements application, a measurement for the input signal is defined with the default configura­tion. The "Noise Figure" menu is displayed and provides access to the most important configuration functions.
Unavailable hardkeys
Note that the [AMPT], [AUTO SET], [BW], [TRIG] and [MKR FUNC] keys have no con­tents and no function in the R&S FSV3 Noise measurements application.
● Configuration overview............................................................................................39
● Defining the measurement frequency..................................................................... 41
● Selecting DUT characteristics.................................................................................48
● Configuring the noise source.................................................................................. 49
● Configuring additional loss......................................................................................57
● Configuring the analyzer......................................................................................... 62
● Using the uncertainty calculator..............................................................................66
● Performing measurements......................................................................................72
● Configuring inputs and outputs of the R&S FSV/A..................................................75

5.1 Configuration overview

Throughout the measurement channel configuration, an overview of the most important currently defined settings is provided in the "Overview". The "Overview" is displayed when you select the "Overview" icon, which is available at the bottom of all softkey menus.
39User Manual 1178.9432.02 ─ 09
Page 40
R&S®FSV3-K30
Configuration
Configuration overview
In addition to the main measurement settings, the "Overview" provides quick access to the main settings dialog boxes. The individual configuration steps are displayed in the order of the data flow. Thus, you can easily configure an entire measurement channel from input over processing to output and analysis by stepping through the dialog boxes as indicated in the "Overview".
In particular, the "Overview" provides quick access to the following configuration dialog boxes (listed in the recommended order of processing):
To perform a calibration
1. Noise Source
See Chapter 5.4, "Configuring the noise source", on page 49.
2. Calibration Loss
See Chapter 5.5, "Configuring additional loss", on page 57
3. Spectrum Analyzer
See Chapter 5.6, "Configuring the analyzer", on page 62.
4. Calibration
See "Calibrate" on page 74
To perform a measurement
1. Noise Source
See Chapter 5.4, "Configuring the noise source", on page 49.
2. Input and output losses
See Chapter 5.5, "Configuring additional loss", on page 57.
3. DUT configuration
See Chapter 5.3, "Selecting DUT characteristics", on page 48
4. Spectrum Analyzer
40User Manual 1178.9432.02 ─ 09
Page 41
R&S®FSV3-K30
Configuration
Defining the measurement frequency
See Chapter 5.6, "Configuring the analyzer", on page 62.
5. Display Configuration
See Chapter 6.1, "Configuring the display", on page 82
To configure settings
► Select any button in the "Overview" to open the corresponding dialog box.
Select a setting in the channel bar (at the top of the measurement channel tab) to change a specific setting.
Preset Channel
Select the "Preset Channel" button in the lower left-hand corner of the "Overview" to restore all measurement settings in the current channel to their default values.
Note: Do not confuse the "Preset Channel" button with the [Preset] key, which restores the entire instrument to its default values and thus closes all channels on the R&S FSV/A (except for the default channel)!
Remote command:
SYSTem:PRESet:CHANnel[:EXEC] on page 107
Specific Settings for
The channel can contain several windows for different results. Thus, the settings indi­cated in the "Overview" and configured in the dialog boxes vary depending on the selected window.
Select an active window from the "Specific Settings for" selection list that is displayed in the "Overview" and in all window-specific configuration dialog boxes.
The "Overview" and dialog boxes are updated to indicate the settings for the selected window.

5.2 Defining the measurement frequency

● Defining a frequency set......................................................................................... 41
● Configuring single frequency measurements..........................................................44
● Using a frequency table.......................................................................................... 45

5.2.1 Defining a frequency set

Access: "Overview" > "DUT" > "Frequency Config"
These settings define the frequency characteristics for the measurement.
The information in this tab is also the basis for an automatic population of the fre­quency table. All parameters of this dialog are interdependent. If you change one parameter, at least one other parameter is changed by the application.
41User Manual 1178.9432.02 ─ 09
Page 42
R&S®FSV3-K30
Configuration
Defining the measurement frequency
If you change a frequency set, perform a new calibration to ensure accurate results.
Preamplifier
If a preamplifier is used, make sure the defined (and possibly upconverted) IF frequen­cies for the measurement stay below the maximum frequency the preamplifier sup­ports. For the R&S FSV/A-B22 option, the maximum frequency is 7 GHz. However, the preamplifier can be activated or deactivated individually for different tuning modes. For example, for a sweep mode which requires a span above 7 GHz it is deactivated, while for a single frequency measurement at 1 GHz it can be activated.
Tuning Mode................................................................................................................. 42
Center........................................................................................................................... 43
Span..............................................................................................................................43
Start and Stop Frequency............................................................................................. 43
(Measurement) Points...................................................................................................44
Step...............................................................................................................................44
Tuning Mode
Selects the tuning or measurement mode. For more information, see Chapter 4.1, "Tuning modes", on page 22. Tuning mode selection is also available via softkeys ("Sweep Mode", "Frequency Table
Mode", "Single Frequency Mode") in the "Sweep" menu. Note: A preamplifier can be activated or deactivated individually for different tuning
modes. When you switch tuning modes, the defined preamplifier state is adapted. "Sweep"
The measurement is based on an automatically generated frequency set.
42User Manual 1178.9432.02 ─ 09
Page 43
R&S®FSV3-K30
Configuration
Defining the measurement frequency
"Frequency Table"
"Single Fre­quency"
Remote command: Frequency sweep measurement:
[SENSe:]CONFigure:LIST:CONTinuous on page 117 [SENSe:]CONFigure:LIST:SINGle on page 118 INITiate<n>[:IMMediate] on page 157
Single frequency measurement:
[SENSe:]CONFigure:FREQuency:CONTinuous on page 117 [SENSe:]CONFigure:FREQuency:SINGle on page 117 INITiate<n>[:IMMediate] on page 157
Center
Defines the center of the measurement frequency range. If you change the center frequency, the application changes the start and stop fre-
quency according to the span you have set. The "Center" setting is also available via the [FREQ] key. Remote command:
Frequency list measurement:
[SENSe:]FREQuency:CENTer on page 118
Single frequency measurement:
[SENSe:]FREQuency:SINGle on page 120
The measurement is based on a customized frequency table. For more information, see Chapter 5.2.3, "Using a frequency table", on page 45.
The measurement measures a single frequency only. For more information, see Chapter 5.2.2, "Configuring single fre-
quency measurements", on page 44.
Span
Defines the measurement span. If you change the span, the application changes the start frequency, the stop frequency
and the stepsize according to the center frequency and the measurement points. The "Span" setting is also available via the [SPAN] key. Remote command:
[SENSe:]FREQuency:SPAN on page 120
Start and Stop Frequency
Defines the start and stop frequencies. If you change the start or stop frequency, the application changes the center frequency,
the span and the measurement points according to the new values and the stepsize. The "Start" and "Stop" settings are also available via the [FREQ] key. Remote command:
Start frequency:
[SENSe:]FREQuency:STARt on page 120
Stop frequency:
[SENSe:]FREQuency:STOP on page 121
43User Manual 1178.9432.02 ─ 09
Page 44
R&S®FSV3-K30
Configuration
Defining the measurement frequency
(Measurement) Points
Defines the measurement points. For frequency list measurements, the number of measurement points corresponds to
the number of entries in the frequency table. The number of points displayed in the graphical results is also the same.
If you change the measurement points, the application changes the stepsize according to the span.
The "Points" setting is also available via the [SPAN] key. Remote command:
[SENSe:]FREQuency:POINts on page 119
Step
Defines the frequency step size in the frequency table. The stepsize corresponds to the distance between two consecutive measurement
points. If you change the stepsize, the application changes the measurement point according
to the span. The "Stepsize" setting is also available via the [FREQ] key. Remote command:
[SENSe:]FREQuency:STEP on page 121

5.2.2 Configuring single frequency measurements

Access: "Overview" > "DUT" > "Frequency Config" > "Tuning Mode: Single Fre-
quency"
These settings define the frequency characteristics for the measurement.
If you change the frequency, perform a new calibration to ensure accurate results.
44User Manual 1178.9432.02 ─ 09
Page 45
R&S®FSV3-K30
Configuration
Defining the measurement frequency
Single (Frequency)........................................................................................................45
Coupled to Sweep List.................................................................................................. 45
(Measurement) Points...................................................................................................45
Single (Frequency)
Defines the frequency that the single frequency measurement is performed on. The "Single" setting is also available via the [FREQ] key. Remote command:
[SENSe:]FREQuency:SINGle on page 120
Coupled to Sweep List
Couples or decouples frequency selection to the contents of a sweep list. If you couple the frequency to the sweep list, the application allows you to select only
the frequencies currently part of the frequency list. If you enter another frequency, the application automatically selects the nearest frequency of the frequency list. If the fre­quency list has been calibrated previously, calibration remains valid for those frequen­cies when you change the tuning mode.
If you turn off the coupling, you can define any frequency for single frequency mea­surements. Note, however, that you have to calibrate the measurement for that fre­quency.
Remote command:
[SENSe:]FREQuency:SINGle:COUPled on page 120
(Measurement) Points
Defines the number of measurement points for single frequency measurements. For single frequency measurements, the number of measurement points corresponds
to the number of measurements (index values) performed on a single frequency. For more information, see "Single frequency measurements" on page 14. The "Points" setting is also available via the [SPAN] key. Remote command:
[SENSe:]FREQuency:POINts on page 119

5.2.3 Using a frequency table

Access: "Overview" > "DUT" > "Frequency Config" > " Frequency Table"
The "Frequency Table" tab in the "Frequency Settings" dialog box contains functionality to manage the measurement frequencies.
The application populates the table according to the information you entered in the "Frequency Config" tab when you select "Populate Table".
Note that changes to the frequency table take effect only if you select the "Frequency Table" tuning mode.
45User Manual 1178.9432.02 ─ 09
Page 46
R&S®FSV3-K30
Configuration
Defining the measurement frequency
Frequency Table............................................................................................................46
Clear Table.................................................................................................................... 47
Populate Table.............................................................................................................. 47
Insert............................................................................................................................. 47
Delete............................................................................................................................47
Import / Export...............................................................................................................47
Frequency Table
Shows the current measurement points. The table is made up of one column that represents the measurement frequency. Each
frequency corresponds to one measurement point. The length of the table is variable (up to a maximum of 10001 points).
When you perform measurements in "Sweep" or "Single Frequency" tuning mode, the contents of the table have no effect on the measurement.
When you select a table entry in "Frequency Table" tuning mode, you can edit it or add a new frequency below the selected frequency. A new frequency has to be higher than the last table entry and lower than the next table entry.
If the RBW and sweep time settings are set to "variable" in the measurement settings (see Resolution Bandwidth (RBW) and "Sweep Time" on page 63), you can also define those values in the frequency table.
46User Manual 1178.9432.02 ─ 09
Page 47
R&S®FSV3-K30
Configuration
Defining the measurement frequency
Select Populate Table to predefine the RBW and sweep times to be used. For each sweep point with a frequency under 10 MHz in the table, suitable settings are defined. For higher frequencies, the values provided in the measurement settings are used (indicated by "--" as they are automatically updated if the measurement settings change.) All predefined values in the table can be overwritten manually.
The defined RBW and sweep times are also included in a table export. See also "Variable RBW and sweep time for low-frequency measurements"
on page 35.
Clear Table
Deletes the contents of the table.
Populate Table
Populates or restores the measurement frequencies based on the center frequency, the start and stop frequencies, the span, the stepsize and the number of measurement points.
If the RBW and sweep time settings are set to "variable" in the measurement settings (see Resolution Bandwidth (RBW) and "Sweep Time" on page 63), those values are also predefined. For each sweep point with a frequency under 10 MHz in the table, suitable settings are defined. For higher frequencies, the values provided in the mea­surement settings are used (indicated by "--" as they are automatically updated if the measurement settings change.) All predefined values in the table can be overwritten manually.
See also "Variable RBW and sweep time for low-frequency measurements" on page 35.
Remote command:
[SENSe:]FREQuency:TABLe:DATA on page 118 [SENSe:]FREQuency:LIST:DATA on page 119
RBW and sweep time set to variable: [SENSe:]BANDwidth:LIST:DATA on page 119
Insert
Inserts a new measurement point above the one you have selected.
Delete
Deletes the currently selected measurement point.
Import / Export
Opens a dialog box to select a frequency table to import or export. An import copies the frequency table into the default frequency table directory. An
export copies the table to a location outside the default frequency table directory, e.g. a memory stick. The file extension has to be *.freq.
If variable RBW and sweep times are enabled, they are also included in a table export (see "Frequency Table" on page 46).
For details on the required file format, see Chapter A, "Reference: frequency table file
format", on page 214.
47User Manual 1178.9432.02 ─ 09
Page 48
R&S®FSV3-K30

5.3 Selecting DUT characteristics

Configuration
Selecting DUT characteristics
Access: "Overview" > "DUT" > "DUT Settings"
The "DUT" button opens a dialog box to configure the characteristics of the DUT you are testing. The dialog box contains a schematic overview of the DUT input and output characteristics and the way it is integrated into the test setup.
Mode
............................................................................................................................. 48
LO Fixed........................................................................................................................48
IF Fixed......................................................................................................................... 49
Image Rejection............................................................................................................ 49
Mode
Selects the measurement mode. The required measurement mode depends on the type of DUT you are testing. For
more information, see Chapter 4.3, "DUT types", on page 26. Note: For upconverting measurements, if a preamplifier is used, make sure the upcon-
verted frequencies for the measurement stay below the maximum frequency the pre­amplifier supports.
Remote command: DUT type: [SENSe:]CONFigure:MODE:DUT on page 123 LO type: [SENSe:]CONFigure:MODE:SYSTem:LO on page 122
LO Fixed
Defines a fixed LO frequency for measurements on frequency-converting DUTs with a fixed LO.
48User Manual 1178.9432.02 ─ 09
Page 49
R&S®FSV3-K30
Configuration
Configuring the noise source
After you have defined the LO frequency, the application updates the frequency list accordingly.
The "LO" setting is also available via the [FREQ] key. Remote command:
[SENSe:]CONFigure:MODE:SYSTem:LO:FREQuency on page 122
IF Fixed
Defines a fixed intermediary frequency (IF) for measurements on frequency-converting DUTs with a fixed IF.
After you have defined the intermediary frequency, the application updates the fre­quency list accordingly.
The "IF" setting is also available via the [FREQ] key. Remote command:
[SENSe:]CONFigure:MODE:SYSTem:IF:FREQuency on page 122
Image Rejection
Turns image rejection of the DUT on and off. If you set an image rejection of 0 dB, the image frequency passes completely. If you
set a high image rejection (up to 999.99 dB), the image frequency is suppressed com­pletely. For DUTs that have a partial image rejection, define the amount of suppression.
For more information, see Chapter 4.5, "Image frequency rejection", on page 29. Remote command:
[SENSe:]CORRection:IREJection on page 123

5.4 Configuring the noise source

The noise source characteristics are used to calculate the effective "noise temperature" of the noise source. The more accurate the specified characteristics of the noise source you are using, the more accurate the measurement results. The noise source characteristics must be supplied by its manufacturer.
● Defining the noise source characteristics................................................................49
● Using an ENR or temperature table........................................................................53

5.4.1 Defining the noise source characteristics

Access: "Overview" > "Noise Source" > "ENR / Temp Settings"
The noise characteristics of noise sources with diode characteristics are usually defined by their ENR (Excess Noise Ratio). The noise characteristics of noise sources with resistor characteristics are defined by their noise (or ambient) temperatures (T
and T
Both noise source types can have different ENR values during the calibration and the measurement stage. You can use either the same type of noise source for both calibra-
cold
). T
is typically at a very low temperature of liquid nitrogen or liquid helium.
cold
hot
49User Manual 1178.9432.02 ─ 09
Page 50
R&S®FSV3-K30
Configuration
Configuring the noise source
tion and measurement, or use different types of noise sources for calibration and mea­surement.
Auto Select SNS........................................................................................................... 50
Noise Source.................................................................................................................51
Measurement................................................................................................................ 51
Common Noise Source.................................................................................................52
Calibration.....................................................................................................................52
Temperature.................................................................................................................. 53
Auto Select SNS
If enabled (default), the R&S FSV3 Noise measurements application automatically rec­ognizes a connected smart noise source and uses it for the noise measurement. The provided ENR and uncertainty tables and temperature are loaded and used for the measurement. The recognized serial number of the SNS is indicated in the channel bar and dialogs of the R&S FSV3 Noise measurements application.
If "Auto Select SNS" is ON and a SNS is connected, a green message with information about the connected SNS is displayed:
50User Manual 1178.9432.02 ─ 09
Page 51
R&S®FSV3-K30
Configuration
Configuring the noise source
If no SNS is connected, a red "No SNS connected" warning is displayed:
If "Auto Select SNS" is disabled, you must manually change the noise source to SNS and select the required tables, if necessary (see "Frequency Table" on page 46).
Noise Source Access: "Overview" > "Noise Source" > "ENR / Temp Settings" > "Noise Source"
You can select the type of noise source and its characteristics independently for the
Calibration and the Measurement.
"Diode"
Selects a noise source with diode characteristics. The frequency characteristics of the noise source are defined by the Excess Noise ratio (ENR).
"Resistor"
Selects a test setup that uses two resistors which act as a noise source. One of the resistors has a low noise or ambient temperature (a cold resistor), the other has a high noise or ambient temperature (a hot resistor). The noise characteristics of the resistor are defined by its "noise temperatures" T
and T
hot
cold
.
When you select the resistor noise source, the application automati­cally starts the manual measurement mode, which is indicated in a message at the bottom of the dialog box.
"Smart Noise Source"
Selects a smart noise source, which provides its own ENR and uncer­tainty tables. The serial number of the connected noise source is automatically recognized and indicated. Otherwise, enter the number of a noise source to continue preconfiguring the measurement.
Remote command: Measurement: [SENSe:]CORRection:ENR[:MEASurement]:TYPE on page 130
[SENSe:]CORRection:ENR[:MEASurement]:SNS:SRNumber on page 131
Calibration: [SENSe:]CORRection:ENR:CALibration:TYPE on page 126
[SENSe:]CORRection:ENR:CALibration:SNS:SRNumber on page 131
Measurement
Selects the source of the ENR or temperature values. The frequency characteristics can be approximated by a constant or be based on an
ENR or temperature table. If the ENR or temperature is a constant, the same values are used for all frequencies
in the frequency table. If you have selected a constant ENR, you have to define its magnitude in the input field next to the radio button. If you have selected a constant temperature, you have to define the temperatures of the resistor in the input fields next to the radio button. T
temperature; T
cold
is the temperature of a resistor with a low noise or ambient
hot
is the temperature of a resistor with a high noise or ambient temper-
ature.
51User Manual 1178.9432.02 ─ 09
Page 52
R&S®FSV3-K30
Configuration
Configuring the noise source
If the noise characteristics are based on a table, the ENR level and temperatures typi­cally depend on the measurement frequency. You can select an existing table from the dropdown menu next to the radio button, if it is active. For more information on ENR and temperature tables, see Chapter 5.4.2, "Using an ENR or temperature table", on page 53.
When "Common Noise Source" is on, the ENR is used for both measurement and cali­bration.
Remote command: ENR mode: [SENSe:]CORRection:ENR[:MEASurement]:MODE on page 129 Constant ENR: [SENSe:]CORRection:ENR[:MEASurement]:SPOT on page 129 Select table:[SENSe:]CORRection:ENR[:MEASurement]:TABLe:SELect on page 128 Constant temperature: [SENSe:]CORRection:ENR[:MEASurement]:SPOT:COLD on page 130 Constant temperature: [SENSe:]CORRection:ENR[:MEASurement]:SPOT:HOT on page 130
Common Noise Source
Turns the use of a common ENR on and off. Common ENRs have the same characteristics for the measurement and calibration. If
you turn off common ENR, you can define an additional ENR to be used during calibra­tion.
Define additional ENR for measurements on frequency converting DUTs, if one noise source does not cover the frequency range at the DUT input (RF) and for calibration (IF).
Remote command:
[SENSe:]CORRection:ENR:COMMon on page 126
Calibration
Selects the source of the ENR or temperature values used during calibration. The frequency characteristics can be a constant or be based on an ENR or tempera-
ture table. If the ENR or temperature is a constant, the same value is used for all frequencies in
the frequency table. If you have selected a constant ENR, you can also define its value in the input field next to the radio button. If you have selected a constant temperature, you have to define the temperatures of the resistor in the input fields next to the radio button. T
T
is the temperature of a resistor with a high noise or ambient temperature.
cold
is the temperature of a resistor with a low noise or ambient temperature;
hot
If the noise source characteristics are based on a table, the ENR level and temperature depend on the measurement frequency. In that case, the values are interpolated to the measurement points. You can select a table from the dropdown menu next to the radio button, if it is active. For more information on ENR tables, see Chapter 5.4.2, "Using an
ENR or temperature table", on page 53.
The calibration settings are available if the "Common Noise Source" is off.
52User Manual 1178.9432.02 ─ 09
Page 53
R&S®FSV3-K30
Configuration
Configuring the noise source
Remote command: ENR mode:[SENSe:]CORRection:ENR:CALibration:MODE on page 125 Constant ENR: [SENSe:]CORRection:ENR:CALibration:SPOT on page 125 Select table: [SENSe:]CORRection:ENR:CALibration:TABLe:SELect on page 126 Constant temperature: [SENSe:]CORRection:ENR:CALibration:SPOT:COLD on page 124 Constant temperature: [SENSe:]CORRection:ENR:CALibration:SPOT:HOT on page 124
Temperature
Defines the absolute room temperature in degree Celsius or Fahrenheit. The room temperature is required for the calculation of the real ENR of the noise
source, because an ENR table is based on a temperature of 290K. For smart noise sources, the temperature is provided automatically by the connected
SNS itself. If no SNS is connected, the most recently loaded value is indicated. The provided temperature is used for all noise sources throughout the measurement.
To change the unit of the temperature from Celsius to Fahrenheit, change the date for­mat from "DE" to "US" in the "General" display settings.
●
Press the [SETUP] key.
●
Select "Display".
●
Select the "General" tab.
●
Select "DE" for Celsius or "US" for Fahrenheit. Note: If you define the temperature via remote control, the unit is degree Kelvin. Remote command:
[SENSe:]CORRection:TEMPerature on page 131

5.4.2 Using an ENR or temperature table

Access: "Overview" > "Noise Source" > "Table Settings"
The "Table Settings" tab in the "ENR/TEMP Settings" dialog box contains the function­ality to create and edit ENR or temperature tables.
ENR or temperature tables contain the noise source characteristics for particular fre­quencies. If the table does not contain ENR or temperature values for one of the mea­surement frequencies, the application interpolates between the values.
The "Table Settings" tab contains a list of ENR and temperature tables currently availa­ble on the R&S FSV/A and shows the table currently in use if the "ENR/TEMP Set­tings" are enabled.
In addition, the tab contains functionality to create new tables and modify existing ones.
Noise Source.................................................................................................................54
New...............................................................................................................................54
Edit................................................................................................................................54
Delete............................................................................................................................55
53User Manual 1178.9432.02 ─ 09
Page 54
R&S®FSV3-K30
Configuration
Configuring the noise source
Copy To......................................................................................................................... 55
Import / Export Table..................................................................................................... 55
Edit Table...................................................................................................................... 55
Noise Source
Selects the type of noise source you are using for the measurement. The type of noise source selected in the "ENR/TEMP Settings" > "Noise Source" dialog is adopted auto­matically.
The noise source type affects the data type that the table contains. For a "Noise Diode", the table contains the ENR values of the noise source you are using. For a "Resistor", the table contains the "noise temperatures" of the resistors (T
and T
hot
cold
).
For a smart noise source, the table contains the provided ENR and uncertainty table. The table for the connected noise source is automatically recognized and highlighted. The name of the ENR table contains the serial number of the SNS. The "default" table also contains the data for the most recently connected smart noise source. The tables for all previously connected noise sources, whose ENR tables remain stored on the instrument, are also listed. Smart noise source tables are for reference only and cannot be edited.
For more information on the noise source types, see "Noise Source" on page 51. Remote command:
[SENSe:]CORRection:ENR[:MEASurement]:TYPE on page 130
New
Opens the Edit Table dialog box to create a new table. The contents of the dialog box are empty. Smart noise source tables are shown for reference only and cannot be edited. A mes-
sage indicates whether the SNS with the selected serial number is currently connected to the R&S FSV/A or not. If it is connected, the table data reflects the most recent data provided by the SNS.
Remote command: Table selection: [SENSe:]CORRection:ENR:CALibration:TABLe:SELect on page 126 and:[SENSe:]CORRection:ENR[:MEASurement]:TABLe:SELect on page 128 Diode: [SENSe:]CORRection:ENR[:MEASurement]:TABLe[:DATA] on page 127 Resistor: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:TEMPerature[:
DATA] on page 128
Edit
Opens the Edit Table dialog box to modify the selected table. Smart noise source tables are for reference only and cannot be edited. Remote command:
Table selection: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:SELect on page 128 and: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:SELect on page 128
54User Manual 1178.9432.02 ─ 09
Page 55
R&S®FSV3-K30
Configuration
Configuring the noise source
Diode: [SENSe:]CORRection:ENR[:MEASurement]:TABLe[:DATA] on page 127 Resistor: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:TEMPerature[:
DATA] on page 128
Delete
Deletes the selected table. Smart noise source tables cannot be deleted. Remote command:
Diode: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:DELete on page 127 Resistor:[SENSe:]CORRection:ENR[:MEASurement]:TABLe:TEMPerature:
DELete on page 128
Copy To
Opens the Edit Table dialog box to modify the selected table and save it under a new name.
Import / Export Table
Opens a dialog box to select a table to import or export. Smart noise source tables can be exported, but not re-imported. Tables for smart noise
sources are always loaded directly from the SNS itself. However, you can edit and use the SNS tables for other noise sources, such as noise diodes.
Edit Table
Defines the noise source characteristics or the loss characteristics of additional mea­surement equipment.
The noise source and loss tables are made up of up to 10001 data points. A data point consists of a frequency and its corresponding ENR, temperature or loss value. The ENR and temperature values must be supplied by the manufacturer of the noise source or resistor. The loss characteristics of measurement equipment must also be supplied by the manufacturer.
55User Manual 1178.9432.02 ─ 09
Page 56
R&S®FSV3-K30
Configuration
Configuring the noise source
"Name" "Comment" "Frequency" "Value"
Name of the ENR, temperature or loss table. Comment for the ENR, temperature or loss table. Frequency of a particular ENR, temperature or loss value. ENR value or loss in dB.
For a resistor, the characteristics of the resistor are defined by the "noise temperatures" T
and T
hot
instead of a single value. The unit
cold
in that case is Kelvin (degrees).
"Clear Table"
Deletes the contents of the table (frequencies and values) or the loss
table. "Insert" "Delete" "Save" "Cancel"
Inserts a new data point above the selected one.
Deletes the selected data point.
Saves the able.
Exits the "Edit Table" dialog box and returns to the result diagram. Remote command:
Edit ENR table: [SENSe:]CORRection:ENR[:MEASurement]:TABLe[:DATA] on page 127 Edit temperature table: [SENSe:]CORRection:ENR[:MEASurement]:TABLe:
TEMPerature[:DATA] on page 128
56User Manual 1178.9432.02 ─ 09
Page 57
R&S®FSV3-K30

5.5 Configuring additional loss

Configuration
Configuring additional loss
Edit input loss table: [SENSe:]CORRection:LOSS:INPut:TABLe[:DATA] on page 135 Edit output loss table: [SENSe:]CORRection:LOSS:OUTPut:TABLe[:DATA] on page 137
These settings configure the loss characteristics of additional equipment in the test setup, such as cables or attenuators at the DUT input or output. The characteristics of such equipment must be supplied by the manufacturer.
Note that loss is only considered during the measurement and not during calibration because the noise source is connected directly to the analyzer input.
Treatment of losses in resistor noise sources
For resistor noise sources, it is not possible to change the loss characteristics. When you change back to using a diode as a noise source, the previous loss settings
are not restored. In that case, store loss settings in a loss table for later use.
● Defining loss............................................................................................................57
● Using a loss table....................................................................................................60

5.5.1 Defining loss

Access: "Overview" > "Loss Input" / "Loss Output" > "Loss Settings"
The "Loss Settings" tab in the "Loss Settings" dialog box contains settings to define the loss characteristics of miscellaneous equipment in the test setup.
57User Manual 1178.9432.02 ─ 09
Page 58
R&S®FSV3-K30
Configuration
Configuring additional loss
You can define the loss characteristics of the signal path to the DUT input and the sig­nal path from the DUT output to the analyzer.
Furthermore, you can define the loss characteristics of the signal path from the noise source directly to the analyzer for the calibration measurement.
Input Loss......................................................................................................................58
Output Loss...................................................................................................................59
Calibration Loss............................................................................................................ 59
Input Loss
Defines losses between the noise source and the DUT input. The input loss is the sum of all losses caused by the measurement equipment. The
loss can be constant or based on a loss table. If the loss is constant, the same loss is used for all frequencies in the frequency table.
If you have selected a constant loss, you can also define its value in the input field next to the radio button.
58User Manual 1178.9432.02 ─ 09
Page 59
R&S®FSV3-K30
Configuration
Configuring additional loss
If the loss is based on a table, the loss values are interpolated to the measurement fre­quencies. You can select a table from the dropdown menu next to the radio button, if it is active. For more information on loss tables, see Chapter 5.5.2, "Using a loss table", on page 60.
The specified temperature at the time of measurement can be considered in the loss calculation.
Remote command: Loss mode:
[SENSe:]CORRection:LOSS:INPut:MODE on page 134
Constant loss:
[SENSe:]CORRection:LOSS:INPut:SPOT on page 134
Select loss table:
[SENSe:]CORRection:LOSS:INPut:TABLe:SELect on page 136
Temperature:
[SENSe:]CORRection:LOSS:INPut:TEMPerature on page 136
Output Loss
Selects the loss between the DUT output and the RF input of the analyzer. The output loss is the sum of all losses caused by the measurement equipment (e.g.
connectors, cables or attenuators). The loss can be constant or be based on a loss table.
If the loss is constant, the same loss is used for all frequencies in the frequency table. If you have selected a constant loss, you can also define its value in the input field next to the radio button.
If the loss is based on a table, the loss values are interpolated to the measurement fre­quencies. You can select a table from the dropdown menu next to the radio button, if it is active. For more information on loss tables, see Chapter 5.5.2, "Using a loss table", on page 60.
The current temperature at the time of measurement can be considered in the loss cal­culation.
Remote command: Loss mode:
[SENSe:]CORRection:LOSS:OUTPut:MODE on page 136
Constant loss:
[SENSe:]CORRection:LOSS:OUTPut:SPOT on page 137
Select loss table:
[SENSe:]CORRection:LOSS:OUTPut:TABLe:SELect on page 138
Temperature:
[SENSe:]CORRection:LOSS:OUTPut:TEMPerature on page 138
Calibration Loss
Selects the loss between the noise source and the RF input of the analyzer for the cali­bration measurement.
The loss is the sum of all losses caused by the measurement equipment (e.g. connec­tors, cables or attenuators). The loss can be constant or be based on a loss table.
59User Manual 1178.9432.02 ─ 09
Page 60
R&S®FSV3-K30
Configuration
Configuring additional loss
If the loss is constant, the same loss is used for all frequencies in the frequency table. If you have selected a constant loss, you can also define its value in the input field next to the radio button.
If the loss is based on a table, the loss values are interpolated to the measurement fre­quencies. You can select a table from the dropdown menu next to the radio button, if it is active. For more information on loss tables, see Chapter 5.5.2, "Using a loss table", on page 60.
The current temperature at the time of measurement can be considered in the loss cal­culation.
Remote command: Loss mode:
[SENSe:]CORRection:LOSS:CALibration:MODE on page 132
Constant loss:
[SENSe:]CORRection:LOSS:CALibration:SPOT on page 132
Select loss table:
[SENSe:]CORRection:LOSS:CALibration:TABLe:SELect on page 133
Temperature:
[SENSe:]CORRection:LOSS:CALibration:TEMPerature on page 134

5.5.2 Using a loss table

Access: "Overview" > "Loss Input" / "Loss Output" > "Table Settings"
The "Table Settings" tab in the "Loss Settings" dialog box contains the functionality to create and edit loss tables.
Loss tables contain the loss characteristics of additional frequency-dependent equip­ment in the test setup. If you are using a loss table, the loss values can be different on
60User Manual 1178.9432.02 ─ 09
Page 61
R&S®FSV3-K30
Configuration
Configuring additional loss
each frequency that is measured. If the table does not contain a loss for one of the measurement frequencies, the application interpolates between values.
The "Table Settings" tab contains a list of loss tables currently available on the R&S FSV/A. It shows the table currently selected in the "Loss Settings" tab.
In addition, the tab contains functionality to create new tables and modify existing ones.
New...............................................................................................................................61
Edit................................................................................................................................61
Delete............................................................................................................................61
Copy To......................................................................................................................... 61
Import / Export Table..................................................................................................... 62
New
Opens the Edit Table dialog box to create a new loss table. The contents of the dialog box are empty. Remote command:
Create input loss table:
[SENSe:]CORRection:LOSS:INPut:TABLe[:DATA] on page 135
Create output loss table:
[SENSe:]CORRection:LOSS:OUTPut:TABLe[:DATA] on page 137
Create calibration loss table:
[SENSe:]CORRection:LOSS:CALibration:TABLe[:DATA] on page 133
Edit
Opens the Edit Table dialog box to modify the selected table. Remote command:
Edit input loss table:
[SENSe:]CORRection:LOSS:INPut:TABLe[:DATA] on page 135
Edit output loss table:
[SENSe:]CORRection:LOSS:OUTPut:TABLe[:DATA] on page 137
Edit calibration loss table:
[SENSe:]CORRection:LOSS:CALibration:TABLe[:DATA] on page 133
Delete
Deletes the selected table. Remote command:
Delete input loss table:
[SENSe:]CORRection:LOSS:INPut:TABLe:DELete on page 135
Delete output loss table:
[SENSe:]CORRection:LOSS:OUTPut:TABLe:DELete on page 137
Delete calibration loss table:
[SENSe:]CORRection:LOSS:CALibration:TABLe:DELete on page 133
Copy To
Opens the Edit Table dialog box to modify the selected table and save it under a new name.
61User Manual 1178.9432.02 ─ 09
Page 62
R&S®FSV3-K30

5.6 Configuring the analyzer

Configuration
Configuring the analyzer
Import / Export Table
Opens a dialog box to select a loss table to import or export. An import copies the loss table into the default loss table directory. The file extension
can be *.loss or *.s2p. In case the file extension is *.s2p, the S21 vector is parsed out of the *.s2p file. The magnitude of this vector is written to a file with ending *.loss into the default loss directory. This file then can be used like conventional loss files.
An export copies the table to a location outside the default loss table directory, e.g. a memory stick. The file extension will be *.loss.
Access: "Overview" > "Spectrum Analyzer"
Or: [MEAS CONFIG] > "Meas Settings"
The measurement settings include parameters related to the second stage correction measurement.
2nd Stage Correction.................................................................................................... 63
Resolution Bandwidth (RBW)........................................................................................63
Sweep Time.................................................................................................................. 63
Settling Time................................................................................................................. 64
Average.........................................................................................................................64
Ref Level.......................................................................................................................64
62User Manual 1178.9432.02 ─ 09
Page 63
R&S®FSV3-K30
Configuration
Configuring the analyzer
Auto Level Range..........................................................................................................65
RF Attenuation.............................................................................................................. 65
Preamplifier...................................................................................................................65
2nd Stage Correction
Turns 2nd stage correction on and off. If enabled, the application uses the calibration data to compensate for the inherent
noise of the analyzer when calculating the measurement results. If disabled, the application does not correct the measurement results, even if a valid
calibration has been performed. Note that correction data is not deleted if you turn off the 2nd stage correction.
For more information, see Chapter 4.6, "Calibration (2nd stage correction)", on page 31.
Remote command: State: [SENSe:]CORRection[:STATe] on page 140 Calibration measurement selection:[SENSe:]CONFigure:CORRection on page 139
Resolution Bandwidth (RBW)
Defines the resolution bandwidth for the measurement. For more information on the resolution bandwidth, see Chapter 4.8, "Separating sig-
nals by selecting an appropriate resolution bandwidth", on page 35.
"Constant" "Variable"
Remote command:
[SENSe:]BANDwidth:RESolution:AUTO on page 139 [SENSe:]BANDwidth[:RESolution] on page 139
Uses a constant RBW for the entire measurement span
Uses a variable RBW, depending on the current frequency of the
sweep point, as defined in the frequency table (see Chapter 5.2.3,
"Using a frequency table", on page 45);
In the channel bar, the bandwidth and sweep time range of the vari-
able values is indicated.
Sweep Time
Defines the sweep time for the measurement. The sweep time is the time it takes the analyzer to perform a measurement at one
measurement frequency. Note that "noise figure" measurements perform two measurements during one sweep.
One with the noise source turned on, one with the noise source turned off. Frequency tables allow you to define a variable RBW and sweep time, depending on
the current frequency of the sweep point (see "Variable RBW and sweep time for low-
frequency measurements" on page 35 and Chapter 5.2.3, "Using a frequency table",
on page 45). "Constant"
Uses a constant sweep time for the entire measurement span
63User Manual 1178.9432.02 ─ 09
Page 64
R&S®FSV3-K30
Configuration
Configuring the analyzer
"Variable"
Remote command:
[SENSe:]SWEep:TIME:AUTO on page 142 [SENSe:]SWEep:TIME on page 141
Settling Time
Defines the settling time of the DUT and the noise source. Most noise sources need a certain amount of time to settle after you turn them on.
Low-frequency DUTs can require a certain time until their coupling capacitors have been charged or discharged. Both are defined as the settling time. For details on the settling time, refer to the datasheet of the noise source.
Remote command:
SYSTem:CONFigure:DUT:STIMe on page 145
Average
Defines the number of measurements that are used to average the results. The more measurements you include in the averaging, the more accurate and stable
the results are. However, accuracy and stability come at the price of measurement speed.
Remote command:
[SENSe:]SWEep:COUNt on page 141
Uses a variable sweep time, depending on the current frequency of
the sweep point, as defined in the frequency table (see Chapter 5.2.3,
"Using a frequency table", on page 45);
In the channel bar, the bandwidth and sweep time range of the vari-
able values is indicated.
Ref Level
Turns automatic determination of the reference level on and off. The reference level is the power level the R&S FSV/A expects at the RF input. Keep in
mind that the noise signal has a high crest factor. To avoid an instrument overload, set the reference level to the peak envelope power of the noise signal, not to the mean power.
Set the reference level to approximately 5 dB to 15 dB above the noise display that occurs with the DUT connected and the noise source activated.
To get the best dynamic range, set the reference level as low as possible. At the same time, make sure that the maximum signal level does not exceed the reference level. If it does, it can overload the RF and IF stages of the analyzer, regardless of the signal power. Measurement results can deteriorate.
Note that the signal level at the A/D converter can be stronger than the level the R&S FSV/A displays because the resolution bandwidths are implemented digitally after the A/D converter.
If automatic detection of the reference level is on, the application performs a measure­ment to determine the ideal reference level. The time of this measurement depends on the state of the "2nd Stage Correction".
●
"2nd Stage Correction" is enabled
64User Manual 1178.9432.02 ─ 09
Page 65
R&S®FSV3-K30
Configuration
Configuring the analyzer
The application determines the reference level before the calibration starts. The reference level is based on several test measurements on the start frequency. For more information, see "Auto Level Range" on page 65.
●
"2nd Stage Correction" is disabled The application determines the reference level before the measurement begins. The reference level is based on the measurement of the first frequency that is measured. After this measurement is done, the application resumes the measure­ment.
If manual selection of the reference level is on, you can define the reference level in the corresponding input field.
Note: Reference level. Even for DUTs with a high-ripple frequency response it can be useful to define the reference level manually. Determining the reference level automati­cally does not always result in optimal settings.
Remote command: Manual reference level:
DISPlay[:WINDow<n>]:TRACe<t>:Y[:SCALe]:RLEVel on page 142
Automatic reference level:
DISPlay[:WINDow<n>]:TRACe<t>:Y[:SCALe]:RLEVel:AUTO on page 142
Auto Level Range
Defines the maximum expected "gain" of the DUT. The application uses the auto level range to determine the reference level automati-
cally if the 2nd stage correction is on. Make sure the range does not exceed the actual "gain" of the DUT by more than
10 dB. Remote command:
SYSTem:CONFigure:DUT:GAIN on page 145
RF Attenuation
Defines the RF attenuation of the analyzer. The attenuation is applied to the signal at the RF input. Attenuation affects the quality of the "noise figure" measurement results. For a low
"noise figure" of the analyzer (and thus more accurate measurement results), keep the attenuation as low as possible. No attenuation is best. However, some high-power DUTs require attenuation to avoid an overload of the analyzer. An attenuation of 10 dB provides a better input VSWR of the analyzer, but results in a deteriorating "noise fig­ure".
Remote command:
INPut<ip>:ATTenuation on page 143
Preamplifier
If the (optional) internal preamplifier hardware is installed, a preamplifier can be activa­ted for the RF input signal.
Turn on the preamplifier for a low inherent noise of the analyzer. For an active external frontend, a preamplifier is not available.
65User Manual 1178.9432.02 ─ 09
Page 66
R&S®FSV3-K30
Configuration
Using the uncertainty calculator
For R&S FSV/A3004, 3007, 3013, and 3030 models, the following settings are availa­ble:
"Off" "15 dB" "30 dB" For R&S FSV/A44 or higher models, the input signal is amplified by 30 dB if the pream-
plifier is activated. In this case, the preamplifier is only available under the following conditions:
●
In zero span, the maximum center frequency is 43.5 GHz
●
For frequency spans, the maximum stop frequency is 43.5 GHz
●
For I/Q measurements, the maximum center frequency depends on the analysis bandwidth:
≤
f
center
If any of the conditions no longer apply after you change a setting, the preamplifier is automatically deactivated.
Remote command:
INPut<ip>:GAIN:STATe on page 144 INPut<ip>:GAIN[:VALue] on page 144
Deactivates the preamplifier.
The RF input signal is amplified by about 15 dB.
The RF input signal is amplified by about 30 dB.
43.5 GHz - (<Analysis_bw> / 2)

5.7 Using the uncertainty calculator

Access: [MEAS CONFIG] > "Uncertainty Calculation"
"Noise figure" measurements are subject to uncertainty. The "noise figure" measure­ment is meaningless if the measurement uncertainty is too large. Knowing the uncer­tainty of the "noise figure" measurement adds value especially when comparing mea­surement results.
Note that the "noise figure" uncertainty is not calculated for frequencies above 67 GHz because input VSWR values are not specified.
66User Manual 1178.9432.02 ─ 09
Page 67
R&S®FSV3-K30
Configuration
Using the uncertainty calculator
Uncertainty values and systematic error recognition
Note that the uncertainty calculation only takes systematic measurement inaccuracies into account.
The most significant inaccuracies are:
●
Uncertainties of the noise source and the analyzer
●
Input and output matching
●
"Noise figure" and "gain" of the DUT
●
"Noise figure" of the analyzer
The accuracy of the measurement can also be affected by insufficient repeatability dur­ing calibration or measurement.
The repeatability is mainly affected by:
●
Signal-to-noise ratio during calibration and measurement
●
Measurement time (if it is too short)
●
Environmental conditions (e.g. a change in the temperature between measure­ments)
●
Mechanical stability of the test setup
For more background information on "noise figure" measurement uncertainty, refer to the application note "The "Y-Factor" Technique for "Noise Figure" Measurement" avail­able for download on the Rohde & Schwarz homepage (http://www.rohde-
schwarz.com/en/applications/the-y-factor-technique-for-noise-figure-measurements­application-note_56280-15484.html).
In addition to the parameters described here, the application also considers several parameters from the general measurement configuration when calculating the uncer­tainty.
●
Measurement mode
●
2nd Stage Correction
67User Manual 1178.9432.02 ─ 09
Page 68
R&S®FSV3-K30

5.7.1 Configuring noise source characteristics

Configuration
Using the uncertainty calculator
If 2nd stage correction is on, but no calibration data is available, uncertainty is cal­culated without the 2nd stage correction data.
●
Internal preamplification
●
RF Attenuation
●
Temperature
●
ENR values
Access: [MEAS CONFIG] > "Uncertainty Calculation"
The Uncertainty Calculator supports individual characteristics for a noise source used during calibration and the measurement.
If you are using a Common ENR, the application assumes that the Output Match and
ENR Uncert(ainty) are the same during calibration and measurement. Only the "Mea-
surement Noise Source" parameters are displayed.
If you are using a different noise source during calibration and measurement, the Uncertainty Calculator adds an Output Match and ENR Uncert(ainty) required for uncertainty calculation during calibration.
Note that you have to turn off the Common Noise Source if you have to define the val­ues of the noise source used during calibration.
Common Source for Meas and Cal...............................................................................68
Use SNS Values............................................................................................................68
Output Match.................................................................................................................69
ENR Uncert(ainty).........................................................................................................69
Temperature Uncert(ainty)............................................................................................ 69
Common Source for Meas and Cal
Controls the way the application calculates the uncertainty for the noise source. Turn on the switch when you use the same noise source during calibration and mea-
surement. Only one set of fields to define the noise source characteristics is available. The application calculates the uncertainty according to the values you have entered in there.
Turn the switch off when you use different noise sources during calibration and mea­surement. The application shows an additional set of fields to define the noise source characteristics. The uncertainty calculation also includes these values.
The switch is available if you have turned on Common Noise Source. Remote command:
CALCulate<n>:UNCertainty:COMMon on page 146
Use SNS Values
If enabled, the values from the uncertainty table provided by the (most recently) con­nected smart noise source are used.
68User Manual 1178.9432.02 ─ 09
Page 69
R&S®FSV3-K30
Configuration
Using the uncertainty calculator
Output Match
Defines the output match of the noise source you are using. You can define the output match either as the VSWR or as the return loss (RL). Refer to the datasheet of the noise source for these values. If a smart noise source is used, the VSWR / RL values defined in the SNS table are
used. Remote command:
CALCulate<n>:UNCertainty:MATCh:SOURce:CALibration:RL on page 152 CALCulate<n>:UNCertainty:MATCh:SOURce:RL on page 153 CALCulate<n>:UNCertainty:MATCh:SOURce:CALibration[:VSWR]
on page 152
CALCulate<n>:UNCertainty:MATCh:SOURce:CALibration:RL on page 152
ENR Uncert(ainty)
Defines the uncertainty of the excess noise ratio of the noise source you are using. Refer to the datasheet of the noise source for this value. Available for noise sources with diode characteristics. If a smart noise source is used, the ENR uncertainty values defined in the SNS table
are used. Remote command:
CALCulate<n>:UNCertainty:ENR:UNCertainty on page 149 CALCulate<n>:UNCertainty:ENR:CALibration:UNCertainty on page 148
Temperature Uncert(ainty)
Defines the uncertainty of the hot and cold temperatures of the noise source you are using.
Refer to the datasheet of the noise source for these values. Available for resistor noise sources. Remote command:
CALCulate<n>:UNCertainty:ENR:UNCertainty:COLD on page 149 CALCulate<n>:UNCertainty:ENR:CALibration:UNCertainty:HOT
on page 149
CALCulate<n>:UNCertainty:ENR:CALibration:UNCertainty:COLD
on page 148
CALCulate<n>:UNCertainty:ENR:CALibration:UNCertainty:HOT
on page 149

5.7.2 Configuring DUT characteristics

Access: [MEAS CONFIG] > "Uncertainty Calculation"
Input / Output Match......................................................................................................70
Use Measurement Values............................................................................................. 70
69User Manual 1178.9432.02 ─ 09
Page 70
R&S®FSV3-K30
Configuration
Using the uncertainty calculator
Input / Output Match
Defines the match at the DUT input and output. You can define the match either as the VSWR or as the return loss (RL). If you define
the VSWR or the return loss, the application automatically calculates the other. If these values are not defined in the DUT datasheet, determine these values, for
example, with a network analyzer. Remote command:
CALCulate<n>:UNCertainty:MATCh:DUT:IN[:VSWR] on page 150 CALCulate<n>:UNCertainty:MATCh:DUT:IN:RL on page 150 CALCulate<n>:UNCertainty:MATCh:DUT:OUT[:VSWR] on page 151 CALCulate<n>:UNCertainty:MATCh:DUT:OUT:RL on page 151
Use Measurement Values
Turns automatic determination of the DUT characteristics used for the uncertainty cal­culation on and off.
If on, the application calculates the uncertainty with the DUT characteristics ("noise fig­ure", "gain" and frequency) resulting from the "noise figure" measurement. For this method, the application calculates the uncertainty for each measurement point (or fre­quency) based on the "noise figure" and "gain" results of the last measurement.
If you have selected automatic determination of the DUT characteristics, the applica­tion does not show a result in the "NF Uncertainty +/-" field in the dialog box. Instead, to view the uncertainty at all measurement points, use the "Result Table".
If off, define the "gain", "noise figure" and frequency of the DUT manually for a single frequency. With this manual determination of the DUT characteristics, the application only calculates the uncertainty for that frequency and shows the result in the "NF Uncertainty +/-" field in the dialog box.
●
"Noise Figure" of the DUT
●
"Gain" of the DUT
●
Frequency of the DUT
Remote command: Control automatic DUT characteristics determination:
CALCulate<n>:UNCertainty[:RESult]? on page 154
Manual definition of DUT characteristics:
CALCulate<n>:UNCertainty:DATA:NOISe on page 147 CALCulate<n>:UNCertainty:DATA:GAIN on page 147 CALCulate<n>:UNCertainty:DATA:FREQuency on page 146

5.7.3 Configuring analyzer characteristics

Access: [MEAS CONFIG] > "Uncertainty Calculation"
For the analyzer characteristics, the application always uses the data specified in the datasheet of the R&S FSV/A model you are using. Thus, it is not possible to change or adjust the analyzer characteristics in any way. The uncertainty calculation takes sev­eral analyzer characteristics into account, of which the following are shown as read­only fields in the user interface.
70User Manual 1178.9432.02 ─ 09
Page 71
R&S®FSV3-K30
Configuration
Using the uncertainty calculator
●
SA Input Match: Input match (VSWR or return loss) of the analyzer
●
SA NF Uncert: "Noise figure" uncertainty of the analyzer
●
SA "Gain" Uncert: "Gain" uncertainty of the analyzer
●
SA NF: "Noise figure" of the analyzer
However, if you are using an external preamplifier in the test setup, you have to specify its characteristics to get a valid uncertainty result.
Remote commands:
CALCulate<n>:UNCertainty:SANalyzer:GAIN:UNCertainty? on page 155
CALCulate<n>:UNCertainty:SANalyzer:NOISe:UNCertainty? on page 155
External Preamplifier (Ext PA).......................................................................................71
└ Preamplifier noise figure (PA NF)................................................................... 71
└ Preamplifier Gain (PA Gain)............................................................................71
└ Net spectrum analyzer noise figure (Net SA NF)............................................71
External Preamplifier (Ext PA)
If enabled, the application automatically calculates and updates the analyzer character­istics based on the characteristics of the external preamplifier defined here.
Refer to the datasheet of the preamplifier you are using for the values you have to enter.
Remote command:
CALCulate<n>:UNCertainty:PREamp:STATe on page 154
Preamplifier noise figure (PA NF) ← External Preamplifier (Ext PA)
Defines the "noise figure" of the preamplifier. Remote command:
CALCulate<n>:UNCertainty:PREamp:NOISe on page 154
Preamplifier Gain (PA Gain) ← External Preamplifier (Ext PA)
Defines the "gain" of the preamplifier. Remote command:
CALCulate<n>:UNCertainty:PREamp:GAIN on page 153
Net spectrum analyzer noise figure (Net SA NF) ← External Preamplifier (Ext PA)
Shows the "noise figure" of the analyzer. If you are using an external preamplifier, the application calculates the "noise figure" of
the analyzer including the "noise figure" of the preamplifier and shows the result here. If you do not use an external preamplifier, this value is the same as the "noise figure" of
the analyzer shown in the "SA NF" field.

5.7.4 Guidelines and results

Access: [MEAS CONFIG] > "Uncertainty Calculation"
71User Manual 1178.9432.02 ─ 09
Page 72
R&S®FSV3-K30
Configuration
Performing measurements
The lower part of the dialog box contains measurement guidelines that provide infor­mation on the quality of measurement and the actual "noise figure" uncertainty.
Guidelines
The guidelines are an indicator of the quality of the measurement and an indicator the repeatability of the measurement.
The three guidelines are:
●
Make sure that the "noise figure" of the DUT and the "gain" of the DUT is greater than the "noise figure" of the analyzer plus 1 dB.
●
Make sure that the ENR of the noise source is greater than the "noise figure" of the DUT plus 5 dB.
●
Make sure that the ENR of the noise source is greater than the "noise figure" of the analyzer plus 3 dB.
A short form of these guidelines is indicated in the "Uncertainty Calculation" dialog box. The dialog box also indicates if the guidelines have been met or not by a colored dot.
●
Green light
●
Yellow light : guideline condition not met, but within 1 dB of being met.
●
Red light : guideline condition not met.
Note that the guidelines have no effect on the actual uncertainty that has been calcula­ted and that they are only considered for measurements with 2nd Stage Correction.
Uncertainty
The "Uncertainty" result is shown only if you define the "noise figure" and "gain" char­acteristics of the DUT manually on a single frequency. In that case, the uncertainty shown in the "Uncertainty Calculation" dialog box is valid only for the DUT frequency you have defined.
The "Measurement Offset" evaluates the internal noise of the R&S FSV/A that is added to the "noise figure" results. The measurement offset result is displayed when 2nd stage correction is turned off. When you turn on 2nd stage correction, the internal noise is automatically removed from the uncertainty results, so the measurement offset is not shown.
If you are using the "noise figure" and "gain" that has been determined during a mea­surement, the uncertainty is displayed only in the result table.
For more information, see "Use Measurement Values" on page 70.
SCPI command:
: guideline condition met.
CALCulate<n>:UNCertainty[:RESult]? on page 154

5.8 Performing measurements

Access: [SWEEP]
72User Manual 1178.9432.02 ─ 09
Page 73
R&S®FSV3-K30
Configuration
Performing measurements
Access (calibration): "Overview" > "Calibrate"
This chapter contains all functionality necessary to control and perform "noise figure" measurements.
Continuous Sweep / Run Cont......................................................................................73
Single Sweep / Run Single............................................................................................73
Calibrate........................................................................................................................74
Sweep Time.................................................................................................................. 74
Meas Mode (Auto Manual)............................................................................................74
Continuous Sweep / Run Cont
After triggering, starts the measurement and repeats it continuously until stopped. This is the default setting.
Initiates a measurement and repeats it continuously until stopped. If necessary, the application automatically determines the reference level before starting the actual mea­surement.
While the measurement is running, the "Continuous Sweep" softkey and the [RUN CONT] key are highlighted. The running measurement can be aborted by selecting the highlighted softkey or key again. The results are not deleted until a new measurement is started.
Note: Sequencer. If the Sequencer is active, the "Continuous Sweep" softkey only con­trols the sweep mode for the currently selected channel. However, the sweep mode only takes effect the next time the Sequencer activates that channel, and only for a channel-defined sequence. In this case, a channel in continuous sweep mode is swept repeatedly. Furthermore, the [RUN CONT] key controls the Sequencer, not individual sweeps. [RUN CONT] starts the Sequencer in continuous mode.
For details on the Sequencer, see the R&S FSV/A User Manual. Remote command:
INITiate<n>:CONTinuous on page 156
Single Sweep / Run Single
Initiates a single measurement. The measurement is finished after all frequencies in the frequency list have been measured. If necessary, the application automatically determines the reference level before starting the actual measurement.
After triggering, initiates a single measurement. The measurement is finished after all frequencies in the frequency list have been measured. If necessary, the application automatically determines the reference level before starting the actual measurement.
While the measurement is running, the "Single Sweep" softkey and the [RUN SINGLE] key are highlighted. The running measurement can be aborted by selecting the high­lighted softkey or key again.
Note: Sequencer. If the Sequencer is active, the "Single Sweep" softkey only controls the sweep mode for the currently selected channel. However, the sweep mode only takes effect the next time the Sequencer activates that channel, and only for a chan­nel-defined sequence. In this case, the Sequencer sweeps a channel in single sweep mode only once.
73User Manual 1178.9432.02 ─ 09
Page 74
R&S®FSV3-K30
Configuration
Performing measurements
Furthermore, the [RUN SINGLE] key controls the Sequencer, not individual sweeps. [RUN SINGLE] starts the Sequencer in single mode.
If the Sequencer is off, only the evaluation for the currently displayed channel is upda­ted.
For details on the Sequencer, see the R&S FSV/A User Manual. Remote command:
INITiate<n>[:IMMediate] on page 157
Calibrate
Initiates a calibration measurement. For interpolation purposes, R&S FSV/A-K30 will internally add addiitonal measurement
points at the band switching frequencies. This may increase the time needed to com­plete the calibration.
For more information see Chapter 4.6, "Calibration (2nd stage correction)", on page 31.
Remote command:
INITiate<n>[:IMMediate] on page 157
when [SENSe:]CONFigure:CORRection is on.
Sweep Time
Defines the sweep time. For more information see "Sweep Time" on page 63.
Meas Mode (Auto Manual)
Selects the measurement mode for the hot and cold power measurements. For more information about the measurement modes see Chapter 4.2, "Measurement
modes", on page 24.
In manual measurement mode, the application opens a dialog box when you start a measurement. For more information about its contents see "Performing a manual mea-
surement" on page 24.
Remote command:
[SENSe:]CONFigure:CONTrol on page 158 [SENSe:]CONFigure:MEASurement on page 159
74User Manual 1178.9432.02 ─ 09
Page 75
R&S®FSV3-K30
Configuration
Configuring inputs and outputs of the R&S

5.9 Configuring inputs and outputs of the R&S FSV/A

Further input sources
The R&S FSV3 Noise measurements application application can also process input from the following optional sources:
●
Active modular probes
For details, see the R&S FSV/A I/Q Analyzer and I/Q Input User Manual.
● Radio frequency (RF) input.....................................................................................75
● External generator...................................................................................................77

5.9.1 Radio frequency (RF) input

Access: [INPUT/OUTPUT] > "Input Source Config" > "Input Source" > "Radio Fre-
quency"
The RF input is the default input of the R&S FSV/A.
FSV/A
Input Coupling...............................................................................................................75
Impedance.................................................................................................................... 75
Direct Path.................................................................................................................... 76
High Pass Filter 1 to 3 GHz...........................................................................................76
YIG-Preselector.............................................................................................................76
Input Coupling
The RF input of the R&S FSV/A can be coupled by alternating current (AC) or direct current (DC).
For an active external frontend, input coupling is always DC. AC coupling blocks any DC voltage from the input signal. AC coupling is activated by
default to prevent damage to the instrument. Very low frequencies in the input signal can be distorted.
However, some specifications require DC coupling. In this case, you must protect the instrument from damaging DC input voltages manually. For details, refer to the data sheet.
Remote command:
INPut<ip>:COUPling on page 160
Impedance
For some measurements, the reference impedance for the measured levels of the R&S FSV/A can be set to 50 Ω or 75 Ω.
Select 75 Ω if the 50 Ω input impedance is transformed to a higher impedance using a 75 Ω adapter of the RAZ type. (That corresponds to 25Ω in series to the input impe­dance of the instrument.) The correction value in this case is 1.76 dB = 10 log (75Ω/ 50Ω).
75User Manual 1178.9432.02 ─ 09
Page 76
R&S®FSV3-K30
Configuration
Configuring inputs and outputs of the R&S
Remote command:
INPut<ip>:IMPedance on page 161
Direct Path
Enables or disables the use of the direct path for small frequencies. In spectrum analyzers, passive analog mixers are used for the first conversion of the
input signal. In such mixers, the LO signal is coupled into the IF path due to its limited isolation. The coupled LO signal becomes visible at the RF frequency 0 Hz. This effect is referred to as LO feedthrough.
To avoid the LO feedthrough the spectrum analyzer provides an alternative signal path to the A/D converter, referred to as the direct path. By default, the direct path is selected automatically for RF frequencies close to zero. However, this behavior can be disabled. If "Direct Path" is set to "Off", the spectrum analyzer always uses the analog mixer path.
For an active external frontend, the direct path is always used automatically for fre­quencies close to zero.
"Auto"
"Off" Remote command:
INPut<ip>:DPATh on page 162
(Default) The direct path is used automatically for frequencies close
to zero.
The analog mixer path is always used.
FSV/A
High Pass Filter 1 to 3 GHz
Activates an additional internal highpass filter for RF input signals from 1 GHz to 3 GHz. This filter is used to remove the harmonics of the analyzer to measure the har­monics for a DUT, for example.
Note: For RF input signals outside the specified range, the high-pass filter has no effect. For signals with a frequency of approximately 4 GHz upwards, the harmonics are suppressed sufficiently by the YIG-preselector, if available.)
Remote command:
INPut<ip>:FILTer:HPASs[:STATe] on page 161
YIG-Preselector
Enables or disables the YIG-preselector. This setting requires an additional option on the R&S FSV/A. An internal YIG-preselector at the input of the R&S FSV/A ensures that image frequen-
cies are rejected. However, image rejection is only possible for a restricted bandwidth. To use the maximum bandwidth for signal analysis you can disable the YIG-preselector at the input of the R&S FSV/A, which can lead to image-frequency display.
Note: Note that the YIG-preselector is active only on frequencies greater than
7.5 GHz. Therefore, switching the YIG-preselector on or off has no effect if the fre­quency is below that value.
To use the optional 54 GHz frequency extension (R&S FSV3-B54G), the YIG-preselec­tor must be disabled.
76User Manual 1178.9432.02 ─ 09
Page 77
R&S®FSV3-K30
Configuration
Remote command:
INPut<ip>:FILTer:YIG[:STATe] on page 161

5.9.2 External generator

Access: [INPUT/OUTPUT] > "Input Source Config" > "External Generator"
● Interface configuration settings............................................................................... 77
● Measurement configuration.....................................................................................78
5.9.2.1 Interface configuration settings
Access: "Overview" > "Local Oscillator" > "External Generator" > "Measurement Con-
figuration"
Configuring inputs and outputs of the R&S
FSV/A
Generator Type.............................................................................................................77
Interface........................................................................................................................ 77
TTL Handshake.............................................................................................................78
TCPIP Address / Computer Name................................................................................78
Reference......................................................................................................................78
Edit Generator Setup File..............................................................................................78
Frequency Min/ Frequency Max....................................................................................78
Level Min/ Level Max.................................................................................................... 78
Generator Type
Selects the generator type and thus defines the generator setup file to use. Remote command:
SYSTem:COMMunicate:RDEVice:GENerator<gen>:TYPE on page 175
Interface
Type of interface connection used.
77User Manual 1178.9432.02 ─ 09
Page 78
R&S®FSV3-K30
Configuration
Configuring inputs and outputs of the R&S FSV/A
For details on which signal generators support which interfaces, see the documenta­tion of the corresponding signal generator.
●
TCP/IP
Remote command:
SYSTem:COMMunicate:RDEVice:GENerator<gen>:INTerface on page 175
TTL Handshake
Turning the TTL handshake on and off has no effect for "Noise Figure" measurements.
TCPIP Address / Computer Name
TCP/IP address of the signal generator Remote command:
SYSTem:COMMunicate:TCPip:RDEVice:GENerator<gen>:ADDRess
on page 175
Reference
Selects the internal R&S FSV/A or an external frequency reference to synchronize the R&S FSV/A with the generator (default: internal).
Remote command:
SOURce<si>:EXTernal<gen>:ROSCillator[:SOURce] on page 174
Edit Generator Setup File
Displays the setup file for the currently selected Generator Type in read-only mode in an editor.
Although the existing setup files are displayed in read-only mode in the editor, they can be saved under a different name (using "File > SaveAs").
For more information, see Chapter 4.4, "External generator control", on page 27.
Frequency Min/ Frequency Max
For reference only: Lower and upper frequency limit for the generator.
Level Min/ Level Max
For reference only: Lower and upper power limit for the generator.
5.9.2.2 Measurement configuration
Access: "Overview" > "Local Oscillator" > "External Generator" > "Measurement Con-
figuration"
78User Manual 1178.9432.02 ─ 09
Page 79
R&S®FSV3-K30
Configuration
Configuring inputs and outputs of the R&S
Automatic Control..........................................................................................................79
Init Before Meas............................................................................................................79
Auto Switch Off..............................................................................................................80
Source Power................................................................................................................80
Frequency Coupling......................................................................................................80
Init External Generator..................................................................................................81
FSV/A
Automatic Control
Turns automatic control of the external generator on and off. If on, the application controls the configuration of the external generator during mea-
surements by transmitting the required remote commands. The connection is estab­lished automatically before a measurement if Init Before Meas is on. To establish the connection manually at any time, use the Init External Generator function.
Otherwise, you have to control the generator manually. The application assumes that the generator is configured correctly for the measurement. The remote connection to the generator is automatically terminated.
Turn on automatic control to perform Fixed IF measurements with the LO frequency tuned to the current measurement (RF) frequency. Manual control is recommended only for measurements whose generator settings remain the same during the mea­surement.
Remote command:
SYSTem:CONFigure:GENerator:CONTrol:STATe on page 176
Init Before Meas
Turns automatic transmission of the external generator configuration on and off. If enabled, the application transmits a sequence of remote commands that configures
the generator and turns on its RF output before each measurement. Thus, the genera­tor runs with the required configuration and can still receive remote control commands during a measurement. Automatic initialization requires a slightly longer measurement time because of the time required to transmit the commands and configure the genera­tor.
79User Manual 1178.9432.02 ─ 09
Page 80
R&S®FSV3-K30
 
 
21 Offset
rDenominato
Numerator
Offsetff
LOGenera tor
Configuration
Configuring inputs and outputs of the R&S
If disabled, you have to initialize the generator manually with Init External Generator. Note that you have to establish the connection before you can perform a measurement
with the external generator. Remote command:
SYSTem:CONFigure:GENerator:INITialise:AUTO on page 176
Auto Switch Off
Turns automatic deactivation of the generator's RF output on and off. If enabled, the application transmits a sequence of remote commands to turn off the
RF output of the generator when a measurement is over. A measurement is over after a single sweep or if the measurement is aborted. The sequence of commands also ends the remote control session.
If disabled, you have to turn off the RF output and remote control session manually. Note that when you close the R&S FSV3 Noise measurements application, the genera-
tor's RF output is turned off and the remote session is terminated. Remote command:
SYSTem:CONFigure:GENerator:SWITch:AUTO on page 177
FSV/A
Source Power
Defines the output power of the external generator. The range depends on the generator you are using and is defined in its data sheet. Remote command:
SOURce<si>:EXTernal<gen>:POWer[:LEVel] on page 174
Frequency Coupling
Defines frequency correction characteristics. The generator frequency is calculated as follows.
With:
●
f
Generator
●
fLO= frequency of the analyzer's LO
●
f
offset<1>
●
f
offset<2>
Use the factors and offsets to compensate one or more components in the test setup which change the frequency between the generator and the DUT. Make sure, however, that the result does not exceed the frequency range of the generator.
The application calculates the resulting start and stop frequency based on the values you apply and displays them below the equation.
Remote command:
SOURce:EXTernal:FREQuency[:FACTor]:DENominator on page 174 SOURce:EXTernal:FREQuency[:FACTor]:NUMerator on page 174 SOURce:EXTernal:FREQuency:OFFSet<of> on page 174
= generator frequency
= offset frequency of the analyzer = offset frequency of other components
80User Manual 1178.9432.02 ─ 09
Page 81
R&S®FSV3-K30
Configuration
Configuring inputs and outputs of the R&S FSV/A
Init External Generator
Establishes a connection to generator and turns on its RF output. You can establish the connection automatically before a measurement if Init Before
Meas is on.
Note that you have to establish the connection before you can perform a measurement with the external generator.
Remote command:
SYSTem:CONFigure:GENerator:INITialise[:IMMediate] on page 176
81User Manual 1178.9432.02 ─ 09
Page 82
R&S®FSV3-K30

6 Analysis

6.1 Configuring the display

Analysis
Configuring the display
This chapter contains all settings and parameters that the application provides to ana­lyze and evaluate measurement results.
● Configuring the display............................................................................................82
● Working with traces.................................................................................................85
● Using markers.........................................................................................................88
● Limit line settings and functions.............................................................................. 93
Access: [MEAS CONFIG] > "Result Config"
Display configuration settings configure the way the results are displayed in the dia­gram.
The contents depend on whether you want to configure a graphical result display or a numerical result display.
Specifics for
The settings you make apply to the results you have selected in the "Specifics for" dropdown menu. If more than one window is active, "Specifics for" also puts the focus on the corresponding window.
● Configuring graphical results...................................................................................82
● Configuring numerical results..................................................................................84

6.1.1 Configuring graphical results

Access: [MEAS CONFIG] > "Result Config" > "Graph"
When configuring graphical results, the dialog box contains functionality to scale and set up the diagram axes.
82User Manual 1178.9432.02 ─ 09
Page 83
R&S®FSV3-K30
Analysis
Configuring the display
Y-Axis............................................................................................................................ 83
Auto Scale / Min / Max.................................................................................................. 83
Symbols........................................................................................................................ 84
Uncertainty....................................................................................................................84
X-Axis............................................................................................................................84
Y-Axis
Selects the result display and thus the scaling of the vertical axis. For more information, see Chapter 3, "Measurements and result displays", on page 13.
Auto Scale / Min / Max
Turns automatic scaling of the vertical axis on and off. If on, the application optimizes the scaling of the vertical axis after each measurement
for ideal viewing of the results. If off, you can define the scaling manually. The "Min" and "Max" input fields become
available. These two input fields define the values at the top and bottom of the vertical axis.
Remote command: Automatic scaling:
DISPlay[:WINDow<n>]:TRACe<t>:Y[:SCALe]:AUTO on page 179
Manual minimum value:
DISPlay[:WINDow<n>]:TRACe<t>:Y[:SCALe]:BOTTom on page 179
Manual maximum value
DISPlay[:WINDow<n>]:TRACe<t>:Y[:SCALe]:TOP on page 180
83User Manual 1178.9432.02 ─ 09
Page 84
R&S®FSV3-K30
Analysis
Configuring the display
Symbols
Turns symbols that represent a measurement point on the trace on and off. Remote command:
DISPlay[:WINDow<n>]:TRACe<t>:SYMBols on page 177
Uncertainty
Displays an additional trace indicating the measured trace values ± the uncertainty val­ues determined by the uncertainty calculator. Thus, you obtain a range of minimum and maximum result values. This trace is only useful for "noise figure" measurements.
Remote command:
DISPlay[:WINDow<n>]:TRACe<t>:UNCertainty on page 178
X-Axis
Selects the frequency data that is displayed on the x-axis. For measurements on frequency converting DUTs with a variable intermediate fre-
quency, you can display either the RF frequency or the IF frequency. Note that a change of the x-axis scale applies to all result displays, and also deter-
mines which value is output for trace export. The "Frequency Axis" scale is also available via the [FREQ] key. Remote command:
DISPlay[:WINDow<n>]:TRACe<t>:X[:SCALe] on page 178

6.1.2 Configuring numerical results

When configuring numerical results, the dialog box selects the type of results you want to display in the result table. The results in the table are based on a particular trace that you can select in the corresponding input field.
You can add an aspect of the measurement by placing a checkmark in front of the cor­responding result on and remove it by removing the checkmark.
84User Manual 1178.9432.02 ─ 09
Page 85
R&S®FSV3-K30
Analysis
Working with traces
For more information on each result, see Chapter 3, "Measurements and result dis-
plays", on page 13.
Remote command:
DISPlay[:WINDow<n>]:TABLe:ITEM on page 177

6.2 Working with traces

Access (trace configuration): [TRACE] > "Trace Config" > "Traces"
Access (trace export): [TRACE] > "Trace Config" > "Trace / Data Export"
Access (copy trace): [TRACE] > "Trace Config" > "Trace Copy"
A trace is the graphical representation of a set of measurement results in a diagram. Each measurement window that contains graphical results supports up to four individ­ual traces. Each trace has a different color. Trace settings determine how the mea­sured data is analyzed and displayed on the screen. The trace information, including a color map and trace mode is summarized in the diagram header.
85User Manual 1178.9432.02 ─ 09
Page 86
R&S®FSV3-K30
Analysis
Working with traces
Traces........................................................................................................................... 86
Smoothing.....................................................................................................................87
Preset Traces................................................................................................................87
Trace Export..................................................................................................................87
└ Export all Traces and all Table Results...........................................................87
└ Include Instrument & Measurement Settings..................................................87
└ Trace to Export............................................................................................... 87
└ Decimal Separator.......................................................................................... 87
└ Export Trace to ASCII File.............................................................................. 87
Copy Trace....................................................................................................................88
Traces
The "Trace 1 to 4" softkeys open the "Traces" tab of the "Trace Configuration" dialog box.
The "Traces" tab contains functionality to configure a trace. "Trace Selec-
tion"
"Trace Mode"
Remote command: Trace mode:
DISPlay[:WINDow<n>][:SUBWindow<w>]:TRACe<t>:MODE on page 181
The "Trace 1" to "Trace 4" buttons select a trace. If a trace is
selected, it is highlighted orange.
Note that you cannot select a trace if its trace mode is "Blank".
Selects the trace mode for the corresponding trace.
For more information, see Chapter 4, "Measurement basics",
on page 22.
86User Manual 1178.9432.02 ─ 09
Page 87
R&S®FSV3-K30
Analysis
Working with traces
Smoothing
If enabled, the trace is smoothed by the specified value (between 1 % and 50 %). The smoothing value is defined as a percentage of the display width. The larger the smoothing value, the greater the smoothing effect.
Remote command:
DISPlay[:WINDow<n>][:SUBWindow<w>]:TRACe<t>:SMOothing[:STATe]
on page 182
DISPlay[:WINDow<n>][:SUBWindow<w>]:TRACe<t>:SMOothing:APERture
on page 182
Preset Traces
Restores the default configuration for all traces in a window.
Trace Export
The "Trace Export" tab contains functionality to export trace data.
Export all Traces and all Table Results ← Trace Export
Selects all displayed traces and result tables (e.g. "Result Summary", marker table etc.) in the current application for export to an ASCII file.
Alternatively, you can select one specific trace only for export (see Trace to Export). The results are output in the same order as they are displayed on the screen: window
by window, trace by trace, and table row by table row. Remote command:
FORMat:DEXPort:TRACes on page 184
Include Instrument & Measurement Settings ← Trace Export
Includes additional instrument and measurement settings in the header of the export file for result data.
Remote command:
FORMat:DEXPort:HEADer on page 184
Trace to Export ← Trace Export
Defines an individual trace to be exported to a file. This setting is not available if Export all Traces and all Table Results is selected.
Decimal Separator ← Trace Export
Defines the decimal separator for floating-point numerals for the data export/import files. Evaluation programs require different separators in different languages.
Remote command:
FORMat:DEXPort:DSEParator on page 183
Export Trace to ASCII File ← Trace Export
Opens a file selection dialog box and saves the selected trace in ASCII format (.dat) to the specified file and directory.
The results are output in the same order as they are displayed on the screen: window by window, trace by trace, and table row by table row.
87User Manual 1178.9432.02 ─ 09
Page 88
R&S®FSV3-K30
Analysis
Using markers
The column headers are provided as the first row. Whether the frequency value repre­sents the RF or IF frequency depends on the X-Axis setting.
Note: Secure user mode. In secure user mode, settings that are stored on the instrument are stored to volatile memory, which is restricted to 256 MB. Thus, a "memory limit reached" error can occur although the hard disk indicates that storage space is still available.
To store data permanently, select an external storage location such as a USB memory device.
For details, see "Protecting Data Using the Secure User Mode" in the "Data Manage­ment" section of the R&S FSV3000/ FSVA3000 base unit user manual.
Remote command:
MMEMory:STORe<n>:TRACe on page 184
Copy Trace Access: "Overview" > "Analysis" > "Traces" > "Copy Trace"
Copies trace data to another trace. The first group of buttons (labeled "Trace 1" to "Trace 4") selects the source trace. The
second group of buttons (labeled "Copy to Trace 1" to "Copy to Trace 4") selects the destination.
Remote command:
TRACe<n>:COPY on page 185

6.3 Using markers

Markers help you to read out measurement results for particular frequencies or mark a particular point on a trace. The "noise figure" application features four markers. Mark­ers in the "noise figure" application are linked. If you use more than one measurement window and activate a marker in one window, it also appears in all other measurement windows on the same horizontal position.
● Marker configuration............................................................................................... 88
● Marker positioning...................................................................................................91

6.3.1 Marker configuration

Access (marker configuration): [MKR] > "Marker Config" > "Marker"
Access (marker settings): [MKR] > "Marker Config" > "Marker Settings"
The "Marker Configuration" dialog box and the "Marker" menu contain all functionality necessary to control markers.
The "Marker Configuration" dialog box consists of two tabs.
The "Markers" tab contains functionality to define characteristics for each marker.
88User Manual 1178.9432.02 ─ 09
Page 89
R&S®FSV3-K30
Analysis
Using markers
The "Marker Settings" tab contains general marker functionality.
Marker (1...4).................................................................................................................90
Marker Type..................................................................................................................90
Marker to Trace.............................................................................................................90
All Markers Off...............................................................................................................90
Marker Config................................................................................................................90
Marker Table Display.....................................................................................................90
Marker Info....................................................................................................................91
89User Manual 1178.9432.02 ─ 09
Page 90
R&S®FSV3-K30
Analysis
Using markers
Marker (1...4)
Selects or turns the corresponding marker on and off. Turning on a marker also opens an input field to define the horizontal position of the
marker. By default, the first marker you turn on is a normal marker, all others are delta markers.
Marker Type
Toggles the marker type. The type for marker 1 is always "Normal", the type for delta marker 1 is always "Delta".
These types cannot be changed. Note: If normal marker 1 is the active marker, switching the "Mkr Type" activates an
additional delta marker 1. For any other marker, switching the marker type does not activate an additional marker, it only switches the type of the selected marker.
"Normal"
"Delta"
Remote command:
CALCulate<n>:MARKer<m>[:STATe] on page 195 CALCulate<n>:DELTamarker<m>[:STATe] on page 198
A normal marker indicates the absolute value at the defined position
in the diagram.
A delta marker defines the value of the marker relative to the speci-
fied reference marker (marker 1 by default).
Marker to Trace
Opens an input field to assign the marker to a particular trace if you are using more than one trace.
All Markers Off
Deactivates all markers in one step. Remote command:
CALCulate<n>:MARKer<m>:AOFF on page 195
Marker Config
Opens the "Marker Configuration" dialog box. The "Marker Configuration" dialog box contains all marker functions necessary to set
up the four markers supported by the application.
●
Selected Highlights the currently selected marker.
●
State Turns a marker on and off.
●
X-value Defines the marker position on the horizontal axis.
●
Type Selects the marker type. For more information see "Marker Type" on page 90.
●
Trace Selects the trace the marker is positioned on.
Marker Table Display
Defines how the marker information is displayed.
90User Manual 1178.9432.02 ─ 09
Page 91
R&S®FSV3-K30
Analysis
Using markers
"On"
"Off"
Remote command:
DISPlay[:WINDow<n>]:MTABle on page 200
Marker Info
Turns the marker information displayed in the diagram on and off.
Remote command:
DISPlay[:WINDow<n>]:MINFo[:STATe] on page 200
Displays the marker information in a table in a separate area beneath
the diagram.
No separate marker table is displayed.
If Marker Info is active, the marker information is displayed within the
diagram area.

6.3.2 Marker positioning

If you are using more than one measurement window, the application performs the peak search in the currently selected measurement window. The currently selected measurement window has a blue border. Because the markers are linked in the "noise figure" application, the frequency position of the marker in the other window is updated accordingly, even if it means that the marker is on a peak in one window only.
Select Marker <x>.........................................................................................................91
Peak Search..................................................................................................................92
Search Next Peak......................................................................................................... 92
Search Minimum........................................................................................................... 92
Search Next Minimum...................................................................................................92
Marker to Single Frequency..........................................................................................93
Select Marker <x>
Opens a dialog box to select and activate or deactivate one or more markers. The number in the softkey label (<x>) shows the number of the currently selected
marker.
91User Manual 1178.9432.02 ─ 09
Page 92
R&S®FSV3-K30
Analysis
Using markers
Remote command: Marker selected via suffix <m> in remote commands.
Peak Search
Sets the selected marker/delta marker to the maximum of the trace. If no marker is active, marker 1 is activated.
Remote command:
CALCulate<n>:MARKer<m>:MAXimum[:PEAK] on page 202 CALCulate<n>:DELTamarker<m>:MAXimum[:PEAK] on page 204
Search Next Peak
Sets the selected marker/delta marker to the next (lower) maximum of the assigned trace. If no marker is active, marker 1 is activated.
Remote command:
CALCulate<n>:MARKer<m>:MAXimum:NEXT on page 201 CALCulate<n>:MARKer<m>:MAXimum:RIGHt on page 202 CALCulate<n>:MARKer<m>:MAXimum:LEFT on page 201 CALCulate<n>:DELTamarker<m>:MAXimum:NEXT on page 204 CALCulate<n>:DELTamarker<m>:MAXimum:RIGHt on page 204 CALCulate<n>:DELTamarker<m>:MAXimum:LEFT on page 203
Search Minimum
Sets the selected marker/delta marker to the minimum of the trace. If no marker is active, marker 1 is activated.
Remote command:
CALCulate<n>:MARKer<m>:MINimum[:PEAK] on page 203 CALCulate<n>:DELTamarker<m>:MINimum[:PEAK] on page 205
Search Next Minimum
Sets the selected marker/delta marker to the next (higher) minimum of the selected trace. If no marker is active, marker 1 is activated.
92User Manual 1178.9432.02 ─ 09
Page 93
R&S®FSV3-K30

6.4 Limit line settings and functions

Analysis
Limit line settings and functions
Remote command:
CALCulate<n>:MARKer<m>:MINimum:NEXT on page 202 CALCulate<n>:MARKer<m>:MINimum:LEFT on page 202 CALCulate<n>:MARKer<m>:MINimum:RIGHt on page 203 CALCulate<n>:DELTamarker<m>:MINimum:NEXT on page 205 CALCulate<n>:DELTamarker<m>:MINimum:LEFT on page 204 CALCulate<n>:DELTamarker<m>:MINimum:RIGHt on page 205
Marker to Single Frequency
Starts a single frequency measurement on the current marker position. When you use this function, the application changes the tuning mode and automati-
cally adjusts the single frequency to that of the current marker position. For more information see Chapter 4.1.3, "Single frequency measurements",
on page 23.
Access: [LINES]
The "noise figure" measurement application supports up to eight active limit lines in each active measurement window.
Stored limit line settings
When storing and recalling limit line settings, consider the information provided in the Data Management chapter of the R&S FSV/A User Manual.
● Limit line management............................................................................................93
● Limit line details.......................................................................................................95

6.4.1 Limit line management

Access: "Overview" > "Analysis" > "Lines" > "Limit Lines"
or: [LINES] > "Line Config" > "Limit Lines"
For the limit line overview, the R&S FSV/A searches for all stored limit lines with the file extension .LIN in the limits subfolder of the main installation folder. The overview allows you to determine which limit lines are available and can be used for the current measurement.
For details on settings for individual lines see Chapter 6.4.2, "Limit line details", on page 95.
Name.............................................................................................................................94
Unit................................................................................................................................94
Compatibility..................................................................................................................94
Visibility......................................................................................................................... 94
93User Manual 1178.9432.02 ─ 09
Page 94
R&S®FSV3-K30
Analysis
Limit line settings and functions
Traces to be Checked...................................................................................................94
Comment.......................................................................................................................94
Show Compatible Limit Lines........................................................................................94
Show Lines for Noise.................................................................................................... 94
Create New Line........................................................................................................... 95
Edit Line........................................................................................................................ 95
Copy Line......................................................................................................................95
Delete Line....................................................................................................................95
Disable All Lines............................................................................................................95
Name
The name of the stored limit line.
Unit
The unit in which the y-values of the data points of the limit line are defined.
Compatibility
Indicates whether the limit line definition is compatible with the current measurement settings.
Visibility
Displays or hides the limit line in the diagram. Up to 8 limit lines can be visible at the same time. Inactive limit lines can also be displayed in the diagram.
Remote command:
CALCulate<n>:LIMit<li>:LOWer:STATe on page 189 CALCulate<n>:LIMit<li>:UPPer:STATe on page 191 CALCulate<n>:LIMit<li>:ACTive? on page 191
Traces to be Checked
Defines which traces are automatically checked for conformance with the limit lines. As soon as a trace to be checked is defined, the assigned limit line is active. One limit line can be activated for several traces simultaneously. If any of the "Traces to be Checked" violate any of the active limit lines, a message is indicated in the diagram.
Remote command:
CALCulate<n>:LIMit<li>:TRACe<t>:CHECk on page 194
Comment
An optional description of the limit line.
Show Compatible Limit Lines
Defines which of the stored limit lines are included in the overview. If active, only limit lines that are compatible to the result display currently in focus are
displayed.
Show Lines for Noise
If activated (default), only limit lines created for "noise figure" measurements are dis­played. Otherwise, all limit lines are displayed.
94User Manual 1178.9432.02 ─ 09
Page 95
R&S®FSV3-K30
Analysis
Limit line settings and functions
Create New Line
Creates a new limit line.
Edit Line
Edit an existing limit line configuration.
Copy Line
Copy the selected limit line configuration to create a new line. Remote command:
CALCulate<n>:LIMit<li>:COPY on page 191
Delete Line
Delete the selected limit line configuration. Remote command:
CALCulate<n>:LIMit<li>:DELete on page 192
Disable All Lines
Disable all limit lines in one step. Remote command:
CALCulate<n>:LIMit<li>:STATe on page 193

6.4.2 Limit line details

Access: "Overview" > "Analysis" > "Lines" > "Limit Lines" > "New" / "Edit" / "Copy To"
or: [LINES] > "Line Config" > "Limit Lines" > "New" / "Edit" / "Copy To"
95User Manual 1178.9432.02 ─ 09
Page 96
R&S®FSV3-K30
Analysis
Limit line settings and functions
Name.............................................................................................................................96
Comment.......................................................................................................................96
Y-Axis............................................................................................................................ 96
Data Points....................................................................................................................96
Insert Value................................................................................................................... 96
Delete Value..................................................................................................................96
Shift x............................................................................................................................ 96
Shift y............................................................................................................................ 97
Save..............................................................................................................................97
Name
Defines the limit line name. All names must be compatible with Windows conventions for file names. The limit line data is stored under this name (with a .LIN extension).
Remote command:
CALCulate<n>:LIMit<li>:NAME on page 186
Comment
Defines an optional comment for the limit line. Remote command:
CALCulate<n>:LIMit<li>:COMMent on page 186
Y-Axis
Describes the vertical axis on which the data points of the limit line are defined. You can select the type of limit line (upper or lower) for each type of result. From that
information, the application sets the level unit and y-axis scaling. Both are then fix parameters because the unit depends on the result and the scaling is always absolute in case of "noise figure" measurements.
Data Points
Each limit line is defined by a minimum of 2 and a maximum of 200 data points. Each data point is defined by its position (x-axis) and value (y-value). Data points must be defined in ascending order. The same position can have two different values.
Remote command:
CALCulate<n>:LIMit<li>:CONTrol[:DATA] on page 188 CALCulate<n>:LIMit<li>:LOWer[:DATA] on page 189 CALCulate<n>:LIMit<li>:UPPer[:DATA] on page 190
Insert Value
Inserts a data point in the limit line above the selected one in the "Edit Limit Line" dia­log box.
Delete Value
Deletes the selected data point in the "Edit Limit Line" dialog box.
Shift x
Shifts the x-value of each data point horizontally by the defined shift width. Remote command:
CALCulate<n>:LIMit<li>:CONTrol:SHIFt on page 188
96User Manual 1178.9432.02 ─ 09
Page 97
R&S®FSV3-K30
Analysis
Limit line settings and functions
Shift y
Shifts the y-value of each data point vertically by the defined shift width. Remote command:
CALCulate<n>:LIMit<li>:LOWer:SHIFt on page 189 CALCulate<n>:LIMit<li>:UPPer:SHIFt on page 190
Save
Saves the currently edited limit line under the name defined in the "Name" field.
97User Manual 1178.9432.02 ─ 09
Page 98
R&S®FSV3-K30
7 Remote control commands for noise figure

Remote control commands for noise figure measurements

measurements
The following remote control commands are required to configure and perform "noise figure" measurements in a remote environment. The R&S FSV/A must already be set up for remote operation in a network as described in the base unit manual.
Common functionality
Note that basic tasks that are also performed in the base unit in the same way are not described here. For a description of such tasks, see the R&S FSV/A User Manual.
In particular, this includes:
●
Managing Settings and Results, i.e. storing and loading settings and result data.
●
Basic instrument configuration, e.g. checking the system configuration, customizing the screen layout, or configuring networks and remote operation.
●
Using the common status registers (specific status registers for Pulse measure­ments are not used).
SCPI Recorder - automating tasks with remote command scripts
The R&S FSV3 Noise measurements application also supports the SCPI Recorder functionality.
Using the SCPI Recorder functions, you can create a SCPI script directly on the instru­ment and then export the script for use on the controller. You can also edit or write a script manually, using a suitable editor on the controller. For manual creation, the instrument supports you by showing the corresponding command syntax for the cur­rent setting value.
For details see the "Network and Remote Operation" chapter in the R&S FSV/A User Manual.
Channel-specific commands
Apart from a few general commands on the R&S FSV/A, most commands refer to the currently active channel. Thus, always remember to activate a "Noise Figure" channel before starting a remote program for a "noise figure" measurement.
● Common suffixes.................................................................................................... 99
● Introduction............................................................................................................. 99
● Controlling the noise figure measurement channel...............................................104
● Working with windows in the display.....................................................................108
● General window commands..................................................................................114
● Retrieving measurement results............................................................................115
● Defining the measurement frequency................................................................... 116
● Selecting DUT characteristics...............................................................................121
● Configuring the noise source................................................................................ 123
● Configuring additional loss....................................................................................131
● Configuring the analyzer....................................................................................... 138
98User Manual 1178.9432.02 ─ 09
Page 99
R&S®FSV3-K30

7.1 Common suffixes

Remote control commands for noise figure measurements
Introduction
● Using the uncertainty calculator............................................................................145
● Performing measurements....................................................................................155
● Configuring the inputs and outputs....................................................................... 160
● Configuring the display..........................................................................................177
● Working with traces...............................................................................................180
● Working with limit lines..........................................................................................185
● Working with markers............................................................................................194
● Using the status register....................................................................................... 205
● Deprecated remote commands for noise figure measurements........................... 212
● Programming example: measuring a noise figure.................................................213
In the R&S FSV3 Noise measurements application, the following common suffixes are used in remote commands:
Table 7-1: Common suffixes used in remote commands in the R&S FSV3 Noise measurements appli-
Suffix Value range Description
<m> 1 to 4 Marker
<n> 1 to 16 Window (in the currently selected channel)
<t> 1 to 4 Trace
<li> 1 to 8 Limit line
cation

7.2 Introduction

Commands are program messages that a controller (e.g. a PC) sends to the instru­ment or software. They operate its functions ('setting commands' or 'events') and request information ('query commands'). Some commands can only be used in one way, others work in two ways (setting and query). If not indicated otherwise, the com­mands can be used for settings and queries.
The syntax of a SCPI command consists of a header and, usually, one or more param­eters. To use a command as a query, you have to append a question mark after the last header element, even if the command contains a parameter.
A header contains one or more keywords, separated by a colon. Header and parame­ters are separated by a "white space" (ASCII code 0 to 9, 11 to 32 decimal, e.g. blank). If there is more than one parameter for a command, they are separated by a comma from one another.
Only the most important characteristics that you need to know when working with SCPI commands are described here. For a more complete description, refer to the user manual of the R&S FSV/A.
99User Manual 1178.9432.02 ─ 09
Page 100
R&S®FSV3-K30

7.2.1 Conventions used in descriptions

Remote control commands for noise figure measurements
Introduction
Remote command examples
Note that some remote command examples mentioned in this general introduction are possibly not supported by this particular application.
The following conventions are used in the remote command descriptions:
●
Command usage
If not specified otherwise, commands can be used both for setting and for querying parameters. If a command can be used for setting or querying only, or if it initiates an event, the usage is stated explicitly.
●
Parameter usage
If not specified otherwise, a parameter can be used to set a value and it is the result of a query. Parameters required only for setting are indicated as Setting parameters. Parameters required only to refine a query are indicated as Query parameters. Parameters that are only returned as the result of a query are indicated as Return values.
●
Conformity Commands that are taken from the SCPI standard are indicated as SCPI con­firmed. All commands used by the R&S FSV/A follow the SCPI syntax rules.
●
Asynchronous commands
A command which does not automatically finish executing before the next com­mand starts executing (overlapping command) is indicated as an Asynchronous command.
●
Reset values (*RST)
Default parameter values that are used directly after resetting the instrument (*RST command) are indicated as *RST values, if available.
●
Default unit
The default unit is used for numeric values if no other unit is provided with the parameter.
●
Manual operation
If the result of a remote command can also be achieved in manual operation, a link to the description is inserted.

7.2.2 Long and short form

The keywords have a long and a short form. You can use either the long or the short form, but no other abbreviations of the keywords.
The short form is emphasized in uppercase letters. Note however, that this emphasis only serves the purpose to distinguish the short from the long form in the manual. For the instrument, the case does not matter.
100User Manual 1178.9432.02 ─ 09
