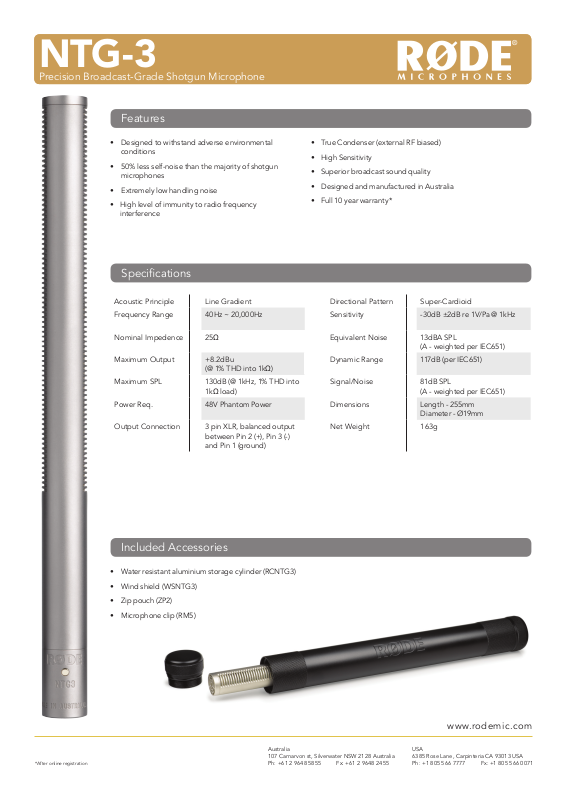

Rode NTG3 Datasheet

NTG-3

M3

Multi Powered 3/4” Condenser Microphone

Precision Broadcast-Grade Shotgun Microphone

Features

• Designed to withstand adverse environmental
conditions

• 50% less self-noise than the majority of shotgun
microphones

• Extremely low handling noise

• High level of immunity to radio frequency
interference

• True Condenser (external RF biased)

• High Sensitivity

• Superior broadcast sound quality

• Designed and manufactured in Australia

• Full 10 year warranty*

Specifi cations

Acoustic Principle Line Gradient Directional Pattern Super-Cardioid

Frequency Range 40Hz ~ 20,000Hz Sensitivity -30dB ±2dB re 1V/Pa @ 1kHz

Nominal Impedence 25Ω Equivalent Noise 13dBA SPL

Maximum Output +8.2dBu

(@ 1% THD into 1kΩ)

Maximum SPL 130dB (@ 1kHz, 1% THD into

1kΩ load)

Power Req. 48V Phantom Power Dimensions Length - 255mm

Output Connection 3 pin XLR, balanced output

between Pin 2 (+), Pin 3 (-)
and Pin 1 (ground)

Dynamic Range 117dB (per IEC651)

Signal/Noise 81dB SPL

Net Weight 163g

(A - weighted per IEC651)

(A - weighted per IEC651)

Diameter - Ø19mm

*After online registration

Included Accessories

• Water resistant aluminium storage cylinder (RCNTG3)

• Wind shield (WSNTG3)

• Zip pouch (ZP2)

• Microphone clip (RM5)

Australia
107 Carnarvon st, Silverwater NSW 2128 Australia
Ph: [phone] Fx: [phone]

www.rodemic.com

USA
6385 Rose Lane, Carpinteria CA 93013 USA
Ph: [phone] Fx: [phone]
