Technical Data
Original Instructions
PanelView Plus 7 Performance Terminals
Catalog Numbers
2711P-T7C22D9P, 2711P-T7C22D9P-B, 2711P-T7C22A9P, 2711P-T7C22A9P-B, 2711P-B7C22D9P, 2711P-B7C22D9P-B,
2711P-B7C22A9P, 2711P-B7C22A9P-B, 2711P-T9W22D9P, 2711P-T9W22D9-B, 2711P-T9W22A9P, 2711P-T9W22A9P-B, 2711P-T10C22D9P,
2711P-T10C22D9P-B, 2711P-T10C22A9P, 2711P-T10C22A9P-B, 2711P-B10C22D9P, 2711P-B10C22D9P-B, 2711P-B10C22A9P, 2711P-B10C22A9-B,
2711P-T12W22D9P, 2711P-T12W22D9P-B, 2711P-T12W22A9P, 2711P-T12W22A9P-B, 2711P-T15C22D9P, 2711P-T15C22D9P-B, 2711P-T15C22A9P,
2711P-T15C22A9P-B, 2711P-B15C22D9P, 2711P-B15C22D9P-B, 2711P-B15C22A9P, 2711P-B15C22A9P-B, 2711P-T19C22D9P, 2711P-T19C22D9P-B,
2711P-T19C22A9P, 2711P-T19C22A9P-B, 2711P-T9W22D9P-BSHK, 2711P-T12W22D9P-BSHK, 2711P-T7C22D9PK, 2711P-T9W22D9PK,
2711P-T10C22D9PK, 2711P-T12W22D9PK, 2711P-T15C22D9PK, 2711P-T19C22D9PK, 2711P-B15C22D9PK, 2711P-T12W22D9P-BM001,
2711P-T12W22D9P-BM002, 2711P-T12W22D9P-BM003, 2711P-T12W22D9P-BM004, 2711P-T12W22D9P-BM005, 2711P-T12W22D9P-BM006,
2711P-T12W22D9P-BM007, 2711P-T12W22D9P-BM008, 2711P-T12W22D9P-BM009, 2711P-T12W22D9P-BM010, 2711P-T12W22D9P-BM011,
2711P-T12W22D9P-BM012, 2711P-T12W22D9P-BM013, 2711P-T12W22D9P-BM014, 2711P-T12W22D9P-BM015, 2711P-T12W22D9P-BM016
Topic Page
Summary of Changes 2
Environmental Specifications 2
Resistance to Chemicals 3
Certifications 3
Technical Specifications 4
ArmorView Plus 7 Terminals 8
Accessories 12
HMI Software 14
Additional Resources 15
The PanelView™ Plus 7 Performance terminals are operator interface
devices. They monitor and control devices that are attached to
ControlLogix® and CompactLogix™ 5370 controllers on an EtherNet/IP™
network. Animated graphic and text displays provide operators a view
into the operating state of a machine or process. Operators interact with
the control system by using touch screen or keypad input.
The PanelView Plus 7 Performance terminals include these features and
capabilities:
• FactoryTalk® View Machine Edition software, version 8.1, provides a familiar environment for creating HMI applications
• Windows CE operating system with desktop access for configuration and third-party applications
• Connection to ControlLogix or CompactLogix 5370 controllers
• Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies
• Web browser, Microsoft® file viewers, text editor, PDF viewer, remote desktop connection, and media player on the terminal desktop
• Conformal-coating available for all DC power, touch-only terminals, and the 15-in. DC power, keypad and touch terminal
• Stainless steel, hygienic, brandless, DC-power, and conformal-coating are available for the 9-in. wide-screen, touch-only units and the
12-in. wide-screen, touch-only units
• On-machine mounting available for the 12.1-in. wide-screen, touch-only terminal
PanelView Plus 7 Performance Terminals Technical Data
Summary of Changes
This publication contains new and updated information as indicated in the following table.
Topic Page
Updated the operating temperature of the ArmorView Plus 7 terminal as shown in the Environmental Specifications table. 2
Environmental Specifications
This table lists environmental specifications for the PanelView Plus 7 Performance terminals and the ArmorView™ Plus 7 terminal (which
includes a 12.1-in PanelView Plus 7 Performance terminal).
Attribute Value
6.5-in., 9-in., 10.4-in., 12.1-in., and 15-in. terminals
0…55 °C (32…131 °F)
Temperature, operating
Temperature, nonoperating
Heat dissipation
Altitude, operating
Relative humidity
Vibration
Shock, operating
Shock, nonoperating
Enclosure ratings
Airborne contaminants
(1) The optional VESA accessory kit (1/0 plate) is rated to 45 °C (113 °F).
(2) These values are the same for the ArmorView Plus 7 terminal.
(3) These values are the same for the ArmorView Plus 7 terminal when the VESA mount is used. When the arm mount coupling is used, the values are 5 g
at 11 ms.
(4) For the ArmorView Plus 7 terminal, the enclosure ratings are 12, 13, 4, or 4X (see the ArmorView Plus 7 Installation Instructions, publication 2711P-IN013
for more detail) and IP66 as classified by UL.
(5) The PanelView Plus 7 Performance Stainless Steel, Series B terminals are also rated IP69 as Classified by UL and tested for IP69K according to ISO
20653.
19-in. terminals
0…50 °C (32…122 °F)
ArmorView Plus 7 terminal
0…50 °C (32…122 °F) ambient
-25…+70 °C (-13…+158 °F)
(1)
(2)
Typical BTU measurements were taken at 25 °C (77 °F):
• 6.5-in. DC (touch, and touch with keypad), 51 BTU (typical)
• 6.5-in. AC (touch, and touch with keypad), 53 BTU (typical)
• 9-in. DC, 55 BTU (typical)
• 9-in. AC, 58 BTU (typical)
• 10.4-in. DC (touch, and touch with keypad), 51 BTU (typical)
• 10.4-in. AC (touch, and touch with keypad), 56 BTU (typical)
• 12.1-in. DC, 60 BTU (typical)
• 12.1-in. AC, 67 BTU (typical)
• 15-in. DC (touch, and touch with keypad), 61 BTU (typical)
• 15-in. AC (touch, and touch with keypad), 68 BTU (typical)
• 19-in. DC, 114 BTU (typical)
• 19-in. AC, 119 BTU (typical)
2000 m (6562 ft)
5…95% without condensation
(2)
(2)
6.5-in., 9-in., 10.4-in., 12.1-in. terminals, and 12.1-in. terminals in the ArmorView Plus 7 enclosure
0.012 pk-pk, 10…57 Hz
2 g peak at 57…500 Hz
15-in. and 19-in. terminals
0.006 pk-pk, 10...57 Hz
1 g peak at 57...640 Hz
15 g at 11 ms
30 g at 11 ms
NEMA and UL Type 12, 13, 4X, also rated IP66 as Classified by UL
(3)
(3)
(4) (5)
For PanelView Plus 7 Performance conformal-coated PCBA level products with catalog numbers that
end in K, product meets or exceeds the following requirement:
• ANSI/ISA 71.04.2013 G3 environment
Tested in accordance with:
ASTM B845-97
2 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
PanelView Plus 7 Performance Terminals Technical Data
Resistance to Chemicals
The outer surfaces of the terminal including the bezel, touch screen overlay, and panel gasket seal are tested for chemical resistance. Some
of the chemicals can cause discoloration, but they do not interfere with the operation of the terminal.
For more information on chemical resistance of the product, go to
https://rockwellautomation.custhelp.com
and search the Knowledgebase for keywords ‘Chemical Resistance PanelView Plus’.
IMPORTANT Do not operate the terminal in direct sunlight. Direct exposure to ultraviolet light can discolor the touch screen.
Certifications
This table lists certifications for the PanelView Plus 7 Performance terminals.
(1)
Certification
CE (EMC)
(2)
CE (LVD)
c-UL-us
EtherNet/IP ODVA conformance that is tested to EtherNet/IP specifications
KCC Certificate of compliance
NSF
RCM
RoHS China RoHS, Turkey RoHS, European RoHS 2011/65/EU
EAC Certificate of compliance
(1) When marked. See the Product Certification link at rok.auto/certification for Declarations of Conformity, Certificates, and other certification
details.
(2) This certification is not available for the ArmorView Plus 7 terminal.
Value
European Union 2014/35/EU EMC Directive, compliant with:
• EN 61000-6-2; Industrial Immunity
• EN 61000-6-4; Industrial Emissions
• EN 61131-2; Programmable Controllers
European Union 2014/30/EU Low Voltage Directive, compliant with:
• EN 61131-2; Programmable Controllers
The PanelView Plus 7 Performance terminals hold these certifications:
c-UL-us Listed Industrial Control Equipment for use in Hazardous Locations (E10314) per standards ANSI / ISA 12.12.01
and CSA C22.2 No. 213. rated:
– Class I, Div 2, Groups A, B, C, D
– Class II, Div 2, Groups F and G
– Class III, Div 1
– Class III, Div 2
Enclosure type ratings per UL50 and CSA C22.2 No. 94.2-07.
Enclosure ingress protection that is classified by UL per IEC 60529.
The ArmorView Plus 7 terminal holds the following certifications:
c-UL-us listed Industrial Control Equipment for US and Canada (E113724) per standards UL 61010-1, UL 61010-2-201,
CAN/CSA-C22.2 No. 61010-1, and CAN/CSA-C22.2 No. 61010-2-201.
Enclosure type ratings per UL50 and CSA C22.2 No. 94.2-07.
Enclosure ingress protection that is classified by UL per IEC 60529.
Stainless Steel Series B Terminals only, compliant with:
•NSF/ANSI/3-A 14159-1; Hygiene Requirements for the Design of Meat and Poultry Processing Equipment
•NSF/ANSI 169; Special Purpose Food Equipment and Devices”
Australian Radiocommunications Act, compliant with:
• AS/NZS CISPR 11; Industrial Emissions
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 3
PanelView Plus 7 Performance Terminals Technical Data
Technical Specifications
The tables in this section provide technical specifications for the PanelView Plus 7 Performance terminals.
PanelView Plus 7 Performance 7-in and 9-in Terminals
9-in. Touch
2711P-T9W22D9PK
100…240V AC
105VA
—
(3)
(1)
(2)
2711P-T7C22D9PK
2
(Nits)
6.5-in. Touch
100…240V AC
105VA
—
(3)
Attribute
Operator input Touch Touch with keypad Touch
Confor mal-co ated Yes
Display type TFT Color
Display size, diagonal 6.5-in. 9-in. widescreen
Viewing area (W x H) 132 x 99 mm (5.2 x 3.9 in.) 196 x 118 mm (7.7 x 4.6 in.)
Display resolution 640 x 480 VGA, 18-bit color graphics 800 x 480 WVGA, 18-bit color graphics
Aspect ratio 4:3 5:3
Brightness, typical 300 cd/m
Backlight life
Touch screen
Battery (real-time
clock backup)
Memory:
•System
•User
Secure Digital (SD) card
slot
USB ports:
•Host
•Device
Operating system Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-part y device support)
Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet por ts that support Device Level Ring (DLR), linear, or star network topologies
Software FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later
Electrical
Input voltage
Power c onsumpt ion
Power supply
Mechanical
Weight, approx 1.2 kg (2.65 lb) 1.47 kg (3.25 lb) 1.58 kg (3.48 lb)
Dimensions, approx
(H x W x D)
Cutout dimensions,
approx (H x W)
(1) Catalog numbers with a -B extension denote terminals that exclude the Allen-Bradley brand marking. Customers can put their own brand labels on these terminals.
(2) Catalog numbers that end with a K denote terminals that are conformal coated.
(3) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E, 1606-XLP100E, 2711P-
RSACDIN.
2711P--T7C22D9P, 2711P--T7C22D9P-B
2711P-T7C22A9P, 2711P-T7C22A9P-B
White light-emitting diode, solid state
Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Analog resistive
Actuation rating: 1 million presses
Operating force: 100 grams
Accuracy: ±2 minutes per month.
Battery life: 4 years min at 25 °C (77 °F)
Replacement: CR2032 lithium coin cell
• 1 GB RAM and 512 MB storage
• 80 MB, approx, nonvolatile storage for applications
One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards
• Two USB high-speed 2.0 host ports (type A) suppor t removable flash drives for external storage
• O ne high-speed 2.0 device port (type B) that will be functional in a future release
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and
(PELV) 24V DC supplies
170 x 212 x 69.6 mm
6.69 x 8.35 x 2.74 in.
142 x 184 mm
5.59 x 7.24 in.
(1)
(2)
—Yes
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and
(PELV) 24V DC supplies
179 x 285 x 69.6 mm
7.05 x 11.22 x 2.74 in.
142 x 237 mm
5.59 x 9.33 in.
6.5-in. Touch with Keypad
2711P-B7C22D9P, 2711P-B7C22D9P-B
2711P-B7C22A9P, 2711P-B7C22A9P-B
100…240V AC
105VA
—
(3)
(1)
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and
(PELV) 24V DC supplies
190 x 280 x 69.6 mm
7.48 x 11.02 x 2.74 in.
162 x 252 mm
6.38 x 9.92 in.
2711P-T9W22D9P, 2711P-T9W22D9P-B
2711P-T9W22A9P, 2711P-T9W22A9P-B
4 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
.
PanelView Plus 7 Performance 10-in and 12-in Terminals
PanelView Plus 7 Performance Terminals Technical Data
12.1-in. Touch
2711P-T12W22D9PK
(1)
(2)
Attribute
2711P-T10C22D9P, 2711P-T10C22D9P-B
10.4-in. Touch
2711P-T10C22A9P, 2711P-T10C22A9P-B
2711P-T10C22D9PK
(2)
(1)
10.4-in. Touch with Keypad
2711P-B10C22D9P, 2711P-B10C22D9P-B
2711P-B10C22A9P, 2711P-B10C22A9P-B
(1)
2711P-T12W22D9P, 2711P-T12W22D9P-B
2711P-T12W22A9P, 2711P-T12W22A9P-B
Operator input Touch Touch with keypad Touch
Confor mal-co ated Yes
—Yes
Display type TFT Color
Display size, diagonal 10.4-in. 12.1-in. wide screen
Viewing area (W x H) 211 x 158 mm (8.3 x 6.2 in.) 261 x 163 mm (10.3 x 6.4 in.)
Display resolution 800 x 600 SVGA, 18-bit color graphics 1280 x 800 WXGA, 18-bit color graphics
Aspect ratio 4:3 16:10
2
Brightness, typical 300 cd/m
Backlight life
(Nits)
White light-emitting diode, solid state
Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Analog resistive
Touch screen
Actuation rating: 1 million presses
Operating force: 100 grams
Battery (real-time
clock backup)
Memory:
•System
•User
Secure Digital (SD)
card slot
USB ports:
•Host
•Device
Accuracy: ±2 minutes per month.
Battery life: 4 years min at 25 °C (77 °F)
Replacement: CR2032 lithium coin cell
• 5 12 MB RAM and 512 MB storage
• 8 0 MB, approx, nonvolatile storage for applications
One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards
• Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage
• O ne high-speed 2.0 device port (type B) that will be functional in a future release
Operating system Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support)
Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies
Software FactoryTalk View Studio for Machine Edition, Fac toryTalk ViewPoint, version 2.6 or later
Electrical
Input voltage
Power c onsumpt ion
Power supply
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(3)
100…240V AC
105VA
—
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(3)
100…240V AC
105VA
—
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(3)
100…240V AC
105VA
—
Mechanical
Weight, approx 2.28 kg (5.03 lb) 2.58 kg (5.69 lb) 2.54 kg (5.60 lb)
Dimensions, approx
(H x W x D)
Cutout dimensions,
approx (H x W)
252 x 297 x 69.6 mm
9.92 x 11.69 x 2.74 in.
224 x 269 mm
8.82 x 10.59 in.
252 x 385 x 69.6 mm
9.92 x 15.16 x 2.74 in.
224 x 335 mm
8.82 x 13.19 in.
240 x 340 x 69.6 mm
9.69 x 13.39 x 2.74 in.
218 x 312 mm
8.58 x 12.28 in.
(1) Catalog numbers with a -B extension denote terminals that exclude the Allen-Bradley brand marking. Customers can put their own brand labels on these terminals.
(2) Catalog numbers that end with a K denote terminals that are conformal coated.
(3) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E, 1606-XLP100E, 2711P-
RSACDIN.
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 5
PanelView Plus 7 Performance Terminals Technical Data
.
PanelView Plus 7 Performance 15-in and 19-in Terminals
Attribute
2711P-T15C22D9P, 2711P-T15C22D9P-B
15-in. Touch
2711P-T15C22A9P, 2711P-T15C22A9P-B
2711P-T15C22D9PK
(2)
(1)
15-in. Touch with Keypad
2711P-B15C22D9P, 2711P-B15C22D9P-B
2711P-B15C22A9P, 2711P-B15C22A9P-B
2711P-B15C22D9PK
(2)
(1)
2711P-T19C22D9P, 2711P-T19C22D9P-B
2711P-T19C22A9P, 2711P-T19C22A9P-B
19-in. Touch
2711P-T19C22D9PK
(1)
(2)
Operator input Touch Touch with keypad Touch
Confor mal-co ated Yes
Yes
(3)
Yes
Display type TFT Color
Display size, diagonal 15-in. 19-in.
Viewing area (W x H) 304 x 228 mm (12.0 x 9.0 in.) 376 x 301 mm (14.8 x 11.9 in.)
Display resolution 1024 x 768 XGA, 18-bit color graphics 1280 x 1024 SXGA, 18-bit color graphics
Aspect ratio 4:3 5:4
2
Brightness, typical 300 cd/m
Backlight life
(Nits)
White light-emitting diode, solid state
Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Analog resistive
Touch screen
Actuation rating: 1 million presses
Operating force: 100 grams
Battery (real-time
clock backup)
Memory:
•System
•User
Secure Digital (SD)
card slot
USB ports:
•Host
•Device
Accuracy: ±2 minutes per month.
Battery life: 4 years min at 25 °C (77 °F)
Replacement: CR2032 lithium coin cell
• 5 12 MB RAM and 512 MB storage
• 8 0 MB, approx, nonvolatile storage for applications
One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards
• Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage
• O ne high-speed 2.0 device port (type B) that will be functional in a future release
Operating system Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader, third-party device support)
Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies
Software FactoryTalk View Studio for Machine Edition, Fac toryTalk ViewPoint, version 2.6 or later
Electrical
Input voltage, DC
Power consumption,
DC
Power supply
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(4)
100…240V AC
105VA
—
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(4)
100…240V AC
105VA
—
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
Supports (SELV) and (PELV)
24V DC supplies
(4)
100…240V AC
105VA
—
Mechanical
Weight, approx 3.69 kg (8.14 lb) 4.14 kg (9.13 lb) 5.62 kg (12.40 lb)
Dimensions, approx
(H x W x D)
Cutout dimensions,
approx (H x W)
318 x 381 x 69.6 mm
12.52 x 15.00 x 2.74 in
290 x 353 mm
11.42 x 13.90 in
322 x 484 x 69.6 mm
12.68 x 19.06 x 2.74 in
290 x 418 mm
11.42 x 16.46 in
411 x 485 x 69.6 mm
16.18 x 19.09 x 2.74 in
383 x 457 mm
15.08 x 17.99 in
(1) Catalog numbers with a -B extension denote terminals that exclude the Allen-Bradley brand marking. Customers can put their own brand labels on these terminals.
(2) Catalog numbers that end with a K denote terminals that are conformal coated.
(3) Only the branded, DC-powered, 15-in. touch with keypad terminal is conformal-coated.
(4) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E, 1606-XLP100E, 2711P-
RSACDIN.
6 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
PanelView Plus 7 Performance Stainless Steel 9-in. and 12-in. Terminals
PanelView Plus 7 Performance Terminals Technical Data
Attribute
Operator input Touch
Confor mal-co ated Yes
Display type TFT Color
Display size, diagonal 9-in. wide screen 12.1-in. wide screen
Viewing area (W x H) 196 x 118 mm (7.7 x 4.6 in.) 261 x 163 mm (10.3 x 6.4 in.)
Display resolution 800 x 480 WVGA, 18-bit color graphics 1280 x 800 WXGA, 18-bit color graphics
Aspect ratio 5:3 16:10
Brightness, typical 300 cd/m
Backlight life
Touch screen
Battery (real-time clock backup)
Memory:
•System
•User
Secure Digital (SD) card slot One SD card slot for external storage; supports cat. no. 1784-SDx and 1784-SDHCx cards
USB ports:
•Host
•Device
Operating system
Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet por ts that support Device Level Ring (DLR), linear, or star network topologies
Software FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later
Electrical
Input voltage
Power c onsumpt ion
Power supply Supports (SELV) and (PELV) 24V DC supplies
Mechanical
Stainless steel bezel 304 stainless steel with hygienic No. 4A finish
Silicone gasket Gasket material is compliant with FDA 21 CFR 177.2600
Weight, approx 2.1 kg (4.6 lb) 3.7 kg (8.2 lb)
Dimensions, approx (H x W x D)
Cutout dimensions, approx (H x W )
(1) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E,
1606-XLP100E, 2711P-RSACDIN.
2
(Nits)
White light-emitting diode, solid state
Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Analog resistive
Actuation rating: 1 million presses
Operating force: 100 grams
Accuracy: ±2 minutes per month
Battery life: 4 years min at 25 °C (77 °F)
Replacement: CR2032 lithium coin cell
• 512 MB RAM and 512 MB storage
• 80 MB, approx, nonvolatile storage for applications
• Two USB high-speed 2.0 host ports (type A) support removable flash drives for ex ternal storage
• O ne high-speed 2.0 device port (type B) that will be functional in a future release
Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader,
third-party device support)
24V DC nom
(18…30V DC)
50 W max
(2.1 A at 24V DC)
190 x 280 x 69.6 mm
7.48 x 11.02 x 2.74 in.
162 x 252 mm
6.38 x 9.92 in.
9-in. Touch
2711P-T9W22D9P-BSHK
(1)
240 x 340 x 69.6 mm
9.69 x 13.39 x 2.74 in.
218 x 312 mm
8.58 x 12.28 in.
12.1-in. Touch
2711P-T12W22D9P-BSHK
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 7
PanelView Plus 7 Performance Terminals Technical Data
ArmorView Plus 7 Terminals
12.1 inch ArmorView Plus 7 Terminals
Attribute 2711P-T12W22D9P-BM001…2711P-T12W22D9P-BM002 2711P-T12W22D9P-BM003…2711P-T12W22D9P-BM016
Operator input Touc h Touch screen and push button, selector switches, or key switches
Display type TFT Color
Display size, diagonal 12.1-in. wide screen
Viewing area (W x H) 261 x 163 mm (10.3 x 6.4 in.)
Display resolution 1280 x 800 WXGA, 18-bit color graphics
Aspect ratio 16:10
Brightness, typical
Backlight life
Touch screen
E-stop —
Push buttons —
Selector switches —
Battery (real-time clock backup)
Memory:
•System
•User
Secure Digital (SD) card slot One SD card slot for external storage; supports cat. nos. 1784-SDx and 1784-SDHCx cards
USB ports:
•Host
•Device
Operating system
Ethernet ports Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support Device Level Ring (DLR), linear, or star network topologies
Software FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint, version 2.6 or later
Electrical
Input voltage
Power c onsumpt ion
Power supply Supports (SELV) and (PELV) 24V DC supplies
Mechanical
Weight, approx (with arm adapter) 7.41 kg (16.34 lb)
Weight, approx (with VESA Kit) 8.19 kg (18.06 lb)
Dimensions with arm adapter, approx (H x W x D)
Dimensions with I/O plate, approx (H x W x D)
(1) DC-powered terminals support safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC power supplies such as cat. nos. 1606-XLP95E, 1606-XLP100E, 2711P-
RSACDIN.
2
(Nits)
300 cd/m
White light-emitting diode, solid-state
Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable
Analog resistive
Actuation rating: 1 million presses
Operating force: 100 grams
Illuminated twist- to-release
300,000 cycles
Momentary push buttons
10,000,000 cycles
Two-position selector, three-position selector,
three-position key selector
1,000,000 cycles
Accuracy: ±2 minutes per month
Battery life: 4 years min at 25 °C (77 °F)
Replacement: CR2032 lithium coin cell
512 MB RAM and 512 MB storage
80 MB, approx, nonvolatile storage for applications
Two USB high-speed 2.0 host ports (type A) support removable flash drives for external storage
One high-speed 2.0 device port (type B) that will be functional in a future release
Windows CE with Extended Features and MS Office Viewers (includes FTP, VNC client server, ActiveX controls, PDF reader,
third-party device support)
24V DC nom
(18…30V DC)
37 W max
(1.54 A at 24V DC)
381.6 x 345 x 166.6 mm
15.02 x 13.58 x 6.56 in.
345 x 345 x 166.6 mm
13.58 x 13.58 x 6.56 in.
(1)
8 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
PanelView Plus 7 Performance Terminals Technical Data
1
6
6
1
F1
Esc
798
456
123
0
.
–
F2
F3
F6
F4
F5
F9
F7
F8
F10
F12
F11
F14
F13
F16
F15
1
6
6
6
1
1
c
c
a
b
a
b
d
d

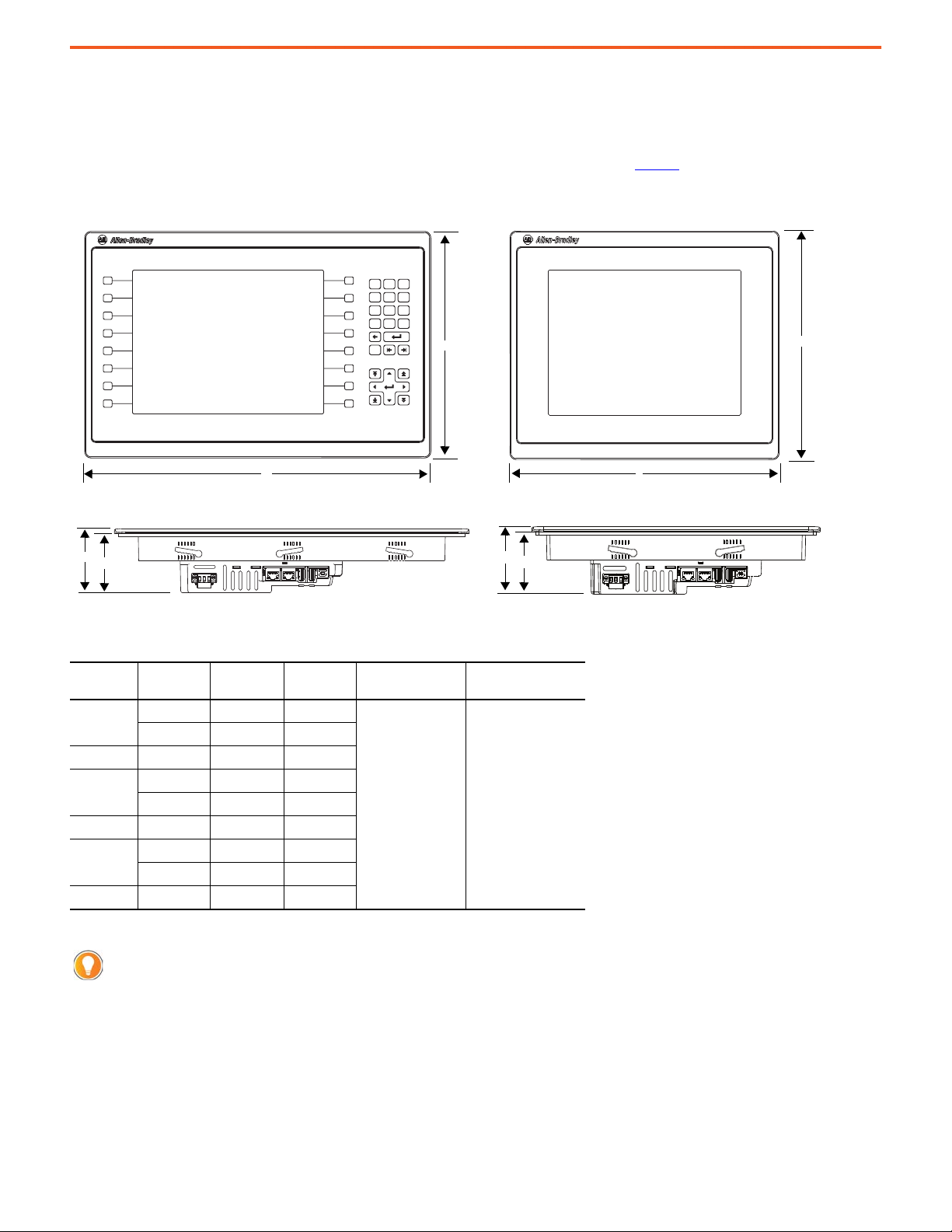

Product Dimensions
This section provides product dimensions. The PanelView Plus 7 Performance 10.4-inch touch and combination keypad with touch devices
are shown for illustrative purposes. Stainless steel terminals use different mounting clips, but the dimensions are the same. All other
terminal sizes look similar. Dimensions for the 12.1-in. ArmorView Plus 7 terminal can be found on page 10
PanelView Plus 7 Performance Terminal Dimensions - 10.4-in. Model
.
PanelView Plus 7 Performance Terminal Dimensions
Terminal
Size
6.5-in.
9-in. Touch 190 (7.48) 280 (11.02)
10.4-in.
12.1-in. Touch 246 (9.69) 340 (13.39)
15-in.
19-in. Touch 411 (16.18) 485 (19.09)
Input
Type
Height (a)
mm (in.)
Key/touch 179 (7.05) 285 (11.22)
Touch 170 (6.69) 212 (8.35)
Key/touch 252 (9.92) 385 (15.16)
Touch 252 (9.92) 297 (11.69)
Key/touch 322 (12.68) 484 (19.06)
Touch 318 (12.52) 381 (15.00)
When mounted in a panel, the front of the bezel extends less than
6.36 mm (0.25 in.) from the front of the panel.
Width (b)
mm (in.)
Overall Depth (c)
mm (in.)
Mounted Depth (d)
mm (in.)
69.6 (2.74) 63.6 (2.50)
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 9
PanelView Plus 7 Performance Terminals Technical Data
166.6
This section provides product dimensions for the ArmorView Plus 7 terminal. This terminal provides options for mounting on an arm mount
system, a pedestal, or VESA bracket (with the use of an optional VESA kit).
ArmorView Plus 7 Terminal Dimensions with Arm Adapter
The ArmorView Plus 7 product is designed to be used with couplers that have the same mounting pattern, such as those shown in the table.
For information about the dimensions of the arm mount adapter, see Arm Mount Adapter Dimensions
Rittal Hoffman Other
Supported Coupling
Supported Arm Systems
Supported Pedestal Systems
(1) The arm mount adapter accommodates coupling with four M6 mounting screws 95 mm (3.74 in.) x 40 mm (1.58 in.) with a seal that is contained in 80.9 mm
(3.19 in.) x 123.1 mm (4.85 in.). The product will only meet specified NEMA, UL Type, and IEC ratings with user-installed accessories (stack light, buttons,
indicators, and so on), if the accessories have equivalent ratings and are installed properly.
CP 6501.130 (CP40 120x65)
CP 6206.340 (CP60 swivel)
CP 6206.360 (CP60 rigid)
CP40 (steel)
CP60 (extruded aluminum)
CP 6106.500 with these CP60
couplings:
•CP 6206.340
• CP 6206.360
S1MFC
Syspend 180
–
Any compatible coupling
on page 11.
(1)
10 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
Arm Mount Adapter Dimensions
95 (3.74)
76.7 (3.02)
80.9 (3.19)
54.4 (2.14)
40 (1.57)
72.4 (2.85)
6.5 (0.26)
Approximate Dimensions
mm (in.)
123.1 (4.85)
119.6
ArmorView Plus 7 Terminal Dimensions with VESA Mount and I/O Plate
PanelView Plus 7 Performance Terminals Technical Data
ArmorView Plus 7 Terminals
ArmorView Plus 7 Terminals
With Arm Adapter 381.6 (15.02) 345 (13.58) 119.6 (4.71) 166.6 (6.56)
With VESA Mount and I/O Plate 345 (13.58) 345 (13.58) 119.6 (4.71) 166.6 (6.56)
Height
mm (in.)
Width
mm (in.)
Overall Depth
without E-stop
mm (in.)
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 11
Overall Depth
with E-stop
mm (in.)
PanelView Plus 7 Performance Terminals Technical Data
Accessories
This section describes accessories for the PanelView Plus 7 Performance terminals and the ArmorView Plus 7 terminals.
Protective Overlays
(1)
Cat. No.
2711P-RGT7SP
2711P-RGB7P •
Display Size
6.5-in.
Operator Input
Touch Key and Touch
•
Quantity
2711P-RGT9SP 9-in. (wide) •
2711P-RGT10SP
2711P-RGB10P •
2711P-RGT12SP
(2)
2711P-RGT15SP
2711P-RGB15P •
10.4-in.
12.1-in. (wide) •
15-in.
•
3
•
2711P-RGT19P 19-in. •
(1) The use of protective overlays may not be compatible in all hygienic applications. Consult the standards and protocols
for your hygienic applications before you use a protective overlay on a stainless steel terminal.
(2) On ArmorView Plus 7 terminals, the protective overlay covers only the touchscreen portion of the product.
Power Supplies and Power Terminal Blocks
Cat. No. Description Quantity
1606-XLP95E DIN rail power supply, 24…28V DC output voltage, 95 W 1
1606-XLP100E DIN rail power supply, 24…28V DC output voltage, 100 W 1
2711P-RSACDIN DIN rail power supply, AC-to-DC, 85…265V AC, 47…63 Hz 1
2711P-RTBAP 3-pin AC power terminal block 10
2711P-RTBDSP 3-pin DC power terminal block 10
Mounting Hardware
Cat. No. Description Quantity
2711P-RMCP
2711P-RTMC
(1) Catalog number 2711P-RMCP mounting levers are used with PanelView Plus 7 Performance terminals. Do not use gray
(2) Catalog number 2711P-RTMC mounting clips are used for stainless steel terminals, catalog numbers 2711P-T9W22D9P-
(1)
(2)
mounting levers; they are not compatible with PanelView Plus 7 Performance terminals.
BSHK or 2711P-T12W22D9P-BSHK. Note that 2711P-T12W22D9P-BSHK requires 10 mounting clips. If you need more than
eight clips, order two 2711P-RTMC mounting clip kits.
Secure Digital (SD) Cards
Cat. No. Description Quantity
1784-SD1 1 GB SD card 1
1784-SD2 2 GB SD card 1
1784-SDHC8 8 GB High Capacity SD card 1
1784-SDHC32 32 GB High Capacity SD card 1
2711C-RCSD USB to SD adapter for SD card 1
(1) To help reduce the chance of corruption when you use SD Cards or USB drives with the terminal, Rockwell Automation
recommends that you use only the above SD card catalog numbers.
Mounting levers (black) 16
Mounting clips (only for stainless steel terminals) 8
(1)
12 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
PanelView Plus 7 Performance Terminals Technical Data
Battery Replacement
Cat. No. Description Quantity
2711P-RY2032 Lithium coin cell battery, CR2032 equivalent 1
IMPORTANT Before you select the appropriate replacement gasket, you must identify the series of the PanelView Plus 7
Performance Stainless Steel terminal. The terminal’s series information is located on the terminal’s product
nameplate label. In the following table, gaskets that are listed for use on Series B terminals are not certified for use on
Series A terminals, and gaskets that are listed for use on Series A terminals are not certified for use on Series B
terminals.
Hygienic Gasket Replacement Kits for Stainless Steel Terminals
Cat. No.
2711P-RGST9W
2711P-RGST12W
2711P-RGST9WB
2711P-RGST12WB
(1) Gasket material is compliant with FDA 21 CFR 177.2600.
Description
Hygienic gasket, blue silicone
For 9-in. Series A Stainless Steel Terminals
Hygienic gasket, blue silicone
For 12-in. Series A Stainless Steel Terminals
Hygienic gasket, blue, silicone, with ribs
For 9-in. Series B Stainless Steel Terminals
Hygienic gasket, blue, silicone, with ribs
For 12-in. Series B Stainless Steel Terminals
(1)
Terminal
Series
A1
A1
B1
B1
Quantity
VESA Kit for ArmorView Plus 7 Terminals
Cat. No. Description Quantity
VESA access cover, I/O plate fitted with these cables:
• Power to terminal
• Connection to E-stop button
2711P-RVESA01
(1) For units without the Ethernet I /O module that require a DLR connection, you must remove the Ethernet I/O module
cable and replace it with the Ethernet I/O module to terminal cable.
(2) For terminals that do not have an E-stop on the I/O plate, you can replace the connector with the M16 hole plug.
• Ethernet (I/O Plate to Ethernet I/O Module)
• Ethernet (I/O Plate to PanelView terminal)
• Ground wire
Ethernet (I/O Plate to PanelView terminal)
M16 hole plug
(2)
(1)
1
Handle Kit for ArmorView Plus 7 Terminals
Cat. No. Description Quantity
(1)
2711P-RHNDL01
(1) You can install one, two, or three handles to the ArmorView Plus 7 terminal. Indentations for installing the handle are
located opposite the arm mount adapter (or the I/O plate), and on both sides. To install more than one handle, order
multiple handle kits.
One-handle 1
Stack Light for ArmorView Plus 7 Terminals
Cat. No. Description Quantity
854J-BVMC (vertical
(1)
mount)
(1) You can install a stack light on either side of the ArmorView Plus 7 terminal. To install two stack lights, order two
stack light kits.
Stack light 1
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 13
PanelView Plus 7 Performance Terminals Technical Data
Cables for ArmorView Plus 7 Terminals
Cat. No. Description Quantity
2711P-RIOIN3M
2711P-RIOUT3M
Input point cable for customer-installed switch (3-pin male Pico™
style connector for Ethernet I/O module)
Output point cable for customer-installed indicator light (3-pin male
Pico style connector for Ethernet I/O module)
1
1
HMI Software
All PanelView Plus 7 terminals are configured with FactoryTalk View Studio
software and have an integrated runtime system called FactoryTalk View Machine
Edition Station.
Machine Edition Station runs projects that are developed with FactoryTalk View
Studio software and is included on all PanelView Plus 7 terminals.
Two versions of FactoryTalk View Studio software support application
development for PanelView Plus 7 terminals.
(1)
Cat. No.
9701-VWSTMENE
9701-VWSTENE
(1) To order localized versions of the software, replace EN in the catalog number with DE for German, FR for French, JP for Japanese, or ZH for Chinese.
Description
FactoryTalk View Studio for Machine Edition software - Configuration software for developing and testing machine-level human
machine interface (HMI) applications. Includes RSLinx® Enterprise and KEPServer Enterprise software.
FactoryTalk View Studio software - Configuration software for developing and testing machine-level and supervisory-level human
machine interface (HMI) applications.
You can import PanelView Standard/PanelBuilder® 32 and PanelView applications into FactoryTalk View Studio software as Machine Edition
applications by using the Machine Edition Import Wizard. The Import Wizard steps you through a few options such as scaling to a new screen
resolution size, and then converts objects, text, tags, and communication configurations to ones that are available in Machine Edition.
FactoryTalk ViewPoint software, an add-on to FactoryTalk View Studio software, allows plant
managers, production supervisors, system integrators, and other key personnel to view and control
real-time plant floor operations remotely from a web browser. FactoryTalk ViewPoint enabled
displays are fully scalable and animated in the browser. The remote user can also view displays that
are not the active display of the terminal.
Each PanelView Plus 7 terminal contains one license that supports one client connection to the
terminal. No additional software is required.
For a complete list of available HMI software, visit http://www.rockwellautomation.com/rockwellsoftware
.
14 Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021
PanelView Plus 7 Performance Terminals Technical Data
Additional Resources
These documents contain more information about related products from Rockwell Automation.
Resource Description
PanelView Plus 7 Performance Terminals User Manual, publication 2711P-UM008
ArmorView Plus 7 Installation Instructions, publication 2711P-IN013
Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1
Product Certifications website, http://www.rockwellautomation.com/global/
certification/overview.page
Provides instructions on how to install, configure, and operate the PanelView
Plus 7 Performance terminals.
Provides instructions on how to install the ArmorView Plus 7 components.
Provides general guidelines on how to install a Rockwell Automation industrial
system.
Provides declarations of conformity, certificates, and other certification
details.
You can view or download publications at rok.auto/literature
.
Rockwell Automation Publication 2711P-TD009K-EN-P - February 2021 15
Rockwell Automation Support
Use these resources to access support information.
Technical Support Center Find help with how-to videos, FAQs, chat, user forums, and product notification updates. rok.auto/support
Knowledgebase Access Knowledgebase articles. rok.auto/knowledgebase
Local Technical Support Phone Numbers Locate the telephone number for your country. rok.auto/phonesupport
Literature Library Find installation instructions, manuals, brochures, and technical data publications. rok.auto/literature
Product Compatibility and Download Center
(PCDC)
Download firmware, associated files (such as AOP, EDS, and DTM), and access product
release notes.
rok.auto/pcdc
Documentation Feedback
Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the
form at rok.auto/docfeedback
.
Allen-Bradley, ArmorView, CompactLogix, ControlLogix, expanding hu
Rockwell Automation, Inc.
EtherNet/IP is a trademark of ODVA, Inc.
Microsoft is a trademark of Microsoft Corporation.
SD and SDHC are trademarks of SD-3C LLC.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec.
ckw
ell Otomasyon Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752, İçerenköy, İstanbul, Tel: +90 (216) 5698400 EEE Yönetmeliğine Uygundur
Ro
Publication 2711P-TD009K-EN-P - February 2021
Supersedes Publication 2711P-TD009J-EN-P - October 20 20 Copyright © 2021 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
man possibility, FactoryTalk, PanelBuilder, PanelView, Pico, Rockwell Automation, and RSLinx are trademarks of
Loading...
