Installation Instructions
MP-Series Low-inertia Servo Motor with
215 mm or Larger Frame Size
Catalog Numbers
Topi c Page
Important User Information 2
Catalog Number Explanation 3
About the MP-Series Low-inertia Motors 4
Before You Begin 4
Install the Motor 8
ATEX Installations 13
Product Dimensions 14

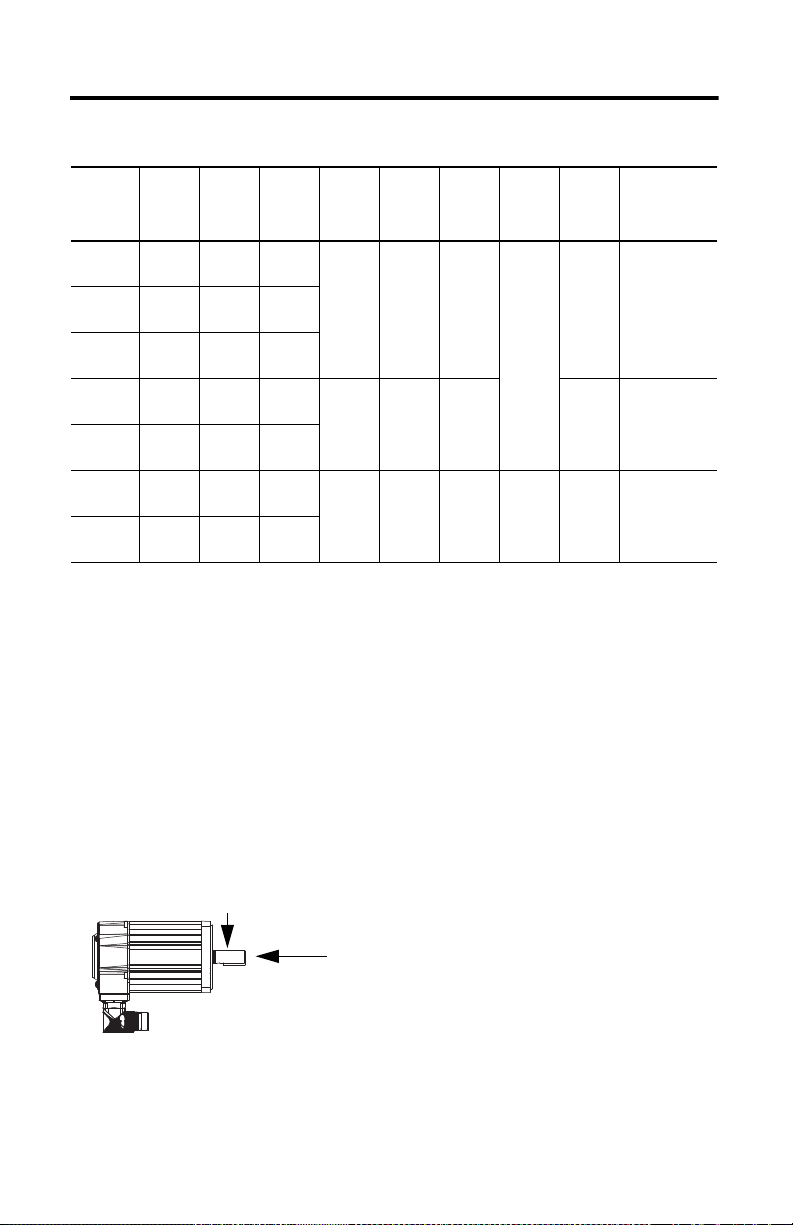

Motor Load Force Ratings 16

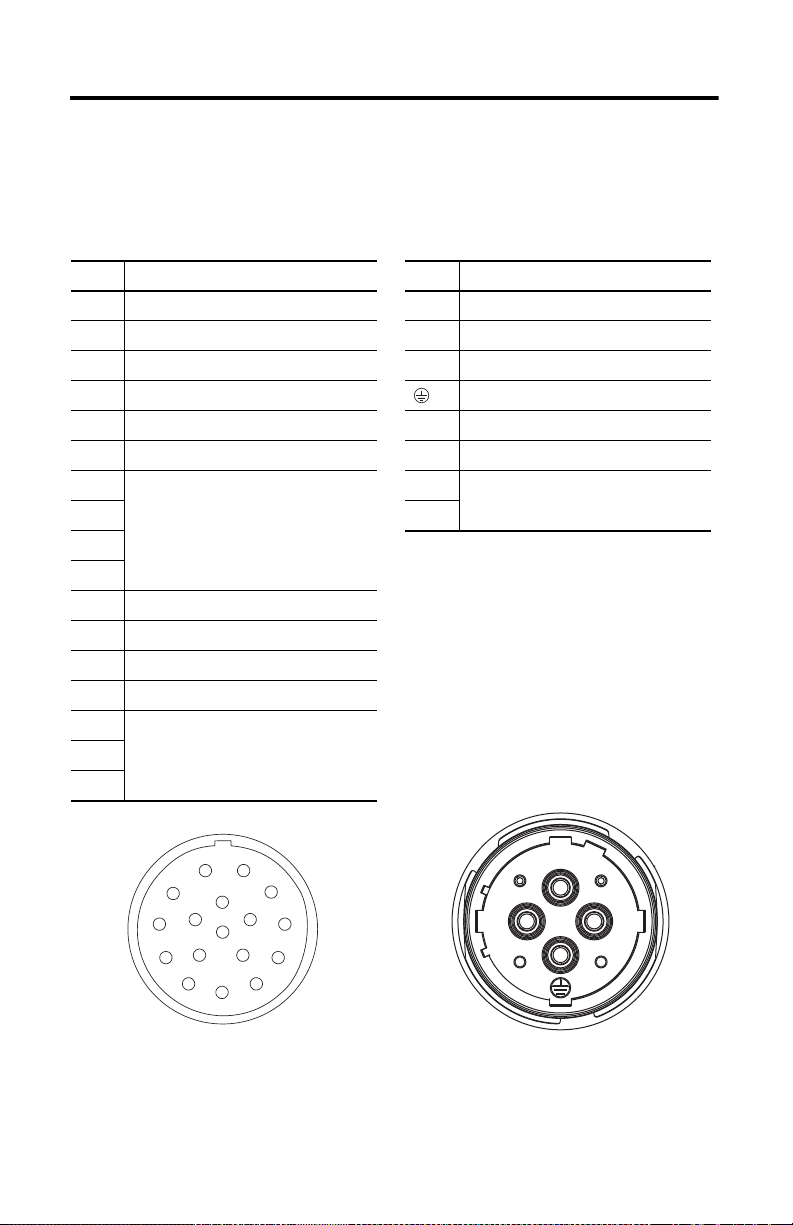

Connector Data 18
Remove and Install a Shaft Key 19
Motor Cables and Accessory Kits 20
Specifications 21
Additional Resources 22
MPL-B640, MPL-B660, MPL-B680, MPL-B860, MPL-B880, MPL-B960, MPL-B980
2 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
IMPORTANT
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and operation of
this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with
installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be
carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or
application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requi rements associ ated wit h any pa rticu lar ins tallat ion, Roc kwell Au tomati on, Inc. cannot assume respon sibili ty or li abilit y for actual
use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNIN G: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death,
property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the
consequence.
Identifies information that is critical for successful application and understanding of the product.
Labels may also be on or inside the equipment to provide specific precautions.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
dangerous voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
surfaces may reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for exampl e, a motor control center, to alert
people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective
Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective
Equipment (PPE).
Rockwell Automation Publication MP-IN002D-EN-P - January
Catalog Number Explanation
MP L -B x80x-
x x x x
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 3
A
x
Factory Designated Options
A=Standard
H = ATEX protection rating of Group II, Zone 2
Mounting Flange
A = IEC metric
Brake
2=No brake
4=24V DC brake
Connectors
2 = Bayonet, right angle, 180° rotatable
7 = Circular DIN, right angle, 180° rotatable
Enclosure/Shaft Key/Shaft Seal
J=Shaft key
K=No shaft key
Feedback
M = Multi-turn high-resolution encoder
S = Single-turn high-resolution encoder
Rated Speed
A= 500rpm
B = 1000 rpm
C = 1500 rpm
D = 2000 rpm
E = 2500rpm
F = 3000 rpm
G = 3250 rpm
H = 3500 rpm
J = 3750 rpm
K = 4000 rpm
Magnet Stack Length (80 = 8.0 in.)
Frame Size (IEC 72-1 flange nu mber)
6 = 215 mm
8 = 265 mm
9 = 300 mm
Voltage Class
B = 400V
Series Type
L = Low inertia
Series
MP = Premium permanent magnet
rotary servo motor
Rockwell Automation Publication MP-IN002D-EN-P - January
4 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
The cable enters beneath the
motor and forms a drip loop.
The cable enters above the
motor and does not form a
drip loop.
About the MP-Series Low-inertia Motors
MP-Series™ low-inertia (Bulletin MPL) motors feature single-turn or multi-turn high resolution
encoders, and are available with 24V DC brakes. These compact brushless servo motors meet the
demanding requirements of high-performance motion systems.
Before You Begin
Remove all packing material, wedges, and braces from within and around the item. After
unpacking, verify the nameplate catalog number against the purchase order.
1. Remove the motor carefully from its shipping container.
2. Visually inspect the motor for any damage.
3. Examine the motor frame, front output shaft, and mounting pilot for any defects.
4. Notify the carrier of any shipping damage immediately.
Keep the original packing material in case you need to return the product for repair or transport
it to another location. Use both the inner and outer packing cartons to provide adequate
protection for a unit returned for service.
ATT EN TI ON : Do not attempt to open or modify this motor beyond changing the connector orientation as
described on Change Connector Orientation on page 9.
Only an authorized Allen-Bradley repair center can service this item. Refer to Rockwell Automation Support for
assistance to locate the nearest repair center.
Store or operate your motor in a clean and dry location within the environmental conditions
listed in Specifications
on page 21.
To Prolong Motor Life
Proper design and maintenance can increase the life of a servo motor. Follow these guidelines to
maximize the life of a servo motor within your environment:
• Always provide a drip loop in each cable to carry liquids away from the connection to the
motor.
• If possible, provide shields that protect the motor housing, shaft seals, and their
junctions from contamination by foreign matter or fluids.
Rockwell Automation Publication MP-IN002D-EN-P - January
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 5
IMPORTANT
• Shaft seals are subject to wear and require periodic inspection and replacement.
Replacement is recommended every 3 months, not to exceed 12 months, depending on
use. Refer to Shaft Seal Kits on page 20 for more information on shaft seals.
• Inspect the motor and seals for damage or wear on a regular basis. If damage or excessive
wear is observed, replace the item.
• The brake option on this servo motor is a spring-set holding brake that releases when
voltage is applied to the brake coil. A separate power source is required to disengage the
brake. This power source can be applied by a servo motor controller or manual operator
control.
If system main power fails, holding brakes can withstand occasional use as stopping
brakes. However, this creates rotational mechanical backlash that can cause damage to
the system, increase brake wear, and reduce brake life.
Holding brakes are not designed to stop rotation of the motor shaf t, and they are not intended to be used as a
safety device. They are designed to hold a motor shaft at 0 rpm for up to the rated brake holding torque.
Follow these steps to prevent motor shaft rotation.
1. Command the servo drive to 0 rpm.
2. Verify the motor is at 0 rpm.
3. Engage the brake.
4. Disable the drive.
Disabling the drive removes the potential for brake wear caused by a badly-tuned servo system oscillating
the shaft.
Using Shaft Seals
An additional seal is required on the motor shaft near the motor front bearing if the shaft is
exposed to fluids or significant amounts of fine dust. This includes lubricating oil from a
gearbox. An IP66 rating for the motor requires the use of a shaft seal and environmentally sealed
connectors/cables. The additional seal is not recommended in applications where the motor
shaft area is free of liquids or fine dust, and a lower rating is sufficient:
• Refer toSpecifications on page 21 for a brief description of the IP rating for these
MP-Series motors.
• Refer toShaft Seal Kits on page 20 to find the catalog numbers of seal kits available for
your motor.
• Refer to Kinetix® Motion Accessories Specifications, publication GMC-TD004, to find
environmentally sealed connectors and cables compatible with the MP-Series motors.
Rockwell Automation Publication MP-IN002D-EN-P - January
6 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
Using Couplings and Pulleys
Mechanical connections to the motor shaft, such as couplings and pulleys, require a torsionally
rigid coupling or a reinforced timing belt. The high dynamic performance of servo motors can
cause couplings, pulleys, or belts to loosen or slip over time. A loose or slipping connection can
cause system instability and damage the motor shaft. All connections between the system and the
servo motor shaft must be rigid to achieve acceptable response from the system. Periodically
inspect connections to verify their rigidity.
When mounting couplings or pulleys to the motor shaft, be sure that the connections are
properly aligned and that axial and radial loads are within the specifications of the motor. Refer
to Shaft Seal Kits
on page 20 for guidelines to achieve 20,000 hours of motor bearing life.
ATT EN TI ON : Damage can occur to the motor bearings and the feedback device if sharp impact to the shaft is
applied during installation of couplings and pulleys. Damage to the feedback device can result by applying
leverage from the motor mounting face to remove devices mounted on the motor shaft.
Do not strike the shaft, couplings, or pulleys with tools during installation or removal. Use a wheel puller
applying pressure from the user end of the shaft to remove any friction-fit or stuck device from the motor shaft.
Preventing Electrical Noise
Electromagnetic interference (EMI), commonly called noise, can adversely impact motor
performance by inducing stray signals.
Follow these guidelines to prevent the effects of EMI:
• Isolate the power transformers, or install line filters on all AC input power lines.
• Separate signal cables from motor cabling and power wiring. Do not route signal cables
with motor and power wires, or over the vent openings of servo drives.
• Ground all equipment by using a single-point parallel ground system that employs
ground bus bars or large straps. If necessary, use additional electrical noise reduction
techniques to reduce EMI in noisy environments.
Refer to System Design for Control of Electrical Noise Reference Manual, publication
GMC-RM001
system level electromagnetic compatibility (EMC).
, for additional information on reducing the effects of EMI by improving the
Rockwell Automation Publication MP-IN002D-EN-P - January
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 7
Build and Install the Cables
Correct cable routing and careful cable construction improves system electromagnetic
compatibility (EMC).
Follow these guidelines to build and install the cables:
• Keep the wire lengths as short as possible.
• Route noise sensitive wiring (encoder, serial, and I/O) away from input power and motor
power wiring.
• Separate cables by 0.3 m (1 ft) minimum for every 9 m (30 ft) of parallel run.
• Ground both ends of the encoder cable shield and twist the signal wire pairs to prevent
EMI from other equipment.
ATT ENT IO N: High voltage can be present on the shield of a power cable, if the shield is not grounded.
Verify that there is a connection to ground for any power cable shield.
ATTENTION: MP-Series motors produce leakage current in the protective earthing conductor that exceeds
3.5 mA AC and/or 10 mA DC.
Be sure to properly ground the motor cables per the drive installation instructions.
Ground Shielded Signal Wires within a Power Cable
Always connect the shield on any signal wire pair routed inside a power cable to the overall
machine ground.
If you are installing a 2090-XXNPMF-xxSxx or 2090-CPBM4DF-xxAFxx power with brake
cable, loop the signal wire pairs to the overall cable shield as shown in Grounding of Signal Wire
Shields in a Power Cable on page 8. Then clamp all of the shields together in the power cable
(chassis) ground connection on the drive.
Rockwell Automation Publication MP-IN002D-EN-P - January
8 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
Shielded Signal Wires (two pairs) within Power Cable
Overall Power Cable Shield
Sign al Wire Sh ield (o ne of two ) Contac ts Over all Power
Cable Shield
Factory Supplied
Field Modified
All power and signal wire shields must connect to machine ground.
The diagram shows one of the two signal wires in the correct
position. Connect both signal wire shields and the overall power
cable shield to machine ground.
2090-XXNPMF-xxSxx (shown) contains two signal wire pairs.
2090-CPBM4DF-xxAFxx contains one signal wire pair.
Grounding of Signal Wire Shields in a Power Cable
The signal wire pairs within a power cable often carry a 24V DC brake signal, but can also carry
logic signals. Grounding the shield that surrounds the signal wires dissipates an induced voltage
and reduces the effects of EMI.
Install the Motor
MP-Series motors include a mounting pilot for aligning the motor on the machine. Preferred
fasteners are hardened steel. The installation must comply with all local regulations and use
equipment and installation practices that promote safety and electromagnetic compatibility.
ATTENTION: Unmounted motors, disconnected mechanical couplings, loose shaft keys, and disconnected
cables are dangerous if power is applied.
Rockwell Automation Publication MP-IN002D-EN-P - January
Lock-out and tag-out disassembled equipment (restrict electrical power).
Before applying power to the motor, remove the shaft key and other mechanical couplings that can be thrown
from the shaft.
ATTENTION: Make sure that cables are installed and restrained to prevent uneven tension or flexing at the
cable connections.
Excessive and uneven lateral force on the cable can inhibit environmental sealing as the cable flexes.
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 9
Change Connector Orientation
You can rotate the connector housings up to 180°.
• The M23 feedback connector and the M40 power/brake connector are rotatable.
• The M58 power/brake connector, on MPL-B8xx and MPL-B9xx motors with higher
current requirements, must be removed and repositioned in 90° increments.
This lets you rotate the connector into a position that best protects the connection from possible
environmental contaminates while providing cable access.
ATTENTION: Connectors are designed to be rotated into a fixed position during motor installation, and remain
in that position without further adjustment. Do not rotate the connector multiple times, and do not use tools or
excessive force to rotate the connector. Excessive rotation or force can damage the connector seal and reduce
the international protection (IP) rating of the motor as outlined in Specifications
Rotate the M23 Feedback or M40 Power/Brake Circular DIN Connector
Follow these steps to rotate an M23 feedback or a M40 power/brake connector.
1. Mount and fully seat a mating cable on either the feedback or power/brake connector.
2. Grasp the mated connector and cable plug with your hands and slowly rotate them to the
outside of the motor.
ATTENTION: Apply force to only the motor connector and cable plug. Do not apply force to the cable
extending from the cable plug. Do not use tools (for example, pliers and vise-grips) to rotate the connector.
on page 21.
Rotate the M58 Power/Brake Circular DIN Connector
Follow these steps to rotate a M58 power/brake DIN connector.
1. Remove the four 10-32 x 5/8 locking screws from the connector housing.
2. Rotate the connector housing 90° or 180°.
If binding of the wire bundles prevents rotation of the connector, follow these steps to
access the internal motor wiring.
a. Remove the four screws from the rear cover of the motor.
b. Carefully reposition the wires around the perimeter of the motor feedback device
under the rear cover.
c. Verify that wires are not close to any rotating parts.
d. Verify that the gaskets and all of the wires are positioned correctly.
e. Replace the rear cover.
3. Torque the locking screws to 6.8 N•m (60 lb•in).
Rockwell Automation Publication MP-IN002D-EN-P - January
10 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
Mount the Motor
Follow these steps to mount the motor.
ATT EN TI ON : Damage can occur to the motor bearings and the feedback device if sharp impact to the shaft is
applied during installation of couplings and pulleys.
Do not strike the shaft, couplings, or pulleys with tools during installation or removal.
1. Provide sufficient clearance, heatsink mass, and air flow for the motor so it stays within
the operating temperature range of 0…40 °C (32…104 °F).
Do not enclose the motor unless cooling air is forced across the motor, and keep other
heat producing devices away from the motor. Heatsink requirements are listed in a
footnote to the Specifications
ATTENTION: Outer surfaces of the motor can reach high temperatures of 125 °C (275 °F) during
operation.
Take precautions to prevent accidental contact with hot surfaces. Consider motor surface
temperature when selecting connections and cables to install on a motor.
2. Verify the axial and radial shaft loads of your application do not exceed those listed in the
Motor Load Force Ratings on page 16.
3. Position the motor on the machine with its connectors pointing downward.
4. Insert and hand-tighten the fasteners in each of the four mounting holes in the motor
faceplate.
5. The mounting hole diameter is specified in the Product Dimensions
6. Align the motor on the machine by using the mounting pilot hole to verify the correct
alignment.
7. Tighten the fasteners within the recommended torque range.
Cat. No. Torque Range
MPL-B6xx, and MPL-B8xx 8…20 N•m (70…180 lb•in)
MPL-B9xx 17…45 N•m (150…400 lb•in)
on page 21 table.
on page 14 table.
8. Rotate the shaft for electrical phasing and encoder alignment.
The index pulse occurs on a single-turn encoder when the shaft key is aligned with the
connectors. Refer to Product Dimensions
on page 14 for a visual reference of this
alignment.
Rockwell Automation Publication MP-IN002D-EN-P - January
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 11

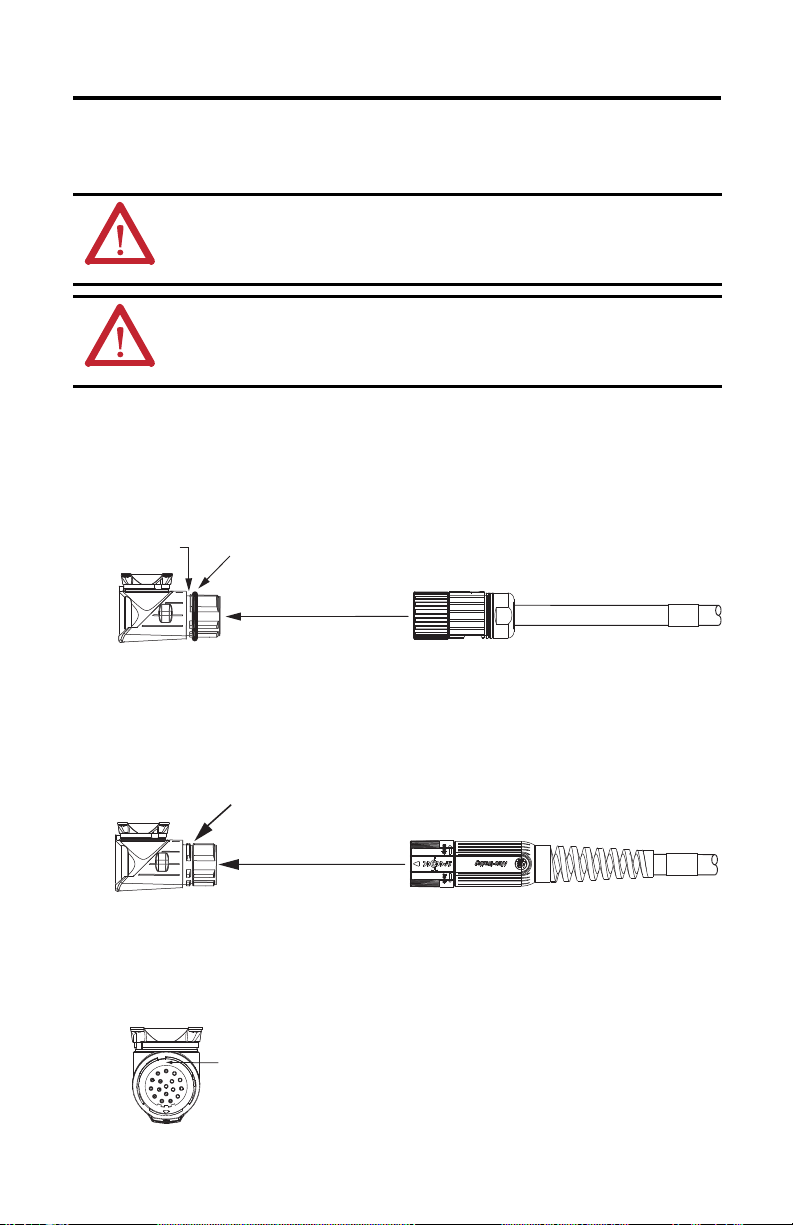

SpeedTec-ready DIN
Motor Connector
Do not install the O-ring on the SpeedTec-ready DIN motor connector
when you are using the SpeedTec DIN (M7) cable plugs.
SpeedTec DIN (M7) Cable Plug
Threaded DIN (M4) Cable Plug
• 2090-CFBM7Dx-xxAxxx standard and
continuous-flex feedback cables.
• 2090-CPxM7DF-xxAxxx standard and
continuous-flex power/brake cables.
• 2090-XXNxMF-Sxx standard feedback
and power cables.
• 2090-CxxM4DF-xxAFxx continuous-flex
feedback, power, and power/brake cables.
Install the O-ring on the SpeedTec-ready DIN motor connector when
you are using the threaded DIN (M4) cable plugs.
Verify that the O-ring is not damaged, not twisted, and rests in the
groove near the rear of the connector.
SpeedTec-ready DIN
Motor Connectors
Groove Reserved
for Cable Plug
Backshell Seal Inside
Feedback and
Power/Brake Connector
Housing
Attach the Motor Cables
Follow these steps to attach the feedback and power/brake cables after the motor is mounted.
ATTENTION: Servo drive power must be turned off before connecting or disconnecting the cables to the motor, and
if a cable is left disconnected at the motor end.
Arcing or unexpected motion can occur if the feedback, power, or brake cables are connected or disconnected while
power is applied to the servo drive.
ATTENTION: Be sure that cables are installed and restrained to prevent uneven tension or flexing at the cable
connectors. Provide support at 3 m (10 ft) intervals throughout the cable run.
Excessive and uneven lateral force at the cable connectors can result in the connector’s environmental seal opening
and closing as the cable flexes, or wires separating at the cable gland.
1. Verify the seal and O-rings are installed as shown in the diagram.
An O-ring on the feedback connector, and a backshell seal on the feedback and
power/brake connector, is necessary to achieve the maximum environmental rating.
• A backshell seal covers the joint inside the feedback and
power/brake housings. It seals the joint between the
backshell and the housing of the connector.
• Verify that the backshell seal is not damaged, and it is
fully seated against the face of the backshell.
Rockwell Automation Publication MP-IN002D-EN-P - January
12 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
IMPORTANT
TIP
Flat Surface with
Logo on Top
Feedback Plug Options
Tab on
Side
Power Plug Options
Top of connector is
relative to motor
orientation.
Flat Surface with
Logo o n Top
Tab on
Top
Connector plugs have either a tab or a flat surface with a logo to indicate the alignment point.
2. Form a drip loop in the cable (see page 4
).
3. Carefully align the flat surface on the feedback or the power/brake cable plug (shown in
the diagram) with the flat surface on the motor connector.
The motor orientation shown is used to clearly show the alignment marker on each cable socket.
The recommended motor orientation when installed positions the connectors at the bottom of the motor.
4. Hand tighten the collar on the plug to fully seat it on the connector:
• Threaded DIN (M4) cable plugs require five to six revolutions.
• SpeedTec DIN (M7) cable plugs require approximately one-quarter of a revolution.
A fully-seated threaded plug leaves a small opening, approximately 1…4 mm (0.04…0.16 in.),
between the connector and the plug.
Do not apply excessive force when mating the cable plug with the motor connector. If the plug
and connector do not go together with light hand force, realign the flat surfaces and try again.
ATT EN TI ON : Align the keyed connectors and hand-tighten the recommended number of turns.
If you cannot tighten the connectors by hand, verify that the keyed connectors are properly aligned. Do not use
tools (for example, pliers and vise-grips) to tighten the connectors.
Rockwell Automation Publication MP-IN002D-EN-P - January
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 13
ATEX Installations
If your motor has an ATEX rating for hazardous environments, complete the following step. The
catalog number on ATEX motor nameplates ends with H, for example MPL-xxxxx-xxxxH.
Verify the continuity and functionality of the thermal switch signals, TS+ and TS-, transmitted
through the feedback cable that connects the motor to its controlling drive.
ATTENTION: It is mandatory that the motion system monitor the thermal switch signals from a motor
requiring an ATEX rating.
The intrinsic safety protection concepts in the ATEX Direction 94/9/EC must be enabled by connecting the
thermal switch signals from the motor to the motion control system.
Rockwell Automation Publication MP-IN002D-EN-P - January
14 MP-Series Low-inertia Ser vo Motor with 215 mm or Larger Frame Size
S (diameter of holes)
M (diameter of bolt circle)
(Pilot Diameter)
M40 Power/Brake
Connec tor
M23 Feedback
Connector
M58 Power/Brake
Connector
M23 Feedback
Connector
Shaft End Hole
Thread and Depth
Tooling Cut Only for
MPL-B6xx (see closeup)
Shaft Key
MPL-B6xx = 10 x 8 x 59 mm (0.394 x 0.315 x 2.32 in.)
MPL-B8xx = 12 x 8 x 79 mm (0.472 x 0.354 x 3.11 in.)
MPL-B9xx = 14 x 9 x 79 mm (0.551 x 0.354 x 3.11 in.)
Ø 108 (4.25)
Only MPL-B6xx
MPL-B6xx
Tooling Cut
MPL-B6xx Flush [± 0.84 (0.033 in.)]
with 3.86 mm (0.152 in.) Pilot Surface.
MPL-B8xx and MPL-B9xx Flush [± 0.84 (0.033 in.)]
with 3.73 mm (0.147 in.) Mounting Surf ace.
3.73 mm (0.147 in.) Mount ing Surface
Only MPL-B8xx and MPL-B9xx
MPL-B6xx
Ø 39.90 ±.05 mm
(1.57 ± 0.002 in.)
MPL-B8xx
Ø 44.91 ±.05 mm
(1.768 ± 0.002 in.)
MPL-B9xx
Ø 51.89 ±.07 mm
(2.043 ± 0.003 in.)
3.86 mm (0.152 in.)
Only MPL-B6xx
M58 Power/Brake Connector on
MPL-B8xx-xx7xAA and MPL-B9xx-xx7xAA
with Higher Current Requirements
M40 Power/Brake Connector on
MPL-B6xx-xx7xAA, MPL-B8xx-xx7xAA, and
MPL-B9xx-xx7xAA
3.86 (0.152) Tooling Cut Only for MPL-B6xx
N
P
F
GE
AB
AB
D
T
LA
L-LB
L
LB
HD
Product Dimensions
This section provides dimensions for the motors.
Rockwell Automation Publication MP-IN002D-EN -P - January
LE
LE
LD
AD
AD
HD
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 15
TIP
The dimensions in the table are for non-brake motors with a single-turn or multi-turn encoder.
Footnotes provide tolerances for the common dimensions, and the additional dimensions for the
brake motors.
Dimensions
Motor
Cat. No.
AB
mm (in.)
MPL-B640
MPL-B660
93.8
(3.69)
MPL-B680
MPL-B860
MPL-B880
MPL-B960
MPL-B80
(1) These measurements are for a MPL-Bxxx motor with an M58 power/brake connector. On a MPL-B8xx motor with an M40 power/brake connector
the measurement is 93.6 mm (3.68 in.). On a MPL-B9xx motor with an M40 power/brake connector the measurement is 93.8 mm (3.69 in.).
(2) These measurements are for a MPL-Bxxx motor with an M58 power/brake connector. On a MPL-B8xx motor with an M40 power/brake connector
the measurement is 179.0 mm (7.05 in.). On a MPL-B9xx motor with an M40 power/brake connector the measurement is 205.35 mm (8.08 in.).
(3) Tolerance for this dimension is +0. 016 mm (+0.0006 in.).
(4) Tolerance for this dimension is : MPL-B6xx -0.036 mm (-0.0014in.);MPL-B8xx -0.043 mm (-0.0016 in.); and MPL-B9xx -0.43 mm (-0.0017 in.).
(5) Tolerance for the dimension is M PL-B6xx -0.2 mm (-0.008in.) MPL-B8xx -0.2 mm (-0.008 in.); MPL-B9xx -0.2 mm (-0.007 in.).
(6) These measurements are for a MPL-Bxxx motor with an M58 power/brake connector. On a MPL-B8xx motor with an M40 power/brake connector
the measurement is 296.5 mm (11.67 in.). On a MPL-B9xx motor with an M40 power/brake connector the measurement is 328.2 mm (12.92 in.).
(7) If orderi ng an MPL-xxxx motor with a brake add: 108.0mm (4.25 in.) to the MPL-B6xx dimension, 107.9 mm (4.26 in.) to the MPL-B8xx dimension;
and 127.0 mm (5.0 in.) to the MPL-B9xx dimension.
(8) Tolerance for this dimensi on is ±0.7 mm (±.028 in.).
127.0
(5.0)
131.2
(5.16)
(3)
AD
mm (in.)
154.0
(6.06)
(1)
189.5
(7.46)
205.35
(1)
(2)
(8.09)
D
mm (in.)
38.002
(1.4961)
(2)
42.002
(1.6536)
48.002
(1.8899)
(4)
F
mm (in.)
10.0
(0.3937)
12.0
(0.4724)
14.0
(0.5512)
(5)
GE
HD
mm (in.)
mm (in.)
246.5
(9.70)
5.20
(0.205)
307.1
(12.09)
5.70
(0.224)
338.8
(16.18)
(7), (8)
L
mm (in.)
303.8
(11.96)
354.6
(13.96)
(8)
L-LB
mm (in.)
80.0
(3.150)
LA
mm (in.)
17.8
(0.70)
405.4
(15.96)
394.4
(15.531)
(6)
445.2
(17.531)
403.3
(15.881)
(6)
454.1
(17.881)
110.0
(4.331)
20.3
(0.80)
22.9
(0.90)
These motors are designed to metric dimensions. Inch dimensions are mathematical conversions.
Rockwell Automation Publication MP-IN002D-EN-P - January
16 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
Axial Load Force
Radial load force applied at center of shaft extension.
Dimensions (continued)
Motor
Cat. No.
MPL-B640
MPL-B660
MPL-B680
MPL-B860
MPL-B880
MPL-B960
MPL-B980
(1) For motors with a brake, for example MPL-Bxxx-xxx4AA, add to MPL-B6xx dimensions LB, LD. and LE: 108.0 mm (4.25 in.); to MPL-B8xx
dimensions LB, LD. and LE:107.9mm (4.2 6 in.); and to MPL-B9xx dimensions LB, LD 127.0 mm (5.0 in.).
(2) Tolerance for the dimension is MPL-B6xx +0.014, -0.011 mm, (+0.0005, -0.0005 in.); MPL-B8xx +0.016, -0.013 mm, (+0.0006, -0.0005 in.);
MPL-B9xx +0.016, -0.013 mm, (+0.0005, -0.0006 in.).
(3) Tolerance for the dimension is MPL-B6xx + 0.43 mm (±0.008 in.); MPL-B8xx and MPL-B9xx +0.52 mm (±0.010 in.).
(1)
LB
mm (in.)
223.8
(8.81)
274.6
(10.81)
325.4
(12.81)
284.4
(17.45)
335.2
(13.20)
293.3
(11.55)
344.1
(13.55)
(1)
LD
mm (in.)
183.6
(7.23)
234.4
(9.23)
285.2
(11.23)
242.6
(9.55)
293.4
(11.55)
248.9
(9.80)
299.7
(11.80)
(1)
LE
mm (in.) Mmm (in.)
112.5
(3.15)
163.3
(6.43)
214.1
(8.43)
171.4
(6.75)
222.2
(8.75)
177.9
(7.0)
228.7
(9.0)
215.0
(8.465)
265.0
(10.433)
300.0
(11.811)
(2)
N
mm (in.)
180.0
(7.0867)
230.0
(9.0551)
250.0
(9.8426)
P
mm (in.)
184.9
(7.28)
230.0
(9.25)
266.7
(10.50)
(3)
S
mm (in.)
14.50
(0.579)
18.50
(0.738)
T
mm (in.)
3.73
(0.147)
3.86
(0.152)
4.88
(0.192)
Shaft End
Threaded Hole
mm (in.)
M12 x 1.75- 6H
thread depth
28 (1.10)
M16 x 2- 6H
thread depth
36 (1.42)
M16 x 2- 6H
thread depth
36 (1.42)
Motor Load Force Ratings
Motors are capable of operating with a sustained shaft load. The load force locations are shown
in the figure and maximum values are in the tables.
Loads are measured in kilograms; pounds are mathematical conversions.
Load Forces on Shaft
The following tables represent 20,000 hour L10 bearing fatigue life at various loads and speeds.
This 20,000 hour life does not account for possible application-specific life reduction that can
occur due to bearing grease contamination from external sources.
Rockwell Automation Publication MP-IN002D-EN-P - January
Radial Load Force Ratings
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 17
Motor Cat. No. 500 rpm
kg (lb)
MPL-B640 253 (557) 200 (442) — 159 (351) 139 (307)
MPL-B660 275 (607) 219 (482) — 173 (382) 151 (334)
MPL-B680 291 (641) 230 (508) — 183 (404) 160 (353)
MPL-B860 347 (764) 275 (607 — 219 (481) —
MPL-B880 367 (810) 292 (643 — 231 (510) —
MPL-B960 466 (1028) 370 (816) 323 (713) — —
MPL-B980 494 (1089) 392 (864) 352 (775) — —
1000 rpm
kg (lb)
1500 rpm
kg (lb)
2000 rpm
kg (lb)
3000 rpm
kg (lb)
Axial Load Force Ratings (maximum radial load)
Motor Cat. No. 500 rpm
kg (lb)
MPL-B640 89 (197) 66 (146) — 48 (107) 41 (90)
MPL-B660 98 (217) 72 (159) — 54 (118) 45 (99)
MPL-B680 104 (230) 77 (169) — 5 7 (125) 47 (104)
MPL-B860 145 (320) 107 (237) — 79 (175) —
MPL-B880 153 (338) 113 (250) — 84 (185) —
MPL-B960 142 (314) 105 (232) 88 (194) — —
MPL-B980 153 (338) 113 (249) 94 (207) — —
1000 rpm
kg (lb)
1500 rpm
kg (lb)
2000 rpm
kg (lb)
3000 rpm
kg (lb)
Axial Load Force Ratings (zero radial load)
Motor Cat. No. 500 rpm
kg (lb)
MPL-B640 136 (300) 99 (219) — 7 4 (163) 62 (137)
MPL-B660 136 (300) 99 (219) — 7 4 (163) 62 (137)
MPL-B680 136 (300) 99 (219 — 74 (163) 62 (137)
MPL-B860 201 (443) 147 (323) — 110 (242) —
MPL-B880 201 (443) 147 (323) — 110 (242) —
MPL-B960 215 (473) 159 (350) 133 (293) — —
MPL-B980 215 (473) 159 (350) 133 (293) — —
1000 rpm
kg (lb)
1500 rpm
kg (lb)
2000 rpm
kg (lb)
3000 rpm
kg (lb)
Rockwell Automation Publication MP-IN002D-EN-P - January
18 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
1
2
3
4
5
6
7
8
9
10
11
12
13
14
17
15
16
Connector Data
This table provides the signal descriptions for the feedback, power, and brake pinouts on the
connectors.
M23 Feedback and M40 or M58 Power/Brake Pin Descriptions
Pin MP L-B6xx, MPL-B8xx, and MPL-B9xx Pin MPL-B6xx, MPL-B8xx, and MPL-B9xx
1Sin+ UPhase U
2Sin- VPhase V
3Cos+ WPhase W
4 Cos- Ground
5Data+ +BR+
6Data- -BR-
7
82
Reserved
9
10
11 +9V DC
12 Common
13 TS+
14 TS-
15
Reserved 16
17
M23 Feedback Connector
1
Reserved
M40/M58 Power/Brake Connector
Rockwell Automation Publication MP-IN002D-EN-P - January
V
-
+
UW
12
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 19
Radius Cut at
the End of the
Keyway
Key Aligns at
End of Shaft
Support Fixture
for Shaft
Apply a constant force
evenly across the top of the key.
Remove and Install a Shaft Key
Shaft keys are constructed of steel. The specified tolerance provides an interference fit (slightly
larger than the opening) for a secure and rigid connection.
ATTENTION: Do not strike the motor’s shaft, couplings, or pulleys with tools during installation or removal of the
shaft key.
Damage can occur to the motor bearings and the feedback device if a sharp impact is applied to the shaft during
installation of couplings and pulleys, or to remove the shaft key, or if leverage is applied from the motor mounting
face to remove devices mounted on t he motor shaft.
Apply a constant pressure, with a wheel puller, to the user end of the shaft to remove a friction fit or stuck device.
To remove a shaft key, perform one of these actions:
• Lift the key by grasping it with a pliers or similar tool.
• Lever the key with a screwdriver inserted between the key and the slot.
To install a shaft key, follow these steps.
1. Verify the replacement key matches the keyway in the shaft and the mating mechanical
connection (for example, a coupling or pulley) before proceeding.
2. Align the front of the key with the front of the motor shaft.
This prevents the radiused end-of-cut at the motor end of the keyway from interfering
with correct seating of the key.
Support the underside of the shaft diameter with a fixture, and use a controlled press device to
apply a constant force across the top surface to press the key into the shaft.
Rockwell Automation Publication MP-IN002D-EN-P - January
20 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
IMPORTANT
Motor Cables and Accessory Kits
This section describes accessories that are available for MP-Series low-inertia motors.
Motor Cables
Factory manufactured feedback and power cables are available in standard cable lengths. They
provide the sealing needed to achieve environmental ratings and shield termination.
For a complete listing of available cables, contact your nearest Rockwell Automation sales office
or refer to the Kinetix Motion Accessories Specifications Technical Data, publication
GMC-TD004
Shaft Seal Kits
A shaft seal is a barrier that can prevent moisture and particles from entering the motor bearings.
Shaft seals are subject to wear and require periodic inspection and replacement. Replacement is
recommended every 3 months, not to exceed 12 months, depending on use.
Catalog numbers for the motors and corresponding replacement Nitrile shaft seal kits are listed
in the table.
Motor Cat. No. Shaft Seal Kit Cat. No.
MPL-B640, MPL-B660, MPL-B680 MPL-SST-A6B6
MPL-B860, MPL-B880 MPL-SST-A8B8
MPL-B960, MPL-B980 MPL-SST-A9B9
.
Shaft seals must be lubricated. Lubricant is supplied with the shaft seal kits.
Third-party shaft seals are not approved for use with these motors. The use of third-party shaft seals voids any
implied or expressed warranties.
For instructions on how to install a shaft seal, refer to the Shaft Seal Kit Installation Instructions,
publication 2090-IN012
Rockwell Automation Publication MP-IN002D-EN-P - January
.
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 21
Specifications
Attribute Value
(3)
Temperature, operating 0…40 °C (32…104 °F)
Temperature, storage -30…70 °C (-22…158 °F)
Relative humidity, storage 5…95% noncondensing
Atmosphere, storage Noncorrosive
(1)
IP Rating
Motor with a shaft seal
(2)
IP66 - dust tight, powerful water jets
Motor without a shaft seal, and mounted in this direction:
Shaft down
Shaft horizontal
Shaft up
(1) The mo tors are dual rated with international protection co des (IP ratings) for environmental protection.
The motor rating excludes any reduction in the rating resulting from cables or their plugs with a lower rating.
(2) Re fer to Shaft Seal Kits
(3) To obtain this thermal rating, follow these mounting guidelines:
- Mount the MP-B6xx motors on a surface with heat dissipation equivalent to a 304.8 x 304.8 x 12.7 mm (12 x 12 x 0.5 in.) aluminum heatsink.
- Mount the MP-B8xx and MP-B9xx motors on a surface with heat dissipation equivalent to a 533 x 533 x 25.4 mm (21 x 21 x 1 in.) aluminum
heatsink.
(4) International protection code (IP66) is roughly equivalent to a NEMA 35 (dust tight, drip tight).
on page 20 for the recommended replacement interval an d installation instructions.
IP53 - dust tight, powerful water jets
IP51 - dust tight, water dripping vertically
IP50 - dust tight, no protection from water
(4)
Rockwell Automation Publication MP-IN002D-EN-P - January
22 MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size
Additional Resources
These documents contain additional information concerning related products from Rockwell
Automation.
Resource Description
Kinetix 5500 Servo Drives User Manual, publication 2198-UM001
Kinetix 6200 and Kinetix 6500 Modular Servo Drives User Manual,
publication 2094-UM002
Kinetix 6000 Multi-axis Servo Drive User Manual, publication
2094-UM001
Kinetix 300 EtherNet/IP Indexing Servo Drives User Manual, publication
2097-UM001
Kinetix 350 Single-axis EtherNet/IP Ser vo Drives User Manual,
publication 2097-UM002
Kinetix Motion Control Selection Guide, publication GMC-SG001
Kinetix Rotary Motion Specifications Technical Data, publication
GMC-TD001
Kinetix Motion Accessories Specifications, publication GMC-TD004
Shaft-seal Kit Installation Instructions, publication 2090-IN012
Allen-Bradley Industrial Automation Glossary, publication AG-7.1
System Design for Control of Electrical Noise Reference Manual,
publication GMC-RM001
Rockwell Automation Product Certification website
http://www.rockwellautomation.com/products/certification/
Provides information on installing, configuring,
startup, troubleshooting, and applications for your
Kinetix servo drive system.
Specifications, motor/servo- drive system
combinations, and accessories for Kinetix motion
control products.
Provides product specifications for MP-Series (Bulletin
MPL, MPM, MPF, MPS) rotary motors.
Provides product specifications for Bulletin 2090
motor and interface cables, low-profile connector kits,
drive power components, and other servo drive
accessory items.
Information on the installation of a shaft seal on this
and other servo motors.
A glossary of industrial automation terms and
abbreviations.
How to minimize and control system-level noise.
Declarations of Conformity (DOC) for Rockwell
Automation products.
You can view or download publications at http://www.rockwellautomation.com/literature/
. To
order paper copies of technical documentation, contact your local Allen-Bradley distributor or
Rockwell Automation sales representative.
Rockwell Automation Publication MP-IN002D-EN-P - January
Notes:
MP-Series Low-inertia Servo Motor with 215 mm or Larger Frame Size 23
Rockwell Automation Publication MP-IN002D-EN-P - January
Rockwell Automation Support
Rockwell Automation provides tec hnical information on the Web to assist you in using its products.
At http://www.rockwellautomation.com/support
service packs. You can also visit our Support Center at https://rockwellautomation.custhelp.com/
and forums, technical information, FAQs, and to sign up for product notification updates.
In addition, we offer multiple support programs for installation, configuration, and troubleshooting. For more information, contact
your local distributor or Rockwell Automation representative, or visit http://ww w.rockwellautomation.com/services/online-phone
Installation Assistance
If you experience a problem within the first 24 hours of installation, please review the information that's contained in this manual.
You can also contact a special Customer Support number for initial help in getting your product up and running.
United States or Canada 1.440.646.3434
Outside United States or
Canada
Use the Wor ldwi de Loc ator
http://www.rockwellautomation.com/rockwellautomation/support/overview.page
local Rockwell Automation representative.
New Product Satisfaction Return
Rockwell Automation tests all of its products to help ensure that they are fully operational when shipped from the manufacturing
facility. However, if your product is not functioning and need s to be returned, follow these procedures.
you can find technical and application notes, sample code, and links to software
for software updates, support chats
at
, or contact your
.
United States
Outside United States Please contact your local Rockwell Automation representative for the return procedure.
Contact your distributor. You must provide a Customer Support case number (call the phone number
above to obtain one) to your distributor to complete the return process.
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document,
complete this form, publication RA-DU002
Allen-Bradley, Rockwe ll Software, MP-Seri es, Kinetix, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400
Publication MP-IN002D-EN-P - January 2014
Supersedes Publication MP-IN002C-EN-P - April 2009 Copyright © 2014 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
, available at http://www.rockwellautomation.com/literature/.
Loading...
