Rocktron Banshee User Manual
USER'S MANUAL
Read this manual thoroughly before operating this unit. Failure to
! Note !
heed any warnings contained herein could potentially result in
damage to your equipment.
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309,
4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.
Y our Banshee™ pedal has been tested and complies with the following
Standards and Directives as set forth by the European Union:
Council Directive(s): 89/336/EEC Electromagnetic Compatibility
Standard(s): EN55013, EN50082-1
This means that this product has been designed to meet stringent guidelines
on how much RF energy it can emit, and that it should be immune from other
sources of interference when properly used. Improper use of this equipment
could result in increased RF emissions, which may or may not interfere with
other electronic products.
T o insure against this possibility , always use good shielded cables for all audio
input and output connections. This will help insure compliance with the
Directive(s).
For more information about other Rocktron products, please see your local
dealer or one of our importers closest to you (listed on pages 9-10).
Copyright © 2002 GHS Corporation
All Rights Reserved.
Precautions
NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO
PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES
CAREFUL HANDLING:
Read all instructions contained in this manual.
Keep these instructions
Heed all warnings
Follow all instructions.
Do not use this apparatus near water.
Clean with dry cloth
Do not block any ventilation openings (if applicable). Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
This product is not equipped with a plug or cable. The included 9Volt AC adapter is
the only power supply approved to power this unit.
Protect the adapter cord from being walked on or pinched.
Only used attachments/accessories specified by the manufacturer.
Do not use this product with any case, stand tripod, bracket or table that is not
specified by the manufacturer. Insure that the case, stand, tripod, bracket etc. is
properly adjusted and setup (follow all instructions). Extra care and caution should be
taken to avoid tip over and injury.
Unplug this apparatus during lightening storms or when unused during long periods of
time.
Precautions Continued....
Refer all service to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus or if the apparatus has
been exposed to rain or moisture, does not operate normally or has been dropped.
DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT . QUALIFIED PERSONNEL SHOULD SER VICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY
INTERNAL ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY
TIME OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTS A T ANY
TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY VOID THE
W ARRANTY OF THIS EUQIPMENT AS WELL AS CAUSEING A SHOCK
HAZARD.
OPERA TING TEMPERA TURE
Do not expose this unit to excessive heat. This unit is designed to operate between 32
F and 104 F (0 C and 40 C). This unit may not function properly under extreme
temperatures.
! WARNING !
The internal driver of the Banshee™ Talkbox is capable
of producing extremely high sound pressure levels.
Because of this, the vinyl talkbox tube supplied with
the Banshee should NEVER be placed near any person's
ear. Failure to use caution and/or ear protection when
using this product may result in permanent hearing impairment or hearing loss. The manufacturer is not responsible for any damage resulting from the use of this
product.
Due to health issues, the vinyl tube supplied with the
unit cannot be returned to the factory or dealer.
Contents
Introduction ............................................. 2
Functions .................................................3
Connections ............................................ 4

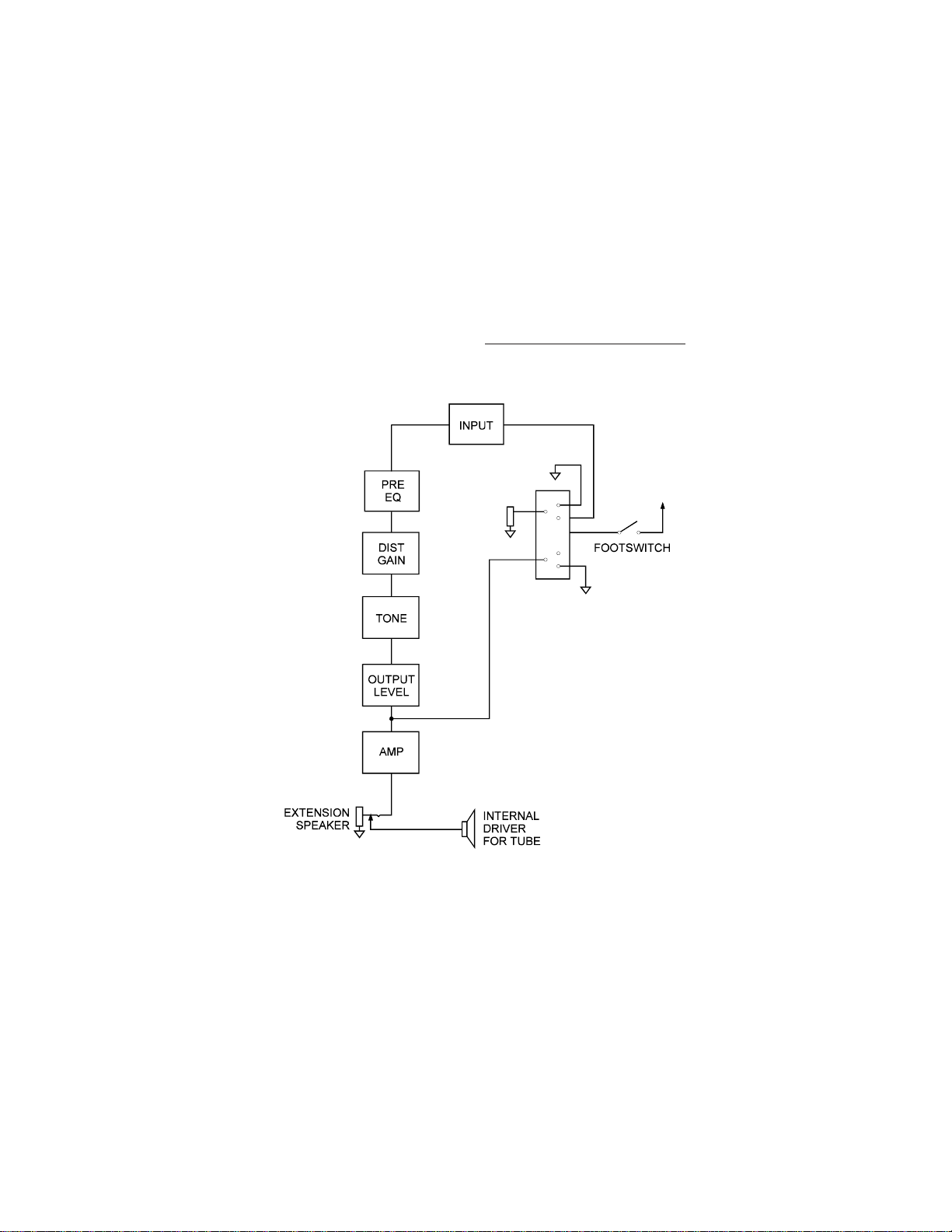

Block Diagram ......................................... 6
Specifications ..........................................7
