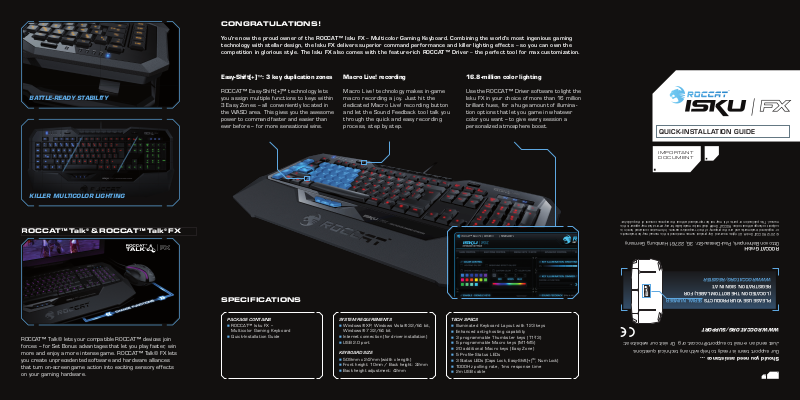

CONGRATULATIONS!

You're now the proud owner of the ROCCAT™ Isku FX – Multicolor Gaming Keyboard. Combining the world’s most ingenious gaming
technology with stellar design, the Isku FX delivers superior command performance and killer lighting effects
competition in glorious style. The Isku FX also comes with the feature-rich ROCCAT™ Driver

–

the perfect tool for max customization.

–

so you can own the

BATTLE-READY STABILITY

KILLER MULTICOLOR LIGHTING

ROCCAT™ Talk

©

& ROCCAT™ Talk© FX

Easy-Shift[+]™: 3 key duplication zones

ROCCAT™ Easy-Shift[+]™ technology lets
you assign multiple functions to keys within
3 Easy Zones – all conveniently located
the WASD area. This gives you the awesome
power to command faster and easier than
ever before

–

for more sensational wins

in

.

Macro Live! recording

Macro Live! technology makes in-game
macro recording a joy. Just hit the
dedicated Macro Live! recording button
and let the Sound Feedback tool talk you
through the quick and easy recording
process, step by step.

16.8-million color lighting

Use the
Isku FX in your choice of more than 16 million
brilliant hues, for a huge amount of illumina­tion options that let you game in whatever
color you want
personalized atmosphere boost.

ROCCAT™

–

to give every session a

Driver sof tware to light the

QUICK-INSTALLATION GUIDE

I M P O R TA N T
DOCUMENT

manual. This publication or parts of it may not be reproduced without the express consent of the publisher.
subject to change without notice. ROCCAT GmbH shall not be made liable for any errors that may appear in this
or registered trademarks and are the property of their respective owners. Information contained herein is
© 2012 ROCCAT GmbH. All rights reserved. Any product names mentioned in this manual may be trademarks

Otto von Bahrenpark, Paul-Dessau-Str. 3G, 22761 Hamburg, Germany

ROCCAT GmbH

ROCCAT™ Talk© lets your compatible ROCCAT™ devices join
forces

–

for Set Bonus advantages that let you play faster, win
more and enjoy a more intense game. ROCCAT™ Talk© FX lets
you create unprecedented software and hardware alliances
that turn on-screen game action into exciting sensory ef fects
on your gaming hardware.

SPECIFICATIONS

PACKAGE CONTAINS

 ROCCAT™ Isku FX –

Multicolor Gaming Keyboard

 Quick-Installation Guide

SYSTEM REQUIREMENTS

 Windows® X P, Windows Vist a® 32/64 bit,

Windows® 7 32/64 bi t

 Internet connection (for driver installation)
 USB 2.0 port

KEYBOAR D SIZE

 509mm x 247mm (width x length)
 Front height: 10mm / Back height: 32mm
 Back height adjustment: 42mm

TECH SPECS

 Illuminated Keyboar d Layout with 123 keys
 Enhanced anti-ghosting capabilit y
 3 programmable Thumbs ter keys (T1-T3)
 5 programmable Macro ke ys (M1-M5)
 20 additional Macr o key s (Easy Zone)
 5 Profi le- St atus LEDs
 3 St atus LEDs (Caps Lock, Easy-Shift [+]
 1000Hz polling rate, 1ms response time
 2m USB cable

TM

, Num Lock)

WWW.ROCCAT.ORG/REGISTER

T36145

Made in China

SN:

XXXXXXXXXXXX

N12642

ROC-12-900

ROCCAT™ Isku FX –

Illuminated Gaming Keyboard

ROCCAT GmbH, Germany
|

Designed at ROCCAT Studios

The Windows logo is a registered trademark of Microsoft Corp.

P/N: GK2901-00A01

) FOR

REGISTRATION. SIGN IN AT:

LOCATED ON THE BOTTOM LABEL

(

PLEASE USE YOUR PRODUCT’S SERIAL NUMBER

WWW.ROCCAT.ORG/SUPPORT

Just send an e-mail to [e-mail]. Or visit our website at:
Our support team is ready to help with any technical questions.

Should you need assistance …

h

O

L

+

ROCCAT™ EASY-SHIFT

[+]™

THE DUAL KEY ASSIGNMENT FUNCTION

additional Macro

EASY-SHIFT[+]TM: ASSIGNING DUAL KEY FUNCTIONS

The Isku FX comes standard with Easy-Shift[+]™ technology, which of fers you the
convenience of 36 easily-customizable macros strategically positioned in 3 spots
in the easy-to -fi nd WASD zone. This means you can fi re off customized commands
without ever having to re -adjust your hand position – so you won’t have to t ake your
eyes off the screen t o look for keys. Simple and ingenious.

And because the Easy-Shif t [+]™ key works just like the s tandard shif t key,
activating your macros is as simple as typing an uppercase letter.

The Easy-Shif t [+]™ zone gives you an impressive 28 macros keys – including 8
dedicated keys that can be doubly programmed. Plus, the ability t o instantly
switch between 5 profi les lets you enjoy up to a whopping 180 macros – enough
customization to meet even the most demanding warrior’s needs.

MASTERFUL MACRO CONTROLS

If recording macros using a menu-based system is your style, then our
world-famous Macro Manager sof tware is just what you want. The award-winning­program lets you record and fi ne-tune your macros with incredible precision and
with intuitive ease thanks to a gorgeous and simple-to-use interface. The Loop
Function even lets you repeat settings up to an incredible 255 times. And the
internationally-adored program even comes with presets for top games and offi ce
apps – so you can enjoy your favorites with nottt ttt wait.

keys (M1-M5)

Easy- Shift[+]TM key:

Caps Lock, Macro keys
(M1-M5) and Thumbster keys
(T1-T3) can also be assigned
as the Easy-Shift[+]

TM

key.

Easy Zone keys:

20 additional, easy-to­reach macros & functions
via Easy-Shift[+]

TM

Thumbster keys (T1-T3)

Use the Easy-Shift[+]™
key (assignable to
Caps Lock, M1-M5
and T1-T3) to program
2nd level functions on
all highlighted keys.

This means you
virtually double your
Macro keys – for easy
access to up to
36 powerful functions.

EASY- SHIFT[+]™ EXAMPLES:

[+] = Easy-Shift[+]TM key

Easy-Shift[+]TM WoW:

[+] + 1 = Mount up [+] + A = Use hearthstone

2 = Dismount [+] + S = Autorun

[+] +

3 = Pet attack [+] + D = Hotbar slot #1

[+] +

4 = Pet passive [+] + F = Hotbar slot #2

[+] +

5 = Pet follow [+] + G = Start timer

[+] +

Q = Yell chat [+] + Z = Your macro #1

[+] +

W = World map [+] + X = Your macro #2

[+] +

E = Trade chat [+] + C = Your macro #3

[+] +

R = Raid chat [+] + V = Your macro #4

[+] +

T = Party chat [+] + B = Your macro #5

[+] +

Easy-Shift[+]TM Multimedia: Easy-Shift[+]TM Browser:

[+] + M1 = Play or pause [+] + M1 = New tab

M2 = Stop playback [+] + M2 = New window

[+] +

M3 = Play the previous item [+] + M3 = Switch to previous tab

[+] +

M4 = Play the next item [+] + M4 = Switch to next tab

[+] +

M5 = Rewind [+] + M5 = Switch to full screen & back

[+] +

[+] +

T1 = Volume up [+] + T1 = Page back

T2 = Volume down [+] + T2 = Page forward

[+] +

T3 = Mute volume [+] + T3 = Minimize window

[+] +

HOW TO USE MACRO LIVE! RECORDING

START LIVE! RECORDING ASSIGN A MACRO KEY

1 2

TYPE YOUR OWN MACRO

3

EXAMPLE: “HELLO”

H E

+ + +

+

O

L

PLEASE NOTE:
DELAYS WILL ALSO BE RECORDED.

L

EXAMPLE: M1PRESS “M-REC” BUTTON

STOP LIVE! RECORDING

4

PRESS “M-REC” BUTTON AGAIN

DE DK EN ES FI

ANLEITUNG INSTRUKTIONER INSTRUCTIONS INSTRUCCIONES OHJEET

1. Für einen ergonomischeren Stand klappe die Füße an der
Unterseite der Tastatur aus.

2. Verbinde den USB-Stecker der ROCCAT™ Isku FX mit
einer freien USB-Schnittstelle.

3. Starte deinen Computer und stelle eine Verbindung mit
dem Internet her.

4. Gebe in die Adresszeile deines Webbrowsers die folgende
URL ein „www.roccat.org/support“ und drücke Enter.

5. Klicke in der linken Navigationsleiste auf den Punkt
„ROCCAT Isku“. Lade dir auf der sich öffnenden Seite die
neueste Treiber-Software herunter.

6. Starte die Treiber-Installation und folge bitte den weiteren
Anweisungen auf dem Bildschirm.

1. Til ergonomisk opstilling klappes fødderne på tastaturets
bund ud.

2. Forbind ROCCAT™ Isku FX’s USB-stik med et ledigt
USB-interface.

3. Start din computer og forbind den med Internettet.

4. Indtast følgende URL i adresselinjen af din webbrowser
„www.roccat.org/support“ og tryk så Enter.

5. Klik i venstre navigantionslinje på punkt „ROCCAT Isku“.
Frau den åbnede side overfører du den nyeste
driversoftware.

6. Start driver-installationen og følg anvisningerne på
billedskærmen.

1. For a more ergonomic position, fold out the stands on the
base of the keyboard.

2. Plug the ROCCAT™ Isku FX’s USB connector into any
free USB port.

3. Boot your computer and connect to the internet.

4. Enter ‘www.roccat.org/support’ in your browser and
hit the return key.

5. In the navigation bar on the left, go to ‘ROCCAT Isku’.
Download the latest driver from the webpage that opens.

6. Start the driver installation process and follow the
on-screen instructions.

FR PL RU SE

INSTRUCTIONS INSTRUKCJA

1. Déplie les pieds sur la face inférieure du clavier pour une
plus grande ergonomie.

2. Relie la fi che USB de la souris ROCCAT™ Isku FX à une
prise USB libre.

3. Démarre ton ordinateur et connecte-toi à Internet.

4. Entre dans la barre d’adresse de ton navigateur l’URL
« www.roccat.org/support » et appuie sur Enter.

5. Clique dans le menu de navigation de gauche sur
« ROCCAT Isku ». Télécharge la dernière version du pilote
sur la page qui s’ouvre alors.

6. Lance l’installation du pilote et suis les instructions qui
s’affi chent à l’écran.

1. Aby uzyskać pozycję ergonomiczną, rozłóż nóżki po

spodniej stronie klawiatury.

2. Podłącz wtyk USB ROCCAT™ Isku FX do wolnego

złącza USB.

3. Uruchom komputer i nawiąż połączenie z Internetem.

4. W wierszu adresowym przeglądarki wpisz adres URL

„www.roccat.org/support“ i naciśnij Enter.

5. W lewym pasku nawigacji kliknij punkt „ROCCAT Isku“.

Z nowo otwartej strony pobierz najnowsze sterowniki.

6. Rozpocznij instalację sterowników i postępuj zgodnie z

instrukcjami na ekranie.

ИНСТРУКЦИИ

1. Для обеспечения эргономичного положения открой

ножки на нижней стороне клавиатуры.

2. Соедини USB-штекер ROCCAT™ Isku FX со свободным

USB-портом.

3. Запусти компьютер и выйди в интернет.

4. Введи в адресной строке браузера адрес

„www.roccat.org/support“ и нажми Enter.

5. Нажми на левой навигационной панели пункт

„ROCCAT Isku“. Загрузи с открывшейся страницы самые
последние драйвера.

6. Запусти инсталляцию драйвера и следуй дальнейшим

указаниям на экране.

1. Para un equilibrio más ergonómico, saca las patas que
están debajo del teclado.

2. Enchufa el conector USB del ROCCAT™ Isku FX a un
puerto libre USB.

3. Inicia tu ordenador y establece la conexión de Internet.

4. Escribe en tu navegador Web la siguiente URL:
www.roccat.org/support y pulsa Enter.

5. En la barra izquierda de navegación haz clic en el
punto “ROCCAT Isku”. En la página que se abre a
continuación descárga el software de controlador más
actualizado.

6. Inicia la instalación del controlador y sigue las instruccio­nes que aparecen en pantalla.

1. Käännä näppäimistön alla olevat jalat ulos ergonomista
asentoa varten.

2. Liitä ROCCAT™ Isku FX :n USB-pistoke vapaaseen
USB-liitäntään.

3. Käynnistä tietokoneesi ja luo Internet-yhteys.

4. Kirjoita verkkoselaimesi osoiteriville seuraava URL-osoite
„www.roccat.org/support“ ja paina Enter.

5. Napsauta vasemmassa navigaatiopalkissa kohtaa
„ROCCAT Isku“. Lataa avautuvalta sivulta uusin
ajuriohjelmisto.

6. Käynnistä ajurin asennus ja noudata näytöllä näkyviä
lisäohjeita.

TR

INSTRUKTIONER TALIMATLAR

1. Fäll ut fötterna under tangentbordet så att det står i en
ergonomisk ställning.

2. Sätt ROCCAT™ Isku FX USB-kontakt i en ledig USB-port.

3. Starta datorn och koppla upp dig på Internet.

4. Skriv in följande URL i adressfältet på din webbläsare:
www.roccat.org/support. Tryck på Enter.

5. Klicka på ROCCAT Isku i det vänstra navigationsfältet.
Ladda ner den senaste programvaran med drivrutin på
den sida som öppnas.

6. Starta installationen av drivrutin och följ anvisningarna
på skärmen.

1. Ergonomik bir duruş için klavyenin altındaki ayakları

dışa katla.

2. ROCCAT™ Isku FX USB fi şini boş bir USB girişine tak.

3. Bilgisayarı başlat ve internete bağlan.

4. Web tarayıcının adres satırına “www.roccat.org/support”

URL adresini gir ve Enter tuşuna bas.

5. Sol navigasyon çubuğundaki “ROCCAT Isku” üzerine tıkla.

Açılan sayfadan en yeni sürücü yazılımını indir.

6. Sürücü kurulumunu başlat ve ekrandaki diğer talimatları

takip et.
