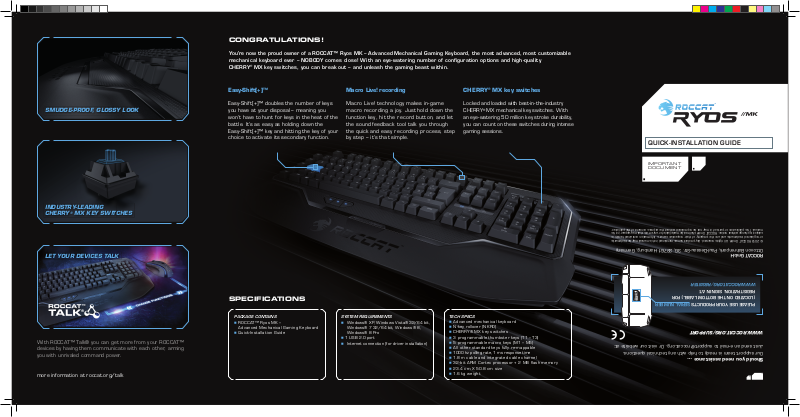

ROCCAT ROC-12-611-BK User Manual

CONGRATULATIONS!

You're now the proud owner of a ROCCAT™ Ryos MK – Advanced Mechanical Gaming Keyboard, the most advanced, most customizable
mechanical keyboard ever – NOBODY comes close! With an eye-watering number of confi guration options and high-quality
CHERRY

®

MX key switches, you can break out – and unleash the gaming beast within.

SMUDGE-PROOF, GLOSSY LOOK

INDUSTRY-LEADING
CHERRY® MX KEY SWITCHES

LET YOUR DEVICES TALK

Easy-Shift[+]™

Easy-Shift[+]™ doubles the number of keys
you have at your disposal – meaning you
won’t have to hunt for keys in the heat of the
battle. It’s as easy as holding down the
Easy-Shift[+]™ key and hitting the key of your
choice to activate its secondary function.

Macro Live! recording

Macro Live! technology makes in-game
macro recording a joy. Just hold down the
function key, hit the record button, and let
the sound feedback tool talk you through
the quick and easy recording process, step
by step – it’s that simple.

CHERRY® MX key switches

Locked and loaded with best-in-the-industry
CHERRY
an eye-watering 50 million key stroke durability,
you can count on these switches during intense
gaming sessions.

®

MX mechanical key switches. With

QUICK-INSTALLATION GUIDE

I M P O R TA N T
DOCUMENT

manual. This publication or parts of it may not be reproduced without the express consent of the publisher.
subject to change without notice. ROCCAT GmbH shall not be made liable for any errors that may appear in this
or registered trademarks and are the property of their respective owners. Information contained herein is
© 2013 ROCCAT GmbH. All rights reserved. Any product names mentioned in this manual may be trademarks

Otto von Bahrenpark, Paul-Dessau-Str. 3G, 22761 Hamburg, Germany

ROCCAT GmbH

With ROCCAT™ Talk® you can get more from your ROCCAT™
devices by having them communicate with each other, arming
you with unrivaled command power.

more information at roccat.org/talk

SPECIFICATIONS

PACKAGE CONTAINS

 ROCCAT™ Ryos MK –

Advanced Mechanical Gaming Keyboard

 Quick-Installation Guide

SYSTEM REQUIREMENTS

 Windows® XP, Windows Vis ta® 32/64 bit,

Windows® 7 32/64 bi t, Windows® 8,
Windows® 8 Pro

 1 USB 2.0 port
 Internet connection (for driver installation)

TECH SPECS

 Advanced mechanical keyboard
 N-key rollover (NKRO)
 CHERRY® MX key switches
 3 programmable thumbster keys (T1 – T3)
 5 programmable macro keys (M1 – M5)
 All other standard keys fully re-mappable
 1000 hz polling rate, 1 ms response time
 1.8 m cable and integrat ed cable channel
 32-bit ARM Cor tex processor + 2 MB fl ash memory
 23.4 cm X 50.8 cm size
 1.6 kg weight

WWW.ROCCAT.ORG/REGISTER

T36145

Made in China

SN:

XXXXXXXXXXXX

N12642

ROC-12-900

ROCCAT™ Isku FX –

Illuminated Gaming Keyboard

ROCCAT GmbH, Germany
|

Designed at ROCCAT Studios

The Windows logo is a registered trademark of Microsoft Corp.

P/N: GK2901-00A01

) FOR

REGISTRATION. SIGN IN AT:

LOCATED ON THE BOTTOM LABEL

(

PLEASE USE YOUR PRODUCT’S SERIAL NUMBER

WWW.ROCCAT.ORG/SUPPORT

Just send an e-mail to [e-mail]. Or visit our website at:
Our support team is ready to help with any technical questions.

Should you need assistance …

h

O

L

+

ROCCAT™ EASY-SHIFT

[+]™

DUPLICATE YOUR KEYS WITH EASY-SHIFT[+]™

The innovat ive ROCCAT™ driver sof tware allows you to quickly and easily re -map
the primary key functions of virtually ever y key on the keyboard. Enabled by the
Easy-Shift[+]™ key, you can also assign a secondary key func tion to those
keys – effectively doubling the number of keys you have at your disposal. Factor in
the fact that you can record and store on board over 500 macros, and you’ve got
an insanely customizable keyboard on your hands.

MASTERFUL MACRO CONTROLS

New enhanced Macro Live! technology makes in- game macro recording a joy.
Simply hold down the function key, hit the Macro Live! recording button, and let the
handy sound feedback tool talk you through the quick and easy recording process,
step by st ep. Thanks to the powerful 2 MB of fl ash memory, all of your macros are
saved onto the keyboard itself, not the driver – giving you the freedom t o lay down
any orders without delay. And you won’t have t o leave your game to do it.

ADDITIONAL

MACRO KEYS (M1-M5)

EASY-SHIFT[+]™ KEY

THUMBSTER KEYS (T1-T3)

MACRO LIVE! KEY

Double up your keys: program
a secondary key function
in the ROCCAT™ driver and
then enable it by holding
down the strategically-placed

Easy-Shift[+]™ key.

EASY- SHIFT[+]™ EXAMPLES:

[+] = Easy-Shift[+]TM key

Easy-Shift[+]TM WoW:

[+] + 1 = Mount up [+] + A = Use hearthstone

2 = Dismount [+] + S = Autorun

[+] +

3 = Pet attack [+] + D = Hotbar slot #1

[+] +

4 = Pet passive [+] + F = Hotbar slot #2

[+] +

5 = Pet follow [+] + G = Start timer

[+] +

Q = Yell chat [+] + Z = Your macro #1

[+] +

W = World map [+] + X = Your macro #2

[+] +

E = Trade chat [+] + C = Your macro #3

[+] +

R = Raid chat [+] + V = Your macro #4

[+] +

T = Party chat [+] + B = Your macro #5

[+] +

Easy-Shift[+]TM Multimedia: Easy-Shift[+]TM Browser:

[+] + M1 = Play or pause [+] + M1 = New tab

M2 = Stop playback [+] + M2 = New window

[+] +

M3 = Play the previous item [+] + M3 = Switch to previous tab

[+] +

M4 = Play the next item [+] + M4 = Switch to next tab

[+] +

M5 = Rewind [+] + M5 = Switch to full screen & back

[+] +

[+] +

T1 = Volume up [+] + T1 = Page back

T2 = Volume down [+] + T2 = Page forward

[+] +

T3 = Mute volume [+] + T3 = Minimize window

[+] +

HOW TO USE MACRO LIVE! RECORDING

START LIVE! RECORDING ASSIGN A MACRO KEY

1 2

HOLD DOWN “FN” KEY AND PRESS “F 12”

TYPE YOUR OWN MACRO

3

EXAMPLE: “HELLO”

H E

+ + +

+

O

L

PLEASE NOTE:
DELAYS WILL ALSO BE RECORDED.

L

EXAMPLE: M1

STOP LIVE! RECORDING

4

HOLD DOWN “FN” KEY AND PRESS “F 12”

DE DK EN ES FI

ANLEITUNG INSTRUKTIONER INSTRUCTIONS INSTRUCCIONES OHJEET

1. Für einen ergonomischeren Stand klappe die Füße an der
Unterseite der Tastatur aus.

2. Verbinde den USB-Stecker der ROCCAT™ Ryos MK mit
einer freien USB-Schnittstelle.

3. Starte deinen Computer und stelle eine Verbindung mit
dem Internet her.

4. Gebe in die Adresszeile deines Webbrowsers die folgende
URL ein „www.roccat.org/support“ und drücke Enter.

5. Klicke in der linken Navigationsleiste auf den Punkt
„ROCCAT Ryos MK“. Lade dir auf der sich öffnenden Seite
die neueste Treiber-Software herunter.

6. Starte die Treiber-Installation und folge bitte den weiteren
Anweisungen auf dem Bildschirm.

1. Til ergonomisk opstilling klappes fødderne på tastaturets
bund ud.

2. Forbind ROCCAT™ Ryos MK’s USB-stik med et ledigt
USB-interface.

3. Start din computer og forbind den med Internettet.

4. Indtast følgende URL i adresselinjen af din webbrowser
„www.roccat.org/support“ og tryk så Enter.

5. Klik i venstre navigantionslinje på punkt „ROCCAT™ Ryos
MK“. Frau den åbnede side overfører du den nyeste
driversoftware.

6. Start driver-installationen og følg anvisningerne på
billedskærmen.

1. For a more ergonomic position, fold out the stands on the
base of the keyboard.

2. Plug the ROCCAT™ Ryos MK’s USB connector into any
free USB port.

3. Boot your computer and connect to the internet.

4. Enter ‘www.roccat.org/support’ in your browser and
hit the return key.

5. In the navigation bar on the left, go to ‘ROCCAT™ Ryos
MK’. Download the latest driver from the webpage that
opens.

6. Start the driver installation process and follow the
on-screen instructions.

FR PL RU SE

INSTRUCTIONS INSTRUKCJA

1. Déplie les pieds sur la face inférieure du clavier pour une
plus grande ergonomie.

2. Relie la fi che USB de la souris ROCCAT™ Ryos MK à une
prise USB libre.

3. Démarre ton ordinateur et connecte-toi à Internet.

4. Entre dans la barre d’adresse de ton navigateur l’URL
« www.roccat.org/support » et appuie sur Enter.

5. Clique dans le menu de navigation de gauche sur
« ROCCAT™ Ryos MK ». Télécharge la dernière version
du pilote sur la page qui s’ouvre alors.

6. Lance l’installation du pilote et suis les instructions qui
s’affi chent à l’écran.

1. Aby uzyskać pozycję ergonomiczną, rozłóż nóżki po

spodniej stronie klawiatury.

2. Podłącz wtyk USB ROCCAT™ Ryos MK do wolnego

złącza USB.

3. Uruchom komputer i nawiąż połączenie z Internetem.

4. W wierszu adresowym przeglądarki wpisz adres URL

„www.roccat.org/support“ i naciśnij Enter.

5. W lewym pasku nawigacji kliknij punkt

„ROCCAT™ Ryos MK“.
Z nowo otwartej strony pobierz najnowsze sterowniki.

6. Rozpocznij instalację sterowników i postępuj zgodnie z

instrukcjami na ekranie.

ИНСТРУКЦИИ

1. Для обеспечения эргономичного положения открой

ножки на нижней стороне клавиатуры.

2. Соедини USB-штекер ROCCAT™ Ryos MK со свободным

USB-портом.

3. Запусти компьютер и выйди в интернет.

4. Введи в адресной строке браузера адрес

„www.roccat.org/support“ и нажми Enter.

5. Нажми на левой навигационной панели пункт
„ROCCAT™ Ryos MK“. Загрузи с открывшейся страницы
самые последние драйвера.

6. Запусти инсталляцию драйвера и следуй дальнейшим
указаниям на экране.

1. Para un equilibrio más ergonómico, saca las patas que
están debajo del teclado.

2. Enchufa el conector USB del ROCCAT™ Ryos MK a un
puerto libre USB.

3. Inicia tu ordenador y establece la conexión de Internet.

4. Escribe en tu navegador Web la siguiente URL:
www.roccat.org/support y pulsa Enter.

5. En la barra izquierda de navegación haz clic en el
punto “ROCCAT™ Ryos MK”. En la página que se abre a
continuación descárga el software de controlador más
actualizado.

6. Inicia la instalación del controlador y sigue las instruccio­nes que aparecen en pantalla.

1. Käännä näppäimistön alla olevat jalat ulos ergonomista
asentoa varten.

2. Liitä ROCCAT™ Ryos MK :n USB-pistoke vapaaseen
USB-liitäntään.

3. Käynnistä tietokoneesi ja luo Internet-yhteys.

4. Kirjoita verkkoselaimesi osoiteriville seuraava URL-osoite
„www.roccat.org/support“ ja paina Enter.

5. Napsauta vasemmassa navigaatiopalkissa kohtaa
„ROCCAT™ Ryos MK“. Lataa avautuvalta sivulta uusin
ajuriohjelmisto.

6. Käynnistä ajurin asennus ja noudata näytöllä näkyviä
lisäohjeita.

TR

INSTRUKTIONER TALIMATLAR

1. Fäll ut fötterna under tangentbordet så att det står i en
ergonomisk ställning.

2. Sätt ROCCAT™ Ryos MK USB-kontakt i en ledig USB-port.

3. Starta datorn och koppla upp dig på Internet.

4. Skriv in följande URL i adressfältet på din webbläsare:
www.roccat.org/support. Tryck på Enter.

5. Klicka på ROCCAT™ Ryos MK i det vänstra navigationsfäl­tet. Ladda ner den senaste programvaran med drivrutin
på den sida som öppnas.

6. Starta installationen av drivrutin och följ anvisningarna
på skärmen.

1. Ergonomik bir duruş için klavyenin altındaki ayakları

dışa katla.

2. ROCCAT™ Ryos MK USB fi şini boş bir USB girişine tak.

3. Bilgisayarı başlat ve internete bağlan.

4. Web tarayıcının adres satırına “www.roccat.org/support”

URL adresini gir ve Enter tuşuna bas.

5. Sol navigasyon çubuğundaki “ROCCAT™ Ryos MK” üzerine

tıkla. Açılan sayfadan en yeni sürücü yazılımını indir.

6. Sürücü kurulumunu başlat ve ekrandaki diğer talimatları

takip et.
