CL 50 e
CL 50ltraU e
CL 51
Robot-Coupe® USA Inc.
P.O. Box 16625, Jackson, MS 39236-6625
264 South Perkins St., Ridgeland, MS 39157
e-mail: info@robotcoupeusa.com - website: www.robotcoupeusa.com Phone : 1-800-824-1646
Downloaded from www.Manualslib.com manuals search engine
IMPORTANTWARNING
Warning : In order to limit accidents such as electric shocks or personal injury, and in order to limit fmaterialthe damage due to misuse o appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctlyPleaseread. these instructions in their entirety and make sure that anyone else who may use the appliance also reads them beforehand.
UNPACKING
• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
• WARNING-some of the parts are very sharp e. g. blades, discs… etc.
INSTALLATION
• Install your machine on a stable solid base of convenient operating height.
CONNECTION
• The CL 50/CL 50 Ultra «E»/CLmust be51attached
to standard 120 Volt 60 Hz grounded outlet NEMA
|
|
dimensions |
|
(in inches) |
|
CL 50 |
|
|
|
CL 50 Ultra |
|
23“ |
|
|
24“ |
|
|
|
|
|
|
Ul |
|
|
|
|
|
tra |
|
15“ |
12“ |
|
CL 51 |
15“ |
12“ |
|
|
|
|||
|
26“ |
|
|
|
|
|
|
15“ |
13“ |
|
|
|
|
|
|
|
|
|
|
|
|
|
use |
5-15. Robot Coupe recommends ground fault type outlet be used.
HANDLING
• Always take care when handling the blades, as 2 they are extremely sharp.
•Never try to override the locking and safety systems.
•Never insert any object into the container where the food is being processed.
•Never push the ingredients down with your hand.
•Do not overload the appliance.
•Never switch the appliance on when it is empty.
cleaning
•As a precaution, always unplug your appliance before cleaning it.
•Always clean the appliance and its attachments at the end of each cycle.
•Never immerse the motor unit in water.
•For parts made from aluminum, use cleaning detergents intended for alumiDonotumwash. metal
parts in dishwasher.
•For plastic parts, do not use detergents that are too alkaline (e.g., containing too much caustic soda or ammonia).
•Robot-Coupe can in no way be held responsible for the user’s failure to follow the basic rules of cleaning and hygiene.
maintenance
•Before opening the motor housing, it is absolutely vital to unplug the appliance.
•Check the seals and washers regularly and ensure that the safety devices are in good working order.
•It is particularly important to maintain and check the attachments since most vegetables contain corrosive agents, e.g. citric acid.
•Never operate the appliance if the power cord or plug has been damaged or if the appliance fails to work properly or has been damaged in any way.
•Do not hesitate to contact your local Maintenance Service if something appears to be wrong.
Downloaded from www.Manualslib.com manuals search engine
SUMMARY
WARRANTY
ImportanT Warning
Introduction toyournew vegetable preparationmachine CL 50 •LC50Ultra“E”Version •L 51C
Switchingon themachine
Assembly
Usesandchoiceof discs
Cleaning
MAINTENANCE
• Blades, plates and graters
SAFETY
|
Technical data |
(page 27) |
|

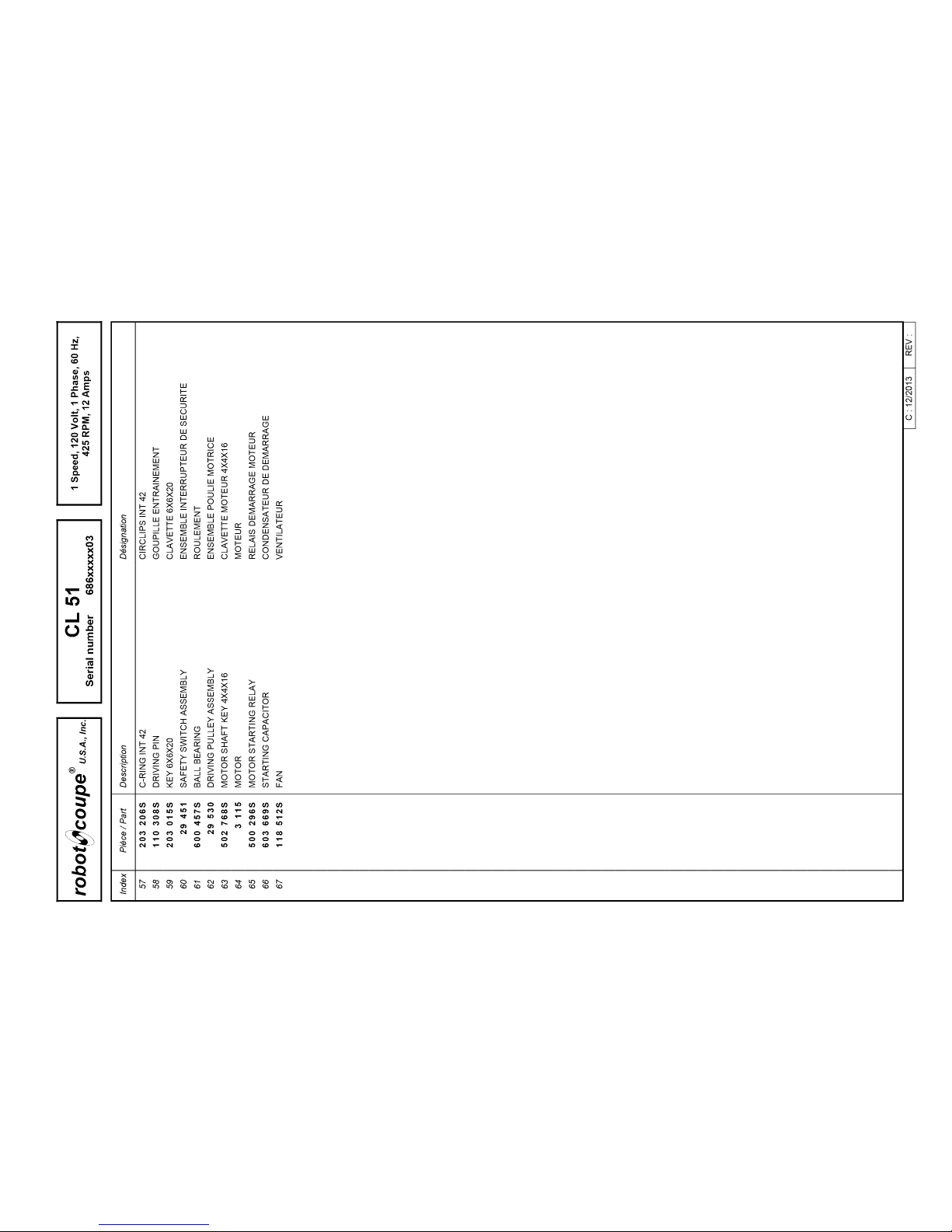

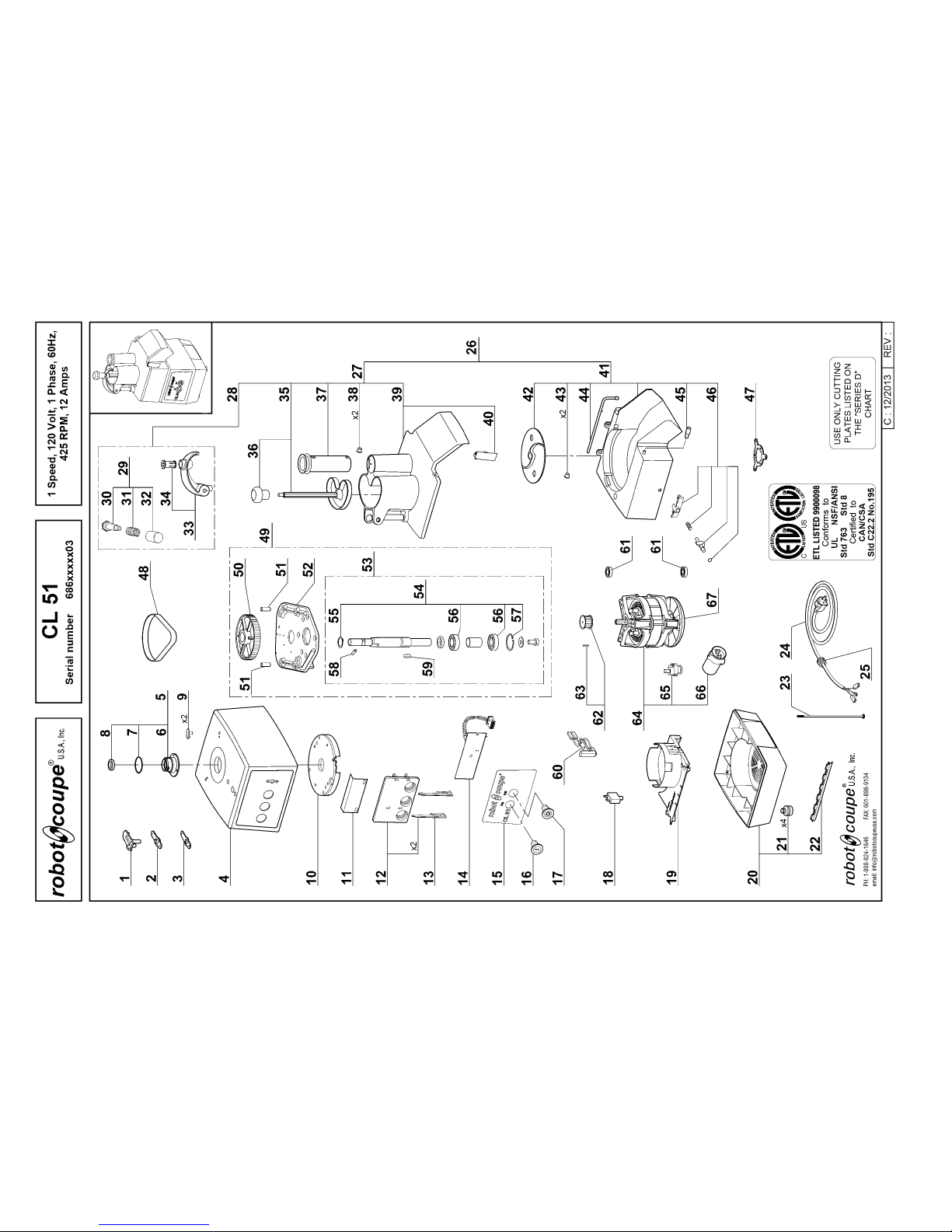

•Exploded views
•Electric and wiring diagrams
english
3
Downloaded from www.Manualslib.com manuals search engine
ROBOT COUPEU.S.A., IncLIMITED.WARRANTY
YOURNEW ROBOT |
COUPE |
|
PRODUCT IS WARRANTED |
TO THE |
|
ORIGINAL PURCHASE |
FOR |
A |
PERIOD OF ONE YEARF ROMT HE DATEOFPURCHASE.
ThisLIMITEDWARRANTY is against defects in the material and/or workmanship, and includes labor for replacement of defective parts, provided repairs are performed by an authorized service agency (see attached list).
The Customer must inform the Service Agency of the possibility of warranty coverage and provide a copy of the dated sales or delivery receipt EFOREB WARRANTY
REPAIRS ARE BEGUN. Replacement parts and accessories are warranted for ninety (90) days from the date of purchase when purchased separately and will be verified by dated sales receipt OR packing slip which lists that item.
All parts or accessories replaced under warranty must be returned to the Service Agency.
4
THEFOLLOWINGARENOT
COVEREDBYTHE ROBOT COUPE
U.S.A., IncLIMITED.WARRANTY:
1 - Damage caused by abuse, misuse, dropping, or other similar damage caused by or resulting from failure to follow assembly, operating, cleaning, user maintenance or storage instructions.
2 - Labor to sharpen and/or replacements for blades that have become blunt, chipped or worn after a normal or excessive period of use.
3 - Materials or labor to replace or repair scratched, stained, chipped, pitted, dented or discolored surfaces, blades, knives, attachments or accessories.
4 - Any alteration, addition, or repair that has not been carried out by the company or an approved service agency.
5 - Transportation of the appliance to or from an approved service agency.
6 - Labor charges to install or test new attachments or accessories (i.e., bowls, plates, blades, attachments), which have been replaced for any reason.
7 - The cost of changing direction-of-rotation of three-phase electric motors (Installer is responsible).
8 - SHIPPING DAMAGESVisible. and/or hidden damage is the responsibility of the freight carrier. The consignee must inform the carrier and consignor immediately, or upon discovery in the case of hidden defects.
KEEP ALL ORIGINAL CONTAINERS AND P A C K I N G M A T E R I A L S F O R C A R R I E R INSPECTION.
Neither ROBOT COUPE U.S.A., Inc. nor its affiliated companies or any of its distributors, directors, agents, employees, or insurers will be liable for indirect damage, losses, or expenses linked to the appliance or the inability to use it.
The ROBOT COUPE U.S.A., Inc. warranty is given expressly and in lieu of all other warranties, expressed or implied, for merchantability and for fitness toward a particular purpose and constitutes the only warranty made byTROBOCOUPEU.S.A., Inc.
Downloaded from www.Manualslib.com manuals search engine
IMPORTANTWARNING
Warning : In order to limit accidents such as electric shocks or personal injury, and in order to limit fmaterialthe damage due to misuse o appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctlyPleaseread. these instructions in their entirety and make sure that anyone else who may use the appliance also reads them beforehand.
UNPACKING
• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
• WARNING-some of the parts are very sharp e. g. blades, discs… etc.
INSTALLATION
• Install your machine on a stable solid base of convenient operating height.
CONNECTION
• The CL 50/CL 50 Ultra «E»/CLmust be51attached
to standard 120 Volt 60 Hz grounded outlet NEMA 5-15. Robot Coupe recommends ground fault type outlet be used.
HANDLING
• Always take care when handling the blades, as they are extremely sharp.
|
|
dimensions |
|
(in inches) |
|
CL 50 |
|
|
|
CL 50 Ultra |
|
23“ |
|
|
24“ |
|
|
|
|
|
|
Ul |
|
|
|
|
|
tra |
|
15“ |
12“ |
|
CL 51 |
15“ |
12“ |
|
|
|
|||
|
26“ |
|
|
|
|
|
|
15“ |
13“ |
|
|
|
|
|
|
|
|
|
|
|
|
|
use |
•Never try to override the locking and safety systems.
•Never insert any object into the container where the food is being processed.
•Never push the ingredients down with your hand.
•Do not overload the appliance.
•Never switch the appliance on when it is empty.
cleaning
•As a precaution, always unplug your appliance before cleaning it.
•Always clean the appliance and its attachments at the end of each cycle.
•Never immerse the motor unit in water.
•For parts made from aluminum, use cleaning detergents intended for alumiDonotumwash. metal
parts in dishwasher.
•For plastic parts, do not use detergents that are too alkaline (e.g., containing too much caustic soda or ammonia).
•Robot-Coupe can in no way be held responsible for the user’s failure to follow the basic rules of cleaning and hygiene.
maintenance
• Before opening the motor housing, it is absolutely vital to unplug the appliance.
• Check the seals and washers regularly and ensure that the safety devices are in good working order.
• It is particularly important to maintain and check the attachments since most vegetables contain corrosive agents, e.g. citric acid.
• Never operate the appliance if the power cord or plug has been damaged or if the appliance fails to work properly or has been damaged in any way.
• Do not hesitate to contact your local Maintenance
Service if something appears to be wrong.
5
english
Downloaded from www.Manualslib.com manuals search engine
Introduction toyournew vegetable preparation machine CL 50 •LC50Ultra “E”Version •L 51C
The CL 50 / CL 50 Ultra / CL 51 is perfectly geared to professional needs. It can perform a big number of tasks, which you will gradually discover as you use it.
This model is equipped with a metal bowl, a stainless steel motor base for CL 50 Ultra and polycarbonate base for CL 50 and CL 51.
Thanks to its simple design, all components requiring frequent handling for maintenance or cleaning can be fitted and removed in a easily.
This manual contains important information designed to help the user get the most out of this vegetable preparation machine.
We therefore recommend that you read it carefully before using your machine.
We have also included a few examples to help you get the feel of your new machine and appreciate its numerous advantages.
SWITCHINGON
THE MACHINE
All users should read this manual before operating the machine.
Before connecting, check that your power supply corresponds to that indicated on the machine’s
6 identification plate.
ASSEMBLY
• CL 51
The CL 51 comprises of two removable parts: the bowl and lid.
With the motor base unit facing your, fit the bowl onto the motor base unit so that it juts out slightly on the left, with the ejection chute on your right.
• CL 50 /LC50 Ultra L/51C
1) With the motor base facing you, place the discharge plate on the bottom of the bowl.
Turn the bowl to the right, until it locks. In order to dismount this vegetable preparation bowl, we only need to push on the stainless steel button then turn the bowl to the left.
"Optional" emptying arm for fine grating and slicing only (cabbage, celery, carrots, cheese, etc.).
SIDE A facing upwards (ejection rib downwards) for any vegetables or citrus fruit which require careful handling (tomatoes, mushrooms...).
SIDE B facing upwards (ejection rib upwards) for all other types of fruit or vegetables.
2)Position your chosen disc:
a)If you have opted for a slicing, grating or julienne disc:
Position the disc on the motor shaft. To ensure that it is correctly positioned, turn it in a clockwise direction.
b) You have chosen a dicing equipment:
i.e. a grid and a special slicing disc for diced vegetables.
Slicing discs and dicing grids can be mounted in the following combinations:
Dicing grid |
5x5 |
8x8 |
10x10 |
14x14 |
20x20 |
25x25 |
Slicer |
mm |
mm |
mm |
mm |
mm |
mm |
5 mm |
• |
• |
• |
• |
• |
• |
8 mm |
|
• |
• |
• |
• |
• |
10 mm |
|
• |
• |
• |
• |
• |
14 mm |
|
• |
• |
• |
• |
• |
20 mm |
|
• |
• |
• |
• |
• |
25 mm |
|
|
|
|
|
• |
The combinations in the shaded areas can be supplied on request.
