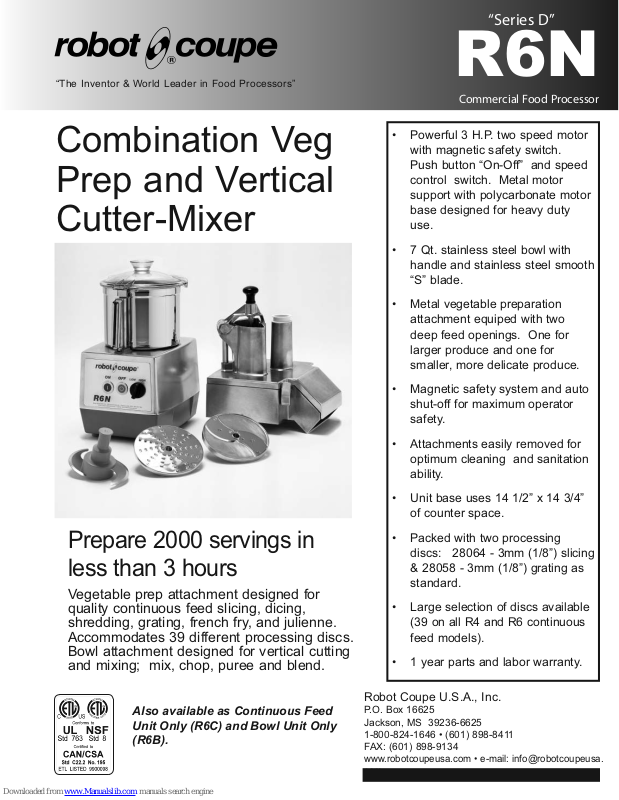

Robot Coupe R6N Specifications

“The Inventor & World Leader in Food Processors”

Combination Veg
Prep and Vertical
Cutter-Mixer

“Series D”

R6N

Commercial Food Processor

• Powerful 3 H.P. two speed motor
with magnetic safety switch.
Push button “On-Off” and speed
control switch. Metal motor
support with polycarbonate motor
base designed for heavy duty
use.

• 7 Qt. stainless steel bowl with
handle and stainless steel smooth
“S” blade.

• Metal vegetable preparation
attachment equiped with two
deep feed openings. One for
larger produce and one for
smaller, more delicate produce.

Prepare 2000 servings in
less than 3 hours

Vegetable prep attachment designed for
quality continuous feed slicing, dicing,
shredding, grating, french fry, and julienne.
Accommodates 39 different processing discs.
Bowl attachment designed for vertical cutting
and mixing; mix, chop, puree and blend.

• Magnetic safety system and auto
shut-off for maximum operator
safety.

• Attachments easily removed for
optimum cleaning and sanitation
ability.

• Unit base uses 14 1/2” x 14 3/4”
of counter space.

• Packed with two processing
discs: 28064 - 3mm (1/8”) slicing
& 28058 - 3mm (1/8”) grating as
standard.

• Large selection of discs available
(39 on all R4 and R6 continuous
feed models).

• 1 year parts and labor warranty.

Also available as Continuous Feed
Unit Only (R6C) and Bowl Unit Only
(R6B).

Robot Coupe U.S.A., Inc.

P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • [phone]
FAX: [phone]
www.robotcoupeusa.com • e-mail: info@robotcoupeusa.
com

“The Inventor & World Leader in Food Processors”

Grating Discs

28270 1/16” (1.5mm)
28057 5/64” (2mm)
28058 1/8” (3mm)
28073 5/32” (4mm)
28163 3/16” (5mm)
28164 9/32” (7mm)
28165 11/32” (9mm)
28055 Fine Pulping
28061 Hard Cheese Grate

French Fry Kits

28134* 5/16” (8mm)
28135* 3/8” (10mm)

Romaine Lettuce Kit

28133/104031 2”

PROCESSING DISCS

Slicing Discs

28062 1/32” (1mm)
28063 5/64” (2mm)
28064 1/8” (3mm)
28004 5/32” (4mm)
28128* 3/16” (5mm)
28129* 5/16” (8mm)
28130* 3/8” (10mm)
28131* 9/16” (14mm)
28081 3/4” (19mm)
28132* 25/32” (20mm)
28133* 1” (25mm)

Ripple Cut Slicers

27068 5/64” (2mm)
27069 1/8” (3mm)
27070 3/16” (5mm)

Julienne Discs

28051 5/64” x 5/64” (2mm x 2mm)
27072 5/64” x 5/32” (2mm x 4mm)
27066 5/64” x 1/4” (2mm x 6mm)
27067 5/64” x 5/16” (2mm x 8mm)
28052 5/32” x 5/32” (4mm x 4mm)
28053 1/4” x 1/4” (6mm x 6mm)
28054 5/16” x 5/16” (8mm x 8mm)

Dicing Kits

28110 3/16” x 3/16” (5mm x 5mm)
28111 5/16” x 5/16” (8mm x 8mm)
28112 3/8” x 3/8” (10mm x 10mm)
28113 9/16” x 9/16” (14mm x 14mm)
28114 25/32” x 25/32” (20mm x 20mm
28115 1” x 1” (25mm x 25mm)

Specifications

STANDARD MODEL: includes motor base unit
with 7 Qt. stainless steel bowl with handle and
continuous feed attachment kit, one 1/8” (3mm)
slicing disc and one 1/8” (3mm) medium grating
disc.

ELECTRICAL REQUIREMENTS: 208-240V, 60Hz, 2.6

- 2.8 Amps, three phase. NEMA #L15-20P

SWITCHING: Control panel with push-type “on”/
“off “ buttons and speed selection switch.

MOTOR: 3 HP, 850/1750 RPM

“Series D”

R6N

Commercial Food Processor

WEIGHT: 80 lbs. net, 85 lbs. approximate shipping
weight.

OPTIONAL EQUIPMENT: 37 additional processing discs
and single or multiple disc rack or wall-mounted disc rack.

STANDARDS: ETL electrical & sanitation, cETL (Canada)

Continuous
Feed
Unit

Bowl
Unit

Robot Coupe U.S.A., Inc.

P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
[phone]
FAX: [phone]
www.robotcoupeusa.com
e-mail: [e-mail]

Distributed by:

Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2003 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 06/03
