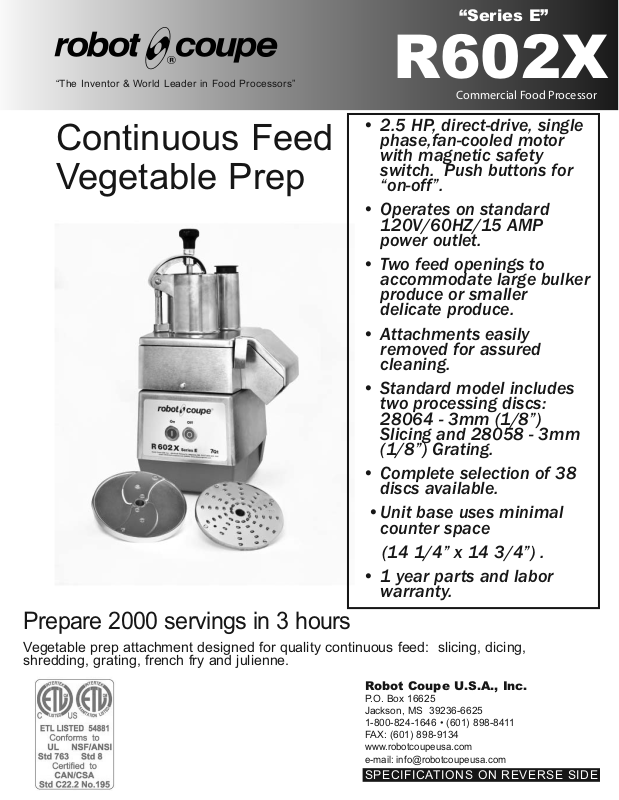

Robot Coupe R602X Specifications

“Series E”

“The Inventor & World Leader in Food Processors”

Continuous Feed Vegetable Prep

R602X

Commercial Food Processor

• 2.5 HP, direct-drive, single phase,fan-cooled motor with magnetic safety switch. Push buttons for “on-off”.

• Operates on standard 120V/60HZ/15 AMP power outlet.

• Two feed openings to accommodate large bulker produce or smaller delicate produce.

• Attachments easily removed for assured cleaning.

• Standard model includes two processing discs: 28064 - 3mm (1/8”) Slicing and 28058 - 3mm (1/8”) Grating.

• Complete selection of 38 discs available.

• Unit base uses minimal counter space

(14 1/4” x 14 3/4”) .

• 1 year parts and labor warranty.

Prepare 2000 servings in 3 hours

Vegetable prep attachment designed for quality continuous feed: slicing, dicing, shredding, grating, french fry and julienne.

Robot Coupe U.S.A., Inc.

P.O. Box 16625 Jackson, MS 39236-6625 1-800-824-1646 • (601) 898-8411 FAX: (601) 898-9134 www.robotcoupeusa.com e-mail: info@robotcoupeusa.com

SPECIFICATIONS ON REVERSE SIDE

“Series E”

“The Inventor & World Leader in Food Processors”

Specifications

STANDARD MODEL includes motor base unit with

continuous feed attachment, one 1/8” (3mm) slicing disc and one 1/8” (3mm) grating disc.

ELECTRICAL REQUIREMENTS: 120V-60 HZ, NEMA 5-15 Plug.

SWITCHING: Control panel with push-type on and off buttons.

MOTOR: 2.5 HP, 850 RPM, direct-drive, fan-cooled, single phase.

WEIGHT: 70 lbs. net, 72 lbs. approximate shipping weight.

OPTIONAL EQUIPMENT: 36 additional processing discs ,single or multiple disc racks and/or wall mounted disc rack.

STANDARDS: ETL electrical & sanitation, cETL (Canada)

R602X

PROCESSING DISCS

* For Series D & E machines only

Slicing Discs

28062 1/32” (1mm) 28063 5/64” (2mm) 28064 1/8” (3mm) 28004 5/32” (4mm) 28128* 3/16” (5mm) 28129* 5/16” (8mm) 28130* 3/8” (10mm) 28131* 9/16” (14mm) 28132* 25/32” (20mm) 28133* 1” (25mm)

Ripple Cut Slicers

27068 5/64” (2mm) 27069 1/8” (3mm) 27070 3/16” (5mm)

Commercial Food Processor

Grating Discs

28056 1/16” (1.5mm) 28057 5/64” (2mm) 28058 1/8” (3mm) 28136 5/32” (4mm) 28163 3/16” (5mm) 28164 9/32” (7mm) 28165 11/32” (9mm) 28055 Fine Pulping 28061 Hard Cheese Grate

French Fry Kits**

28134* 5/16” (8mm) 28135* 3/8” (10mm)

Romaine Lettuce Kit

28133/104031 2”

Julienne Discs

28051 5/64” x 5/64” (2mm x 2mm) 27072 5/64” x 5/32” (2mm x 4mm) 27066 5/64” x 1/4” (2mm x 6mm) 27067 5/64” x 5/16” (2mm x 8mm) 28101 5/64” x 5/16” (3mm x 3mm) 28052 5/32” x 5/32” (4mm x 4mm) 28053 1/4” x 1/4” (6mm x 6mm) 28054 5/16” x 5/16” (8mm x 8mm)

Dicing Kits

28110 3/16” x 3/16” (5mm x 5mm) 28111 5/16” x 5/16” (8mm x 8mm) 28112 3/8” x 3/8” (10mm x 10mm) 28113 9/16” x 9/16” (14mm x 14mm) 28114 25/32” x 25/32” (20mm x 20mm) 28115 1” x 1” (25mm x 25mm)

Robot Coupe U.S.A., Inc.

P.O. Box 16625 Jackson, MS 39236-6625 1-800-824-1646 (601) 898-8411 FAX: (601) 898-9134 www.robotcoupeusa.com e-mail: info@robotcoupeusa.com

Distributed by:
