Robot coupe R5 plus User Manual [ru]

R5Plus

•

R5 V.V.

•

R6

•

R6 V.V.

3

SUMMARY

WARRANTY

IMPORTANT WARNING

INTRODUCTION TO YOUR
NEW TABLE-TOP CUTTER MIXER

R5 Plus - R5 V.V. - R6 - R6 V.V.

SWITCHING ON THE MACHINE

ADVICE ON ELECTRICAL CONNECTIONS
CONTROL PANEL

ASSEMBLY

TECHNICAL SPECIFICATIONS

DESCRIPTIONS AND ADVANTAGES
PACKAGING
WEIGHT
DIMENSIONS
WORKING HEIGHT
NOISE LEVEL

EXAMPLES

OPTION

CLEANING

MOTOR BASE
CUTTER
BLADE

MAINTENANCE

BLADE
MOTOR SEAL

SAFETY

STANDARDS

ELECTRICAL DATA

TECHNICAL DATA

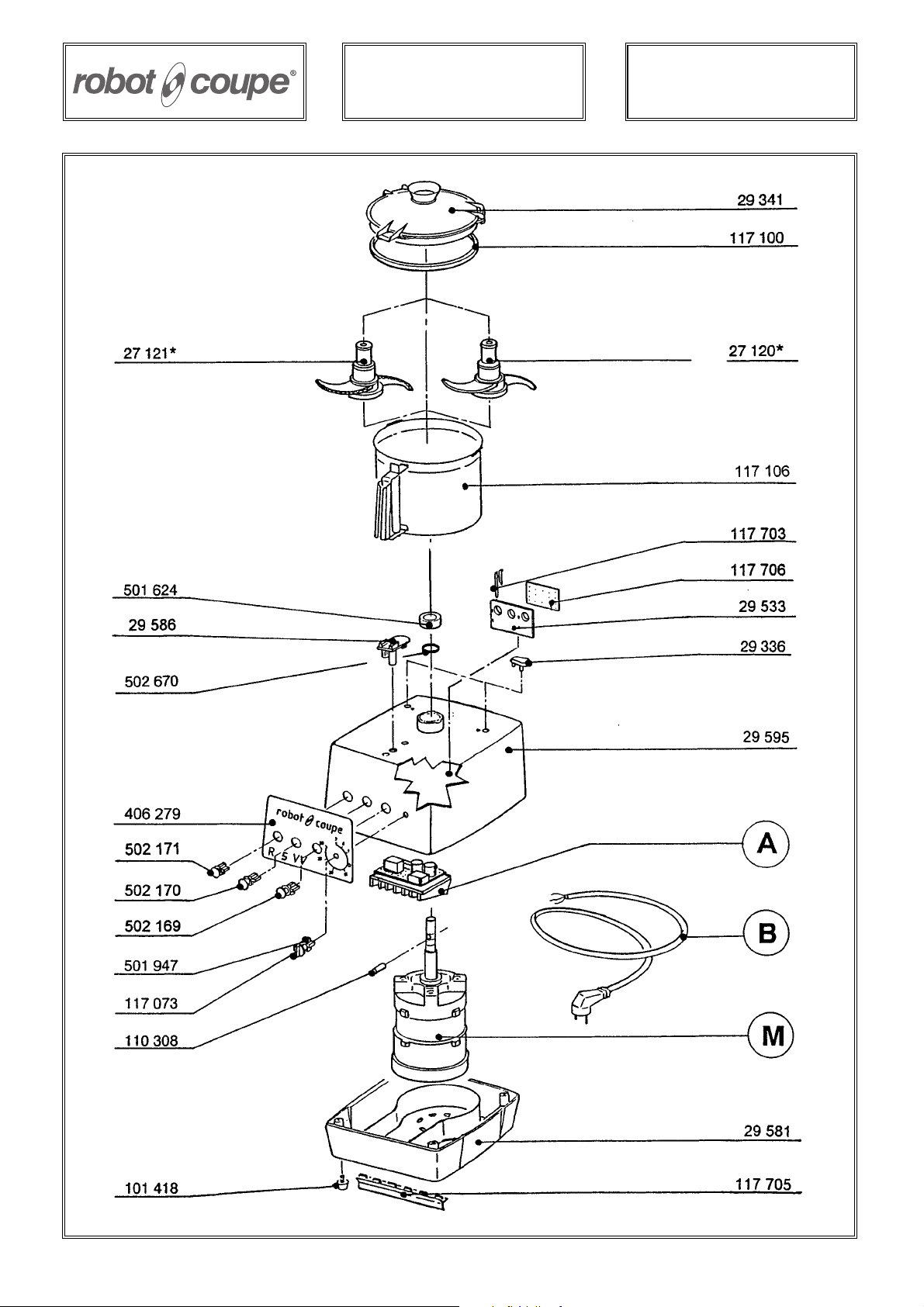

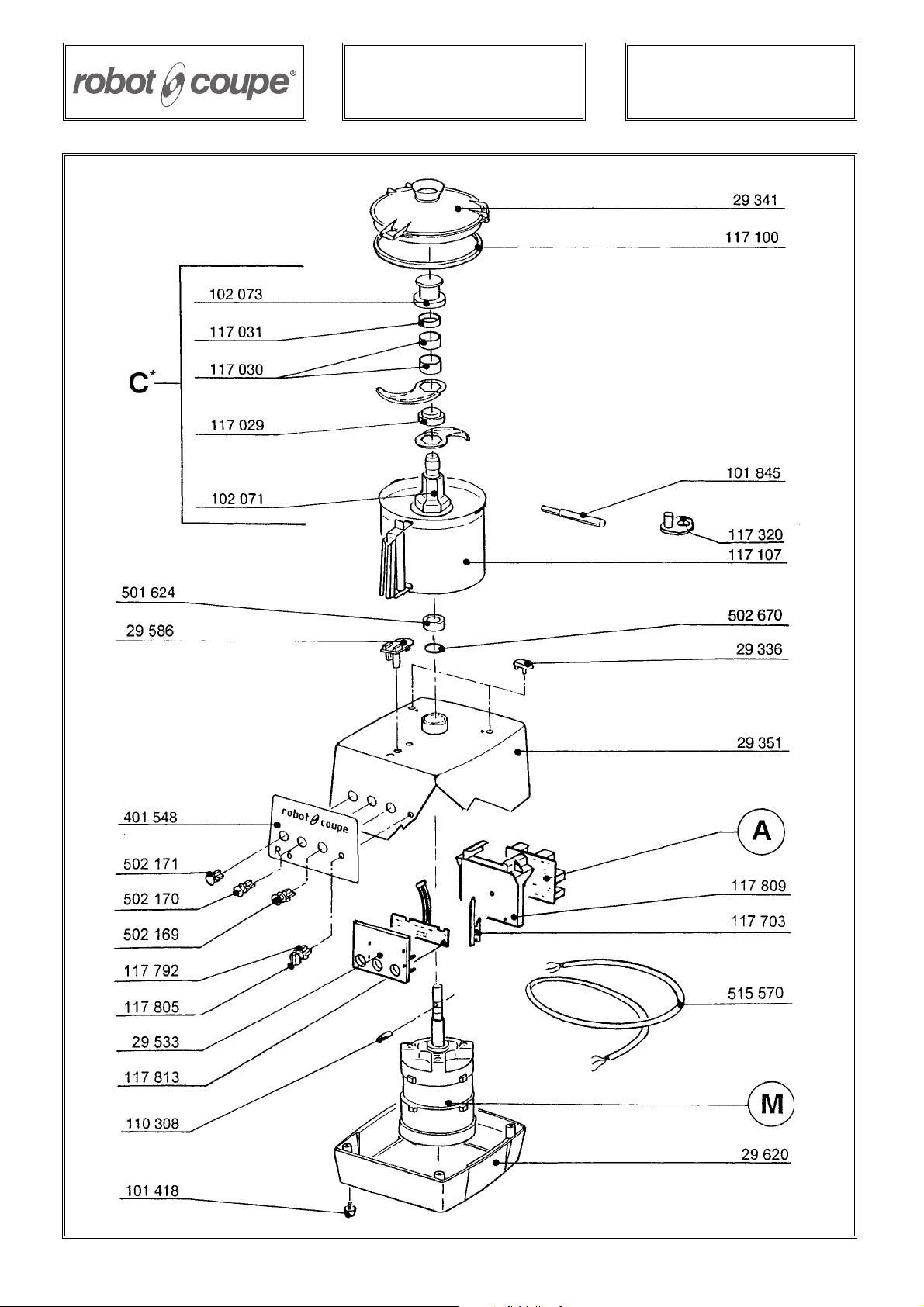

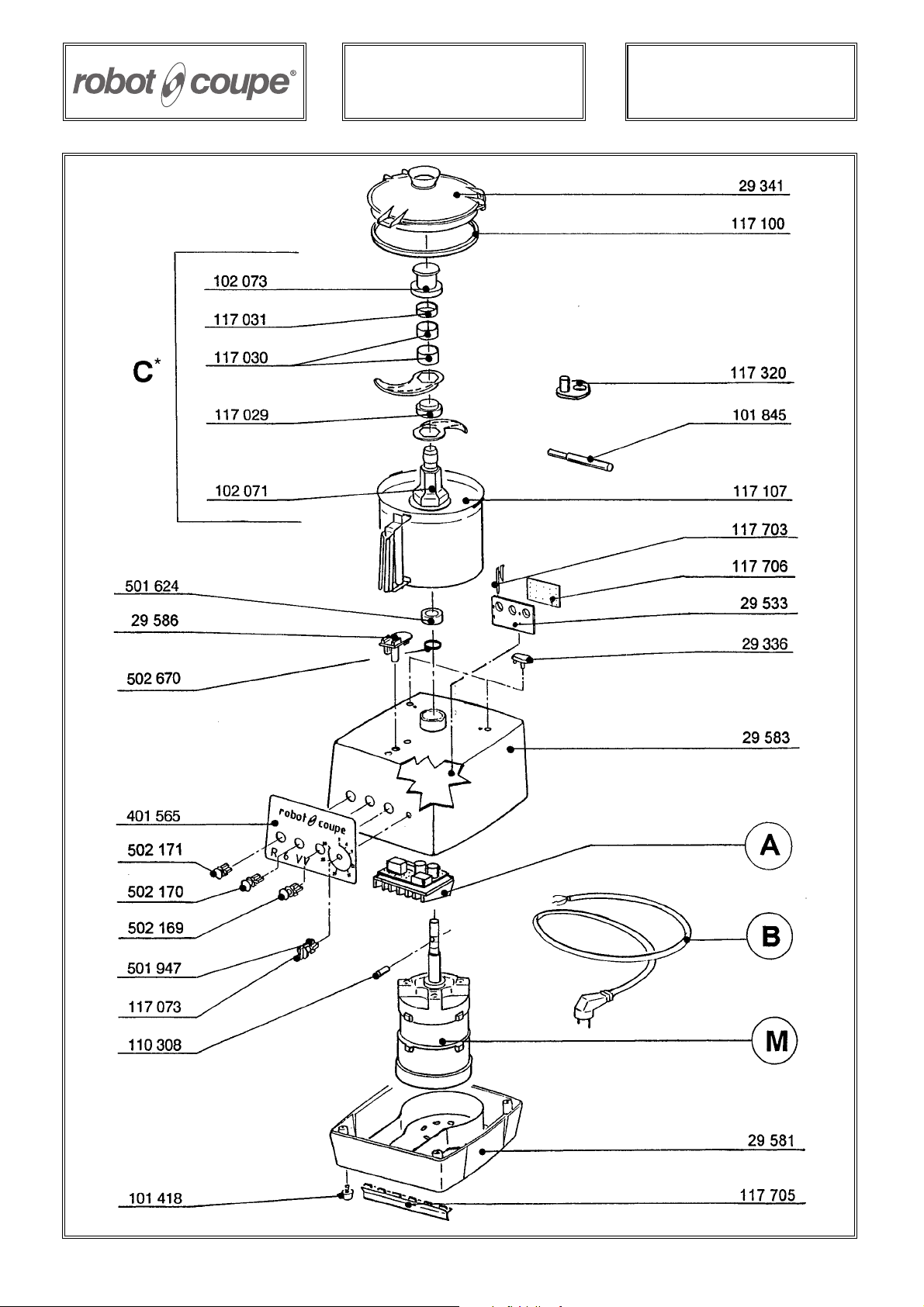

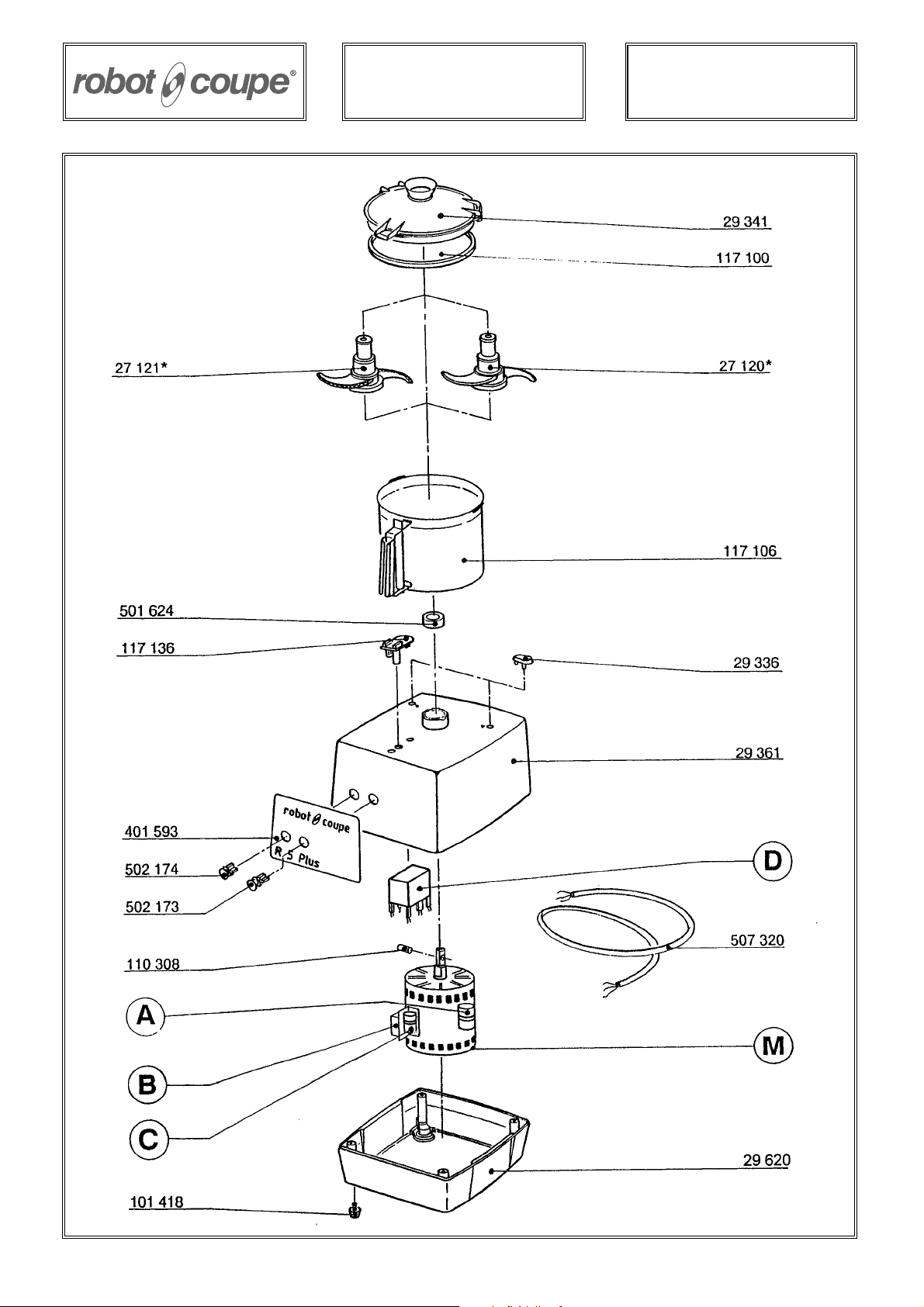

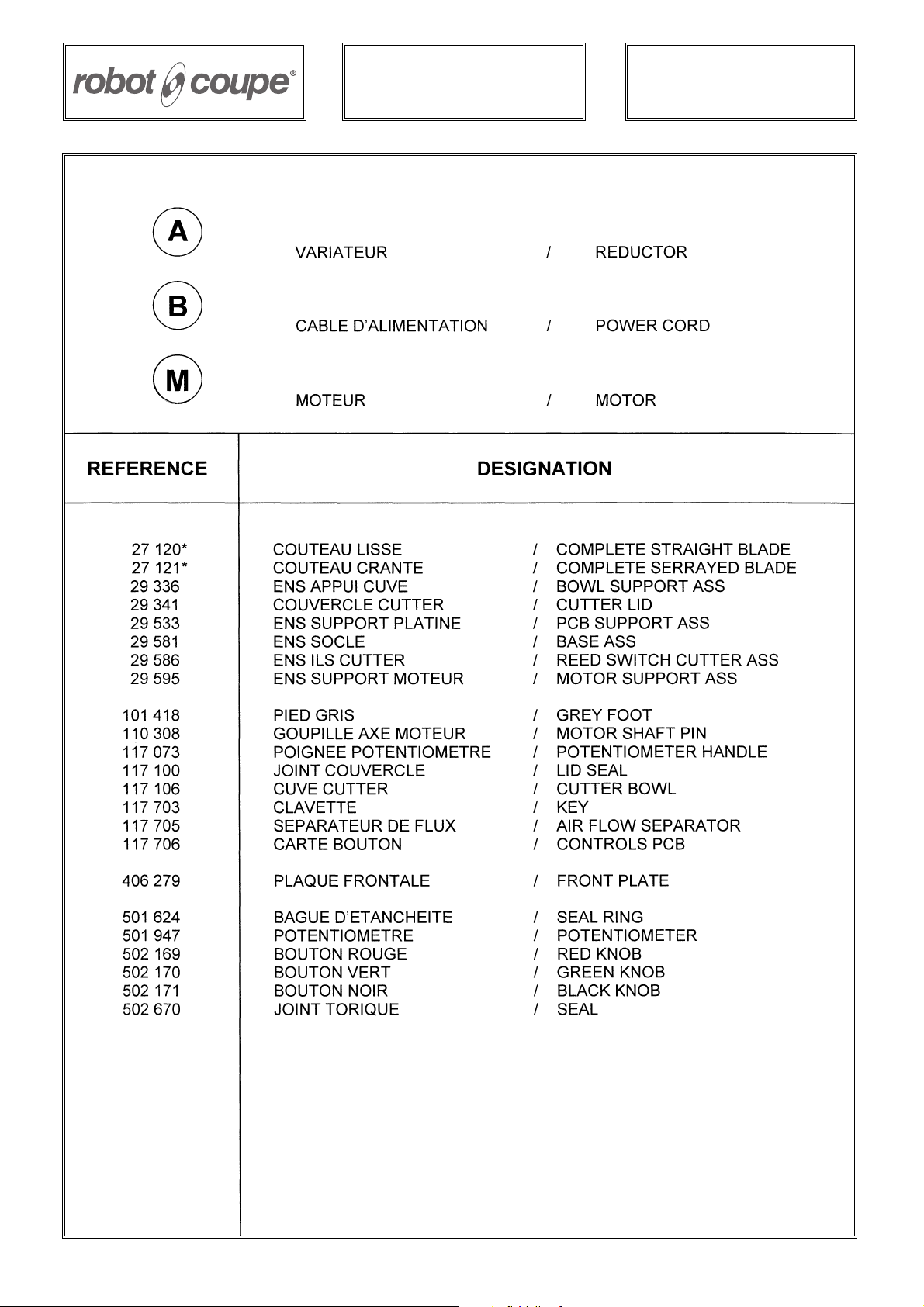

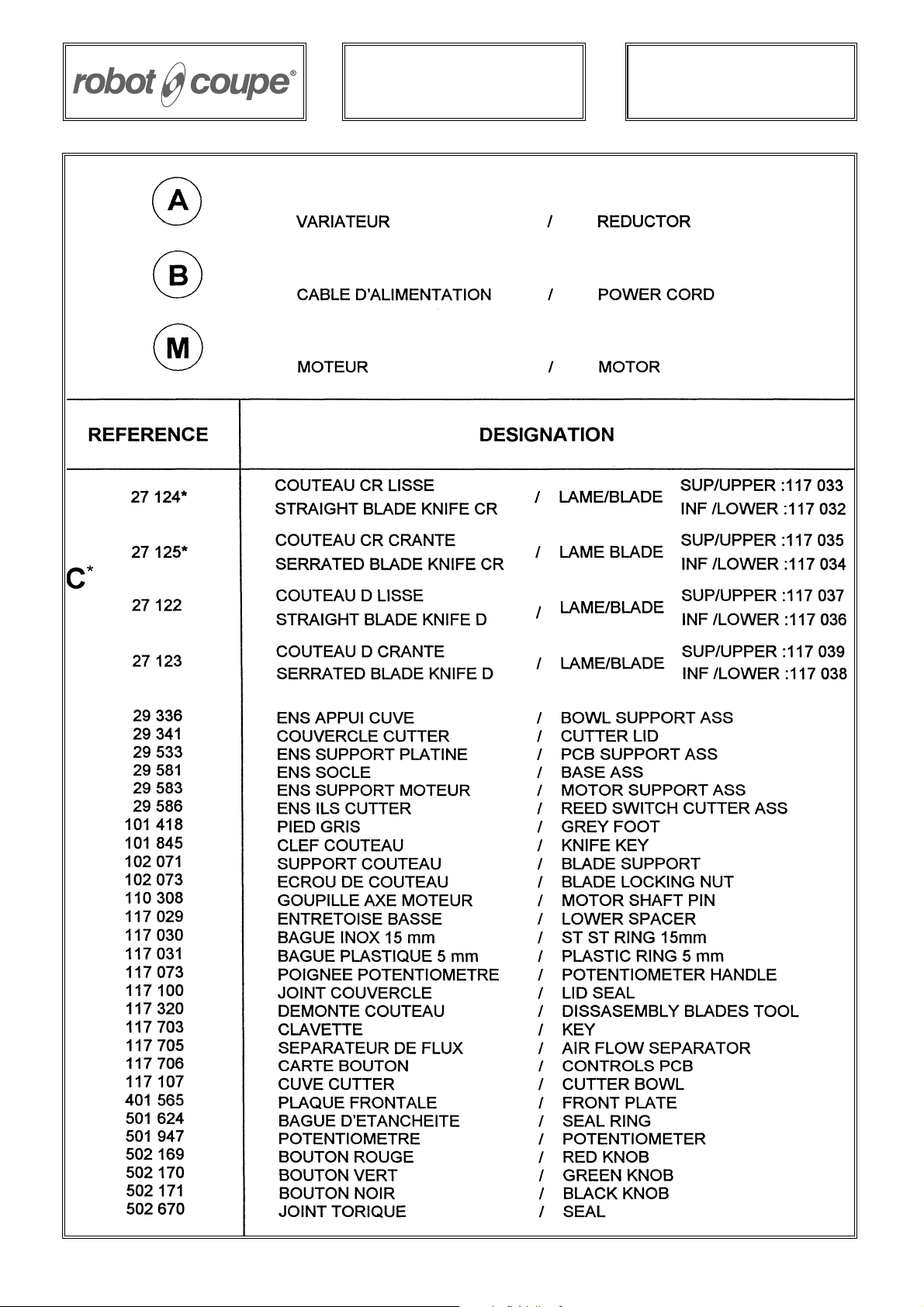

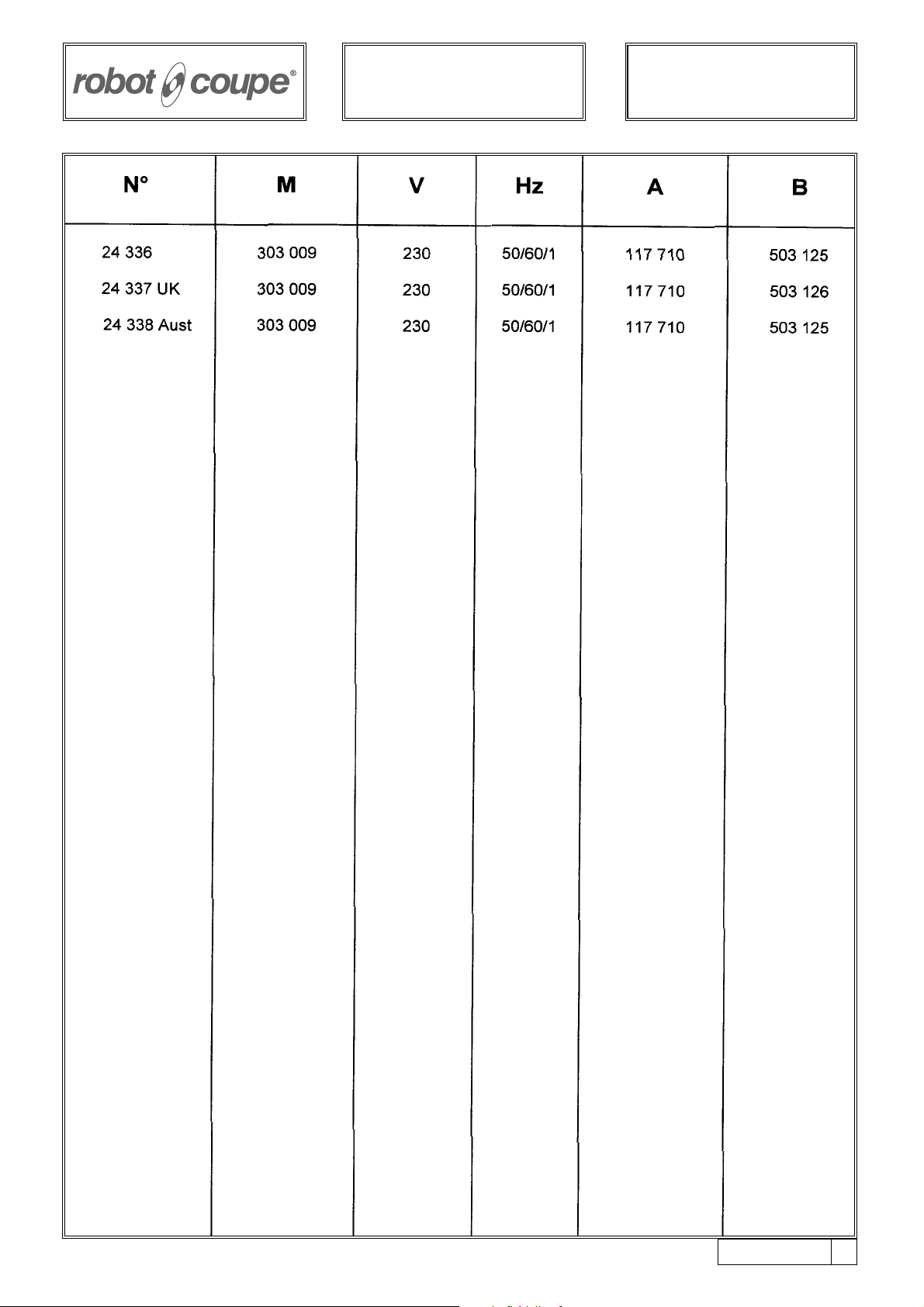

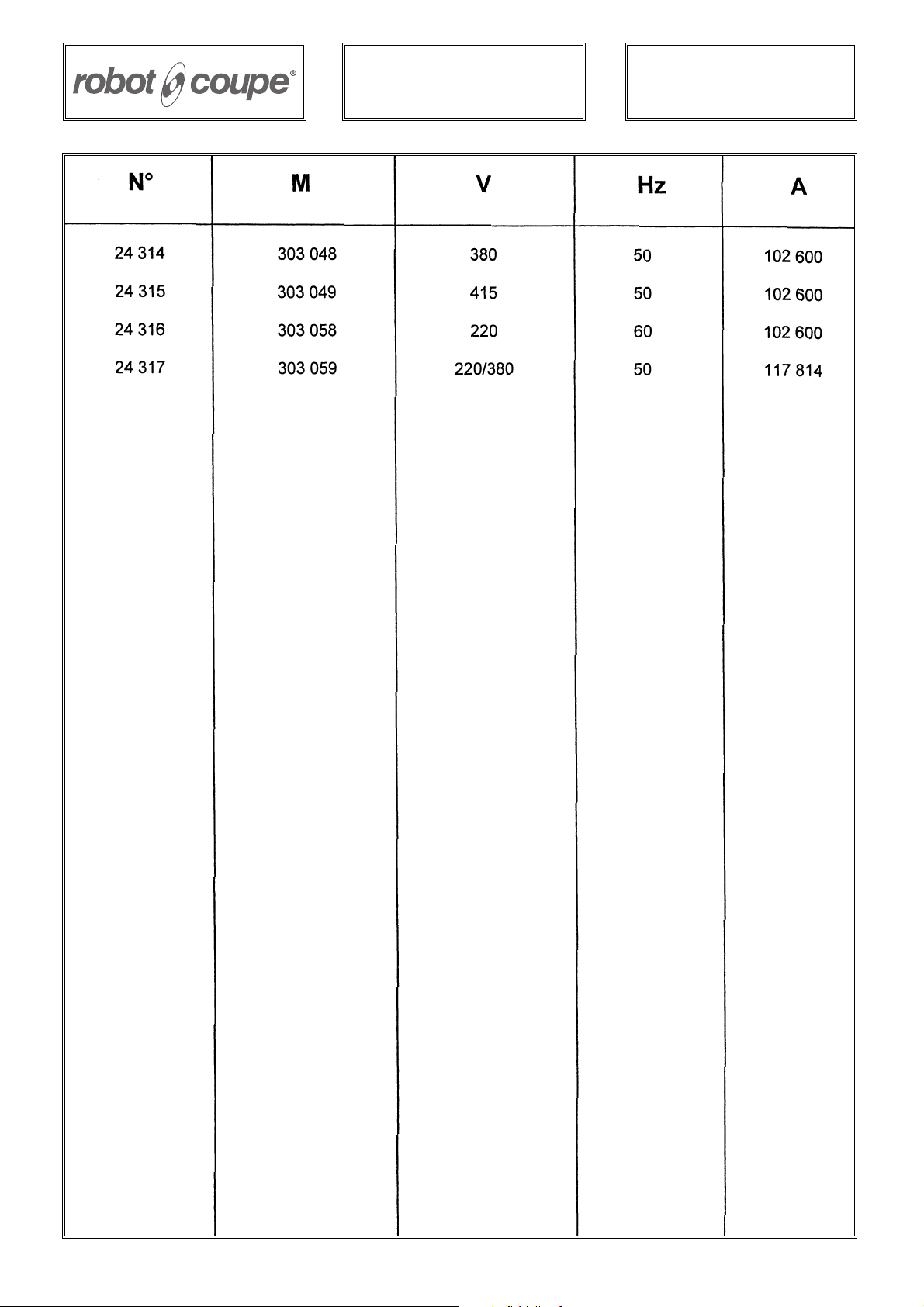

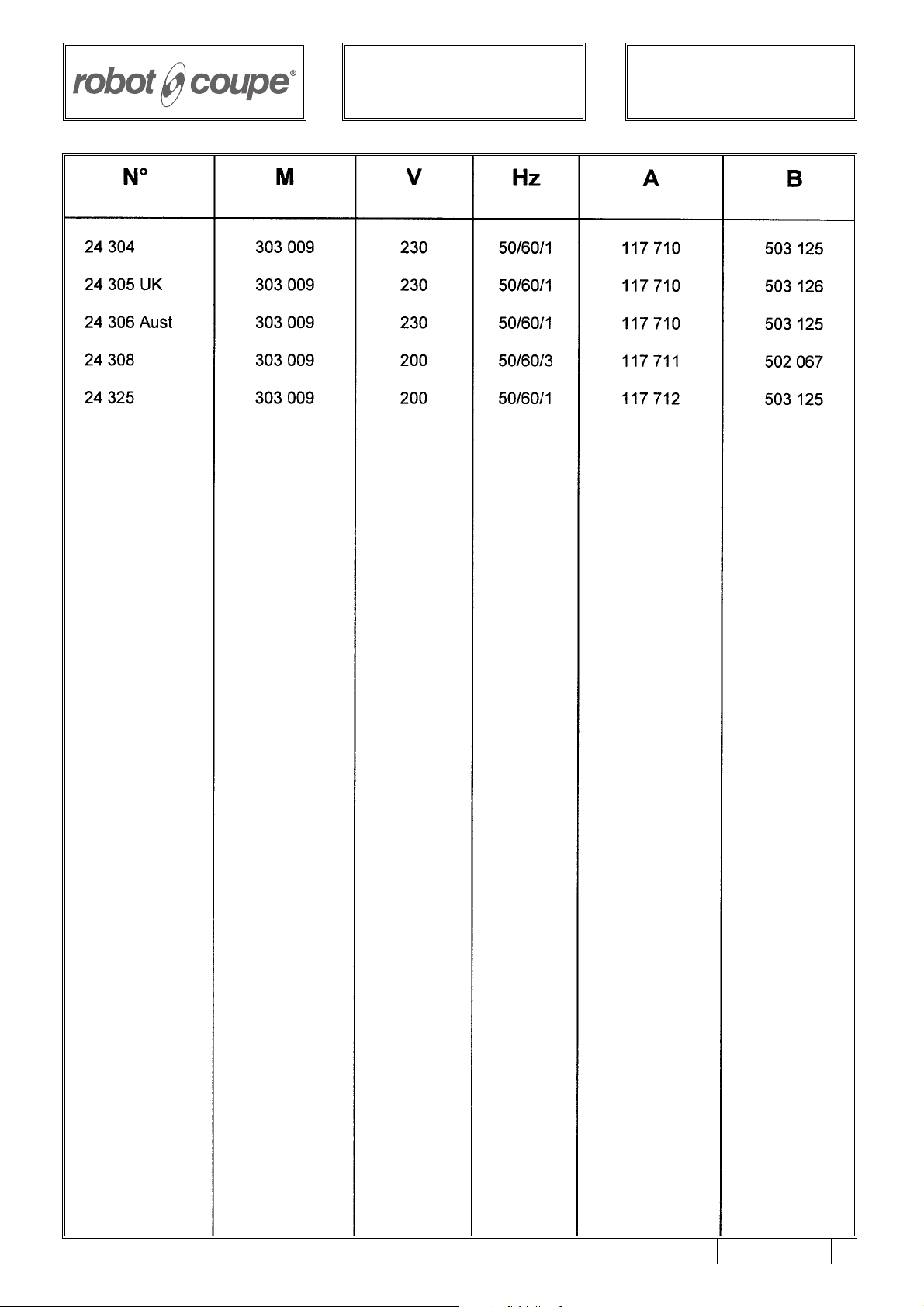

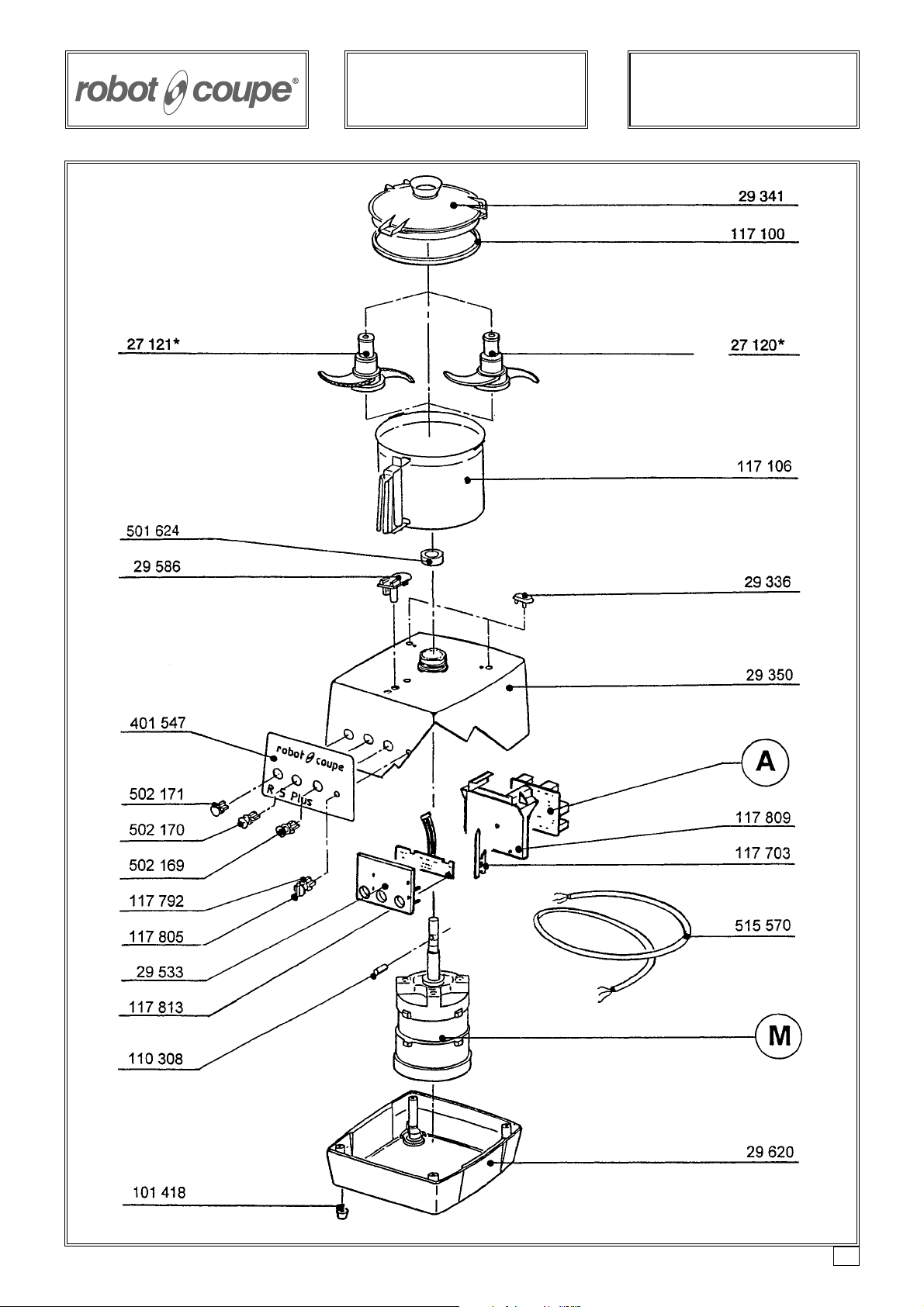

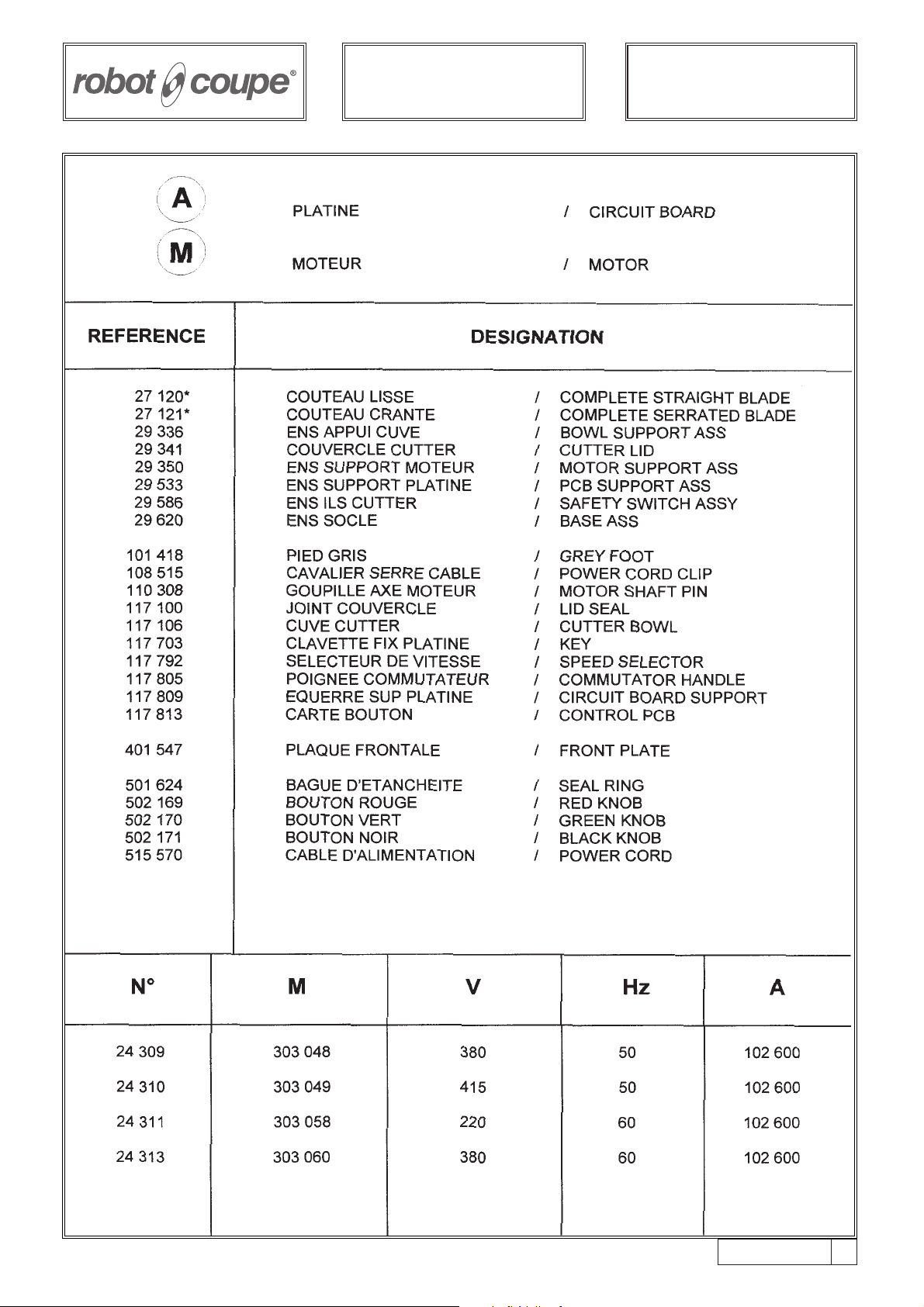

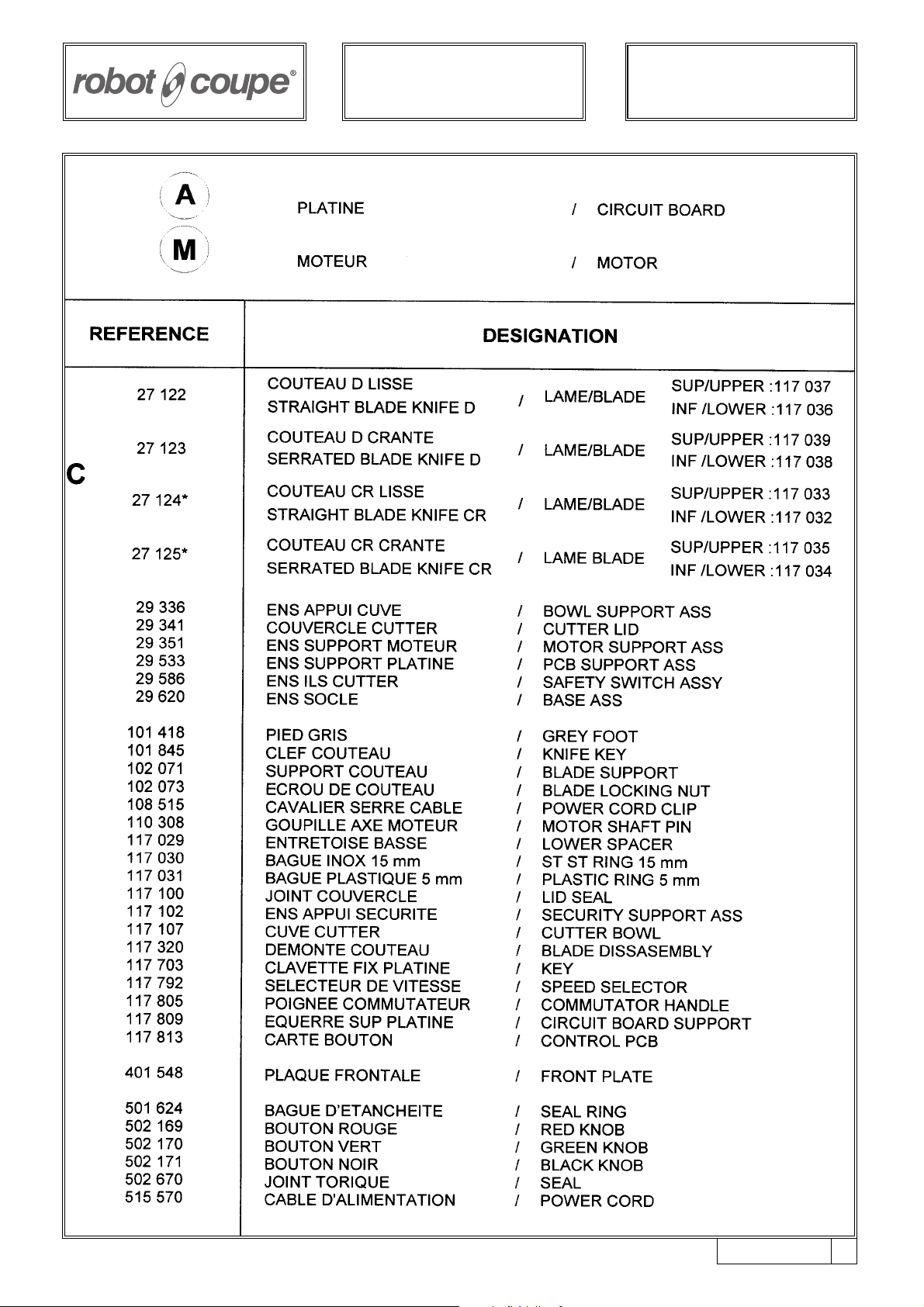

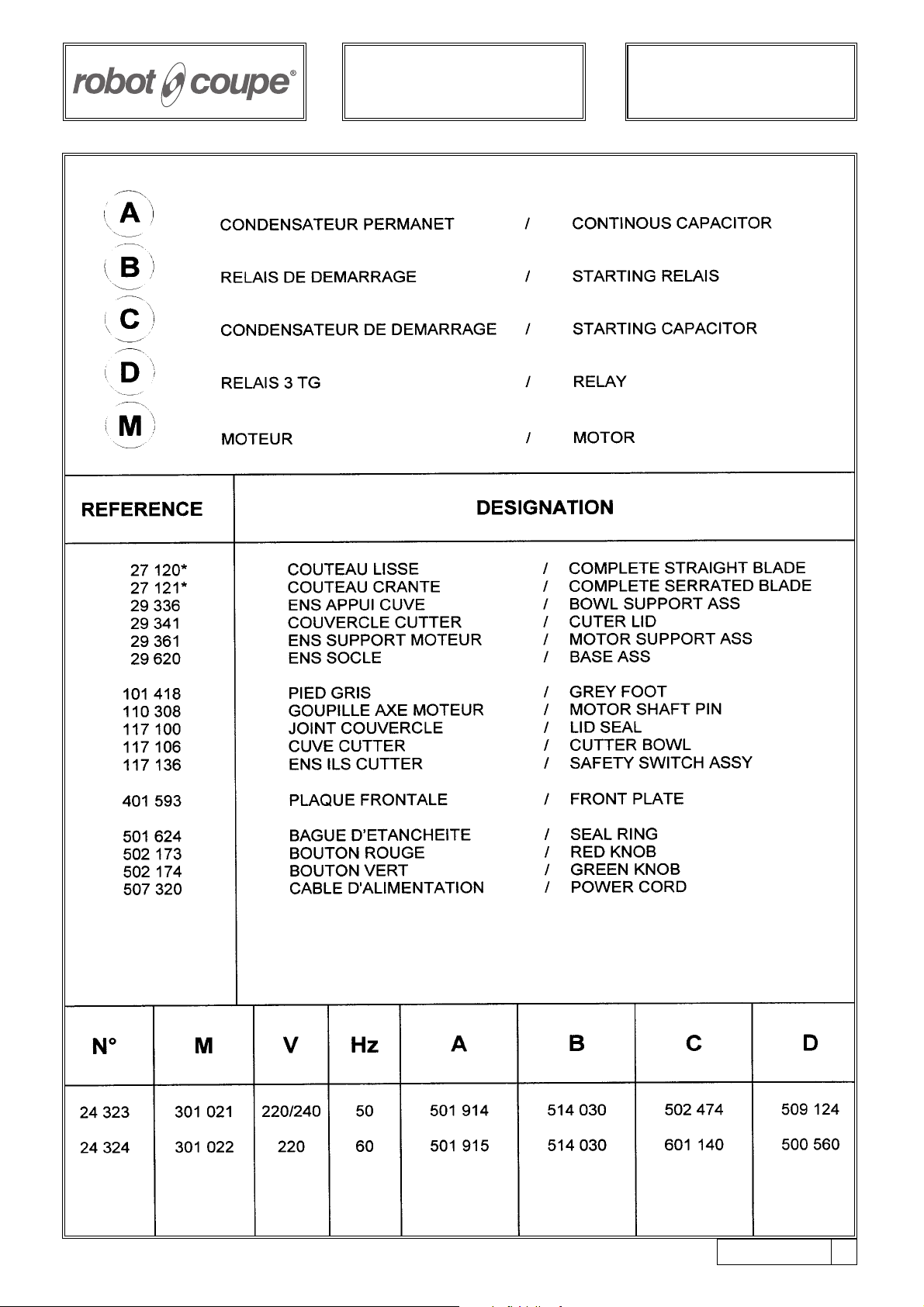

EXPLODED VIEWS

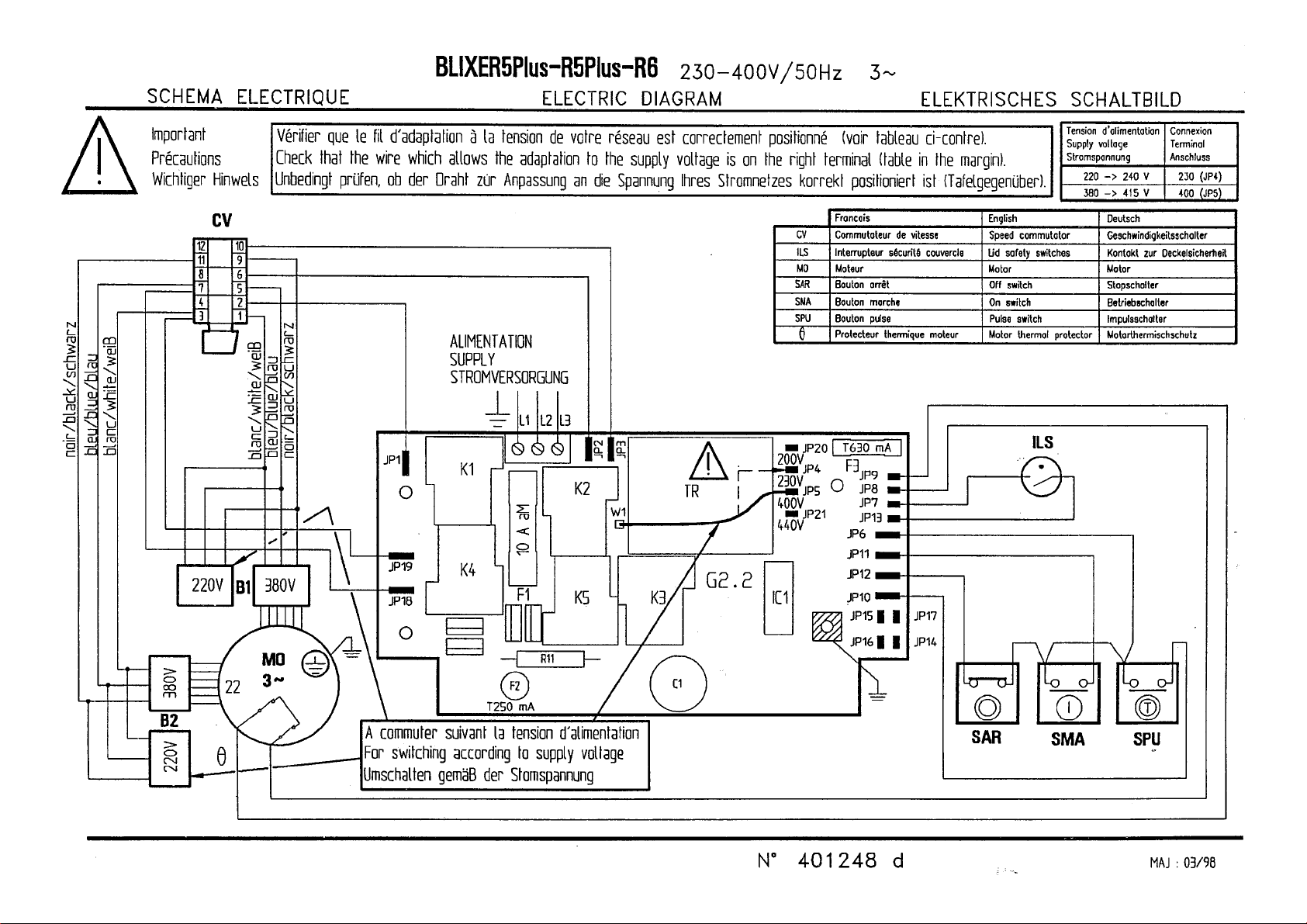

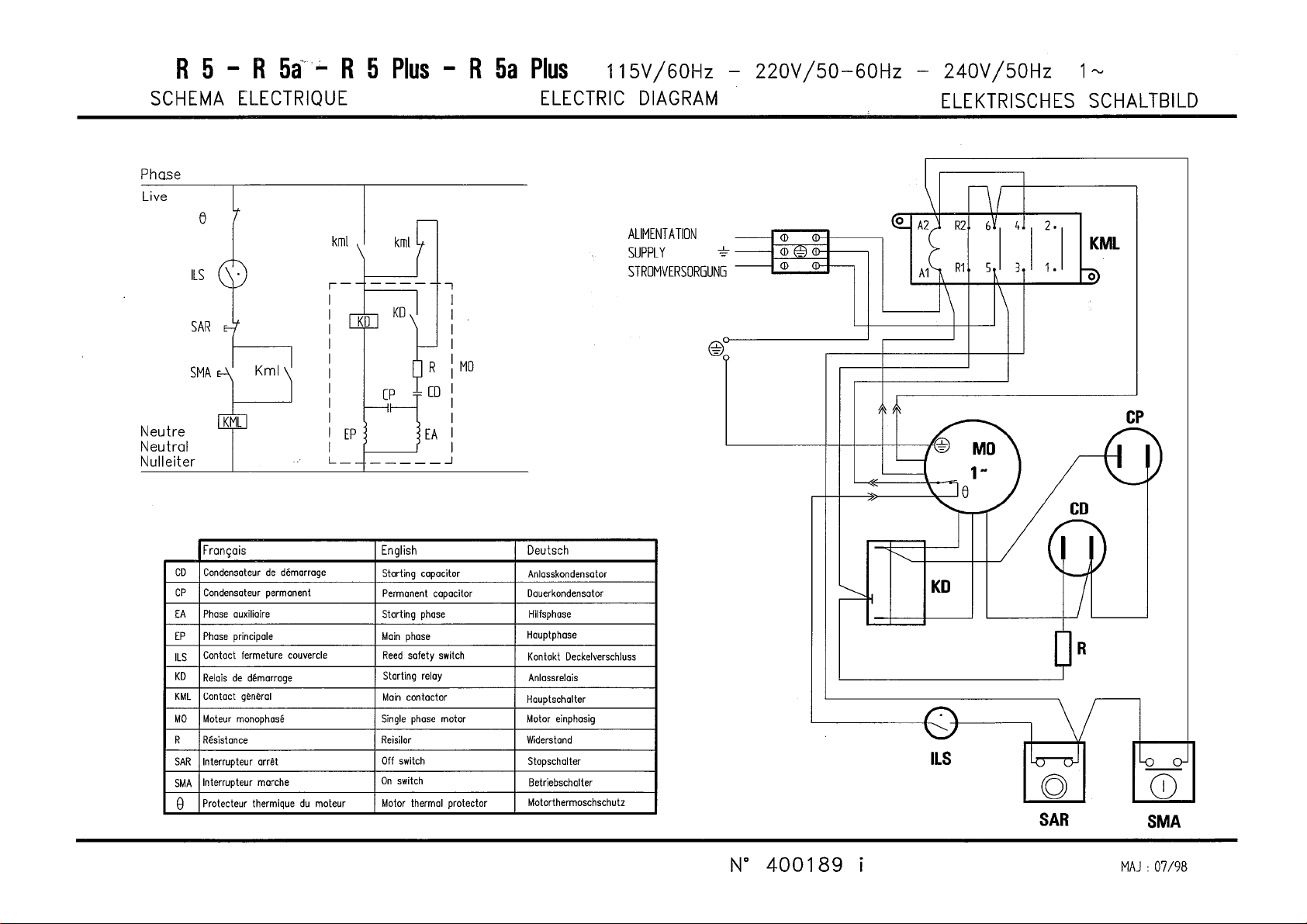

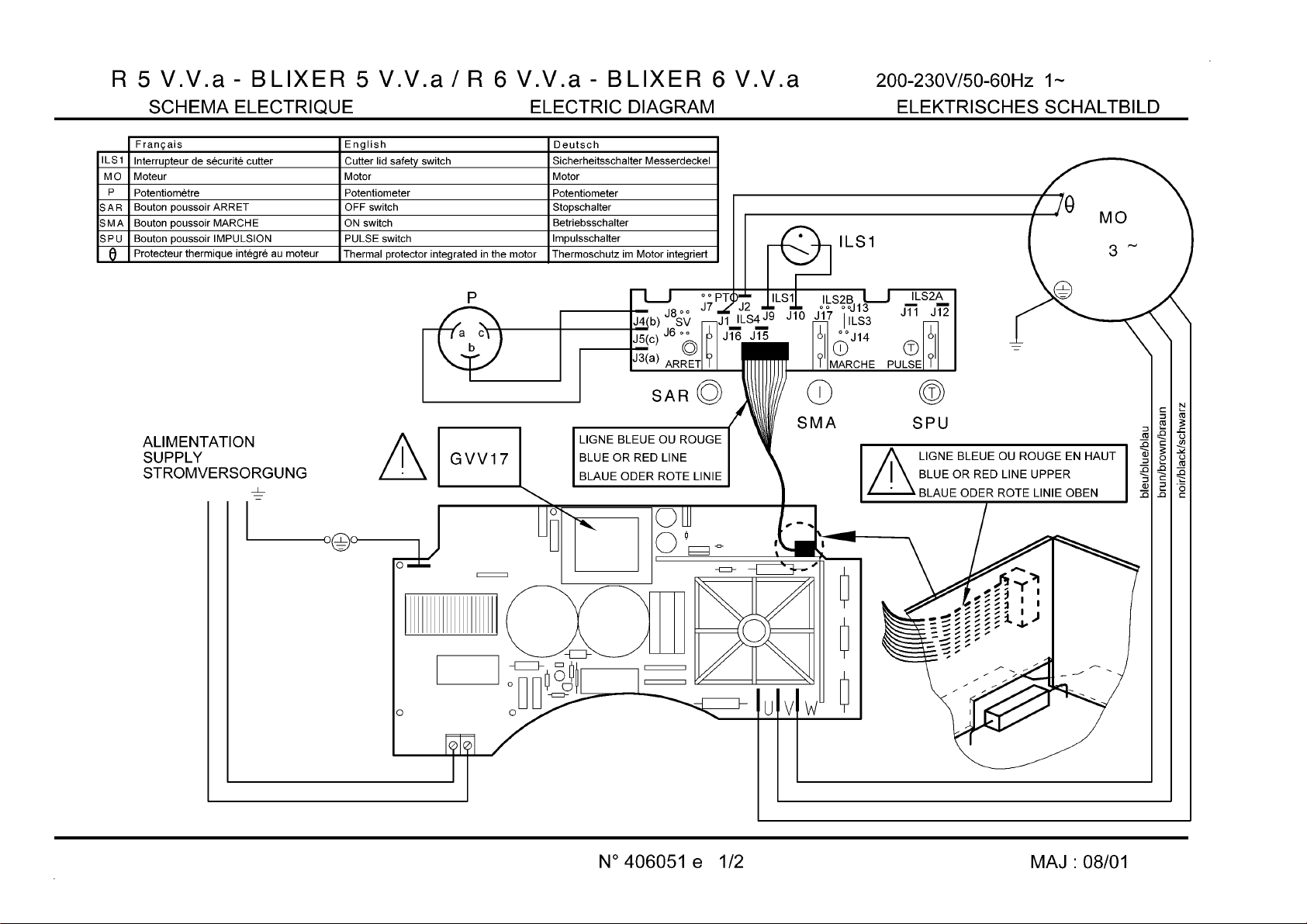

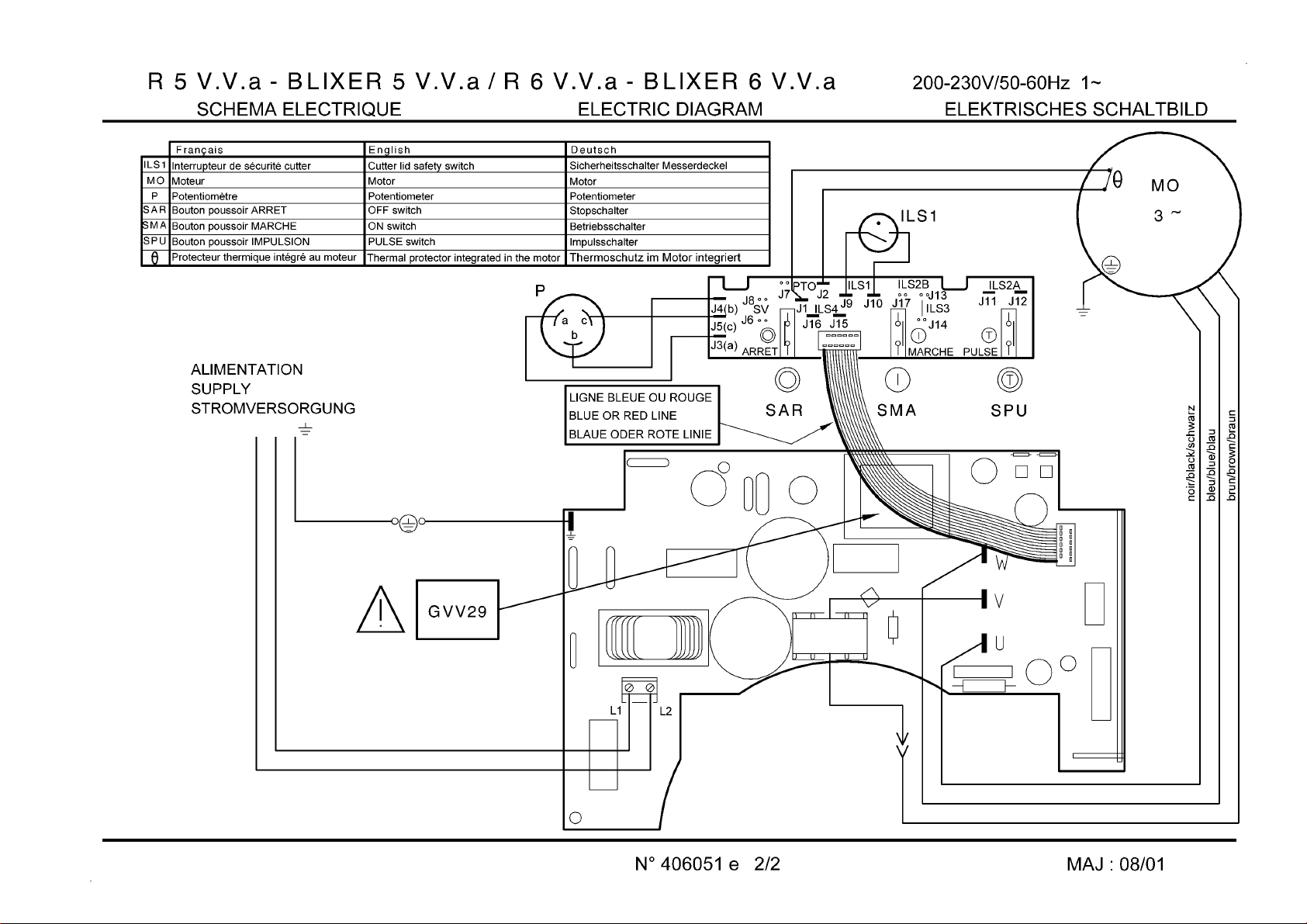

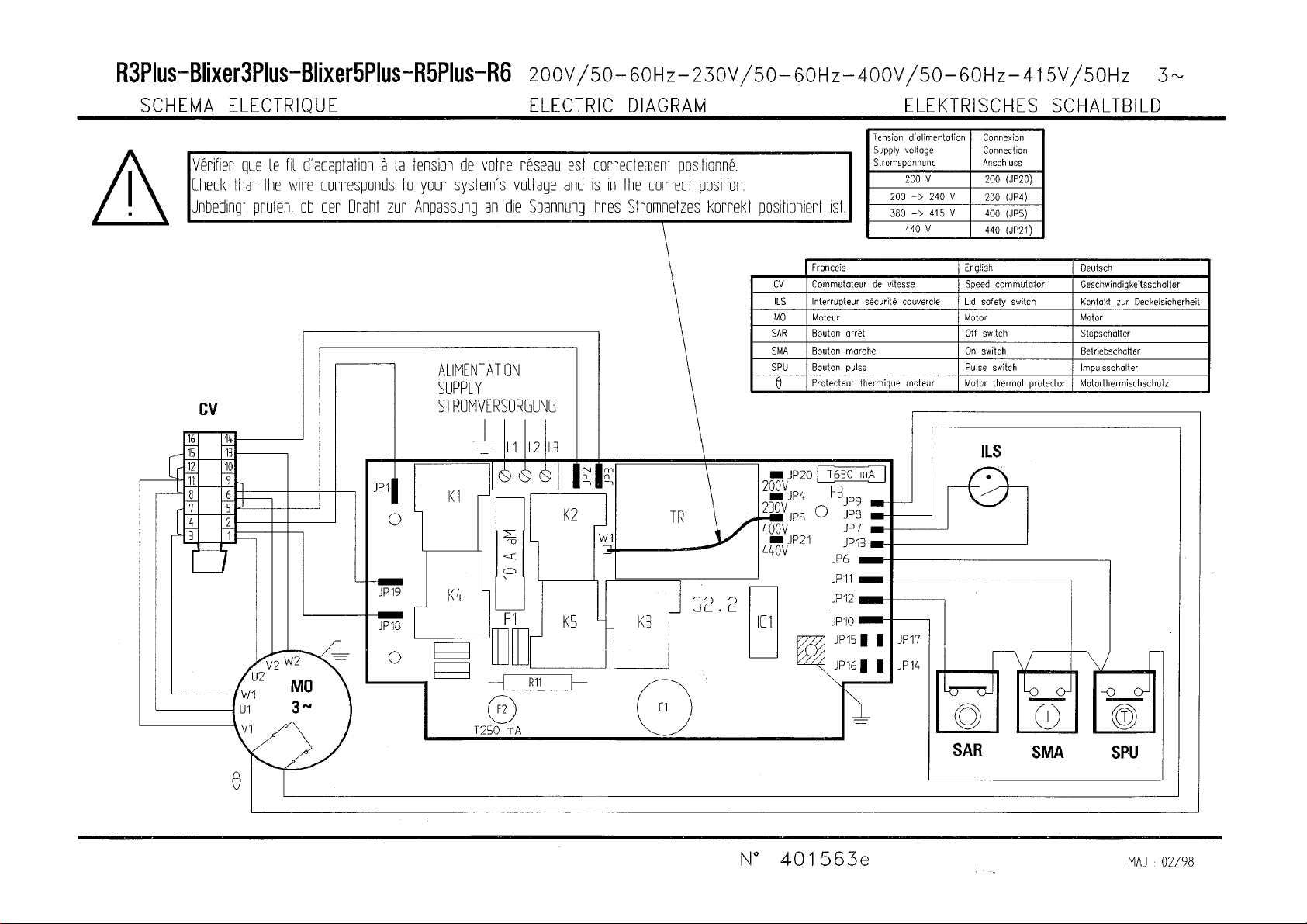

ELECTRICAL AND WIRING DIAGRAMS

4

ROBOT-COUPE S.N.C., LIMITED WARRANTY

Your new ROBOT-COUPE appliance is war­ranted to the original buyer for a period of
one year from the date of sale if you
bought it from ROBOT-COUPE

S.N.C.

If you bought your ROBOT-COUPE product
from a distributor your product is covered
by your distributor’s warranty (Please check
with your distributor terms and conditions
of the warranty).

The ROBOT-COUPE

S.N.C. limited warranty

is against defects in material and/or work­manship.

The ROBOT-COUPE S.N.C. warranty is gi­ven expressly and in lieu of all other war­ranties, expressed or implied, for mer­chantability and for fitness toward a parti­cular purpose and constitutes the only
warranty made by ROBOT-COUPE

S.N.C.

France.

THE FOLLOWING ARE NOT COVERED
BY THE ROBOT-COUPE

S.N.C

.

WARRANTY:

1 - Damage caused by abuse, misuse, drop-

ping, or other similar damage caused by or
resulting from failure to follow assembly, opera­ting, cleaning, user maintenance or storage ins­tructions.

2 - Labour to sharpen and/ or replacements for

blades which have become blunt, chipped or
worn after a normal or excessive period of use.

3 - Materials or labour to replace or repair

scratched, stained, chipped, pitted, dented or
discoloured surfaces, blades, knives, attachments
or accessories.

4 - Any alteration, addition or repair that has

not been carried out by the company or an
approved service agency.

5 - Transportation of the appliance to or from an

approved service agency.

6 - Labour charges to install or test new attach-

ments or accessories (i.e., bowls, discs, blades, at­tachments) which have been arbitrarity replaced.

7 - The cost of changing direction-of-rotation of

three-phase electric motors (Installer is responsible).

8 - SHIPPING DAMAGES. Visible and latent

defects are the responsibility of the freight carrier.
The consignee must inform the carrier and consi­gnor immediately, or upon discovery in the case
of latent defects.
KEEP ALL ORIGINAL CONTAINERS AND
PACKING MATERIALS FOR CARRIER INSPEC­TION.

Neither ROBOT-COUPE

S.N.C. nor its affiliated

companies or any of its distributors, directors,
agents, employees, or insurers will be liable for
indirect damage, losses, or expenses linked to the
appliance or the inability to use it.

5

WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse
of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to
know your appliance and enable you to use the equipment correctly. Please read these instructions in their entirely and make sure that
anyone else who may use the mixer also reads them beforehand.

IMPORTANT WARNING

UNPACKING

• Carefully remove the equipment from the packa­ging and take out all the boxes or packets containing
attachments or specific items.

• WARNING - some of the tools are very sharp e.g.
blade, discs... etc.

INSTALLATION

• We recommend you install your machine on a per­fectly stable solid base.

CONNECTION

• Always check that your mains supply corresponds
to that indicated on the rating plate on the motor unit
and that it can take the amperage.

• The machine must be earthed.

• With the three-phased version, always check that
the blade rotates in an anti-clockwise direction.

HANDLING

• Always take care when handling the blades or
discs - they are very sharp.

ASSEMBLY PROCEDURES

• Follow the various assembly procedures carefully
(see page 6) and make sure that all the attachments
are correctly positioned.

USE

• Never try to override the locking and safety sys­tems.

• Never introduce any object into the container
where the food is being processed.

• Never push the ingredients down with your hand.

• Do not overload the appliance.

• Never switch the appliance on while it is empty.

CLEANING

• As a precaution, always unplung your appliance
before cleaning it.

• Always clean the appliance and its attachments at
the end of each cycle.

• Never place the motor unit in water.

• For parts made of aluminum alloys, use cleaning
fluids suitable for aluminum.

• For plastic parts , do not use detergents that are too
alkaline (i.e., containing too much caustic soda or
ammonia...)

• Robot-Coupe can in no way be held responsible
for the user’s failure to follow the basic rules of clea­ning and hygiene.

MAINTENANCE

• Before opening the motor housing, it is absolutely
vital unplung the appliance.

• Check the seals and washers regularly and ensure
that the safety devices are in good working order.

• It is particularly important to maintain and check
the attachments since certain ingredients contain cor­rosive agents e.g. citric acid.

• Never operate the appliance if the power cord
or plug has been damaged in any way or if the ap­pliance fails to work properly or has been damaged
in any way.

• Do not hesitate to contact your local Maintenance
Department if something appears to be wrong.

KEEP THESE INSTRUCTIONS

IN A SAFE PLACE

WARNING

6

INTRODUCTION TO YOUR
NEW TABLE-TOP CUTTER
MIXER R5 Plus - R5 V.V
R6 - R6 V.V.

The R5 Plus, R5 V.V., R6 or R6 V.V. is perfectly geared
to professional needs. It can perform any number of
tasks, which you will gradually discover as you use it.

This machine can be used to process meat, vege­tables, fine stuffing, mousse, grinding, kneading,... in
less than 5 minutes for even the longest tasks.

Its numerous functions will open the door to a whole
new culinary world.

Thanks to its simple design, all components requiring
frequent handling for maintenance or cleaning can
be fitted and removed in a trice.

To make things easier for you, this manual gives a
breakdown of all the various fitting operations.

This manual contains important information designed
to help the user get the most out of his or her bowl
cutter/vegetable preparation device.

We therefore recommend that you read it carefully
before using your machine. We have also included

a few examples to help you get the feel of your new
machine and appreciate its numerous advantages.

SWITCHING ON
THE MACHINE

• ADVICE ON ELECTRICAL CONNNECTIONS

Before plugging in, check that your power supply cor­responds to that indicated on the machine’s
identification plate.

THREE PHASE R5 Plus - R6

The R5 Plus/R6 come with different types of
motor : 230 x 400 V / 50 Hz / 3

400 V / 50 Hz / 3
220 V / 60 Hz / 3
380 V / 60 Hz / 3

This machine is supplied with a cable to which you
simply attach the appropriate electrical plug or isola­tor for your system. The cable has four wires, one
earth wire, plus three phases wires.

If you have a 4-pin plug:

1) Connect the green and yellow earth wire to the
earth pin.

2) Connect the three other wires to the remaining
pins.

If you have more than 4 pins in the plug, please
note the ROBOT-COUPE does not require a neutral
wire.

Switch on the empty machine, making sure that
the blade is rotating properly in an anti-clockwise
direction.

On the motor unit and on the lid a arrow marks the
blade rotation directions.

If the blade turns in a clockwise direction, swap over
two wires.

GREEN YELLOW is the earth,

DO NOT DISCONNECT

Swap either : the and the

the and the

or the and the

3

2

3

121

• SINGLE PHASE R5 Plus

The R5 Plus is available with motor ratings:

230 V/50 Hz / 1

220 V/60 Hz / 1
The machine comes with a single phase plug connec­ted to a power cord.

• SINGLE PHASE R5 V.V./R6 V.V.

The R6 V.V. is available with motor ratings +
variabe speed : 230 V/50-60 Hz / 1

The standardized plug must be calibrated to a mini­mum of 13 amps and preferably 20 amps, if the
appliance is used intensively.

• CONTROL PANEL

Red switch = Off switch
Green switch = On switch
Black switch = Pulse control

R5 Plus - R6: Speed selector = 1.500 or 3.000 rpm.
R5 V.V. - R6 V.V.: Speed variation from

300 to 3.000 rpm.

ASSEMBLY

1) With the motor base
facing you, position the
cutter bowl on the motor
base.

2) Turn the bowl to the
right until it locks.

This appliance must be plugged into an
earthed socket (risk of electrocution).

WARNING

7

• WORKING HEIGHT

We recommend that you position the food processor on
a stable worktop so that the upper edge of the large feed
hopper is at a height of between 1.20 m and 1.30 m.

• NOISE LEVEL

The equivalent continuous sound level when the food
processor is operating on no-load is less than
70 db (A).

EXAMPLES

The cutter will enable your to perform all your cutting
tasks in minimum time; we recommend therefore, that
you keep a close eye on the mixture in order to ob­tain the desired results.

- Automatic bowl locking.

- Extremely simple unlocking of bowl by means of a
trigger fitted in the handle.

- Lid designed to allow the addition of liquid or ingre­dients during processing.

- Models R5 Plus and R5 V.V. are equipped with a
straight blade knife supplied as standard equip­ment and can be provided with an optional serra-

ted blade for grinding and kneading tasks.

- Models R6 and R6 V.V. are supplied with an all­stainless steel straight blade knife that is fully
removable and can be fitted with serrated blades.

- Flat motor base for easier fitting and cleaning of at-
tachments.

- Models R5 Plus and R6 (three-phase) are provided
with two speeds 1500 and 3000 Rpm.

- Model R5 Plus (single-phase) is provided with one

speed of 1.500 Rpm.

- Models R5 V.V. and R6 V.V. are equipped with a
speed variation which varies between 300 and

3.000 Rpm to ensure more flexible use and give a

wide range of tasks.

- Machines in compliance with strictest hygiene and

safety standards.

• PACKAGING

The packaging for these models has been specially
designed to prevent damage occurring in transit.

Details of the contents are clearly marked on the
packaging:

- type of device;

- voltage;

- attachments (if any);

- serial number;

Dimensions (in mm):
Heigh 580 Lenght 500 Width 400.

3) Engage the blade on
the motor shaft and lo­wer it right to the bottom
of the bowl.

Make sure that it is cor­rectly positioned, by rota­ting it in the bowl.

4) Place the lid on the
bowl and rotate to the
right until it clicks.

The device is now ready
for use. The green light
should therefore be
illuminated.

TECHNICAL
SPECIFICATIONS

• DESCRIPTION AND ADVANTAGES

- 5.5-litre stainless steel bowl for models R5 Plus
and R5 V.V.

- 6.5-litre stainless steel bowl for models R6 and
R6 V.V.

- A patented blade, an exclusive ROBOT-COUPE

feature, gives perfect result for small or large
quantities.

- New blade profile for optimum cutting quality.

- Pulse control for better cutting precision.

• WEIGHT net weight gross weight

R5 Plus 24 kg 26 kg
R5 V.V. 25 kg 27 kg
R6 25 kg 27 kg
R6 V.V. 26 kg 28 kg

• DIMENSIONS (in mm)

R5 Plus R5 V.V. R6 R6 V.V.

A 480 480 520 520
B 350 350 350 350
C 280 280 280 280
D 265 265 265 265

8

R5 Plus R6/

R5 V.V. R6 V.V.

Max. Max.

USES

processing processing Suggested Processing

quantity quantity speed time

(in kg) (in kg) (in Rpm) (inmn)

CHOP

• MEAT

Hamburger/steak tartare 1,5 2

1200/

3

1500

Sausagemeat/tomatoes 2 2,5

1200/

3

1500

Terrine / pâté 2,5 2,5

1200/

4

1500

• FISH

Brandade 2,5 3 3000 5
Terrines 2,5 3 3000 5

• VEGETABLES

Garlic/parsley/onion/shallots 0,5/1,0 0,5/1,5

1500/

3

2000

Soup / purées 2 3

2500/

4

3000

• FRUIT

Compotes /purées 2 3

2500/

4

3000

EMULSIFY

Mayonnaise/ailloli/

33,5

600/

3

rémoulade sauce

1500

Hollandaise / béarnaise 2 3

600/

5

1500

Snail or salmon butter 2 2,5

600/

4

1500

KNEAD

Shortcrust pasty / Shortbread 2 2,5

900/

4

1500

Flaky pastry 2 2,5

900/

4

1500

Pizza dough 2 2,5

900/

4

1500

The pulse control allows you to stop and start the ma­chine for high-precision control when working with
certain types of ingredients.

The cutter version has numerous other applications.
The above quantities and times are approximate and
may vary according to the quality of the ingredients
and recipes.

OPTION

For the R5 Plus and R5 V.V.
models, a serrated blade knife

is available as an option.

For the R6 and R6 V.V. models,

serrated blades are available
as an option.

The serrated blades are recommended for grinding
and kneading tasks.

CLEANING

• CUTTER

After removing the lid, remove the bowl from the motor
base by pushing the trigger fitted in the handle. Pull up
to disengage, leaving the blade in the bowl
in order to prevent any spillage when working with
liquids.

If the food has a solid consistency, remove the blade
and empty the bowl.

Replace the bowl, place the blade back on the shaft
and switch on the machine in order to remove any
mixture which may have stuck to the blade.

If you wish, you can rinse the bowl by filling it with
hot water and switching on for a few minutes.

• BLADE

The stainless steel blade of R6 - R6 V.V. is easy to
dismantle and to clean.

GRIND

Dried fruit 1 1,5

900/

4

1500

Ice 1 1,5

900/

4

1500

Breadcrumbs 1 1,5

900/

4

1500

• MOTOR BASE

Never immerse the motor base in water. Clean
using a damp cloth or sponge.

Ensure power supply to machine is disconnected.
1 - Place blade dismantling tool over shaft onto

motor base.

2 - Fit blade onto shaft ensuring it is correctly

positioned.

3 - Insert bar into blade cap and turn anti-clock-

wise to dismantle .

When re-assembling do not over tighten.

A - Upper blade.
B - Lower blade.

After cleaning the blade, always dry the blades well
to prevent rusting.

As a precaution, always unplug your appliance
before cleaning it (risk of electrocution).

WARNING

9

ENGLISH

STANDARDS

MACHINES IN COMPLIANCE WITH:

• The following European directives and related
national legislation:

- Modified "machinery" directive 98/37/EEC,

- "Low voltage" directive 73/23/EEC,

- "EMC" directive 89/336/EEC,

- "Materials and parts in food contact" directive

89/109/EEC,

- "Plastic materials and parts in food contact" di-

rective 90/128/EEC.

• The following European harmonized standards
and standards setting out health and safety
rules:

- EN 292 - 1 and - 2,

- EN 60204 -1 (1992),

- For Food Processors and blenders : EN 12852.

INDEXES OF PROTECTION:

- IP 55 for the switches.

- IP 34 for the machines.

MAINTENANCE

• BLADE

We strongly recommend that the blades (smooth
ones) are sharpened daily using sharpening stone
supplied with machine.

The quality of the cut depends mainly on the sharp­ness of your blades and the degree of wear. The
blades are actually wearing parts, which should be
replaced occasionally to ensure consistent quality in
the final product.

• MOTOR SEAL

The motor seal on the shaft should be lubricated re­gularly using a food safe lubricant.

In order to keep the motor completely watertight, it is
advisable to check the motor seal regularly for wear
and tear and replace if necessary.

The motor seal can be easily replaced without having
to remove the motor, so we strongly advise you to en­sure that is in good condition.

SAFETY

These models are fitted with a magnetic safety
device and motor braking system.

As soon as you open the lid of the cutter bowl or the
vegetable attachment, the motor stops.

To restart the machine, simply close the lid and press
the green switch.

In order to avoid splashing when processing liquid
preparation, we recommend you stop the machine
before opening the lid.

All the models are fitted with a thermal cut-out which
automatically stops the motor if the machine is left on
for too long or overloaded.

If this happens, allow the machine to cool completely
before restarting.

Check that your detergent is suitable for cleaning
plastic parts. Some washing agents are too alka­line (e.g. high levels of caustic soda or ammonia)
and totally incompatible with certain types of plas­tic, causing them to deteriorate rapidly.

IMPORTANT

ELECTRICAL
DATA

R 5 Plus single-phase machine

Speed Power Intensity

Motor

(rpm) (watts) (amp.)

230 V / 50Hz 1500 900 16.0

220 V / 60 Hz 1500 900 16.0

Speed Speed

Power Intensity

Motor 1 2

(watts) (amp.)

(rpm) (rpm)

230 x 400 V / 1500 750

3000 1200

400 V /50 Hz

1500 750 2.7

3000 1200 3.4

220 V /60 Hz

1800 750 4.7

3600 1200 6.5

50 Hz

230 V=4.4
400 V=2.5

230 V=7.0
400 V=4.0

Speed Power Intensity

Motor

(rpm) (watts) (amp.)

230 V / 50-60 Hz 300 to 3000 1300 12

R 5 Plus three-phase machines

R 5 V.V. single-phase machines

Never try to override the locking and safety
systems.

Never introduce any object into the container
where the food is being processed.

Never push the ingredients down with your
hand.

Do not overload the appliance.
Never switch the appliance on while it is

empty.

REMENBER

The blades are extremely sharp. Handle with
care.

WARNING

10

Speed Speed

Power Intensity

Motor 1 2

(watts) (amp.)

(rpm) (rpm)

230 x 400 V / 1500 800

3000 1300

400 V /50 Hz

1500 800 2.7

3000 1300 3.4

220 V /60 Hz

1800 800 4.7

3600 1300 6.5

50 Hz

230 V=4.4
400 V=2.5

230 V=7.0
400 V=4.0

Speed Power Intensity

Motor

(rpm) (watts) (amp.)

230 V / 50-60 Hz 300 to 3000 1500 13

R 6 three-phase machines

R 6 V.V. single-phase machines
