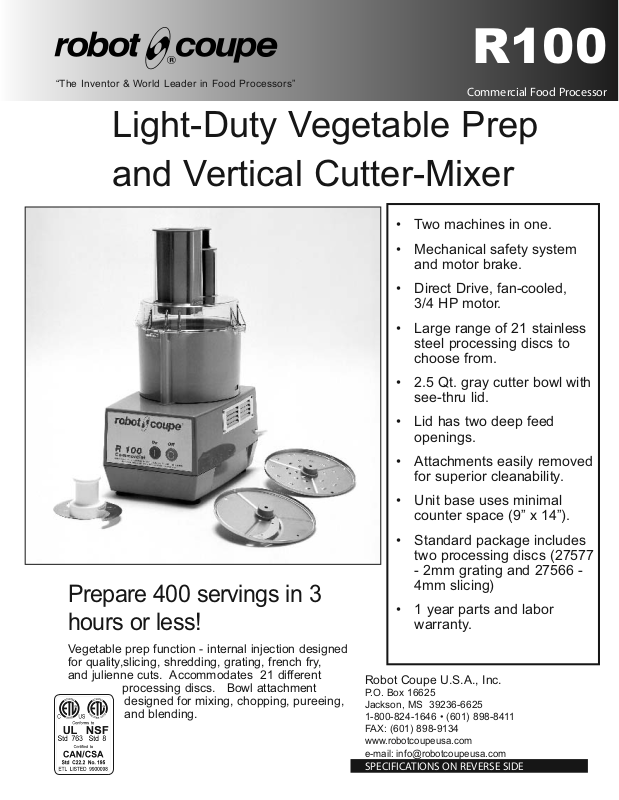

Robot Coupe R100, R100 CLR Specifications
R100
“The Inventor & World Leader in Food Processors”
Light-Duty Vegetable Prep
and Vertical Cutter-Mixer
Commercial Food Processor
• Two machines in one.
• Mechanical safety system
and motor brake.
• Direct Drive, fan-cooled,
3/4 HP motor.
• Large range of 21 stainless
steel processing discs to
choose from.
Prepare 400 servings in 3
hours or less!
Vegetable prep function - internal injection designed
for quality,slicing, shredding, grating, french fry,
and julienne cuts. Accommodates 21 different
processing discs. Bowl attachment
designed for mixing, chopping, pureeing,
and blending.
• 2.5 Qt. gray cutter bowl with
see-thru lid.
• Lid has two deep feed
openings.
• Attachments easily removed
for superior cleanability.
• Unit base uses minimal
counter space (9” x 14”).
• Standard package includes
two processing discs (27577
- 2mm grating and 27566 4mm slicing)
• 1 year parts and labor
warranty.
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646 • (601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com
e-mail: info@robotcoupeusa.com
SPECIFICATIONS ON REVERSE SIDE
R100
m
m
“The Inventor & World Leader in Food Processors”
Specifications
STANDARD MODEL: Includes motor base unit,, 2.5 Qt. grey
cutter bowl with stainless steel “S” blade, see-thru lid with two
deep feed openings, one 5/32” (4mm) slicing disc, and one
5/64” (2mm) medium grating disc .
ELECTRICAL REQUIREMENTS: 120V, 60HZ, 7 Amps. NEMA #515P.
SWITCHING: Control panel with push-type on/ off buttons.
MOTOR: 3/4 HP, 1725 RPM, direct-drive, fan-cooled.
WEIGHT: 21 lbs. net, 25 lbs. approximate shipping weight.
OPTIONAL EQUIPMENT: 19 additional processing discs
and free standing multiple disc rack.
STANDARDS: ETL electrical & sanitation, cETL (Canada)
Commercial Food Processor
Available Discs
Slicing Discs
27051 - 1/32" (1mm)
27555 - 5/64" (2mm)
27086 - 1/8" (3mm)
27566 - 5/32" (4mm)
27087 - 3/16" (5mm)
27786 - 1/4" (6mm)
Ripple Cut Slicers
27621 - 5/64" (2mm)
Graters
27588 - 1/16" (1.5mm)
27577 -5/64" (2mm)
27511 - 1/8" (3mm)
27046 - 1/4" (6mm)
27632 - 11/32" (9mm)
27078 - Hard Cheese Grate
Pulping
27079 - Fine pulping disc
27764 - Pulping disc
Julienne
27599 - 5/64" (2x2mm)
27080 - 5/64" x 5/32" (2x4
27081 - 5/64"x1/4" (2x6m
27047 - 5/32" (4x4mm)
27610 - 1/4" (6x6mm)
27048 - 5/16" (8x8mm)
Robot Coupe U.S.A., Inc.
P.O. Box 16625
Jackson, MS 39236-6625
1-800-824-1646
(601) 898-8411
FAX: (601) 898-9134
www.robotcoupeusa.com
e-mail: info@robotcoupeusa.com
Distributed by:
Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.
© 2003 Robot Coupe U.S.A., Inc. LItho in U.S.A. WKK 06/03
