Robertshaw 9610 User Manual

110-655

7 Day Programmable
1 Heat / 1 Cool

W

A

R

R

A

N

T

Y

INTEGRATED COMFORT SOLUTIONS

™

DIGITAL

PROGRAMMABLE

THERMOSTAT

9610

User’s Manual

Quick Start
Installation and
Programming

®

ELECTRIC

E

GAS

G

Installation Guide

IMPORTANT SAFETY INFORMATION WARNING:

•

Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.

•

Read all of the information in this manual before installing or
programming this thermostat.

•

This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.

•

All wiring must conform to local and national building and electrical
codes and ordinances.

•

Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.

As an Energy Star partner, Maple Chase has
determined that this thermostat product meets
the Energy Star guide lines for energy efficiency.

1

110-655B.qxd 11/27/06 4:38 PM Page 1

Features

• Four pre-programmed Energy Star setpoints for each day of the week.

• Two “AA” ENERGIZER brand batteries retain program memory, even
during power outages.

• Low battery indicator.

• Fahrenheit/Celsius display option.

• Programmable from 45°F (7°C) to 90°F (32°C).

• Accuracy within ± 1 degree.

• Adjustable temperature differential: 1-3 degrees.

• Maintains summer and winter programming.

• Low temperature freeze protection. While in heat mode, thermostat
will mechanically turn on heat if temperature drops to 40°F (4°C) ­even if batteries are missing or drained.

• Automatic heating shutdown if temperature exceeds 90°F (32°C).

• Quickset programming for quickly programming all days
of the week simultaneously.

• Mercury free, environmentally friendly.

Replacing Existing Thermostat

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not
disconnect wires. (Fig. 1)

3. Label wires per Table 1.

Table 1

Old Label New Label Description

M, 4, RH, R5 or R RH Heat Transformer,

hot side

V or RC RC Cooling Transformer, hot side

Y or Y6 Y Cooling Control

H, W or 4 W Heating control

F or G G Fan control relay

C* Y or None Either cooling control or com-

mon side of transformer

O O Cool active reversing valve

B B Heat active reversing valve

*NOTE: ON SOME OLDER MODELS, THE C TERMINAL CAN BE EITHER THE COOLING CONTROL OR THE

COMMON SIDE OF THE TRANSFORMER

. CHECK FURNACE WIRING DIAGRAM TO VERIFY C TERMINAL. IFITIS

THE COMMON SIDE OF THE TRANSFORMER

, CAP THE WIRE AND TUCK INTO THE WALL. IF IT IS THE COOLING

CONTROL

, CONNECT TO THE Y TERMINAL.

4.After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to
install thermostat.

2

110-655B.qxd 11/27/06 4:38 PM Page 2

Figure 1

Installing Item 9610 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR.

DO NOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY

HEAT OR STEAM GENERATING FIXTURES

. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERA-

TION.

1. Turn power off to the heating and cooling systems.

2. Place COOL/OFF/HEAT In OFF position.

3. Place AUTO-ON switch
Into AUTO position.

4. Remove the cover using a coin
or screwdriver.

Figure 2

5. Place thermostat against the wall at desired location. Make sure
wires will feed through opening on base of thermostat.

6. Mark placement of mounting holes. See Fig. 3. Set base aside.

3

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

COOL-OFF-HEAT

AUTO - ON

110-655B.qxd 11/27/06 4:38 PM Page 3

Figure 3

7. Drill the marked holes using a 3/16” drill bit.

8. Tap plastic anchors into the holes.

9. Align base with plastic anchors and feed wires through opening.
See Fig 4.

Figure 4

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on other
side of this sheet. Make sure wire connections are secure.

12. Place fan option switch into either the “ELEC” or “GAS” position
depending upon the type of furnace. Refer to Figure 5.

Figure 5

13. Put heat pump option switch into either the “NON HPUMP” or
“HPUMP” position, depending on the type of system in the home.

4

MOUNTING HOLES

FAN
OPERATION
SWITCH
Controls fan delay

HEAT PUMP

SWITCH
Controls

heat pump

110-655B.qxd 11/27/06 4:38 PM Page 4

14. Install two “AA” ENERGIZER brand batteries or equivalent into bat­tery compartment. Be sure to place positive (+) ends of batteries
toward (+) battery terminals in the battery compartment. The display
will show as follows:

15. Replace cover onto thermostat by snapping into place.

16. Turn on power to system . Test thermostat as described in the
following section.

Programming Guide

Set Time of Day, Day of Week,
Temperature Differential,
Residual Cooling

1. Press & Hold SET. Press PROG/MAN
Release simultaneously.

Press c or d to change
Time of Day.

2. Press Press

To Change

Day of Week

5

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

SET PROG/MAN

>

>

SET P

1=MO
2=TU
3=WE
4=TH
5=FR
6=SA
7=SU

110-655B.qxd 11/27/06 4:38 PM Page 5

>

>

3. Press Press

To change

Temperature Differential*

*T

HE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS

THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM
THE TEMPERATURE SETTING

, THE SYSTEM WILL TURN ON. IF THE SYSTEM TURNS

ON TOO OFTEN

, INCREASE THE TEMPERATURE DIFFERENTIAL.

4. Press Press

To change

Residual Cooling**

**THE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN ADDITIONAL 30, 60 OR 90

SECONDS AFTER THE COMPRESSOR CYCLES OFF. RESIDUAL COOLING CAN ONLY BE PROGRAMMED WHEN
SETTING THE COOLING PROGRAM

.

Changing Fahrenheit (F) to Celsius (C)

Press and Hold SET Press

Release both simultaneously.

QuickSet™ Programming Mode*

1. Place COOL-OFF-HEAT
in HEAT or COOL position.

2. Press & Hold SET. Press the d button.
Release simultaneously.

3. The MORN indicator should be blinking. Program the Time-of-Day and
the temperature as outlined in the Setting Daily Program section.

*QuickSet™ will program all 7 days of the week with the same program.

Individual days can then be changed or modified.

6

SET P

P

P

COOL-OFF-HEAT

SET P

>

110-655B.qxd 11/27/06 4:38 PM Page 6

>

>

SET

SET

PROG

MAN

>

>

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

>

Setting Daily Programming

Summer (Cool) Settings:

1. Place COOL-OFF-HEAT
in COOL position.

2. Press SET button. The display will
show a number from 1 to 7. This
number represents the day of the
week to be programmed If pro­gramming individual days, press
either c or d button to adjust the
day of the week to program.

3. Press SET. Press c or d to change
MORN time

4. Press SET.

5. Press c or d to change
MORN temperature.

6. Repeat Steps 2-5 for DAY, EVE, and NITE.

7. Repeat steps 2–6 above to program
any other day of the week.

Winter (Heat) Settings:

1. Shift COOL-OFF-HEAT to HEAT position.

2. Repeat steps 2-6 to program HEAT (winter) settings.

Begin Programmed Operation

1. Place FAN AUTO-ON Into AUTO.

2. Place COOL-OFF-HEAT
Into COOL or HEAT
Depending upon the season.

7

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

COOL-OFF-HEAT

SET PR

>

>

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

SET PR

>

>

COOL-OFF-HEAT

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

AUTO - ON

COOL-OFF-HEAT

COOL-OFF-HEAT

SUMMER

WINTER

110-655B.qxd 11/27/06 4:38 PM Page 7

3. Press PROG/MAN button
until indicator is in PROG position.

Temporary Program Override

To temporarily increase or decrease temperature

Press c or d

The Thermostat will automatically return
to the program at the next scheduled
setting change.

Manual Operation

1. Press PROG/MAN until indicator is in MAN position.

2. Press c or d to adjust
temperature settings.

Reset

To Reset the thermostat to factory pre-programmed
conditions, press the reset button located directly
above the wiring terminal block.

8

PROG

MAN

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

NOTE: W

HILE IN THECOOL MODE

, (

OR HEAT AND COOL FOR SINGLE STAGE HEAT PUMP SYSTEM) ONCE THE THERMOSTAT

TURNS THE SYSTEM OFF

,

A BUILT-IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT5 MINUTES

. T

HIS PRO

-

TECTS THE COMPRESSOR

. N

O ADDITIONAL TIME DELAY RELAY(DELAY ON BREAK) IS NECESSARY

. T

OP OVERRIDE THE5-MINUTE

DELAY FOR INSTALLATION

,

PRESS

RESET. T

HIS WILL ERASE THE DELAY AND CHANGE PROGRAMMING TO FACTORY PRE-SETS

..

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

>

>

>

>

>

>

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

PROG

MAN

>

>

RESET
Clears all memory

110-655B.qxd 11/27/06 4:38 PM Page 8

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYS-

TEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID
YOUR WARRANTY.

CAUTION: DO NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS

CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY

.

1. Place the COOL/OFF/HEAT
switch into the COOL position

2. Press the c button until the temperature
setting is at least 3 degrees below the room temperature. The air
conditioning system should turn on within a few seconds.

NOTE: W

HILE IN THECOOL MODE

, (

COOL AND HEAT FOR SINGLE STAGE HEAT PUMP SYSTEM) ONCE THE THERMO

-

STAT TURNS THE SYSTEM OFF, A BUILT-IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT5 MINUTES

.

T

HIS PROTECTS THE COMPRESSOR

. N

O ADDITIONAL TIME DELAY RELAY(DELAY ON BREAK) IS NECESSARY

. T

O OVERRIDE

THE

5-

MINUTE DELAY FOR INSTALLATION, PRESS

RESET. T

HIS WILL ERASE THE DELAY AS WELL AS ALL PROGRAMMING

.

3. Put the COOL-OFF-HEAT switch into
the OFF position. The air conditioning
system should turn off. The fan may
continue to run for a short period of time.

4. Put the COOL-OFF-HEAT switch
into the HEAT position.

5. Press the button until the temperature setting is at least
3 degrees above room temperature. The heating system should turn
on. The fan may not turn on immediately, depending upon the fan
delay built into the furnace.

6. Put the COOL-OFF-HEAT switch
into the OFF position. The heating
system should turn off. Once again,
the fan may have a delay.

7. Put the AUTO-ON switch
to the ON position. The blower
fan should turn on.

8. Put the AUTO-ON switch
to the AUTO position. The blower
fan should turn off.

9

COOL-OFF-HEAT

COOL-OFF-HEAT

COOL-OFF-HEAT

COOL-OFF-HEAT

AUTO - ON

AUTO - ON

110-655B.qxd 11/27/06 4:38 PM Page 9

Troubleshooting

SYMPTOM REMEDY

Thermostat does not Check Wiring
turn on system (See INSTALLATION)

Check fuse. Replace with 3 amp
fuse if fuse has opened.

Thermostat turns on and off Increase Temperature Differential
too frequently. (See PROGRAMMING).

Display is blank, flashing or Replace batteries.
constant “LO BAT.”

System fan does not Move fan option switch to either
operate properly. gas or electric, to match system.

(See INSTALLATION).

Time shown on display is not Change time of day setting.
the current time of day. (See PROGRAMMING)

Thermostat does not Thermostat in MANUAL mode
follow program. (See PROGRAMMING)

Thermostat may not have been
programmed in HEAT or COOL
position. Verify program.

Check AM/PM indicators at time
of day and programmed time
changes. (See PROGRAMMING)

Verify program and day of week
is correct. (See PROGRAMMING).

Thermostat does not advance To view or change day of week
day of week use method on page 5.

If problems with thermostats cannot be solved, call:

Technical Support: [phone]

Monday-Friday 7:30-5:30 CST

For after hours service, a 24-hour

Automated Help Line is available

For warranty returns, send thermostat, shipping prepaid to:

MAPLE CHASE COMPANY

Warranty Department

2820 Thatcher Road

Downers Grove, IL 60515

10

110-655B.qxd 11/27/06 4:38 PM Page 10

11

Wiring Diagrams

The following is just a sample of the most common types of HVAC sys­tems. Refer to your systems installation manual for wiring information.

110-655B.qxd 11/27/06 4:38 PM Page 11

HEAT/COOL

SINGLE TRANSFORMER

Transformer

Hot

120 VAC

HEAT ONLY

SINGLE TRANSFORMER

Transformer

Hot

120 VAC

4-WIRE

24 VAC

2-WIRE

24 VAC

120 VAC 24 VAC

120 VAC

Factory-Installed

Jumper

RH

T
H

RC

E

Heating

R

W

Control

M
O

Cooling

Y

Control

S

B

T
A

O

T

Fan

G

Control

NOTE: Cut center of

RH

factory installed jumper

T

and bend back.

H

RC

E

Heating

R

W

Control

M
O

Y

S

B

T
A

O

T

G

HEAT/COOL

5-WIRE

TWO TRANSFORMER

(HEATING)

Transformer

Hot

Heating
Control

Cooling
Control

Hot

(COOLING)

Transformer

24 VAC

Fan

Relay

HEAT ONLY

3-WIRE

SINGLE TRANSFORMER

Factory-Installed

Jumper

Heating
Control

Fan

Control

3-WIRE

Cooling
Control

Fan

Control

RH

RC

W

Y

B

O

G

RH

RC

W

Y

B

O

G

Transformer

Hot

24 VAC

120 VAC

COOL ONLY

SINGLE TRANSFORMER

Transformer

Hot

24 VAC

120 VAC

NOTE: Cut center of
factory installed jumper
and bend back.

RH

T
H

RC

NOTE: Both transformers

E

must be in phase.

R

W

M
O

Y

S

B

T
A

O

T

G

T
H
E
R
M
O
S
T
A
T

T

NOTE:

H

Cut center
of factory

E

installed
jumper

R

and bend

M

back.

O
S
T
A
T

Five Year Limited Warranty

Maple Chase Company warrants to the original contractor installer or

to the original consumer user, each new Maple Chase thermostat to be
free from defects in materials and workmanship under normal use and
service for a period of five (5) years from date of purchase. This warranty
does not cover batteries, damage caused by batteries, damage resulting
from improper installation, alteration, misuse or abuse of the thermostat
occurring after the date of purchase.

Maple Chase Company agrees to repair or replace at its option any

thermostat under warranty provided it is returned within the warranty
period, postage prepaid, with proof of the date of purchase. Cost of ther­mostat removal or reinstallation is not the responsibility of Maple Chase
Company.

Repair or replacement as provided under this warranty is the exclusive
remedy of the consumer. Maple Chase Company shall not be liable for
any incidental or consequential damages for breach of any express or
implied warranty on this product, or under any other theory of liability.
Except to the extent prohibited by applicable law, any implied warranty of
merchantability or fitness for a particular purpose on this product is limit­ed to the duration of this warranty.

Some states do not allow the exclusion or limitation of incidental or con­sequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.

12

Maple Chase Company

2820 Thatcher Road
Downers Grove, Illinois 60515
United States of America

Wiring Diagrams (cont’d)

©1999 Maple Chase Company

110-655B.qxd 11/27/06 4:38 PM Page 12

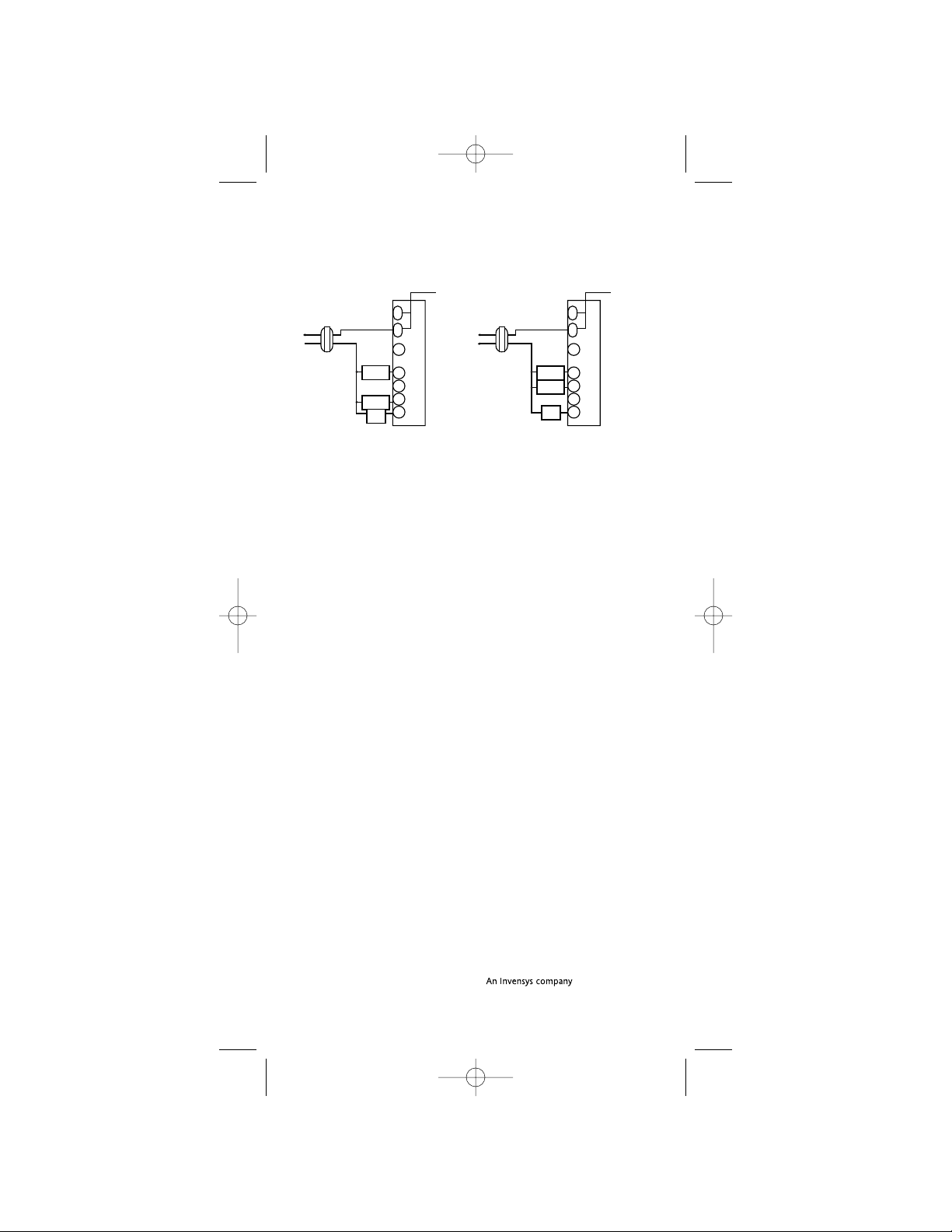

HEAT PUMP WITH

COOL ACTIVE

REVERSING VALVE

Transformer

Hot

24 VAC

120 VAC

Compressor

Contactor

NOTE: Installer must place jumper
between ”W“ and ”Y“ terminals.

Reversing

Valve

Fan

Relay

HEAT PUMP WITH

HEAT ACTIVE

NOTE: Factory
Installed Jumper

RH

T
H

RC

E
R

W

M
O

Y

S

B

T
A

O

T

G

REVERSING VALVE

Transformer

Hot

24 VAC

120 VAC

Compressor

NOTE: Installer must place jumper
between ”W“ and ”Y“ terminals.

Contactor

Reversing

Valve

Fan

Relay

RH

NOTE: Factory
Installed Jumper

T

H

RC

E

R

W

M
O

Y

S

B

T

A

O

T

G
