Page 1
FOR YOUR SAFETY
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can result in death, injury or
property damage. Read the Installation, Operation
and Service Manual thoroughly before installing or
servicing this equipment.
If you smell gas:
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches.
4. DO NOT use any telephone in
your building.
5. Extinguish any open flame.
6. Leave the building.
7. Immediately call your local gas
supplier after leaving the building.
Follow the gas supplier’s
instructions.
8. If you cannot reach your gas
supplier, call the Fire Department.
WARNING
®
Vantage
HE
Gas-Fired, Low Intensity
Unitary Heater Designed for
Harsh Environments
Installation, Operation &
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to combustibles away from
heater.
Some objects will catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property
damage.
Service Manual
HE-40
HE-60
HE-80
HE-100
HE-125
HE-150
HE-175
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place in order to provide
your serviceman with necessary information.
© 2012 Roberts-Gordon LLC
Roberts-Gordon LLC
1250 William Street
P. O. Bo x 4 4
Buffalo, New York 14240-0044
Telephone: +1.716.852.4400
Fax: +1.716.852.0854
Toll Free: 800.828.7450
www.rg-inc.com
www.radiantheaters.com
P/N 132100NA Rev. H 03/12
Page 2
Page 3
TABLE OF CONTENTS
SECTION 1: Heater Safety...................................................... 1
1.1 Manpower Requirements ............................................. 1
1.2 Safety Labels and Their Placement ............................. 1
1.3 California Proposition 65 .............................................. 1
SECTION 2: Installer Responsibility ..................................... 4

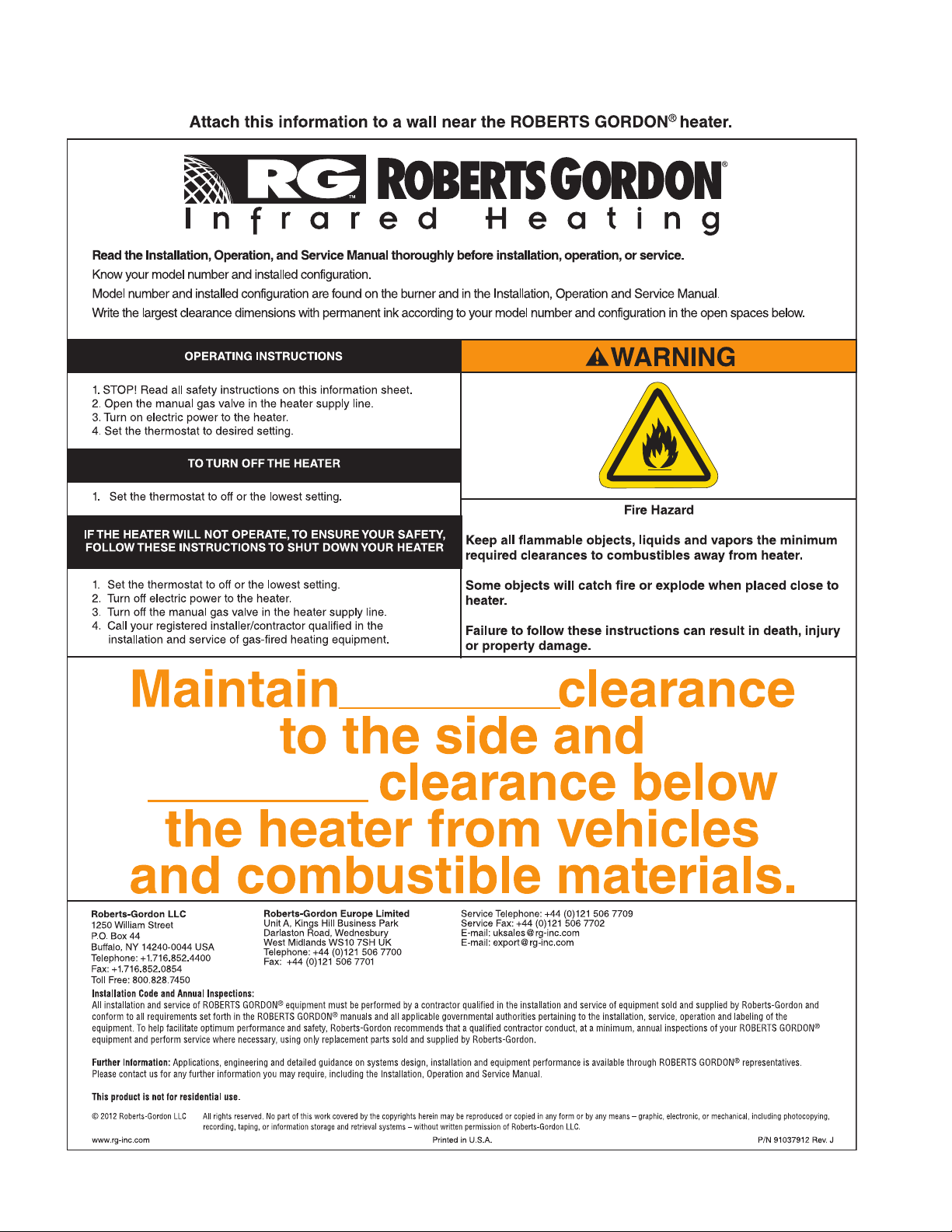

2.1 Wall Tag .......................................................................4
2.2 Corrosive Chemicals.................................................... 5
2.3 National Standards and Applicable Codes ..................5
SECTION 3: Clearances to Combustibles............................. 6
3.1 Required Clearances to Combustibles ........................6
SECTION 4: National Standards and Applicable Codes ... 11
4.1 Gas Codes................................................................. 11
4.2 Aircraft Hangars ......................................................... 11
4.3 Public Garages .......................................................... 11
4.4 Electrical .................................................................... 11
4.5 Venting....................................................................... 11
4.6 High Altitude .............................................................. 11
SECTION 5: Major Components .......................................... 12
5.1 Standard Parts List .................................................... 13
SECTION 6: Heater Installation............................................ 15
6.1 Outdoor Mounting...................................................... 17
6.2 Burner Tube Installation ............................................ 20
6.3 Tube Clamp Package Installation..............................20
6.4 Coupling and Tube Assembly....................................21
6.5 Turbulator Installation ................................................22
6.6 Reflector Installation ..................................................23
6.7 Burner Installation...................................................... 25
SECTION 7: Optional Heater Accessories.......................... 26
7. 1 U - Tube Configuration..................................................26
7.2 Elbow Package Configuration.....................................29
7.3 Reflector Side Extension (Not For Outdoor Use)........31
7. 4 L o wer Clearance Shield Installation
(Not For Outdoor Use)................................................ 32
7. 5 Two-Foot Decorative Grille Installation
(Not For Outdoor Use)................................................ 32
7.6 Protective Grille Installation
(Not For Outdoor Use)................................................ 34
SECTION
8: Venting.............................................................. 35
8.1 General Venting Requirements..................................35
8.2 Unvented Operation................................................... 36
8.3 Horizontal Venting......................................................36
8.4 Vertical Venting..........................................................36
8.5 Unvented Operation Tube Termination ......................36
8.6 Length Requirements ................................................36
8.7 Venting Options .........................................................37
8.8 Horizontal Ventilation 4" (10 cm) Pipe........................38
8.9 Vertical Ventilation 4" (10 cm) Pipe ............................38
8.10 Common Sidewall Venting .......................................39
8.11 Common Vertical Venting ........................................40
8.12 Outside Combustion Air Supply............................... 40
SECTION 9: Gas Piping........................................................ 43
SECTION 10: Wiring.............................................................. 45
10.1 Line Voltage Thermostat Wiring............................... 45
10.2 Low Voltage Thermostat with One Burner............... 45
10.3 Low Voltage Thermostat Wiring with Multiple
Burners.................................................................... 46
10.4 Electrical Connection to the Burner Box using
Line Voltage Thermostat on Control ........................ 46
10.5 For External Thermostat Connection....................... 47
10.6 Electrical Connection to Burner Box with Optional
External Low Voltage Thermostat.................................... 47
10.7 Internal Wiring.......................................................... 47
10.8 Ladder Diagram ....................................................... 48
SECTION 11: Operation and Maintenance.......................... 49
11.1 S e q uence of Operation ............................................ 49
11.2 To Shut Off Heater.................................................... 49
11.3 To Start Heater ......................................................... 49
11.4 Pre-Season Maintenance and Annual Inspection..... 49
11.5 Maintenance Checklist ............................................. 50
SECTION 12: Troubleshooting............................................. 52
12.1 Honeywell SmartValve
12.2 Troubleshooting Flow Chart ..................................... 54
12.3 Manifold Gas Pressure Setting ................................ 56
SECTION 13: Replacement Parts ........................................ 57
SECTION 14: General Specifications .................................. 60
14.1 Material Specifications............................................. 60
14.2 Heater Specifications............................................... 60
14.3 Suspension Specifications....................................... 60
14.4 Controls Specifications ............................................ 60
SECTION 15: The ROBERTS GORDON
Warranty ......................................................... 61
®
II Troubleshooting .............. 53
®
VANTAGE® HE
© 2012
Roberts-Gordon LLC
All rights reserved. No part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Roberts-Gordon LLC.
Prin ted in U.S.A.
Page 4
Page 5
TABLE OF FIGURES
Figure 1: Top and Bottom Panel Label Placement ....................2
Figure 2: Side and Back Panel Label Placement...................... 3
Figure 3: Standard Reflector.................................................... 7
Figure 4: One Side Reflector.................................................... 7
Figure 5: Two Side Reflectors .................................................. 7
Figure 6: 45° Tilt Reflector ....................................................... 8
Figure 7: U-Tube, Standard Reflector....................................... 8
Figure 8: U-Tube, 45°............................................................... 8
Figure 9: U-Tube, Opposite 45° Reflector ................................9
Figure 10: 2-Foot Deco Grille and Protective Grille ..................9
Figure 11: Lower Clearance Shield* .........................................9
Figure 12: Venting .................................................................. 10
Figure 13: Major Component Descriptions..............................12
Figure 14: Critical Hanger Placement (Indoor Installation)...... 16
Figure 15: Critical Hanger Placement (Outdoor Installation)... 17
Figure 16: Linear Heater Assembly Overview ........................ 18
Figure 17: Linear Heater Layout Overview.............................. 19
Figure 18: U-Tube Heater Assembly Overview ......................27
Figure 19: U-Tube heater Layout O
Figure 20: Reflector Joint Detail ..............................................30
Figure 21: Outdoor Vent Cap Installation................................35
Figure 22: Tube Termination ................................................... 36
Figure 23: Gas Connection with Flexible Gas Hose ...............44
verview ............................ 28
LIST OF TABLES
Table 1: Contents of Heater Burner Carton ............................13
Table 2: Contents of Core and Extension Packages .............. 13
Table 3: Component Package Guide......................................14
Table 4: Accessories Package (03200001) ............................ 14
Page 6
Page 7
SECTION 1: HEATER SAFETY
Yo ur Safety is Important to Us!
This symbol is used throughout
the manual to notify you of possible fire, electrical or burn hazards.
Please pay special attention when
reading and following the warnings in these sections.
Installation, service and annual inspection of heater
must be done by a contractor qualified in the installa-
tion and service of gas-fired heating equipment.
Read this manual carefully before installation, operation or service of this equipment.
This heater is designed for heating nonresidential
indoor or outdoor spaces. Do not install in residential
spaces. These instructions, the layout drawing, local
codes and ordinances, and applicable standards that
apply to gas piping, electrical wiring, venting, etc.
must be thoroughly understood before proceeding
with the installation.
Protective gear is to be worn during installation, operation and service. Thin sheet metal parts, including
the aluminum reflector portion of the heater and the
various
venting components, have sharp edges. To
prevent injury, the use of work gloves is recom-
mended. The use of gloves will also prevent the
transfer of body oils from the hands to the surface of
the reflector.
Before installation, check that the local distribution
conditions, nature of gas and pressure, and
adjustment of the appliance are compatible.
This heater must be applied and operated under the
general concepts of reasonable use and installed
using best building practices.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do no play with the
appliance.
For additional copies of the Installation, Operation
and Service Manual, please contact Roberts-Gordon
LLC.
SECTION 1: HEATER S AFETY
1.1 Manpower Re
quirements
To p revent personal injury and damage to the heater,
two persons will be required for installation.
1.2 Safety Labels and Their Placement
Product safety signs or labels should be replaced by
the product user when they are no longer legible.
Please contact Roberts-Gordon LLC or your ROB-
ERTS GORDON
®
independent distributor to obtain
replacement signs or labels. See Page 2, Figure 1
through Page 3, Figure 2.
1.3 California Proposition 65
In accordance with California Proposition 65 require-
ments, a warning label must be placed in a highly
visible location on the outside of the equipment (i.e.,
near equipment’s serial plate). See label placement
drawing on Page 2, Figure 1 for label location. Avoid
placing label on areas with extreme heat, cold, corrosive chemicals or other elements. To order additional
labels, please contact Roberts-Gordon LLC or your
®
ROBERTS GORDON
independent distributor.
1
Page 8
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Logo Label
Rating Plate Label
Bottom
Panel
Top Panel
Proposition 65 Label
Description Part Number
Logo Label 91013201
Rating Plate Label 91010401
Gas Connection Label 91018122
Proposition 65 Label 91070015
FIGURE 1: Top and Bottom Panel Label Placement
2
Page 9
FIGURE 2: Side and Back Panel Label Placement
Lighting Instruction Plate Label
Vent Length Label
Back Panel
Description Part Number
Clearances to Combustibles Label 91013415
Wiring Label 91013300
Vent Length Label 91039500
Lighting Instruction Plate Label 91029602
Control Side Panel
SECTION 1: HEATER S AFETY
Clearances to Combustibles Label
Control Side Panel (Inside) Wiring Label
3
Page 10
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
SECTION 2: INSTALLER RESPONSIBILITY
The installer is responsible for the following:
• To install the heater, as well as the gas and electrical supplies, in accordance with applicable
specifications and codes. Roberts-Gordon LLC
recommends the installer contact a Local Building
inspector or Fire Marshal for guidance.
• To use the information given in a layout drawing
and in the manual together with the cited codes
and regulations to perform the installation.
• To install the heater in accordance with the
clearances to combustibles.
• To furnish all needed materials not furnished as
standard equipment.
• Plan location of supports. Locate a support near
all elbows.
• To provide access to burners for servicing on all
sides and for burner removal.
• To provide the owner with a copy of this installation, operation and service manual.
• To never use heater as support for a ladder or
other access equipment and never hang or sus-
pend anything from heater.
• To ensure there is adequ
ate air circulation around
the heater and to supply air for combustion, venti-
lation and distribution in accordance with local
codes.
• To safely and adequately install heater using
materials with a minimal working load of 75 lbs
(33 kg).
• To ensure the heater is placed in an approved
application.
• Be sure the heater has a downward pitch of 1/2"
per 20' (1 cm per 6 m) away from the burner.
• A minimum of 10' (3 m) of tubing on HE-60/80 and
a minimum of 15' (4.6 m) of tubing on HE-100/
125/150/175 are required between the burner and
the first elbow.
• Indoor hanging: Provide a suspension with verti-
cal length of chain or swinging rod which has at
least 2" (5 cm) of horizontal travel for each burner
in a straight run. Be sure the suspension system
is sufficiently flexible to accomodate thermal
expansion, which occurs as the system heats up,
See Page 16, Figure 14.
• Outdoor hanging: Chain should not be used when
installing the unit outdoors. Use a suspension
system which minimizes the lateral movement or
swing which might damage reflectors. See Page
17, Figure 15.
•Washbays/car washes: The heater must not be
exposed to the direct spray from a pressure
washer. To reduce the possibility of spray enter-
ing the burner, utilize an outside combustion air
supply. See Page 40, Section 8.12.
The heater has been extensively tested under
extreme conditions and is highly resistant to the out-
door elements. Care must be taken to design the
proper hanging brackets and suspension (See Page
17, Figure 15) for the heater in high wind areas.
2.1 Wall Tag
A laminated wall tag is available for the heater as a
permanent reminder of the safety instructions and
the importance of the required clearances to combustibles. Please contact Roberts-Gordon LLC or
your ROBERTS GORDON
®
independent distributor
to obtain the wall tag. Affix the tag by peeling off the
backing of the adhesive strips on the rear surface
and position the tag on a wall near the heater’s controls (e.g. thermostat or ROBERTS GORDON
®
Con-
troller).
A copy of the wall tag (P/N 91037912) is illustrated on
the back cover. For an immediate solution, you may
affix this copy on the wall near the heater.
Know your model number and installed configuration.
Model number and installed configuration are found
on the burner and in the Installation, Operation and
Service Manual. See Page 7, Figure 3 through Page
10, Fi g ure 1 2 . Write the proper clearance dimensions
in permanent ink according to your model number
and configuration in the open spaces on the tag.
4
Page 11
2.2 Corrosive Chemicals
CAUTION
Product Damage Hazard
Do not use heater in area containing
corrosive chemicals.
Refer to appropriate Material Safety Data
Sheets (MSDS).
Failure to follow these instructions can result
in product damage.
Roberts-Gordon LLC cannot be responsible for
ensuring that all appropriate safety measures are
undertaken prior to installation; this is entirely the
responsibility of the installer. It is essential that the
contractor, the sub-contractor, or the owner identifies
the presence of combustible materials, corrosive
chemicals or halogenated hydrocarbons* anywhere
in the premises.
SECTION 2: INSTALLER R ESPONSIBILITY
* Halogenated Hydrocarbons are a family of chemical
compounds characterized by the presence of halogen
elements (fluorine, chlorine, bromine, etc.). These compounds are frequently used in refrigerants, cleaning
agents, solvents, etc. If these compounds enter the air
supply of the burner, the life span of the heater components will be greatly reduced. An outside air supply must
be provided to the burners whenever the presence of
these compounds is suspected. Warranty will be invalid if
the heater is exposed to halogenated hydrocarbons.
2.3 National Standards and Applicable Codes
All appliances must be installed in accordance with
the latest revision of the applicable standards and
national codes. This refers also to the electric, gas
and venting installation. Note: Additional standards
for installations in Public Garages, Aircraft Hangars,
etc. may be applicable.
5
Page 12
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to
combustibles away from heater.
Some objects will catch fire or explode when
placed close to heater.
Failure to follow these instructions can result
in death, injury or property damage.
SECTION 3: CLEARANCES TO COMBUSTIBLES
3.1 Required Clearances to Combustibles
Clearances are the required distances that combusti-
ble objects must be away from the heater to prevent
serious fire hazards. Combustibles are materials that
may catch on fire and include common items such as
wood, paper, rubber, fabric, etc. Maintain clear-
ances to combustibles at all times for safety.
• Maintain clearances from swinging and overhead
doors, overhead cranes, vehicle lifts, partitions,
storage racks, hoists, building construction, etc.
• In locations used for the storage of combustible
materials, signs must be posted to specify the
maximum permissible stacking height to maintain
required clearances from the heater to the combustibles. Signs must be posted adjacent to the
heater thermostat. In the absence of a thermostat, signs must be posted in a conspicuous
location.
• Consult local Fire Marshal, Fire Insurance Carrier
or other authorities for approval of proposed
installation when there is a possibility of exposure
to combustible airborne materials or vapors.
• Hang heater in accordance to the minimum sus-
pension requirements on Page 16, Figure 14.
• If the radiant tubes must pass through the building
structure, be s
stop is installed to prevent scorching and/or fire
hazard.
ure that adequate sleeving and fire
Clearances for all heater models are located on the
burner of the heater and on Page 7, Figure 3 through
Page 10, Figure 12 in this manual. Check the clear-
ances on each burner for the model heater being
installed to make sure the product is suitable for your
application and the clearances are maintained. Read
and follow the safety guidelines below:
• Keep gasoline or other combustible materials
including flammable objects, liquids, dust or
vapors away from this heater or any other appli-
ance.
• The stated clearances to combustibles represents
a surface temperature of 90° F (50°C) above room
temperature. Building materials with a low heat tolerance (such as plastics, vinyl siding, canvas, triply, etc) may be subject to degradation at lower
temperatures. It is the installer’s responsibility to
assure that adjacent materials are protected from
degradation.
• Maintain clearances from heat sensitive
equipment and workstations.
• Maintain clearances from vehicles parked below
the heater.
6
Page 13
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
A
C
D
B
A
C
D
B
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 3: STANDARD REFLECTOR
Model ABCDABCD
HE-40 6 27 53 27 16 69 135 69
HE-60 6 35 63 35 16 89 161 89
HE-80 6 38 66 38 16 97 168 97
HE-100 6 40 71 40 16 102 181 102
HE-125 6 46 77 46 16 117 196 117
HE-150 6 50 80 50 16 127 204 127
HE-175 8 52 82 52 21 133 209 133
FIGURE 4: ONE SIDE REFLECTOR
Model ABCDABCD
HE-40 6 9 53 44 16 23 135 112
HE-60 6 9 63 47 16 23 161 120
HE-80 6 9 70 54 16 23 178 138
HE-100 6 9 77 59 16 23 196 150
HE-125 6 9 83 65 16 23 211 166
HE-150 6 9 86 69 16 23 219 176
HE-175 8 9 88 73 21 23 224 186
SECTION 3: CLEARANCES TO COMBUSTIBLES
(inches) (centimeters)
(inches) (centimeters)
FIGURE 5: TWO SIDE REFLECTORS
(inches) (centimeters)
Model ABCDABCD
HE-40 6 15 53 15 16 39 135 39
HE-60 6 23 66 23 16 59 168 59
HE-80 6 25 72 25 16 64 183 64
HE-100 6 27 78 27 16 69 199 69
HE-125 6 32 84 32 16 82 214 82
HE-150 6 35 88 35 16 89 224 89
HE-175 8 40 91 40 21 102 232 102
7
Page 14
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
B
C
D
A
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 6: 45
° TILT REFLECTOR
Model ABCDABCD
HE-40 8 8 51 46 21 21 130 117
HE-60 8 8 60 54 21 21 153 138
HE-80 8 8 66 60 21 21 168 153
HE-100 10 8 74 64 26 21 188 163
HE-125 10 8 78 69 26 21 199 176
HE-150 12 8 84 74 31 21 214 188
HE-175 12 8 85 79 31 21 216 201
FIGURE 7: U-TUBE, STANDARD REFLECTOR
Model ABCDABCD
HE-40
HE-60 6 35 63 30 16 89 161 77
HE-80 6 38 69 37 16 97 176 94
HE-100 6 40 76 39 16 102 194 100
HE-125 6 46 79 43 16 117 201 110
HE-150 6 50 84 47 16 127 214 120
HE-175 8 54 87 51 21 138 221 130
(inches) (centimeters)
(inches) (centimeters)
- UNAPPROVED -
- UNAPPROVED -
FIGURE 8: U-TUBE, 45°
8
(inches) (centimeters)
Model ABCDABCD
HE-40
HE-60 8 8 60 42 21 21 153 107
HE-80 8 8 66 46 21 21 168 117
HE-100 8 8 74 52 21 21 188 133
HE-125 8 8 78 61 21 21 199 155
HE-150 8 8 84 66 21 21 214 168
HE-175 8 8 85 70 21 21 216 178
- UNAPPROVED -
- UNAPPROVED -
Page 15
SECTION 3: CLEARANCES TO COMBUSTIBLES
A
C
D
B
A
C
D
B
A
C
D
B
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 9: U-TUBE, OPPOSITE 45
° REFLECTOR
(inches) (centimeters)
Model ABCDABCD
HE-40
HE-60 8 54 60 22 21 138 153 56
HE-80 8 60 66 22 21 153 168 56
HE-100 10 64 74 22 26 163 188 56
HE-125 10 70 78 22 26 178 199 56
HE-150 12 74 84 22 31 188 214 56
HE-175 12 76 85 22 31 194 216 56
- UNAPPROVED -
FIGURE 10: 2-FOOT DECO GRILLE AND PROTECTIVE GRILLE
(inches) (centimeters)
Model ABCDABCD
HE-40 6 27 53 27 16 69 135 69
HE-60 6 35 63 35 16 89 161 89
HE-80 6 38 66 38 16 97 168 97
HE-100 6 40 71 40 16 102 181 102
HE-125 6 46 77 46 16 117 196 117
HE-150 6 50 80 50 16 127 204 127
HE-175 8 52 82 52 21 133 209 133
- UNAPPROVED -
FIGURE 11: LOWER CLEARANCE SHIELD*
(inches) (centimeters)
Model ABCDABCD
HE-40 6 34 27 34 16 87 69 87
HE-60 6 39 33 39 16 100 84 100
HE-80 6 40 38 40 16 102 97 102
HE-100 6 50 44 50 16 127 112 127
HE-125 6 54 48 54 16 138 122 138
HE-150 6 55 50 55 16 140 127 140
HE-175
- UNAPPROVED -
- UNAPPROVED -
*When installed in the first 10' (3 m).
9
Page 16
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Radiant Tubes
Vent
Pipes
Unvented
Vented
A
E
F
NOTE: 1. All dimensions are from the surfaces of all tubes, couplings and elbows.
2. Clearances B, C and D can be reduced by 50% after 25' (7.5 m) of tubing downstream
from where the burner and burner tube connect.
FIGURE 12: VENTING
Model A E F A E F
HE-40 14 18 18 36 46 46
HE-60 141818364646
HE-80 20 24 18 51 61 46
HE-100 20 24 18 51 61 46
HE-125 20 24 18 51 61 46
HE-150 20 30 18 51 77 46
HE-175 20 30 18 51 77 46
(inches) (centimeters)
10
Page 17
SECTION 4: NATIONAL STANDARDS AND APPLICABLE CODES
SECTION 4: NATIONAL STANDARDS AND APPLICABLE C ODES
4.1 Gas Codes
The type of gas appearing on the nameplate
must be the type of gas used. Installation must
comply with national and local codes and
requirements of the local gas company.
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
4.2 Aircraft Hangars
Installation in aircraft hangars must be in
accordance with the following codes:
United States: Refer to Standard for Aircraft
Hangars, NFPA 409 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
In aircraft storage and servicing areas, heaters
shall be installed at least 10' (3 m) above the
upper surface of wings or of engine enclosures
of the highest aircraft which may be housed in
the hangar. The measurement shall be made
from the wing or engine enclosure (whichever is
higher from the floor) to the bottom of the heater.
• In shops, offices and other sections of aircraft
hangars communicating with aircraft storage or
servicing areas, heaters shall be installed not
less than 8' (2.4 m) above the floor.
• Suspended or elevated heaters shall be so
located in all spaces of aircraft hangars that they
shall not be subject to injury by aircraft, cranes,
movable scaffolding or other objects. Provisions
shall be made to assure accessibility to
suspended heaters for recurrent maintenance
purposes.
4.3 Public Garages
Installation in garages must be in accordance
with the following codes:
United States: Refer to Standard for Parking
Structures NFPA 88A - latest revision or the
Code for Motor Fuel Dispensing Facilities and
Repair Garages, NFPA 30A - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
• Heaters must not be installed less than 8'
(2.4 m) above the floor. Minimum clearances to
combustibles must be maintained from vehicles
parked below the heater.
• When installed over hoists, minimum
clearances to combustibles must be maintained
from the upper most point of objects on the hoist.
4.4 Electrical
The heater must be electrically grounded in
accordance with the following codes:
United States: Refer to National Electrical Code
NFPA 70 - latest revision. Wiring must conform to
the most current National Electrical Code
®
, local
ordinances and any special diagrams furnished.
Canada: Refer to Canadian Electrical Code,
CSA C22.1 Part 1 - latest revision.
4.5 Venting
The venting must be installed in accordance with
the requirements within this manual and the
following codes:
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
®
,
4.6 High Altitude
These heaters are approved for installations up
to 2000' (610 m)(US), 4500' (1370 m)(Canada)
without modification. Consult factory if US
installation is above 2000' (610 m) or Canadian
installation is above 4500' (1370 m).
11
Page 18
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Burner with Tube Gasket
Must be installed with the
flame observation
window facing down.
Reflector
(Stainless Steel
or Aluminum)
Alternate
overlap as shown
on overview and on Page
19, Figure 17. Minimum
overlap is 6" (16 cm).
Tube and Reflector Hanger
with Clamp Package
Position this hanger no more
than 4" (10 cm) away from
the burner.
Coupling Assembly
with Lock
Reflector End Cap
Punch out center
section to
accommodate tube.
Tube and Reflector Hanger
Suspend system from these
hangers.
Vinyl Coated Flex Gas
Line with Shut Off Cock
Tube
Heat Treated
Aluminized tube supplied
in 10' (3 m) lengths.
Burner Tube
Supplied in 10'
(3 m) lengths. Burner tube is
always the first tube after the burner.
Reflector Support Strap &
Wire Form
Turbulator
Turbulator must
be installed in the last
standard section of tube.
Turbulator is not required on the
HE-125/150/175. For installation
see Page 22, Section 6.5.
Vent Adapter
Vent Cap
Attach at flue end
and air inlet with
vent adapter,
where required.
SECTION 5: MAJOR COMPONENTS
FIGURE 13: Major Component Descriptions
12
Page 19
SECTION 5: MAJOR COMPONENTS
5.1 Standard Parts List
Table 1: Contents of Heater Burner Carton
Part No. Description HE-40 HE-60 HE-80 HE-100 HE-125 HE-150 HE-175
032XXXXX Burner Assembly (Rate and Fuel Varies) 1 1 1 1 1 1 1
02568200 Gasket (Burner to Burner Tube) 1 1 1 1 1 1 1
132100NA Installation, Operation and Service Manual 1 1 1 1 1 1 1
94273914 Hex Head Bolts 5/16-18 Rolok 4 4 4 4 4 4 4
96411600 Split Lock washer 4 4 4 4 4 4 4
91221100 Nipple 1/2" NPT x 4" Galv. 1 1 1 1 1 1 1
91317300 1/4” Quick Disconnect (Wire) 2 2 2 2 2 2 2
*91412204 Vinyl Coated Flexible Gas Connector Assembly - 3/4" NPT 1 1 1 1 1 1 1
03051503 Turbulator Adapter 1 1 1 1 - - -
03051504 Turbulator Aluminized Steel 2 4 4 2 - - -
03051505 Turbulator Stainless Steel 1 - - - - - -
*Canadian Models: Rubber (Type 1) Gas Hoses available as an accessory.
See Page 43, Section 9
.
Table 2: Contents of Core and Extension Packages
Core Packages Extension Packages
Aluminized with
Aluminum
Reflector
20'
30'
Part No. Description 10'
(3 m)
(6 m)
(9 m)
40'
(12 m)
91409408 Tube, HT Aluminized, 10' (3 m) - 1 2 3 - 1 2 3 1 2 3 4 1 2 3 4
03051101 Burner Tube, ALUMI-THERM
Steel,
--11- -11--- - - - - -
®
10' (3 m)
03051601 Burner Tube, HT ALUMI-THERM
®
11-- 11- - --- - - - - -
Steel, 10' (3 m)
01312700 Coupling Assembly - 1 2 3 - 1 2 3 1 2 3 4 1 2 3 4
02750303 Standard Reflector, 8' (3.5 m) 2 3 4 6 - - - - 2 3 4 6 - - - -
027503SS* Stainless Steel Reflector, 8' (3.5 m) - - - - 2 3 4 6 - - - - 2 3 4 6
02750800 End Cap 2 2 2 2 - - - - - - - - - - - -
027508SH* Stainless Steel End Cap with Hole - - - - 2 2 2 2 - - - - - - - -
03090100 Tube and Reflector Hanger 2 3 4 5 2 3 4 5 1 2 3 4 1 2 3 4
91907302 S-Hook 2 3 4 5 2 3 4 5 1 2 3 4 1 2 3 4
03050010 Reflector Support Package
1235 2 457 234 6 2 3 4 6
(Strap, Wire Form, Screws)
Aluminized with
Stainless Steel
Reflector
10'
20'
(3 m)
(6 m)
30'
(9 m)
40'
(12 m)
Aluminized with
Aluminum
Reflector
10'
20'
(3 m)
(6 m)
30'
(9 m)
40'
(1 2m)
Aluminized with
Stainless Steel
Reflector
10'
20'
(3 m)
(6 m)
30'
(9 m)
40'
(12 m)
91107720 U-Clip Package 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
90502700 Vent Adapter 1 1 1 1 1 1 1 1 - - - - - - - -
01318901 Tube Clamp Package 1 1 1 1 2 2 2 2 - - - - - - - -
Part Number
CP10ALUM
CP20ALUM
CP30ALUM
CP40ALUM
CP10ALUMSS
CP20ALUMSS
CP30ALUMSS
EXP10ALUM
CP40ALUMSS
EXP2OALUM
EXP30ALUM
EXP40ALUM
EXP10ALUMSS
EXP20ALUMSS
EXP30ALUMSS
* Optional with the aluminized core package.
EXP40ALUMSS
13
Page 20
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Table 3: Component Package Guide
Core and Extension Packages
Model Tubing Length
Aluminized Stainless Steel
HE-40 10' (3 m) CP10ALUM CP10ALUMSS
HE-60 20' (6 m) CP20ALUM CP20ALUMSS
HE-80 20' (6 m) CP20ALUM CP20ALUMSS
HE-100 30' (9 m) CP30ALUM CP30ALUMSS
HE-125 40' (12 m) CP40ALUM CP40ALUMSS
HE-150 50' (15 m) CP30ALUM + EXP20ALUM CP30ALUMSS+ EXP20ALUMSS
HE-175 60' (18 m) CP30ALUM + EXP30ALUM CP30ALUMSS + EXP30ALUMSS
Table 4: Accessories Package (03200001)
Part No. Description Quantity
90502300 4" Metalbestos Vent Cap 2
90502700 Vent Adapter 1
Additional tubing length may be added to heater. Tubing must be heat-treated, aluminized or porcelain
coated. Any additional tubing lengths are considered as vent length for length determination. Maximum
venting length for minimum heater length is 45' (13.7 m) total.
14
Page 21
SECTION 6: HEATER I NSTALLATION
WARNING
Severe Injury Hazard
Secure burner to burner tube with bolts and
lockwashers.
Hang heater with materials with a minimum
working load of 75 lbs (33 kg).
Failure to follow these instructions can result
in death, injury or property damage.
WARNING
Cut/Pinch Hazard
Wear protective gear during installation,
operation and service.
Edges are sharp.
Failure to follow these instructions can result
in injury.
SECTION 6: HEATER INSTALLATION
Expansion and contraction of the tube dictates that
the minimum suspension lengths in the table on
Page 16, Figure 14 be maintained.
To ensure your safety, and comply with the terms of
the warranty, all units must be installed in accordance with these instructions.
The gas or the electrical supply lines must not be
used to support the heater.
Do not locate the gas or electric supply lines directly
over the path of the flue products from the heater.
The heater must be installed in a location that is
readily accessible for servicing.
The heaters must be installed in accordance with
clearances to combustibles as indicated on the rating
plate and in this instruction manual.
The minimum and maximum gas inlet pressures
must be maintained as indicated on the rating plate.
Typical installation configurations are shown in
Figure 14.
15
Page 22
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Hanger
Side View
Must Be Within 4" (10 cm) Front View
S-hooks
Reflector
Hanger
45° Angle
* Allows for thermal expansion of system
Typical Suspension Details
Rod 3/8"
Beam Clamp
Concrete Beam
Wood Beam
Washers
Locknut
Screw Hook
3/8"
24" min.*
(61 cm)
X*
Anchor
S-hooks
Chain Size
3/16"
Minimum
Turnbuckle
Not Included
Description Part Number
S-Hook 91907302
Tube/Reflector Hanger 03090100
Run Length Typical Expansion
Minimum
“X” Length
10' - 50' (3 m-15 m) ±1" (3 cm) 12' (30 cm)
51' - 60' (15.5 m-18 m) ±2" (5 cm) 18' (46 cm)
61' - 70' (18.5 m-21 m) ±3" (8 cm) 24' (61 cm)
FIGURE 14: Critical Hanger Placement (Indoor Installation)
16
Page 23
SECTION 6: HEATER I NSTALLATION
Angle Iron or
Metal Channel
wall
Typical Outdoor Suspension Details
Unistrut
Beam Clamp
Fully Closed
Turnbuckle
(Not Included)
I-Beam
Locknut
24" (60 cm)
Minimum
Spring clip or other closed device capable
of supporting at least 75 lbs (33 kg).
Eyebolt
6.1 Outdoor Mounting
The heater is meant for stationary mounting in all sit-
uations and should not be suspended from any struc-
ture which may become mobile or from any organic
structures such as trees. Clearances to combustibles
may be parked within the clearances to
combustibles.
The bottom of the combustion air inlet shall not be
less than 12" (30 cm) above a surface which could
support snow, ice, or debris. See Page 17, Figure 15.
must be maintained in all cases; do not install heaters in a location such as a parking area, where a
vehicle with a painted or non-metallic uppersurface,
FIGURE 15: Critical Hanger Placement (Outdoor Installation)
17
Page 24
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Tube
Reflector
Reflector End Cap
Reflector Support
Burner
Coupling
U-Clips
Burner Tube
Tube and Reflector Hanger
Vent Adapter
Vent Cap
Vent Cap
Tube Clamp
Package
Turbulator
(With Select Models)
*Assembly shown with additional reflector supports as provided with stainless steel reflector packages.
*
FIGURE 16: Linear Heater Assembly Overview
18
Page 25
FIGURE 17: Linear Heater Layout Overview
Burner
Reflector
Tube
Tube/Reflector
Hanger
Coupling
Assembly
Vent Adapter
LEGEND
a = 14" (36 cm)
reflector width (not shown)
b = 2" (5 cm)
end cap to burner
c = 2" (5 cm)
end cap to hanger
d = 7'6" (2.3 m)
distance from first hanger
to second hanger
e = 10' (3 m)
distance between hangers
f = 9.5" (24 cm)
burner height
g = 17.5" (44 cm)
burner length
HE-40
10' (3 m) Tube Length
g
c
b
d
f
HE-60
HE-80
20' (6 m) Tube Length
b
g
c
de
f
HE-100
30' (9 m) Tube Length
g
c
b
de
e
f
HE-125
40' (12 m) Tube Length
g
c
b
de
e e
f
HE-175
60' (18 m) Tube Length
g
c
b
de
e e e e
f
HE-150
50' (15 m) Tube Length
g
c
b
de
e e e
f
SECTION 6: HEATER I NSTALLATION
19
Page 26
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
7' 6" ± 1'
(229 cm ± 25 cm)
NOTE:
Tubing requires a downward
slope of 1/2" (1.3 cm)
per 20' (6 m) away
from burner.
S-hook
Burner Tube
Hanger
Offset mounting
hole must be
to the top.
Weld seam
must be to the
bottom of the tube.
Description Part Number
Burner Tube 03051XXX
S-Hook 91907302
Tube/Reflector Hanger 03090100
Hanging hardware shown is for indoor
installation only. See Page 17, Figure 15
for outdoor suspension details.
.
Bolt
Tube Clamp
Flat
Washer
Nut
(Torque 120 in/lb
13.56 Nm)
Description Part Number
Tub e C lamp Pack age01318901
Tube Clamp 01396801
Bolt 97113940
Flat Washer 95211600
Nut 92113900
Hanging hardware shown is for indoor installation only. See Page 17, Figure 15 for out-
door suspension details.
Step 6.2 Burner Tube Installation
Step 6.3 Tube Clamp Package Installation
20
Page 27
Step 6.4 Coupling and Tube Assembly
Tube
Tube
Orient coupling so that
the impact block is in the
2:00 or 10:00 oclock
positions.
Closed
Open
Tab
3" (8 cm) to
4" (10 cm)
Slide Bar/Coupling Lock
Coupling
Wide End
Coupling
Tube
Slide Bar/Coupling Lock
A
Close coupling
with tab
B
Start Slide bar/Coupling Lock
onto coupling
C
Insert tubes into coupling
D
Tighten coupling to join tubes
Description Part Number
Coupling 01329600
Slide bar/Coupling Lock 01329700
Tube 91409XXX
Incorrect slide bar
position
Correct slide bar
dimensions
± 2" (5 cm)
Drive slide bar until tight.
End of slide bar should be
within tolerance listed below.
• Repeat Step 6.4 A - D until all tubes are assembled. See Page 22, Section 6.4.2.
Tighten slide bar as shown below
SECTION 6: HEATER I NSTALLATION
Step 6.4.1 Coupling and Tube Assembly (Continued)
21
Page 28
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
10' ± 1'
(3 m ± .25 m)
Total Overall
Tube Length
7' 6" ± 1'
(2.3 m ± .25 m)
Model Tube Length
HE-40 10' (3 m)
HE-60 20' (6 m)
HE-80 20' (6 m)
HE-100 30' (9 m)
HE-125 40' (12 m)
HE-150 50' (15 m)
HE-175 60' (18 m)
Hanging hardware shown
is for indoor installation
only. See Page 17, Figure
15 for outdoor suspension
details.
T
w
i
s
t
Pull String
Tab
Fold tab around outside
of tube nearest to the vent to hold turbulator
in place.
Turbulator
Section
Turbulator
Adapter
Turbulator Section
(stainless) used in HE-40
heaters must be in the section of
tube nearest to the burner.
Description Part Number
Turbulator Adapter 03051503
Turbulator Section 03051504
Turbulator Section (Stainless) 03051505
Tube 91409XXX
Turbulator must be installed in
the last standard section of
tube. Turbulator is not required
on the HE-125/150/175.
Turbulator Installation
Model Tube Section
HE-40 1st 10' Section
HE-60 2nd 10' Section
HE-80 2nd 10' Section
HE-100 3rd 10' Section
HE-125 N/A
HE-150 N/A
HE-175 N/A
Step 6.4.2 Coupling and Tube Assembly (Continued)
Step 6.5 Turbulator Installation
22
Page 29
Step 6.6 Reflector Installation
Hanger
Burner Tube
Reflector
Description Part Number
Tube/Reflector Hanger 03090100
Burner Tube 03051XXX
Reflector 02750303
NOTE: All tube surfaces must be covered
by a reflector, except for a U-Tube.
Hanging hardware shown is for indoor
installation only. See Page 17, Figure 15
for outdoor suspension details.
WARNING
Fire Hazard
Support reflector with reflector hanger
and support strap.
Reflector must not touch tube.
Failure to follow these instructions can result
in death, injury or property damage.
SECTION 6: HEATER I NSTALLATION
23
Page 30
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
2. The overlap at the first and second reflector is a slip overlap.
Thereafter, every third reflector joint is a slip overlap. A slip
overlap is achieved by either:
a.) both reflectors lay inside a hanger.
(No reflector support needed.)
b.) using a reflector support with
loose screws at the reflector
overlap.
3. The remaining reflector overlaps require a non-slip
overlap connection. To affix the reflectors together in
a non-slip overlap either:
a.) use reflector support and tight screws.
b.) if both reflectors lay inside a hanger, u-clips or
sheet metal screws may be used.
This section of three reflectors joined together must
be affixed to the tube with at least one reflector support
with tight screws.
Reflector
End Cap
U-clips
1. The first reflector after the burner must be affixed in
the middle of the reflector with a reflector support and
tight screws.
First Reflector
6"
(16 cm)
Overlap must be a
minimum of 6" (16 cm).
Loose screws
loosened 1/16"
(.16 cm) to allow
slippage.
2 A
Slip Overlap
Reflector
Support
2 B
Slip Overlap
Reflector
Tight
Screws
3 B
Non-Slip Overlap
U-clip
(2 Clips per
Non-slip Overlap
Inside a Hanger)
Reflector
3 A
Non-Slip Overlap
Wire Form
Reflector Support
Strap
Tight
Sheet Metal
Screw
Description Part Number
Reflector Support Package 03050010
Wire Form 91908004
Reflector Support Strap 03050000
Screw #8 x 3/4 94320812
U-Clip Package 91107720
Reflector End Cap 027508XX
Hanging hardware shown is for indoor installation only. See Page 17, Figure 15 for outdoor suspension details.
Step 6.6.1 Reflector, U-Clip and Reflector Support Installation
The pictorial drawings of the heater construction in
Section 6 are schematic only and provide a general
guideline of where hangers, reflector supports and Uclips are to be installed.
To ensure proper expansion and contraction move-
ment of the reflectors, a combination of U-clips and
tor supports and U-clips depends on the individual
installation. Use either pop rivets or sheet metal
screws instead of u-clips when installing end caps
and joint pieces in areas where impact and high wind
may be a factor. The following rules must be
observed.
reflector supports are used. The positioning of reflec-
24
Page 31
Step 6.7 Burner Installation
Lock
Washer
Gasket
Burner
Bolt
(Torque 120 in/lb
13.56 Nm)
S-hook
Burner Tube
Description Part Number
Bolt 94273914
Burner 032XXXXX
Lock Washer 96411600
Gasket 02568200
Hanging hardware shown is for indoor installation only. See Page 17, Figure 15 for out-
door suspension details.
SECTION 6: HEATER I NSTALLATION
25
Page 32
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
WARNING
Cut/Pinch Hazard
Wear protective gear during installation,
operation and service.
Edges are sharp.
Failure to follow these instructions can result
in injury.
SECTION 7: OPTIONAL HEATER ACCESSORIES
7.1 U-Tube Configuration
Heaters (except HE-40) are approved for optional UTube configurations.
The U-Tube may be installed in either a standard
horizontal position, a 45° position or in an
opposite 45° position as shown on Page 8, Figure 7
through Figure 9. When using a U-Tube
configuration, the following additional rules must be
adhered to:
• A minimum of 10' (3 m) on HE-60/80 and a
minimum of 15' (4.5 m) on HE-100/125/150/175 is
required between the burner and the U-Tube.
• The correct turbulator (See Page 22, Figure 6.5)
must be installed in the last standard section of
tube.
• The burner must never be operated in a tilted
position.
• The heater must be properly supported at all
locations. See Page 28, Figure 19.
26
Page 33
FIGURE 18: U-Tube Heater Assembly Overview
U-tube
18" (45.7 cm)
Center to Center
12
12
12
Burner
Reflector
Turbulator
(With Select
Models)
Tube Clamp
Package
Burner
Tube
Tube
U-tube
Support Bracket
Reflector
Support
Couplings
U-tube, Standard
U-tube, Opposite 45°
Nut
Lock Washer
Lock Washer
Nut
U-bolt
Vent
Adapter
Vent
Cap
Vent
Cap
*Additional tube clamp package
comes with stainless steel tube
packages and stainless steel
u-tube packages.
*
*
*
1
2
U-clips
Reflector
End Caps
Tight U-bolt
4" (10 cm) U-bolt,
secured to burner tube
with 1/4" (6 mm)
lockwashers and
1/4"-20 hex nuts
Loose U-bolt
4" (10 cm) U-bolt,
secured to bracket with
1/4" (6 mm) lockwashers
and 1/4"-20 hex nuts on
top and bottom to
allow for tube expansion
and contraction
U-tube, Full 45°
Mounting hardware shown is for indoor installation only.
See Page 17, Figure 15 for outdoor suspension details.
SECTION 7: OPTIONAL H EATER ACCES SORIES
27
Page 34
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
FIGURE 19: U-Tube heater Layout Overview
28
Page 35
7. 2 E l b ow P a c k a ge Configuration
Tube
90° Elbow
Coupling
Description Part Number
Elbow Package 02718702
90° Elbow 01335801
Coupling 01312700
Reflector End Cap 02750800
Reflector Joint Piece 02750900
U-Clip Package 91107720
Minimum Distance Required Between
Burner and Elbow
Model Minimum Distance
HE-40 HE-60 10' (3 m)
HE-80 10' (3 m)
HE-100 15' (4.5 m)
HE-125 15' (4.5 m)
HE-150 15' (4.5 m)
HE-175 15' (4.5 m)
Tube
Coupling
Step 7.2.1 Elbow Installation
Step 7.2.2 Elbow Installation
SECTION 7: OPTIONAL H EATER ACCES SORIES
Step 7.2.3 Reflector Joint Installation
29
Page 36
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Step 7.2.4 Reflector Joint Installation
Step 7.2.5 Reflector Joint Detail
FIGURE 20: Reflector Joint Detail
30
Page 37
7.3 Reflector Side Extension (Not For Outdoor Use)
Reflector Side
Extension Bracket
(2 per Reflector)
Use additional supports
in high air movement
applications.
Tube and Reflector Hanger
ReflectorTube
Reflector Support
Description Part Number
Reflector Side Extension Package 02712700
Reflector Side Extension 01368000
Retainer Clips 02751200
Sheet Metal Screws 94118106
Order Separately
Reflector Side Extension 01329910
Retainer Clip
(2 per Side)
Cut relief notches for
supports and hangers.
Reflector Side Extension
#8 x 3/8 (3.9 x 9.5 mm) Sheet Metal Screw
Step 7.3.1 Bracket Installation
SECTION 7: OPTIONAL H EATER ACCES SORIES
Step 7.3.2 Side Reflector Installation
31
Page 38
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
12"
(30 cm)
Reflector
Lower Clearance Shield
17"
(43 cm)
Washers
Screws
Locknuts
Align Pilot Holes
Description Part Number
Lower Clearance Shield Package 01397501
Shield Support Strap 01397500
Lower Clearance Shield 8' 02793000
Locknut #8 92311400
Flat Washer #8 95310800
Screw #8 x 3/8" 93511406
Description Part Number
Aluminium Grille 2' x 4' (.6m x 1.2m) 91407000
7.4 Lower Clearance Shield Installation (Not For Outdoor Use) Step 7.4.1 Shield Support Strap Assembly
7.5 Two-Foot Decorative Grille Installation (Not For Outdoor Use) Step 7.5.1 Grille Installation
32
Page 39
Step 7.5.2 Frame Shield Installation
Description Part Number
Deco Grille Shield 01365900
Distance "A" Extension
Minimum Maximum Part No. Width
2" (4 cm) 6" (15 cm) 01370408 8" (20 cm)
6" (15 cm) 10" (26 cm) 01370412 12" (30 cm)
10" (26 cm) 14" (37 cm) 01370416 16" (40 cm)
Description Part Number
Reflector Side Extension 01370412
SECTION 7: OPTIONAL H EATER ACCES SORIES
Step 7.5.3 Reflector Side Extension Installation for Decorative Grilles
33
Page 40
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Silicone Cap
Grille
Finger
Description Part Number
Grille Section 08050001
Grille End Cap 08050002
Silicone Cap 91915951-6P
Bend up 90°.
Pull outward.
Grille
Grille End Cap
A
B
C
D
Grille
Grille
End Cap
Reflector
Final Grille
Section
40"
(101 cm)
7.6 Protective Grille Installation (Not For Outdoor Use) Step 7.6.1 Silicone Cap Installation
Step 7.6.2 Grille End Cap Installation
Step 7.6.3 Grille Installation
34
Page 41
SECTION 8: VENTING
WARNING
Carbon Monoxide Hazard
Heaters installed unvented must be interlocked
with sufficient building exhaust.
Heaters must be installed according to the
installation manual.
Failure to follow these instructions can result
in death or injury.
WARNING
Cut/Pinch Hazard
Wear protective gear during installation,
operation and service.
Edges are sharp.
Failure to follow these instructions can result
in injury.
Burner
Vent Cap
Apply
Silicone
Sealant
SECTION 8: VENTING
FIGURE 21: Outdoor Vent Cap Installation
For outdoor installations, vent caps must be installed
at inlet and fl
Any portion of vent pipe passing through a
combustible wall must have an approved thimble
to conform with the above listed codes.
ue end. (See Page 37, Section 8.7).
8.1 General Venting Requirements
This heater must be vented in accordance with the
rules contained in this manual and with the following
national codes and any state, provincial or local
codes which may apply:
United States: Refer to National Fuel Gas Code
NFPA 54/ANSI Z223.1 - latest revision.
Canada: Refer to Natural Gas and Propane
Installation Code CSA B149.1 - latest revision.
Exhaust end of heater will accept a 4'' (10 cm) vent
pipe using the vent adapter (P/N 90502700). To
prevent leakage of condensation, install the vent
adapter with the seam on top and seal the joint using
a high temperature silicone sealant.
All vent joints should be sealed using suitable
product such as General Electric RTV106 or
Permatex Form-a-Gasket red high temperature
silicone adhesive sealant.
Vent pipe must be sloped downward away from the
burner 1/2'' (1 cm) for every 20' (6 m).
The heater may be individually vented or common
vented. When venting horizontally, a maximum of two
heaters can be commonly vented. See Page 39,
Section 8.10. When venting vertically, a maximum of
four heaters can be commonly vented. See Page 40,
Section 8.11.
The heater may also be installed unvented in certain
circumstances according to building ventilation
codes. Refer to the above codes and Page 36,
Section 8.2 for further information. Unvented
operation also requires compliance w
clearances to combustibles given on Page 10, Figure
12.
The bottom of the vent or air intake terminal shall not
be located less than 1' (.3 m) above grade level.
The vent shall not terminate less than 7' (2.1 m)
above grade where located adjacent to public
walkways.
Vent terminal must be installed at a height sufficient
to prevent blockage by snow, and building materials
protected from degradation by flue gases.
Secure all joints with #8 x 3/8 sheet metal screws.
Seal all joints with high temperature silicone sealant.
Vent terminal must be beyond any combustible
overhang.
ith the
35
Page 42
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
8.1.1 United States Requirements
Vent must terminate at least 3' (.9 m) above any
forced air inlet located within 10' (3.1 m).
Vent must terminate at least 4' (1.2 m) below, 4'
(1.2 m) horizontally from, or 1' (.3 m) above any door,
operable window, or gravity air inlet into any building.
8.1.2 Canadian Requirements
The vent shall not terminate within 6' (1.8 m) of a
mechanical air supply inlet to any building.
The vent shall not terminate within 3' (.9 m) of a
window or door that can be opened in any building,
any non-mechanical air supply inlet to any building,
or of the combustion air inlet of any other appliance.
8.2 Unvented Operation
Sufficient ventilation must be provided in the amount
of 4 cfm per 1000 Btu/h firing rate (United States); 3
cfm per 1000 Btu/h firing rate (Canada).
Use of optional outside combustion air is not
recommended with unvented heaters.
If exhaust fans are used to supply
ventilation air, an
interlock switch must be used to prevent the heater
from coming on when the fans are off. This may be
done using a pressure switch.
FIGURE 22: Tube Termination
8.6 Length Requirements
The maximum vent length allowed is 45' (13.7 m).
The maximum outside air supply duct length allowed
is 45' (13.7 m).
The total vent length, plus outside air duct length,
plus any extensions to minimum heat exchanger
lengths, cannot exceed 65' (19.8 m).
Vent length should be limited to less than 20' (6 m). If
using vent lengths greater than 20' (6 m),
condensation will form in the vent pipe. Insulation
and additional sealing measures (high temperature
silicone at all seams) are required. Optional heat
exchanger beyond minimum lengths is considered as
vent length for length determination.
Subtract 15' (4.6 m) of maximum allowed vent or duct
length per vent elbow if more than two are used.
8.3 Horizontal Venting
In noncombustible walls only, vent terminal
(P/N 02537801-1P) may be used.
For 4'' (10 cm) vents in either combustible or
noncombustible walls, use Tjernlund VH1-4 (P/N
90502100) or equivalent, insulated vent terminal.
Follow the manufacturer's instructions for proper
installation.
For 6'' (15 cm) common vents in either combustible
or noncombustible walls, use Tjernlund VH1-6 (P/N
90502101) or equivalent, insulated vent terminal.
Follow the manufacturer's instructions for proper
installation.
.4 Vertical Venting
8
For 4'' (10 cm), an approved vent cap
(P/N 90502300) must be used.
For 6'' (15 cm) common vent, an approved vent cap
(P/N 90502302) must be used.
For common vertical venting of more than two
heaters, See Page 40, Section 8.11.
A vent shall not extend less than 2' (.6m) above the
highest point where it passes through a flat roof of a
building.
8.5 Unvented Operation Tube Termination
Turndown type vent terminal with a screen must be
installed at the exhaust end of the tube. Vent terminal
design shall not incorporate backdraft flap.
36
Page 43
8.7 Venting Options
Vent Adapter
Vent Terminal
Burner Tube
4" (10 cm)
Single
Wall Pipe
Wall
Fresh
Air In
Vent Out
Wall
Indoor Harsh/Corrosive Environments
Vent Adapter
(seam down)
Outdoor
Vent
Cap
Vent
Cap
Vent Adapter
Vent Terminal
Burner Tube
Vent Out
Wall
Indoor Vented and Unvented
Vent
Cap
Vent Adapter
Burner Tube
Wall
Burner Tube
Burner
Fresh
Air In
Vent
Cap
Burner
Burner
Burner
Vent Terminal
SECTION 8: VENTING
37
Page 44
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Description Part Number
Vent Terminal (Comb. Wall) 90502100
Vent Terminal 02537801-XX
Vent Cap 4" (10 cm) 90502300
Description Part Number
Vent Cap 4" (10 cm) 90502300
8.8 Horizontal Ventilation 4" (10 cm) Pipe
8.9 Vertical Ventilation 4" (10 cm) Pipe
38
Page 45
8.10 Common Sidewall Venting
4" (10 cm) Single Wall Pipe
Outside Wall
Vent Adapter
Sweeping 'T'
Connection
Sweeping 'Y'
Connection
Outside Wall
6" (15 cm) Single Wall Pipe
Vent Terminal
Tjernlund VH1-6 or Equivalent
Outside Wall
4" (10 cm) Single Wall Pipe
Vent Adapter
Vent Terminal
Tjernlund VH1-6 or Equivalent
Vent Adapter
Vent Adapter
TOP VIEW
4" (10 cm) Single Wall Pipe
6" (15 cm) Single Wall Pipe
Description Part Number
Vent Terminal 6" (15 cm) 90502101
SECTION 8: VENTING
Requirements:
• Maximum of two heaters can be commonly
vented through a side wall.
• Heaters must be of the same BTU output.
• Heaters must be controlled by a common
thermostat.
39
Page 46
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
8.11 Common Vertical Venting
Requirements:
• Maximum of four heaters can be commonly vented
through the roof.
• Heaters must be of the same BTU output.
• Heaters must be controlled by a common
thermostat.
• Connections to a common stack must be positioned to avoid direct opposition between streams
of combustion gases.
8.12 Outside Combustion Air Supply IMPORTANT: If the building has a slight negative
40
Page 47
SECTION 8: VENTING
Description Part Number
Vent Cap 4" (10 cm) 90502300
Description Part Number
Vent Cap 4" (10 cm) 90502300
Band Clamp
(Recommended)
Flex Hose
(Recommended)
Vent Cap
Wall
4" (10 cm)
Single Wall Pipe
Burner
pressure or corrosive contaminants, such as
halogenated hydrocarbons, are present in the air, an
outside combustion air supply to the heater is
8.12.1 Length Requirements
Follow the constraints listed on Page 36, Section 8.6.
required. Seal all combustion air pipe joints.
Use of optional outside combustion air is not
recommended with unvented heaters.
The air supply duct may have to be insulated to
prevent condensation on the outer surface. The
outside air terminal must not be more than 1' (31 cm)
above the vent terminal.
8.12.2 Vertical Outside Air Supply for Single Heater Installation
8.12.3 Horizontal Outside Air Supply for Single Heater Installation
41
Page 48
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Sweeping 'T'
Connection
6" (15 cm) Single Wall Pipe
Vent Cap
4" (10 cm)
Single Wall Pipe
Band Clamp
(Recommended)
BurnerBurner
Flex Hose
(Recommended)
Flex Hose
(Recommended)
Roof
Sweeping 'Y'
Connection
Vent Cap
Outside Wall
4" (10 cm) Single Wall Pipe
(Seal All Joints)
6" (15 cm) Single Wall Pipe
Flex Hose
(Recommended)
Band Clamp
(Recommended)
Burner
Burner
Description Part Number
Vent Cap 6" (15 cm) 90502302
8.12.4 Vertical Outside Air Supply for Double Heater Installation
Requirements:
• Heaters must be controlled by a common thermostat.
8.12.5 Horizontal Outside Air Supply for Double Heater Installation
Requirements:
• Heaters must be controlled by a common thermostat.
42
Page 49
SECTION 9: GAS P IPING
WARNING
Fire Hazard
Tighten gas hose fittings to connect gas
supply according to Figure 23.
Gas hose can crack when twisted.
Gas hose moves during normal operation.
Use only 36" (91 cm) long connector of 1/2" or
3/4" nominal ID.
Connector supplied with heater for U.S.
models (not with Canadian models).
Failure to follow these instructions can result
in death, injury or property damage.
WARNING
Explosion Hazard
Leak test all components of gas piping
before operation.
Gas can leak if piping is not installed
properly.
Do not high pressure test gas piping with
heater connected.
Failure to follow these instructions can result
in death, injury or property damage.
SECTION 9: GAS PIPING
There is an expansion of the tube with each firing
cycle, this will cause the burner to move with respect
to the gas line. This can cause a gas leak resulting in
an unsafe condition if the gas connection is not made
strictly in accordance with Figure 23.
Meter and service must be large enough to handle all
the burners being installed plus any other connected
load. The gas line which feeds the system must be
large enough to supply the required gas with a maximum pressure drop of 1/2" wc. When gas piping is
not included in the layout drawing, the local gas supplier will us
Gas lines must meet applicable codes:
United States: The Flexible Stainless Steel Gas
Hose (US models) supplied with the heater is certified per the Standard for Connectors for Gas Appliances, ANSI Z21.24/CSA 6.10 - latest revision.
Canada: The Rubber Type 1 Gas Hose (Canadian
models) optional with the heater is certified as being
in compliance with the Standard for Elastomeric
Composite Hose and Hose Couplings for Conducting
Propane and Natural Gas, CAN/CGA 8.1 - Latest
revision.
• Check the pipe and tubing ends for leaks
before placing heating equipment into service. When checking for gas leaks, use a soap
and water solution; never use an open flame.
ually help in planning the gas piping.
Install the gas hose as shown in Figure 23. The gas
hose accommodates expansion of the heating system and allows for easy installation and service of
the burner. Before connecting the burners to the sup-
ply system, verify that all high pressure testing of the
gas piping has been completed.
43
Page 50
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Shut-Off Valve (included with gas hose) must
be parallel to burner gas inlet. The 3" (8 cm)
displacement shown is for the cold condition.
This displacement may reduce when the
system is fired.
CORRECT POSITIONS
Horizontal
45°
End View
Vertical
(as shown left)
Alternate
positions
okay
Flexible Gas Hose
36" (91 cm) length
3" (8 cm)
max. displacement
Side View
Heater Movement
12"
(30 cm)
CAUTION
Product Damage Hazard
Hold gas nipple securely with pipe wrench
when attaching gas hose.
Failure to follow these instructions can result
in product damage.
INCORRECT POSITIONS (WRONG INSTALLATION)
Heater Movement
Heater Movement
Heater Movement Heater Movement
Description Part Number
3/4" Flexible Stainless Steel Gas Hose (US Models) 91412204
3/4" Rubber Type 1 Gas Hose (Canadian Models) 91412207
FIGURE 23: Gas Connection with Flexible Gas Hose
44
Page 51
SECTION 10: WIRING
DANGER
Electrical Shock Hazard
Disconnect electric before service.
Heater must be properly grounded.
Failure to follow these instructions can result
in death or electrical shock.
Line Voltage
Thermostat
Gnd.Gnd.
120 V-60 Hz
Supply Circuit
H N H N
Gnd.
L1
L2
T
Additional
Burners
Burner 1
Burner 2
Gnd.
120 V-60 Hz
Supply Circuit
HN
Gnd.
L1
L2
Purple
Blue
Low voltage
terminal detail
Thermostat
Wires
(Black)
T
Low Voltage
Thermostat
SECTION 10: WIRING
Heaters can be controlled using several methods.
Normally thermostats are used to control the heaters
but they can also be controlled by an Energy
10.1 Line Voltage Thermostat Wiring
Management System. Section 10.1 below illustrates
the connection for heaters controlled by a line voltage
thermostat. NOTE: In order to use line voltage thermostats, the low voltage terminal located at the back
of each burner must be connected as shown in the
detail. For a single heater on a low voltage thermostat, See Section 10.2 below. To control multiple
heaters on one low voltage thermostat, See Page 46,
Section 10.3. NOTE: In order to control multiple heat-
ers on one low voltage thermostat, the low voltage
terminals on each heater must be connected as
shown in detail. Heaters must be grounded in accordance with applicable codes: United States: refer to
National Electrical Code
®
ANSI/NFPA 70 - latest revi-
sion Canada: refer to Canadian Electrical Code CSA
C22.1 Part I - latest revision.
If any of the original internal wiring must be replaced,
it must be replaced with wiring materials having a
temperature rating of at least 105° C and 600 V.
10.2 Low Voltage Thermostat with One Burner
45
Page 52
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Green
White
Black
L1
L2
Gnd.
Conduit Hole
Burner Box
Internal Wire Bundle
Connect wires together with
suitable approved wire connections.
Green to Gnd.
White to L2
Black to L1
Liquid Tight Flexible
Conduit for Outdoor
Use or Equivilent
Liquid Tight
Conduit Connector
10.3 Low Voltage Thermostat Wiring with Multiple Burners
10.4 Electrical Connection to the Burner Box using Line Voltage Thermostat on Control
46
Page 53
10.5 For External Thermostat Connection
L1
L2
Gnd.
Conduit Hole
Burner Box
Internal Wire Bundle
Green to Gnd.
White to L2
Black to L1
Green
White
Black
Liquid Tight Flexible
Conduit for Outdoor
Use or Equivilent
Liquid Tight
Conduit Connector
Thermostat Wire
Thermostat Wire
to Purple
From External
Thermostat
Thermostat Wire to Blue
BLACK
WHITE
IGNITOR
PRESSURE SWITCH
ORANGE
SMART
VALVE
TRANSFORMER
WHITE
YELLOW
YELLOW
PLUG
GREEN
WHITE
WHITE
GREY
FLAME
SENSOR
WHITE
TERMIAL
BUSHING
green
BLACK
BLACK
BLACK
BLACK
MOTOR/BLOWER
DOOR SWITCH
GREEN
BLUE
PURPLE
TO THERMOSTAT
1
5
3
4
NO
COM
3
120
VAC
1
Run two wires from low voltage thermostat through
conduit as shown. The purple wire from the valve and
the blue wire from the transformer have 1/4" (6 mm)
blade female electrical terminals, which are con-
connections off the ends of the blue and purple wires
and strip the ends approximately 1/2" (1.3 cm). Connect these 2 wires to the thermostat wires using suit-
able wire connectors.
nected by a black jumper wire. Cut the female
10.6 Electrical Connection to Burner Box with Optional External Low Voltage Thermostat
SECTION 10: WIRING
10.7 Internal Wiring
47
Page 54
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
L
2
L
1
WHITE BLACK
WHITE
WHITE
BLACK
BLACK
GREY
WHITE
VALVE
HOT SURFACE IGNITER
FLAME
SENSOR
MOTOR
DOOR
SWITCH
YELLOW
YELLOW
PRESSURE
SWITCH
WHITE
TO
THERMOSTAT
ORANGE
BLUE
WHITE
PURPLE
TRANSFORMER
10.8 Ladder Diagram
48
Page 55
SECTION 11: OPERATION AND MAINTENANCE
SECTION 11: OPERATION AND MAINTENANCE
DANGER
Electrical Shock Hazard
Disconnect electric
before service.
Heater must be
connected to a properly
grounded electrical
Explosion Hazard
Turn off gas supply to
heater before service.
WARNING
Burn Hazard
Allow heater to cool
before service.
Tubing may still be hot
after operation.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and service.
Edges are sharp.
source.
Failure to follow these instructions can result in death, electric shock, injury or property damage.
The heater is equipped with a hot-surface ignition
system.
the module/SmartValve
hour or until reset.
®
II will lockout for one
6. If the flame extinguishes during operation, the
11.1 Sequence of Operation
1. Turn the thermostat up. When the thermostat
calls for heat, the SmartValve
®
II will energize.
After a short period, power is supplied to the
blower motor.
2. When the motor approaches nominal running
RPM, the pressure switch closes and signals
the ignition module/SmartValve
3. The ignition module/SmartValve
®
II.
®
II then energizes the hot-surface igniter for a timed warm-up
period (approximately 45 to 60 seconds). After
the warm-up period, the gas valve is energized.
4. If a flame is detected, the gas valve remains
igniter module will provide multiple trial
sequences described in step 5. If ignition is not
re-established, the module/SmartValve
®
II will
lockout for one hour or until reset.
7. After lockout, reset by turning down thermostat for five seconds, and then raising it again to desired temperature, or by disconnecting power and then reconnecting.
11.2 To Shut Off Heater
Set thermostat to lowest setting.
Turn OFF electric power to heater.
Turn OFF manual gas valve in the heater supply line.
open and the igniter is de-energized. When the
call for heat is satisfied, and the system control
mechanism de-energizes the burner line voltage
supply, the gas is turned off.
11.3 To Start Heater
Turn gas valve and electric power OFF and wait five
minutes for unburned gases to vent from heater.
5. If no flame is detected by the flame sensing rod,
the igniter is de-energized and the module/
SmartValve
®
II will close and a purge period
begins. After the purge, the module/SmartValve
II acts to power the igniter for a second warm-up
Turn ON main gas valve.
Turn ON electric power.
®
Set thermostat to desired temperature. Burner
should light automatically.
period and a second trial for ignition period. If
flame is still not established, a third purge,
warm-up, and trial cycle begins. After four trials,
11.4 Pre-Season Maintenance and Annual Inspection
To e n s ure your safety and years of trouble-free oper-
49
Page 56
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
ation of the heating system, service and annual
inspections must be done by a contractor qualified in
the installation and service of gas-fired heating
equipment.
Turn off gas and electric supplies before performing
service or maintenance. Allow heater to cool before
servicing.
Before every heating season, a contractor qualified in
the installation and service of gas-fired heating
equipment must perform a thorough safety inspection of the heater.
For best performance, the gas, electrical, thermostat
connections, tubing, venting, suspensions and over-
all heater condition should be thoroughly inspected.
NOTE: Gas flow and burner ignition are among the
first things that should be inspected.
Installation Code and Annual Inspections:
All installation and service of ROBERTS GORDON
equipment must be performed by a contractor
qualified in the installation and service of equipment
sold and supplied by Roberts-Gordon LLC and
conform to all requirements set forth in the
ROBERTS GORDON
®
manuals and all applicable
governmental authorities pertaining to the
installation, service, operation and labeling of the
equipment.
To help facilitate optimum performance and safety,
Roberts-Gordon LLC recommends that a qualified
contractor conduct, at a minimum, annual inspec-
®
tions of your ROBERTS GORDON
equipment and
perform service where necessary, using only
replacement parts sold and supplied by RobertsGordon LLC.
Please see Page 50, Section 11.5 for suggested
items to inspect.
11.5 Maintenance Checklist The Vicinity of the Heater Do not store or use flammable objects, liquids or vapors near the heater.
Immediately remove these items if they are present. See Page 6, Section 3.
Vehicles and Other
Objects
Maintain the clearances to combustibles.
Do not hang anything from, or place anything on, the heater.
®
Make sure nothing is lodged underneath the reflector, in between the tubes or
in the decorative or protective grilles (included with select models).
Immediately remove objects in violation of the clearances to combustibles.
See Page 6, Section 3.
Reflector Support reflector with reflector hanger and support strap.
Reflector must not touch tube.
Make sure there is no dirt, sagging, cracking or distortion.
Do not operate if there is sagging, cracking or distortion.
Make sure reflectors are correctly overlapped. See Page 24, Section 6.6.1.
Clean any debris from top and surface of reflectors with a damp cloth.
Check for evidence of animals such as squirrels or birds and remove any
nests prior to firing.
Vent Pipe Venting m
ust be intact. Using a flashlight, look for obstructions, cracks on the
pipe, gaps in the sealed areas or corrosion.
The area must be free of dirt and dust.
Remove any carbon deposits or scale using a wire brush.
Check for evidence of animals such as squirrels or birds and remove any
nests prior to firing. See Page 35, Section 8.
Outside Air Inlet Inlet must be intact. Look for obstructions, cracks on the pipe, gaps in the
sealed areas or corrosion.
50
The area must be free of dirt and dust. Clean and reinstall as required.
Page 57
SECTION 11: OPERATION AND MAINTENANCE
Reflector Support Straps Verify that the reflector support straps are securely clamped to tube and
reflector. See Page 24, Step 6.6.1.
Verify tight and loose screws at reflector overlaps.
Tubes Make sure there are no cracks.
Make sure tubes are connected and suspended securely.
See Page 15, Section 6.
Make sure there is no sagging, bending or distortion.
Clean any debris from top of tubes or replace as required.
Check the inside of the firing tube with a flashlight. If carbon or scale are present remove the turbulator(s). Scrape out the deposits with a wire brush or rod,
or metal plate attached to a wooden pole and replace turbulator(s) in tube.
Check for evidence of animals such as squirrels or birds and remove any
nests prior to firing.
Gas Line Check for gas leaks. See Page 43, Section 9.
Burner Observation
Window
Make sure it is clean and free of cracks or holes.
Clean and replace as required.
Drain Hole Be sure that the drain hole in the bottom of the burner compartment is not
blocked or clogged.
Blower Scroll, Wheel and
Motor
Compressed air or a
vacuum cleaner may be used to clean dust and dirt.
Burner Cup and Orifice Clear of obstructions (even spider webs will cause problems).
Carefully remove any dust and debris from the burner.
Hot-Surface Igniter Replace if cracked or broken.
Thermostat There should be no exposed wire or damage to the thermostat.
See Page 45, Section 10.
Suspension Points Make sure the heater is hanging securely. Look for signs of wear on the chain
or ceiling.
See Page 16, Figure 14.
Decorative and Protective
Grille (optional)
The grille must be securely attached.
Check that the side reflector extensions are installed correctly and secured in
place if necessary (Decorative grille only).
See Page 32, Section 7.5 and Page 34, Section 7.6
Make sure shield is installed correctly and secured in place if necessary.
(Decorative grille only.) See Page 33, Section 7.5.2.
Lower Clearance Shield
(optional)
The lower shield must be securely attached. Inspect shield support straps
and lower clearance shield anchor points. See Page 32, Section 7.4.
Make sure shield is installed correctly and sec
ured in place if necessary.
See Page 32, Section 7.4.
Wall Tag If wall tag is present, make sure it is legible and accurate. Please contact
Roberts-Gordon LLC or your ROBERTS GORDON
®
independent distributor,
if you need a wall tag. See Page 4, Section 2.1.
Safety Labels Product safety signs or labels should be replaced by the product user when
they are no longer legible. Please contact Roberts-Gordon LLC or your ROBERTS GORDON
®
independent distributor to obtain replacement signs or
labels. See Page 1, Figure through Page 3, Figure 2.
51
Page 58
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Fire Hazard
Keep all flammable
objects, liquids and
vapors the minimum
required clearances to
combustibles away
from heater.
Some objects will catch
fire or explode when
placed close to heater.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
Burn Hazard
Allow heater to cool
before service.
Tubing may still be hot
after operation.
Explosion Hazard
Turn off gas supply to
heater before service.
SECTION 12: TROUBLESHOOTING
DANGER
Electrical Shock Hazard
Disconnect electric before service.
Heater must be properly grounded.
Failure to follow these instructions can result
in death or electrical shock.
52
Page 59
SECTION 12: TROUBLESHOOTING
WARNING
Electrical Shock Hazard
Do not disconnect ground leads inside heater.
Do not interchange grounded and ungrounded
leads on transformer or ignition module.
Failure to follow these instructions can result
in death or electrical shock.
12.1 Honeywell SmartValve
®
II Troubleshooting
This heater is supplied with the Honeywell Smart-
®
Valve
II control system. This system is equipped with
a diagnostic function that will assist in performing
troubleshooting. The LED (Light Emitting Diode) indicator at the top of the SmartValve
®
II control will flash
in various patterns to indicate status. The LED status
indication chart provided below gives a summary of
possible faults.
LED Status Indicates
Off No power to the control
Bright-Dim Normal Operation.This indication
shows whenever the system is pow-
ered, unless some abnormal event
has occurred.
2 Flashes Pressure switch remains closed lon-
ger than 30 seconds after a call for
heat begins (pressure switch stuck
closed). The SmartValve
®
II checks
the status of the pressure switch contacts and must see a change in the
contact with every firing cycle. Placing
a jumper at the switch out of
sequence will result in a fault, with the
LED indicator flashing 2 times.
3 Flashes Pressure switch remains open longer
than 30 seconds after combustion air
blower is energized. Check for correct
blower operation, blower intake
obstructions, pressure switch tubing
and wiring.
4 Flashes Limit string open, 2" white jumper wire
on valve is loose.
5 Flashes Flame signal sensed out of proper
sequence.
6 Flashes System Lockout. Flame sensing cir-
cuit is not functioning properly. Perform the checks following the "Does
the burner stay lit?" bubble in the trou-
bleshooting flow
chart on Page 54,
Section 12.2.
Page 56, Section 12.3 will provide the information
needed to test the manifold gas pressure setting.
Page 54, Section 12.2 will guide you through several
troubleshooting steps to determine possible problems with the systems.
53
Page 60
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
12.2 Troubleshooting Flow Chart
54
Page 61
SECTION 12: TROUBLESHOOTING
Repair/correct wiring.
Ye s
No
Repair/correct wiring.Repair/correct wiring.
TROUBLESHOOT ENDS
If the problem persists,
contact your
ROBERTS GORDON
®
Independent Distributor.
Replace flame sensor.
Is the flame sensor dirty?
Repair/Replace.
After igniter warm-up
period, does the valve
click?
Does the burner light?
Does the burner
stay on?
Does burner run until the
call for heat ends?
Were the gas lines
purged of air?
* Check inlet gas cock
* Contact gas company
* Adjust the regulator
Is the continuity
of the ground wire OK?
Repair/correct wiring.
Check the continuity
of the ground wire.
Check the thermostat.
Purge gas line.
Check outlet gas
pressure during
ignition period. Is the
natural gas pressure
3.5 in wc ? (LP pressure
10.5" wc?)
Adjust to proper
pressure.
See Section 12.3.
Are L1 and L2
reversed?
Check for proper orifice.
Check for proper air plate.
Is the wiring at the
SmartValve
®
II OK?
Are the wires to
and from the
SmartValve
®
II OK?
Replace
SmartValve
®
II.
Is the insulation
on the flame sensor
lead OK?
Replace wires.
Is the flame sensor
positioned properly?
Clean flame sensor.
SmartValve
®
II ignition
system control switch must
be in the on position. Check
inlet gas pressure during
ignition period. Is the
natural gas pressure at
least 4.6 in wc?
5.0 in wc for model HE-175
(LP pressure 11" wc?)
Ye s
No
Ye s
Ye s
No
Ye s
No
No
Ye s
Ye s
No No
Ye s
No
Ye s
No
Ye s
No
Ye s
Ye s
No
No
Ye s
Ye s
No
No
Ye s
Or
Contact
Roberts-Gordon LLC
at www.rg-inc.com
55
Page 62
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
10.5 in wc
Natural Gas
LP Gas
6
5
4
3
2
1
0
1
2
3
4
5
6
3.5 in wc
6
5
4
3
2
1
0
1
2
3
4
5
6
Top View of Heater
Manometer
Val ve Outlet
Val ve Inlet
12.3 Manifold Gas Pressure Setting
56
Page 63
SECTION 13: REPLACEMENT PARTS
Carbon Monoxide Hazard
WARNING
Use only genuine ROBERTS GORDON® replacement parts per this installation, operation and
service manual.
Failure to follow these instructions can result in death, electric shock, injury or property damage.
Explosion Hazard
DANGER
Electrical Shock Hazard
Fire Hazard
SECTION 13: REPLACEMENT PARTS
57
Page 64
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Motor and Blower Assembly
Blower Inlet Gasket
Air Adapter Collar
Burner Cup
Assembly
Mica Window
Assembly
Hot Surface
Igniter
Transformer
Burner Side
Air Pressure Tap
Flame Sensor
Door Switch
Gas Valve
Gas Valve
Pressure Switch
Blower Side
Air Pressure Tap
Orifice
Tube Gasket
58
Page 65
SECTION 13: REPLACEMENT PARTS
Description Part Number
Gas Valve (Natural)
Gas Valve (LP)
Tube Gasket
Blower Inlet Gasket
Motor and Blower Assembly
Air Adapter Collar
Door Switch
Burner Cup Assembly
Hot Surface Igniter
Mica Window Assembly
Flame Sensor
Transformer
Gasket - Valve
Pressure Switch:
(175)
(100)
(80,150)
(40, 60, 125)
90068300
90068302
02568200
03050900
90708600-P
91911700
90436800
03020100
90436603K
02553203
90439300
90436900K
03200100
90439802K
90439803K
90439810K
90439805K
59
Page 66
HE-SERIES INSTALLATION, OPERATION AND SERVICE MANUAL
Turbulator (Some Models)
Reflector
Overall length C
17.5"
(44 cm)
Length A
End ViewSide View
13.5"
(34 cm)
9.5"
(24 cm)
Heat Input
Rate
Length “A”
Recommended
Minimum Mounting Height*
Model
(Bth/h) x (1000)
Space Spot
HE-40 40 10' (3 m) 8'-10' (2.4 - 3 m) 8' (2.3 m)
HE-60 60 20' (6 m) 10'-12' (3 - 3.6 m) 9' (2.7 m)
HE-80 80 20' (6 m) 12'-15' (3.6 - 4.5 m) 11' (3.3 m)
HE-100 100 30' (9 m) 12'-15' (3.6 - 4.5 m) 12' (3.7 m)
HE-125 125 40' (12 m) 15'-20' (4.5 - 6 m) 15' (4.6 m)
HE-150 150 50' (15 m) 20'-25' (6 - 7.6 m) 20' (6.1 m)
HE-175 175 60' (15 m) 25' (7.6 m) 23' (7 m)
SECTION 14: GENERAL SPECIFICATIONS
14.1 Material Specifications
14.1.1 Reflectors
.024 Aluminum or .024 Stainless Steel Type 304
14.2 Heater Specifications
14.2.1 Ignition
Honeywell
®
SmartValve® II combines gas valve and
hot surface electronic ignition control. Fully auto-
matic, four-try, 100% shu t-off, prepurge, auto reset,
LED indicator status.
General Specifications for the heaters are as follows:
14.3 Suspension Specifications
Hang heater with materials with a minimum working
load of 75 lbs (33 kg). See Page 16, Figure 14.
14.4 Controls Specifications
Time switches, thermostats, etc. can be wired into
the electrical supply. External controls supplied as an
optional extra.
*See Page 6, Section 3 for clearances to combustibles. Recommended mounting height for outdoor use will generally be lower than recommended spot heating heights, (8' (2.3 m) minimum).
GAS PRESSURE AT MANIFOLD:
Natural Gas: 3.5" wc
LP Gas: 10.5" wc
PIPE CONNECTION:
3/4" NPT
DIMENSIONS:
Vent Connection Size: 4" (10 cm)
Outside Air Connection Size: 4" (10 cm)
Refer to figure above for dimensional information.
60
GAS INLET PRESSURE:
Natural Gas:
for 40,60,80,100,125,150 4.6" wc Minimum
for 175 5.0" wc Minimum
LP Gas: 11.0 " wc Minimum
ELECTRICAL RATING (ALL MODELS):
120V - 60 Hz., 1.0 A (run) 5.0 A (Start)
14.0" wc Maximum
14.0" wc Maximum
Page 67
SECTION 15: THE ROBERTS GORDON® VANTAGE® HE WARRANTY
SECTION 15: THE ROBERTS GORDON
®
VANTAG E
HE WARRANTY
®
ROBERTS-GORDON LLC WILL PAY FOR:
Within 36 months from date of purchase by buyer or 42
months from date of shipment by Roberts-Gordon LLC
(whichever occurs first), replacement parts will be provided
free of charge for any part of the product which fails due to
a manufacturing or material defect.
Roberts-Gordon LLC will require the part in question to be
returned to the factory. Roberts-Gordon LLC will, at its sole
discretion, repair or replace after determining the nature of
the defect and disposition of part in question.
ROBERTS GORDON
®
Replacement Parts are warranted
for a period of 12 months from date of shipment from
Roberts-Gordon LLC or the remaining ROBERTS
GORDON
®
VANTAGE® HE warranty.
ROBERTS-GORDON LLC WILL NOT PAY FOR:
Service trips, service calls and labor charges.
Shipment of replacement parts.
Claims where the total price of the goods have not
been paid.
Damage due to:
• Improper installation, operation or maintenance.
• Misuse, abuse, neglect, or modification of the
ROBERTS GORDON
• Use of the ROBERTS GORDON
®
VANTAGE® HE in any way.
®
VANTAGE® HE for
other than its intended purpose.
• Incorrect gas or electrical supply, accident, fire, floods,
acts of God, war, terrorism, or other casualty.
• Improper service, use of replacement parts or accessories not specified by Roberts-Gordon.
• Failure to install or maintain the ROBERTS GORDON
VANTAGE
®
HE as directed in the Installation, Opera-
tion and Service manual.
• Relocation of the ROBERTS GORDON
®
VANTAGE®
HE after initial installation.
®
• The use of the ROBERTS GORDON
VANTAGE® HE
in a corrosive atmosphere containing contaminants.
• The use of the ROBERTS GORDON
®
VANTAGE® HE
in the vicinity of a combustible or explosive material.
®
• Any defect in the ROBERTS GORDON
VANTAGE®
HE arising from a drawing, design, or specification
supplied by or on behalf of the consumer.
• Damage incurred during shipment. Claim must be filed
with carrier.
WARRANTY IS VOID IF:
The ROBERTS GORDON® VANTAGE® HE is not installed
by a contractor qualified in the installation and service of
gas fired heating equipment.
Yo u cannot prove original purchase date and required
annual maintenance history.
The data plate and/or serial number are removed,
defaced, modified or altered in any way.
The ownership of the ROBERTS GORDON
®
VANTAGE®
HE is moved or transferred. This warranty is
nontransferable.
Roberts-Gordon LLC is not permitted to inspect the
damaged equipment and/or component parts
.
READ YOUR INSTALLATION, OPERATION AND
SERVICE MANUAL
If you have questions about your equipment, contact your
installing professional. Should you need Replacement
Parts or have additional questions, call or write:
Roberts-Gordon LLC
1250 William Street
P. O . B o x 4 4
Buffalo, New York 14240-0044
Telephone: +1.716.852.4400
Fax: +1.716.852.0854
Toll Free: 800.828.7450
www.rg-inc.com
www.radiantheaters.com
Roberts-Gordon LLC
's liability, and your exclusive
remedy, under this warranty or any implied
warranty (including the implied warranties of
merchantability and fitness for a particular
purpose) is limited to providing replacement
parts during the term of this warranty.
jurisdictions do not allow limitations on how long an
implied warranty lasts, so this limitation may not apply to
you. There are no rights, warranties or conditions,
expressed or implied, statutory or otherwise, other than
those contained in this warranty.
®
Roberts-Gordon LLC shall in no event be responsible
for incidental or consequential damages or incur
liability for damages in excess of the amount paid by
you for the ROBERTS GORDON
jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, so this limitation or
exclusion may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights
which vary from jurisdiction to jurisdiction.
Roberts-Gordon LLC shall not be responsible for failure to
perform under the terms of this warranty if caused by
circumstances out of its control, including but not limited to
war, fire, flood, strike, government or court orders, acts of
God, terrorism, unavailability of supplies, parts or power.
No person is authorized to assume for Roberts-Gordon
LLC any other warranty, obligation or liability.
®
VANTAGE® HE. Some
Some
LIMITATIONS ON AUTHORITY OF
REPRESENTATIVES:
No representative of Roberts-Gordon LLC, other than an
Executive Officer, has authority to change or extend these
provisions. Changes or extensions shall be binding only if
confirmed in writing by Roberts-Gordon LLC's duly
authorized Executive Officer.
61
Page 68
Page 69
Page 70
Page 71
Page 72
