Roberts Gorden 225, 200, 175, 250, 300 User Manual
...
FOR YOUR SAFETY
WARNING
Installation must be done by a contractor qualified
in the installation and service of gas-fired heating
equipment or your gas supplier.
Improper installation, adjustment, alteration, service
or maintenance can result in death, injury or
property damage. Read the Installation, Operation
and Service Manual thoroughly before installing or
servicing this equipment.
Installer
Please take the time to read and understand
these instructions prior to any installation.
Installer must give a copy of this manual to the owner.
Owner
Keep this manual in a safe place in order to provide
your serviceman with necessary information.
If you smell gas:
1. Open windows.
2. DO NOT try to light any appliance.
3. DO NOT use electrical switches.
4. DO NOT use any telephone in
your building.
5. Extinguish any open flame.
6. Leave the building.
7. Immediately call your local gas
supplier after leaving the building.
Follow the gas supplier’s
instructions.
8. If you cannot reach your gas
supplier, call the Fire Department.
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the minimum required clearances to combustibles away from
heater.
®
Combat
UHA-Series
Tubular Unit Heaters
(Standard Range)
Installation, Operation
& Service Manual
Models UHA[X][S]
150, 175, 200, 225
250, 300, 350, 400
Some objects will catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property
damage.
© 2012 Roberts-Gordon LLC
Roberts-Gordon LLC
1250 William Street
P. O . Box 44
Buffalo, New York 14240-0044
Telephone: +1.716.852.4400
Fax: +1.716.852.0854
Toll Free: 800.828.7450
www.robertsgordon.com
www.rg-inc.com
P/N 111101NA 0 9/12 Re v. F
AVERTISSEMENT
POUR VOTRE SECURITE
Si vous sentez une odeur de gaz:
1. Ouvrez les fenêtres.
2. N’essayez PAS d’allumer un appareil.
3. N’utilisez PAS d’interrupteurs
électriques.
4. N’utilisez PAS de téléphone dans votre
bâtiment.
5. Eteignez toute flamme nue.
6. Quittez le bâtiment.
7. Après avoir quitté le bâtiment, appelez
immédiatement votre fournisseur local
de gaz.
Suivez les instructions du fournisseur
de gaz.
8. Si vous ne pouvez pas joindre votre
fournisseur de gaz, appelez le service
d’incendie.
Risque d’incendie
Garder tous les objets, liquides ou vapeurs
inflammables à la distance minimale de
l’unité de chauffage requise avec les
matériaux combustibles.
Certains objets prendront feu ou exploseront
s’ils sont placés à proximité de l’unité de
chauffage.
Le non respect de ces instructions peut
entraîner la mort, des blessures corporelles
ou des dommages matériels.
ATTENTION
Linstallation doit être effectuée par un installateur
éprouvé/contractant qualifié dans linstallation et la
maintenance du système de chauffage par infrarouge
activé au gaz.
Linstallation, lajustement, laltération, le démarrage
ou lentretien inadéquat peuvent causer la mort, des
blessures ou des dégâts matériels. Lire entièrement
le manuel dinstallation, dopération et dentretien
avant linstallation ou l'entretien de cet équipement.
®
Installateur
Prenez le temps de lire et comprendre ces instructions
avant toute installation.
Linstallateur doit remettre au propriétaire
un exemplaire de ce manuel.
Propriétaire
Gardez ce manuel dans un endroit sûr pour
fournir des informations au réparateur
en cas de besoin.
Combat
UHA-Series
Aérothermes tubulaire
(Gamme standard)
Manuel d’installation,
d’operation, et de service
Modèles UHA[X][S]
150, 175, 200, 225
250, 300, 350, 400
© 2012 Roberts-Gordon LLC
Roberts-Gordon LLC
1250 William Street
P. O . Box 44
Buffalo, New York 14240-0044
Téléphone: +1.716.852.4400
Fax: +1.716.852.0854
Numéro sans fraís: 800.828.7450
www.rg-inc.com
P/N 111101FC 09/12 Orig.
© 2012
Roberts-Gordon LLC
All rights reserved. No part of this work covered by the copyrights herein may be reproduced
or copied in any form or by any means - graphic, electronic, or mechanical, including
photocopying, recording, taping or information storage and retrieval systems - without the
written permission of Roberts-Gordon LLC.
TABLE OF CONTENTS
SECTION 1: Heater Safety...................................................... 1
1.1 Manpower Requirements .............................................1
1.2 Safety Labels and Their Placement ............................. 1
1.3 California Proposition 65 .............................................. 1
2.1 Wall Tag ....................................................................... 5
2.2 Corrosive Chemicals....................................................5
2.3 National Standards and Applicable Codes .................. 5
SECTION 3: Critical Considerations .....................................6
3.1 Basic Information.........................................................6
3.2 Manufactured Units......................................................6
3.3 Location and Suspension ............................................6
3.4 Minimum Required Installation Clearances .................6
3.5 Ventilation .................................................................... 6
3.6 Gas Supply ..................................................................6
3.7 Electrical Supply .......................................................... 6
3.8 Vent..............................................................................6
SECTION 4: Clearances TO combustibles............................ 7
4.1 Required Clearances To Combustibles........................7
4.2 Clearances To Combustibles....................................... 7
SECTION 5: National Standards and Applicable Codes .....8
5.1 Gas Codes................................................................... 8
5.2 Aircraft Hangars ...........................................................8
5.3 Parking Structures and Repair Garages......................8
5.4 Electrical ...................................................................... 8
5.5 Venting.........................................................................8
5.6 High Altitude ................................................................ 9
SECTION 6: Heater installation............................................ 10
6.1 General...................................................................... 10
6.2 Suspension................................................................ 10
SECTION 7: Venting.............................................................. 11
7.1 Venting ....................................................................... 11
7.2 Vent Installation .......................................................... 11
7.3 Unvented Operation ................................................... 12
7.4 Horizontal Venting ...................................................... 12
7.5 Vertical Venting........................................................... 12
7.6 Length Requirements ................................................. 12
7.7 Vent Material............................................................... 13
7.8 Replacing an Existing Heater in a Venting System..... 13
SECTION 8: Air Supply......................................................... 18
8.1 Separated Combustion Installation ............................ 18
8.2 Unvented Installation ................................................. 18
8.3 Building Ventilation .................................................... 18
8.4 Outside Combustion Air Supply................................. 18
SECTION 9: Gas Piping........................................................19
9.1 Connections............................................................... 19
SECTION 10: Wiring
10.1 Positioning Thermostats ..........................................21
10.2 Low Voltage Thermostat with One Heater ............... 21
10.3 Low Voltage Thermostat with Multiple Heaters
(Models UHA[X][S]150 - 250) .................................... 22
10.4 Low Voltage Thermostat with Multiple Heaters
(Models UHA[X][S]300 - 400)....................................23

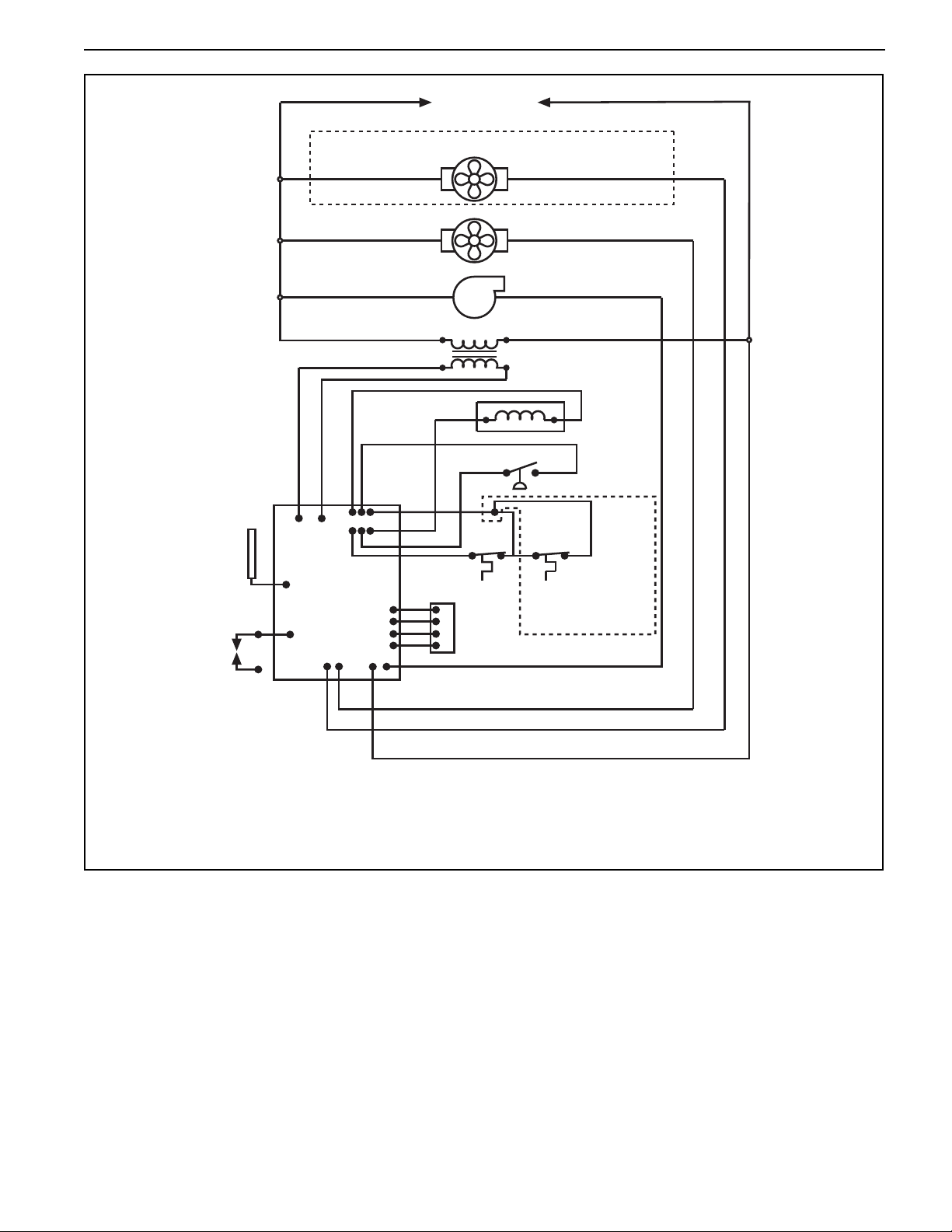

10.5 UHA[X][S] Series Internal Wiring Diagram............... 24
10.6 UHA[X][S] Series Ladder Wiring Diagram................25
10.7 Electrical Connection to the Heater..........................26
..............................................................21
SECTION 11: Operation and Maintenance ..........................27
11.1 Pre-Start-Up Checks.................................................27
11.2 Begin Start-Up ..........................................................28
11.3 Complete the Start-Up ..............................................30
SECTION 12: User Instructions............................................31
12.1 Heater Operation......................................................31
12.2 Lighting Instructions .................................................31
12.3 Simple Troubleshooting............................................31
SECTION 13: Servicing.........................................................32
13.1 Servicing Instructions...............................................32
13.2 Burner Maintenance.................................................32
13.3 Fan/Motor Assembly Maintenance...........................32
13.4 Heat Exchanger Maintenance..................................32
13.5 Gas Valve Maintenance ...........................................32
13.6 Flue Blower..............................................................32
13.7 Venting and Air Intake Pipe ......................................33
13.8 Maintenance Checklist .............................................33
SECTION 14: Troubleshooting .............................................35
14.1 General ....................................................................36
14.2 Troubleshooting For Automatic Ignition Burner
Systems...................................................................37
14.3 Troubleshooting for Flame Supervision System .......38
14.4 Troubleshooting for Gas Valves................................39
14.5 Troubleshooting for Flue Blower...............................39
SECTION 15: Replacement Parts .........................................40
15.1 Gas Valve .................................................................40
15.2 Burner Compartment ...............................................41
15.3 Ignition Electrode and Flame Probe.........................42
15.4 Heat Exchanger .......................................................43
15.5 Louvers and Louver Spring ......................................43
15.6 Flue Blow
15.7 Pressure Switch........................................................45
15.8 Ignition Control .........................................................45
15.9 Axial Fan/Guard/Motor Assembly.............................45
15.10 Limit Switches ........................................................46
SECTION 16: Specifications.................................................47
16.1 Dimension Data........................................................47
16.2 General Technical Data Table ..................................48
16.3 Technical Data Table ................................................48
SECTION 17: The ROBERTS GORDON
er .............................................................44
®
COMBAT
UHA-Series Warranty.....................................50
®
Printed in U.S.A.
TABLE OF FIGURES
Figure 1: UHA[X][S]150 - 175 Label Placement........................2
Figure 2: UHA[X][S]200 - 250 Label Placement .......................3
Figure 3: UHA[X][S]300 - 400 Label Placement .......................4
Figure 4: Installation Clearances and Clearances to
Combustibles.............................................................7
Figure 5: Suspension Methods ............................................... 10

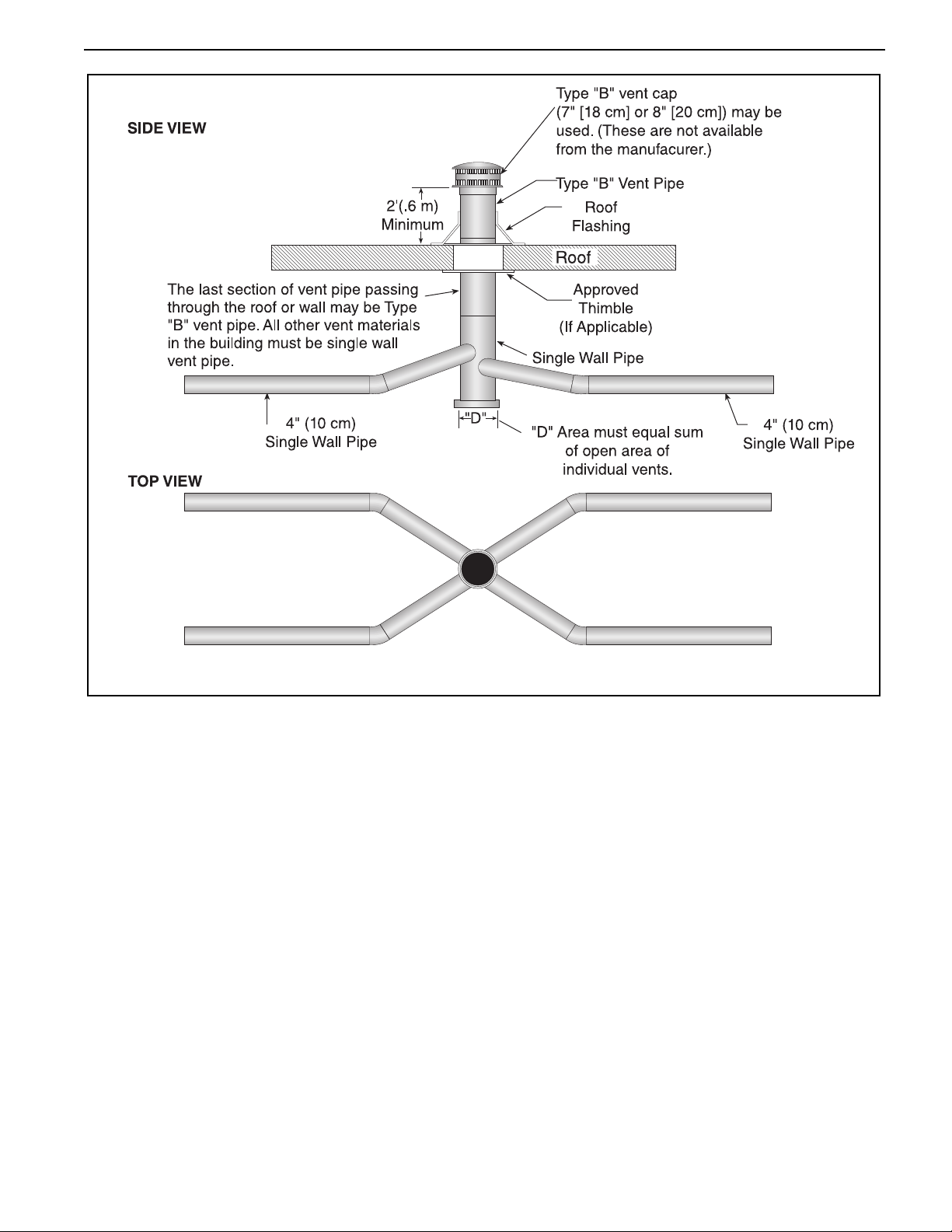

Figure 6: Vent and Roof Detail ................................................ 13
Figure 7: Standard Vented Heater - Vertical and
Horizontal Vent Termination ..................................... 14
Figure 8: Standard Vented Heater - Common Vertical Vent
Termination .............................................................. 15
Figure 9: Separated Combustion Heater - Vertical and
Horizontal Vent Termination ..................................... 16
Figure 10: Concentric Vent Box............................................... 16
Figure 11: Concentric Vertical and Horizontal Vent
Termination - Separated Combustion Heater ......... 17
Figure 12: Gas Connection ..................................................... 20
Figure 13: Automatic Burner Control Sequence...................... 28
Figure 14: Gas Valve for Models UHA[X][S] 150 - 400............29
Figure 15: LED Diagnostic Codes...........................................31
SECTION 1: HEATER SAFETY
Yo ur Safety is Important to Us!
This symbol is used throughout
the manual to notify you of
possible fire, electrical or burn
hazards. Please pay special
attention when reading and
following the warnings in these
sections.
Installation, service and, at a
minimum, annual inspection of heater must be done
by a contractor qualified in the installation and
service of gas-fired heating equipment.
Read this manual carefully before installation,
operation or service of this equipment.
Heaters are not approved for residential installation.
These instructions, the layout drawing, local codes
and ordinances and applicable standards that apply
to gas piping, electrical wiring, venting, etc. must be
thoroughly understood before proceeding with the
installation.
Protective gear is to be worn during installation,
operation and service. Thin sheet metal parts have
sharp edges. To prevent injury, the use of work
gloves is recommended.
Before installation, check that the local distribution
conditions, nature of gas and pressure and
adjustment of the appliance are compatible.
The heater must be applied and operated under the
general concepts of resonable
use and installed
using the best building practices.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
For additional copies of the Installation, Operation
and Service Manual, please contact RobertsGordon LLC.
SECTION 1: HEATER SAFETY
1.3 California Proposition 65
In accordance with California Proposition 65
requirements, a warning label must be placed in a
highly visible location on the outside of the
equipment (i.e. near equipment's serial plate). See
label placement drawing on Page 2, Figure 1
through Page 4, Figure 3 for label location. Avoid
placing label on areas with extreme heat, cold,
corrosive chemicals or other elements. To order
additional labels, please contact Roberts-Gordon
LLC or your ROBERTS GORDON
®
independent
distributor.
1. 1 M a n p o w e r R e quirements
To prevent personal injury and damage to the
heater, two persons will be required for installation.
1.2 Safety Labels and Their Placement
Product safety signs or labels should be replaced by
the product user when they are no longer legible.
Please contact Roberts-Gordon LLC or your
ROBERTS GORDON
®
independent distributor to
obtain replacement signs or labels. See Page 2,
Figure 1 through Page 4, Figure 3.
1 of 51
UHA STANDARD UNIT HEATER INSTALLATION OPERATION AND SERVICE MANUAL
*For separated combustion units only.
Description Part Number
Logo Label 91040030
Cut Hazard Label 91010430
Vent Length Label 91039505
Vent to Outdoors Label 91010427
Warning Label 91010429
Rating Plate Label 91010419
Installation Label 91010431
Instruction Location Label 91010433
Lighting Instruction Label 91010425
Venting Arrangement Label* 91010426
Proposition 65 Label 91070015
Figure 1: UHA[X][S]150 - 175 Label Placement
2 of 51
Figure 2: UHA[X][S]200 - 250 Label Placement
*For separated combustion units only.
Description Part Number
Logo Label 91040030
Cut Hazard Label 91010430
Vent Length Label 91039505
Ven t to Outdoors Label 91010427
Warning Label 91010429
Rating Plate Label 91010419
Installation Label 91010431
Instruction Location Label 91010433
Lighting Instruction Label 91010425
Venting Arrangement Label* 91010426
Proposition 65 Label 91070015
SECTION 1: HEATER SAFETY
3 of 51
UHA STANDARD UNIT HEATER INSTALLATION OPERATION AND SERVICE MANUAL
*For separated combustion units only.
Description Part Number
Logo Label 91040030
Cut Hazard Label 91010430
Vent Length Label 91039505
Vent to Outdoors Label 91010427
Warning Label 91010429
Rating Plate Label 91010419
Installation Label 91010431
Instruction Location Label 91010433
Lighting Instruction Label 91010425
Venting Arrangement Label* 91010426
Proposition 65 Label 91070015
Figure 3: UHA[X][S]300 - 400 Label Placement
4 of 51
SECTION 2: INSTALLER RESPONSIBILITY
CAUTION
Product Damage Hazard
Do not use equipment in area containing
corrosive chemicals.
Refer to appropriate Material Safety Data
Sheets (MSDS).
Failure to follow these instructions can result
in product damage.
The installer is responsible for the following:
• To install the heater, as well as the gas and
electrical supplies, in accordance with applicable
specifications and codes. Roberts-Gordon LLC
recommends the installer contact a Local
Building Inspector or Fire Marshal for guidance.
• To use the information given in a layout drawing
and in the manual together with the cited codes
and regulations to perform the installation.
• To install the heater in accordance with the
clearances to combustibles.
• To furnish all needed materials not furnished as
standard equipment.
• To plan location of supports, vents and air
intakes.
• To provide access for servicing.
• To provide the owner with a copy of this
Installation, Operation and Service Manual.
• To never use heater as support for a ladder or
other access equipment and never hang or
suspend anything from heater.
• To ensure there is adequate air circulation
around the heater and to supply air for
combustion, ventilation and distribution in
accordance with local codes.
• To ensure that the heater is placed in an
approved application.
2.1 Wall Tag
A laminated wall tag is inclu
ded with the heater as a
permanent reminder of the safety instructions and
the importance of the required clearances to
combustibles. Affix the tag by peeling off the backing
of the adhesive strips on the rear surface and
position the tag on a wall near the heater.
A copy of the wall tag (P/N 91040031) is illustrated
on the back cover.
Know your model number. Model number is found
on the heater and throughout the Installation,
Operation and Service Manual.
SECTION 1: HEATER SAFETY
2.2 Corrosive Chemicals
Roberts-Gordon LLC cannot be responsible for
ensuring that all appropriate safety measures are
undertaken prior to installation; this is entirely the
responsibility of the installer. It is essential that the
contractor, the sub-contractor, or the owner
identifies the presence of combustible materials,
corrosive chemicals or halogenated hydrocarbons*
anywhere in the premises.
* Halogenated Hydrocarbons are a family of chemical
compounds characterized by the presence of halogen elements (fluorine, chlorine, bromine, etc.). These compounds are
frequently used in refrigerants, cleaning agents, solvents, etc. If
these compounds enter the air supply of the burner, the life
span of the heater components will be greatly reduced. An outside air supply must be provided to the burners whenever the
presence of these compounds is suspected. Warranty will be
invalid if the heater is exposed to halogenated hydrocarbons.
2.3 National Standards and Applicable Codes
All appliances must be installed in accordance with
the latest revision of the applicable standards and
national codes. This refers also to the electric, gas
and venting installation. Note: Additional standards
for installations in public garages, aircraft hangars,
etc. may be applicable.
5 of 51
UHA STANDARD UNIT HEATER INSTALLATION OPERATION AND SERVICE MANUAL
SECTION 3: CRITICAL CONSIDERATIONS
3.1 Basic Information
UHA[X][S] heaters have automatic ignition burners
for ON/OFF operation only.
3.4 Minimum Required Installation Clearances
Clearances around the heater and vent must be as
indicated on Page 7, Figure 4 and Page 13, Figure 6
to ensure access for servicing and correct operation.
3.2 Manufactured Units
Gas-fired, power-vented unit heater with tubular heat
exchanger. Units shall have a minimum of 82%
thermal efficiency. The standard unit shall consist of
a non-separated combustion design with an
aluminized heat exchanger. Design and heat
exchanger alternatives shall be offered as follows:
3.5 Ventilation
It is important to ensure that there is adequate air
space around the heater to supply air for
combustion, ventilation and distrib
accordance with local and national codes on Page
11, Section 7.
• Separated Combustion: A separated combustion
unit shall feature an enclosed, sealed burner
box. A piece of flexible air duct connects this
burner box to a flange on the cabinet.
Combustion air should be ducted from outside
the heated space, with the ductwork connecting
to the unit with the use of the flange.
3.6 Gas Supply
It is important that the gas supply pipe is sized
correctly to provide the inlet pressure as stated on
the heater data plate. The gas supply pipe and
electrical connections must not support any of the
heater's weight on Page 19, Section 9.
• Stainless Steel Heat Exchanger: A stainless
steel heat exchanger unit shall consist of heat
exchanger tubes, heat exchanger tube supports,
heat exchanger tube plates and vent box
produced of 409 stainless steel.
The use of stainless steel heat exchanger unit is
recommended w
hen air inlet temperatures are
below 40° F (4.4°C) or temperature rise is less
than 40° F (22.2° C) as condensation may form
on the heat exchanger resulting in corriosion that
may shorten its life.
3.7 Electrical Supply
A permanent 120 V / 60 Hz / 1 Ø electrical supply is
required for the main electrical power. The heater
also requires suitable controls in accordance with
See Page 21, Section 10.
3.8 Vent
Choose heater orientation to allow for the proper
location of the vent. Each heater must be fitted with
a correctly sized sealed vent system.
If vented horizontally, no other appliance may be
3.3 Location and Suspension
connected to the vent. See Page 11, Section 7.
All models:
•Must be installed indoors.
•Must be installed in a level position with
horizontal discharge.
• May be mounted on a shelf of non-combustible
material.
• May be suspended from above (See Page 10,
Figure 5) or from wall brackets of sufficient
strength to support the heater as listed in the
Technical Data Table on Page 49, Section 16.2.
Drop rods must be a minimum of 3/8" diameter
mild steel. Four suspension points (3/8" nuts)
are located on top of the heater.
•Must be installed in a manner which allows
access to all serviceable components.
See Page 7, Figure 4 for details.
ution in
6 of 51
SECTION 4: CLEARANCES TO COMBUSTIBLES
WARNING
Fire Hazard
Keep all flammable objects, liquids and
vapors the required clearances to
combustibles away from heater.
Some objects can catch fire or explode
when placed close to heater.
Failure to follow these instructions can
result in death, injury or property damage.
6"
(15 cm)
31"**
(79 cm)
3"
(8 cm)
6"
(15 cm)
Clearances to Combustibles
24" for
adequate
air flow access
axial fan.
10'
(3 m)
Wall
Terminal
Roof Terminal
To p
20' (6.0 m) - 30' (9.1 m)
Max. Mounting Height*
Installation Clearances
(Optional separated
combustion concentric
venting shown.)
* Recommended mounting height varies with heater input.
Heaters may be mounted at a higher level if destratification
fans are installed.
Note: Venting directly from top of heater not applicable
on Models 150 - 400.
Clearance to Vent: 2" (5 cm)
**31" (79 cm) minimum is necessary
for servicing.
The heater must always be installed at least 6' (2 m) above the floor.
The vent pipe must have clearance from combustibles by 2" (5 cm).
If installed at low levels where individuals can come in contact with hot heat
exchanger components, adequate guarding must be provided.
4.1 Required Clearances To Combustibles
Clearances for all heater models are located on the
serial plate of the heater and throughout the manual.
Check the clearances on the serial plate to make
sure the product is suitable for your application and
the clearances are maintained. Read and follow the
safety guidelines below:
• Keep gasoline or other combustible material
including flammable objects, liquids, dust or
vapors away from this heater or any other
appliance.
• The stated clearances to combustibles
represents a surface temperature of 90° F (50°
C) above room temperature. Building materials
with a low heat tolerance (such as plastics, vinyl
siding, canvas, tri-ply, etc) may be subject to
degradation at lower temperatures. It is the
installer’s responsibility to assure that adjacent
materials are protected from degradation.
Clearances are the required distances that
combustible objects must be away from the heater
to prevent serious fire hazards. Combustibles are
materials that catch on fire and include common
items such as wood, paper, rubber, fabric, etc.
Maintain clearances to combustibles at all times for
safety.
• Consult local Fire Marshal, Fire Insurance Carrier
or other authorities for approval of proposed
installation when there is a possibility of
exposure to combustible airborne materials or
vapors.
4.2 Clearances To Combustibles
Clearances must be as indicated on Page 7, Figure
4. If clearances to combustibles are not indicated,
then installation clearances apply.
Figure 4: Installation Clearances and Clearances to Combustibles
SECTION 4: CLEARANCES TO COMBUSTIBLES
7 of 51
UHA STANDARD UNIT HEATER INSTALLATION OPERATION AND SERVICE MANUAL
SECTION 5: NATIONAL STANDARDS AND APPLICABLE CODES
5.1 Gas Codes
The type of gas appearing on the name plate
must be the type of gas used. Installation must
comply with national and local codes and
requirements of the local gas company.
United States: Refer to NFPA 54/ANSI Z223.1 latest revision, National Fuel Gas Code.
Canada: Refer to CSA B149.1 Natural Gas and
Propane Installation Code.
5.2 Aircraft Hangars
Installation in aircraft hangars must be in
accordance with the following codes:
United States: Refer to Standard for Aircraft
Hangars, NFPA 409 - latest revision.
Canada: Refer to Standard CSA B149.1 Natural
Gas and Propane Installation Code.
• In aircraft storage and servicing areas, heaters
shall be installed at least 10' (3 m) above the
upper surface of wings or of engine enclosures
of the highest aircraft which may be housed in
the hangar. The measurement shall be made
from the wing or engine enclosure (whichever is
higher from the floor) to the bottom of the heater.
• In shops, offices and other sections of aircraft
hangars communicating with aircraft storage or
servicing areas, heaters shall be installed not
less than 8' (2.4 m) above the floor.
• Suspended or elevated heaters shall be so
located in all spaces of aircraft hangars that they
shall not be subject to injury by aircraft, cranes,
movable scaffolding or other objects. Provisions
shall be made to assure accessibility to
suspended heaters for recurrent maintenance
purposes.
5.3 Parking Structures and Repair Garages
Installation in garages must be in accordance
with the following codes:
United States: Standard for Parking Structures
NFPA 88A - latest revision or the Code for Motor
Fuel Dispensing Facilities and Repair Garages,
NFPA 30A - latest revision. Canada: Refer to
CSA B149.1 Natural Gas and Propane
Installation Code.
• In accordance with the Standard for Parking
Structures NFPA 88A, heaters must be located
a minimum of 18" (50 cm) below the floor-ceiling
assembly or 18" (50 cm) above the floor.
• In accordance with the Code for Motor Fuel
Dispensing Facilities and Repair Garages,
NFPA 30A - latest revision, heaters must not be
installed less than 8' (2.4 m) above the floor.
5.4 Electrical
The heater must be electrically grounded in
accordance with the following codes:
United States: Refer to National Electrical
®
Code
, NFPA 70 - latest revision. Wiring must
conform to the most current National Electrical
®
Code
, local ordinances and any special
diagrams furnished.
Canada: Refer to Canadian Electrical Code,
CSA C22.1 Part 1 - latest revision.
5.5 Venting
The venting must be installed in accordance
with the requirements within this manual and
the following codes:
United States: Refer to NFPA 54/ANSI Z223.1 latest revision, National Fuel Gas Code.
8 of 51
Canada: Refer to CSA B149.1 Natural Gas and
Propane Installation Code.
5.6 High Altitude
These heaters are approved (without modifications)
for installations up to 2000' (610 m) in US and
Canada. Heaters installed above 2000' (610 m)
must be de-rated. For installations above 2000' (610
m) in US, consult factory for information on burner
de-rating. For installations from 2000' (610 m) to
4500' (1370m) in Canada, high altitude conversion
kits are available. Heaters installed over 4500'
(1370 m) in Canada are not approved and must be
approved by the local or provincial authority.
SECTION 5: NATIONAL STANDARDS AND APPLICABLE CODES
9 of 51
UHA STANDARD UNIT HEATER INSTALLATION OPERATION AND SERVICE MANUAL
WARNING
Crush Hazard
Use 3/8" threaded rod
minimum.
Failure to follow these
instructions can result in
death, injury or property
damage.
SECTION 6: HEATER INSTALLATION
6.1 General
Heaters are designed for installation above 6'
(1.8 m). These heaters must be installed within the
heated space. Duct delivery systems are not
permitted with axial fan units. When handling or
supporting the heater from below, ensure that the
weight is taken at the support points.
The gas or electrical supply lines must not be used
to support the heater.
Do not locate the gas or electrical supply lines
directly over the path of the flue products from the
heater.
The heater must be installed in a location that is
readily accessible for servicing.
The heater must be installed in accordance with
clearances to combustibles as indicated on the wall
tag and in this manual.
Figure 5: Suspension Methods
6.2 Suspension
Four suspension points (3/8" nuts) are located on
the top of the heater. Drop rods must be 3/8"
diameter mild steel minimum.
When handling or supporting the heater from below,
ensure that the weight is taken at the support points.
For typical suspension, See Page 10, Figure 5.
10 of 51
SECTION 7: VENTING
WARNING
Carbon Monoxide Hazard
Heaters may be installed
vented or unvented.
Vented heaters must be
vented outdoors.
Unvented heaters must be
installed according to the
installation manual.
Failure to follow these
instructions can result in
death or injury.
7. 1 Ve n t i n g
This heater must be vented in accordance with the
rules contained in this manual and with the following
national codes and any state, provincial or local
codes which may apply: United States: Refer to
NFPA 54/ANSI Z223.1 - latest revision, National
Fuel Gas Code; Canada: Refer to CSA B149.1
Natural Gas and Propane Installation Code.
Any portion of vent pipe passing through a
combustible wall must have a listed thimble to
conform with the above codes.
The heater may be installed unvented in
certain circumstances according to building
ventilation codes. Refer to the above codes and
Page 12, Section 7.3 for further information.
Unvented operation also requires compliance with
the clearances to combustibles given on Page 7,
Figure 4.
The bottom of the vent or air intake terminal shall not
be located less than 1' (.3 m) above grade level.
The vent shall not terminate less than 7' (2.1 m)
above grade where located adjacent to public
walkways.
Vent terminal must be installed at a height sufficient
to prevent blockage by snow and building materials
protected from degradation by flue gasses.
Vent terminal must be beyond any comb
overhang.
Secure all joints with corrosion resistant #8 x 3/8"
sheet metal screws.
For single wall venting, pressure sensitive aluminum
tape or silicone sealant must be used to seal all
joints.
Aluminum tape shall have a minimum temperature
rating of 400° F (204° C) and meet SMACNA AFTS-
ustible
SECTION 7: VENTING
100-73 standards. High temperature silicone
sealant must have a minimum temperature rating of
480° F (250° C).
7.1.1 United States Requirements
Vent must terminate at least 3' (.9 m) above any
forced air inlet located within 10' (3.1 m).
Vent must terminate at least 4' (1.2 m) below,
4' (1.2 m) horizontally from, or 1' (.3 m) above any
door, operable window, or gravity air inlet into any
building.
NFPA 54/ANSI Z223.1 - latest revision, National
Fuel Gas Code specifies a 4' (1.2 m) horizontal vent
terminal clearance from gas and electric meters,
regulators and relief equipment.
7.1.2 Canadian Requirements
The vent shall not terminate within 6' (1.8 m) of a
mechanical air supply inlet to any building.
The vent shall not terminate within 3' (.9 m) of a
window or door that can be opened in any building,
any non-mechanical air su
or of the combustion air inlet of any other appliance.
7.2 Vent Installation
Maintain clearances to combustibles at all times for
safety. Clearances are the required distances that
combustible objects must be away from the heater
to prevent serious fire hazard. See Page 7, Figure 4.
For vented units, the vent must terminate outside of
the building.
Vents must be fully sealed and correctly sized for
the model. If the vent passes through a wall or
ceiling of combustible material, it must be enclosed
by a listed thimble and be separated from the
thimble by at least a 2" (5 cm) air gap.
For separated combustion models, vents and air
intakes must be a fully sealed system and correctly
sized for the model. Vent should be assembled as
detailed on Page 13, Figure 6 through Page 17,
Figure 11. The joints between the vent terminal and
the roof or wall must be properly sealed. If the vent
passes through a wall or ceiling of combustible
material, it must be enclosed by a listed thimble and
be separated from the thimble by at least a 2" (5 cm)
air gap.
Vents and air intakes must be adequately
supported so that the heater does not bear the
weight of the pipes.
For vent termination See Page 13, Figure 6 through
Page 17, Figure 11
.
pply inlet to any building,
11 of 51
