Roadmaster RTS2000T User Manual

Left Rear

(Speaker Wire NOT Included)

To replace your existing speakers with the RTS2000T speaker system, mark polarity of the speaker wires, disconnect them from speakers, and remove the existing speakers from your vehicle. Place the RTS2000T in the location you selected in your vehicle and connect the existing speaker wires. Make sure to have the polarity of the speakers and wires correct (positive wire to positive speaker terminal and negative, or ground wire to negative terminal) If you are installing the RTS2000T speaker system to be used as additional speakers, such as for the left & right rear channels, refer to your stereo's manual for polarity of the rear channels’ wires.

Depress the tabs on the back of the RTS2000T, insert speaker wires, black wires are negative(-) wires, color wires are positive(+) wires. Color of your wires may be different than shown here.

• 6½" Treated Paper Cone Woofers

• 6 oz. Woofer Magnet

• Foam Surrounds

• 4" Piezo Horn Tweeters

• 200

Watts Combined Instantaneous Peak Power

• 20 Watts RMS per Speaker

•

Dimensions 9.9"(L) x 6.75"(W) x 9.5"(H) - 25.15 cm(L) x 17.14 cm(W) x 24.13 cm(H)

• 65 - 20,000 Hz Freq. Response

• Sensitivity 87 db @ 1W/1M

• Chrome Steel Protective Bars

• Port Stuffed with Dacron

• Spring Loaded Terminals

• Convenient Cup Handle

Piezo Horn Tweeter

Spring Loaded Terminals

Titanium Colored Trim Rings

Titanium Colored Cup Handle

Protective Metal Bars

You can place the RTS2000T anywhere you have the space: rear seat, trunk, or behind the rear seat in trucks and pickups. DO NOT place the unit in a high unsecured location such as a rear seat window deck. Sudden stops can cause the unit to fly forward. The RTS2000T may also be used outside in DRY WEATHER ONLY. However, cables must be securely placed out of traffic areas to eliminate the possibility of tripping.

THE RTS2000T MUST BE SECURELY MOUNTED, driving styles and road conditions such as sudden stops, sharp curves and bumpy roads may cause unsecured items to move about the vehicle causing vehicle damage and/or physical injuries to vehicle occupants

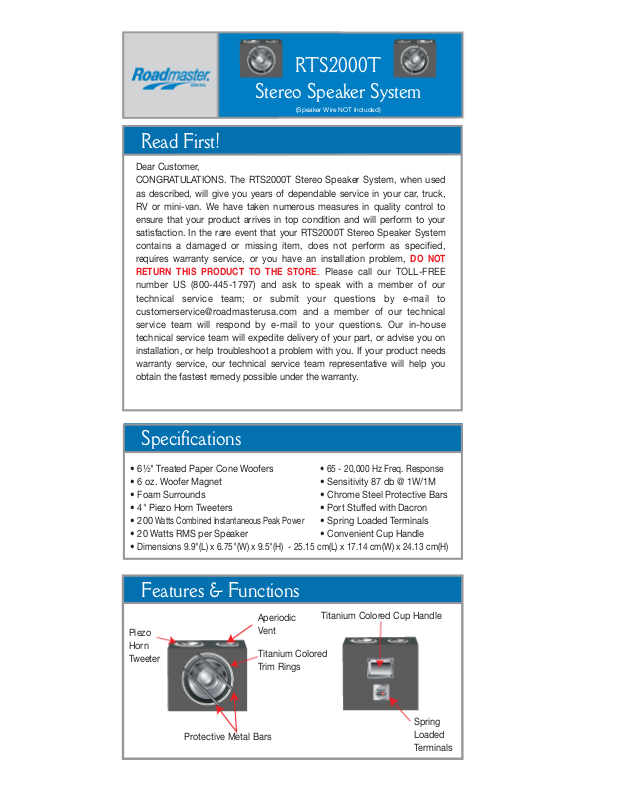

RTS2000T

Stereo Speaker System

Read First!

Dear Customer, CONGRATULATIONS. The RTS2000T Stereo Speaker System, when used as described, will give you years of dependable service in your car, truck, RV or mini-van. We have taken numerous measures in quality control to ensure that your product arrives in top condition and will perform to your satisfaction. In the rare event that your RTS2000T Stereo Speaker System contains a damaged or missing item, does not perform as specified, requires warranty service, or you have an installation problem,

DO NOT

RETURN THIS PRODUCT TO THE STORE

. Please call our TOLL-FREE

number US (800-445-1797) and ask to speak with a member of our technical service team; or submit your questions by e-mail to customerservice@roadmasterusa.com and a member of our technical service team will respond by e-mail to your questions. Our in-house technical service team will expedite delivery of your part, or advise you on installation, or help troubleshoot a problem with you. If your product needs warranty service, our technical service team representative will help you obtain the fastest remedy possible under the warranty.

Specifications

Features & Functions

1. Location

2. Installation

Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call our toll-free help line (800)445-1797 and our in-house technical service team will answer your installation questions.

Before You Install!

Tabs

Aperiodic Vent

RTS2000T used as rear speakers

Right

Left

Existing Front Speakers

Left Rear

Channel

Right Rear

Channel

Stereo Receiver

Depress the tabs on the back of the RTS2000T, insert speaker wires, black wires are negative(-) wires, color wires are positive(+) wires. Color of your wires may be different than shown here.

1-800-445-1797

PLEASE DO NOT RETURN PRODUCT TO STORE.

Visit us on the WEB

WWW.ROADMASTERUSA.COM

For Information and Technical Assistance, Call Toll-Free in U.S.A. and Canada.

ROADMASTER (Hong Kong) Ltd. products are designed and manufactured to provide a high level of trouble-free performance. ROADMASTER (Hong Kong ) Ltd. warrants, to the origin al purchaser, that its products are free from defects in materia l and workmanship for 30 days from the date of original purchase. As part of our commitment to product excellence, ROADMASTER (Hong Kong) Ltd. routinely improves the designs, materials or production methods of its existing products. Because it is impractical to publicize all changes in every product, we reserve the right to make such changes without notice.

CONDITIONS OF WARRANTY: If during the 30-day warranty period your new product is found to be defective, ROADMASTER (Hong Kong) Ltd. will repair such defect, or replace the product, without charge for parts or labor subject to the following conditions:

1. All repairs must be performed by ROADMASTER (Hong Kong) Ltd. in Eatontown, New Jersey.

2. The equipment must not have been altered or been damaged through negligence, accident, or improper operation.

3. The replacement of parts are exempted from this warranty when replacement is necessary due to normal wear and tear.

4. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.

5. Repair or replacement parts supplied by ROADMASTER (Hong Kong) Ltd. under this warranty are protected only for the unexpired portion of the original warranty.

6. In the case of car stereos, this warranty does not extend to the elimination of car static or motor noise; correction of antenna problems; costs incurred for the removal or reinstallation of the product; damage to tapes, speakers, accessories or car electrical systems.

7. ROADMASTER (Hong Kong) Ltd. will not be responsible for any charge incurred for installation.

OWNER'S RESPONSIBILITIES: ROADMASTER (Hong Kong) Ltd. will make every effort to provide warranty service within a reasonable period of time. SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED, OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL-FREE 1-800-445-1797, 8:30am - 4:30pm EST.

In order to provide you with the proper warranty service, we request that you adhere to the following procedure:

1.Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.

2.If it is necessary to return your product for service, please return it securely packed, preferably in the original shipping carton, and freight and insurance prepaid to the following address: ROADMASTER (Hong Kong) Ltd., Service Department, 41 James Way, Eatontown, New Jersey 07724.

3. Please include a detailed explanation of the problem you are having.

4. If your product is found by ROADMASTER (Hong Kong) Ltd. to have a defect in material or workmanship, within the warranty period, it will be repaired or replaced at no charge and returned to you prepaid. Where permitted by Iaw ROADMASTER (Hong Kong) Ltd.’S liability shall be limited to that set forth in this warranty. This warranty shall be the exclusive remedy of the purchaser.

ROADMASTER (Hong Kong) Ltd. makes no other warranty of any kind, expressed or implied; and all implied warranties, are hereby disclaimed by ROADMASTER (Hong Kong) Ltd. and excluded from this warranty, ROADMASTER (Hong Kong) Ltd., the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or consequential, arising out of the use or intended use of the product.

What if there is no sound?

Your stereo may have a blown fuse. Replace fuse with the same amperage and style. You may have improper wiring. Refer to the wiring guide that came with your stereo/amplifier. Check all wires for a secure connection.

What if the sound volume is low?

Your stereo may not have enough power. You may need to install an amplifier to drive the speakers.

Why do I have a whining noise coming from the speakers?

You may have poor filtering of your alternator. If that is the case, then you may need to add an alternator filter to the power lead.

Why do I have odd sounding noises coming from the speakers?

You may have corroded battery terminals and/or a weak battery. If the terminals on the battery are corroded, clean them; then check the sound. If the sound system is still making noises check battery strength. If it is low, recharge or replace the battery.

Why does the speaker have sound coming from one channel only?

First, make sure the balance control is set correctly. If the balance is set correctly, your stereo may be defective or the speaker may be defective. To troubleshoot this problem you MUST change both positive and negative leads of each channel with the positive and negative leads of the opposite channel. If the same speaker has no sound then the speaker is no good, if the opposite speaker has no sound then your stereo may be defective.

1. Location

2. Installation

Limited Warranty

Frequently Asked Questions

Give Us A Call, We'll Help You Install!

Before You Install!

Tabs
