RKI Instruments Eagle 2 User Manual

Download

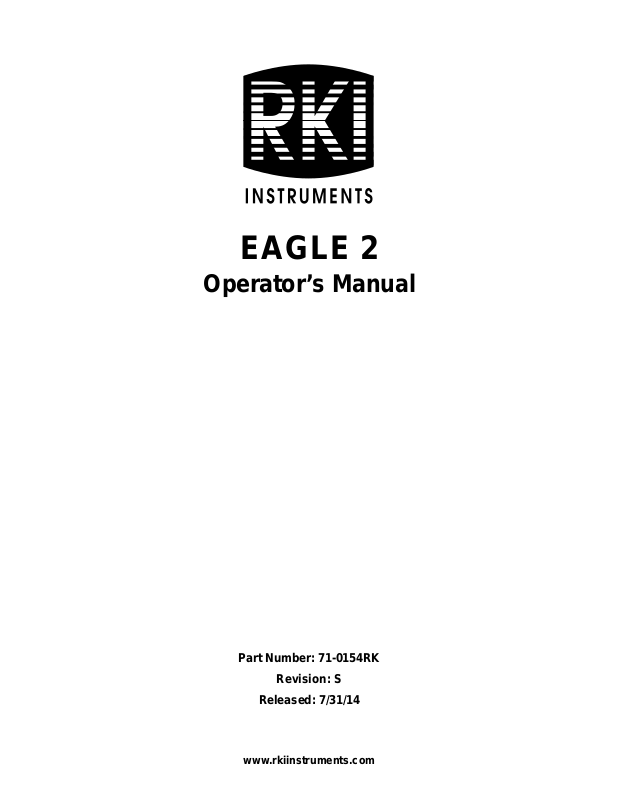

EAGLE 2

Operator’s Manual

Part Number: 71-0154RK

Revision: S

Released: 7/31/14

www.rkiinstruments.com

WARNING

Read and understand this instruction manual before operating instrument. Improper use of the gas monitor could result in bodily harm or death.

Periodic calibration and maintenance of the gas monitor is essential for proper operation and correct readings. Please calibrate and maintain this instrument regularly! Frequency of calibration depends upon the type of use you have and the sensor types. Typical calibration frequencies for most applications are between 1 and 3 months, but can be required more often or less often based on your usage.

EAGLE 2 Operator’s Manual

Table of Contents

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About the EAGLE 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2: Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Instrument Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Printed Circuit Boards (PCBs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Alarm LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Infrared Communications Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Battery Case & Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Flow System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Standard Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Hose and Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Rechargeable Ni-MH Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Battery Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Optional Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

External Dilution Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Chapter 3: Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning On the EAGLE 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Performing a Demand Zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Turning Off the EAGLE 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the Battery Charger for Continuous Operation . . . . . . . . . . . . . . . . . 28

EAGLE 2 Operator’s Manual Table of Contents

Measuring Mode, Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Monitoring an Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using Optional Sample Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using Exhaust Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Combustible Gas Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Monitoring Combustible Gas in the PPM or %Volume Ranges . . . . 33

Measuring Mode, Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Alarm Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Resetting and Silencing Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Responding to Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Tips for Using Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Peak Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Battery Voltage Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Gas Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Catalytic (LEL) Sensor Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Methane Elimination Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Relative Response Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

STEL Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

TWA Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

View Alarm Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Select User ID Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Select Station ID Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Time in Operation Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Date/Time Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Data Logging Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Data Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter 4: Calibration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Calibration Supplies and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Entering Calibration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Calibrating Using the Auto Calibration Method . . . . . . . . . . . . . . . . . . . . . 58

Setting the Fresh Air Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Performing a Span Adjustment in Auto Calibration . . . . . . . . . . . . . 59

Calibrating Using the Single Calibration Method . . . . . . . . . . . . . . . . . . . . 64

Setting the Fresh Air Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Performing a Span Adjustment in Single Calibration . . . . . . . . . . . 65

Ta b l e o f C o n t e n t s EAGLE 2 Operator’s Manual

Chapter 5: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Replacing or Recharging the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Recharging the Ni-MH Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Replacing the Hydrophobic Probe’s Particle Filter and Hydrophobic

Filter Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Replacing the Hydrophobic Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Replacing the Charcoal Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Checking the Combustible Gas Sensor’s Condition . . . . . . . . . . . . . . . . . . 80

Replacing a Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

General Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Appendix A: Calibrating with a Sample Bag . . . . . . . . . . . . . . . . . .86

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Calibration Supplies and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Entering Calibration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Calibrating Using the Auto Calibration Method . . . . . . . . . . . . . . . . . . . . . 88

Setting the Fresh Air Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Performing a Span Adjustment in Auto Calibration . . . . . . . . . . . . . 89

Calibrating Using the Single Calibration Method . . . . . . . . . . . . . . . . . . . . 94

Setting the Fresh Air Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Performing a Span Adjustment in Single Calibration . . . . . . . . . . . 96

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Appendix B: Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Tips for Using Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Using Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Setting the Date Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Setting the Battery Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Configuring the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Configuring the Combustible Gas . . . . . . . . . . . . . . . . . . . . . . . . . 108

Setting the Catalytic Detection Units . . . . . . . . . . . . . . . . . . . . . . . 113

Updating the Relative Response Setting . . . . . . . . . . . . . . . . . . . . . 114

EAGLE 2 Operator’s Manual Table of Contents

Updating the Alarm Point Settings . . . . . . . . . . . . . . . . . . . . . . . . . 115

Updating the Alarm Latching Setting . . . . . . . . . . . . . . . . . . . . . . . 116

Updating the Alarm Silence Setting . . . . . . . . . . . . . . . . . . . . . . . . 117

Turning the User/Station ID Function On or Off . . . . . . . . . . . . . . 118

Updating the Autocal Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Updating the Backlight Delay Setting . . . . . . . . . . . . . . . . . . . . . . 119

Updating the Auto Fresh Air Setting . . . . . . . . . . . . . . . . . . . . . . . 120

Updating the Data Log Interval Setting . . . . . . . . . . . . . . . . . . . . . 120

Updating the Data Log Overwrite Setting . . . . . . . . . . . . . . . . . . . 121

Updating the Data Log Memory Setting . . . . . . . . . . . . . . . . . . . . . 121

Updating the LCD Contrast Setting . . . . . . . . . . . . . . . . . . . . . . . . 122

Updating the Calibration Reminder Setting . . . . . . . . . . . . . . . . . . 122

Updating the Calibration Past Due Action Setting . . . . . . . . . . . . 123

Updating the Calibration Interval . . . . . . . . . . . . . . . . . . . . . . . . . 124

Updating LC/BH Mode Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Setting the Bar Hole Measurement Time . . . . . . . . . . . . . . . . . . . . 125

Zero Follower Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Zero Suppression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Updating the Confirmation Alert Setting . . . . . . . . . . . . . . . . . . . . 126

Turning the Password Function On or Off . . . . . . . . . . . . . . . . . . . 127

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Updating the Lunch Break Setting . . . . . . . . . . . . . . . . . . . . . . . . . 129

Updating the Span Factor Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Updating the Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Exiting Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Appendix C: Sub PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Channel Setup and Sub PCBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Sub PCBs and CONFIGURE CHANNELS . . . . . . . . . . . . . . . . . . . 133

Sub PCBs and CONFIGURE GASES . . . . . . . . . . . . . . . . . . . . . . . 134

Appendix D: PID Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

PID Sensor and Sensor Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

PID Sub PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Ta b l e o f C o n t e n t s EAGLE 2 Operator’s Manual

PID Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

PID Relative Response Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

PID Sensor Relative Response Screen in Display Mode . . . . . . . . . 140

PID Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Calibrating with a 4-Gas Cylinder and a PID Cylinder . . . . . . . . . 143

Calibrating with a 5-Gas Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . 152

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Cleaning the PID Sensor’s Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Replacing PID Sensor’s Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Replacing Electrode Stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Replacing the PID Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Configuring the PID Gas in Setup Mode. . . . . . . . . . . . . . . . . . . . . . . . . . 172

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Appendix E: ESM-01 Toxic Sensors . . . . . . . . . . . . . . . . . . . . . . . . .179

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

ESM-01 Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

ESM-01 Sub PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

ESM-01 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Calibrating with a 4-Gas Cylinder and an ESM-01 Cylinder. . . . . 182

Calibrating with a 5-Gas Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . 191

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Replacing the ESM-01 Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Replacing the H

S Scrubber in the SO2 and HCN Sensors. . . . . . . 200

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Appendix F: TC Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

TC Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

TC Sub PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Catalytic (LEL) Sensor Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

EAGLE 2 Operator’s Manual Table of Contents

TC Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Replacing the TC Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Configuring the TC Gas in Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

Appendix G: Infrared Carbon Dioxide Sensors . . . . . . . . . . . . . . .223

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

Infrared Carbon Dioxide Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

Infrared Sub PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224

Scrubber. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Performing a Demand Zero for Carbon Dioxide Sensors. . . . . . . . 226

Infrared Carbon Dioxide Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Replacing the IR CO

Sensor or Changing Sensor Type. . . . . . . . . 236

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Appendix H: Infrared Methane Sensors. . . . . . . . . . . . . . . . . . . . . .238

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Target Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

Infrared Methane Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Infrared Sub PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Detection Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Catalytic (LEL) Sensor Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Infrared Methane Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Replacing the IR Methane Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Appendix I: Infrared Hydrocarbon Sensor . . . . . . . . . . . . . . . . . . .252

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Target Gases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Ta b l e o f C o n t e n t s EAGLE 2 Operator’s Manual

Infrared Hydrocarbon Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Infrared Sub PCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Start Up and Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

0-100 %LEL/2.0-30.0 %vol Autoranging . . . . . . . . . . . . . . . . . . . . 254

Catalytic (LEL) Sensor Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Infrared Hydrocarbon Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Replacing the IR Hydrocarbon Sensor . . . . . . . . . . . . . . . . . . . . . . 264

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Appendix J: Methane Elimination Mode . . . . . . . . . . . . . . . . . . . . .266

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Monitoring in Methane Elimination Mode . . . . . . . . . . . . . . . . . . . . . . . . 266

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Appendix K: Using the EAGLE 2 in Bar Hole Mode . . . . . . . . . . .270

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Start Up, Bar Hole Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Turning on EAGLE 2, Bar Hole Mode . . . . . . . . . . . . . . . . . . . . . . 270

Performing a Demand Zero, Bar Hole Mode . . . . . . . . . . . . . . . . . 275

Bar Hole Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Performing a Bar Hole Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Turning off the EAGLE 2, Bar Hole Mode . . . . . . . . . . . . . . . . . . . 278

Appendix L: Using the EAGLE 2 in Leak Check Mode. . . . . . . . .279

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Start Up, Leak Check Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Turning On the EAGLE 2, Leak Check Mode . . . . . . . . . . . . . . . . . 279

Performing a Demand Zero, Leak Check Mode . . . . . . . . . . . . . . . 284

Leak Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

Locating a Leak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Turning the Buzzer On and Off In Leak Check Mode . . . . . . . . . . . 285

Turning Off the EAGLE 2, Leak Check Mode . . . . . . . . . . . . . . . . . 286

Appendix M: EAGLE 2 Tank Tester Model. . . . . . . . . . . . . . . . . . .287

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Float Probe Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Dilution Fitting (1:1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

EAGLE 2 Operator’s Manual Table of Contents

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

Appendix N: Using the EAGLE 2 in Inert Mode. . . . . . . . . . . . . . 293

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

WARNING: Understand manual before operating. Substitution of

components may impair intrinsic safety. To prevent ignition of a hazardous atmosphere, batteries must only be changed or charged in an area known to be nonhazardous. Not tested in oxygen enriched atmospheres (above 21%).

NOTE: RKI Instruments, Inc. recommends that you refer to ISA-RP12.13,

Part II-1987 or an equivalent international recommended practice for guidance in the use of combustible gas detection instruments.

Ta b l e o f C o n t e n t s EAGLE 2 Operator’s Manual

Chapter 1: Introduction

Overview

This chapter briefly describes the EAGLE 2 gas monitor. This chapter also describes the EAGLE 2 Operator’s Manual (this document). Table 1 at the end of this chapter lists the specifications for the EAGLE 2.

About the EAGLE 2

Using an advanced detection system consisting of up to six gas sensors, the EAGLE 2 sample draw gas monitor is capable of detecting the presence of combustible gas, oxygen (O

S), and various other toxic gases simultaneously. The EAGLE 2’ s rugged,

reliable, and easy-to-use design makes it ideally suited for a wide range of applications, including sewage treatment plants, utility manholes, tunnels, hazardous waste sites, power stations, petrochemical refineries, mines, paper mills, drilling rigs, and fire fighting stations. The EAGLE 2 offers a full range of features including:

), carbon monoxide (CO), hydrogen sulfide

• Simultaneous monitoring of one to six gases. The standard configuration includes four sensors for combustible gas (%LEL, ppm, and %volume), oxygen, carbon monoxide (CO), and hydrogen sulfide (H

• Choice of three operating modes:

• Normal Mode for typical confined space or area monitoring. Normal Mode is the standard factory setting.

• Bar Hole Mode for checking of bar holes when searching for underground gas leaks

• Leak Check Mode for locating leaks in valves and piping

• Sample-drawing pump with up to 125 foot range

• Liquid crystal display (LCD) for complete and understandable information at a glance

• Ultrabright alarm LEDs

• Distinctive audible alarm for dangerous gas conditions or unit malfunction

S).

• Microprocessor control for reliability, ease of use, and advanced capabilities

EAGLE 2 Operator’s Manual Overview • 1

• Data logging functions (when used in Normal Mode)

• Alarm trend data (when used in Normal Mode)

• STEL and TWA (when used in Normal Mode) and over range alarms

• Peak readings (when used in Normal Mode)

• Built-in time function

• Lunch break feature

• RF shielded high impact plastic case

• CSA classified for Class I, Division I, Groups A, B, C, and D hazardous atmospheres

WARNING: The Model EAGLE 2 detects oxygen deficiency, elevated

levels of oxygen, combustible gases, carbon monoxide, and hydrogen sulfide, all of which can be dangerous or life threatening. When using the EAGLE 2, you must follow the instructions and warnings in this manual to assure proper and safe operation of the unit and to minimize the risk of personal injury. Be sure to maintain and periodically calibrate the EAGLE 2 as described in this manual.

NOTE: ONLY THE COMBUSTIBLE GAS DETECTION PORTION OF

THIS INSTRUMENT HAS BEEN ASSESSED FOR PERFORMANCE.

2 • A b o u t t h e E A G L E 2 EAGLE 2 Operator’s Manual

Specifications

Table 1: Standard Sensor Specifications

Combustible Gas,

Methane (CH

)

Oxygen (O

) Hydrogen

Sulfide (H

Carbon

Monoxide (CO)

Calibration Standard

Detection

0 - 100 %LEL 0 - 40 volume% 0 - 100.0 ppm 0 - 500 ppm

Range

Reading

1 %LEL 0.1 volume % 0.5 ppm 1 ppm

Increment

Alarm 1

10 %LEL* 19.5 volume %* 5.0 ppm* 25 ppm*

Factory Setting

Alarm 2

50 %LEL 23.5 volume % 30.0 ppm 50 ppm

Factory Setting

STEL Alarm n/a n/a 5.0 ppm 200 ppm

TWA Alarm n/a n/a 1.0 ppm 25 ppm

* When calibrating the EAGLE 2 with the Auto Calibration or the Single Calibration method, the calibration gas

value must be equal to or higher than the alarm 1 setting. See “Updating the Alarm Point Settings” on page 115 for instructions to change the alarm points if necessary for the desired calibration gas value.

Table 2: EAGLE 2 Specifications

Sampling

Sample Draw

Method

Response

T90 Within 30 Seconds

Time

Display Graphics LCD Display

Operating

-20°C to 50

C/Below 85% RH (Without Condensation)

Temperature

& Humidity

Indication

Accuracy

Combustible Gas (LEL), Catalytic Type Sensor

• -10°C to 40

• -20°C to 50

C: 5% of full scale

C: 6% of full scale

Combustible Gas (ppm), Catalytic Type Sensor

• ± 25 ppm or ± 5% of reading (whichever is greater)

Oxygen

• ± 0.5% O

Hydrogen Sulfide

• ± 5% of reading or ± 2 ppm H

S (whichever is greater)

Carbon Monoxide

• ± 5% of reading or ± 5 ppm CO (whichever is greater)

EAGLE 2 Operator’s Manual Specific ations • 3

Safety/

Regulatory

186718

CSA classified as Intrinsically Safe. Exia. Class I, Groups A, B, C, & D.

Temperature Code T3C.

Power

Supply

Continuous

Operating

Hours

@ 25 °C

Case High-impact Plastic, RF Shielded, Dust and Weather Proof

Standard

Accessories

Optional

Accessories

• Four C size alkaline batteries, standard

• Four C size Ni-MH batteries, optional

• Alkaline Batteries: 16 Hours (Non Alarm Operation, Fu lly Charged)

• Ni-MH Batteries: 18 Hours (Non Alarm Operation, Fully Charged)

• 5 foot hose

• Hydrophobic probe

• Shoulder St rap

• Rechargeable NiMH Batteries

• 115 VAC Charger

• 12 VDC Charger

• Hoses of Various Lengths, See “General Parts List” on page 84.

• Dilution Fitting (1:1 and 3:1)

• Various Probes, See “General Parts List” on p age 84

• Data Logger Management Program (Windows

• Maintenance Data Loader Program (Windows

• IrDA/USB Cable for connecting to a computer when using the Data Log ger Management Program and Maintenance Data Loader Program (not needed if computer has an infrared port)

2000, XP, and Vista)

Dimensions

and Weight

Approximately 171(H) x 65(W) x 39(D) mm (5.6”H x 2.5”W x 1.5”D)

About this Manual

The EAGLE 2 Operator’s Manual uses the following conventions for notes, cautions, and warnings.

NOTE: Describes additional or critical information.

CAUTION: Describes potential damage to equipment. WARNING: Describes potential danger that can result in injury or death.

The EAGLE 2 Operator’s Manual is organized as follows:

• Chapter 1 is an introduction to the EAGLE 2.

• Chapter 2 describes the components of the EAGLE 2.

Approximately 310 g (11 oz.)

4 • A b o u t t h i s M a n u a l EAGLE 2 Operator’s Manual

• Chapter 3 describes the operation of the EAGLE 2.

• Chapter 4 describes Calibration Mode which allows you to calibrate the

EAGLE 2’s active channels.

• Chapter 5 describes the EAGLE 2’s maintenance require m en ts and

procedures.

• Appendix A describes calibration of the EAGLE 2 using a sample bag.

• Appendix B describes Setup Mode which allows you to configure

different parameters of the EAGLE 2.

• Appendix C describes the sub PCBs that are installed for optional sensors

and how they affect gas and channel configuration.

• Appendix D describes the PID sensors and the oper ation of the EAGLE 2

with a PID sensor installed.

• Appendix E describes the ESM-01 sensors and the operation of the

EAGLE 2 with an ESM-01 sensor installed.

• Appendix F describes the TC sensors and the operation of the EAGLE 2

with a TC sensor installed.

• Appendix G describes the infrared CO

EAGLE 2 with an infrared CO

sensor installed.

sensors and the operation of the

• Appendix H describes the infrared methane sensors and the operation of

the EAGLE 2 with an infrared methane sensor installed.

• Appendix I describes the infrared hydrocarbon sensor and the operation

of the EAGLE 2 with an infrared hydrocarbon sensor installed.

• Appendix J describes the operation of the EAGLE 2 in Methane

Elimination Mode.

• Appendix K describes the operation of the EAGLE 2 in Bar Hole Mode.

• Appendix L describes the operation of the EAGLE 2 in Leak Check

Mode.

• Appendix M describes the Tank Tester Model of the EAGLE 2.

• Appendix N describes the operation of the EAGLE 2 in Inert Mode

EAGLE 2 Operator’s Manual About this Manual • 5

Chapter 2: Description

Overview

This chapter describes the EAGLE 2 instrument and accessories.

Instrument Description

The EAGLE 2 includes the case, sensors, LCD, control buttons, printed circuit boards, alarm LEDs, infrared communication port, buzzer, battery case and batteries, and flow system.

Inlet Fitting

Alarm LEDs

LCD Display

PO WER

ENTE R RESET

DISPLAY

ADJUST

AIR

YES

Control Buttons

RANGE

SHIFT

Figure 1: Component Location, Top View

6 • O v e r v i e w EAGLE 2 Operator’s Manual

Strap

Top Case

Handle

Case Screw, 3X (Hidden From view)

Case Foot, 6X

Bottom Case

Figure 2: Component Location, Side View

Buzzer

Inlet Fitting

Exhaust Fitting

Charging Jack

Battery Case

Thumbscrew

Infrared Port

Figure 3: Component Location, Front & Back

EAGLE 2 Operator’s Manual Instrument Description • 7

Case

The EAGLE 2’s sturdy, high-impact plastic case is radio frequency (RF) resistant and is suitable for use in many environmental conditi ons, indoors and out. The case is dust proof and water resistant. It’s two main components, the top case and bottom case, are held together with three screws located on the bottom case. The interface between the top case and bottom case is gasketed. A sturdy, well balanced handle on the top case allows you to hold the instrument comfortably. A cle ar plastic window is locat ed on the top case to the front of the handle for viewing the LCD.

A removable battery case is located at the rear of the bottom case. A thumbscrew secures the battery case to the bottom case. The interface between the battery case and the bottom case is gasketed. Six raised feet on the bottom of the case, four on the bottom case and two on the battery compartment, raise the EAGLE 2 slightly from the surface on which it rests.

Sensors

The EAGLE 2 uses up to six sensors to monitor combustible gas, oxygen

), carbon monoxide (CO), hydrogen sulfide (H2S), and various other toxic

gases simultaneously. The sensors are located inside the EAGLE 2 bottom case and are installed in the flow chamber. The sensors described below are the four standard sensors. See “Appendix D: PID Sensors” for a description of the PID sensors, “Appendix E: ESM-01 Toxic Sensors” for a description of the ESM-01 toxic sensors, “Appendix F: TC Sensors” for a description of the TC sensors, “Appendix G: Infrared Carbon Dioxide Sensors” for a description of the IR CO

for a description of the IR methane sensors, and “Appendix I: Infrared Hydrocarbon Sensor” for a description of the IR hydrocarbon sensor. The standard sensors use different detection principles as described below.

sensors, “Appendix H: Infrared Methane Sensor”

Catalytic Combustible Gas Sensor (LEL Sensor)

The catalytic combustible gas (LEL) sensor detects combustible gas in the %LEL range. It uses a catalytic element for detection. The reaction of gas with oxygen on the catalyst causes a change in the resistance of the element which changes the current flowing through it. The current is amplified by the EAGLE 2’s circuitry, converted to a measurement of combustible gas concentration, and displayed on the LCD.

The LEL sensor housing includes a sintered metal flame arrestor on one end that allows gas to diffuse into the sensor. On the other end, five pins extend from the sensor. The sensor cable connects to these pins on one end and terminates in a four-position connector on the other end which plugs into the HC socket on the main PCB (see “Main PCB” on page 12).

8 • I n s t r u m e n t D e s cri p t i o n EAGLE 2 Operator’s Manual

Oxygen Sensor

The O2 sensor is a galvanic type of sensor. A membrane behind the openings on the sensor face allows gas to diffuse into the sensor at a rate proportional

to the partial pressure of oxygen. The oxygen reacts in the sensor and produces a voltage proportional to the concentration of oxygen. The voltage is measured by the EAGLE 2’s circuitry, converted to a measurement of gas concentration, and displayed on the LCD.

The sensor includes a short cable that terminates in a round 7-position connector . It m ates wit h the OXY pins on the main PCB (see “Main PCB” on page 12).

CO and H2S Sensors

The CO and H2S sensors are electrochemical sensors that consist of three precious metal electrodes in a dilute acid electrolyte. A gas permeable

membrane covers the sensor face and allows gas to diffuse into the electrolyte. The gas reacts in the sensor and produces a current proportional to the concentration of the target gas. The current is amplified by the EAGLE 2’ s circuitry, converted to a measurement of gas concentration, and displayed on the LCD.

The CO and H

S sensors are physically very similar. Except for their

markings and wire colors, they look almost identical. A three-position connector at the end of a 2-wire cable from each sensor plugs into a socket on the main PCB. The sockets on the main PCB for the CO and H

S sensors a r e

labeled CO and H2S. Normally, the CO connector plugs into the CO socket and the H2S plugs into the H2S socket. However, because of the way that the main PCB circuitry is arranged, if the CO sensor is plugged into the H2S socket and the H2S sensor is plugged into the CO socket, the sensors will still operate properly and the CO and H2S readings will still appear on the channels that are programmed for those gases.

LCD

A digital LCD (liquid crystal display) is visible through a clear plastic window in the top case. The LCD simultaneously shows the gas reading for all installed sensors. The LCD also shows information for each of the EAGLE 2’s operating modes.

EAGLE 2 Operator’s Manual Instrument Description • 9

Control Buttons

Four control buttons are located below the LCD. They are, from left to right, POWER ENTER RESET, DISPLAY ADJUST NO, AIR RANGE

Button Function(s)

▼ SHIFT.

Table 3: EAGLE 2 Control Button Functions

▲ YES, and

POWER ENTER RESET

DISPLAY ADJUST NO• activates Display Mode

AIR ▲ YES • activates the demand zero function (adjusts the EAGLE 2’s

RANGE ▼ SHIFT • changes the detection units of the combustible gas channel

• turns the EAGLE 2 on and off

• silences and resets audible alarm if Alarm Latching is set to Latching and Alarm Silence is set to ON

• enters instructions, values, and settings into the EAGLE 2’s microprocessor

• silences and resets audible alarm if Alarm Latching is set to Latching and Alarm Silence is set to ON

• enters instructions into the EAGLE 2’s microprocessor

fresh air reading)

• silences and resets audible alarm if Alarm Latching is set to Latching and Alarm Silence is set to ON

• enters instructions into the EAGLE 2’s microprocessor

• moves the cursor on the LCD up the screen

• increases the value of a parameter avail able for adjustment

• scrolls through parameter options

(when Catalytic Units is set to CHANGE OK in Setup Mode)

• silences and resets audible alarm if Alarm Latching is set to Latching and Alarm Silence is set to ON

• enters instructions into the EAGLE 2’s microprocessor

• moves the cursor on the LCD down the screen

• decreases the value of a parameter available for adjustment

• scrolls through parameter options

10 • I n s t r u m e n t D e scr i p t i o n EAGLE 2 Operator’s Manual

Printed Circuit Boards (PCBs)

Display PCB

Main PCB

I.S. B arri er PCB (not visble)

Figure 4: EAGLE 2 PCBs

The EAGLE 2’s PCBs analyze, record, control, store, and display the information collected. The main PCB and I.S. barrier PCB are located in the bottom case. The display PCB is located in the top case. The display PCB and I.S. barrier PCB are not user serviceable and are not involved in any user performed maintenance. The main PCB is not user serviceable, but it is involved in the replacement of sensors, so it is described below.

EAGLE 2 Operator’s Manual Instrument Description • 11

Display connector

DP Switc h Connector

FloatProbeConnector

IR Communication Sensor /Transmitter

H2S Connector (H2S ) CO Connector (CO)

LEL Connector (HC)

I.S. Barrier Connector

Oxygen Connector Pins (OXY)

Pump Connector

Figure 5: Main PCB

The main PCB is located on the right side of the bottom case. It slides into guiding grooves at the bottom, front, and rear of the bottom case. It is held in place by the top case. Connectors for the sensors, differential pressure switch, pump, display PCB, optional float probe, and I.S. barrier PCB are located on the main PCB. In additi on, an IR transm itter/r eceiver is l ocated at the front of the PCB behind the IR port on the front of the bottom case.

Alarm LEDs

Two sets of red alarm LEDs (light emitting diodes) are visible through two raised, frosted plastic lenses in the top cas e. Each set has two LEDs. They are above the LCD, one above the left corner and one above the right corner. The alarm LEDs alert you to gas, low battery, and failure alarms.

Infrared Communications Port

An infrared (IR) communications port is located on the left front of the bottom case when the instrument is viewed from the front. The data transmitted through the port is in standard IrDA protocol. A computer’s

12 • I n s t r u m e n t D e scr i p t i o n EAGLE 2 Operator’s Manual

infrared port or an IrDA/USB cable connected to a USB port can be used to download data saved by the EAGLE 2 to a computer using the Eagle 2 Data Logger Management Program. See the Data Logger Management Program operator’s manual for data logging and downloading instructions.

Buzzer

A solid-state electronic buzzer is located on the front of the top case. It is a panel mounting type of buzzer and is water resistant and sealed to the inside of the top case with an O-ring. The buzzer sounds for gas alarms, malfunctions, low battery voltage, and as an indicator during use of the EAGLE 2’s many display and adjustment options.

Battery Case & Batteries

Four C-size alkaline batteries (standard) or optional rechargeable C-size Ni-MH batteries power the EAGLE 2. They are ins talled in the battery case which is located at the rear of the bottom case. The battery case is secured to the bottom case with a thumbscrew.

Instrument run time is dependent upon battery type. At 25°C, alkaline batteries power the EAGLE 2 for 16 hours of non-alarm operation. Ni-MH batteries will power the EAGLE 2 for 18 hours of non-alarm operation. The current battery voltage is viewable in Display Mode (see “Display Mode” on page 40).

When the EAGLE 2 detects low battery voltage, a low battery warning is activated. When battery voltage is too low for operation, the EAGLE 2 sounds a dead battery alarm.

The alkaline or Ni-MH batteries can be accessed for replacement by unscrewing the thumbscrew that secures the battery case to the bottom case and pulling the battery case away from t he bottom case. The Ni-MH bat teries can be recharged by using the EAGLE 2 charger (see “Replacing or Recharging the Batteries” on page 72).

NOTE: Use of batteries or battery chargers not specified by RKI

Instruments, Inc. will void the CSA classification and may void the warranty.

WARNING: To prevent ignition of a hazardous atmosphere, batteries

must only be changed or charged in an area known to be nonhazardous.

EAGLE 2 Operator’s Manual Instrument Description • 13

Flow System

The EAGLE 2 flow system consists of the inlet fitting, hydrophobic filter, pump, internal tubing, differential pressure (DP) switch, sensor chamber, charcoal filter, and exhaust fitting.

Inlet Fitting

The inlet fitting is on the right front (when viewed from the front) of the bottom case. It is a nickel plated brass quick connect fitting. It mates with either the sample hose or with the hydrophobic probe.

Hydrophobic Filter

The hydrophobic filter is located in the bottom case above the sensors. Normally the hydrophobic probe accessory (see “Hose and Probe” on page 15) will prevent water and particulate contamination from entering the flow system, but if the probe is not used, the hydrophobic filter will stop water and particulates from penetrating further into the flow system. If it becomes dirty or water logged, replace it (see “Replacing the Hydrophobic Filter” on page 77).

Pump

A diaphragm pump ins ide the rear of the bot tom case draws the sample to the sensors. It can draw sample from as far as 125 feet from the EAGLE 2.

CAUTION: Sample hose lengths of more than 125 feet are not r ecommended

for the EAGLE 2 because of flow rate reduction and increased response time. Consult RKI Instruments, Inc. for sample hose lengths longer than 125 feet.

Internal Tubing

The flow system includes polyurethane tubing to route the sample between the various components of the flow system. The internal sample tubing is not user serviceable.

Differential Pressure (DP) Switch The DP switch is inside the front of the bottom case. It senses the EAGLE 2’ s

flowrate by monitoring the pressure drop between points in the flow system. When the flowrate becomes too low for safe operation of the EAGLE 2, a set of contacts inside it open and the EAGLE 2 indicates a low flow alarm.

Sensor Chamber

A PVC block in the bottom case is configured to accept the four gas sensors. It routes the sample to each sensor. The LEL sensor and the oxygen sensor are retained in the sensor chamber by brackets. The CO and H

S sensors are

each pushed past two sealing O-rings into the chamber and are retained by

14 • I n s t r u m e n t D e scr i p t i o n EAGLE 2 Operator’s Manual

the O-ring compression force.

Charcoal Filter

The charcoal filter is located in the front of the flow chamber next to the CO sensor . It contains activated charcoal. The CO sensor will respond if exposed to H

S and certain hydrocarbon gases. The charcoal filter scrubs these gases

out of the sample to avoid fal se CO readings. If false or elevated CO readings are noticed, especially in the pres ence of H

charcoal inside the filter cannot be replaced; the entire filter must be replaced.

Exhaust Fitting

The exhaust fitting is located below the inlet fitting. It routes the gas sample out of the EAGLE 2. It includes a female 10-32 thread that can be used for the installation of a hose barb or other type of fitting that has a male 10-32 thread so that the exhaust can be routed to a particular location with flexible tubing if desired.

Standard Accessories

S, change the charcoal filter. The

Standard accessories include the shoulder strap, the sample hose, and the hydrophobic probe.

Shoulder Strap

A comfortable elastic shoulder strap clips to the EAGLE 2 at the front and rear of the top c ase. It clips to s tainless steel ri ngs that a re install ed in feat ures on the top case. It can be removed from the EAGLE 2 by opening the clip at each end of the strap and removing it from the strap ring at the front and rear of the top case.

Hose and Probe

A 5 foot polyurethane sample hose and a 10 inch hydrophobic probe are included as standard. The hose has a male quick connect fitting on one end and a female quick connect fitting on the other end. The probe has a male quick connect fitting. Normally, the male end of sample hose is installed in the EAGLE 2 inlet fitting and the probe is installed in the female end of the hose. However, if the sample hose is not needed for monitoring a particular area, the probe may be installed directly to the inlet fitting. Sample hose lengths are available from 5 feet (standard length) to 125 feet (see “General Parts List” on page 84). A teflon lined hose is provided with all units that contain a PID sensor. This hose must be used when operating a PID EAGLE 2 (see “Appendix D: PID Sensors” on page 136).

EAGLE 2 Operator’s Manual Standard Accessories • 15

CAUTION: Sample hose lengths of more than 125 feet are not r ecommended

for the EAGLE 2 because of flow rate reduction and increased response time. Consult RKI Instruments, Inc. for hose lengths longer than 125 feet.

The probe includes a replaceable particle filter and hydrophobic filter disk that prevent particulates and water from entering the EAGLE 2’s flow system. See “Replacing the Hydrophobic Probe’s Particle Filter and Hydrophobic Filter Disk” on page 75 for instructions to replace the particle filter and hydrophobic filter disk.

NOTE: When using the probe with a PID EAGLE 2, be sure that th e particle

filter is not installed.

Sample Hose

Figure 6: Sample Hose and Hydrophobic Probe

Optional Accessories

Several optional accessories are available for the EAGLE 2. They include rechargeable Ni-MH batteries, battery chargers, various special probes, and dilution fittings. The most commonly used optional accessories are described below. Detailed instructions regarding the use of these and other available accessories are included in other parts of this manual. Data logging accessories are briefly described in “Data Logging” on page 53.

Probe

16 • O p t i o n a l A c c e s s or i e s EAGLE 2 Operator’s Manual

Rechargeable Ni-MH Batteries

Rechargeable Ni-MH batteries are available for the EAGLE 2. A fully charged set of Ni-MH batteries will power the EAGLE 2 for 18 hours. The batteries will last for a minimum of 500 charge cycles. See “General Parts List” on page 84 for ordering information.

Battery Chargers

Three battery chargers are available for the EAGLE 2 to charge the optional Ni-MH batteries, the standard AC charger, a DC charger with a vehicle plug adapter, and an AC/DC charger with a vehicle plug adapter.

AC Charger

The standard AC charger consists of the charging module, which includes all of the charging circuitry, and an AC adapter. The char ging modul e include s a five foot cable with a connector on the end that mates with the EAGLE 2 charging socket. The AC adapter plugs into a 115 VAC wall outlet and connects to the charging module with a jack on the end of a five foot DC output cable. The AC adapter will also work for 100 VAC or 220 VAC if an appropriate plug adapter is provided. The AC charging station is shown below in Figure 7.

AC Adapter

Charging Module

Figure 7: EAGLE 2 AC Charger

EAGLE 2 Operator’s Manual Optional Accessories • 17

DC Charger

An optional DC powered charger is available with a vehicle plug 12 VDC adapter. It uses the same charging module as the standard AC charger.

Vehicle Plug

DC Adapter

Charging Module

Figure 8: EAGLE 2 DC Charger

AC/DC Charger

A charger is also availa ble that include s both the AC adapter and the 12 VDC vehicle plug adapter . The chargi ng module is the same as the one used for the AC charger and the DC charger.

Optional Probes

Various optional probes designed for specific applications are available for the EAGLE 2. They include the following:

• 30 inch aluminum probe

Figure 9: 30 Inch Aluminum Probe

This probe is designed for applications where it is necessary to put the probe tip in areas that are out of reach with the standard probe. A small breather hole near the end of the probe tube prevents interruption of sampling and a low flow alarm if the probe tip is blocked.

18 • O p t i o n a l A c c e s s or i e s EAGLE 2 Operator’s Manual

• 30 inch stainless steel probe

Figure 10: 30 Inch Stainless Steel Probe

This probe is physically the same as the 30 inch aluminum probe and is intended for applications where a high level of corrosion resistance is required in the long probe tube.

• 4 foot stainless steel probe

Figure 11: 4 Foot Stainless Steel Probe

This probe is designed for areas where it is necessary to put the probe tip in areas that are out of reach for even the 30 inch probes. A stainless steel probe tube is used because the length of the probe tube requires a high degree of rigidity. Stainless steel is more rigid than other normally used materials. A small breather hole near the end of the probe tube prevents interruption of sampling and a low flow alarm if the probe tip is blocked.

• Barhole probe

Figure 12: Barhole Probe

This probe is designed specifically for barhole testing. See “Appendix K: Using the EAGLE 2 in Bar Hole Mode” for an in-depth discussion of using the EAGLE 2 in Bar Hole Mode.

EAGLE 2 Operator’s Manual Optional Accessories • 19

• 10 inch probe with dust filter

Figure 13: 10 Inch Probe With Dust Filter

This probe is designed for use where drawing water or moisture into the EAGLE 2 is not a concern. Instead of a hydrophobic filter, a cotton dust filter is used.

• 32 inch telescoping probe with dust filter

This probe is designed for use where it is necessary to put the probe tip in areas not accessible with the 10 inch probe with dust filter and applications where the probe tube must be collapsible for storage.

• 7 foot telescoping probe with dust filter

This probe is designed for use where it is necessary to put the probe tip in areas not accessible with the 32 inch te lescoping probe with dust filter and applications where the probe tube must be collapsible for storage.

See “General Parts List” on page 84 for probe ordering information.

20 • O p t i o n a l A c c e s s or i e s EAGLE 2 Operator’s Manual

External Dilution Fittings

Two external dilution fittings are available for the EAGLE 2, a 1:1 dilution fitting and a 3:1 dilution fitting. They are designed to mate with the inlet fitting and accept a sample hose or probe. The fittings are made with brass and nickel plated brass and are appropriate for use with the four standard gases. The 1:1 fitting is normally used when it is necessary to introduce air into a sample that has no oxygen or a very low level of oxygen, such as a nitrogen purged sample. Both the 1:1 and 3:1 fittings can also be used when one of the target gas levels in the sample area will likely be present in a concentration above the detection range for that gas. Since the fittings partially consist of unplated brass, they are not appropriate for detection of elevated levels of H

S or of gases that are eas ily absorbed such as Cl2 or SO2.

1:1 Dilution F itt i ng

Figure 14: 1:1 and 3:1 Dilution Fittings

3:1 Dilution Fitting

EAGLE 2 Operator’s Manual Optional Accessories • 21

Chapter 3: Operation

Overview

This chapter explains how to use the EAGLE 2 to perform confined space entry monitoring or general area monitoring in Normal Mode. The re are three operational modes in Normal Mode: Measuring Mode, Display Mode, and Calibration Mode. While in Normal Mode, the unit is normally operating in Measuring Mode. Display Mode and Calibration Mode are accessible from Measuring Mode. Display Mode is described in this chapter. Calibration Mode is described in “Chapter 4: Calibration Mode” on page 55.

Special versions of the EAGLE 2 can also operate in Leak Check Mode and Bar Hole Mode. See “Appendix K: Using the EAGLE 2 in Bar Hole Mode” and “Appendix L: Using the EAGLE 2 in Leak Check Mode” for operating instructions for Bar Hole and Leak Check Mode, respectively.

Start Up

This section explains how to start up the EAGLE 2, get it ready for operation, and turn it off.

NOTE: The screens illustrated in this section are for a standard 4-gas unit.

The screens displayed by your EAGLE 2 may be slightly different.

Turning On the EAGLE 2

To illustrate certain functions, the following description of the EAGLE 2 start up sequence assumes that the following menu items in Setup Mode are turned on: LUNCH BREAK, CAL REMINDER, and USER/ STATION ID. If any of these items are turned off, then the corresponding screens will not appear.

The EAGLE 2 may be used with a sample hose or with the probe installed directly to the inlet fitting. Determine which configuration works best for your application.

1. Connect the sample hose or probe to the EAGLE 2’s quick connect inlet fitting.

2. If using a sample hose, connect the probe to the sample hose’s quick connect fitting.

3. Press and briefly hold down the POWER ENTER RESET button. Release the button when you hear a beep.

22 • O v e r v i e w EAGLE 2 Operator’s Manual

4. The LCD will show the following screen for about ten seconds.

GAS MONITOR

EAGLE 2

5. The Battery Voltage Screen appears for a few seconds.

BATTERY MIN:

4.3 VOLTS

BATTERY NOW:

5.2 VOLTS

6. The Active Gases Screen appears for a few seconds indicating which channels are active and their target gas.

ACTIVE GASES CH4 OXY

H2S CO

7. If LUNCH BREAK is turned on (see “Updating the Lunch Break Setting” on page 129), the Resume Measurement Screen appears. The unit counts down from 5 seconds in the lower right corner of the LCD to the right of “MEASUREMENTS”.

LUNCH BREAK MODE ON

RESUME

PEAK AND TWA

MEASUREMENTS? 2

• To continue accumulating peak and time-weighted average (TWA)

readings from the las t ti me the EAGLE 2 was used, press and releas e the AIR ▲ YES button before the countdown reaches 0 or allow the countdown to reach 0. If you do not press the AIR ▲ YES button within the 5 second countdown, the EAGLE 2 automatically resumes accumulating the peak and TWA readings.The EAGLE 2 will also continue to keep track of operating time including the operating time

EAGLE 2 Operator’s Manual Start Up • 23

from the last time the EAGLE 2 was used. See “Time in Operation Screen” on page 51 for more information about how the EAGLE 2 tracks the operating time. The short-term exposure limit (STEL) reading is reset each time the EAGLE 2 is turned on.

• To reset the accumulation of these measurements, press and release

the DISPLAY ADJUST NO button before the countdown reaches 0.

8. The gas alarm setpoints are displayed by three screens in sequence: the Low Alarm Screen, High Alarm Screen, and STEL/TWA Alarm Screen. Each screen remains on the LCD for three seconds.

A CH4 10 %LEL

L L OXY 19.5 vol%

O A H2S 10.0 ppm

WR CO 25 ppm

CH4 10 vol%

A CH4 50 %LEL

HL OXY 23.5 vol%

I A H2S 30.0 ppm

GR CO 50 ppm

CH4 50 vol%

ALARMS STEL & TWA

H2S(ppm) 15.0 10.0

CO (ppm) 200 25

9. After the alarm screens, if CAL REMINDER is turned on, the screen that appears next depends on how CAL PAST DUE ACT is set in the Setup Mode Menu (see “Updating the Calibration Past Due Action Setting” on page 123).

24 • S t a r t U p EAGLE 2 Operator’s Manual

• If the unit is due for calibration and CAL PAST DUE ACT is set to

CONFIRM TO CAL, then the following screen displays and the buzzer sounds in a double pulsing pattern.

CALIBRATION DATE

IS PAST DUE

PERFORM

CALIBRATION?

To perform a calibration, press and release the AIR ▲ YES button. The EAGLE 2 will enter Calibration Mode and the LCD will show the Calibration Mode main menu. See “Chapter 4: Calibration Mode” on page 55 for instructions to calibrate the EAGLE 2. When you are done with the calibration and exit Calibration Mode, the unit will begin the startup sequence. If the calibration was successful, the screen above will not appear again until the unit is due for calibration. If the calibration was not successful, the screen above will again appear in the startup sequence.

To continue without performing a calibration, press and release the DISPLAY ADJUST NO button.

• If the unit is due for calibration and CAL PAST DUE ACT is set to

MUST CALIBRATE, then the following screen displays and the buzzer sounds in a double pulsing pattern.

CALIBRATION DATE

IS PAST DUE

ENTER TO PERFORM

CALIBRATION

The EAGLE 2 cannot be used until a successful calibration has been performed. Press and release the ENTER button to enter Calibration Mode. See “Chapter 4: Calibration Mode” on page 55 for instructions to calibrate the EAGLE 2.

NOTE: In this situation, even if the password function has been turned on,

no password is required to perform a calibration.

When you are done with the calibration and exit Calibration Mode, the unit will begin the startup sequence. If the calibration was successful, the screen above will not appear again until the unit is due for calibration. If the calibrati on was not succes sful, the scre en above

EAGLE 2 Operator’s Manual Start Up • 25

will again appear in the startup sequence.

• If the unit is due for calibration and CAL PAST DUE ACT is set to

NOTIFICATION ONLY, then the following alert screen displays and the buzzer sounds in a double pulsing pattern.

CALIBRATION DATE

IS PAST DUE

Press and release the POWER ENTER RESET button to acknowledge the alert and continue with the startup sequence.

10. The Date/Time Screen appears for a few seconds.

9/12/2008 15:00:00

11. If USER/STATION ID is turned on (see “Turning the User/Station ID Function On or Off” on page 118), the ID Screen appears for a few seconds.

USER ID

MIKE

STATION ID

PUMP 1

SERIAL NUMBER

E2A515

If USER/STATION ID is turned off, only the serial number is shown.

12. If the EAGLE 2 experiences a sensor failure during start up, a screen indicating which sensor failed appears and the buzzer sounds a pulsing tone twice per second. In the example below, the H

S sensor has failed.

FAILED SENSOR(S)

< > < >

ENTER TO CON TINUE

26 • S t a r t U p EAGLE 2 Operator’s Manual

If you wish to continue, press and release the POWER ENTER RESET button to acknowledge the failure. The gas reading for the failed sensor will be replaced by “XXX”. Replace the failed sensor as soon as possible.

13. The EAGLE 2 is now monitoring for gas in Measuring Mode. The Normal Operation Screen appears displaying the current gas reading for each target gas.

CH4 0%LEL

OXY 20.9vol%

H2S 0.0ppm

CO 0ppm

Performing a Demand Zero

Before using the EAGLE 2, it is recommended to set the fresh air readings for the target gases by performing a demand zero. This wi ll set the CH

and CO channels to zero and the OXY channel to 20.9%.

, H2S,

1. Find a fresh-air environment. This is an environment free of toxic or combustible gases and of normal oxygen content (20.9%).

2. Turn on the unit as described above in “Turning On the EAGLE 2”.

3. Press and hold the AIR ▲ YES button. The LCD prompts you to continue holding the AIR ▲ YES button and the buzzer will pulse while you hold the button.

4. Continue to hold the AIR ▲ YES button until the LCD prompts you to release it. The EAGLE 2 will set the fresh air reading for all channels. Start up is complete and the unit is now ready for monitoring.

Turning Off the EAGLE 2

1. Press and hold the POWER ENTER RESET button.

2. The buzzer will pulse for about five seconds.

3. Release the button when GOODBYE and the RKI logo appear on the display. When GOODBYE and the RKI logo disappear and the backlight turns off, the unit is off.

EAGLE 2 Operator’s Manual Start Up • 27

Using the Battery Charger for Continuous Operation

The battery charger can be used with an AC adapter or a vehicle plug DC adapter to run the EAGLE 2 in continuous operation instead of charging the batteries. Batteries do not need to be installed in the EAGLE 2 but if there are batteries installed, they must be NiMH batteries and they must have a charge.

WARNING: Use the EAGLE 2 charger’s continuous operation mode to

power the EAGLE 2 only if NiMH batteries are installed in the EAGLE 2 or if no batteries are installed in the EAGLE 2. Do not use the charger for continuous operation if alkaline batteries are installed.

1. Place the EAGLE 2 in the area to be monitored.

2. Plug the power adapter into either an AC outlet or into a vehicle outlet depending on which charger is being used.

3. Set the switch on the module to “CONT. OPERAT.”.

4. Make sure the EAGLE 2 is off.

5. Make sure the adapter and module are connected.

6. Make sure that the NiMH batteries are either charged or removed.

NOTE: If the batteries are not charged, the EAGLE 2 will not turn on and

will instead give a “Charge Ba tteri es” indi cati on when it is powered up after Step 7 below.

28 • Using the Battery Charge r for Continuous Operation EAGLE 2 Operator’s Man-

7. Insert the module’s round plug into the EAGLE 2’s charging jack as shown in Figure 15 below.

Figure 15: Connecting the EAGLE 2 to the Charger

8. See “Chapter 3: Operation” on page 22 for instructions for start-up and operation of the EAGLE 2.

9. Whi le the ch arging modul e is powerin g the EAGLE 2, its amber LED will be off and its green LED will be on.

Measuring Mode, Normal Operation

When the EAGLE 2 completes its start up sequence, it is in Measuring Mode. In Measuring Mode the EAGLE 2 continuously monitors the sampled atmosphere and displays the gas concentrations present for its tar get gases. In a low-light environment, press and release any button to turn on the display backlight. See “Updating the Backlight Delay Setting” on page 119 to program backlight duration. If the Confirmation Alert feature is turned on in the Setup Mode menu (see “Updating the Confirmation Alert Setting” on page 126), the EAGLE 2 beeps periodically to confirm that it’s operating.

EAGLE 2 Operator’s Manual Measuring Mode, Normal Operation • 29

Monitoring an Area

1. Start up the EAGLE 2 as described above in “Start Up” on page 22. It is now in Measuring Mode.

CH4 0%LEL

OXY 20.9vol%

H2S 0.0ppm

CO 0ppm

2. Take the EAGLE 2 to the monitoring area. Put the probe tip in the area to be monitored.

NOTE: If you notice that water has entered the flow system through the

probe, replace the probe’s hydrophobic filter and inspect the O-ring for filter particles. See “Replaci ng the Hydrophobic Probe’s Particle Filter and Hydrophobic Filter Disk” on page 75 for instructions to replace the hydrophobic filter.

3. Wait 10 - 15 seconds and observe the display for gas readings. If a reading is observed, allow the reading to stabilize to determine the gas concentrations present.

NOTE: Response time increases with the length of the sample hose. Long

sample hoses will require more time to show a response at the EAGLE 2. The maximum samp le h ose l en gth recomme nd ed for th e EAGLE 2 is 125 feet. Consult RKI Instruments, Inc. for longer sample hose lengths.

4. If a gas alarm occurs, take appropriate action. See “Responding to Alarms” on page 38.

Using Optional Sample Hoses

The standard sample hose for the EAGLE 2 is 5 feet long. Optional hoses are available up to 125 feet long. If you are considering using a longer hose, keep in mind that a longer hose will increase the EAGLE 2’ s res ponse time and the flowrate may decrease close to the low flow alarm point.

CAUTION: Sample hose lengths of more than 125 feet are not r ecommended

for the EAGLE 2 because of flow rate reduction and increased response time. Consult RKI Instruments, Inc. for hose lengths longer than 125 feet.

30 • M e a s u r i n g M o d e , No r m a l O p e r a t i on EAGLE 2 Operator’s Manual

The chart below illustrates how response time is affected by the sample hose length.

Table 4: EAGLE 2 Response Time vs. Sample Hose Length

Hose Used

Probe Only 12 seconds Probe & 5 Foot Hose 15 seconds Probe & 25 Foot Hose 25 seconds Probe & 50 Foot Hose 35 seconds Probe & 75 Foot Hose 45 seconds Probe & 100 Foot Hose 60 seconds Probe & 125 Foot Hose 75 seconds

Typical Time to 90%

of Response (T90)

Using Exhaust Tubing

The EAGLE 2’s exhaust fitting has a female 10-32 thread to allow for the installation of a hose barb fitting with a 10-32 thread to which a flexible exhaust tube can be connected. If you utilize this feature, the tubing used must have a minimum internal diameter of 1/8 inch. RKI Instruments, Inc. recommends using flexible polyurethane tubing with a maximum exhaust tube length of 20 feet. Consult RKI Instruments, Inc. for exhaust tubing lengths longer than 20 feet.

Combustible Gas Detection

There are three issues to keep in mind when monitoring for combustible gas.

• The catalytic combustible sensor will respond to any combustible gas.

The standard calibration gas for the EAGLE 2 catalytic combustible channel is methane (CH

combustible gas, such as hexane or propane, the gas name for the catalytic combustible channel will reflect the target gas.

The table below lists the conversion factors for several hydrocarbon gases if the EAGLE 2 is calibrated to methane . To use this table, multiply the display reading on the combustible gas channel by the factor in the appropriate row to obtain the actual gas concentration. For example, i f you are detecting pentane and the display reads 10% LEL for the catalytic combustible channel, you actually have 10% LEL x 1.38 = 13.8% LEL pentane present.

). If the instrument is calibrated to a different

EAGLE 2 Operator’s Manual Measuring Mode, Normal Operation • 31

Table 5: Full Response Mode Conversion Factors (Methane Calibration)

Target Gas LEL Factor PPM Factor Target Gas LEL Factor PPM Factor

Acetone 1.40 0.70 Isobutane 1.61 0.58 Benzene 1.75 0.42 Isopropanol 2.22 0.89 Butyl Acrylate 3.95 1.34 Methane 1.00 1.00 Butyl Acetate 3.38 0.88 Methanol 1.23 1.48 2-Butyl Alcohol 1.94 0.66 Methyl Acetate 1.37 0.85 1-Butyl Alcohol 2.65 0.74 Methyl Acrylate 1.10 0.62 Cyclohexane 1.82 0.47 Methyl Ethyl

Ketone

Cumene 3.90 0.70 Methyl Isobutyl

Ketone

Ethylene Dichloride

Ethyl Alcohol 1.38 0.91 Nonane 2.87 0.46 Ethyl Chloride 1.26 0.96 Pentane 1.95 0.59 Ethyl Acrylate 2.45 0.69 Propane 1.50 0.63 Hexane 2.44 0.54 Styrene 2.94 0.53 Hydrogen 1.16 0.93 Toluene 2.16 0.48

2.75 3.41 Mixed Xylenes 2.36 0.52

Vinyl Acetate Monomer

2.53 0.71

2.53 0.61

1.48 0.77

* Vapor pressure too low for significant LEL reading

• The EAGLE 2 provides the catalytic combustible sensor with some

protection against exposure to high levels of combustible gas which can damage the sensor. It does this by turning off the combustible sensor power temporarily when it determines that an over scale (more than 100% LEL) concentration of combustible gas is present that may damage the sensor. Nevertheless, concentrations of combustible gas of more than 100% LEL can still affect the zero level or calibration of the combustible sensor if the concentration is high enough.

CAUTION: Do not expose the catalytic combustible sensor to high

concentrations of combustible gas such as that from a butane lighter. Exposur e to high concentrations of combustible gas may adversely affect the performance of the sensor.

32 • M e a s u r i n g M o d e , No r m a l O p e r a t i on EAGLE 2 Operator’s Manual

CAUTION: Any rapid increase in the combustible gas reading on the

catalytic combustible channel followed by a declining or erratic reading may indicate a gas concentration above the LEL which may be hazardous.

• Some gases such as silicone vapors, chlorinated hydrocarbons, and

sulphur compounds can contaminate the detection elements inside the combustible sensor damaging the sensor and result in reduced response to combustible gas. Make every effort to avoid these gases. The catalytic combustible sensor has an integral H

S scrubber for protection from H2S

exposure resulting from normal use, but you should avoid exposure to high levels of H

S and other sulphur compounds.

Monitoring Combustible Gas in the PPM or %Volume Range

The standard factory configuration for the EAGLE 2 allows the user to use the RANGE ▼ SHIFT button to change the displayed detection units of the catalytic combustible channel between %LEL, ppm, and %volume. It is possible to disable this capability and set the EAGLE 2 to display only one of the detection units by using the Catalytic Units menu item in Setup Mode. See “Setting the Catalytic Det ection Units” on page 113 for instructions to s et this Setup Mode Menu item.

The detection range of the combustible catalytic channel when set for ppm or %volume will correspond to 0 - 100% LEL for the configured gas. For example, the LEL for methane (CH

) is 5% volume, or 50,000 ppm. So if the

catalytic combustible channel is displayed in terms of %volume, the full scale is 5.00% and if it is displayed in terms of ppm, the full scale is 50,000 ppm.

EAGLE 2 Operator’s Manual Measuring Mode, Normal Operation • 33

If the Catalytic Units menu item in Setup Mode is set to CHANGE OK, the standard factory setting, then you can change the catalytic combustible channel’s units by pressing and releasing RANGE ▼ SHIFT.

CH4 0%LEL

OXY 20.9vol%

H2S 0.0ppm

CO 0ppm

RANGE

SHIFT

CH4 0ppm

OXY 20.9vol%

H2S 0.0ppm

CO 0ppm

Monitoring Combustible Gas in the PPM Range

RANGE

SHIFT

CH4 0.00vol%

OXY 20.9vol%

H2S 0.0ppm

CO 0ppm

RANGE

SHIFT

There are special considerations that must be taken into account when monitoring combustible gas in the ppm range with the catalytic combustible channel. Because of the high sensitivity in the lower part of the ppm range, the catalytic combustible channel needs more time than the warm-up period to stabilize after the EAGLE 2 is turned on if it is going to be used for ppm level detection. The reading increments in the ppm range are smallest in the lower part of the range and increase as the reading increases as follows:

• 5 ppm increments from 0 ppm to 200 ppm

• 10 ppm increments from 200 ppm to 1,000 ppm

• 50 ppm increments from 1,000 ppm to 10,000 ppm

• 250 ppm increments from 10,000 ppm to 50,000 ppm

If the catalytic combustible channel is configured for the user defined gas in Setup Mode (see “Configuring the Combustible Gas” on page 108), the ppm ratio defined for the gas must be considered. For example, if the ppm ratio is set higher than 50,000 ppm, then when the display units are set as ppm, the reading will not go above 50,000 ppm which is equivalent to 33 % LEL and 5 %volume. So if the gas reading is higher than 50,000 ppm, the ppm unit reading will indicate 50,000 ppm and also indicate an overscale condition.

34 • M e a s u r i n g M o d e , No r m a l O p e r a t i on EAGLE 2 Operator’s Manual

The %LEL and %volume unit readings will still increase up to 100% LEL and 15 %volume respectively, which are equivalent to 150,000 ppm.

The catalytic combustible sensor is slightly affected by humidity. This is not apparent when the EAGLE 2 is used for %LEL or %volume detection, but because of the high sensitivity in the ppm range, significant humidity changes can affect the ppm readin g, es pecia ll y in the lower part of the range . Take care to allow the unit to acclimate to a new environment for about a minute and perform a demand zero in a fresh air location when you move between areas of different humidity.

CAUTION: If the catalytic combustible channel is being calibrated with a

gas concentration of 1000 ppm or lower, the a 24 inch humidifier must be used for accurate calibration. See “Chapter 4: Calibration Mode” on page 55 for more explanation and instructions for calibration.

To monitor for combustible gas in the ppm range:

1. Start up the EAGLE 2 as described in “Start Up” on page 22.

2. Allow the EAGLE 2 to run for 3 - 5 minutes after the startup sequence is complete and it is in Measuring Mode. This allows the catalytic combustible sensor to stabilize sufficiently for ppm monitoring.

NOTE: This extra stabilization period is not necessary if monitoring in the

%LEL or %volume range.

3. Set the catalytic combustible channel’s units to be ppm by using the RANGE ▼ SHIFT button.

4. Perform a demand zero as described in “Performing a Demand Zero” on page 27.

5. Proceed to monitor for gas as described in “Monitoring an Area” on page 30.

Measuring Mode, Alarms

This section covers alarm indications in Measuring Mode. It also describes how to reset the EAGLE 2 after an alarm has occurred and how to respond to an alarm condition.

NOTE: False alarms may be caused by radio frequency (RF) or

electromagnetic (EMI) interference. Keep the EAGLE 2 away from RF and EMI sources such as radio transmitters or large motors.

EAGLE 2 Operator’s Manual Measuring Mode, Alarms • 35

Alarm Indications

The EAGLE 2 will sound an alarm and flash the LED arrays when one of the target gas concentrations rises above the Low Alarm level, or in the case of oxygen falls below the Low Alarm level, for that gas.

The EAGLE 2 also sounds an alarm and flashes the LED arrays when one of the target gas concentrations rises above the High Alarm level and when the STEL and TWA alarm levels are reached for CO and H

NOTE: If an alarm condition occurs while you are in Display Mode, the

EAGLE 2 will automatically bring up the alarm screen instead.

When a failure condition occurs, such as a sensor failure, low flow, or dead battery condition, the unit will also sound an alarm and flash the LED arrays.

The table below summarizes the types of alarms produced by the EAGLE 2 and their indications.

Table 6: Alarm Types and Indications

Alarm Type Visual Indications Audible Indication

Low Alarm

Concentration of gas rises above the Low Alarm setting or falls below the Low Alarm setting for O

High Alarm

Concentration of gas rises above the High Alarm setting.

TWA or STEL

Concentration of CO or H2S rises above the TWA or

STEL alarm setting.

Over Range

ALRM1 appears next to gas

• reading

• Alarm LED arrays flash once per second

• Backlight turns on

•

ALRM2 appears next to gas

reading

• Alarm LED arrays flash twice per second

• Backlight turns on

• Alarm LED arrays flash once per second

• Backlight turns on

TWA or STEL appears next to

• gas reading

• OVER appears next to gas reading

• Gas reading indicates full scale

• Alarm LED arrays flash twice per second

• Backlight turns on

Pulsing tone once per second

Pulsing tone twice per second

Pulsing tone once per second

Pulsing tone twice per second

36 • M e a s u r i n g M o d e , Al a r m s EAGLE 2 Operator’s Manual

Table 6: Alarm Types and Indications

Alarm Type Visual Indications Audible Indication

Low Flow

Low Battery Warning

Dead Battery Alarm

Sensor Failure

• The display indicates FAIL

LOW FLOW LEVEL

• Alarm LED arrays flash in a double pulsing pattern once per second

• Backlight turns on

• BATT appears vertically along the left side of LCD

• Gas readings replaced by

RECHARGE INSTRUMENT BATTERIES

• Alarm LED arrays flash in a double pulsing pattern once per second

• FAILED SENSOR(S) appears at the top of the display and the failed sensor(s) are indicated

• Alarm LED arrays flash in a double pulsing pattern once per second

Double pulsing tone once per second

None

Double pulsing tone once per second

Resetting and Silencing Alarms

You can set the EAGLE 2’s gas alarms as latching or self-resetting alarms (see “Updating the Alarm Latching Setting” on page 116).

• Self-resetting alarms (ALARM LATCHING set to SELF RESET) Self-resetting alarms automatically shut of f and reset when the gas r eading

falls below (or rises above for an oxygen low alarm) the alarm setting. Y ou cannot reset self-resetting alarms with the POWER ENTER RESET button. You can set self-resetting alarms with or without the alarm silence feature (see “Updating the Alarm Silence Setting” on page 117).

• Latching alarms (ALARM LATCHING set to LATCHING) Latching alarms will remain in effect until the gas reading falls below (or

rises above for an oxygen low alarm) the alarm setting and they are reset with the POWER ENTER RESET button. You can set latching alarms with or without the alarm silence feature (see “Updating the Alarm Silence Setting” on page 117).

ALARM SILENCE On and Alarms Set to LATCHING:

ALARM SILENCE set to ON and ALARM LATCHING set to LATCHING

EAGLE 2 Operator’s Manual Measuring Mode, Alarms • 37

are the factory settings. When the EAGLE 2 goes into gas alarm, press and release any button to silence the buzzer. If the gas concentration was still above the alarm level when the button was pressed, the LED arrays continue to flash, and the EAGLE 2 continues to display the current alarm level.

The gas reading must fall below (or rise above for an oxygen low alarm) an alarm setting before you can reset the alarm. When the alarm condition passes, press and release the POWER ENTER RESET button to reset the alarm. The LED arrays turn off and the EAGLE 2 alarm indications on the display turn off.

ALARM SILENCE Off and Alarms Set to LATCHING:

The gas reading must fall below (or rise above for an oxygen low alarm) an alarm setting before you can reset the alarm. When the alarm condition passes, press and release the POWER ENTER RESET button to reset the alarm. The LED arrays and buzzer turn off and the EAGLE 2 alarm indications on the display turn off.

ALARM SILENCE On and Alarms Set to SELF RESETTING: When the EAGLE 2 goes into gas alarm, press and release any button to

silence the buzzer. The POWER ENTER RESET button will not reset the alarm. When the gas reading falls below (or rises above for an oxygen low alarm) an alarm setpoint, the alarm will automatically reset. The LED arrays turn off and the EAGLE 2 alarm indications on the display turn off.

With ALARM SILENCE Off and Alarms Set to SELF RESETTING: When the EAGLE 2 goes into gas alarm, the POWER ENTER RESET

button will not silence or reset the alarm. When the gas reading falls below (or rises above for an oxygen low alarm) an alarm setpoint, the alarm will automatically reset. The LED arrays and buzzer turn off and the EAGLE 2 alarm indications on the display turn off.

Responding to Alarms

This section describes response to gas, over range, battery, and sensor failure alarms.

Responding to Gas Alarms

1. Determine which gas alarm has been activated.

2. Follow your established procedure for an increasing gas condition or a

decreasing oxygen condition.

3. If necessary, reset the alarm using the POWER ENTER RESET button

once the alarm condition has passed.

38 • M e a s u r i n g M o d e , Al a r m s EAGLE 2 Operator’s Manual

Responding to Over Range Alarms

WARNING: An over range condition may indicate an extreme

combustible gas, toxic gas, or oxygen concentration . Confirm a normal condition with a different EAGLE 2 or with another gas detecting device.

1. Determine which channel is in alarm.

2. Follow your established procedure for an extreme gas condition.

3. Reset the alarm using the POWER ENTER RESET button once the alarm

condition has cleared.

4. Calibrate the EAGLE 2 as described in “Chapter 4: Calibration Mode” on

page 55.

5. If the over range condition continues or if you are not able to successfully

calibrate the unit, you may need to replace the sensor that has triggered the over range alarm.

6. If the over range condition continues after you have replaced the sensor,

contact RKI Instruments, Inc. for further instructions.

Responding to Battery Alarms

WARNING: The EAGLE 2 is not operational as a gas monitoring device

during a dead battery alarm. Take the Model EAGLE 2 to a non-hazardous area and replace or recharge the batteries as described in “Replacing or Recharging the Batteries” on page 72.

The EAGLE 2 is fully functional during a low battery warning. However, only a limited amount of operating time remains, approximately 1 - 2 hours. The amount of time depends on how often the LCD backlight is used and how often the unit is responding to alarm conditions. Recharge the Ni-MH batteries or replace the alkaline batteries as soon as possible as described in “Replacing or Recharging the Batteries” on page 72.

NOTE: Alarms and the LCD back light consume battery power and reduce

the amount of operating time remaining.

Responding to Sensor Failure Alarms

1. Determine which sensor has triggered the sensor failure alarm.

2. Try calibrating the sensor first, as described in “Chapter 4: Calibration

Mode” on page 55 before replacing it.

EAGLE 2 Operator’s Manual Measuring Mode, Alarms • 39

3. If the sensor failure continues, replace the sensor as described in

“Replacing a Sensor” on page 80.

4. If the sensor failure condition continues after you have replaced the

sensor, contact RKI Instruments, Inc. for further instructions.

Display Mode

Two other operating modes are accessible when the EAGLE 2 is in Measuring Mode. They are Display Mode and Calibration Mode. This section describes using the EAGLE 2 in Display Mode. In Display Mode you can:

• display peak readings

• display the minimum operating and current battery voltage

• select how the active channels are displayed on the LCD

• turn the catalytic LEL sensor on or off (if there is a TC or infrared

combustible channel along with a catalytic combustible channel)

• enable or disable methane elimination mode (if the catalytic combustible

gas channel is configured appropriately in the CONFIGUR E GASES item in Setup Mode)

• temporarily configure the catalytic combustible channel for a target gas

other than the one used for calibration (if the RELATIVE RESPONSE item in Setup Mode is set to ON)

• display STEL readings (H

• display TWA readings (H

S and CO only)

• display alarm settings

• select the user ID (if the USER/STATION ID item in Setup Mode is set

to ON)

• select the station ID (if the USER/STATION ID item in Setup Mode is

set to ON)

• display time in operation

• display date and time

• display remaining data logging time and clear data logger memory (if the

DATA LOG MEMORY item in Setup Mode is set to ON)

Tips for Using Display Mode

• To enter Display Mode and scroll from one screen to the next or skip an

item when a question is asked, press and release the DISPLAY ADJUST

40 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

NO button.

• To enter an item when a question is asked, press and release the AIR ▲

YES button.

• To change a flashing parameter, use either the AIR ▲ YES button or

RANGE ▼ SHIFT button.

NOTE: Each screen displays for 20 seconds. If you do not press a button

within 20 secon ds, the EAGLE 2 automatically returns to M easuring Mode.

Peak Screen

The peak screen displays the highest (lowest for oxygen) concentrations detected since the EAGLE 2 was turned on. Peak readings are stored in the EAGLE 2’s memory until a higher level is detected (lower for oxygen), the peak reading is cleared, or the EAGLE 2 is turned off.

The lunch break feature enables the EAGLE 2 to save peak readings when it is turned off so it can continue them when it is turned on again. See “Turning On the EAGLE 2” on page 22

CH4 0%LEL P OXY 20.9vol% E H2S 0.0ppm A CO 0ppm K

To clear the peak readings, do the following:

1. With the Peak Screen displayed, press and release the POWER ENTER

RESET button. The following screen will appear.

CLEAR

PEAK READINGS?

2. Press and release the AIR ▲ YES button. The peak readings will be reset

and the unit will return to the Peak Screen. If you do not want to clear the peak readings, press and release the

DISPLAY ADJUST NO button and the unit will return to the Peak Screen without clearing the peak readings.

EAGLE 2 Operator’s Manual Display Mode • 41

Battery Voltage Screen

The Battery Voltage Screen displays the minimum operating voltage and the current battery voltage. Fully char ged alkaline batteries typically indicate 6.0 volts; fully charged Ni-MH batteries typically indicate 5.2 volts. This screen also displays during the startup sequence.

BATTERY MIN:

4.3 VOLTS

BATTERY NOW:

5.2 VOLTS

Gas Display Screen

The Gas Display Screen gives you the option to select how the active channels are displayed.

SELECT

GASES DISPLAYED

You can display all of th em on the screen at t he same time, one at a time with automatic scrolling, or one at time with manual scrolling. The factory setting displays all of the active channels at the same time. To select how to display the active channels, do the following:

1. With the Gas Display Screen displayed, press and release the

AIR ▲ YES button. The following screen will appear with the cursor blinking.

SELECT

> DISPLAY ALL

SCROLL AUTO

SCROLL MANUAL

2. Use the AIR ▲ YES and RANGE

next to the desired choice.

▼ SHIFT buttons to place the cursor

3. Press and release the POWER ENTER RESET button. The unit

continues to the STEL Screen and the display configuration will reflect your choice when you return to Measuring Mode.

42 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

If you do not want to change the setting, press and release the DISPLAY ADJUST NO button and the unit will return to the Gas Display Screen.

Catalytic (LEL) Sensor Screen

This screen appears only when either a TC sensor or an infrared combustible sensor is installed in an EAGLE 2 along with a catalytic combustible LEL sensor. See “Appendix F: TC Sensors”, “Appendix H: Infrared Methane Sensor”, or “Appendix I: Infrared Hydrocarbon Sensor” for a description of this screen and instructions to use it.

Methane Elimination Mode Screen

This screen displays only if the EAGLE 2 catalytic combustible channel is setup for one of the gases in the CONFIGURE GASES menu item in Setup Mode that supports methane elimination (See “Configuring the Combustible Gas” on page 108).

METHANE ELIMINATION

MODE

DISABLED

The standard setup for methane (CH When applicable, use this screen to enable and disable the methane

elimination feature. See “Appendix J: Methane Elimination Mode” for more discussion of the methane elimination feature.

1. With the Methane Elimination Mode Screen displayed, press and release

the AIR ▲ YES or RANGE setting, ENABLED or DISABLED.

2. Press and release the POWER ENTER RESET button. The unit will save

the setting and proceed to the next menu item.

If you changed the setting and do not want to save the change, press and release the DISPLAY ADJUST NO button to continue to the next menu item without saving the change.

) does not support methane elimination.

▼ SHIFT button to toggle to the desired

Catalytic Sensor Relative Response Screen

This screen displays only if RELATIVE RESPONSE in Setup Mode is set to ON (see “Updating the Catalytic Sensor Relative Response Setting” on page 114). Use this screen to temporarily change the gas configuration of the

EAGLE 2 Operator’s Manual Display Mode • 43

catalytic combustible channel.

SELECT RELATIVE RESPONSE TO CALIBRATED GAS

FOR CATALYTIC SENSOR

You can select from a list of gases whose response relative to the configured gas, normally methane, is programmed into the EAGLE 2’s memory. This includes several pre-defined gases and 5 gases that can be entered into the EAGLE 2 in the field using the Eagle 2 Maintenance Data Loader Program. In order to program a field defined gas into the EAGLE 2, gas testing must be performed to determine the gas’ response factor relative to methane. See the Eagle 2 Maintenance Data Loader Program Operator’s manual for details regarding the gas testing and programming user defined gases into the EAGLE 2’s relative response list. The last five items in the gas list are reserved for field defined gases.

The relative response feature enables you to temporarily monitor for the selected gas without having to recalibrate the EAGLE 2. The EAGLE 2 will clear the gas configuration change when it is turned off and will return to the programmed configuration when it is turned on again.

Because of normal variation between sensors, these relative response factors are typical fact ors. If you use this featur e, the response to the selected gas will not be as accurate as it would be if you configured and calibrated the cataly tic combustible channel to the target gas.

NOTE: For maximum accuracy, configure and calibrate the EAGLE 2’s

catalytic combustible channel to the desired target gas.

1. With the Relative Response Screen displayed, press and release AIR ▲

YES. A list of gases will appear on the screen with EXIT at the top of the list. There are multiple screens of gases.

>EXIT

ACETONE BENZENE BUTYL ACRYLATE BUTYL ACETATE

2-BUTYL ALCOHOL

44 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

The following is the complete list of factory defined gases.

Table 7: Relative Response Gas List

Acetone Cumene Isobutane Methyl Ibutyl

Ketone

Benzene Ethylene

Dichloride Butyl Acrylate Ethyl Alcohol Methane Pentane Field Defined Gas Butyl Acetate Ethyl Chloride Methanol Propane F ield Defined Gas 2-Butyl Alcohol Ethyl Acrylate Methyl Acetate Styrene Field Defined Gas 1-Butyl Alcohol Hexane Methyl Acrylat e Toluene Field Defined Gas Cyclohexane Hydrogen Methyl Ketone Vinyl Acetate

2. Use the AIR ▲ YES or RANGE

Isopropanol Nonane Field Defined Gas

▼ SHIFT buttons to move the cursor

Mixed Xylenes

next to the desired gas.

3. Press and release POWER ENTER RESET. The catalytic combustible channel will be configured to the selected gas and the EAGLE 2 will proceed to the STEL Screen. This configuration will be in force until either a different gas is selected in Display Mode or the unit is turned off.

NOTE: If a PID sensor is installed in the EAGLE 2 and CATALYTIC

SENSOR RELATIVE RESPONSE is set to ON in Setup Mode, a

PID Sensor Relative Response Screen appears after the Catalytic Sensor Relative Response Screen. If CATALYTIC SENSOR RELATIVE RESPONSE is set to OFF, the PID Sensor Relative Response Screen will still appear after the Methane Elimination Mode Screen. See “PID Relative Response Feature” on page 139 for a description of the relative response feature for the PID sensor.

NOTE: If Methane Elimination Mode is enabled, the Catalytic Sensor

Relative Response screen does not appear.

EAGLE 2 Operator’s Manual Display Mode • 45

STEL Screen

The STEL Screen displays the short term exposure limit (STEL) readings for H

S and CO only. The STEL reading is the average reading over the last 15

minutes.

S H2S 0.0ppm T CO 0ppm E L

TWA Screen

The TWA Screen displays the time weighted average (TWA) readings for H

S and CO only.

T H2S 0.0ppm W CO 0ppm A

The TWA reading is the average reading over the last 8 hours. If 8 hours have not elapsed since the last time the TWA reading was cleared, the average is still calculated over 8 hours. The missing time is assigned a 0 value for readings. If the lunch break feature is turned off, the TWA is cleared when the EAGLE 2 is turned off.

The lunch break feature enables the EAGLE 2 to remember TWA readings when it is turned off so it can continue them when it is turned on again. See “Turning On the EAGLE 2” on page 22

View Alarm Settings Screen

The View Alarm Settings Screen gives you the option to view the gas alarm settings for all active channels.

VIEW ALARM

SETTINGS?

To view the gas alarm settings, do the following:

1. With the View Alarm Settings Screen displayed, press and release the

46 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

AIR ▲ YES button. The following screen appears showing Channel 1 alarm points.

CHANNEL 1

CH4 0- 100 %LEL LO ALRM: 10 %LEL HI ALRM: 10 %LEL

LO ALRM: 5000 ppm

HI ALRM:25000 ppm

2. If the channel description is too long to fit across the screen, press and release the POWER ENTER RESET button to view the remainder of the displayed channel’s description. Press and release the POWER ENTER RESET button again to return to the previous screen.

CHANNEL 1 CH4 0- 100 %LEL LO ALRM: 10 %LEL HI ALRM: 10 %LEL

LO ALRM: 5000 ppm HI ALRM:25000 ppm

3. If the number of alarm settings is too many to display on one screen, a down arrow will appear in the lower right corner of the display indicating that there are additional alarm points. Press and release the RANGE ▼ SHIFT button to scroll down and display the remainder of the gas alarm settings for the displayed channel and again to return to the previous screen.

CHANNEL 1

CH4 0- 100 %LEL

LO ALRM: 10 %LEL

HI ALRM: 10 %LEL LO ALRM: 5000 ppm HI ALRM:25000 ppm

POWER

ENTER RESET

RANGE

SHIFT

CHANNEL 1 METHANE LO ALRM: 10 %LEL

HI ALRM: 10 %LE L LO ALRM: 5000 ppm HI ALRM:25000 ppm

CHANNEL 1 CH4 0- 100 %LEL LO ALRM: OFF vol%

HI ALRM: OFF vol%

EAGLE 2 Operator’s Manual Display Mode • 47

4. Press and release the AIR ▲ YES button to scroll through screens that

display the rest of the active channels’ alarm settings.

CHANNEL 1

CH4 0- 100 %LEL LO ALRM: 10 %LEL HI ALRM: 50 %LEL LO ALRM: 5000 ppm HI ALRM:25000 ppm

AIR

YES

CHANNEL 4

CO 0- 500 ppm LO ALRM: 25 ppm HI ALRM: 50 ppm

STEL ALRM: 200 ppm

TWA ALRM: 25 ppm

AIR

YES

AIR

YES

LO ALRM: 5.0 ppm HI ALRM: 30.0 ppm

TWA ALRM: 1.0 ppm

CHANNEL 2

OXY 0- 40.0 vol% LO ALRM: 19.5 vol% HI ALRM: 23.5 vol%

AIR

YES

CHANNEL 3

H2S 0-100.0 ppm

STEL ALRM: 5.0 ppm

Select User ID Screen

This screen displays only if USER/STATION ID in the Setup Mode menu is set to ON (see “Turning the User/Station ID Function On or Off” on page 118). Use this screen to select a user ID from the user ID list in the EAGLE 2’ s memory. The current user ID is displayed. A user ID can be up to 16 characters long. The EAGLE 2 can store up to 32 user IDs.

SELECT

USER ID?

CURRENT USER ID JOHN

The user ID provides a way to identify the EAGLE 2 user during a data logging session. If the user ID is changed during an operating session, a new data session is initiated with the new user ID attached to it. This allows you to change the user ID during operation and have each user ID that was used during an operating session saved for the corresponding data. See the Eagle 2 Data Logger Management Program Operator’s Manual for a detailed description of data logging and the user ID.

The user ID list cannot be edited using the EAGLE 2 user interface. The Eagle 2 Maintenance Data Loader Program is required to define or change user IDs in the user ID list. For a detailed description of editing the list of

48 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

user IDs stored in the EAGLE 2, see the Eagle 2 Maintenance Data Loader Program Operator’s Manual.

To select a different user ID:

1. With the Select User ID Screen displayed, press and release the AIR ▲

YES button. A screen appears that includes the current user ID which is indicated by the cursor next to it.

Bruce

> John

Mike

----------------

The user IDs are displayed in groups of six. The previous group of six is displayed when the cursor is moved up past the top of the LCD. The next group of six is displayed when the cursor is moved down past the bottom of the LCD. The list will not “wrap around” to the previous screen if the cursor is moved up from the first user ID or to the next screen if the cursor is moved down from the last user ID. Any of the user IDs in the list that have not been changed from the factory setting will be shown as dashes (-).

2. Use the AIR ▲ YES and RANGE ▼ SHIFT buttons to move the cursor

up and down the screen and scroll through the available user IDs to find the desired user ID.

3. When the desired user ID is displayed, place the cursor next to it, press and release the POWER ENTER RESET button.

NOTE: To exit the selection screen without saving a change, press and

release the DISPLAY ADJUST NO button. You will return to the Select User ID screen without saving the user ID change.

4. The unit will save the selected user ID as the current one and proceed to the Select Station ID Screen.

EAGLE 2 Operator’s Manual Display Mode • 49

Select Station ID Screen

This screen displays only if USER/STATION ID in the Setup Mode menu is set to ON (see “Turning the User/Station ID Function On or Off” on page 118). Use this s cre en to sel ect a st at ion ID fro m the st at ion ID l ist in th e EAGLE 2’s memory. The current station ID is displayed. A station ID can be up to 16 characters long. The EAGLE 2 can store up to 128 station IDs.

SELECT

STATION ID?

CURRENT STATION Pump 2

The station ID provides a way to identify a location where monitoring was done during a data logging session. If the station ID is changed during an operating session, a new data session is initiated with the new station ID attached to it. This allows you to change the station ID during operation and have each station ID that was used during an operating session saved for the corresponding data. See the Eagle 2 Data Logger Management Program Operator’s Manual for a detailed description of data logging and the station ID.

The station ID list cannot be edited using the EAGLE 2 user interface. The Eagle 2 Maintenance Data Loader Program is required to define or change station IDs in the station ID list. For a detailed description of editing the list of station IDs stored in the EAGLE 2, see the Eagle 2 Maintenance Data Loader Program Operator’s Manual.

To select a different station ID:

1. With the Select Station ID Scre en displayed, press and release the AIR ▲ YES button. A screen appears that includes the current station ID which is indicated by the cursor next to it.

Pump 2

> Pump 3

Valve 5

----------------

The station IDs are displayed in groups of six. The previous group of six is displayed when the cursor is moved up past the top of the LCD. The next group of six is displayed when the cursor is moved down past the bottom of the LCD. The list will not “wrap around” to the previous

50 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

screen if the cursor is moved up from the first station ID or to the next screen if the cursor is moved down from the last station ID. Any of the station IDs in the list that have not been changed from the factory setting will be shown as dashes (-).

2. Use the AIR ▲ YES and RANGE ▼ SHIFT buttons to move the cursor up and down the screen and scroll through the available station IDs to find the desired station ID.

3. When the desired station ID is displayed, plac e the cursor next to it, press and release the POWER ENTER button.

NOTE: To exit the selection screen without saving a change, press and

release the DISPLAY ADJUST NO button. You will return to the Select Station ID screen without saving the station ID change.

4. The unit will save the selected station ID as the current one and proceed to the Time in Operation Screen.

Time in Operation Screen

The Time In Operat ion Screen displays the lengt h of time si nce the EAGLE 2 was turned on if the lunch break feature is turned off. With the lunch break feature turned off, the time in operation is reset when the EAGLE 2 is turned off. See “Updating the Lunch Break Setting” on page 129 for a description of the lunch break feature.

TIME IN

OPERATION

MINUTES

If the lunch break feature is turned on, the time in operation will only be re set if you do not choose to resume the peak and TWA measurements when the EAGLE 2 is turned on in the Resume Measurement Screen described in Step 7 on page 23 in “Turning On the EAGLE 2”. If you choose to resume the peak and TWA measurements during startup, the EAGLE 2 will include the time in operation when the unit was last turned off in the current time in operation.

EAGLE 2 Operator’s Manual Display Mode • 51

Date/Time Screen

The Date/Time Screen displays the current date and time.

9/26/2009

09:08:35

Data Logging Screen

CAUTION: Once you clear the data logger, you cannot retrieve any data

previously stored in the data logger.

The Data Logging screen displays the time remaining until the data logger memory is full and asks if you want to clear the data logger memory.

DATA LOGGING

200 HRS

REMAINING

ERASE LOG MEMORY?

To return to Measuring Mode while at the Data Logging Screen, press and release the DISPLAY ADJUST NO button.

To clear the data logger memory, do the following:

1. With the Data Logging Screen displayed, press and release the AIR ▲ YES button. The following screen appears asking you to confirm that you want to clear the data logger memory.

LOG MEMORY

CLEAR DATA LOG?

2. If you do not want to clear the data logger memory at this point or at Step 3 below, press and release the DISPLAY ADJUST NO button. The unit will return to Measuring Mode.

52 • D i s p l a y M o d e EAGLE 2 Operator’s Manual

3. If you want to clear the data logger memory, press and release t he AIR ▲ YES button. The following screen appears asking you to reconfirm that you want to clear the data logger memory.

LOG MEMORY

ARE YOU SURE YOU

WANT TO PERMANENTLY

ERASE DATA FROM

MEMORY?

4. If you want to clear the data logger memory, press and release t he AIR ▲ YES button. The unit will display the following screen as it clears the data.

PLEASE WAIT

.......

5. The periods below “PLEASE WAIT” will disappear one at a time from right to left as the data is cleared. When the last period disappears, the unit is finished clearing the data and will display the following screen for a few seconds, then return to Measuring Mode.

Data Logging

NOTE: The EAGLE 2 only logs data while in Normal Mode. If the EAGLE

2 is used in Leak Check Mode or Bar Hole Mode, no downloadable data will be logged while it is in either of these two modes.

The EAGLE 2 features the ability to log data to its internal memory and download it to a computer via the infrared communications port on the front of the unit. It logs gas readings during normal operation, alarm data, and calibration data.

CLEARED

To utilize the EAGLE 2’s downloading capability, you will need the Eagle 2

EAGLE 2 Operator’s Manual Data Logging • 53

Data Logger Management Program and a computer with an infrared port or a USB port that runs one of the following operating systems: Windows 2000, Windows XP, or Windows Vista. If your computer has an infrared port, then no additional accessories are needed to download data from the EAGLE 2. If your computer does not have an infrared port but does have a USB port, a USB/IrDA adapter cable can be used to download data from the EAGLE 2 using the USB port. The Eagle 2 Data Logger Management Program is available from RKI Instr uments, Inc. Th e adapter cable is also a vailable from RKI Instruments, Inc. or may be purchased from an electronic supply website.

The data logging capacity depends on how often the EAGLE 2 stores data, how many channels are active, and how often the EAGLE 2 is turned on and off. The table below illustrates how much data logging time is available for the various interval times. It assumes that the unit is setup with four sensors, is only turned on once, and there are no alarm occurrences. See “Updating the Data Log Interval Setting” on page 120 for instructions on setting the data logging interval time.

Table 8: Data Logging Capacity, 4-gas EAGLE 2

Interval

Time

5 seconds 239 hours (10 days) 10 seconds 479 hours (20 days) 20 seconds 959 hours (40 days) 30 seconds 1439 hours (60 days) 1 minute 2879 hours (120 days) 3 minutes 8639 hours (360 days) 5 minutes 14,399 hours (600 days) 10 minutes 28,798 hours (2,000 days)

Data Logging Time

For a complete description of the Data Logger Management Program and procedures for downloading data to a computer, see the Eagle 2 Data Logger Management Program Operator’s Manual.

54 • D a t a L o g g i n g EAGLE 2 Operator’s Manual

Chapter 4: Calibration Mode

Overview

This section describes the EAGLE 2 in Calibration Mode. In Calibration Mode, you can move through a menu of screens to do the following:

• Perform a span adjustment on all channels simultaneously using

auto calibration

• Perform a span adjustment on one channel at a time using single

calibration

• Perform a fresh air (zero) adjustment

NOTE: You can set up the EAGLE 2 to alert you during the startup

sequence when calibration is due. See “Updating the Calibration Reminder Setting” on page 122

CAUTION: BEFORE EACH DAY’S USAGE, SENSITIVITY IN THE

%LEL RANGE MUST BE TESTED ON A KNOWN CONCENTRATION OF THE COMBUSTIBLE TARGET GAS, METHANE, EQUIVALENT TO 25 - 50% OF FULL SCALE CONCENTRATION (the %LEL full scale is 100 %LEL). ACCURACY MUST BE WITHIN -0 to + 20% OF ACTUAL. ACCURACY MAY BE CORRECTED BY FOLLOWING THE CALIBRATION INSTRUCTIONS FOR THE COMBUSTIBLE CHANNEL BELOW.

If the combustible channel passes the above response test and does not require calibration, the unit should still be calibrated periodically. The optimum frequency of calibration depends heavily on how the EAGLE 2 is used. For example, instruments used daily may need to be calibrated weekly or monthly, while instruments that are used only a few times a year may need to be calibrated before each use. Typical calibration frequencies range from monthly to quarterly. Make sure to perform the combustible channel response test as described above and make sure to develop a calibration schedule tailored to your application that takes this test and required calibration resulting from this test into account.

EAGLE 2 Operator’s Manual Overview • 55

Calibration Supplies and Equipment

To calibrate the EAGLE 2, you will need:

• Known calibrating samples of the gases being detected. The combustible

and toxic gas samples should have concentrations between 10 and 50% of the full scale value. For example, if you are calibrating the catalytic combustible gas channel, your calibration cylinder should have a combustible gas concentration between 10% LEL and 50% LEL. An oxygen-free source, such as 100% nitrogen is recommended for setting the oxygen zero.

NOTE: The catalytic combustible channel can be set up for and calibrated to

a number of different combustible gases. See “Configuring the Combustible Gas” on page 108 for instructions. Be sure that you are using an appropriate calibration cylinder for the target gas of the catalytic combustible channel.

CAUTION: When using auto calibration with the standard 4-gas EAGLE 2,

although the EAGLE 2 can be calibrated with an oxygen concentration of up to 19.5%, RKI Instruments, Inc. recommends that the multi-gas cylinder have an oxygen concentration in the range of 10% - 16% oxygen.

• A demand-flow regulator to provide adequate sample gas flow

• Non-absorbent tubing

• A 24 inch humidifier tube if you are calibrating the catalytic combustible

channel with a gas concentration of 1000 ppm or lower

WARNING: If you are using a calibration kit that includes a gas bag and

a fixed flow regulator or dispensing valve, do not apply gas directly to the EAGLE 2 with the regulator or dispensing valve or damage to the pump will result. See “Appendix A: Calibrating with a Sample Bag” on page 86 for instructions to properly use a gas bag kit.

To calibrate the %LEL, oxygen, CO, and H

S sensors at the same time,

automatically, with no need for a zero-oxygen source, you can use the auto calibration feature with a 4-gas cyli nder . If the H

S channel is not active, then

a 3-gas cylinder may be used for auto calibration. This chapter includes instructions for auto calibration with a demand-flow regulator and a 4-gas

56 • C a l i b r a t i o n S u pp l i e s a n d E q u i p m e n t EAGLE 2 Operator’s Manual

cylinder . This chapter also includes inst ructions for calibrati ng one channel at a time using single calibration.

Entering Calibration Mode

To enter Calibration Mode, do the following:

1. Find a fresh-air environment. This is an environment free of toxic or combustible gases and of normal oxygen content (20.9%).

2. While in Measuring Mode, press and hold the RANGE ▼ SHIFT button, then press the DISPLAY ADJUST NO button and release both buttons.

3. If the unit prompts you for the password, enter it by using the AIR ▲ YES and RANGE ▼ SHIFT buttons to select each password number and then pressing and releasing POWER ENTER RESET to enter the number and move on to the next one.

4. The Calibration Mode Screen displays with the cursor next to AUTO CALIBRATION.

CALIBRATION MODE

> AUTO CALIBRATION

SINGLE CALIBRATION PERFORM AIR ADJUST

NORMAL OPERATION

NOTE: The following screens illustrate a four-gas EAGLE 2 for detection

of CH EAGLE 2 may display slightly different screens.

(%LEL using catalytic sensor), oxygen, H2S, and CO. Your

EAGLE 2 Operator’s Manual Entering Calibration Mode • 57

Calibrating Using the Auto Calibration Method

This method allows you to calibrate the CH4 (%LEL sensor), oxygen, H2S, and CO sensors simultaneously. It is designed for use with the RKI 4-gas

calibration cylinder and is the quickest and easiest method to calibrate the EAGLE 2.

Setting the Fresh Air Reading

1. While in the Calibration Mode Screen, move the cursor to the PERFORM AIR ADJUST menu item by using the RANGE ▼ SHIFT button.

CALIBRATION MODE

AUTO CALIBRATION SINGLE CALIBRATION > PERFORM AIR ADJUST

NORMAL OPERATION

2. Press and release the POWER ENTER RESET button. The following screen appears.

PERFORM

AIR ADJUST?

3. Press and release the AIR ▲ YES button to continue. If you do not want to continue, press the DISPLAY ADJUST NO button and the unit will return to the Calibration Mode Screen.

58 • C a l i b r a t i n g U s in g t h e A u t o C a l i b r a t io n M e t h o d EAGLE 2 Operator’s Manual

4. The EAGLE 2 will indicate that it is adjusting the zero reading for a few seconds, then indicate that the operation is complete before returning to the Calibration Mode Screen.

ADJUSTING ZERO

RELEASE AIR BUTTON

ADJUSTING ZERO

COMPLETE

CALIBRATION MODE

AUTO CALIBRATION

SINGLE CALIBRATION

> PERFORM AIR ADJUST

NORMAL OPERATION

Performing a Span Adjustment in Auto Calibration

1. Install the demand flow regulator onto the calibration cylinder.

2. Connect the sample tubing to the demand flow regulator.

3. Install the probe on the EAGLE 2 inlet fitting. Make sure the probe is complete with internal O-ring and membrane and that the two halves of the probe are tightened firmly together to avoid leaks that can affect the calibration. See Figure 19, “Replacing the Particle Filter and Hydrophobic Filter Disk” on page 76 for an illustration of the internal parts of the probe.

EAGLE 2 Operator’s Manual Calibrating Using the Auto Calibration Method • 59

4. Move the cursor next to the AUTO CALIBRATION menu item by using the AIR ▲ YES button.

CALIBRATION MODE

> AUTO CALIBRATION SINGLE CALIBRATION

PERFORM AIR ADJUST

NORMAL OPERATION

5. Press and release the POWER ENTER RESET button to display the Calibration Gas Values Screen.

CAL GAS VALUES

CH4 50 %LEL

OXY 12.0 vol% H2S 25.0 ppm

CO 50 ppm

ENTER TO BEGIN CAL

The gas concentrations displayed in the Calibration Gas Values Screen must match the gas concentrations listed on the 4-gas calibration cylinder. If all concentrations match, go to Step 16. If one or more concentrations do not match, continue with Step 6. If you do not want to continue with the calibration, press and release the DISPLAY ADJUST NO button to return to the Calibration Mode Screen.

NOTE: The RKI 4-gas cylinder typically contains 12% O

When using the auto calibration method, be sure to set the “OXY” auto calibration value to agree with the concentration listed on the cylinder’s label, not zero.

6. To adjust the values on the screen, press and hold the RANGE ▼ SHIFT button, then press the DISPLAY ADJUST NO button and release both. The following screen appears with the cursor next to CH4.

by volume.

ADJUST AUTO

CALIBRATION VALUES

> CH4 50 %LEL

OXY 12.0 vol%

H2S 25.0 ppm

CO 50 ppm

7. Place the cursor next to the channel whose gas value you want to change using the AIR ▲ YES and RANGE ▼ SHIFT buttons.

8. Press and release the POWER ENTER RESET button to select the

60 • C a l i b r a t i n g U s in g t h e A u t o C a l i b r a t io n M e t h o d EAGLE 2 Operator’s Manual

channel. The calibration gas value begins to flash.

9. Use the AIR ▲ YES and RANGE ▼ SHIFT buttons to adjust the calibration gas setting to the desired value.

NOTE: The calibration gas value cannot be set lower than the low alarm

setting. If the calibration gas value listed on the calibration cylinder is lower than the current low alarm setting, enter Setup Mode and change the low alarm setting. See “Updating the Alarm Point Settings” on page 115 for instructions. If you need to change the alarm point setting only to perform a calibration, make sure that you change the alarm point setting back to its original value once the calibration has been performed.

10. Press and release the POWER ENTER RESET button to save the change. The calibration gas value stops flashing.

11. Repeat Step 7 through Step 10 for any other channels that need to be changed.

12. When you are done adjusting the calibration gas values, move the cursor down past the bottom of the screen next to END.

ADJUST AUTO CALIBRATION VALUES > END

13. Press and release the POWER ENTER RESET button. The following screen appears.

DO YOU WANT TO

STORE NEW VALUE(S)

IN MEMORY FOR

FUTURE CALIBRATIONS?

PRESS YES OR NO

14. If you select YES by pressing and releasing the AIR ▲ YES button, the changes that you made will be saved in the EAGLE 2’s memory as the new auto calibration gas values.

If you select NO by pressing and releasing the DISPLAY ADJUST NO button, the changes you made will be used for any calibrations performed during the current operating session only. The EAGLE 2 will delete the

EAGLE 2 Operator’s Manual Calibrating Using the Auto Calibration Method • 61

changes when the unit is turned off and will load the previous set of auto calibration values when it is turned on again.

15. When you make your selection and press the desired button, the unit returns to the Calibration Gas Values Screen.

CAL GAS VALUES

CH4 50 %LEL

OXY 12.0 vol% H2S 25.0 ppm

CO 50 ppm

ENTER TO BEGIN CAL

16. Press and release the POWER ENTER RESET button to proceed to the Calibration In Process Screen with CAL IN PROC ES S flashing.

CAL IN PROCESS

CH4 0 %LEL

OXY 20.9 vol%

H2S 0.0 ppm

CO 0 ppm

ENTER WHEN DONE

If you do not want to proceed with the calibration, press and release the DISPLAY ADJUST NO button to return to the Cal Gas Values Screen.

If you do want to continue with the calibration, proceed to the next step.

17. Connect the tubing from the demand flow regulator to the rigid tube on the probe. Allow the EAGLE 2 to draw gas for one minute.

NOTE: If you are calibrating the catalytic combustible channel with a gas

concentration of 1000 ppm or lower, you must use a 24 inch humidifier tube to connect the demand flow regulator to the rigid tube on the probe.

18. Press and release the POWER ENTER RESET button to set the span adjustment for each channel to the programmed values.

62 • C a l i b r a t i n g U s in g t h e A u t o C a l i b r a t io n M e t h o d EAGLE 2 Operator’s Manual

19. If all channels passed calibration, the following screen sequence occurs.

AUTO CALIBRATION

DONE

REMOVE GAS

END

CALIBRATION MODE

> AUTO CALIBRATION SINGLE CALIBRATION

PERFORM AIR ADJUST

NORMAL OPERATION

If any of the sensors cannot be adjusted to the proper value, a screen displays that indicates a calibration failure and lists the sensor(s) that failed to calibrate. In the example below, the oxygen and H

failed calibration. The other sensors calibrated normally.

S channels

FAIL SENSOR

< > <OXY> <H2S> < >

ENTER TO CONTINUE

The buzzer and alarm LED arrays activate in a double pulsing pattern. Press and release the POWER ENTER RESET button to reset the alarm and return to the Calibration Mode Screen. Attempt to calibrate again. If the failure continues, investigate the cause. See “Troubleshooting” on page 70

20. Disconnect the tubing from the probe.

21. Unscrew the demand flow regulator from the calibration cylinder.

22. Use the RANGE ▼ SHIFT button to place the cursor next to the NORMAL OPERATION menu option, then press and release the POWER ENTER RESET button to return to Measuring Mode.

EAGLE 2 Operator’s Manual Calibrating Using the Auto Calibration Method • 63

Calibrating Using the Single Calibration Method

Single Calibration allows you to calibrate one channel at a time. This is useful if you only want to calibrate one or two channels.

Setting the Fresh Air Reading

1. While in the Calibration Mode Screen, move the cursor to the PERFORM AIR ADJUST menu item by using the RANGE ▼ SHIFT button.

CALIBRATION MODE

AUTO CALIBRATION SINGLE CALIBRATION > PERFORM AIR ADJUST

NORMAL OPERATION

2. Press and release the POWER ENTER RESET button. The following screen appears.

PERFORM

AIR ADJUST?

3. Press and release the AIR ▲ YES button to continue.

If you do not want to continue, press the DISPLAY ADJUST NO button and the unit will return to the Calibration Mode Screen.

64 • C a l i b r a t i n g U s in g t h e S i n g l e C a l i br a t i o n M e t h o d EAGLE 2 Operator’s Manual

4. The EAGLE 2 will indicate that it is adjusting the zero reading for a few seconds, then indicate that the operation is complete before returning to the Calibration Mode Screen.

ADJUSTING ZERO

RELEASE AIR BUTTON

ADJUSTING ZERO

COMPLETE

CALIBRATION MODE

AUTO CALIBRATION

SINGLE CALIBRATION

> PERFORM AIR ADJUST

NORMAL OPERATION

Performing a Span Adjustment in Single Calibration

1. Install the demand flow regulator onto the calibration cylinder.

2. Connect the sample tubing to the demand flow regulator.

EAGLE 2 Operator’s Manual Calibrating Using the Single Calibration Method • 65

4. Move the cursor next to the SINGLE CALIBRATION menu item by using the AIR ▲ YES button.

CALIBRATION MODE

AUTO CALIBRATION

> SINGLE CALIBRATION

PERFORM AIR ADJUST

NORMAL OPERATION

5. Press and release the POWER ENTER RESET button. The Select Sensor Screen appears with the cursor flashing.

SELECT SENSOR TO CALIBRATE

>ESCAPE CH4 OXY H2S CO

6. Move the cursor next to the sensor you want to calibrate with the AIR ▲ YES and RANGE ▼ SHIFT buttons. In the example below, the CH

sensor is selected for span adjustment.

SELECT SENSOR TO CALIBRATE

ESCAPE

>CH4 OXY

H2S CO

If you do not want to proceed with the span adjustment, press and release the DISPLAY ADJUST NO button or place the cursor next to ESCAPE and press and release POWER ENTER RESET to return to the Calibration Mode Screen.

To proceed with the calibration, continue with the next step.

66 • C a l i b r a t i n g U s in g t h e S i n g l e C a l i br a t i o n M e t h o d EAGLE 2 Operator’s Manual

7. Press and release the POWER ENTER RESET button to proceed to the Single Calibration Gas Value Screen for the selected channel. The calibration gas value is flashing.

SINGLE CALIBRATION

CH4 50 %LEL UP/DOWN TO ADJUST CALIBRATION VALUE

ENTER WHEN DONE

8. If necessary, adjust the calibration gas value to match the cylinder

concentration with the AIR ▲ YES and RANGE ▼ SHIFT buttons.

NOTE: The calibration gas value cannot be set lower than the low alarm

9. Press and release the POWER ENTER RESET button to proceed to the

Single Calibration Apply Gas Screen. CAL IN PROCESS is flashing.

SINGLE CALIBRATION

APPLY GAS

CH4 0 %LEL

CAL IN PROCESS

ENTER WHEN DONE

10. Connect the tubing from the demand flow regulator to the rigid tube on the probe. Allow the EAGLE 2 to draw gas for one minute.

NOTE: If you are calibrating the catalytic combustible channel with a gas

concentration of 1000 ppm or lower, you must use a 24 inch humidifier tube to connect the demand flow regulator to the rigid tube on the probe.

11. Press and release the POWER ENTER RESET button to perform the calibration.

12. When the span adjustment is made, the EAGLE 2 calculates the range of adjustment, minimum and maximum, it could have made based on its

EAGLE 2 Operator’s Manual Calibrating Using the Single Calibration Method • 67

response leve l to th e ap pl i ed gas. This calculated range is independent of the calibration gas value that was entered in S te p 8 and Step 9 above. The adjustment range is included on the result screen to indicate the condition of the sensor. If the calibration gas value is in the adjustment range, the span adjustment will pass. If the calibration gas value is out of the adjustment range, the span adjustment will fail.

If the span adjustment is successful, the following screens display.

CH4 CALIBRATION

DONE

( 35 - 98%LEL)

REMOVE GAS

In the example above, the EAGLE 2 could have adjusted the reading as low as 35 %LEL and as high as 98 %LEL.

If the span adjustment is not su cce ss ful, a s cree n d isp la ys th at ind ic ate s a calibration failure.

SELECT SENSOR TO CALIBRATE

ESCAPE

> CH4 OXY

H2S CO

FAILED SENSOR

( 11 - 43%LEL)

<CH4>

ENTER TO CONTINUE

In the example above, the EAGLE 2 could have adjusted the reading as low as 11 %LEL and as high as 43 %LEL. Since the calibration gas value entered was 50 %LEL, the unit failed the span adjustment. The buzzer and alarm LED arrays activate in a double pulsing pattern. Press and release the POWER ENTER RESET button to reset the alarm and return to the Select Sensor Screen. Attempt to calibrate again. If the failure continues, investigate the cause. See “Troubleshooting” on page 70

NOTE: The adjustment range will only appear in the calibration results

screen if the Span Factor item in Setup Mode is set to ON. If the Span Factor is set to OFF, the adjustment range will not appear.

13. Disconnect the tubing from the EAGLE 2’s probe.

14. Repeat Step 6 through Step 13 for any other channels you want to calibrate. Make sure you use an appropriate calibration cylinder for each sensor.

68 • C a l i b r a t i n g U s in g t h e S i n g l e C a l i br a t i o n M e t h o d EAGLE 2 Operator’s Manual

CAUTION: When calibrating the oxygen sensor, verify the concentration of

oxygen listed on the cylinder’s label. For oxygen-free samples (100% nitrogen for example), set the oxygen calibration value to

0.0%.

15. After the last channel is calibrated, disconnect the calibration tubing from the probe, then unscrew the demand flow regulator from the calibration cylinder.

16. With the Select Sensor Screen displayed, place the cursor next to ESCAPE using the AIR ▲ YES button.

SELECT SENSOR TO CALIBRATE

>ESCAPE CH4 OXY H2S CO

17. Press and release the POWER ENTER RESET button to return to the Calibration Mode Screen.

18. Use the RANGE ▼ SHIFT button to place the cursor next to the NORMAL OPERATION menu item, then press and release the POWER ENTER RESET button to return to Measuring Mode.

EAGLE 2 Operator’s Manual Calibrating Using the Single Calibration Method • 69

Chapter 5: Maintenance

Overview

This chapter describes troubleshooting procedures for the EAGLE 2. It also includes procedures for replacing and recharging the batteries and replacing various consumable parts.

WARNING: RKI Instruments, Inc. recommends that service, calibration,

and repair of RKI instruments be performed by personnel properly trained for this work. Replacing sensors and other parts with original equipment does not affect the intrinsic safety of the instrument.

Troubleshooting

The troubleshooting table describes error messages, symptoms, probable causes, and recommended action for problems you may encounter with the EAGLE 2.

Table 9: Troubleshooting the EAGLE 2

Symptoms Probable Causes Recommended Action

• The LCD is blank. • The unit may have been turned off.

• The alkaline batteries may need to be replaced or the Ni-MH batteries recharged.

• The LCD shows abnormally high or low readings but other gas detection instruments do not.

• The EAGLE 2 may need to be recalibrated.

• The sensor for the affected channel(s) may need replacement.

1. To turn on the unit, press and briefly hold the POWER ENTER RESET button.

2. If the unit does not turn on, replace the alkaline batteries or recharge the Ni-MH batteries.

3. If the difficulti es continue, conta ct RKI Instruments, Inc . fo r further instruction.

1. Recalibrate the unit.

2. If the diffic ulties continue, replace the sensor for the affected channel(s) and calibrate the affected channel(s).

3. If the difficulti es continue, conta ct RKI Instruments, Inc . fo r further instruction.

70 • O v e r v i e w EAGLE 2 Operator’s Manual

Table 9: Troubleshooting the EAGLE 2

Symptoms Probable Causes Recommended Action

• The unit indicates flow failure and does not recover when POWER ENTER RESET is pressed and released.

• Auto calibration or single calibration fails.

• The probe tube is clogged.

• The hydrophobic filter disk in the probe is dirty.

• The sample hose has a kink or obstruction.

• The internal hydrophobic filter is dirty.

• The pump is malfunctioning.

• The auto calibration values may not match the cylinder gas concentrations (auto calibration only).

• The charcoal filter is saturated causing an elevated CO reading.

• The sample gas is not reaching the sensors because of a bad connection.

• The calibration cylinder may be out of gas or is outdated.

• The sensor for the affected channel(s) may need replacement.

1. Inspect the probe tube for any obstructions.

2. Inspect the hydrophobi c filter disk in the probe and replace if necessary.

3. Inspect the sample hose f or kinks or obstructions and replace if necessary.

4. Inspect the internal hydroph obic filter and replace if necessary.

5. If difficulties continue, contact RKI Instruments, Inc . fo r further instruction.

1. Check all calibration tubing for leaks or for any bad connections.

2. Make sure the EAGLE 2 has been properly set up for calibration.

3. Change the charcoal filter.

4. V erify that the calibra tion cylinder contains an adequate supply of fresh test sample.

5. If the fail condition continues, replace the sensor(s).

6. If the difficulti es continue, conta ct RKI Instruments, Inc . fo r further instruction.

• Display indicates “SYSTEM FAIL 12” during startup.

EAGLE 2 Operator’s Manual Troubleshooting • 71

• A memory error has occurred.

1. Press and hold the RANGE SHIFT button, then press the DISPLAY ADJUST NO button and release both. The Enter Password Screen will appear.

2. Enter the password, “1994”, to proceed to the Set Default Screen.

3. Press and release the AIR YES button twice to restore the defaults. See “Restoring the Default Settings” on page 128 for a description of issues to consider when restoring the defaults.

4. If difficulties continue, contact RKI Instruments, Inc . fo r further instruction.

▼

▲

Replacing or Recharging the Batteries

WARNING: To prevent ignition of a hazardous atmosphere, batteries

must only be changed or charged in an area known to be nonhazardous.

Replace or charge the batteries when the EAGLE 2 indicates that it is in low battery warning. When in low battery warning, BATT appears vertically along the left side the LCD.

CH4 0%LEL

B OXY 20.9vol%

A H2S 0.0ppm T CO 0ppm

Replacing the Batteries

NOTE: Use Duracell Procell P C 1400 alkal i ne batt eri es, Durace ll M N 1400

alkaline batteries, Energizer E93 or Energizer EN93, or RKI Instruments, Inc. 49-1330RK Ni-MH batteries to maintain the CSA classification of the EAGLE 2. Use of other batteries or mixing alkaline and rechargeable batteries will void the CSA classification and may void the warranty.

1. Turn off the EAGLE 2.

WARNING: Do not remove the batteries while the EAGLE 2 is on.

2. Loosen the battery case thumbscrew by turning it counterclockwise until it disengages from the bottom case. If necessary, use a coin or large flat blade screwdriver to loosen it.

72 • R e p l a c i n g o r R e c ha r g i n g t h e B a t t e ri e s EAGLE 2 Operator’s Manual

Figure 16: Removing the Battery Case

3. P ull th e batte r y ca se aw ay fro m the bottom case. The thumbscrew is captive and will not fall out.

4. Carefully remove the old batteries. Verify that the battery compartment and electrical contacts are clean.

5. Carefully install the new C-size batteries. Follow the battery diagram inside the battery case. Make sure the batteries are pushed in all the way.

Figure 17: Installing the Batteries

6. Reinstall the battery case onto the bottom case tightening the thumbscrew firmly by hand so that there is no visible ga p between the battery ca se and the bottom case.

EAGLE 2 Operator’s Manual Replacing or Recharging the Batteries • 73

Recharging the Ni-MH Batteries

CAUTION: Use with Ni-MH battery p/n 49-1330RK. Charge only with RKI

charger model 49-2175RK, 49-2176RK, or 49-2177RK. Use of other rechargeable batteries or chargers or charging of other rechargeable batteries in the EAGLE 2 will void the warranty.

WARNING: Do not plug the charger cable into a battery pack that

contains alkaline batteries. Do not attempt to charge alkaline batteries.

The charging module can either be used with an AC adapter or a vehicle plug DC adapter. Both adapters plug into the module which then plugs into the EAGLE 2.

1. Plug the power adapter into either an AC outlet or into a vehicle outlet depending on which charger is being used.

2. Make sure the switch on the module is set to “BATT. CHARGER”.

3. Make sure the EAGLE 2 is off.

4. Make sure the adapter and module are connected.

5. Insert the module’s round plug into the EAGLE 2’s charging jack as shown in Figure 18 below.

NOTE: The battery pack does not need to be attached to the EAGLE 2 case

in order to char ge . It m ay be charged separately. This allows a spare battery pack to be charged while the EAGLE 2 is in use.

Figure 18: Connecting the EAGLE 2 to the Charger

74 • R e p l a c i n g o r R e c ha r g i n g t h e B a t t e ri e s EAGLE 2 Operator’s Manual

6. While the batteries are charging, the green indicator LED will be off and the amber one will be on.

7. The charging module has an internal timeout feature set at 9.5 hours. A full charge should be reached in less than 9.5 hours. When a full charge has been reached, both the green and yellow LEDs will be on.

8. If charging should fail, the green indicator LED will be off and the amber one will be blinking.

Table 10 summarizes the battery charger conditions.

Table 10: Battery Charger Conditions

Amber LED Green LED Status

ON OFF CHARGING ON ON READY/FULL BLINKING OFF FAIL OFF ON CONTINUOUS

OPERATION

Replacing the Hydrophobic Probe’s Particle Filter and Hydrophobic Filter Disk

Inspect the probe’s internal components if you notice that the EAGLE 2’s pump sounds bogged down or if an unexplained low flow alarm occurs. Replace the particle filter if it appears to be dirty. Replace the hydrophobic filter disk if it appears dirty or saturated with liquid. Replace the O-rings in the probe if either of them appears damaged.

1. Grasp each end of the clear probe body firmly and unscrew the two halves from each other. One half includes a plastic tube fitting and the probe tube. The other half includes a metal fitting that mates with the EAGLE 2 inlet fitting.

EAGLE 2 Operator’s ManualReplacing the Hydrophobic Probe’s Particle Filter and Hydro-

O-ring (Inside)

Hydrophobic Filter Disk

Particle Filter, Not Included

in PID Probe

O-ring

Probe B ody

Figure 19: Replacing the Particle Filter and Hydrophobic Filter Disk

2. Remove the white hydrophobic filter disk from the top of the particle filter or from the probe body.

3. Remove the particle filter from the probe body.

4. Clean the inside of the probe body if necessary.

5. Hold the probe half that has the plastic tube fitting and the probe tube with the fitting and tube facing down.

6. Place the new cone-shape d particle filter into the probe body so that the wide part of the filter is facing up.

NOTE: Do not install the particle filter into a probe intended to be used with

a PID EAGLE 2.

76 • Replacing the Hydrophobic Probe’s Particle Filter and Hydrophobic Filter

7. Place the new filter disk flat on top of the particle filter. Make sure it is centered over the particle filter.

8. Carefully screw the other half of the probe body onto the half with the particle filter and fil ter disk wh ile keeping the probe oriented vertically to keep the disk centered.

9. When you feel the O-ring being compressed, grasp both ends of the probe and tighten them together very firmly to ensure a seal.

10. To test the seal, do the following.

• install the probe on the EAGLE 2

• startup the EAGLE 2

• confirm that a low flow alarm occurs when you cover the end of the

probe tube with your finger

• if a low flow alarm does not occur, hand tighten the probe further

• if a low flow alarm still does not occur when you cover the probe tube

with your finger, disassemble the probe, inspect the placement of the O-rings and filter disk, reassemble the probe, and re-test it.

Replacing the Hydrophobic Filter

Replace the hydrophobic filter inside the bottom case when it becomes dirty or clogged. An unexplained low flow alarm may indicate that the hydrophobic filter is dirty and needs to be replaced.

1. Verify that the EAGLE 2 is off.

2. Place the EAGLE 2 upside down on a flat surface or hold it upside down.

3. Unscrew the three case screws until they disengage from the top case. They are captive screws so they will not fall off of the bottom case.

4. Turn the EAGLE 2 right side up and carefully lift the top case away from the bottom case. Be careful not to lift it so far that it pulls on the main PCB with the cable that connects the top case to the main PCB.

5. Lay the top case down next to the bottom case to allow access to the flow system.

EAGLE 2 Operator’s Manual Replacing the Hydrophobic Filter • 77

6. Locate the hydrophobic filter. It is over the oxygen sensor. Note which side of the hydrophobic filter has the RKI logo and part number. This is the inlet side and should be facing toward the front of the EAGLE 2.

RKI Logo & Part Number on This Side

Hydropho bic Filter

Bottom Case Shown Without

Tubin g For Clarity

Grey Connecting Tube, 2X

Figure 20: Replacing the Hydrophobic Filter

7. Pull the grey connecting tubes off of each end of the filter and remove it.

8. Install the new filter with the red RKI logo and part number on the inlet side of the flow chamber, facing the front of the EAGLE 2. Make sure to push the grey connection tubes all the way onto the filter’s hose barbs.

9. Confirm that the main PCB is seated in its slots and that its bottom edge is resting on the bottom of the bottom case. If the main PCB is not seated properly, then it may be damaged when the top case is re-installed.

10. Make sure that the top case gasket is fully seated in its groove and carefully put the top case back on the bottom case. If you have any difficulty mating the top and bottom cases, inspect the placement of the main PCB and the placement of the top case gasket.

11. Turn the EAGLE 2 upside down and tighten the three case screws to secure the top case to the bottom case.

78 • R e p l a c i n g t h e Hyd r o p h o b i c F i lt e r EAGLE 2 Operator’s Manual

Replacing the Charcoal Filter

1. Verify that the EAGLE 2 is off.

2. Place the EAGLE 2 upside down on a flat surface or hold it upside down.

3. Unscrew the three case screws until they disengage from the top case. They are captive screws so they will not fall off of the bottom case.

5. Lay the top case down next to the bottom case to allow access to the flow system.

6. Locate the charcoal filter. It is next to the CO sensor at the front of the flow chamber.

Endcap

Charcoal Filter

Figure 21: Replacing the Charcoal Filter

7. Grasp the black charcoal filter endcap and pull it of f of the c har coal f il ter.

8. Grasp the top of the charcoal filter firmly and pull it out of the flow chamber. Insert the replacement charcoal filter into the filter position in

EAGLE 2 Operator’s Manual Replacing the Charcoal Filter • 79

the flow chamber and push it in until it bottoms out.

9. Insert the charcoal filter endcap into the end of the charcoal filter and push it in until it bottoms out.

10. Confirm that the main PCB is seated in its slots and that its bottom edge is resting on the bottom of the bottom case. If the main PCB is not seated properly, then it may be damaged when the top case is re-installed.

11. Make sure that the top case gasket is fully seated in its groove and carefully put the top case back on the bottom case. If you have any difficulty mating the top and bottom cases, inspect the placement of the main PCB and the placement of the top case gasket.

12. Turn the EAGLE 2 upside down and tighten the three case screws to secure the top case to the bottom case.

Checking the Combustible Gas Sensor’s Condition

If you suspect that the combustible sensor has been contaminated or may be reaching the end of its operational life, do the following to confirm it is still operating properly:

1. Perform a calibration using single calibr ation as des cribed in “Calib rating Using the Single Calibration Method” on page 64.

2. When you perform the span adjustment, note the adjustment range on the result screen as described in Step 12 and Step on page 68.

3. A new sensor can typically be adjusted to more than twice the calibration gas concentration. If the result screen indicates that the EAGLE 2 could not adjust the combustible gas reading to be at least 10% higher than the calibration gas concentration, then the sensor should be replaced as soon as possible.

Replacing a Sensor

1. Verify that the EAGLE 2 is off.

2. Place the EAGLE 2 upside down on a flat surface or hold it upside down.

3. Unscrew the three case screws until they disengage from the top case. They are captive screws so they will not fall off of the bottom case.

80 • C h e c k i n g t h e C o m b u s ti b l e G a s S e n s o r ’ s C o ndi t i o n EAGLE 2 Operator’s Manual

5. Lay the top case down next to the bottom case to allow access to the flow system.

6. Locate the sensor you want to replace and remove it from the flow chamber.

H2S Sens or

LEL Sens or Cable LEL Sens or Bracket

CO Sensor

Oxygen Sens or Bra cket

Oxygen Sensor

Main PCB

LEL Sens or

LEL C onnec tor

H2S Connector

Flow Block

CO Connec to r

Oxygen Connector

Figure 22: Replacing a Sensor

7. To remove the LEL sensor, do the following:

• Unscrew and remove the two screws that hold down the LEL sensor

bracket.

• Grasp the LEL sensor connector and gently pull it up until it ei ther

disengages from the LEL sensor or the LEL sensor comes out of the flow chamber with the connector.

• If the sensor came out with the connector, remove the sensor from the

connector.

EAGLE 2 Operator’s Manual Replacing a Sensor • 81

• If the sensor stayed in the flow chamber, grasp the sensor and pull it

out of the flow chamber.

8. To remove the oxygen sensor, do the following:

• Unscrew the two screws that hold the oxygen sensor bracket a few

turns so that you can rotate and remove the oxygen sensor bracket. Make sure to note the routing of the oxygen sensor cable to the main PCB so that you can route the replacement sensor cable the same way. Also make sure that the O-ring in the bottom of the flow chamber does not come out with the sensor.

• Move the hydrophobic filter towards the bottom case side wall and

pull the oxygen sensor out of the flow chamber.

• Hold the main PCB to support it where the oxygen sensor cable

connects to it.

• Grasp the connector on the end of the sensor cable and pull the

connector away from the main PCB to disconnect it from the main PCB.

9. To remove the H

S and CO sensors, do the following:

• Grasp the sensor firmly and rock it back and forth slightly while

pulling on it. Make sure to note the routing of the sensor cable to the main PCB so that you can route the replacement sensor cable the same way.

• If the sensor does not come out of the flow chamber easily enough

using this method, grasp it with a pair of pliers and rock it back and forth slightly while pulling on it.

CAUTION: If using pliers to remove a sensor, be careful not to damage the

sensor in case you find that the sensor is still functional and does not need to be replaced.

• Hold the main PCB to support it where the se nsor cable connects t o it.

• Grasp the connector on the end of the sensor cable and pull the

connector away from the main PCB to disconnect it from the main PCB.

10. Install the new sensor.

11. To install the LEL sensor, do the following:

• Plug the replacement sensor into the sensor connector on the LEL

sensor cable.

82 • R e p l a c i n g a S e n sor EAGLE 2 Operator’s Manual

• Insert the LEL sensor into the LEL sensor chamber in the flow

chamber.

• Line up the holes in the LEL sensor bracket with the two standoffs on

either side of the LEL sensor chamber.

• Install the two sensor bracket screws tightening them a little at a time

alternately to push the sensor into its chamber evenly.

12. To install the oxygen sensor, do the following:

• Confirm that the sealing O-ring is still in the bottom of the oxygen

sensor chamber in the flow chamber and insert the oxygen sensor face down into the chamber.

• Route the sensor cable the same way the old sensor cable was routed

and connect it to the main PCB. Make sure to support the main PCB when making the connection.

• Reinstall the oxygen sensor bracket and tighten both bracket screws

firmly.

13. To install the H

S and CO sensors, do the following:

• Insert the sensor face down into the sensor chamber in the flow

chamber.

• Push the sensor in until it bottoms out.

• Route the sensor cable the same way the old sensor cable was routed

and connect it to the main PCB. Make sure to support the main PCB when making the connection.

14. Confirm that the main PCB is seated in its slots and that its bottom edge is resting on the bottom of the bottom case. If the main PCB is not seated properly, then it may be damaged when the top case is re-installed.

15. Make sure that the top case gasket is fully seated in its groove and carefully put the top case back on the bottom case. If you have any difficulty mating the top and bottom cases, inspect the placement of the main PCB and the placement of the top case gasket.

16. Turn the EAGLE 2 upside down and tighten the three case screws to secure the top case to the bottom case.

17. Calibrate the new sensors as described in “Chapter 4: Calibration Mode” on page 55.

EAGLE 2 Operator’s Manual Replacing a Sensor • 83

General Parts List

Table 11 lists part numbers for the EAGLE 2’s replacement parts and accessories.

Table 11 : General Par ts List

Part Number Description

06-1248RK-03 Calibration kit tubing,3 foot length 07-7210RK O-ring for inlet fitting half of probe 07-7304RK O-ring for tube half of probe 13-1061RK Panel screw, captive, 6-32 x 1/2 inch, for bottom case 13-1081RK Thumbscrew, captive, 10-32 x 2 inches, for battery case 30-0600RK-01 Pump 33-0156RK-01 Filter element, hydrophobic disk, for standard 80-0131RK-10 pro be,

pack of 5 33-0173RK Internal hydrophobic filter 33-1200RK Particle filter for standard 80-0131RK-10 probe 33-2002RK-01 Humidifier, 24 inch, for calibration of catalytic combustible channel

with gas concentrations of 1000 ppm or lower 33-6090RK Charcoal filter 35-0110RK Dummy sensor , CO or H

35-0111RK Dummy sensor, oxygen sensor position 35-0112RK Dummy sensor, LEL sensor position 47-1016RK Vehicle plug 12 VDC adapter cable for charger 47-5010RK TC/LEL sensor cable 47-5027RK Downloading cable, USB/IrDA adapter 49-0115RK AC adapter 49-1130RK C size alkaline battery 49-1330RK C size Ni-MH battery 49-2174RK Charging module 49-2175RK 115/220 VAC charger

S sensor position

49-2176RK 12 VDC charger 49-2177RK 1 15/220 VAC and 12 VDC charger 65-0601RK Oxygen sensor

84 • G e n e r a l P a r t s Li s t EAGLE 2 Operator’s Manual

Table 11: General Parts List (cont.)

Part Number Description

65-2005RK Carbon monoxide (CO) sensor 71-0154RK Operator’s Manual, EAGLE 2 (this document) 71-0170RK Operator’s Manual, Eagle 2 Data Logger Management Program 71-8003RK EAGLE 2 Product CD, includes Data Management Program, User

Setup Program, and all operator’s manuals 80-0131RK-10 10 inch hydrophobic probe (standard probe) 80-0133RK-10 30 inch aluminum probe 80-0134RK-10 4 foot stainless steel hydrophobic probe 80-0135RK-10 30 inch stainless steel hydrophobic probe 80-0136RK 32 inch telescoping fiberglass probe w/dust filter 80-0137RK 10 inch probe w/dust filter 80-0143RK 7 foot telescoping fiberglass probe w/dust filter 80-0156RK-10 30 inch fiberglass hydrophobic probe 80-0160RK-12 12 foot extendible probe 80-0160RK-18 18 foot extendible probe 80-0405RK Dilution fitting, 1:1 80-0406RK Dilution fitting, 3:1 80-05XXRK Sample hose. Replace “XX” with length in feet. 5 foot hose is

standard. Available lengths for the EAGLE 2 are 3, 4, 5, 6, 10, 15,

20, 25, 30, 35, 40, 50, 75, 100, and 125 feet. 81-0090RK-01 Calibration cylinder, steel, 34 liter, three-gas (CH

81-0090RK-03 Calibration cylinder, steel, 103 liter, three-gas (CH 81-0154RK-02 Calibration cylinder, aluminum, 58 liter; four-gas (CH 81-0154RK-04 Calibration cylinder, aluminum, 34 liter; four-gas (CH

4/O2

/CO)

4/O2

/ H2S/CO) / H2S/CO)

81-1054RK Regulator, demand-flow type (for 58- and 103-liter aluminum or

steel, and 34-liter aluminum calibrati on cylinders) 81-5302RK Calibration kit, for LEL/Oxy/CO unit, w/demand flow regulator, 103

liter cylinder 81-5401RK Calibration kit, for LEL/Oxy/H

S/CO unit, w/demand flow regulator,

58 liter cylinder ES-87RW-H2S Hydrogen Sulfide (H

S) sensor

NC-6260B LEL combustible sensor, catalytic

EAGLE 2 Operator’s Manual General Parts List • 85

Appendix A: Calibrating with a Sample Bag

Overview

The EAGLE 2 can be calibrated with a gas bag calibration kit instead of a demand flow regulator kit. This appendix describes how to use a sample bag calibration kit to calibrate the EAGLE 2. A parts list at the end of this appendix lists spare parts for the calibration kit.

Calibration Supplies and Equipment

Calibration Tubing

Regulator

Calibration Cylinder

HoseClamp

Gas Ba g

Figure 23: Gas Bag Calibration Kit

86 • O v e r v i e w EAGLE 2 Operator’s Manual

To calibrate the EAGLE 2, you will need:

• Known calibrating samples of the gases being detected. The combustible and toxic gas samples should have concentrations between 10 and 50% of the full scale value. For example, if you are calibrating the catalytic combustible gas channel, your calibration cylinder should have a combustible gas concentration between 10% LEL and 50% LEL. An oxygen-free source, such as 100% nitrogen is recommended for setting the oxygen zero.

NOTE: The catalytic combustible channel can be set up for and calibrated to

CAUTION: When using auto calibration with the standard 4-gas EAGLE 2,

• A gas collection bag with hose clamp

• A 6 LPM fixed-flow regulator or a dispensing valve

• Calibration tubing

To calibrate the combustible gas, oxygen, CO, and H time, automatically, with no need for a zero-oxygen source, you can use the

auto calibration feature with a 4-gas cylinder . If the H then a 3-gas cylinder may be used for auto calibration. This document

includes instructions for auto calibration with a fixed flow regulator or dispensing valve, a sample bag, and a 4-gas cylinder. This document also includes instructions for calibrating one channel at a time using single calibration.

Entering Calibration Mode

To enter Calibration Mode, do the following:

1. Find a fresh-air environment. This is an environment free of toxic or

combustible gases and of normal oxygen content (20.9%).

S sensors at the same

S channel is not active,

2. While in Measuring Mode, press and hold the RANGE ▼ SHIFT button,

then press the DISPLAY ADJUST NO button and release both buttons.

EAGLE 2 Operator’s Manual Entering Calibration Mode • 87

3. If the unit prompts you for the password, enter it by using the AIR ▲

YES and RANGE ▼ SHIFT buttons to select each password number and then pressing and releasing POWER ENTER RESET to enter the number and move on to the next one.

4. The Calibration Mode Screen displays with the cursor next to AUTO

CALIBRATION.

CALIBRATION MODE

> AUTO CALIBRATION SINGLE CALIBRATION

PERFORM AIR ADJUST

NORMAL OPERATION

NOTE: The following screens illustrate a 4-gas EAGLE 2 for detection of

(%LEL using catalytic sensor), oxygen, H2S, and CO. Your

EAGLE 2 may display slightly different screens.

Calibrating Using the Auto Calibration Method

This method allows you to calibrate the CH4 (%LEL catalytic combustible sensor), oxygen, H with the RKI 4-gas calibration cylinder and is the quickest and most

convenient method to calibrate the EAGLE 2.

Setting the Fresh Air Reading

1. While in the Calibration Mode Screen, move the cursor to the

PERFORM AIR ADJUST menu item by using the RANGE ▼ SHIFT button.

S, and CO sensors simultaneously. It is designed for use

CALIBRATION MODE

AUTO CALIBRATION SINGLE CALIBRATION > PERFORM AIR ADJUST

NORMAL OPERATION

88 • C a l i b r a t i n g U s in g t h e A u t o C a l i b r a t io n M e t h o d EAGLE 2 Operator’s Manual

2. Press and release the POWER ENTER RESET button. The following screen appears.

PERFORM

AIR ADJUST?

3. Press and release the AIR ▲ YES button to continue. If you do not want to continue, press the DISPLAY ADJUST NO button and the unit will return to the Calibration Mode Screen.

4. The EAGLE 2 will indicate that it is adjusting the zero reading for a few seconds, then indicate that the operation is complete before returning to the Calibration Mode Screen.

ADJUSTING ZERO

RELEASE AIR BUTTON

ADJUSTING ZERO

COMPLETE

CALIBRATION MODE

AUTO CALIBRATION

SINGLE CALIBRATION

> PERFORM AIR ADJUST

NORMAL OPERATION

Performing a Span Adjustment in Auto Calibration

1. Slide the tubing clamp onto the tubing and connect the tubing to the sample bag’s inlet fitting. Leave the clamp unclamped for now.

EAGLE 2 Operator’s Manual Calibrating Using the Auto Calibration Method • 89

2. Install the probe on the EAGLE 2 inlet fitting. Make sure the probe is complete with internal O-ring and membrane and that the two halves of the probe are tightened firmly together to avoid leaks that can affect the calibration. See Figure 19, “Replacing the Particle Filter and Hydrophobic Filter Disk” on page 76 for an illustration of the internal parts of the probe.

3. Move the cursor next to the AUTO CALIBRATION menu item by using the AIR ▲ YES button.

CALIBRATION MODE

> AUTO CALIBRATION SINGLE CALIBRATION

PERFORM AIR ADJUST

NORMAL OPERATION

4. Press and release the POWER ENTER RESET button to display the Calibration Gas Values Screen.

CAL GAS VALUES

CH4 50 %LEL

OXY 12.0 vol% H2S 25.0 ppm

CO 50 ppm

ENTER TO BEGIN CAL

The gas concentrations displayed in the Calibration Gas Values Screen must match the gas concentrations listed on the 4-gas calibration cylinder. If all concentrations match, go to Step 15. If one or more concentrations do not match, continue with Step 5. If you do not want to continue with the calibration, press and release the DISPLAY ADJUST NO button to return to the Calibration Mode Screen.

NOTE: The RKI 4-gas cylinder typically contains 12% O

When using the auto calibration method, be sure to set the “OXY” auto calibration gas value to agree with the concentration listed on the cylinder’s label, not zero.

by volume.

90 • C a l i b r a t i n g U s in g t h e A u t o C a l i b r a t io n M e t h o d EAGLE 2 Operator’s Manual
