RIKA Jazz, Scena, Tema Operating Instructions Manual

Download

This Manual Must Always be Available to the Stove Operator

Operating Instructions

Rika: Jazz, Scena,Tema With RLS Air Distribtion System

Wood Burning Stoves

IN1218 Edition 2 February 2011

PART NUMBER

SERIAL NUMBER

Instructions Part Number IN1218 Ed 2

Contents

Technical Details .............................................................................................................2

The Model Range Explained ............................................................................................4

Model Identiﬁcation ........................................................................................................4

Wood Stoves ....................................................................................................................5

Wood ...............................................................................................................................5

Choice of Logs .................................................................................................................6

Stove Construction ..........................................................................................................7

RLS Control ......................................................................................................................8

The Grate (Jazz,Tema) .....................................................................................................9

The Grate (Scena) ............................................................................................................9

Ash Removal ................................................................................................................10

Ash Removal (Jazz,Tema) .............................................................................................10

Ash Removal (Scena) ....................................................................................................10

First Lighting of the Stove .............................................................................................11

Curing ...........................................................................................................................11

Stone Finish ..................................................................................................................11

First ﬁring .....................................................................................................................11

General Lighting and Operation ...................................................................................12

General Maintenance ....................................................................................................14

1) Cleaning the Glass ....................................................................................................14

2) Door and Glass Seals .................................................................................................14

3) The Stove Body .........................................................................................................14

4) Maintaining Painted Surfaces ...................................................................................14

5) Soapstone Cladding ..................................................................................................15

6) Combustion Chamber ...............................................................................................15

7) Door Latches and Hinges ..........................................................................................15

Technical Details

Model JAZZ SCENA TEMA

Nominal Heat Output EN13240

Minimum Heat Output 3.5kW 5kW 3kW Loading Rate 1.7 kg/h 2.5 kg/h Efﬁciency Net 81.3% 80.1% 83.2% Efﬁciency Gross 74.0% 72.8% 75.7% Free Air Requirement if air

permeability >5.0m³/(h.m²) Free Air Requirement if air

permeability <5.0m³/(h.m²)

7kW 10kW 6kW

1100mm² 2750mm² 550mm²

3850mm² 5500mm² 3300mm²

Instructions Part Number IN1218 Ed 2

IMPORTANT

 The installation of this appliance must comply with all local regulations, including those referring to national and European Standards before it can be operated. The stove is not suitable for a shared ﬂue.

 Improper adjustment, alteration, maintenance or the ﬁtting of replacement parts not recommended by the manufacturer can cause injury or property damage. Do not operate the stove with faulty seals or damaged glass.

 Ensure all manuals are kept safely and are available for the user at all times.

 Do not store or use petrol or other ﬂammable vapours and liquids in the vicinity of this or any other heating

appliance. Do not use aerosol sprays near the stove when the stove is alight. Do not burn anything but natural wood on this appliance.

 Due to the high operating temperatures of this appliance it should be located away from pedestrian trafﬁc and away from furniture and draperies. Do not store paper or wood near the appliance. Any mats and rugs put in front of the stove should be ﬁre proof and secured to prevent the possibility of tripping.

 Advise all persons as to the stove’s high surface temperatures, including visitors. If it is possible for children or inﬁrm adults to come into contact with the stove, ﬁt a suitable ﬁre guard. Never let children “help” with the stove in any way, even when the stove is cold.

 It is imperative that all air passageways into, out of, and within the appliance are kept clean. All permanent ventilation in to the room provided for the stove must remain clear and unobstructed at all times. Consideration must be given to the need for extra ventilation if another heating source needing air is to be operated simultaneously. If an extraction fan is proposed to be ﬁtted to a connecting area of the house, after the stove has been installed, professional advice should be sought from a qualiﬁed engineer.

 If a ﬂue blockage or adverse weather conditions cause the insert to emit smoke, do not treat it as merely a nuisance, this smoke will indicate that carbon monoxide is being emitted into the room. Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur. However persistent fume emissions are potentially dangerous and must not be tolerated.

WARNING: If fume emissions persist the following immediate action should be taken:

Turn the insert to its minimum ﬁring rate, open windows to ventilate the room and leave the premises and allow the insert’s fuel to burn out before closing the windows. Do not re-light the insert without consulting a qualiﬁed engineer. Your installing engineer should have ﬁtted a CO alarm in the same room as the stove. If the alarm sounds unexpectedly, follow the instructions in the above paragraph.

 In the event of a chimney ﬁre the stove should be turned to its minimum setting and the ﬁre brigade informed. Do not re-light the stove until the complete installation has been inspected by a qualiﬁed engineer.

 The appliance should be inspected regularly and the chimney cleaned at least annually. More frequent cleaning may be required and the advice of a qualiﬁed chimney sweep should be sought. Always check for any ﬂue blockage before lighting the stove after a prolonged shut down.

 This stove has been carefully designed and constructed to give clean burning with optimum efﬁciency and safety, but as with all stoves these standards will not be achieved unless the stove is installed and maintained regularly by qualiﬁed engineers. It must also be operated strictly with the procedures given in this manual. If you are unsure about anything concerning your stove please seek professional advice.

Instructions Part Number IN1218 Ed 2

The Model Range Explained

Thank you for purchasing your stove and helping to protect our environment. RIKA and Euroheat insist on progressive development to produce products which are market leading. Our aims are to produce stoves with the latest innovations, user friendly operation and high efﬁciency for lower cost operation.

This operation manual offers user information for the range of RIKA: JAZZ, SCENA and TEMA with RLS Air Distribution System.

Although the exterior clothes change between model ranges, for example the JAZZ and the SCENA, the internal workings and controls are very much the same.

Model Identiﬁcation

You will see on the front page of this document a label which conﬁrms which model you have. This label also advises you of the stove’s unique serial number. This information is also attached to your stove for reference.

Important

Please ensure the warranty registration form is returned to Euroheat. In this way the model and its history will be recorded for reference in the future.

HETAS

For HETAS approval model information see HETAS web site www.hetas.co.uk

Stoves supplied through Euroheat authorized retailers. For England, Wales, Scotland and Northern Ireland

Euroheat Distributors (H.B.S). Ltd. Unit 2, Court Farm Business Park, Bishops Frome, Worcestershire. WR6 5AY.

Whilst we are always happy to assist you, please make sure you have read this manual before requesting support. First contact your supplying retailer. If you ﬁnd this not successful contact the Euroheat Technical Support Team. Technical support telephone number 01885 491117. E-mail tech@euroheat.co.uk. Before telephoning ensure you have your stove’s serial number to hand. This can be found on the front of either the operating, installation, warranty registration, or on the stove identiﬁcation label.

Euroheat unfortunately are unable to offer support for appliances which were not supplied by Euroheat.

RIKA Innovative Ofentechnik GmbH Müllerviertel 20 AT - 4563 Micheldorf

www.euroheat.co.uk

info@euroheat.co.uk

Tel.: 0043 (0)7582 / 686 - 41 Fax: 0043 (0)7582 / 686 - 43

Email: ofﬁce@rika.at Website: www.rika.at

Instructions Part Number IN1218 Ed 2

Wood Stoves

Gas and oil are consistent fuels and stoves can be designed to obtain the maximum heat from them with the user having to do no more than choose a heat setting. Solid fuels are almost inﬁnitely variable and however well a stove has been designed, its performance will ultimately depend on the way the user operates it. Whilst we have endeavoured to make the stove as simple to operate as possible, understanding just a little about the fuels and the way your stove was designed to burn them will be rewarded by your being able to achieve the best from your stove with the least effort.

As a fuel, wood is visually exciting, environmentally friendly, and a renewable source of energy but it is one of the most complex fuels to burn. Wood contains two sorts of components which burn. The ﬁxed carbons which burn as the glowing embers, and the compounds that vaporize when heated to burn as volatile gasses, giving the endlessly changing ﬂame patterns. The ﬁxed carbon, which is charcoal, is a virtually trouble free fuel and needs little assistance to burn cleanly, but it would be difﬁcult to describe it as visually entertaining.

Always put logs on to the ﬁre before ﬂames from previous logs have extinguished, this will ensure that when the new logs begin releasing gasses it will ignite. Unburned gasses will cause smoke and tar deposits and wastes potential heat. Putting on too much wood at one time will both restrict the air supply and cool the combustion chamber making it more difﬁcult for the gasses to burn cleanly.

Never put on fresh wood whilst operating the stove with a minuscule air supply as a technique for operating for long periods without attention, it will cause both chilling and air restriction. Properly controlling the rate at which wood burns is not simply a matter of restricting the air supply, nor running the stove with a very small ﬁre, it is maintaining the temperature and ignition ﬂames in the stove whilst balancing the release of gasses to match the chosen air supply.

Wood

All wood will burn slightly differently, but the most important differences between woods is their moisture content. Until the moisture has been driven off from the wood it will remain below its combustion temperature. When the outer skin has dried and beginning to burn, much of this heat energy will be wasted having to boil off the water remaining in the core of the wood. Copious amounts of water vapour, in all but the most insulated ﬂue, will condense, and mix with the products of combustion to form creosote and other undesirable substances which will eat away the fabric of the ﬂue, and eventually build up to block the ﬂue. At any time this build up of tar will be capable of causing a chimney ﬁre.

The advice to burn only “dry” wood is sometimes confusing because the atmospheric moisture will prevent wood ever becoming “dry”. It is acceptable to burn wood with a moisture content of less than 20%, which can

be achieved by splitting the wood, stacking it so as to allow air to circulate within the stack and storing it under cover for between 18 months and 30 months, depending on prevailing climatic conditions. The use of a wood moisture content meter will conﬁrm the amount of water remaining in the wood easily. The practice of drying wood by the stove should be discouraged, ﬁrstly because it should be unnecessary, and secondly because stored wood will invariably become the home to many varieties of insects, many of whom enjoy eating wood. To introduce them into your house and encourage them with heat and time to make new homes in your furniture and structural timbers is not recommended.

Instructions Part Number IN1218 Ed 2

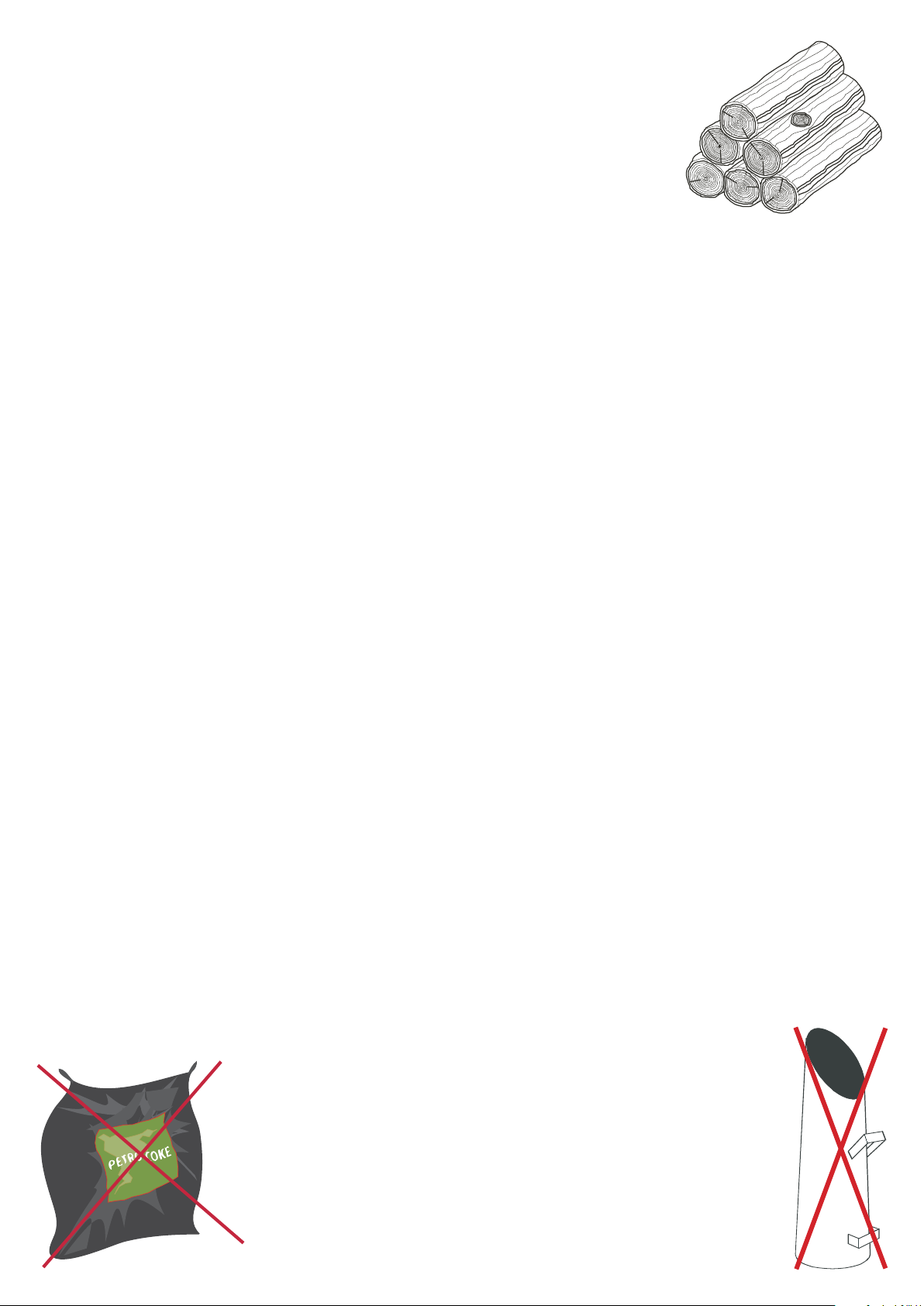

Choice of Logs

Use of fuels in smoke exempt areas.

If you are operating this stove within a smoke exempt area it is approved for use for the following fuels only: Seasoned dry wood. With a moisture content of 20% or less

Please note that HETAS Ltd Appliances Approval only covers the use of wood logs on this appliance. HETAS Ltd Approval does not cover the use of other fuels either alone or mixed with the wood logs, nor does it cover instructions for the use of other fuels.

Never burn wood that is not dry or wood that has been subject to a manufacturing process, such as chipboard, as these contain resins of uncertain toxicity when burned. For the same reasons, wood that has been painted or treated with a preservative should never be burned. Natural wood is described as being either “hardwood” or “soft wood”. Typically all broad leaf trees that lose their leaves in the winter are called hard woods, and the evergreen conifers are called soft woods. Whilst the wood from the two groups have structural differences, the terms do not deﬁne the density or hardness of the wood. Balsa, one of the softest and lightest of woods is classiﬁed as being a hardwood and Hemlock, a soft wood, is extremely hard. The less density wood has, the more its structure is made up of open spaces meaning it will season faster and because of these voids it will burn faster because it will expose more surface area as it disintegrates. This makes light woods suitable for kindling or a rapidly developing ﬁre but unless you enjoy putting wood onto a ﬁre every few minutes it is unsuitable for burning over long periods. Although there is a difference in the speed at which woods burn, equal weights of wood will give very similar amounts of heat. Because logs are concentric tubes of cells they season faster if they are split, halving the tubes and allowing the moisture to evaporate more easily. Similarly it also allows the volatile gasses given off when the wood is heated in a stove to be emitted along its full length rather than at the log’s ends. This helps the gasses to be distributed more evenly within the stove and improves not only the efﬁciency, and emission reduction of wood burning but gives a more attractive ﬁre. Putting logs onto the ﬁre, bark side down and laying them, well spaced, in random orientation, rather than uniformly horizontally, will also help to increase the efﬁciency and attractiveness of the ﬁre. To make this easier the ideal log length will be the length the stove’s combustion chamber can accommodate in all directions, and of proportionate cross-section, to allow you to load wood in a “higgledy-piggledy” manner.

DO NOT BURN

Anything but dry, natural wood. Wood that has been painted, treated or has hinges, nails or any plastic attached will almost certainly emit toxic matter when burned. For similar reasons bonded wood products such a chipboard, plywood or ﬁbre board must never be burned.

DO NOT BURN

Household waste. Many seemingly innocuous items like box packaging have been coated with glazes which will produce toxic matter when burned. One old video tape put on the ﬁre will cause more pollution in a few minutes than a life time of wood burning. Not only will a ﬁre burning rubbish pollute, the stove is not designed to contain such an assortment of sizes and weights and a ﬂaming box falling from the stove when

the door is opened will present an unacceptable ﬁre hazard.

Any smokeless coal, anthracite, ordinary bituminous coal (house coal), petroleum based fuels. They will damage the stove and their use will void any warranty the stove carries.

COAL

Instructions Part Number IN1218 Ed 2

Stove Construction

Stove pictured Jazz

Large Glass

Area to

Optimise the

Visual Effect

of the Fire

Cast Iron Used

in Door and Many Other Parts of the

Stove for

Longevity

Soapstone is

Ideally Suited

for use as a

Heat Storage

Stone

Patented

Combustion

Technology

Give Higher

Temperatures

for Greater

Efﬁciency

Robust 4mm

Thick Steel

Stove Body

Stove pictured Scena

Large Glass

Area to

Optimise the

Visual Effect

of the Fire

Optional Fresh Air Kit to Minimise

Draughts

Top or Rear

Flue Options

Scena

Fire Bricks

Enable Higher

Combustion

Temperatures

Single Control

for Ease of

Operation

Instructions Part Number IN1218 Ed 2

RLS Control

Secondary Air

Primary Air

Closed

Minimum

Fully Open

Fully

Open

Lighting and reviving

Heating Rate

Secondary Air

Primary

Air

Closed

Minimum

Fully Open

Fully

Open

Lighting and reviving

Heating Rate

Position requiring

latch operation

Position requiring latch operation

The RLS Air Distribution System ensures that the stove lights and achieves its operating temperatures quickly. To do this there is one simple control situated on the front of the stove below the main ﬁre door.

When slid fully to the right it allows the maximum primary and secondary air into the stove to ensure that the ﬁre lights and establishes quickly. There is air entering the stove from both below the grate and above the grate. Once the ﬁre is established the control should be slid to the mid position, and once fully established, the burn rate can be set to your requirement by sliding the control to the left. In the mid position the primary under grate air is shut off and only the secondary air, pre-heated above grate air, is entering the stove ensuring maximum combustion efﬁciency.

Caution: Once the ﬁre has established NEVER run the stove with the control set to the right of the mid position, as this could over ﬁre the stove leading to damage to the cast iron grate, the ﬁre bricks and the glass. Only use this area of the control for lighting and revitalising the ﬁre.

Instructions Part Number IN1218 Ed 2

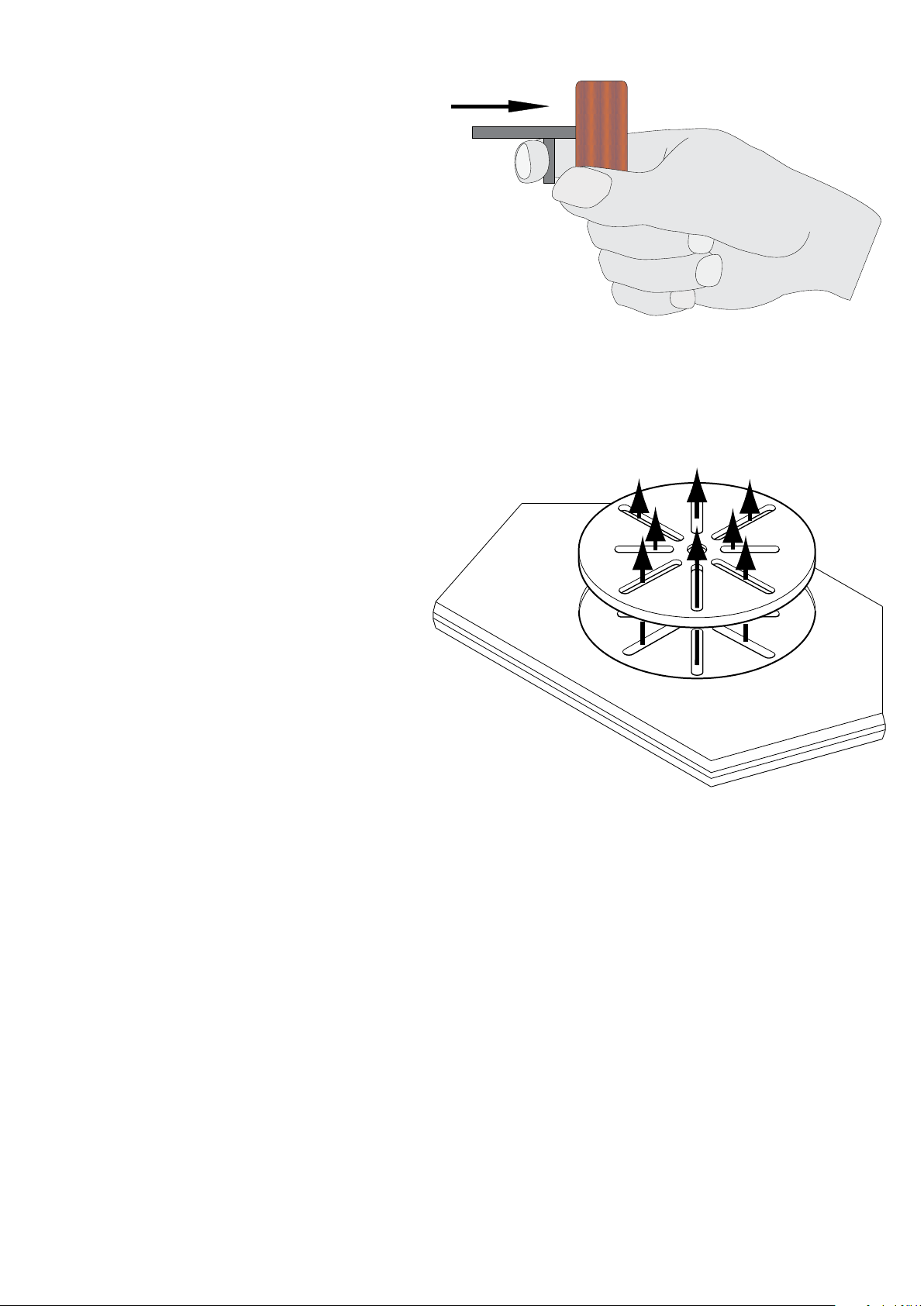

Air Control Latch Operation

To prevent the inadvertent opening of the primary air supply while it is operating, the stove’s air supply adjustment control has a stop. This stop prevents the opening of the primary air supply and has to be overridden by operating the latch, behind the control knob, to release the stop mechanism.

Operating the latch to open the primary air supply at times other than to light the stove’s ﬁre or revive an almost dormant ﬁre will cause polluting emissions from the stove.

The Grate (Jazz,Tema)

The cast iron grate on which the ﬁre sits can be set in an open and a closed position. The primary air for lighting requires the grate to be set in the open position to allow the air to get to the bed of the ﬁre. To move the grate from one position to another the riddling arm can be moved to either the left or the right dependant upon the model to open or close the holes in the grate. Once the stove is lit it is not necessary to close the holes in the grate as the air will be closed off by the RLS air control mechanism directing the air.

It can also be used to remove the ash from the ﬁre bed. By operating the riddling lever the grate is oscillated and the ash will drop into the ash pan below, see page 10.

The Grate (Scena)

The grate in the Scena is a ﬂat cast iron rectangular plate with numerous round holes. This cannot be opened and closed or oscillated for ash removal so it is essential to remove the ash from below the grate, see page 10, so that the primary air can enter the stove on lighting.

Instructions Part Number IN1218 Ed 2

Ash Removal

Before lighting the stove for the ﬁrst time ensure that the ash pan is ﬁtted and empty.

Removal of ash should only be carried out when the stove is cold.

Daily removal of ash is not necessary when burning wood. The ash should be removed regularly to prevent excessive build up below the grate as a full ash pan will not allow the primary air to pass through the grate. Always use the glove supplied with the stove when carrying the ash pan, even when you think the ash is cold. Only empty the ash pan into a non-combustible container. There will be hot embers in the stove, long, even days, after the ﬁre appeared to extinguish. Never use a plastic bristled brush or a vacuum cleaner to remove hot ash.

Never let children “help” with the stove in any way.

Ash Vac AC008

The motorised model removes the requirement of using your vaccum as it has a built in vaccum motor.

Euroheat ASH VAC

The Ash Vac is an extremely convenient tool, used for removing extinguished ash from your wood stove or ﬁreplace. This large capacity, simple to operate, canister system is used in conjunction with your existing vacuum cleaner.

The Ash Vac uses a simple cyclonic principle to keep the ash in the canister, this means your household vacuum cleaner will remain unaffected by the ash removal process, most importantly it will remain clean.

Motorised Ash Vac AC013

Ash Removal (Jazz,Tema)

The ash can be removed from the ﬁre bed by using the riddling arm which oscillates the grate and the ashes fall into the ash pan below. The ash pan below may then be removed and the ashes put into a suitable non-combustible container. Always replace the ash pan once it has been emptied.

Ash Removal (Scena)

The Scena is supplied with the Euroheat ash vac as it does not have an oscillating grate. The grate has numerous holes in it to allow the ﬁne ashes to fall into the ash pan beneath naturally during use. The ﬁre bed can be vacuumed clear of ashes and then, using the grate lifting tool, the grate can be lifted up at the front and pushed backwards into a vertical position. The ash pan below may then be vacuumed clear of the ashes with the ash vac. We advise that the ash should not be allowed to build up under the grate as the air inlets for the primary air may become blocked which will lead to the stove not lighting quickly and excess smoke production which will blacken the glass.

Grate Lifting Tool

Instructions Part Number IN1218 Ed 2

First Lighting of the Stove

When you light the stove for the ﬁrst few times it should be run with small ﬁres increasing in size. All the materials must be given time to adapt to the effects of heat. The paint on the body of the stove will be fully hardened after the stove has been cured by the heating process, however the door and the ash pan should be opened very carefully before this as there will otherwise be a risk that the gaskets may stick to the uncured paint.

Curing

The paint may initially give off unpleasant fumes and an odour, so make sure that the room is well ventilated. The paint will be soft, so care must be taken with the stove for the ﬁrst 6-8 ﬁrings. This is called curing and is not a fault of the stove and when the paint has cured no further smell will be evident.

Stone Finish

The stone must gradually be conditioned to heat. The stone may contain water, which is why you must be cautious when you ﬁre your stove for the ﬁrst few times to keep the ﬁre low for the ﬁrst few hours. This will allow the stone to dry slowly and prevent any pressure building up in it which may damage the stone.

General Lighting and Operation

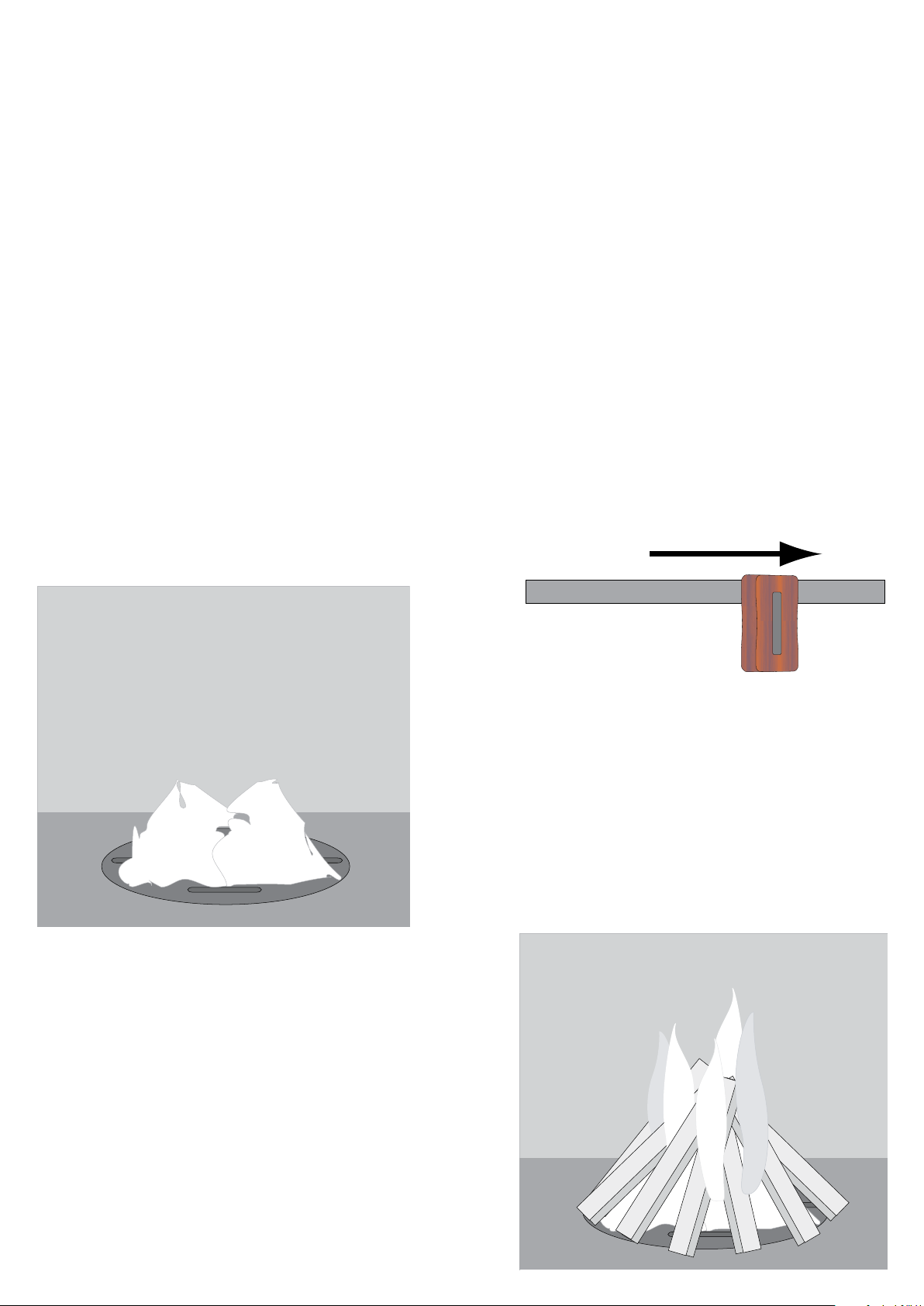

The control knob should be slid fully to the right to allow maximum primary and secondary air ﬂow into the stove. The grate in the Jazz/Tema must be moved into its open position, see page 9, to allow the primary under grate air to enter the ﬁre bed.

Lightly crumple two tabloid sized pieces of newspaper and lay them in the middle of the grate.

Resist the temptation to use more paper than this, or to crumple it too tightly; doing either will prevent the rapid development of ﬂames and will cause smoke to be produced.

The kindling wood should be placed over the paper so as to rest against each other in a conical formation, leaving space between each piece.

Light the paper using a long match or spill.

The lightly crumpled paper will begin burning rapidly and the space between the kindling will allow the long bright ﬂames to pass between and over the wood raising it to its ignition temperature.

Instructions Part Number IN1218 Ed 2

General Lighting and Operation Continued

As the cone of kindling burns it will collapse and the inner ends of the wood will begin to char and glow.

Wait until the kindling is burning at its maximum rate before moving onto the next stage.

Wearing the stove glove place a few logs larger than kindling wood over, but not smothering the kindling.

When the previous loading of wood is burning brightly add two larger split logs to bridge the ﬁre. Always avoid putting wood directly onto wood burning with ﬂame, try and leave air space under the wood for the ﬂame to form, because the new, cold log will tend to cool the ﬁre.

Once the ﬁre is established, slide the control knob to the mid position. This will close off the primary air from below the grate.

Instructions Part Number IN1218 Ed 2

General Lighting and Operation Continued

The pre-heated secondary air can be adjusted to regulate the burn rate by sliding the control knob to the left to the desired position.

When adjusting the burn rate it is always best to do this in increments to allow the ﬁre to adjust to the change in air ﬂow through the stove.

Putting two new logs (approximately 2kg) bark side down, will give you both maximum efﬁciency and the best visual effect as it begins to burn. Do not be tempted to over ﬁll the ﬁre box as the large volume of cold logs could cool the combustion chamber and cause smoke formation.

If the ﬁre has burned very low it is advisable to slide the air control to the mid position, operate the latch, and then slide it into the primary air position for a short period to revitalise the ﬁre. Once the ﬁre has revived always slide it back into the secondary air position, by operating the latch and moving it to the left of centre.

Instructions Part Number IN1218 Ed 2

General Maintenance

For your stove to operate effciently and to prolong the life of the stove routine maintenance is essential.

1) Cleaning the Glass

Properly operated, with the correct fuel, your glass will remain clean. Slight staining may appear when the stove is lit and below its operating temperature. This will normally clear as the stove’s temperature rises. If it becomes necessary to clean the glass by hand do not attempt to do so unless the stove is cold. Proprietary glass cleaning agents are available but they must speciﬁcally state its suitability for ceramic stove glass before being used because the glass in you stove is not ordinary glass and may be damaged with an unsuitable cleaner. Newspaper moistened with water to which a little vinegar has been added will normally remove most staining, but for really stubborn marks, gentle polishing with ﬁne steel wool lubricated with a few drops of dish washing detergent will need to be employed. Great care must be taken not to clean the glass too vigorously as particles of grit may have adhered with the stain and these could cause scratching if dragged across the glass. However well the stove burns it will eventually become necessary to clean the glass, but if cleaning becomes necessary too often we advise you to review your operating procedures to determine whether cleaner and more efﬁcient combustion can be achieved (only burn dry seasoned wood).

2) Door and Glass Seals

Check the door and glass seals periodically during the heating season and replace if damaged or show signs of excessive wear. To check if the seals are air tight get a piece of standard A4 copier paper, cut it in half and then fold it in half. Shut it into the door in various places with the door handle closed. If the seal holds the paper tight and it is difﬁcult to withdraw it then the seal is good. If when it is pulled it slides out easily then the door handles will need adjustment or the rope seal will require replacement. Failure to maintain a good seal will allow uncontrolled air to enter the stove. This can cause over ﬁring, excess heat, which can damage the internal components and glass of the stove. Symptoms of a poor seal are a stove burning uncontrollably even when the air inlets are shut down and soot formation on the glass around its edges.

3) The Stove Body

Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush, but only when the stove is cold. The ﬁre should be cleaned thoroughly before the start of the new heating season, in order to prevent strong odours.

4) Maintaining Painted Surfaces

If the stove is scratched, or the paint ﬂakes off over time, it can easily be repaired with ﬁne emery paper and a special spray paint. This paint can be obtained from you nearest retailer or directly from Euroheat’s Spares Department 01885 491126.

Colour Finish Product Code

Black RK111640

Instructions Part Number IN1218 Ed 2

5) Soapstone Cladding

If you have a soapstone stove, please note that the surface of the stone casing element is somewhat sensitive and is not suitable for accommodating metallic or ceramic pots, cans or containers.

In order to ensure the surface maintains its appearance even after years of use, please observe the following cleaning and care information:

Use P120 sandpaper to remove any minor impurities on the stone, such as black spots or other signs of use, by applying gentle pressure (in the direction of the grain) until the impurity is no longer visible. Then remove the sanding dust by gently brushing the surface with the supplied brush. Then wipe with a damp cloth without applying any pressure. Repeat these procedures depending on the level of contamination.

In the case of sandstone the dust must be removed with the brush and then a vacuum cleaner. If a damp microﬁbre cloth is used, it can cause the ﬁne dust particles to be deposited in the pores of the stone. By conducting this step you can also remove the last remaining dust particles from the stone.

6) Combustion Chamber

The combustion chamber (ﬁre box) is lined with ﬁre bricks. They protect the steel body of the stove and help maintain the high combustion temperatures required for efﬁcient combustion. If they show signs of wear or are damaged they should be replaced as failure to do this will shorten the life of the stove.

Fine cracks in the ﬁre bricks are acceptable. However if the cracks become greater than 1mm wide then the bricks must be replaced. These can be obtained from your nearest retail outlet from where you purchased the stove or directly from Euroheat’s spare parts department: 01885 491126.

During the heating season the ﬁre bricks may be brushed clean with a soft bristle brush only never use any metal or abrasive objects.

At the end of the heating season we recommend that the ﬁre bricks be removed and inspected for wear and damage and replaced if required. The inside surfaces of the combustion chamber should be brushed clean with a soft bristle brush and the resulting ashes vacuumed out.

The surfaces of the inside of the combustion chamber should be coated with a water repellent oil, i.e. WD40, to protect them from any moisture that may condense within the stove over the summer shut down period and the ﬁre bricks reﬁtted into the correct position.

7) Door Latches and Hinges

The door handle assembly and ﬁttings such as hinges should be lubricated using a copper-based grease at the end of the heating season. This will ensure that when you come to use the stove again at the start of the next heating season the door handle and mechanism will operate.

Need more info?

with over 10,000 pages of technical information, spare parts, product shots, news and 1001 other things, - you will not ﬁnd a more comprehensive solution to your queries, whatever time of the day.

www.euroheat.co.uk

Court Farm Business Park, Bishops Frome, Worcestershire WR6 5AY

Technical: 01885 491117 Reception: 01885 491100

RIKA Jazz, Scena, Tema Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
