IDEA
Operating Manual
TABLE OF CONTENTS
1. PREFACE 3
Spare part overview - exploded diagram ...................................................................................................................................................4
Spare part overview - article numbers ......................................................................................................................................................6
2. IMPORTANT INFORMATION 7
General warning and safety information ..................................................................................................................................................7
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS 9
4. INSTALLING THE STOVE 10
5. CONNECTION MULTIAIR 11
6. CLEANING AND MAINTENANCE 12
Cleaning the combustion chamber and the ignition support ..................................................................................................................12
Cleaning the flame temperature sensor ..................................................................................................................................................12
7. PROBLEMS - POSSIBLE SOLUTIONS 14
8. GUARANTEE 15
|
3
EN
2
1. PREFACE
Explanations to symbols
...Important Note
#8
...Hex #8
#25
...Hexalobular T25
...Useful Tip
...Manually
#3
...Allen key #3

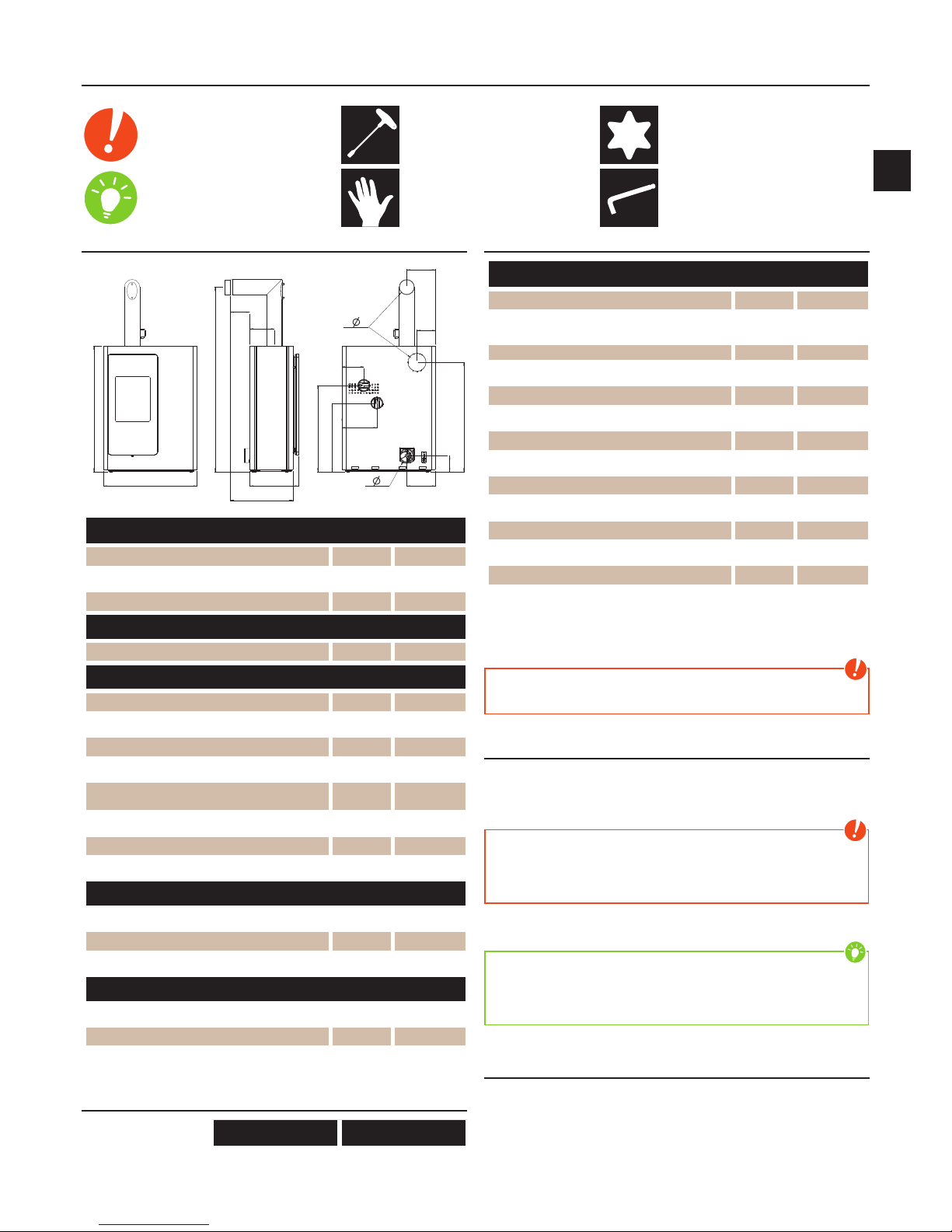

Dimensions
H
B T
RO-T1
F-H
R-H
RO-H
RO-T3
RO-T2
RO-S
R-S
F-S
K1-H
K2-H
K1-S
K2-S
R-
F-
Dimensions
Height [mm] 1098
Width [mm] 817
Corpus depth [mm] 424
Weight
Weight [kg] ~245
Flue pipe connection
R - Ø Flue pipe outlet [mm] 130
RO - H original angle pipe connection height [cm] 161
RO - T1 original angle pipe total depth [cm] 54
RO - T2 original angle pipe distance to rear wall [cm] 17
RO - T3 Depth from rear wall to middle of flue pipe
[cm] 21
RO - S original angle pipe side distance [cm] 25
R - H Rear connection height [cm] 96
R - S Rear connection side distance [cm] 16
Fresh air connection
F - Ø Diameter [mm] 125
F - H Connection height [cm] 14
F - S Side distance [cm] 25
Convection air connection
K - Ø Diameter [mm] 100/100
K - H Connection height [cm] 75/60
K - S Side distance [cm] 19/31
Amount of fuel
Nominal load Part load
Amount of fuel ~2,4 kg* ~1,2 kg*
*Practical values may vary depending on fuel quality.
Technical data
Technical Data
Heating power range [kW] 4,5 - 9
Room heating capacity (depending on house insulation)
[m³] 110 - 240
Fuel consumption [kg/h] up to 2,4
Electric supply [V]/[Hz] 230/50
Average electrical input [W] ~ 4*
Fuse [A] 2,5 AT
Efficiency [%] 83,8
CO2 [%] 10,6
CO-emission on 13% OO [mg/m
N
3
] 672
Dust emission [mg/m
N
3
] 21,5
Exhaust [g/s] 6,7
Exhaust temperature [°C] 242,6
Chimney draft requirement [Pa] 12
* without convection fan
The owner of small firing systems or the person authorised for the small firing system is to keep the technical documentation and is to submit it to the authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage. However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness! Report any deficiencies to your dealer immediately! Pay particular attention during unpacking that the stone panels remain intact. Scratches to the material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated and may therefore be burnt in your woodburning stove (not in a pelletstove!). The cardboard and film (PE) can be depolluted via the municipal waste collection for recycling.
Electrical connection
The stove is supplied with an approx. 2m long connecting cable with a Euro­plug. This cable is to be connected to a 230Volt/50Hz socket. The average electrical power consumption is about 4 Watt in heating operation and approx. 150 Watt during automatic ignition. The power consumption of the convection fan depends on the defined settings, max. up to 20W. The connection cable must be laid in a way that there is no contact to any sharp edges or hot surfaces of the stove.

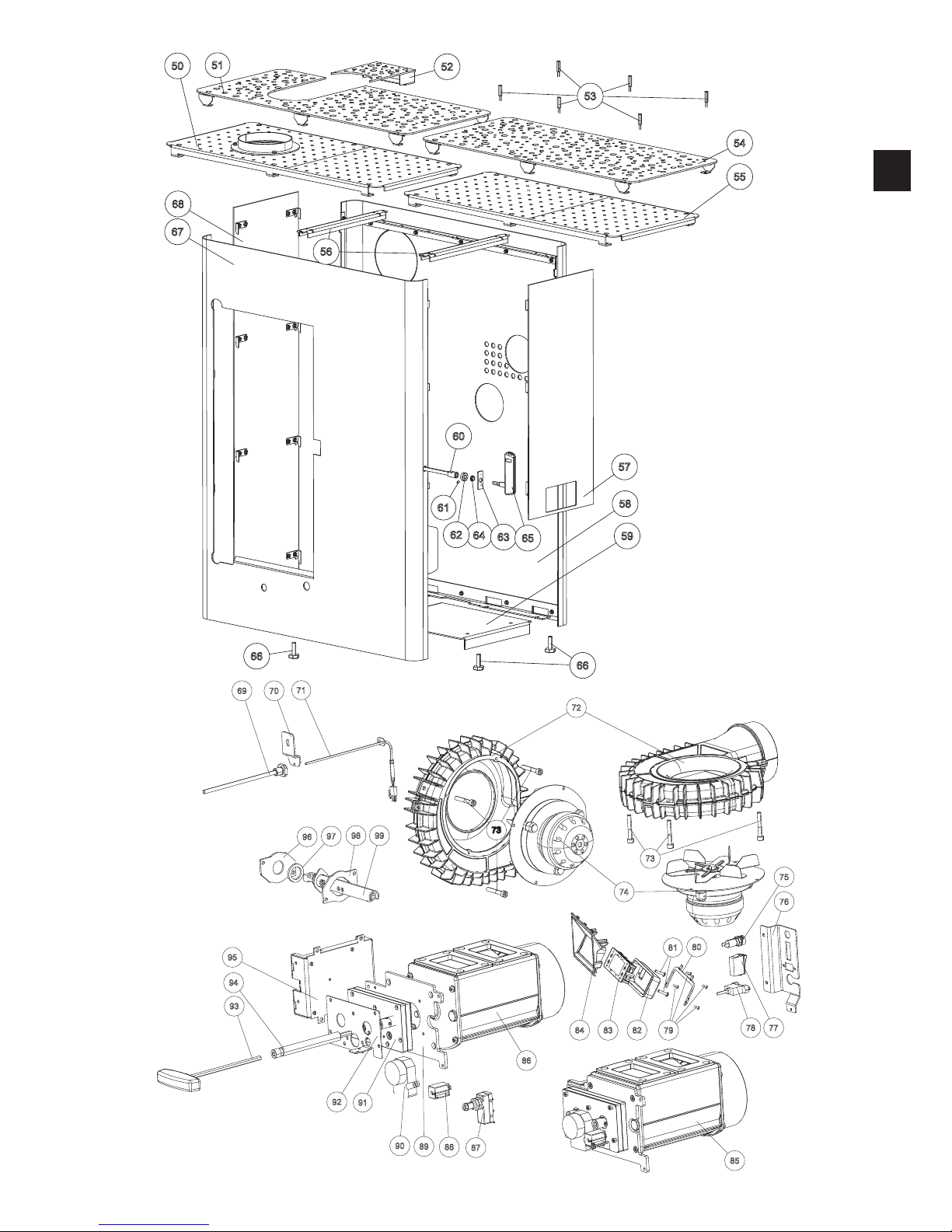

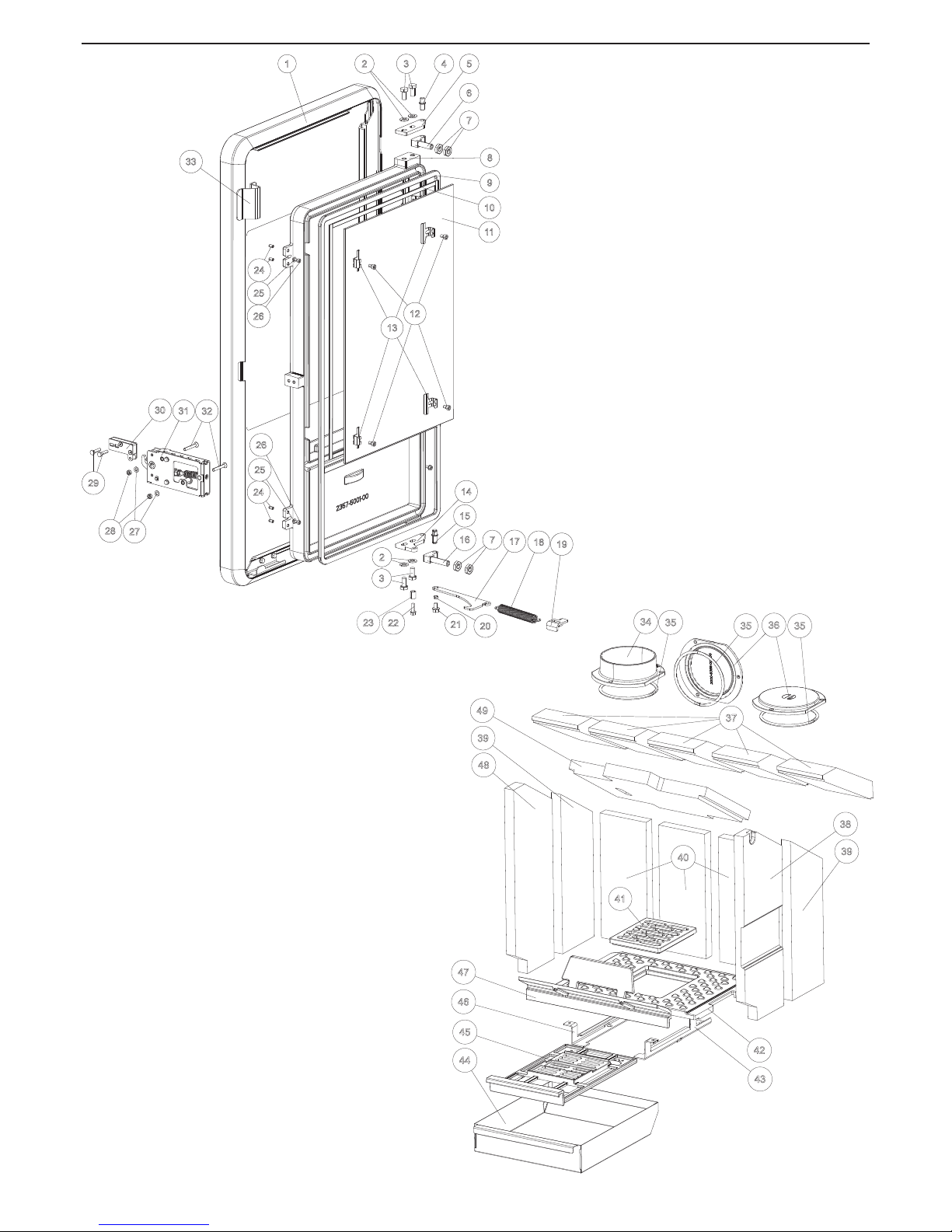

Spare part overview - exploded diagram
6
16773132
27
28
19
23
22
4
15
8
10
11
13
12
514223
3
9
30
29
24
24
25
25
26
26
1
33
17
20
21
18
4 6
4 3
4 2
4 1
4 7
4 5
37
4 0
39
39
4 8
38
4 9
36
35
35
34
35
4 4
|
5
EN
4
6 4
6 3
6 0
6 2
6 1
5 8
6 7
5 6
5 0
5 3
5 9
6 8
5 7
6 5
5 1
5 4
5 2
5 5
6 6
6 6
8 5
8 6
8 9
9 1
9 2
9 0
8 8
9 5
9 4
9 8
9 6
9 7
9 9
6 9
7 1
7 0
8 7
7 6
7 7
7 5
7 8
8 2
8 1
8 0
7 9
8 4
8 3
9 3
7 2
7 4
7 3
7 3
Spare part overview - article numbers
Note: Please consider the powdercoated parts can differ slightly in colour and colour effects though they are elaborated in high quality.
Nr. Art.Nr.: Description
1 B17359 Decorative door cpl. 2 N105049 Flat washer black 3 N112219 Hexagonal screw 4 Z36423 Hinge pin 5 L02819 Hinge plate 6 B17711 Hinge cpl. 7 N111780 Hexagonal nut 8 Z36006 Combustion chamber door 9 N111320 Sealing cord grey Ø14mm 10 N103693 Culimeta flat seal black 8x2 11 Z35715 Front door glass 12 N112075 Allen screw 13 L02663 Glass holder 14 L02820 Hinge plate 15 Z36424 Hinge pin 16 B17710 Hinge cpl. 17 L02824 Door stop 18 N111999 Tension spring (door) 19 L01982 Spring tensioner 20 Z26257 Distance 21 N111966 Hexagonal screw 22 N111947 Self-tapping screw 23 Z14922 Distance 24 N111789 Grub screw 25 N107150 Washer 26 N112248 Hexagon socket screw 27 N111965 Washer D05 28 N106175 Hexagonal nut 29 N111866 Hexagonal screw 30 B17721 Clamping bracket cpl. 31 B17712 Shutter housing cpl. 32 N112246 Hexagon socket screw 33 L02904 Door knob 34 Z17799 Flue pipe attachment 130mm black 35 N103066 Round sealing strip black D06 36 Z35057 Blind cover 37 Z36120 Baffle plate top 38 Z36115 Fire brick 39 Z36113 Fire brick 40 Z36112 Fire brick 41 Z35813 Grate 42 Z35812 Bottom plate 43 Z36383 Guide right 44 L02803 Ash drawer 45 Z35892 Ignition sled 46 Z36382 Guide left 47 Z36372 Wood retainer 48 Z36114 Fire brick 49 Z36119 Deflector plate bottom 50 E15705 Option RAO decorative stones 51 B17741 Cover RAO 52 B17740 Cover insertion RAO 53 Z36441 Screw 54 B17742 Cover AH 55 E15707 Option AH decorative stones 56 Z36422 Casing holder 57 B17726 Side casing panel, right cpl. 58 B17718 Rear panel cpl. 59 Z36428 Base plate of wood storage 60 B17715 Extension of actuator
Nr. Art.Nr.: Description
61 N112086 Grub screw 62 Z36417 Lock ring 63 L02808 Bearing plate 64 N112195 Friction bearing 65 B17778 Door opener 66 N111993 Levelling screw 67 B17719 Steel front cpl. 68 B17725 Side casing panel, left 69 B15248 Sensor tube 70 L01441 Pressure bracket 71 B17692 Flame temperatur sensor 72 B16155 Induced draft fan housing 73 N111726 Cylinder screw 74 N112000 Convection fan motor 75 N111604 Fuse 2,5A 76 Z36413 Contact switch support 77 N112016 Power switch 78 N111989 USB cable 79 N112033 Screw 80 L02850 Clamping plate for display 81 N112252 Screw 82 Z36052 Display cover 83 B17685 Display 84 Z36369 Display case 85 B17699 Controller unit complete 86 B17860 Airbox with intake pipe socket 87 N111825 Door contact switch 88 N111815 Elect. lifted magnet 89 Z36450 Gear holder 90 N111817 Air regulator motor 91 B16464 Transmission air regulator 92 Z36381 Magnet holder plate 93 N102647 Allen screwdriver 94 Z36395 Extension of actuator 95 B17681 Mainboard R4 96 L02773 Holder plate ignition 97 Z36384 Seal 98 L02732 Closing panel 99 B17502 Ceramic ignition
B17717 Cable harness Z36392 Display cable
|
7
EN
6
2. IMPORTANT INFORMATION
General warning and safety information
Observance of the introductory general warning information is imperative.
Q Read the entire manual thoroughly before installing and putting the stove into
service. Observe the national provisions and laws as well as the regulations and rules applicable locally.
Q RIKA stoves should only be installed in rooms with normal humidity (dry
areas according to VDE 0100 Part 200). The furnaces are not splash water protected and may not be installed in wet areas.
Q Only approved transport equipment with sufficient load carrying capacity
may be used with your heating appliance.
Q Your heating appliance is not suitable for use as a ladder or stationary
scaffolding.
Q The burning of fuel releases heat energy that lead to extensive heating of
the stove surfaces, doors, door and operating handles, glass, flue pipes and possibly the front wall. Refrain from touching these parts without appropriate protective clothing or equipment e.g. heat-resistant gloves or means of operation (operating handle).
Q Make your children aware of this particular danger and keep them away from
the stove during heating.
Q Only burn approved heating materials.
Q The combustion or introduction of highly flammable or explosive materials
such as empty spray cans etc. in the combustion chamber and storing them near the stove is strictly prohibited due to the danger of explosion.
Q No light or inflammable clothing is to be worn when post-heating.
Q Use the heat-resistant gloves supplied to open the doors of your stove.
Q Only use suitable tools from our range of accessories when handling embers
and make sure that no embers fall out of the combustion chamber onto inflammable material.
Q Push the embers together to form a firebed when you add new fuel (logs).
Q Placing non-heat resistant objects on the stove or near it is prohibited.
Q Do not place clothing on the stove to dry.
Q Laundry racks etc. must be placed at a sufficient distance to the stove –
ACUTE DANGER OF FIRE!
Q When your stove is burning, the use of highly inflammable and explosive
materials in the same or adjacent rooms is prohibited.
Note
Waste and liquids may not be burnt in the stove!
Note
To prevent your stove from overheating of the internal components, do never cover the convection fins!
Note
Your stove will expand and contract during the heating and cooling phase. This can sometimes lead to slight bending or cracking noises. This is normal and is no reason for a complaint.
First heating
The stove body, just as various steel parts, cast iron parts and the flue pipes are painted with a heat resistant paint. During the first heating the paint dries out completely. This may cause a slight smell. Touching or cleaning the painted surfaces during the curing should be avoided. The hardening of the paint is finished after the first heating with high power.

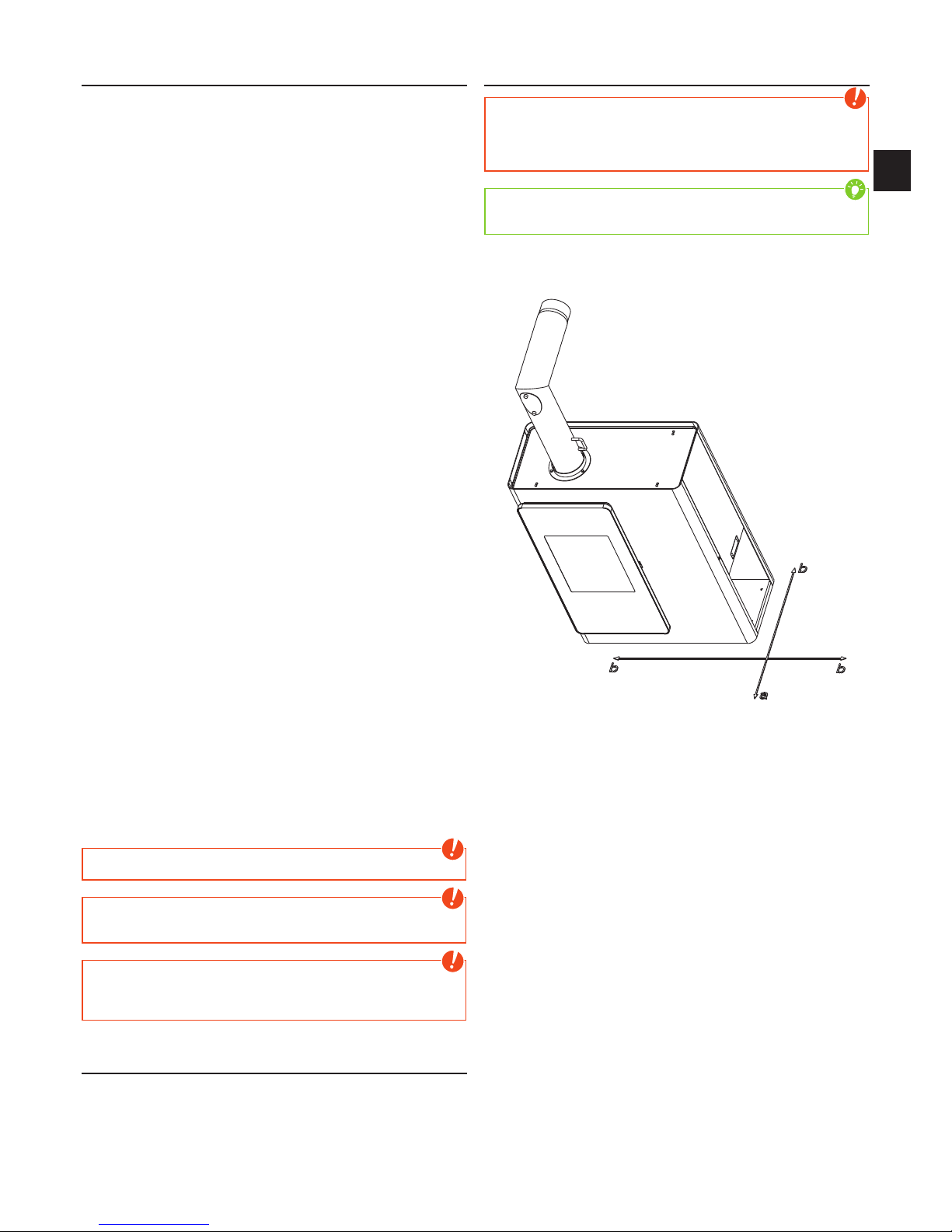

Safety distances
Note
1. To non-combustible objects a > 40 cm b > 10 cm
2. To combustible objects and reinforced concrete load-bearing walls a > 80 cm b > 20 cm
Tip
please observe a minimum distance of 20 cm behind and sideways the stove for maintenance.
15
Prior to set up
Floor bearing capacity
Ensure that the substructure is capable of bearing the weight of the stove prior to set-up.
Note
No modifications may be made to the firing installation. This also leads to loss of warranty and guarantee.
Floor protection
A base is required (glass, sheet steel or ceramic) if the floor is combustible (wood, carpet, etc.).
Flue pipe connection
Q Flue pipes pose a particular source of hazard regarding gas leaks and
fire. Get the advice of an authorised specialist company for the layout and assembly.
Q Please observe the corresponding installation guidelines for walls panelled
with wood when connecting your flue pipes to the stove.
Q Observe the formation of flue gas (atmospheric inversion) and draughts
when the weather is unfavourable.
Q Infeed of too little combustion air can lead to smoke in the rooms or to flue
gas leaks. Hazardous deposits in the stove and chimney may also occur.
Q If flue gas escapes, let the fire burn out and check whether all the air inlet
openings are free and the flue gas pipes and the stove pipe are clean. If in doubt notify the master chimney sweep since draught malfunctions may be connected to your chimney.
Stoves type 1 (BA 1):
Q Suitable for multiple occupancy. (Note the different country regulations.)
Q These may only be operated with the combustion chamber door closed.
Q The combustion chamber door may only be opened to add fuel and must
then be closed again otherwise other firing installations connected to the chimney may be endangered.
Q The combustion chamber door is to be kept closed when the stove is not
in operation.
Q Fouling of the chimney i.e. deposits of highly inflammable materials such as
soot and tar and subsequently fire in the chimney may occur if wet fuel is used and operation is damped too much.
Q If this occurs, close the fresh air support (slider, regulator, flaps - depending
on model)! Disconnect the mains plug at the stoves type Rikatronic. Phone the fire brigade and get yourself and other residents out of harm’s way.
Note
on ROOM-AIR DEPENDENT and ROOM-AIR INDEPENDENT OPERATION:
Combustion chamber door without a locking mechanism:
Your stove has been tested as a room-air independent stove according to EN 13240 and takes all the combustion air from the installation room via the central air intake on the back of the stove.
In combination with room-air installations (e.g. controlled ventilation and venting systems (extractors etc.) it must be ensured that the stove and the room air system are monitored and safeguarded mutually (e.g. via a differential pressure controller etc.). The combustion air infeed of approx. 20 m3/h must be ensured.
Combustion chamber door including a locking mechanism:
Thanks to the airtight configuration of the air supply line and flue pipes the Vitra is audited for FC41x (for the LAS system) and FC51x models the approval principles for the inspection and evaluation of ambient air independent fireplaces specified by the Deutsches Institut für Bautechnik (DIBT) (German Institute for Building Technology) and the draft standard “Requirements for testing ambient air independence, Part 1: Room heaters” of the FNH standards committee (dated February 2004). An application has been filed for the general technical approval from the DIBT as an ambient air independent stove.
Please observe the respective local regulations and rules in consultation with your master chimney sweep. For changes after the printing of this manual, we can not assume any liability. We reserve the right to change without notice.
|
9
EN
8
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS
Suitable fuels and fuel amounts
Your stove is generally suitable for burning dry firewood. You can also burn combustibles such as wood briquettes.
Note
A stove is not a waste incinerator. The warranty lapses if waste or non­approved materials such as plastic, treated wood (chipboard), coals or clothes are burnt! This leads to damage to the stove and chimney and to environmental pollution!
Note
FUEL AMOUNTS The stove is fitted with a construction-specific flat firebox. This means only one layer of logs may be laid on the base embers. Please observe that adding greater quantities of logs leads to emission of high temperatures, higher than the stove is designed for. This may cause damage to your stove. This is reflected in particular on the glass of the combustion chamber door, which will get a gray haze in case of overheating the stove, which can not be removed.
Wood types
Different types of wood have different calorific values. Wood from deciduous trees is particularly suitable. It burns with a constant flame and forms long­lasting embers. Coniferous wood has higher levels of resin and burns off faster as do all softwoods and tends to spray sparks.
Wood type
Calorific value
kWh/m
3
Calorific value
kWh/kg
Maple 1900 4,1 Birch 1900 4,3 Beech 2100 4,2 Oak 2100 4,2 Alder 1500 4,1 Ash 2100 4,2 Spruce 1700 4,4 Larch 1700 4,4 Poplar 1200 4,1 Robinia 2100 4,1 Fir 1400 4,5 Elm 1900 4,1 Willow 1400 4,1
Output controlling
The output of your stove is regulated manually or via the Rikatronic-control. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.
Clean combustion
1. The firewood must be dry and untreated.
The should-be value is between 14% and 18% relative wood moisture.
Wood has to be stored dry and ventilated for 2 – 3 years.
2. Correct firewood amount and size:
Q Too much firewood leads to overheating. This can damage your stove and
increases the exhaust emission values.
Q If you take too little firewood or if the logs you place are too large the stove
will not reach the optimum operating temperature. The flue gas values also increase in this case.
Q For right quantity of firewood see AMOUNT OF FUEL.
4. INSTALLING THE STOVE
General information
Note
Assembly may only be performed by authorised specialist companies.
Note
Please observe the regional safety and building regulations. Please contact your master chimney sweep in this context.
Note
Only use heat-resistant sealing materials as well as corresponding sealing strips, heat-resistant silicon and rock wool.
Note
Also take care that the flue does not project into the free cross-section of the chimney.
Note
In case of room-air independent operation the stove pipe connections must be tightly sealed permanently. Use a heat-proof silicon to position the stove pipe on the conical supports of the flue tube nozzles and for insertion in the chimney flue lining.
Note
The stove should not be pushed on unprotected floors.
Tip
Strong corrugated cardboard, cardboard or e.g. old carpet is useful to assist assembly and as a base. The stove can also be pushed on this cardboard or carpet.
We recommend original flue pipes from RIKA for proper connection.
Connection to the chimney
Q The device must be connected to an approved chimney for solid fuels.
The chimney must have a diameter of min. 100mm for pellet stoves and 130mm -150mm for log wood stoves depending on the diameter of the flue pipes.
Q Avoid long flue pipes to the chimney. The horizontal length of the flue pipe
should not exceed 1.5 m.
Q Avoid to many bends of the flue gas pipes. There should not be more than
3 bends in the exhaust pipe.
Q If you just can not connect directly to the chimney, please use a connection
with a cleaning opening.
Q Connections must be made of metal and must meet the requirements of the
standard (install the connections airtight).
Q Before installing a chimney calculation must be made. The evidence must be
performed for single occupancy to EN13384-1 and EN13384-2 for multiple occupancy.
Q The maximum draft of the chimney should not exceed 15Pa.
Q The derivation of the flue gases must be guaranteed even during a temporary
power outage.
Note
If connecting to multiple connection chimneys additional safety equipment is required. Your local chimney sweep will advise you in this case.
Connecting to a steel chimney
The connection must be calculated and shown with EN13384-1 and EN13384-2.
Use only insulated (double) stainless steel tubes (flexible aluminum or steel tubes are not permitted).
An inspection door for regular inspection and cleaning must be present.
The flue pipe connection to the chimney has to be air-tight.
Combustion air
Every combustion process requires oxygen from the surrounding air. This so­called combustion air is removed from the living are in the case of individual stoves without external air connections.
This air removed must be replaced in the living space. Very tightly sealed windows and doors in modern flats may mean that too little air replaces that used. The situation also becomes problematical due to additional venting in flats (e.g. in the kitchen or WC). If you cannot feed in external combustion air, then air the room several times a day to prevent negativce pressure in the room or poor combustion.
Feeding in external combustion air
only for devices which are able to run in room-air independent operation.
Q Combustion air must be fed to the stove from outside via a sealed pipe
for operation independent of the room air. According to EnEV, it must be possible to shut off the combustion air pipe. The open/closed setting must be clearly recognisable.
Q Cut the perforated rear wall out with a hacksaw.
Q Connect at the air intake either a pipe Ø125mm (log wood and combi
stoves) or Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
Q To ensure sufficient air intake, the intake pipe should not exceed max. 4m
and have max. 3 bends.
Q If the line leads outside it must have a windbreak.
Q In extreme cold pay attention to icing on the air intake opening (check).
Q It is also possible to suction in combustion air directly from another
sufficiently vented room (e.g. cellar).
Q The combustion air pipe must be tightly connected (adhesive or cement)
permanently to the air nozzles of the stove.
Q If you do not use the stove for a long time, please close the combustion air
intake to prevent the stove from moisture.
Note
Please note that problems may arise due to updrafts in the case of combustion air supply from an integrated chimney ventilation shaft. If the combustion air flowing downwards is heated it may rise and thus counter the chimney with a resistance which in turn reduces the negative pressure in the combustion chamber. The chimney manufacturer is to guarantee that the resistance for the combustion air is a maximum 2 Pa even in the least favourable operating state of the chimney.
If one or more of these conditions does NOT apply, the result is poor combustion in the stove and negative pressure in the installation room.
|
11
EN
10
5. CONNECTION MULTIAIR

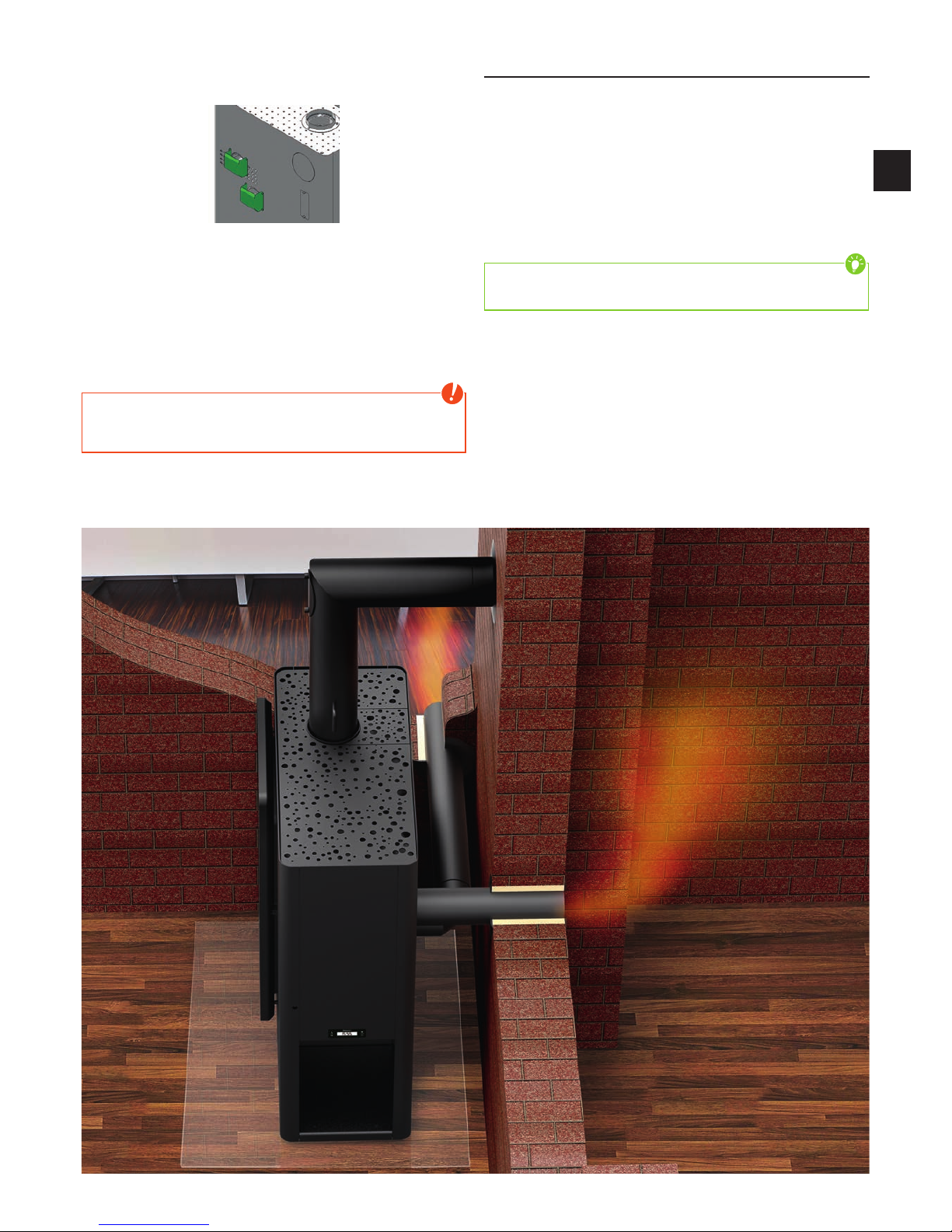

The stove is delivered with a cover on the convection air outlet to prevent direct heat to the wall. They have to be removed before connecting the convection air pipes.
Operation without this cover or without attached air pipes is not allowed. If you do though no warranty and no liability is accepted for damage.
Q The amount of air and temperature is designed to heat one additional room.
Q The max. temperature of the convection air is 150° C at the air outlet.
Q The convection air pipes should be as short as possible.
Q Keep the number of deflections as small as possible.
Note
Please pay attention to the national and country-specific building and fire regulations when connecting the convection air pipes. Installation and assembly must be performed by a trained specialist only.
Control multiAir
For detailled information please look up the manual Rikatronic4!
Settings in the Setup menu Fan I and Fan II
You can switch on or off the both convection fans as needed. They are controlled independently. You also can make the following settings.
LEVEL and AUTO
The convection fan speed is adjustable from level 5 (max.) to level 1 (min.). If you continue to press the „minus“ or „plus“ button, you’ll set to AUTO. The convection fan speed will be adjusted automatically depending on the heating power. This setting should be chosen as standard.
Tip for MultiAir stoves
The manually speed settings are useful if, for example, the second room needs to be heated up quickly or heat needs to be removed from the stove.
TUNING
You can also adapt the convection fan speed (+/- 30% fan speed). This is applied for manual and for the AUTO setting. The fan speed can be reduced if the noise is perceived as too loud. Conversely, for MultiAir stoves, the performance can be increased when generally too little heated air is passed into the next room.
6. CLEANING AND MAINTENANCE
Basic information
Note
When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation. You could vacuum out embers – FIRE RISK!
Note
Only work on the unit when it is switched off and the mains plug has been disconnected. Your stove must be cooled before any maintenance work is performed. Only work on the unit when it is switched off and the mains plug has been disconnected.
The frequency with which the stove requires cleaning and the maintenance intervals depend on the fuel you use. High moisture content, ash, dust and chips may more than double the maintenance required. Only use wood that has been stored properly and is dry and untreated.
Tip
Wood as fertiliser - the mineral content of the wood remains in the combustion chamber as ash as a residue of the combustion. This is an excellent fertiliser for all plants in the garden; it is a completely natural product. The ash should be stored first and slaked with water.
Note
Ash may contain embers – only place ash in sheet steel containers!
Open the combustion chamber door
You get your new stove with a removable handle that is used to open or close the combustion chamber door. If you hold the handle vertically (label facing forward), you can insert the handle at the right side cover into the opening mechanism.
If you turn the handle counterclockwise or press forward, the door opens. Do not turn back the handle, the door is pulled back by a spring and locks. If necessary, close completely by turning the handle clockwise.

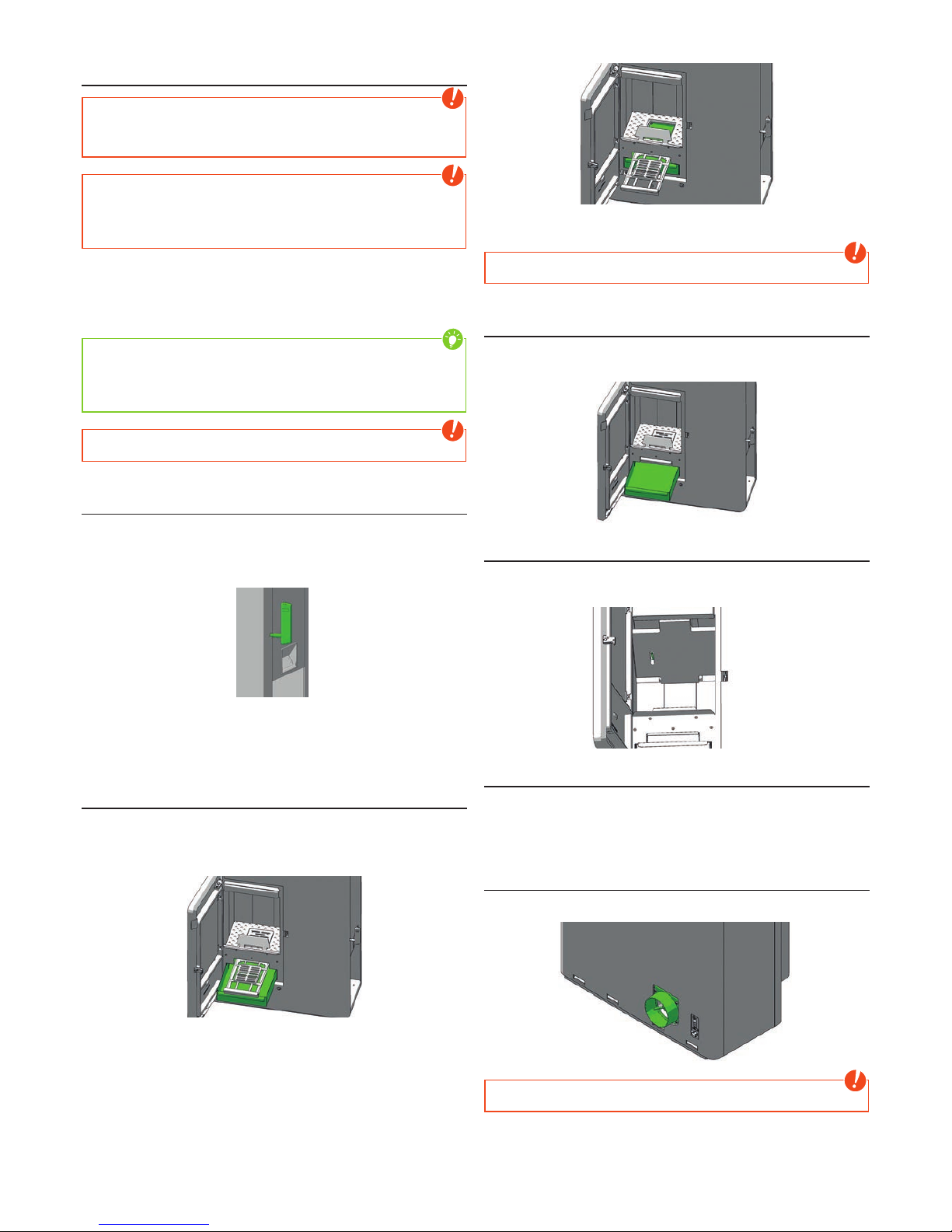

Cleaning the combustion chamber and the ignition support
The combustion chamber and ignition support must be regularly cleaned, so that a sufficient air supply is ensured.
Pull out the ignition support simultaneously with the ash pan.
Sweep the ash from the ignition support to the ash drawer. Then slide back the ash drawer and remove the grate from the combustion chamber.
You can sweep the ashes with a broom in the ash tray. You can also use an ash vacuum cleaner.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Empty the ash drawer
Empty the ash drawer regularly. The ash drawer is simply pulled forward with the combustion chamber door open.
Cleaning the flame temperature sensor
Remove the dust deposits from the sensor at regular intervals. Use a clean cleaning cloth or newspaper.
Cleaning the door glass
The glass can be cleaned best with a moist cloth. Stubborn dirt can be removed with a special cleaner (free from corrosive acids and solvents - otherwise there is a risk of damage to the glass surface) available from your stove dealer. Usual cleaners containing acid or solvents can be too harsh and damage the glass.
Combustion air - intake
If necessary, please also clean the air intake with a hoover.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
|
13
EN
12

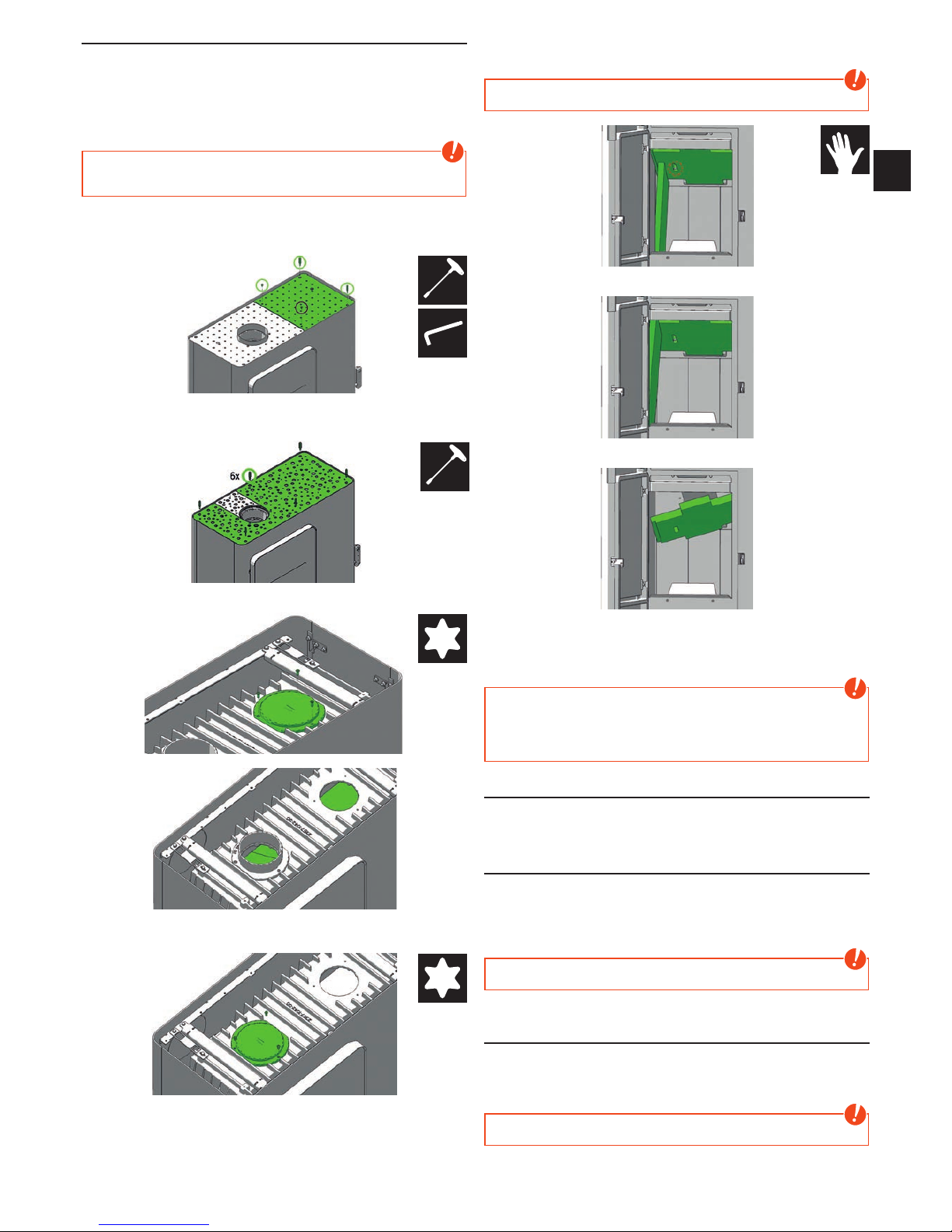

Cleaning the flue gas channels
annually!
Remove the flue pipes. Inspect and clean the chimney connection. Brush off any soot and dust deposits in the fire and in the flue pipes and vacuum.
The internal flue gas channels are situated above and beside the combustion chamber.
Note
Accumulated fly ash in the flue gas channels may impair the performance of the stove and pose a safety risk.
Loosen the screws of the top cover after you have removed the decorative glass stones (depending on type of stove).
The small cover insert does not need to be removed at the top connection version.
Loosen the screws of the right cleaning cover.
If you have the flue pipe connection at the rear you also have to remove the left cleaning cover.
Vacuum the flue gas channels on the top thoroughly.
Open the combustion chamber door and vacuum the firebox. Lift the top deflector plate slightly, then remove one of the rear fire bricks on the side (left or right).
Note
Be careful not to damage the flame sensor!
Remove on the same side the front fire brick.
Now you can remove the top deflector plate.
Brush and vacuum this area thoroughly.
Reinstall the parts in reverse order again. Pay attention to have everything airtight!
Note
Your stove may suck in false air via incorrectly sealed cleaning covers; this air may lead to incomplete combustion. To ensure the proper operation of your pellet stove, replace the defect (porous, frayed) seals after cleaning and maintenance.
Cleaning painted surfaces
Wipe the painted surfaces with a damp cloth, do not scrub. Do not use solvent­containing cleaners.
Cleaning the convection air openings
Vacuum clean any dust deposits from the convection air openings at regular intervals.
The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Checking door seal
annually!
The condition of the seals at doors and glass should be checked at least once a year. Repair or replace seals depending on condition.
Note
Only intact seals ensure your stove works perfectly!
#3
#25
#25
#8
#8
7. PROBLEMS - POSSIBLE SOLUTIONS
Problem 1
Fire burns with weak, orange flame, window is sooted up.
Cause(s)
Q Poor chimney draught
Q Damp wood
Q Incorrect heating up
Q Stove is sooted over inside
Possible solutions
Q Check whether flue gas pipes are blocked with ash
(see CLEANING AND MAINTENANCE).
Q Use dry wood and correct fuel amounts
(see BRIEF INFORMATION ON FUEL - LOGS)
Q Check whether the suction nozzles and air inlet pipe or flue tube are blocked.
Q Check door and cleaning cover seals for leaks
(see CLEANING AND MAINTENANCE)
Q Have service performed by authorised specialist company.
Q Every glass plate must be cleaned from time to time (depending on use)
with glass cleaner.
Problem 2
Stove smells strongly and / or fumes are emitted.
Cause(s)
Q Burning-in phase (taking into service)
Q Stove has accumulated dust and/or dirt
Possible solution(s)
Q Wait to end of burning-in phase and vent sufficiently
Q Suction off any dust deposits from the convection air openings at regular
intervals
Problem 3
Flue gas discharge when wood is added and during heating phase.
Cause(s)
Q Combustion chamber door opened too fast
Q Too much ash in combustion chamber
Q Adding logs to snappy
Q Chimney draught too low
Q Flue pipe connection leaks
Q Logs combustion still running (visible flame)
Possible solution(s)
Q open the combustion chamber door moderate
Q regular cleaning of combustion chamber (vacuum)
Q Adding logs carefully
Q Check chimney
Q Check connections and if necessary re-seal
Q Add logs after flame is gone
Q Check seals and replace (fire door, ..)
|
15
EN
14
8. GUARANTEE
These warranty conditions are only valid for the following countries: Austria, Germany and Switzerland. Separate conditions imposed by the importer apply for all other countries. In case of doubt as well as missing or incorrect translations, the German version is the only valid one.
For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint.
WARRANTY
5 years on the welded stove body. This exclusively applies to defects in materials and workmanship as well as free replacement. Labour and travel times are not included in the manufacturer’s warranty.
Only original parts supplied by the manufacturer should be used. Loss of warranty on non-observance!
The precondition for the warranty is that the stove has been installed and commissioned properly according to the User and installation manuals valid at the time of purchase. Connection must be performed by a specialist for such stoves.
Any costs incurred by the manufacturer due to unjustified warranty claims are to be charged to the claimant.
Wear parts and parts affected by fire are excluded, such as glass, coating, surface coatings (e.g. handles, panels), seals, fire trough, grates, draught plates, deflector plates, combustion chamber liners (e.g. fireclay), ceramics, natural stone, thermo stone, ignition elements, sensors, combustion chamber sensors and temperature controller.
Damage arising from non-observance of the manufacturer’s instructions for operation of the unit or any damage that is caused by action such as overheating, use of non-approved fuels, tampering with the device or the flue gas pipe, electrical excess voltage, an incorrect, insufficient or excessive flue draught, condensation, non-performance or deficient maintenance and cleaning, non-observance of the relevant and applicable building regulations, incorrect operation by the user or third parties, transport and handling damage is also excluded.
THE WARRANTY DOES NOT AFFECT THE STATUTORY WARRANTY PROVISIONS.
02.12.2015
Technical and design changes, as well as typesetting and printing errors reserved
© 2017 | RIKA Innovative Ofentechnik GmbH
RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at
RIKA.AT
Z36546_Idea_EN | 26.04.2017
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
