FORMA
Operating Manual
TABLE OF CONTENTS
1. PREFACE 3
Spare part overview - exploded diagram ...................................................................................................................................................4
Spare part overview - article numbers ......................................................................................................................................................6
2. IMPORTANT INFORMATION 7
General warning and safety information ..................................................................................................................................................7
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS 9
4. INSTALLING THE STOVE 10

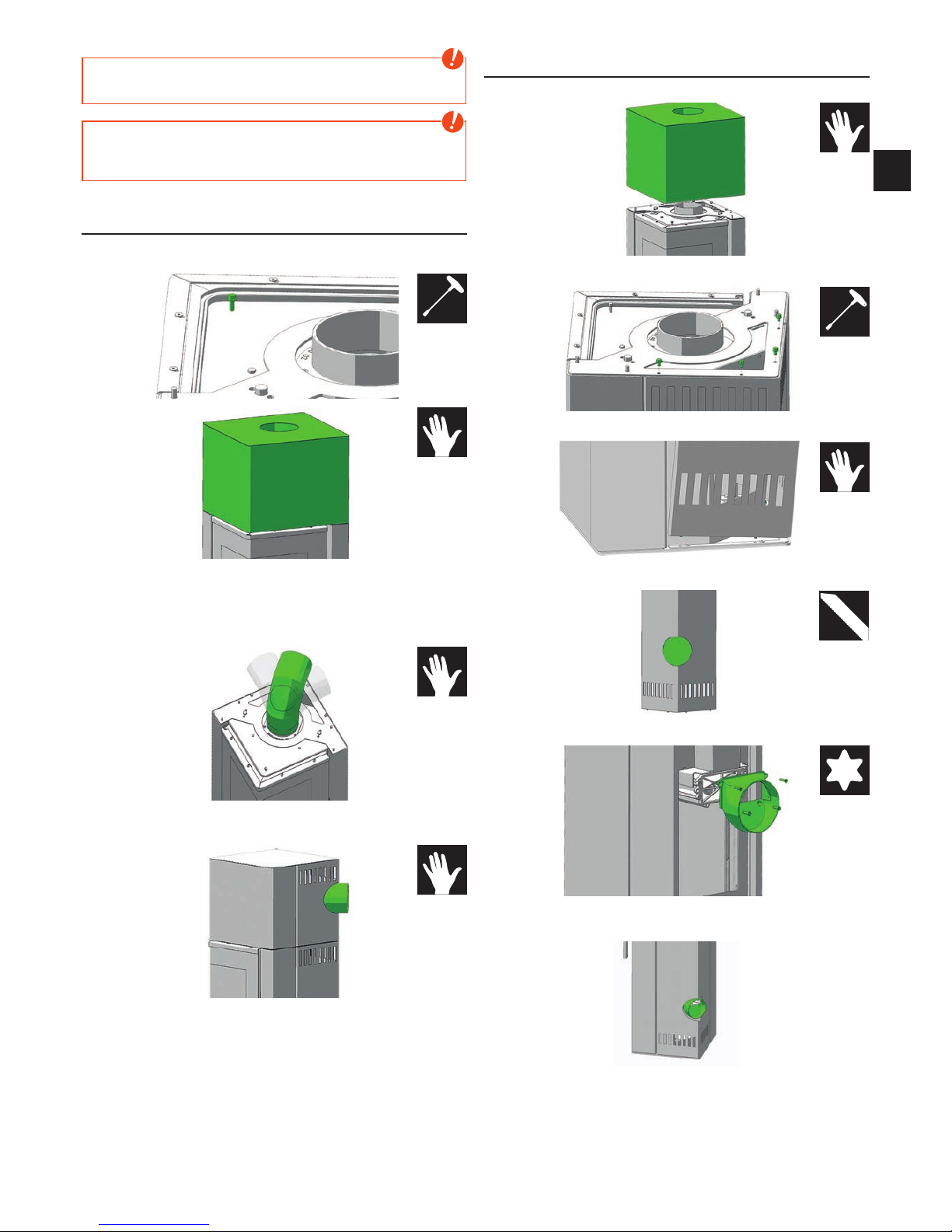

5. ASSEMBLY/DISMANTLING STONE AND OPTIONS 11
Connection of an external combustion air pipe ......................................................................................................................................11
6. MANUAL OPERATION 12
Operating the riddle grate ......................................................................................................................................................................12
7. CLEANING AND MAINTENANCE 13
8. PROBLEMS - POSSIBLE SOLUTIONS 14
9. GUARANTEE 15
|
3
EN
2
Explanations to symbols
...Important note
#8
...Hex #8
#25
...Hexalobular T25
...Useful tip
...Manually ...Hacksaw
1. PREFACE

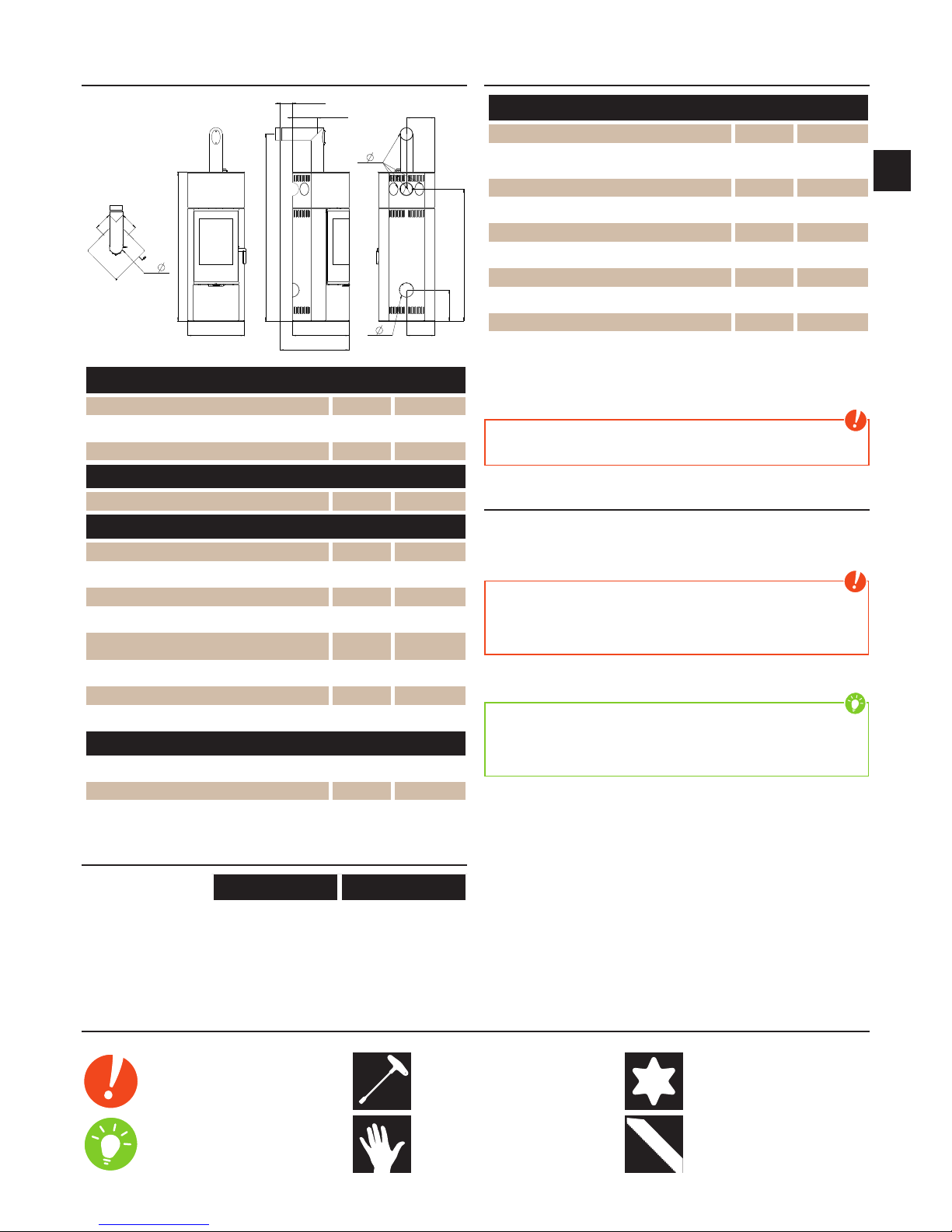

Dimensions
B
H
T
F-H
F-S
R-H
R-S
R-S
RO-S
RO-H
RO-T3
RO-T2
RO-T1
F-
R-
R-
Dimensions
Height [mm] 1539
Width [mm] 584
Corpus depth [mm] 584
Weight
Weight with shell in steel [kg] ~ 150
Flue pipe connection
R - Ø Flue pipe outlet [mm] 130
RO - H original angle pipe connection height [cm] 187
RO - T1 original angle pipe total depth [cm] 71
RO - T2 original angle pipe distance to rear wall [cm] 13
RO - T3 Deapth from rear wall to middle of flue pipe
[cm] 26
RO - S original angle pipe side distance [cm] 29
R - H Rear Connection Height [cm] 136
R - S Rear Connection Side Distance [cm] 18
Fresh air connection
F - Ø Diameter [mm] 125
F - H Connection Height [cm] 32
F - S Side Distance [cm] 29
Amount of fuel
Nominal load Part load
Amount of fuel ~1,7 kg* ~0,9 kg*
*Practical values may vary depending on fuel quality.
Technical data
Technical data
Heating power range [kW] 3,5 - 7
Room heating capacity (depending on house insulation)
[m³] 70 - 190
Fuel consumption [kg/h] to 1,7
Efficiency [%] 81,3
CO2 [%] 10,0
CO-emission on 13% OO [mg/m
N
3
] 529
Dust emission [mg/m
N
3
] 40
Exhaust [g/s] 6,4
Exhaust temperature [°C] 245,1
Chimney draft requirement [Pa] 12
The owner of small firing systems or the person authorised for the small firing system is to keep the technical documentation and is to submit it to the authorities or the chimney sweep on request.
Note
Please observe the national and European standards as well as local regulations concerning the installation and operation of firing installations!
Packaging
Your first impression is important to us!
The packaging of your new stove provides excellent protection against damage. However damage to the stove and accessories may still occur during transport.
Note
Therefore please check your stove on receipt for damage and completeness! Report any deficiencies to your dealer immediately! Pay particular attention during unpacking that the stone panels remain intact. Scratches to the material can easily occur. Stone panels are excluded from the warrant.
The packaging of your new stove is environmentally neutral to a great extent.
Tip
The wood used in the packaging has not been surface treated and may therefore be burnt in your woodburning stove (not in a pelletstove!). The cardboard and film (PE) can be depolluted via the municipal waste collection for recycling.

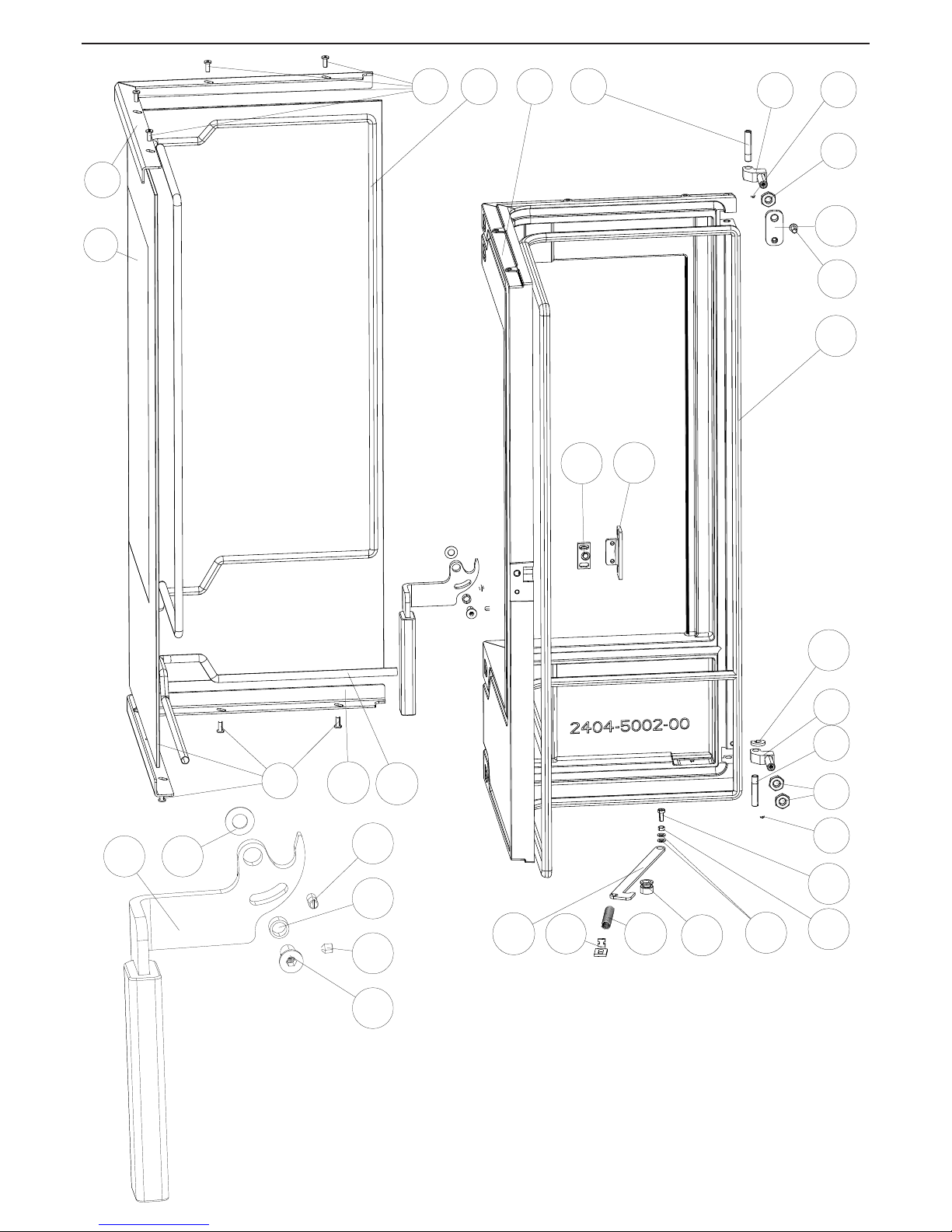

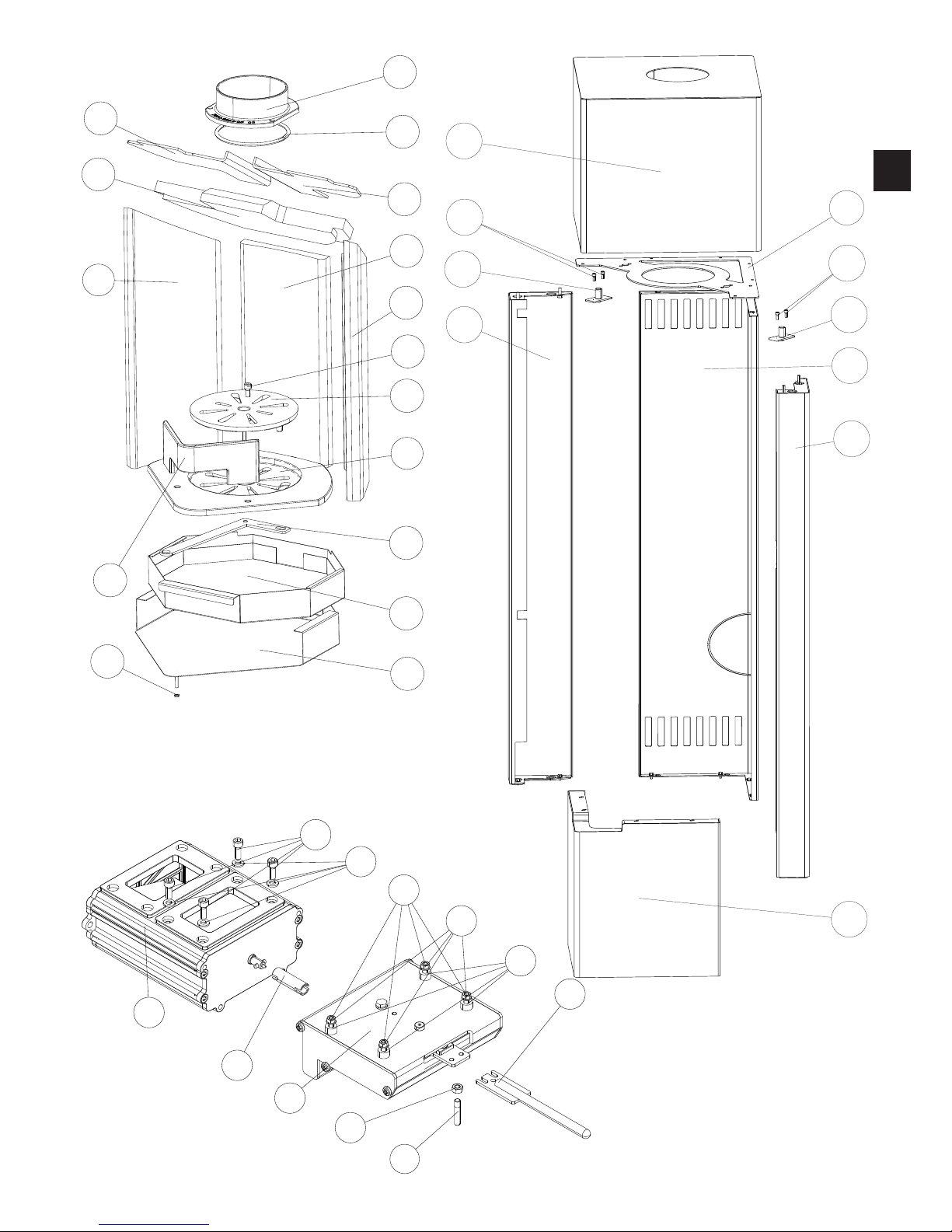

Spare part overview - exploded diagram
1 1
1 0
1 4
1 3
1 9
21
7
9
5
4
23
1
2
24
3
3
1 271 568
8
9
6
1 8
22
1 7
1 6
20
27
262825
3 0
29
|
5
EN
4
3 5
3 4
4 6
3 3
3 6
4 1
4 0
4 2
3 9
3 7
3 1
3 8
3 2
4 4
4 5
4 3
4 8
4 8
4 9
4 9
4 7
5 3
5 4
5 2
5 0
5 1
6 5
5 6
5 5
6 3
6 4
5 9
5 7
5 8
6 0
6 1
6 2
Spare part overview - article numbers
Note: Please consider the powdercoated parts can differ slightly in colour and colour effects though they are elaborated in high quality.
Nr. Art.Nr.: Description
1 Z36032 Door glass 2 Z36274 Glass retainer, upper 3 N100751 Flat allen screw M05 4 N111643 Round hollow seal Ø12 5 B17568 Combustion chamber door black
B17567
Combustion chamber door black, complete with
glass 6 N112181 Headless screw 7 B17566 Hinge 8 N102434 Grub screw 9 N111780 Hexagonal nut 10 L01136 Door adjustment plate 11 N111854 Allen screw 12 N111320 Sealing cord grey Ø14mm 13 B12322 Door lock 14 L01527 Door lock 15 L01214 Door hinge ring 16 N111910 Allen screw 17 Z26257 Distance 18 N111965 Washer D05 19 Z36273 Stop bolt 20 N111191 Tension spring (door) 21 L01542 Spring holder 22 L02756 Door stop 23 N111643 Round hollow seal Ø12 24 Z36275 Glass retainer, lower 25 B17569 Front door handle complete 26 N100699 Disc spring 27 N108427 Headless screw 28 N102434 Grub screw 29 N105575 Allen screw 30 Z14937 Distance 31 Z33667 Fire brick left 32 Z36211 Deflector plate bottom 33 L01534 Flue plate left 34 Z17799 Flue pipe attachments 130mm 35 N111631 Round sealing cord grey Ø6mm 36 L01533 Flue plate right 37 Z33666 Fire brick rear 38 Z33668 Fire brick rear right 39 N100061 Hexagon socket screw 40 Z25948 Shaker disk 41 Z33678 Grate 42 L01537 Grate arm 43 L01541 Ash drawer 44 L02757 Ash drawer support 45 N111973 Hexagonal nut 46 Z33677 Wood retainer 47 Z36278 Side casing panel, left 48 B17565 Adjusting plate 49 N112169 Hexagon socket screw 50 Z36282 Cover compl. AO
Z36286 Cover compl. AR Z36287 Cover compl. AL
Z36288 Cover compl. AH 51 Z36283 Holder plate 52 Z36281 Rear panel cpl. 53 Z36279 Side casing panel, right
Nr. Art.Nr.: Description
54 B17935 Bottom front panel complete 55 N112170 Hexagon socket screw 56 N100172 Washer 57 N106175 Hexagonal nut 58 N111965 Washer D05 59 Z33600 Distance 60 Z36272 Regulator lever 61 N111749 Headless screw 62 N103988 Hexagonal nut M06 63 B17552 Slide control assembled 64 Z35799 Intermediate shaft 65 B17377 Airbox
|
7
EN
6
2. IMPORTANT INFORMATION
General warning and safety information
Observance of the introductory general warning information is imperative.
Q Read the entire manual thoroughly before installing and putting the stove into
service. Observe the national provisions and laws as well as the regulations and rules applicable locally.
Q RIKA stoves should only be installed in rooms with normal humidity (dry
areas according to VDE 0100 Part 200). The furnaces are not splash water protected and may not be installed in wet areas.
Q Only approved transport equipment with sufficient load carrying capacity
may be used with your heating appliance.
Q Your heating appliance is not suitable for use as a ladder or stationary
scaffolding.
Q The burning of fuel releases heat energy that lead to extensive heating of
the stove surfaces, doors, door and operating handles, glass, flue pipes and possibly the front wall. Refrain from touching these parts without appropriate protective clothing or equipment e.g. heat-resistant gloves or means of operation (operating handle).
Q Make your children aware of this particular danger and keep them away from
the stove during heating.
Q Only burn approved heating materials.
Q The combustion or introduction of highly flammable or explosive materials
such as empty spray cans etc. in the combustion chamber and storing them near the stove is strictly prohibited due to the danger of explosion.
Q No light or inflammable clothing is to be worn when post-heating.
Q Use the heat-resistant gloves supplied to open the doors of your stove.
Q Only use suitable tools from our range of accessories when handling embers
and make sure that no embers fall out of the combustion chamber onto inflammable material.
Q Push the embers together to form a firebed when you add new fuel (logs).
Q Placing non-heat resistant objects on the stove or near it is prohibited.
Q Do not place clothing on the stove to dry.
Q Laundry racks etc. must be placed at a sufficient distance to the stove –
ACUTE DANGER OF FIRE!
Q When your stove is burning, the use of highly inflammable and explosive
materials in the same or adjacent rooms is prohibited.
Note
Waste and liquids may not be burnt in the stove!
Note
To prevent your stove from overheating of the internal components, do never cover the convection fins!
Note
Your stove will expand and contract during the heating and cooling phase. This can sometimes lead to slight bending or cracking noises. This is normal and is no reason for a complaint.
First heating
The stove body, just as various steel parts, cast iron parts and the flue pipes are painted with a heat resistant paint. During the first heating the paint dries out completely. This may cause a slight smell. Touching or cleaning the painted surfaces during the curing should be avoided. The hardening of the paint is finished after the first heating with high power.

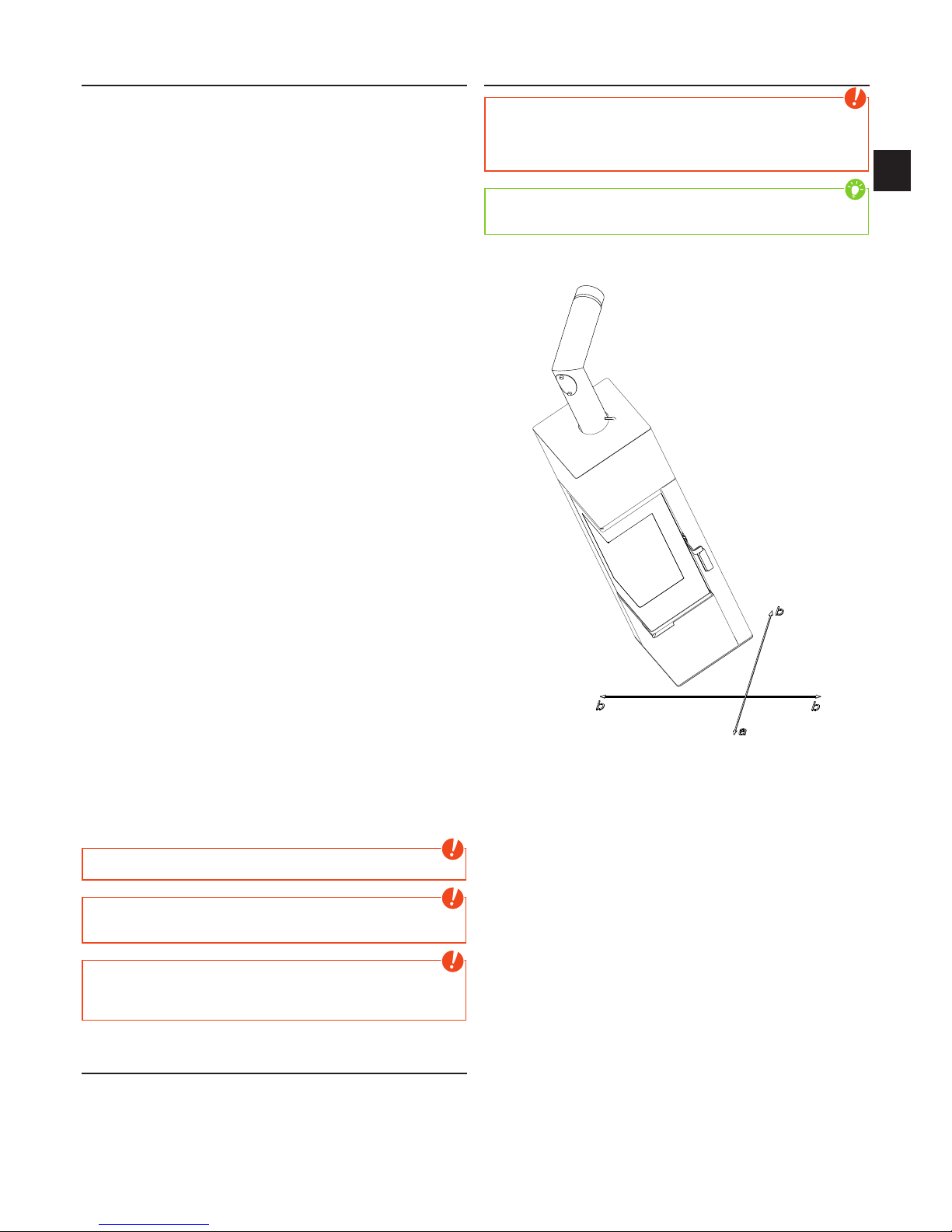

Safety distances
Note
1. To non-combustible objects a > 40 cm b > 10 cm
2. To combustible objects and reinforced concrete load-bearing walls a > 80 cm b > 20 cm
Tip
please observe a minimum distance of 20 cm behind and sideways the stove for maintenance.
Prior to set up
Floor bearing capacity
Ensure that the substructure is capable of bearing the weight of the stove prior to set-up.
Note
No modifications may be made to the firing installation. This also leads to loss of warranty and guarantee.
Floor protection
A base is required (glass, sheet steel or ceramic) if the floor is combustible (wood, carpet, etc.).
Flue pipe connection
Q Flue pipes pose a particular source of hazard regarding gas leaks and
fire. Get the advice of an authorised specialist company for the layout and assembly.
Q Please observe the corresponding installation guidelines for walls panelled
with wood when connecting your flue pipes to the stove.
Q Observe the formation of flue gas (atmospheric inversion) and draughts
when the weather is unfavourable.
Q Infeed of too little combustion air can lead to smoke in the rooms or to flue
gas leaks. Hazardous deposits in the stove and chimney may also occur.
Q If flue gas escapes, let the fire burn out and check whether all the air inlet
openings are free and the flue gas pipes and the stove pipe are clean. If in doubt notify the master chimney sweep since draught malfunctions may be connected to your chimney.
Stoves type 1 (BA 1):
Q Suitable for multiple occupancy. (Note the different country regulations.)
Q These may only be operated with the combustion chamber door closed.
Q The combustion chamber door may only be opened to add fuel and must
then be closed again otherwise other firing installations connected to the chimney may be endangered.
Q The combustion chamber door is to be kept closed when the stove is not
in operation.
Q Fouling of the chimney i.e. deposits of highly inflammable materials such as
soot and tar and subsequently fire in the chimney may occur if wet fuel is used and operation is damped too much.
Q If this occurs, close the fresh air support (slider, regulator, flaps - depending
on model)! Disconnect the mains plug at the stoves type Rikatronic. Phone the fire brigade and get yourself and other residents out of harm’s way.
Note
on ROOM-AIR DEPENDENT and ROOM-AIR INDEPENDENT OPERATION: Your stove has been tested as a room-air dependent stove according to EN 13240 and takes all the combustion air from the installation room via the central air intake on the back of the stove.
In combination with room-air installations (e.g. controlled ventilation and venting systems (extractors etc.) it must be ensured that the stove and the room air system are monitored and safeguarded mutually (e.g. via a differential pressure controller etc.). The combustion air infeed of approx. 20 m3/h must be ensured. This is also valid when connecting an external air supply.
Please observe the respective local regulations and rules in consultation with your master chimney sweep. For changes after the printing of this manual, we can not assume any liability. We reserve the right to change without notice.
|
9
EN
8
3. BRIEF INFORMATION ON COMBUSTIBLE - LOGS
Suitable fuels and fuel amounts
Your stove is generally suitable for burning dry firewood. You can also burn combustibles such as wood briquettes.
Note
A stove is not a waste incinerator. The warranty lapses if waste or non­approved materials such as plastic, treated wood (chipboard), coals or clothes are burnt! This leads to damage to the stove and chimney and to environmental pollution!
Note
FUEL AMOUNTS The stove is fitted with a construction-specific flat firebox. This means only one layer of logs may be laid on the base embers. Please observe that adding greater quantities of logs leads to emission of high temperatures, higher than the stove is designed for. This may cause damage to your stove. This is reflected in particular on the glass of the combustion chamber door, which will get a gray haze in case of overheating the stove, which can not be removed.
Wood types
Different types of wood have different calorific values. Wood from deciduous trees is particularly suitable. It burns with a constant flame and forms long­lasting embers. Coniferous wood has higher levels of resin and burns off faster as do all softwoods and tends to spray sparks.
Wood type
Calorific value
kWh/m
3
Calorific value
kWh/kg
Maple 1900 4,1 Birch 1900 4,3 Beech 2100 4,2 Oak 2100 4,2 Alder 1500 4,1 Ash 2100 4,2 Spruce 1700 4,4 Larch 1700 4,4 Poplar 1200 4,1 Robinia 2100 4,1 Fir 1400 4,5 Elm 1900 4,1 Willow 1400 4,1
Output controlling
The output of your stove is regulated manually or via the Rikatronic-control. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added.
Clean combustion
1. The firewood must be dry and untreated.
Guide value between 14% and 18% relative wood moisture.
Wood stored dry and ventilated for 2 – 3 years.
2. Correct firewood amount and size
Q Too much firewood leads to overheating. This stresses the material too
much and leads to poor exhaust emission values.
Q Too little firewood or logs being too large means the stove does not reach
optimum operating temperature. The flue gas values are also poor in this case.
Q For right quantity of firewood (see AMOUNT OF FUEL)
4. INSTALLING THE STOVE
General information
Note
Only use heat-resistant sealing materials as well as corresponding sealing strips, heat-resistant silicon and rock wool.
Note
Assembly may only be performed by authorised specialist companies.
Note
Also take care that the flue does not project into the free cross-section of the chimney.
Note
Please observe the regional safety and building regulations. Please contact your master chimney sweep in this context.
Note
Your stove is intended for room-air independent operation. Thus the stove pipe connections must be tightly sealed permanently for this use. Use a heat­proof silicon to position the stove pipe on the conical supports of the flue tube nozzles and for insertion in the chimney flue lining.
Note
The stove should not be pushed on unprotected floors.
Tip
Strong corrugated cardboard, cardboard or e.g. old carpet is useful to assist assembly and as a base. The stove can also be pushed on this cardboard or carpet.
We recommend original flue pipes from RIKA for proper connection.
Connection to the chimney
Q The device must be connected to an approved chimney for solid fuels.
The chimney must have a diameter of min. 100mm for pellet stoves and 130mm -150mm for log wood stoves depending on the diameter of the flue pipes.
Q Avoid long flue pipes to the chimney. The horizontal length of the flue pipe
should not exceed 1.5 m.
Q Avoid to many bends of the flue gas pipes. There should not be more than
3 bends in the exhaust pipe.
Q If you just can not connect directly to the chimney, please use a connection
with a cleaning opening.
Q Connections must be made of metal and must meet the requirements of the
standard (install the connections airtight).
Q Before installing a chimney calculation must be made. The evidence must be
performed for single occupancy to EN13384-1 and EN13384-2 for multiple occupancy.
Q The maximum draft of the chimney should not exceed 15Pa.
Q The derivation of the flue gases must be guaranteed even during a temporary
power outage.
Note
If connecting to multiple connection chimneys additional safety equipment is required. Your local chimney sweep will advise you in this case.
Connecting to a steel chimney
The connection must be calculated and shown with EN13384-1 and EN13384-2.
Use only insulated (double) stainless steel tubes (flexible aluminum or steel tubes are not permitted).
An inspection door for regular inspection and cleaning must be present.
The flue pipe connection to the chimney has to be air-tight.
Combustion air
Every combustion process requires oxygen from the surrounding air. This so­called combustion air is removed from the living are in the case of individual stoves without external air connections.
This air removed must be replaced in the living space. Very tightly sealed windows and doors in modern flats may mean that too little air replaces that used. The situation also becomes problematical due to additional venting in flats (e.g. in the kitchen or WC). If you cannot feed in external combustion air, then air the room several times a day to prevent negativce pressure in the room or poor combustion.
Note
Please note that problems may arise due to updrafts in the case of combustion air supply from an integrated chimney ventilation shaft. If the combustion air flowing downwards is heated it may rise and thus counter the chimney with a resistance which in turn reduces the negative pressure in the combustion chamber. The chimney manufacturer is to guarantee that the resistance for the combustion air is a maximum 2 Pa even in the least favourable operating state of the chimney
Feeding in external combustion air
only for devices which are able to run in room-air independent operation.
Q Combustion air must be fed to the stove from outside via a sealed pipe
for operation independent of the room air. According to EnEV, it must be possible to shut off the combustion air pipe. The open/closed setting must be clearly recognisable.
Q Cut the perforated rear wall out with a hacksaw.
Q Connect at the air intake either a pipe Ø125mm (log wood and combi
stoves) or Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
Q To ensure sufficient air intake, the intake pipe should not exceed max. 4m
and have max. 3 bends.
Q If the line leads outside it must have a windbreak.
Q In extreme cold pay attention to icing on the air intake opening (check).
Q It is also possible to suction in combustion air directly from another
sufficiently vented room (e.g. cellar).
Q The combustion air pipe must be tightly connected (adhesive or cement)
permanently to the air nozzles of the stove.
Q If you do not use the stove for a long time, please close the combustion air
intake to prevent the stove from moisture.
If one or more of these conditions does NOT apply, the result is poor combustion in the stove and negative pressure in the installation room.
|
11
EN
10
5. ASSEMBLY/DISMANTLING STONE AND OPTIONS
Note
Only work on the unit when the mains plug has been disconnected and the stove has cooled down completely.
Note
During any conversion work, take particular care of your fingers and any panels and stove attachments. Select soft bases to prevent scratches to your living space furniture and stove panels.
Assembly of the cover
For flue pipe top connection first place the cover on the top. With the green marked screw you can adjust the support of the front cover.
At last mount the flue pipe. Please pay attention to be air tight!
For connection rear or lateral mount the 90° knee with cleaning lid from the standard RIKA flue pipe range. Please pay attention to be air tight!
The corresponding top panel (sold separately) is simply placed here, for example, for rear connection.
Connection of an external combustion air pipe
Remove the top cover. It can be easily lifted.
Remove the 4 screws holding the rear wall.
Tilt the rear panel back and lift it up and away.
Cut out the rear wall of the green mark.
Mount the air inlet.
Assemble the parts in reverse order. When connecting the air supply, pay attention to be air tight.
#8
#8
#25
6. MANUAL OPERATION
Operating the riddle grate
The ash is moved from the combustion chamber to the ash drawer by pushing the riddle grate handle back and forth. This frees the way for the primary air intake which is necessary for heating up.
In general the riddle grate should stay open. The air regulation is made completely with the front air control knob.
Combustion air regulation
The performance of your stove also depends on the chimney draught; therefore the control know must be used according to your own experience.
The “heating-up position“ may only be used for heating up.
If the stove is not in use, warm air can release through the chimney. The zero setting of the control knob can largely prevent this.
Correct heating up
1. Press the control knob completely into “heating-up position” – primary and secondary air intakes are opened completely in the heating-up position. Open the combustion chamber door, then open the riddle grate completely.
Place left and right two small pieces of chipboard lengthways in the bottom of the combustion chamber.
Place two logs crossways on top of this chipboard.
2. Now place further pieces of chipboard in crosswise layers on top of the logs and place a firelighter underneath the chipboard (some uncoated paper can be placed underneath the chipboard instead of using a firelighter).
3. Now light the firelighter (or the uncoated paper) and close the combustion chamber door. Correct heating up primarily counteracts excessive smoke during heating up.
Set the air control knob to middle position some minutes later. The primary air intake is now closed and the secondary air intake is completely open. Another few minutes later (depending on draught and fuel quality / amount), the control knob can be set further to zero setting to reduce the air intake.
After the first burn-off, again add two logs (see Amount of fuel). Set the controll to “heating-up position” again until the wood is well lit. Further regulation is effected as described in Item 3.
Please proceed in the same way for every further addition of wood.
Note
Sometimes a lot of smoke develops when wood is placed on a low firebed or when there is too less fresh air for combustion. An explosive gas/air mixture may arise and cause an eventual heavy deflagration. For safety reasons it is recommended to leave the combustion chamber door closed and press the control knob at the rear wall down completely into “heating-up position”. If the log wood is not igniting, start a new heating-up procedure after it stopped smoking.
|
13
EN
12

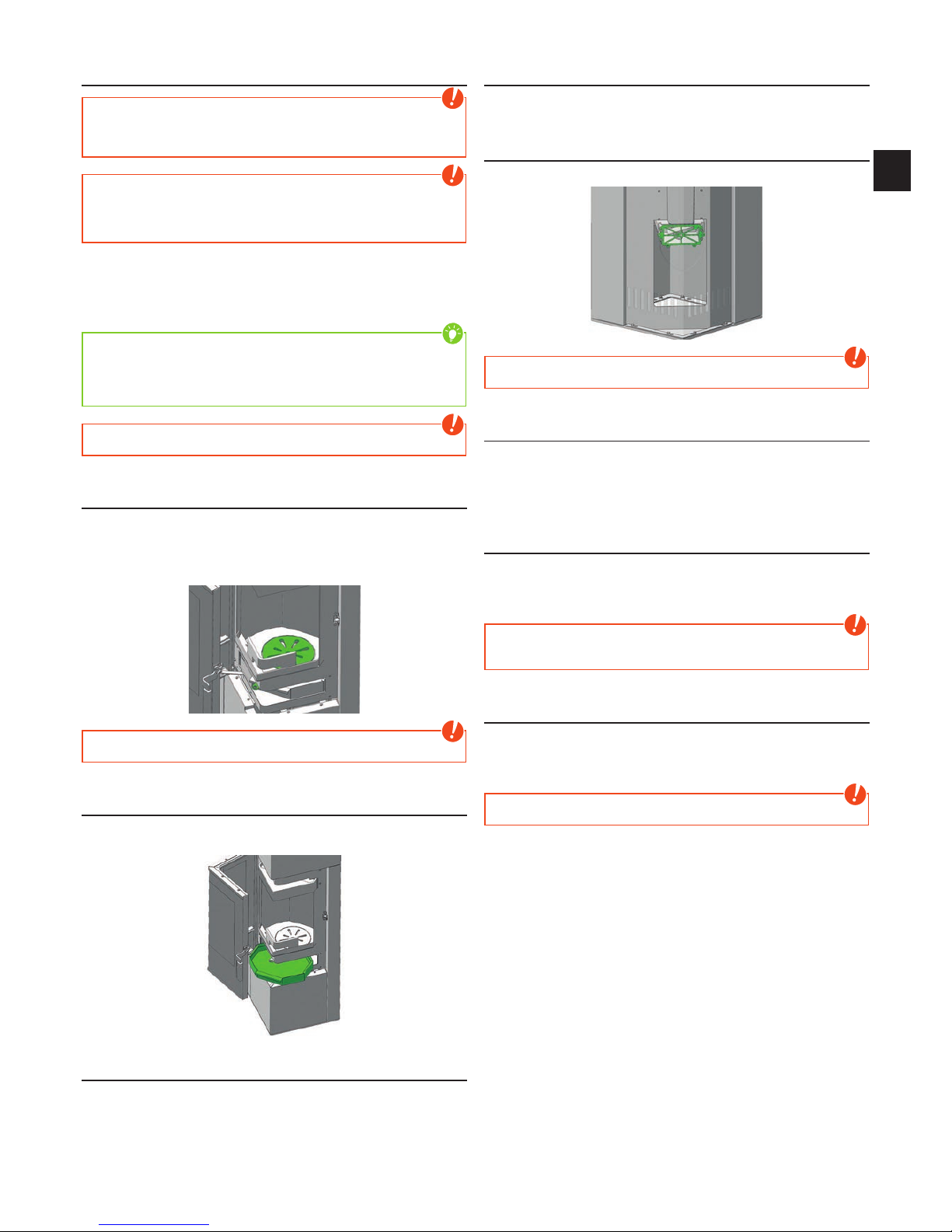

7. CLEANING AND MAINTENANCE
Basic information
Note
When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation. You could vacuum out embers – FIRE RISK!
Note
Your stove must be cooled before any maintenance work is performed.
Type Rikatronic³: Only work on the unit when it is switched off and the mains plug has been disconnected.
The frequency with which the stove requires cleaning and the maintenance intervals depend on the fuel you use. High moisture content, ash, dust and chips may more than double the maintenance required. Only use wood that has been stored properly and is dry and untreated.
Tip
Wood as fertiliser - the mineral content of the wood remains in the combustion chamber as ash as a residue of the combustion. This is an excellent fertiliser for all plants in the garden; it is a completely natural product. The ash should be stored first and slaked with water.
Note
Ash may contain embers – only place ash in sheet steel containers!
Cleaning the combustion chamber
The combustion chamber must be regularly cleaned from ash to ensure an adequate supply of air. Using the riddle grate carries the ashes in the ash tray. With a broom you can sweep the surrounding ashes. You can also use an ash vacuum cleaner.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Empty the ash drawer
Empty the ash drawer regularly. The ash drawer is simply pulled forward with the combustion chamber door open.
Cleaning the door glass
The glass can be cleaned best with a moist cloth. Stubborn dirt can be removed with a special cleaner (free from corrosive acids and solvents - otherwise there is a risk of damage to the glass surface) available from your stove dealer. Usual cleaners containing acid or solvents can be too harsh and damage the glass.
Cleaning painted surfaces
Wipe the painted surfaces with a damp cloth, do not scrub. Do not use solvent­containing cleaners.
Combustion air - intake
If necessary, please also clean the air intake with a hoover.
Note
Only when the stove is cold! You could vacuum out embers – FIRE RISK!
Cleaning the convection air openings
Vacuum clean any dust deposits from the convection air openings at regular intervals.
The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour.
Cleaning the flue pipes
Annually!
Remove the flue pipes. Inspect and clean the chimney connection. Brush off any soot and dust deposits in the fire and in the flue pipes and vacuum.
Note
Accumulated fly ash in the flue gas channels may impair the performance of the stove and pose a safety risk.
Checking door seal
Annually!
The condition of the seals at doors and glass should be checked at least once a year. Repair or replace seals depending on condition.
Note
Only intact seals ensure your stove works perfectly!
8. PROBLEMS - POSSIBLE SOLUTIONS
Problem 1
Fire burns with weak, orange flame, window is sooted up.
Cause(s)
Q Poor chimney draught
Q Damp wood
Q Incorrect heating up
Q Stove is sooted over inside
Possible solutions
Q Check whether flue gas pipes are blocked with ash
(see CLEANING AND MAINTENANCE).
Q Use dry wood and correct fuel amounts
(see BRIEF INFORMATION ON FUEL - LOGS)
Q Check whether the suction nozzles and air inlet pipe or flue tube are blocked.
Q Check door and cleaning cover seals for leaks
(see CLEANING AND MAINTENANCE)
Q Have service performed by authorised specialist company.
Q Every glass plate must be cleaned from time to time (depending on use)
with glass cleaner.
Problem 2
Stove smells strongly and / or fumes are emitted.
Cause(s)
Q Burning-in phase (taking into service)
Q Stove has accumulated dust and/or dirt
Possible solution(s)
Q Wait to end of burning-in phase and vent sufficiently
Q Suction off any dust deposits from the convection air openings at regular
intervals
Problem 3
Flue gas discharge when wood is added and during heating phase.
Cause(s)
Q Combustion chamber door opened too fast
Q Too much ash in combustion chamber
Q Adding logs to snappy
Q Chimney draught too low
Q Flue pipe connection leaks
Q Logs combustion still running (visible flame)
Possible solution(s)
Q open the combustion chamber door moderate
Q regular cleaning of combustion chamber (vacuum)
Q Adding logs carefully
Q Check chimney
Q Check connections and if necessary re-seal
Q Add logs after flame is gone
Q Check seals and replace (fire door, ..)
|
15
EN
14
9. GUARANTEE
These warranty conditions are only valid for the following countries: Austria, Germany and Switzerland. Separate conditions imposed by the importer apply for all other countries. In case of doubt as well as missing or incorrect translations, the German version is the only valid one.
For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint.
WARRANTY
5 years on the welded stove body. This exclusively applies to defects in materials and workmanship as well as free replacement. Labour and travel times are not included in the manufacturer’s warranty.
Only original parts supplied by the manufacturer should be used. Loss of warranty on non-observance!
The precondition for the warranty is that the stove has been installed and commissioned properly according to the User and installation manuals valid at the time of purchase. Connection must be performed by a specialist for such stoves.
Any costs incurred by the manufacturer due to unjustified warranty claims are to be charged to the claimant.
Wear parts and parts affected by fire are excluded, such as glass, coating, surface coatings (e.g. handles, panels), seals, fire trough, grates, draught plates, deflector plates, combustion chamber liners (e.g. fireclay), ceramics, natural stone, thermo stone, ignition elements, sensors, combustion chamber sensors and temperature controller.
Damage arising from non-observance of the manufacturer’s instructions for operation of the unit or any damage that is caused by action such as overheating, use of non-approved fuels, tampering with the device or the flue gas pipe, electrical excess voltage, an incorrect, insufficient or excessive flue draught, condensation, non-performance or deficient maintenance and cleaning, non-observance of the relevant and applicable building regulations, incorrect operation by the user or third parties, transport and handling damage is also excluded.
THE WARRANTY DOES NOT AFFECT THE STATUTORY WARRANTY PROVISIONS.
02.12.2015
Technical and design changes, as well as typesetting and printing errors reserved
© 2015 | RIKA Innovative Ofentechnik GmbH
RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at
RIKA.AT
Z36316_Forma_EN | 9.12.2015
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
