RIGOL

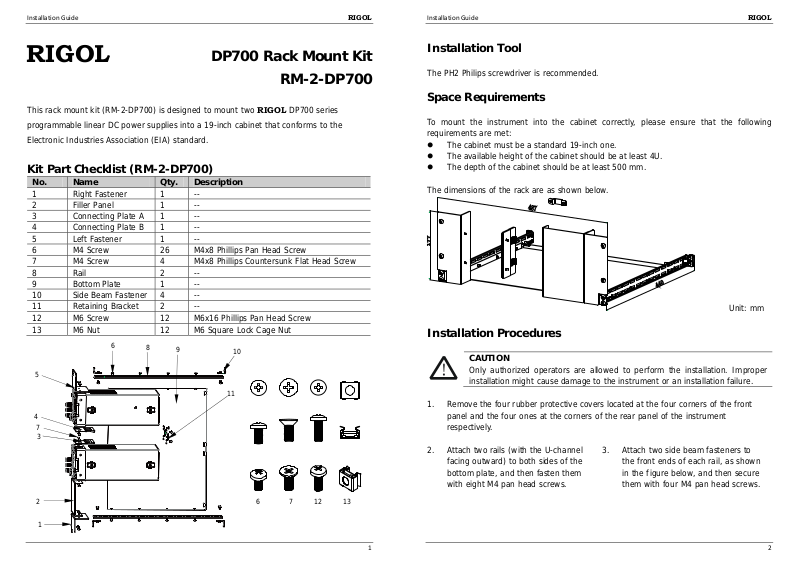

DP700 Rack Mount Kit

RM-2-DP700

This rack mount kit (RM-2-DP700) is designed to mount two RIGOL DP700 series
programmable linear DC power supplies into a 19-inch cabinet that conforms to the
Electronic Industries Association (EIA) standard.

Kit Part Checklist (RM-2-DP700)

No. Name Qty. Description

1 Right Fastener 1 -­2 Filler Panel 1 -­3 Connecting Plate A 1 -­4 Connecting Plate B 1 -­5 Left Fastener 1 -­6 M4 Screw 26 M4x8 Phillips Pan Head Screw
7 M4 Screw 4 M4x8 Phillips Countersunk Flat Head Screw
8 Rail 2 -­9 Bottom Plate 1 -­10 Side Beam Fastener 4 -­11 Retaining Bracket 2 -­12 M6 Screw 12 M6x16 Phillips Pan Head Screw
13 M6 Nut 12 M6 Square Lock Cage Nut

5

4

3

2

6

8

9

10

11

6 7 12 13

Installation Tool

The PH2 Philips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met:

 The cabinet must be a standard 19-inch one.
 The available height of the cabinet should be at least 4U.
 The depth of the cabinet should be at least 500 mm.

The dimensions of the rack are as shown below.

Unit: mm

Installation Procedures

CAUTION

Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.

1. Remove the four rubber protective covers located at the four corners of the front
panel and the four ones at the corners of the rear panel of the instrument
respectively.

2. Attach two rails (with the U-channel
facing outward) to both sides of the
bottom plate, and then fasten them
with eight M4 pan head screws.

3. Attach two side beam fasteners to
the front ends of each rail, as shown
in the figure below, and then secure
them with four M4 pan head screws.

1

1

2

InstallationGuideRIGOL

InstallationGuideRIGOL

4. Secure the side beam fasteners to the
cabinet by using four M6 screws and
four M6 nuts.

5. Attach another two side beam
fasteners to the back ends of each
rail respectively, as shown in the
figure below, and then secure them
with four M4 pan head screws. Use
four M6 screws and four M6 nuts to
secure the side beam fasteners to the
cabinet.

8. Place two retaining brackets onto the
connecting positions of the rear panels
of the two instruments, and then
secure the retaining brackets with four
M4 pan head screws.

9. Attach the left f astener to the left side
of Instrument B, and secure it with
two M4 pan head screws.

Instrument A

Instrument B

10. Attach the filler panel to the right side
of Instrument A, then secure it with
two M4 pan head screws.

Instrument B

Instrument A

11. Attach the right fastener to the other
side of the filler panel, and secure it
with two M4 pan head screws.

6. Attach Connecting Plate A to the left
side of Instrument A and attach
Connecting Plate B to the right side of
Instrument B, then secure them with
four M4 countersunk flat head screws.

Instrument B

Connecting Plate B

Connecting Plate A

Instrument A

7. Connect the two instruments by
joining Connecting Plate A with
Connecting Plate B.

Instrument B

Instrument A

12. Place the assembled instruments and rack onto the bottom plate. Then, secure the
left and right fasteners to the cabinet by using four M6 screws and four M6 nuts.

-End-
