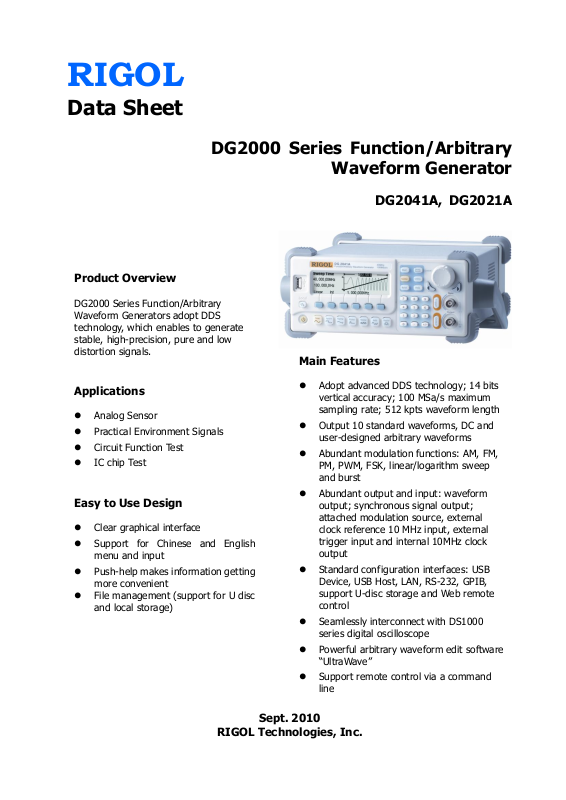

Rigol DG2041A Data Sheet

RIGOL

Applications

 Analog Sensor
 Practical Environment Signals
 Circuit Function Test
 IC chip Test

Product Overview

DG2000 Series Function/Arbitrary
Waveform Generators adopt DDS
technology, which enables to generate
stable, high-precision, pure and low
distortion signals.

Main Features

 Adopt advanced DDS technology; 14 bits

vertical accuracy; 100 MSa/s maximum
sampling rate; 512 kpts waveform length

 Output 10 standard waveforms, DC and

user-designed arbitrary waveforms

 Abundant modulation functions: AM, FM,

PM, PWM, FSK, linear/logarithm sweep
and burst

 Abundant output and input: waveform

output; synchronous signal output;
attached modulation source, external
clock reference 10 MHz input, external
trigger input and internal 10MHz clock
output

 Standard configuration interfaces: USB

Device, USB Host, LAN, RS-232, GPIB,
support U-disc storage and Web remote
control

 Seamlessly interconnect with DS1000

series digital oscilloscope

 Powerful arbitrary waveform edit software

“UltraWave”

 Support remote control via a command

line

Easy to Use Design

 Clear graphical interface
 Support for Chinese and English

menu and input

 Push-help makes information getting

more convenient

 File management (support for U disc

and local storage)

Data Sheet

DG2000 Series Function/Arbitrary

Waveform Generator

DG2041A, DG2021A

Sept. 2010

RIGOL Technologies, Inc.

10 Standard Waves and DC Output:

Enable to output Sine, Square, Ramp, Pulse,
ExpRise, ExpFall, Sinc, Noise and DC waves.

Editable Arb Waves: Enable to edit and

output arbitrary wave up to 14bits and 4kpts.
In addition, the instrument provides 4
nonvolatile memories for saving custom
arbitrary waves. According to Ultrawave, more
waves could be edited and saved, or perform
analysis for the waves that has already been
uploaded to it.

Abundant Modulation Functions:

Support AM, FM, PM, PWM and FSK, the
modulated waveforms are intuitively shown on
the screen.

Sweep: It can output in the form of linearity

or logarithm from the start frequency to the
stop frequency during the sweep time (1 ms ~
500 s) you specified. Sweeping can be
generated by Sine, Square, Ramp or Arbitrary
waveforms.

Burst: It can generate versatile waveforms in

burst, which can last specific times of
waveform cycle (N-Cycle Burst) or output
gating pluse if applied external gating signal.

In order to meet the most basic needs of
users, UltraWave provides 9 standard
waveforms. In addition, hand drawing, line
(point by point) drawing and arbitrary points
drawing are also offered to make it easier to
create complex waveforms and to edit multiple
waves simultaneously through the multi-file
management interface.

Either, UltraWave has following utilitarian
functions:
 Save the arbitrary wave that has been

created as the format of .txt (text
file), .csv (CSV file) and .rdf (arbitrary
waveform file).

 Read the wave files stored as the format

of .Wfm from DS series Digital
Oscilloscope.

 Print wavefroms.
 Download the waves have heen created to

the internal storage of DG10X2.

 Windows operation: enable to perform

math operations such as“＋”、“－”、“×” for
the waves in two windows.

 Absolute operation: enable to perform

absolute operation for the selected waves.

 Filter: enable to perform low pass filtering

or smoothing for the whole wave.



10 Standard Waves, DC and Editable Arb Waves

 Abundant Modulation Functions, Sweep, Burst

 Powerful Waveform Editing Software “UltraWave”

1

Frequency (2041A)

Waveforms

Sine, Square, Ramp, Triangle, Pulse, Noise, DC, Arb

Sine

1 µHz ~ 40 MHz

Square

1 µHz ~ 40 MHz

Pulse

500 µHz ~ 16 MHz

Ramp

1 µHz ~ 400 kHz

White Noise

20 MHz bandwidth (-3 dB) (typical)

Resolution

1 µHz

Accuracy

± 50 ppm in 90 days
± 100 ppm in 1 year
18°C ~ 28°C

Temperature Coefficient

< 2 ppm/°C

Frequency (2021A)

Waveforms

Sine, Square, Ramp, Triangle, Pulse, Noise, DC, Arb

Sine

1 µHz ~ 25 MHz

Square

1 µHz ~ 25 MHz

Pulse

500 µHz ~ 10 MHz

Ramp

1 µHz ~ 250 kHz

White Noise

20 MHz bandwidth (-3 dB) (typical)

Resolution

1 µHz

Accuracy

± 50 ppm in 90 days
± 100 ppm in 1 year
18°C ~ 28°C

Temperature Coefficient

< 2 ppm/°C

Sine Wave Spectrum Purity

Harmonic Distortion

< 1 Vpp > 1 Vpp
DC ~20 kHz -70 dBc -70 dBc
20 kHz ~ 100 kHz -65 dBc -60 dBc
100 kHz ~ 1 MHz -50 dBc -45 dBc
1 MHz ~ 10 MHz -40 dBc -35 dBc

Total Harmonic Distortion

DC ~ 20 kHz，1 Vpp <0.2%

Spurious Signal
(non-harmonic)

DC ~ 1 MHz < -70 dBc
1 MHz ~ 10 MHz < -70 dBc + 6 dB/octave

Phase Noise (10 kHz offset)

-115 dBc / Hz (typical)

Square Wave

Specifications

All the specifications below apply to DG2000 Series Function/ Arbitrary Waveform Generator unless
where noted. To come up to these specifications, two conditions must be met firstly:

 The instrument must have been operated continuously for 30 minutes under the specified

operating temperature.

 Do perform Self-Calibration through the Utility menu if the range of operating temperature

variations up to or more than 5°C.

Note: All specifications are guaranteed unless where marked “typical”.

Specifications

2

Rise/Fall Time

< 13 ns (10% ~ 90%) (typical: 1 kHz, 1 Vpp)

Overshoot

< 2% (typical)

Duty Cycle

20% ~ 80% (to 8 MHz)
40% ~ 60% (to 16 MHz)
50% (>16 MHz)

Asymmetry
(below 50% Duty Cycle)

1% of period + 5 ns
Jitter

1 ns + 100 ppm of period

Ramp Wave

Linearity

< 0.1% of peak output (typical, 1 kHz, 1 Vpp, 100% Symmetry)

Symmetry

0.0% ~ 100.0%

Pulse Wave

Pulse Width

2000 s max period; 12 ns min period; 1 ns resolution

Variable Edge Time

5 ns ~ 1 ms

Overshoot

< 2%

Jitter

1 ns + 100 ppm of period

Arb Wave

Frequency Range

1 µHz ~ 12 MHz (DG2041A)
1 µHz ~ 8 MHz (DG2021A)

Waveform Length

2 ~ 512 k points

Vertical Resolution

14 bits (including sign)

Sampling Rate

100 MSa/s

Minimum Rising /Falling Time

35 ns (Typical)

Jitter (RMS)

6 ns + 30 ppm

Nonvolatile Storage

4 waveforms

Output Characteristics

Amplitude

[1]

20 mVpp ~ 10 Vpp (50 )
40 mVpp ~ 20 Vpp (High Z)

Vertical Accuracy (100 kHz
Sine)

± (1% of setting +1 mVpp)

Amplitude Flatness (Sine wave
relative to 100 kHz, 5 Vpp)

< 100 kHz 0.1 dB
100 kHz ~ 5 MHz 0.15 dB
5 MHz ~ 40 MHz 0.3 dB

DC Offset

Range (peak value AC＋DC)

5 V (50 )
10 V (High Z)

Offset Accuracy

± (2%of the |Offset Setting| + 0.5% of the amplitude+ 2 mV)

Waveform Output

Impedance

50  (typical)

Isolation

42 Vpk max. to Earth

Protection

Short-circuit protected; Overload relay automatically disables main
output.

AM

Carrier Waveforms

Sine, Square, Ramp, Arb

Source

Internal/ External

Waveforms

Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz)

Modulation Depth

0% ~ 120%

FM

3

Carrier Waveforms

Sine, Square, Ramp, Arb

Source

Internal/ External

Modulation waveforms

Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz)

Phase Deviation

DC ~ 20 MHz (DG2041A); 12.5 MHz (DG2021A)

PM

Carrier Waveforms

Sine, Square, Ramp, Arb

Source

Internal/ External

Modulation waveforms

Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz)

Phase Deviation

0 ~ 360°

FSK

Carrier Waveforms

Sine, Square, Ramp, Arb (except DC)

Source

Internal/ External

Modulation Waveforms

50% duty cycle square (2 mHz to 100 kHz)

PWM

Carrier Waveforms

Pulse

Source

Internal/ External

Modulation Waveforms

Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz)

Width Deviation

0% ~100% of the pulse width

Sweep

Carrier Waveforms

Sine, Square, Ramp, Arb

Type

Linear or Logarithmic

Sweep Time

1 ms to 500 s ± 0.1%

Trigger Source

Manual/Internal/External

Burst

Waveforms

Sine, Square, Ramp, Pulse, Noise, Arb

Types

Count (1 to 50,000 periods), infinite, gated

Start Phase

-360° ~ +360°

Internal Period

1 μs – 500 s ± 1%

Gate Source

External Trigger

Trigger Source

Manual/Internal/External

Rear Panel Connector

External AM Modulation

± 5 Vpk = 100% modulation
5 k input impedance

Input/Output Frequency
Range

10 MHz ± 500 Hz
Input/Output Level Range

80 mVpp ~ 10 Vpp/0 dBm (typical)

Input/Output Impedance

2 kΩ/50 Ω ( typical, AC coupled)

Time

< 1 s

External Trigger

TTL compatible

Trigger Input

Input Level

TTL compatible

Slope

Rising or falling (selectable)

Pulse Width

> 100 ns

Input Impedance

> 10 k, DC coupled

Linear Sweep

< 500 µs (typical)

Latency Sweep

< 500 ns (typical)

Trigger Output

4

Electrical Level

TTL compatible, input >1 k

Pulse Width

> 400 ns (typical)

Output Impedance

50  (typical)

Maximum Rate

1 MHz

Display

Display Type

Black and White LCD Screen

Display Resolution

256 Horizontal x 64 Vertical

Grey Degree

4 Level Grey

Display Contrast (typical)

150:1

Backlight Brightness
(typical)

300 nit
Supply Voltage

Power Consumption

100-240 VACrms, 45-440 Hz, CAT II

Fuse

Less than 50 W

Supply Voltage

2 A, T level, 250 V

Environment

Ambient Temperature
Operation: 10℃ ~ +40℃

Non-operation: -20℃ ~ +60℃

Cooling Method

Natural cooling

Humidity Range
Below +35℃: ≤90％ relative humidity

+35℃~+40℃: ≤60％relative humidity

Height above sea level
Operation : below 3,000m

Non-operation: below 15,000m

Mechanism

Dimension

Width

232 mm

Height

108 mm

Depth

288 mm

Weight
Net weight

2.7 kg

Gross weight

4 kg

IP Protection

IP2X

Calibration Interval

One year suggested

Remark

 Amplitude range (50 ):

 Amplitude range (High Z):

[1]

：

If output frequency >10 MHz, the range is 20 mVpp ~ 5 Vpp。

If output frequency >10 MHz, the range is 40 mVpp ~ 10 Vpp。

General Specifications

5

6

Ordering Information

Name of Product

RIGOL DG2000 Series Function/Arbitrary
Waveform Generator

Model Frequency

DG2041A 40 MHz
DG2021A 25 MHz

Standard Accessories

 A Power Cord that fits the standard of

destination country

 A USB Cable
 A Quick Guide
 A resource CD(including User’s Guide )

Optional Accessories

 BNC Cable
 RS-232 Cable

Warranty

Thank you for choosing RIGOL products!

RIGOL Technologies, Inc. warrants that this

product will be free from defects in materials and
workmanship from the date of shipment. If a
product proved defective within the respective
period, RIGOL will provide repair or
replacement as described in the complete
warranty statement.

For the copy of complete warranty statement or
maintenance, please contact with your nearest

RIGOL sales and service office.

RIGOL do not provide any other warranty items

except the one being provided by this summary
and the warranty statement. The warranty items
include but not being subjected to the hint
guarantee items related to tradable
characteristic and any particular purpose.
RIGOL will not take any responsibility in cases
regarding to indirect, particular and ensuing
damage.

Contact Us

If you have any problem or requirement during using our products, please contact RIGOL
Technologies, Inc. or the local distributors.

Domestic: Please call
Tel: [phone]
Fax: [phone]

Service & Support Hotline: [phone]

9:00 am – 5: 00 pm from Monday to Friday

Or by e-mail:

[e-mail]

Or mail to:
RIGOL Technologies, Inc.
156# CaiHe Village, ShaHe Town, ChangPing District, Beijing, China
Post Code: 102206

Overseas: Contact the local RIGOL distributors or sales office.
For the latest product information and service, visit our website: http://www.rigol.com/
