Rigol DG1022 Programming Guide

RIGOL

Programming Guide

DG1022 Function/Arbitrary

Waveform Generator

August 2009

RIGOL Technologies, Inc.

RIGOL

I

Copyright

© 2009 RIGOL Technologies, Inc. All Rights Reserved.

Trademark Information

RIGOL is registered trademark of RIGOL Technologies, Inc.

Notices

 RIGOL products are protected by patent law in and outside of P.R. China.
 RIGOL Technologies, Inc. reserves the right to modify or change part of or all

the specifications and pricing policies at company’s sole decision.

 Information in this publication replaces all previously corresponding material.
 RIGOL shall not be liable for losses caused no matter by incidental or by

consequential in connection with the furnishing, use or performance of this
manual as well as any information contained.

 Any part of this document is forbidden to copy, photocopy or rearrange without

the express written approval of RIGOL.

Product Certification

RIGOL guarantees this product conforms to the standards of national and industrial.
Meanwhile, the related standards conform to other ISO will get further. At present,
DG1022 has passed CE, GOST and cTUVus certification.

Programming Guide for DG1022

RIGOL

II

Structure of this Document

Chapter 1 Programming Overview

This chapter introduces you how to programme DG1022 generator using commands
and how to input the commands in right format.

Chapter 2 DG1022 Commands System

This chapter gives detailed information on each command supported by DG1022,
including command format, function description, considerations when using command
as well as some application examples.

Chapter 3 Application Examples

This chapter shows you how to realize the examples in《DG1022 User’s Guide》via
command lines.

Appendix: Commands Reference A-Z

The Appendix lists all the commands alphabetically in favor of quick reference.

Programming Guide for DG1022

RIGOL

III

Table of Contents

Chapter 1 Programming Overview ........................................................... 1-1

Communication Interfaces.......................................................................... 1-2

Commands Introduction ............................................................................. 1-3

Commands Format .............................................................................. 1-3

Symbol Instruction .............................................................................. 1-4

Parameter Types ................................................................................. 1-5

Commands Abbreviation ...................................................................... 1-6

Chapter 2 DG1022 Commands System .................................................... 2-1

IEEE 488.2 ................................................................................................ 2-2

APPLy ....................................................................................................... 2-3

FUNCtion ................................................................................................ 2-10

FREQuency ............................................................................................. 2-16

VOLTage ................................................................................................. 2-20

OUTPut .................................................................................................. 2-26

PULSe .................................................................................................... 2-31

AM ......................................................................................................... 2-35

FM ......................................................................................................... 2-38

PM ......................................................................................................... 2-41

FSKey ..................................................................................................... 2-44

SWEep ................................................................................................... 2-47

TRIGger ................................................................................................. 2-50

BURSt .................................................................................................... 2-53

DATA ...................................................................................................... 2-57

MEMory .................................................................................................. 2-61

SYSTem .................................................................................................. 2-64

PHASe .................................................................................................... 2-67

DISPlay .................................................................................................. 2-69

COUPling ................................................................................................ 2-70

Chapter 3 Application Examples .............................................................. 3-1

Example 1: To Generate a Sine Wave .......................................................... 3-2

Example 2: To Generate a Built-in Arbitrary Wave ........................................ 3-3

Example 3: To Generate an User-defined Arbitrary Wave .............................. 3-4

Example 4: To Generate a FSK Wave .......................................................... 3-6

Example 5: To Generate a Linear Sweep Wave ............................................ 3-7

Programming Guide for DG1022

RIGOL

IV

Example 6: To Generate a Burst Wave ........................................................ 3-8

Example 7: To Output Waves via Dual Channels .......................................... 3-9

Example 8: Channel Coupling ................................................................... 3-10

Example 9: Channel Copy ........................................................................ 3-11

Appendix: Commands Reference A-Z .......................................................... 1

Programming Guide for DG1022

Programming Overview RIGOL

1-1

Chapter 1 Programming Overview

This chapter introduces you how to programme DG1022 generator using commands
and how to input commands in right format.

This chapter contains the following sections:

 Communication Interfaces
 Commands Introduction

Commands Format
Symbol Instruction
Parameter Types
Commands Abbreviation

Programming Guide for DG1022

RIGOL Programming Overview

1-2

Communication Interfaces

Computers communicate with the generator by sending and receiving messages over
an USB interface. Command word is sended and identified in the form of ASCII
character strings for users to easily control and do user-defined development.

Operations that you can do with a computer and a generator include:

 Set the generator.
 Output waveforms from the generator.

Connection:
Please connect the USB Device port of DG1022 with the corresponding USB interface
on the computer using an USB cable.

Programming Guide for DG1022

Programming Overview RIGOL

1-3

Commands Introduction

Commands Format

The commands system of DG1022 is a tree structure, and each of sub-system is
consists of a “root” keyword and multilayered keywords. The keywords are separated
by “:” and aoptional parameters are permitted to follow; “?” appeared following a
command line denotes to query this function; besides, “space” is used to divide
command and parameter.

For example:
FUNCtion:SQUare:DCYCle {<percent>|MINimum|MAXimum}
FUNCtion:SQUare:DCYCle? [MINimum|MAXimum]

FUNCtion is the root keyword of a commmand line, SQUare and DCYCle is the
second and third keyword, all of them are separated by “:”. <percent> denotes the
parameters permitted to be set by user; “?” denotes to query; the command
FUNCtion:SQUare:DCYCle and parameter are separated by “space”.

“,” is usually used to compart multiple parameters existed in one command, for
example:
DATA VOLATILE,<value>,<value>, . . .

Programming Guide for DG1022

RIGOL Programming Overview

1-4

Symbol Instruction

Following symbols are not included in commands, but whichi are usually used to assist
to explain the parameters containd in a command line.

1. Braces { }

The parameters or contents enclosed in a { } are reqired. Only one content or
parameter could be selected every time, and all the options are separated by “|”.
For example: {ON|OFF} indicateds that ON or OFF can be selected.

2. Square brackets [ ]

Some keywords or contents are enclosed by square bracket [ ], which indicates
that those parameters are optional and will be execute no matter whether been
ignored or not.
For example:
DATA:COPY <destination arb name>[,VOLATILE]
This command copys the wave from volatile memory to the specified nonvolatile
memory. Note: [,VOLATILE] may be ignored.

3. Triangle Brackets < >

An item enclosed in < > should be replaced by an effective value.
For example:
DISPlay:CONTRAST <value>
Note: <value> must be a numerical value, such as:
DISPlay:CONTRAST 25

Programming Guide for DG1022

Programming Overview RIGOL

1-5

Parameter Types

The commands contain 5 kinds of parameters, different parameters have different
setting methods.

1. Boolean Parameters

The parameters could be “OFF”, “ON” or “0”, “1”, for example:
AM:STATE {OFF|ON}
“OFF” denotes disable AM function. “On” denotes enable.

2. Consecutive Integer Parameters

The parameters could be a consecutive integer, for example:
DISPlay:CONTRAST <value>
<value> could be an integer between 0 and 31(including 0 and 31).

3. Consecutive Real Number Parameters

The parameters could be any value only in effective range and precision
permitted, for example:
FREQuency {<frequency>|MINimum|MAXimum}
As a sine wave, <frequency> should be any real number between 1uHz~20MHz.

4. Discrete Parameters

The parameters could be a cited value, for example,

MEMory:STATe:NAME? {0|1|2|3|4|5|6|7|8|9|10}
The parameter could only be 0, 1, 2, 3, 4, 5, 6. 7, 8, 9, 10.

5. ASCII Character String

The parameters should be composed of ASCII character string, for example,
DATA:COPY <destination arb name>[,VOLATILE]
<destination arb name> is a character string defined by user.

Programming Guide for DG1022

RIGOL Programming Overview

1-6

Commands Abbreviation

All the comands are case-insensitive, so you can use any kind of them. But if use
abbreviation, the capital letters specified in commands must be written completely.
For example:
FUNCtion:SQUare:DCYCle? also can be:
FUNC:SQU:DCYC? or func:squ:dcyc?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-1

Chapter 2 DG1022 Commands System

This chapter gives detailed information on each command supported by DG1022,
including command format, function description, using considerations as well as some
application examples.

DG1022 contains following subcommands systems:

 IEEE 488.2
 APPLy
 FUNCtion
 FREQuency
 VOLTage
 OUTPut
 PULSe
 AM
 FM
 PM
 FSKey
 SWEep
 TRIGger
 BURSt
 DATA
 MEMory
 SYSTem
 PHASe
 DISPlay
 COUPling

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-2

1. *IDN?

Command Format

*IDN?

Function

Query ID character string of instrument, including a field
separated by 4 “,”, manufactory, model, serial number and the
edition number that consists of numbers and separated by
“.” .

Return Format

RIGOL TECHNOLOGIES,DG1022,DG1000000002,

00.01.00.04.00

IEEE 488.2

IEEE standard has some common commands for querying some basic information
about instrument or executing, which usually begins with “*” and holds 3-character
long command keyword.

DG1022 supports following IEEE488.2 commands:

1. *IDN?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-3

APPLy

APPLy commands provide the most straightforward method to program the
generator over remote interface. Among following commands, the instrument could
set and output waveforms if OUTPUT function is enable.

DG1022 supports following APPLy commands:

1. APPLy:SINusoid

2. APPLy:SQUare

3. APPLy:RAMP

4. APPLy:PULSe

5. APPLy:NOISe

6. APPLy:DC

7. APPLy:USER

8. APPLy?

9. APPLy:SINusoid:CH2

10. APPLy:SQUare:CH2

11. APPLy:RAMP:CH2

12. APPLy:PULSe:CH2

13. APPLy:NOISe:CH2

14. APPLy:DC:CH2

15. APPLy:USER:CH2

16. APPLy:CH2?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-4

1. APPLy:SINusoid

Command
Format

APPLy:SINusoid [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a sine wave with specific frequency, amplitude and DC
offset via CH1.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:SIN 1000,5.0,-1.5

2. APPLy:SQUare

Command
Format

APPLy:SQUare [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a square wave with specific frequency, amplitude and DC
offset via CH1 and cover the current duty cycle settings and select
50% automaticly.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:SQU 1000,5.0,-1.5

3. APPLy:RAMP

Command
Format

APPLy:RAMP [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a ramp wave with specific frequency, amplitude and DC
offset via CH1 and cover the current symmetry settings and select
50% automaticly.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:RAMP 1000,5.0,-1.5

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-5

4. APPLy:PULSe

Command
Format

APPLy:PULSe [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a pulse wave with specific frequency, amplitude and DC
offset via CH1.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:PULS 1000,5.0,-1.5

5. APPLy:NOISe

Command
Format

APPLy:NOISe [<frequency |DEFault>[,<amplitude>[,<offset>]]]
Function

Generate Gaussian noise with specific amplitude and DC offset.

Explanations

 Although the frequency parameter made no impression on this

command, a value or “DEFault” must be specified. (noise
function has 5MHz of bandwidth)

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:NOIS DEF,5.0,2.0

6. APPLy:DC

Command
Format

APPLy:DC [<frequency|DEFault>[,<amplitude>|DEFault>[,<
offset>]]]

Function

Generate a DC with electrical level specified by < offset > parameter
via CH1.

Explanations

 Although the frequency and amplitude parameter made no

impression on this command, a value or “DEFault” must be
specified.

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:DC DEF,DEF,-2.5

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-6

7. APPLy:USER

Command
Format

APPLy:USER [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate an arbitrary wave selected by FUNCtion:USER command
with specific frequency, amplitude and DC offset.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:USER 1000,5.0,-1.5

8. APPLy?

Command
Format

APPLy?

Function

Query the current configuration of CH1 and the type of waves
outputted.

Explanations

The query returns a character string with double quotation marks,
including function, frequency, amplitude and offset.

Example

CH1:"SIN,1.000000e+03,5.000000e+00,-1.500000e+00"

9. APPLy:SINusoid:CH2

Command
Format

APPLy:SINusoid:CH2 [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a sine wave with specific frequency, amplitude and DC
offset via CH2.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:SIN:CH2 1000,5.0,-1

10. APPLy:SQUare:CH2

Command
Format

APPLy:SQUare:CH2 [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a square wave with specific frequency, amplitude and DC
offset via CH2 and cover the current duty cycle settings and select

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-7

50% automaticly.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:SQU:CH2 1000,5.0,-1

11. APPLy:RAMP:CH2

Command
Format

APPLy:RAMP:CH2 [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a ramp wave with specific frequency, amplitude and DC
offset via CH2 and cover the current symmetry settings and select
50% automaticly.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:RAMP:CH2 1000,5.0,0.5

12. APPLy:PULSe:CH2

Command
Format

APPLy:PULSe:CH2 [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate a pulse wave with specific frequency, amplitude and DC
offset via CH2.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:PULS:CH2 1000,5.0,0.5

13. APPLy:NOISe:CH2

Command
Format

APPLy:NOISe:CH2[<frequency|DEFault>[,<amplitude>[,<offset>]]]

Function

Generate Gaussian noise with specific amplitude and DC offset via
CH2.

Explanations

 Although the frequency parameter made no impression on this

command, a value or “DEFault” must be specified. (noise

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-8

function has 5MHz of bandwidth)

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:NOIS:CH2 DEF, 5.0, 0.5

14. APPLy:DC:CH2

Command
Format

APPLy:DC:CH2[<frequency|DEFault>[,<amplitude>|DEFault>[,<
offset>]]]

Function

Generate a DC with electrical level specified by <offset> parameter
via CH2.

Explanations

 Although the frequency and amplitude parameter made no

impression on this command, a value or “DEFault” must be
specified.

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:DC:CH2 DEF,DEF,1.5

15. APPLy:USER:CH2

Command
Format

APPLy:USER:CH2 [<frequency>[,<amplitude>[,<offset>]]]

Function

Generate an arbitrary wave selected by FUNCtion:USER:CH2
command with specific frequency, amplitude and DC offset.

Explanations

 If the parameters you set are less than three, the sequence

would be: <frequency>, <amplitude>, <offset>.

 The default units of <frequency>, <amplitude>, <offset> are:

Hz, Vpp, VDC.

Example

APPL:USER:CH2 1000,5.0,-1.5

16. APPLy:CH2?

Command
Format

APPLy:CH2?

Function

Query the current configuration of CH2 and the type of waves
outputted.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-9

Explanations

The query returns a character string with double quotation marks,
including function, frequency, amplitude and offset.

Example

CH2:"SIN,1.000000e+03,5.000000e+00,-1.500000e+00"

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-10

FUNCtion

FUNCtion commands are used for setting the output function and their parameters;
selecting carrier wave function in modulation mode; choosing any one from 48 built-in
arbitrary waveforms and 10 user-defined waveforms, or the waveform downloaded to
volatile memory currently.

DG1022 supports following FUNCtion commands:

1. FUNCtion

2. FUNCtion?

3. FUNCtion:USER

4. FUNCtion:USER?

5. FUNCtion:SQUare:DCYCle

6. FUNCtion:SQUare:DCYCle?

7. FUNCtion:RAMP:SYMMetry

8. FUNCtion:RAMP:SYMMetry?

9. FUNCtion:CH2

10. FUNCtion:CH2?

11. FUNCtion:USER:CH2

12. FUNCtion:USER:CH2?

13. FUNCtion:SQUare:DCYCle:CH2

14. FUNCtion:SQUare:DCYCle:CH2?

15. FUNCtion:RAMP:SYMMetry:CH2

16. FUNCtion:RAMP:SYMMetry:CH2?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-11

1. FUNCtion

Command
Format

FUNCtion {SINusoid|SQUare|RAMP|PULSe|NOISe|DC|USER}
Function

Select the output function for CH1.

Explanations

If send FUNC DC and then FUNC USER, the output is still DC.

Example

FUNC SIN

2. FUNCtion?

Command
Format

FUNCtion?
Function

Query the output function from CH1.

Explanations

The query always returns CH1:ARB after sending FUNC DC or FUNC
USER.

Example

The query returns CH1:SIN, CH1:SQU, CH1:RAMP, CH1:PULS,
CH1:NOIS or CH1:ARB, the default is CH1:SIN.

3. FUNCtion:USER

Command
Format

FUNCtion:USER {<name of arbitrary wave>|VOLATILE}

Function

Separately select any one wave from built-in arbitrary waves and 10
user-defined waves for CH1 or select the wave that has been
downloaded into volatile memory.

Explanations

 The built-in waves contains:

Common:
NegRamp/AttALT/AmpALT/StairDown/StairUp/StairUD/Cpulse/
PPulse/NPulse/Trapezia/RoundHalf/AbsSine/AbsSineHalf/
SINE_TRA/SINE_VER
Math:
Exp_Rise/Exp_Fall/Tan/Cot/Sqrt/X∧2/Sinc/Gauss/HaverSine/
Lorentz/Dirichlet/GaussPulse/Airy
Project:
Cardiac/Quake/Gamma/Voice/TV/Combin/BandLimited/
Stepresponse/Butterworth/Chebyshev1/ Chebyshev2
Window Function:
Boxcar/Barlett/triang/Blackman/Hamming/Hanning/Kaiser

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-12

Others:
Roundpm/DC

 Send FUNC DC command when use DC.
 Abbreviation is invalid.

Example

FUNC:USER VOLATILE

4. FUNCtion:USER?

Command
Format

FUNCtion:USER?
Function

Query the name of arbitrary wave generated from CH1.

Return
Value

The query returns the name of built-in arbitrary wave that has been
selected. (such as EXP_RISE), VOLATILE or returns any name of
user-defined wave in nonvolatile memory. The default is EXP_RISE.

5. FUNCtion:SQUare:DCYCle

Command
Format

FUNCtion:SQUare:DCYCle {<percent>|MINimum|MAXimum}
Function

Set the duty cycle of square wave for CH1.

Explanations

<percent> is the percent of duty cycle selected, MIN is the
minimum duty cycle and MAX is the maximum.

Example

FUNC:SQU:DCYC 50

6. FUNCtion:SQUare:DCYCle?

Command
Format

FUNCtion:SQUare:DCYCle? [MINimum|MAXimum]
Function

Query the duty cycle of square wave from CH1.

Return
Value

The query returns current duty cycle settings with the format of
percent, such as 50.000000.

7. FUNCtion:RAMP:SYMMetry

Command
Format

FUNCtion:RAMP:SYMMetry {<percent>|MINimum|MAXimum}
Function

Set the symmetry of ramp wave for CH1.

Explanations

<percent> is the selected percent of symmetry; MIN＝0％, MAX＝
100％.

Example

FUNC:RAMP:SYMM 50

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-13

8. FUNCtion:RAMP:SYMMetry?

Command
Format

FUNCtion:RAMP:SYMMetry? [MINimum|MAXimum]
Function

Query the symmetry of ramp wave from CH1.

Return
Value

The query returns current symmetry settings with the format of
percent, such as 50.000000.

9. FUNCtion:CH2

Command
Format

FUNCtion:CH2 {SINusoid|SQUare|RAMP|PULSe|NOISe|DC|USER}
Function

Select the output function form CH2.

Explanations

If send FUNC:CH2 DC and then FUNC:CH2 USER, the output is
still DC.

Example

FUNC:CH2 SIN

10. FUNCtion:CH2?

Command
Format

FUNCtion:CH2?
Function

Query the output function from CH2.

Explanations

The query always returns CH2:ARB after sending FUNC:CH2 DC or
FUNC:CH2 USER.

Example

The query returns CH2:SIN, CH2:SQU, CH2:RAMP, CH2:PULS,
CH2:NOIS or CH2:ARB, the default is CH2:SIN.

11. FUNCtion:USER:CH2

Command
Format

FUNCtion:USER:CH2 {< name of arbitrary wave >|VOLATILE}

Function

Separately select any one wave from built-in arbitrary waves and 10
user-defined waves for CH2 or select the wave that has been
loaded into volatile memory.

Explanations

 The built-in waves contains:

Common:
NegRamp/AttALT/AmpALT/StairDown/StairUp/StairUD/Cpulse/
PPulse/NPulse/Trapezia/RoundHalf/AbsSine/AbsSineHalf/
SINE_TRA/SINE_VER
Math:
Exp_Rise/Exp_Fall/Tan/Cot/Sqrt/X∧2/Sinc/Gauss/HaverSine/

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-14

Lorentz/Dirichlet/GaussPulse/Airy
Project:
Cardiac/Quake/Gamma/Voice/TV/Combin/BandLimited/
Stepresponse/Butterworth/Chebyshev1/ Chebyshev2
Window Function:
Boxcar/Barlett/triang/Blackman/Hamming/Hanning/Kaiser
Others:
Roundpm/DC

 Send FUNC:CH2 DC command when use DC.
 Abbreviation is invalid.

Example

FUNC:USER:CH2 SINC

12. FUNCtion:USER:CH2?

Command
Format

FUNCtion:USER:CH2?
Function

Query the name of arbitrary wave generated from CH2.

Return
Value

The query returns the name of built-in arbitrary wave that has been
selected. (such as EXP_RISE), VOLATILE or returns any name of
user-defined wave in nonvolatile memory. The default is EXP_RISE.

13. FUNCtion:SQUare:DCYCle:CH2

Command
Format

FUNCtion:SQUare:DCYCle:CH2 {<percent>|MINimum|MAXimum}
Function

Set the duty cycle of square wave for CH2.

Explanations

<percent> is the selected percent of duty cycle, MIN is the
minimum duty cycle and MAX is the maximum.

Example

FUNC:SQU:DCYC:CH2 50

14. FUNCtion:SQUare:DCYCle:CH2?

Command
Format

FUNCtion:SQUare:DCYCle:CH2? [MINimum | MAXimum]
Function

Query the duty cycle of square wave from CH2.

Return
Value

The query returns current duty cycle settings with the format of
percent, such as 50.000000.

15. FUNCtion:RAMP:SYMMetry:CH2

Command

FUNCtion:RAMP:SYMMetry:CH2 {<percent>|MINimum|MAXimum}

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-15

Format

Function

Set the symmetry of ramp wave for CH2.

Explanations

<percent> is the selected percent of symmetry; MIN＝0％, MAX＝
100％.

Example

FUNC:RAMP:SYMM:CH2 50

16. FUNCtion:RAMP:SYMMetry:CH2?

Command
Format

FUNCtion:RAMP:SYMMetry:CH2? [MINimum|MAXimum]
Function

Query the symmetry of ramp wave from CH2.

Return
Value

The query returns current symmetry settings with the format of
percent, such as 50.000000.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-16

FREQuency

FREQuency commands are used for setting: the frequency of output function from
dual channels; the start/stop frequency, the center/span frequency in sweep mode,
the carrier frequency in modulation. Sweep and modulation are only valid for CH1.

DG1022 supports following FREQuency commands:

1. FREQuency

2. FREQuency?

3. FREQuency:CH2

4. FREQuency:CH2?

5. FREQuency:STARt

6. FREQuency:STARt?

7. FREQuency:STOP

8. FREQuency:STOP?

9. FREQuency:CENTer

10. FREQuency:CENTer?

11. FREQuency:SPAN

12. FREQuency:SPAN?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-17

1. FREQuency

Command
Format

FREQuency {<frequency>|MINimum|MAXimum}
Function

Set the frequency of output function for CH1.

Explanations

<frequency> is the frequency value set by user, the default unit is
Hz. MIN is the minimum frequency permitted by specified function,
MAX is the maxmum.

Example

FREQ MIN

2. FREQuency?

Command
Format

FREQuency? [MINimum|MAXimum]
Function

Query the frequency of output function from CH1.

Return Value

The query returns the frequency value that has been set in the
form of scientific notation in Hz, such as: 1.000000e-06.

3. FREQuency:CH2

Command
Format

FREQuency:CH2 {<frequency>|MINimum|MAXimum}
Function

Set the frequency of output function for CH2.

Explanations

<frequency> is the frequency value set by user, the default unit is
Hz. MIN is the minimum frequency permitted by specified function,
MAX is the maxmum.

Example

FREQ:CH2 MIN

4. FREQuency:CH2?

Command
Format

FREQuency:CH2? [MINimum|MAXimum]
Function

Query the frequency of output function from CH2.

Return Value

The query returns the frequency value that has been set in the
form of scientific notation in Hz, such as: CH2:1.000000e-06.

5. FREQuency:STARt

Command
Format

FREQuency:STARt {<frequency>|MINimum|MAXimum}

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-18

Function

Set the start frequency (used in conjunction with the stop
frequency) in sweep mode.

Example

FREQ:STAR MIN

6. FREQuency:STARt?

Command
Format

FREQuency:STARt? [MINimum|MAXimum]
Function

Query the start frequency in sweep mode.

Return Value

The query returns the start frequency that has been set in the form
of scientific notation in Hz, such as: 1.000000e-06.

7. FREQuency:STOP

Command
Format

FREQuency:STOP {<frequency>|MINimum|MAXimum}

Function

Set the stop frequency (used in conjunction with start frequency)
in sweep mode.

Example

FREQ:STOP MAX

8. FREQuency:STOP?

Command
Format

FREQuency:STOP? [MINimum|MAXimum]
Function

Query the stop frequency in sweep mode.

Return Value

The query returns the stop frequency that has been set in the form
of scientific notation in Hz, such as: 2.000000e+07.

9. FREQuency:CENTer

Command
Format

FREQuency:CENTer {<frequency>|MINimum|MAXimum}

Function

Set the center frequency (used in conjunction with span
frequency) in sweep mode.

Example

FREQ:CENT 10000000

10. FREQuency:CENTer?

Command
Format

FREQuency:CENTer? [MINimum|MAXimum]
Function

Query the center frequency in sweep mode.

Return Value

The query returns the center frequency that has been set in the

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-19

form of scientific notation in Hz, such as: 1.000000e+07.

11. FREQuency:SPAN

Command
Format

FREQuency:SPAN {<frequency>|MINimum|MAXimum}

Function

Set the span frequency (used in conjunction with center
frequency) in sweep mode.

Example

FREQ:SPAN MAX

12. FREQuency:SPAN?

Command
Format

FREQuency:SPAN? [MINimum|MAXimum]
Function

Query the span frequency in sweep mode.

Return Value

The query returns the span frequency that has been set in the
form of scientific notation in Hz, such as: 2.000000e+07.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-20

VOLTage

VOLTage commands are used for setting the voltage amplitude, offset, high level,
low level, or setting the voltage unit for each channel.

DG1022 supports following VOLTage commands:

1. VOLTage

2. VOLTage?

3. VOLTage:HIGH

4. VOLTage:HIGH?

5. VOLTage:LOW

6. VOLTage:LOW?

7. VOLTage:OFFSet

8. VOLTage:OFFSet?

9. VOLTage:UNIT

10. VOLTage:UNIT?

11. VOLTage:CH2

12. VOLTage:CH2?

13. VOLTage:HIGH:CH2

14. VOLTage:HIGH:CH2?

15. VOLTage:LOW:CH2

16. VOLTage:LOW:CH2?

17. VOLTage:OFFSet:CH2

18. VOLTage:OFFSet:CH2?

19. VOLTage:UNIT:CH2

20. VOLTage:UNIT:CH2?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-21

1. VOLTage

Command
Format

VOLTage {<amplitude>|MINimum|MAXimum}
Function

Set the amplitude from CH1 in Vpp.

Explanations

MIN selects the minimum amplitude. MAX selects the maximum
amplitude for the selected function.

Unit

VPP, VRMS or DBM. Note that DBM could be used only in non-high
resistance. The unit of voltage could be changed via sending
VOLTage:UNIT.

Example

VOLT MIN

2. VOLTage?

Command
Format

VOLTage?
Function

Query the amplitude from CH1.

Return Value

The query returns the amplitude that has been set in the form of
scientific notation such as: 4.000000e-03.

3. VOLTage:HIGH

Command
Format

VOLTage:HIGH {<voltage>|MINimum|MAXimum}
Function

Set the high level of waves from CH1 in V.

Explanations

<voltage>is the high level for user to set. MIN selects the
minimum high level. MAX selects the maximum high level.

Example

VOLT:HIGH MAX

4. VOLTage:HIGH?

Command
Format

VOLTage:HIGH?
Function

Query the high level of waves from CH1.

Return Value

The query returns the high level that has been set in the form of
scientific notation such as: 1.000000e+01.

5. VOLTage:LOW

Command

VOLTage:LOW {<voltage>|MINimum|MAXimum}

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-22

Format

Function

Set the low level of waves from CH1 in V.

Explanations

<voltage>is the low level for user to set. MIN selects the minimum
low level. MAX selects the maximum low level.

Example

VOLT:LOW MIN

6. VOLTage:LOW?

Command
Format

VOLTage:LOW?
Function

Query the low level of waves from CH1.

Return Value

The query returns the low level that has been set in the form of
scientific notation such as: -1.000000e+01.

7. VOLTage:OFFSet

Command
Format

VOLTage:OFFSet {<offset>|MINimum|MAXimum}
Function

Set the offset voltage of CH1 in VDC.

Explanations

< offset >is the offset voltage for user to set. MIN selects the
minimum DC offset voltage for specified function and amplitude.
MAX selects the maximum value.

Example

VOLT:OFFS MIN

8. VOLTage:OFFSet?

Command
Format

VOLTage:OFFSet?
Function

Query the offset voltage of CH1.

Return Value

The query returns the offset voltage that has been set in the form
of scientific notation such as: -9.998000e+00.

9. VOLTage:UNIT

Command
Format

VOLTage:UNIT {VPP|VRMS|DBM}
Function

Set the unit of voltage from CH1.

Explanations

DBM could be used only in non-high resistance.

Example

VOLT:UNIT VPP

10. VOLTage:UNIT?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-23

Command
Format

VOLTage:UNIT?
Function

Query the unit of voltage from CH1.

Return Value

The query returns VPP, VRMS or DBM.

11. VOLTage:CH2

Command
Format

VOLTage:CH2 {<amplitude>|MINimum|MAXimum}
Function

Set the amplitude of CH2 in Vpp.

Explanations

MIN selects the minimum amplitude. MAX selects the maximum
amplitude for the selected function.

Example

VPP, VRMS or DBM. Note that DBM could be used only in non-high
resistance. The unit of voltage could be changed via sending
VOLTage:UNIT:CH2.

Command
Format

VOLT:CH2 MIN

12. VOLTage:CH2?

Command
Format

VOLTage:CH2?
Function

Query the amplitude of CH2.

Return Value

The query returns the amplitude that has been set in the form of
scientific notation such as: CH2: 4.000000e-03.

13. VOLTage:HIGH:CH2

Command
Format

VOLTage:HIGH:CH2 {<voltage>|MINimum|MAXimum}
Function

Set the high level of waves from CH2 in V.

Explanations

<voltage>is the high level for user to set. MIN selects the
minimum high level. MAX selects the maximum high level.

Example

VOLT:HIGH:CH2 MAX

14. VOLTage:HIGH:CH2?

Command
Format

VOLTage:HIGH:CH2?
Function

Query the high level of waves from CH2.

Return Value

The query returns the high leve that has been set in the form of

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-24

scientific notation such as: 1.500000e+00.

15. VOLTage:LOW:CH2

Command
Format

VOLTage:LOW:CH2 {<voltage>|MINimum|MAXimum}
Function

Set the low level of waves from CH2 in V.

Explanations

<voltage>is the low level for user to set. MIN selects the minimum
low level. MAX selects the maximum low level.

Example

VOLT:LOW:CH2 MIN

16. VOLTage:LOW:CH2?

Command
Format

VOLTage:LOW:CH2?
Function

Query the low level of waves from CH2.

Return Value

The query returns the low leve that has been set in the form of
scientific notation such as: -1.500000e+00.

17. VOLTage:OFFSet:CH2

Command
Format

VOLTage:OFFSet:CH2 {<offset>|MINimum|MAXimum}
Function

Set the offset voltage from CH2 in VDC.

Explanations

<offset>is the offset voltage for user to set. MIN selects the
minimum DC offset voltage for specified function and amplitude.
MAX selects the maximum value.

Example

VOLT:OFFS:CH2 MIN

18. VOLTage:OFFSet:CH2?

Command
Format

VOLTage:OFFSet:CH2?
Function

Query the offset voltage from CH2.

Return Value

The query returns the offset voltage that has been set in the form
of scientific notation such as: -0.000000e+00.

19. VOLTage:UNIT:CH2

Command
Format

VOLTage:UNIT:CH2 {VPP|VRMS|DBM}
Function

Set the unit of voltage from CH2.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-25

Explanations

DBM could be used only in non-high resistance.

Example

VOLT:UNIT:CH2 VPP

20. VOLTage:UNIT:CH2?

Command
Format

VOLTage:UNIT:CH2?
Function

Query the unit of voltage from CH2.

Return Value

The query returns VPP, VRMS or DBM.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-26

OUTPut

OUTPut commands are used for setting the output parameters, such as: the output
switch, the output loads, the polarity of the waveform, the synchronous output signal
and the trigger output from CH1.

DG1022 supports following OUTPut commands:

1. OUTPut

2. OUTPut?

3. OUTPut:LOAD

4. OUTPut:LOAD?

5. OUTPut:POLarity

6. OUTPut:POLarity?

7. OUTPut:SYNC

8. OUTPut:SYNC?

9. OUTPut:TRIGger:SLOPe

10. OUTPut:TRIGger:SLOPe?

11. OUTPut:TRIGger

12. OUTPut:TRIGger?

13. OUTPut:CH2

14. OUTPut:CH2?

15. OUTPut:LOAD:CH2

16. OUTPut:LOAD:CH2?

17. OUTPut:POLarity:CH2

18. OUTPut:POLarity:CH2?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-27

1. OUTPut

Command
Format

OUTPut {OFF|ON}

Function

Disable or enable the [Output] connector of CH1. The default is
“OFF”.

Example

OUTP ON

2. OUTPut?

Command
Format

OUTPut?
Function

Query the state of the [Output] connector of CH1.

Return Value

The query returns OFF or ON.

3. OUTPut:LOAD

Command
Format

OUTPut:LOAD {<ohm>|INFinity|MINimum|MAXimum}

Function

Select the desired output termination of CH1. The specified value
is only used for amplitude and offset voltage.

Explanations

 Ω is the unit of <ohm>, the default is 50Ω.
 “INFinity” sets the output terminal as “High Z”.

Example

OUTP:LOAD 50

4. OUTPut:LOAD?

Command
Format

OUTPut:LOAD? [MINimum|MAXimum]
Function

Query the current load settings of CH1.

Return Value

The query returns the current load setting in ohms or returns
“Infinity”.

5. OUTPut:POLarity

Command
Format

OUTPut:POLarity {NORMal|INVerted}
Function

Set the polarity of waveform for CH1.

Example

OUTP:POL NORM

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-28

6. OUTPut:POLarity?

Command
Format

OUTPut:POLarity?
Function

Query the polarity of waveform from CH1.

Return Value

The query returns NORM or INV.

7. OUTPut:SYNC

Command
Format

OUTPut:SYNC {OFF|ON}

Function

Disable or enable the rear panel [Output] connector of CH1. The
default is “OFF”.

Explanations

The signal could be output synchronously only from CH1.

Example

OUTP:SYNC OFF

8. OUTPut:SYNC?

Command
Format

OUTPut:SYNC?

Function

Query the state of the [Sync Out] connector of CH1 on the rear
panel. The default is “OFF”.

Return Value

The query returns SYNC OFF or SYNC ON.

9. OUTPut:TRIGger:SLOPe

Command
Format

OUTPut:TRIGger:SLOPe {POSitive|NEGative}

Function

Select the edge of “tirgger output”.
If OUTPut:TRIGger command is enabled, the square wave that
compatibles with TTL and within specified edge will be generated
from [Ext Trig/FSK/Burst] conncetor on the rear panel as soon as
you start sweeping.

Explanations

 The command is used in Burst and Sweep operation.
 Select “POS” to output a pulse with a rising edge.
 Select “NEG” to output a pulse with a falling edge.

Example

OUTP:TRIG:SLOP POS

10. OUTPut:TRIGger:SLOPe?

Command
Format

OUTPut:TRIGger:SLOPe?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-29

Function

Query the edge of “tirgger output”.

Return Value

The query returns POSITIVE or NEGATIVE.

11. OUTPut:TRIGger

Command
Format

OUTPut:TRIGger {OFF|ON}
Function

Disable or enable the [Ext Trig/FSK/Burst] connector on rear panel.

Example

OUTP:TRIG OFF

12. OUTPut:TRIGger?

Command
Format

OUTPut: TRIGger?

Function

Query the state of the [Ext Trig/FSK/Burst] connector on rear
panel.

Return Value

The query returns OFF or ON.

13. OUTPut:CH2

Command
Format

OUTPut:CH2 {OFF|ON}
Function

Disable or enable the front-panel [Output] connector of CH2.

Example

OUTP:CH2 ON

14. OUTPut:CH2?

Command
Format

OUTPut:CH2?
Function

Query the state of front-panel [Output] connector of CH2.

Return Value

The query returns OFF or ON.

15. OUTPut:LOAD:CH2

Command
Format

OUTPut:LOAD:CH2 {<ohm>|INFinity|MINimum|MAXimum}

Function

Select the desired output termination of CH2. The specified value
is only used for amplitude and offset voltage.

Explanations

 Ω is the unit of <ohm>, the default is 50Ω.
 “INFinity” sets the output terminal as “High Z”.

Example

OUTP:LOAD:CH2 MIN

16. OUTPut:LOAD:CH2?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-30

Command
Format

OUTPut:LOAD:CH2? [MINimum|MAXimum]
Function

Query the current load settings of CH2.

Return Value

The query returns the current load setting in ohms or returns
“Infinity”.

17. OUTPut:POLarity:CH2

Command
Format

OUTPut:POLarity:CH2 {NORMal|INVerted}
Function

Set the polarity of waveform from CH2.

Example

OUTP:POL:CH2 NORM

18. OUTPut:POLarity:CH2?

Command
Format

OUTPut:POLarity:CH2?
Function

Query the polarity of waveform from CH2.

Return Value

The query returns NORM or INV.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-31

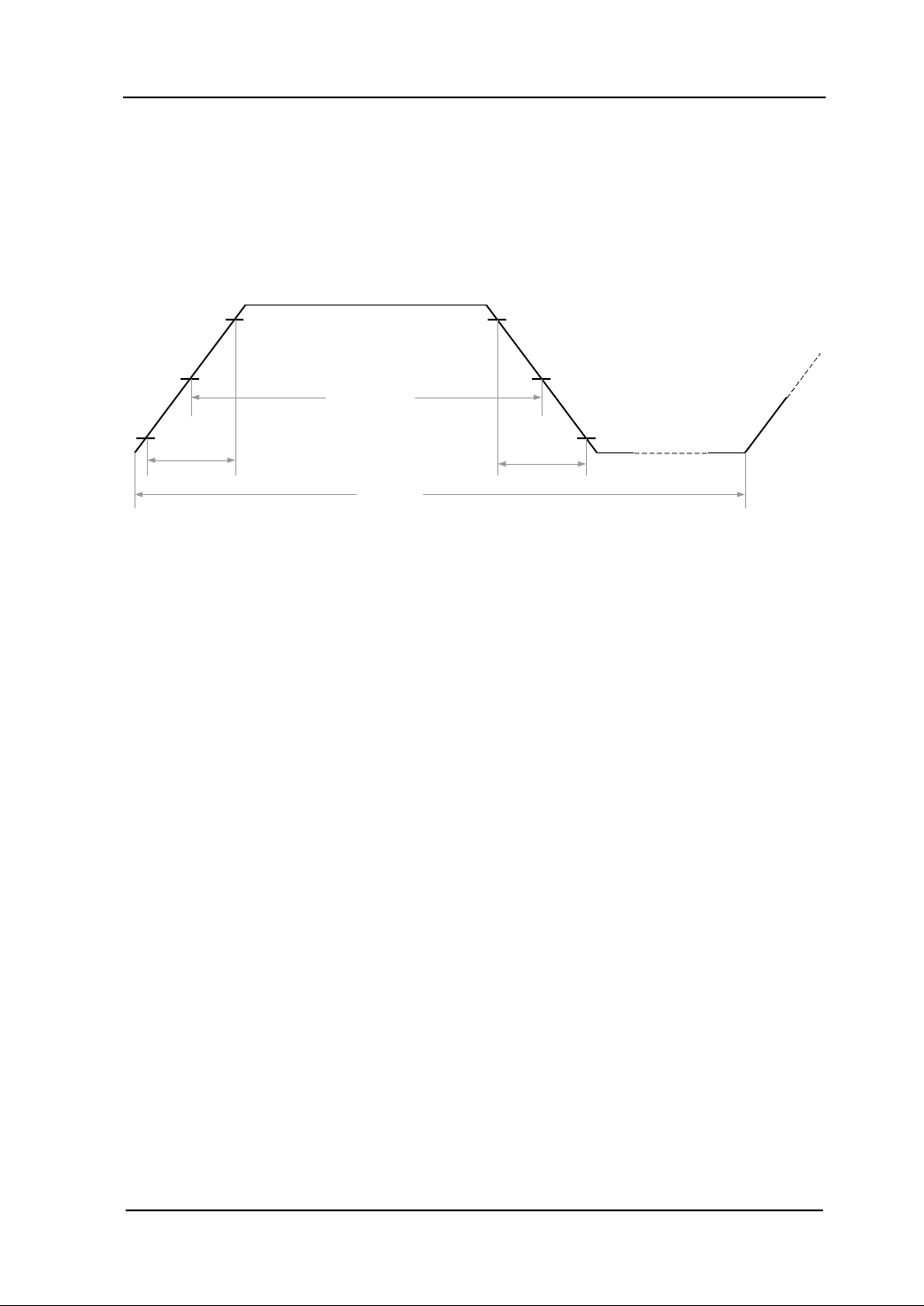

90% 90%

50% 50%

10% 10%

Pulse Width

Period

Rise Time

Fall Time

PULSe

PULSe commands are used for configuring the parameters of pulse waves from dual
channels such as: period, pulse width, duty cycle and others. Following figure is going
to help you comprehend the parameters about pulse wave.

DG1022 supports following PULSe commands:

1. PULSe:PERiod

2. PULSe:PERiod?

3. PULSe:WIDTh

4. PULSe:WIDTh?

5. PULSe:DCYCle

6. PULSe:DCYCle?

7. PULSe:PERiod:CH2

8. PULSe:PERiod:CH2?

9. PULSe:WIDTh:CH2

10. PULSe:WIDTh:CH2?

11. PULSe:DCYCle:CH2

12. PULSe:DCYCle:CH2?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-32

1. PULSe:PERiod

Command
Format

PULSe:PERiod {<seconds>|MINimum|MAXimum}
Function

Set the period of pulse from CH1 in seconds.

Example

PULS:PER 0.01

2. PULSe:PERiod?

Command
Format

PULSe:PERiod? [MINimum|MAXimum]
Function

Query the period of pulse from CH1.

Return Value

The query returns the period of pulse in the form of scientific
notation and in seconds, such as: 1.000000e-02.

3. PULSe:WIDTh

Command
Format

PULSe:WIDTh {<seconds>|MINimum|MAXimum}
Function

Set the width of pulse for CH1 in seconds.

Example

PULS:WIDT 0.005

4. PULSe:WIDTh?

Command
Format

PULSe:WIDTh? [MINimum|MAXimum]
Function

Query the width of pulse from CH1.

Return Value

The qurey returns the width of pulse in the form of scientific
notation and in seconds, such as: 5.000000e-03.

5. PULSe:DCYCle

Command
Format

PULSe:DCYCle {<percent>|MINimum|MAXimum}
Function

Set the duty cycle of pulse for CH1.

Example

PULS:DCYC 50

6. PULSe:DCYCle?

Command
Format

PULSe:DCYCle? [MINimum|MAXimum]

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-33

Function

Query the duty cycle of pulse from CH1.

Return Value

The qurey returns the percent of duty cycle of pulse in the form of
scientific notation such as: 5.000000e+01.

7. PULSe:PERiod:CH2

Command
Format

PULSe:PERiod:CH2 {<seconds>|MINimum|MAXimum}
Function

Set the period of pulse for CH2 in seconds.

Example

PULS:PER:CH2 0.01

8. PULSe:PERiod:CH2?

Command
Format

PULSe:PERiod:CH2? [MINimum|MAXimum]
Function

Query the period of pulse from CH2.

Return Value

The qurey returns the period of pulse in the form of scientific
notation and in seconds, such as: 1.000000e-02.

9. PULSe:WIDTh:CH2

Command
Format

PULSe:WIDTh:CH2 {<seconds>|MINimum|MAXimum}
Function

Set the pulse width for CH2 in seconds.

Example

PULS:WIDT:CH2 0.005

10. PULSe:WIDTh:CH2?

Command
Format

PULSe:WIDTh:CH2? [MINimum|MAXimum]
Function

Query the pulse width from CH2.

Return Value

The qurey returns the pulse width in the form of scientific notation
and in seconds, such as: 5.000000e-03.

11. PULSe:DCYCle:CH2

Command
Format

PULSe:DCYCle:CH2 {<percent>|MINimum|MAXimum}
Function

Set the duty cycle of pulse from CH2.

Example

PULS:DCYC:CH2 50

12. PULSe:DCYCle:CH2?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-34

Command
Format

PULSe:DCYCle:CH2? [MINimum|MAXimum]
Function

Query the duty cycle of pulse from CH2.

Return Value

The qurey returns the percent of duty cycle in the form of scientific
notationn, such as: 5.000000e+01.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-35

AM

In AM, the amplitude of carrier is varies with the instantaneous voltage of the
modulation waveform. Among CH1, the generator can generate AM modulation waves.
In addition, AM commands could be used for these settings: modulation source,
modulation waveform, modulation frequency, modulation depth and AM modulation
state.

DG1022 supports following AM commands:

1. AM:SOURce

2. AM:SOURce?

3. AM:INTernal:FUNCtion

4. AM:INTernal:FUNCtion?

5. AM:INTernal:FREQuency

6. AM:INTernal:FREQuency?

7. AM:DEPTh

8. AM:DEPTh?

9. AM:STATe

10. AM:STATe?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-36

1. AM:SOURce

Command
Format

AM:SOURce {INTernal|EXTernal}
Function

Select internal or external modulation source, the default is INT.

Example

AM:SOUR EXT

2. AM:SOURce?

Command
Format

AM:SOURce?
Function

Query the modulation source of AM.

Return Value

The query returns INT or EXT.

3. AM:INTernal:FUNCtion

Command
Format

AM:INTernal:FUNCtion
{SINusoid|SQUare|RAMP|NRAMp|TRIangle|NOISe|USER}

Function

Select the internal modulation wave of AM.

Explanations

In internal modulation source mode, the modulation wave could be
sine, square, ramp, negative ramp, triangle, noise or arbitrary
wave, the default is sine.

Example

AM:INT:FUNC SQU

4. AM:INTernal:FUNCtion?

Command
Format

AM:INTernal:FUNCtion?
Function

Query the internal modulation wave of AM that has been selected.

Return Value

The query returns SIN, SQU, RAMP, NRAM, TRI, NOIS or USER.

5. AM:INTernal:FREQuency

Command
Format

AM:INTernal:FREQuency {<frequency>|MINimum|MAXimum}
Function

Set the frequency of internal modulation of AM in Hz.

Explanations

Frequency range: 2mHz～20kHz

Example

AM:INT:FREQ 200

6. AM:INTernal:FREQuency?

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-37

Command
Format

AM:INTernal:FREQuency?
Function

Query the frequency of internal modulation of AM.

Return Value

The query returns the percent of the frequency of AM internal
modulation in the form of scientific notation, such as:

2.000000e+02.

7. AM:DEPTh

Command
Format

AM:DEPTh {<depth percent>|MINimum|MAXimum}
Function

Set the depth of internal modulation of AM in percent.

Explanations

Depth range: 0%～120%

Example

AM:DEPT 70

8. AM:DEPTh?

Command
Format

AM:DEPTh? [MINimum|MAXimum]
Function

Query the depth of internal modulation of AM.

Return Value

The qurey returns the percent of the depth of AM internal
modulation in the form of scientific notation, such as:

7.000000e+01.

9. AM:STATe

Command
Format

AM:STATe {OFF|ON}
Function

Disable or enable AM function.

Example

AM:STAT OFF

10. AM:STATe?

Command
Format

AM:STATe?
Function

Query the modulation state of AM.

Return Value

The query returns OFF or ON.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-38

FM

In FM, the frequency of carrier is varies with the instantaneous voltage of the
modulation waveform. Among CH1, the generator can generate FM modulated waves.
In addition, FM commands could be used for these settings: modulation source,
modulation waveform, modulation frequency, frequency deviation of peak value and
FM modulation state.

DG1022 supports following FM commands:

1. FM:SOURce

2. FM:SOURce?

3. FM:INTernal:FUNCtion

4. FM:INTernal:FUNCtion?

5. FM:INTernal:FREQuency

6. FM:INTernal:FREQuency?

7. FM:DEViation

8. FM:DEViation?

9. FM:STATe

10. FM:STATe?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-39

1. FM:SOURce

Command
Format

FM:SOURce {INTernal|EXTernal}
Function

Select internal or external modulation source, the default is INT.

Example

FM:SOUR EXT

2. FM:SOURce?

Command
Format

FM:SOURce?
Function

Query the modulation source of FM.

Return Value

The query returns INT or EXT.

3. FM:INTernal:FUNCtion

Command
Format

FM:INTernal:FUNCtion
{SINusoid|SQUare|RAMP|NRAMp|TRIangle|NOISe|USER}

Function

Select the internal modulation wave of FM.

Explanations

In internal modulation source mode, the modulation wave could be
sine, square, ramp, negative ramp, triangle, noise or arbitrary
wave, the default is sine.

Example

FM:INT:FUNC SQU

4. FM:INTernal:FUNCtion?

Command
Format

FM:INTernal:FUNCtion?
Function

Query the internal modulation wave of FM that has been selected.

Return Value

The query returns SIN, SQU, RAMP, NRAM, TRI, NOIS or USER.

5. FM:INTernal:FREQuency

Command
Format

FM:INTernal:FREQuency {<frequency>|MINimum|MAXimum}
Function

Set the frequency of internal modulation of FM in Hz.

Explanations

Frequency range: 2mHz～20kHz

Example

FM:INT:FREQ 200

6. FM:INTernal:FREQuency?

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-40

Command
Format

FM:INTernal:FREQuency?
Function

Query the frequency of internal modulation of FM.

Return Value

The query returns the percent of the frequency of FM internal
modulation in the form of scientific notation, such as:

2.000000e+02

7. FM:DEViation

Command
Format

FM:DEViation{<frequency deviation of peak value>
|MINimum|MAXimum}

Function

Set the frequency deviation of peak value of FM in Hz.

Example

FM:DEV 100

8. FM:DEViation?

Command
Format

FM:DEViation? [MINimum|MAXimum]
Function

Query the frequency deviation of peak value of FM.

Return Value

The query returns the frequency deviation of peak value of FM in
the form of scientific notation and in Hz, such as: 1.000000e+02

9. FM:STATe

Command
Format

FM:STATe {OFF|ON}
Function

Disable or enable FM function.

Example

FM:STAT OFF

10. FM:STATe?

Command
Format

FM:STATe?
Function

Query the modulation state of FM.

Return Value

The query returns OFF or ON.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-41

PM

In PM, the phase of carrier is varies with the instantaneous voltage of the modulation
waveform. Among CH1, the generator can generate PM modulation waves. In addition,
PM commands could be used for these settings: modulation source, modulation
waveform, modulation frequency, phase deviation and PM modulation state.

DG1022 supports following PM commands:

1. PM:SOURce

2. PM:SOURce?

3. PM:INTernal:FUNCtion

4. PM:INTernal:FUNCtion?

5. PM:INTernal:FREQuency

6. PM:INTernal:FREQuency?

7. PM:DEViation

8. PM:DEViation?

9. PM:STATe

10. PM:STATe?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-42

1. PM:SOURce

Command
Format

PM:SOURce {INTernal|EXTernal}
Function

Select internal or external modulation source, the default is INT.

Example

PM:SOUR EXT

2. PM:SOURce?

Command
Format

PM:SOURce?
Function

Query the modulation source of PM.

Return Value

The query returns INT or EXT.

3. PM:INTernal:FUNCtion

Command
Format

PM:INTernal:FUNCtion
{SINusoid|SQUare|RAMP|NRAMp|TRIangle|NOISe|USER}

Function

Select the internal modulation wave of PM.

Explanations

In internal modulation source mode, the modulation wave could be
sine, square, ramp, negative ramp, triangle, noise or arbitrary
wave, the default is sine.

Example

PM:INT:FUNC SQU

4. PM:INTernal:FUNCtion?

Command
Format

PM:INTernal:FUNCtion?
Function

Query the internal modulation wave of PM that has been selected.

Return Value

The query returns SIN, SQU, RAMP, NRAM, TRI, NOIS or USER.

5. PM:INTernal:FREQuency

Command
Format

PM:INTernal:FREQuency {<frequency>|MINimum|MAXimum}
Function

Set the frequency of internal modulation of PM and in Hz.

Explanations

Frequency range: 2mHz～20kHz

Example

PM:INT:FREQ 200

6. PM:INTernal:FREQuency?

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-43

Command
Format

PM:INTernal:FREQuency?
Function

Query the frequency of internal modulation of PM.

Return Value

The query returns the internal modulation frequency of PM in the
form of scientific notation, such as: 2.000000e+02.

7. PM:DEViation

Command
Format

PM:DEViation {<phase deviation>|MINimum|MAXimum}
Function

Set the phase deviation of PM and in degree.

Explanations

Phase deviation range: 0°～360°

Example

PM:DEV 180

8. PM:DEViation?

Command
Format

PM:DEViation? [MINimum|MAXimum]
Function

Query the phase deviation of PM.

Return Value

The query returns the phase deviation of PM in the form of
scientific notation in degree, such as: 1.800000e+02.

9. PM:STATe

Command
Format

PM:STATe {OFF|ON}
Function

Disable or enable PM function.

Example

PM:STAT OFF

10. PM:STATe?

Command
Format

PM:STATe?
Function

Query the modulation state of PM.

Return Value

The query returns OFF or ON.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-44

FSKey

In FSK modulation, you can configure the generator to “shift” its output frequency
between two preset frequencies (called the “carrier frequency” and the “hop
frequency”) from CH1. The output frequency that shifts from the carrier frequency to
the hop frequency is called “FSK rate”. FSK rate is determined by internal frequency
generator or signal level which is inputted from the [Ext Trig/FSK/Burst] connector on
the rear panel.

To generate a FSK waveform, you have to configure the carrier wave, choose the
modulation source, select the “hop frequency” and the FSK rate, and then enable the
FSK modulation.

DG1022 supports following FSK commands:

1. FSK:SOURce

2. FSK:SOURce?

3. FSK:FREQuency

4. FSK:FREQuency?

5. FSK:INTernal:RATE

6. FSK:INTernal:RATE?

7. FSK:STATe

8. FSK:STATe?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-45

1. FSK:SOURce

Command
Format

FSK:SOURce {INTernal|EXTernal}
Function

Select internal or external modulation source, the default is INT.

Example

FSK:SOUR EXT

2. FSK:SOURce?

Command
Format

FSK:SOURce?
Function

Query the modulation source of FSK.

Return Value

The query returns INT or EXT.

3. FSK:FREQuency

Command
Format

FSK:FREQuency {<frequency>|MINimum|MAXimum}
Function

Set the hop frequency of FSK in Hz.

Example

FSK:FREQ 10

4. FSK:FREQuency?

Command
Format

FSK:FREQuency?
Function

Query the hop frequency of FSK.

Return Value

The query returns the hop frequency of FSK in the form of
scientific notation, such as: 1.000000e+01.

5. FSK:INTernal:RATE

Command
Format

FSK:INTernal:RATE {<rate>|MINimum|MAXimum}

Function

Set the rate at which the output frequency “shifts” between the
carrier and hop frequency, the unit is Hz.

Explanations

Rate range: 2mHz～50kHz

Example

FSK:INT:RATE 100

6. FSK:INTernal:RATE?

Command

FSK:INTernal:RATE?

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-46

Format

Function

Query the rate of FSK.

Return Value

The query returns the rate of FSK in the form of scientific notation,
such as: 1.000000e+02.

7. FSK:STATe

Command
Format

FSK:STATe {OFF|ON}
Function

Disable or enable FSK function.

Example

FSK:STAT OFF

8. FSK:STATe?

Command
Format

FSK:STATe?
Function

Query the modulation state of FSK.

Return Value

The query returns OFF or ON.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-47

SWEep

In frequency sweep mode, the generator “steps” from the start frequency to the stop
frequency at a sweep rate that you specified. You can sweep up or down in frequency,
and with either linear or logarithmic spacing.

In addition, you can configure the generator to output a single sweep (one pass from
start frequency to stop frequency) by applying an external or manual trigger. The
generator can produce a frequency sweep for sine, square, ramp or arbitrary
waveforms (pulse, noise, and DC are not allowed) from CH1.

DG1022 supports following SWEep commands:

1. SWEep:SPACing

2. SWEep:SPACing?

3. SWEep:TIME

4. SWEep:TIME?

5. SWEep:STATe

6. SWEep:STATe?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-48

1. SWEep:SPACing

Command
Format

SWEep:SPACing {LINear|LOGarithmic}

Function

Select linear or logarithmic spacing for the sweep, the default is
Linear.

Example

SWE:SPAC LIN

2. SWEep:SPACing?

Command
Format

SWEep:SPACing?
Function

Query current sweep mode.

Return Value

The query returns LINEAR or LOG.

3. SWEep:TIME

Command
Format

SWEep:TIME {<seconds>|MINimum|MAXimum}

Function

Set the sweep time expected from the start frequency to the stop
frequency, the default time is 1 s.

Explanations

<seconds> is the sweep time, the unit is s.
MIN=1ms, MAX＝500s。

Example

SWE:TIME 10

4. SWEep:TIME?

Command
Format

SWEep:TIME?

Function

Query the sweep time expected from the start frequency to the
stop frequency.

Return Value

The query returns the sweep time in the form of scientific notation
in seconds such as: 1.000000e+01.

5. SWEep:STATe

Command
Format

SWEep:STATe {OFF|ON}
Function

Disable or enable the sweep mode.

Example

SWE:STAT OFF

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-49

6. SWEep:STATe?

Command
Format

SWEep:STATe?
Function

Query the sweep state.

Return Value

The query returns OFF or ON.

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-50

TRIGger

TRIGger commands are available in Sweep and Burst mode for CH1 only.

DG1022 supports following TRIGger commands:

1. TRIGger:SOURce

2. TRIGger:SOURce?

3. TRIGger:SLOPe

4. TRIGger:SLOPe?

5. TRIGger:DELay

6. TRIGger:DELay?

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-51

1. TRIGger:SOURce

Command
Format

TRIGger:SOURce {IMMediate|EXTernal|BUS}

Function

Select the trigger source for generator, such as: internal trigger
(IMM), external trigger (EXT) from the [Ext Trig/FSK/Burst]
connector on the rear panel, or manual trigger (BUS). The default
is IMM.

Example

TRIG:SOUR EXT

2. TRIGger:SOURce?

Command
Format

TRIGger:SOURce?
Function

Query the trigger source of generator.

Return Value

The query returns IMM, EXT or BUS.

3. TRIGger:SLOPe

Command
Format

TRIGger:SLOPe {POSitive|NEGative}

Function

Select whether the generator uses rising edge(POS) or falling
edge(NEG) of the trigger signal inputted from the [Ext
Trig/FSK/Burst] connector on the rear panel. The default is POS
(rising edge).

Explanations

This command could be used only when OUTPut:TRIGger is
enabled.

Example

TRIG:SLOP POS

4. TRIGger:SLOPe?

Command
Format

TRIGger:SLOPe?
Function

Query the edge of trigger signal that has been selected.

Return Value

The query returns POSITIVE or NEGATIVE.

5. TRIGger:DELay

Command
Format

TRIGger:DELay {<second>|MINimum|MAXimum}

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-52

Function

Set the trigger delay in seconds. Note: this command is only
applied to Burst mode.

Example

TRIG:DEL 0.000005

6. TRIGger:DELay?

Command
Format

TRIGger:DELay?
Function

Query the trigger delay.

Return Value

The query returns the selected delay time in the form of scientific
notation in seconds, such as: 5.000000e-06.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-53

BURSt

BURSt commands are used for setting the generator to output pulse sequence(called
burst) with specified cycles. Among CH1, burst could be generated based on sine,
square, ramp, pulse or arbitrary waves.

DG1022 supports following BURSt commands:

1. BURSt:MODE

2. BURSt:MODE?

3. BURSt:NCYCles

4. BURSt:NCYCles?

5. BURSt:INTernal:PERiod

6. BURSt:INTernal:PERiod?

7. BURSt:PHASe

8. BURSt:PHASe?

9. BURSt:STATe

10. BURSt:STATe?

11. BURSt:GATE:POLarity

12. BURSt:GATE:POLarity?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-54

1. BURSt:MODE

Command
Format

BURSt:MODE {TRIGgered|GATed}
Function

Select the burst mode.

Explanations

 In TRIG mode, the generator outputs a wave with specified

cycle number once receive an assigned trigger via sending
TRIGger:SOURce.

 In GAT mode, the output state of waves (“ON” or “OFF”)

depends on the external level used by [Ext Trig/FSK/Burst]
connector on the rear panel.

 The default burst mode is TRIG.

Example

BURS:MODE GAT

2. BURSt:MODE?

Command
Format

BURSt:MODE?
Function

Query the burst mode.

Return Value

The query returns TRIG or GAT.

3. BURSt:NCYCles

Command
Format

BURSt:NCYCles {<cycle>|INFinity|MINimum|MAXimum}
Function

Set the cycle number of burst (only used in TRIG mode).

Explanations

 <cycle> is the cycle number for user to set.
 MIN=1 cycle, MAX=50,000 cycles, INF is infinite number of

cycles.

Example

BURS:NCYC 100

4. BURSt:NCYCles?

Command
Format

BURSt:NCYCles?
Function

Query the cycle number of burst.

Return Value

The query returns the burst counting in the form of scientific
notation such as 1.000000e+02 or returns “Infinite”.

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-55

5. BURSt:INTernal:PERiod

Command
Format

BURSt:INTernal:PERiod {<秒>|MINimum|MAXimum}
Function

Set the period of burst in internal trigger mode.

Explanations

 <second> is the burst period for user to set, the unit is s.
 MIN=1μs, MAX=500s.

Example

BURS:INT:PER 10

6. BURSt:INTernal:PERiod?

Command
Format

BURSt:INTernal:PERiod? [MINimum|MAXimum]
Function

Query the period of burst in internal trigger mode.

Return Value

The query returns the burst period in the form of scientific notation
such as: 1.000000e+01.

7. BURSt:PHASe

Command
Format

BURSt:PHASe {<angle>|MINimum|MAXimum}
Function

Set the initial phase of burst.

Explanations

 <angle> is the phase for user to set, the unit is degree.
 MIN=-180°, MAX=180°.

Example

BURS:PHAS 150

8. BURSt:PHASe?

Command
Format

BURSt:PHASe? [MINimum|MAXimum]
Function

Query the initial phase of burst.

Return Value

The query returns the initial phase of burst in the form of scientific
notation in degree such as: 1.500000e+02.

9. BURSt:STATe

Command
Format

BURSt:STATe {OFF|ON}
Function

Enable or disable burst mode.

Example

BURS:STAT OFF

10. BURSt:STATe?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-56

Command
Format

BURSt:STATe?
Function

Query the state of burst mode.

Return Value

The query returns OFF or ON.

11. BURSt:GATE:POLarity

Command
Format

BURSt:GATE:POLarity {NORMal|INVerted}

Function

Set the polarity of external gating signal from [Ext Trig/FSK/Burst]
conncetor on the rear panel, the default is NORMal.

Example

BURS:GATE:POL INV

12. BURSt:GATE:POLarity?

Command
Format

BURSt:GATE:POLarity?
Function

Query the polarity of external gating signal from the rear panel.

Return Value

The query returns NORM or INV.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-57

DATA

DATA commands are usd for editing or saving arbitrary waves and outputing those
waves via CH1. You can store ten user-defined waveforms at most in non-volatile
memory in addition to one in volatile memory. Each waveform can contain data points
within 1 and 524,288 (512k).

DG1022 supports following DATA commands:

1. DATA

2. DATA:DAC

3. DATA:COPY

4. DATA:DELete

5. DATA:CATalog?

6. DATA:RENAME

7. DATA:NVOLatile:CATalog?

8. DATA:NVOLatile:FREE?

9. DATA:ATTRibute:POINts?

10. DATA:LOAD

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-58

1. DATA

Command
Format

DATA VOLATILE,<value>, <value>, . . .

Function

Load the floating point numbers between -1 and 1 into volatile
memory.

Explanations

 DATA command may cover a previous waveform in volatile

memory (does not generate error).

 Use DATA:COPY command to copy the waveform to

non-volatile memory.

 Use DATA:DELete command to delete the waveform in

volatile memory or any of the ten user-defined waveforms in
nonvolatile memory.

 Use DATA:CATalog? command to list all waveforms currently

stored in volatile and non-volatile memory.

 Use FUNCtion:USER command to output the waves that has

been edited and stored after downloading the waveform data
to memory.

Example

DATA VOLATILE,1,0.67,0.33,0,-0.33,-0.67,-1

2. DATA:DAC

Command
Format

DATA:DAC VOLATILE,<value>, <value>, . . .

Function

Download decimal integer values from 0 to 16383 into volatile
memory.

Explanations

 DATA:DAC command may cover a previous waveform in

volatile memory ( does not generate error).

 Use DATA:COPY command to copy the waveform to

non-volatile memory.

 Use DATA:DELete command to delete the waveform in

volatile memory or any of the ten user-defined waveforms in
nonvolatile memory.

 Use DATA:CATalog? command to list all waveforms currently

stored in volatile and non-volatile memory.

 Use FUNCtion:USER command to output the waves that has

been edited and stored after downloading the waveform data

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-59

to memory.

Example

DATA:DAC VOLATILE,8192,16383,8192,0

3. DATA:COPY

Command
Format

DATA:COPY < destination arb name >[,VOLATILE]

Function

Copy the waveform from volatile memory to the specified
non-volatile memory.

Explanations

 The arb name may contain up to 12 characters. The first

character must be a letter (A-Z or a-z), the remaining
characters can be numbers (0-9) or the underscore character
(“_”). Blank space is invalid.

 The VOLATILE parameter is optional and can be omitted. Note

that the keyword “VOLATILE” does not have a short form.

 Use DATA:DELete command to delete the waveform in

volatile memory or any of the ten user-defined waveforms in
non-volatile memory.

 Use DATA:CATalog? command to list all waveforms currently

stored in volatile and non-volatile memory.

Example

DATA:COPY a1,VOLATILE

4. DATA:DELete

Command
Format

DATA:DELete <arb name>

Function

Delete the specified arbitrary waveform from either volatile
memory or non-volatile memory.

Example

DATA:DEL a1

5. DATA:CATalog?

Command
Format

DATA:CATalog?
Function

Query the names of all waveforms currently available for selection.

Return Value

The query returns the names of the five built-in waveforms
(non-volatile memory), “VOLATILE” (if a waveform is currently
downloaded to volatile memory), and all user-defined waveforms
downloaded to non-volatile memory, such as:
"VOLATILE","EXP_RISE","EXP_FALL","NEG_RAMP", "SINC",

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-60

"CARDIAC","A","B","C","D","E","F","G","H","I","J".

6. DATA:RENAME

Command
Format

DATA:RENAME <destination arb name>,<new arb name>
Function

Rename an arbitrary wave.

Example

DATA:RENAME old, new

7. DATA:NVOLatile:CATalog?

Command
Format

DATA:NVOLatile:CATalog?

Function

Query the names of all user-defined arbitrary waveforms
downloaded to non-volatile memory.

Return Value

The query returns the quoted names of up to 10 waveforms such
as: "A","B","C","D","E","F","G","H","I","J".

8. DATA:NVOLatile:FREE?

Command
Format

DATA:NVOLatile:FREE?

Function

Query the number of non-volatile memory that is available for
saving user-defined waveforms.

Return Value

The query returns 0 (denotes full memory), 1, 2, 3, 4, 5, 6, 7, 8, 9,

10. 9. DATA:ATTRibute:POINts?

Command
Format

DATA:ATTRibute:POINts? <destination arb name>
Function

Query the number of points in the specified arbitrary waveform.

Return Value

The query return a value within 0~524,288, such as 4096.

10. DATA:LOAD

Command
Format

DATA:LOAD [<destination arb name>]
Function

Upload the specified arbitrary wave to the application software.

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-61

MEMory

The generator has 10 storage locations in non-volatile memory (STATE1~ STATE10) to
store instrument states. The locations are numbered from 1 to 10. The generator
automatically uses location “0” to hold the state of the instrument when power down.
You can also assign a user-defined name to each of the locations (1 through 10) from
the front panel.

DG1022 supports following MEMory commands:

1. MEMory:STATe:NAME

2. MEMory:STATe:NAME?

3. MEMory:STATe:DELete

4. MEMory:STATe:RECall:AUTO

5. MEMory:STATe:RECall:AUTO?

6. MEMory:STATe:VALid?

7. MEMory:NSTates?

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-62

1. MEMory:STATe:NAME

Command
Format

MEMory:STATe:NAME {0|1|2|3|4|5|6|7|8|9|10} [,<name>]
Function

Assign an user-defined name for specified memory location.

Example

MEM:STAT:NAME 1,A1

2. MEMory:STATe:NAME?

Command
Format

MEMory:STATe:NAME? {0|1|2|3|4|5|6|7|8|9|10}
Function

Query the name of specified memory location.

Return Value

The query returns the name of specified memory location such as

A1. If no name was assigned, the return is empty.

3. MEMory:STATe:DELete

Command
Format

MEMory:STATe:DELete {0|1|2|3|4|5|6|7|8|9|10}
Function

Delete the contents in specified memory location.

Example

MEM:STAT:DEL 1

4. MEMory:STATe:RECall:AUTO

Command
Format

MEMory:STATe:RECall:AUTO {OFF| ON}

Function

Disable or enable the automatic recall of the power-down state
from storage location “0” when power on. Select “ON” to
automatically recall power-down state when power on and select
“OFF” (default) to issue a reset.

Example

MEM:STAT:REC:AUTO OFF

5. MEMory:STATe:RECall:AUTO?

Command
Format

MEMory:STATe:RECall:AUTO?
Function

Query the recall state when power off.

Return Value

The query returns OFF or ON.

6. MEMory:STATe:VALid?

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-63

Command
Format

MEMory:STATe:VALid? {0|1|2|3|4|5|6|7|8|9|10}

Function

Query the specified storage location to determine if a valid state
has already been stored in that location.

Return Value

Return “0” if no state has been stored or if it has been deleted. or
else return “1”.

7. MEMory:NSTates?

Command
Format

MEMory:NSTates?

Function

Query the total number of memory locations available for state
storage.

Return Value

Always returns “11” (including memory location “0”).

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-64

SYSTem

SYSTem commands provide information about state storage, power-down recall,
error state and screen control of the front panel and other information about the
instrument.

DG1022 supports following SYSTem commands:

1. SYSTem:ERRor?

2. SYSTem:VERSion?

3. SYSTem:BEEPer:STATe

4. SYSTem:BEEPer:STATe?

5. SYSTem:LOCal

6. SYSTem:RWLock

7. SYSTem:REMote

8. SYSTem:CLKSRC

9. SYSTem:LANGuage

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-65

1. SYSTem:ERRor?

Command
Format

SYSTem:ERRor?
Function

Read and clear an error from error queues.

Return Value

The query returns an error information with following format:

-118,"Invalid parameter"

2. SYSTem:VERSion?

Command
Format

SYSTem:VERSion?
Function

Query current edition of the instrument.

Return Value

The query returns the character string with following format:

00.01.00.04.00.02.03

3. SYSTem:BEEPer:STATe

Command
Format

SYSTem:BEEPer:STATe {OFF|ON}

Function

Enable or disable the beep when error occurs on front panel or
remote interface.

Example

SYST:BEEP:STAT OFF

4. SYSTem:BEEPer:STATe?

Command
Format

SYSTem:BEEPer:STATe?
Function

Query the state of beeper.

Return Value

The query returns 0 (OFF) or 1 (ON).

5. SYSTem:LOCal

Command
Format

SYSTem:LOCal

Function

Activate local state and delete RMT indicator and unlock the front
panel.

6. SYSTem:RWLock

Command

SYSTem:RWLock

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-66

Format

Function

Activate remote state with locking function and display R-LOCK
indicator and lock the keyboard. (including Local button)

7. SYSTem:REMote

Command
Format

SYSTem:REMote

Function

Activate remote state and display RMT indicator and lock the
keyboard. (except for Local button)

8. SYSTem:CLKSRC

Command
Format

SYSTem:CLKSRC {EXT|INT}

Function

Select the system clock source as internal or external, the default
is INT.

Explanations

When external clock source is actived, the system accepts the
clock source from [10 MHz In] connector on the rear panel.

Example

SYST:CLKSRC EXT

9. SYSTem:LANGuage

Command
Format

SYSTem:LANGuage {CHINESE|ENGLISH}
Function

Select the system language as Chinese or English.

Example

SYST:LANG CHINESE

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-67

PHASe

PHASe commands are used for setting the initial phase of signals from each channel
and controlling the dual channels phase output synchronously.

DG1022 supports following PHASe commands:

1. PHASe

2. PHASe?

3. PHASe:CH2

4. PHASe:CH2?

5. PHASe:ALIGN

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-68

1. PHASe

Command
Format

PHASe {<angle>|MINimum|MAXimum}
Function

Set the initial phase of signals from CH1.

Explanations

<angle> is the phase for user to set, the unit is degree.
MIN=-180°, MAX=180°。

Return Value

PHAS 90

2. PHASe?

Command
Format

PHASe? [MINimum|MAXimum]
Function

Query the initial phase of signals from CH1.

Return Value

The query returns any numerical value between -180 and 180,

such as: 90.000.

3. PHASe:CH2

Command
Format

PHASe:CH2 {<angle>|MINimum|MAXimum}
Function

Set the initial phase of signals from CH2.

Explanations

<angle> is the phase for user to set, the unit is degree.
MIN=-180°, MAX=180°。

Return Value

PHAS:CH2 90

4. PHASe:CH2?

Command
Format

PHASe:CH2? [MINimum|MAXimum]
Function

Query the initial phase of signals from CH2.

Return Value

The query returns any numerical value between -180 and 180,
such as: 90.000.

5. PHASe:ALIGN

Command
Format

PHASe:ALIGN
Function

Enable the dual channels output phase synchronously.

The detailed information of each command are:

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-69

1. DISPlay

Command
Format

DISPlay {OFF|ON}
Function

Enable or disable the display function of front panel.

Example

DISP OFF

2. DISPlay?

Command
Format

DISPlay?
Function

Query the state of screen.

Return Value

The query returns ON or OFF.

3. DISPlay:CONTRAST

Command
Format

DISPlay:CONTRAST <value>
Function

Set the contrast of display within 0~31.

Example

DISP:CONTRAST 25

4. DISPlay:LUMInance

Command
Format

DISPlay:LUMInance <value>
Function

Set the luminance of display within 0~31.

Example

DISP:LUMI 25

DISPlay

DISPlay commands are used for controlling the display of front panel.

DG1022 supports following DISPlay commands:

1. DISPlay

2. DISPlay?

3. DISPlay:CONTRAST

4. DISPlay:LUMInance

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-70

COUPling

COUPling commands are used for channel coupling or copying.

DG1022 supports following COUPling commands:

1. COUPling

2. COUPling?

3. COUPling:BASEdchannel

4. COUPling:BASEdchannel?

5. COUPling:PHASEDEViation

6. COUPling:PHASEDEViation?

7. COUPling:FREQDEViation

8. COUPling:FREQDEViation?

9. COUPling:CHANNCopy

Programming Guide for DG1022

DG1022 Commands System RIGOL

2-71

1. COUPling

Command
Format

COUPling {OFF|ON}
Function

Enable or disable coupling function.

Example

COUP OFF

2. COUPling?

Command
Format

COUPling?
Function

Query the coupling state.

Return Value

The query returns OFF or ON.

3. COUPling:BASEdchannel

Command
Format

COUPling:BASEdchannel{:CH1|:CH2}
Function

Select the base channel while coupling channels.

Example

COUP:BASE:CH1

4. COUPling:BASEdchannel?

Command
Format

COUPling:BASEdchannel?
Function

Query the base channe that has been selected.

Return Value

The query returns CH1 or CH2.

5. COUPling:PHASEDEViation

Command
Format

COUPling:PHASEDEViation <value>
Function

Set the phase deviation, the unit is degree.

Explanations

<value>: -180°~180°

Example

COUP:PHASEDEV 10

6. COUPling:PHASEDEViation?

Command
Format

COUPling:PHASEDEViation?
Function

Query the phase deviation.

The detailed information of each command are:

Programming Guide for DG1022

RIGOL DG1022 Commands System

2-72

Return Value

The query returns the phase deviation in the form of scientific
notation, such as: 1.000000e+01.

7. COUPling:FREQDEViation

Command
Format

COUPling:FREQDEViation <value>
Function

Set the frequency deviation in Hz.

Explanations

<value>: 0Hz~20MHz

Example

COUP:FREQDEV 100

8. COUPling:FREQDEViation?

Command
Format

COUPling:FREQDEViation?
Function

Query the frequency deviation.

Return Value

The query returns the frequency deviation in the form of scientific
notation, such as: 1.000000e+02.

9. COUPling:CHANNCopy

Command
Format

COUPling:CHANNCopy {1>2|2>1}
Function

Copy CH1 to CH2 or copy CH2 to CH1.

Example

COUP:CHANNC 1>2

Programming Guide for DG1022

Application Examples RIGOL

3-1

Chapter 3 Application Examples

This chapter shows you how to realize the examples in《DG1022 User’s Guide》via
command lines, you can compare with the user’s Guide and get deeper understand for
the usage of commands.

The numbers before every command line in these examples are not the contents of
command, also for the contents enclosed in “ / * ” and “ * / ” behind every command
line, which are used to assist user to understand the command well.

Before execute every example, please make sure that all the corresponding devices
have been connected correctly.

Programming Guide for DG1022

RIGOL Application Examples

3-2

Example 1: To Generate a Sine Wave

Target: Generate a sine wave with 20 kHz of frequency, 2.5 Vpp of amplitude,

500mV

How to realize via commands?

Method1:

0 *IDN? /* Query ID to check the operating state */
1 VOLT:UNIT VPP /* Set the unit of amplitude */
2 APPL:SIN 20000,2.5,0.5 /*Set the frequency, amplitude and offset of the

3 PHAS 10 /* Set the initial phase */
4 OUTP ON /*Enable the [Output] connector of CH1 at front

Method2:

0 *IDN? /* Query ID to check the operating state */
1 FUNC SIN /*Select sine function*/
2 FREQ 20000 /* Set the output frequency*/
3 VOLT:UNIT VPP /* Set the unit of amplitude*/
4 VOLT 2.5 /* Set the output amplitude */
5 VOLT:OFFS 0.5 /* Set the offset*/
6 PHAS 10 /* Set the initial phase */
7 OUTP ON /*Enable the [Output] connector of CH1 at front

Note:

Command “VOLT:UNIT VPP” and “APPL:SIN 20000,2.5,0.5” are equivalent to these
five commands together: “FUNC SIN, FREQ 20000”, “VOLT:UNIT VPP”, “VOLT 2.5” and
“VOLT:OFFS 0.5”.

offset and 10°of phase via CH1.

DC

sine wave*/

panel */

panel */

Programming Guide for DG1022

Application Examples RIGOL

3-3

Example 2: To Generate a Built-in Arbitrary Wave

Target: Generate an ExpRise wave with 2MHz of frequency, 5VRMS of amplitude,

10mVDC offset and 60° of phase via CH1.

How to realize via commands?

0 *IDN? /*Query ID to check the operating state */
1 FUNC:USER EXP_RISE /* Select built-in wave function */
2 FREQ 2000000 /* Set the output frequency */
3 VOLT:UNIT VRMS /* Set the unit of amplitude */
4 VOLT 5 /*Set the output amplitude */
5 VOLT:OFFS 0.01 /* Set the offset */
6 PHAS 60 /*Set the initial phase */
7 OUTP ON /*Enable the [Output] connector of CH1 at front

panel */

Programming Guide for DG1022

RIGOL Application Examples

3-4

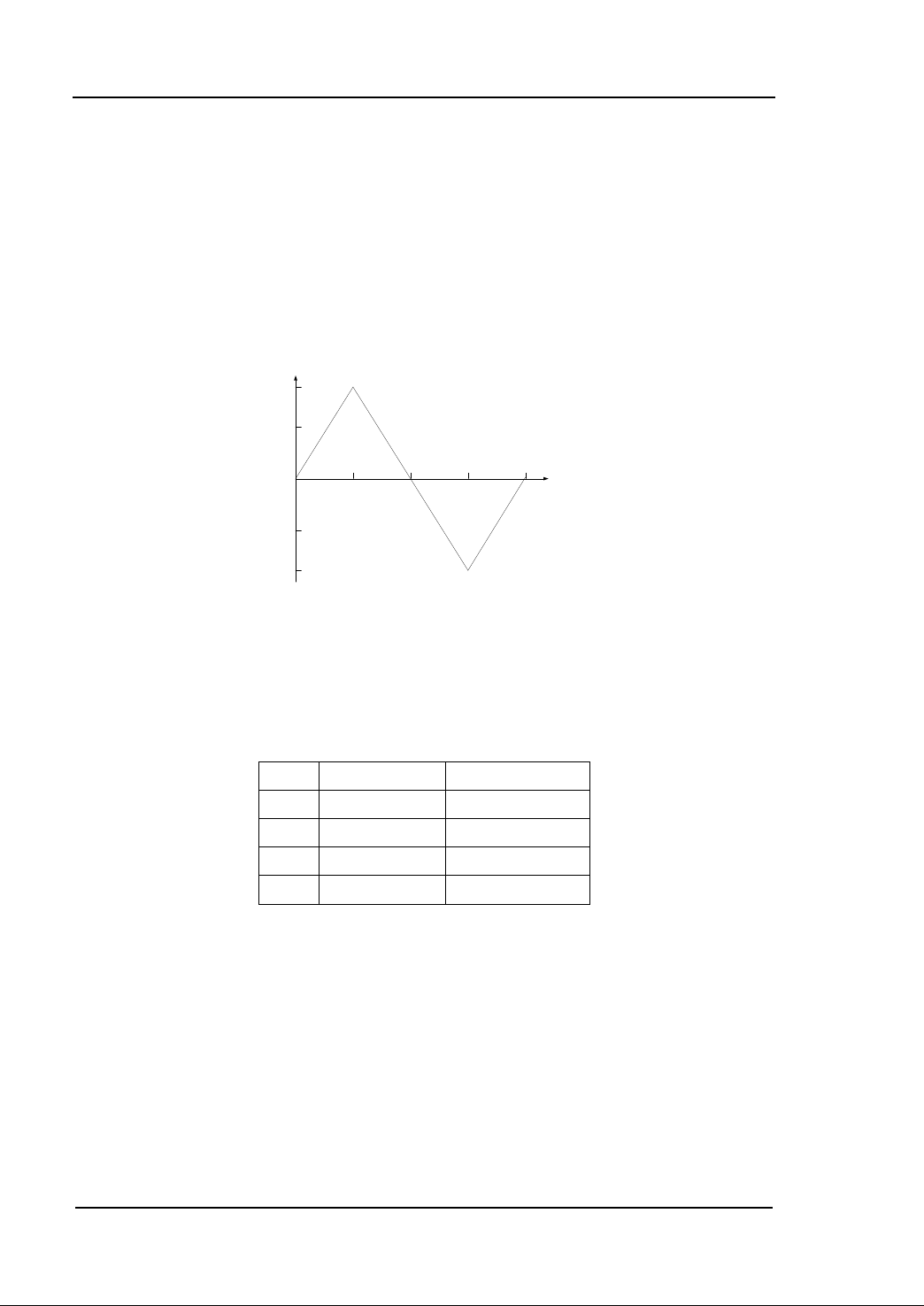

4

-4

0

2.5 5 7.5 10

μs

Vpp

2

-2

Point

Time Value

(voltage) Value

1

0s

(0V) 8192

2

2.5μs

(4V) 16383

3

5μs

(0V) 8192

4

7.5μs

(-4V) 0

① ② ① ③ ④

Example 3: To Generate an User-defined Arbitrary

Wave

Target: Generate a ramp wave with 10μs of period, 4V of high level and -4V of low

level.

The vertical resolution of user-defined arbitrary wave is 14 bits, the value from 0 to
16383 separately corresponds to the minmum and maximum amplitude, that is: -4 V
corresponds to 0, 0 V corresponds to 8192 and 4 V corresponds to 16383. So, edit the
points in following table is enough.

How to realize via commands?

0 *IDN? /*Query ID to check the operating state */
1 FUNC USER /*select user-defined arbitrary wave*/
2 FREQ 100000 /* Set the frequency as 100kHz (period: 10μs)*/
3 VOLT:UNIT VPP /* Set the unit of amplitude*/
4 VOLT:HIGH 4 /* Set the high level*/
5 VOLTage:LOW -4 /*Set the low level*/
6 DATA:DAC VOLATILE,8192,16383,8192,0

Programming Guide for DG1022

Application Examples RIGOL

3-5

/*Load the 4 decimal numbers to volatile

memory */

7 FUNC:USER VOLATILE /*Output the waves in volatile memory */
8 OUTP ON /* Enable the [Output] connector of CH1 at front

panel */

Programming Guide for DG1022

RIGOL Application Examples

3-6

Example 4: To Generate a FSK Wave

Target: Generate a FSK wave with: 10 kHz, 5 Vpp, 0 V

modulation source, 800 Hz of hop frequency and 200 Hz of FSK rate.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 FUNC SIN /*Select carrier function*/
2 FREQ 10000 /* Set the frequency of carrier*/
3 VOLT:UNIT VPP /* Set the amplitude unit of carrier */
4 VOLT 5 /*Set the amplitude of carrier */
5 VOLT:OFFS 0 /* Set the offset of carrier */
6 FSK:STAT ON /* Enable FSK function*/
7 FSK:SOUR INT /* Select internal modulation source */
8 FSK:FREQ 800 /* Set the hop frequency */
9 FSK:INT:RATE 200 /* Set the FSK rate*/
10 OUTP ON /* Enable the [Output] connector of CH1 at front

panel */

of carrier wave, internal

DC

Programming Guide for DG1022

Application Examples RIGOL

3-7

Example 5: To Generate a Linear Sweep Wave

Target: Generate a sweep sine wave with: 100 Hz ~ 10 kHz of frequency range,

internal trigger, linear mode and 1 s of sweep time.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 FUNC SIN /* Select the sweep function */
2 SWE:STAT ON /* Enable sweep state*/
3 SWE:SPAC LIN /* Select linear sweep mode */
4 FREQ:STAR 100 /* Set the start frequency */
5 FREQ:STOP 10000 /* Set the stop frequency */
6 SWE:TIME 1 /* Set the sweep time */
7 TRIG:SOUR IMM /* Select internal trigger source */
8 OUTP ON /* Enable the [Output] connector of CH1 at front

panel */

Programming Guide for DG1022

RIGOL Application Examples

3-8

Example 6: To Generate a Burst Wave

Target: Generate a burst with: 3-cycle of square, 0° of initial phase, 10 ms of burst

period and adopt internal trigger.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 FUNC SQU /* Select burst function */
2 BURS:STAT ON /* Enable burst state */
3 BURS:MODE TRIG /* Select the burst mode */
4 BURS:NCYC 3 /* Set the cycle number */
5 BURS:PHAS 0 /* Set the initial phase*/
6 BURS:INT:PER 0.01 /* Set the period */
7 TRIG:SOUR IMM /* Select internal trigger source */
8 OUTP ON /* Enable the [Output] connector of CH1 at front

panel */

Programming Guide for DG1022

Application Examples RIGOL

3-9

Example 7: To Output Waves via Dual Channels

Target: Output a sine wave with 1kHz, 2.5Vpp, 500mVDC, 10° via CH1 and a ramp

wave with 1.5kHz, 5Vpp, 1 VDC, 20° via CH2.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 VOLT:UNIT VPP /* Set the amplitude unit of CH1 */
2 APPL:SIN 1000,2.5,0.5 /* Set the frequency, amplitude and offset of sine

wave from CH1 */

3 PHAS 10 /* Set the initial phase of wave from CH1 */
4 OUTP ON /* Enable the [Output] connector of CH1 at front

panel */

5 VOLT:UNIT:CH2 VPP /* Set the amplitude unit of CH2*/
6 APPL:RAMP:CH2 1500,5,1 /*Set the frequency, amplitude and offset of

ramp wave from CH2*/

7 PHAS:CH2 20 /* Set the initial phase of wave from CH2*/
8 OUTP:CH2 ON /* Enable the [Output] connector of CH2 at front

panel */

9 PHAS:ALIGN /*Control the dual channels phase output

synchronously */

Programming Guide for DG1022

RIGOL Application Examples

3-10

Example 8: Channel Coupling

Target: Output a sine wave with 1kHz, 5Vpp, 0VDC, 0° via CH1 and a ramp wave with

1.5kHz, 5Vpp, 0 VDC, 0° via CH2, and then, take CH1 as the base channel and Set the
phase deviation as 10°, finally, observe the phase of wave from CH2 after coupling.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 VOLT:UNIT VPP /* Set the amplitude unit of CH1 */
2 APPL:SIN 1000,5,0 /* Set the frequency, amplitude and offset of sine

wave from CH1 */

3 PHAS 0 /* Set the initial phase of wave from CH1*/
4 VOLT:UNIT:CH2 VPP /* Set the amplitude unit of CH2*/
5 APPL:RAMP:CH2 1500,5,0 /* Set the frequency, amplitude and offset of

ramp wave from CH2*/

6 PHAS:CH2 0 /* Set the initial phase of wave from CH2*/
7 COUP ON /* Enable channel coupling function */
8 COUP:BASE:CH1 /* Select CH1 as the base channel */
9 COUP:PHASEDEV 10 /* Set up the phase deviation */
10 PHAS 2 /*Change the phase of waves output from CH1*/
11 PHAS:CH2? /*Query the phase of waves output from CH2 */

Notes:
1 The return value of “PHAS:CH2?” is 12, which indicates that the phase of CH2 is

vary with the phase of CH1 and keeps 10° of phase deviation.

2 The way to set frequency coupling is the same as phase coupling.

Programming Guide for DG1022

Application Examples RIGOL

3-11

Example 9: Channel Copy

Target: Output a sine wave with 1kHz, 5Vpp, 500mVDC, 10° via CH1 and a ramp wave

with 1.5kHz, 2Vpp, 0 VDC, 0° via CH2, and then observe the parameters of wave from
CH2 after copying CH1 to CH2.

How to realize via commands?

0 *IDN? /* Query ID to check the operating state */
1 VOLT:UNIT VPP /* Set the amplitude unit of CH1*/
2 APPL:SIN 1000,5,0.5 /* Set the frequency, amplitude and offset of sine

wave from CH1*/

3 PHAS 10 /* Set the initial phase of wave from CH1*/
4 VOLT:UNIT:CH2 VPP /* Set the amplitude unit of CH2*/
5 APPL:RAMP:CH2 1500,2,0 /* Set the frequency, amplitude and offset of

ramp wave from CH2*/

6 PHAS:CH2 0 /* Set the initial phase of wave from CH2*/
7 COUP OFF /* Disable channel coupling to enable channel

copy */

8 COUP:CHANNC 1>2 /* Copy the wave parameters from CH1 to CH2 */

/* Query the wave parameters of CH2 after copying */

9 FREQuency:CH2? /* Return 1.000000e+03 (1kHz)*/
10 VOLTage:CH2? /* Return 5.000000e+00 (5Vpp)*/
11 VOLTage:OFFSet:CH2? /* Return 5.000000e-01 (500mVDC )*/
12 PHAS:CH2? /* Return 10.000 (10°)*/

Notes:
1 Channel Copy function is only valid for wave parameters but not for wave shapes.
2 Channel Copy function is enabled automatically after Channel Coupling is

disabled.

3 Channel Copy function is limited by parameter verification, for the details please

refer to <<DG1022 User’s Guide>>.

Programming Guide for DG1022

Appendix: Commands Reference A-Z RIGOL

1

Appendix: Commands Reference A-Z

*IDN? 2-2

A

AM:SOURce 2-36
AM:SOURce? 2-36
AM:INTernal:FUNCtion 2-36
AM:INTernal:FUNCtion? 2-36
AM:INTernal:FREQuency 2-36
AM:INTernal:FREQuency? 2-36
AM:DEPTh 2-37
AM:DEPTh? 2-37
AM:STATe 2-37
AM:STATe? 2-37
APPLy:SINusoid 2-4
APPLy:SQUare 2-4
APPLy:RAMP 2-4
APPLy:PULSe 2-5
APPLy:NOISe 2-5
APPLy:DC 2-5
APPLy:USER 2-6
APPLy? 2-6
APPLy:SINusoid:CH2 2-6
APPLy:SQUare:CH2 2-6
APPLy:RAMP:CH2 2-7
APPLy:PULSe:CH2 2-7
APPLy:NOISe:CH2 2-7
APPLy:DC:CH2 2-7
APPLy:USER:CH2 2-8
APPLy:CH2? 2-8

B

BURSt:MODE 2-54
BURSt:MODE? 2-54
BURSt:NCYCles 2-54

BURSt:NCYCles? 2-54
BURSt:INTernal:PERiod 2-55
BURSt:INTernal:PERiod? 2-55
BURSt:PHASe 2-55
BURSt:PHASe? 2-55
BURSt:STATe 2-55
BURSt:STATe? 2-55
BURSt:GATE:POLarity 2-56
BURSt:GATE:POLarity? 2-56

C

COUPling 2-71
COUPling? 2-71
COUPling:BASEdchannel 2-71
COUPling:BASEdchannel? 2-71
COUPling:PHASEDEViation 2-71
COUPling:PHASEDEViation? 2-71
COUPling:FREQDEViation 2-72
COUPling:FREQDEViation? 2-72
COUPling:CHANNCopy 2-72

D

DATA 2-58
DATA:DAC 2-58
DATA:COPY 2-59
DATA:DELete 2-59
DATA:CATalog? 2-59
DATA:RENAME 2-60
DATA:NVOLatile:CATalog? 2-60
DATA:NVOLatile:FREE? 2-60
DATA:ATTRibute:POINts? 2-60
DATA:LOAD 2-60
DISPlay 2-69
DISPlay? 2-69

Programming Guide for DG1022

RIGOL Appendix: Commands Reference A-Z

2

DISPlay:CONTRAST 2-69
DISPlay:LUMInance 2-69

F

FM:SOURce 2-39
FM:SOURce? 2-39
FM:INTernal:FUNCtion 2-39
FM:INTernal:FUNCtion? 2-39
FM:INTernal:FREQuency 2-39
FM:INTernal:FREQuency? 2-39
FM:DEViation 2-40
FM:DEViation? 2-40
FM:STATe 2-40
FM:STATe? 2-40
FREQuency 2-17
FREQuency? 2-17
FREQuency:CH2 2-17
FREQuency:CH2? 2-17
FREQuency:STARt 2-17
FREQuency:STARt? 2-18
FREQuency:STOP 2-18
FREQuency:STOP? 2-18
FREQuency:CENTer 2-18
FREQuency:CENTer? 2-18
FREQuency:SPAN 2-19
FREQuency:SPAN? 2-19
FSK:SOURce 2-45
FSK:SOURce? 2-45
FSK:FREQuency 2-45
FSK:FREQuency? 2-45
FSK:INTernal:RATE 2-45
FSK:INTernal:RATE? 2-45
FSK:STATe 2-46
FSK:STATe? 2-46
FUNCtion 2-11
FUNCtion? 2-11
FUNCtion:USER 2-11
FUNCtion:USER? 2-12

FUNCtion:SQUare:DCYCle 2-12
FUNCtion:SQUare:DCYCle? 2-12
FUNCtion:RAMP:SYMMetry 2-12
FUNCtion:RAMP:SYMMetry? 2-13
FUNCtion:CH2 2-13
FUNCtion:CH2? 2-13
FUNCtion:USER:CH2 2-13
FUNCtion:USER:CH2? 2-14
FUNCtion:SQUare:DCYCle:CH2 2-14
FUNCtion:SQUare:DCYCle:CH2? 2-14
FUNCtion:RAMP:SYMMetry:CH2 2-14
FUNCtion:RAMP:SYMMetry:CH2? 2-15

M

MEMory:STATe:NAME 2-62
MEMory:STATe:NAME? 2-62
MEMory:STATe:DELete 2-62
MEMory:STATe:RECall:AUTO 2-62
MEMory:STATe:RECall:AUTO? 2-62
MEMory:STATe:VALid? 2-62
MEMory:NSTates? 2-63

O

OUTPut 2-27
OUTPut? 2-27
OUTPut:LOAD 2-27
OUTPut:LOAD? 2-27
OUTPut:POLarity 2-27
OUTPut:POLarity? 2-28
OUTPut:SYNC 2-28
OUTPut:SYNC? 2-28
OUTPut:TRIGger:SLOPe 2-28
OUTPut:TRIGger:SLOPe? 2-28
OUTPut:TRIGger 2-29
OUTPut:TRIGger? 2-29
OUTPut:CH2 2-29
OUTPut:CH2? 2-29
OUTPut:LOAD:CH2 2-29

Programming Guide for DG1022

Appendix: Commands Reference A-Z RIGOL

3

OUTPut:LOAD:CH2? 2-29
OUTPut:POLarity:CH2 2-30
OUTPut:POLarity:CH2? 2-30

P

PHASe 2-68
PHASe? 2-68
PHASe:CH2 2-68
PHASe:CH2? 2-68
PHASe:ALIGN 2-68
PM:SOURce 2-42
PM:SOURce? 2-42
PM:INTernal:FUNCtion 2-42
PM:INTernal:FUNCtion? 2-42
PM:INTernal:FREQuency 2-42
PM:INTernal:FREQuency? 2-42
PM:DEViation 2-43
PM:DEViation? 2-43
PM:STATe 2-43
PM:STATe? 2-43
PULSe:PERiod 2-32
PULSe:PERiod? 2-32
PULSe:WIDTh 2-32
PULSe:WIDTh? 2-32
PULSe:DCYCle 2-32
PULSe:DCYCle? 2-32
PULSe:PERiod:CH2 2-33
PULSe:PERiod:CH2? 2-33
PULSe:WIDTh:CH2 2-33
PULSe:WIDTh:CH2? 2-33
PULSe:DCYCle:CH2 2-33
PULSe:DCYCle:CH2? 2-33

S

SWEep:SPACing 2-48
SWEep:SPACing? 2-48
SWEep:TIME 2-48
SWEep:TIME? 2-48

SWEep:STATe 2-48
SWEep:STATe? 2-49
SYSTem:ERRor? 2-65
SYSTem:VERSion? 2-65
SYSTem:BEEPer:STATe 2-65
SYSTem:BEEPer:STATe? 2-65
SYSTem:LOCal 2-65
SYSTem:RWLock 2-65
SYSTem:REMote 2-66
SYSTem:CLKSRC 2-66
SYSTem:LANGuage 2-66

T

TRIGger:SOURce 2-51
TRIGger:SOURce? 2-51
TRIGger:SLOPe 2-51
TRIGger:SLOPe? 2-51
TRIGger:DELay 2-51
TRIGger:DELay? 2-52

V

VOLTage 2-21
VOLTage? 2-21
VOLTage:HIGH 2-21
VOLTage:HIGH? 2-21
VOLTage:LOW 2-21
VOLTage:LOW? 2-22
VOLTage:OFFSet 2-22
VOLTage:OFFSet? 2-22
VOLTage:UNIT 2-22
VOLTage:UNIT? 2-22
VOLTage:CH2 2-22
VOLTage:CH2? 2-22
VOLTage:HIGH:CH2 2-23
VOLTage:HIGH:CH2? 2-23
VOLTage:LOW:CH2 2-24
VOLTage:LOW:CH2? 2-24
VOLTage:OFFSet:CH2 2-24

Programming Guide for DG1022

RIGOL Appendix: Commands Reference A-Z

4

VOLTage:OFFSet:CH2? 2-24
VOLTage:UNIT:CH2 2-24

VOLTage:UNIT:CH2? 2-25

Programming Guide for DG1022
