Ridge Tool Company/Elyria, Ohio, U.S.A.
3/06
999-998-151.10
Printed in U.S.A.
9 Gallon Only
WD935 Only
1
14
6
5
4
3
2
7
8
9
10
11
12
13
20
21
22
23
15
16
17
17
18
24
Ref. Catalog
No.
No. Description
1 12313 Toggle Switch
2 12398 Cover Motor
3 12283 Motor Assembly (WD620)
12288 Motor Assembly (WD935)
4 12483 Cord Assembly
5 12403 Lid (WD620)
12413 Lid (WD935)
6 73482 Screw Pan Head #10 x
3
/4″
7 47862 Spacer
8 12278 Blower Wheel (WD620)
12273 Blower Wheel (WD935)
Ref. Catalog
No.
No. Description
9 47872 Washer
10 12353 Nut Hex Flange
5
/16″ - 18
11 12408 Plate Collector
12 73472 Float
13 73637 Filter Cage
14 72947 Pleated Paper Filter
15 47907 Filter Nut
16 12448 Drum Assembly (WD620)
12453 Drum Assembly (WD935)
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No.
No.
Description
17 12388 Foot Caster
18 12298 Caster
19 72907 Utility Nozzle
20 72937 Car Nozzle (WD935)
21 72912 Wet/Squeegee Nozzle (WD935)
22 73562 Squeegee (WD935)
23 72902 Extension Wand
24 72897 7 Foot Hose

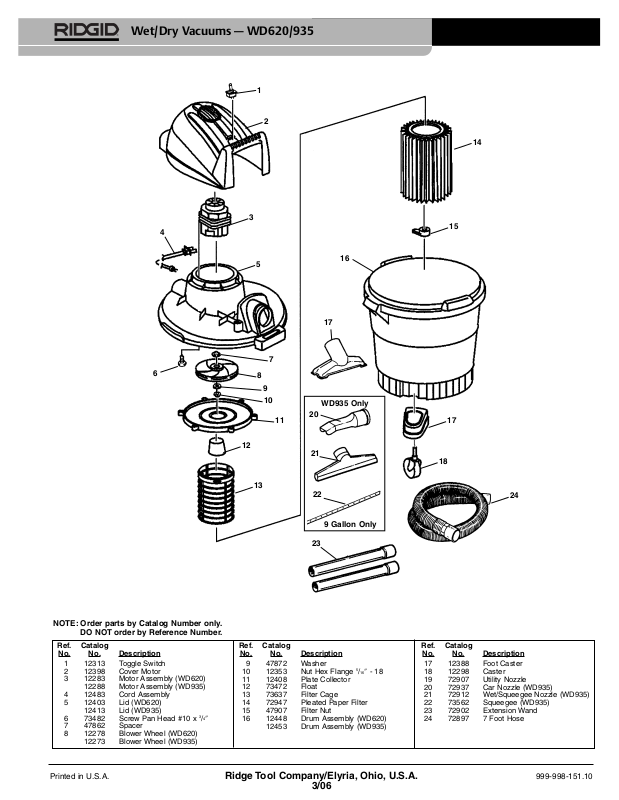

Wet/Dry Vacuums — WD620/935
