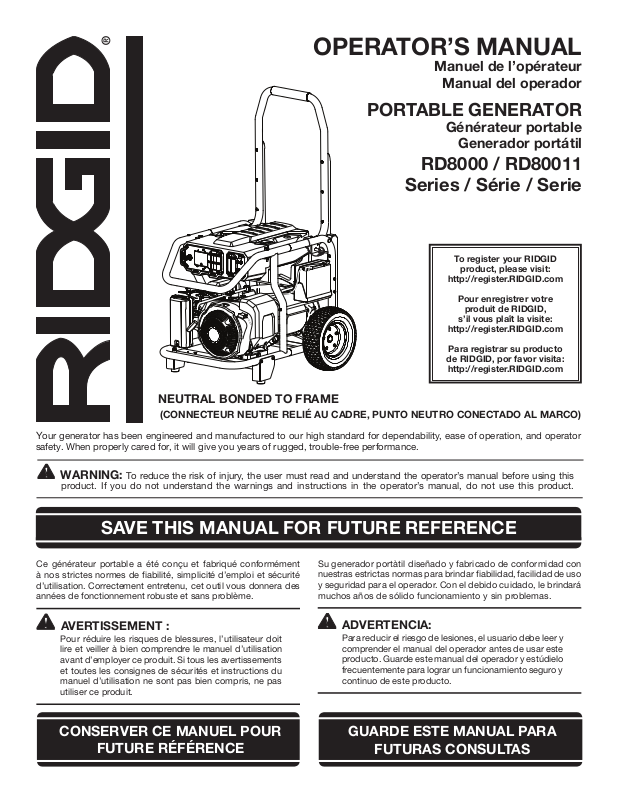

RIDGID RD80011, RD8000 User Manual
OPERATOR’S MANUAL
Manuel de l’opérateur
Manual del operador
PORTABLE GENERATOR
Générateur portable
Generador portátil
RD8000 / RD80011
Series / Série / Serie
To register your RIDGID
product, please visit:
http://register.RIDGID.com
Pour enregistrer votre
produit de RIDGID,
s’il vous plaît la visite:
http://register.RIDGID.com
Para registrar su producto
de RIDGID, por favor visita:
http://register.RIDGID.com
NEUTRAL BONDED TO FRAME
(CONNECTEUR NEUTRE RELIÉ AU CADRE, PUNTO NEUTRO CONECTADO AL MARCO)
Your generator has been engineered and manufactured to our high standard for dependability, ease of operation, and operator
safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this
product. If you do not understand the warnings and instructions in the operator’s manual, do not use this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Ce générateur portable a été conçu et fabriqué conformément
à nos strictes normes de fiabilité, simplicité d’emploi et sécurité
d’utilisation. Correctement entretenu, cet outil vous donnera des
années de fonctionnement robuste et sans problème.
AVERTISSEMENT :
Pour réduire les risques de blessures, l’utilisateur doit
lire et veiller à bien comprendre le manuel d’utilisation
avant d’employer ce produit. Si tous les avertissements
et toutes les consignes de sécurités et instructions du
manuel d’utilisation ne sont pas bien compris, ne pas
utiliser ce produit.
Su generador portàtil diseñado y fabricado de conformidad con
nuestras estrictas normas para brindar fiabilidad, facilidad de uso
y seguridad para el operador. Con el debido cuidado, le brindará
muchos años de sólido funcionamiento y sin problemas.
ADVERTENCIA:
Para reducir el riesgo de lesiones, el usuario debe leer y
comprender el manual del operador antes de usar este
producto. Guarde este manual del operador y estúdielo
frecuentemente para lograr un funcionamiento seguro y
continuo de este producto.
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE
GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS
TABLE OF CONTENTS
Introduction ..................................................................................................................................................................... 2
Important Safety Instructions .......................................................................................................................................3-4
Specific Safety Rules ...................................................................................................................................................... 4
Symbols .......................................................................................................................................................................5-7
Electrical .......................................................................................................................................................................7-9
Features ........................................................................................................................................................................ 10
Assembly ..................................................................................................................................................................11-12
Operation ..................................................................................................................................................................13-16
Maintenance .............................................................................................................................................................17-19
Troubleshooting ............................................................................................................................................................. 20
Warranty ...................................................................................................................................................................21-23
Parts Ordering / Service ...................................................................................................................................Back Page
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product, making it easy to maintain and operate.
DANGER:

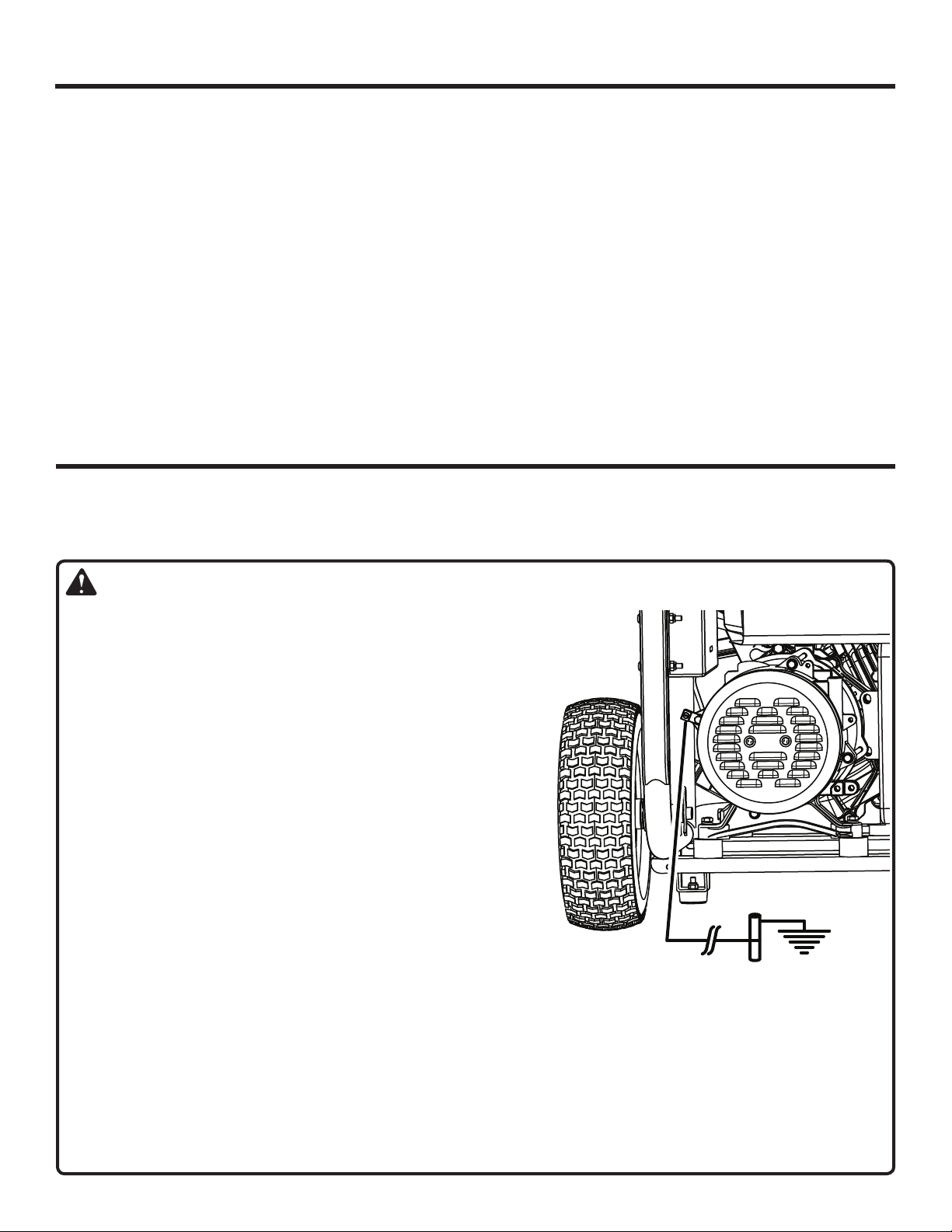

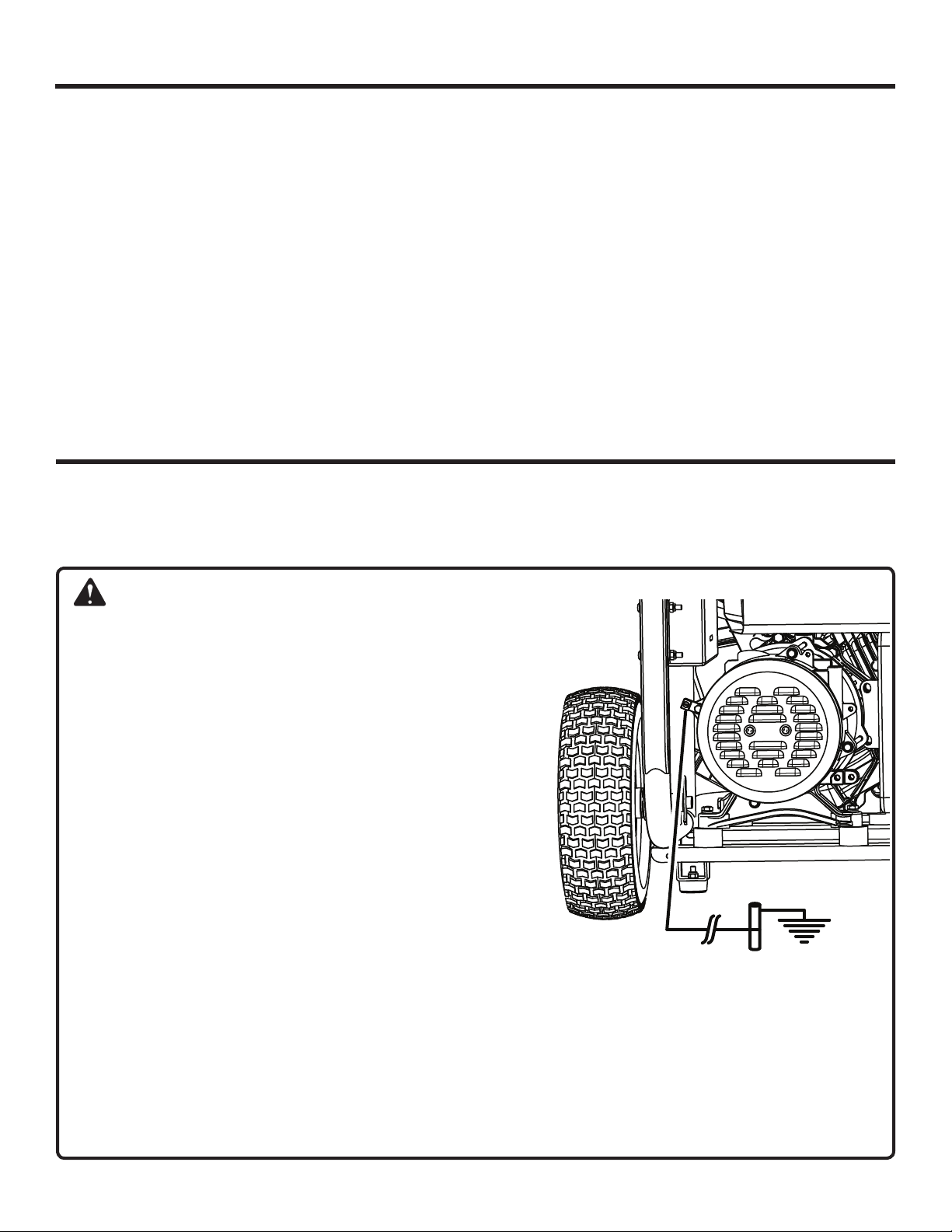

GROUNDING THE GENERATOR
To reduce the risk of shock or electrocution, generator must be
properly grounded. The nut and ground terminal on the frame
must always be used to connect the generator to a suitable
ground source. The ground path should be made with #8 size
wire. Connect the terminal of the ground wire between the lock
washer and the nut, and tighten the nut fully. Connect the other
end of the wire securely to a suitable ground source.
The National Electric Code contains several practical ways in
which to establish a good ground source. If a steel or iron rod is
used, it should be at least 5/8 in. diameter, and if a nonferrous
rod is used, it should be at least 1/2 in. diameter and be listed as
material for grounding. Drive the rod or pipe to a depth of 8 ft. If
a rock bottom is encountered less than 4 ft. down, bury the rod
or pipe in a trench.
All electrical tools and appliances operated from this generator
must be properly grounded by use of a third wire or be “Double
Insulated.”
It is recommended to:
1. Use electrical devices with 3-prong grounded plugs.
2. Use an extension cord with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the
ground protection from the generator to the appliance.
Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a
qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as
to whether the generator is properly grounded.
2 — English
IMPORTANT SAFETY INSTRUCTIONS
Keep all bystanders, children, and pets at least 10 feet
DANGER:
Carbon Monoxide. Using a generator indoors WILL
KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon
monoxide (CO), a poisonous gas you cannot see or
smell. If you can smell the generator exhaust, you
are breathing CO. But even if you cannot smell the
exhaust, you could be breathing CO.
Never use a generator inside homes, garages,
crawlspaces, or other partly enclosed areas.
Deadly levels of carbon monoxide can build up
in these areas. Using a fan or opening windows
and doors does NOT supply enough fresh air.
ONLY use a generator outdoors and far away
from open windows, doors, and vents. These
openings can pull in generator exhaust.
Even when you use a generator correctly, CO may
leak into the home. ALWAYS use a battery-powered
or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the
generator has been running, move to fresh air
RIGHT AWAY. See a doctor. You could have carbon
monoxide poisoning.
WARNING:
Read and understand all instructions. Failure
to follow all instructions listed below may result
in electrocution, fire, and/or carbon monoxide
poisoning, which will cause death or serious
injury.
WARNING:
National Electric Code requires generator to be
grounded to an approved earth ground. Before
using the ground terminal, consult a qualified
electrician, electrical inspector, or local agency
having jurisdiction for local codes or ordinances
that apply to the intended use of the generator.
SAVE THESE INSTRUCTIONS
This manual contains important instructions for this product
that should be followed during installation and maintenance
of the generator and batteries.
Do not allow children or untrained individuals to use this
unit.
Never start or run the engine inside a closed or partially
enclosed area. Breathing exhaust fumes will kill you.
Wear eye protection which is marked to comply with ANSI
Z87.1 as well as hearing protection when operating this
equipment.
away.
Wear sturdy and dry shoes or boots. Do not operate while
barefoot.
Do not operate generator when you are tired or under the
influence of drugs, alcohol, or medication.
Keep all parts of your body away from any moving parts
and all hot surfaces of the unit.
Do not touch bare wire or receptacles.
Do not use generator with electrical cords which are worn,
frayed, bare, or otherwise damaged.
Before storing, allow the engine to cool and drain fuel
from the unit.
Do not operate or store the generator in rain, snow, or
wet weather.
Store the generator in a well-ventilated area with the
fuel tank empty. Fuel should not be stored near the
generator.
Empty fuel tank, close fuel valve, and restrain the unit
from moving before transporting in a vehicle.
Allow engine to cool for five minutes before refueling.
To reduce the risk of fire and burn injury, handle fuel with
care. It is highly flammable.
Do not smoke while handling fuel.
Store fuel in a container approved for gasoline.
Position the unit on level ground, stop engine, and allow
to cool before refueling.
Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
Tighten the fuel cap securely after refueling.
Wipe spilled fuel from the unit.
Never attempt to burn off spilled fuel under any circum-
stances.
Generators vibrate in normal use. During and after the
use of the generator, inspect the generator as well as
extension cords and power supply cords connected to
it for damage resulting from vibration. Have damaged
items repaired or replaced as necessary. Do not use plugs
or cords that show signs of damage such as broken or
cracked insulation or damaged blades.
For power outages, permanently installed stationary gen-
erators are better suited for providing back-up power to
the home. Even a properly connected portable generator
can become overloaded. This may result in overheating
or stressing the generator components, possibly leading
to generator failure.
Use only authorized replacement parts and accessories
and follow instructions in the Maintenance section of this
manual. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of shock or
injury.
3 — English
IMPORTANT SAFETY INSTRUCTIONS
Maintain the unit per maintenance instructions in this
Operator’s Manual.
SPECIFIC SAFETY RULES
WARNING:
When this generator is used to supply a building
wiring system: generator must be installed
by a qualified electrician and connected to a
transfer switch as a separately derived system
in accordance with NFPA 70, National Electrical
Code. The generator shall be connected through a
transfer switch that switches all conductors other
than the equipment grounding conductor. The
frame of the generator shall be connected to an
approved grounding electrode. Failure to isolate
the generator from power utility can result in death
or injury to electric utility workers.
Exhaust contains poisonous carbon monoxide, a color-
less, odorless gas. Breathing exhaust can cause loss
of consciousness and can lead to death. If running in a
confined or partially-enclosed area, the air may contain a
dangerous amount of carbon monoxide. To keep exhaust
fumes from building up, always provide adequate ventilation.
Always use a battery-powered carbon monoxide detec-
tor when running the generator. If you begin to feel sick,
dizzy, or weak while using the generator, shut it off and
get to fresh air immediately. See a doctor. You may have
carbon monoxide poisoning.
Place the generator on a flat, stable surface with a slope
of no more than 4°.
Operate outdoors in a well-ventilated, well-lit area isolated
from working areas to avoid noise interference.
Operating the generator in wet conditions could result in
electrocution. Keep the unit dry.
Keep the generator a minimum of 3 feet away from all
types of combustible material.
Do not operate generator near hazardous material.
Do not operate generator at a gas or natural gas filling
station.
Do not touch the muffler or cylinder during or immediately
after use; they are HOT and will cause burn injury.
This generator has a neutral bonded condition. This
means the neutral conductor is electrically connected to
the frame of the machine.
Inspect the unit before each use for loose fasteners, fuel
leaks, etc. Replace damaged parts.
Do not connect to a building’s electrical system unless a
transfer switch has been properly installed by a qualified
electrician.
Do not allow the generator’s gas tank to overflow when
filling. Fill to 1 in. below the top neck of the gasoline
tank to allow for fuel expansion. Check the ventilation
hole inside the fuel tank cap for debris. Do not block the
vent.
Do not smoke when filling the generator with gasoline.
Shut down the engine and allow to cool completely before
adding gasoline or lubricant to the generator.
Do not remove the oil dipstick or the fuel tank cap when
the engine is running.
Pay close attention to all safety labels located on the
generator.
Keep children a minimum of 10 feet away from the gen-
erator at all times.
The unit operates best in temperatures between 23°F and
104°F with a relative humidity of 90% or less.
Specific modifications for high-altitude performance are
needed if the generator will always be operated at altitudes above 5,000 feet. Contact your nearest authorized
service center for more information and to have these
modifications performed.
Operating voltage and frequency requirement of all
electronic equipment should be checked prior to plugging them into this generator. Damage may result if the
equipment is not designed to operate within a +/- 10%
voltage variation, and +/- 3 hz frequency variation from
the generator name plate ratings. To reduce the risk of
damage, always have an additional load plugged into the
generator if solid state equipment (such as a television
set) is used. A power line conditioner is recommended
for some solid state applications.
When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Save these instructions. Refer to them frequently and use
them to instruct others who may use this product. If you
loan someone this product, loan them these instructions
also.
4 — English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
CAUTION:
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time
gal Gallon Volume
qt Quart Volume
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual
Eye Protection Always wear eye protection marked to comply with ANSI Z87.1.
Electric Shock
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Failure to use in dry conditions and to observe safe practices can
result in electric shock.
Toxic Fumes
Running generator gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea,
fainting, or death.
5 — English

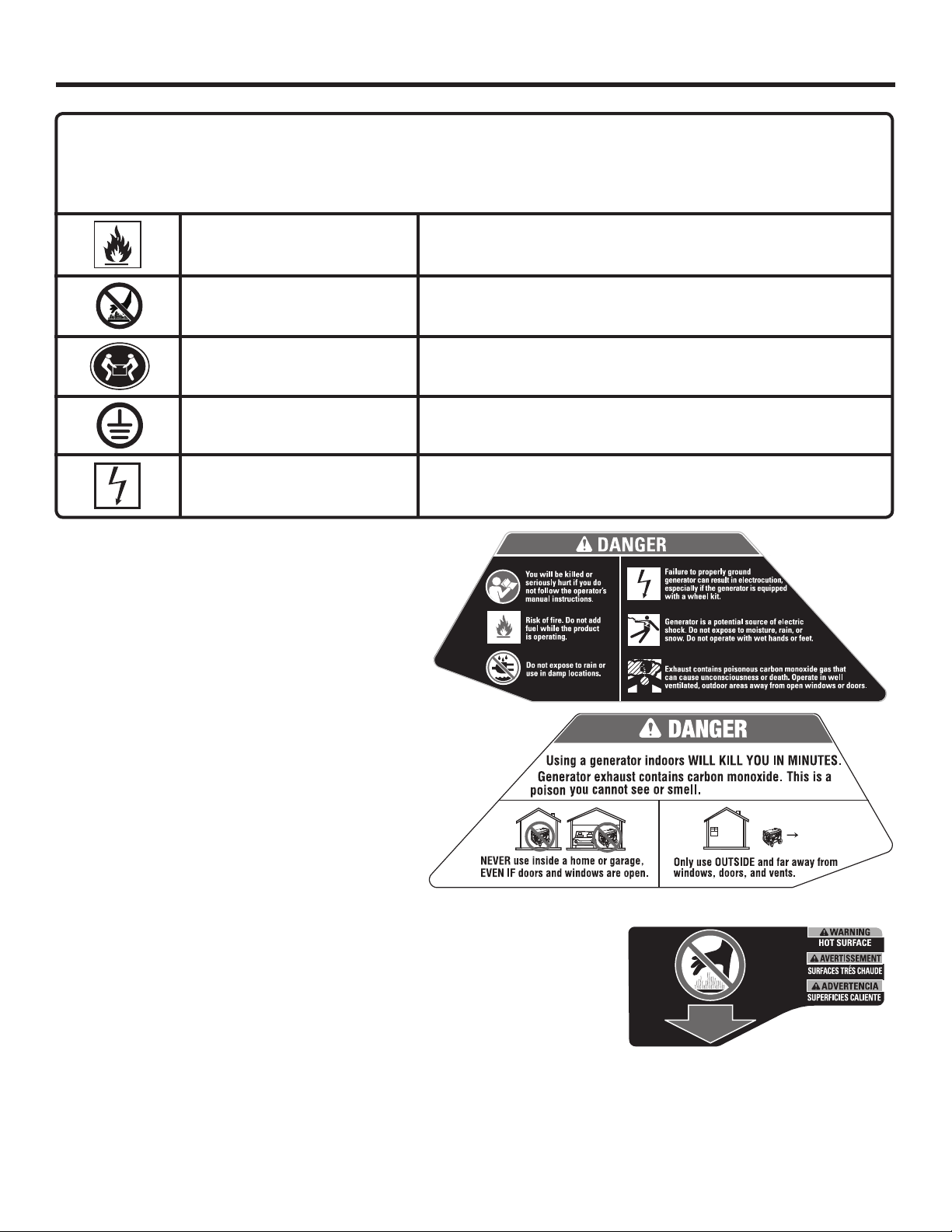

SYMBOLS

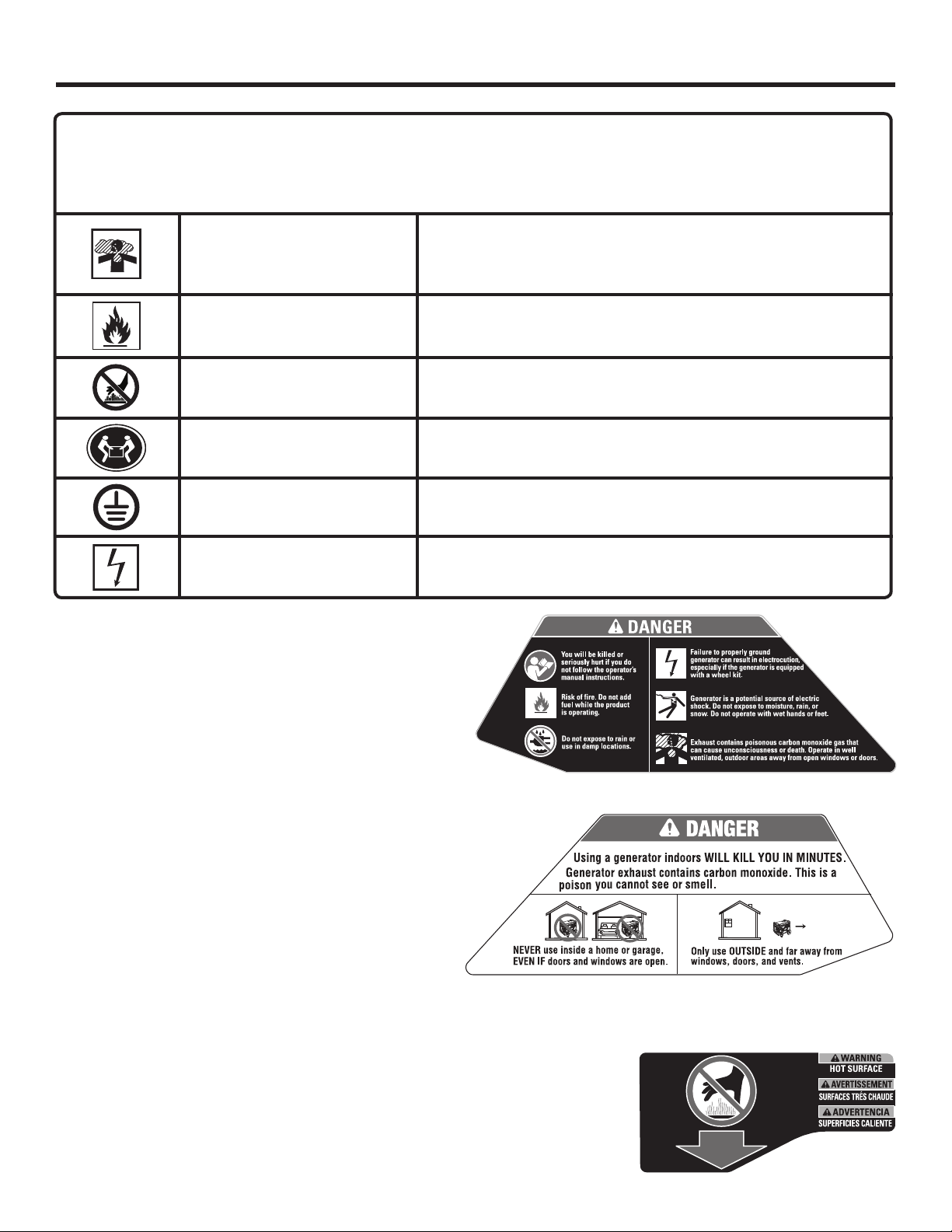

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Fire/Explosion
Hot Surface
Lifting Hazard
Ground
Electrocution

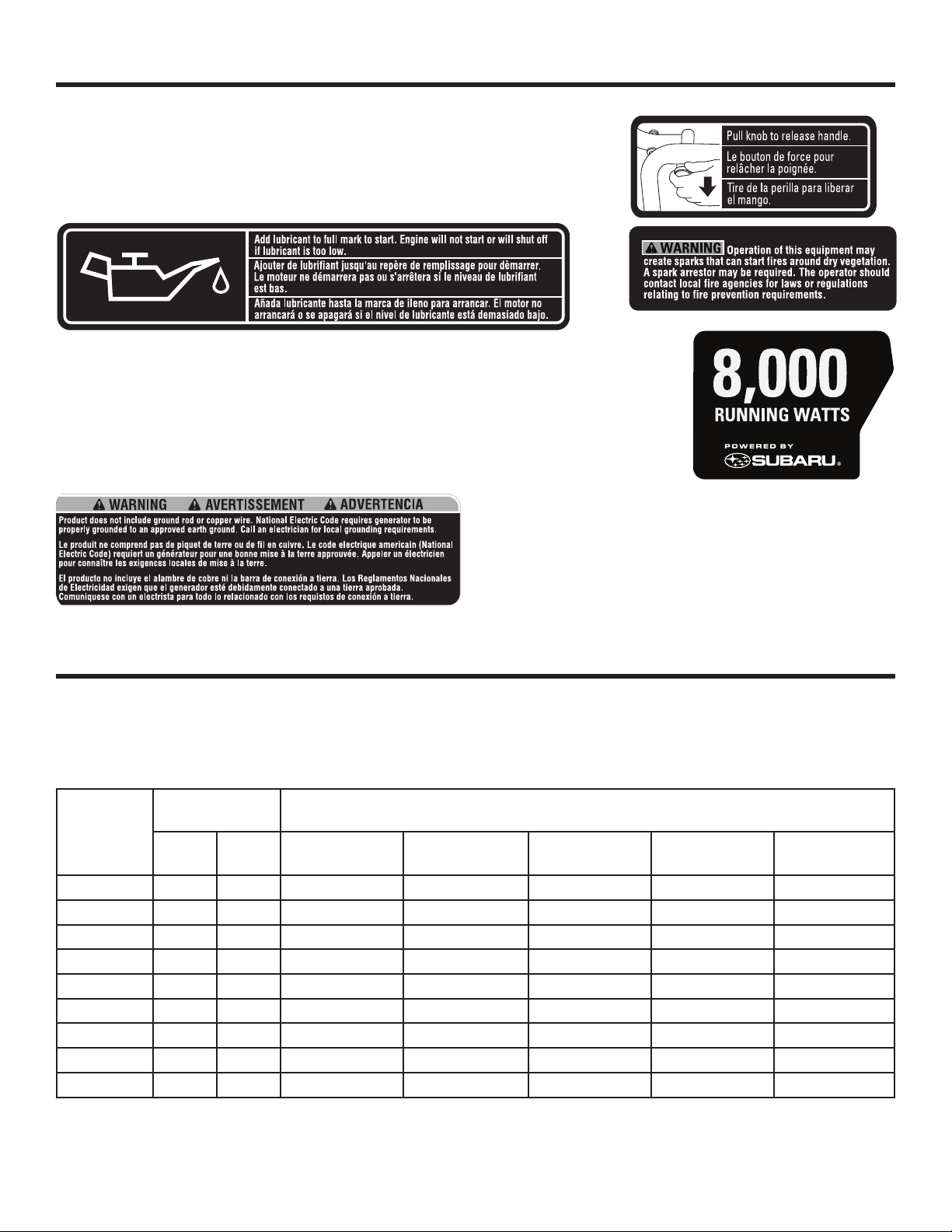

SAFETY LABELS
The information on this page can be
found on the generator. For your safety,
please study and understand all of the
labels before starting the generator.
If any of the labels come off the unit or
become hard to read, contact an authorized service center for replacement.
Fuel and its vapors are extremely flammable and explosive. Fire
or explosion can cause severe burns or death.
To reduce the risk of injury or damage, avoid contact with any hot
surface.

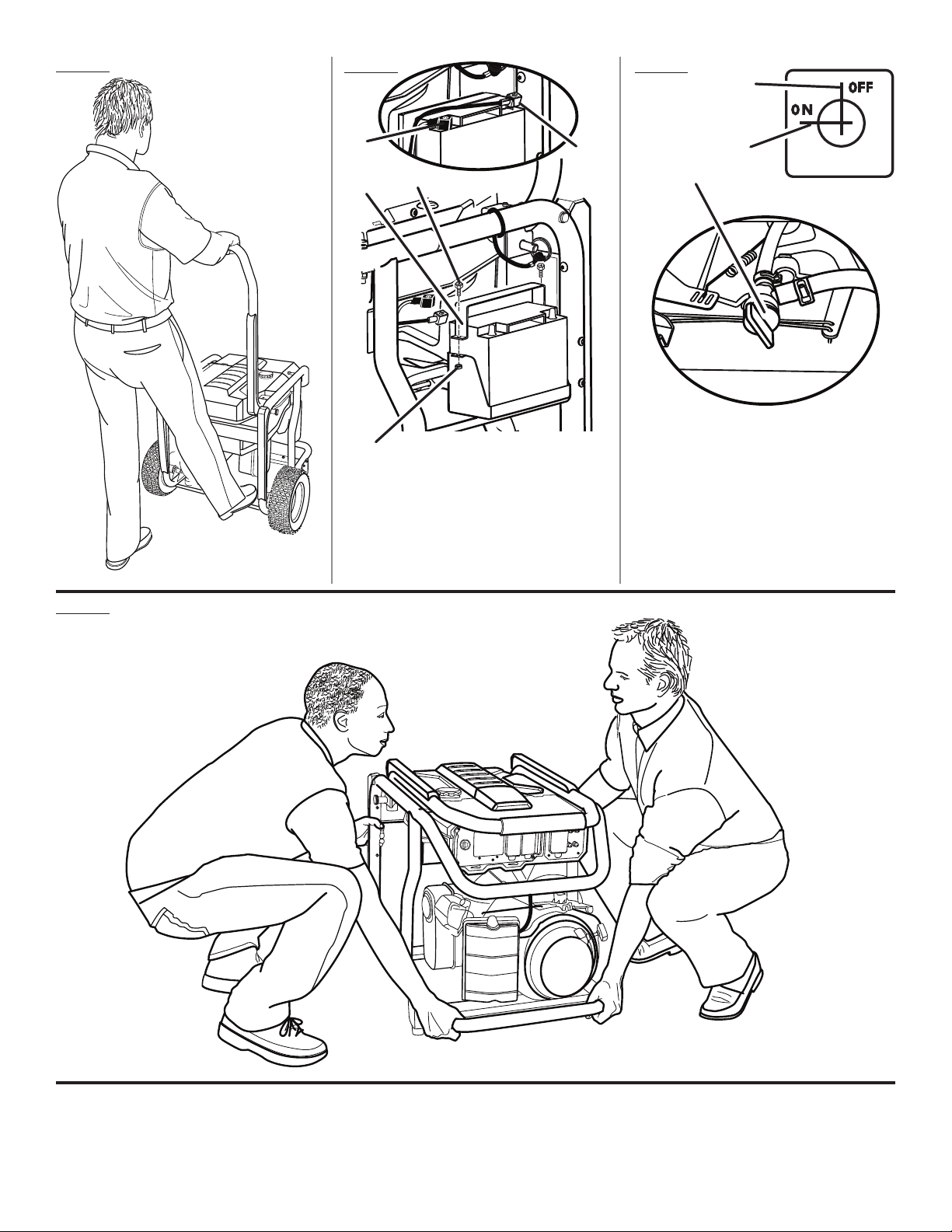

To reduce the risk of serious injury, avoid attempting to lift the
generator alone.
Consult with local electrician to determine grounding requirements
before operation.
Failure to properly ground generator can result in electrocution,
especially if the generator is equipped with a wheel kit.
You WILL be KILLED or SERIOUSLY
HURT if you do not follow the Operator’s Manual instructions.
Risk of Fire. Do not add fuel while
the product is operating.
Generator is a potential source of
electric shock. Do not expose to
moisture, rain, or snow. Do not operate with wet hands or feet.
Exhaust contains poisonous carbon
monoxide gas that can cause unconsciousness or DEATH. Operate in
well-ventilated, outdoor areas away
from open windows or doors.
Failure to properly ground generator
can result in electrocution, especially
if the generator is equipped with a
wheel kit.
Do not expose to rain or use in damp
locations.
Using a generator indoors WILL KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are
open.
Only use OUTSIDE and far away from
windows, doors, and vents.
HOT SURFACE WARNING
Do not touch the muffler or aluminum
cylinder of the engine. They are very
HOT and will cause severe burns.
Don’t put any flammable or combustible materials in the direct path of the
exhaust.
6 — English

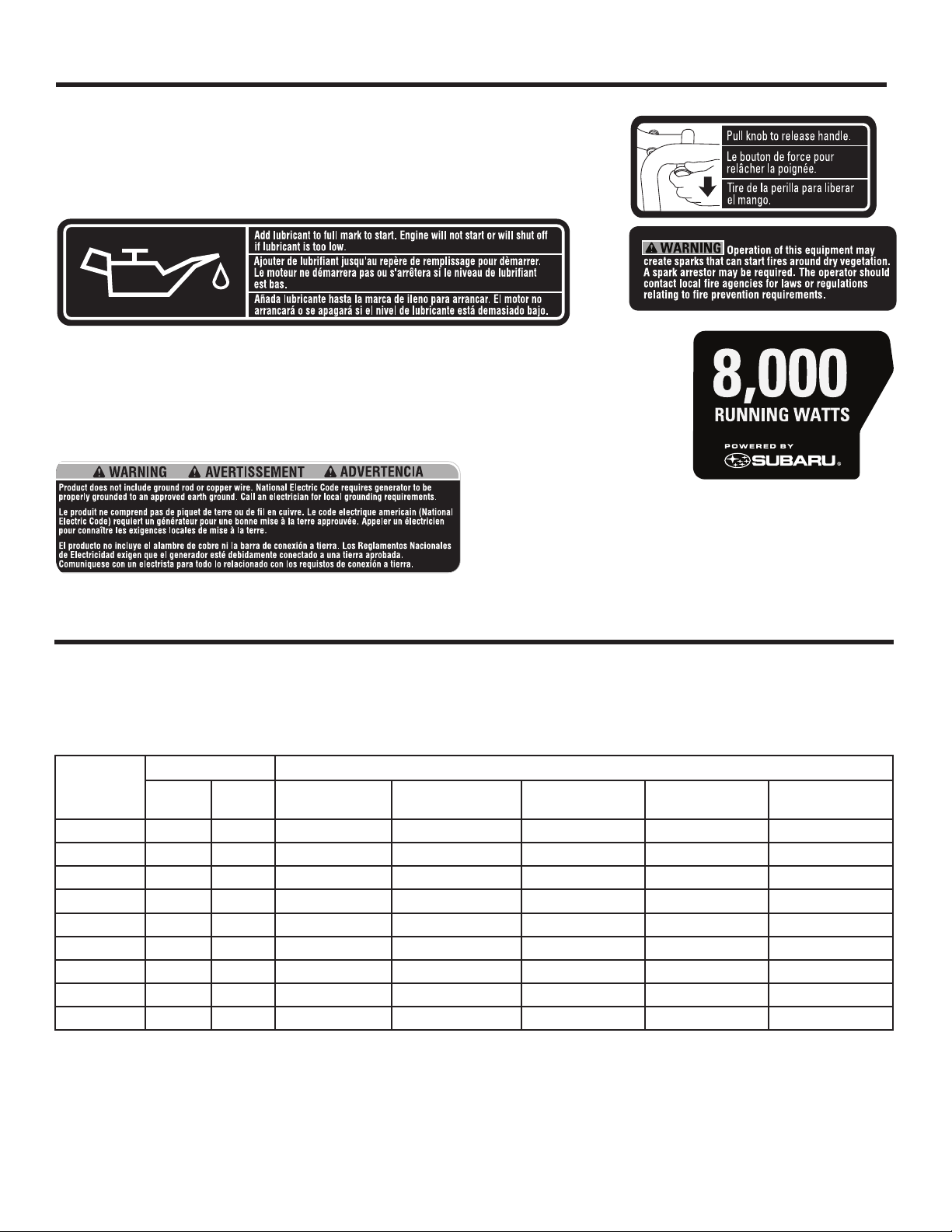

SYMBOLS
FUEL WARNING
No smoking when filling with gasoline. Do not overfill. Full level is 1 in. below the
top of the fuel neck. Stop the engine for five minutes before refueling to avoid the
heat from the muffler igniting fuel vapors.
ENGINE LUBRICANT WARNING
You must add lubricant before first operating the generator. The oil reservoir
capacity is 1.1 qt. Always check the lubricant level before each operation. The
lubricant level should always register between the hatched areas on the dipstick.
The unit is equipped with a sensor which will automatically shut off the engine if
the lubricant level falls below a safe limit.
GROUNDING WARNING
National Electric Code requires generator to be grounded to
an approved earth ground.
ELECTRICAL
EXTENSION CORD CABLE SIZE
Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load.
Inadequate size cables can cause a voltage drop, which can damage the appliance and overheat the cord.
Current in
Amperes
2.5 300 600 1000 ft. 600 ft. 375 ft. 250 ft.
5 600 1200 500 ft. 300 ft. 200 ft. 125 ft.
7.5 900 1800 350 ft. 200 ft. 125 ft. 100 ft.
10 1200 2400 250 ft. 150 ft. 100 ft. 50 ft.
15 1800 3600 150 ft. 100 ft. 65 ft.
20 2400 4800 175 ft. 125 ft. 75 ft.
25 3000 6000 150 ft. 100 ft.
30 3600 7200 125 ft. 65 ft.
40 4800 9600 90 ft.
Load in Watts Maximum Allowable Cord Length
At 120V At 240V #8 Wire #10 Wire #12 Wire #14 Wire #16 Wire
7 — English
ELECTRICAL
ELECTRIC MOTOR LOADS
It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting. This table may be used to estimate the watts required to start “Code G” electric motors; however, if an electric motor
fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check
the requirements of the tool or appliance being used compared to the rated output of the generator.
Motor Size (H.P.) Running Watts
1/8 275 600 850 1200
1/6 275 600 850 2050
1/4 400 850 1050 2400
1/3 450 975 1350 2700
1/2 600 1300 1800 3600
3/4 850 1900 2600 —
1 1100 2500 3300 —
Repulsion Induction Capacitor Split Phase
EXTENSION CORD

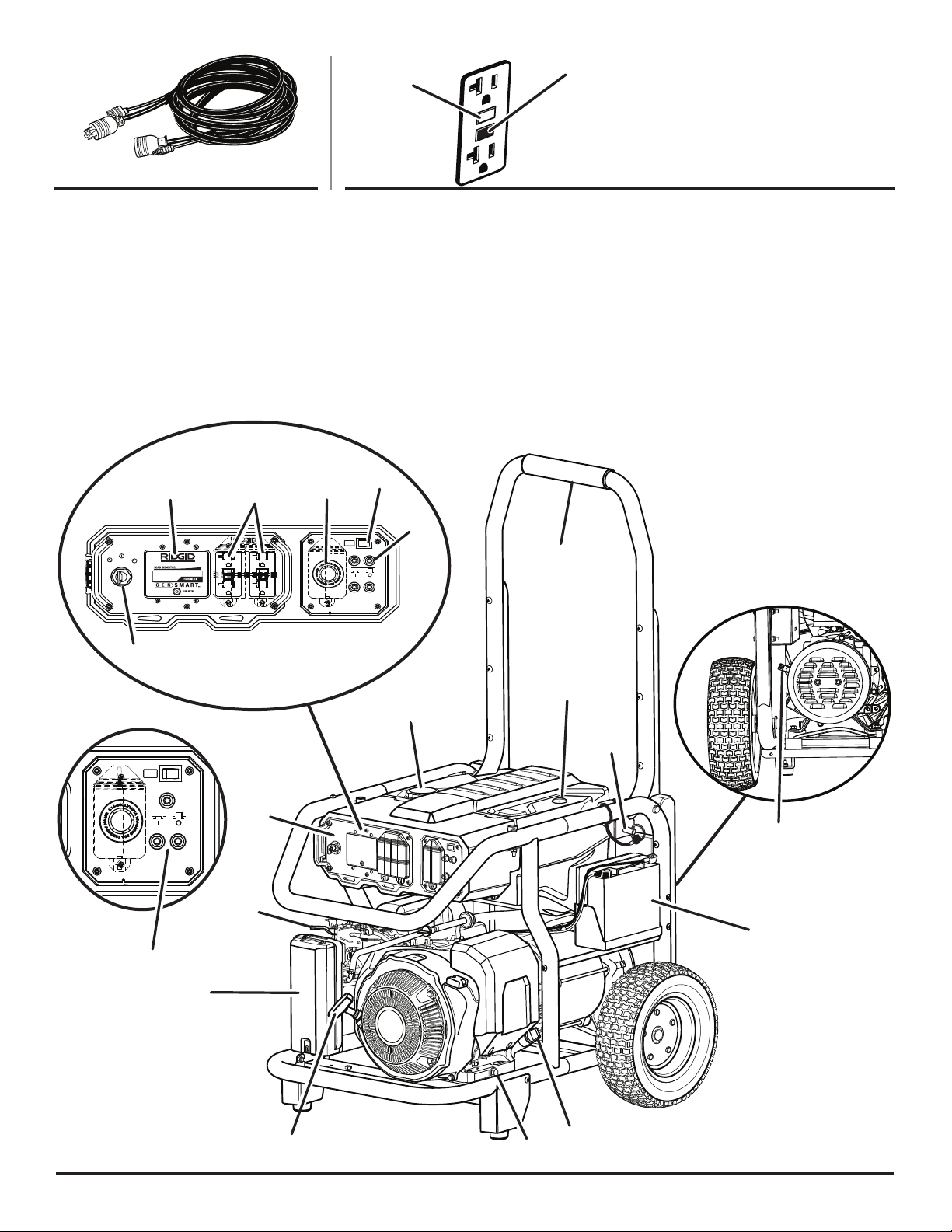

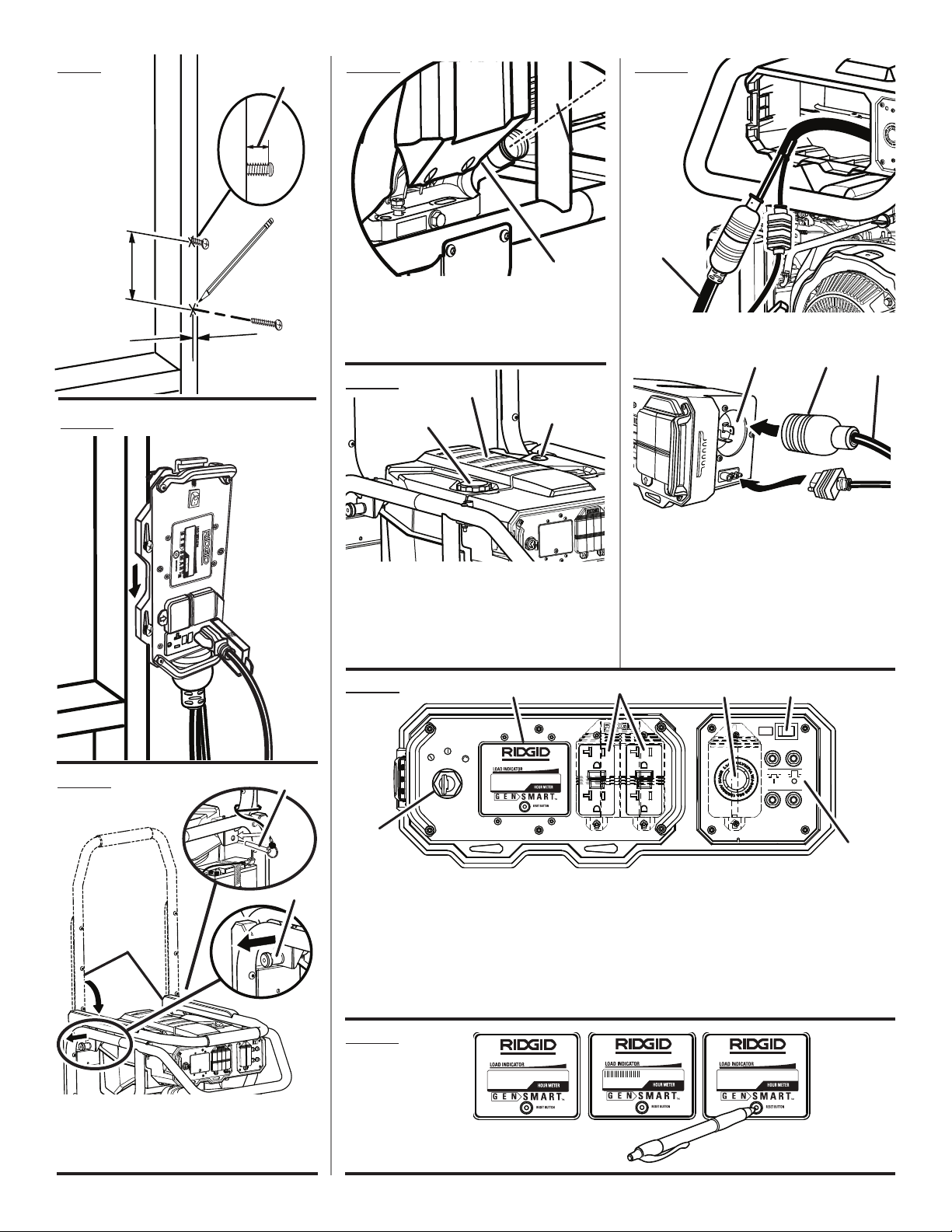

See Figure 1.
The 25-ft. extension cord (Model RDEC25) has a 240 Volt,
20 Amp twist lock plug on one end and a 240 Volt, 20 Amp
twist lock receptacle on the other end. It also has a 12 Volt
DC engine control connector on each end. When using this
cord, the removable control panel can provide power through
the 2 x 120 Volt duplex GFCI outlets on the control box.
CAUTION:
Use only with RDEC25 accessory cord. Do not exceed
separation length of 75 ft. or a combination of three
RDEC25 accessory cords.
CAUTION:
Operating voltage and frequency requirement of all
electronic equipment should be checked prior to
plugging them into this generator. Damage may result
if the equipment is not designed to operate within a
+/- 10% voltage variation, and +/- 3 hz frequency
variation from the generator name plate ratings.
To avoid damage, always have an additional load
plugged into the generator if solid state equipment
(such as a television set) is used. A power line
conditioner is recommended for some solid state
applications.
Watts Required to Start Motor
GROUND FAULT CIRCUIT INTERRUPTER
See Figure 2.
The 20 amp, 120 volt receptacles on the generator are protected by a Ground Fault Circuit Interrupter (GFCI), which
guards against the hazards of ground fault currents. An
example of ground fault current is the current that would
flow through a person who is using an appliance with faulty
insulation and, at the same time, is in contact with an electrical ground such as a plumbing fixture, wet floor, or earth.
GFCI receptacles do not protect against short circuits,
overloads, or shocks.
The GFCI receptacles can be tested with the TEST and
RESET buttons.
To test:
Depress the TEST button. This should cause the Reset
button to pop out.
To restore power, depress the RESET button.
Perform this test monthly to ensure proper operation of the
GFCI. If the generator is stored outdoors, unprotected from
the weather, test the GFCI receptacle before each use.
8 — English
ELECTRICAL
GENERATOR CAPACITY
Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power
at the same time. Follow these simple steps.
1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This
is the amount of power the generator must produce to
keep the items running. See the wattage reference chart
at right.
3. Estimate how many surge (starting) watts you will need.
Surge wattage is the short burst of power needed to
start electric motor-driven tools or appliances such as a
circular saw or refrigerator. Because not all motors start
at the same time, total surge watts can be estimated by
adding only the item(s) with the highest additional surge
watts to the total rated watts from step 2.
Example:
Estimated*
Tool or Appliance
Quartz Halogen
Work Light
Reciprocating Saw
Electric Drill
Circular Saw
Total Continuous (Running) Watts 3960
Plus Highest Additional Surge Watts + 2300
Equals Total Generator Output Required 6260
Continuous
(Running) Watts
1000 0
960 +960
600 +900
1400 +2300
3960 Total
Running Watts
Estimated*
Additional Surge
(Starting) Watts
+2300 Highest
Surge Watts
POWER MANAGEMENT
To prolong the life of the generator and attached devices,
it is important to take care when adding electrical loads to
the generator. There should be nothing connected to the
generator outlets before starting its engine. The correct and
safe way to manage generator power is to sequentially add
loads as follows:
1. With nothing connected to the generator, start the engine
as described later in this manual.
2. Plug in and turn on the first load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Never add more loads than the generator capacity. Take
special care to consider surge loads in generator capacity
as previously described.
CAUTION:
Do not overload the generator’s capacity.
Exceeding the generator’s wattage/amperage
capacity can damage the generator and/or
electrical devices connected to it.
Estimated*
Tool or Appliance
DIY/Job Site
Quartz Halogen Work Light 1000 0
Airless Sprayer − 1/3 HP 600 +1200
Reciprocating Saw 960 +960
Electric Drill − 1/2 HP 600 +900
Circular Saw − 7-1/4 in. 1400 +2300
Miter Saw − 10 in. 1800 +1800
Planer/Jointer − 6 in. 1800 +1800
Table Saw/Radial Arm Saw
− 10 in.
Air Compressor − 1 HP 1600 +4500
*Wattages listed are approximate. Check tool or equipment for
actual wattage.
Running
Watts
2000 +2000
Estimated*
Additional
Starting
Watts
9 — English
FEATURES
PRODUCT SPECIFICATIONS
ENGINE
Engine Type .......................................... Subaru, EX40 OHC
Bore x Stroke .............................................89 mm x 65 mm
Cooling System ...................................................Forced Air
Compression Ratio ...................................................... 8:1:1
Starting System ......................................... Recoil & Electric
Ignition System ............................................................T.C.I.
Spark Plug .......................................................NGK BR6HS
Engine Lubricant Volume...........................................1.2 qt.
Fuel Volume ................................................................ 8 gal.
GENERATOR
Rated Voltage .....................................................120V/240V
Rated Amps .................................................. 66.7 A / 33.3A
Rated Output ..........................................................8,000 W
Maximum Output..................................................10,000 W
Rated Frequency ........................................................60 Hz
DIMENSIONS
Length ....................................................................... 31 in.
Width .......................................................................... 30 in.
Height ......................................................................... 27 in.
Weight .................................................................... 256 lbs.
KNOW YOUR GENERATOR
See Figure 3.
The safe use of this product requires an understanding of the
information on the product and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
AC CIRCUIT BREAKER
The circuit breaker is provided to protect the generator
against electrical overload. The circuit breaker may be reset
by pressing the circuit breaker reset button.
AIR FILTER
The air filter helps to limit the amount of dirt and dust drawn
into the unit during operation.
CHOKE LEVER
The choke lever is used when starting the engine.
ENGINE SWITCH WITH SWITCH KEY
The engine switch is used in combination with the recoil
starter grip to start the generator. To turn the engine off, turn
the engine switch key to “OFF”.
EXTENSION CORD
The 25-ft. extension cord (Model # RDEC25) has a 120/240
Volt, 20 Amp twist lock plug and a 12 Volt DC engine control connector on each end. When using this cord with the
removable control panel, appropriate equipment can be
powered through the 2 x 120 Volt duplex GFCI outlets on
the removable control panel.
FUEL TANK WITH FUEL GUAGE
The fuel tank with fuel guage has a capacity of 8 gallons.
FUEL VALVE
The flow of fuel through the generator is controlled by the
position of the fuel valve.
GenSmart™ MONITORING SYSTEM
The GenSmart monitoring system tracks usage and load
10 — English
and alerts the operator when periodic engine maintenance
is recommended.
NOTE: GenSmart
for the 120 Volt, 20 Amp GFCI outlets on the removable
control panel. It does not measure load on the 240 Volt, 30
Amp outlet.
™
load indicators monitor the load only
GROUND TERMINAL
The ground terminal is used to assist in properly grounding the generator to help protect against electrical shock.
Consult with a local electrician for grounding requirements
in your area.
OFF SWITCH
To turn the engine off, press and hold the OFF switch until
the engine stops.
OIL CAP/DIPSTICK
Remove the oil fill cap to check and add lubricant to the
generator when necessary.
OIL DRAINAGE BOLT
When changing the engine lubricant, the oil drainage bolt is
loosened to allow old engine lubricant to be drained.
RECEPTACLES
The following single phase, 60 Hz outlets on the control panel
can be used for operating appropriate equipment, electrical
lighting, tools, and motor loads: 2 x 120 Volt duplex GFCI 20
Amp receptacles, and one 240 Volt AC, 30 Amp receptacle.
A 240 Volt AC, 20 Amp receptacle plugged into the side of
the removable control panel is available when the panel is
detached.
RECOIL STARTER GRIP
The recoil starter is pulled to start the machine.
REMOVABLE CONTROL PANEL
The removable control panel can be wall-mounted for use
with extension cords for operation in a variety of locations.
ASSEMBLY
WARNING:
Do not attempt to operate the generator until
assembly is complete. Failure to comply could
result in possible serious personal injury.
LOOSE PARTS LIST

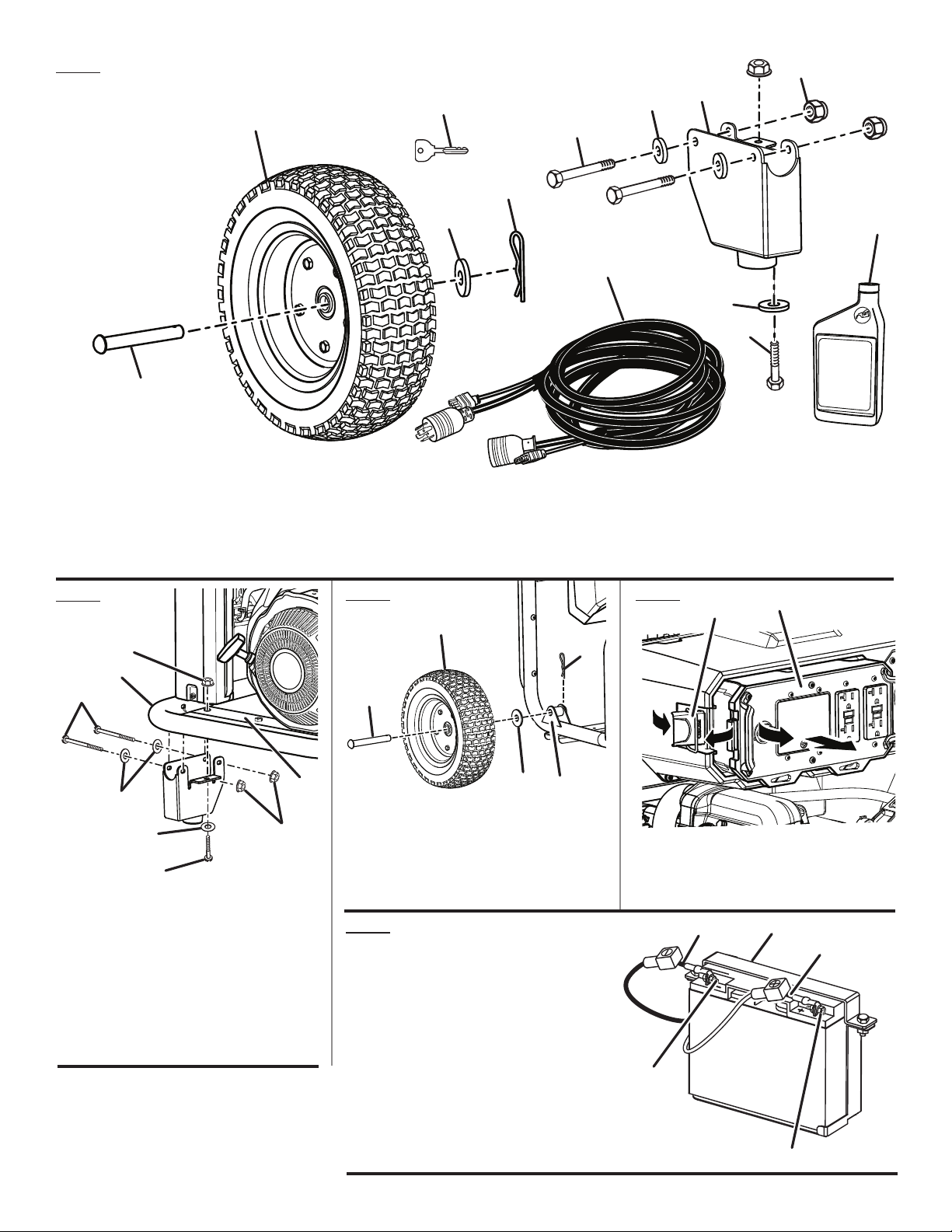

See Figure 4.
The following items are included with the generator:
Key
No. Description Qty.
1 Axle ......................................................................2
2 Wheel ...................................................................2
3 Flat Washer (5/8 in.) .............................................2
4 Hitch Pin ..............................................................2
5 Screw (1/4-20 x 2 in., Hex Hd.) ...........................4
6 Flat Washer (1/4 in.) .............................................6
7 Leg with Rubber Foot ..........................................2
8 Nut (1/4-20 Self-Locking Nut) .............................6
9 Extension Cord, 25 ft. ..........................................1
10 Engine Lubricant..................................................1
11 Screw (1/4-20 x 1 in., Hex Hd.) ...........................2
12 Key.......................................................................1
Operator’s Manual (not shown) ...........................1
UNPACKING
This product requires assembly.
Carefully cut the box down the sides then remove the
machine and any accessories from the box. Make sure
that all items listed in the packing list are included.
NOTE: This machine is heavy and requires a minimum of
two people to lift. To avoid back injury, lift with your legs
and not your back.
WARNING:
Do not use this product if any parts on the Loose
Parts List are already assembled to your product
when you unpack it. Parts on this list are not
assembled to the product by the manufacturer and
require customer installation. Use of a product that
may have been improperly assembled could result
in serious personal injury.
Inspect the product carefully to make sure no damage
occurred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-866-539-1710, for assistance.
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Use of
this product with damaged or missing parts could
result in serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
NOTE: Do not put fuel or lubricant in the generator before
installing the legs and wheels.
INSTALLING LEGS
See Figure 5.
Locate the following items:
2 legs with rubber feet
6 flat washers
6 lock nuts
4 screws (2 in.)
2 screws (1 in.)
Raise the front end of the generator, where the engine is
located, high enough to gain access to the frame bottom;
securely position props underneath to support.
Position a leg over the holes on each side of the frame
support.
Insert each 2 in. screw through a flat washer and insert
the screws through the two holes in the frame and the
leg.
Fasten the screws by installing a self-locking nut over
each screw on the inside of the frame. Tighten the nut
securely.
Insert a 1 in. screw through a flat washer, the hole in the
frame crossbar, and then through the hole in the leg tab.
Install a self-locking nut and tighten to secure.
Repeat with remaining leg.
INSTALLING THE WHEELS
See Figure 6.
Wheels are provided to assist in moving the generator to the
desired location and should be installed on the side opposite
the recoil starter.
Locate the following items:
2 axles
2 washers (5/8 in.)
2 hitch pins
2 wheels
11 — English
ASSEMBLY
Raise the handle end of the generator
gain access to the frame bottom; securely position props
underneath to support.
Insert an axle through the center of the wheel.
Place a washer on the axle, then slide the axle through
the bracket on the frame.
Slide the hitch pin through the hole in the axle and make
sure it is secure.
Repeat the process on the other side to install second
wheel.
high enough to
CONNECTING BATTERY
See Figure 7.
The battery cables must be connected before the electric
start feature of the generator can be operated.
Connect the red wire to the positive (+) terminal first,
then connect the black wire to the negative (−) terminal
using the bolts, nuts, and washers provided. Make sure
all connections are tight.
NOTE: Be careful not to short across the terminals when
installing. Shorting the terminals together can cause
sparks, damage to the battery or generator, or even burns
or explosions.
Cover the terminals with the rubber covers.
When removing the battery for replacement: remove the
nut and bolt first from the negative (black) post, then from
the positive (red) post, being careful not to short across the
terminals. Always abide by the safety warnings provided with
the battery. Remove the battery and dispose of according
to local and state regulations.
WARNING:
To reduce the risk of electrocution or explosion, do
not short circuit the battery terminals or charge in a
sealed container. Keep sparks and flame away.
WARNING:
Keep metal objects away from the battery
terminals. Metal objects can make a connection
from one terminal to another. Shorting the battery
terminals together may cause sparks, burns, or
a fire.
REMOVABLE CONTROL PANEL
See Figure 8.
To detach the removable control panel from the
generator:
Turn off the generator.
Loosen the latch on the removable control panel and pull
the control panel forward.
Disconnect the twist-lock plug and the 12V engine control
connector on the back of the control panel.
INSTALLING A WALL MOUNT FOR THE
REMOVABLE CONTROL PANEL
See Figure 9 - 10
The removable control panel can be removed from the
generator and wall-mounted in another location before reconnecting it to the generator.
To wall-mount the removable control box:
Screws or nails for hanging the box should be spaced
4-1/4 in. from center to center.
Mark the 4-1/4 in. measurement on a wall stud or other
sturdy wood surface.
Drill holes and insert the screws; tighten the screws
securely into the wood. If using nails, the nail head should
be large enough to hold the control panel securely.
NOTE: There should be at least 5/8 in. of the screw or nails
protruding from the wood piece for hanging the box.
Hang the box on the screws or nails, making certain it is
secure.
12 — English
OPERATION
DANGER:
Carbon Monoxide. Using a generator indoors
WILL KILL YOU IN MINUTES. Generator exhaust
contains high levels of carbon monoxide (CO), a
poisonous gas you cannot see or smell. If you can
smell the generator exhaust, you are breathing CO.
But even if you cannot smell the exhaust, you could
be breathing CO.
Never use a generator inside homes, garages, crawl-
spaces, or other partly enclosed areas. Deadly levels of
carbon monoxide can build up in these areas. Using a fan
or opening windows and doors does NOT supply enough
fresh air.
ONLY use a generator outdoors and far away from open
windows, doors, and vents. These openings can pull in
generator exhaust.
Even when you use a generator correctly, CO may leak into
the home. ALWAYS use a battery-powered or battery-backup
CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has
been running, move to fresh air RIGHT AWAY. See a doctor.
You could have carbon monoxide poisoning.
DANGER:
Failure to properly ground generator can result
in electrocution, especially if the generator is
equipped with a wheel kit. National Electric Code
requires generator to be properly grounded to an
approved earth ground. Call an electrician for local
grounding requirements.
WARNING:
Do not allow familiarity with this product to make
you careless. Remember that a careless fraction of
a second is sufficient to inflict serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this
product. The use of attachments or accessories
not recommended can result in serious personal
injury.
APPLICATIONS
This generator is designed to supply electrical power for
operating compatible electrical lighting, appliances, tools,
and motor loads.
BEFORE OPERATING THE UNIT
Only use OUTSIDE and far away from windows, doors,
and vents.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
Always position the generator on a flat firm surface.
CAUTION:
Attempting to start the engine before it has been
properly filled with lubricant will result in equipment
failure.
RAISING AND LOWERING THE HANDLE
See Figure 11.
To raise the handle (for moving the generator): pull the
handle up until the handle knob snaps through the locking
hole to secure the handle in place.
To lower the handle (for storing the generator): remove
the handle lock pin, then pull the release knob out and
lower the handle to the down position.
Never use the handle to lift the generator. The handle should
only be used for transporting the unit.
CHECKING/ADDING LUBRICANT
See Figure 12.
Engine lubricant has a major influence on engine performance and service life. For general, all-temperature use,
SAE 10W-30 is recommended. Always use a 4-stroke motor
lubricant that meets or exceeds the requirements for API
service classification SJ.
This engine comes with a feature that will shut off the engine
when a specific oil level is not maintained. The engine will
not restart until an appropriate oil level is reached.
NOTE: Non-detergent or 2-stroke engine lubricants will
damage the engine and should not be used.
Unscrew the oil cap/dipstick and remove.
Wipe dipstick clean and insert in hole. Do not rethread.
Remove dipstick again and check lubricant level. Lubri-
cant level should fall between the hatched areas on the
dipstick.
If level is low, add engine lubricant until the fluid level rises
to the upper portion of the dipstick.
Replace and secure the oil cap/dipstick.
13 — English
OPERATION
CHECKING/ADDING FUEL
See Figure 13.
Remove the fuel cap.
Fill the fuel tank to 1 in. below the top of the fuel neck.
Replace and secure the fuel cap.
NOTE: Always use unleaded gasoline with a pump octane
rating of 86 or higher. Never use old, stale, or contaminated
gasoline, and do not use an oil/gas mixture. Do not allow dirt
or water into the fuel tank. Do not use E85 fuel.
USING FUEL STABILIZER
Fuel gets old, oxidizes, and breaks down over time. Adding
a fuel stabilizer (not included) extends the usable life of fuel
and helps prevent deposits from forming that can clog the
fuel system. Follow fuel stabilizer manufacturer’s directions
for correct ratio of stabilizer to fuel.
Add stabilizer to fuel tank, then fill with gasoline following
previous instructions.
NOTE: Fuel stabilizer and gasoline can be mixed prior
to filling the tank by using a gas can or other approved
fuel container and shaking gently to combine.
Replace and secure the fuel tank cap.
Start and run the engine for at least 5 minutes to allow
stabilizer to treat the entire fuel system.
OXYGENATED FUELS
Some conventional gasolines are blended with alcohol or an
ether compound. These gasolines are collectively referred
to as oxygenated fuels. To meet clean air standards, some
areas of the United States and Canada use oxygenated fuels
to help reduce emissions.
If using an oxygenated fuel, make sure it is unleaded and
meets the minimum octane rating requirements. Before using
an oxygenated fuel, try to confirm the fuel’s contents. Some
states/provinces require this information to be posted on the
pump. The following are the EPA approved percentages of
oxygenates:
Ethanol (ethyl or grain alcohol) 10% by volume. You
may use gasoline containing up to 10% ethanol by volume.
Gasoline containing ethanol may be marketed under the
name “Gasohol.” Do not use E85 fuel.
MTBE (methyl tertiary butyl ether) 15% by volume. You
may use gasoline containing up to 15% MTBE by volume.
Methanol (methyl or wood alcohol) 5% by volume. You
may use gasoline containing up to 5% methanol by volume
as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more
than 5% methanol by volume may cause starting and/or
performance problems. It may also damage metal, rubber,
and plastic parts of the generator or your fuel system.
If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline.
NOTE: Fuel system damage or performance problems
resulting from the use of an oxygenated fuel containing more
than the percentages of oxygenates stated previously are
not covered under warranty.
CAUTION:
On a level surface with the engine off, check the
lubricant level before each use of the generator.
REMOVABLE CONTROL PANEL
See Figure 14.
The removable control panel can be wall-mounted and
connected to the generator with the 25-ft. power cord
(Model # RDEC25) provided with the product.
The generator can be turned on or off from the removable
control panel or using the off switch key on the unit.
NOTE: The off switch is an on/momentary off switch. You
must push the switch and hold it in until the engine has fully
stopped.
The removable control panel has two 120V duplex GFCI
power outlets with outlet covers. Each duplex outlet has a
Test and a Reset push button.
NOTE: The GFCI outlets may be shown without their covers
for clearer instruction of this feature’s operation.
Use only with RDEC25 accessory cord. Do not exceed
separation length of 75 ft. or a combination of three RDEC25
accessory cords.
GENSMART™ DIGITAL DISPLAY
See Figure 15.
The GenSmart
tures:
Load Indicator
Measures the wattage output of the 2 x 120 Volt duplex GFCI
outlets located on the removable control panel. GenSmart
monitors the load only for the 120 Volt GFCI outlets on the
removable control panel. It does not measure load on the
240 Volt, 30 Amp outlet. The GenSmart™ indicator measures
up to 4,800 watts of the generator’s rated wattage.
NOTE: If the 240 Volt receptacle is in use, the load indicated
on the display will not accurately reflect the exact percentage
of load being drawn from the generator.
Hour Meter
The digital hour meter operates whenever the engine is running and keeps track of how many hours the unit has been
used. Use this meter along with the accompanying engine
manual to determine when and what type of service on the
unit is needed.
Maintenance Warning System
At every 100 hours of use, the GenSmart
will display a message informing the operator to service the
engine’s air filter, spark plug, and engine oil. To reset this
message, push and hold the reset button located underneath
the GenSmart™ display for 5 seconds.
™
monitoring system has the following fea-
™
monitoring system
™
14 — English
OPERATION
Reading GenSmart™ Monitoring System
At startup, the unit will display a message instructing the
operator to read and understand the operator’s manual
before using this product.
While the generator is running, the panel will display a
power bar, load percentage, and total hours the unit has
been operated.
At every 100 hours of use, a message will scroll across the
display telling the operator to service the air filter, engine oil
and spark plugs, and to push and hold the reset button for
5 seconds to reset the display.
NOTE: Be careful to only press and hold the reset button
when you want the maintenance panel to be reset.
GENERATOR CONTROL PANEL
The stationary control panel has a twist-lock 240 Volt,
30 Amp outlet and circuit breakers.
OPERATING THE GENERATOR USING THE
WALL MOUNTED REMOVABLE CONTROL
PANEL
See Figure 16.
If the panel has been installed in a remote location:
Turn off the generator.
Connect the generator to the removable control panel
using the twist-lock plug and the 12 Volt DC engine control
connector on the provided power cord.
ONLY use a generator outdoors and far away from open
windows, doors, and vents. These openings can pull in
generator exhaust.
Connect up to two additional 25 ft. extension cords to
the provided 25 ft. power cord. The total length of all
connected power cords should not exceed 75 ft. or
three (3) RDEC25 extension cords.
Connect the extension cord to the generator.
Start the engine as described in Starting the Engine.
Add devices to the generator and monitor the load of
each added device using the GenSmart
™
display panel.
MOVING THE GENERATOR
See Figure 17.
Turn the off switch OFF ( O ). Disconnect any equipment
that is plugged into the generator.
Turn the fuel valve to the OFF position.
Allow 30 minutes of “cool down” time before storing the
machine.
For security, insert the pin to secure the handle before
transporting.
With your foot on the rear of the frame, tilt the machine
toward you until it balances on the wheels, then roll the
machine to the desired location.
LIFTING THE GENERATOR
See Figure 18.
Fold the handle to the down position. Never lift or carry
this product using the handle.
NOTE: This tool is heavy and requires several people to lift.
To avoid back injury, keep your knees bent and lift with your
legs, not your back, and get help when needed.
ELECTRIC START
See Figure 19.
This generator model is provided with both electric start and
recoil start capabilities. Avoid prolonged cranking, as it can
damage the engine.
The battery provided is a nominal 12 volt sealed rechargeable lead-acid battery and can be operated in any position
without leakage. It complies with non-spillable battery
regulations. Its convenient size offers a 30% reduction over
conventional batteries.
NOTE: New generators are shipped with the battery connections disconnected. The positive and negative terminals
must be connected to the battery before the Electric Start
feature will work.
For initial battery connection, see Connecting Battery.
CAUTION:
On a level surface with the engine off, check the
lubricant level before each use of the generator.
15 — English
OPERATION
STARTING THE ENGINE
See Figure 20.
NOTE: If location of generator is not level, the unit may not
start or may shut down during operation.
Unplug all loads from the generator.
Turn the fuel valve to the ON position.
Move the choke lever right to the START position.
NOTE: If engine is warm or the temperature is above
50˚F, move the choke lever left to the RUN position.
Turn the engine switch key to “ON.”
Turn the engine switch key to “START” or pull the recoil
starting grip until the engine runs (a maximum of 6
times).
NOTE: Do not allow the grip to snap back after starting;
return it gently to its original place.
NOTE: The battery is shipped in a low charge condition
and may require charging before the generator can be
started using only the switch key. The generator can be
started by pulling the recoil starter. Once the generator
is started, the battery will charge as the unit runs.
Allow the engine to run for 30 seconds, then move the
choke lever left to the RUN position.
STOPPING THE ENGINE
See Figure 20.
To stop the engine under normal operating conditions:
Remove any load from the generator.
Turn the switch key to “OFF”or press and hold the off
switch until the engine stops.
NOTE: The generator can be stopped by turning the
switch key to off or by pressing and holding the off switch
on the fixed control panel.
Turn the fuel valve to the OFF position.
NOTE: If it is necessary to shut the engine off immediately,
either engine switch may be used if the removable control
panel is connected to the unit. The off switch on the stationary control panel can be used as the primary engine OFF
switch.
16 — English
MAINTENANCE
WARNING:
When servicing, use only identical RIDGID
replacement parts. Use of any other parts may
create a hazard or cause product damage.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an authorized service center.
GENERAL MAINTENANCE
Keep the generator in a clean and dry environment where it
is not exposed to dust, dirt, moisture, or corrosive vapors.
Do not allow the cooling air slots in the generator to become
clogged with foreign material such as leaves, etc.
Do not use a garden hose to clean the generator. Water
entering the fuel system or other internal parts of the unit can
cause problems that will decrease the life of the generator.
To clean the unit:
Use a soft bristle brush and/or vacuum cleaner to loosen
and remove dirt and debris.
Clean air vents with low pressure air that does not exceed
25 psi.
Wipe the exterior surfaces of the generator with a damp
cloth.
CHANGING FUSE

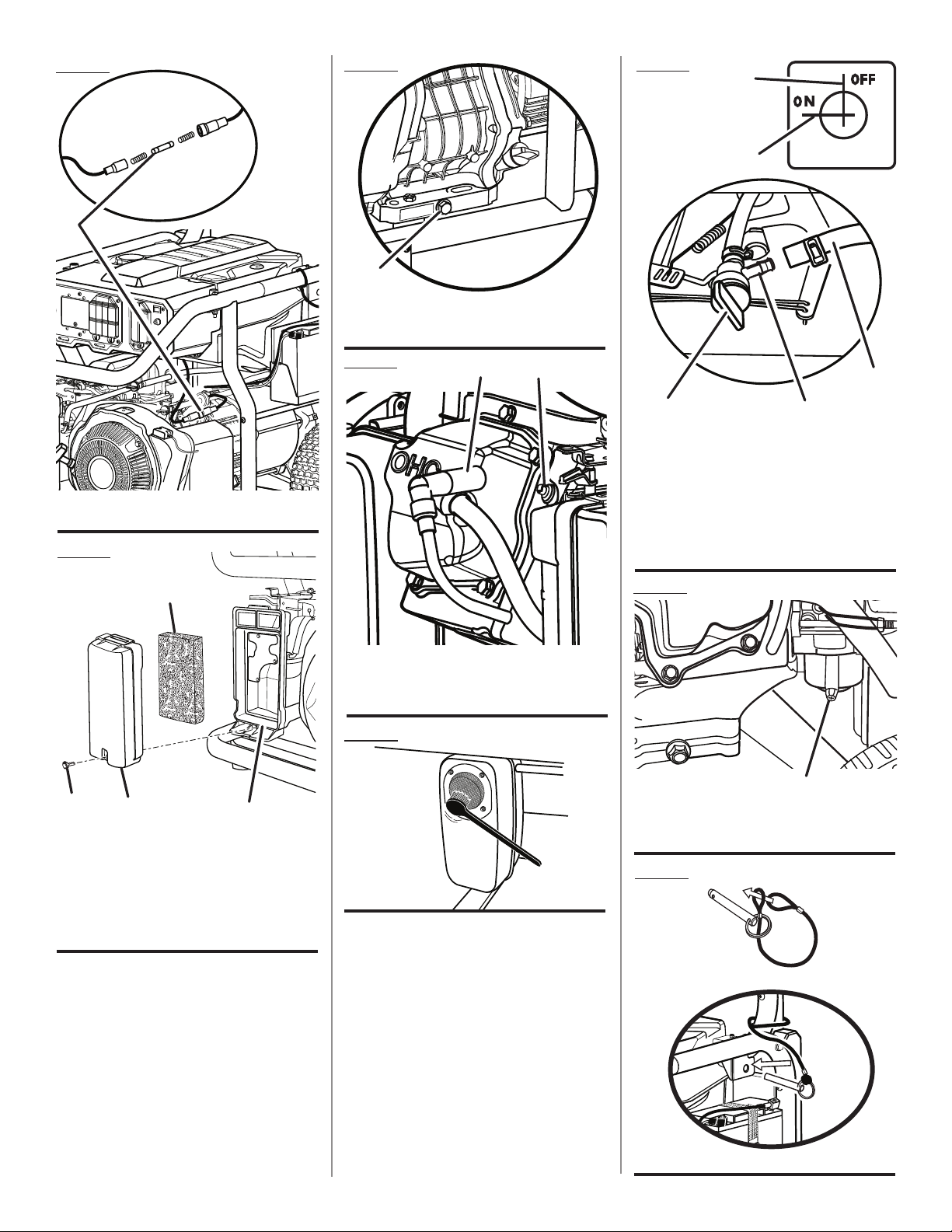

See Figure 21.
Remove screw from side cover.
Lift up and remove side cover.
Unscrew the fuse holder to reveal the fuse and spring.
Insert new fuse into hole and retighten fuse holder se-
curely.
NOTE: If spring came out of fuse holder when it was
opened, it should also be replaced inside the fuse holder
before securing.
Reinstall side cover.
Reinstall screw and tighten securely.
CHECKING/CLEANING AIR FILTER
See Figure 22.
For proper performance and long life, keep air filter clean.
Release latches on left side of air filter cover. Remove
cover and set aside.
Remove the filter element.
If the filter element is dirty, clean with warm, soapy water.
Rinse and let dry.
Apply a light coat of engine lubricant to the element, then
squeeze it out.
Replace the element in the air filter unit.
Replace the air filter cover and latch to secure.
NOTE: Do not run the generator without the air filter. Rapid
engine wear will result.
CHANGING ENGINE LUBRICANT
See Figure 23.
Remove the oil cap/dipstick.
Place a container underneath the oil drainage bolt to
collect used lubricant as it drains.
Unscrew the oil drainage bolt and remove.
Allow lubricant to drain completely.
Reinstall the oil drainage bolt and tighten securely.
Refill with lubricant following the instructions in the
Checking/Adding Lubricant section.
Reinstall the oil cap/dipstick.
NOTE: Used lubricant should be disposed of at an ap-
proved disposal site. See your local oil retailer for more
information.
SPARK PLUG MAINTENANCE
See Figure 24.
The spark plug must be properly gapped and free of deposits
in order to ensure proper engine operation. To check:
Remove the spark plug cap.
Clean any dirt from around base of spark plug.
Remove spark plug using wrench (not included).
Inspect spark plug for damage, and clean with a wire
brush before reinstalling. If insulator is cracked or
chipped, spark plug should be replaced.
NOTE: If replacing, use the following recommended
spark plugs or equivalent: NGK BPR4ES.
Measure plug gap. The correct gap is 0.028−0.031 in.
(0.7-0.8 mm). To widen gap, if necessary, carefully bend
the ground (top) electrode. To lessen gap, gently tap
ground electrode on a hard surface.
Seat spark plug in position; thread in by hand to prevent
cross-threading.
Tighten with wrench to compress washer. If spark plug
is new, use 1/2 turn to compress washer appropriate
amount. If reusing old spark plug, use 1/8 to 1/4 turn for
proper washer compression.
NOTE: An improperly tightened spark plug will become
very hot and could damage the engine.
17 — English
MAINTENANCE
CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount of
lubricant used, and/or your operating conditions, the exhaust
port and muffler may become blocked with carbon deposits.
If you notice a power loss with your gas-powered products,
you may need to remove these deposits to restore performance. We highly recommend that only qualified service
technicians perform this service.
SPARK ARRESTOR
See Figure 25.
Inspect the spark arrestor for breaks or holes. Replace
if necessary. To purchase a replacement spark arrestor
contact RIDGID customer service at 1-866-539-1710.
Use a brush to remove carbon deposits from the spark
arrestor screen as needed.
DRAINING FUEL TANK/CARBURETOR
See Figures 26 - 27.
To help prevent gum deposits in the fuel system, drain the
fuel from the tank and carburetor before storing.
DRAINING THE FUEL TANK
Turn the engine switch key to “OFF”or press and hold the
off switch until the engine stops.
Turn the fuel valve to the OFF position.
Remove the fuel line from the petcock by squeezing the
ends of the retaining clip and sliding the fuel line off.
Install one end of a drain line over the petcock, and place
the other end in a fuel container large enough to catch
the fuel being drained from the tank.
Turn the fuel valve to the ON position.
For better fuel drainage, please tilt the unit toward the
fuel petcock slightly (approximately 1 in.).
When the fuel has drained from the tank, close the fuel
valve and reinstall fuel line securely on petcock.
DRAINING THE CARBURETOR
Turn the engine switch key OFF or press and hold OFF
switch in the OFF position for three (3) seconds or until
the engine stops.
Turn the fuel valve to the OFF position.
Position a suitable container under the carburetor drain
screw to catch fuel; loosen the screw.
Allow fuel to drain completely into container.
Retighten drain screw.
NOTE: Consult hazardous waste management guidelines in
your area for the proper way to dispose of used fuel.
TRANSPORTING
See Figure 28.
Turn the engine switch key switch OFF.
Turn the fuel valve to the OFF position.
Make sure engine and exhaust of unit is cool.
For security, insert the pin to secure the handle before
transporting.
Keep unit level while transporting to prevent fuel spill-
age.
Do not drop or strike unit or place under heavy objects.
18 — English
MAINTENANCE
STORAGE
When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below.
STORAGE TIME PRIOR TO STORING
Less than 2 months Drain gasoline from tank and dispose of in a suitable container according to state and local
ordinances.
2 months to 1 year Drain fuel from carburetor.
Drain gasoline from tank and dispose of in a suitable container according to state and local
ordinances.
1 year or more Drain fuel from the carburetor.
Remove spark plug.
Drain gasoline from tank and dispose of in a suitable container according to state and local
ordinances.
Put a tablespoon of engine oil into the spark plug cylinder. Turn the engine slowly with the pull
rope to distribute the oil.
Reinstall spark plug.
Change engine lubricant.
After removal from storage:
Fill with fresh gasoline.
MAINTENANCE SCHEDULE
Before
each use
Check Engine Lubricant
Change Engine Lubricant
Check Air Filter
Clean Air Filter**
Change Air Filter**
Check/Adjust Spark Plug
Replace Spark Plug
Check/Adjust Idle Speed
Check/Adjust Valve
Clearance*
Clean Fuel Tank and
Filter*
Check Fuel Tube
* These items should only be carried out by an authorized service center.
** See engine manual for maintenance schedule for this item.
NOTE: Maintenance should be performed more frequently when generator is used in dusty areas.
When generator has exceeded the maximum figures specified in the table, maintenance should still be cycled
according to the intervals of time or hours stated herein.
After 1st month
or 20 hours of
operation
Every 3 months
or 50 hours of
operation
Every 6 months
or 100 hours
of operation
Every year or
after 300 hours
of operation
19 — English
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not start. The engine switch key is on OFF.
No fuel.
Lubricant level is low.
Fuel valve is OFF.
Spark plug faulty, fouled, or improperly
gapped.
Choke lever is in RUN position.
Engine stored without treating or
draining gasoline, or refueled with bad
gasoline.
Dirty fuel filter.
Engine hard to start Water in gasoline.
Weak spark at spark plug.
Engine lacks power. Dirty air filter.
Engine stored without treating or
draining gasoline, or refueled with bad
gasoline.
Dirty air filter.
AC receptacle does not work. Circuit breaker is OFF.
Turn the engine switch key to ON.
Fill fuel tank.
Check engine lubricant level and fill, if
necessary.
Turn fuel valve ON.
Replace spark plug.
Move choke lever to START position.
Drain fuel and carburetor. Refuel with
fresh gasoline.
Contact authorized service center.
Drain entire system and refill with fresh
fuel.
Contact authorized service center.
Check air filter element. Clean or
replace as needed.
Drain fuel and carburetor. Refuel with
fresh gasoline. If problem continues,
contact your nearest authorized service
center.
Clean or replace as needed.
Turn ON the AC circuit breaker.
Reset the GFCI.
Item plugged in is defective.
Generator makes a “spark knock” or
“pinging” noise.
If problem persists after trying the above solutions, contact your nearest authorized service center for assistance.
The following symptoms may indicate problems that will affect the emissions level of the unit:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring under load
Afterburning (backfiring)
Black exhaust smoke or high fuel consumption
If you encounter any of these symptoms, have the unit inspected and repaired by the nearest authorized service
center.
An occasional light “knocking” or “pinging” under heavy load is not a cause
for concern. However, if the knocking
or pinging occurs under normal load
at a steady engine speed, the problem
may be with the brand of gasoline being
used.
Try a different item.
Switch to a different brand of gasoline,
making sure that the octane rating
is 86 or higher. If problem continues,
contact your nearest authorized service
center.
20 — English
WARRANTY
RIDGID® GENERATOR
3 YEAR LIMITED WARRANTY
Proof of purchase must be presented when requesting
warranty service.
This product is manufactured by One World Technologies,
Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World
Technologies, Inc., attn: Generator Technical Service at (toll
free) 1-866-539-1710.
WHAT IS COVERED UNDER THE 3 YEAR
LIMITED WARRANTY
This RIDGID® generator is warranted to the original purchaser
only to be free from defects in material and workmanship
subject to certain exceptions and limitations stated below,
for a period of three (3) years after date of purchase.
Warranties for other RIDGID
® products may vary.
WHAT IS NOT COVERED
This warranty does not apply to damage from misuse, alterations, abuse, normal wear and tear, lack of maintenance,
accidents, or repairs made or attempted by anyone other
than an authorized service center for RIDGID® generators.
This warranty does not cover repair if:
normal use has exhausted the useful life of the generator
and wear and tear items (including batteries, fixed and
removable control panels including corresponding cords
and plugs, digital displays, tires, outlet plugs and circuit
breakers, switches, and extension cords if applicable)
the customer fails to install, maintain, and operate the
product in accordance with the instructions and recommendations of the company set forth in the generator
operator’s manual
the product is used as rental equipment
damage occurs due to freezing, water exposure, rust,
corrosion, thermal expansion, fire, dropping, or improper
use.
This warranty does not cover freight or labor charges associated with the inspection and testing of generators which
are found not to be a valid warranty claim.
Gasoline Engine - Warranty: The gasoline engine on this
generator is separately warranted by the engine manufacturer and is serviced through the engine manufacturer’s
authorized service center network. Ridgid, Inc., and One
World Technologies, Inc., disclaim any and all express or
implied warranties with respect to the gasoline engine.
RIDGID, INC. AND ONE WORLD TECHNOLOGIES, INC.,
MAKE NO WARRANTIES, REPRESENTATIONS OR
PROMISES AS TO THE QUALITY OR PERFORMANCE OF
THIS GENERATOR OTHER THAN THOSE SPECIFICALLY
STATED IN THIS WARRANTY.
HOW TO OBTAIN SERVICE
To obtain service for this RIDGID® generator you must
return it, freight prepaid, or take it in to a manufacturer authorized service center for RIDGID® generators. You may
obtain the location of the authorized service center nearest
you by calling (toll free) 1-866-539-1710 or by logging
on to the RIDGID® website at www.ridgid.com. When
requesting warranty service, you must present the original dated sales receipt. The authorized service center will
repair any faulty workmanship, and either repair or replace
any part covered under the warranty, at our option, at no
charge to you.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied warranties, including warranties of MERCHANTABILITY or FITNESS
FOR A PARTICULAR PURPOSE, are disclaimed. Any implied
warranties, including warranties of merchantability or fitness
for a particular purpose, that cannot be disclaimed under
state law are limited to three years from the date of purchase.
One World Technologies, Inc., and RIDGID®, Inc., are not
responsible for direct, indirect, incidental, or consequential
damages. Some states do not allow limitations on how long
an implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights
which vary from state to state.
This warranty applies to product sold in the U.S.A., Canada,
and Mexico only.
Please consult RIDGID’s website at www.ridgid.com
or call (toll free) 1-866-539-1710 to locate your nearest
manufacturer-authorized RIDGID
ity for warranty and non-warranty service on this RIDGID®
generator.
One World Technologies, Inc.
P.O. Box 321, Highway 8
Pickens, SC 219671
® generator service facil-
21 — English
WARRANTY
LIMITED 3 YEAR ENGINE WARRANTY
Limited Manufacturer’s Warranty from Subaru Robin
(Effective with engines purchased from Robin America, Wood Dale, IL, after April 1, 2008)
Robin America, Inc., a division of Fuji Heavy Industries, Ltd. (herein “Subaru Robin”), warrants that each new engine sold by
it will be free, under normal use and service, from defects in material and workmanship for a period listed below from the
date of sale to the original retail purchaser. Subaru Robin’s obligation under this Limited Warranty shall be limited to the repair
and replacement, at Subaru Robin’s option, of any part or parts which upon examination is/are found, in Subaru Robin’s
judgment, to have been defective in material or workmanship. It shall be a condition of Subaru Robin’s obligation under this
Limited Warranty that Subaru Robin, directly or through one of its Distributors or Service Centers authorized to service the
particular engine involved, receive prompt notice of any warranty claim and that the engine or the part or parts claimed to
be defective be promptly delivered, transportation prepaid, to such Distributor or Service Center for inspection and repair.
All repairs qualifying under this Limited Warranty must be performed by Subaru Robin or one of its authorized Distributors
or Service Centers.
WARRANTY PERIODS:
Subaru Robin Four-Cycle, Air-cooled, Gasoline Engines - Limited 3 YEAR Warranty (EX / EH and SP Series 4.3hp or
greater)
The repair or replacement of any part or parts under this Limited Warranty shall not extend the term of the engine warranty
beyond the original term as set forth above.
LIMITATIONS AND EXCLUSIONS: This Limited Warranty shall not apply to:
Bent or broken crankshaft or resultant damage caused by vibration related to a bent or broken crankshaft. Also, damage
caused by loose engine mounting bolts or improper or imbalanced accessories or blades mounted to the crankshaft.
Repairs required because of prolonged storage including damage caused by old or contaminated fuel in the fuel tank, fuel
lines or carburetor, sticky valves or corrosion and rust of engine parts.
Repair required due to overheating. (Most often caused by overloaded or clogged or damaged or missing flywheel, fan,
inlet air passages, cooling fins or air shrouds).
Dirt or grit related wear caused by improper air cleaner maintenance (most often resulting in worn piston, piston rings,
cylinders, valves, valve guides, carburetor or other internal components).
Broken or scored parts caused by low lubricant level, dirty or improper grade of lubricant.
Engine tune-ups and normal maintenance service including, but not limited to, valve adjustment, normal replacement of
service items, fuel and lubricant, etc.
Any engine which has been subject to negligence, misuse, accident, mis-application or over-speeding.
Any engine that has been installed, repaired, or altered by anyone in a manner which in Subaru Robin’s sole judgment
adversely affects its performance or reliability.
Any engine which has been fitted with or repaired with parts or components not manufactured or approved by Subaru
Robin which in Subaru Robin’s sole judgment adversely affects its performance or reliability.
Instances when normal use has exhausted the life of a component or an engine.
The customer is responsible for all transportation charges in connection with any warranty work.
Subaru Robin reserves the right to modify, alter or improve any engines or parts without incurring any obligation to modify or
replace, any engine or parts previously sold without such modification, alternation or improvement.
No person is authorized to give any other warranty or to assume any additional obligation on Subaru Robin’s behalf unless
made in writing and signed by an officer of Subaru Robin.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or con-
sequential damages, so the above limitation(s) or exclusion(s) may not apply to you. This warranty gives you specific legal
rights and you may also have other legal rights which vary from state to state.
THIS WARRANTY, AND SUBARU ROBIN’S OBLIGATION HERE UNDER, ARE IN LIEU OF ANY OTHER WARRANTIES OR
OBLIGATIONS OF ANY KIND, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HERE-OF. SUBARU ROBIN SHALL IN NO EVENT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES.
22 — English
WARRANTY
THE FOLLOWING CALIFORNIA AIR RESOURCES BOARD (CARB) STATEMENT ONLY APPLIES TO MODEL NUMBERS
REQUIRED TO MEET THE CARB REQUIREMENTS.
EVAPORATIVE EMISSION CONTROL WARRANTY
Your new RIDGID brand gasoline-powered product complies with all
applicable U.S. EPA, Environment Canada, and State of California
emissions regulations.
The evaporative emissions portion of this coverage, as described below,
is provided by One World Technologies, Inc. Separate emissions warranty coverage for other emissions-related components is provided
by the engine manufacturer, as stated in a separate “Emission Control
System Warranty” included with this product. Of course, this product
also includes a warranty that is not limited to emissions-related components, as described elsewhere in this operator’s manual.
EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT
CALIFORNIA EVAPORATIVE EMISSION CONTROL WARRANTY
STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and One World Technologies, Inc.,
are pleased to explain the evaporative emission control system’s warranty on your 2009 model year generator. In California, new equipment
that uses small off-engines must be designed, built, and equipped to
meet the State’s stringent anti-smog standards. One World Technologies, Inc., must warrant the evaporative emission control system on
your generator for the period listed below, provided there has been no
abuse, neglect or improper maintenance of your equipment.
Your evaporative emission control system may include parts such as:
carburetors, fuel tanks, fuel lines, fuel caps, valves, canisters, filters,
vapor hoses, clamps, connectors, and other associated components.
For engines less than or equal to 80 cc, only the fuel tank is subject
to the evaporative emission control warranty requirements of this
section.
MANUFACTURER’S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If
any evaporative emission-related part on your equipment is defective,
the part will be repaired or replaced by One World Technologies, Inc.
OWNER’S WARRANTY RESPONSIBILITIES:
As the generator owner, you are responsible for performance of the
required maintenance listed in your operator’s manual. One World
Technologies, Inc., recommends that you retain all receipts covering
maintenance on your generator, but One World Technologies, Inc.,
cannot deny warranty solely for the lack of receipts.
As the generator owner, you should, however, be aware that One
World Technologies, Inc., may deny you warranty coverage if your
generator or a part has failed due to abuse, neglect, or improper
maintenance or unapproved modifications.
You are responsible for presenting your generator to a One World
Technologies, Inc., distribution center or service center as soon as
the problem exists. The warranty repairs should be completed in a
reasonable amount of time, not to exceed 30 days.
If you have a question regarding your warranty coverage, you should
contact One World Technologies, Inc., at 1-866-539-1710.
DEFECTS WARRANTY REQUIREMENTS:
(a) The warranty period begins on the date the equipment is delivered
to an ultimate purchaser.
(b) General Evaporative Emissions Warranty Coverage. The equipment
must be warranted to the ultimate purchaser and any subsequent
owner that the evaporative emission control system when installed
was:
(1) Designed, built, and equipped so as to conform with all applicable
regulations; and
(2) Free from defects in materials and workmanship that cause the
failure of a warranted part for a period of two years.
(c) The warranty on evaporative emissions-related parts will be inter-
preted as follows:
23 — English
(1) Any warranted part that is not scheduled for replacement as
required maintenance in the written instructions must be warranted for the warranty period defined in subsection (b)(2). If any
such part fails during the period of warranty coverage, it must be
repaired or replaced by the manufacturer issuing the warranty.
Any such part repaired or replaced under the warranty must
be warranted for a time not less than the remaining warranty
period.
(2) Any warranted part that is scheduled only for regular inspection
in the written instructions must be warranted for the warranty
period defined in subsection (b)(2). A statement in such written
instructions to the effect of “repair or replace as necessary”
will not reduce the period of warranty coverage. Any such part
repaired or replaced under warranty must be warranted for a
time not less than the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required
maintenance in the written instructions must be warranted for
the period of time prior to the first scheduled replacement point
for that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the manufacturer
issuing the warranty. Any such part repaired or replaced under
warranty must be warranted for a time not less than the remainder of the period prior to the first scheduled replacement point
for the part.
(4) Repair or replacement of any warranted part under the warranty
provisions of this article must be performed at no charge to the
owner at a warranty station.
(5) Notwithstanding the provisions of subsection (4) above, warranty
services or repairs must be provided at distribution centers that
are franchised to service the subject equipment.
(6) The owner must not be charged for diagnostic labor that leads
to the determination that a warranted part is in fact defective,
provided that such diagnostic work is performed at a warranty
station.
(7) Throughout the evaporative emission control system’s warranty
period set out in subsection (b)(2), the manufacturer issuing the
warranty must maintain a supply of warranted parts sufficient
to meet the expected demand for such parts.
(8) Manufacturer approved replacement parts must be used in the
performance of any warranty maintenance or repairs and must
be provided without charge to the owner. Such use will not reduce the warranty obligations of the manufacturer issuing the
warranty.
(9) The use of any add-on or modified parts will be grounds for dis-
allowing a warranty claim made in accordance with this article.
The manufacturer issuing the warranty will not be liable under
this Article to warrant failures of warranted parts caused by the
use of an add-on or modified part.
(10) The manufacturer issuing the warranty shall provide any docu-
ments that describe the warranty procedures or policies within
five working days of request by the Air Resources Board.
EMISSION WARRANTY PARTS LIST:
1) Fuel Tank
2) Fuel Cap
3) Fuel Hoses
4) Carbon Canister
5) Vapor Hoses
6) Hose Clamps
7) Hose Connectors
8) Vapor/Fuel Check Valve
Written instructions for the maintenance and use of the evaporative
emissions control system by the owner shall be furnished with each
new generator.
Loading...
