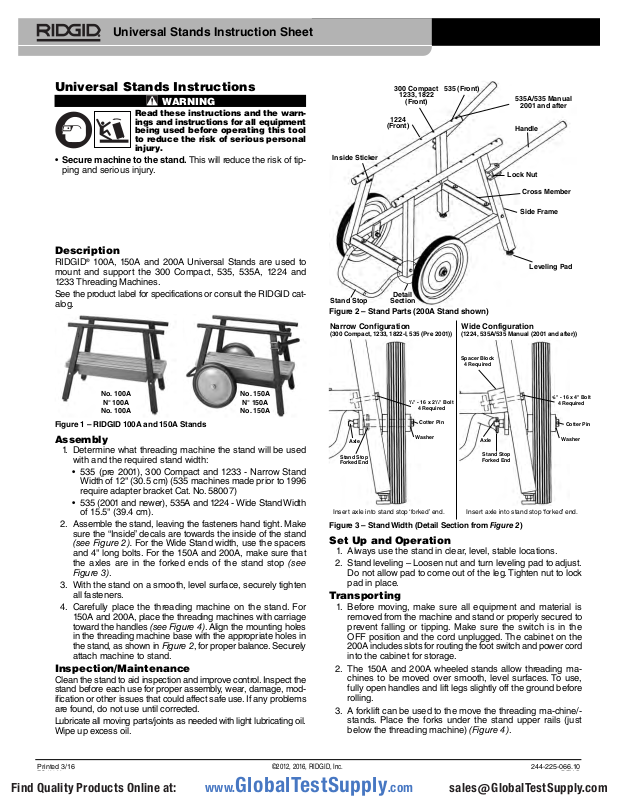

Universal Stands Instruction Sheet
Universal Stands Instructions
WARNING
Read these instructions and the warnings and instructions for all equipment
being used before operating this tool
to reduce the risk of serious personal
injury.
• Secure machine to the stand. This will reduce the risk of tip-
ping and serious injury.
Description
RIDGID®100A, 150A and 200A Universal Stands are used to
mount and support the 300 Compact, 535, 535A, 1224 and
1233 Threading Machines.
See the product label for specifications or consult the RIDGID catalog.
300 Compact
1233, 1822
(Front)
1224
(Front)
Inside Sticker
Stand Stop
Figure 2 – Stand Parts (200A Stand shown)
Narrow Configuration
(300 Compact, 1233, 1822-I, 535 (Pre 2001))
Detail
Section
535 (Front)
Wide Configuration
(1224, 535A/535 Manual (2001 and after))
Spacer Block
4 Required
535A/535 Manual
2001 and after
Handle
Lock Nut
Cross Member
Side Frame
Leveling Pad
No. 100A
N° 100A
No. 100A
Figure 1 – RIDGID 100A and 150A Stands
No. 150A
N° 150A
No. 150A
Assembly
1. Determine what threading machine the stand will be used
with and the required stand width:
• 535 (pre 2001), 300 Compact and 1233 - Narrow Stand
Width of 12" (30.5 cm) (535 machines made prior to 1996
require adapter bracket Cat. No. 58007)
• 535 (2001 and newer), 535A and 1224 - Wide Stand Width
of 15.5" (39.4 cm).
2. Assemble the stand, leaving the fasteners hand tight. Make
sure the “Inside” decals are towards the inside of the stand
(see Figure 2). For the Wide Stand width, use the spacers
and 4" long bolts. For the 150A and 200A, make sure that
the axles are in the forked ends of the stand stop (see
Figure 3).
3. With the stand on a smooth, level surface, securely tighten
all fasteners.
4. Carefully place the threading machine on the stand. For
150A and 200A, place the threading machines with carriage
toward the handles (see Figure 4). Align the mounting holes
in the threading machine base with the appropriate holes in
the stand, as shown in Figure 2, for proper balance. Securely
attach machine to stand.
Inspection/Maintenance
Clean the stand to aid inspection and improve control. Inspect the
stand before each use for proper assembly, wear, damage, modification or other issues that could affect safe use. If any problems
are found, do not use until corrected.
Lubricate all moving parts/joints as needed with light lubricating oil.
Wipe up excess oil.
3
3
/8" - 16 x 21/2" Bolt
4 Required
Cotter Pin
Axle
Stand Stop
Forked End
Insert axle into stand stop ‘forked’ end.
Figure 3 – Stand Width (Detail Section from Figure 2)
Washer
Axle
Stand Stop
Forked End
Insert axle into stand stop ‘forked’ end.
/8" - 16 x 4" Bolt
4 Required
Washer
Set Up and Operation
1. Always use the stand in clear, level, stable locations.
2. Stand leveling – Loosen nut and turn leveling pad to adjust.
Do not allow pad to come out of the leg. Tighten nut to lock
pad in place.
Transporting
1. Before moving, make sure all equipment and material is
removed from the machine and stand or properly secured to
prevent falling or tipping. Make sure the switch is in the
OFF position and the cord unplugged. The cabinet on the
200A includes slots for routing the foot switch and power cord
into the cabinet for storage.
2. The 150A and 200A wheeled stands allow threading ma chines to be moved over smooth, level surfaces. To use,
fully open handles and lift legs slightly off the ground before
rolling.
3. A forklift can be used to the move the threading ma-chine/ stands. Place the forks under the stand upper rails (just
below the threading machine) (Figure 4).
Cotter Pin
Printed 3/16
EC42190
Find Quality Products Online at: [email protected]
The Emerson logo and RIDGID logo are registered trademarks of Emerson Electric Co. or RIDGID, Inc. in the U.S. and other countries.
All other trademarks belong to their respective holders.
www.GlobalTestSupply.com
©2012, 2016, RIDGID, Inc.
244-225-066.10
REV. D
Page 2
Universal Stands Instruction Sheet
Carriage
Chariot
Carro
Upper Rails
Rails
supérieurs
Rieles
superiores
Figure 4 – 535 Threading Machine Mounted on 200A Stand
Poignées
Handles
Manijas
