RBC-30 Battery Charger

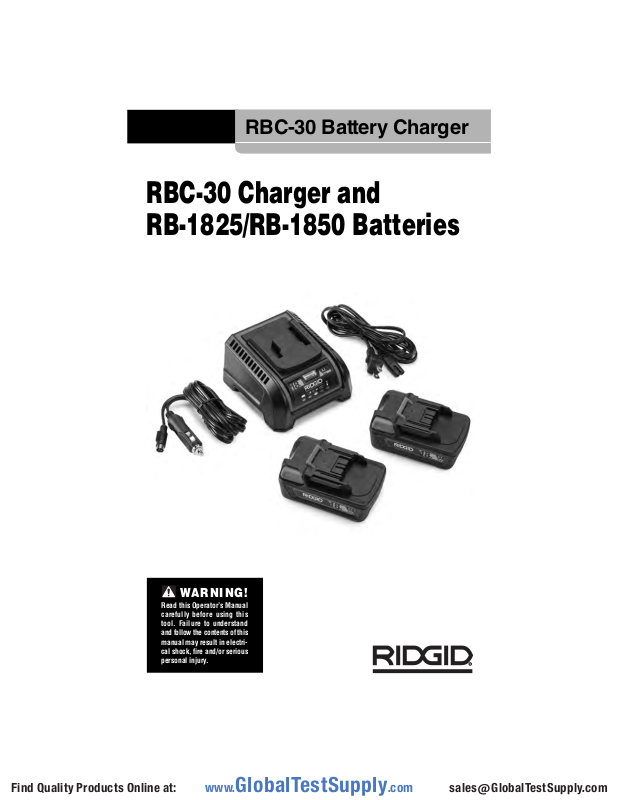

RBC-30 Charger and
RB-1825/RB-1850 Batteries
WAR NI NG !
Read this Operator’s Man ual
carefully before using this
tool. Failure to understand
and follow the contents of this
manual may result in electrical shock, fire and/or serious
person al injury.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
RBC-30 Battery Charger
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to
communicate important safety information. This section is provided to improve understanding of these signal words and symbols.
DANGER
WARNING
CAUTION
NOTICE
tor’s manual contains important information on
the safe and proper operation of the equipment.
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
This is the China RoHS symbol.
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor
or moderate injury.
NOTICE indicates information that relates to the protection of property.
These symbols means read the operator’s manual carefully before
using the equipment. The opera-
This symbol means always wear safety
glasses with side shields or goggles while
using this equipment to reduce the risk of
injury.
This symbol indicates the risk of electrical
shock.
This symbol means do not expose the
charg er to water or rain to reduce the risk
of electrical shock.
This symbol means do not expose the
battery to water or rain to reduce the risk
of electrical shock
This symbol means do not burn the battery or expose to high temperatures to reduce the risk of fire or explosion.
This symbol means the battery storage tem perature should not exceed 60° C (140° F)
to reduce the risk of fire or explosion.
This symbol indicates that RIDGID RBC-XX
series battery chargers (such as the RIDGID
RBC-30 or RBC-20) should be used to
RBC-XX SERIES
charge this battery.
This symbol indicates that RIDGID RB-18XX
series batteries (such as the RIDGID RB-
RB-18XX
1825 and RB-1850) can be charged with
SERIES
this battery charger.
This symbol indicates that the product is
For Indoor Use Only.
This symbol indicates that the product is
Class II equipment.
This symbol indicates this is electrical equipment that should not be disposed of with
household waste. See “Disposal” section
T3.15A
This is the symbol for a fuse.
Important Safety
Instructions
WARNING
This section contains important safety information that is specific to the RIDGID
RBC-30 Battery Charger and RB-18XX
Series batteries.
Read all instructions, markings and warnings for the battery charger, batteries
and any other equipment being used before use to reduce the risk of electrical
shock, fire, explosion or serious personal
injury.
Battery Charger Safety
• To reduce risk of injury, charge only
RIDGID RB-18XX series rechargeable
batteries or batteries indicated in speci-
fications. Other types of batteries, including
®
non-rechargeable batteries, may burst causing injury to persons and damage.
• Charger is for indoor use only.
• Charge Li-Ion batteries at ambient tem-
peratures specified in the instructions.
Charging at low or high ambient temperatures (i.e. below 32°F (0°c) or above (113°F
(45°C)) increases the risk of battery leakage, electrical shock or fire.
SAVE ALL WARNINGS
AND INSTRUCTIONS
FOR FUTURE REFERENCE!
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
• Properly insert battery into charger. Bat -
tery polarity must match charger output
polarity to reduce risk.
999-995-193.10_REV. C
Page 3
RBC-30 Battery Charger
• Use of an attachment not recommended
or sold by the battery charger manufacturer may result in a risk of fire, electric
shock, or injury to persons.
• To reduce risk of damage to 12V power
port connector and cord, pull by 12V
power port connector rather than cord
when disconnecting charger.
• To reduce risk of shock, do not attempt
to use both a.c. (mains) and d.c. (power
port) input at the same time.
• Make sure cord is located so that it will
not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not operate charger with damaged
cord or 12V power port connector – replace it immediately.
• To reduce risk of electric shock, unplug
charger before attempting any maintenance or cleaning.
• Use an appropriate power source. An
im proper power source may cause damage
to charger resulting in electrical shock, fire
or burns.
• Do not allow anything to cover the charg -
er while in use. Proper ventilation is required for correct operation of charger.
Covering vents may result in fire. Allow a
minimum of 3" (76 mm) of clearance around
the charger for proper ventilation.
• Unplug the charger when not in use.
Re duces risk of injury to children and untrained persons.
• Do not carry charger by power cord. Do
not pull cord to unplug. Reduces risk of
electrical shock.
Charger and Battery Safety
• Use appropriate Charger and Battery
combinations. See Specifications. Using
chargers and batteries that are not rated for
use together can cause the battery to burst,
fire or other personal injury.
• Do not use charger or battery if either
has been dropped, modified or damaged
in any way. Modified or damaged charger or
battery increases the risk of electrical shock.
• Do not open or disassemble the charg -
er or battery. There are no user serviceable parts. Have repairs performed only at
authorized locations. Opening or disassembling the charger or batteries may
cause electrical shock or personal injury.
• Do not probe charger or battery termi-
999-995-193.10_REV. C
nals with conductive objects. Shorting of
terminals may cause sparks, burns or electrical shock.
• Do not expose charger or battery to
damp or wet conditions, such as rain.
Make sure hands are dry when handling.
Moisture increases the risk of electrical
shock.
• Follow all charging instructions and do
not charge or store the battery pack
outside the temperature range specified in the instructions. Charging or stor-
ing improperly or at temperatures outside
the specified range may damage the battery and increase the risk of battery leakage, electrical shock or fire.
• This appliance can be used by children
8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and know ledge if they have been given supervision or instruction concerning use of
of the appliance in a safe way and inderstand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance shall not
be done by children without supervision.
Battery Safety
• Avoid contact with battery fluids. Fluids
may cause burns or skin irritation. For skin
contact, wash with soap and water. For
eye contact, immediately flush eyes thoroughly with water and continue flushing for
at least 15 minutes without rubbing. Seek
medical attention. See battery SDS for ad-
ditional information.
• Use batteries only with equipment spec -
ifically designating their use. Using Equip ment and batteries that are not rated for
use together can cause fire or other personal injury.
• When battery pack is not in use, keep it
away from other metal objects, like pa per clips, coins, keys, nails, screws or
other small metal objects that can make
a connection from one terminal to another. Shorting the battery terminals to-
gether may cause burns or a fire.
• Do not burn battery or expose to high
temperatures. High temperatures can
cause the battery to explode.
• Properly dispose of batteries. When dis-
posing, place tape over battery terminals to
prevent shorting. Bat teries are Li-Ion and
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
RBC-30 Battery Charger
should be recycled. Follow all applicable
local regulations for disposal of batteries.
Refer to Disposal section.
Description
The RIDGID®RBC-30 18V Lithium-Ion Battery
Charger is designed to charge 18V LithiumIon Batteries (as listed in the Specifications
section). The charger can operate on AC power
from a wall outlet (mains) or 12V DC from a vehicle electrical system (power port). This char ger requires no adjustments. The charger includes lights to indicate battery charge state
and charger condition.
a.c.
Charger
Cord
d.c.
Charger
Cord
Indicator
Button
Figure 4 – RB-18XX Series Battery Charger
Indicator lights

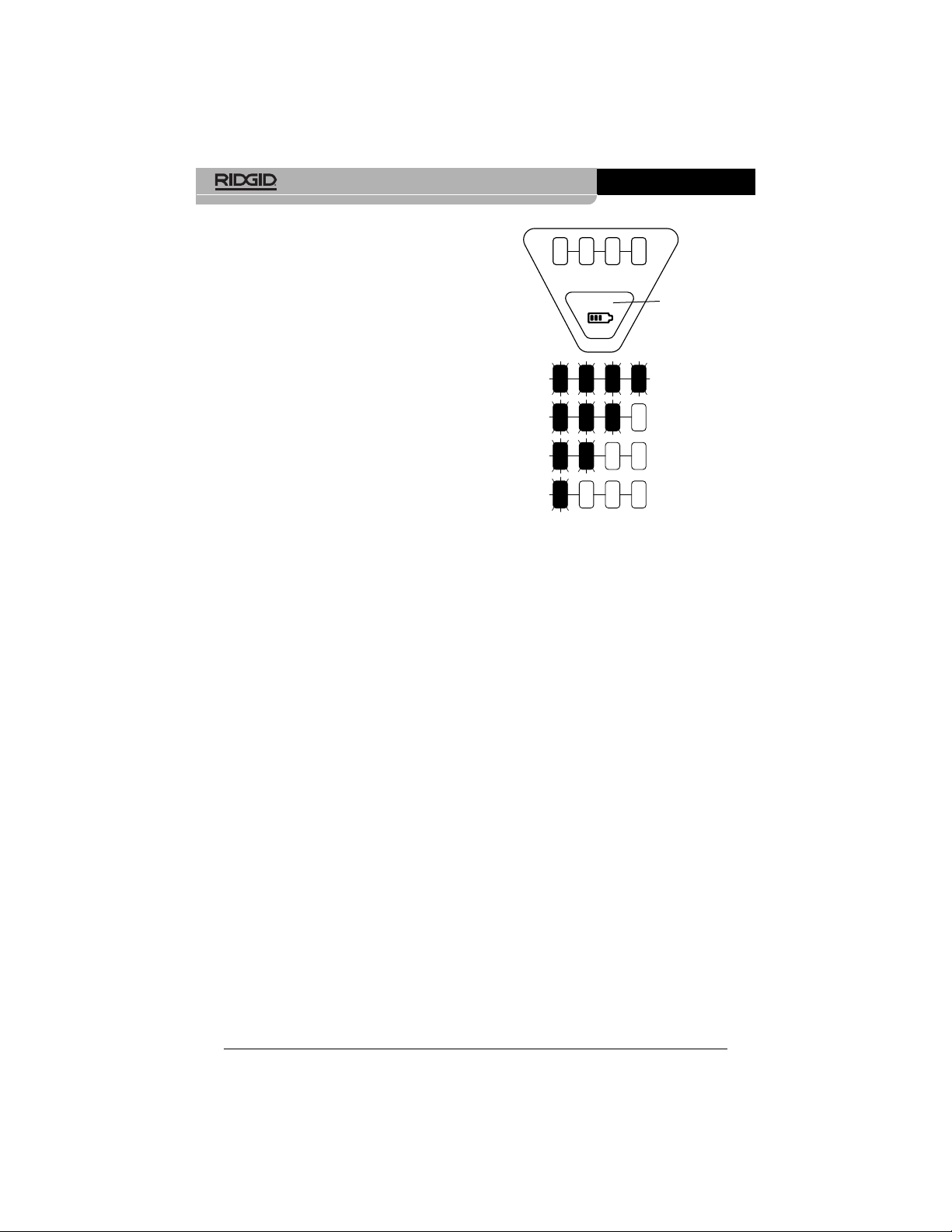

The batteries are equipped with charge indicator lights. Press the indicator button to display
lights.
The charger indicator lights give an approximation of the battery charge state (more lights =
more charge). A variety of factors (including
battery temperature, discharge rate, age, etc.)
can affect this. Batteries may show more
charge after resting for a few minutes than
right after use.
Figure 1 – RIDGID®RBC-30 18V Lithium-Ion
Figure 2 – RIDGID
Figure 3 – RB-18XX Series Battery Charge
4
RB-1825
Battery Charger
RB-1850
®
RB-18XX Series Lithium-Ion
Batteries
Indicator
Specifications
Batteries
Type.........................Lithium-Ion (Li-Ion)
Model ......................RB-1825 RB-1850
Cell Information.......5INR 5INR
19/65 19/65-2
Nominal Voltage......18.0 V 18.0 V
Amp hour ...............2.5 Ah 5.0 Ah
Watt-Hour................45 Wh 90 Wh
Battery Weight.........1.09 lbs. 1.59 lbs.
(0.49 kg) (0.72 kg)
Maximum Battery
Temperature............140° F (60° C)
Compatibility ...........RB-18XX series batter-
ies (such as the RB-1825 and RB-1850) can
be charg ed in any RIDGID RBC-XX series
charger (RBC-30, RBC-20, RBC-10).
999-995-193.10_REV. C
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
Light Diagnostic Chart
Charger
Icon
Solid Light
— Yellow
— Green Battery is being charged. Charge level <85%.
Green
— Red
Red
NO Lights ON
Blinking
Light
RBC-30 Battery Charger
Meaning
Charger is plugged in with no battery installed ready to charge.
Battery charge level >85%, ready for use.
—
—
Battery continues to charge. Once battery is
fully charged, the charger switches to retention charging.
Battery is misaligned in charger. Remove
battery and reinsert onto charger.
Battery is damaged. See Optional Equipment
Section to select an appropriate replacement
battery. See Disposal Section for recycling in-
formation.
Charger is damaged. See Service and
Repair section.
Battery or charger outside of charging temperature range. Allow battery and charger to reach
temperature range by sitting in a conditioned
environment.
Charger does not have power. Ensure that
charger is properly connected to electrical
outlet.
Charger is not working properly. See Service
and Repair Section.
Figure 5 – Light Diagnostic Chart
RBC-30 Charger
Type ........................Li-Ion
Input........................120V a.c., 60Hz
(U.S. & Canada)
100V-240V a.c., 50-60Hz
(all others),
2A Max. (Mains)
11.8 - 15.8V d.c., 12.5A
Max. (Power Port)
Output .....................18Vd.c, 4.0A (a.c. input)
18Vd.c., 2.0A (d.c. input)
Approximate
Charge Time*..........2.5 Ah (on a.c) 39 min
(on d.c) 74 min
5.0 Ah (on a.c) 82 min
(on d.c) 148 min
999-995-193.10_REV. C
Light
Cooling....................Passive convection
cooling (no fan)
Charging Temperature
Range ....................32° F (0° C) - 113° F
(45° C)
Charger Dimension...5.7" x 5.3" x 3.5"
(145 x 134 x 89 mm)
Charger Weight.......1.55 lbs. (0.70 kg)
Compatibility ...........In addition to RIDGID
RB-18XX series batteries (such as the RB1825 & RB-1850), the following RIDGID 18V
batteries can be charged with the RBC-30 battery charger: Catalog numbers 44693, 44698,
43323, 43328, 31013, 32743, 31018, 32473,
28218 and 28448.
* Charge time from battery charge indicator lights all
OFF to 4 lights ON (approx. 85% charge).
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
RBC-30 Battery Charger
Inspection and
Assembly
WARNING
Daily before use, inspect the charger
and batteries and correct any problems.
Assemble charger according to these
procedures to reduce the risk of injury
fro m e lectr ic shoc k, fire a nd other
causes, and to prevent tool and system
damage.
1. Make sure the charger is unplugged.
Inspect the power cord, charger and batteries for damage or modifications, broken, worn, missing, misaligned or binding
parts. If any problems are found, do not
use charger or batteries until the parts
have been properly repaired or replaced.
2. Clean the equipment. This helps to prevent the equipment from slipping from
your grip, allows proper ventilation as
well as allowing any damage to be seen.
3. Check to see that all warning labels and
decals on the charger and batteries are
intact and readable. See Figure 6 & 7.
3" (76 mm)
Figure 6 – Charger Warning Label
and corrected. Battery charger is not
explosion proof and can cause sparks.
• Clear, level, stable and dry location for
charger. Do not use in wet or damp
areas. For use in a vehicle, the charger
should not move when the vehicle is in
use, and should not obstruct or interfere
with the vehicle operation.
• Proper charging temperature range.
• Appropriate power source. Confirm that
outlet matches the charger plug and is
not damaged. Use of extension cords is
not recommended. For use in a vehicle,
a 12V d.c. power port is required. Vehicle
must be negative grounded – do not
use with positive ground systems.
CAUTION
This charger is rated to draw up
to 12.5A from a vehicle 12V d.c power port.
Confirm that vehicle power port fuse is rated for
12.5A or higher to prevent the fuse from opening. Vehicle fuse ratings are typically found in
the vehicle operator’s manual. Do not replace
the vehicle power port fuse with fuses rated
higher than directed by the vehicle manufacturer.
The 12V d.c. power cord is equipped with a
12.5A, 250V 3AG size fast-acting
diameter x 1
1
/4" (31.8 mm) long fuse (See
1
/4" (6.3 mm)
Figure 8).
If a fuse repeatedly opens, do not continue to
replace it. The cause of the fuse overload must
be determined and fixed. Do not bypass fuses
or replace fuses with wire or foil. This can
cause fire or serious damage elsewhere in the
electrical circuit. Only replace fuses with identical fuses.
Fuse
Figure 8 – 12V DC Power Port Connector
• Sufficient ventilation area. The charger
needs a clearance of at least 3" (76
cm) on all sides to maintain the proper
operating temperature.
5. If needed, securely install power cord into
Figure 7 – Battery Warning Label
4. Select an appropriate location for the
charger before use. Check work area for:
• Flammable liquids, vapors or dust that
charger (Figure 9). Only one cord (a.c. or
12V d.c) should be installed at a time.
See Optional Equipment section for pro per cords for use with the RBC-30 Battery
Charger.
may ignite. If present, do not work in
area until sources have been identified
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
999-995-193.10_REV. C
Page 7
a.c.
Figure 9 – Charger Cord Connections
6. This charger is provided with a keyhole
hanging feature if wall mounting is desired. Screws should be installed at a
center distance of 3" (76mm) – See
Figure 6.
12V d.c.
Operating Instructions
WARNING
Follow operating instructions to reduce
the risk of injury from electrical shock.
Charging Procedure
New batteries reach their full capacity after
approximately five charging and discharging cycles. It is not necessary to completely discharge a battery pack before recharging.
1. Set up charger according to Inspection
and Assembly section.
2. With dry hands, insert plug into appropriate power source. See Figures 1 & 8 for
12V d.c. power port connector. Use with
vehicle power ports. Route cords to prevent tripping or cord damage.
3. When charger is in “ready to charge” mode,
the yellow LED light will blink continuously.
4. With dry hands, fully insert the battery
pack onto the charger (see Figure 10). Do
not force the battery into the charger. The
battery pack will begin charging automatically. The battery pack will become slightly
warm to the touch during charging. This is
normal and does not indicate a problem.
The LED light on the battery charger will indicate charging condition (Figure 5).
RBC-30 Battery Charger
Once the battery is charged, it may remain on
the charger until use. There is no risk of overcharging the battery. When used with 12V power
from a vehicle, if the vehicle is not run for a
long time or multiple batteries are charged without running the vehicle, the vehicle battery may
be discharged.
Figure 10 – Inserting Battery In Charger
5. When charging is complete, with dry hands,
remove the battery from the charger and
unplug the charger from outlet.
Inserting/Removing Battery In
Tool
1. With dry hands, insert battery into receptacle. Battery only fits into receptacle one way.
If the battery will not fully seat into the receptacle, do not force. As the battery is inserted
into tool, the spring loaded tabs will engage
the tool to retain the battery in place.
Release
Button
Figure 11 – Installing/Removing Battery In Tool
2. To remove battery, depress release buttons
and pull straight out (Figure 11). Always re-
move the battery from the tool when making adjustments, changing attachments
or storing.
Storage
WARNING
in a dry, secured, locked area that is out of
Store the charger and batteries
999-995-193.10_REV. C
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
7
Page 8
RBC-30 Battery Charger
reach of children and people unfamiliar with
proper charger operation.
Remove batteries from tool or charger before
storage. The battery packs and charger should
be protected against hard impacts, moisture
and humidity, dust and dirt, extreme high and
low temperatures, and chemical solutions and
vapors.
NOTICE
Long term storage in the fully charged
state, the fully discharged state or in temperatures above 140°F (60°C) can permanently reduce the capacity of a battery pack.
Cleaning
WARNING
Unplug charger and remove battery before cleaning. Do not use any water or
chemicals to clean charger or batteries
to reduce the risk of electrical shock.
Remove any dirt or grease from the exterior of
the charger and battery pack with a cloth or
soft, non-metallic brush.
Service and Repair
WARNING
Improper service or repair can make the
machine unsafe to operate.
There are no user-serviceable parts for this
charger or battery packs. Do not attempt to
open charger or battery cases, charge individual battery cells, or clean internal components.
For information on your nearest RIDGID In depen dent Service Center or any service or repair questions see Contact Information section
in this manual.
Optional Equipment
WARNING
To reduce the risk of injury, only use
Op tio nal Equipm ent specific ally designed and recommended for use with
the RIDGID RBC-30 Battery Charger,
such as listed.
8
Chargers and Cords
Catalog Model Plug
No. RBC-30 Region Type
64383 Charger USA, Canada and Mexico A
56523 Charger Europe C
64388 Charger China A
64393 Charger Australia I
64378 Charger Japan A
64398 Charger United Kingdom G
64173 Charger Cord North America A
64183 Charger Cord Europe C
64178 Charger Cord China A
64188 Charger Cord Australia & LA I
64193 Charger Cord Japan A
64198 Charger Cord United Kingdom G
64203 Charger Cord 12V DC —
All chargers come with 12V DC charger cord.
Batteries
Catalog
No. Model Capacity
56513 RB-1825 18V 2.5Ah
56518 RB-1850 18V 5.0 Ah
All batteries can be charged with any catalog number RBC-30
Battery Charger.
Disposal
The batteries are Li-ion type and
should be recycled.
Parts of the unit contain valuable
Li-Ion
are companies that specialize in recycling that
may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management
authority for more information.
implementation into national legislation, this
marking indicates that this battery charger and
battery pack should not be disposed of with
other household wastes throughout the EU. To
prevent possible harm to the environment or
human health from improper waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To recycle
ma terials and can be recycled. There
For EC Countries: Do not dispose
of electrical equipment with household waste!
According to the European Guide line 2012/19/ EU for Waste Electrical
and Electronic Equipment and its
999-995-193.10_REV. C
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
your used device, please use existing collection
systems or contact the retailer from whom the
product was purchased. They can take this
product for environmentally safe recycling.
Battery Disposal
For USA and Canada: The RBRC™
(Re charge able Battery Recycling
Corporation) Seal on the battery
ready paid the cost of recycling the lithium-ion
battery packs once they have reached the
end of their useful life.
RBRC™, RIDGID
ers have de veloped programs in the USA and
Canada to collect and recycle rechargeable
batteries. Normal and rechargeable batteries
contain materials that should not be directly
disposed of in nature, and contain valuable
materials that can be recycled. Help to protect
the environment and conserve natural resources by returning your used batteries to
your local retailer or an authorized RIDGID
service center for recycling. Your local recycling
center can also provide you with additional
drop off locations.
RBRC™ is a registered trademark of the Re chargeable Battery Recycling Corporation.
For EC countries: Defective or used battery
packs/batteries must be recycled according to
the guideline 2012/19/EU.
packs means that RIDGID has al-
®
, and other battery suppli-
RBC-30 Battery Charger
Battery Transport
The battery is tested according to UN Docu ment ST/SG/AC.10/11/Rev/6 Part III, subsection 38.3. It has effective protection against internal overpressure and short-circuiting as
well as devices for the prevention of violent
rupture and dangerous reverse current flow.
The lithium-equivalent content in the battery is
below applicable limit values. Therefore, the
battery is not subject to national or international regulations pertaining to dangerous
mediums, neither as an individual component
nor when inserted into a machine. However,
the regulations governing dangerous goods
may be relevant when transporting several
batteries. In this case, it may be necessary to
comply with special conditions (e.g., concerning the packaging).
999-995-193.10_REV. C
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
