1-BIN TRAY UNIT
(Machine Code: A898)
Page 2
20 September 1999 SPECIFICATIONS
1. OVERALL INFORMATION
1.1 SPECIFICATIONS
Paper Size: Standard Size:
A5 Lengthwise to A3
HLT Lengthwise to DLT
Non-standard Size:
Paper Width: 90 ~ 297 mm
Paper Length:148 ~ 432 mm
Paper Weight: 60 ~ 105 g/m², 16 ~ 28 lbs.
Tray Capacity: 125 sheets (80 g/m², 20 lbs.)
Power Source: 5 VDC, 24 VDC (from the copier)
Power Consumption: 17 W
Weight: 1.1 kg
Size (W x D x H):
530 mm x 410 mm x 120 mm
A898-1
Options
Page 3
MECHANICAL COMPONENT LAYOUT 20 September 1999

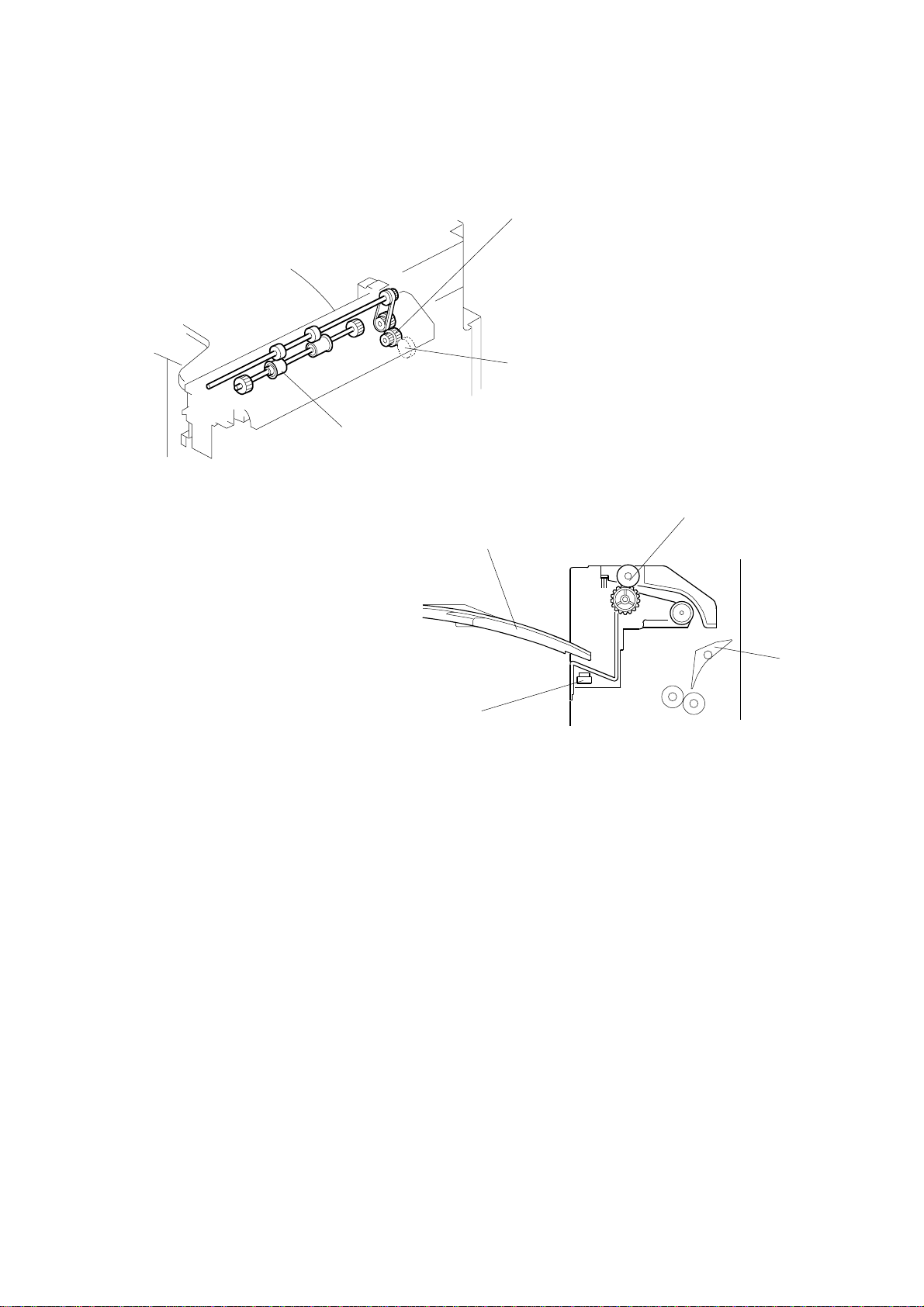

1.2 MECHANICAL COMPONENT LAYOUT
3
2
1
A898V500.WMF
1
1. Exit Rollers
2. Junction Gate Gear
3. Drive Gear
4. Paper Tray
5. Paper Sensor
6. Junction Gate (Interchange Unit)
4
6
5
A898V501.WMF
A898-2
Page 4
20 September 1999 ELECTRICAL COMPONENT LAYOUT

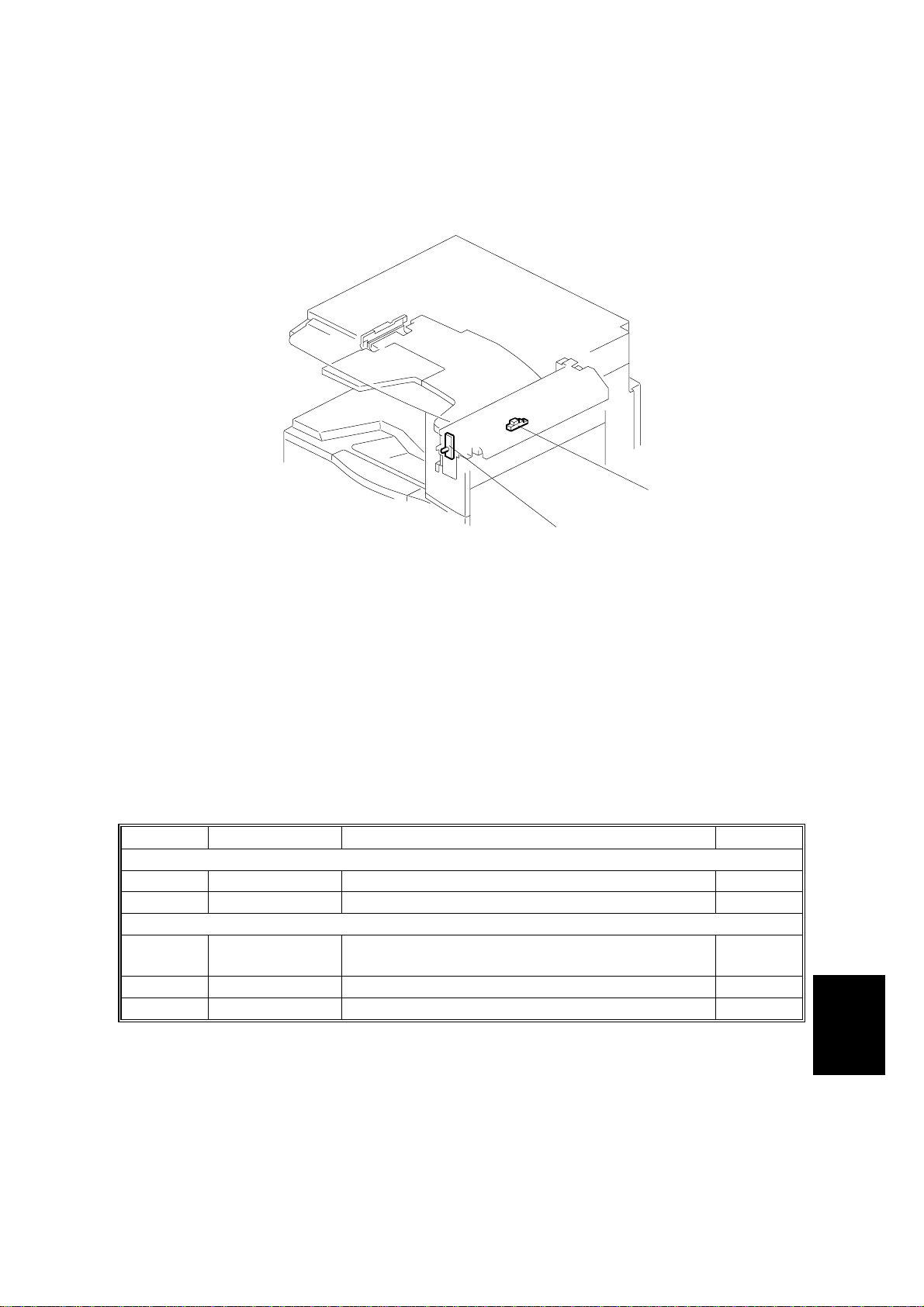

1.3 ELECTRICAL COMPONENT LAYOUT
1
A898V502.WMF
2
1. Paper Sensor
2. 1-bin Sorter Exit Tray LED
(located in the copier)
1.4 ELECTRICAL COMPONENT DESCRIPTION
Symbol Name Function Index No.
Sensors
S1 Paper Detects whether there is paper on the tray. 1
LEDs
LED1
1 Bin Exit Tray Indicates when there is paper in the tray. This
sensor is located in the copier.
2
A898-3
Options
Page 5
BASIC OPERATION 20 September 1999
2. DETAILED SECTION DESCRIPTIONS

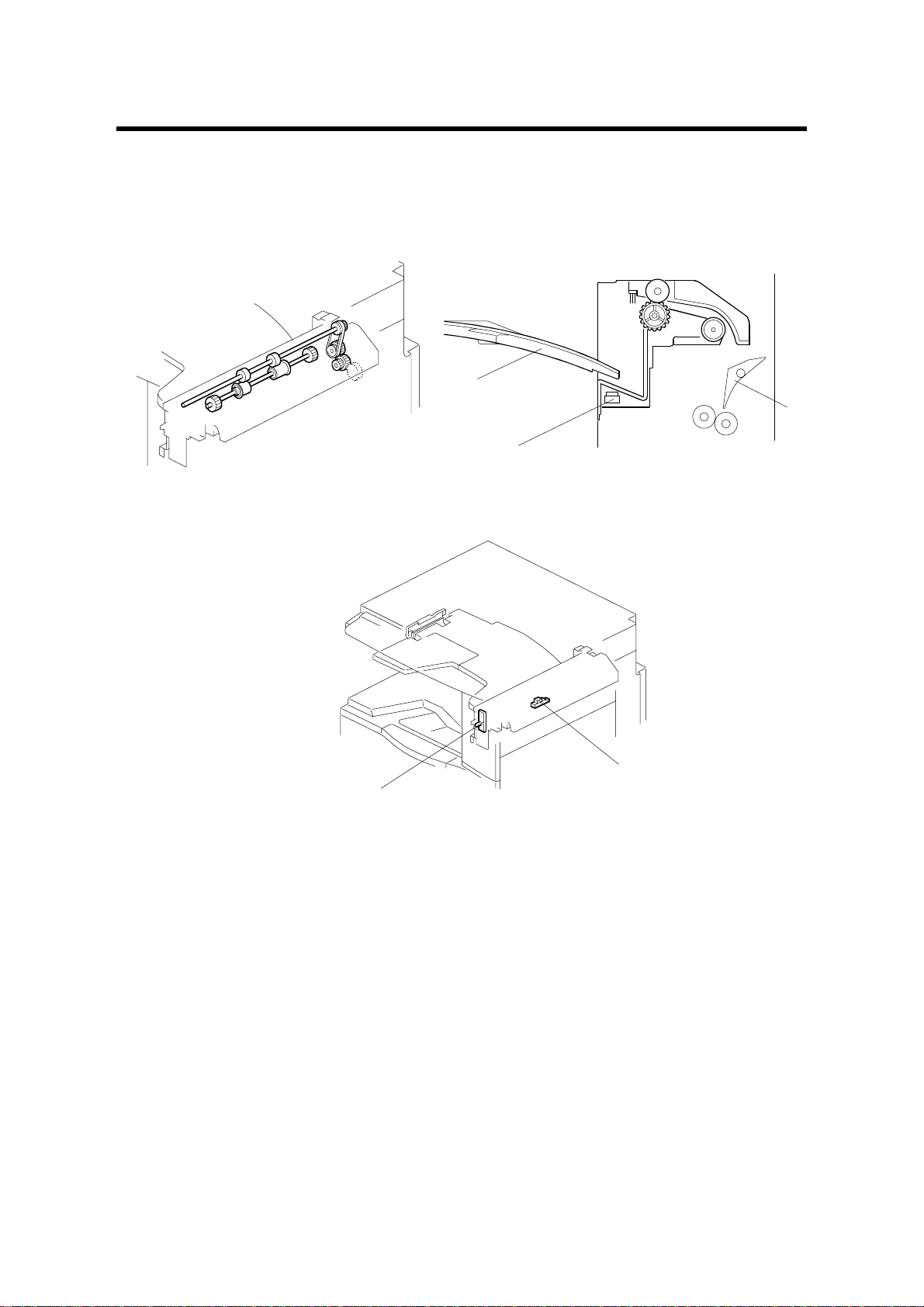

2.1 BASIC OPERATION
[C]
[B]
[E]
A898D101.WMF
A898D103.WMF
[E]
[F]
A898D102.WMF
At the appropriate time after the leading edge of the first sheet of copy paper
reaches the copier’s registration roller, the junction gate solenoid [B] in the
interchange unit turns on to direct the paper to the tray [C].
The junction gate solenoid turns off at the appropriate time after the paper is
directed to the tray. The main motor in the copier stops after the final sheet passes
through the paper sensor [E].
The paper sensor [E] turns on when there is paper in the tray, and the paper
indicator [F] turns on.
The tray can be opened for easier jam removal by swinging the tray to the left.
A898-4
Page 6
20 September 1999 PAPER SENSOR REMOVAL
3. REPLACEMENT AND ADJUSTMENT

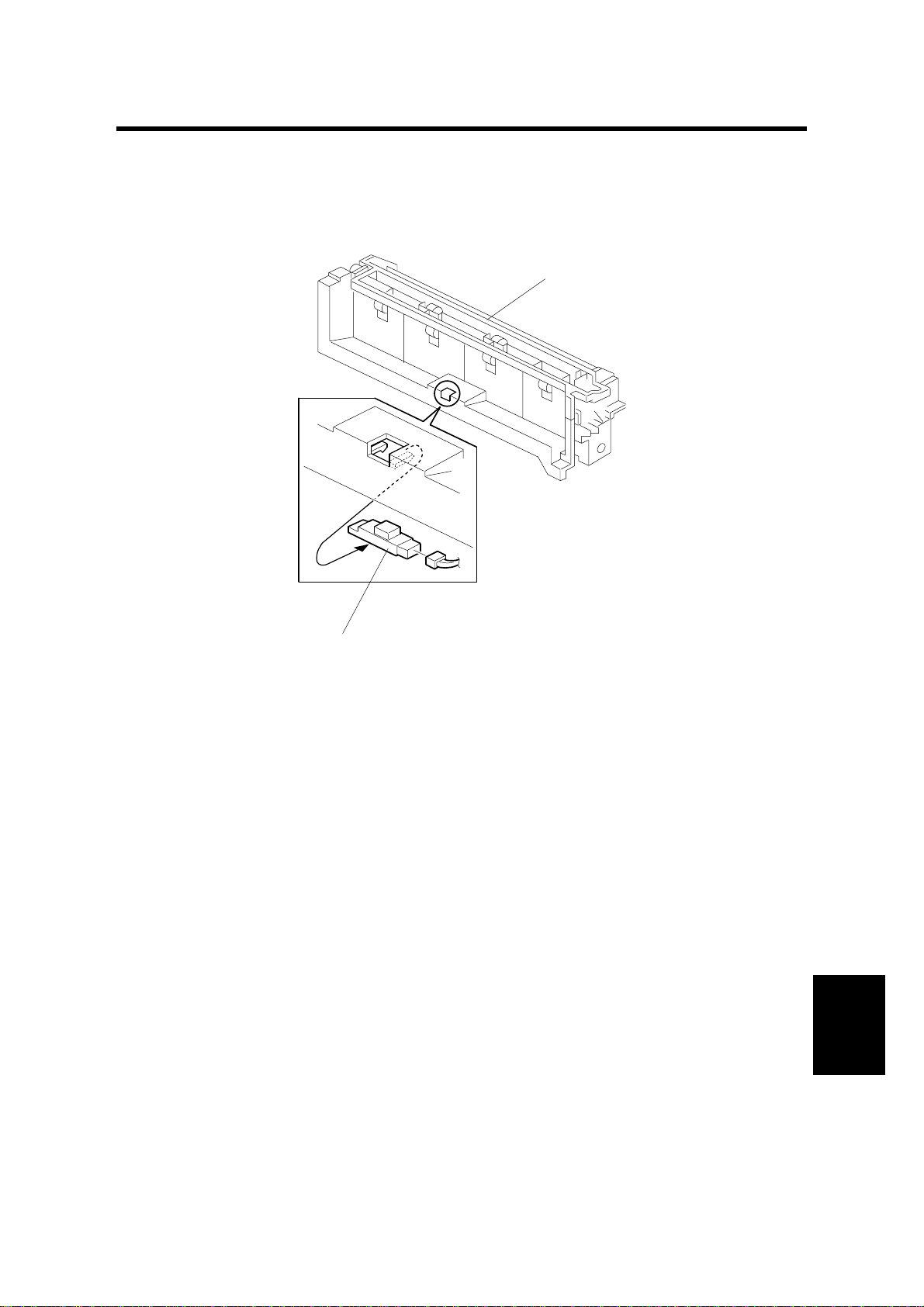

3.1 PAPER SENSOR REMOVAL
[A]
[B]
1. Remove the 1-bin tray.
2. Remove the 1-bin sorter unit [A].
3. Remove the paper sensor [B] (1 connector).
A898R101.WMF
Options
A898-5
