RICOH GROUP COMPANIES
A109
PARTS CATALOG
PN: RCPC5006
PARTS CATALOG
A109
®
®
RICOH GROUP COMPANIES
A109
PARTS CATALOG
PN: RCPC5006
It is the reader's responsibility when discussing the information contained within this
document to maintain a level of confidentiality that is in the best interest of Ricoh
Corporation and its member companies.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY
FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH CORPORATION.
All product names, domain names or product illustrations, including desktop images,
used in this document are trademarks, registered trademarks or the property of their
respective companies.
They are used throughout this book in an informational or editorial fashion only and for
the benefit of such companies. No such use, or the use of any trade name, or web
site is intended to convey endorsement or other affiliation with Ricoh products.
2000 RICOH Corporation. All rights reserved.
LEGEND
PRODUCT CODE COMPANY
GESTETNER RICOH SAVIN
A109 NC5006 SC106
A376 DUAL JOB FEEDE R
A51 1 SORTER
A527 SORTER ADAPTER TYPE J
A997 DISPLAY EDI TOR
A998 FILM PROJECTO R
A702 HOLDER TYPE A
DOCUMENTATION HISTORY
REV. NO. DATE COMMENT
* 4/94 First Printing
1 11/94 Reprint
2 7/96 Reprint
3 7/97 Reprint
A109 PARTS CATALOG
TABLE OF CONTENTS
A109 PARTS LOCATION AND LIST
Location of Unit ................................................................ 3
1. Exterior 1 (A109) ...................................................... 12
2. Exterior 2 (A109) ...................................................... 14
3. Operation Panel (A109)............................................ 16
4. Optics 1 (A109) ........................................................ 18
5. Optics 2 (A109) ........................................................ 20
6. Optics 3 (A109) ........................................................ 22
7. Optics 4 (A109) ........................................................ 24
8. Printer Section 1 (A109)............................................ 26
9. Printer Section 2 (A109)............................................ 28
10. 1st Paper Feed Tray (A109)................ .. .. .............. .. ... 30
11. 2nd & 3rd Paper Feed Tray (A109).......................... 32
12. Paper Supply Unit 1 (A109)........................................ 34
13. Paper Supply Unit 2 (A109)........................................ 36
14. Paper Supply Unit 3 (A109)........................................ 38
15. Paper Feed Section 1 (A109).....................................40
16. Paper Feed Section 2 (A109).....................................42
17. By-pass Feed Table (A109).................... .. .. .. .............44
18. Paper Registration (A109)......................................... 46
19. Around The Drum (A109).............. .............. .............48
20. Durm Unit 1 (A109) ...................................................50
21. Drum Unit 2 (A109) .................................................. 52
22. Toner Tank Unit 1 (A109).......................................... 54
23. Toner Tank Unit 2 (A109)............................................ 56
24. Development Unit - Black (A109).............................. 58
25. Development Unit - Cyan (A109) .............................. 60
26. Development Unit - Magenta (A109).........................62
27. Development Unit - Yellow (A109)...... .. .. .. .. .. .............64
Rev. 7/96
28. Transfer Belt Unit 1 (A109).......................................66
29. Transfer Belt Unit 2 (A109).......................................68
30. Transfer Roller Unit (A109).......................................7 0
31. Transport Unit (A109)...............................................72
32. Belt Cleaning Unit (A109)..........................................74
33. Toner Collection Section (A109)...............................76
34. Fusing Unit 1 (A109).................................................78
35. Fusing Unit 2 (A109).................................................80
36. Fusing Unit 3 (A109).................................................82
37. Fusing Unit 4 (A109).................................................84
38. Drive Section 1 (A109).............. ..................................86
39. Drive Section 2 (A109)...... ...................................... ....88
40. Drive Section 3 (A109)...... ...................................... ....90
41. Drive Section 4 (A109)...... ...................................... ....92
42. Elect rical Se ctio n 1 (A1 09 ).............................. .. .. .......94
43. Electrical Section 2 (A109) ........................................96
44. Electrical Section 3 (A109) ........................................98
45. Electrical Section 4 (A109) ......................................100
46. Frame Section 1 (A109)...........................................102
47. Frame Section 2 (A109)...........................................104
48. Frame Section 3 (A109)...........................................106
49. Frame Section 4 (A109)...........................................108
50. Main Control Board (A109)...................................... 110
51. IPU Board (A109) .....................................................116
52. AC Main Harness (A109)..........................................130
53. Decal & Document (a109) ........................................132
54. Special Tools (A109)............ .... .... .... .... .... .. .... .... .... ...136
A109 PARTS INDEX
Parts Index....................................................................... 2
A376 Parts Location & List
Location Of Unit................................................................... 2
1. Exterior (A376) .............................................................4
2. Original Feed Section 1 (A376).................................... 6
3 Original Feed Section 2 (A376)................ .................... 8
4 Original Fee d Section 3 (A376).................................. 10
5 Transpo rt Se ctio n (A3 76 )................................ ...........12
6 Inverter & Exit Section (A376).................................... 14
7 Electrical Section (A376)............................................ 16
8 Decal & Document (A376)........ .................................. 18
A376 Parts Index
Parts Index......................................................................... 2
A511 Parts Location & List
1 Exterior (A511).............................................................. 2
2 Transpo rt Se ctio n 1........... .............. .............. .. .............4
3 Transpo rt Se ctio n 2 (A5 11)................ .. .. .. .............. .......6
4 Electrical Section (A511).............................................. 8
5 Main Control Board (A511).........................................10
6 Main Harness (A511).................................................. 12
7 Decal & Document..................................................... 14
A997 Parts Location & List
1. Editor (A997) .............................................................. 2
A997 Parts Index
Parts Index......................................................................... 2
A998 Parts Location & List
1. Exterior (A998)..............................................................2
2. Lens Unit (A998)...........................................................4
3. Electrical Section (A998) ............................................ .. 6
4. Mirror Unit (A998).........................................................8
5. Accessories (A998).....................................................10
A998 Parts Index
Parts Index......................................................................... 2
A702 Parts Location & List
1. Holder Type A (A702)...... ...... ...... ...... ...... ...... .... ...... ..... 2
A702 Parts Index
Parts Index......................................................................... 2
A511 Parts Index
Parts Index......................................................................... 2
A527 Parts Location & List
1. Sorter Adapter Type J (A527) ...................................... 2
A527 Parts Index
Parts Index......................................................................... 2
A109
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine.

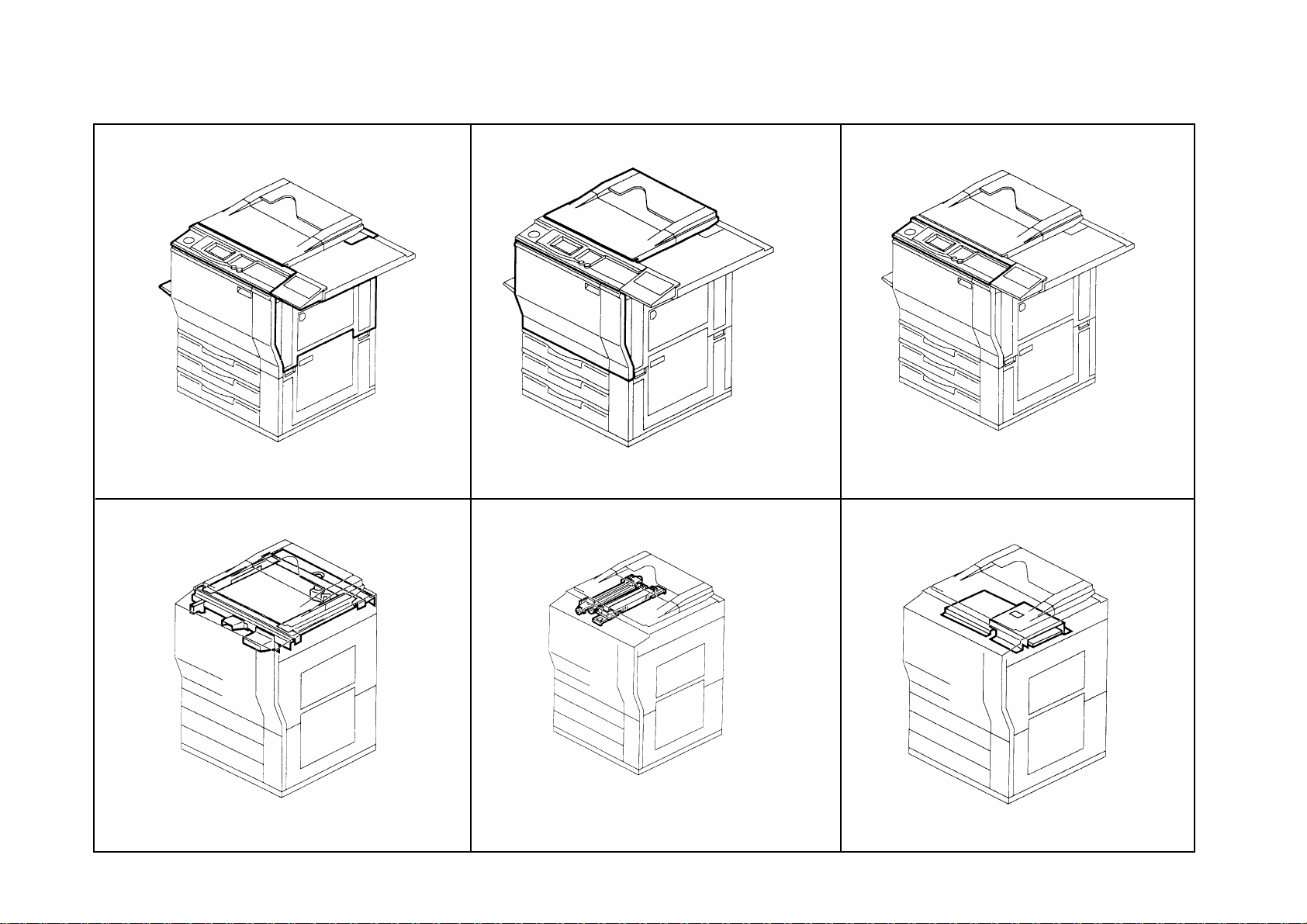

LOCATION OF UNIT
1. EXTERIOR 1 (A109)
See Page 12
4. OPTICS SECTION 1 (A109)
2. EXTERIOR 2 (A109)
See Page 14 See Page 16
5. OPTICS SECTION 2 (A109)
3. OPERATION PANEL (A109)
6. OPTICS SECTION 3 (A109)
See Page 18 See Page 20
A109 3 Parts Location & List
See Page 22
LOCATION OF UNIT
7. OPITIS SECTION 4 (A109)
See Page 24
10. 1ST PAPER FEED TRAY (A109)
8. PRINTER SECTION 1 (A109)
See Page 26 See Page 28
11. 2ND & 3RD PAPER FEED TRAY (A109) 12. PAPER SUPPLY UNIT 1 (A109)
9. PRINTER SECTION 2 (A109)
See Page 30 See Page 32
A109 4 Parts Location & List
See Page 34
LOCATION OF UNIT
13. PAPER SUPPLY UNIT 2 (A109)
See Page 36
16. PAPER FEED SECTION 2 (A109)
14. PAPER SUPPLY UNIT 3 (A109)
See Page 38 See Page 40
17. BY-PASS FEED TABLE (A109)
15. PAPER FEED SECTION 1 (A109)
18. PAPER REGISTRATION (A109)
See Page 42 See Page 44
A109 5 Parts Location & List
See Page 46
LOCATION OF UNIT
19. AROUND THE DRUM (A109)
See Page 48
22. TONER TANK UNIT 1 (A109)
20. DRUM UNIT 1 (A109)
See Page 50 See Page 52
23. TONER TANK UNIT 2 (A109)
21. DRUM UNIT 2 (A109)
24. DEVELOPMENT UNIT - BLACK (A109)
See Page 54 See Page 56
A109 6 Parts Location & List
See Page 58
LOCATION OF UNIT
25. DEVELOPMENT UNIT - CYAN (A109)
See Page 60
28. TRANSFER BELT UNIT 1 (A109)
26. DEVELOPMENT UNIT - MAGENTA (A109)
See Page 62 See Page 64
29. TRANSFER BELT UNIT 2 (A109)
27. DEVELOPMENT UNIT - YELLOW (A109)
30. TRANSFER ROLLER UNIT (A109)
See Page 66 See Page 68
A109 7 Parts Location & List
See Page 70
LOCATION OF UNIT
31. TRANFER UNIT (A109)
See Page 72
34. FUSING UNIT 1 (A109)
32. BELT CLEANING UNIT (A109)
See Page 74 See Page 76
35. FUSING UNIT 2 (A109)
33. TONER COLLECTION SECTION (A109)
36. FUSING UNIT 3 (A109)
See Page 78 See Page 80
A109 8 Parts Location & List
See Page 82
LOCATION OF UNIT
37. FUSING UNIT 4 (A109)
See Page 84
40. DRIVE SECTION 3 (A109)
38. DRIVE SECTION 1 (A109)
See Page 86 See Page 88
41. DRIVE SECTION 4 (A109)
39. DRIVE SECTION 2 (A109)
42. ELECTRICAL SECTION 1 (A109)
See Page 90 See Page 92
A109 9 Parts Location & List
See Page 94
LOCATION OF UNIT
43. ELECTRICAL SECTION 2 (A109)
See Page 96
46. FRAME SECTION 1 (A109)
44. ELECTRICAL SECTION 3 (A109)
See Page 98 See Page 100
47. FRAME SECTION 2 (A109)
45. ELECTRICAL SECTION 4 (A109)
48. FRAME SECTION 3 (A109)
See Page 102 See Page 104
A109 10 Parts Location & List
See Page 106
LOCATION OF UNIT
49. FRAME SECTION 4 (A109)
See Page 108
A109 11 Parts Location & List

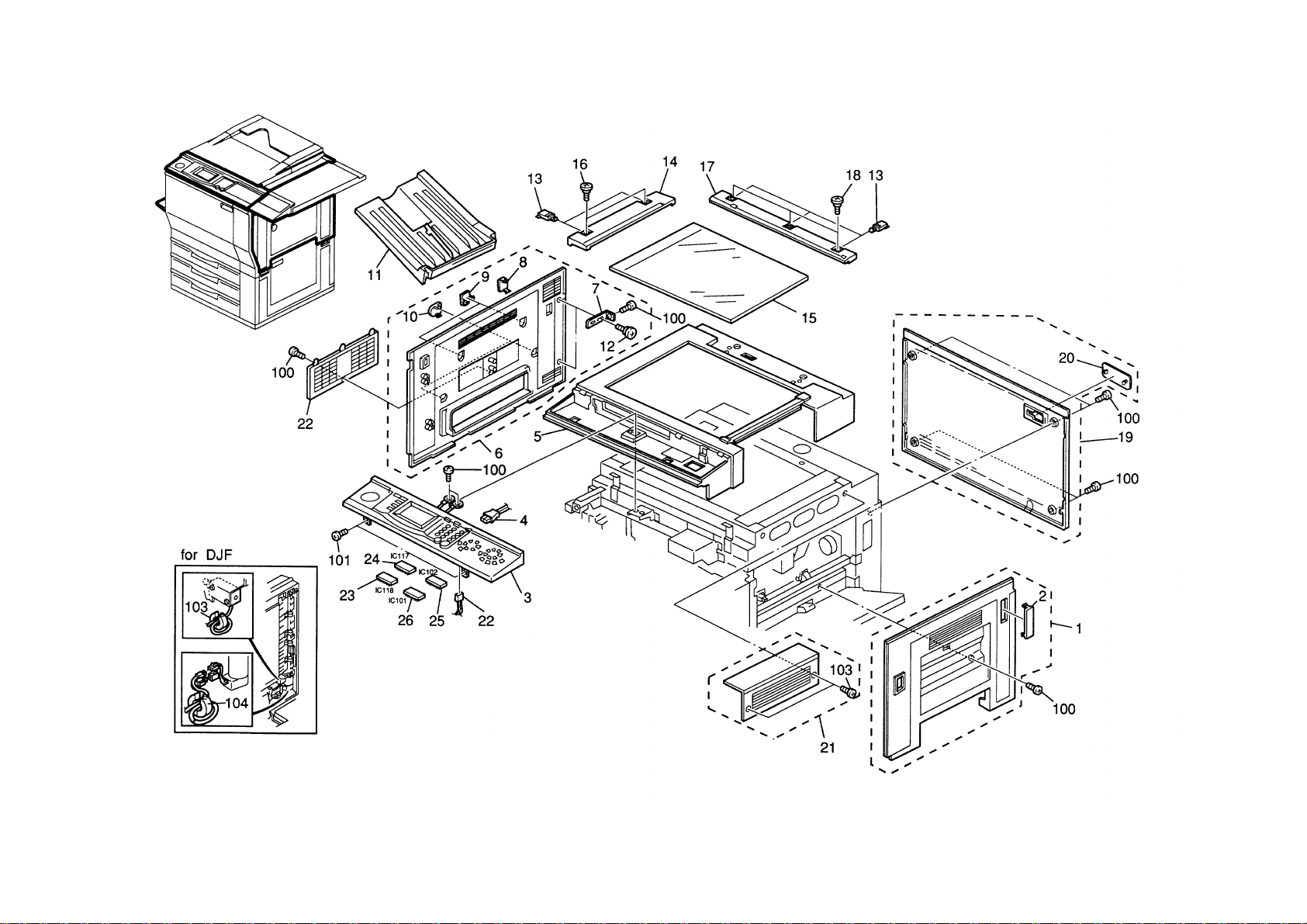

1. EXTERIOR 1 (A109)
A109 12 Parts Location & List
1. EXTERIOR 1 (A109)
Index
No.
Part No.
Description
Q’ty Per
Assembly
1 A109 1265 Right Cover 1
2 A109 1267 Right Cover Cap 2
3 A109 7065 Operation Panel Ass’y - LT 1
3 A109 7066 Operation Panel Ass’y - A4 1
4 AW03 0034 Optics Fiber Cable - 1400m m 1
5 A109 7001 Top Cover 1
6 A109 1273 Left Cover 1
7 A109 1276 Left Cover Bracket 2
8 A024 1368 Sorter Cap - Left Cover 1
9 A006 1329 Cap Left Cover 2
10 A006 1328 Small Cap 2
11 A109 4300 Copy Tray 1
12 A109 4775 Stepped Screw - M5 1
13 A049 1964 Cap - Scale 5
14 AC04 2098 Left Scale - LT 1
14 AC04 2073 Lef t Scale - A4 1
15 A109 1911 Exposure Gl ass Ass’y 1
17 A109 7821 Rear Scale - LT 1
17 A109 1901 Rear Scale - A4 1
18 AA14 0065 Stepped Screw - M3x6 5
19 A109 1320 Rear Cover 1
20 A109 1322 DF Connector Cap 1
21 A109 1256 Upper Right Cover 1
22 A109 1277 Left Cover Louver 1
23 A109 5549 IC - 4MX16150NS (English - LT) 1
24 A109 5546 IC - 2MX8150NS (English - LT) 1
25 A109 5547 IC - 4MX16150NS (Eng l is h - LT) 1
26 A109 5548 IC - 4MX16150NS (English - LT) 1
Index
No.
Part No.
Description
Q’ty Per
Assembly
100 0344 0060F Philips Truss Head Screw - M4x6
101 0314 0060B Philips Pan Head Screw - M4x6
102 0344 0080F Philips Truss Head Screw - M4x8
103 1607 06 23 Ferrite Core - Small
104 1607 06 38 Ferrite Core - Large
A109 13 Parts Location & List
2. EXTERIOR 2 (A109)
A109 14 Parts Location & List
2. EXTERIOR 2 (A109)
Index
No.
Part No.
Description
Q’ty Per
Assembly
1 A100 1330 Platen Cover 1
2 A406 9505 Platen Cover Shee t - 10 Sh eet/1 Set 1
3 AA16 2053 Platen Cover Pad 1
4 A100 1321 Front Platen Cover 1
5 A053 1957 Flex Hinge - Platen Cover 2
6 A100 1322 Rear Platen Cover 1
7 A100 1323 Original Holder 1
8 A100 1324 Positioning Sens or Shutter 1
9 A100 1310 Platen Cover Hinge Ass’y 1
10 A100 1325 Hinge Spacer 1
11 A095 1394 Mounting Bracket - Platen Cover 1
12 5215 1667 Platen Cover Stud 2
13 A109 7021 Right Door 1
14 A109 1290 Right Upper Door Hinge 1
15 A109 1291 Right Lower Door Hinge 1
16 A109 1374 Right Inner Cover 1
17 A109 1553 Decal - Misfeed Removal B 1
18 A109 1552 Decal - Misfeed Removal A 1
19 A109 1301 Left Door 1
20 AG07 0004 Magnetic Catch 2
21 A109 1307 Left Upper Door Hinge 1
22 AA14 5180 Pin - Hinge 2
23 A109 1306 Left Door Hinge Plate 1
24 A109 4776 Hinge Support Plate 1
25 A109 1308 Left Lower Door Hinge 1
26 A109 1309 Transport Lever Stopper 1
27 A109 1554 Decal - Misfeed Removal D 1
28 A109 1135 Safety Switch Ac tu at or 1
29 A109 1310 Fusing Lever Stopper 1
30 5215 2843 Left Spring - Platen Cover 1
31 5215 2842 Right Spring - Platen Cover 1
32 5215 2844 Slid e Supporter 2
33 5215 2840 Pin - 4 x 115 mm 3
34 5215 2838 Rubber Magnet 1
35 5215 2845 Plate - Magnet 1
Index
No.
Part No.
Description
Q’ty Per
Assembly
36 5215 2846 Platen Base 1
37 5215 2847 Base Holder 1
38 A069 1972 Arm Holder 1
39 5215 2837 Shaft 7 x 40 mm 1
40 5215 2836 Sleeve - 8 x 34 mm 1
41 A100 1311 Balancer Spring 1
100 0414 0142W Tapping Screw - M4x14
101 0344 0060F Philips Truss Head Screw - M4x6
102 0434 0102W Tapping Screw - M4x10
103 0344 0080F Philips Truss Head Screw - M4x8
104 0354 0100W Philips Pan Head Scre w - M4x10
105 0720 00 30E Retaining Ring - M3
106 0314 0050W Philips Pan Head Screw - M4x5
107 0805 0083 Retaing Ring - M4
A109 15 Parts Location & List
3. OPERATION PANEL (A109)
A109 16 Parts Location & List
3. OPERATION PANEL (A109)
Rev. 10/99
Index
No.
Part No.
Description
Q’ty Per
Assembly
* A109 7065 Operation Panel Ass’y - LT 1
* A109 7066 Operation Panel Ass’y - A4 1
1 A109 5553 Operation Panel Board - LT 1
1 A109 5573 Operation Panel Board - A4 1
3 AY20 0001 IC - C5C202 1
4 A109 5558 IC - 4MX16150NS (English - LT) 1
5 A109 5559 IC - 4MX16150NS (English - LT) 1
6 A109 5560 IC - 2MX8150NS (English - LT) 1
7 A109 5557 IC - 4MX16150NS (English - LT) 1
8 AW50 0020 Touch Panel 1
9 AX30 0002 LCD Display 1
10 A096 1492 Keytop - C/S 1
11 A096 1493 Keytop - Set12 1
12 A096 1494 Keytop - Interrupt 1
13 A096 1497 LCD Display Dial 1
14 A096 1509 Cushion - 1 2
15 A096 1510 Cushion - 2 2
16 A096 1512 Grounding Harness - 2 1
17 A096 1513 LCD Display Sheet 1
18 A109 1455 Key Top - Start 1
19 A109 1456 Key Top - Clear Modes - LT 1
19 A109 7074 Key Top - Clear Modes - A4 1
20 A109 1457 Key Top - Memory Call 1
21 A109 1458 Key Top - Color Adjust/memory 1
22 A109 1459 Key Top - User Color - LT 3
22 A109 7080 Key Top - User Color 1 - A4 1
22 A109 7081 Key Top - User Color 2 - A4 1
22 A109 7082 Key Top - User Color 3 - A4 1
23 A109 1460 Key Top - White 2
24 A109 1461 Key Top - Black 2
25 A109 1462 Key Top - Red 2
26 A109 1463 Key Top - Magenta 2
27 A109 1464 Key Top - Blue 2
28 A109 1465 Key Top - Cyan 2
29 A109 1466 Key Top - Green 2
Index
No.
Part No.
Description
Q’ty Per
Assembly
30 A109 1467 Key Top - Light Green 1
31 A109 1468 Key Top - Yellow 2
32 A109 1469 Key Top - Orange 1
33 A109 1488 Key Top - Program 1
34 A109 1472 Key Top - Option 1
35 A109 1473 Key Top - Area Marker 1
36 A109 1474 Lens Ass’y 2
37 A109 1480 Grounding Wire 2
38 A109 1481 Large Shielding Sheet 1
39 A109 1482 Small Shielding Sheet 1
40
41 A109 1484 Grounding Plate - LCD 1
42 A109 1486 Operation Panel Bracket 2
43 A109 1487 Operation Panel Hook 3
101 0433 0082B Tapping Screw - M3x8
102 0314 0060B Philips Pan Head Screw - M4x6
103 0344 0060F Philips Truss Head Screw - M4x6
A109 17 Parts Location & List
4. OPTICS SECTION 1 (A109)
Rev. 11/94
A109 18 Parts Location & List
Loading...
