Page 1
Savin AR-DE80 (A997)
(Ricoh RE8)
Page 2
PARTS CATALOG
INTRODUCTION
This chapter instructs you the numbers and names of parts on this machine.
INDEX to PARTS CATALOG
1.Editor (A997)........................................................................................ 2
Parts Index.............................................................................................. 5
March ,15 ’95
Page 3
4.

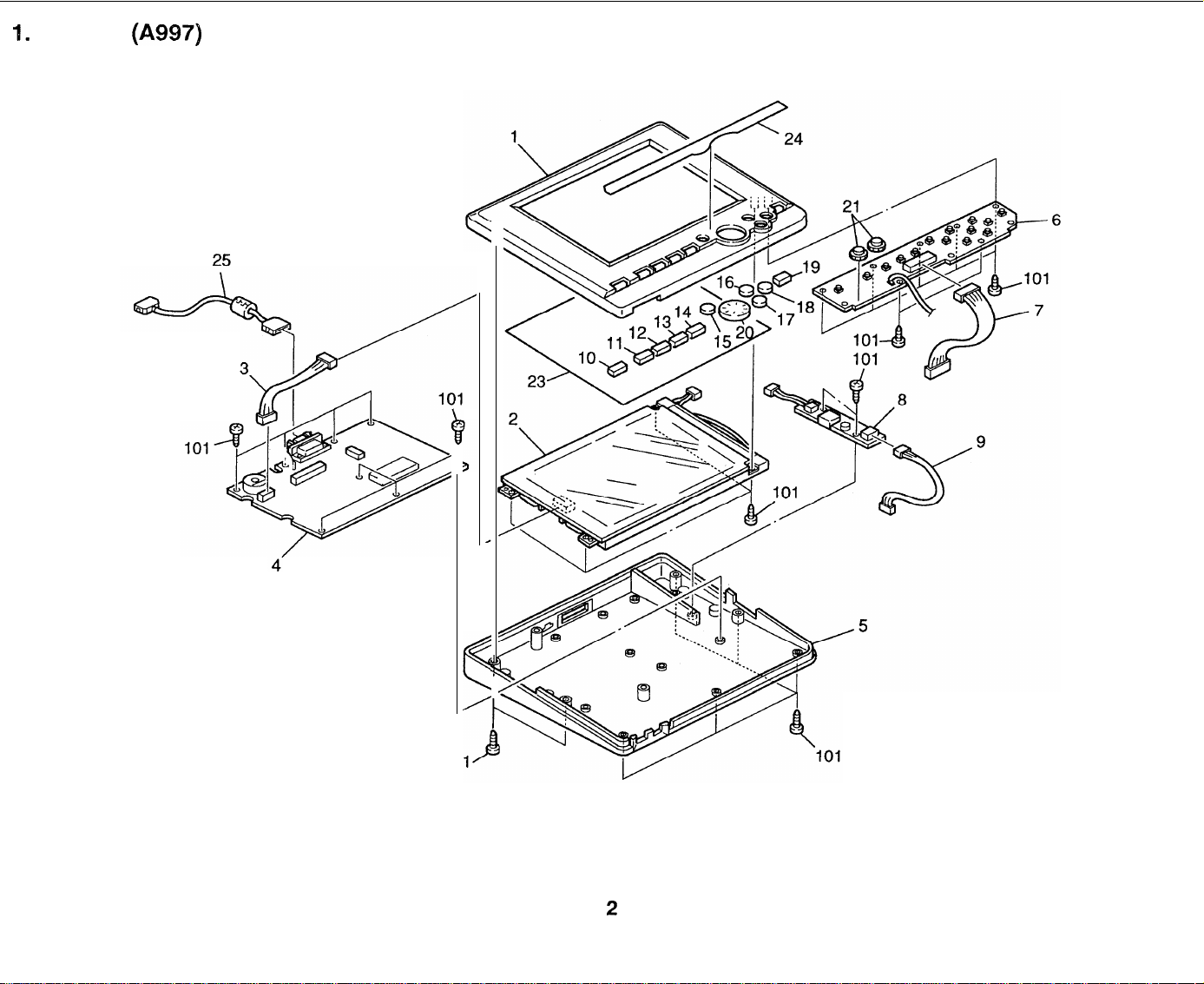

EDITOR (A997)
10
2
Page 4
1.EDITOR (A997)
Index
No.
1 A997 1225 Upper Cover 1
2 A997 1217 LCD Display 1
3 A997 1218 LCD Harness 1
4 A997 1214 Main Control Board 1
5 A997 1230 Lower Cover 1
6 A997 1216 Operation Panel Board 1
7 A997 1219 Key Switch Harness 1
8 A997 1215 Inverter Board 1
9 A997 1220 Inverter Relay Harness 1
10 A997 1202 Keytop - Scan 1
11 A997 1203 Keytop - Full Image 1
12 A997 1204 Keytop - Zoom 1 1
13 A997 1205 Keytop - Zoom 2 1
14 A997 1206 Keytop - Zoom 3 1
15 A997 1207 Keytop - Image Shift 1
16 A997 1208 Keytop - Clear 1
17 A997 1209 Keytop - Point 1
18 A997 1210 Keytop - Close 1
19 A997 1211 Keytop - All Clear 1
20 A997 1212 Keytop - Cursor 1
21 A997 1213 Dial 2
23 A997 1222 LCD Filter 1
24 A997 1229 Decal - keytop 1
25 A997 5100 Editor Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0344 0080F Philips Truss Head Screw - M4x8
Part No.
Description
Q’ty Per
Assembly
3
Page 5
PARTS INDEX
Page 6
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A997 1202 Keytop - Scan 3- 10
A997 1203 Keytop - Full Image 3- 11
A997 1204 Keytop - Zoom 1 3- 12
A997 1205 Keytop - Zoom 2 3- 13
A997 1206 Keytop - Zoom 3 3- 14
A997 1207 Keytop - Image Shift 3- 15
A997 1208 Keytop - Clear 3- 16
A997 1209 Keytop - Point 3- 17
A997 1210 Keytop - Close 3- 18
A997 1211 Keytop - All Clear 3- 19
A997 1212 Keytop - Cursor 3- 20
A997 1213 Dial 3- 21
A997 1214 Main Control Board 3- 4
A997 1215 Inverter Board 3- 8
A997 1216 Operation Panel Board 3- 6
A997 1217 LCD Display 3- 2
A997 1218 LCD Harness 3- 3
A997 1219 Key Switch Harness 3- 7
A997 1220 Inverter Relay Harness 3- 9
A997 1222 LCD Filter 3- 23
A997 1225 Upper Cover 3- 1
A997 1229 Decal - keytop 3- 24
A997 1230 Lower Cover 3- 5
A997 5100 Editor Harness 3- 25
0344 0080F Philips Truss Head Screw - M4x8 3-101
6
