Ricoh MP CW2200 SP Part List

D124

PARTS CATALOG

It is the reader's responsibility when discussing the information contained

used in this document are trademarks, registered trademarks or the property of their They are used throughout this book in an informational or editorial fashion only and for



within this document to maintain a level of confidentiality that is in the best inter est of Ricoh Americas Corporation and its member companies.

NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY

FASHION AND DISTRIBUTED WITHOUT THE PRIOR

PERMISSION OF RICOH AMERICAS CORPORATION.

All product names, domain names or product illustrations, including desktop images, respective companies. the benefit of such companies. No such use, or the use of any trad e name, or web

site is intended to convey endorsement or other affiliation with Ricoh products.

REV. NO.

DATE

COMMENTS

*

01/2013

Original Printing

LEGEND

COMPANY

PRODUCT CODE

LANIER RICOH SAVIN

D124 MP CW2200 MP CW2200 SP MP CW2200

D124-99 Controller Options

DOCUMENTATION HISTORY

Digital Color Copiers

(D124-NA)

Parts Catalog

Parts change information sample

Add

Update

Delete

Unit All

U001

EXTERIOR

U005

MAINTENANCE RECOVERY SECTION

U002

OPERATION

U006

PAPER REGISTRATION

U003

SCANNER

U007

PAPER FEED

U004

CARRIAGE

U008

INK SUPPLY SECTION

U009

PAPER EXIT

U010

ABSORB SECTION

U011

ELECTRICAL

U012

MAIN FRAME

U001 EXTERIOR

12.D1241263

COVER:SIDE:LEFT UPPER

20.D1241290

COVER:LEFT

16.D1241273

COVER:SIDE:LEFT LOWER

6.11050488 (x2)

HARNESS CLAMP

9.D1241254

SEAL:COVER:UPP ER RIGHT

10.D1241261

COVER:FRONT:UP PER

7.D1241251

COVER:UPPER

8.D1241252 (x2)

SEAL:COVER:UPP ER

1.04513006N (x18)

TAPPING SCREW 3X6

2.04513008N (x9)

TAPPING SCREW M3X8

17.D1241280

COVER:RIGHT:UP PER

13.D1241264 (x3)

ROD:COVER:FRON T

14.D1241271

COVER:FRONT:LO WER

3.04523010N (x10)

BINDING SELF-TA PPING SCREW:3X 10

11.D1241262

COVER:SIDE:RIGH T UPPER

15.D1241272

COVER:SIDE:RIGH T LOWER

5.09543006N (x2)

SCREW - M3X6

4.04543008Q

TAPPING SCREW: 3X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

18.D1241285

COVER:RIGHT

19.D1241286

COVER:USELESS FLUID NOZZLE

U001 EXTERIOR

26.D1241315

SUPPORTER:LEFT

22.D1241296

COVER:INK CART RIDGE:OPEN AND CLOSE

24.D1241305

COVER:LEFT:REA R

25.D1241310

SUPPORTER:RIGH T

27.D1241334

DECAL:INK:COVER :EXP

23.D1241300

COVER:RIGHT:RE AR

29.G0205626 (x2)

PUSH SWITCH

28.D1246580

DECAL:USED INK

21.D1241295

COVER:INK CART RIDGE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U002_S001 D1241422

OPERATION PANEL:EU:ASS' Y

U002.OPERATION

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U002 OPERATION

1.04503010N (x3)

TAPPING SCREW M3X10

2.04513006N

TAPPING SCREW 3X6

5.B1251474 (x3)

RIVET:MM5

3.11050511

HARNESS CLAMP LWS-0306ZC

11.D1241510

COVER:OPERATIO N SUB-UNIT:INNER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U002_S001 OPERATION PANEL:EU:ASS'Y

21.D1291508

KEYTOP:HOME

4.11050598

CLAMP:LWSS-1N

13.D1291421

TOUCH PANEL:WV GA:MV

24.D1291513

SHADEING PLATE: TOUCH PANEL

12.D1291420

LCD:TFT:WVGA:LE D:MV

8.D1241422

OPERATION PANE L:EU:ASS'Y

17.D1291459

PCB:OP-L:ASS'Y

6.B2381534 (x2)

LCD SPACER A

22.D1291509

KEYTOP:LEFT

15.D1291431

CABLE:FFC:OPL

23.D1291510

LENS:FRONT

20.D1291506

KEYTOP:RESET S WITCH

26.D1291534

KEYTOP:10KEY:EU

10.D1241509

[A]

KEYTOP:POWER S OURCE 201310-02

16.D1291458

PCB:OP-R:ASS'Y

9.D1241442

PCB:LCDC:EU:FT

28.D1291539

[B]

KEYTOP:POWER S OURCE:BA 201309-05 X/O

7.B2381535 (x2)

LCD SPACER B

25.D1291532

COVER:UPPER:EU /CHN/TWN

19.D1291503

KEYTOP:STOP

14.D1291430

CABLE:FFC:OPR

18.D1291502

KEYTOP:START

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U002_S001 OPERATION PANEL:EU:ASS'Y

27.D1291547

SHEET:JOURNAL: BLANK

8.D1241422

OPERATION PANE L:EU:ASS'Y

D1241507

[A]

KEYTOP:POWER S OURCE 201310-02

D1291507

[B]

KEYTOP:POWER S OURCE 201309-05 X/O

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U003_S001 B1254901

STOPPER:OPEN AND CLOS E:LEFT:UNIT

U003.SCANNER

U003_S002 B1254906

STOPPER:OPEN AND CLOS E:RIGHT:UNIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U003 SCANNER

3.04513006N (x2)

TAPPING SCREW 3X6

9.07030030N (x2)

SPRING WASHER: DIA3

14.08050089 (x2)

RETAINING RING M4

2.04504008N (x4)

TAPPING SCREW M4X8

20.11050723

CLAMPS:WES-050 7

18.11050490 (x3)

HARNESS CLAMP IWS-2218

19.11050516 (x19)

CLAMP

15.11050192 (x3)

LOCKING SUPPOR T

17.11050488

HARNESS CLAMP

7.04514016N (x2)

TAPPING SCREW: 4X16

21.11050724 (x4)

CLAMPS:WES-121 0

5.04513025N (x2)

TAPPING SCREW: M3X25

11.07200030E (x8)

RETAINING RING M3

8.04543006Q (x82)

TAPPING SCREW M3X6

6.04504010N

TAPPING SCREW: M4X10 201305-03 X/O

1.04503008N (x3)

TAPPING SCREW M3X8

12.07200100E (x4)

RETAINING RING M10

4.04513008N (x6)

TAPPING SCREW M3X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

16.11050487 (x3)

HARNESS CLAMP

13.08025296 (x3)

TAPPING SCREW M3X8

U003 SCANNER

33.AA143823 (x2)

TAPPING SCREW

30.AA063444 (x2)

SPRING:STOPPER: ORIGINAL

40.B1254732 (x2)

STOPPER:ORIGIN AL:UPPER

25.A4221356 (x2)

PIN - 3X26MM

34.AA143859 (x3)

POSITIONING PIN

27.A8594141 (x2)

PULLEY IDLER

39.B1251728

SPRING PLATE:EX POSURE GLASS:L EFT

31.AA082135 (x16)

BUSHING - DIA4

24.A1636052 (x2)

ORIGINAL TABLE B USHING

29.AA063419 (x2)

SPRING - 10N

37.AW500022

PUSH SWITCH

22.12042466 (x2)

MICRO SWITCH - V

-16506-1C25

32.AA143788

PIN:GUIDE PLATE: PAPER FEED

35.AW010107 (x10)

PAPER FEED SEN SOR

28.AA063416 (x8)

SPRING - 3.4N

26.A5663850 (x2)

SENSOR SCREW

36.AW010109 (x2)

PHOTO REFIECTIO N SENSOR:PS117E D1

41.B1254742

SUPPORTING PLA TE:COVER:ORIGIN AL

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

38.B1251727

SPRING PLATE:EX POSURE GLASS:RI GHT

23.53531803 (x2)

WAVE WASHER

U003 SCANNER

50.B1254852 (x2)

CASE:SPRING

51.B1254853 (x2)

PLATE:SPRING

70.B2864966

BRACKET:PRESSU RE PLATE:LEFT

65.B1255683 (x2)

GROUND WIRE:PR ESSURE PLATE

68.B2381715

STEPPER MOTOR DC3.9V

46.B1254826 (x2)

SHEET:BLOCK LIG HT:2

49.B1254829 (x2)

SHEET:BLOCK LIG HT:5

47.B1254827

SHEET:BLOCK LIG HT:3

44.B1254761 (x2)

SHAFT:CONTACT POINT:ORIGINAL:U PPER

66.B1255688 (x2)

GROUNDING WIRE :SCANNER UNIT:1

53.B1254871

STAND:PRESSURE RELEASE:RIGHT

42.B1254751 (x4)

SHAFT:DRIVEN

43.B1254752 (x8)

ROLLER:DRIVEN

52.B1254870

STAND:PRESSURE RELEASE:LEFT

48.B1254828

SHEET:BLOCK LIG HT:4

45.B1254825

SHEET:BLOCK LIG HT:1

54.B1254879 (x13)

SHEET:SHIELD:PA PER SIZE SENSOR

67.B2293237 (x2)

SPRING PLATE:EA RTH:TRANSPORT ROLLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

69.B2864854

CUSHION:KEYTOP :ORIGINAL:STOP

55.B1254884

COVER:ORIGINAL: SWITCH

U003 SCANNER

80.D1241662

SYNCHRONOUS B ELT:S1.5M

86.D1241681

COVER:SCANNER: LEFT

72.B3874311

ADJUSTING BRAC KET

81.D1241663 (x2)

TIMING PULLEY:S1 .5M:101

83.D1241677 (x2)

PLAIN SHAFT BEA RING:TRANSPORT ROLLER:SIDE PLA TE:EXIT

85.D1241679 (x4)

COIL SPRING:DRIV EN:5N

77.D0934734 (x4)

DRIVEN ROLLER:A SS'Y

73.D0465837 (x4)

GROUND WIRE:BR AIDED CABLE

75.D0934717

SHEET:BLOCK LIG HT:CIS:LEFT

76.D0934718

SHEET:BLOCK LIG HT:CIS:RIGHT

71.B2864967

BRACKET:PRESSU RE PLATE:RIGHT

74.D0934653

LEVER:MICRO SWI TCH

79.D1241661

COIL SPRING:BEL T TENSIONER

84.D1241678 (x2)

PLAIN SHAFT BEA RING:TRANSPORT ROLLER:EXIT

82.D1241664

TRANSPORT ROLL ER

89.D1241701

CONTACT IMAGE SENSOR:SERVICE: ASS'Y

90.D1241704

SHEET:GUIDE:CIS

78.D1241653 (x2)

PLAIN SHAFT BEA RING:TRANSPORT ROLLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

88.D1241694

KEYTOP:ORIGINAL :STOP

87.D1241682

COVER:SCANNER: RIGHT

U003 SCANNER

97.D1241716 (x3)

GASKET:SCANNE R

109.D1243852 (x2)

PLAIN SHAFT BEA RING:REGISTRATI ON ROLLER:SIDE PLATE

104.D1241764

SIDE FENCE:LEFT: ASS'Y

107.D1241774

DECAL:ORIGINAL: OPERATE:EXP

101.D1241722 (x2)

SHIELDING PLATE: COVER:SCANNER: REAR

110.D1245412

PCB:SIF:UNI:ASS'Y

92.D1241707

GUIDE PLATE:ORI GINAL:FRONT LO WER:REAR

106.D1241767

COVER:ORIGINAL: UPPER

96.D1241715

COVER:SCANNER: REAR

94.D1241709

GUIDE PLATE:ORI GINAL:REAR LOW ER:REAR

100.D1241721

TRANSPORT ROLL ER:URETHANE:EXI T

91.D1241706

GUIDE PLATE:ORI GINAL:FRONT LO WER:FRONT:EU/C HN

103.D1241743

ORIGINAL TABLE:E U/CHN

99.D1241719 (x4)

COIL SPRING:DRIV EN:7N

102.D1241728

PRESSURE PLATE :SHEET:ASS'Y

95.D1241713

EXPOSURE GLASS :CONTACT IMAGE SENSOR

93.D1241708

GUIDE PLATE:ORI GINAL:REAR LOW ER:FRONT

105.D1241765

SIDE FENCE:RIGH T:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

98.D1241717 (x2)

COVER:SCANNER: REAR MIDDLE

108.D1241777

DECAL:ORIGINAL: STOP:EXP

U003 SCANNER

111.H0043755

SQUARE BUSHING

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U003_S001 STOPPER:OPEN AND CLOSE:LEFT:UNIT

57.B1254902

BRACKET:OPEN A ND CLOSE:STOPP ER:LEFT

63.B1254912

SHAFT:CONTACT POINT:STOPPER

56.B1254901

STOPPER:OPEN A ND CLOSE:LEFT:U NIT

62.B1254910

TENSION SPRING: STOPPER

58.B1254904

STOPPER:OPEN A ND CLOSE:LEFT

64.B1254913

SHAFT:SPRING:ST OPPER

10.07200020E (x2)

RETAINING RING M2

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U003_S002 STOPPER:OPEN AND CLOSE:RIGHT:UNIT

60.B1254907

BRACKET:OPEN A ND CLOSE:STOPP ER:RIGHT

63.B1254912

SHAFT:CONTACT POINT:STOPPER

59.B1254906

STOPPER:OPEN A ND CLOSE:RIGHT: UNIT

62.B1254910

TENSION SPRING: STOPPER

61.B1254909

STOPPER:OPEN A ND CLOSE:RIGHT

10.07200020E (x2)

RETAINING RING M2

64.B1254913

SHAFT:SPRING:ST OPPER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U004_S001 D1242016

CARRIAGE:REAR:ASS'Y

U004.CARRIAGE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U004 CARRIAGE

6.04514008N (x3)

TAPPING SCREW: 4X8

21.D1242059

TENSION SPRING: ENCODER:SHEET

20.D1242058

BRACKET:SHEET: ENCODER

4.04513008N (x2)

TAPPING SCREW M3X8

25.D1242064

SYNCHRONOUS B ELT:UL

19.D1242057

SHEET:ENCODER

2.04503010N (x5)

TAPPING SCREW M3X10

3.04513006N (x102)

TAPPING SCREW 3X6

23.D1242062

BRACKET:PRESSU RE ROLLER:LOWE R

24.D1242063

BRACKET:PRESSU RE ROLLER:UPPE R

22.D1242060

SHAFT:PRESSURE ROLLER

13.08025296 (x16)

TAPPING SCREW M3X8

18.D1242056

GUIDE:ENCODER

15.AW020198 (x5)

PHOTOINTERRUP TOR:LG2A14NL1

1.04503008N (x3)

TAPPING SCREW M3X8

8.04514020N

TAPPING SCREW M4X20

16.AX040258

DC MOTOR:RISING TRAY:ASS'Y:1.92 W:BRUSH

5.04514006N (x3)

TAPPING SCREW 4X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

14.08050089

RETAINING RING M4

7.04514016N

TAPPING SCREW: 4X16

U004 CARRIAGE

27.D1242074

DC MOTOR:MAIN S CANNING:L:ASS'Y:

45.9W

32.D6702011

[A]

HEAD:UNIT:BLACK 201309-02 X/O

38.D6702112

[B]

HEAD:UNIT:COLO R 201309-03 X/O

31.D1243262

SPONGE:CLAMP

34.J0065423 (x2)

THERMISTOR:CAR RIAGE:PR

29.D1242076 (x3)

SPONGE:FFC:GUI DE

30.D1243261

CLAMP:TUBE:CAR RIAGE

26.D1242067

TIMING PULLEY:C ARRIAGE:T28

D6702010

[A]

HEAD:UNIT:BLACK

201309-02 X/O

D6702111

[B]

HEAD:UNIT:COLO R 201309-03 X/O

28.D1242075

COIL SPRING:PRE SSURE ROLLER:C ARRIAGE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U004_S001 CARRIAGE:REAR:ASS'Y

2.04503010N (x9)

TAPPING SCREW M3X10

9.04523008N (x2)

TAPPING SCREW M3X8

10.07200030E (x2)

RETAINING RING M3

17.D1242016

[A]

CARRIAGE:REAR: ASS'Y 201309-01 X/O

35.D1242196

BRACKET:POSITIO NING SENSOR 201301-07 X/O

36.D1242276

[B]

POSITIONING SEN SOR 201310-01

37.D1245462

PCB:HRB:ASS'Y

1.04503008N

TAPPING SCREW M3X8

12.07200060E (x2)

RETAINING RING M6

D1242015

[A]

CARRIAGE:REAR: ASS'Y 201309-01 X/O

D1242271

[B]

POSITIONING SEN SOR 201310-01

15.AW020198 (x2)

PHOTOINTERRUP TOR:LG2A14NL1

11.07200040E (x2)

RETAINING RING M4

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U005.MAINTENANCE RECOVERY SECTION

U005_S001 D1243505

MAINTENANCE RECOVERY: ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U005 MAINTENANCE RECOVERY SECTION

20.D6708301

FLUSHING LIQUID RECIEVER:SERVIC E PARTS:ASS'Y

13.D1246481

BRACKET:FIX:USE D DEVELPER

5.09513006N (x4)

SCREW - M3X6

18.D1246486

GUARD:GEAR:MAI NTENANCE

14.D1246482

JOINT:USELESS F LUID NOZZLE

16.D1246484

CAP:JOINT:USELE SS FLUID NOZZLE

15.D1246483

SEAL:JOINT:MAINT ENANCE

17.D1246485

TUBE:JOINT:MAIN TENANCE

8.11050723 (x2)

CLAMPS:WES-050 7

7.11050516 (x3)

CLAMP

19.D1246491

PIPE:MAINTENANC E:USED DEVELPE R

21.D6708401

TANK:FIX:WASTE FLUID:SERVICE PA RTS:ASS'Y

2.04513006N (x3)

TAPPING SCREW 3X6

23.J0174621 (x2)

END RING:TUBE:P UMP

12.D1246480

BRACKET:MAINTE NANCE

22.D6708501

TANK:WASTE FLUI D:SERVICE PARTS

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

3.04513008N (x2)

TAPPING SCREW M3X8

U005_S001 MAINTENANCE RECOVERY:ASS'Y

1.04503010N (x9)

TAPPING SCREW M3X10

23.J0174621

END RING:TUBE:P UMP

4.04523010N (x2)

BINDING SELF-TA PPING SCREW:3X 10

11.D1243505

MAINTENANCE RE COVERY:ASS'Y

10.AW020198 (x3)

PHOTOINTERRUP TOR:LG2A14NL1

9.54472681

SNAP RING

2.04513006N

TAPPING SCREW 3X6

6.11050511 (x3)

HARNESS CLAMP LWS-0306ZC

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U006 PAPER REGISTRATION

4.06230180E

SPRING PIN - 3X18 MM

7.07200080E

RETAINING RING M8

20.D1243854

COMPRESSION SP RING:REGISTRATI ON ROLLER

12.11050516 (x3)

CLAMP

2.04513006N (x50)

TAPPING SCREW 3X6

10.11050488 (x3)

HARNESS CLAMP

14.AA143823 (x6)

TAPPING SCREW

19.D1243851

REGISTRATION R OLLER:CERAMIC

5.07200040E (x9)

RETAINING RING M4

8.09543008N

SCREW - M3X8

1.04503008N (x4)

TAPPING SCREW M3X8

13.11050621

CLAMP - SB-2712

9.11050487 (x3)

HARNESS CLAMP

18.D0392935 (x18)

ROLLER:DRIVEN:F 3

3.04543006Q

TAPPING SCREW M3X6

15.AW020154

PHOTOINTERRUP TOR:ENTRANCE

16.AW020155

PHOTOINTERRUP TOR:PAPER SIZE SENSOR

11.11050511 (x2)

HARNESS CLAMP LWS-0306ZC

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

6.07200060E (x3)

RETAINING RING M6

17.AW020198

PHOTOINTERRUP TOR:LG2A14NL1

U006 PAPER REGISTRATION

26.D1243867

ENCODER:SENSO R:ASS'Y

25.D1243865

SYNCHRONOUS B ELT:60S1.5M305

21.D1243857

COLLAR:COMPRE SSION SPRING:RE GISTRATION ROLL ER

34.D1243918

SHAFT:PRESSURE RELEASE

40.D1243953 (x18)

PLAIN SHAFT BEA RING:ROLLER:TUR N

28.D1243912 (x18)

SHAFT:PRESSURE ROLLER

33.D1243917 (x9)

SHAFT:PRESSURE :ARM

32.D1243916 (x9)

HOLDER:ARM:PRE SSURE ROLLER

31.D1243915 (x18)

CAM:PRESSURE:R ELEASE

35.D1243921

SHAFT:GEAR:PRE SSURE RELEASE

37.D1243923

LEVER:PRESSURE RELEASE

24.D1243864

BRACKET:DC MOT OR:REGISTRATIO N

23.D1243861

DC MOTOR:REGIS TRATION:50W:BRU SH

27.D1243911 (x36)

ROLLER:PRESSUR E

22.D1243858

SPRING PLATE:RE GISTRATION ROLL ER

29.D1243913 (x18)

ARM:PRESSURE R OLLER

30.D1243914 (x18)

TORSION SPRING: PRESSURE

38.D1243924

GRIP:LEVER:PRES SURE RELEASE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

39.D1243925

GEAR:PRESSURE RELEASE:2

36.D1243922

GEAR:PRESSURE RELEASE:1

U006 PAPER REGISTRATION

51.J0171161

TIMING PULLEY:T RANSPORT ROLLE R:ASS'Y

47.GW010007

PHOTO REFLECTI ON SENSOR:EXIT

48.J0011168

SLIDER:TRANSPO RT ROLLER

49.J0012850

SLIDER:GEAR:PRE SSURE

50.J0012876

PLAIN SHAFT BEA RING:TRANSPORT ROLLER

46.D4474315

TENSION SPRING: TENSIONER

45.D1243965

SHEET:TRANSPOR T SUB-UNIT

43.D1243957

GUIDE PLATE:MAN UAL FEED:UPPER

42.D1243956

GUIDE PLATE:MAN UAL FEED:LOWER

44.D1243964

GUIDE PLATE:TUR N:INNER

41.D1243954

GUIDE PLATE:TUR N:OUTER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U007_S001 D1242800

PAPER SPOOL:ASS'Y

U007.PAPER FEED

U007_S003 D1242802

FLANGE:LEFT:ASS'Y

U007_S004 D1242601

GUIDE PLATE:REAR:ASS'Y

U007_S002 D1242801

FLANGE:RIGHT:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U007 PAPER FEED

11.08050089 (x18)

RETAINING RING M4

22.AF022155 (x5)

MIDDLE PAPER FE ED ROLLER

1.03603006N (x2)

SCREW - M3X6

23.AF031090

PAPER FEED ROL LER:FEED

17.54472681 (x4)

SNAP RING

18.AA080037 (x2)

BUSHING - 6MM

16.11050723 (x9)

CLAMPS:WES-050 7

2.04503008N (x4)

TAPPING SCREW M3X8

19.AA143859 (x4)

POSITIONING PIN

20.AB011490

GEAR - 38Z

3.04513006N (x55)

TAPPING SCREW 3X6

10.07403808 (x2)

BALL BEARING - 8 X16X5MM

8.07200040E (x4)

RETAINING RING M4

12.09513006N (x7)

SCREW - M3X6

21.AB012006

GEAR - 23Z

5.06320080G

PARALLEL KEY - 2 X8MM

14.11050511 (x6)

HARNESS CLAMP LWS-0306ZC

6.06320140G

PARALLEL PIN

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

13.09543008N (x2)

SCREW - M3X8

15.11050516 (x2)

CLAMP

U007 PAPER FEED

39.D1242653

GUIDE PLATE:LO WER FRONT

25.AW020172

PHOTOINTERRUP TOR:OVERFLOW:C T

37.D1242647 (x3)

TORSION SPRING: GUIDE:MANUAL FE ED:LOWER

40.D1242654

SHAFT:DRIVEN RO LLER

41.D1242655

SHAFT:CAM:DRIVE N ROLLER

43.D1242657 (x2)

COMPRESSION SP RING:FEED ROLLE R

44.D1242667 (x6)

BUSHING:IDLER

42.D1242656 (x2)

CAM:DRIVEN ROLL ER

26.AW020198 (x3)

PHOTOINTERRUP TOR:LG2A14NL1

38.D1242648

COVER:SENSOR:P APER FEED UNIT

24.AW020154 (x2)

PHOTOINTERRUP TOR:ENTRANCE

36.D1242646 (x3)

GUIDE PLATE:GUI DE PLATE:MANUA L FEED:LOWER

35.D1242645 (x3)

GUIDE:MANUAL FE ED:LOWER

29.B0102979

SWITCH PLATE

27.AW500012

PUSH SWITCH

32.D0394948

GEAR:REVERSE R OLLER

30.B2343418

GEAR - 24Z

33.D0746665

GEAR:JOINT:COLL ECTION BOTTLE:Z 65

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

31.D0392935 (x6)

ROLLER:DRIVEN:F 3

28.AX200320

ELECTROMAGNET IC CLUTCH

U007 PAPER FEED

47.D1242673

GUIDE PLATE:UPP ER FRONT

62.D1242721

GEAR:REWINDING :1

65.D1242724

GEAR:REWINDING :3

46.D1242672 (x2)

BUSHING:FEED R OLLER

49.D1242675

COVER:FEED ROL LER

53.D1242687

COVER:SENSOR:P APER END SENSO R

45.D1242671

SHAFT:FEED ROLL ER

48.D1242674 (x4)

GUIDE:MANUAL FE ED:UPPER

60.D1242715

SHAFT:DRIVE:2

52.D1242684

BRACKET:STOPPE R:MECHANICAL SP RING CLUTCH

59.D1242714 (x2)

ENCODER:PAPER VOLUME SENSOR

50.D1242680

BRACKET:PUSH S WITCH:REWINDIN G

51.D1242681

KEYTOP

54.D1242688

SHEET:PAPER EN D SENSOR

64.D1242723 (x2)

GEAR:REWINDING :2

66.D1242725

GEAR:LOCK:DRIVE

63.D1242722

SHAFT:DRIVE:3

57.D1242710

DC MOTOR:9.8W:A SS'Y:BRUSH

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

58.D1242713

SHAFT:DRIVE:1

61.D1242720

TORQUE LIMITER MECHANICAL CLU TCH

U007 PAPER FEED

74.D1242753

COVER:PAPER FE ED UNIT:LEFT

73.D1242752

COVER:PAPER FE ED UNIT:PAPER S POOL:LEFT

69.D1242731

SPACER:PAPER F EED

70.D1242732

COMPRESSION SP RING:PAPER FEED

83.D1242833

PARALLEL PIN:DIA 4X46

71.D1242750

COVER:PAPER FE ED UNIT:PAPER S POOL:RIGHT

87.G0703088 (x2)

SPACER:DEVELOP MENT ROLLER

90.M3551102

GEAR:DRIVE:NO.3

75.D1242754

COVER:PAPER FE ED UNIT:DRIVE SU B-UNIT

89.M0264581 (x2)

GEAR:IDLER:Z40

72.D1242751

COVER:PAPER FE ED UNIT:RIGHT

67.D1242726

TORSION SPRING: COVER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

68.D1242727

COVER:GEAR:PAP ER SPOOL

U007_S001 PAPER SPOOL:ASS'Y

7.06320160G

PARALLEL PIN-M2 X16

79.D1242811

GEAR:PAPER SPO OL

10.07403808

BALL BEARING - 8 X16X5MM

9.07200060E

RETAINING RING M6

80.D1242812

HOLDER:RADIAL B ALL BEARING:PAP ER SPOOL

76.D1242800

PAPER SPOOL:AS S'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U007_S002 FLANGE:RIGHT:ASS'Y

82.D1242832 (x3)

SPRING PLATE:FL ANGE

81.D1242831 (x3)

EXCHANGE PLATE :FLANGE

4.04523008N (x3)

TAPPING SCREW M3X8

77.D1242801

FLANGE:RIGHT:AS S'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U007_S003 FLANGE:LEFT:ASS'Y

85.D1242836

LEVER:LOCK:FLAN GE

81.D1242831 (x3)

EXCHANGE PLATE :FLANGE

78.D1242802

FLANGE:LEFT:ASS' Y

4.04523008N (x3)

TAPPING SCREW M3X8

82.D1242832 (x3)

SPRING PLATE:FL ANGE

84.D1242834

COLLAR:LOCK:FLA NGE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U007_S004 GUIDE PLATE:REAR:ASS'Y

86.D1243963 (x6)

GUIDE:GATE:OPTI ON

56.D1242698 (x2)

SPACER:PAPER F EED

8.07200040E (x2)

RETAINING RING M4

34.D1242601

GUIDE PLATE:REA R:ASS'Y

88.G1783678

SPACER:BRUSH R OLLER

55.D1242690 (x2)

GUIDE PLATE:REA R:UPPER LOWER

2.04503008N (x4)

TAPPING SCREW M3X8

3.04513006N (x2)

TAPPING SCREW 3X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U008 INK SUPPLY SECTION

13.D6703200

DEVELOPER SUPP LY SECTION:SERV ICE PARTS:ASS'Y

10.11050723

CLAMPS:WES-050 7

6.08025296

TAPPING SCREW M3X8

7.11050488 (x4)

HARNESS CLAMP

14.GX120004

DC SOLENOID:VAL VE

15.J0174050

LEVER:ACTUATOR UNIT:SUB-ASS'Y

1.03530040N (x2)

SCREW - M3X4

8.11050511

HARNESS CLAMP LWS-0306ZC

12.AW140015

TEMPERATURE & HUMIDITY SENSO R

2.04503008N

TAPPING SCREW M3X8

5.04523010N (x33)

BINDING SELF-TA PPING SCREW:3X 10

4.04513006N (x8)

TAPPING SCREW 3X6

3.04503010N (x12)

TAPPING SCREW M3X10

16.J0174621 (x10)

END RING:TUBE:P UMP

11.AW020198 (x6)

PHOTOINTERRUP TOR:LG2A14NL1

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

9.11050516 (x4)

CLAMP

U009_S001 D1244500

CUTTER UNIT

U009.PAPER EXIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U009_S001_S001 D1244588

SHUTTLE:CUTTER

U009_S001.CUTTER UNIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U009 PAPER EXIT

17.AB030763 (x2)

PULLEY - 30Z

10.09544008N (x2)

SCREW - M4X8

18.AG070513 (x2)

MAGNET CATCH

8.07200040E (x3)

RETAINING RING M4

14.AA082101 (x2)

BUSHING - 6X10X6

20.AW020172

PHOTOINTERRUP TOR:OVERFLOW:C T

28.D1244461

EXIT ROLLER

25.D1244453

GUIDE:EXIT

19.AW010147

PHOTO REFLECTI ON SENSOR

12.54472681 (x2)

SNAP RING

5.06220120E

SPRING PIN - 2X12 MM

4.04543006Q

TAPPING SCREW M3X6

1.04503008N (x6)

TAPPING SCREW M3X8

24.D1244451

GUIDE PLATE:LO WER:EXIT

23.D1244450

BRACKET:TORQU E LIMITER MECHA NICAL CLUTCH:PE EN

21.D1244446

SPRING:ROLLER C LUTCH:BRAKE

27.D1244459

COIL SPRING:TOR QUE LIMITER MEC HANICAL CLUTCH: DIA1.5

22.D1244447

CASE:CLUTCH/BR AKE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

26.D1244457

COVER:TORQUE L IMITER MECHANIC AL CLUTCH

3.04513006N (x13)

TAPPING SCREW 3X6

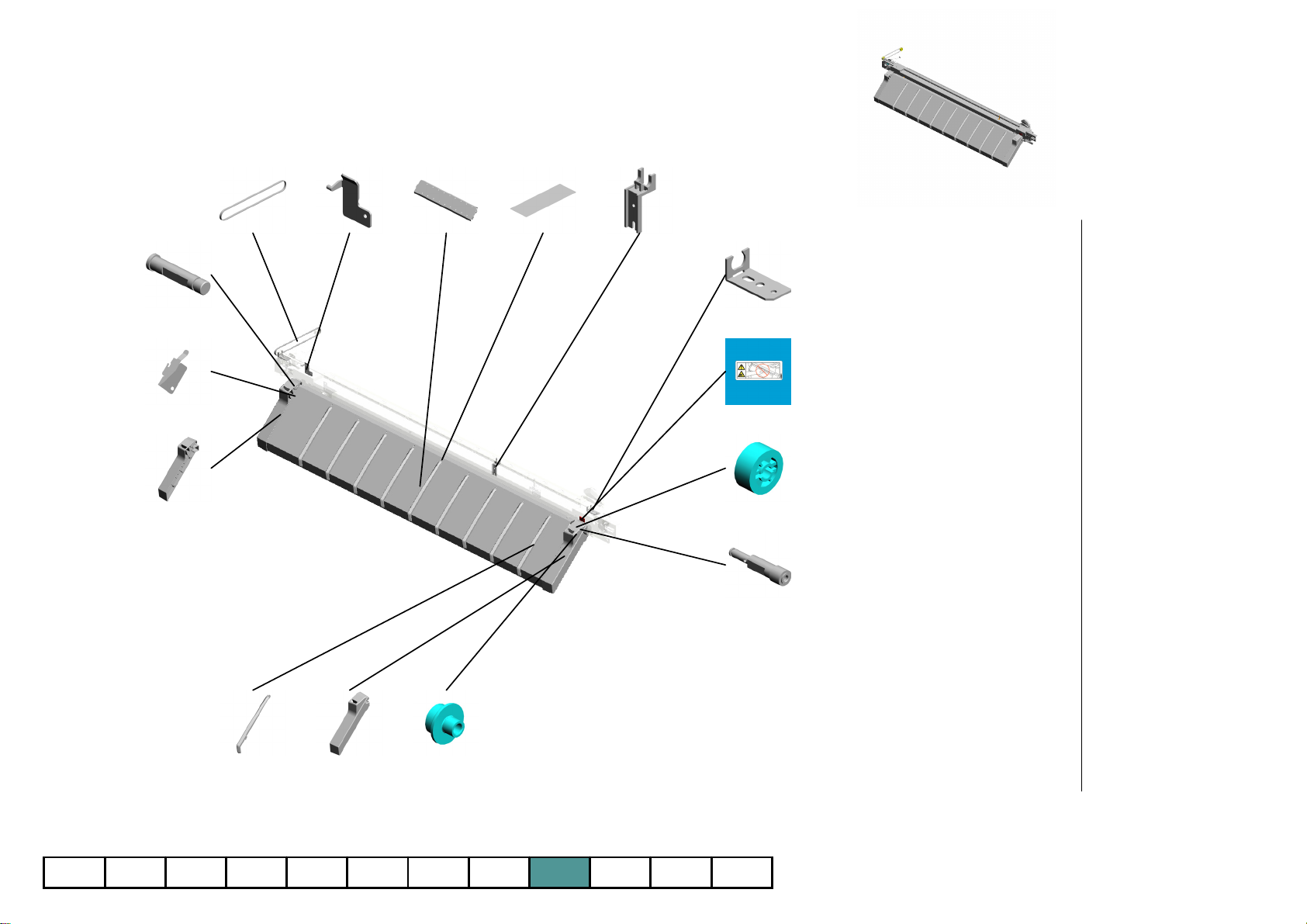

U009 PAPER EXIT

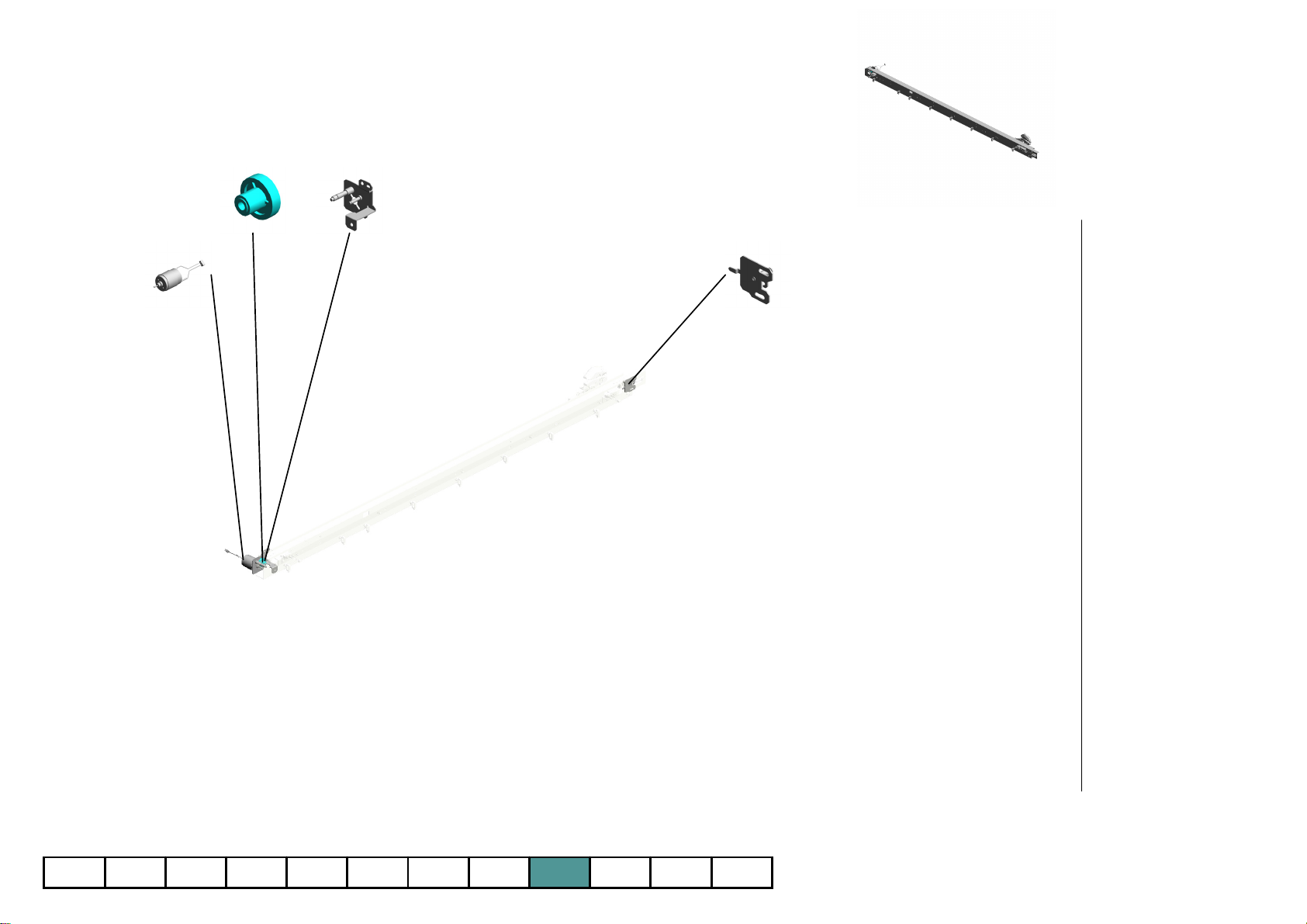

41.D1244483

SHAFT:GUIDE PLA TE:EXIT

35.D1244477

SPRING PLATE:EXI T:GUIDE 201304-01 X/O

40.D1244482

GUIDE PLATE:EXIT :LEFT

30.D1244463

SYNCHRONOUS B ELT:EXIT ROLLER

36.D1244474

HOLDER:SENSOR: EXIT

38.D1244480

GUIDE PLATE:EXIT :MIDDLE

37.D1244476 (x3)

SHEET:GUIDE PLA TE:EXIT

29.D1244462

PLAIN SHAFT BEA RING:EXIT ROLLE R

31.D1244464 (x2)

BRACKET:EXIT RO LLER

32.D1244466

DECAL:CAUTION:P APER EXIT SUB-U NIT

34.D1244468

GEAR:LOCK:GUID E PLATE:EXIT

43.D1244485 (x9)

GUIDE:EXIT:AUXILI ARY

39.D1244481

GUIDE PLATE:EXIT :RIGHT

33.D1244467

GEAR:CLUTCH/BR AKE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

42.D1244484

SHAFT:GUIDE PLA TE:EXIT:TORQUE L IMITER MECHANIC AL CLUTCH

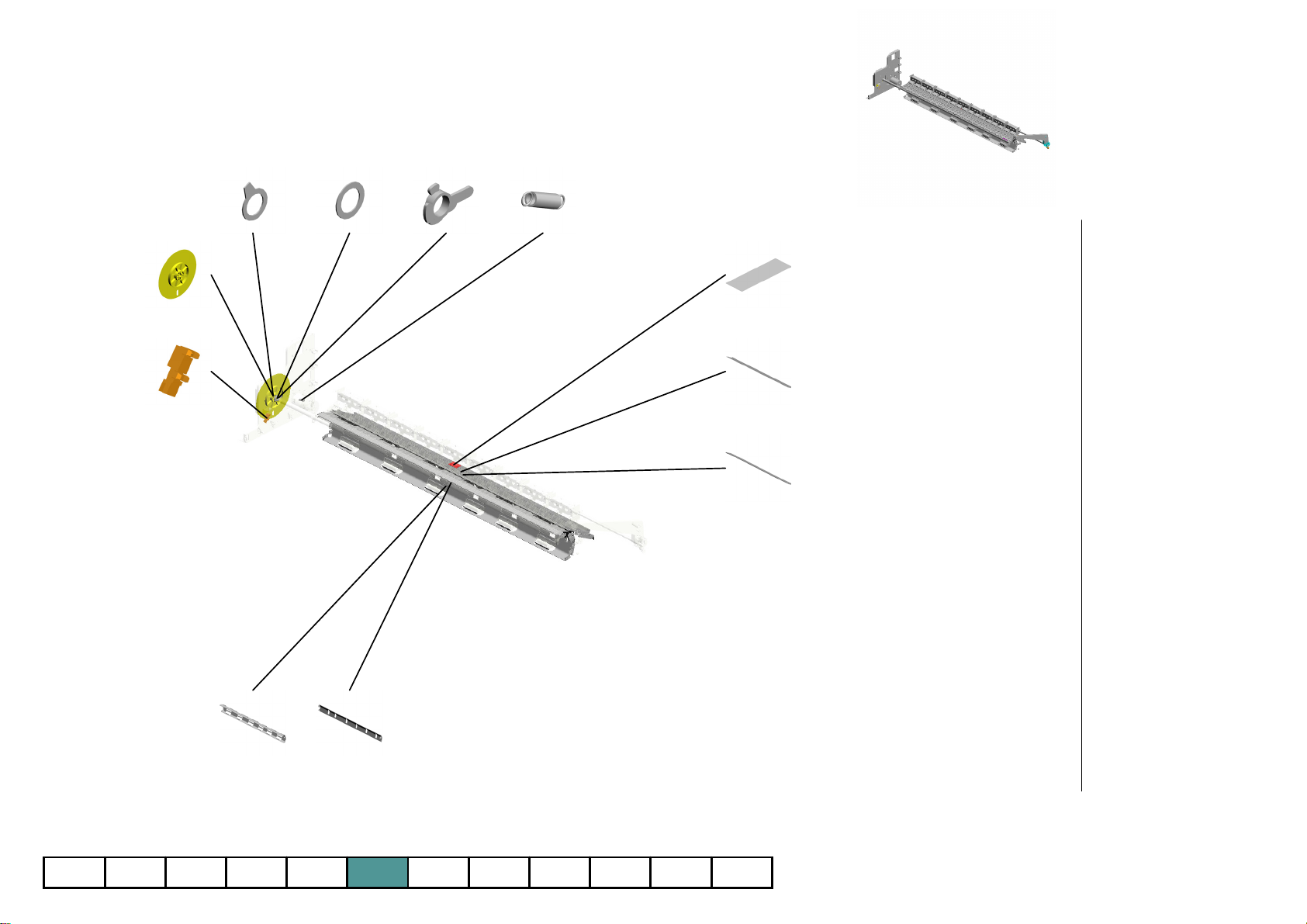

U009_S001 CUTTER UNIT

49.D1244553

RAIL:INNER

48.D1244552

RAIL:CUTTER

4.04543006Q (x9)

TAPPING SCREW M3X6

46.D1244533

SHUTTLE:INNER:R AIL:ASS'Y

45.D1244532

SHUTTLE:BASE:C UTTER:ASS'Y

44.D1244500

CUTTER UNIT

53.D1244558

SYNCHRONOUS B ELT:S2M

7.07200030E

RETAINING RING M3

15.AB017615

GEAR - 30Z/45Z

13.A5717700 (x2)

SCREW:SPRING W ASHER:M2.6X5

8.07200040E (x2)

RETAINING RING M4

52.D1244557

TENSION SPRING: CUTTER

16.AB030732

JOGGER PULLEY

54.D1244559 (x2)

CUSHION:CUTTER UNIT

3.04513006N (x4)

TAPPING SCREW 3X6

9.08010229 (x4)

SCREW - M2.3X8

11.11050487 (x8)

HARNESS CLAMP

6.07200025E

RETAINING RING M2.5

50.D1244555

GATE:CUTTER

51.D1244556

COIL SPRING:GAT E:CUTTER

55.D1244564 (x2)

MICRO SWITCH:C UTTER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U009_S001 CUTTER UNIT

56.D1244567

GEAR:Z37-17

59.D1244592

BRACKET:DC MOT OR

44.D1244500

CUTTER UNIT

58.D1244591

DC MOTOR:CUTTE R UNIT:ASS'Y:6.78 W:BRUSH

60.D1244597

BRACKET:PULLEY: DRIVEN

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U009_S001_S001 SHUTTLE:CUTTER

47.D1244588

[A]

SHUTTLE:CUTTER 201301-01 O/O

2.04503010N

TAPPING SCREW M3X10 201301-09

D1244534

[A]

SHUTTLE:CUTTER: ASS'Y 201301-01 O/O

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U010 ABSORB SECTION

7.D1244092

COVER:FAN:LOWE R

1.03540400N (x2)

SCREW:M4X40

3.09513006N (x27)

SCREW - M3X6

6.AX660012

FAN:BLOWER:DC2 4V:38.9W

8.D1244151

BRACKET:FAN:VA CUUM

2.04513006N (x25)

TAPPING SCREW 3X6

4.11050511 (x3)

HARNESS CLAMP LWS-0306ZC

5.11050723

CLAMPS:WES-050 7

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U011_S001 D1245403

PCB:MCU

U011.ELECTRICAL

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U011 ELECTRICAL

17.AX310049

TOTAL COUNTER: 7FIG:24V

9.11050511

HARNESS CLAMP LWS-0306ZC

3.08050100 (x2)

RETAINING RING M2.5

14.12042909

ROCKER SWITCH: A8GS-T1185KR

18.B1215018

CHOKE COIL

7.11050488 (x5)

HARNESS CLAMP

8.11050490 (x8)

HARNESS CLAMP IWS-2218

15.AA143796 (x4)

SCREW:M3X4.2

16.AA161167 (x4)

BUSHING:HDD

10.11050611 (x5)

SPACER KGPS-3.5 S-N(V0)

6.11050487 (x3)

HARNESS CLAMP

13.12042612 (x2)

MICRO SWITCH:D3 V-16506-3C25

19.B2291080

SAFETY SWITCH C USHION

11.11050699 (x3)

SPECER:SQ-12

4.11050193 (x4)

NYLON STUD

12.11050724

CLAMPS:WES-121 0

5.11050415

SPACER - 12.7MM

2.04543006Q (x4)

TAPPING SCREW M3X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

1.04513006N (x95)

TAPPING SCREW 3X6

20.B2385887 (x2)

INTERFACE PANE L

U011 ELECTRICAL

33.D1245607 (x20)

HOLDER:BASE:SH ORT:ELECTRICAL COMPONENTS SE CTION

40.D1245701

BRACKET:MAIN S WITCH

26.D1245141

POWER SUPPLY U NIT:236W:220-240V

25.D1242076 (x2)

SPONGE:FFC:GUI DE

31.D1245428

PCB:IMAGE PROC ESSING UNIT:ASS' Y

36.D1245667

BRACKET:HDD:LA RGE

29.D1245297

HDD:SERVICE

32.D1245484

PCB:MB:ASS'Y

24.D0895761

PCB:PC4200:RAW CARD-F:2GB:ASS'Y

41.G1786072

PCB:PC4200:RAW CARD-A:1GB

27.D1245220

PCB:CTL:EX2.5:AS S'Y

35.D1245627

BRACKET:CHOKE COIL

39.D1245693

BRACKET:SAFETY SWITCH:LEFT

37.D1245683

BRACKET:SAFETY SWITCH:RIGHT

38.D1245685 (x2)

LEVER:SAFETY S WITCH

28.D1245280

SD-CARD:EXP:ASS 'Y

23.D0465336

COVER:SD-CARD

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

22.D0145977

COVER:CONTROL BOARD:USB

21.D0145974

COVER:CONNECT OR:EFI

U011_S001 PCB:MCU

43.D1245403

[A]

PCB:MCU 201306-01

44.14077667

EEPROM:BR24T12 8-W 201310-03

D1245402

[A]

PCB:MCU 201306-01

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U012_S004 D1241902

RACK:LEFT:ASS'Y

U012.MAIN FRAME

U012_S002 D1241171

FRAME:STAND:LEFT:ASS'Y

U012_S003 D1241901

RACK:RIGHT:ASS'Y

U012_S001 D1241151

FRAME:STAND:RIGHT:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U012 MAIN FRAME

2.04503010N (x6)

TAPPING SCREW M3X10

25.D1241141 (x3)

GRIP:PLOTTER:LO WER

1.04503008N (x10)

TAPPING SCREW M3X8

15.11050724 (x6)

CLAMPS:WES-121 0

23.D1241055 (x4)

COVER:SIDE PLAT E:LOWER

22.D0747070

SEAL:FAN:DUCT:E XHAUST:OPTICAL WRITING UNIT

14.11050723

CLAMPS:WES-050 7

8.08050100 (x2)

RETAINING RING M2.5

10.11050487 (x5)

HARNESS CLAMP

13.11050516

CLAMP

4.04513006N (x36)

TAPPING SCREW 3X6

3.04503020N (x4)

TAPPING SCREW: M3X20

29.D1241181 (x2)

STAY:FRONT REA R:STAND

16.12042612

MICRO SWITCH:D3 V-16506-3C25

21.B2291080

SAFETY SWITCH C USHION

6.04543006Q (x26)

TAPPING SCREW M3X6

9.09655016N

TAPPING SCREW W/WASHER - M5X 16

24.D1241085

STAND:DOM

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

11.11050488 (x14)

HARNESS CLAMP

12.11050511 (x3)

HARNESS CLAMP LWS-0306ZC

U012 MAIN FRAME

51.D1244631

DECAL:STACK:RO D:1

47.D1244618

BRACKET:SIDE:RO D:LEFT

34.D1244602

SHEET:STACK:EXI T

41.D1244612 (x3)

ROD:STACK:MIDD LE

33.D1244601 (x2)

STACK:EXIT

38.D1244607 (x2)

LINK:ROD

39.D1244608 (x2)

CAP:ROD

32.D1241967 (x2)

STAY:MIDDLE:RAC K

45.D1244616 (x8)

CAP:ROD:LARGE

48.D1244619 (x2)

BRACKET:STACK: ROD:MIDDLE

49.D1244622 (x2)

BRACKET:POSITIO NING:ROD

35.D1244603

ROD:STACK:FRON T

36.D1244604 (x2)

ROD:STACK:UPPE R

44.D1244615 (x2)

GUIDE:SIDE:ROD:L EFT

43.D1244614 (x2)

GUIDE:SIDE:ROD: RIGHT

40.D1244609 (x2)

ROD:SIDE:PRESS FIT

46.D1244617

BRACKET:SIDE:RO D:RIGHT

37.D1244606 (x2)

BRACKET:ROD:TU RN

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

42.D1244613 (x2)

ROD:STACK:SIDE: FRONT

50.D1244623 (x2)

GUIDE:ROD:LOWE R

U012 MAIN FRAME

65.G0205626

PUSH SWITCH

62.D1245714

CUSHION:PRE:SE NSOR

60.D1245712

BRACKET:PRE:SE NSOR:COVER

61.D1245713

LEVER:PRE:SENS OR:COVER

63.D1245718

CUSHION:LEVER:P RE:SENSOR

59.D1245635

COVER:MOTOR:R EGISTRATION

64.D1245721

COVER:HARNESS: MAIN SWITCH

58.D1244638

DECAL:STACK:SET :CAUTION

57.D1244637

DECAL:STACK:RO D:CAUTION

52.D1244632

DECAL:STACK:RO D:2

54.D1244634

DECAL:STACK:GUI DE:1

53.D1244633

DECAL:STACK:RO D:3

56.D1244636

DECAL:STACK:GUI DE:3

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

55.D1244635

DECAL:STACK:GUI DE:2

U012_S001 FRAME:STAND:RIGHT:ASS'Y

66.G5221152 (x10)

FLANGED HEXAG ONAL HEAD BOLT: FIX:BRACKET

17.AA143547 (x2)

HEXAGONAL BOLT :M12X80

26.D1241151

FRAME:STAND:RI GHT:ASS'Y

27.D1241160 (x2)

CAP:STAND

19.AH012038

CASTER:980N:DIA 50

7.07100120N (x2)

HEXAGONAL NUT: M12

20.AH012039

CASTER:STOPPER :980N:DIA50

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U012_S002 FRAME:STAND:LEFT:ASS'Y

27.D1241160 (x2)

CAP:STAND

66.G5221152 (x10)

FLANGED HEXAG ONAL HEAD BOLT: FIX:BRACKET

28.D1241171

FRAME:STAND:LE FT:ASS'Y

20.AH012039

CASTER:STOPPER :980N:DIA50

17.AA143547 (x2)

HEXAGONAL BOLT :M12X80

19.AH012038

CASTER:980N:DIA 50

7.07100120N (x2)

HEXAGONAL NUT: M12

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U012_S003 RACK:RIGHT:ASS'Y

67.G8221034 (x2)

CAP:PIPE:50X26

5.04514008N (x8)

TAPPING SCREW: 4X8

18.AH012014 (x2)

CASTER - 60KGF

30.D1241901

RACK:RIGHT:ASS' Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

U012_S004 RACK:LEFT:ASS'Y

67.G8221034 (x2)

CAP:PIPE:50X26

5.04514008N (x8)

TAPPING SCREW: 4X8

18.AH012014 (x2)

CASTER - 60KGF

31.D1241902

RACK:LEFT:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012

ACCESSORIES

1.04544008Q (x8)

TAPPING SCREW - M4X8

7.AA066681 (x4)

SPRING:ORIGINAL TRAY

13.D1241733 (x4)

GUIDE PLATE:GUIDE:ORIGINAL

2.05940080N (x42)

HEXAGONAL SET SCREW - M4X8

8.B0651374

CLOTH - DF EXPOSURE GLASS

14.D1241737 (x2)

COPY TRAY:UPPER

3.07030040N (x3)

SPRING WASHER:DIA4

9.B1321226 (x4)

HOLDER:STAND

15.D1241739 (x2)

ORIGINAL TRAY

4.11050774 (x2)

CLAMP:KS-15 BK

10.D1208867

DECAL:MAIN SWITCH:ON-STANDBY: EU

16.D1241741

HOLDER:ORIGINAL TRAY

5.11500432

POWER SUPPLY CODE:250V:10A:EU

11.D1241332

DECAL:LEVER:PRESSURE RELEASE

17.D1241972 (x2)

BRACKET:COUPLING

6.AA001564

PLATE:LOGOTYPE:RIC

12.D1241731 (x4)

GUIDE:ORIGINAL

18.D1243130

DECAL:CARTRIDGE:COLORED DISP LAY

19.D1243959

DECAL:PAPER SPOOL

20.D1243960

DECAL:FLANGE

21.D1243962

DECAL:REWINDING:SWITCH

22.D1246590

HOLDER:TANK:USED DEVELPER

23.D1246821

DECAL:MODEL NAME PLATE:RIC:EX P

24.D1291287

HOLDER:OPERATING INSTRUCTION S:BIOMASS:IG

ACCESSORIES

25.D1441396

HOLDER:EXPOSURE GLASS:IG:ASS' Y

1.52039502

Silicon Grease G-501

7.D1242250

PROOFING MATERIAL:CARRIAGE:BL ACK

201305-01

26.GA003264

DECAL:PS3:I-GRAY

2.A0239504

Test Chart OS-A1 (2 sheets/set)

8.D1249590

COUNTER:PCB:NOVITA-S5K

201305-04

3.B2299311

SPECIAL CLOTH 10PCS/BAG

201301-08

Special Tools

4.J0187520 (x10)

PIN:PREVENTFENCE:HEAD

201301-04

5.J0254685 (x5)

TUBE:COUPLING

201301-10

6.D1242251

PROOFING MATERIAL:CARRIAGE:C OLOR

201304-02 X/O

Exclusive Parts

Number Part Name Group ID

Special Tools 152039502 Silicon Grease G-501 U003 2353531803 WAVE WASHER

54472681 SNAP RING

AA143547 HEXAGONAL BOLT:M12X80

AA143823 TAPPING SCREW

AA143859 POSITIONING PIN

AH012014 CASTER - 60KGF

U005_S001 9 U007 17 U009 12 Special Tools 2A0239504 Test Chart OS-A1 (2 sheets/set) U003 24A1636052 ORIGINAL TABLE BUSHING U003 25A4221356 PIN - 3X26MM U003 26A5663850 SENSOR SCREW U009_S001 13A5717700 SCREW:SPRING WASHER:M2.6X5 U003 27A8594141 PULLEY IDLER ACCESSORIES 6AA001564 PLATE:LOGOTYPE:RIC U003 28AA063416 SPRING - 3.4N U003 29AA063419 SPRING - 10N U003 30AA063444 SPRING:STOPPER:ORIGINAL ACCESSORIES 7AA066681 SPRING:ORIGINAL TRAY U007 18AA080037 BUSHING - 6MM U009 14AA082101 BUSHING - 6X10X6 U003 31AA082135 BUSHING - DIA4 U012_S001 17 U012_S002 17 U003 32AA143788 PIN:GUIDE PLATE:PAPER FEED U011 15AA143796 SCREW:M3X4.2 U003 33 U006 14 U003 34 U007 19 U011 16AA161167 BUSHING:HDD U007 20AB011490 GEAR - 38Z U007 21AB012006 GEAR - 23Z U009_S001 15AB017615 GEAR - 30Z/45Z U009_S001 16AB030732 JOGGER PULLEY U009 17AB030763 PULLEY - 30Z U007 22AF022155 MIDDLE PAPER FEED ROLLER U007 23AF031090 PAPER FEED ROLLER:FEED U009 18AG070513 MAGNET CATCH U012_S003 18 U012_S004 18

Number Part Name Group ID AH012038 CASTER:980N:DIA50

AH012039 CASTER:STOPPER:980N:DIA50

17ED1

AW020154 PHOTOINTERRUPTOR:ENTRANCE

E SENSOR

AW020172 PHOTOINTERRUPTOR:OVERFLO

W:CT

AW020198 PHOTOINTERRUPTOR:LG2A14NL

1

SOR

92W:BRUSH

S:RIGHT

S:LEFT

U012_S001 19 U012_S002 19 U012_S001 20 U012_S002 20 U003 35AW010107 PAPER FEED SENSOR U003 36AW010109 PHOTO REFIECTION SENSOR:PS1

U009 19AW010147 PHOTO REFLECTION SENSOR U006 15 U007 24 U006 16AW020155 PHOTOINTERRUPTOR:PAPER SIZ

U007 25 U009 20 U004 15 U004_S001 15 U005_S001 10 U006 17 U007 26 U008 11 U008 12AW140015 TEMPERATURE & HUMIDITY SEN

U007 27AW500012 PUSH SWITCH U003 37AW500022 PUSH SWITCH U004 16AX040258 DC MOTOR:RISING TRAY:ASS'Y:1.

U007 28AX200320 ELECTROMAGNETIC CLUTCH U011 17AX310049 TOTAL COUNTER:7FIG:24V U010 6AX660012 FAN:BLOWER:DC24V:38.9W U007 29B0102979 SWITCH PLATE ACCESSORIES 8B0651374 CLOTH - DF EXPOSURE GLASS U011 18B1215018 CHOKE COIL U002 5B1251474 RIVET:MM5 U003 38B1251727 SPRING PLATE:EXPOSURE GLAS

U003 39B1251728 SPRING PLATE:EXPOSURE GLAS

U003 40B1254732 STOPPER:ORIGINAL:UPPER

Exclusive Parts

Number Part Name Group ID

U003 41B1254742 SUPPORTING PLATE:COVER:ORI

GINAL

U003 42B1254751 SHAFT:DRIVEN U003 43B1254752 ROLLER:DRIVEN U003 44B1254761 SHAFT:CONTACT POINT:ORIGINA

L:UPPER

U003 45B1254825 SHEET:BLOCK LIGHT:1 U003 46B1254826 SHEET:BLOCK LIGHT:2 U003 47B1254827 SHEET:BLOCK LIGHT:3 U003 48B1254828 SHEET:BLOCK LIGHT:4 U003 49B1254829 SHEET:BLOCK LIGHT:5 U003 50B1254852 CASE:SPRING U003 51B1254853 PLATE:SPRING U003 52B1254870 STAND:PRESSURE RELEASE:LEF

T

U003 53B1254871 STAND:PRESSURE RELEASE:RIG

HT

U003 54B1254879 SHEET:SHIELD:PAPER SIZE SENS

OR

U003 55B1254884 COVER:ORIGINAL:SWITCH U003_S001 56B1254901 STOPPER:OPEN AND CLOSE:LEF

T:UNIT

U003_S001 57B1254902 BRACKET:OPEN AND CLOSE:STO

PPER:LEFT

U003_S001 58B1254904 STOPPER:OPEN AND CLOSE:LEF

T

U003_S002 59B1254906 STOPPER:OPEN AND CLOSE:RIG

HT:UNIT

U003_S002 60B1254907 BRACKET:OPEN AND CLOSE:STO

PPER:RIGHT

U003_S002 61B1254909 STOPPER:OPEN AND CLOSE:RIG

HT

B1254910 TENSION SPRING:STOPPER

B1254912 SHAFT:CONTACT POINT:STOPPE

R

B1254913 SHAFT:SPRING:STOPPER

U003_S001 62 U003_S002 62 U003_S001 63 U003_S002 63 U003_S001 64 U003_S002 64

Number Part Name Group ID

U003 65B1255683 GROUND WIRE:PRESSURE PLATE U003 66B1255688 GROUNDING WIRE:SCANNER UNI

T:1

ACCESSORIES 9B1321226 HOLDER:STAND

B2291080 SAFETY SWITCH CUSHION

RT ROLLER

P

T

HT

D0392935 ROLLER:DRIVEN:F3

E:Z65

AL WRITING UNIT

S'Y

U011 19 U012 21 U003 67B2293237 SPRING PLATE:EARTH:TRANSPO

Special Tools 3B2299311 SPECIAL CLOTH 10PCS/BAG U007 30B2343418 GEAR - 24Z U002_S001 6B2381534 LCD SPACER A U002_S001 7B2381535 LCD SPACER B U003 68B2381715 STEPPER MOTOR DC3.9V U011 20B2385887 INTERFACE PANEL U003 69B2864854 CUSHION:KEYTOP:ORIGINAL:STO

U003 70B2864966 BRACKET:PRESSURE PLATE:LEF

U003 71B2864967 BRACKET:PRESSURE PLATE:RIG

U003 72B3874311 ADJUSTING BRACKET U011 21D0145974 COVER:CONNECTOR:EFI U011 22D0145977 COVER:CONTROL BOARD:USB U006 18 U007 31 U007 32D0394948 GEAR:REVERSE ROLLER U011 23D0465336 COVER:SD-CARD U003 73D0465837 GROUND WIRE:BRAIDED CABLE U007 33D0746665 GEAR:JOINT:COLLECTION BOTTL

U012 22D0747070 SEAL:FAN:DUCT:EXHAUST:OPTIC

U011 24D0895761 PCB:PC4200:RAWCARD-F:2GB:AS

U003 74D0934653 LEVER:MICRO SWITCH U003 75D0934717 SHEET:BLOCK LIGHT:CIS:LEFT U003 76D0934718 SHEET:BLOCK LIGHT:CIS:RIGHT U003 77D0934734 DRIVEN ROLLER:ASS'Y

Exclusive Parts

Number Part Name Group ID

ACCESSORIES 10D1208867 DECAL:MAIN SWITCH:ON-STANDB

Y:EU

U012 23D1241055 COVER:SIDE PLATE:LOWER U012 24D1241085 STAND:DOM U012 25D1241141 GRIP:PLOTTER:LOWER U012_S001 26D1241151 FRAME:STAND:RIGHT:ASS'Y

D1241160 CAP:STAND

D CLOSE

SE

U012_S001 27 U012_S002 27 U012_S002 28D1241171 FRAME:STAND:LEFT:ASS'Y U012 29D1241181 STAY:FRONT REAR:STAND U001 7D1241251 COVER:UPPER U001 8D1241252 SEAL:COVER:UPPER U001 9D1241254 SEAL:COVER:UPPER RIGHT U001 10D1241261 COVER:FRONT:UPPER U001 11D1241262 COVER:SIDE:RIGHT UPPER U001 12D1241263 COVER:SIDE:LEFT UPPER U001 13D1241264 ROD:COVER:FRONT U001 14D1241271 COVER:FRONT:LOWER U001 15D1241272 COVER:SIDE:RIGHT LOWER U001 16D1241273 COVER:SIDE:LEFT LOWER U001 17D1241280 COVER:RIGHT:UPPER U001 18D1241285 COVER:RIGHT U001 19D1241286 COVER:USELESS FLUID NOZZLE U001 20D1241290 COVER:LEFT U001 21D1241295 COVER:INK CARTRIDGE U001 22D1241296 COVER:INK CARTRIDGE:OPEN AN

U001 23D1241300 COVER:RIGHT:REAR U001 24D1241305 COVER:LEFT:REAR U001 25D1241310 SUPPORTER:RIGHT U001 26D1241315 SUPPORTER:LEFT ACCESSORIES 11D1241332 DECAL:LEVER:PRESSURE RELEA

U001 27D1241334 DECAL:INK:COVER:EXP U002_S001 8D1241422 OPERATION PANEL:EU:ASS'Y U002_S001 9D1241442 PCB:LCDC:EU:FT

U002_S001 10D1241509 KEYTOP:POWER SOURCE

U002 11D1241510 COVER:OPERATION SUB-UNIT:IN

Number Part Name Group ID

NER

U003 78D1241653 PLAIN SHAFT BEARING:TRANSPO

RT ROLLER

U003 79D1241661 COIL SPRING:BELT TENSIONER U003 80D1241662 SYNCHRONOUS BELT:S1.5M U003 81D1241663 TIMING PULLEY:S1.5M:101 U003 82D1241664 TRANSPORT ROLLER U003 83D1241677 PLAIN SHAFT BEARING:TRANSPO

RT ROLLER:SIDE PLATE:EXIT

U003 84D1241678 PLAIN SHAFT BEARING:TRANSPO

RT ROLLER:EXIT

U003 85D1241679 COIL SPRING:DRIVEN:5N U003 86D1241681 COVER:SCANNER:LEFT U003 87D1241682 COVER:SCANNER:RIGHT U003 88D1241694 KEYTOP:ORIGINAL:STOP U003 89D1241701 CONTACT IMAGE SENSOR:SERVI

CE:ASS'Y

U003 90D1241704 SHEET:GUIDE:CIS U003 91D1241706 GUIDE PLATE:ORIGINAL:FRONT L

OWER:FRONT:EU/CHN

U003 92D1241707 GUIDE PLATE:ORIGINAL:FRONT L

OWER:REAR

U003 93D1241708 GUIDE PLATE:ORIGINAL:REAR LO

WER:FRONT

U003 94D1241709 GUIDE PLATE:ORIGINAL:REAR LO

WER:REAR

U003 95D1241713 EXPOSURE GLASS:CONTACT IMA

GE SENSOR

U003 96D1241715 COVER:SCANNER:REAR U003 97D1241716 GASKET:SCANNER U003 98D1241717 COVER:SCANNER:REAR MIDDLE U003 99D1241719 COIL SPRING:DRIVEN:7N U003 100D1241721 TRANSPORT ROLLER:URETHANE:

EXIT

U003 101D1241722 SHIELDING PLATE:COVER:SCANN

ER:REAR

U003 102D1241728 PRESSURE PLATE:SHEET:ASS'Y ACCESSORIES 12D1241731 GUIDE:ORIGINAL

Exclusive Parts

Number Part Name Group ID

ACCESSORIES 13D1241733 GUIDE PLATE:GUIDE:ORIGINAL ACCESSORIES 14D1241737 COPY TRAY:UPPER ACCESSORIES 15D1241739 ORIGINAL TRAY ACCESSORIES 16D1241741 HOLDER:ORIGINAL TRAY U003 103D1241743 ORIGINAL TABLE:EU/CHN U003 104D1241764 SIDE FENCE:LEFT:ASS'Y U003 105D1241765 SIDE FENCE:RIGHT:ASS'Y U003 106D1241767 COVER:ORIGINAL:UPPER U003 107D1241774 DECAL:ORIGINAL:OPERATE:EXP U003 108D1241777 DECAL:ORIGINAL:STOP:EXP U012_S003 30D1241901 RACK:RIGHT:ASS'Y U012_S004 31D1241902 RACK:LEFT:ASS'Y U012 32D1241967 STAY:MIDDLE:RACK ACCESSORIES 17D1241972 BRACKET:COUPLING

U004_S001 17D1242016 CARRIAGE:REAR:ASS'Y

U004 18D1242056 GUIDE:ENCODER U004 19D1242057 SHEET:ENCODER U004 20D1242058 BRACKET:SHEET:ENCODER U004 21D1242059 TENSION SPRING:ENCODER:SHE

ET

U004 22D1242060 SHAFT:PRESSURE ROLLER U004 23D1242062 BRACKET:PRESSURE ROLLER:LO

WER

U004 24D1242063 BRACKET:PRESSURE ROLLER:UP

PER

U004 25D1242064 SYNCHRONOUS BELT:UL U004 26D1242067 TIMING PULLEY:CARRIAGE:T28 U004 27D1242074 DC MOTOR:MAIN SCANNING:L:AS

S'Y:45.9W

U004 28D1242075 COIL SPRING:PRESSURE ROLLER

:CARRIAGE

D1242076 SPONGE:FFC:GUIDE

BLACK

COLOR

U004 29 U011 25 U004_S001 35D1242196 BRACKET:POSITIONING SENSOR Special Tools 7D1242250 PROOFING MATERIAL:CARRIAGE:

Special Tools 6D1242251 PROOFING MATERIAL:CARRIAGE:

Number Part Name Group ID

U004_S001 36D1242276 POSITIONING SENSOR

U007_S004 34D1242601 GUIDE PLATE:REAR:ASS'Y U007 35D1242645 GUIDE:MANUAL FEED:LOWER U007 36D1242646 GUIDE PLATE:GUIDE PLATE:MAN

UAL FEED:LOWER

U007 37D1242647 TORSION SPRING:GUIDE:MANUAL

FEED:LOWER

U007 38D1242648 COVER:SENSOR:PAPER FEED UN

IT

U007 39D1242653 GUIDE PLATE:LOWER FRONT U007 40D1242654 SHAFT:DRIVEN ROLLER U007 41D1242655 SHAFT:CAM:DRIVEN ROLLER U007 42D1242656 CAM:DRIVEN ROLLER U007 43D1242657 COMPRESSION SPRING:FEED RO

LLER

U007 44D1242667 BUSHING:IDLER U007 45D1242671 SHAFT:FEED ROLLER U007 46D1242672 BUSHING:FEED ROLLER U007 47D1242673 GUIDE PLATE:UPPER FRONT U007 48D1242674 GUIDE:MANUAL FEED:UPPER U007 49D1242675 COVER:FEED ROLLER U007 50D1242680 BRACKET:PUSH SWITCH:REWIND

ING

U007 51D1242681 KEYTOP U007 52D1242684 BRACKET:STOPPER:MECHANICA

L SPRING CLUTCH

U007 53D1242687 COVER:SENSOR:PAPER END SEN

SOR

U007 54D1242688 SHEET:PAPER END SENSOR U007_S004 55D1242690 GUIDE PLATE:REAR:UPPER LOW

ER

U007_S004 56D1242698 SPACER:PAPER FEED U007 57D1242710 DC MOTOR:9.8W:ASS'Y:BRUSH U007 58D1242713 SHAFT:DRIVE:1 U007 59D1242714 ENCODER:PAPER VOLUME SENS

OR

U007 60D1242715 SHAFT:DRIVE:2 U007 61D1242720 TORQUE LIMITER MECHANICAL C

Exclusive Parts

Number Part Name Group ID

LUTCH

U007 62D1242721 GEAR:REWINDING:1 U007 63D1242722 SHAFT:DRIVE:3 U007 64D1242723 GEAR:REWINDING:2 U007 65D1242724 GEAR:REWINDING:3 U007 66D1242725 GEAR:LOCK:DRIVE U007 67D1242726 TORSION SPRING:COVER U007 68D1242727 COVER:GEAR:PAPER SPOOL U007 69D1242731 SPACER:PAPER FEED U007 70D1242732 COMPRESSION SPRING:PAPER F

EED

U007 71D1242750 COVER:PAPER FEED UNIT:PAPER

SPOOL:RIGHT

U007 72D1242751 COVER:PAPER FEED UNIT:RIGHT U007 73D1242752 COVER:PAPER FEED UNIT:PAPER

SPOOL:LEFT

U007 74D1242753 COVER:PAPER FEED UNIT:LEFT U007 75D1242754 COVER:PAPER FEED UNIT:DRIVE

SUB-UNIT

U007_S001 76D1242800 PAPER SPOOL:ASS'Y U007_S002 77D1242801 FLANGE:RIGHT:ASS'Y U007_S003 78D1242802 FLANGE:LEFT:ASS'Y U007_S001 79D1242811 GEAR:PAPER SPOOL U007_S001 80D1242812 HOLDER:RADIAL BALL BEARING:P

APER SPOOL

D1242831 EXCHANGE PLATE:FLANGE

D1242832 SPRING PLATE:FLANGE

SPLAY

U007_S002 81 U007_S003 81 U007_S002 82 U007_S003 82 U007 83D1242833 PARALLEL PIN:DIA4X46 U007_S003 84D1242834 COLLAR:LOCK:FLANGE U007_S003 85D1242836 LEVER:LOCK:FLANGE ACCESSORIES 18D1243130 DECAL:CARTRIDGE:COLORED DI

U004 30D1243261 CLAMP:TUBE:CARRIAGE U004 31D1243262 SPONGE:CLAMP U005_S001 11D1243505 MAINTENANCE RECOVERY:ASS'Y U006 19D1243851 REGISTRATION ROLLER:CERAMI

Number Part Name Group ID

C

U003 109D1243852 PLAIN SHAFT BEARING:REGISTR

ATION ROLLER:SIDE PLATE

U006 20D1243854 COMPRESSION SPRING:REGISTR

ATION ROLLER

U006 21D1243857 COLLAR:COMPRESSION SPRING:

REGISTRATION ROLLER

U006 22D1243858 SPRING PLATE:REGISTRATION R

OLLER

U006 23D1243861 DC MOTOR:REGISTRATION:50W:B

RUSH

U006 24D1243864 BRACKET:DC MOTOR:REGISTRAT

ION

U006 25D1243865 SYNCHRONOUS BELT:60S1.5M30

5

U006 26D1243867 ENCODER:SENSOR:ASS'Y U006 27D1243911 ROLLER:PRESSURE U006 28D1243912 SHAFT:PRESSURE ROLLER U006 29D1243913 ARM:PRESSURE ROLLER U006 30D1243914 TORSION SPRING:PRESSURE U006 31D1243915 CAM:PRESSURE:RELEASE U006 32D1243916 HOLDER:ARM:PRESSURE ROLLE

R

U006 33D1243917 SHAFT:PRESSURE:ARM U006 34D1243918 SHAFT:PRESSURE RELEASE U006 35D1243921 SHAFT:GEAR:PRESSURE RELEAS

E

U006 36D1243922 GEAR:PRESSURE RELEASE:1 U006 37D1243923 LEVER:PRESSURE RELEASE U006 38D1243924 GRIP:LEVER:PRESSURE RELEAS

E

U006 39D1243925 GEAR:PRESSURE RELEASE:2 U006 40D1243953 PLAIN SHAFT BEARING:ROLLER:T

URN

U006 41D1243954 GUIDE PLATE:TURN:OUTER U006 42D1243956 GUIDE PLATE:MANUAL FEED:LOW

ER

U006 43D1243957 GUIDE PLATE:MANUAL FEED:UPP

Exclusive Parts

Number Part Name Group ID

ER

ACCESSORIES 19D1243959 DECAL:PAPER SPOOL ACCESSORIES 20D1243960 DECAL:FLANGE ACCESSORIES 21D1243962 DECAL:REWINDING:SWITCH U007_S004 86D1243963 GUIDE:GATE:OPTION U006 44D1243964 GUIDE PLATE:TURN:INNER U006 45D1243965 SHEET:TRANSPORT SUB-UNIT U010 7D1244092 COVER:FAN:LOWER U010 8D1244151 BRACKET:FAN:VACUUM U009 21D1244446 SPRING:ROLLER CLUTCH:BRAKE U009 22D1244447 CASE:CLUTCH/BRAKE U009 23D1244450 BRACKET:TORQUE LIMITER MEC

HANICAL CLUTCH:PEEN

U009 24D1244451 GUIDE PLATE:LOWER:EXIT U009 25D1244453 GUIDE:EXIT U009 26D1244457 COVER:TORQUE LIMITER MECHA

NICAL CLUTCH

U009 27D1244459 COIL SPRING:TORQUE LIMITER M

ECHANICAL CLUTCH:DIA1.5

U009 28D1244461 EXIT ROLLER U009 29D1244462 PLAIN SHAFT BEARING:EXIT ROL

LER

U009 30D1244463 SYNCHRONOUS BELT:EXIT ROLL

ER

U009 31D1244464 BRACKET:EXIT ROLLER U009 32D1244466 DECAL:CAUTION:PAPER EXIT SU

B-UNIT

U009 33D1244467 GEAR:CLUTCH/BRAKE U009 34D1244468 GEAR:LOCK:GUIDE PLATE:EXIT U009 36D1244474 HOLDER:SENSOR:EXIT U009 37D1244476 SHEET:GUIDE PLATE:EXIT U009 35D1244477 SPRING PLATE:EXIT:GUIDE U009 38D1244480 GUIDE PLATE:EXIT:MIDDLE U009 39D1244481 GUIDE PLATE:EXIT:RIGHT U009 40D1244482 GUIDE PLATE:EXIT:LEFT U009 41D1244483 SHAFT:GUIDE PLATE:EXIT U009 42D1244484 SHAFT:GUIDE PLATE:EXIT:TORQU

E LIMITER MECHANICAL CLUTCH

Number Part Name Group ID

U009 43D1244485 GUIDE:EXIT:AUXILIARY U009_S001 44D1244500 CUTTER UNIT U009_S001 45D1244532 SHUTTLE:BASE:CUTTER:ASS'Y U009_S001 46D1244533 SHUTTLE:INNER:RAIL:ASS'Y U009_S001 48D1244552 RAIL:CUTTER U009_S001 49D1244553 RAIL:INNER U009_S001 50D1244555 GATE:CUTTER U009_S001 51D1244556 COIL SPRING:GATE:CUTTER U009_S001 52D1244557 TENSION SPRING:CUTTER U009_S001 53D1244558 SYNCHRONOUS BELT:S2M U009_S001 54D1244559 CUSHION:CUTTER UNIT U009_S001 55D1244564 MICRO SWITCH:CUTTER U009_S001 56D1244567 GEAR:Z37-17 U009_S001_S001 47D1244588 SHUTTLE:CUTTER U009_S001 58D1244591 DC MOTOR:CUTTER UNIT:ASS'Y:6

.78W:BRUSH

U009_S001 59D1244592 BRACKET:DC MOTOR U009_S001 60D1244597 BRACKET:PULLEY:DRIVEN U012 33D1244601 STACK:EXIT U012 34D1244602 SHEET:STACK:EXIT U012 35D1244603 ROD:STACK:FRONT U012 36D1244604 ROD:STACK:UPPER U012 37D1244606 BRACKET:ROD:TURN U012 38D1244607 LINK:ROD U012 39D1244608 CAP:ROD U012 40D1244609 ROD:SIDE:PRESS FIT U012 41D1244612 ROD:STACK:MIDDLE U012 42D1244613 ROD:STACK:SIDE:FRONT U012 43D1244614 GUIDE:SIDE:ROD:RIGHT U012 44D1244615 GUIDE:SIDE:ROD:LEFT U012 45D1244616 CAP:ROD:LARGE U012 46D1244617 BRACKET:SIDE:ROD:RIGHT U012 47D1244618 BRACKET:SIDE:ROD:LEFT U012 48D1244619 BRACKET:STACK:ROD:MIDDLE U012 49D1244622 BRACKET:POSITIONING:ROD U012 50D1244623 GUIDE:ROD:LOWER U012 51D1244631 DECAL:STACK:ROD:1 U012 52D1244632 DECAL:STACK:ROD:2

Exclusive Parts

Number Part Name Group ID

U012 53D1244633 DECAL:STACK:ROD:3 U012 54D1244634 DECAL:STACK:GUIDE:1 U012 55D1244635 DECAL:STACK:GUIDE:2 U012 56D1244636 DECAL:STACK:GUIDE:3 U012 57D1244637 DECAL:STACK:ROD:CAUTION U012 58D1244638 DECAL:STACK:SET:CAUTION U011 26D1245141 POWER SUPPLY UNIT:236W:220-2

40V

U011 27D1245220 PCB:CTL:EX2.5:ASS'Y U011 28D1245280 SD-CARD:EXP:ASS'Y U011 29D1245297 HDD:SERVICE U011_S001 43D1245403 PCB:MCU U003 110D1245412 PCB:SIF:UNI:ASS'Y U011 31D1245428 PCB:IMAGE PROCESSING UNIT:A

SS'Y

U004_S001 37D1245462 PCB:HRB:ASS'Y U011 32D1245484 PCB:MB:ASS'Y U011 33D1245607 HOLDER:BASE:SHORT:ELECTRIC

AL COMPONENTS SECTION

U011 35D1245627 BRACKET:CHOKE COIL U012 59D1245635 COVER:MOTOR:REGISTRATION U011 36D1245667 BRACKET:HDD:LARGE U011 37D1245683 BRACKET:SAFETY SWITCH:RIGHT U011 38D1245685 LEVER:SAFETY SWITCH U011 39D1245693 BRACKET:SAFETY SWITCH:LEFT U011 40D1245701 BRACKET:MAIN SWITCH U012 60D1245712 BRACKET:PRE:SENSOR:COVER U012 61D1245713 LEVER:PRE:SENSOR:COVER U012 62D1245714 CUSHION:PRE:SENSOR U012 63D1245718 CUSHION:LEVER:PRE:SENSOR U012 64D1245721 COVER:HARNESS:MAIN SWITCH U005 12D1246480 BRACKET:MAINTENANCE U005 13D1246481 BRACKET:FIX:USED DEVELPER U005 14D1246482 JOINT:USELESS FLUID NOZZLE U005 15D1246483 SEAL:JOINT:MAINTENANCE U005 16D1246484 CAP:JOINT:USELESS FLUID NOZZ

LE

U005 17D1246485 TUBE:JOINT:MAINTENANCE

Number Part Name Group ID

U005 18D1246486 GUARD:GEAR:MAINTENANCE U005 19D1246491 PIPE:MAINTENANCE:USED DEVEL

PER

U001 28D1246580 DECAL:USED INK ACCESSORIES 22D1246590 HOLDER:TANK:USED DEVELPER ACCESSORIES 23D1246821 DECAL:MODEL NAME PLATE:RIC:

EXP

Special Tools 8D1249590 COUNTER:PCB:NOVITA-S5K ACCESSORIES 24D1291287 HOLDER:OPERATING INSTRUCTI

ONS:BIOMASS:IG

U002_S001 12D1291420 LCD:TFT:WVGA:LED:MV U002_S001 13D1291421 TOUCH PANEL:WVGA:MV U002_S001 14D1291430 CABLE:FFC:OPR U002_S001 15D1291431 CABLE:FFC:OPL U002_S001 16D1291458 PCB:OP-R:ASS'Y U002_S001 17D1291459 PCB:OP-L:ASS'Y U002_S001 18D1291502 KEYTOP:START U002_S001 19D1291503 KEYTOP:STOP U002_S001 20D1291506 KEYTOP:RESET SWITCH U002_S001 21D1291508 KEYTOP:HOME U002_S001 22D1291509 KEYTOP:LEFT U002_S001 23D1291510 LENS:FRONT U002_S001 24D1291513 SHADEING PLATE:TOUCH PANEL U002_S001 25D1291532 COVER:UPPER:EU/CHN/TWN U002_S001 26D1291534 KEYTOP:10KEY:EU

U002_S001 28D1291539 KEYTOP:POWER SOURCE:BA

U002_S001 27D1291547 SHEET:JOURNAL:BLANK ACCESSORIES 25D1441396 HOLDER:EXPOSURE GLASS:IG:AS

S'Y

U006 46D4474315 TENSION SPRING:TENSIONER

U004 32D6702011 HEAD:UNIT:BLACK U004 38D6702112 HEAD:UNIT:COLOR

U008 13D6703200 DEVELOPER SUPPLY SECTION:S

ERVICE PARTS:ASS'Y

U005 20D6708301 FLUSHING LIQUID RECIEVER:SER

VICE PARTS:ASS'Y

U005 21D6708401 TANK:FIX:WASTE FLUID:SERVICE

PARTS:ASS'Y

Number Part Name Group ID

U005 22D6708501 TANK:WASTE FLUID:SERVICE PA

RTS

G0205626 PUSH SWITCH

G5221152 FLANGED HEXAGONAL HEAD BOL

T:FIX:BRACKET

G8221034 CAP:PIPE:50X26

T

RT ROLLER

LER:ASS'Y

Y

J0174621 END RING:TUBE:PUMP

U001 29 U012 65 U007 87G0703088 SPACER:DEVELOPMENT ROLLER U007_S004 88G1783678 SPACER:BRUSH ROLLER U011 41G1786072 PCB:PC4200:RAWCARD-A:1GB U012_S001 66 U012_S002 66 U012_S003 67 U012_S004 67 ACCESSORIES 26GA003264 DECAL:PS3:I-GRAY U006 47GW010007 PHOTO REFLECTION SENSOR:EXI

U008 14GX120004 DC SOLENOID:VALVE U003 111H0043755 SQUARE BUSHING U006 48J0011168 SLIDER:TRANSPORT ROLLER U006 49J0012850 SLIDER:GEAR:PRESSURE U006 50J0012876 PLAIN SHAFT BEARING:TRANSPO

U004 34J0065423 THERMISTOR:CARRIAGE:PR U006 51J0171161 TIMING PULLEY:TRANSPORT ROL

U008 15J0174050 LEVER:ACTUATOR UNIT:SUB-ASS'

U005 23 U005_S001 23 U008 16 Special Tools 4J0187520 PIN:PREVENTFENCE:HEAD Special Tools 5J0254685 TUBE:COUPLING U007 89M0264581 GEAR:IDLER:Z40 U007 90M3551102 GEAR:DRIVE:NO.3

Exclusive Parts

Standard Parts

03530040N

SCREW - M3X4

04504010N

TAPPING SCREW:M4X10

04514016N

TAPPING SCREW:4X16

03540400N

SCREW:M4X40

04513006N

TAPPING SCREW - 3X6

04514020N

TAPPING SCREW - M4X20

03603006N

SCREW - M3X6

04513008N

TAPPING SCREW - M3X8

04523008N

TAPPING SCREW - M3X8

04503008N

TAPPING SCREW - M3X8

04513025N

TAPPING SCREW:M3X25

04523010N

BINDING SELF-TAPPING SC REW:3X10

04503010N

TAPPING SCREW - M3X10

04514006N

TAPPING SCREW - 4X6

04543006Q

TAPPING SCREW - M3X6

04503020N

TAPPING SCREW:M3X20

04514008N

TAPPING SCREW:4X8

04543008Q

TAPPING SCREW:3X8

04504008N

TAPPING SCREW - M4X8

04514010N

TAPPING SCREW:4X10

04544008Q

TAPPING SCREW - M4X8

05940080N

HEXAGONAL SET SCREW M4X8

06220120E

SPRING PIN - 2X12MM

06230180E

SPRING PIN - 3X18MM

06320080G

PARALLEL KEY - 2X8MM

06320140G

PARALLEL PIN

06320160G

PARALLEL PIN-M2X16

07030030N

SPRING WASHER:DIA3

Standard Parts

07030040N

SPRING WASHER:DIA4

07200080E

RETAINING RING - M8

09513006N

SCREW - M3X6

07100120N

HEXAGONAL NUT:M12

07200100E

RETAINING RING - M10

09543006N

SCREW - M3X6

07200020E

RETAINING RING - M2

07403808

BALL BEARING - 8X16X5MM

09543008N

SCREW - M3X8

07200025E

RETAINING RING - M2.5

08010229

SCREW - M2.3X8

09544008N

SCREW - M4X8

07200030E

RETAINING RING - M3

08025296

TAPPING SCREW - M3X8

09655016N

TAPPING SCREW W/WASHE R - M5X16

07200040E

RETAINING RING - M4

08050089

RETAINING RING - M4

11050192

LOCKING SUPPORT

07200060E

RETAINING RING - M6

08050100

RETAINING RING - M2.5

11050193

NYLON STUD

11050415

SPACER - 12.7MM

11050487

HARNESS CLAMP

11050488

HARNESS CLAMP

11050490

HARNESS CLAMP - IWS-2218

11050511

HARNESS CLAMP - LWS-030 6ZC

11050516

CLAMP

11050598

CLAMP:LWSS-1N

Standard Parts

11050611

SPACER KGPS-3.5S-N(V0)

12042466

MICRO SWITCH - V-16506-1C 25

11050621

CLAMP - SB-2712

12042612

MICRO SWITCH:D3V-16506-3 C25

11050699

SPECER:SQ-12

12042909

ROCKER SWITCH:A8GS-T11 85KR

11050723

CLAMPS:WES-0507

14077667

EEPROM:BR24T128-W

11050724

CLAMPS:WES-1210

11050774

CLAMP:KS-15 BK

11500432

POWER SUPPLY CODE:250V :10A:EU

Number Part Name Num Group ID

U005_S001 11D1243505 MAINTENANCE RECOVERY:

1

ASS'Y

U005 20D6708301 FLUSHING LIQUID RECIEVE

1

R:SERVICE PARTS:ASS'Y

U005 22D6708501 TANK:WASTE FLUID:SERVIC

1

E PARTS

PM Part List

Design Change List

Number Title Set Old Part New Part Index No. Q'ty Interchg Reason Cut-in S/N

P/N Name P/N Name Group ID Indiv. Set

201309-01 1309 Modification D12427:- X/OD1242015 CARRIAGE:REA

R:ASS'Y

201309-02 1309 Modification D12427:- X/OD6702010 HEAD:UNIT:BLACKD6702011 HEAD:UNIT:BLACKU004 32 1

201309-03 1309 Modification D12427:- X/OD6702111 HEAD:UNIT:COLORD6702112 HEAD:UNIT:COLORU004 38 1

201309-04 1309 Modification D12427:- D1291507 KEYTOP:POWER

201309-05 1309 Modification D12427:- X/OD1291507 KEYTOP:POWER

SOURCE

201310-01 1310 Modification D12427:- D1242271 POSITIONING SE

NSOR

201310-02 1310 Modification D12427:- D1241507 KEYTOP:POWER

SOURCE

201310-03 1310 Modification D12427:- 14077667 EEPROM:BR24T

201307-01 1307 Modification D12427:- D1245462 PCB:HRB:ASS'Y U004_S001 37 1 201306-01 1306 Modification D12427:- D1245402 PCB:MCU D1245403 PCB:MCU U011_S001 43 1 201305-01 1305 Modification D12427:- D1242250 PROOFING MAT

D1242016 CARRIAGE:REA

R:ASS'Y

SOURCE

D1291539 KEYTOP:POWER

SOURCE:BA

D1242276 POSITIONING SE

NSOR

D1241509 KEYTOP:POWER

SOURCE

128-W

ERIAL:CARRIAG E:BLACK

U004_S001 17 1

U002_S001 28 1

U004_S001 36 1

U002_S001 10 1

U011_S001 44 1

Special Tools7 1

201305-02 1305 Modification D12427:- D6702101 HEAD UNIT:COLORD6702111 HEAD:UNIT:COLORU004 33 1

201305-03 1305 Modification D12427:- X/O04514010N TAPPING SCRE

W:4X10

201305-04 1305 Modification D12427:- D1249590 COUNTER:PCB:

201304-01 1304 Modification D12427:- X/OD1244473 SPRING PLATE:E

XIT:GUIDE

201304-02 1304 Modification D12427:- X/OD1242251 PROOFING MAT Special Too 6 1

04504010N TAPPING SCRE

W:M4X10

NOVITA-S5K

D1244477 SPRING PLATE:E

XIT:GUIDE

U003 6 1

Special Tools8 1

U009 35 1

Design Change List

Number Title Set Old Part New Part Index No. Q'ty Interchg Reason Cut-in S/N

P/N Name P/N Name Group ID Indiv. Set

- ERIAL:CARRIAG E:COLOR

201303-01 1303 Modification D12427:- X/OD1245401 PCB:MCU:ASS'Y D1245402 PCB:MCU U011 42 1 201301-01 1301 Modification D12427:- O/OD1244534 SHUTTLE:CUTTE

R:ASS'Y

201301-02 1301 Modification D12427:- X/OD1245400 PCB:MCU:ASS'Y D1245401 PCB:MCU:ASS'Y U011 30 1 201301-03 1301 Modification D12427:- D1242271 POSITIONING SE

201301-04 1301 Modification D12427:- J0187520 PIN:PREVENTFE

201301-05 1301 Modification D12427:- X/OD1245381 HARNESS:FFC:M

CU-HRB4:ASS'Y

D1244588 SHUTTLE:CUTTERU009_S001

NSOR

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

J0187520 PIN:PREVENTFE

NCE:HEAD

D1245382 HARNESS:FFC:M

CU-HRB4:ASS'Y

ls

47 1

_S001

U004_S001 36 1

Special Tools4 1

1/1 D-5 1

Design Change List

Number Title Set Old Part New Part Index No. Q'ty Interchg Reason Cut-in S/N

P/N Name P/N Name Group ID Indiv. Set

201301-06 1301 Modification D12427:- D1242272 BRACKET:POSIT

IONING SENSOR

201301-07 1301 Modification D12427:- X/OD1242272 BRACKET:POSIT

IONING SENSOR

201301-08 1301 Modification D12427:- B2299311 SPECIAL CLOTH

201301-09 1301 Modification D12427:- 04503010N TAPPING SCRE

W - M3X10

201301-10 1301 Modification D12427:- J0254685 TUBE:COUPLING Special Tools5 1

D1242196 BRACKET:POSIT

IONING SENSOR

10PCS/BAG

J0254685 TUBE:COUPLING Special Tools5 1

U004_S001 35 1

Special Tools3 1

U009_S001 _S001

2 1

J0254685 TUBE:COUPLING Special Tools5 1

Ricoh MP CW2200 SP Part List

Specifications and Main Features

Frequently Asked Questions

User Manual

Unit All

U001 EXTERIOR

U006 PAPER REGISTRATION

U008 INK SUPPLY SECTION

U010 ABSORB SECTION

ACCESSORIES

Exclusive Parts

Standard Parts

PM Part List

Design Change List
