Ricoh G033 Operator's Manual

Please read the Safety Information in the “Operating Instructions” before using this machine. It contains important information related to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.

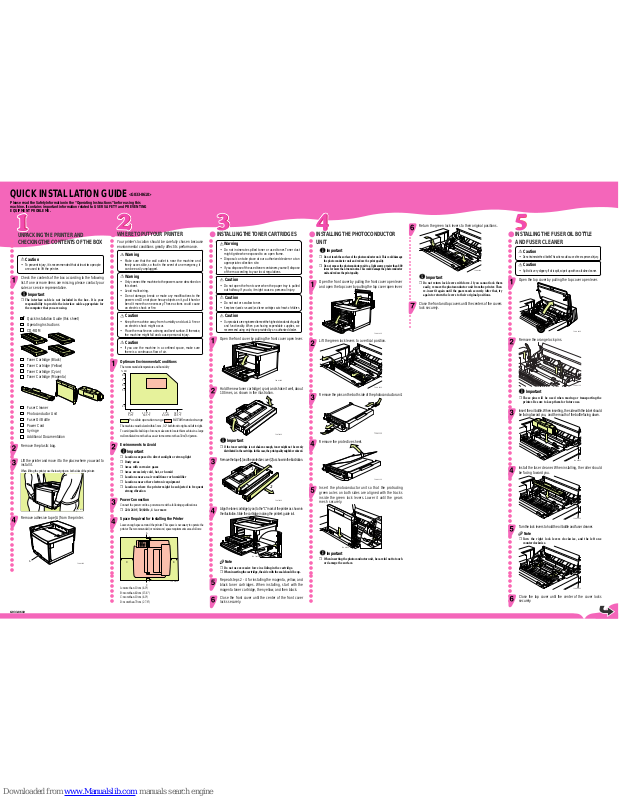

QUICK INSTALLATION GUIDE

G033-8610

<G033-8610>

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

INSTALLING THE T ONER CARTRIDGES

Warning

•

Do not incinerate spilled toner or used toner. Toner dust might ignite when exposed to an open flame.

•

Disposal can take place at our authorized dealer or at an appropriate collection site.

•

If you dispose of the used toner containers yourself, dispose of them according to your local regulations.

Caution

•

Do not open the front cover when the paper tray is pulled out halfway. If you do, it might cause a personal injury.

Caution

•

Do not eat or swallow toner.

•

Keep toner (used or unused) and toner cartridges out of reach of children.

Caution

•

Our products are engineered to meet the highest standards of quality and functionality. When purchasing expendable supplies, we recommend using only those provided by an authorized dealer.

Open the front cover by pulling the front cover open lever.

TPOH145E

Hold the new toner cartridge (cyan) and shake it well, about 10 times, as shown in the illustration.

TPOT015E

Important

❒

If the toner cartridge is not shaken enough, toner might not be evenly distributed in the cartridge. In this case, the print quality might be reduced.

Remove the tape [1] and the protective cover [2] as shown in the illustr ation.

TPOT035E

Align the toner cartridge (cyan) to the “C” mark of the printer as shown in the illustration. Slide the cartridge in along the printer’s guide rail.

TPOT045E

Note

❒ Do not use excessive force in sliding in the cartridge. ❒ When inserting the cartridge, the side with the seal should be up.

Repeat steps 2 - 4 for installing the magenta, yellow, and black toner cartridges. When installing, start with the magenta toner cartridge, then yellow, and then black.

Close the front cover until the center of the front cover locks securely.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

UNP A CKING THE PRINTER AND CHECKING THE CONTENTS OF THE BOX

Caution

•

To prev ent injury , it is recommended that at least two people are used to lift the printer.

Check the contents of the box according to the following list. If one or more items are missing, please contact your sales or service representative.

Important

❒ The interface cable is not included in the box. It is your

responsibility to provide the interface cable appropriate for the computer that you are using.

Quick Installation Guide (this sheet) Operating Instructions CD-ROM

Toner Cartridge (Black) Toner Cartridge (Yellow) Toner Cartridge (Cyan) Toner Cartridge (Magenta)

Fuser Cleaner Photoconductor Unit Fuser Oil Bottle Power Cord Syringe Additional Documentation

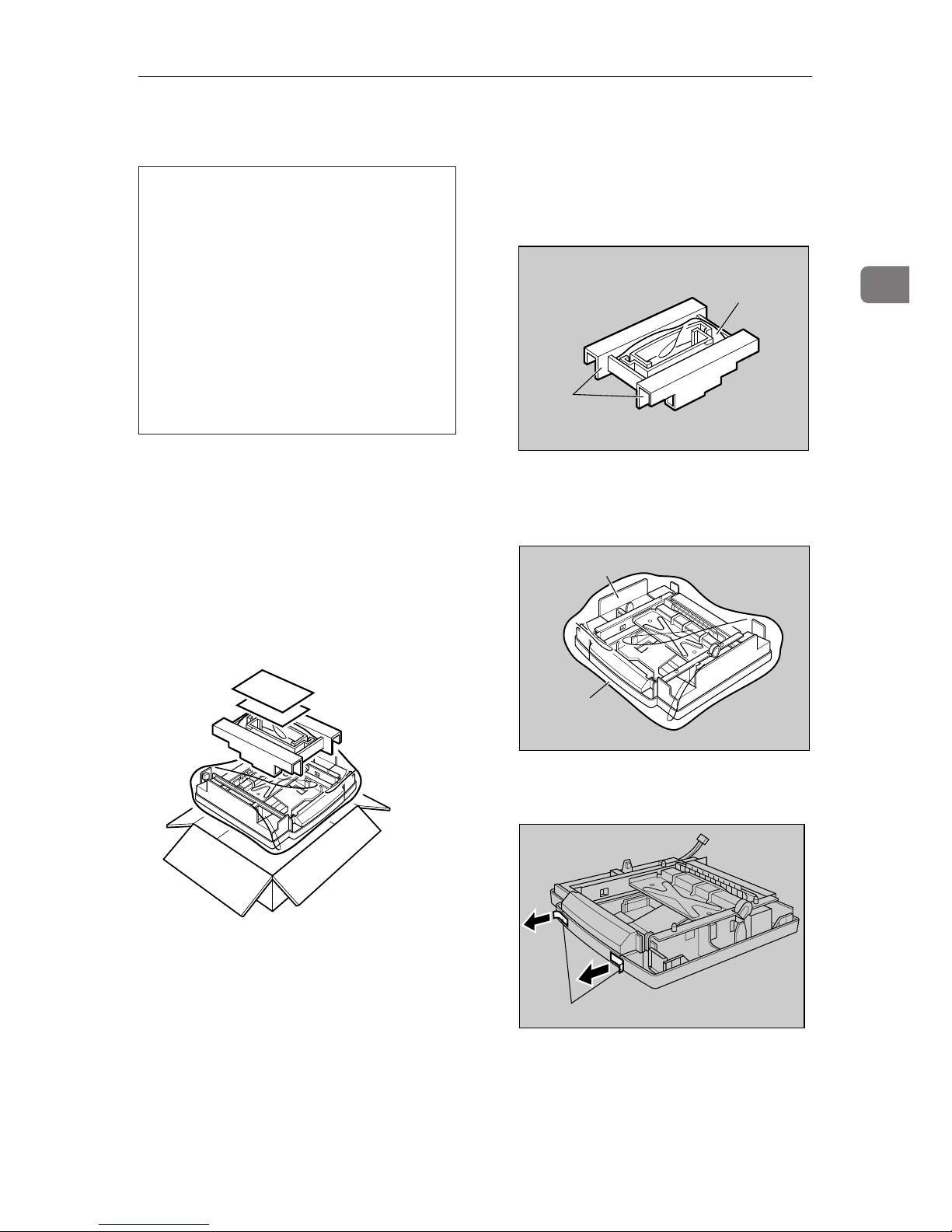

Remove the plastic bag.

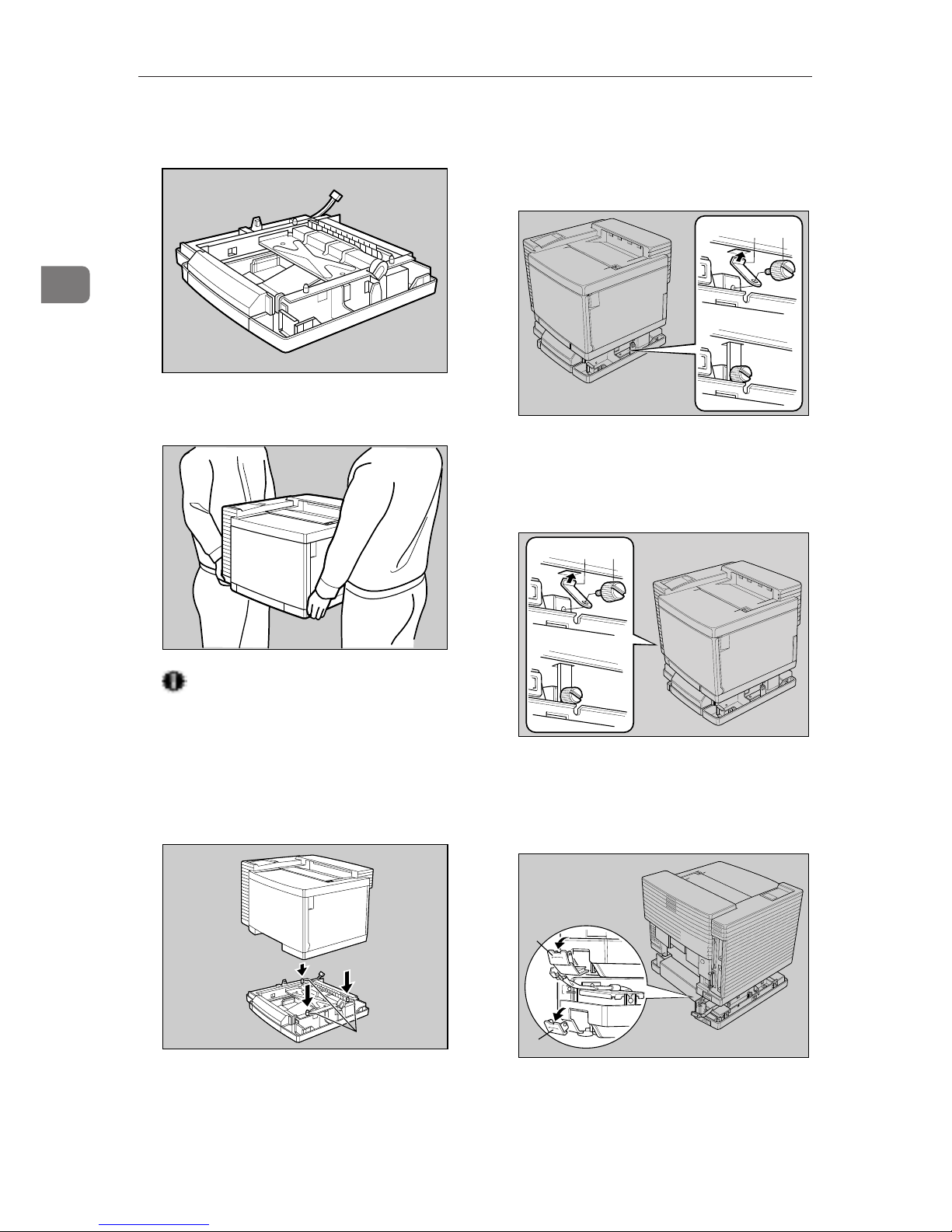

Lift the printer and move it to the place where you want to install it.

When lifting the printer, use the inset grips on both sides of the printer.

TPOH115E

Remove adhesive tape [A] from the printer.

TPOH125E

WHERE T O PUT Y OUR PRINTER

Your printer’s location should be carefully chosen because environmental conditions greatly affect its performance.

Warning

•

Make sure that the wall outlet is near the machine and freely accessible, so that in the event of an emergency, it can be easily unplugged.

Warning

•

Only connect the machine to the power source described on this sheet.

•

Avoid multi-wiring.

•

Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it, pull it hard or bend it more than necessary. These actions could cause an electric shock or fire.

Caution

•

Keep the machine away from humidity and dust. A fire or an electric shock might occur.

•

Place the machine on a strong and level surface. Otherwise, the machine might fall and cause personal injury.

Caution

•

If you use the machine in a confined space, make sure there is a continuous flow of air.

Optimum Environmental Conditions

The recommended temperature and humidity

%RH

80 70

10°C 50°F

17.5°C

63.5°F

27°C

80.6°F

TPOH145E

32.5°C

90.5°F

Possible operation range Recommended range

The machine must be level within 5 mm, 0.2" both front to right and left to right. To avoid possible build-up of ozone, make sure to locate this machine in a large

well ventilated room that has an air turnover more than 30m

/hr/person.

Environments to Avoid

Important

❒ Locations exposed to direct sunlight or strong light ❒ Dusty areas ❒ Areas with corrosive gases ❒ Areas excessively cold, hot, or humid ❒ Locations near an air conditioner or humidifier ❒ Locations near other electronic equipment ❒ Locations where the printer might be subjected to frequent

strong vibration

Power Connection

Connect the power cord to a power source with a following specifications:

❒ 220-240V, 50/60Hz, 4 A or more

Space Required for Installing the Printer

Leave enough space around the printer. This space is necessary to operate the printer. The recommended (or minimum) space requirements are as follows:

TPOH055E

A: more than 10 cm (4.0") B: more than 40 cm (15.6") C: more than 10 cm (4.0") D: more than 70 cm (27.6")

INSTALLING THE FUSER OIL BO TTLE AND FUSER CLEANER

Caution

•

Do not incinerate the oil bottle. This action could cause a fire or a personal injury.

Caution

•

Spilt oil is very slippery. If oil is spilt, wipe it up with an alkaline cleaner.

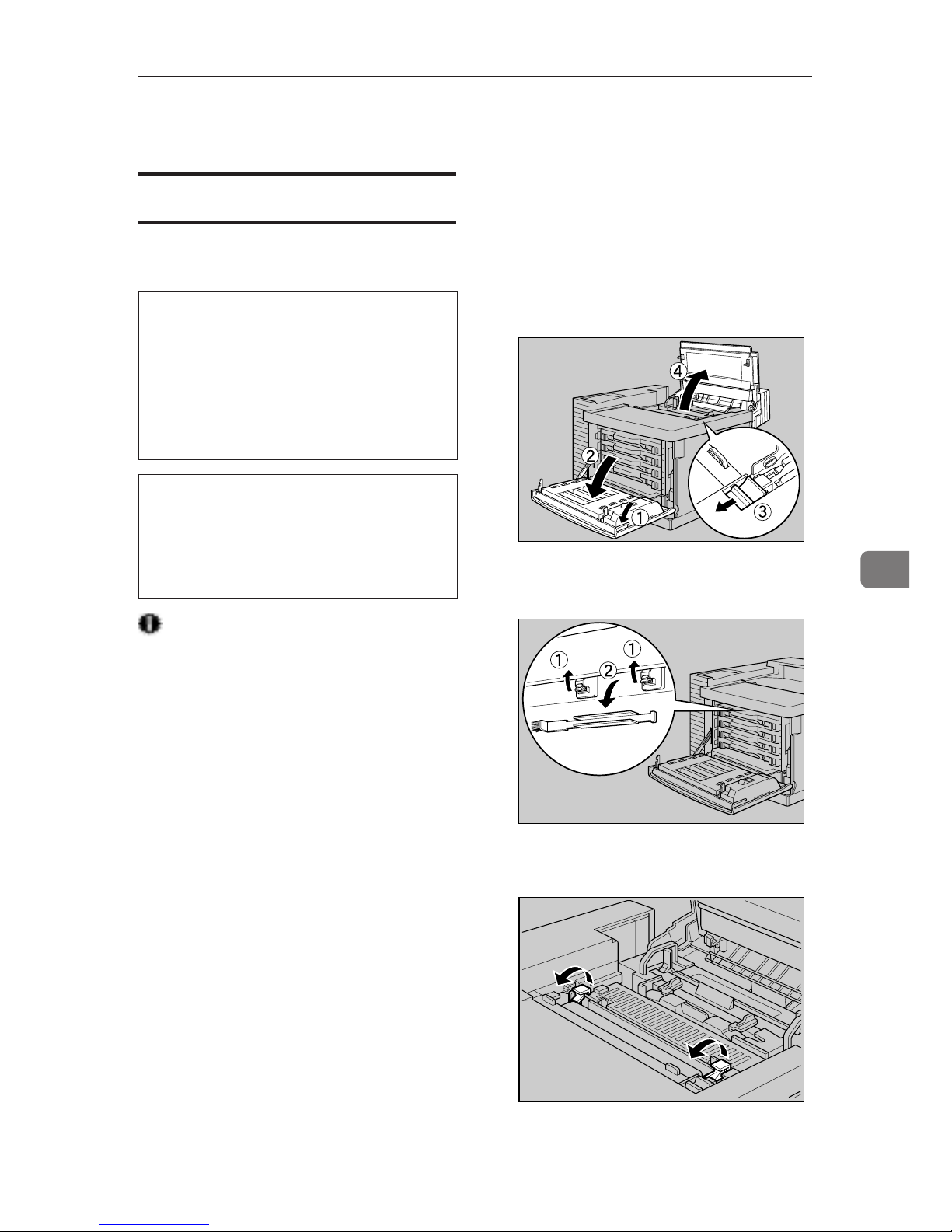

Open the top cover by pulling the top cover open lever.

TPOH265E

Remove the orange lock pins.

TPOH275E

Important

❒ These pins will be used when moving or transporting the

printer. Be sure to keep them for future use.

Insert the oil bottle. When inserting, the side with the label should be facing toward you, and the mouth of the bottle facing do wn.

TPOH285E

Install the fuser cleaner. When installing, the roller should be facing toward you.

TPOH295E

Turn the lock le v ers to hold the oil bottle and fuser cleaner .

Note

❒ Turn the right lock levers clockwise, and the left one

counterclockwise.

TPOH296E

Close the top cover until the center of the cover locks securely.

Return the green lock levers to their original positions.

TPOH245E

Important

❒ Do not return lock levers with force. If you cannot lock them

easily, remove the photoconductor unit from the printer. Then re-insert it again until the gears mesh securely. After that, try again to return the levers to their original positions.

Close the front and top covers until the centers of the covers lock securely.

INSTALLING THE PHOTOCONDUCT OR UNIT

Important

❒

Do not touch the surface of the photoconductor unit. This could damage the photoconductor unit and reduce the print quality.

❒

Do not expose the photoconductor unit to a light source greater than 800 luxes for more than two minutes. This could damage the photoconductor unit and reduce the print quality.

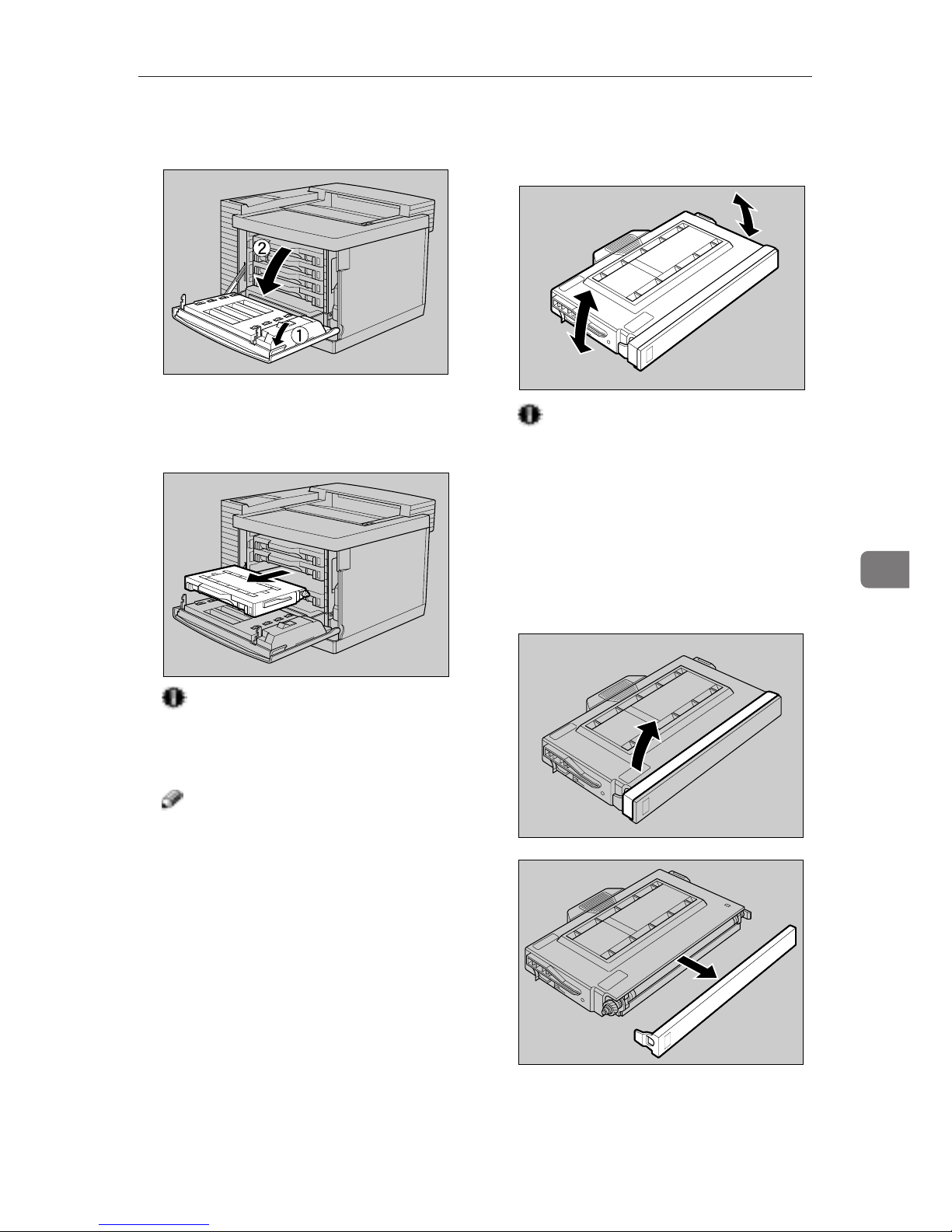

Open the front cover by pulling the front cover open lever and open the top cover by pulling the top cover open lev er .

TPOH195E

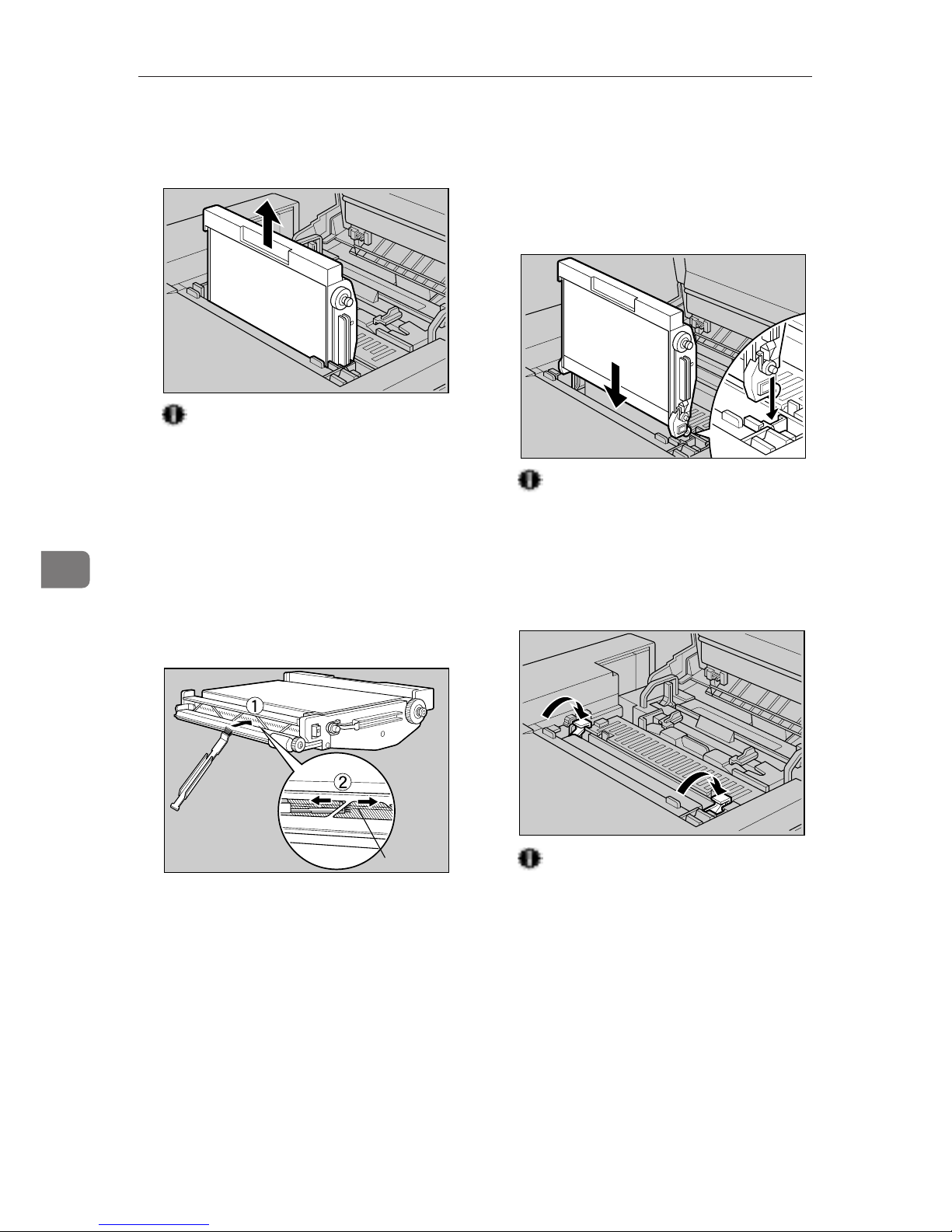

Lift the green lock levers to a vertical position.

TPOH205E

Remove the pins on the both side of the photoconductor unit.

TPOH225E

Remove the protective sheet.

TPOH215E

Insert the photoconductor unit so that the protruding green axles on both sides are aligned with the tracks inside the green lock levers. Lower it until the gears mesh securely.

TPOH235E

Important

❒ When inserting the photoconductor unit, be careful not to touch

or damege the surface.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

INSTALLING THE P APER TRA Y

Caution

•

The paper tray does not have a stopper. When pulling it out, be careful not to pull it strongly. If you do, the tray might fall and cause personal injury.

The default settings of the paper size are as follows:

•

Metric version: A4 K (short-edge feed)

•

Inch version: 81/2" x 11"K (short-edge feed)

For settings other than the default paper size, see “Loading Paper and Other Media” in the “Operating Instructions”.

For more information about the paper sizes that can be set in the paper tray, see “Paper Supported by Your Printer” in the “Operating Instructions”.

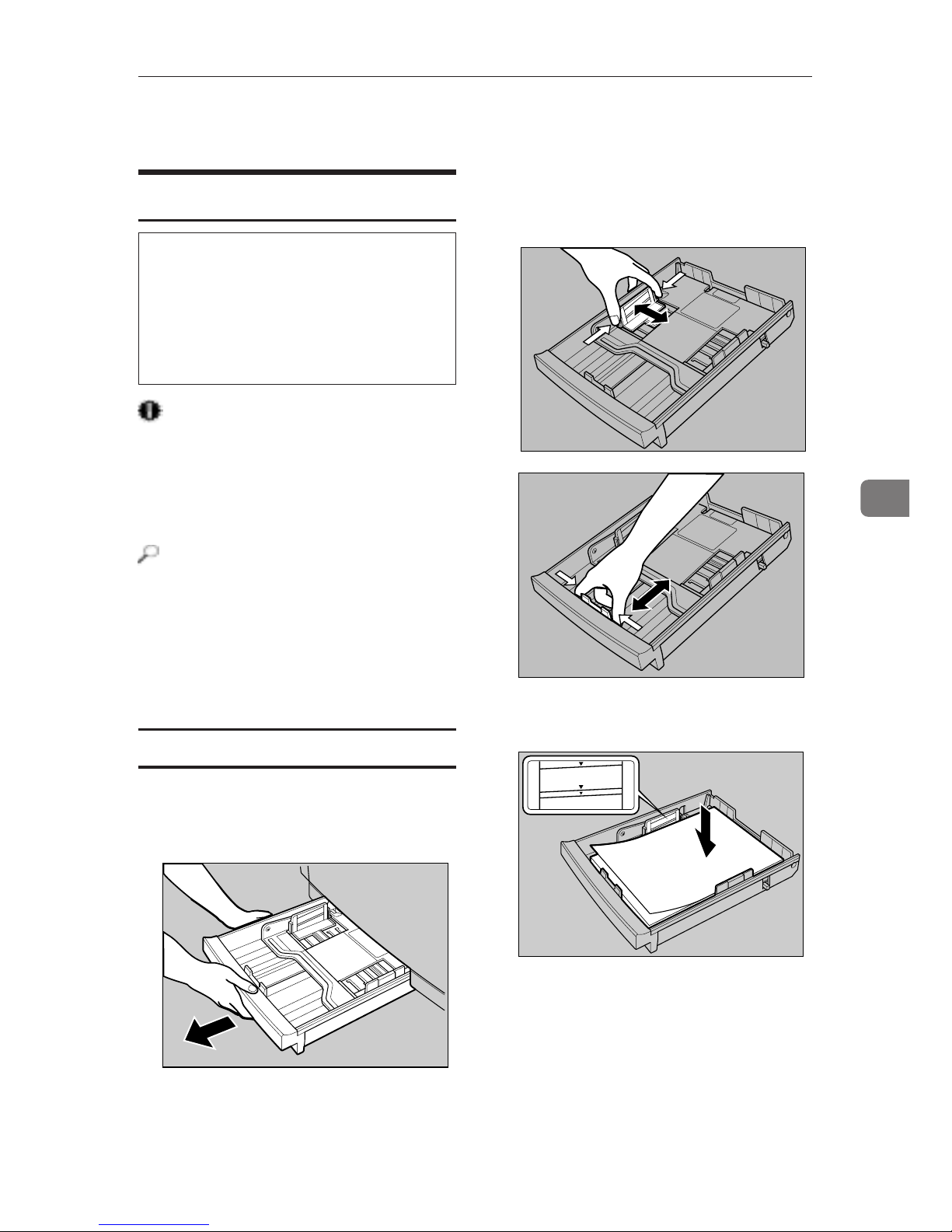

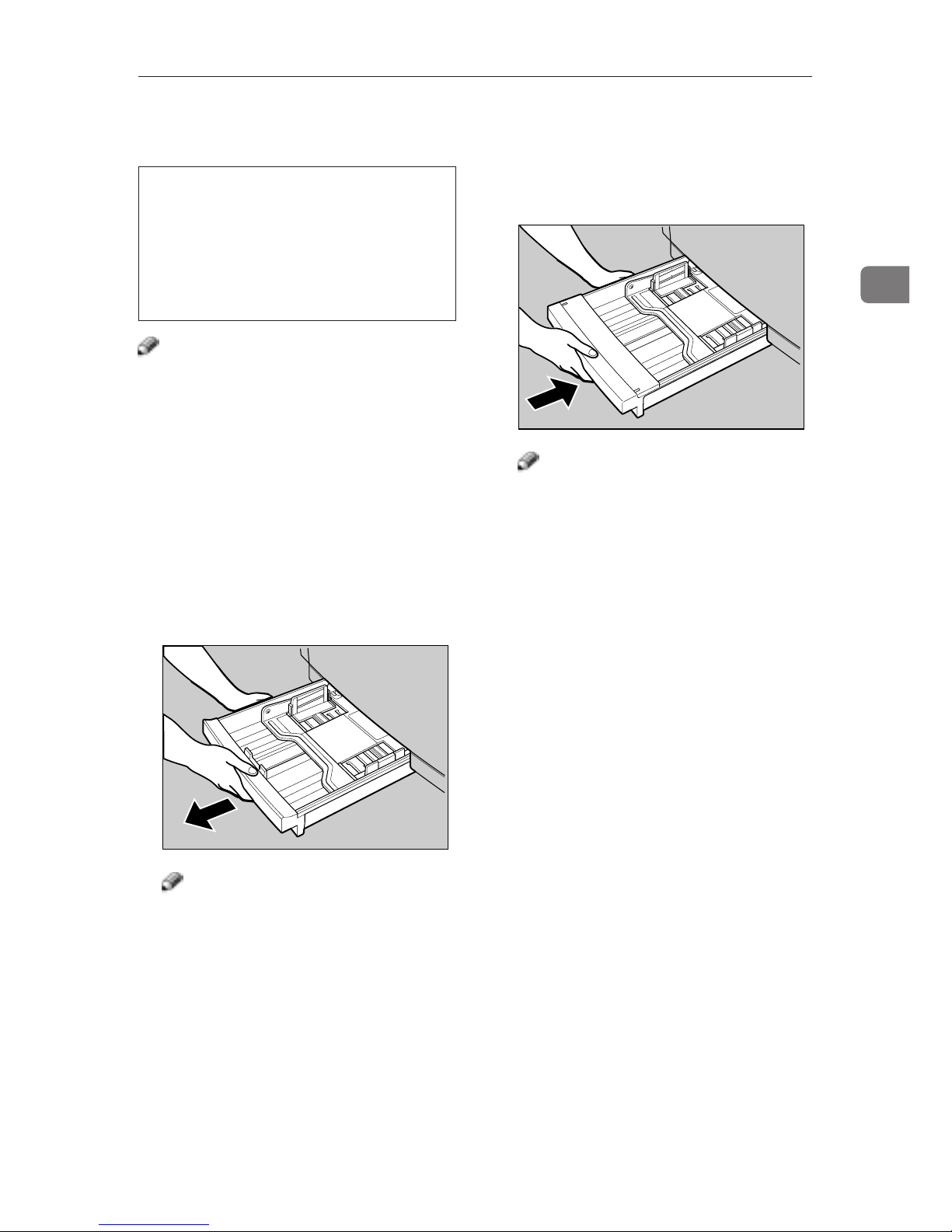

Pull the paper tray out of the printer. Place it on a flat surface.

TPOH455E

If necessary, slide the front and side guides to the paper size you want to use.

TPOH305E

Load paper with the print side up, into the paper tray.

PAPER

LABEL

OHP FILM

ENVEL OPE

TPOH315E

Important

❒ Make sure that the top of the stack is not higher than the limit

mark inside the tray.

❒ The front and side guides should be set exactly to the paper

size to avoid paper feed problems.

❒ Do not load different kinds of paper in the tray.

Note

❒ If you set a custom paper size, you should enter the paper

size with the printer’s operation panel. For more information, see “Loading Paper in the Paper Tray” in the “Operating Instructions”.

Slide the paper tray completely into the printer.

Important

❒ Be sure to insert the paper tray completely. Otherwise, misfeeds

might occur, or the front cover might touch the paper tray.

CONNECTING THE PO WER CORD

Caution

•

When you pull the plug out of the socket, grip the plug to avoid damaging the cord and causing a fire or an electric shock.

Caution

•

It is dangerous to handle the plug with wet hands. Doing this may result in receiving an electric shock.

Check that the power switch is turned off. If it is on, turn it off.

TPOH325E

Attach the power cord to the socket on the back side of the printer.

TPOH335E

Insert the plug of the power cord securely into the wall socket.

CONNECTING THE PRINTER TO A COMPUTER

Connect the printer to your computer using a parallel port.

Important

❒ The parallel interface cable is not provided with the printer. It

is your responsibility to provide the interface cable appropriate for the computer that you are using.

❒ The printer’s parallel connection is a standard bi-directional

interface. It requires a standard 36-pin parallel cable compliant with IEEE1284 and a parallel port on your computer.

❒ To avoid electrical interference, use a shielded cable.

Note

❒ Do not use a parallel cable more than 2.5 meters (8.2 feet)

long.

Check that the power switch is turned off. If it is on, turn it off.

Turn your computer off.

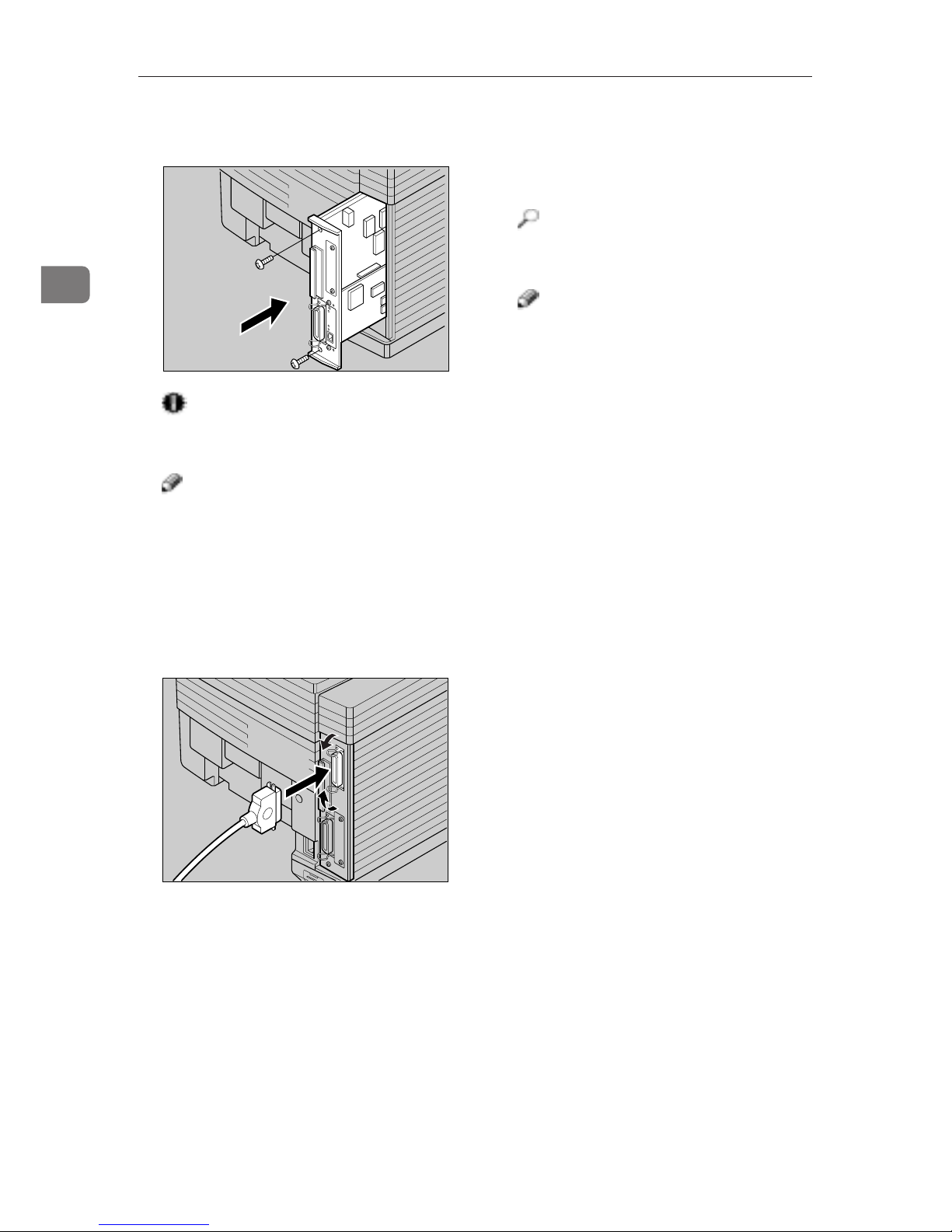

Attach the interface cable to the interface connector of the printer. Secure the cable with the metal fittings as shown in the illustration.

TPOH365E

Attach the other end of the interface cable to the interface connector of the computer. Secure the cable.

SELECTING THE PANEL DISPLAY LANGUA GE

Note

❒ You can select one of the following languages:

English, German, French, Italian, Dutch, or Japanese.

❒ The default setting is English. ❒ If you want to use the English panel display, it is not necessary

for you to do the following procedures.

Turn on the power switch.

TPOH325E

After the machine warms up, the ready message appears on the panel display.

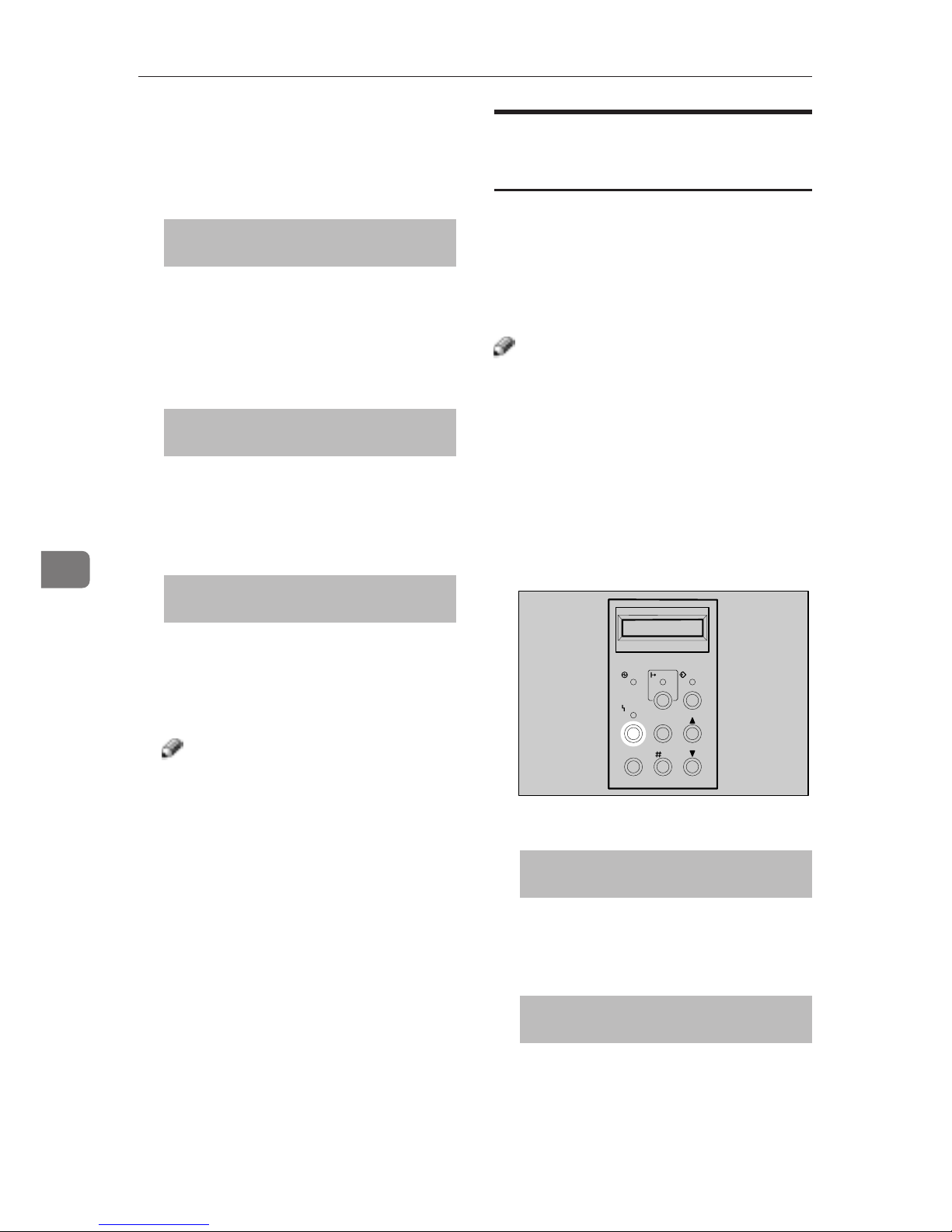

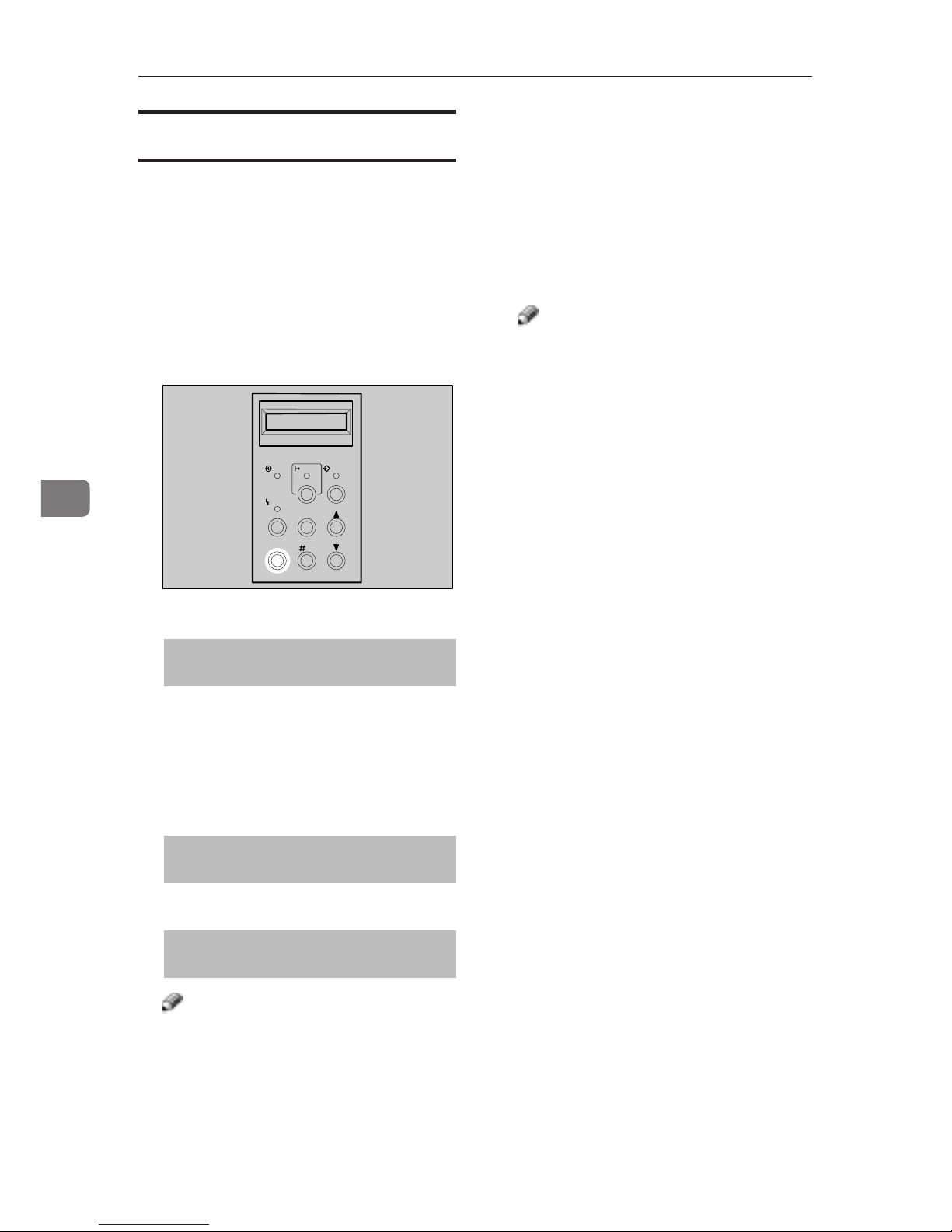

Press the Menu key.

The following message appears on the panel display.

<Menu> ▲ IPDL-C Menu ▼

Press the ▲ ▼ keys until the following message appears on the panel display.

<Menu> ▲ System Menu ▼

Press the Enter key.

The following message appears on the panel display.

<System Menu> ▲

1.Paper Tray ▼

Press the ▲ ▼ keys until the following message appears on the panel display.

<System Menu> ▲

10.Language ▼

Press the Enter key.

Press the ▲ ▼ keys until the language you want to select appears on the lower line of the panel display.

Press the Enter key.

Press the On Line key.

The On Line indicator is lit.

Press the On Line key again.

The On Line indicator turns off.

Press the Reset key.

The setting becomes effective.

SETTING UP FOR PRINTING

Printing requires installation of a printer driver for your operating system.

See “Installing the IPDL-C Printer Driver” in the “Operating Instructions”.

PRINTING THE TEST P AGE

You can chec k if the printer works properly by printing a test page (configuration page). However, you cannot check the connection between the printer and your computer by printing the test page.

Check that the power switch is turned on. If it is off, turn it on.

Press the Menu key.

The following message appears on the panel display.

<Menu> ▲ IPDL-C Menu ▼

Press the ▲ ▼ keys until the following message appears on the panel display.

<Menu> ▲ List Print ▼

Press the Enter key.

The following message appears on the panel display.

<List Print> ▲

1.Config.Page ▼

Press the Enter key.

The following message appears on the panel display.

<Config.Page> Press # key

Press the Enter key.

In a short time, the test printing will start.

Important

❒ If you cannot complete the test printing correctly, see if an

error message appears on the panel display. For more information about error messages, see “Troubleshooting” in the “Operating Instructions”.

Press the On Line key.

Turn off the power switch.

○○○○○

G033

Operator’s Manual

Safety Information

When using your equipment, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

WARNING

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

WARNINGS

• Connect the power cord directly into a wall outlet and never use an extension cord.

• Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

• To avoid hazardous electric shock or laser radiation exposure, do not remove any covers or screws other than those specified in this manual.

• Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any of the following conditions exists:

• You spill something into the equipment.

• You suspect that your equipment needs service or repair.

• Your equipment’s cover has been damaged.

• Do not incinerate spilled toner or used toner . Toner dust might ignite when exposed to an open flame.

• Disposal can take place at our authorized dealer or at appropriate collection sites.

• If you dispose the used toner containers yourself, dispose of it according to local regulations.

CAUTIONS

• Protect the equipment from dampness or wet weather, such as rain, snow, and so on.

• Unplug the power cord from the wall outlet before you move the equipment. While moving the equipment, you should take care that the power cord will not be damaged under the equipment.

• When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).

• Do not allow paper clips, staples, or other small metallic objects to fall inside the equipment.

• Do not eat or swallow toner.

• Keep toner (used or unused) and toner cassette out of reach of children.

• For environmental reasons, do not dispose of the equipment or expended supply’s wastes at household waste collection point. Disposal can take place at out authorized dealer or at appropriate collection sides.

• Our products are engineered to meet the highest standards of quality and functionality , and we recommend using the expendable supplies via authorized dealer.

• The inside of the machine could be very hot. Do not touch the parts with a label indicating a hot surface. Otherwise, it could cause a personal burn.

Safety Information

iii

ENERGY STAR Program

As an ENERGY STAR Partner, we have determined that this machine model meets the ENERGY STAR Guidelines for energy efficiency.

The ENERGY STAR Guidelines intend to establish an international energysaving system for developing and introducing energy-efficient office equipment to deal with environmental issues, such as global warming.

This product was designed to reduce the environmental impact associated with printing equipment by means of energy-saving features, such as Low-power mode (Energy Saver mode).

This printer automatically lowers its power consumption 60 minutes after the last operation has been completed. To exit Low-power (Energy Saver) mode, press any key on the operation panel. To change the setting of the Energy Saver mode, see page 99.

Recycled paper

Please contact your sales or service representative for recommended recycled paper types that may be used in this machine.

Color Guide

Color Printing Basics

Additive (Emitted) and Subtractive (Reflected) Color Models

All light is a mixture of red, green, and blue, which is normally called the RGB model. When red, green, and blue are of equal intensities, the RGB color model produces white.

Note

❐ RGB is also called additive or emitted color. The colors on your computer

screen are produced by varying the intensities of RGB.

Printed color is a mixture of cyan, magenta, and yellow, which is normally called the CMY color model. When mixed in equal proportions the CMY color model produces black.

Note

❐ CMY is also called subtractive or reflective color. Your printer uses CMY toner

plus K (black) toner (CMYK color model) to provide full color printing.

Color Guide

The colors of the RGB color model can be mixed to produce the cyan, magenta, and yellow of the CMY color model and vice versa. Two colors of one model are mixed to produce the color of the other model (mixing blue and green produces cyan, for example). The remaining color is the compliment of the color produced (red in this example). Complimentary colors are: red and cyan, green and magenta, blue and yellow.

Printed Color

Your printer produces full-color output using four toner colors: cyan, magenta, yellow, and black. These four colors make up the CMYK color model.

Note

❐ Mixing CMY in equal proportions should hypothetically produce pure black,

but imperfections in the ink cause an equal measure of these colors to produce a muddy or dark brown. Black toner is added to the color model in order to make it possible to produce pure black.

If an image consisted of nothing by cyan, for example, cyan toner would be used by itself and there would be no problem producing the desired color. Full-color printing, on the other hand, required reproduction of tens of thousands of subtle colors. These can be produced by controlling the relative proportions of the CMYK toner particles printed within a unit area.

Relatively dense and light shades of the same color also can be reproduced by controlling the volume of toner in a unit area.

Color Guide

vii

Example of Color Adjustments Using the Printer Driver

The following provides a number of examples to show you what happens when you change the various color settings provided in the printer driver.

Quality Settings Resolution

Resolution is the number of dots the printer can print within one inch. The higher the resolution, the better the quality of the printed image. Resolution is expressed in units of dpi, which stands for dots per inch.

Note

❐ Printing at a high resolution takes longer and requires more printer memory.

600dpi 300dpi

viii

Toner Saving

Turning on Toner Saving reduces the amount of toner used for printing. This setting does not help to improve printout quality, but instead is used when printing preliminary drafts of a document.

Limitation

• Turning on the Toner Saving can cause output to become blurred and result in very thin lines not printing at all. It can cause colors to be different than expected when printing color.

Off On

Image Printing

This setting lets you select the resolution for printing of image data.

Standard Fast Fine

Color Guide

Color Settings

The colors produced by the printer do not exactly match those you see on your monitor. This is because the computer uses the reflected color model (RGB) while the printer uses the emitted color model (CMYK). For details, see => P.iv “Color Printing Basics”. The color settings provide you with a number of adjustments that you can use to bring printed colors closer to what they look like on your monitor. You can also use these settings to perform color correction, which changes the clarity of the image.

You can change the color settings with the printer driver.

Color Correction

Use these settings to adjust the color correction pattern.

Off Photographic

This setting enhances midtone colors similar to those seen in photographs.

Vivid OHP T ransparency

This setting enhances the basic colors for text and graphics. This setting is best for printing tables, graphs, and presentation materials that contain color.

This setting adjusts density to an optimal level for printing OHP transparencies.

Brightness

This setting controls the overall brightness of the image. Moving the slider to the plus (+) side increase brightness, while moving it to the minus (-) side decreases brightness.

Contrast

This setting controls the range between the darkest and lightest shade of an image. Moving the slider to the plus (+) side decreases the range and makes contrast stronger, while moving it to the minus (-) side expands the range.

Saturation

This setting controls the purity of a color. Moving the slider to the plus (+) side increases saturation and makes colors more vivid, while moving it to the minus (-) side decreases saturation.

-30 0 +30

Color Guide

Color Balance

These settings let you control the relative intensity of the individual colors of the additive color model (red, green, blue).

Note

❐ The position of the color bar also affects the complementary color relation-

ship. Red, for example, is printed using magenta and yellow toner, so increasing the level of red also decreases the level of cyan.

-30 0 +30

xii

Manuals for Your Printer

There are two manuals that describe the procedures separately for the installation of your printer and for the operation and maintenance of your printer and its optional equipment.

To enhance safe and efficient operation of your printer, all users should read and follow the instructions contained in the following manuals.

❖

Quick Installation Guide

Describes the procedures for installing your printer.

❖

Operating Instructions

Describes the procedures and necessary information on setting up and using your printer and its optional equipment. (This Manual)

How to Read this Manual

xiii

How to Read this Manual

Symbols

In this manual, the following symbols are used:

WARNING:

This symbol indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION:

This symbol indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

* The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates the prior knowledge or preparations required before operating.

Note

This symbol indicates precautions for operation, or actions to take after missoperation.

Limitation

This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

{ }

Keys built into the machine’s operation panel. Keys on the computer’s keyboard.

[]

Keys that appear on the machine’s panel display. Keys and buttons appear on the computer’s display

xiv

Table of Contents

Safety Information....................................................................................... i

Color Guide................................................................................................ iv

Color Printing Basics .....................................................................................iv

Example of Color Adjustments Using the Printer Driver...............................vii

Manuals for Y our Printer ..........................................................................xii

How to Read this Manual........................................................................ xiii

Symbols....................................................................................................... xiii

1. Getting Acquainted

Features of Y our Printer............................................................................. 1

Office Color Printer........................................................................................ 1

Guide to the Printer.................................................................................... 2

Exterior - Front View ...................................................................................... 2

Exterior - Rear View....................................................................................... 3

Interior ...........................................................................................................4

Operation Panel............................................................................................. 5

2. Installing Options

Available Options .......................................................................................8

Installing the Memory Unit ........................................................................9

Installing the RICOH-SCRIPT 2 Type204................................................ 11

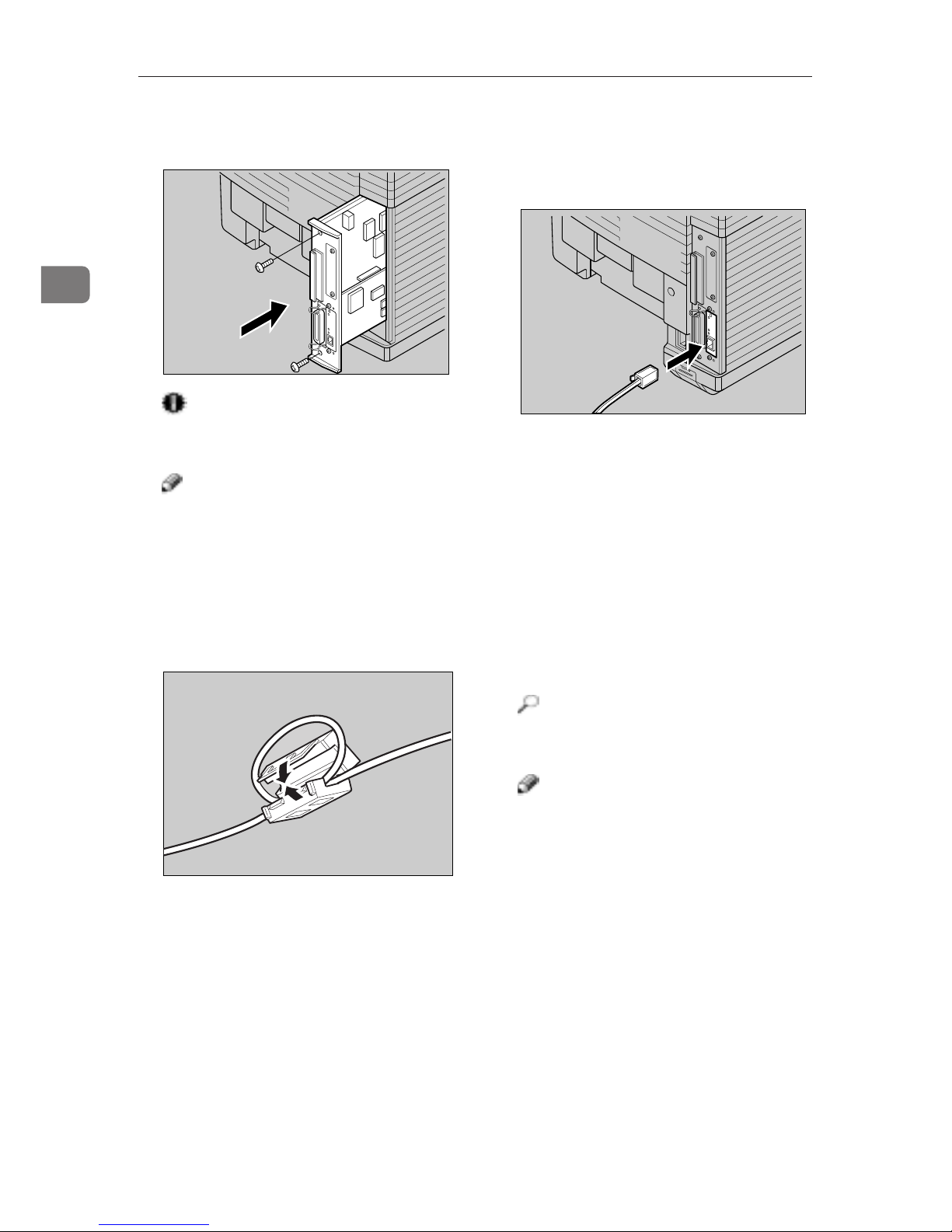

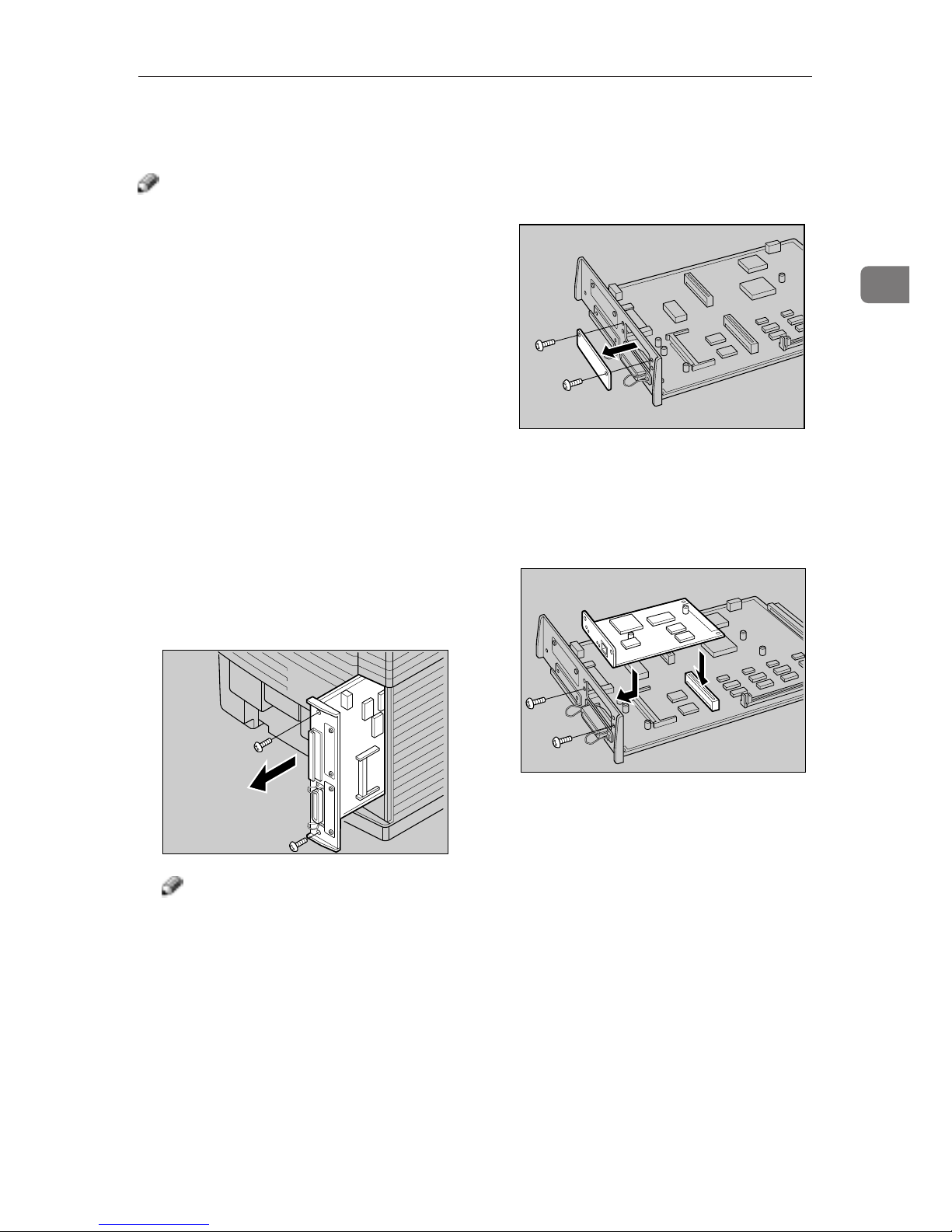

Installing the Network Interface Board Type204 ................................... 13

Installing the IEEE 1284 Parallel Type204..............................................15

Installing the Paper Feed Unit Type204 .................................................17

Installing the Paper Cassette Type204...................................................21

3. Configuring the Printer for the Network with the Operation Panel

Configuring the Printer for the Network with the Operation Panel ..... 23

Table of Contents

4. Installing the IPDL-C Printer Driver

Before Installing the Printer Drivers....................................................... 29

Installing the Printer Drivers ........................................................................ 29

Windows 95/98 - Installing the IPDL-C Printer Driver ........................... 30

Installing the Printer Driver Using Plug and Play......................................... 31

Installing the Printer Driver Without Using Plug and Play............................ 34

Setting Up Options ...................................................................................... 36

Canceling a Print Job ..................................................................................37

Windows 3.1x - Installing the IPDL-C Printer Driver ............................. 38

Installing the Printer Driver .......................................................................... 38

Setting Up Options ...................................................................................... 40

Canceling a Print Job ..................................................................................41

Windows NT4.0 - Installing the IPDL-C Printer Driver .......................... 42

Installing the Printer Driver .......................................................................... 42

Setting Up Options ...................................................................................... 44

Canceling a Print Job ..................................................................................45

5. Paper and Other Media

Paper and Other Media Supported by this Printer................................ 47

Paper T ypes and Sizes ................................................................................ 47

Precautions for Paper .................................................................................. 48

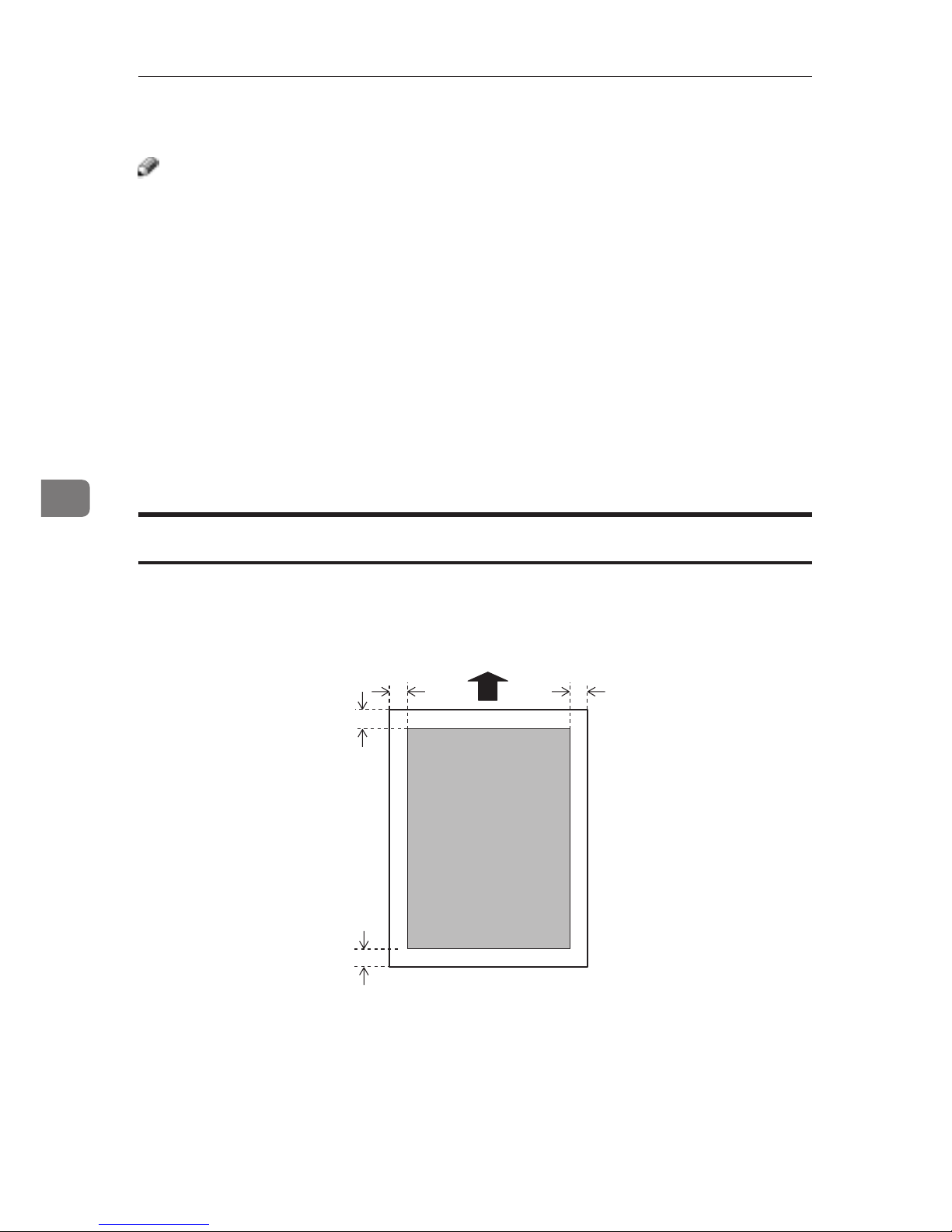

Printable Area.............................................................................................. 50

Loading Paper .......................................................................................... 51

Loading Paper in the Paper T ray.................................................................. 51

Switching between Paper T rays ................................................................... 54

6. T roubleshooting

Error & Status Messages.........................................................................55

Printed Error Message................................................................................. 55

Error & Status Messages on the Operation Panel....................................... 56

Getting Printer Information over the Network .............................................. 60

Printer Doesn’t Print ................................................................................ 65

Other Printing Problems.......................................................................... 67

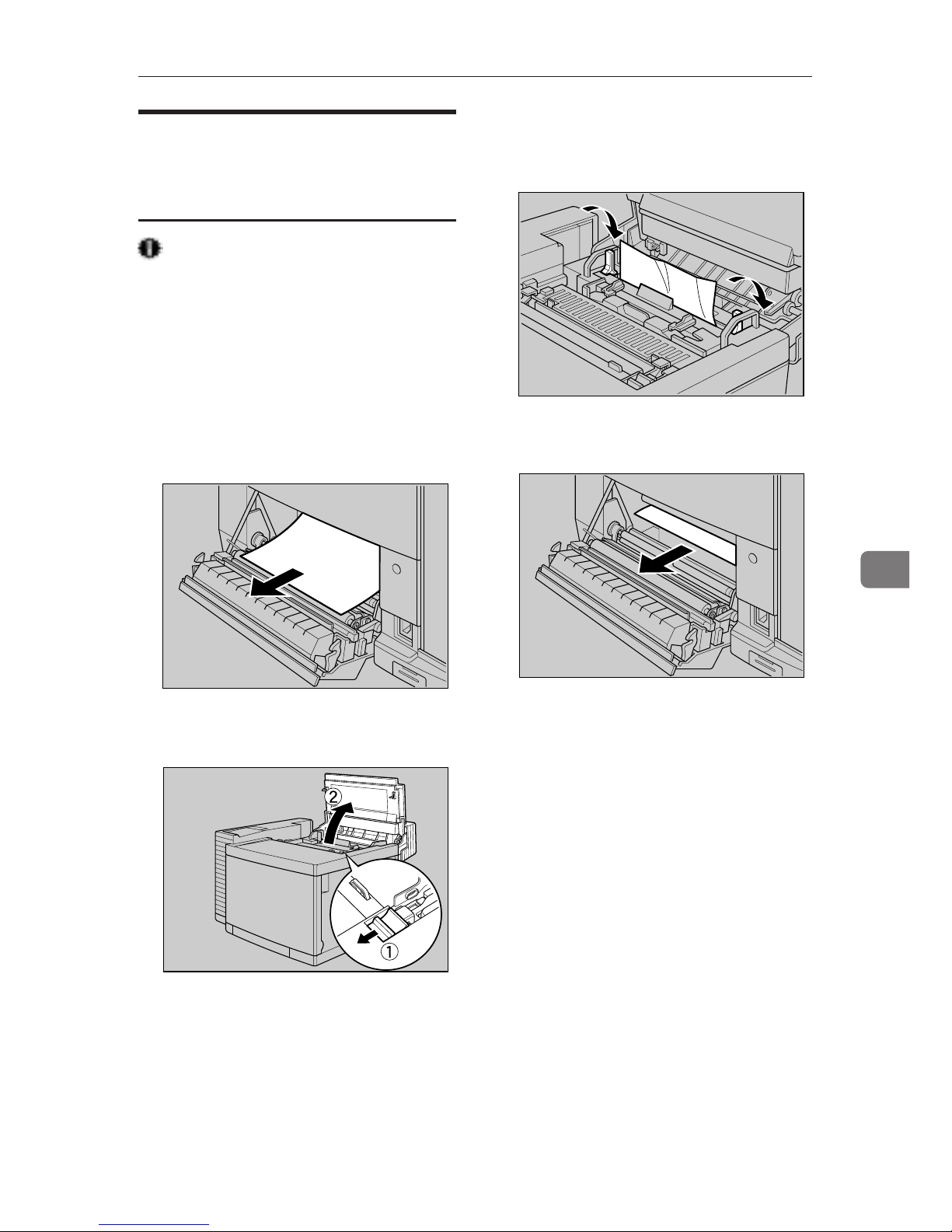

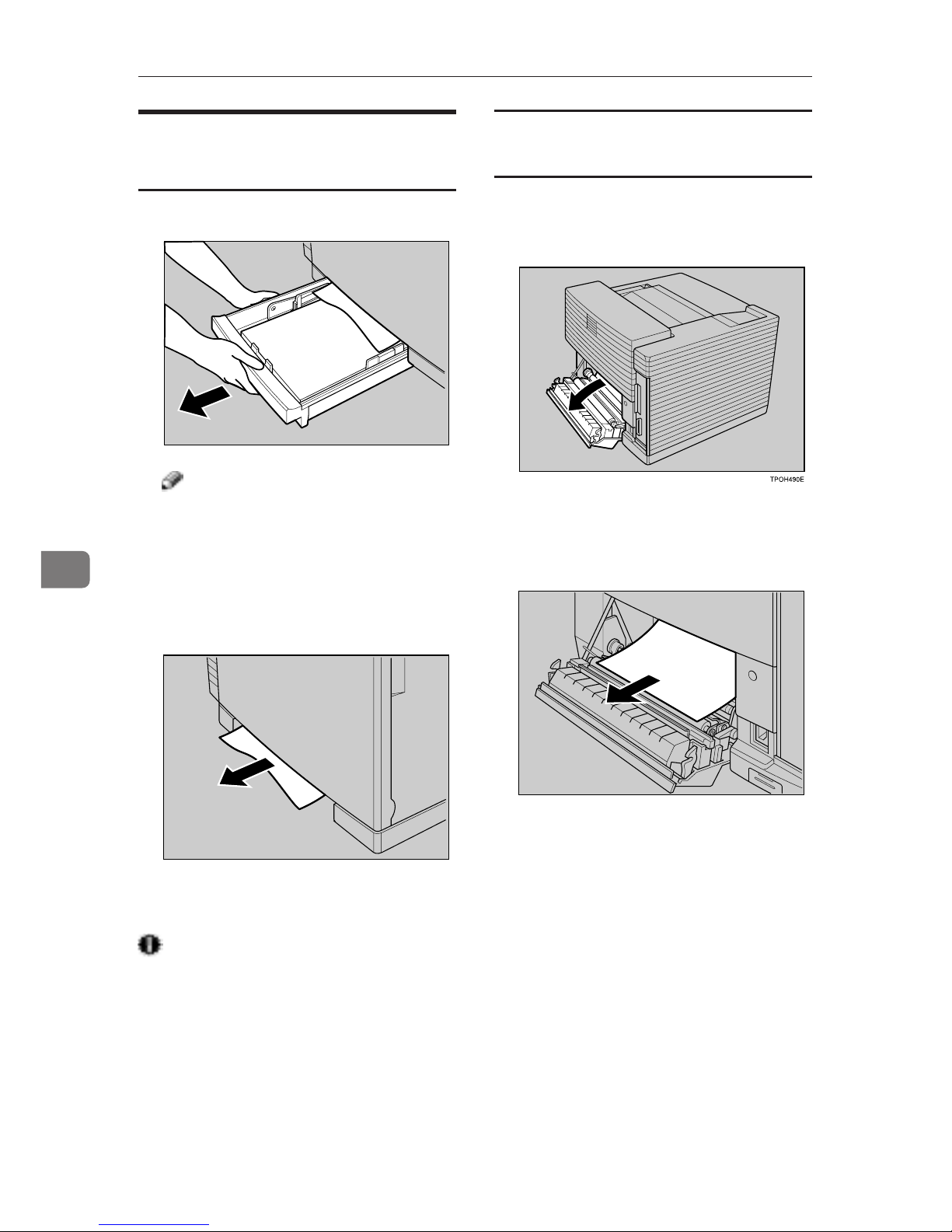

Removing Misfed Paper........................................................................... 71

When the Message “Remove Misfeed From Tray” Appears........................ 72

When the Message “Open Rear Cover Remove Misfeed” Appears............ 73

When the Message “Remove Misfeed From Output Tray” Appears............ 74

Cleaning and Adjusting the Printer ........................................................ 75

Cleaning the Charge Wire ........................................................................... 75

Adjusting the Image Density........................................................................ 77

Adjusting the Setting of “Registration” of the Optional Tray......................... 78

xvi

Replacing Consumables .........................................................................80

Replacing the Toner Cartridges ................................................................... 80

Replacing the Photoconductor Unit ............................................................. 82

Replacing the Waste Toner Bottle................................................................ 86

Replacing the Fuser Oil Bottle and Ozone Filter ......................................... 87

Replacing the Fuser Cleaner....................................................................... 89

7. Making Printer Settings with the Operation Panel

Setting Menus........................................................................................... 92

Protecting the Menus............................................................................... 94

Protecting the Menus................................................................................... 94

Changing the Menu Settings without Removing Protect ............................. 95

Removing Protect ........................................................................................ 96

Menu Table................................................................................................97

Menu Settings........................................................................................... 98

IPDL-C Menu............................................................................................... 98

System Menu............................................................................................... 98

Printing the Configuration Page ...........................................................101

Interpreting Configuration Page ........................................................... 102

Reference .................................................................................................. 102

Printer Information ..................................................................................... 102

Status List.................................................................................................. 103

Error Log.................................................................................................... 103

Printing the Color Sample ..................................................................... 104

Resetting Menus ....................................................................................105

8. Appendix

Memory Capacity and Paper Size......................................................... 107

Moving and Transporting the Printer ................................................... 109

Specifications......................................................................................... 110

Mainframe.................................................................................................. 110

Options ...................................................................................................... 112

Comsumbles........................................................................................... 114

Glossaries............................................................................................... 115

Index........................................................................................................ 117

1. Getting Acquainted

Features of Your Printer

Office Color Printer

You can enjoy the versatility of a full color printer and the performance of a monochrome laser in a single compact unit. Text, spreadsheets, presentations, design and other documents containing images can be beautifully printed in full color. Windows applications using monochrome text or gray scale images are rendered quickly in razor-sharp detail. Its compact design allows you to locate it in a small convenient place. The efficient design of the internal mechanism make it easy to access and replace consumables as paper and toner cartridge.

Getting Acquainted

Guide to the Printer

Exterior - Front View

1. Operation Panel

Contains keys for printer operation and a display that shows the printer status. =>P.5 “Operation panel”

2. Top Cover

Open this cover when accessing the inside of the printer.

3. Front Cover

Open this cover when accessing the inside of the printer.

4. Power Switch

Use this switch to turn printer power on and off.

5. Paper Tray

Load up to 250 sheets of plain paper*

into this tray for printing. You can also load OHP transparencies and custom paper sizes. => P.51 “Loading Paper in the Paper Tray”

6. Inset Grips

Hold the printer at the location indicated in the illustration when transporting it. Note that there are four grips, two on the left side and two on the right side of the printer.

TPOH020E

7. Front Cover Open Lever

Press this lever to open the front cover.

8. Top Cover Open Lever

Press this lever to open the top cover.

9. Output Tray

Printed pages are stacked here with the print side down.

TPOH010E

*1:80 g/m

(metric version),

20 lb (inch version)

Guide to the Printer

Exterior - Rear View

1. Ventilator

These holes help to keep components inside the printer from overheating. Also, this cover should be removed to replace the ozone filter.

Note

❐ Do not leave the ventilator ob-

structed or blocked. Doing so creates the danger of malfunction due to overheating.

2. Rear Cover

Open this cover to remove misfed paper.

3. Power Connector

Connect the power cord to this connector.

4. Optional Paper Feed Unit Connector Cover

When installing the optional paper feed unit, plug its cable into this connector.

5. Parallel Interface Connector

Plug the interface cable that connects the printer to your computer into this connector.

6. Metal Plates

Remove to install certain options.

TPOH030E

2 3

Getting Acquainted

Interior

1. Fuser Cleaner

This cleans unnecessary toner from the fuser roller.

2. Fuser Oil Bottle

This bottle holds oil used for fusing toner on the paper.

3. Photoconductor Unit

This contains a photoconductor unit belt that is used to compose the image being printed.

Note

❐ The condition of the photo-

conductor unit belt directly affects output appearance and quality. Always be careful to prevent the green film in this unit from becoming dirty or damaged.

4. Toner Cartridges

1 K: black toner 2 Y: yellow toner 3 M: magenta toner 4 C: cyan toner

5. Waste Toner Bottle

This bottle is a receptacle for waste toner generated during the printing process.

TPOH040E

Guide to the Printer

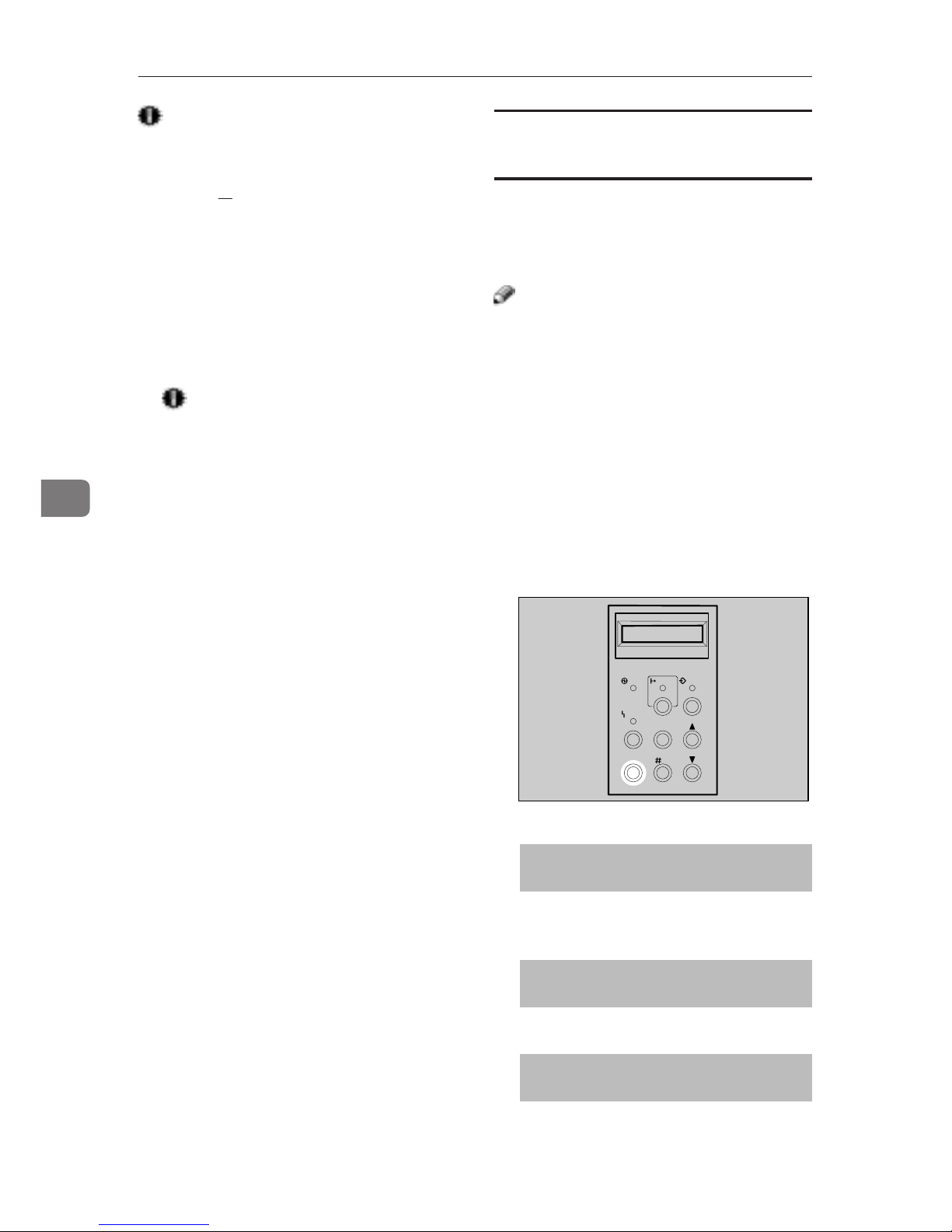

Operation Panel

Important

❐ Never press any operation panel keys while the Data In indicator is flashing

on the operation panel.

1. Panel Display

The display shows the current status of the printer and error messages. => P.56 “Error & Status Mes-

sages on the Operation Panel”

2. On Line indicator

Tells you whether the printer is online or off-line. Stays on while the printer is on-line (a state in which the printer can receive data from the computer). Stays off when the printer is off-line (a state in which printer can not receive data).

3. Power indicator

Stays on while the printer power is on. Stays off when the power is turned off or while the printer is in the Energy Saver mode.

4. {

On Line

} key

Press this key to switch the printer between on-line and off-line conditions.

5. Error indicator

Lights up whenever any printer error occurs. A message describing the cause of the error also appears on the panel display.

6. {

} key

Press this key to make and check the printer settings.

7. {

Media

} key

Use this key to select a tray, change the paper size, and to make other settings for printing.

8. {

Enter

} key

Press this key to execute menu items selected on the panel display.

9. {U} {T} keys

Use these keys to increase and decrease values on the panel display, and toggle menus when making settings.

10.{Escape

} key

Press this key to return to the previous condition on the panel display.

. {

Reset

} key

Pressing this key when the printer is off-line resets the printer to its power on default settings.

Pressing this key during the on-line condition cancels the ongoing print job.

.Data In indicator

Blinks while the printer is receiving data from the computer. Stays on if there is data to be printed.

Power On Line Data In

Reset

EscapeMenu

Media Enter

Error

TPOS010E

2 3

Getting Acquainted

2. Installing Options

CAUTION

• Make sure to turn off the printer and wait for about 30 minutes before installing options. Not waiting for the printer to cool down can result in a burn.

• It is recommended that at least two persons are used to lift the machine. Otherwise, the machine might fall and cause a personal injury.

• When lifting the machine, use the inset grips on both sides of the machine. Otherwise, the machine might fall and cause a personal injury.

CAUTION

• When you move the machine, unplug the power cord from the wall outlet to avoid a fire or an electric shock.

Installing Options

Available Options

The following options can be installed to your printer.

TPOH350E

TPOH351E

1. Memory Unit

You can install one of the following memory units.

• Memory Unit Type204 (16MB)

• Memory Unit Type204 (32MB)

2. RICOH-SCRIPT 2 Type204

3. Interface Board

You can install up to two interface boards. However, you cannot install two boards of the same type at the same time. The following board are available.

• Network Interface Board Type204

• IEEE 1284 Parallel Type204

4. Paper Feed Unit Type204

5. Paper Cassette Type204

Note

❐ You cannot install more than one paper feed unit at a time. ❐ The standard tray or the tray of the optional paper feed unit can be replaced

with Paper Cassette Type204.

Installing the Memory Unit

Important

❐ The memory unit can be damaged

by small amounts of static electricity. Before touching it, touch something metal to remove static electricity from you.

A T urn off the printer’s power switch

and remove all cables and cords from the printer.

B Remove both screws and remove

the printer board from the printer as shown in the illustration.

TPOP130E

Note

❐ A coin can be used to remove the

screws.

C Align the memory unit as shown

in the illustration. Tilt it backwards so that it is 45 degrees from perpendicular to the printer board (

1), and slide it into the slot. Then

tilt it forwards so that it is perpendicular to the board (

2). It should

make an audible click as it pops into place.

TPOP140E

(a)

Note

❐ When aligning the memory unit,

notice that the lower corner of one side has a notch (a). This is to prevent you from installing the unit backwards.

Installing Options

D Insert the printer board into the

printer. Fasten both screws.

TPOP150E

Important

❐ Make sure that both screws are

used to secure the printer board.

Note

❐ A coin can be used to fasten the

screws.

E Plug the printer’s power cord back

into the printer and the wall outlet. Turn on the printer’s power switch.

F Print a configuration page to con-

firm that the memory unit is properly installed.

Reference

❐ =>P.101 “Printing the Configura-

tion Page”

Note

❐ You can check if the memory unit

is installed properly by checking the “Total Installed RAM” item of the “Reference” on the configuration page.

❐ If the memory unit is not prop-

erly installed, repeat steps A-F again. If you fail again, contact your sales or service representative.

Important

❐ To make the printer recognize

the installed option properly, you must set up the option with the printer driver. => P.36, 40, or 44 “Setting Up Options”

Installing the PostScript2 kit Type 204

Important

❐ The RICOH-SCRIPT 2 can be dam-

aged by small amounts of static electricity. Before touching it, touch something metal to remove static electricity from you.

A Check the contents of the box for

the following items.

• DIMM (Dual Inline Memory Module)

• Installation Guide

B T urn off the printer’s power switch

and remove all cables and cords from the printer.

C Remove both screws and remove

the printer board from the printer as shown in the illustration.

TPOP130E

Note

❐ A coin can be used to remove the

screws.

D Align the module as shown in the

illustration. T ilt it upwards so that it is 45 degrees from parallel to the printer board (

1), and slide it into

the slot. Then tilt it down so that it is parallel to the board (

2). It

should make an audible click as it pops into place.

TPOP160E

(a)

Note

❐ If the optional interface board

has been installed to the printer board, you should remove it from the board before installing the module. After installing the module, reattach the interface board to its original position.

❐ Be careful to notice that one side

has a notch (a). This is to prevent you from installing the module backwards.

Installing the RICOH-SCRIPT 2 Type204

Installing Options

E Insert the printer board into the

printer. Fasten both screws.

TPOP320E

Important

❐ Make sure that both screws are

used to secure the printer board.

Note

❐ A coin can be used to fasten the

screws.

F Plug the printer’s power cord back

into the printer and the wall outlet. Turn on the printer’s power switch.

G Print a configuration page to con-

firm that the module is properly installed.

Reference

❐ => P.101 “Printing the Configura-

tion Page”

Note

❐ You can check if the module is

installed properly by checking the “Firmware Version” item of the “Reference” on the configuration page.

❐ If the module is not properly in-

stalled, repeat steps A-F again. If you fail again, contact your sales or service representative.

Installing the Network Interface Board Type 204

Note

❐ Use a shielded network interface

cable.

❐ The network interface board can be

attached to either the front or the back side of the printer board. This procedure is for attaching to the front side.

❐ You cannot install two network in-

terface boards at a time.

A Check the contents of the box for

the following items.

• Network interface board

• Ferrite core

• Installation Guide

B T urn off the printer’s power switch

and remove all cables and cords from the printer.

C Remove both screws and remove

the printer board from the printer as shown in the illustration.

TPOP130E

Note

❐ A coin can be used to remove the

screws.

Installing the Network Interface Board Type204

D Remove both screws and the metal

plate from the printer board.

TPOP170E

E Insert the network interface board

into the slot and fasten it with both screws that were removed in step

D, as shown in the illustration.

TPOP180E

Installing Options

F Insert the printer board into the

printer. Fasten both screws.

TPOP330E

Important

❐ Make sure that both screws are

used to secure the printer board.

Note

❐ A coin can be used to fasten the

screws.

G Loop the network interface cable.

The loop should be about 15 cm (6") from the end of the cable.

H Attach the ferrite core to loop.

TPOH390E

I Attach the network interface cable

to the network interface connector of the printer as shown in the illustration.

TPOH440E

J Connect the other end of the net-

work interface cable to the network.

K Plug the printer’s power cord back

into the printer and the wall outlet. Turn on the printer’s power switch.

L Print a configuration page to con-

firm that the network interface board is properly installed.

Reference

❐ => P.101 “Printing the Configura-

tion Page”

Note

❐ You can check if the network in-

terface board is installed properly by checking the “Network” item of the “Status List” on the configuration page.

❐ If the network interface board is

not properly installed, repeat the above steps again. If you fail again, contact your sales or service representative.

❐ After installing the network in-

terface properly, set up the printer’s network environment using the operation panel. => P.23 “Configuring the Printer for the Network with the Operation Panel”

Installing the IEEE 1284 Parallel Type 204

Installing the IEEE 1284 Parallel Type204

Note

❐ The parallel interface board can be

attached to either the front or the back side of the printer board. This procedure is for attaching to the front side.

❐ You cannot install two parallel in-

terface boards at a time.

A Check the contents of the box for

the following items.

• Parallel interface board

• Installation Guide

B T urn off the printer’s power switch

and remove all cables and cords from the printer.

C Remove both screws and remove

the printer board from the printer as shown in the illustration.

TPOP130E

Note

❐ A coin can be used to remove the

screws.

D Remove both screws and the metal

plate from the printer board.

TPOP170E

E Insert the IEEE 1284 Parallel Type

204 board into the slot and fasten it with both screws that were removed in step

D, as shown in the

illustration.

TPOP180E

Installing Options

F Insert the printer board into the

printer. Fasten both screws.

TPOP330E

Important

❐ Make sure that both screws are

used to secure the printer board.

Note

❐ A coin can be used to fasten the

screws.

G Attach the interface cable to the

parallel interface connector of the printer. Secure the cable with the metal fittings as shown in the illustration.

TPOH370E

H Attach the other end of the inter-

face cable to the interface connector of the computer , and secure the cable.

I Plug the printer’s power cord back

into the printer and the wall outlet. Turn on the printer’s power switch.

J Print a configuration page to con-

firm that the IEEE 1284 Parallel Type 204 board is properly installed.

Reference

❐ => P.101 “Printing the Configu-

ration Page”

Note

❐ You can check if the board is in-

stalled properly by checking the “Option Interface” item of the “Reference” on the configuration page.

❐ If the board is not properly in-

stalled, repeat the above steps again. If you fail again, contact your sales or service representative.

Installing the Paper Feed Unit Type 204

CAUTION

• It is recommended that at least two persons are used to lift the machine. Otherwise, the machine might fall and cause a personal injury.

• When lifting the machine, use the inset grips on both sides of the machine. Otherwise, the machine might fall and cause a personal injury.

A Check the contents of the box for

the following items.

• Installation Guide (1 pc)

• Right side cover (1 pc)

• Left side cover (1 pc)

• Screw (2 pcs)

• Securing bracket (2 pcs)

• Paper Feed Unit (1 pc)

TPOP011E

B Remove the styrofoam packing [A]

and the plastic bag [B] from the side covers.

TPOP190E

[A]

[B]

C Remove the bag [C] and the styro-

foam packing [D] from the paper feed unit.

TPOP200E

[D]

[C]

D Remove both pieces of adhesive

tape [E].

TPOP210E

[E]

E Turn off the printer’s power

switch, and remove all cables and cords from the printer.

Installing the Paper Feed Unit Type204

Installing Options

F Place the paper feed unit on a flat

surface.

TPOP220E

G Lift the printer using the inset

grips on both sides of the printer.

TPOH110E

Important

❐ It is recommended that at least

two people are used to lift the printer.

H Align the printer onto the 3 up-

right pins [G] on the paper feed unit and then lower it gently.

TPOP230E

[G]

I Insert the securing bracket [H1]

into the rectangular hole on the right lower side of the printer . Secure the bracket using a screw [I1].

][H1]

TPOP252E

J Insert the securing bracket [H2]

into the rectangular hole on the left lower side of the printer. Secure the bracket using a screw [I2].

[I2][H2]

TPOP242E

K Remove the connector cover [J]

from the printer, and the connector cover [K] from the paper feed unit.

TPOP280E

[J]

[K]

Installing the Paper Feed Unit Type 204

L Attach the paper feed unit cable to

the socket inside the printer securely.

TPOP290E

M Attach the connector cover [J], re-

moved from the printer in step

to the paper feed unit. Attach the connector cover [K], removed from the paper feed unit in step

K, to the

printer .

TPOP300E

[K]

[J]

N Attach the right side [L] and the

left side [M] covers onto the printer. When attaching them, make sure the projections on the covers are inserted into the rectangular holes on the printer.

TPOP310E

[L]

[M]

O Connect all of cables that were re-

moved in step

P T urn on the printer’s power switch.

Installing Options

Q Print out the configuration page to

confirm that the paper feed unit is properly installed.

Reference

❐ => P.101 “Printing the Configura-

tion Page”

Note

❐ If the paper feed unit is properly

installed, you can see “Tray2” under the “Printer Information” of the configuration page.

❐ If the paper feed unit does not

work, follow the above instructions to reinstall it. If it still does not work, contact your sales or service representative.

Important

❐ To make the printer recognize

the installed option properly, you must setup the option with the printer driver. => P.36, 40 or 44 “Setting Up Options”

Installing the Paper Cassette Type 204

Installing the Paper Cassette Type204

CAUTION

• The paper tray does not have a stopper. When pulling it out, be careful not to pull it strongly. If you do, the tray might fall and cause a personal injury.

Note

❐ The standard tray (tray 1) or the tray

of the optional paper feed unit (tray2) can be replaced with the Paper Cassette Type204.

A Check the contents of the box for

the following items.

• Paper cassette

• Installation Guide

B Carefully pull the paper tray (tray1

or tray2) out of the printer and place it on a flat surface.

TPOH450E

Note

❐ Keep the paper tray with paper

in a cool and dark place.

C Slide the Paper Cassette Type 204

completely into the printer.

TPOH451E

Note

❐ When loading paper, => P.51

“Loading Paper”

Installing Options

3. Configuring the Printer for the Network with the Operation Panel

Configuring the Printer for the Network with the Operation Panel

After installing the optional network interface board, configure it for the network using the printer’s operation panel.

Note

❐ If you want to print from your Macintosh computer, the optional RICOH-

SCRIPT 2 Type204 is required.

The following table shows the operation panel settings and their default settings. These are included in the “System Menu”.

Items Default Settings

32 IP Address 011.022.033.044 33 Subnet Mask 000.000.000.000 34 Gateway Add 000.000.000.000

(Gateway Address)

35 Access CTL. 000.000.000.000

(Access Control Address)

36 Access Mask 000.000.000.000

(Access Control Mask)

37 Net Boot None

(Network Boot)

38 Frame NW Auto Select

(Frame type NetWare)

39 Active PTL. All Active

(Active Protocol)

A Press

{{

{

}}

B Check if the following message appears on the panel display. If not, press

{U} {T}{U} {T}

{U} {T} until the following message appears.

<Menu> U System Menu T

C Press

{{

{

Enter

}}

The following message appears.

<System Menu> U

1.Paper Tray T

Setting Up the Printer for Network with the Operation Panel

D Select the protocol you want to use. You can select one of items on the table

below.

Menu item on the

Active Protocol

panel display

TCP/IP NetWare EtherTalk NetBEUI *

All Active (Default) ✓✓ ✓– None – TCP/IP Only ✓ – NetWare Only ✓ – TCP & NetWare ✓✓ – EtherTalk Only ✓ – TCP & EtherTalk ✓✓– NetW & EtherTalk ✓✓– TCP & NW & EtherTK ✓✓ ✓– NetBEUI Only – TCP & NetBEUI ✓ – NetW & NetBEUI ✓ – TCP & NW & NB ✓✓ – ETalk & NetBEUI ✓ – TCP & ETK & NB ✓✓– NW & ETK & NB ✓✓–

· ✓ means that this protocol is active.

· Blank cell means that this protocol is not active.

· – means that this protocol is not supported.

*1: NetBEUI appears on the panel display, but is not supported.

Note

❐ It is recommended that you should not select protocols that are not used on

your network.

Limitation

❐ If you want to select EtherTalk, you should install the optional RICOH-SCRIPT

2 Type204.

Setting Up the Printer for Network with the Operation Panel

1 Press

{U}{U}

{U}

{T}{T}

{T} until the following message appears.

<System Menu> U

39.Active PTL.T

2 Press

{{

{

Enter

}}

The current setting appears on the panel display.

<Active PTL.> U *All Active T

3 Press

{U}{U}

{U}

{T}{T}

{T} until the protocol you want to use appears.

4 Press

{{

{

Enter

}}

E If you use TCP/IP, you should assign the IP address to your printer.

Note

❐ To get the IP address for your printer, contact your network administrator.

1 Press

{U}{U}

{U}

{T}{T}

{T} until the following message appears.

<System Menu> U

32.IP ADDRESS T

2 Press

{{

{

Enter

}}

The current IP address appears on the panel display.

011.022.033.044 U

UT/#

3 Use

{U} {T}{U} {T}

{U} {T} to specify the leftmost digit of the IP address.

111.022.033.044 U

UT/#

4 Press

{{

{

Enter

}}

The pointer (U) moves to the next digit as shown.

111.022.033.044 U

UT/#

Note

❐ You can return the pointer (U) to the previous (left) digit by pressing {

Es-

cape

❐ If you press {

Escape

} when the pointer (U) is on the leftmost position, the

specified IP address is reset.

5 Use

{U} {T}{U} {T}

{U} {T} to specify the second digit of the IP address.

191.022.033.044 U

UT/#

6 Press

{{

{

Enter

}}

7 Repeat steps 5 and 6 to specify the rest digit of IP address.

191.168.015.016 U

Setting Up the Printer for Network with the Operation Panel

8 Check if the pointer (

U) is at the rightmost digit, press

{{

{

Enter

}}

} to register

the IP address you specified.

F If you use TCP/IP , you should assign “33. Subnet Mask”, “34. Gateway Add”,

“35. Access CTL” and “36. Access Mask” using the same procedure for specifying the IP address.

G If you use TCP/IP, you should make settings for “37 Net Boot”. You can

select how to assign the printer’s address using the computer . Select one of items on the table below.

Menu item on

Available method

the panel display

ARP+PING RARP+TFTP BOOTP DHCP

ARP+PING ✓ ARP & RARP ✓✓ ARP & BOOTP ✓✓ ARP & RARP & BOOT ✓✓ ✓ None (Default) RARP+TFTP ✓ BOOTP ✓ RARP & BOOTP ✓✓ DHCP ✓

Note

❐ Select “None”, if you want to specify the address using the printer’s opera-

tion panel.

❐ You should set up your server, if you want to use “RARP+TFTP”, “BOOTP”,

or “DHCP”.

1 Press

{U} {T}{U} {T}

{U} {T} until the following message appears.

<System Menu> U

37.Net Boot T

2 Press

{{

{

Enter

}}

The current setting appears on the panel display.

<Net Boot> U *ARP+PING T

3 Press {U} {T} until the method you want to use appears. 4 Press

{{

{

Enter

}}

Setting Up the Printer for Network with the Operation Panel

H If you use NetWare, select the frame type for NetWare. Select one of items

below if necessary.

• Auto Select (Default)

• Ethernet 802.3

• Ethernet 802.2

• Ethernet2

• Ethernet SNAP

Note

❐ Usually, use the default setting (“Auto Select”). However if you select “Auto

Select”, the frame type detected by the printer first is adopted. If your network can use more than two frame types, the printer fails to select the correct frame type, if the “Auto Select” is selected. In this case, select the appropriate frame type.

1 Press

{U} {T}{U} {T}

{U} {T} until the following message appears.

<System Menu> U

38. Frame NW

2 Press

{{

{

Enter

}}

The current setting appears on the panel display.

<Frame NW> U *Auto Select T

3 Press

{U} {T}{U} {T}

{U} {T} until the frame type you want to use appears.

4 Press

{{

{

Enter

}}

You have completed the printer’s network settings.

5 Press

{{

{

On Line

}}

} .

This returns to the normal display screen.

I Print the configuration page to check settings you have made.

1 Press

{{

{

}}

2 Press

{U} {T}{U} {T}

{U} {T}, until the following message appears.

<Menu> U List Print T

3 Press

{{

{

Enter

}}

4 Check if the following message appears. If not, press

{U} {T}{U} {T}

{U} {T} until the

following message appears.

<List Print> U Config.Page T

5 Press

{{

{

Enter

}}

The following message appears.

<Config.Page> U Press # key T

Setting Up the Printer for Network with the Operation Panel

6 Press

{{

{

Enter

}}

The configuration page is now printed. Check the contents of the configuration page.

7 Press

{{

{

On Line

}}

} .

The normal display screen appears.

8 Press

{{

{

On Line

}}

} to enter the off-line condition.

The On Line indicator turns off.

9 Press

{{

{

Reset

}}

Address

❖ Subnet Mask

A number used to mathematically “mask” or hide the IP addresses on the network by eliminating those parts of the address that are alike for all the machines on the network.

❖ Gateway Address

A gateway is a connection or interchange point that connects two networks. A gateway address is for the router or host computer used as a gateway.

Note

❐ To get the addresses, contact your network administrator. ❐ If you do not know the addresses, please use the default settings.

Access Control Address and Access Control Mask

Access Control Address and Access Control Mask are used to control the IP addresses that have access to the computer used for printing, with the IP address. If it is not necessary for you to control the access right, select “0.0.0.0”.

Note

❐ When the setting of Access Control Address coincides with the masked result

of the IP address of the computer, print jobs from that IP address can be accepted by the network interface board.

❐ For example, if you assign 192.168.15.16 as the Access Control Address to the

network interface board, the combination of the Access Control Mask and IP address that can have access are as follows.

Access Control Mask IP Address that have access

0. 0. 0. 0 xxx.xxx.xxx.xxx

255. 0. 0. 0 192.xxx.xxx.xxx

255. 255. 0. 0 192.168.xxx.xxx

255. 255.255. 0 192.168. 15.xxx

255. 255.255.255 292.168. 15. 16

4. Installing the IPDL-C Printer Driver

Before Installing the Printer Drivers

To print, you must first install software called a printer driver on your computer. The required printer driver is supplied on the CD-ROM that comes with your printer.

Preparation

❐ Set up the printer and connect it to your computer as described in the “Quick

Installation Guide”.

❐ The procedures in this section assume that the printer is connected to your

printer by a parallel interface cable.

Important

❐ Some applications require their own specific settings, which may be different

from those provided by the printer driver. Be sure to check the documentation that comes with your applications for details.

❐ Considerable hard disk space is required on your computer for printing com-

plex documents.

Note

❐ All of the procedures in this manual assume that you are familiar with general

Windows procedures and practices. If you are not, see the documentation that comes with Windows for details.

Installing the Printer Drivers

Limitation

❐ The printer drivers supplied with this printer do not support operation

under a system running Windows NT

with a RISC based processor (MIPS

R Series, Alpha AXP, Power PC).

Note

❐ Recommended PC requirements:

• Memory: 32MB or more

• CPU: Pentium

100Mhz or more

• Free Hard disk space: 100MB or more

❖

Supported Operating Systems

❐ Microsoft

Windows® 95 operating system

❐ Microsoft

Windows® 98 operating system

❐ Microsoft

Windows® for Workgroups operating system 3.1x

❐ Microsoft

WindowsNT® Server network operating system Version4.0

❐ Microsoft

WindowsNT® Workstation Network operating system Version4.0

Installing the IPDL-C Printer Driver

Windows 95/98 - Installing the IPDL-C Printer Driver

Preparation

❐ Before starting installation, be sure to carefully read the README file that is

on the CD-ROM containing the printer driver.

Important

❐ Never have two versions of the same printer driver installed on your system

at the same time. When upgrading to a new version of the printer driver, delete the old version, and then install the new one.

Normally you can use plug and play to install the printer driver. If your system does not support plug and play, add the printer from the [Printers] window.

❖

Plug and Play

Plug and play automatically makes the required software settings whenever it detects that a new peripheral device has been connected to the computer. Plug and Play operates when the following conditions are present.

• The computer supports plug and play (see the computer’s documentation for details).

• The printer is connected to the computer by a bi-directional interface cable.

• Printer power is turned on first, and then the computer is turned on.

Printer Driver Installation Flow

If the

[New Hardware Found]

dialog appears.

☞ P.32 “Plug and Play Installation 1” If the

[Device Driver Wizard]

appears.

☞ P.33 “Plug and Play Installation 2” If Windows 95/98 starts normally.

☞ P.34 “Installing the Printer Driver With-

out Using Plug and Play”

Read the

README

file.

Turn on

the

printer.

Turn on

the

computer.

Install the driver in accordance with the instructions that appear on your computer screen.

Windows 95/98 - Installing the IPDL-C Printer Driver

Installing the Printer Driver Using Plug and Play

Preparation

❐ Check to make sure that the printer is connected properly to your computer,

and that computer power is turned off.

A Turn on the printer. B Turn on your computer.

Continue with one of the procedures below in accordance with what appears on your computer’s screen.

Note

❐ What happens after you turn on your computer depends on which version

of Windows 95/98 you are running and on your system setup.

When the [New Hardware Found] dialog appears

This dialog indicates that plug and play is working. Continue with the procedure under “Plug and Play Installation 1” on page 32.

When the [Device Driver Wizard] appears

This indicates that plug and play is working. Continue with the procedure under “Plug and Play Installation 2” on page 33.

When Widows 95/98 starts normally

This indicates that plug and play is not working. Continue with the procedure under “Installing the Printer Driver Without Using Plug and Play” on page 34.

Installing the IPDL-C Printer Driver

Plug and Play Installation 1

Use the following procedure to install the printer when the

[New Hardware Found]

dialog appears after you turn on the printer and then your computer.

A Insert the CD-ROM that comes with the printer, into your computer’s CD-

ROM drive.

B Click

[Browse]

The Windows 95/98 printer driver is on the following directory on the CDROM:DRIVERS\IPDL_C\WIN95_98.

C Select the CD-ROM drive using the

[Drives]

list box.

D In the Folders box, double-click

[DRIVERS], [IPDL_C]

and then

[WIN95_98]

. Fi-

nally, click

[OK]

E Click

[OK]

The installer copies the printer driver files from the CD-ROM to your computer’s hard disk.

F Restart Windows after completing the installation.

Important

❐ If your printer is equipped with certain options (ex. paper feed unit or

memory unit), you should set up the options with the printer driver. => P.36 “Setting Up Options”

Windows 95/98 - Installing the IPDL-C Printer Driver

Plug and Play Installation 2

Use the following procedure to install the printer when the

[Device Driver Wizard]

appears after you turn on the printer and then your computer.

A Insert the CD-ROM that comes with the printer into your computer’s CD-

ROM drive, and then click

[Next]

B Click

[Finish]

C Click

[Browse]

The Windows 95 printer driver is on the following directory on the CD-ROM: DRIVERS\IPDL_C\WIN95_98.

D On the

[Browse]

dialog, double-click the CD-ROM drive.

E In the CD-ROM directory, double-click

[DRIVERS], [IPDL_C]

and then

[WIN95_98]

. Finally, click

[OK]

F Click

[OK]

G Click

[Finish]

H Change the name of the printer, if you want, and then click

[Finish]

I If the next dialog appears, click

[OK]

J If the next dialog asking you to specify the CD-ROM drive appears, select

the CD-ROM drive from the listbox. Finally, click

[OK]

K Follow the instructions on the screen. L Restart Windows after completing the installation.

Important

❐ If your printer is equipped with certain options (ex. paper feed unit or

memoryunit), you should set up the options with the printer driver. => P.36 “Setting Up Options”

Installing the IPDL-C Printer Driver

Installing the Printer Driver Without Using Plug and Play

Turn on the printer and then your computer, and then use the following procedure to install the printer driver.

A Close all applications that are currently running. B Click

[Start]

, point to

[Settings]

, and then click

[Printers]

The

[Printers]

window appears.

C Double-click the

[Add Printer]

icon.

The Add Printer Wizard appears.

D Click

[Next]

A dialog for specifying the port where the printer is connected appears.

E After confirming that the

[Local Printer]

option is selected, click

[Next]

A dialog for selecting the printer manufacturer and model name appears.

F Click

[Have Disk]

A dialog for driver installation from a disk appears.

G Insert the CD-ROM that comes with the printer into your computer’s CD-

ROM drive.

H Click

[Browse]

The Windows 95/98 printer driver is on the following directory on the CDROM: DRIVERS\IPDL_C\WIN95_98.

I Use the

[Drives]

listbox to select the CD-ROM drive.

J In the

[Folders]

box, double-click

[DRIVERS], [IPDL_C]

and then

[WIN95_98]

. Fi-

nally, click

[OK]

K Click

[OK]

A port selection dialog appears.

L Select the name of the printer whose driver you want to install by clicking

it, and then click

[Next]

A port selection dialog appears.

M In the

[Available Ports]

box, select

[Printer Port]

by clicking it, and then click

[Next]

A dialog for changing the printer name appears.

Windows 95/98 - Installing the IPDL-C Printer Driver

N Change the name of the printer if you want, and then click

[Next]

O Specify whether or not you want to print a test page, and then click

[Finish]

The printer driver files are copied from the CD-ROM to your computer’s hard disk.

P If you are asked if you restart Windows, select

[Yes]

. If you are not asked,

restart Windows after completing the installation.

Q After Windows restarts, set up any options you have installed on the printer.

Reference

❐ => P.36 “Setting Up Options”.

Installing the IPDL-C Printer Driver

Setting Up Options

A Click

[Start]

, point to

[Settings]

, and then click

[Printers]

The

[Printers]

window appears.

B Select the icon of the printer you want to use by clicking it. On the

[File]

menu, click

[Properties]

C Click

[Setup]

tab, and then click

[Installable Options]

The

[Installable Options]

dialog appears.

D Use the

[Option Tray]

listbox, to specify the optional tray unit.

Specifying the wrong tray here will make it impossible to install your tray correctly.

E Use the

[T otal Printer Memory]

listbox to specify how much memory is installed

on the printer.

Specifying the wrong amount of memory here may cause printing problems. Be sure to change this setting whenever you add more memory.

Reference

❐ You can find out how much memory is currently stored in memory by print-

ing a Configuration Page on the printer. => P.101 “Printing the Configuration Page”.

F Click

[OK]

to close the dialog.

G Click

[OK]

to close the printer’s Properties dialog.

Windows 95/98 - Installing the IPDL-C Printer Driver

Canceling a Print Job

A Double-click the printer icon on the Windows Task Bar.

This opens a window that shows all the print jobs that are currently queued for printing. Check the current status of the job you want to cancel.

B Select the name of the job you want to cancel by clicking it. C On the

[Document]

menu, click

[Cancel Printing

Note

❐ You can also open the print job queue window by double-clicking the printer

icon in the

[Printer]

window.

D Make sure that the printer’s On Line indicator is lit, press the printer’s

{{

{

Re-

set

}}

}

key.

The message appears on the operation panel display indicating that the print job is being cancelled.

Important

❐ The above procedure cancels the print job that is currently being processed

by the printer. In some cases, the printer may already be processing data for the next print job following the one currently being output. In such a case, the next print job is also canceled when you press {

Reset

❐ When your printer is being shared by multiple computers, be careful you

don’t accidentally cancels someone else’s print job.

Note

❐ You cannot stop printing data that has already been processed internally

by the printer. Because of this, printing may continue for a few pages after you press {

Reset

❐ A print job that contains a large volume of data may take a considerable

time to stop.

Installing the IPDL-C Printer Driver

Windows 3.1x - Installing the IPDL-C Printer Driver

Preparation

❐ Before starting installation, be sure to carefully read the README file that is

on the CD-ROM containing the printer driver.

Important

❐ Never have two versions of the same printer driver installed on your system

at the same time. When upgrading to a new printer driver version, uninstall the old version, and then install the new one.

Installing the Printer Driver

A From the Program Manager

[Main]

group, open the

[Control Panel]

and double-

click the

[Printers]

icon.

The

[Printers]

dialog appears.

B Click

[Add]

to expand the dialog and display the

[List of Printers]

If there are no printers installed on your computer, the

[List of Printers]

appears

automatically when you display the

[Printers]

dialog, and the

[Add]

button is

grayed out. If this is the case, perform the next step, below.

C In the

[List of Printers]

, select

[Install Unlisted or Updated Printer]

by clicking it,

and then click

[Install…]

The

[Install Drivers]

dialog appears.

D Insert the CD-ROM that comes with the printer into your computer’s CD-

ROM drive.

E Click

[Browse…]

The Windows 3.1x printer driver is on the following directory on the CDROM:DRIVERS \IPDL_C\WIN31.

F Use the Drives listbox to select the CD-ROM drive. G In the

[Directories]

box, double-click

[DRIVERS], [IPDL_C]

and then

[WIN31]

. Fi-

nally, click

[OK]

H Click

[OK]

I In the

[List of Printers]

box, select the name of the printer whose driver you

want to install by clicking it, and then click

[OK]

The printer driver files are copied from the CD-ROM to your computer’s hard disk.

Windows 3.1x - Installing the IPDL-C Printer Driver

J After installation is complete, click

[Close]

to close the

[Printers]

dialog.

K Restart Windows. L After Windows restarts, setup any options you have installed on the printer.

Reference

❐ => P.40 “Setting Up Options”.

Installing the IPDL-C Printer Driver

Setting Up Options

A From the Program Manager

[Main]

group, open the

[Control Panel]

and double-

click the

[Printers]

icon.

The

[Printers]

dialog appears.

B In the

[Installed Printers]

box, select the name of the printer you want to use

by clicking on it, and then click

[Setup…]

A dialog for making printer driver settings appears.

C Click

[Setup]

tab, and then click

[Installable Options]

The

[Installable Options]

dialog appears.

D Use the

[Option Tray]

listbox, to specify the optional tray unit.

Specifying the wrong tray here will make it impossible to install your tray correctly.

E Use the

[T otal Printer Memory]

listbox to specify how much memory is installed

on the printer.

Specifying the wrong amount of memory here may cause printing problems. Be sure to change this setting whenever you add more memory.

Reference

❐ You can find out how much memory is currently stored in memory by print-

ing a Configuration Page on the printer. => P.101 “Printing the Configuration Page”

F Click

[OK]

to close the dialog.

G Click

[OK]

to close the dialog.

H Click

[Close]

to close the

[Printers]

dialog.

Windows 3.1x - Installing the IPDL-C Printer Driver

Canceling a Print Job

A In the

[Main]

group, double-click the

[Print Manager]

icon.

A window that shows all the print jobs that are currently queued for printing appears.

B Select the name of the job you want to cancel by clicking it. C On the

[Document]

menu, click

[Delete Document]

D Click

[Close]

to close the dialog.

E Click

[Close]

to close the dialog.

F Make sure that the printer’s On Line indicator is lit, press the printer’s

{{

{

Re-

set

}}

}

key.

The message appears on the operation panel display indicating that the print job is being cancelled.

Important

❐ The above procedure cancels the print job that is currently being processed

Reset

❐ When your printer is being shared by multiple computers, be careful you

don’t accidentally cancels someone else’s print job.

Note

❐ You cannot stop printing data that has already been processed internally

by the printer. Because of this, printing may continue for a few pages after you press {

Reset

❐ A print job that contains a large volume of data may take a considerable

time to stop.

Installing the IPDL-C Printer Driver

Windows NT4.0 - Installing the IPDL-C Printer Driver

Preparation

❐ Before starting installation, be sure to carefully read the README file that is

on the CD-ROM containing the printer driver.

Important

❐ Never have two versions of the same printer driver installed on your system

at the same time. When upgrading to a new printer driver version, uninstall the old version, and then install the new one.

Limitation

❐ Printer driver installation requires full control access rights. To install the printer

driver, log on as an Administrators or Power Users group member.

Installing the Printer Driver

A Click

[Start]

, point to

[Settings]

, and then click

[Printers]

The

[Printers]

window appears.

B Double-click the

[Add Printer]

icon.

The Add Printer Wizard appears.

C After Confirming that

[My Computer]

option is selected, click

[Next]

A dialog for specifying the port where the printer is connected appears.

D Click a check box to select the port you want to use, and click

[Next]

A dialog for the manufacturer and model of the printer appears.

E Click

[Have Disk…]

A dialog for driver installation from a disk appears.

F Insert the CD-ROM that comes with the printer into your computer’s CD-

ROM drive.

G Change the drive name in the listbox to the name of the CD-ROM drive,

and then click

[Browse…]

The Windows NT4.0 printer driver is on the following directory on the CDROM:DRIVERS\IPDL_C\NT4.

H Double-click

[DRIVERS], [IPDL_C]

and then

[NT4]

. Finally, click

[Open]

I Click

[OK]

A printer model selection dialog appears.

Windows NT4.0 - Installing the IPDL-C Printer Driver

J Select the name of the printer whose driver you want to install by clicking

it, and then click

[Next]

A dialog for changing the printer name appears.

K Change the name of the printer if you want, and then click

[Next]

L If the printer is to be shared over a network, click

[Shared]

to select it.

Selecting

[Shared]

causes the computer you are on to operate as the printer

server. If you select

[Not shared]

here, skip step

M In the

[Shared Name]

box, type in the name that printer should use on the

network.

The initial default Shared name is the same name as the Name box in step

above. You can leave this name as it is, or change to a different one.

N Click

[Next]

O Specify whether or not you want to print a test page, and then click

[Finish]

The printer driver files are copied from the CD-ROM to your computer’s hard disk.

After installation is complete, the

[Printers]

window appears with the icon of

the newly installed printer.

P Restart Windows. Q After Windows restarts, set up any options you have installed on the printer.

Reference

❐ => P.44 “Setting Up Options”.

Installing the IPDL-C Printer Driver

Setting Up Options

A Click

[Start]

, point to

[Settings]

, and then click

[Printers]

The

[Printers]

window appears.

B Select the icon of the printer you want to use by clicking it. On the

[File]

menu, click

[Properties]

The printer properties dialog appears.

C Click the

[Installable Options]

tab.

D Use the

[Option Tray]

listbox, to specify the optional tray unit.

Specifying the wrong tray here will make it impossible to install your tray correctly.

E Use the

[T otal Printer Memory]

listbox to specify how much memory is installed

on the printer.

Specifying the wrong amount of memory here may cause printing problems. Be sure to change this setting whenever you add more memory.

Reference

❐ You can find out how much memory is currently stored in memory by print-

ing a Configuration Page on the printer. => P.101 “Printing the Configuration Page”

F Click

[OK]

to close the printer properties.

Windows NT4.0 - Installing the IPDL-C Printer Driver

Canceling a Print Job

A Double-click the printer icon on the Windows Task Bar.

A window that shows all the print jobs that are currently queued for printing appears. Check the current status of the job you want to cancel.

B Select the name of the job you want to cancel by clicking it. C On the

[Document]

menu, click

[Cancel Printing]

Note

❐ You can also open the print job queue window by double-clicking the printer

icon in the

[Printer]

window.

D Make sure that the printer’s On Line indicator is lit, press the printer’s

{{

{

Re-

set

}}

}

key.

The message appears on the operation panel display indicating that the print job is being cancelled.

Important

❐ The above procedure cancels the print job that is currently being processed

Reset

❐ When your printer is being shared by multiple computers, be careful you

don’t accidentally cancels someone else’s print job.

Note

❐ You cannot stop printing data that has already been processed internally

by the printer. Because of this, printing may continue for a few pages after you press {

Reset

❐ A print job that contains a large volume of data may take a considerable

time to stop.

Installing the IPDL-C Printer Driver

5. Paper and Other Media

Paper and Other Media Supported by this Printer

Paper Types and Sizes

The following tables show the type, size, and feed direction of paper that can be loaded in the printer’s paper trays. They also show the maximum number of sheets that can be loaded.

Note

❐ The “K” symbol means short-edge feed direction. ❐ This printer supports short-edge feed direction (K) only.

The supported paper size varies depending on the amount of memory in your printer. => P107 “Memory Capacity and Paper Size”

❖

Standard Paper Tray

Paper Size

Maximum number of

sheets to be set*

A4K(210 × 297 mm), JIS B5K(182 × 257 mm), 250 sheets 8

" × 11" K(Letter), 7

" × 10

/2" K (Executive)

Custom size*2 (Length: 210 to 297 mm, Width: 100 to 216 mm)

*1: Based on paper that is 80 g/m2 (metric version), 20 lb (inch version) in weight. *2: You should specify the paper size with the printer driver and operation panel.

❖

Optional 250-sheet Paper Tray (Paper Feed Unit Type204)

Paper Size

Maximum number of

sheets to be set*

A4K(210 × 297 mm), JIS B5K(182 × 257 mm), 250 sheets 8

" × 11" K(Letter), 7

" × 10

/2" K (Executive)

*1: Based on paper that is 80 g/m2 (metric version), 20 lb (inch version) in weight.

❖

Optional Paper Tray (Paper Cassette Type204*1)

Paper Size

Maximum number of

sheets to be set*

A4K(210 × 297 mm), JIS B5K(182 × 257 mm), 8

" × 11"K(Letter), 250 sheets

" × 10

/2" K (Executive), 81/

" × 14" K(Legal)

Custom size*

2, 3

(Length: 210 to 356 mm, Width: 100 to 216 mm)

*1: This tray can be replaced with both the standard tray (tray 1) and the tray of the optional paper feed

unit.

*2:

You can load the custom paper size only when you replace this tray with the tray 1. *3: You should specify the paper size with the printer driver and operation panel. *4: Based on paper that is 80 g/m

(metric version), 20 lb (inch version) in weight.

Paper and Other Media

Precautions for Paper

Note the following precautions when handling or selecting paper to be used with this printer.

Cautions in loading paper

❐ Use only the recommended paper types. Print quality cannot be guaranteed if

other paper types are used.

❐ Do not use paper that is already printed on. ❐ When loading paper into the paper tray, make sure that the top of the stack is

not higher than the limit mark inside the tray. ❐ When loading paper into the paper tray, make sure that the print side is facing

up.

Cautions in storing paper

Paper should always be stored properly. Improperly stored paper might damege the paper, resulting in poor print quality, paper misfeeds, or printer damage.

Follow the precautions below.

• Avoid storing paper in humid areas.

• Avoid exposing paper to direct sunlight.

• Store on a flat surface.

• Keep open reams of paper in the package in which the paper came.

Paper types and cautions

❖

Plain Paper

❐ The paper tray can support paper 60 - 162 g/m

(16 - 43 lb) in weight.

❐ If you print on the paper heavier than 90 g/m

(24 lb), you should select the

thick paper mode with the printer driver.

❐ If paper is curled or bent, correct it before loading.

❖

Thick Paper

❐ Printing is supported on thick paper up to 160g/m

(43 lb). The print quality

on paper that is thicker cannot be guaranteed. ❐ Make sure that the stack of paper is no higher than the LABEL upper limit

mark (

T) inside the tray.

Paper Supported by This Printer

❖

Adhesive Labels

❐ Load adhesive labels into the tray with the print side up. ❐ Remove any unused adhesive labels from the tray after you are finished print-

ing. Leaving them in the tray can cause them to curl. ❐ The paper tray can hold up to 30 adhesive labels. Make sure that the stack of

paper is no higher than the LABEL upper limit mark (

T) inside the tray.

❐ Use adhesive labels which can be printed on the whole side. ❐ Avoid using the adhesive labels on which glue is exposed. ❐ If the print side is coated, the print quality might be reduced, as the toner

might fuse well. ❐ When printing on adhesive labels, you should select the thick paper mode

with the printer driver.

❖

OHP Transparencies

❐ When printing on an OHP transparency that has a print side, load it face up in

the paper tray. ❐ When printing on an OHP transparency that has tape on it, load it in the pa-

per tray so that the edge with tape is the trailing edge. ❐ When printing on the OHP transparencies, you should select the OHP trans-

parency mode with the printer driver. ❐ Remove any unused OHP transparencies from the tray after you are finished

printing. Leaving them in the tray can cause them to curl. ❐ The paper tray can hold up to 50 OHP transparency sheets. Make sure that the

stack of paper is no higher than the OHP upper limit mark (

T) inside the tray.

❐ Be careful not to touch the print side of the OHP transparencies. Otherwise,

the print side may be dirty or damaged, resulting in poor print quality.

Paper not supported by this printer

❐ Avoid using the following types of paper that are not supported by this printer.

• Paper whose weight is heavier or lighter than the limitation

• Bent, folded, or creased paper

• Curled or twisted paper

• Torn paper

• Wrinkled paper

• Damp paper

• Papers that are stuck together

• Paper that is dry enough to emit static electricity

Paper and Other Media

• Paper that has already been printed on (with the exception of preprinted letterhead)

Note

❐ The ink used for the former printing by a copier, or an inkjet printer and so on

might do harm to the fusing unit of this printer due to a difference in fusing temperatures.

• Coated paper (except the recommended one)

• Special paper like thermal paper, aluminum foil, carbon paper and conductive paper

• Heavily textured paper

• Glued paper

• Label paper on which glue or base paper is exposed

• Paper with clips or staples

• Paper with tape or ribbons attached

• Postcards

Printable Area

The following shows the printable area guaranteed for this printer. Be sure to set the print margins correctly.

Feed direction

4.3 mm ( /6") 4.3 mm ( /6")

4.3 mm ( /

6")

4.3 mm ( /

6")

printable area

Loading Paper

B Slide the paper guides to positions

that match the size of paper you want to load.

TPOH300E

TPOH301E

C Load paper into the tray with the

print side up.

PAPER

LABEL

OHP FILM

ENVEL OPE

TPOH310E

Loading Paper

Loading Paper in the Paper Tray

CAUTION

• The paper tray does not have a stopper. When pulling it out, be careful not to pull it strongly. If you do, the tray might fall and cause a personal injury.

Important

❐ After you load paper, you must use

the printer driver’s

[Option Setup]

tab to specify the paper size for the computer to be able to know what size is loaded.

Reference

❐ See “Paper Types and Sizes” on

page 47 for details on supported paper types and sizes.

❐ Custom size paper is supported by

the standard paper tray (Tray 1) only.

Loading paper

A Carefully pull the paper tray out

of the printer and place it on a flat surface.

TPOH450E

Paper and Other Media

Important

❐ Make sure that the stack of paper is

no higher than the top-most limit mark (

T) inside the tray.

❐ The front and side guides should be

set to the correct paper size to avoid paper feed problems.

❐ Do not load different kinds of pa-

per in the tray at a time.

D Slide the paper tray completely

into the printer.

Important

❐ Be sure to insert the paper tray

completely. Otherwise, paper misfeeds might occur, or the front cover might touch the paper tray.

Specifying paper size using the operation panel

Use the following procedure to specify the paper size from the printer’s operation panel after loading custom size paper into the standard paper tray.

Note

❐ You can set the custom paper in the

standard tray (tray 1) only.

❐ To switch to the tray 1, => P54

“Switching between Paper Trays”.

❐ The custom paper size setting is

cleared when the printer is turned off.

❐ After pressing a key, wait until the

display changes as described before performing the next key operation.

A Press

{{

{

Media

}}

TPOS050E

Power On Line Data In

Reset

EscapeMenu

Media Enter

Error

The “Media” menu appears.

<Media> U

1.Paper Tray T

B Use

{U}{U}

{U} and

{T}{T}

{T} to display “2. Pa-

per Size,” and then press

{{

{

Enter

}}

<Media> U

2.Paper Size T

The “Paper Size” menu appears.

<Paper Size> U *Auto Detect T

Loading Paper

C Use

{U}{U}

{U} and

{T}{T}

{T} to display “Cus-

tom,” and then press

{{

{

Enter

}}

This following message appears.

UT/# Width 140mm

D Use

{U}{U}

{U} and

{T}{T}

{T} to change the

third (leftmost) digit of the paper width.

UT/# Width 140mm

E When the third digit is the value

you want, press

{{

{

Enter

}}

} to move the

T pointer to the second digit.

UT/# Width 140mm

Note

❐ You can press {

Escape

} to move

the pointer to the left.

F Use

{U} {T}{U} {T}

{U} {T} to change the second

(center) digit of the paper width.

UT/# Width 120mm

G Repeat steps E and F to set the

value of the first (rightmost) digit of the width.

H While the pointer is located at the

first digit (rightmost) of the width, press

{{

{

Enter

}}

} to advance to the

length setting display.

UT/# Length216mm

I Use the same procedure as that for

the width to set the three length digits. Move the

T pointer to the left

with

{{

{

Escape

}}

} and to the right with

{{

{

Enter

}}

}. Use

{U}{U}

{U} and

{T}{T}

{T} to change

the digit where the pointer is located.

J While the

T pointer is located at

the first (rightmost) digit of the length, press

{{

{

Enter

}}

The “Paper Size” menu appears.

K Press

{{

{

On Line

}}

The normal display screen appears.

Note

❐ To change back from the “Cus-

tom” size setting to automatic paper size detection, use {U} and {T} in step

of the above procedure to scroll to “Auto Detect”, and then press {

Enter

Paper and Other Media

Switching between Paper T rays

You can use the following procedure to switch between paper feed when the optional paper feed unit is installed on the printer.

❐ The paper tray you specify in the

following procedure is cleared when the printer is turned off.

Press

{{

{

Media

}}

TPOS050E

Power On Line Data In

Reset

EscapeMenu

Media Enter

Error

The “Media” menu appears.

<Media> U

1.Paper Tray T

After confirming that “1. Paper Tray” is on the display, press

{{

{

Enter

}}

The Paper Tray menu appears.

• Metric version

<Paper Tray> U *Tray1/A4 T

• Inch version

<Paper Tray> U *Tray1/LT T

Note

❐ An asterisk (*) indicates the cur-

rently selected paper tray.

Use

{U}{U}

{U} and

{T}{T}

{T} to display “T ray2/

(paper size)”, and then press

{{

{

En-

ter

}}

This selects the optional tray unit and the “Media” menu appears.

Press

{{

{

On Line

}}

The normal display screen appears.

Note

❐ To return the setting to the stan-

dard tray, select “Tray 1/ (paper size)” in step 3 of the above procedure.

6. Troubleshooting

Error & Status Messages

There are two types of error messages:

❐ Printed error message ❐ Displayed error message

The displayed error messages appear on the printer’s panel display.

Printed Error Message

The error message shown below is output by the printer whenever there is not enough memory to print your data.

Error Message

There is not enough memory in your printer to print this page. Change the resolution to 300 dpi in the printer driver and try again. For details, please refer to the troubleshooting section in your manual.

Required Action

The following are the actions you should take when you encounter memory shortage problems. If these actions do not solve the problem individually, try them in combination with each other. => P.108 “Low Memory”

1. Increase printer memory. Install the optional memory unit to increase printer memory capacity. => P.9 “Installing the Memory Unit”

2. Reduce resolution. Use the printer driver to set resolution to 300dpi. => Help of the printer driver => “RICOH-SCRIPT 2 Operating Instructions”

3. Turn on “Image Memory”. Use the printer’s “System Menu” to turn on “Image Memory”. => P.91 “Making Printer Settings with the Operation Panel”

Troubleshooting

Error & Status Messages on the Operation Panel

Note

❐ The panel display can show only one error message at a time. Printing a Con-

figuration Page shows all current printer errors under the Printer Error item of the Printer Information section. => P.101 “Printing the Configuration Page”

Description

The fuser oil bottle is empty.

Fuser oil is low.

The printer is out of black toner.

The printer is out of cyan toner.

The printer is out of magenta toner.

The printer is out of yellow toner.

There is a serious problem with the printer mechanism.

It is time for scheduled maintenance.

The fusing unit is at the end of its service life.

The fuser cleaner is at the end of its service life.

The photoconductor unit is nearly at the end of its life.

The fuser cleaner is dirty.

The front cover is open.

The rear cover is open. The top cover is open

Comments

Replace the fuser oil bottle. => P.87 “Replacing the Fuser Oil Bottle and Ozone Filter”

Prepare a new fuser oil bottle for replacement. You can print about 30 more pages after this message appears. => P.87 “Replacing the Oil Bottle and Ozone Filter”

Replace the black toner cartridge. => P.80 “Replacing the Toner Cartridges”

Replace the cyan toner cartridge. => P.80 “Replacing the Toner Cartridges”

Replace the magenta toner cartridge. => P.80 “Replacing the Toner Cartridges”

Replace the yellow toner cartridge. => P.80 “Replacing the Toner Cartridges”

Contact your sales or service representative.

Replace the fuser cleaner. => P.89 “Re- placing the Fuser Cleaner”

=> P.82 “Replacing the Photoconductor Unit”

You can print about 1,000 more pages after this message appears.

Close the front cover.

Close the rear cover. Close the top cover.

Message

Add Fuser Oil (on the upper line)

Add Fuser Oil (on the lower line)

Add Toner Black

Add Toner Cyan

Add Toner Magenta

Add Toner Yellow

Call Service SC:xx

Change 120K

Change Fuser

Change Fuser Cleaner

Change PCU

Chg. Cleaner

Close Front Cover

Close Rear Cover Close Top Cover

Error & Status Messages

Description

The indicated paper tray is out of paper.

All four toners are low. Cyan toner is low. Cyan and magenta toners

are low. Cyan and yellow toners are

low. Cyan and black toners are

low. Cyan, magenta, and yellow

toners are low. Cyan, magenta, and black

toners are low. Cyan, yellow, and black

toners are low. Magenta toner is low. Magenta and yellow toners

are low. Magenta and black toners

are low. Magenta, yellow, and black

toners are low. Yellow toner is low. Yellow and black toners are

low. Black toner is low. There is a paper misfeed in

the printer. There is a difference be-

tween the paper type in the tray and the requested paper type from the computer.

There is a paper misfeed in the printer.

The fuser cleaner roller is not installed in the printer.

Comments

Load paper into the indicated paper tray. => P.51 “Loading Paper in the Paper Tray”

Replace the indicated color toner as soon as possible. You can print about 300 pages (A4 5% chart) after this message appears for black toner, and about 500 pages (A4 5% chart) after this message appears for cyan, magenta, or yellow toner. Printing is disabled when the printer runs out of any one toner color. => P.80 “Replacing the Toner Car- tridges”

Remove the misfed paper. => P.71 “Re- moving Misfed Paper”

Check if the correct paper is set. => P.51 “Loading Paper in the Paper Tray”

Remove the misfed paper. => P.71 “Re- moving Misfed Paper”

Install the fuser cleaner. => P.89 “Replac- ing the Fuser Cleaner”

Message

Load {paper size}

Low on: All Low on: C Low on: C, M

Low on: C, Y

Low on: C, K

Low on: C, M, Y

Low on: C, M, K

Low on: C, Y, K

Low on: M Low on: M, Y

Low on: M, K

Low on: M, Y, K

Low on: Y Low on: Y, K

Low on: K Open Rear Cover

Remove Misfeed Paper Type Error

Remove Misfeed From Output Tray

Remove Misfeed From Tray #

Reset Cleaner Correctly

Troubleshooting

Comments

Contact your sales or service representative.

Install the photoconductor unit. => P.82 “Replacing the Photoconductor Unit”

Install the paper tray correctly.

Install the indicated toner cartridge correctly. => P.80 “Replacing the Toner Cartridges”

Check if a waste toner bottle is installed in the printer. If there is a bottle installed, replace the waste toner bottle. => P.86 “Replacing the Waste Toner Bottle”

Check if the interface cable is inserted into the printer and your computer securely.

Check if the interface cable is not damaged or broken.

Increase the printer's I/O buffer. =>P. 91 “Making Printer Setting with the Operation Panel”

=> P.108 “Low Memory”

Install an optional memory unit (SIMM) to increase printer memory capacity.

Reduce the amount of data being sent to the printer.

Remove the memory unit from the printer and turn off and on the printer's power switch. Then, try to perform your printer job.

Note

❐ If you remove the memory unit, you

might not perform your print job including the large complex data.

If the same message appears again, contact your sales or service representative.

Contact your sale or service representative.

Message

Reset Fusing Unit Correctly

Reset PCU Correctly

Reset Tray Correctly

Reset xxx Toner Correctly

Waste Toner is Full

A3: Error

A6: Error

AB: Error

B0: Error

B1: Error

Description

The fusing unit is not installed in the printer.

The photoconductor unit is not installed in the printer.

The paper tray is not installed correctly.

The indicated toner cartridge is not installed correctly.

The waste toner bottle is full, or the waste toner bottle is not installed in the printer.

There is too much data for the I/O buffer to handle.

There is not enough printer memory to print one or more of the pages in the print job.

The printer is unable to process the data you are trying to print.

An error has occurred in the optional memory unit (SIMM).

An error has occurred in the standard parallel interface.

Error & Status Messages

Comments

Reset the printer using “Menu Reset” of the “Maintenance” menu. => P.91 “Mak-

ing the Printer Settings with the Operation Panel”

If this does not clear the error message, contact your sales or service representative.

Remove the RICOH-SCRIPT 2 kit from the printer and turn off and on the printer's power switch. Then, try to perform your printer job.

If the same message appears again, contact your sales or service representative.

Remove and reinstall the optional parallel interface board. If this does not clear the error message, contact your sales or service representative.

Remove the network interface board from the printer and turn the printer's power switch off and on. Try to print again.

Note

❐ If you remove the network interface

board, you cannot perform your print job over the network. You can send your print job to the printer only via a parallel cable connection.

If the same message appears again, contact your sales or service representative.

Turn off and on the printer's power switch.

If the same message appears again, contact your sales or service representative.

Make sure you are using the correct printer driver.

Make sure you are using the correct interface cable. => P.110 “Specifications”

Turn the printer's power switch off and on.

If the same message appears again, contact your sales or service representative.

Description

The printer setting is wrong.

An error has occurred in the optional RICOHSCRIPT 2 kit.

An error has occurred in the optional parallel interface board.

An error has occurred in the optional network interface board.

An error has occurred in the printer's standard memory.

You might not use the correct interface cable.

You may be trying to print with the wrong printer driver.

An error has occurred in the printer's standard memory.

Message

B3: Error

B5: Error

B6: Error

B7: Error.

85: Error

86: Error

91: Error

Troubleshooting

Message

94: Error

Description

The amount of the memory is not set correctly.

Comments

Specify the correct memory capacity using the printer driver. => P.36, 40, or 44 “Setting Up Options”

Note

❐ If you cannot solve the problem by taking above actions, turn the printer power

off and then back on again. If this does not clear the error message, write down the error number and the message, and contact your sales or service representative.

Getting Printer Information over the Network

Note

❐ The optional network interface board is required to get the information over

the network.

Printer Current Status

You can check the printer’s current status using the following method.

❖

UNIX

Use the lpq command or stat parameter of rsh, rcp, or ftp. For more information, => “Operating Instructions” of the optional network

interface board.

❖

mshell

Use status command. For more information, => “Operating Instructions” of the optional network

interface board.

Status Normal Add Fuser Oil

Add Toner: All

Add Toner: Black

Add Toner: Cyan

Description Printer works properly. The fuser oil bottle is

empty.

All toner (black, cyan, magenta, and yellow) has run out.

Black toner has run out.

Cyan toner has run out.

Comments — Replace the fuser oil bottle.

=> P.87 “Replacing the Fuser Oil Bottle and Ozone Filter”

Replace the toner cartridge. => P.86 “Replace the Toner Cartridge”

Replace the black toner cartridge. => P.80 “Replace the Toner Cartridge”

Replace the cyan toner cartridge. => P.80 “Replace the Toner Cartridge”

Error & Status Messages

Status

Add Toner: K,M,Y,C*

Add Toner: Magenta

Add Toner: Yellow

Call Service

Change 120K

Change Fuser Cleaner

Change Fusing Unit

Change PCU

Close Front Cover Close Rear Cover Close Top Cover Energy Save Mode

Fuser Oil is Low

Load Paper Misfeed: Output

Tray Misfeed: Paper

Tray Misfeed: Rear

Cover

Description

Indicated toner has run out.

* : K: black, M: magenta,

Y: yellow, and C: cyan

Magenta toner has run out.

Yellow toner has run out.

There is a malfunction in the printer.

It is time for scheduled maintenance.

The fuser cleaner is dirty.

The fuser cleaner is at the end of its life.

The fusing unit is at the end of its life.

The photoconductor unit is nearly at the end of its life.

The front cover is open. The rear cover is open. The top cover is open. The printer is in Energy

Saver mode. Fuser oil is low.

There is no paper in the tray. There is a paper misfeed in

the printer. There is a paper misfeed in

the printer.

Comments Replace the toner cartridges.

=> P.80 “Replace the Toner Cartridge”

Replace the magenta toner cartridge. => P.80 “Replace the Toner Cartridge”

Replace the yellow toner cartridge. => P.80 “Replace the Toner Cartridge”

Turn the printer off and on. If this doesn’t clear the problem, contact your sales or service representative.

Contact your sales or service representative.

The fuser cleaner is dirty. It should be changed soon.

Replace the fuser cleaner. => P.89 “Re- placing the Fuser Cleaner”

Contact your sales or service representative.

=> P.82 “Replacing the Photoconductor Unit”

Close the front cover. Close the rear cover. Close the top cover. Wait for a while.

Prepare a new fuser oil bottle for replacement. You can print about 30 pages or more after this message appears. => P.87 “Replacing the Fuser Oil Bottle and Ozone Filter”

Load paper. => P.51 “Loading Paper” Remove the misfed paper.

=> P.71 “Removing Misfed Paper” Remove the misfed paper.

=> P.71 “Removing Misfed Paper”

Troubleshooting

Status

Paper Type Error

Performing Self Check

Please Wait

Ready

Reset PCU Correctly

Reset Fuser Cleaner

Reset Fusing Unit

Reset Toner Correctly

Reset Toner: All

Reset Toner: Black

Reset Toner: Cyan

Reset Toner: K,Y,M,C*

Reset Toner: Magenta

Reset Toner: Yellow

Reset Tray Correctly

Toner is Low: All

Toner is Low: Black

Description

There is a difference between the paper type in the paper tray and the requested paper type from the computer.

The printer is now preparing for printing.

The printer is ready for printing.

The photocontductor unit is not installed in the printer.

The fuser cleaner is not installed in the printer.

The fusing unit is not installed in the printer.

The toner cartridge is not installed correctly.

All of four toner cartridges are not installed correctly.

The black toner cartridge is not installed correctly.

The cyan toner cartridge is not installed correctly.

Indicated toner cartridge is not installed correctly.

*: K: black, M: magenta,

Y: yellow, C: cyan

The magenta toner cartridge is not installed correctly.

The yellow toner cartridge is not set correctly.

The paper tray is not installed correctly.

All four toners are low.

The black toners is low.

Comments Check if the correct paper is set.

=> P.51 “Loading Paper in the Paper Tray”

Wait for a while.

—

Install the photoconductor unit correctly.

Install the fuser cleaner. => P.89 “Replacing the Fuser Cleaner”

Contact your sales or service representative.

Install the cartridge correctly. => P.80 “Replacing the Toner Cartridge”

Install the cartridges correctly. => P.80 “Replacing the Toner Cartridge”

Install the cartridge correctly. => P.80 “Replacing the Toner Cartridge”

Install the paper tray correctly. => P.80 “Loading Paper in the Paper Tray”

Replace the toner cartridge. => P.80 “Replacing the Toner Cartridge”

Error & Status Messages

Status

Toner is Low: Cyan

Toner is Low: K,Y,M,C*

Toner is Low: Magenta

Toner is Low: Yellow

Warming Up

Waste Toner is Full

Description

The cyan toner is low.

The indicated toner is low.

*: K: black, M: magenta,

Y: yellow, C: cyan

The magenta toner is low.

The yellow toner is low.

The printer is now preparing for printing.

The waste toner bottle is not install correctly.

The waste toner bottle is full.

Comments Replace the toner cartridge.

=> P.80 “Replacing the Toner Cartridge” Replace the toner cartridge.

=> P.80 “Replacing the Toner Cartridge”

Replace the toner cartridge. => P.80 “Replacing the Toner Cartridge”

Wait for a while.

Install the waste toner bottle correctly. => P.86 “Replacing the Waste Toner Bottle”.

Replace the waste toner bottle. => P.86 “Replacing the Waste Toner Bottle”.

Printer Configuration

You can check the printer’s settings using the following methods.

❖

UNIX

Use the info command of rsh, rcp, or ftp. For more information, => “Operating Instructions” of the optional network

interface board.

❖

mshell

Use info command. For more information, => “Operating Instructions” of the optional network

interface board.

Note

❐ “*” (asterisk) is displayed with the current setting. ❐ Regarding *1-*3, see the attached table.

Item Description

Input Tray

No. ID number of the paper tray

Name*1 Name of the paper tray

Paper Size*2 Paper size loaded in the paper tray

Status*3 Current status of the paper tray

Troubleshooting

Item Description

Output Tray

No. ID number of the output tray (not used for this printer) Name Name of the output tray Status Current status of the output tray

Emulation

No. ID number of the emulation used by the printer Name Name of the emulation used in the printer

Version Version of the emulation

Program Not used for this printer

■

*1: Input Tray:Name

Messages Description Tray1 Standard tray (Tray1) Tray2 Optional tray (Tray2)

■

*2: Input Tray: Paper Size

Messages Description A4R A4K B5R B5K LTR 8

/2" × 11"K

LGR 8

/2" × 14"K

EXR 7

/4" × 10

/2"

FRE Custom size

■

*3: Input Tray: Status

Messages Description Normal — NoTray There is no paper tray PaperEnd There is no paper in the paper tray

Printer Doesn’t Print

Possible Causes

Is the power on?

Does the On Line indicator stays on?

Does the Error indicator stay red?

Is paper loaded in the paper tray?

Can you print a test page (configuration page)?

Is the parallel interface cable connecting the printer to your computer connected securely?

Are you using the correct interface cable?

Solutions

Make sure that the power cord is securely plugged into the power outlet and the printer. Also make sure the printer’s power switch in the ON position.

If the On Line indicator is off, press {

On Line

} to light it up.

=> P.5 “Operation Panel” Check the error message on the panel display and do

the required action. => P.56 “Error & Status Messages on the Operation Panel”

Load paper. => P.51 “Loading Paper in the Paper Tray”

If you can't print a test page, it probably indicates printer malfunction. You should contact your sales or service representative. => P.101 “Printing the Configura- tion Page” If you can print a test page but cannot get the printer to print when you issue a print command from your computer, it probably means there is a problem with your computer. Also keep in mind that large, complex data might take long time for printer process.

Connect the interface cable properly. If there are any connectors or screws, make sure they are fastened securely.

The type of parallel interface cable you should use depends on your computer. Be sure to use the correct one. => P.110 “Specifications” If the cable is damaged or worn, replace it with a new one.

Printer Doesn’t Print

Troubleshooting

Possible Causes

Is the Data In indicator blinking or lit after starting the print job?

Solutions

If not, the data is not being sent to the printer.

❖ If your printer is connected to the computer

using the interface cable

Check if the printer port settings are correct. For a parallel port connection, port LPT1 or LPT2 should be set.

• Windows 95/98

1. Click

[Start]

, point to

[Settings]

, and then click

[Printers]

2. Highlight the icon of the printer by clicking it. Next, on the

[File]

menu click

[Properties]

3. Click

[Details]

tab.

4. Check the

[Print to the following port]

box to

make sure the correct port is selected.

• Windows 3.1x

1. On the

[Control Panel]

, double-click the

[Print-

ers]

icon.

2. Confirm that this printer is specified as the default printer.

3. Click

[Connect]

4. Check the

[Ports]

box to make sure the

correct port is selected.

• Windows NT 4.0

1. Click

[Start]

, point to

[Settings]

, and then click

[Printers]

2. Highlight the icon of the printer by clicking it. Next, on the

[File]

menu click

[Properties]

3. Click

[Ports]

tab.

4. Check

[The Print to port box]

to make sure the

correct port is selected.

❖ Network connection

Contact your network administrator.

If the Data In indicator is blinking or lit The printer may be resetting the print job. Take the following steps to correct the situation.

• Increase the “Job Timeout” setting of the “IPDL-C Menu”.

• Make sure your printer driver settings are correct.

• Change the setting of the “Transfer” of the “System Menu”.

• Make sure the “Parallel” of the “System Menu” is correct.

Note

❐ If you cannot solve the problem by taking above actions, contact your sales or

service representative.

Ricoh G033 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
