FT8680/FT8982 ADF UNIT (A171)

PARTS CATALOG

Aug,31’95

INTRODUCTION

This chapter instructs you the numbers and names of parts on this machine.

INDEX to PARTS CATALOG

Location of Unit.................................................................................... 2

1.Original Feed Section 1 (A171).......................................................... 4

2.Original Feed Section 2 (A171).......................................................... 6

3.Original Feed Section 3 (A171).......................................................... 8

4.Original Feed Section 4 (A171).......................................................... 10

5.Original Feed Section 5 (A171).......................................................... 12

6.Original Transport Section 1 (171) ..................................................... 14

7.Original Transport Section 2 (171) ..................................................... 16

8.Original Transport Section 3 (171) ..................................................... 18

9.Original Transport Section 4 (171) ..................................................... 20

10.Original Transport Section 5 (171) .................................................... 22

11.Original Transport Section 6 (171) .................................................... 24

12.Main Control Board (A171)................................................................ 26

13.Decal And Document (A171)............................................................. 30

Parts Index............................................................................................ 33

Location of Unit

1. ORIGINAL FEED SECTION 1 (A171)

See Page 4

4. ORIGINAL FEED SECTION 4 (A171)

2. ORIGINAL FEED SECTION 2 (A171)

See Page 6

5. ORIGINAL FEED SECTION 5 (A171)

3. ORIGINAL FEED SECTION 3 (A171)

See Page 8

6. ORIGINAL TRANSPORT SECTION 1
(A171)

See Page 10

See Page 12

2

See Page 14

Location of Unit

7. ORIGINAL TRANSPORT SECTION 2 (A171)

See Page 16

10. ORIGINAL TRANSPORT SECTION 5 (A171)

8. ORIGINAL TRANSPORT SECTION 3 (A171)

See Page 18

11. ORIGINAL TRANSPORT SECTION 6 (A171)

9. ORIGINAL TRANSPORT SECTION 4 (A171)

See Page 20

See Page 22

See Page 24

3

1. ORIGINAL FEED SECTI ON 1 (A171)

4

Part No.

1.ORIGINAL FEED SECTI ON 1 (A171)

Index
No.

1 A029 7826 Plate 1
2 A029 6825 Photo Sensor 1
3 A029 7825 Plate - Sensor 2
4 A351 2311 Lower CFF Guide Plate 1
5 A351 2291 Upper CFF Guide Plate 1
6 A351 1195 Registration Sensor Bracket 1
7 AW01 0025 Photosensor ON2530 1
8 A351 5123 Paper Size Detect Board - A4 (USA,EU) 1
9 5053 0223 Bushing - 8mm 1
10 A351 1191 Size Detect Guide 1
11 A351 1218 Pull-out Roller 1
12 AB01 1136 Gear - 37Z 1
13 A351 1581 Pulley - 28Z 1
14 A589 2612 Cover - Separation - Upper - NA 1
14 A589 2613 Cover - Separation - Upper - EU 1
15 A351 1141 Separation Frame 1
16 5886 1312 Frame Stopper Pin 2
17 5886 1315 Spring - Separation Release 2
18 5936 1250 Separation Stopper Collar 2
19 5840 2416 Bushing - Pinch Roller 2
20 A351 1142 Blade Pressure Pin 2
21 5886 1309 Blade Pressure Spring - 500 2
22 5886 1337 Blade Stopper 1
23 5413 2298 Screw - M4 2
24 5886 1310 Cam Follower - Entrance Mylar 1
25 A351 2251 Original Sensor Feeler 1
26 A351 1161 Entrance Pressure Shaft 1
28 AA06 6163 Torsion Spring - Sheet Pressure 1
29 A351 1165 Pressure Guide Mylar 1
30 A351 1175 Rear Pressure Mylar 1
31 A351 1146 Blade Bracket 1
32 5936 1234 Blade Fixing Screw 1
33 5886 1344 Plate - Separation Blade 1
34 A351 1153 Friction Tabs 1
35 A351 1155 Blade Holder 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

36 A351 1171 Pressure Mylar 1
37 A589 2921 Decal - CFF 1
38 A351 1213 Stopper Collar - 8x11x7 1
39 A006 2983 Spacer - M8 X 9 1
41 A351 2525 Original Holder (EU Only) 1

100 0313 0120W Philips Pan Head Screw - M3x12
101 0951 3004W Philips Screw With Flat Washer - M3
102 0313 0060W Philips Pan Head Screw - M3x6
103 0313 0100W Philips Pan Head Screw - M3x10
104 0632 0120G Parallel Pin - 2x12
105 0741 3808 Ball Bearing - 8x16x5mm
106 0720 0060E Retaining Ring - M6
107 0951 4006W Philips Screw With Flat Washer - M4x6
108 0720 0030E Retaining Ring - M3
109 0710 0030W Hexagon Nut - M3
110 0344 0060F Philips Truss Head Screw - M4x6
111 0951 4010W Philips Screw With Flat Washer - M4x10
112 0574 0040E Hexagon Headless Set Screw - M4x4

Description

Q’ty Per
Assembly

5

2. ORIGINAL FEED SECTI ON 2 (A171)

6

Part No.

2.ORIGINAL FEED SECTI ON 2 (A171)

Index
No.

1 A351 2261 Pull-out Encoder 1
2 5936 1153 Lower Pull-out Roller 4
3 A351 1216 Pull-out Roller Shaft 1
4 5936 1155 Bushing - Spring Pressure 2
5 5936 1163 Rear Spring - Pull-out Roller 2
6 5936 1317 Coupled Gear - 29t/43t 1
7 A351 1251 Separation Drive Bracket 1
8 AW02 0041 Photointerruptor 2
9 5936 1315 Idler Gear - 29T 2
10 5053 0223 Bushing - 8mm 4
11 5936 1143 Gear - 29T 2
12 5936 1145 Position Encoder 1
13 A351 1271 Cam - Extraction Roller 1
14 5443 2668 Bushing - 4x6x7mm 2
15 5936 1310 Cam Follower 1
16 A351 1621 Cam Follower Spring 1
17 A351 1134 Bushing - KG-016l 118mm 1
18 A351 1131 Rear Side Plate - Paper Feed 1
19 A351 2495 Side Guide 1
20 5886 1184 Pad - 0.5x7x10mm 4
21 5886 1183 Pad - 0.5x12x40mm 3
22 5886 1197 Pad - 0.5x34x62mm 2
23 5886 1187 Guide Block 2
24 A351 2451 Side Guide Angle 1
25 5886 1188 Plate Spring - Side Guide 1
28 A351 2445 Side Fence Bracket 1
29 5936 1162 Relay Roller Spring 2
30 5886 1192 Mylar - Spring Plate 1
31 A589 1411 Table Unit 1
32 A351 1438 Table Protective Sheet 2
33 5505 2607 Rubber Magnet - Manual Cover 1
34 A351 2325 CFF Table Storpper 1
35 A351 2345 Rear Shaft Pin 1
36 A351 2335 Front Shaft Pin 1
37 A351 1226 Pick-up Separation Roller 2

Part No.

Description

Q’ty Per
Assembly

Index
No.

38 A351 1221 Separation Roller Shaft 1
39 5936 9101 Separation Roller - 4pcs/set 1
40 A351 2461 Sensor Bracket 1
41 5936 1144 Cam - Pressure Release 1
42 A351 1121 Front Side Plate - Paper Feed 1
43 A351 2271 Separation Roller Stopper 1
44 A351 2281 Front Spring Bracket 1

100 0313 0060W Philips Pan Head Screw - M3x6
101 0720 0060E Retaining Ring - M6
102 0742 3912 Bearing - 12
103 0314 0060W Philips Pan Head Screw - M4x6
104 0314 0100W Philips Pan Head Screw - M4x10
105 0720 0040E Retaining Ring - M4
106 0632 0120G Parallel Pin - 2x12
107 0720 0030E Retaining Ring - M3
108 1105 0310 Wire Clamp
109 0314 0040W Philips Pan Head Screw - M4x4
110 0632 0100G Pin - 2x10mm
111 1105 0348 Clamp
112 0741 3808 Ball Bearing - 8x16x5mm
113 0710 0040W Hexagon Nut - M4
114 0314 0150W Philips Pan Head Screw - M4x15

Description

Q’ty Per
Assembly

7

3. ORIGINAL FEED SECTI ON 3 (A171)

8

Part No.

3.ORIGINAL FEED SECTI ON 3 (A171)

Index
No.

1 5936 1327 Spacer - 13mm 1
2 A351 1246 Separation Drive Shaft 1
3 AB01 1137 Gear - 24Z 2
4 A006 2983 Spacer - M8 X 9 1
5 A351 1541 Speed Down Shaft 1
6 A351 1591 Timing Belt - B100S2M144 1
7 A351 1551 Pulley - 45Z 1
8 AX06 0061 Motor - DC 46W 1
9 AB03 0350 Pulley - 18Z 1
10 A351 4721 Drive Motor Grommet 4
11 A351 1521 Feed Motor Bracket 1
12 A351 4211 Anti-vibration Collar 4
13 A351 1531 Feed Motor Bracket 1
14 A351 1135 Rear Support Bracket 1
15 AW20 0003 Reed Switch - PS-3170U-601 (EU Only) 1
16 A351 1611 Bracket - Reed Switch - CFF (EU Only) 1
18 5413 2298 Screw - M4 1
19 A351 1561 Pulley - 20Z 1
20 A351 1592 Timing Belt - B100S3M387 1
21 A351 1571 Pulley - 18Z 1
22 A351 2470 Rear Cover Bracket 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0741 3507 Ball Bearing - 7x13x4
101 0720 0060E Retaining Ring - M6
102 0574 0040E Hexagon Headless Set Screw - M4x4
103 0741 3808 Ball Bearing - 8x16x5mm
104 0324 0120W Philips Sunken Head Screw - M4x12
105 1105 0153 Clamp
106 0951 3005W Philips Screw With Flat Washer - M3x5
107 0314 0060W Philips Pan Head Screw - M4x6
108 0951 4006W Philips Screw With Flat Washer - M4x6
109 0740 3808 Ball Bearing - 8x16x5mm

Description

Q’ty Per
Assembly

9

4. ORIGINAL FEED SECTI ON 4 (A171)

10

Part No.

4.ORIGINAL FEED SECTI ON 4 (A171)

Index
No.

1 AA06 6162 Torsion Spring - Front Paper Feed 1
2 A351 1331 Paper Feed Gate 1
3 A351 1351 Shaft - Rear Switching Plate 1
4 A351 1365 Invertor Arm Cushion (EU Only) 2
5 A351 1361 Invertor Arm (EU Only) 1
6 A351 1321 Gate Cushion 2
7 A351 1381 Invertor Solenoid (EU Only) 1
8 A351 1341 Shaft - Front Switching Plate 1
9 A351 1371 Invertor Lever 1
10 AW02 0041 Photointerruptor 3
11 A351 2371 Sensor Bracket 1
12 A351 2210 Feed Unit Bracket 1
13 A351 5510 Front Feed Relay Harness 1
14 A351 2231 Original Sensor Bracket 1
15 AA06 0419 Original Separator Spring 1
16 A351 2421 Original Separator 1
17 A351 5300 Stepper Motor - DC 6.9W 1
18 A351 2361 Separator Bracket 1
19 AW02 0015 Photo Sensor 1
20 A351 2381 Gear - 44Z 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0314 0060W Philips Pan Head Screw - M4x6
101 0805 3385 Bushing - 6mm
102 0720 0040E Retaining Ring - M4
103 0951 3005W Philips Screw With Flat Washer - M3x5
104 0314 0100W Philips Pan Head Screw - M4x10
105 1105 0153 Clamp
106 1105 0310 Wire Clamp
107 0720 0030E Retaining Ring - M3

Description

Q’ty Per
Assembly

11

5. ORIGINAL FEED SECTI ON 5 (A171)

12

Part No.

5.ORIGINAL FEED SECTI ON 5 (A171)

Index
No.

1 A351 2675 Left Separation Cover 1
2 A351 2645 Side Plate Guide 1
3 A058 6721 CFF Side Fence Spring 1
4 A029 7864 Slider - Side Guide 1
5 A029 7862 Mylar Seal - 6x6mm 1
6 A351 2755 Rear Cover 1
7 A351 5500 Power Supply Harness 1
8 A351 5520 Transport Relay Harness 1
9 A351 2575 Right Cover 1
10 A351 2595 Rear Lower Cover 1
11 A589 5112 Main Control Board 1
12 A351 1292 Controller Cover 1
13 A351 2565 Front Lower Cover 1
14 A351 2545 Front Cover 1
16 A351 5505 Paper Feed Harness 1
17 A351 2221 Display Bracket 1
18 5936 5231 Indicator Board 1
19 A351 5515 Rear Feed Relay Harness 1
20 5936 1512 Indicator Panel 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0951 3004F Screw - M3X4
101 0344 0080F Philips Truss Head Screw - M4x8
102 0957 5010M Screw - M5X10
103 0314 0060W Philips Pan Head Screw - M4x6
104 1107 0750 Fuse - 3.15A 250V
105 1107 0404 Fuse - 0.3A 250V
106 1105 0367 Spacer
107 1105 0192 Locking Support
108 0584 0083Z Flanged Hexagonal Head Bolt - M4x8
109 0704 0040C Toothed Washer - M4
110 1106 0200 Bushing - 19.44mm
111 0313 0060W Philips Pan Head Screw - M3x6

Description

Q’ty Per
Assembly

13

6. ORIGINAL TRANSPORT SE CTI ON 1 (A171)

14

Part No.

6.ORIGINAL TRANSPORT SE CTI ON 1 (A171)

Index
No.

1 A351 4815 Knob Cover 1
2 5936 2480 Magnet Catch Ass’y 2
3 A351 4371 Right Grip Pivot 1
4 A351 3291 Grip Bracket 1
5 A351 4381 Left Grip Pivot 1
6 A351 4651 Support Seal - Sheet-through (EU Only) 3
7 A351 4872 Inverter Guide 1
8 AA14 3062 Shoulder Screw - M4 3
9 A351 4671 Inverter Transport Stay 1
10 A351 4621 Release Lever - Sheet-through (EU Only) 1
11 AA06 6164 Torsion Spring - Entrance (EU Only) 3
12 A351 4610 Roller Arm - Sheet-through (EU Only) 3
13 A351 4632 Driven Shaft (EU Only) 1
14 5936 2586 Sensor Pad 1
15 5216 4198 Stepped Screw - Guide Plate 2
16 5936 2740 Wire - Invertor Cover 1
17 A351 4591 Inverter Cover Pivot 1
18 A351 4681 Inverter Cover Bracket 1
19 A589 4852 Inverter Unit Cover - USA 1
19 A589 4853 Invertor Unit Cover - EU 1
20 5446 4486 Support Guide Stud 1
21 A351 4421 Stopper Cover Angle 1
22 A351 4965 Side Guide Rail 1
23 A351 4935 Side Guide Plate (EU Only) 1
24 A351 4951 Left Side Guide Pad (EU Only) 1
25 A351 4952 Right Side Guide Pad (EU Only) 1
26 A351 4971 Side Guide Pressure Plate (EU Only) 1
27 5886 1184 Pad - 0.5x7x10mm 2
28 A589 4912 Transfer Unit Cover - USA 1
28 A589 4923 Cover - Upper - Transport - EU 1
29 A351 4975 Entrance Sheet Guide (EU Only) 6
30 A589 4597 Spacer Plate 2
31 A589 4893 Decal - Original Feed (EU Only) 1
32 A589 4791 Decal - Inverter Misfeed Removal 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0353 0060W Philips Pan Head Screw - M3x6
101 0314 0060W Philips Pan Head Screw - M4x6
102 0344 0060F Philips Truss Head Screw - M4x6
103 0632 0120G Parallel Pin - 2x12
104 0720 0040E Retaining Ring - M4
105 0720 0030E Retaining Ring - M3
106 0314 0080W Philips Pan Head Screw - M4x8
107 0433 0064B Pan Head Self-tapping Screw - M3x6
108 0807 2089 Washer - 10mm

Description

Q’ty Per
Assembly

15

7. ORIGINAL TRANSPORT SE CTI ON 2 (A171)

16

Part No.

7.ORIGINAL TRANSPORT SE CTI ON 2 (A171)

Index
No.

1 A351 2431 Sensor Seal 1
2 A351 3241 Upper Belt Guide 1
3 A351 4321 Left Guide Plate Bracket 1
4 A351 4311 Right Guide Plate Bracket 1
5 A351 4221 Trasport Belt 1
6 5936 2425 Driven Roller - Belt 1
7 A029 7900 Pressure Roller - CFF 2
8 5936 2438 Bushing - Press Roller 6
9 A351 4251 Tension Bracket 2
10 5936 2431 Spring - Tensioner 2
11 5403 2075 Stepped Screw 3
12 5936 2432 Transport Belt Stopper 2
13 A351 3221 Transfer Support Plate 1
14 A351 4821 Transport Belt Lever 1
15 A028 7298 OPC Belt Unit Fixing Hook 1
16 5887 2295 Spring - Distribution Driving 1
17 A351 4661 Belt Pressure Bushing 5
18 A028 7497 Transport Belt Pressure Spring 4
19 AA06 0459 Transport Belt Spring 1
20 A351 3215 Belt Unit Roller 1
21 A351 3211 Pressure Plate 1
22 A351 4261 Driven Channel Support Bracket 1
23 A351 4271 Belt Positioning Pin 2
24 5053 0223 Bushing - 8mm 1
25 A351 4231 Front Belt Guide 1
26 A351 4241 Rear Belt Guide 1
27 A351 3311 Drive Belt Roller 1
28 AB03 0353 Pulley - 22Z 1
29 A351 4341 Pressure Plate Arm 2
30 A351 4335 Pressure Plate Brake 2

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0314 0060W Philips Pan Head Screw - M4x6
101 0314 0050W Philips Pan Head Screw - M4x5
102 0720 0040E Retaining Ring - M4
103 0741 3005 Ball Bearing - 5x14x5mm
104 0323 0060W Philips Sunken Head Screw - M3x6
105 0720 0060E Retaining Ring - M6
106 0313 0060W Philips Pan Head Screw - M3x6
107 0741 3909 Ball Bearing - 9x20
108 0574 0040E Hexagon Headless Set Screw - M4x4
109 0344 0060F Philips Truss Head Screw - M4x6

Description

Q’ty Per
Assembly

17

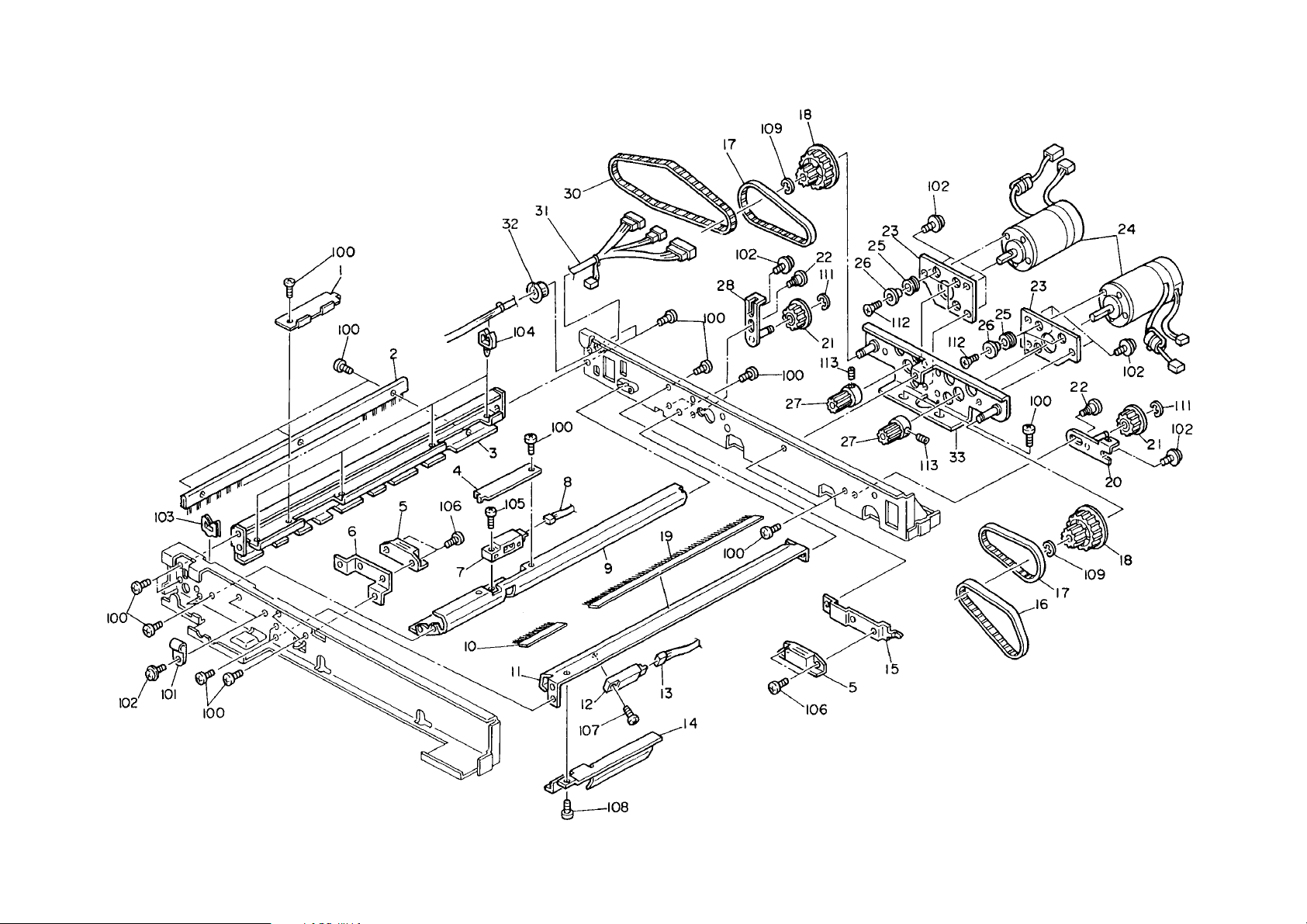

8. ORIGINAL TRANSPORT SE CTI ON 3 (A171)

18

Part No.

8.ORIGINAL TRANSPORT SE CTI ON 3 (A171)

Index
No.

1 A351 3197 Harness Cover 1
2 5887 3268 Antistatic Brush 1
3 A351 3195 Exit Stay 1
4 A351 4361 Inverter Sensor Cover 1
5 5936 2480 Magnet Catch Ass’y 2
6 A351 4111 Front Magnet Catch Bracket 1
7 A010 5700 Sensor 1
8 A351 5535 Exit Sensor Harness 1
9 A351 3271 Upper Feed-out Guide 1
10 A351 3265 Small Antistatic Brush - Inverter 1
11 A351 3261 Inverter Entrance Guide 1
12 AW01 0025 Photosensor ON2530 1
13 A351 5545 Registration Sensor Harness 1
14 A351 4351 Inverter Sensor Cover 1
15 A351 4121 Rear Magnet Catch Bracket 1
16 A351 3483 Timing Belt - B60S3M210 1
17 A351 3481 Timing Belt B100S2M200 2
18 AB03 0351 Pulley - 48/18Z 2
19 A351 3267 Large Antistatic Brush - Inverter 1
20 A351 4571 Transport Idler Angle 1
21 AB03 0354 Pulley - 20T 2
22 5403 2075 Stepped Screw 2
23 A351 4191 Transport Motor Plate 2
24 AX06 0061 Motor - DC 46W 2
25 A351 4721 Drive Motor Grommet 6
26 A351 4211 Anti-vibration Collar 6
27 AB03 0350 Pulley - 18Z 2
28 A351 4561 Inverter Idler Angle 1
30 A351 3485 Timing Belt - B60DS3M336 (EU) 1
30 A351 3486 Timing Belt - B60S3M333 (USA) 1
31 A351 5530 Inverter Sensor Relay Harness 1
32 A351 4165 Open Closed Bushing 1
33 A351 3171 Transport Drive Side Plate 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0314 0060W Philips Pan Head Screw - M4x6
101 1105 0176 Nylon Clamp
102 0951 4006W Philips Screw With Flat Washer - M4x6
103 1105 0349 Edge Saddle
104 1105 0266 Clamp
105 0313 0100W Philips Pan Head Screw - M3x10
106 0353 0060W Philips Pan Head Screw - M3x6
107 0313 0080W Philips Pan Head Screw - M3x8
108 0313 0060W Philips Pan Head Screw - M3x6
109 0720 0060E Retaining Ring - M6
111 0720 0040E Retaining Ring - M4
112 0324 0120W Philips Sunken Head Screw - M4x12
113 0574 0040E Hexagon Headless Set Screw - M4x4

Description

Q’ty Per
Assembly

19

9. ORIGINAL TRANSPORT SE CTI ON 4 (A171)

20

Part No.

9.ORIGINAL TRANSPORT SE CTI ON 4 (A171)

Index
No.

1 A351 3118 Front Transport Support Bracket 1
2 5053 0447 Bushing - 6mm 5
3 AB03 0371 Pulley - 30Z 2
4 AB01 1140 Left Gear - 33Z 1
5 A351 4541 Exit Shaft 2
6 A351 4551 Exit Adjusting Plate 1
7 A351 3459 Idler 1
8 AB01 1134 Gear - SSZ 1
9 A351 3487 Timing Belt - B60DS2M250 1
10 AB03 0355 Pulley - 40Z 1
11 A351 3331 Feed-out Roller 1
12 A351 3321 Inverter Drive Roller 1
13 A351 4711 Inverter Seal 1
14 A351 5540 Inverter Sensor Harness 1
15 AW01 0025 Photosensor ON2530 1
16 A351 3287 Sensor Bracket (EU Only) 1
17 A010 5700 Sensor (EU Only) 1
18 A351 4281 Anti-vibration Cushion 4
19 A351 3281 Upper Inverter Guide 1
20 5887 3268 Antistatic Brush 2
21 A351 3181 Transport Stay 1
23 AB03 0352 Pulley - 36T 1
24 AB01 1139 Right Gear - 33Z 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0314 0060W Philips Pan Head Screw - M4x6
101 0951 4006W Philips Screw With Flat Washer - M4x6
102 0720 0040E Retaining Ring - M4
103 0632 0100G Pin - 2x10mm
104 0741 3506 Ball Bearing - 6x12x4mm
105 0313 0120W Philips Pan Head Screw - M3x12
106 1105 0153 Clamp
107 0741 3808 Ball Bearing - 8x16x5mm
108 0720 0060E Retaining Ring - M6
109 0632 0120G Parallel Pin - 2x12

Description

Q’ty Per
Assembly

21

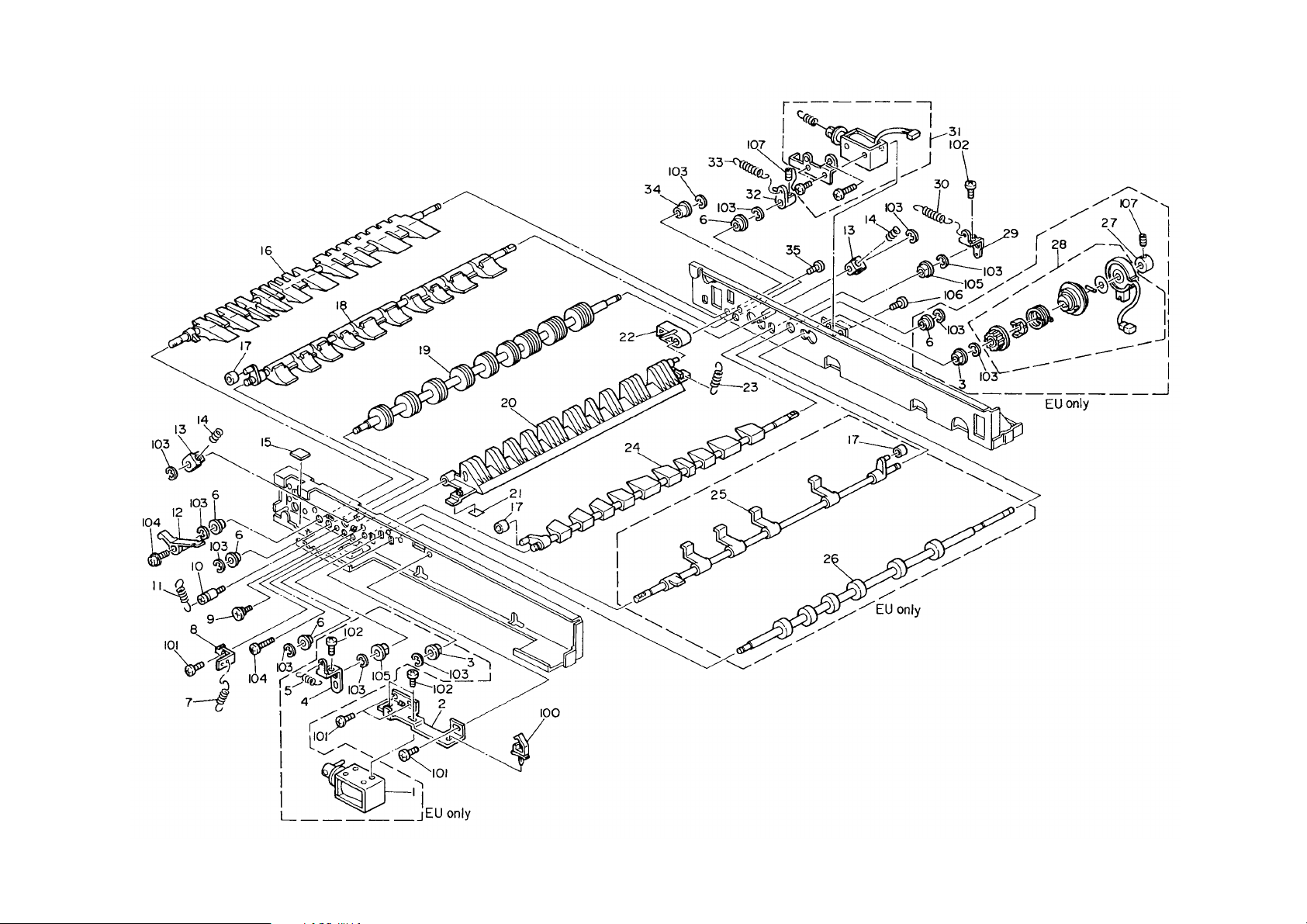

10. ORIGINAL TRANSPORT SECTI O N 5 (A171)

22

Part No.

10.ORIGINAL TRANSPORT SECTI O N 5 ( A17 1)

Index
No.

1 A351 4751 Entrance Solenoid (EU Only) 1
2 A351 4451 Solenoid Bracket 1
3 5053 0447 Bushing - 6mm (EU Only) 2
4 A351 4441 Lever - Stopper - Entrance (EU Only) 1
5 AA06 0411 Entrance Stopper Spring (EU Only) 1
6 AA08 0072 Bushing - 6x10x3 5
7 AA06 0415 Inverter Front Spring 1
8 5887 2245 Spring Anchor 1
9 5403 2075 Stepped Screw 1
10 5403 2049 Spring Anchor 1
11 AA06 0417 Inverter Pressure Spring 1
12 A351 4412 Gate Spring Lever 1
13 5887 4155 Shaft Guide - Turn Driven 2
14 5887 4156 Spring - Driven Roller 2
15 AA16 1017 Cushion - Junction Gate 1
16 A351 3821 Inverter Switch Back Gate 1
17 A458 2251 Cushion - Bin Solenoid Lever 3
18 A351 3811 Inverter Gate 1
19 A351 3326 Inverter Driven Roller 1
20 A351 3251 Inverter Guide 1
21 A054 2977 Decal - Vertical Transport Guide 1
22 A351 3275 Exit Guide Holder 1
23 AA06 0416 Inverter Rear Spring 1
24 A351 3831 Inverter Feed-out Gate 1
25 A351 3841 Entrance Stopper - Sheet-through (EU Only) 1
26 A351 3341 Entrance Roller - Sheet-through (EU Only) 1
27 A497 1007 Collar -6x12x8 (EU Only) 1
28 AX20 0077 Magnetic Spring Clutch - DSC26AL (EU Only) 1
29 A351 4471 Inverter Exit Lever 1
30 AA06 0412 Inverter Spring 1
31 A351 4771 Inverter Exit Solenoid 1
32 A351 4491 Inverter Lever 1
33 AA06 0413 Inverter Gate Spring 1
34 5443 2668 Bushing - 4x6x7mm 1
35 5875 2088 Shoulder Screw - M4 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 1105 0310 Wire Clamp
101 0314 0060W Philips Pan Head Screw - M4x6
102 0313 0060W Philips Pan Head Screw - M3x6
103 0720 0040E Retaining Ring - M4
104 0951 3005W Philips Screw With Flat Washer - M3x5
105 0805 3385 Bushing - 6mm
106 0313 0040W Philips Pan Head Screw - M3x4
107 0574 0040E Hexagon Headless Set Screw - M4x4

Description

Q’ty Per
Assembly

23

11. ORIGINAL TRANSPORT SECTI O N 6 (A171)

24

Part No.

11.ORIGINAL TRANSPORT SECTI O N 6 ( A17 1)

Index
No.

1 A351 4181 Feed-out Sensor Bracket 1
2 AW01 0025 Photosensor ON2530 1
3 A351 3161 Left Frame 1
4 AW02 0041 Photointerruptor 2
5 AA06 0418 Transport Frame Spring 2
6 AA06 3228 Transport Arm Spring 2
7 A351 3145 Base Arm Unit 2
8 A351 4171 Frame Shaft 2
9 A351 4521 Inverter Link 1
10 A351 4511 Rear Inverter Link 1
11 A351 4531 Inverter Solenoid Bracket 1
12 AA06 6166 Torsion Spring - Inverter Gate 1
13 A351 4761 Inverter DC Solenoid 1
14 A351 3151 Right Frame 1
16 A351 3143 Bushing EO-12N 22mm 1
17 A351 3922 Right Hinge 1
18 A351 5525 Transport Harness 1
19 A351 4165 Open Closed Bushing 1
20 A351 5550 AC Power Unit Harness 1
21 A351 3912 Left Hinge 1
22 A351 4155 Shaft - Feeler - Photointerruptor 1
23 A351 4154 Photointerruptor Bracket 1
24 AA06 6165 Torsion Spring - Sensor Feeler 1
25 A351 4161 Sensor Feeler 1
26 A351 3991 ADF Stopper (Option) 2

Part No.

Description

Q’ty Per
Assembly

Index
No.

100 0314 0060W Philips Pan Head Screw - M4x6
101 0313 0100W Philips Pan Head Screw - M3x10
102 0720 0040E Retaining Ring - M4
103 0314 0100W Philips Pan Head Screw - M4x10
104 0720 0030E Retaining Ring - M3
105 1105 0310 Wire Clamp
106 0951 3006W Philips Screw With Flat Washer - M3x6
107 0957 5010M Screw - M5X10
108 0951 4006W Philips Screw With Flat Washer - M4x6
109 1105 0034 Nylon Clip - 7n

Description

Q’ty Per
Assembly

25

12. MAIN CONTROL BOARD (A171)

AR ARC Capacitor

Simbol Index
No No

AR1 145
AR3 145
AR4 145

Capacitor Connector Diode

Simbol Index
No No

C50 174
C51 174
C52 174
C53 168
C54 167
C55 174
C56 174
C57 170
C58 174

Simbol Index
No No

ARC1 157
ARC2 157
ARC3 157
ARC4 157
ARC5 157

BAT
Simbol Index
No No

Simbol Index
No No

C59 174

C6 161
C60 174
C61 174
C62 174
C63 174
C64 174
C65 174
C66 174

BAT1 116

Simbol Index
No No

C1 162
C10 158
C11 166
C12 163
C13 174

C14 174
C15 174
C16 174

Simbol Index
No No

C67 174
C68 174

C69 168
C7 164
C70 174
C71 174
C72 174
C73 174
C74 174

Simbol Index
No No

C17 174
C18 175
C19 174
C2 160
C20 174
C21 174
C22 174

C23 174
C24 174

Simbol Index
No No

C75 174
C76 171
C77 175

C78 167
C79 175
C8 164
C80 174
C81 175
C82 174

Simbol Index
No No

C25 174
C26 170
C27 174
C28 174
C29 175
C3 161
C30 174
C31 174

C32 175

Simbol Index
No No

C83 174
C84 174
C85 175
C86 174

C87 174
C88 174
C89 165
C9 159
C90 174

Simbol Index
No No

C33 173
C34 169
C35 173
C36 172
C37 172
C38 174
C39 174
C4 176
C40 174

Simbol Index
No No

C91 174
C92 174
C93 174

Simbol Index
No No

Simbol Index
No No

CN100 108
CN101 104
CN102 110
CN103 106
CN104 107

CN105 103
CN106 105
CN107 105
CN108 109

C41 174
C42 175
C43 174
C44 174
C45 174
C46 170
C47 170
C48 174
C49 168
C5 164

26

12. MAIN CONTROL BOARD (A171)

DZ FH HIC IC L

CN8 111

Simbol Index
No No

D1 120
D2 120

DA

Simbol Index

Q Resistor

Simbol Index
No No

IC4 141

IC6 1
IC6 113
IC7 136
IC8 150
IC9 143

Simbol Index
No No

L1 177

No No

DA1 122

Simbol Index
No No

DZ1 123

F

Simbol Index
No No

F1 114

LED

Simbol Index
No No

LED1 124

LED2 124

LED3 124

LED4 125

LED5 124

Simbol Index
No No

F2 115
F3 115
F4 115

Simbol Index
No No

FH1 112

FIL

Q1 119
Q2 118
Q3 117

QA

Simbol Index
No No

QA1 129
QA2 129
QA3 129

Simbol Index
No No

FIL1 178
FIL2 178

Simbol Index
No No

HIC1 2
HIC2 2
HIC3 144

Simbol Index
No No

R1 153
R10 154
R100 184
R103 182
R105 181

R106 181
R107 181
R108 181
R109 181

Simbol Index
No No

IC10 133
IC11 131
IC12 133
IC13 133
IC14 132

Simbol Index
No No

R11 155
R110 194
R111 183
R112 182
R113 186
R114 182

R115 182
R116 186
R117 183

Simbol Index
No No

IC14 149
IC15 135
IC16 128
IC17 127
IC18 126
IC19 142
IC2 121
IC2 179
IC20 130
IC21 126

Simbol Index
No No

R118 183
R119 183
R12 180
R120 183
R121 183
R122 183
R123 183

R126 182
R127 196

Simbol Index
No No

IC22 134
IC23 140
IC24 137
IC25 138
IC26 146
IC28 139
IC29 148
IC3 121
IC3 179

Simbol Index
No No

R128 182
R129 183
R13 155
R130 183
R131 183
R132 183
R133 183
R134 183

R135 191

27

12. MAIN CONTROL BOARD (A171)

Resistor

Simbol Index
No No

R136 196
R137 183
R138 183
R139 183
R14 180
R140 183
R141 194
R142 188
R143 183

Resistor REG XTL

Simbol Index
No No

R28 183
R29 183
R3 154
R30 194
R31 187

R34 181
R39 194
R4 155
R44 194

Simbol Index
No No

R144 184
R146 189
R147 185
R147 195
R148 187
R149 194
R15 155
R150 194
R151 188
R152 184

Simbol Index
No No

R49 194
R5 180
R50 183
R52 183
R53 183
R54 183

R55 194
R56 194
R57 194

Simbol Index
No No

R153 182
R154 196
R155 194
R156 184
R157 184
R158 194
R159 194
R16 155
R160 184

Simbol Index
No No

R58 194
R59 194
R6 155
R60 194
R61 194
R62 183
R63 183

R64 183
R65 194

Simbol Index
No No

R160 188

R161 194
R162 184
R163 194
R164 184
R165 190
R166 183
R167 183
R169 188

Simbol Index
No No

R66 194
R67 194
R68 194
R69 194
R7 180
R70 194
R71 194
R72 194

R73 194

Simbol Index
No No

R17 154
R170 188

R172 188
R173 182
R174 182
R175 196
R176 183
R177 183
R178 192

Simbol Index
No No

R74 194
R77 183
R78 194
R79 183
R8 155
R80 183
R81 183
R82 194
R83 190

Simbol Index
No No

Simbol Index
No No

R179 192
R18 194
R180 192

R182 192
R183 183
R184 182
R185 186
R186 190

R19 194

R84 188
R85 183
R86 181
R87 193
R88 183
R89 183
R9 155
R90 183
R91 181
R92 181

Simbol Index
No No

R2 153
R20 183
R21 183
R22 183

R23 183
R24 183
R25 183
R26 183
R27 183

Simbol Index
No No

R93 191
R94 181
R95 181
R96 189
R97 185
R97 195
R98 187
R99 183

28

Part No.

12.MAIN CONTROL BOARD (A171)

Index
No.

*A589 5112 Main Control Board
1 A589 5720 IC - UVEPROM 256K X8 120NS
2 A351 5700 IC - HCTL-6 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

102 1101 0328 Connector Pin Contact
103 1102 0962 Connector - 6p
104 1102 4167 Connector - 6p
105 1102 4170 Connector - 12p
106 1102 4171 Connector - 14p
107 1103 0779 Connector - 2p
108 1103 0881 Connector - 4p
109 1103 1371 Connector - 34p
110 1103 1489 Connector - 3p
111 1103 1737 Connector - 15p
112 1104 0333 Fuse Holder
113 1104 0377 IC Socket - 28P
114 1107 0404 Fuse - 0.3A 250V
115 1107 0750 Fuse - 3.15A 250V
116 1206 0032 Lithium Cell - BR2325-1HC
117 1400 0368 Transistor - 2SC3325
118 1401 0296 Transistor - 2SA1162Y
119 1401 0298 Transistor - 2SC2712Y
120 1401 0835 Diode - 1SS190
121 1401 0919 Mosfet Array - 4AM14
122 1402 0476 Diode - 1SS184
123 1402 0682 Zener Diode - RD3.6M
124 1403 0669 Red LED - SLM-13VW
125 1403 0670 Green LED - SlM-13VW
126 1407 1298 IC - TC4049BF
127 1407 1311 IC - LS32
128 1407 1317 IC - HD74LS138FP-TL
129 1407 1535 IC - TD62308AP
130 1407 1722 IC - TC4011BF
131 1407 1882 IC - 74LS373
132 1407 2073 IC - UPD78C10GF
133 1407 2089 IC - TC4024BF
134 1407 2218 IC - SN74LS06NS
135 1407 2836 IC - HD74C14FP
136 1407 2852 IC - LH5116N

Description

Q’ty Per
Assembly

Part No.

Part No.

12. MAIN CONTROL BOARD (A171)

Index

Index
No.

No.

137 1407 2858 IC - TD62601F
138 1407 2859 IC - TD62603F
139 1407 2860 IC - TD62604F
140 1407 3284 IC - TC74HC74A
141 1407 3359 IC - RF5C60
142 1407 3522 IC - TD62304AF
143 1407 3541 IC - HD74LS26FP
144 1407 3862 IC - STK6855
145 1407 3868 Potentiometer - Ds1267 - 10
146 1408 0397 Comparator - Njm2901m
147 1408 0538 IC - SI8301L
148 1408 0599 IC - M51971EP
149 1408 0611 IC - 3771
150 1408 0619 IC - SN751701P
151 1408 0654 IC - SI8203L
152 1503 0420 Crystal Oscillator - 12mhz
153 1600 0601 Resister - Erg - 1sj681
154 1600 1105 Resister - 0.27Ω
155 1600 1456 Resister - 3.3kΩ
156 1601 7326 Resistor Array - 10K Ω
157 1602 0934 Rc Array - Cr01-r
158 1604 1359 Capacitor - 2200µF 10V
159 1604 1370 Capacitor - 470µF 25V
160 1604 1375 Capacitor - 0.22µF 50V
161 1604 1378 Capacitor - 1µF 50V
162 1604 1379 Capacitor - 2.2µF ±20% 50V
163 1604 1382 Capacitor - 10µF 50V
164 1604 1386 Capacitor - 100µF ±20% 50V
165 1604 1387 Capacitor - 220 µF 50V
166 1604 1390 Capacitor - 1000µF 50V
167 1605 0112 Capacitor - 0.068µF
168 1605 0513 Capacitor - 2200PF 50V +80% -20%
169 1605 0596 Capacitor - 100PF
170 1605 0636 Capacitor - 0.1µF

Part No.

Part No.

Description

Description

Q’ty Per

Q’ty Per
Assembly

Assembly

Index

Index
No.

No.

171 1605 0660 Capacitor - 0.022µF
172 1605 0684 Capacitor - 16PF
173 1606 1134 Capacitor - 33PF ±5%
174 1606 1452 Capacitor - 0.01µF 50V
175 1606 1477 Capacitor - 330PF
176 1606 1590 Capacitor - 0.01µF
177 1607 0044 Coil - 100uh
178 1607 0076 Fuse - 3a
179 1607 0402 Ferrite Core - Ri-3.5-3.5-1.2
180 1611 4122 Resistor - 1.2K Ω 1/4T ±5%
181 1630 3101 Resistor - 100Ω - 1/10W
182 1630 3102 Resistor - 1KΩ 1/10W ±5%
183 1630 3103 Resistor - 10KΩ 1/10W ±5%
184 1630 3104 Resistor - 100K Ω 1/10W ±5%
185 1630 3152 Resistor - 1.5kΩ - 1/10W
186 1630 3183 Resistor - 18KΩ -1/10W
187 1630 3202 Resistor - 2KΩ -1/10W
188 1630 3223 Resistor - 22kΩ - 1/10W
189 1630 3273 Resistor - 27kΩ - 1/10W
190 1630 3302 Resistor - 3kΩ - 1/10W
191 1630 3392 Resistor - 3.9kΩ - 1/10W
192 1630 3393 Resistor - 39K Ω 1/10W
193 1630 3471 Resistor - 470Ω - 1/10W
194 1630 3472 Resistor - 4.7KΩ 1/10W ±5%
195 1630 3512 Resistor - 5.10kΩ - 1/10W
196 1630 3682 Resistor - 6.8kΩ - 1/10W

Description

Description

Q’ty Per

Q’ty Per
Assembly

Assembly

29

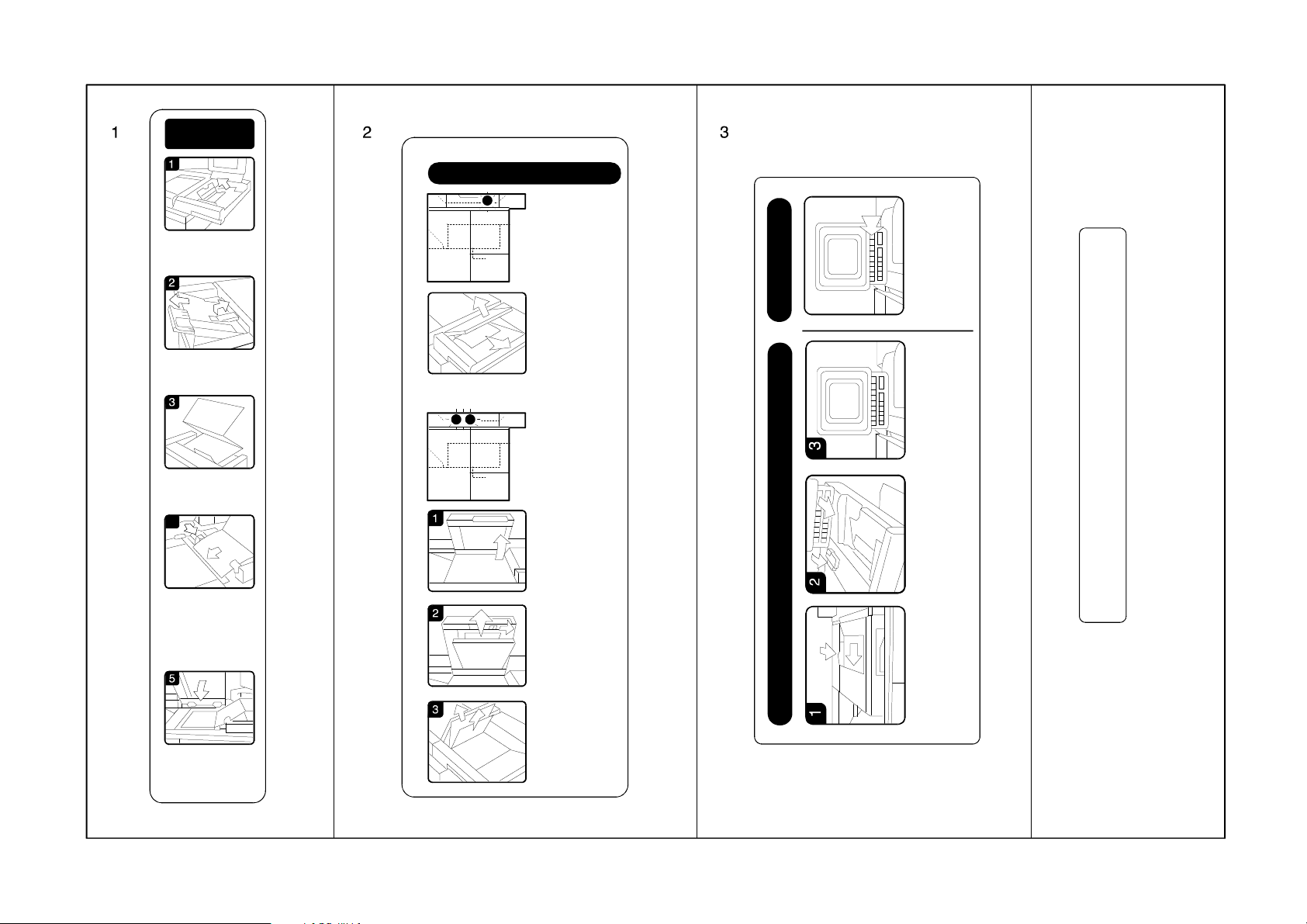

13. DECAL AND DOCUMENT (A171)

30

Part No.

13.DECAL AND DOCUMENT (A171)

Index
No.

1 A589 2921 Decal - CFF - NA 1
2 A589 4791 Decal - Inverter Misfeed Removal 1
3 A589 4893 Decal - Original Feed (UE Only) 1
4 A589 4993 Decal - Sheet Through (EU Only) 1

Part No.

Description

Q’ty Per
Assembly

Index
No.

Description

Q’ty Per
Assembly

31

PARTS INDEX

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

AA06 0411 Entrance Stopper Spring (EU Only) 23- 5
AA06 0412 Inverter Spring 23- 30
AA06 0413 Inverter Gate Spring 23- 33
AA06 0415 Inverter Front Spring 23- 7
AA06 0416 Inverter Rear Spring 23- 23
AA06 0417 Inverter Pressure Spring 23- 11
AA06 0418 Transport Frame Spring 25- 5
AA06 0419 Original Separator Spring 11- 15
AA06 0459 Transport Belt Spring 17- 19
AA06 3228 Transport Arm Spring 25- 6
AA06 6162 Torsion Spring - Front Paper Feed 11- 1
AA06 6163 Torsion Spring - Sheet Pressure 5- 28
AA06 6164 Torsion Spring - Entrance (EU Only) 15- 11
AA06 6165 Torsion Spring - Sensor Feeler 25- 24
AA06 6166 Torsion Spring - Inverter Gate 25- 12
AA08 0072 Bushing - 6x10x3 23- 6
AA14 3062 Shoulder Screw - M4 15- 8
AA16 1017 Cushion - Junction Gate 23- 15
AB01 1134 Gear - SSZ 21- 8
AB01 1136 Gear - 37Z 5- 12
AB01 1137 Gear - 24Z 9- 3
AB01 1139 Right Gear - 33Z 21- 24
AB01 1140 Left Gear - 33Z 21- 4
AB03 0350 Pulley - 18Z 9- 9
AB03 0350 Pulley - 18Z 19- 27
AB03 0351 Pulley - 48/18Z 19- 18
AB03 0352 Pulley - 36T 21- 23
AB03 0353 Pulley - 22Z 17- 28
AB03 0354 Pulley - 20T 19- 21
AB03 0355 Pulley - 40Z 21- 10
AB03 0371 Pulley - 30Z 21- 3
AW01 0025 Photosensor ON2530 5- 7
AW01 0025 Photosensor ON2530 19- 12
AW01 0025 Photosensor ON2530 21- 15
AW01 0025 Photosensor ON2530 25- 2

AW02 0015 Photo Sensor 11- 19
AW02 0041 Photointerruptor 7- 8
AW02 0041 Photointerruptor 11- 10
AW02 0041 Photointerruptor 25- 4
AW20 0003 Reed Switch - PS-3170U-601 (EU Only) 9- 15
AX06 0061 Motor - DC 46W 9- 8
AX06 0061 Motor - DC 46W 19- 24
AX20 0077 Magnetic Spring Clutch - DSC26AL (EU Only) 23- 28

34

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A006 2983 Spacer - M8 X 9 5- 39
A006 2983 Spacer - M8 X 9 9- 4
A010 5700 Sensor 19- 7
A010 5700 Sensor (EU Only) 21- 17
A028 7298 OPC Belt Unit Fixing Hook 17- 15
A028 7497 Transport Belt Pressure Spring 17- 18
A029 6825 Photo Sensor 5- 2
A029 7825 Plate - Sensor 5- 3
A029 7826 Plate 5- 1
A029 7862 Mylar Seal - 6x6mm 13- 5
A029 7864 Slider - Side Guide 13- 4
A029 7900 Pressure Roller - CFF 17- 7
A054 2977 Decal - Vertical Transport Guide 23- 21
A058 6721 CFF Side Fence Spring 13- 3
A351 1121 Front Side Plate - Paper Feed 7- 42
A351 1131 Rear Side Plate - Paper Feed 7- 18
A351 1134 Bushing - KG-016l 118mm 7- 17
A351 1135 Rear Support Bracket 9- 14
A351 1141 Separation Frame 5- 15
A351 1142 Blade Pressure Pin 5- 20
A351 1146 Blade Bracket 5- 31
A351 1153 Friction Tabs 5- 34
A351 1155 Blade Holder 5- 35
A351 1161 Entrance Pressure Shaft 5- 26
A351 1165 Pressure Guide Mylar 5- 29
A351 1171 Pressure Mylar 5- 36
A351 1175 Rear Pressure Mylar 5- 30
A351 1191 Size Detect Guide 5- 10
A351 1195 Registration Sensor Bracket 5- 6
A351 1213 Stopper Collar - 8x11x7 5- 38
A351 1216 Pull-out Roller Shaft 7- 3
A351 1218 Pull-out Roller 5- 11
A351 1221 Separation Roller Shaft 7- 38
A351 1226 Pick-up Separation Roller 7- 37
A351 1246 Separation Drive Shaft 9- 2

A351 1251 Separation Drive Bracket 7- 7
A351 1271 Cam - Extraction Roller 7- 13
A351 1292 Controller Cover 13- 12
A351 1321 Gate Cushion 11- 6
A351 1331 Paper Feed Gate 11- 2
A351 1341 Shaft - Front Switching Plate 11- 8
A351 1351 Shaft - Rear Switching Plate 11- 3
A351 1361 Invertor Arm (EU Only) 11- 5
A351 1365 Invertor Arm Cushion (EU Only) 11- 4
A351 1371 Invertor Lever 11- 9
A351 1381 Invertor Solenoid (EU Only) 11- 7
A351 1438 Table Protective Sheet 7- 32
A351 1521 Feed Motor Bracket 9- 11
A351 1531 Feed Motor Bracket 9- 13
A351 1541 Speed Down Shaft 9- 5
A351 1551 Pulley - 45Z 9- 7
A351 1561 Pulley - 20Z 9- 19
A351 1571 Pulley - 18Z 9- 21
A351 1581 Pulley - 28Z 5- 13
A351 1591 Timing Belt - B100S2M144 9- 6
A351 1592 Timing Belt - B100S3M387 9- 20
A351 1611 Bracket - Reed Switch - CFF (EU Only) 9- 16
A351 1621 Cam Follower Spring 7- 16
A351 2210 Feed Unit Bracket 11- 12
A351 2221 Display Bracket 13- 17
A351 2231 Original Sensor Bracket 11- 14
A351 2251 Original Sensor Feeler 5- 25
A351 2261 Pull-out Encoder 7- 1
A351 2271 Separation Roller Stopper 7- 43
A351 2281 Front Spring Bracket 7- 44
A351 2291 Upper CFF Guide Plate 5- 5
A351 2311 Lower CFF Guide Plate 5- 4
A351 2325 CFF Table Storpper 7- 34
A351 2335 Front Shaft Pin 7- 36
A351 2345 Rear Shaft Pin 7- 35

35

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A351 2361 Separator Bracket 11- 18
A351 2371 Sensor Bracket 11- 11
A351 2381 Gear - 44Z 11- 20
A351 2421 Original Separator 11- 16
A351 2431 Sensor Seal 17- 1
A351 2445 Side Fence Bracket 7- 28
A351 2451 Side Guide Angle 7- 24
A351 2461 Sensor Bracket 7- 40
A351 2470 Rear Cover Bracket 9- 22
A351 2495 Side Guide 7- 19
A351 2525 Original Holder (EU Only) 5- 41
A351 2545 Front Cover 13- 14
A351 2565 Front Lower Cover 13- 13
A351 2575 Right Cover 13- 9
A351 2595 Rear Lower Cover 13- 10
A351 2645 Side Plate Guide 13- 2
A351 2675 Left Separation Cover 13- 1
A351 2755 Rear Cover 13- 6
A351 3118 Front Transport Support Bracket 21- 1
A351 3143 Bushing EO-12N 22mm 25- 16
A351 3145 Base Arm Unit 25- 7
A351 3151 Right Frame 25- 14
A351 3161 Left Frame 25- 3
A351 3171 Transport Drive Side Plate 19- 33
A351 3181 Transport Stay 21- 21
A351 3195 Exit Stay 19- 3
A351 3197 Harness Cover 19- 1
A351 3211 Pressure Plate 17- 21
A351 3215 Belt Unit Roller 17- 20
A351 3221 Transfer Support Plate 17- 13
A351 3241 Upper Belt Guide 17- 2
A351 3251 Inverter Guide 23- 20
A351 3261 Inverter Entrance Guide 19- 11
A351 3265 Small Antistatic Brush - Inverter 19- 10
A351 3267 Large Antistatic Brush - Inverter 19- 19

A351 3271 Upper Feed-out Guide 19- 9
A351 3275 Exit Guide Holder 23- 22
A351 3281 Upper Inverter Guide 21- 19
A351 3287 Sensor Bracket (EU Only) 21- 16
A351 3291 Grip Bracket 15- 4
A351 3311 Drive Belt Roller 17- 27
A351 3321 Inverter Drive Roller 21- 12
A351 3326 Inverter Driven Roller 23- 19
A351 3331 Feed-out Roller 21- 11
A351 3341 Entrance Roller - Sheet-through (EU Only) 23- 26
A351 3459 Idler 21- 7
A351 3481 Timing Belt B100S2M200 19- 17
A351 3483 Timing Belt - B60S3M210 19- 16
A351 3485 Timing Belt - B60DS3M336 (EU) 19- 30
A351 3486 Timing Belt - B60S3M333 (USA) 19- 30
A351 3487 Timing Belt - B60DS2M250 21- 9
A351 3811 Inverter Gate 23- 18
A351 3821 Inverter Switch Back Gate 23- 16
A351 3831 Inverter Feed-out Gate 23- 24
A351 3841 Entrance Stopper - Sheet-through (EU Only) 23- 25
A351 3912 Left Hinge 25- 21
A351 3922 Right Hinge 25- 17
A351 3991 ADF Stopper (Option) 25- 26
A351 4111 Front Magnet Catch Bracket 19- 6
A351 4121 Rear Magnet Catch Bracket 19- 15
A351 4154 Photointerruptor Bracket 25- 23
A351 4155 Shaft - Feeler - Photointerruptor 25- 22
A351 4161 Sensor Feeler 25- 25
A351 4165 Open Closed Bushing 19- 32
A351 4165 Open Closed Bushing 25- 19
A351 4171 Frame Shaft 25- 8
A351 4181 Feed-out Sensor Bracket 25- 1
A351 4191 Transport Motor Plate 19- 23
A351 4211 Anti-vibration Collar 9- 12
A351 4211 Anti-vibration Collar 19- 26

36

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A351 4221 Trasport Belt 17- 5
A351 4231 Front Belt Guide 17- 25
A351 4241 Rear Belt Guide 17- 26
A351 4251 Tension Bracket 17- 9
A351 4261 Driven Channel Support Bracket 17- 22
A351 4271 Belt Positioning Pin 17- 23
A351 4281 Anti-vibration Cushion 21- 18
A351 4311 Right Guide Plate Bracket 17- 4
A351 4321 Left Guide Plate Bracket 17- 3
A351 4335 Pressure Plate Brake 17- 30
A351 4341 Pressure Plate Arm 17- 29
A351 4351 Inverter Sensor Cover 19- 14
A351 4361 Inverter Sensor Cover 19- 4
A351 4371 Right Grip Pivot 15- 3
A351 4381 Left Grip Pivot 15- 5
A351 4412 Gate Spring Lever 23- 12
A351 4421 Stopper Cover Angle 15- 21
A351 4441 Lever - Stopper - Entrance (EU Only) 23- 4
A351 4451 Solenoid Bracket 23- 2
A351 4471 Inverter Exit Lever 23- 29
A351 4491 Inverter Lever 23- 32
A351 4511 Rear Inverter Link 25- 10
A351 4521 Inverter Link 25- 9
A351 4531 Inverter Solenoid Bracket 25- 11
A351 4541 Exit Shaft 21- 5
A351 4551 Exit Adjusting Plate 21- 6
A351 4561 Inverter Idler Angle 19- 28
A351 4571 Transport Idler Angle 19- 20
A351 4591 Inverter Cover Pivot 15- 17
A351 4610 Roller Arm - Sheet-through (EU Only) 15- 12
A351 4621 Release Lever - Sheet-through (EU Only) 15- 10
A351 4632 Driven Shaft (EU Only) 15- 13
A351 4651 Support Seal - Sheet-through (EU Only) 15- 6
A351 4661 Belt Pressure Bushing 17- 17
A351 4671 Inverter Transport Stay 15- 9

A351 4681 Inverter Cover Bracket 15- 18
A351 4711 Inverter Seal 21- 13
A351 4721 Drive Motor Grommet 9- 10
A351 4721 Drive Motor Grommet 19- 25
A351 4751 Entrance Solenoid (EU Only) 23- 1
A351 4761 Inverter DC Solenoid 25- 13
A351 4771 Inverter Exit Solenoid 23- 31
A351 4815 Knob Cover 15- 1
A351 4821 Transport Belt Lever 17- 14
A351 4872 Inverter Guide 15- 7
A351 4935 Side Guide Plate (EU Only) 15- 23
A351 4951 Left Side Guide Pad (EU Only) 15- 24
A351 4952 Right Side Guide Pad (EU Only) 15- 25
A351 4965 Side Guide Rail 15- 22
A351 4971 Side Guide Pressure Plate (EU Only) 15- 26
A351 4975 Entrance Sheet Guide (EU Only) 15- 29
A351 5123 Paper Size Detect Board - A4 (USA,EU) 5- 8
A351 5300 Stepper Motor - DC 6.9W 11- 17
A351 5500 Power Supply Harness 13- 7
A351 5505 Paper Feed Harness 13- 16
A351 5510 Front Feed Relay Harness 11- 13
A351 5515 Rear Feed Relay Harness 13- 19
A351 5520 Transport Relay Harness 13- 8
A351 5525 Transport Harness 25- 18
A351 5530 Inverter Sensor Relay Harness 19- 31
A351 5535 Exit Sensor Harness 19- 8
A351 5540 Inverter Sensor Harness 21- 14
A351 5545 Registration Sensor Harness 19- 13
A351 5550 AC Power Unit Harness 25- 20
A351 5700 IC - HCTL-6 27- 2
A458 2251 Cushion - Bin Solenoid Lever 23- 17
A497 1007 Collar -6x12x8 (EU Only) 23- 27
A589 1411 Table Unit 7- 31
A589 2612 Cover - Separation - Upper - NA 5- 14
A589 2613 Cover - Separation - Upper - EU 5- 14

37

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

A589 2921 Decal - CFF 5- 37
A589 2921 Decal - CFF - NA 29- 1
A589 4597 Spacer Plate 15- 30
A589 4791 Decal - Inverter Misfeed Removal 15- 32
A589 4791 Decal - Inverter Misfeed Removal 29- 2
A589 4852 Inverter Unit Cover - USA 15- 19
A589 4853 Invertor Unit Cover - EU 15- 19
A589 4893 Decal - Original Feed (EU Only) 15- 31
A589 4893 Decal - Original Feed (UE Only) 29- 3
A589 4912 Transfer Unit Cover - USA 15- 28
A589 4923 Cover - Upper - Transport - EU 15- 28
A589 4993 Decal - Sheet Through (EU Only) 29- 4
A589 5112 Main Control Board 13- 11
A589 5112 Main Control Board 27- 0
A589 5720 IC - UVEPROM 256K X8 120NS 27- 1
5053 0223 Bushing - 8mm 5- 9
5053 0223 Bushing - 8mm 7- 10
5053 0223 Bushing - 8mm 17- 24
5053 0447 Bushing - 6mm 21- 2
5053 0447 Bushing - 6mm (EU Only) 23- 3
5216 4198 Stepped Screw - Guide Plate 15- 15
5403 2049 Spring Anchor 23- 10
5403 2075 Stepped Screw 17- 11
5403 2075 Stepped Screw 19- 22
5403 2075 Stepped Screw 23- 9
5413 2298 Screw - M4 5- 23
5413 2298 Screw - M4 9- 18
5443 2668 Bushing - 4x6x7mm 7- 14
5443 2668 Bushing - 4x6x7mm 23- 34
5446 4486 Support Guide Stud 15- 20
5505 2607 Rubber Magnet - Manual Cover 7- 33
5840 2416 Bushing - Pinch Roller 5- 19
5875 2088 Shoulder Screw - M4 23- 35
5886 1183 Pad - 0.5x12x40mm 7- 21
5886 1184 Pad - 0.5x7x10mm 7- 20

5886 1184 Pad - 0.5x7x10mm 15- 27
5886 1187 Guide Block 7- 23
5886 1188 Plate Spring - Side Guide 7- 25
5886 1192 Mylar - Spring Plate 7- 30
5886 1197 Pad - 0.5x34x62mm 7- 22
5886 1309 Blade Pressure Spring - 500 5- 21
5886 1310 Cam Follower - Entrance Mylar 5- 24
5886 1312 Frame Stopper Pin 5- 16
5886 1315 Spring - Separation Release 5- 17
5886 1337 Blade Stopper 5- 22
5886 1344 Plate - Separation Blade 5- 33
5887 2245 Spring Anchor 23- 8
5887 2295 Spring - Distribution Driving 17- 16
5887 3268 Antistatic Brush 19- 2
5887 3268 Antistatic Brush 21- 20
5887 4155 Shaft Guide - Turn Driven 23- 13
5887 4156 Spring - Driven Roller 23- 14
5936 1143 Gear - 29T 7- 11
5936 1144 Cam - Pressure Release 7- 41
5936 1145 Position Encoder 7- 12
5936 1153 Lower Pull-out Roller 7- 2
5936 1155 Bushing - Spring Pressure 7- 4
5936 1162 Relay Roller Spring 7- 29
5936 1163 Rear Spring - Pull-out Roller 7- 5
5936 1234 Blade Fixing Screw 5- 32
5936 1250 Separation Stopper Collar 5- 18
5936 1310 Cam Follower 7- 15
5936 1315 Idler Gear - 29T 7- 9
5936 1317 Coupled Gear - 29t/43t 7- 6
5936 1327 Spacer - 13mm 9- 1
5936 1512 Indicator Panel 13- 20
5936 2425 Driven Roller - Belt 17- 6
5936 2431 Spring - Tensioner 17- 10
5936 2432 Transport Belt Stopper 17- 12
5936 2438 Bushing - Press Roller 17- 8

38

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

5936 2480 Magnet Catch Ass’y 15- 2
5936 2480 Magnet Catch Ass’y 19- 5
5936 2586 Sensor Pad 15- 14
5936 2740 Wire - Invertor Cover 15- 16
5936 5231 Indicator Board 13- 18
5936 9101 Separation Roller - 4pcs/set 7- 39

0313 0040W Philips Pan Head Screw - M3x4 23-106
0313 0060W Philips Pan Head Screw - M3x6 5-102
0313 0060W Philips Pan Head Screw - M3x6 7-100
0313 0060W Philips Pan Head Screw - M3x6 13-111
0313 0060W Philips Pan Head Screw - M3x6 17-106
0313 0060W Philips Pan Head Screw - M3x6 19-108
0313 0060W Philips Pan Head Screw - M3x6 23-102
0313 0080W Philips Pan Head Screw - M3x8 19-107
0313 0100W Philips Pan Head Screw - M3x10 5-103
0313 0100W Philips Pan Head Screw - M3x10 19-105
0313 0100W Philips Pan Head Screw - M3x10 25-101
0313 0120W Philips Pan Head Screw - M3x12 5-100
0313 0120W Philips Pan Head Screw - M3x12 21-105
0314 0040W Philips Pan Head Screw - M4x4 7-109
0314 0050W Philips Pan Head Screw - M4x5 17-101
0314 0060W Philips Pan Head Screw - M4x6 7-103
0314 0060W Philips Pan Head Screw - M4x6 9-107
0314 0060W Philips Pan Head Screw - M4x6 11-100
0314 0060W Philips Pan Head Screw - M4x6 13-103
0314 0060W Philips Pan Head Screw - M4x6 15-101
0314 0060W Philips Pan Head Screw - M4x6 17-100
0314 0060W Philips Pan Head Screw - M4x6 19-100
0314 0060W Philips Pan Head Screw - M4x6 21-100
0314 0060W Philips Pan Head Screw - M4x6 23-101
0314 0060W Philips Pan Head Screw - M4x6 25-100
0314 0080W Philips Pan Head Screw - M4x8 15-106
0314 0100W Philips Pan Head Screw - M4x10 7-104
0314 0100W Philips Pan Head Screw - M4x10 11-104
0314 0100W Philips Pan Head Screw - M4x10 25-103
0314 0150W Philips Pan Head Screw - M4x15 7-114
0323 0060W Philips Sunken Head Screw - M3x6 17-104
0324 0120W Philips Sunken Head Screw - M4x12 9-104
0324 0120W Philips Sunken Head Screw - M4x12 19-112
0344 0060F Philips Truss Head Screw - M4x6 5-110
0344 0060F Philips Truss Head Screw - M4x6 15-102

39

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

0344 0060F Philips Truss Head Screw - M4x6 17-109
0344 0080F Philips Truss Head Screw - M4x8 13-101
0353 0060W Philips Pan Head Screw - M3x6 15-100
0353 0060W Philips Pan Head Screw - M3x6 19-106
0433 0064B Pan Head Self-tapping Screw - M3x6 15-107
0574 0040E Hexagon Headless Set Screw - M4x4 5-112
0574 0040E Hexagon Headless Set Screw - M4x4 9-102
0574 0040E Hexagon Headless Set Screw - M4x4 17-108
0574 0040E Hexagon Headless Set Screw - M4x4 19-113
0574 0040E Hexagon Headless Set Screw - M4x4 23-107
0584 0083Z Flanged Hexagonal Head Bolt - M4x8 13-108
0632 0100G Pin - 2x10mm 7-110
0632 0100G Pin - 2x10mm 21-103
0632 0120G Parallel Pin - 2x12 5-104
0632 0120G Parallel Pin - 2x12 7-106
0632 0120G Parallel Pin - 2x12 15-103
0632 0120G Parallel Pin - 2x12 21-109
0704 0040C Toothed Washer - M4 13-109
0710 0030W Hexagon Nut - M3 5-109
0710 0040W Hexagon Nut - M4 7-113
0720 0030E Retaining Ring - M3 5-108
0720 0030E Retaining Ring - M3 7-107
0720 0030E Retaining Ring - M3 11-107
0720 0030E Retaining Ring - M3 15-105
0720 0030E Retaining Ring - M3 25-104
0720 0040E Retaining Ring - M4 7-105
0720 0040E Retaining Ring - M4 11-102
0720 0040E Retaining Ring - M4 15-104
0720 0040E Retaining Ring - M4 17-102
0720 0040E Retaining Ring - M4 19-111
0720 0040E Retaining Ring - M4 21-102
0720 0040E Retaining Ring - M4 23-103
0720 0040E Retaining Ring - M4 25-102
0720 0060E Retaining Ring - M6 5-106
0720 0060E Retaining Ring - M6 7-101

0720 0060E Retaining Ring - M6 9-101
0720 0060E Retaining Ring - M6 17-105
0720 0060E Retaining Ring - M6 19-109
0720 0060E Retaining Ring - M6 21-108
0740 3808 Ball Bearing - 8x16x5mm 9-109
0741 3005 Ball Bearing - 5x14x5mm 17-103
0741 3506 Ball Bearing - 6x12x4mm 21-104
0741 3507 Ball Bearing - 7x13x4 9-100
0741 3808 Ball Bearing - 8x16x5mm 5-105
0741 3808 Ball Bearing - 8x16x5mm 7-112
0741 3808 Ball Bearing - 8x16x5mm 9-103
0741 3808 Ball Bearing - 8x16x5mm 21-107
0741 3909 Ball Bearing - 9x20 17-107
0742 3912 Bearing - 12 7-102
0805 3385 Bushing - 6mm 11-101
0805 3385 Bushing - 6mm 23-105
0807 2089 Washer - 10mm 15-108
0951 3004F Screw - M3X4 13-100
0951 3004W Philips Screw With Flat Washer - M3 5-101
0951 3005W Philips Screw With Flat Washer - M3x5 9-106
0951 3005W Philips Screw With Flat Washer - M3x5 11-103
0951 3005W Philips Screw With Flat Washer - M3x5 23-104
0951 3006W Philips Screw With Flat Washer - M3x6 25-106
0951 4006W Philips Screw With Flat Washer - M4x6 5-107
0951 4006W Philips Screw With Flat Washer - M4x6 9-108
0951 4006W Philips Screw With Flat Washer - M4x6 19-102
0951 4006W Philips Screw With Flat Washer - M4x6 21-101
0951 4006W Philips Screw With Flat Washer - M4x6 25-108
0951 4010W Philips Screw With Flat Washer - M4x10 5-111
0957 5010M Screw - M5X10 13-102
0957 5010M Screw - M5X10 25-107
1101 0328 Connector Pin Contact 27-102
1102 0962 Connector - 6p 27-103
1102 4167 Connector - 6p 27-104
1102 4170 Connector - 12p 27-105

40

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

1102 4171 Connector - 14p 27-106
1103 0779 Connector - 2p 27-107
1103 0881 Connector - 4p 27-108
1103 1371 Connector - 34p 27-109
1103 1489 Connector - 3p 27-110
1103 1737 Connector - 15p 27-111
1104 0333 Fuse Holder 27-112
1104 0377 IC Socket - 28P 27-113
1105 0034 Nylon Clip - 7n 25-109
1105 0153 Clamp 9-105
1105 0153 Clamp 11-105
1105 0153 Clamp 21-106
1105 0176 Nylon Clamp 19-101
1105 0192 Locking Support 13-107
1105 0266 Clamp 19-104
1105 0310 Wire Clamp 7-108
1105 0310 Wire Clamp 11-106
1105 0310 Wire Clamp 23-100
1105 0310 Wire Clamp 25-105
1105 0348 Clamp 7-111
1105 0349 Edge Saddle 19-103
1105 0367 Spacer 13-106
1106 0200 Bushing - 19.44mm 13-110
1107 0404 Fuse - 0.3A 250V 13-105
1107 0404 Fuse - 0.3A 250V 27-114
1107 0750 Fuse - 3.15A 250V 13-104
1107 0750 Fuse - 3.15A 250V 27-115
1206 0032 Lithium Cell - BR2325-1HC 27-116
1400 0368 Transistor - 2SC3325 27-117
1401 0296 Transistor - 2SA1162Y 27-118
1401 0298 Transistor - 2SC2712Y 27-119
1401 0835 Diode - 1SS190 27-120
1401 0919 Mosfet Array - 4AM14 27-121
1402 0476 Diode - 1SS184 27-122
1402 0682 Zener Diode - RD3.6M 27-123

1403 0669 Red LED - SLM-13VW 27-124
1403 0670 Green LED - SlM-13VW 27-125
1407 1298 IC - TC4049BF 27-126
1407 1311 IC - LS32 27-127
1407 1317 IC - HD74LS138FP-TL 27-128
1407 1535 IC - TD62308AP 27-129
1407 1722 IC - TC4011BF 27-130
1407 1882 IC - 74LS373 27-131
1407 2073 IC - UPD78C10GF 27-132
1407 2089 IC - TC4024BF 27-133
1407 2218 IC - SN74LS06NS 27-134
1407 2836 IC - HD74C14FP 27-135
1407 2852 IC - LH5116N 27-136
1407 2858 IC - TD62601F 27-137
1407 2859 IC - TD62603F 27-138
1407 2860 IC - TD62604F 27-139
1407 3284 IC - TC74HC74A 27-140
1407 3359 IC - RF5C60 27-141
1407 3522 IC - TD62304AF 27-142
1407 3541 IC - HD74LS26FP 27-143
1407 3862 IC - STK6855 27-144
1407 3868 Potentiometer - Ds1267 - 10 27-145
1408 0397 Comparator - Njm2901m 27-146
1408 0538 IC - SI8301L 27-147
1408 0599 IC - M51971EP 27-148
1408 0611 IC - 3771 27-149
1408 0619 IC - SN751701P 27-150
1408 0654 IC - SI8203L 27-151
1503 0420 Crystal Oscillator - 12mhz 27-152
1600 0601 Resister - Erg - 1sj681 27-153
1600 1105 Resister - 0.27Ω 27-154
1600 1456 Resister - 3.3kΩ 27-155
1601 7326 Resistor Array - 10K Ω 27-156
1602 0934 Rc Array - Cr01-r 27-157
1604 1359 Capacitor - 2200µF 10V 27-158

41

Part No.

Description

Page and
Index No.

Part No.

Description

Page and
Index No

1604 1370 Capacitor - 470µF 25V 27-159
1604 1375 Capacitor - 0.22µF 50V 27-160
1604 1378 Capacitor - 1µF 50V 27-161
1604 1379 Capacitor - 2.2µF ±20% 50V 27-162
1604 1382 Capacitor - 10µF 50V 27-163
1604 1386 Capacitor - 100µF ±20% 50V 27-164
1604 1387 Capacitor - 220 µF 50V 27-165
1604 1390 Capacitor - 1000µF 50V 27-166
1605 0112 Capacitor - 0.068µF 27-167
1605 0513 Capacitor - 2200PF 50V +80% -20% 27-168
1605 0596 Capacitor - 100PF 27-169
1605 0636 Capacitor - 0.1µF 27-170
1605 0660 Capacitor - 0.022µF 27-171
1605 0684 Capacitor - 16PF 27-172
1606 1134 Capacitor - 33PF ±5% 27-173
1606 1452 Capacitor - 0.01µF 50V 27-174
1606 1477 Capacitor - 330PF 27-175
1606 1590 Capacitor - 0.01µF 27-176
1607 0044 Coil - 100uh 27-177
1607 0076 Fuse - 3a 27-178
1607 0402 Ferrite Core - Ri-3.5-3.5-1.2 27-179
1611 4122 Resistor - 1.2K Ω 1/4T ±5% 27-180
1630 3101 Resistor - 100Ω - 1/10W 27-181
1630 3102 Resistor - 1KΩ 1/10W ±5% 27-182
1630 3103 Resistor - 10KΩ 1/10W ±5% 27-183
1630 3104 Resistor - 100K Ω 1/10W ±5% 27-184
1630 3152 Resistor - 1.5kΩ - 1/10W 27-185
1630 3183 Resistor - 18KΩ -1/10W 27-186
1630 3202 Resistor - 2KΩ -1/10W 27-187
1630 3223 Resistor - 22kΩ - 1/10W 27-188
1630 3273 Resistor - 27kΩ - 1/10W 27-189
1630 3302 Resistor - 3kΩ - 1/10W 27-190
1630 3392 Resistor - 3.9kΩ - 1/10W 27-191
1630 3393 Resistor - 39K Ω 1/10W 27-192

1630 3471 Resistor - 470Ω - 1/10W 27-193
1630 3472 Resistor - 4.7KΩ 1/10W ±5% 27-194
1630 3512 Resistor - 5.10kΩ - 1/10W 27-195
1630 3682 Resistor - 6.8kΩ - 1/10W 27-196

42
