Ricoh FT5233-S EDITOR

EDITOR

(Machine Code: A916)

12 February 1992 SPECIFICATIONS

1. SPECIFICATIONS

Maximum Original Size: A3/LDG
Error Tolerance:
Functions: Delete Area Mode

Dimensions:
(W x D x H)

Weight: Approximately 2.6 kg (5.8 lb)

Power Source: 5 V 0.25 A (from copier)
Host Copier: A074

±2.5 mm

Save Area Mode
Erase Center Mode
Erase Edge Mode
Black in Area Mode
Color in Area Mode
Highlight Color Mode
Centering Mode Size
Size Magnification Mode
Overlay Mode.

528 mm x 468 mm x 54 mm
(20.8" x 18.5" x 2.2")

(including stylus and cable)

Editor

1

ELECTRICAL COMPONENT LAYOUT 12 February 1992

2. ELECTRICAL COMPONENT LAYOUT

1. Main PCB

2. Stylus

3. Positioning Sheet

2

12 February 1992 ELECTRICAL COMPONENT DESCRIPTION

3. ELECTRICAL COMPONENT DESCRIPTION

PCBs

Main Controls the Editor and drives the positioning sheet

OTHERS

Positioning Sheet Detects the stylus position
Stylus Initializes detection of the posit ion

Editor

3

BASIC OPERATION 12 February 1992

4. BASIC OPERATION

[B]

[A]

Y

X

There are resistors [A] (carbon sheets) in the positioning sheet aligned in the
X and Y directions. When part of the positioning sheet is pressed with the
stylus pen, voltage corresponding to the combination of the resistors is
detected.

The detected data is transmitted to the copier as the coordinate position. This
detection method also applie s t o the m od e sele ctio n pa ds [B ].

4

12 February 1992 DETECTING METHOD

5. DETECTING METHOD

Carbon Sheet

Insulator Dot

T1

Example:

Switch

T2

Coodinate Point

XH

YLYH

XL

A/D 8 bit

The positioning sheets consists of two carbo n she et s for X an d Y dir e ctio n,
and insulator dots located in-between the two carbo n sheets.

When the positoning sheet is pressed with the stylus pen, the switch in the
stylus pen turns on and starts the detection of the coordinate point. Also, the
upper carbon sheet contacts the lower carbon sheet at the coordinate point.
Therefore, the voltage correspondi ng to the coordinate point is sent to the
A/D converter.

Coordinate Point in X Direction:

The voltage of the coordinate point in the X direction is sent to the A/D
converter through the Y line as the switching transistor T1 is turned ON and
the voltage is applied to the X line. At this time, the switching transistor T2
should be OFF.

Coordinate Point in Y Direction:

By changing the ON/OFF position of the switching transistors T1 and T2, the
voltage of the coordinate point in the Y direction is sent to the A/D converter
through the X line.

5

Editor

DETECTING METHOD 12 February 1992

Positioning Sheet Editor Main Board

A/D

Converter

CPU

Serial Input
Reset

Serial Output
Request
Error

Copier

The copier supplies +5 volts to the editor. The signals between the editor and
the copier are as follows:

CN No. Signal Name Function

1GND —
2

Serial Input: TXD
(Copier to Editor)

Status signal of copier
3GND —
4

5

6

7

Serial Output: RXD

(Editor to Copier)

Request

(Editor to Copier)

(Editor to Copier)

(Copier to Editor)

Error

Reset

Coordinate data and mode selection
data from editor.
Request to receive data (Serial Input
Signal) from copier.
Request to receive data (Serial Input
Signal) again from copier when Serial
Input Signal is in error condition.

Resets the editor

8 Editor Connection Connects to GND on Editor board

9/10 +5 V —

6

12 February 1992 ERROR DETECTION

6. ERROR DETECTION

6.1 INITIAL ERROR

Short circuit and disconnection of the resistors in the positio ning sheet is
checked when the power is turned ON . If an er ro r is foun d an d coo r din at e
data input is made with the stylus pen, the buzzer sounds for five seconds
and the coordinate position at that time is not transmitted to the copier.

6.2 PARITY ERROR (Communication Error)

When data transmitted from the editor or copier has on error, the service call
"SC94" is lit on the copier control panel.

Editor

7

INSTALLATION 12 February 1992

7. INSTALLATION

7.1 ACCESSORY CHECK

Check the quantity and conditio n of the accesso r ies in th e box accordiing to
the following list:

1. Installation Procedure

(115 V - English only/220 V - Five Languages) .............. 1

2. New Equipment Condition Report .................................1

3. Envelope for NECR (115 V only)................................... 1

4 . Grounding Screw ........................................................... 1

5. Protective Plate..............................................................2

6 . Front Stopper................. ................................................ 2

7. Rear Stopper..................................................................2

8. Sponge Plate ................................................................. 1

9 . Harness Clamp ...... ........................................................ 1

10. Tie Wrap.........................................................................2

11. Pan Head Screw - M4 x 8..............................................1

12. Pan Head Screw - M4 x 6..............................................4

13. Truss Screw - M4 x 8..................................................... 2

14. Operating Instructions.......................... .......................... 1

15. Multilingual Decals (220/240 V only) .............................1

8

12 February 1992 INSTALLATION

7.2 INSTALLATION PROCEDURE

[B]

[A]

[D]

[E]

[C]

[F]

[G]

[G]

[F]

CAUTION: Before installing the editor, make sure that the copier is

unplugged.

NOTE: The editing interface adapter (A345) is required to install this editor

on the copier.

1. Remove the strips of shipping tape.

2. Remove the rear cover [A] (remove 2 screws and loosen 2 screws).

3. Remove the platen cover [B] (2 screws, 1 connector).

4. Close the hinge [C] of the platen cover and remove the original holder [D]
from the platen cover.

5. Stick the sponge plate [E] and the protective plates [F] as shown.

Editor

6. Install the rear stoppers [G] to the right and left side s of th e pla te n cove r
as shown (2 screws each: M4 x 6).

9

INSTALLATION 12 February 1992

[B]

[A]

[C]

7. Pla ce the editor [A] on the platen cover from the opera tion side as shown
and secure the right and left ends of the editor with the front stoppers [B]
(1 screw each: M4 x 6).

8. Open the hinge [C] and reinstall the platen cover (with editor) on the
copier.

10

12 February 1992 INSTALLATION

[G]

[A]

[E]

[F]

[B]

[H]

[D]

[C]

220/230/240V Version

9. Remove the cover plate [A] using cutting pliers.

10. Swing out the main control board assembly [B] (1 screw).

11. Connect the editor har ness conn ector [C] (10P white) with the copier as
shown.

12. Secure the grounding an d pro tective earth wires [D] together (1
grounding screw) as shown.

13. Secure the editor harness with the harness clamp [E] (1 screw: M4 x 8),
and the tie wrap [F].
Put the tie wrap [G] on the editor harness as close to the cut out as
possible.

NOTE: For 220/230/240 V vers io n:

Place the editor harness as shown be cau s e it ha s a core [H] .

14. Reinstall the main control board.

Editor

11

INSTALLATION 12 February 1992

[A]

[B]

[C]

[D]

15. Reinstall the copier rear cover.
NOTE: for the machine code A074-26 skip to step 31.

16. Open the front door and lower the transfer & separation corona unit [A] by
pulling down the release lever [B].

17. Push the development unit lock lever [C] to the right (to the lock position).

18. Move the development release lever [D] to the right and pull the black
development unit half way out. Holding the toner supply unit with your
right hand and the bottom of the deve lop m en t un it with your lef t ha nd, pull
the unit all the way out. Place the unit on a clean sheet of paper.

12

12 February 1992 INSTALLATION

[A]

[B]

[C]

19. Turn the cleaning unit release lever [A] counterclockwise. While holding
up the cleaning blade release lever [B], remove the cleaning unit. Place
the unit on a clean sheet of paper.

20. Remove the charge corona unit [C] together with the wire cleaner (1
screw).

13

Editor

INSTALLATION 12 February 1992

[B]

[A]

[D]

21. Remove the fixing screw [A] securing the drum stay and pull out the drum
unit [B] gently along the rail.

22. Place the drum unit on a clean sheet of paper.

23. Slide the drum unit top plate [C] to the rear and remove it. Then re move
the toner shield glass [D].

[C]

14

12 February 1992 INSTALLATION

[C]

[B]

[D]

[F]

[A]

[G]

[E][E]

24. Loosen the two screws [A] securing the bearing holder [B] and rotate the
holder as shown.

25. Remove the drum [C] by holding the drum unit rail [D] and pulling out and
up on the drum knob.

NOTE: a) When removing the drum, take car e no t to str ike it ag ain s t an y

objects.
b) Be careful not to bend the bearing holder.
c) Do not touch the drum surface.
d) Wrap the drum in clean she ets of paper to protect it.

26. While unhooking the positio nin g pa wls [E], remove the erase lamp unit [F]
(1 connector) as shown.

27. Install the edit erase lamp unit (editing interface adapter: A345) instead of
the original erase lamp unit and set the harness [G] in position.

15

Editor

INSTALLATION 12 February 1992

[A]

[C]

[B]

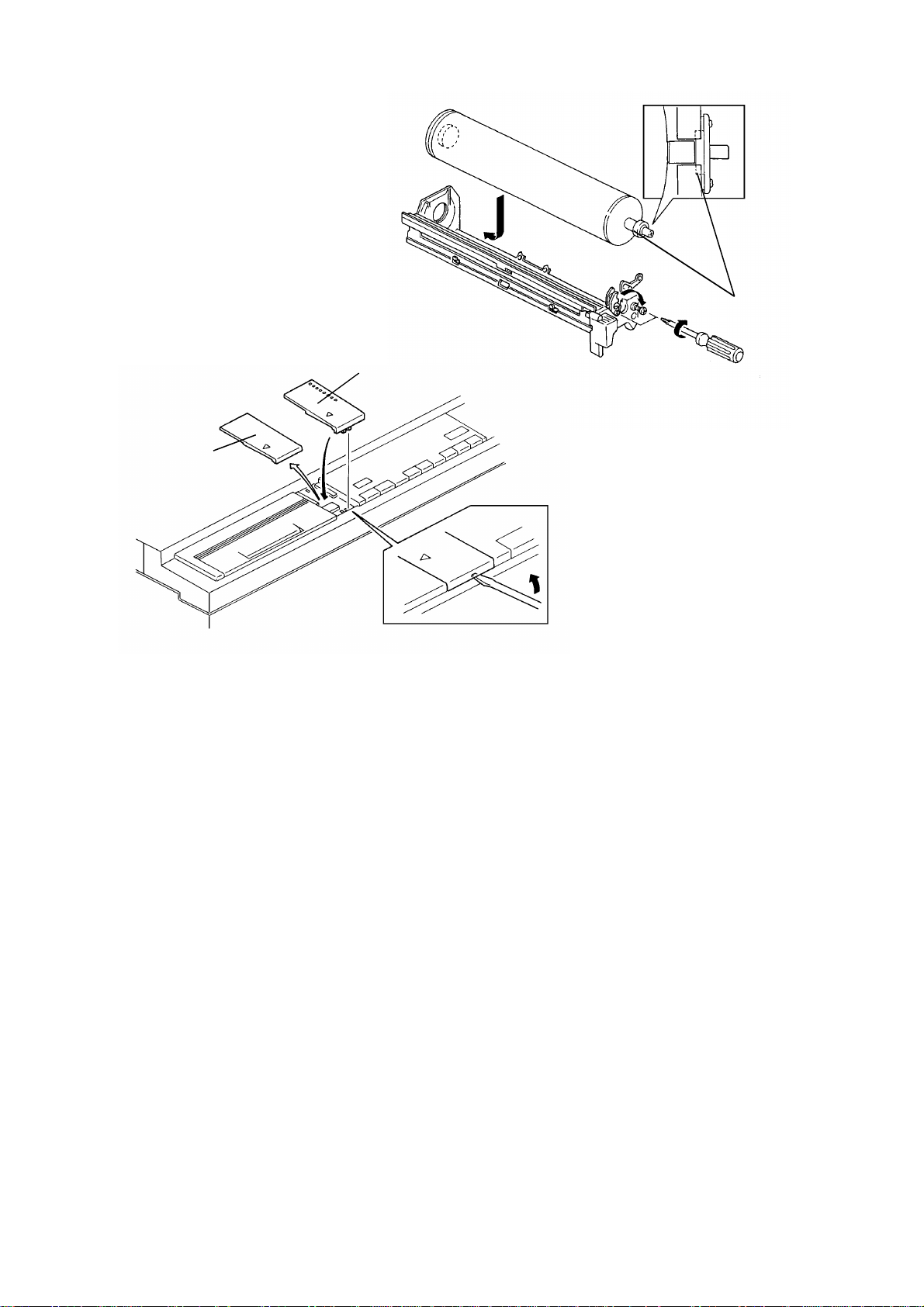

28. Set the drum in the unit and put the bearing holder back in place. Tight en
the screws, then unwrap the drum.

NOTE: a) When setting the drum in the unit, be careful not to strike it

against the rail.

b) Do not bend the bearing holder. Make sure the bearing holder

is in contact with the bearing [A], as they are both used to
ground the unit. If they are not in cont act , solid bl ack cop ies
may occur.

c) Do not touch the drum surface.

29. Reassemble the machine.

30. Remove the center cover plate [B] on the operation panel and install the
edit cover [C] instead. (The edit cover is provided together with the editing
interface adapte r .)

31. Plug in the power cord and turn the main switch on.

32. Check the editor operation.

16

12 February 1992 REPLACEMENT AND ADJUSTMENT

8. REPLACEMENT AND ADJUSTMENT

8.1 MAIN PCB REPLACEMENT

[A]

[B]

[D]

[E]

[C]

CAUTION: Do not touch the DIP switch on the main PCB as it is

factory preset.

1. Disconnect the editor connectors.

2. Remove the editor from the platen cover [A] (6 screws).

3. Remove the upper cover [B] (35 screws).

NOTE: Carefully remove the upper cover as it is held down with double sided

tape.

4. Remove the connectors [C].

5. Remove the connector [D] and replace the main PCB [E] (9 screws).

Editor

17

REPLACEMENT AND ADJUSTMENT 12 February 1992

Table of Contents
SPECIFICATIONS 1
ELECTRICAL COMPONENT LAYOUT 2
ELECTRICAL COMPONENT DESCRIPTION 3
BASIC OPERATION 4
DETECTING METHOD 5
ERROR DETECTION 7
INITIAL ERROR 7
PARITY ERROR (Communication Error) 7
INSTALLATION 8
ACCESSORY CHECK 8
INSTALLATION PROCEDURE 9
REPLACEMENT AND ADJUSTMENT 17
MAIN PCB REPLACEMENT 17
