RICOH D088, D089 PARTS CATALOG

CÓPIA NÃO CONTROLADA

D088/D089

PARTS CATALOG

006190MIU

CÓPIA NÃO CONTROLADA

PARTS CATALOG

D088/D089

CÓPIA NÃO CONTROLADA

D088/D089

PARTS CATALOG

006190MIU

CÓPIA NÃO CONTROLADA

It is the reader's responsibility when discussing the information contained within this document to maintain a level of confidentiality that is in the best interest of Ricoh Americas Corporation and its member companies.

NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY

FASHION AND DISTRIBUTED WITHOUT THE PRIOR

PERMISSION OF RICOH AMERICAS CORPORATION.

All product names, domain names or product illustrations, including desktop images, used in this document are trademarks, registered trademarks or the property of their respective companies. They are used throughout this book in an informational or editorial fashion only and for the benefit of such companies. No such use, or the use of any trade name, or web site is intended to convey endorsement or other affiliation with Ricoh products.

CÓPIA NÃO CONTROLADA

LEGEND

PRODUCT

CODE

D088 MP C4501 LD645C Aficio MP C4501 C9145 D089 MP C5501 LD655C Aficio MP C5501 C9155

B408 SR790 B804 Booklet Finisher SR3020 B805 Finisher SR3030 D386 Bridge Unit BU3030 D388 Internal Shift Tray SH3040 D536 1 Bin Tray BN3080 D537 Paper Feed Unit PB3100 D538 LCIT PB3110 D539 LCIT RT3010 D540 ARDF DF3040 D542 Side Tray Type C5501 D545 Fax Option Type C5501

D546

D547 Envelope Feeder EF3000

GESTETNER LANIER RICOH SAVIN

COMPANY

Controller Options

CÓPIA NÃO CONTROLADA

DOCUMENTATION HISTORY

REV. NO. DATE COMMENTS

*

04/2008 Original Printing

CÓPIA NÃO CONTROLADA

Unit All

CÓPIA NÃO CONTROLADA

U001

Exterior

U005

Paper Tray(1st)

U002

Operation

U006

Paper Tray(2nd)

U003

Scanner

U007

Paper Feed

U004

Laser Unit

U008

Paper Registration

U009

Tonner Suppry

U010

PCDU

U011

ITB Unit

U012

ITB Cleaning

Unit All

CÓPIA NÃO CONTROLADA

U013

Used Toner

U017

Main Drive

U014

Fusing

U018

Electrical

U015

Paper Exit

U019

Controller

U016

Duplex

U020

Main Frame

U001

CÓPIA NÃO CONTROLADA

Exterior

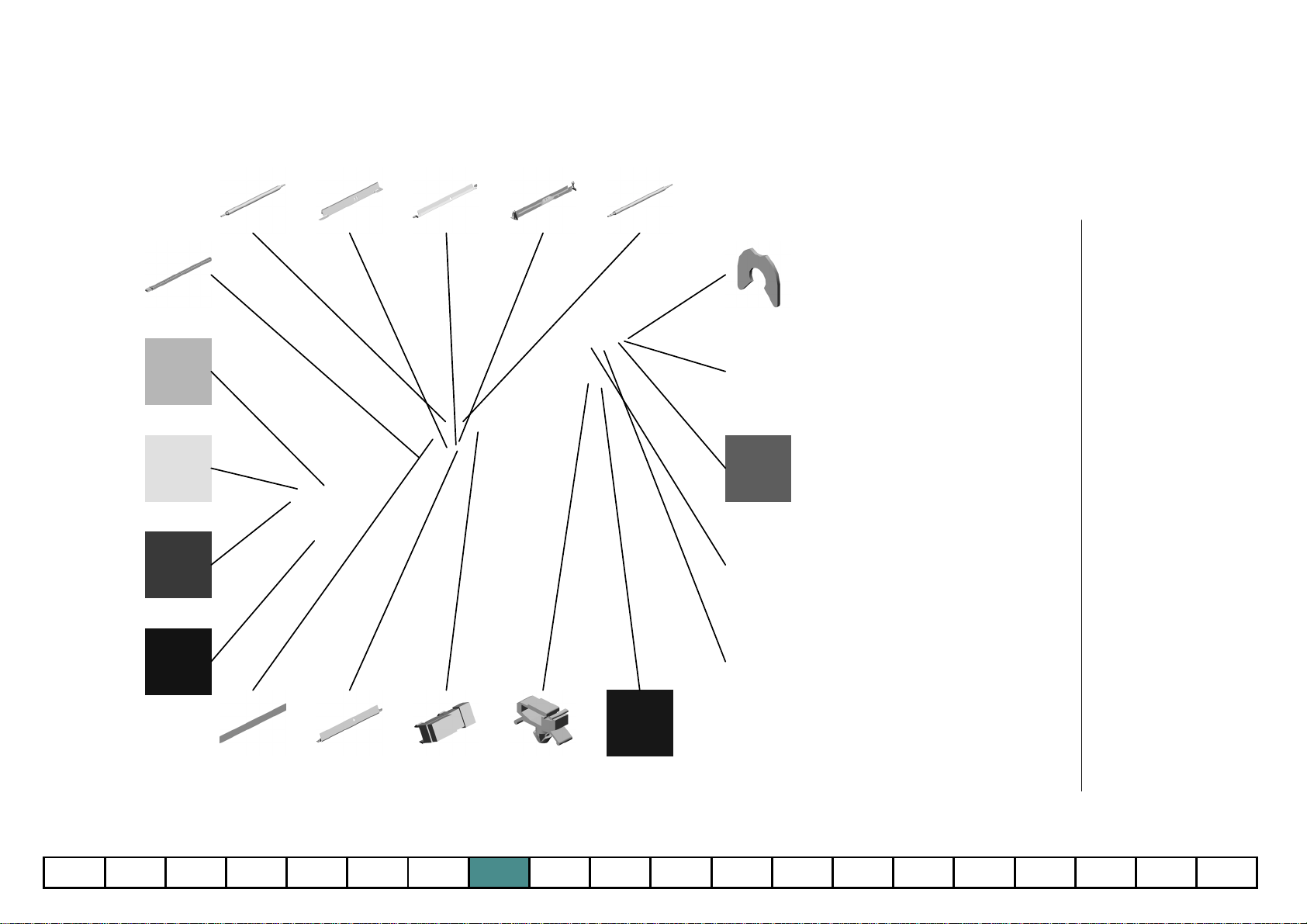

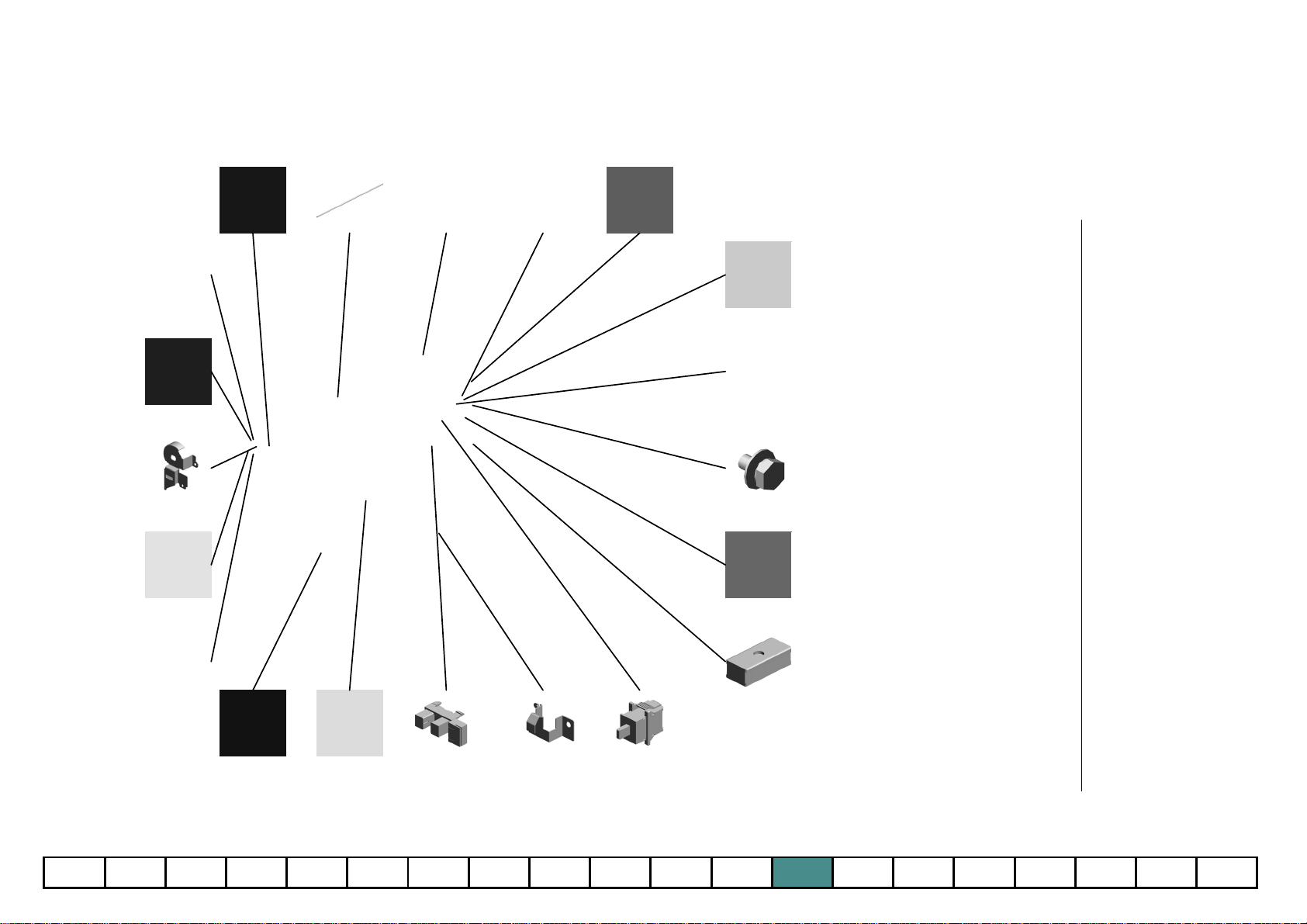

17.B2231253

EMBLEM COVER

15.B2231246

GUIDE PLATE:SCA NNER

18.B2231255

COVER - MAIN SWI TCH

2.04503010N (x5)

TAPPING SCREW M3X10

10.B0241264

MAGNET CATCH

1.03530050N (x2)

SCREW-M3X5

3.04513006N

TAPPING SCREW 3X6

12.B2221820

COVER:SCANNER: REAR:EU

4.04513008N (x37)

TAPPING SCREW M3X8

19.B2231266

COVER:PAPER EXI T UNIT:UPPER

20.B2231274

COVER:RIGHT RE AR:FAN

13.B2231242

INNER COVER - LE FT

11.B1321573

DECAL - POWER S OURCE:OFF

14.B2231244

INNER COVER - MI DDLE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

9.AG071012 (x2)

MAGNET CATCH:A SS'Y

16.B2231249

STOPPER:MAGNE T CATCH

5.04543008Q (x2)

TAPPING SCREW: 3X8

8.AA143823 (x4)

TAPPING SCREW

6.AA000239

DECAL:COLOR:MF P

7.AA001477

DECAL:ENERGY-S TAR

U001

CÓPIA NÃO CONTROLADA

Exterior

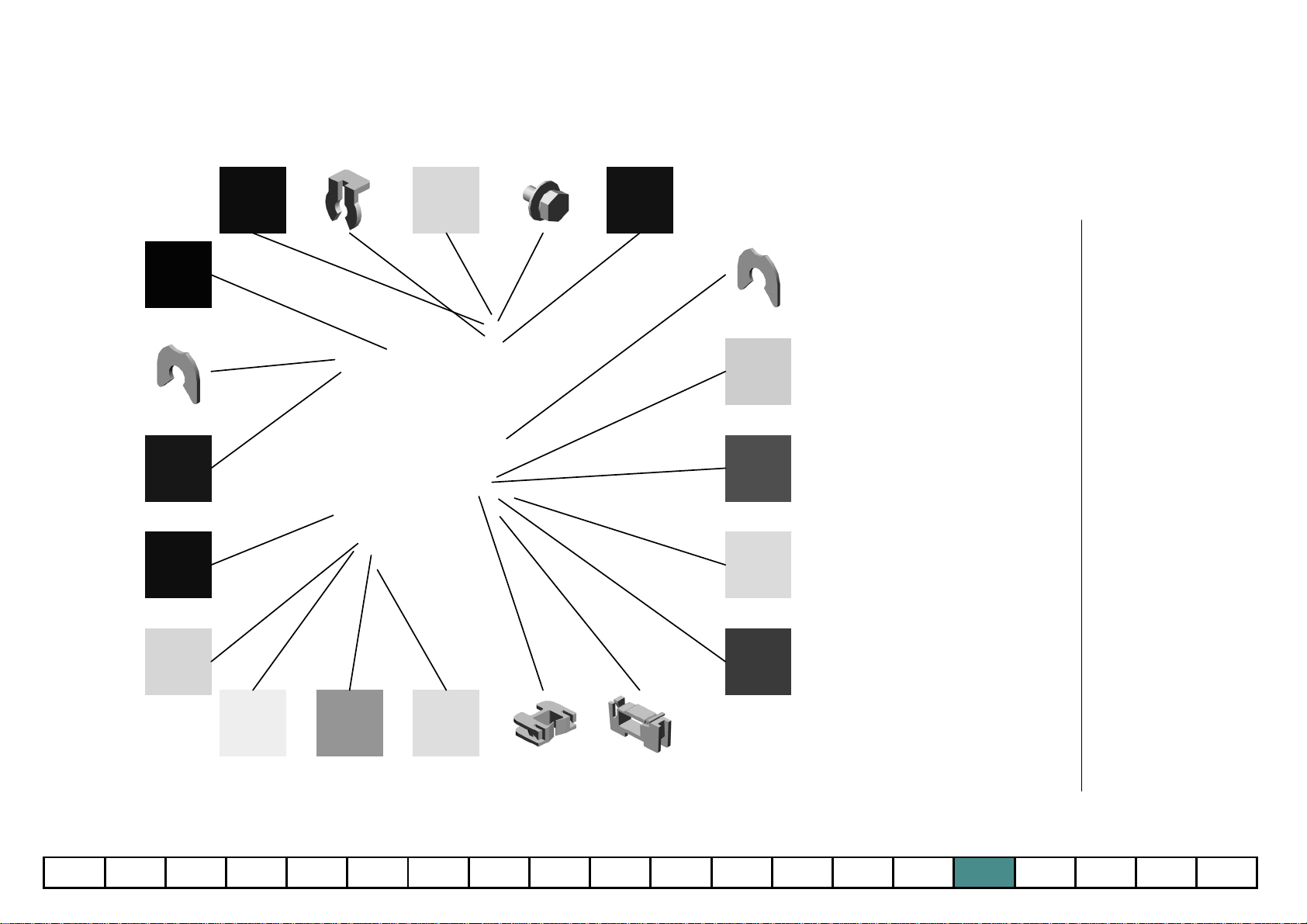

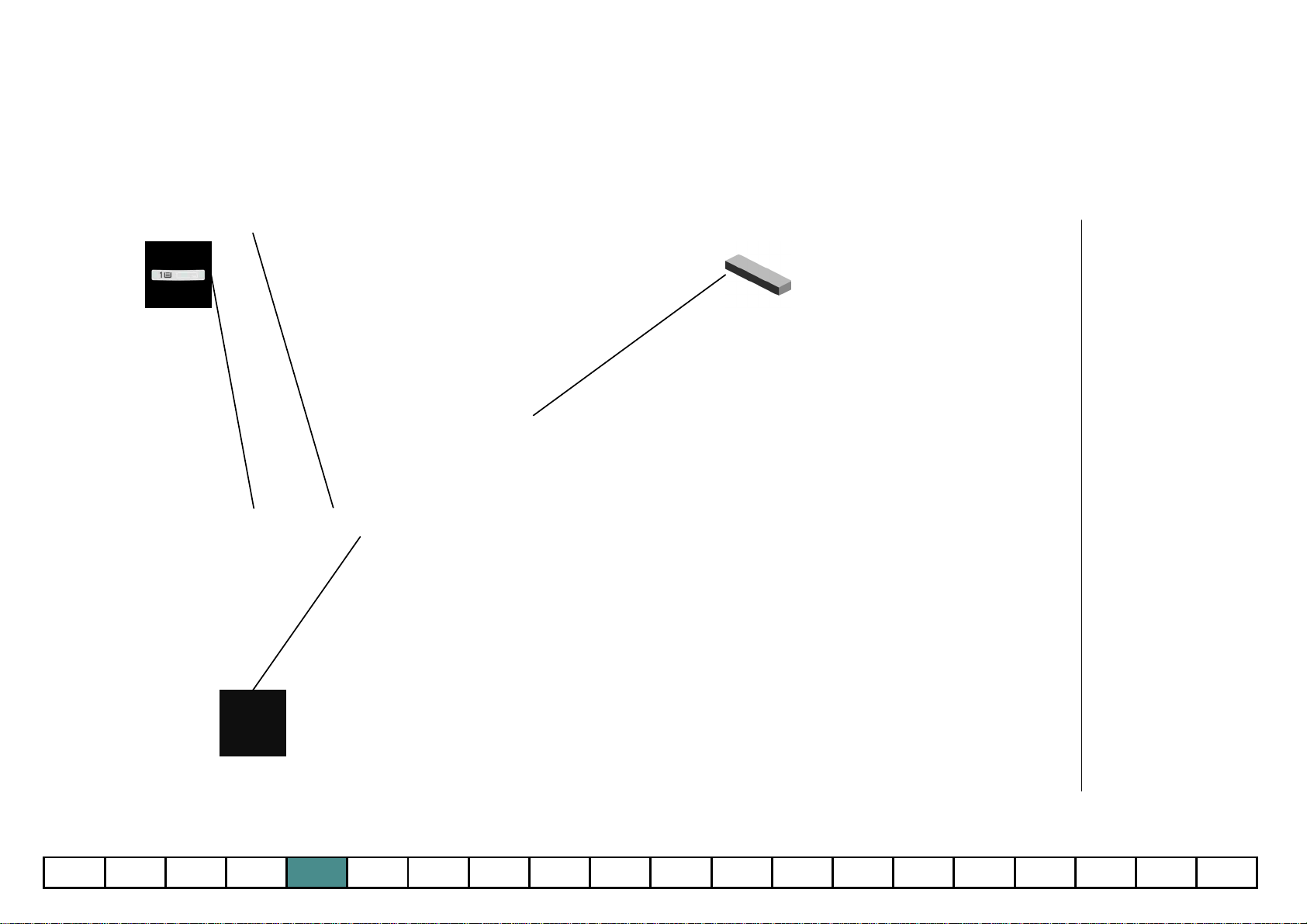

26.B2234486

EXIT TRAY

34.B2383364

DECAL:COLORED DISPLAY:BK:INNE R COVER

35.B2383365

DECAL:COLORED DISPLAY:Y:INNER COVER

23.B2231293 (x2)

CAP:COVER:REAR

27.B2234487

EXIT END FENCE

38.D0091260

UPPER COVER

39.D0251261

COVER:INNER BA CK

24.B2231807 (x2)

BRACKET:EXTERI OR:REAR

25.B2231819

COVER:SCANNER: RIGHT

30.B2241263

COVER:INNER BA CK:MIDDLE:EU

21.B2231276

FILTER:RIGHT REA R

37.B2383367

DECAL:COLORED DISPLAY:M:INNER COVER

31.B2371372 (x2)

DECAL - MAIN SWI TCH ON-STANDBY

29.B2241257

COVER:FRONT:CO LLECTION BOTTLE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

33.B2381368 (x4)

DECAL - CLEANIN G

22.B2231279

CLEANER:SHIELD GLASS:ASS'Y

36.B2383366

DECAL:COLORED DISPLAY:C:INNER COVER

32.B2381362

DECAL - MISFEED REMOVAL B1

28.B2241251

COVER:FRONT:EU

40.D0281271

COVER:RIGHT:FR ONT:NA

U001

CÓPIA NÃO CONTROLADA

Exterior

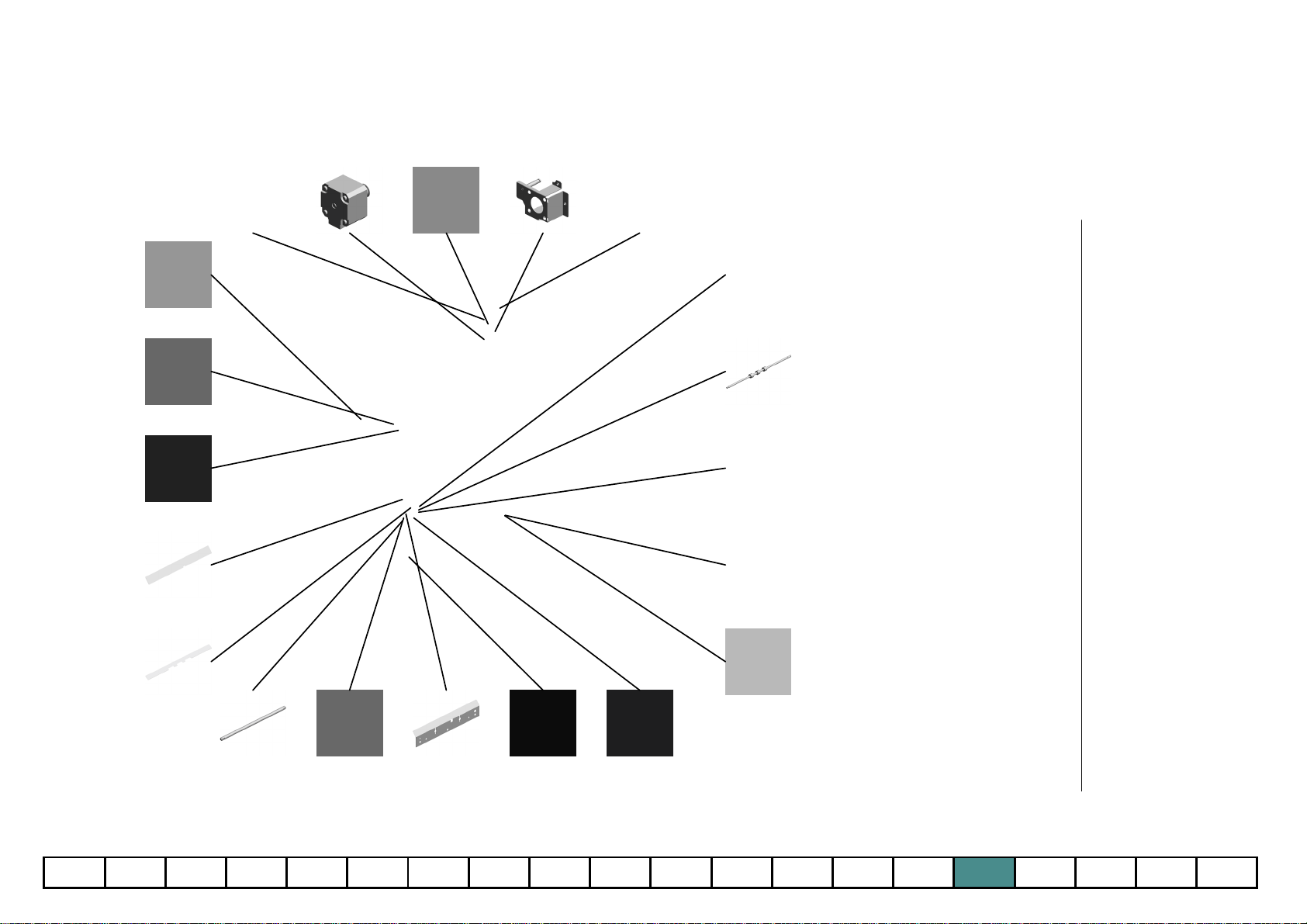

59.D0891281

COVER:LEFT

52.D0881241

INNER COVER:UP PER:LEFT

53.D0886801 (x2)

SHEET:MODEL NA ME PLATE:D088:RI C:(for D088)

43.D0281376

COVER:SCANNER: LEFT:NA

56.D0886853

DECAL:CAUTION:O RIGINAL:ENGLISH

41.D0281282

COVER:LEFT:UPP ER:NA

60.D0891283

COVER:LEFT:INTE RFACE

49.D0291299

BRACKET:COVER: REAR

42.D0281292

COVER:REAR:UPP ER:NA

48.D0291278

(x2)

OZONE FILTER:NO .2

58.D0891273

COVER:RIGHT:UP PER MIDDLE

54.D0886802 (x2)

SHEET:MODEL NA ME PLATE:D088:S VN:(for D088)

55.D0886804 (x2)

SHEET:MODEL NA ME PLATE:D088:LA N:NA:(for D088)

46.D0291256

SHEET:MISFEED R EMOVAL

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

57.D0891219

COVER:SCANNER: FRONT:NA:D088/D 089

45.D0291243

INNER COVER:UP PER:RIGHT

51.D0301291

COVER:REAR:C2:D OM

47.D0291272

COVER:RIGHT:RE AR

44.D0291213

COVER:FRONT RI GHT

50.D0291596

COVER:FRONT RI GHT:UPPER

U001

CÓPIA NÃO CONTROLADA

Exterior

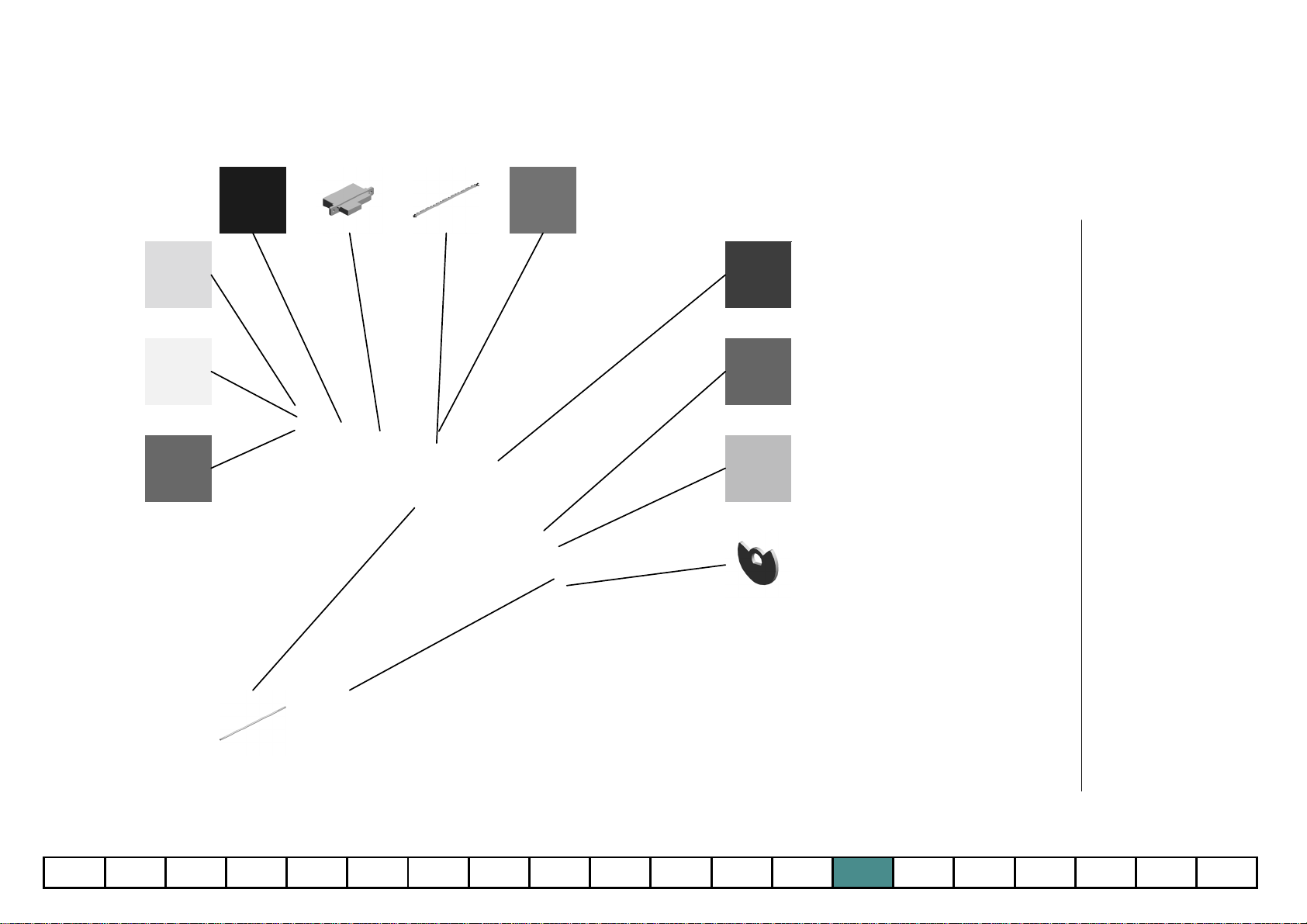

62.D0891389

SEAL:COVER:LEFT :MIDDLE

69.GA003030

DECAL - SHIELDIN G PLATE Y

66.G0201332 (x2)

HINGE - FRONT C OVER

61.D0891284

COVER:LEFT:MIDD LE:D088/D089

63.D0896801 (x2)

SHEET:MODEL NA ME PLATE:RIC:EXP :(for D089)

64.D0896802 (x2)

SHEET:MODEL NA ME PLATE:SVN:(for D089)

65.D0896804 (x2)

SHEET:MODEL NA ME PLATE:NA:(for D089)

67.G1331295

OZONE FILTER

73.GA003167

DECAL:CAUTION:I NKJET:NA

72.GA003033

DECAL - SHIELDIN G PLATE K

70.GA003031

DECAL - SHIELDIN G PLATE M

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

68.G1336537

MAGNET CATCH

71.GA003032

DECAL - SHIELDIN G PLATE C

74.GA003176

DECAL:SDK

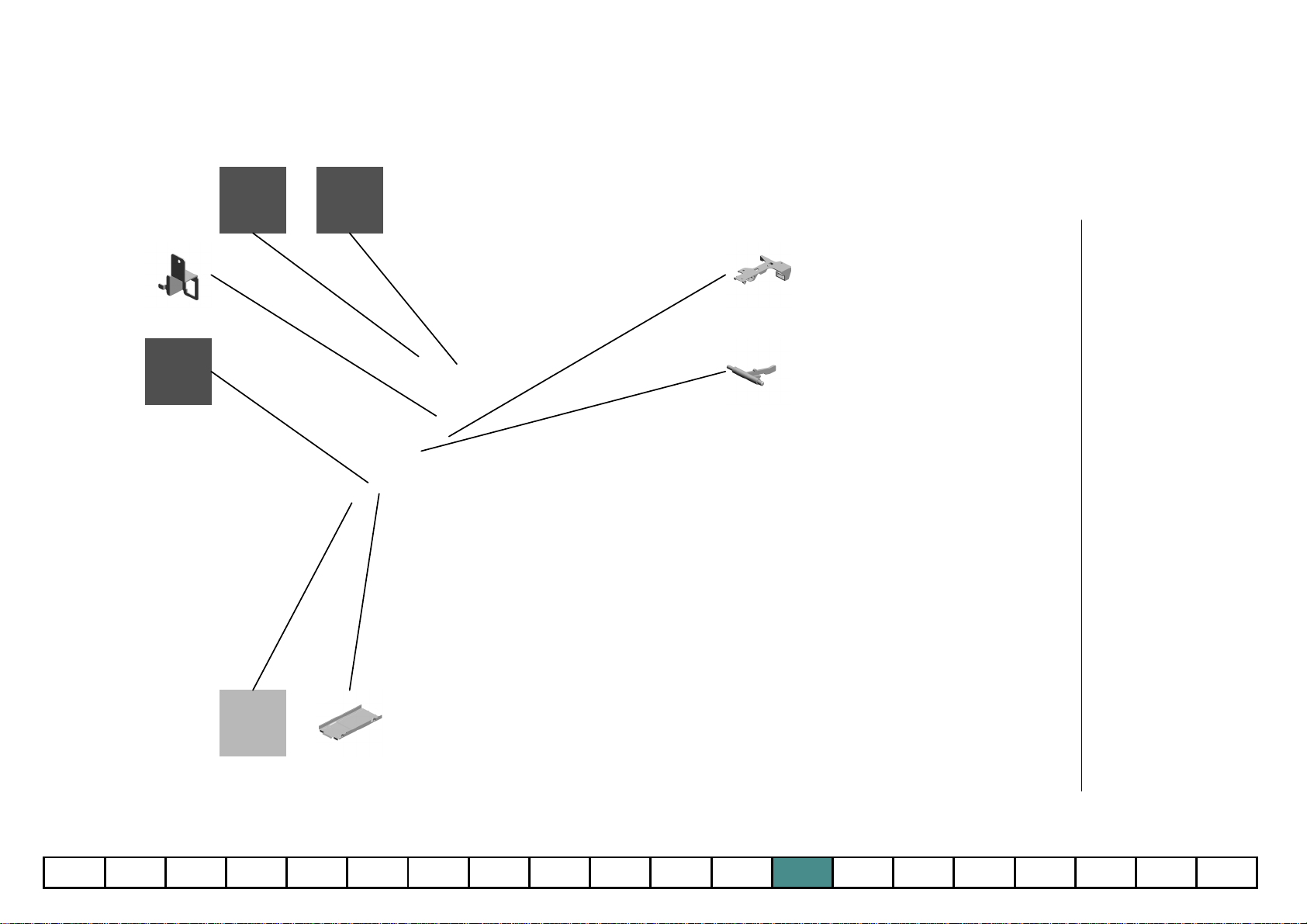

U002_S001

CÓPIA NÃO CONTROLADA

D0881411

OPERATION PANEL:D088/D0 89:NA:ASS'Y

U002.Operation

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U002

CÓPIA NÃO CONTROLADA

Operation

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U002_S001

CÓPIA NÃO CONTROLADA

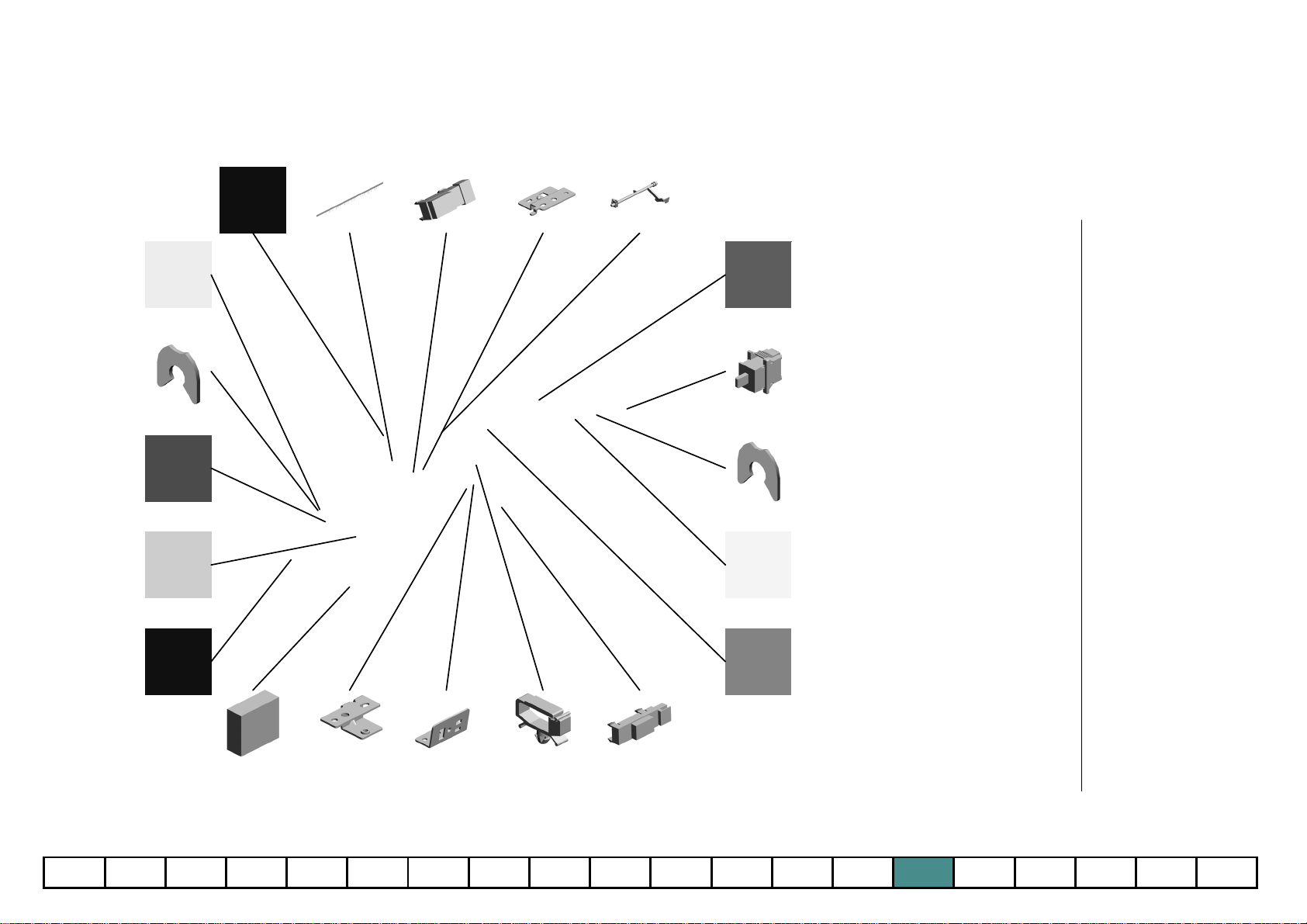

OPERATION PANEL:D088/D089:NA:ASS'Y

14.B2231540

KEYTOP:10KEY:NA

19.B2381519

LENS - FRONT

13.B2231533

KEYTOP:FUNCTIO N:NA

12.B2231532

KEYTOP:SCANNE R:NA

11.B2231531

KEYTOP:PRINTER: NA

40.D0881411

OPERATION PANE L:D088/D089:NA:AS S'Y

8.B2231520

KEYTOP - CLEAR/ STOP

15.B2381504

KEYTOP - START

16.B2381506

KEYTOP - TRY PRI NT

17.B2381509

KEYTOP - INTERR UPT

2.04503010N (x33)

TAPPING SCREW M3X10

10.B2231529

KEYTOP - DOC NA

9.B2231528

KEYTOP - COPY N A

6.B2231475

PCB OP-L

18.B2381511

KEYTOP - COUNTE R

3.11050032

CLAMP

4.11050511

HARNESS CLAMP LWS-0306ZC

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

5.16072053

FERRITE CORE:E0 4FG210810

20.B2381527

OPERATION PANE L BRACKET

7.B2231518

KEYTOP - BLANK F B

1.03530060N (x11)

BIND SCREW - M3 X6

U002_S001

CÓPIA NÃO CONTROLADA

OPERATION PANEL:D088/D089:NA:ASS'Y

26.B2381548

OPERATION PANE L BRACKET - RIGH T

21.B2381534 (x2)

LCD SPACER A

22.B2381535 (x2)

LCD SPACER B

38.D0091556

PANEL:UPPER:NA

34.D0091488

TOUCH PANEL:WVGA:MA

40.D0881411

OPERATION PANE L:D088/D089:NA:AS S'Y

31.D0091470

PCB:OP-R

29.B2381552

KEYTOP - KANTAN

23.B2381539

SHEET:POWER SO URCE:DISPLAY:NA

28.B2381550

KEYTOP - LOGIN

27.B2381549

KEYTOP - POWER SOURCE

24.B2381540

SHEET:DATA:DISP LAY:NA

25.B2381547

SPACER - KEYTOP

39.D0861502

BRACKET:LCDC:D 088/D089:ASS'Y

41.D0881481

PCB:LCDC:NA:ASS' Y:D088/D089

33.D0091487

CABLE:FFC:TFT:LC D

30.B2381583

KEYTOP - CLEAR MODES

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

32.D0091486

INVERTOR:TFT

36.D0091502

COVER:LOWER

37.D0091504

SHADEING PLATE: TOUCH PANEL

35.D0091489

LCD:TFT:W-VGA:S H

U003_S002

CÓPIA NÃO CONTROLADA

D0291778

SCALE:LEFT:NA:ASS'Y

U003.Scanner

U003_S001 D0291731

CARRIAGE:NO.2:ASS'Y

U003_S003 D0291715

CARRIAGE:NO.1:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U003

CÓPIA NÃO CONTROLADA

Scanner

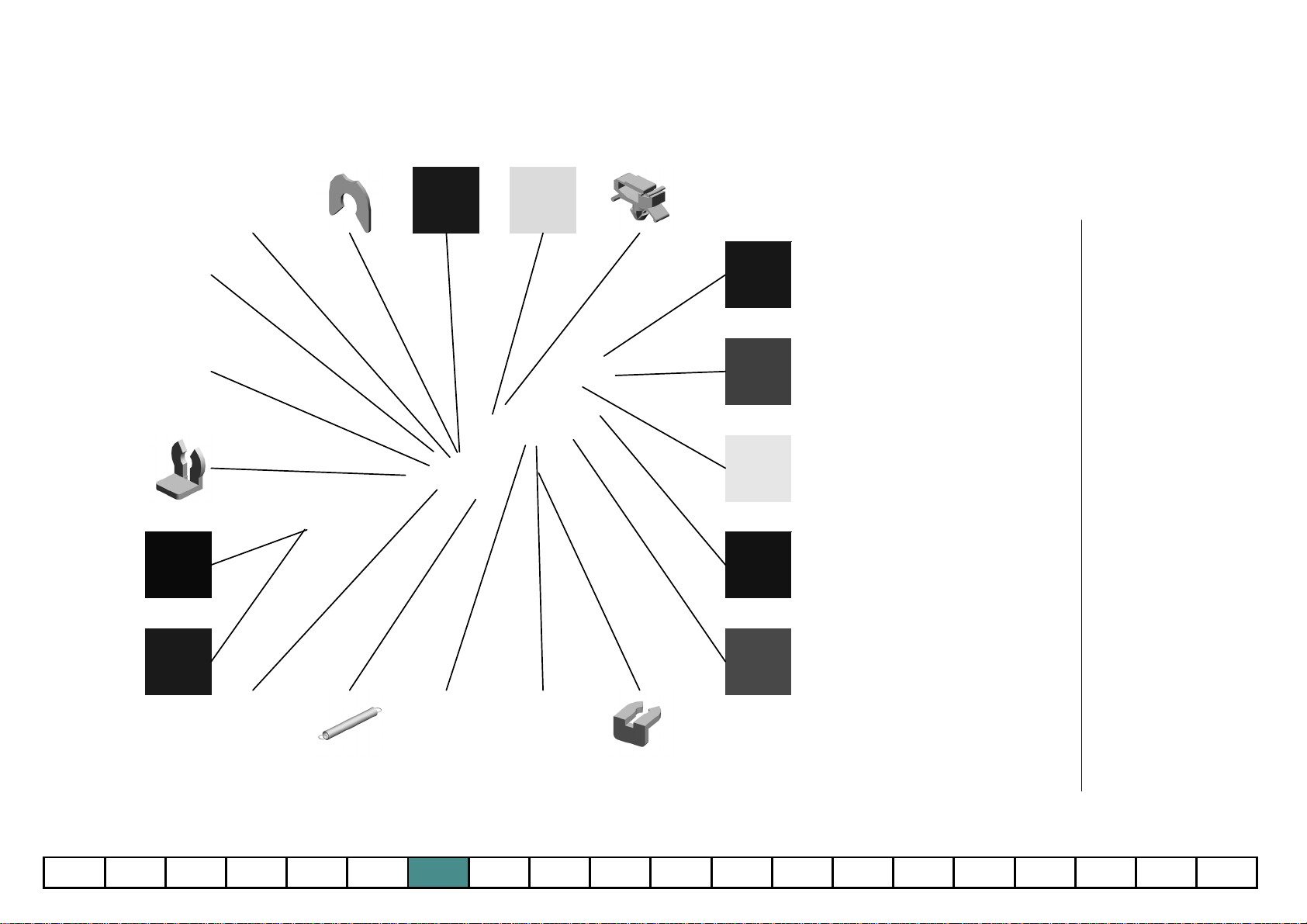

4.04533006N (x6)

TAPPING SCREW M3X6

3.04513006N (x29)

TAPPING SCREW 3X6

23.A2501752

EXPOSURE GLASS

21.A1931793

SCANNER HOME S ENSOR STOPPER

14.11050516 (x4)

CLAMP

20.A1931769

CLAMP - REAR WI RE

17.54421924 (x2)

EXPOSURE GLASS CUSHION

1.03140120N

SCREW - M4X12

13.11050511 (x2)

HARNESS CLAMP LWS-0306ZC

22.A1931816 (x2)

1ST SLIDE RAIL

12.11050488

HARNESS CLAMP

19.A1931766

WIRE CLAMP

8.08025312 (x3)

TAPPING SCREW: WASHER:3X10

16.11050534 (x5)

CLAMP

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

9.08050088 (x2)

RETAINING RING M6

5.04543006Q (x19)

TAPPING SCREW M3X6

7.08025299 (x5)

TAPPING SCREW M3X8

15.11050517 (x2)

HARNESS CLAMP LWS-2111Z

10.11033354

CONNECTOR:B2P5

-VH-TW-R(LF)(SN)

11.11050487 (x3)

HARNESS CLAMP

U003

CÓPIA NÃO CONTROLADA

Scanner

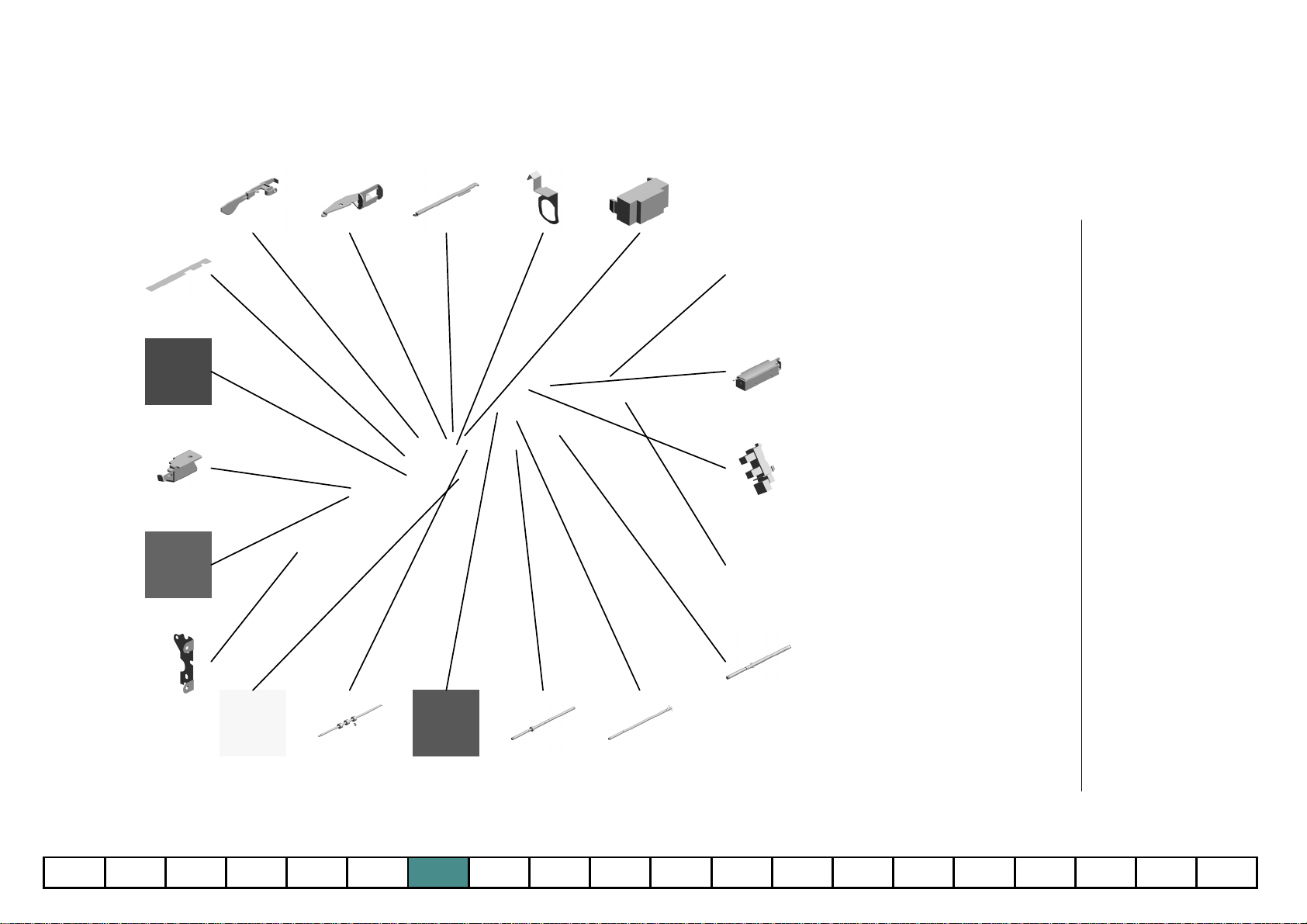

40.B2231773

SCALE:MACHINE OR COPIER

41.B2231774

SEAL:SHEET THR OUGH

37.B1801734 (x2)

SLIDE RAIL:NO.2

32.AW020145

PHOTOINTERRUP TOR:FLAT

29.AA143520 (x5)

SHOULDER SCRE W - M3

33.AW020146

PHOTOINTERRUP TOR:FLAT:PICH2M M:M4

44.B2231788

FRAME:SCANNER: REAR

46.B2231808

DOCUMENT FEED ER:CONNECTOR:B RACKET

45.B2231806

BRACKET:DOCUM ENT FEEDER:HOL DER

42.B2231779

COVER:STEPPER MOTOR:REAR

36.B1801713

STEPPER MOTOR: ASS'Y

39.B1801814

SHAFT:SCANNER: DRIVE

34.B0511727

FRAME:SCANNER: FRONT

31.AW010133 (x2)

ORIGINAL SENSO R - 66MM

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

38.B1801803

GUIDE:HIGH VOLT AGE SUPPLY COR D:BASE

35.B0511814

BRACKET:ORIGIN AL SENSOR

26.AA060979

TENSION SPRING: TENSION:14720MN

27.AA060980 (x2)

TENSION SPRING: TENSION:11300MN

28.AA082144 (x2)

BUSHING - 8X12X7

43.B2231786

HOLDER:CONNEC TOR

U003

CÓPIA NÃO CONTROLADA

Scanner

67.D0291774

SEAL:GUARD:EXP OSURE GLASS:DO CUMENT FEEDER

51.B2381806 (x4)

IDLER PULLEY

47.B2231824

SEAL:SCANNER:F RAME:BASE

55.D0091731

BRACKET A - LEFT SCALE

54.BC012002

EXPOSURE GLASS :SHEET THROUGH :344X20

56.D0091732

BRACKET B - LEFT SCALE

64.D0291747 (x2)

DRIVE WERE:CAR RIAGE:DIA1.0

49.B2291687

HEATER:OPTION:1 20V:9W:(Option)

69.D0291782

SCALE:REAR:PRIN TING

50.B2381792

TIMING BELT - 157 ST1.5-4.0

48.B2231833 (x2)

SEAL:EXPOSURE GLASS:REAR

63.D0291745

PULLEY:DRIVE WE RE:FRONT

66.D0291749

PULLEY:PROTECTI ON

53.B2381845 (x2)

SEAL:EXPOSURE GLASS

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

72.D0291831

GASKET:13X17X10 :R

70.D0291789

INNER COVER:GR OUND PLATE:PEE N

65.D0291748

PULLEY:DRIVE WE RE:REAR:ASS'Y

71.D0291830

GASKET:13X17X35 :R

57.D0091815

ORIGINAL SENSO R BRACKET - SUB SCAN

73.D0291832

GASKET:9X3X10

U003

CÓPIA NÃO CONTROLADA

Scanner

76.D0891840

XENON LAMP:ASS' Y

81.G5701160 (x2)

SPACER BUSHING

85.G5702834

PULLEY - HIGH VO LTAGE SUPPLY C ORD

77.D0891842

STABILIZER

78.D0895138

PCB:SIO

74.D0891741 (x2)

BRACKET:TENSIO N:DRIVE WIRE

75.D0891771

LENS:HOLDER:AS S'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

80.G5701133

TIMING PULLEY 73

U003_S001

CÓPIA NÃO CONTROLADA

CARRIAGE:NO.2:ASS'Y

61.D0291736

MIRROR:NO.2:CON CAVE:ASS'Y

83.G5702832

GUIDE - HIGH VOL TAGE SUPPLY CO RD

79.G4042810 (x4)

SPRING PLATE - 2 ND MIRROR

60.D0291731

CARRIAGE:NO.2:A SS'Y

24.A2501791 (x4)

2ND SCANNER SH OE

62.D0291737

MIRROR:NO.2:CON VAX:ASS'Y

84.G5702833

PULLEY HOLDER

52.B2381807 (x2)

PULLEY

6.07200040E (x2)

RETAINING RING M4

2.03530050N (x2)

SCREW-M3X5

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U003_S002

CÓPIA NÃO CONTROLADA

SCALE:LEFT:NA:ASS'Y

25.A6283112

SHIELDING SHEET

68.D0291778

SCALE:LEFT:NA:A SS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U003_S003

CÓPIA NÃO CONTROLADA

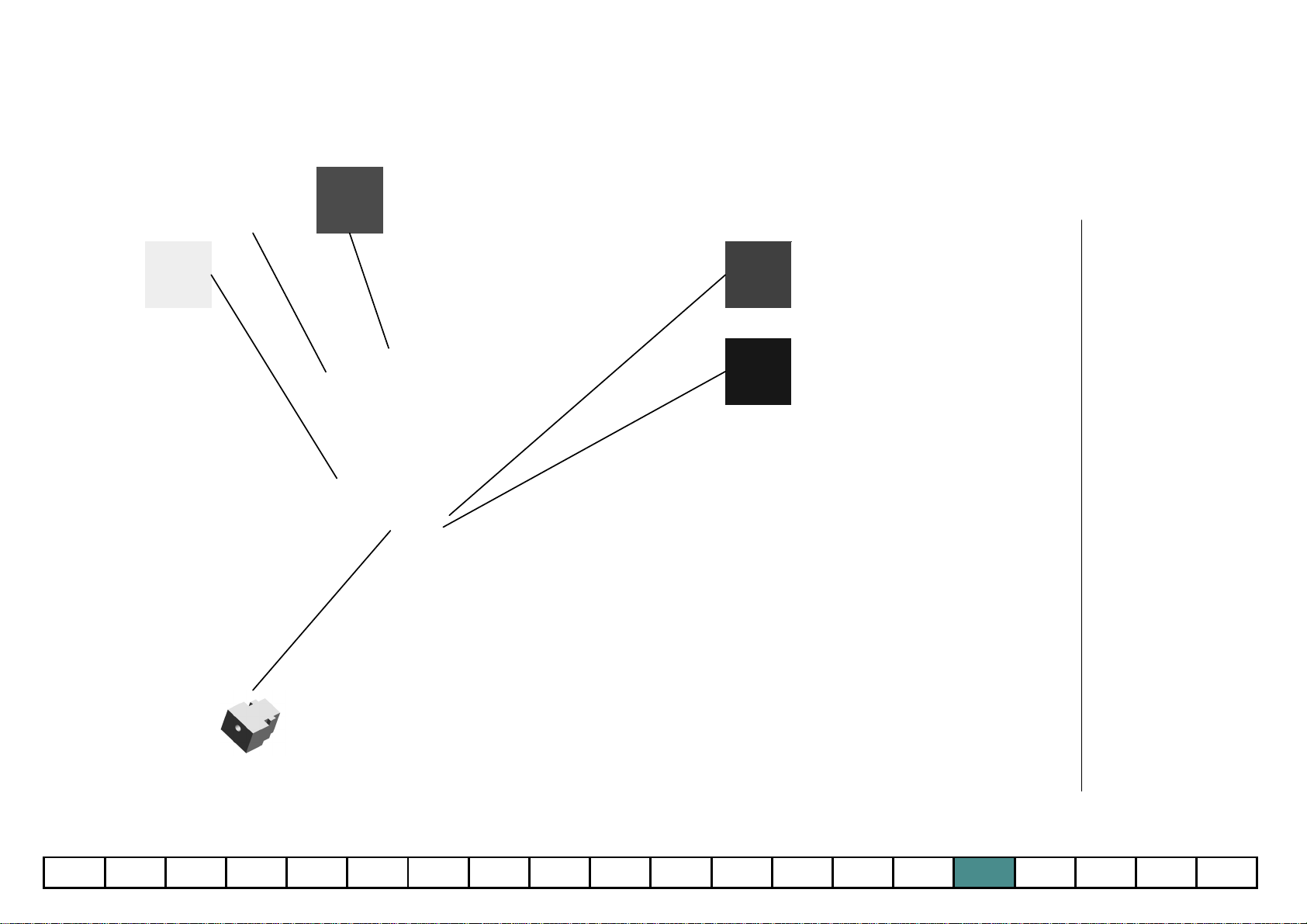

CARRIAGE:NO.1:ASS'Y

59.D0291719 (x2)

SHEET:CARRIAGE: NO.1

18.A1001714

REFLECTOR

58.D0291715

CARRIAGE:NO.1:A SS'Y

86.M0261815 (x2)

CLAMP:MIRROR:N O.1

30.AC030169

MIRROR:NO.1

82.G5702730 (x4)

SLIDER - SCANNE R

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U004_S001

CÓPIA NÃO CONTROLADA

D0891851

LASER OPTICS HOUSING U NIT

U004.Laser Unit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U004

CÓPIA NÃO CONTROLADA

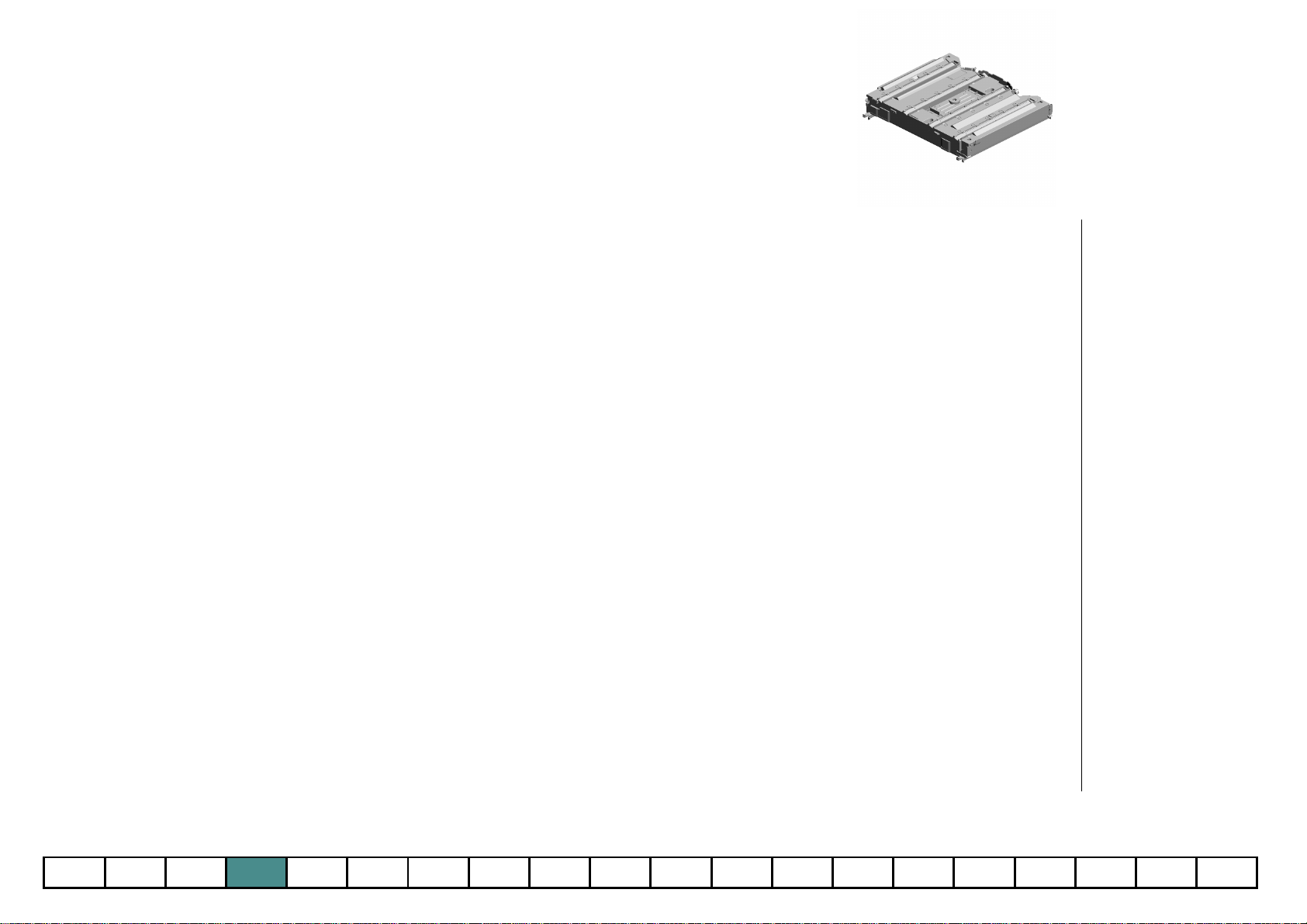

Laser Unit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U004_S001

CÓPIA NÃO CONTROLADA

LASER OPTICS HOUSING UNIT

4.B2231882

COVER - POLYGO N MOTOR

5.B2231903

LOUVER

6.D0891851

LASER OPTICS HO USING UNIT

3.AX060396

DC POLYGON MIR ROR MOTOR:24W

2.08025318 (x8)

BINDING HEAD TA PPING SCREW:ES: 3X10

1.08025317 (x8)

BINDING HEAD TA PPING SCREW:ES: 3X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001

CÓPIA NÃO CONTROLADA

D0892850

PAPER TRAY:NO.1:ASS'Y

U005.Paper Tray(1st)

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001.PAPER TRAY:NO.1:ASS'Y

CÓPIA NÃO CONTROLADA

U005_S001_S001 B2232870

SIDE FENCE - FRONT

U005_S001_S003 D0892940

TRAY BOTTOM PLATE:ASS'Y

U005_S001_S002 B2232880

SIDE FENCE - REAR

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005

CÓPIA NÃO CONTROLADA

Paper Tray(1st)

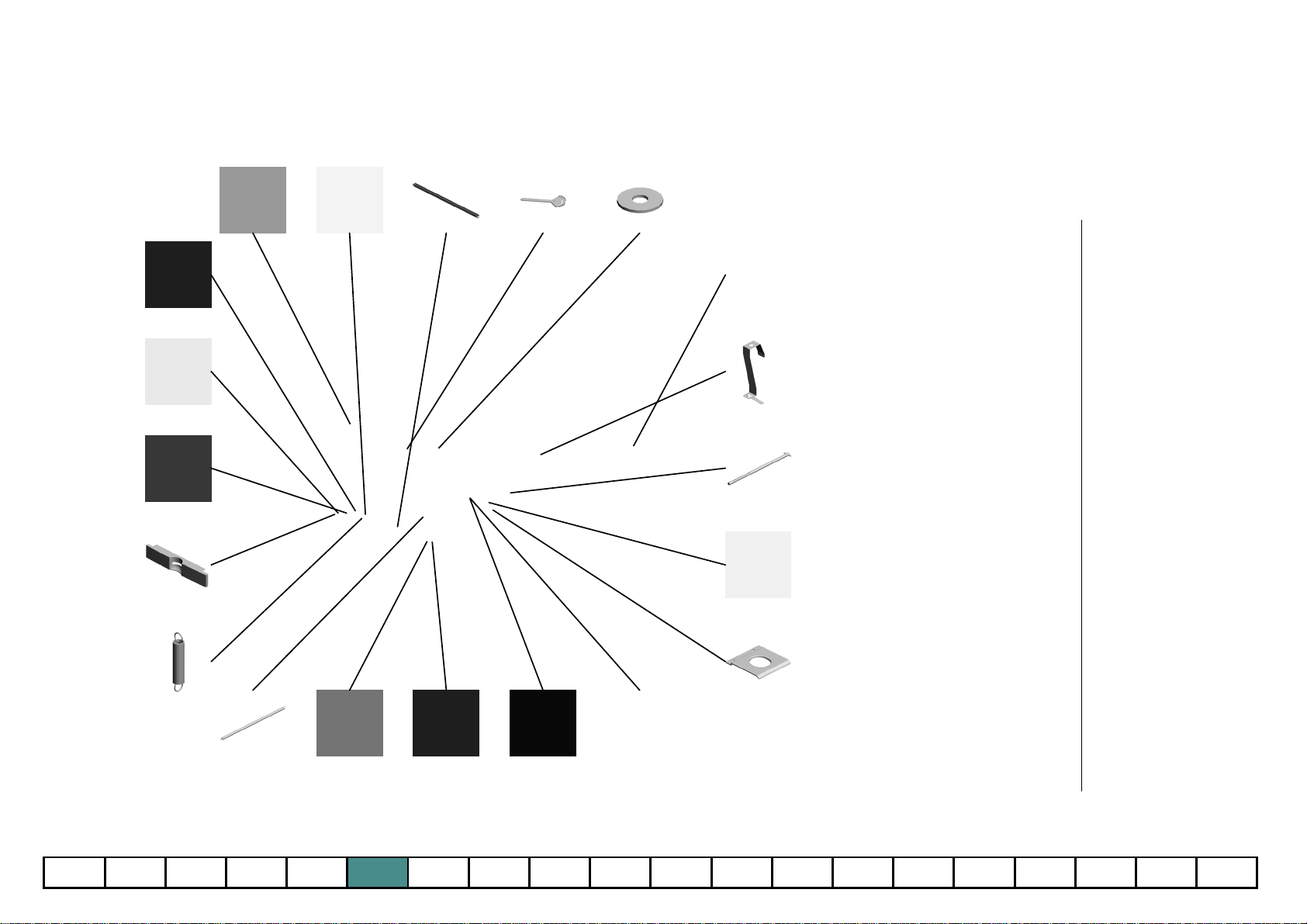

34.B2372521

DECAL - PAPER S ET DIRECTION NO. 1

35.B2382526

DECAL - GRIP

15.B1802782

SEAL:TRAY

11.AA143577

SCREW:TP:M4

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001

CÓPIA NÃO CONTROLADA

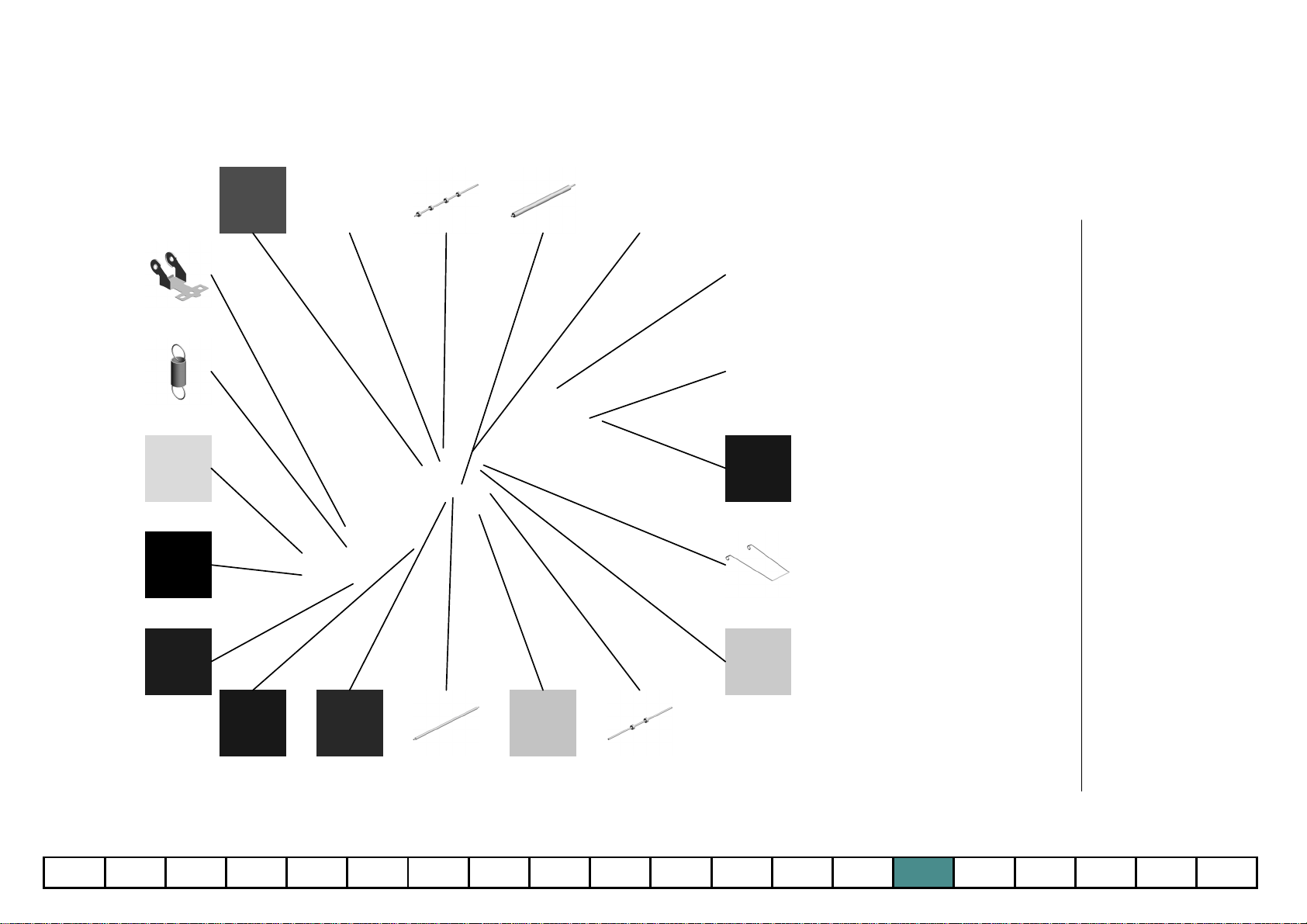

PAPER TRAY:NO.1:ASS'Y

12.AA143843 (x2)

SCREW:DIA6

19.B2232862

LEVER - RELEASE INNER

27.B2232894

SLIDE RAIL STOPP ER - LEFT

26.B2232890

SLIDE RAIL - LEFT

28.B2232912

END FENCE

37.D0892850

PAPER TRAY:NO.1 :ASS'Y

1.04503012N (x2)

TAPPING SCREW: 3X12

17.B2232860

PAPER TRAY GRIP

18.B2232861

GRIP HOLDER

10.AA061014

TENSION SPRING: GRIP

16.B2232857

COVER - PAPER T RAY NO.1

5.A2322987 (x4)

ROLLER - PAPER T RAY

22.B2232869

GROUND PLATE

20.B2232865

RISE NO.1 SHAFT

3.04533008N

BINDING SELF TAP PING SCREW:3X8

29.B2232918

RISE LEVER

9.AA061003

TENSION SPRING: SIDE FENCE:REAR

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

4.07200080E

RETAINING RING M8

21.B2232868

LEVER:RELEASE:P APER TRAY:OUTE R

2.04504008N

TAPPING SCREW M4X8

33.B2232936

GEAR - 16Z

U005_S001

CÓPIA NÃO CONTROLADA

PAPER TRAY:NO.1:ASS'Y

36.D0292863

SHAFT:RELEASE:P APER TRAY

37.D0892850

PAPER TRAY:NO.1 :ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001_S001

CÓPIA NÃO CONTROLADA

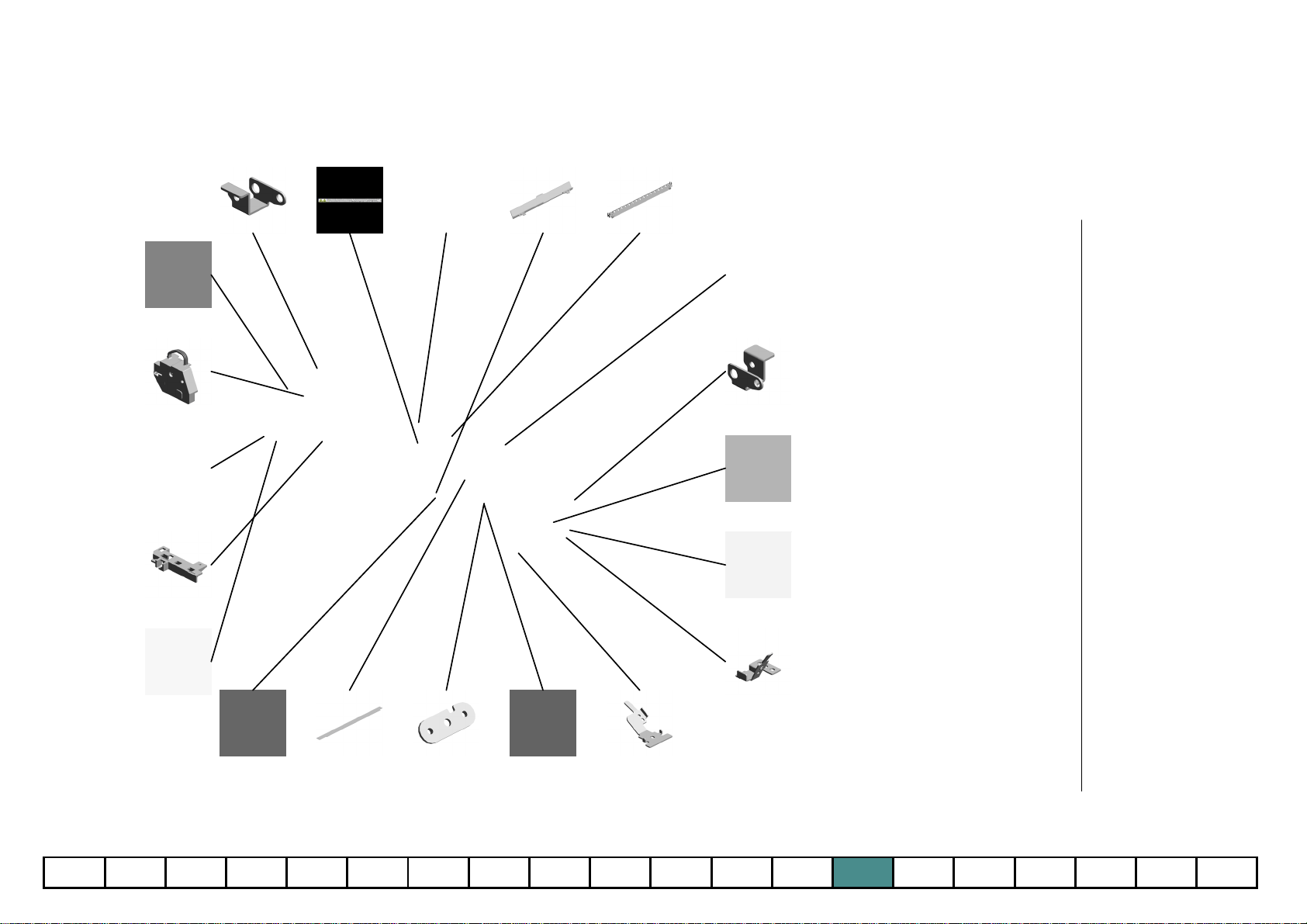

SIDE FENCE - FRONT

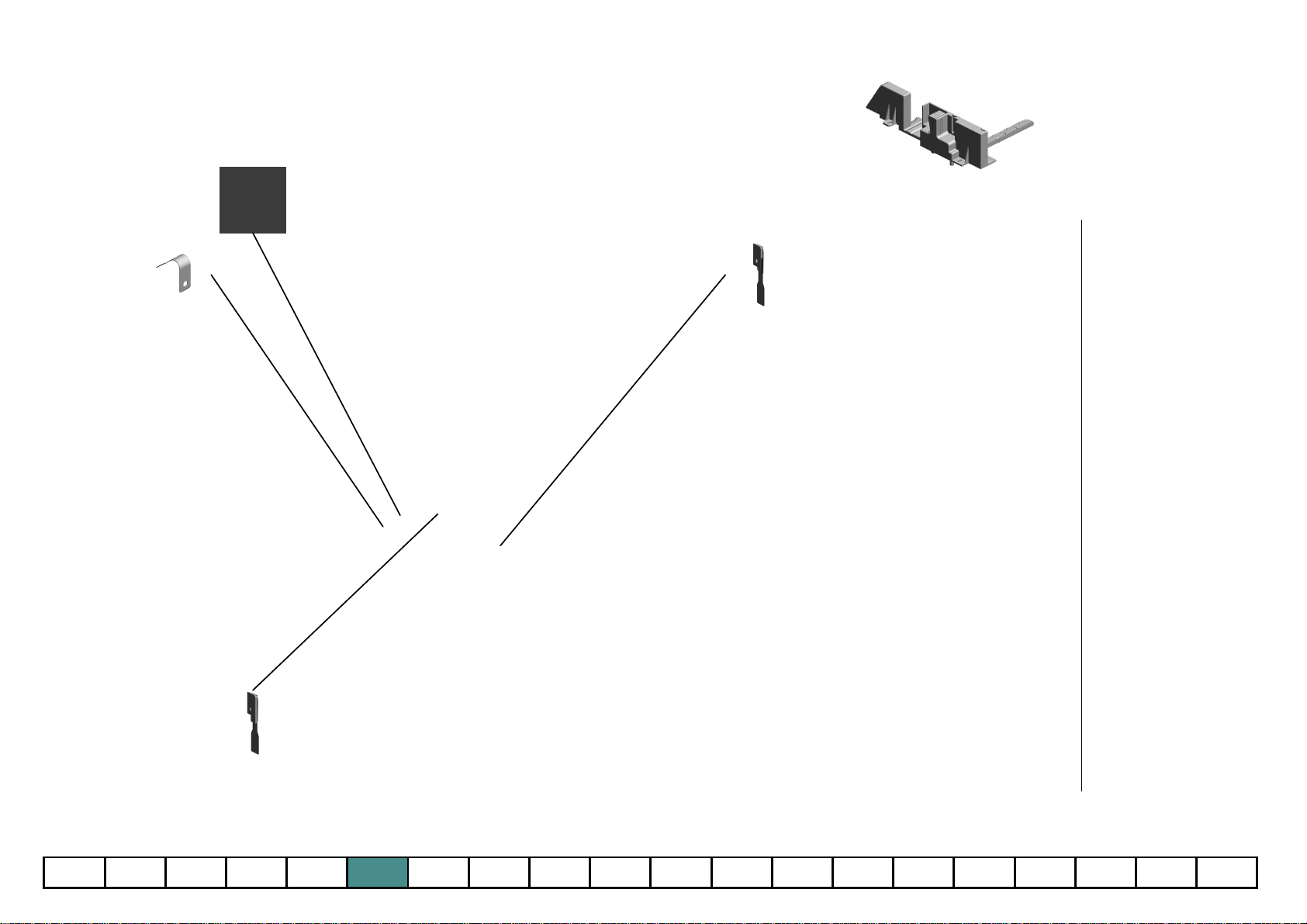

30.B2232923

STOPPER LEVER FRONT

23.B2232870

SIDE FENCE - FRO NT

14.B0042923

SPRING PLATE - R ELEASE LEVER

32.B2232935

PLATE - SIDE FEN CE RIGHT

31.B2232934

PLATE - SIDE FEN CE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001_S002

CÓPIA NÃO CONTROLADA

SIDE FENCE - REAR

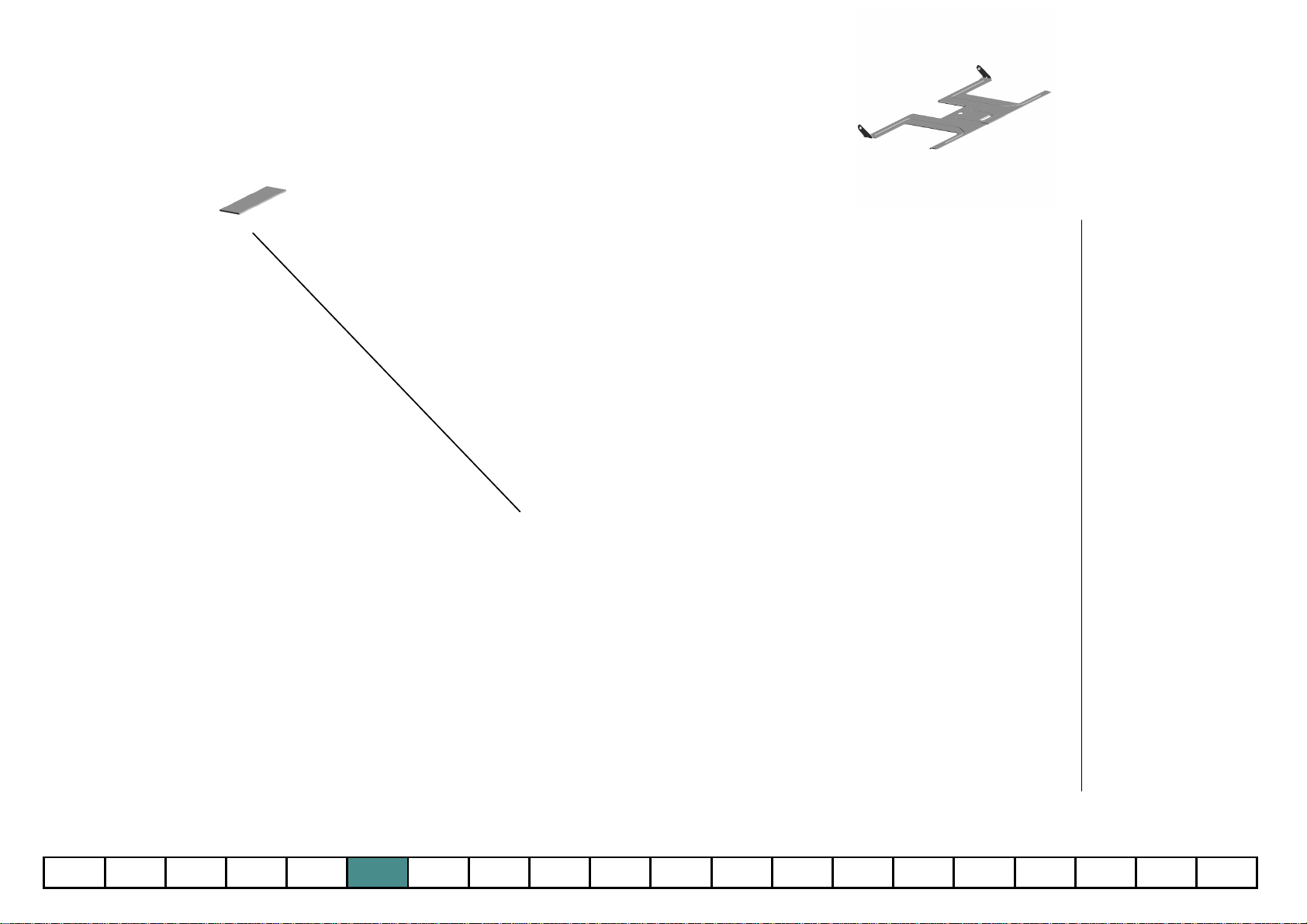

6.A2672857

SPRING PLATE - SI DE FENCE

8.A2672860

REAR LEVER STO PPER

25.B2232880

SIDE FENCE - REA R

7.A2672859

SIDE FENCE STOP PER

24.B2232873

DECAL - SIDE FEN CE REAR

32.B2232935

PLATE - SIDE FEN CE RIGHT

31.B2232934

PLATE - SIDE FEN CE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U005_S001_S003

CÓPIA NÃO CONTROLADA

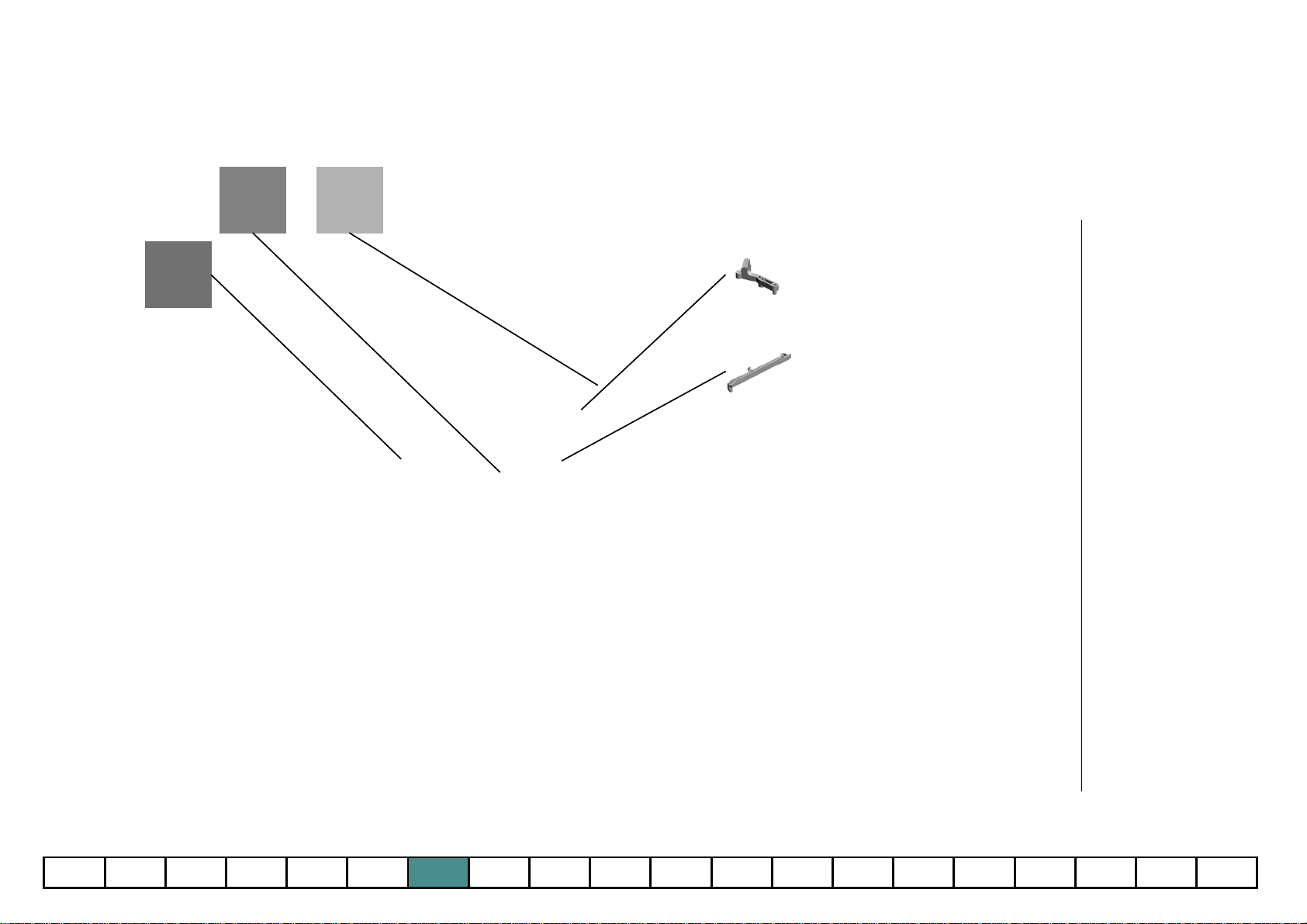

TRAY BOTTOM PLATE:ASS'Y

13.AF033010

PAD

38.D0892940

TRAY BOTTOM PL ATE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006_S001

CÓPIA NÃO CONTROLADA

D0892900

PAPER TRAY:NO.2:ASS'Y

U006.Paper Tray(2nd)

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006_S001.PAPER TRAY:NO.2:ASS'Y

CÓPIA NÃO CONTROLADA

U006_S001_S001 B2232920

FRONT SIDE FENCE

U006_S001_S002 B2232930

REAR SIDE FENCE

U006_S001_S003 D0892940

TRAY BOTTOM PLATE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006

CÓPIA NÃO CONTROLADA

Paper Tray(2nd)

33.B2382523

DECAL - PAPER S ET DIRECTION NO. 2

34.B2382527

DECAL - GRIP

13.B1802782

SEAL:TRAY

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006_S001

CÓPIA NÃO CONTROLADA

PAPER TRAY:NO.2:ASS'Y

22.B2232912

END FENCE

16.B2232862

LEVER - RELEASE INNER

35.D0292863

SHAFT:RELEASE:P APER TRAY

20.B2232910

LINK - PAPER SIZE SENSOR

21.B2232911

SPACER

36.D0892900

PAPER TRAY:NO.2 :ASS'Y

1.04503012N (x2)

TAPPING SCREW: 3X12

14.B2232860

PAPER TRAY GRIP

15.B2232861

GRIP HOLDER

32.B2232946

COVER - PAPER T RAY NO.2

10.AA061014

TENSION SPRING: GRIP

5.A2322987 (x4)

ROLLER - PAPER T RAY

24.B2232919

GROUND PLATE PAPER TRAY NO.2

17.B2232865

RISE NO.1 SHAFT

3.04533008N

BINDING SELF TAP PING SCREW:3X8

23.B2232918

RISE LEVER

9.AA061003

TENSION SPRING: SIDE FENCE:REAR

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

4.07200080E

RETAINING RING M8

18.B2232868

LEVER:RELEASE:P APER TRAY:OUTE R

2.04504008N (x2)

TAPPING SCREW M4X8

31.B2232936

GEAR - 16Z

U006_S001_S001

CÓPIA NÃO CONTROLADA

FRONT SIDE FENCE

26.B2232923

STOPPER LEVER FRONT

25.B2232920

FRONT SIDE FENC E

12.B0042923

SPRING PLATE - R ELEASE LEVER

30.B2232935

PLATE - SIDE FEN CE RIGHT

29.B2232934

PLATE - SIDE FEN CE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006_S001_S002

CÓPIA NÃO CONTROLADA

REAR SIDE FENCE

7.A2672859

SIDE FENCE STOP PER

6.A2672857

SPRING PLATE - SI DE FENCE

8.A2672860

REAR LEVER STO PPER

27.B2232930

REAR SIDE FENCE

28.B2232932

SIDE FENCE:REAR :UNIVERSAL:NO.2

19.B2232873

DECAL - SIDE FEN CE REAR

30.B2232935

PLATE - SIDE FEN CE RIGHT

29.B2232934

PLATE - SIDE FEN CE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U006_S001_S003

CÓPIA NÃO CONTROLADA

TRAY BOTTOM PLATE:ASS'Y

11.AF033010

PAD

37.D0892940

TRAY BOTTOM PL ATE:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U007_S001

CÓPIA NÃO CONTROLADA

D0892750

PAPER FEED UNIT

U007.Paper Feed

U007_S002 D0892750

PAPER FEED UNIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U007

CÓPIA NÃO CONTROLADA

Paper Feed

3.04543008Q (x4)

TAPPING SCREW: 3X8

39.D0092836

GUIDE PLATE

37.B2232848 (x2)

COVER:HARNESS

36.B2232846

BRACKET:COVER: HARNESS

40.D0092841

GUIDE PLATE - NO .2

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U007_S001

CÓPIA NÃO CONTROLADA

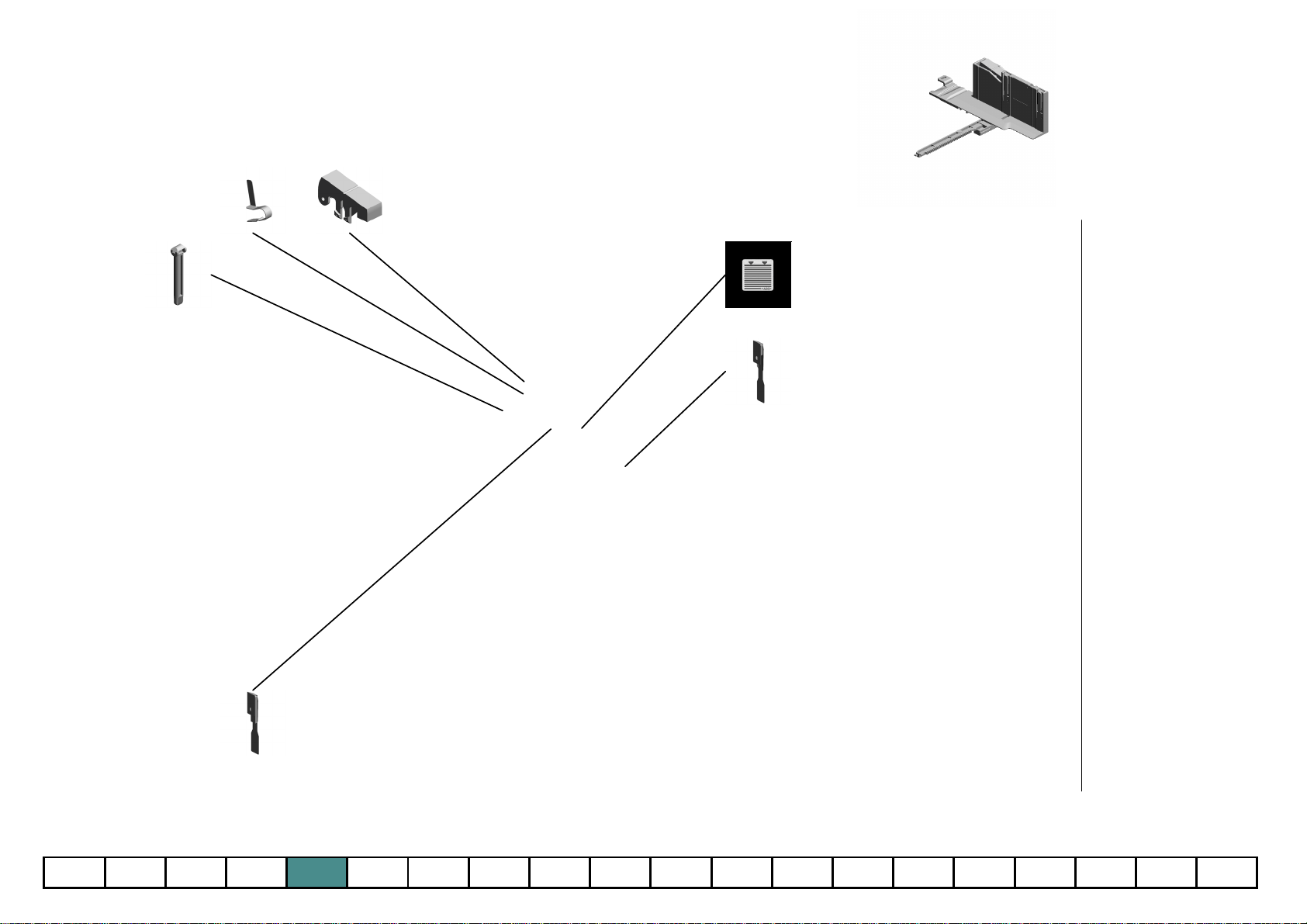

PAPER FEED UNIT

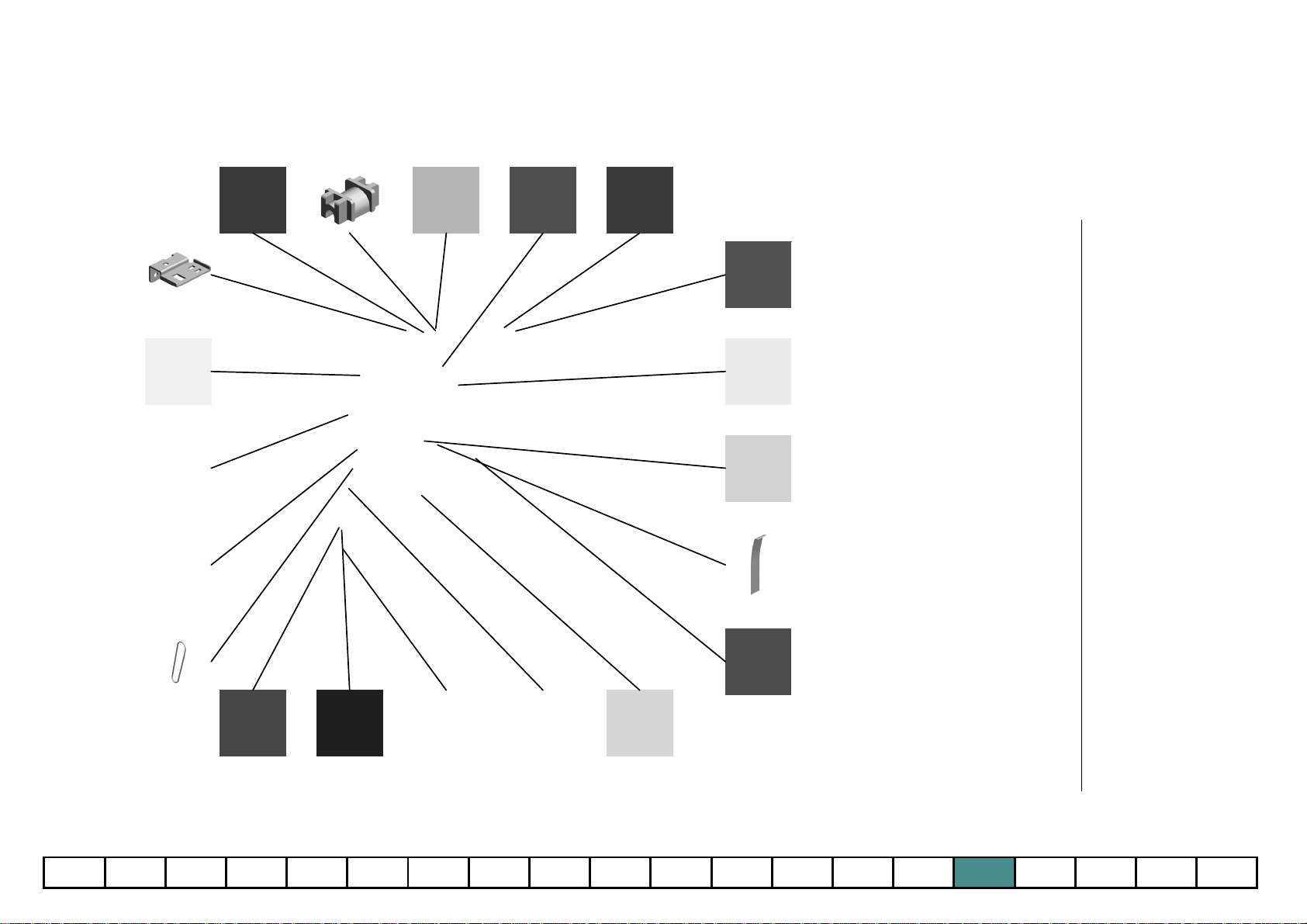

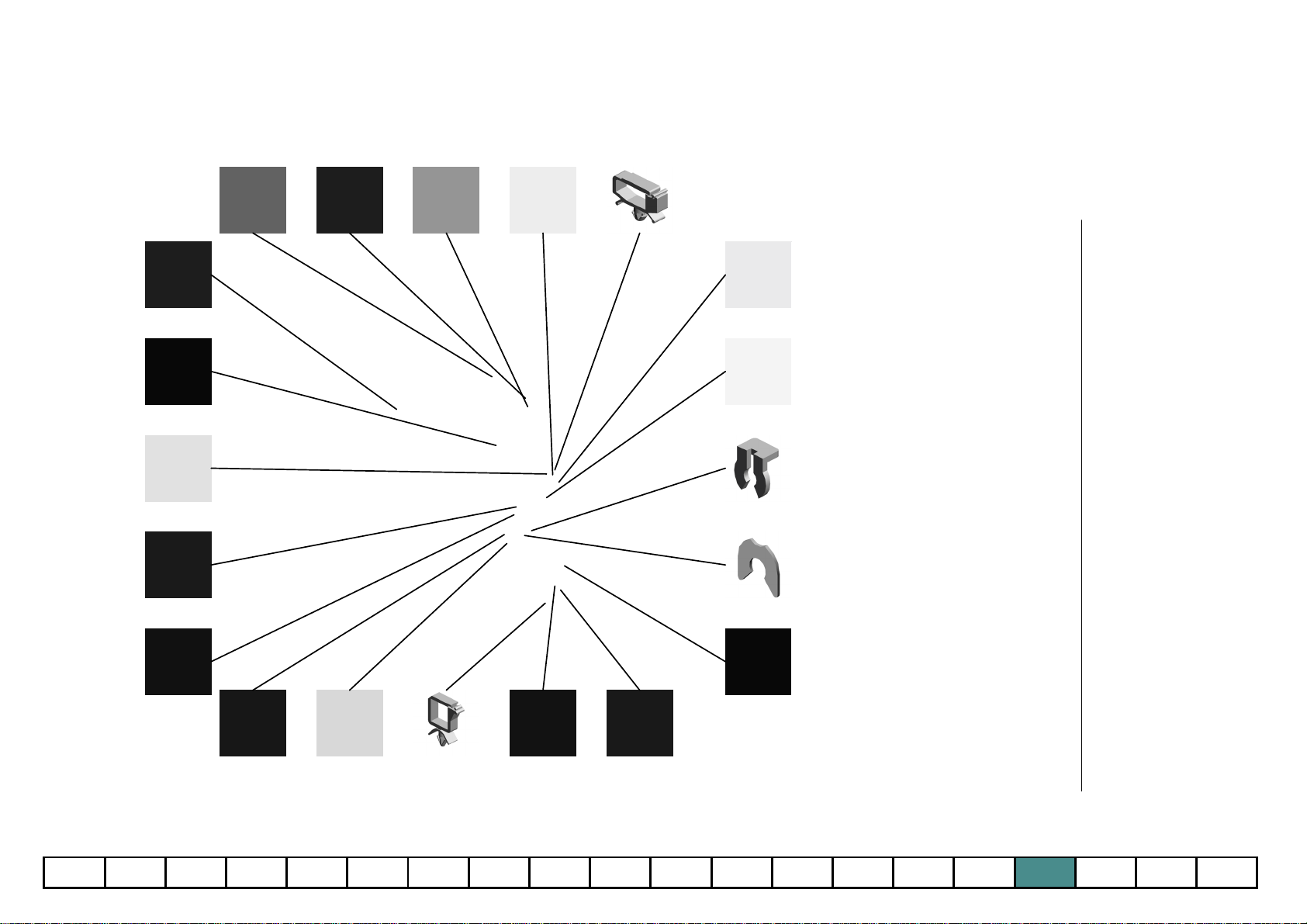

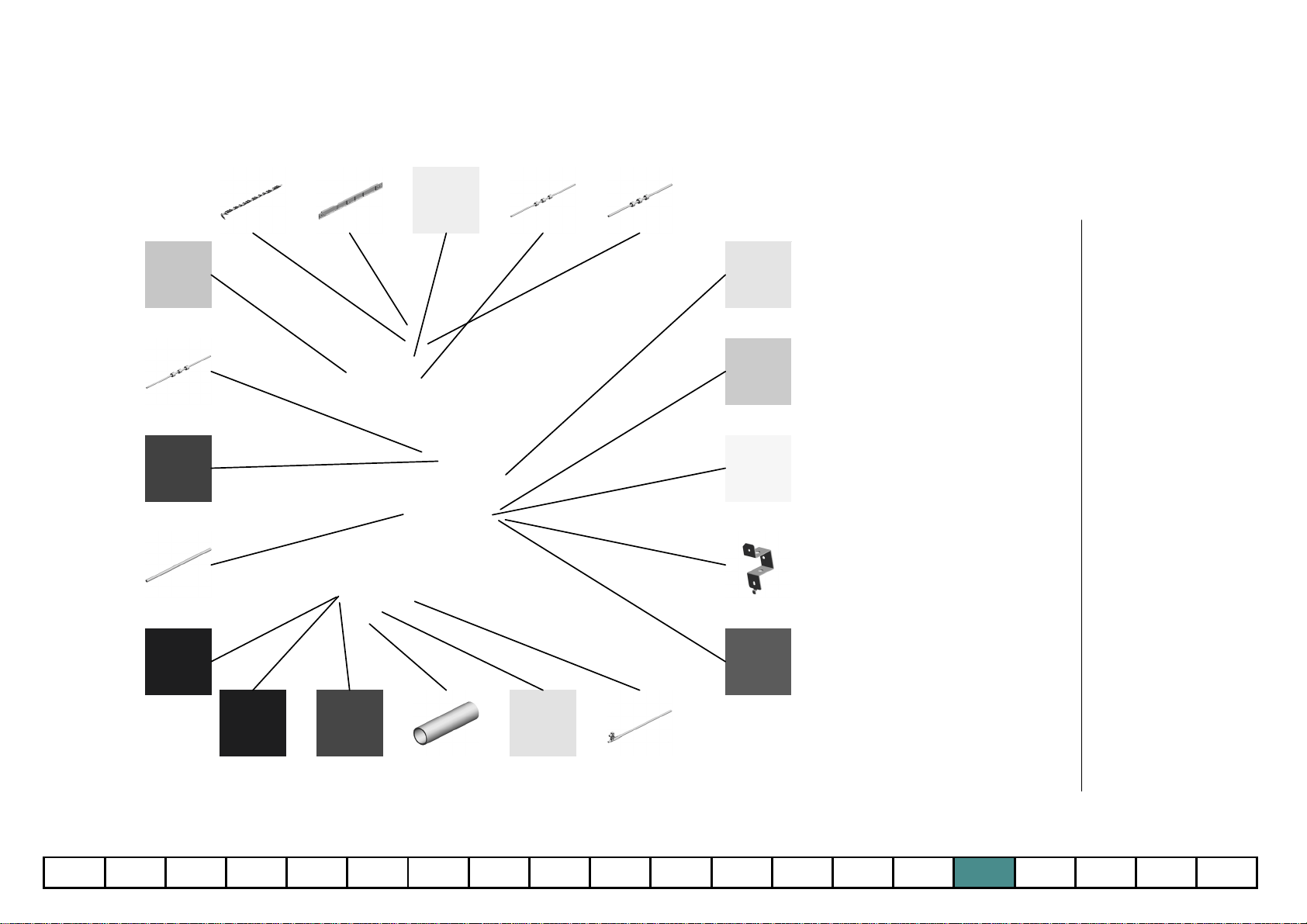

18.AB011218

GEAR - ROLLER C LUTCH

6.08050089 (x4)

RETAINING RING M4

14.AA082150

PLAIN SHAFT BEA RING:M6

4.04563008N

TAPPING SCREW M3X8

7.11050511 (x2)

HARNESS CLAMP LWS-0306ZC

41.D0892750

PAPER FEED UNIT

19.AB011252

GEAR - 20Z

20.AF031085

PAPER FEED ROL LER - FEED

15.AA100014 (x2)

RETAINING RING C - SEPARATE

5.07200040E

RETAINING RING M4

13.AA082143

BUSHING - 6X10X6

1.04513006N (x7)

TAPPING SCREW 3X6

12.AA082102 (x3)

BUSHING - 6X10X6

10.AA061061

SPRING:PRESSUR E:PICKUP

2.04543006Q (x4)

TAPPING SCREW M3X6

11.AA062259

SPRING - RELEAS E

21.AF032085

PAPER FEED ROL LER - SEPARATE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

9.AA060693

TENSION SPRING

17.AB010157

GEAR:SEPARATE: DRIVEN

16.AB010156

GEAR:SEPARATE: DRIVE

8.52062686 (x2)

SNAP RING

U007_S001

CÓPIA NÃO CONTROLADA

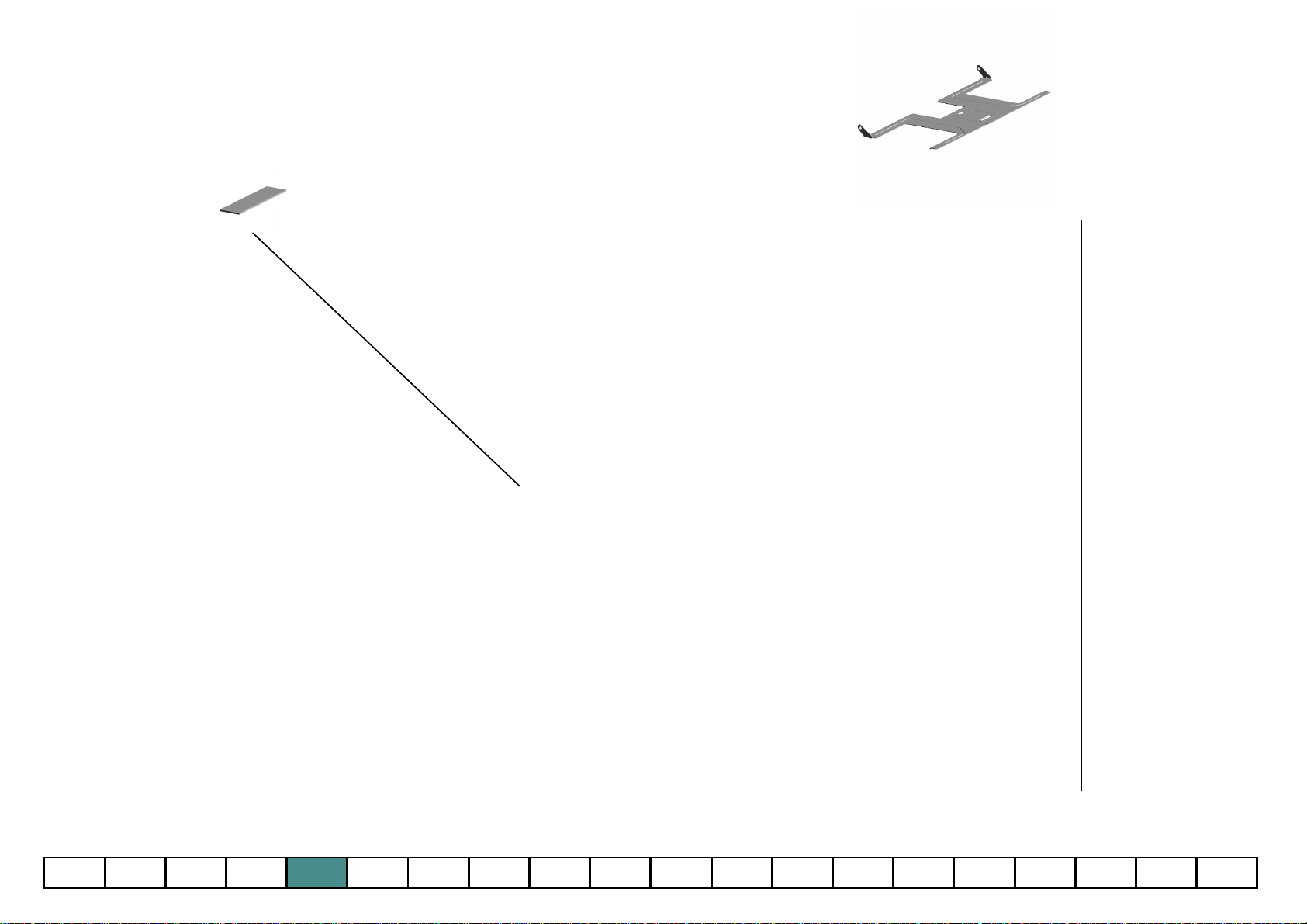

PAPER FEED UNIT

44.D0892767

FEELER:PAPER E ND

26.B0822781

BRACKET:SENSO R

30.B2232776

STAY

28.B2232765

GROUND PLATE FEED

22.AW010122

PAPER FEED SEN SOR

41.D0892750

PAPER FEED UNIT

29.B2232772

HARNESS SHEET

46.D0892829

GUIDE:FEED

31.B2232778

SENSOR BRACKE T

23.AW010128

PAPER FEED SEN SOR

33.B2232786

GROUND PLATE FRONT

43.D0892764

GEAR:FEED

32.B2232780

DC SOLENOID 24V

24.AW020145 (x2)

PHOTOINTERRUP TOR:FLAT

45.D0892819

GEAR:SEPARATO R:INPUT

35.B2232815

SEPARATE DRIVE SHAFT

25.B0042783

TORQUE LIMITER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

38.D0092757

TRANSPORT ROLL ER:DRIVE:ASS'Y

42.D0892761

ARM:PICKUP

34.B2232810

SEPARATE DRIVE N SHAFT

27.B2232762

FEED SHAFT

U007_S001

CÓPIA NÃO CONTROLADA

PAPER FEED UNIT

49.G0652774

PRESSURE LEVER

48.G0652767

LEVER - FEED

41.D0892750

PAPER FEED UNIT

47.D0892830

PAPER FEED BELT :PICKUP:ASS'Y

51.G0652776

RELEASE LEVER

50.G0652775

LINK LEVER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U007_S002

CÓPIA NÃO CONTROLADA

PAPER FEED UNIT

18.AB011218

GEAR - ROLLER C LUTCH

6.08050089 (x4)

RETAINING RING M4

14.AA082150

PLAIN SHAFT BEA RING:M6

4.04563008N

TAPPING SCREW M3X8

7.11050511 (x2)

HARNESS CLAMP LWS-0306ZC

41.D0892750

PAPER FEED UNIT

19.AB011252

GEAR - 20Z

20.AF031085

PAPER FEED ROL LER - FEED

15.AA100014 (x2)

RETAINING RING C - SEPARATE

5.07200040E

RETAINING RING M4

13.AA082143

BUSHING - 6X10X6

1.04513006N (x7)

TAPPING SCREW 3X6

12.AA082102 (x3)

BUSHING - 6X10X6

10.AA061061

SPRING:PRESSUR E:PICKUP

2.04543006Q (x4)

TAPPING SCREW M3X6

11.AA062259

SPRING - RELEAS E

21.AF032085

PAPER FEED ROL LER - SEPARATE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

9.AA060693

TENSION SPRING

17.AB010157

GEAR:SEPARATE: DRIVEN

16.AB010156

GEAR:SEPARATE: DRIVE

8.52062686 (x2)

SNAP RING

U007_S002

CÓPIA NÃO CONTROLADA

PAPER FEED UNIT

44.D0892767

FEELER:PAPER E ND

26.B0822781

BRACKET:SENSO R

30.B2232776

STAY

28.B2232765

GROUND PLATE FEED

22.AW010122

PAPER FEED SEN SOR

41.D0892750

PAPER FEED UNIT

29.B2232772

HARNESS SHEET

46.D0892829

GUIDE:FEED

31.B2232778

SENSOR BRACKE T

23.AW010128

PAPER FEED SEN SOR

33.B2232786

GROUND PLATE FRONT

43.D0892764

GEAR:FEED

32.B2232780

DC SOLENOID 24V

24.AW020145 (x2)

PHOTOINTERRUP TOR:FLAT

45.D0892819

GEAR:SEPARATO R:INPUT

35.B2232815

SEPARATE DRIVE SHAFT

25.B0042783

TORQUE LIMITER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

38.D0092757

TRANSPORT ROLL ER:DRIVE:ASS'Y

42.D0892761

ARM:PICKUP

34.B2232810

SEPARATE DRIVE N SHAFT

27.B2232762

FEED SHAFT

U007_S002

CÓPIA NÃO CONTROLADA

PAPER FEED UNIT

49.G0652774

PRESSURE LEVER

48.G0652767

LEVER - FEED

41.D0892750

PAPER FEED UNIT

47.D0892830

PAPER FEED BELT :PICKUP:ASS'Y

51.G0652776

RELEASE LEVER

50.G0652775

LINK LEVER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U008

CÓPIA NÃO CONTROLADA

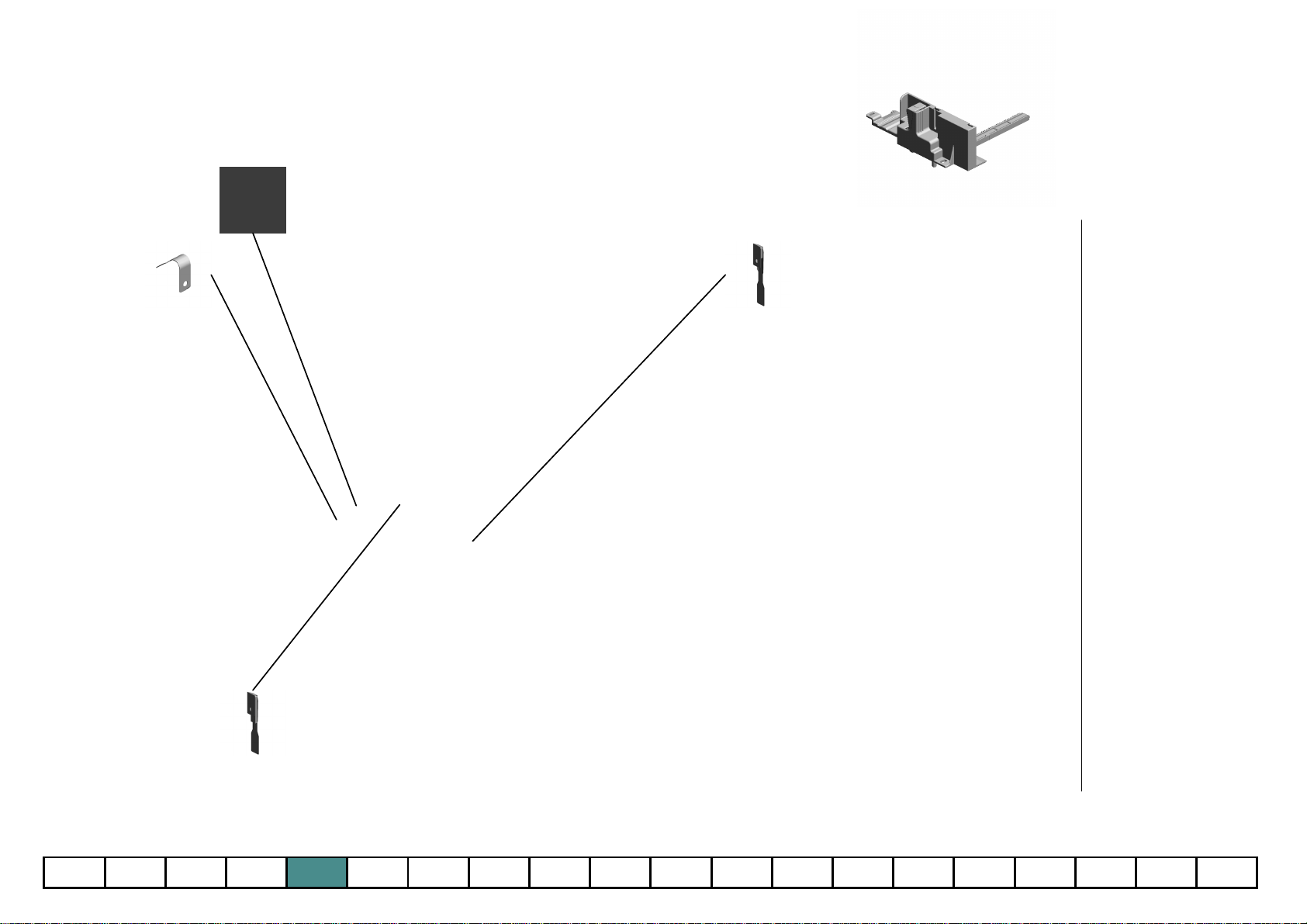

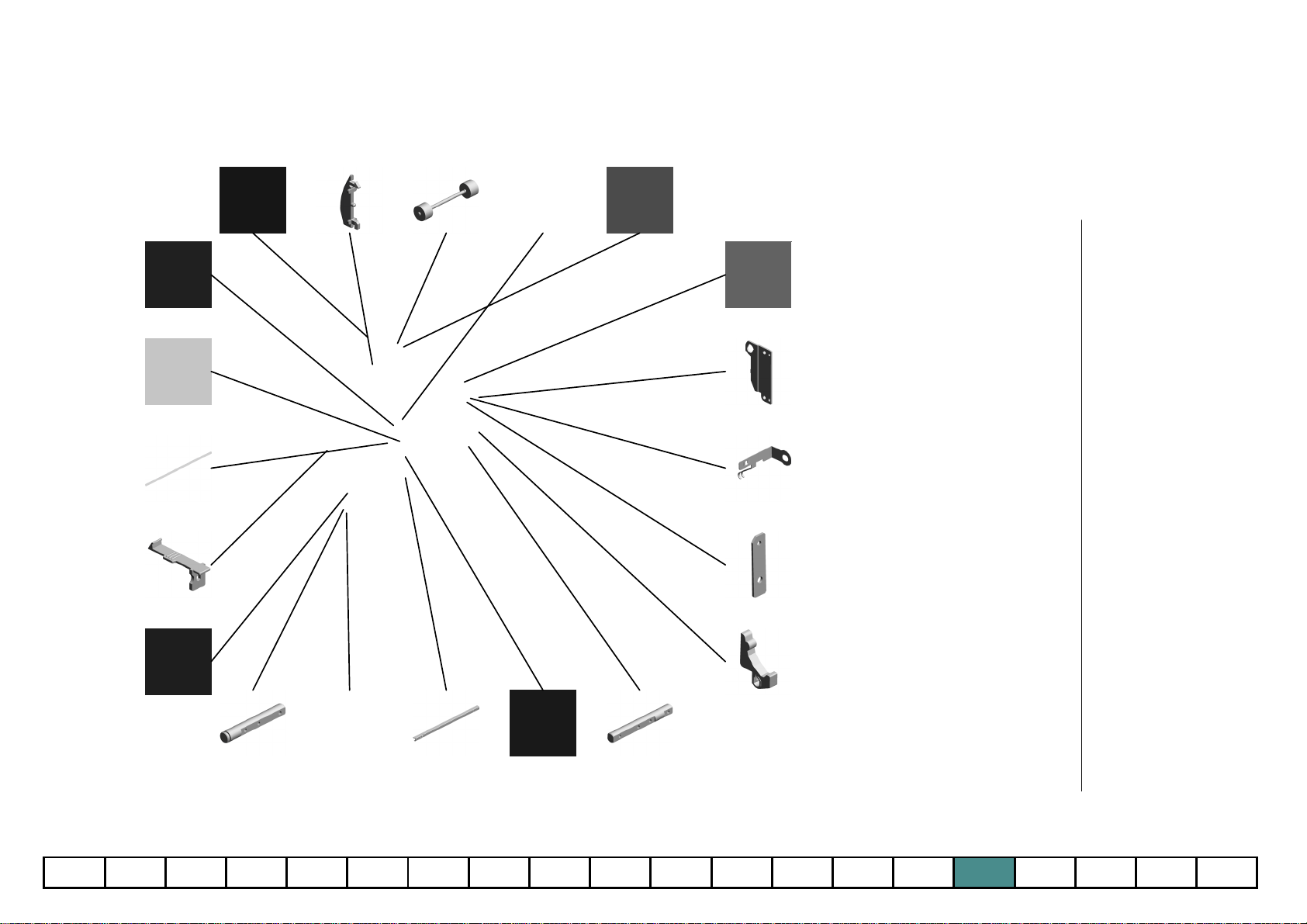

Paper Registration

8.B2382615

CASE - REMOVE P APER DUST

7.B2232558

REGISTRATION R OLLER KNOB

16.B2382676 (x2)

TENSION SPRING

14.B2382661

REGISTRATION R OLLER - DRIVEN

20.D0892560

BRACKET:CLEANE R

19.D0292570

GUIDE PLATE:REG ISTRATION:RIGHT: ADHESION

18.D0292556

STAY:REGISTRATI ON

10.B2382652

REGISTRATION R OLLER - DRIVE

3.08050089 (x3)

RETAINING RING M4

12.B2382656

GEAR - 30Z

5.AA082101 (x2)

BUSHING - 6X10X6

15.B2382675 (x2)

REGISTRATION R OLLER BUSHING

2.04543006Q (x4)

TAPPING SCREW M3X6

9.B2382622

COVER - REMOVE PAPER DUST

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

17.D0292555

GUIDE PLATE:REG ISTRATION:LEFT

6.AW010107

PAPER FEED SEN SOR

13.B2382657

GEAR - 18Z

11.B2382655

GEAR - 16Z

4.11050511

HARNESS CLAMP LWS-0306ZC

1.04513006N (x4)

TAPPING SCREW 3X6

U009_S001

CÓPIA NÃO CONTROLADA

D0893205

NOZZLE:COLOR:ASS'Y

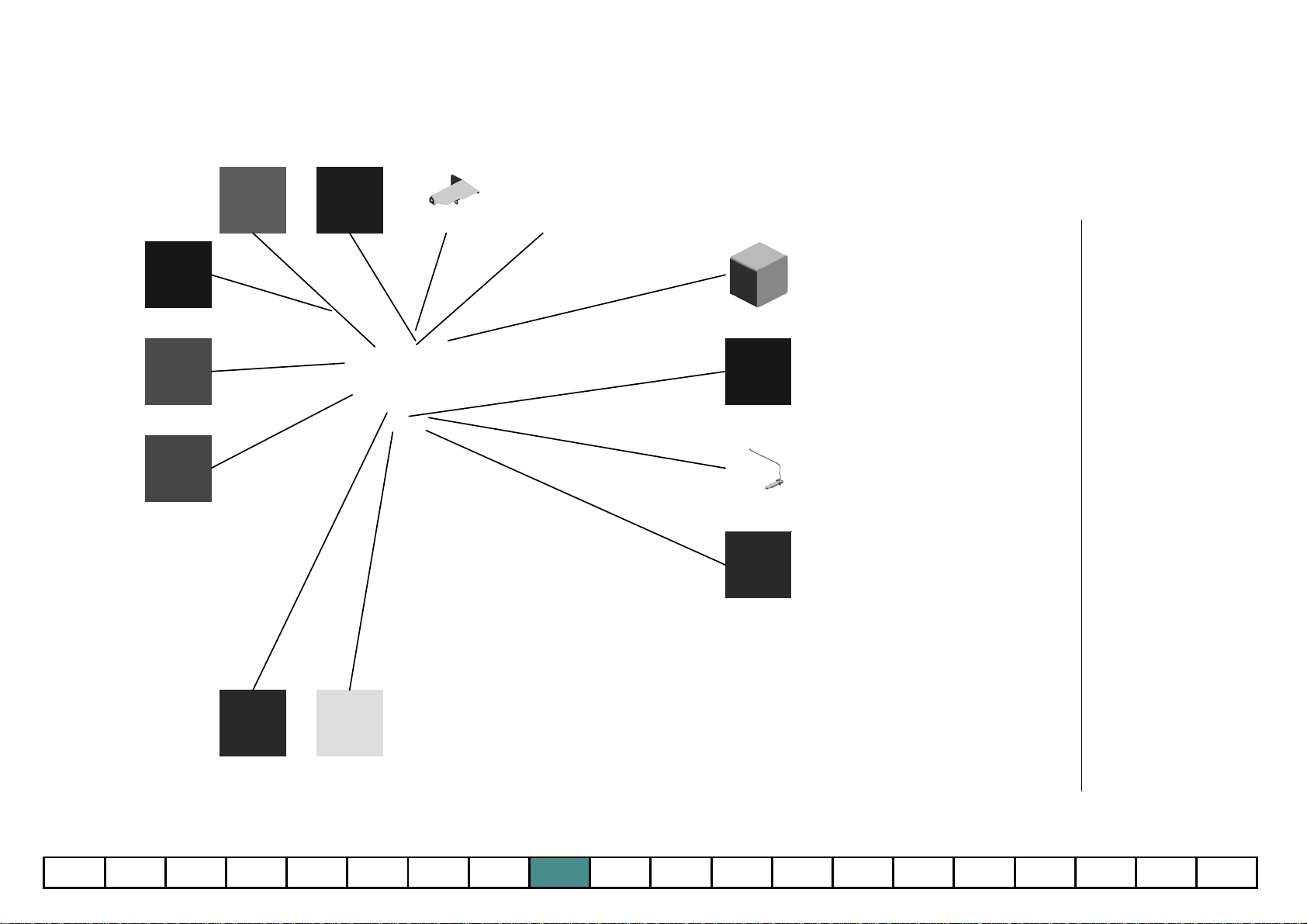

U009.Tonner Suppry

U009_S005 D0893495

DRIVE UNIT:TONER SUPPLY

U009_S004 D0893286

NOZZLE:BK:ASS'Y

U009_S002 D0893205

NOZZLE:COLOR:ASS'Y

U009_S003 D0893205

NOZZLE:COLOR:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U009

CÓPIA NÃO CONTROLADA

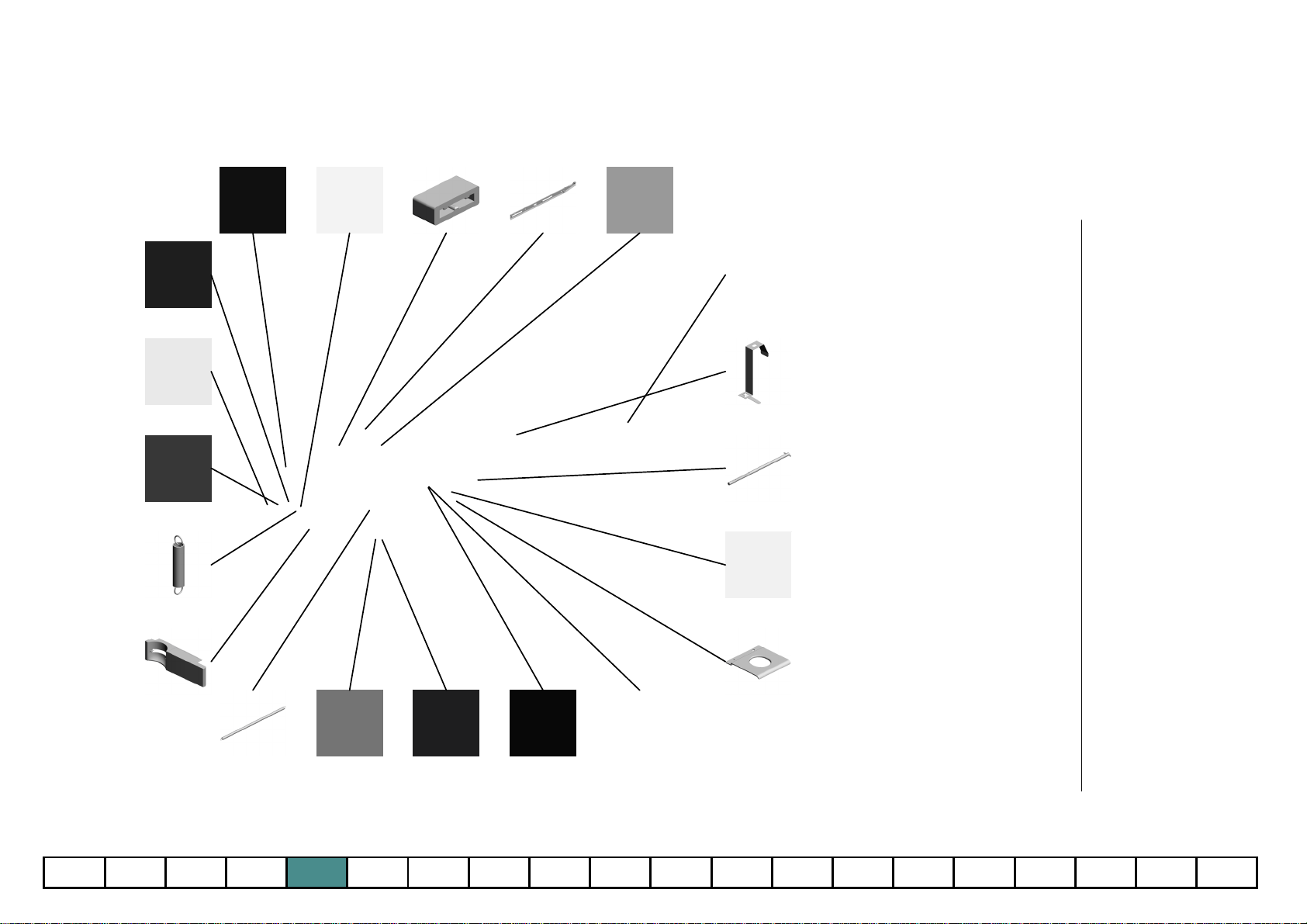

Tonner Suppry

2.04513006N (x5)

TAPPING SCREW 3X6

7.11050511 (x4)

HARNESS CLAMP LWS-0306ZC

23.D0293222

PUMP UNIT:Y:C2:A SS'Y

14.B2233209 (x4)

TUBE CLIP

1.04503012N (x12)

TAPPING SCREW: 3X12

33.D0893470

GROUND PLATE:R FID

35.D0895177

PCB:RFID

26.D0293471

GASKET:RFID

11.B2233206 (x4)

TUBE CLAMP

22.D0293221

PUMP UNIT:BK:C2: ASS'Y

24.D0293223

PUMP UNIT:C:C2:A SS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

3.04513008N (x8)

TAPPING SCREW M3X8

25.D0293224

PUMP UNIT:M:C2:A SS'Y

U009_S001

CÓPIA NÃO CONTROLADA

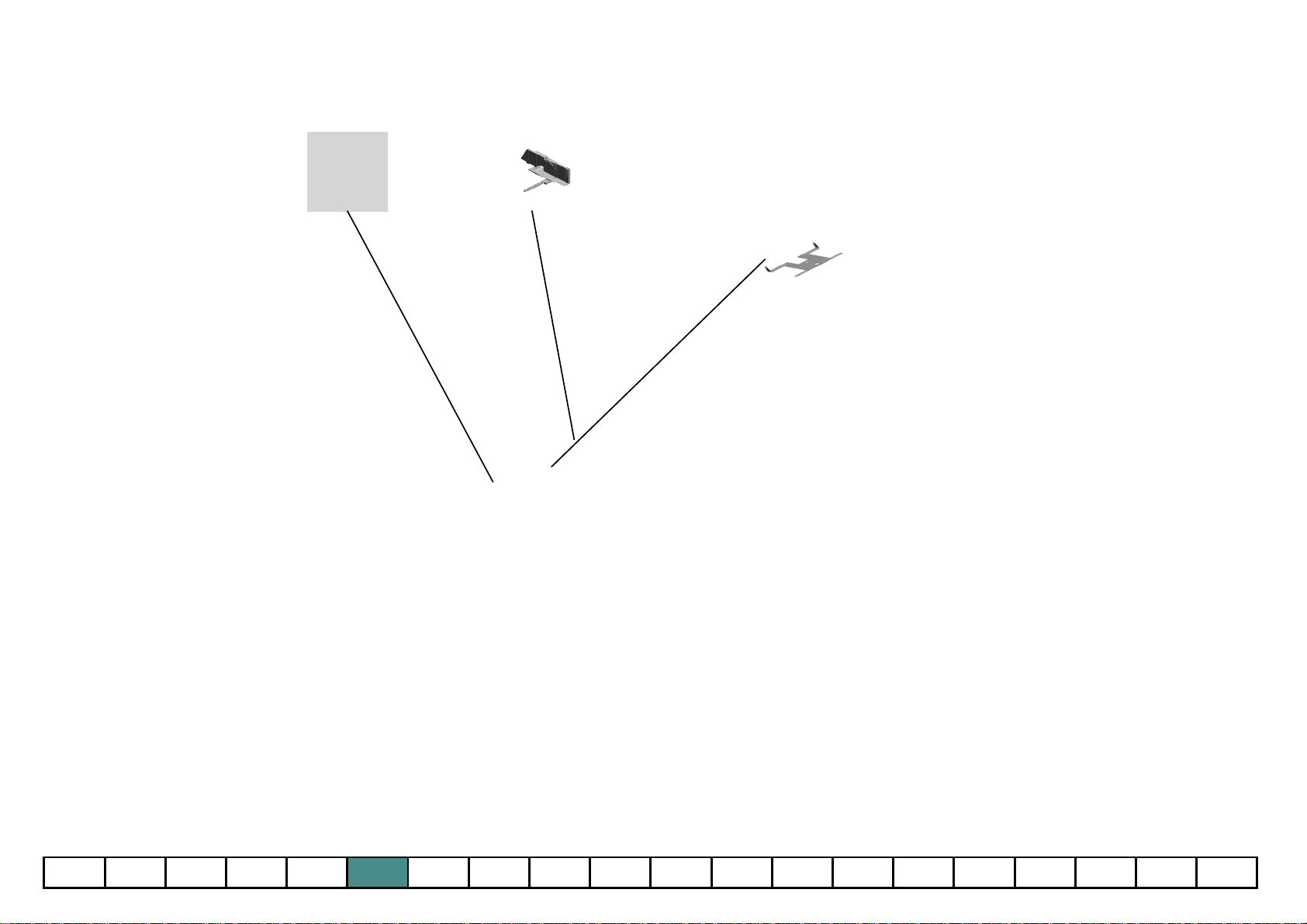

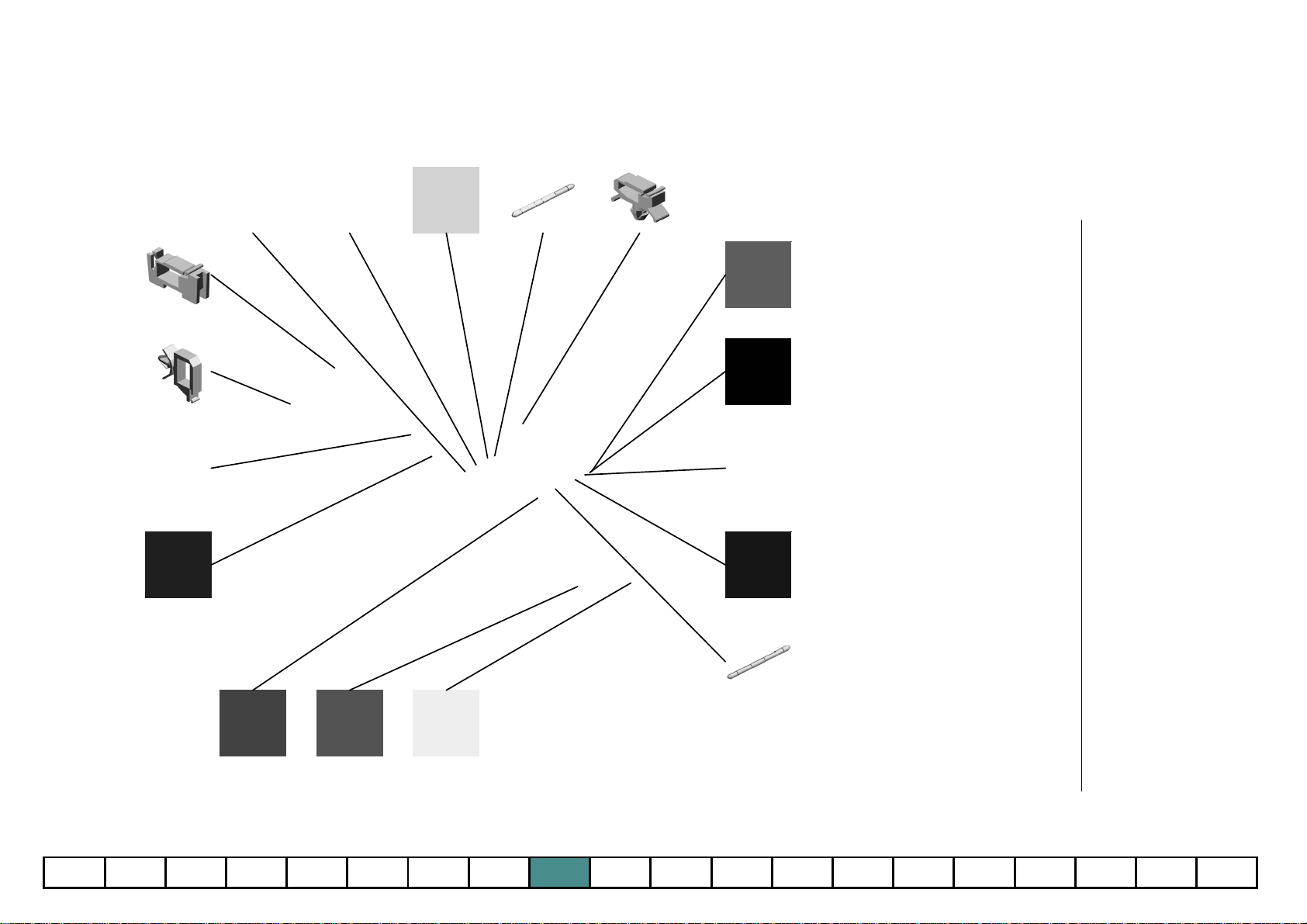

NOZZLE:COLOR:ASS'Y

13.B2233208

SPRING:SHUTTER: NOZZLE

10.AW020185

TONER END SENS OR

12.B2233207

SHUTTER:NOZZLE

27.D0893205

NOZZLE:COLOR:A SS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U009_S002

CÓPIA NÃO CONTROLADA

NOZZLE:COLOR:ASS'Y

13.B2233208

SPRING:SHUTTER: NOZZLE

10.AW020185

TONER END SENS OR

12.B2233207

SHUTTER:NOZZLE

27.D0893205

NOZZLE:COLOR:A SS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U009_S003

CÓPIA NÃO CONTROLADA

NOZZLE:COLOR:ASS'Y

13.B2233208

SPRING:SHUTTER: NOZZLE

10.AW020185

TONER END SENS OR

12.B2233207

SHUTTER:NOZZLE

27.D0893205

NOZZLE:COLOR:A SS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U009_S004

CÓPIA NÃO CONTROLADA

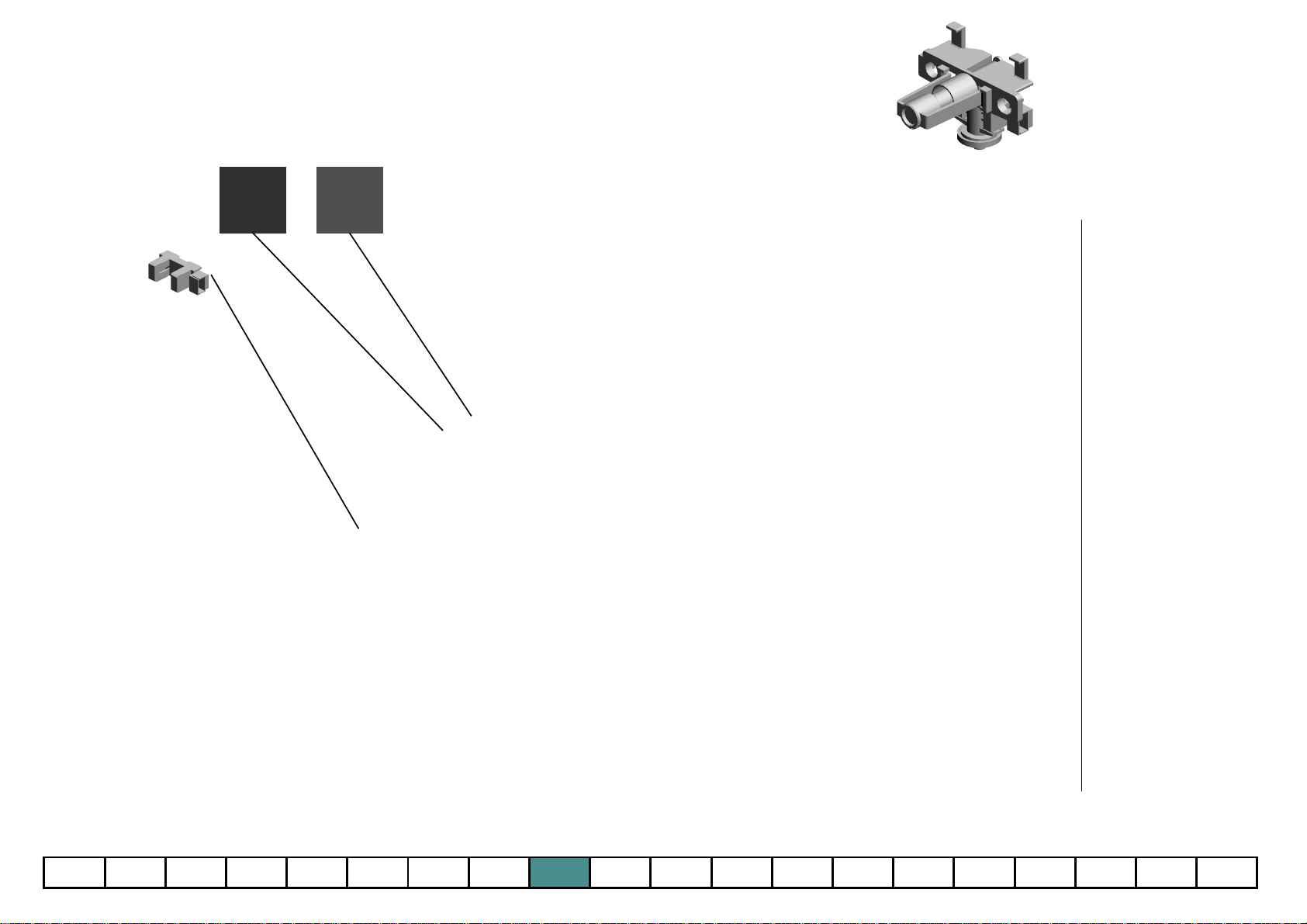

NOZZLE:BK:ASS'Y

13.B2233208

SPRING:SHUTTER: NOZZLE

12.B2233207

SHUTTER:NOZZLE

28.D0893286

NOZZLE:BK:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U009_S005

CÓPIA NÃO CONTROLADA

DRIVE UNIT:TONER SUPPLY

18.B2233461 (x3)

PULLEY:TONER B OTTLE:YC

21.B2233464

GEAR:MAGNETIC CLUTCH:Y

30.D0893408 (x3)

MAGNETIC CLUTC H:TONER BOTTLE: YCM:ASS'Y

32.D0893426 (x3)

SHAFT:DRIVE:DRI VE UNIT:YCM

7.11050511 (x2)

HARNESS CLAMP LWS-0306ZC

34.D0893495

DRIVE UNIT:TONE R SUPPLY

8.11050723 (x2)

CLAMPS:WES-050 7

6.11050508

HARNESS CLAMP LWS-0711

19.B2233462 (x2)

PULLEY:TONER B OTTLE:CM

17.B2233441 (x2)

TIMING BELT:TON ER BOTTLE

9.AA082101 (x8)

BUSHING - 6X10X6

5.07200040E (x14)

RETAINING RING M4

20.B2233463 (x4)

GEAR:TONER BOT TLE:DRIVE

16.B2233428 (x4)

SPRING:DRIVE UNI T:TONER BOTTLE

31.D0893424

SHAFT:DRIVE:DRI VE UNIT:BK

29.D0893407

MAGNETIC CLUTC H:TONER BOTTLE: BK:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

15.B2233334 (x4)

HOLDER:STOPPE R:SHUTTER:ASS'Y

4.04563010N (x11)

TAPPING SCREW M3X10

U010_S003

CÓPIA NÃO CONTROLADA

D0892202

PCDU - C

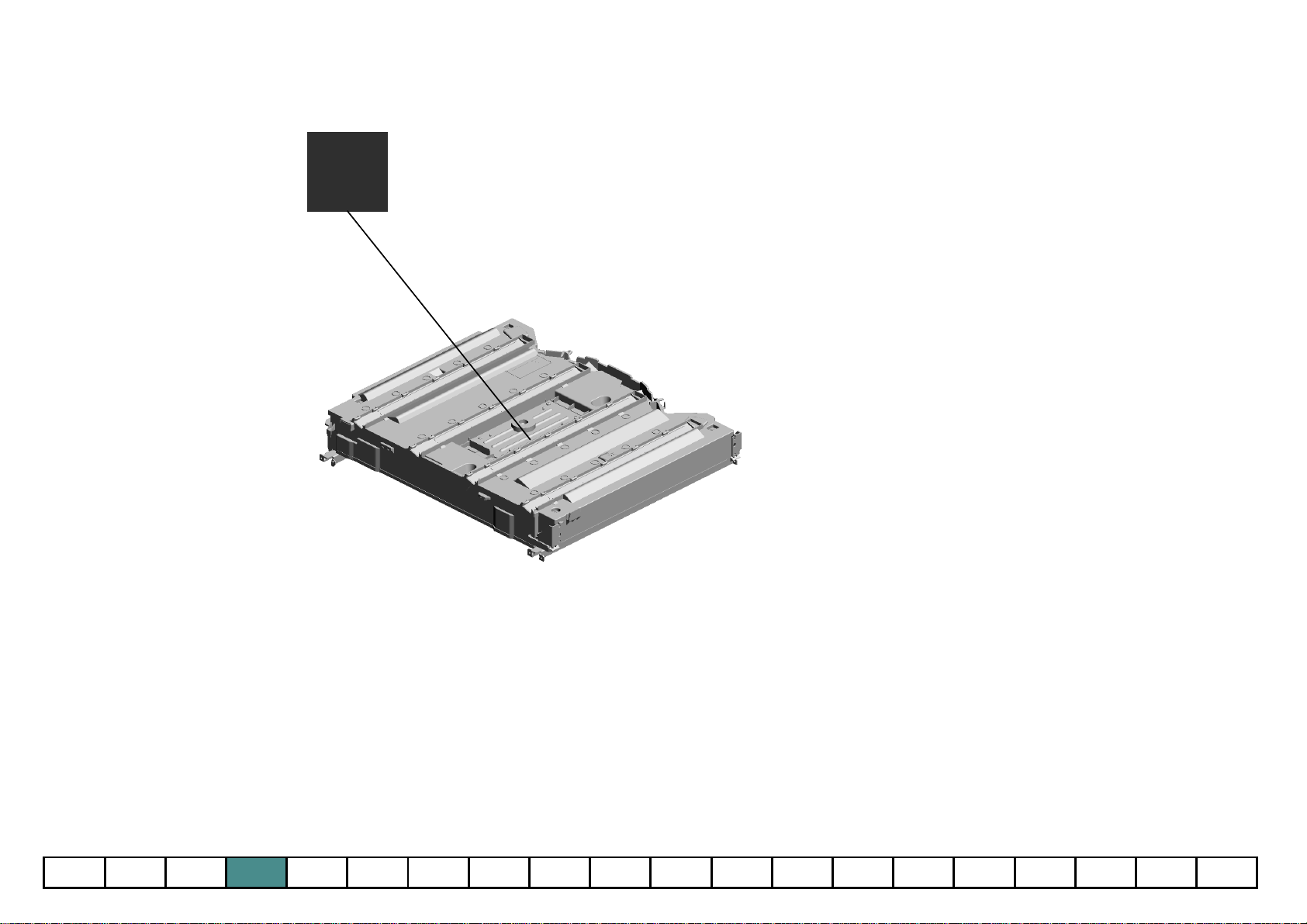

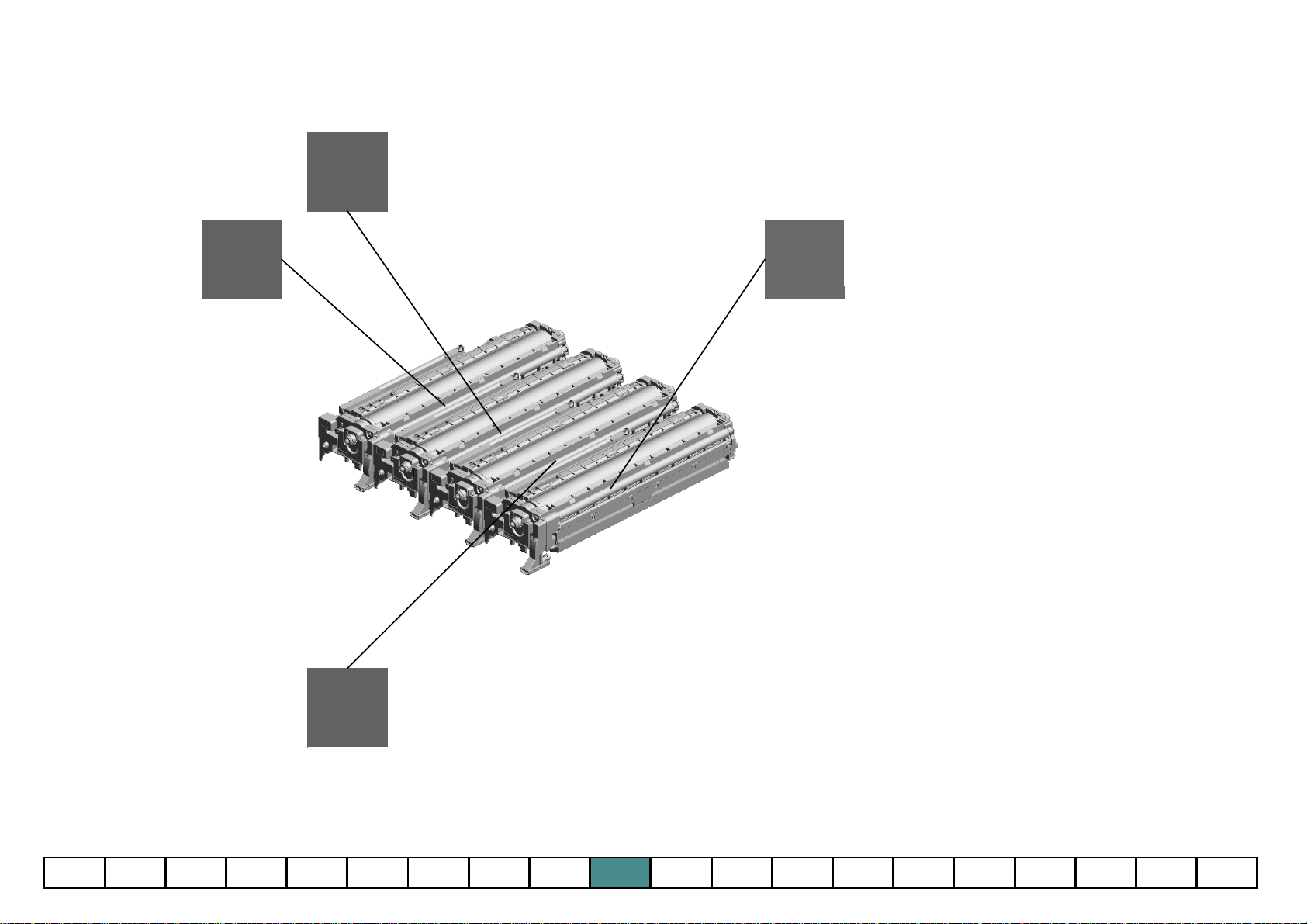

U010.PCDU

U010_S004 D0892203

PCDU - Y

U010_S001 D0892200

PCDU - K

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U010_S002 D0892201

PCDU - M

U010

CÓPIA NÃO CONTROLADA

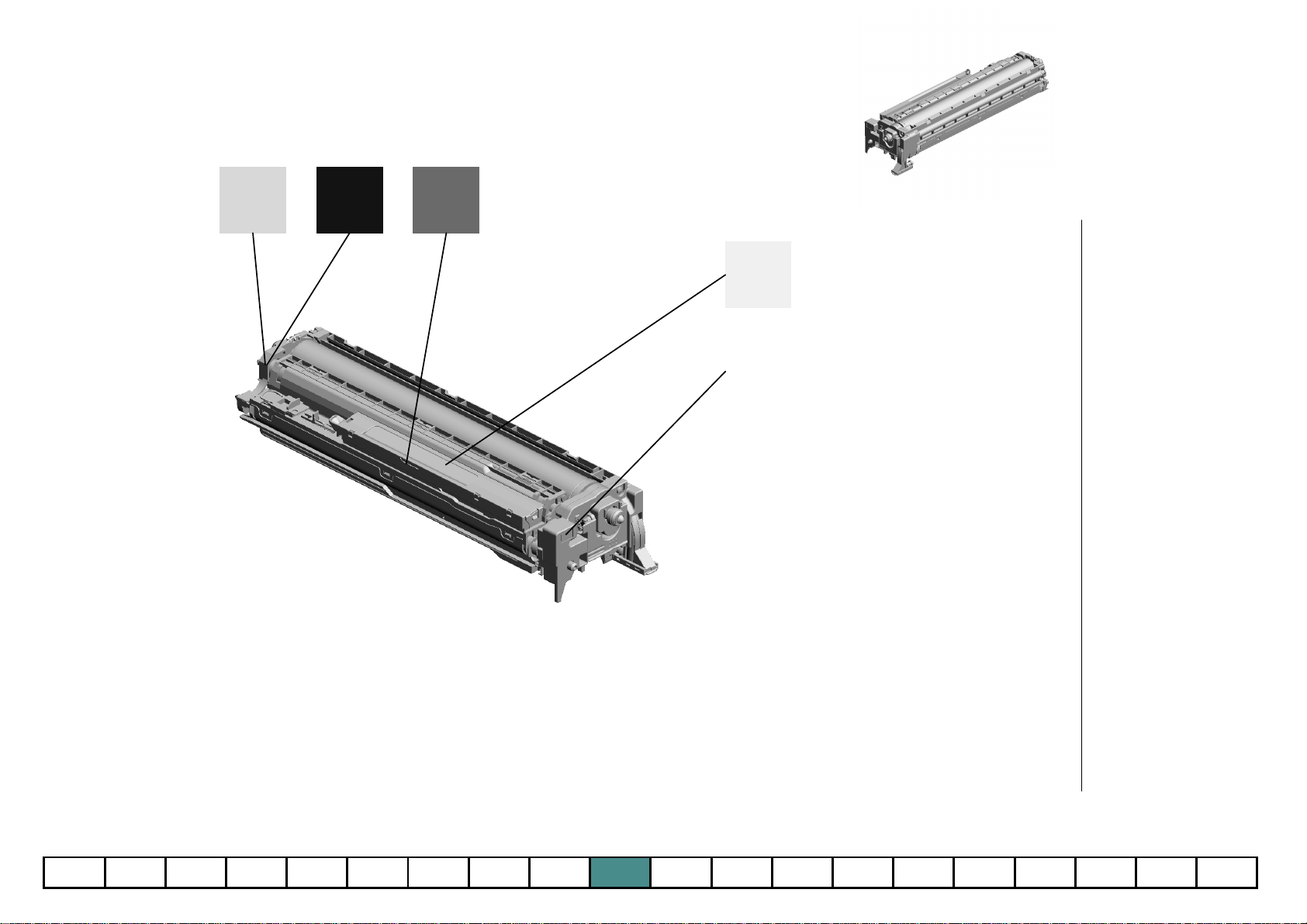

PCDU

14.D0899660

DEVELOPER - C

16.D0899680

DEVELOPER - Y

13.D0899640

DEVELOPER- K

15.D0899670

DEVELOPER - M

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U010_S001

CÓPIA NÃO CONTROLADA

PCDU - K

2.AA084000

BUSHING:DIA6

3.D0892200

PCDU - K

1.07200040E

RETAINING RING M4

7.D0892250

DRUM - K

9.D0893010

DEVELOPMENT UN IT - K

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U010_S002

CÓPIA NÃO CONTROLADA

PCDU - M

1.07200040E

RETAINING RING M4

2.AA084000

BUSHING:DIA6

10.D0893020

DEVELOPMENT UN IT - M

8.D0892251

DRUM - CMY

18.GA003031

DECAL - SHIELDIN G PLATE M

4.D0892201

PCDU - M

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U010_S003

CÓPIA NÃO CONTROLADA

PCDU - C

1.07200040E

RETAINING RING M4

2.AA084000

BUSHING:DIA6

11.D0893030

DEVELOPMENT UN IT - C

8.D0892251

DRUM - CMY

19.GA003032

DECAL - SHIELDIN G PLATE C

5.D0892202

PCDU - C

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U010_S004

CÓPIA NÃO CONTROLADA

PCDU - Y

1.07200040E

RETAINING RING M4

2.AA084000

BUSHING:DIA6

12.D0893040

DEVELOPMENT UN IT - Y

8.D0892251

DRUM - CMY

17.GA003030

DECAL - SHIELDIN G PLATE Y

6.D0892203

PCDU - Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U011_S001

CÓPIA NÃO CONTROLADA

D0896010

ITB UNIT

U011.ITB Unit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U011

CÓPIA NÃO CONTROLADA

ITB Unit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U011_S001

CÓPIA NÃO CONTROLADA

ITB UNIT

2.04513006N (x2)

TAPPING SCREW 3X6

5.B2236085

STOPPER:RIGHT:I TB

1.04504008N

TAPPING SCREW M4X8

8.D0896010

ITB UNIT

7.D0296090

TRANSFER BELT:N :ASS'Y

3.04563008N (x11)

TAPPING SCREW M3X8

6.B2236109

LEVER:RIGHT:ITB

4.AA063999

SPRING:LEVER:RI GHT:INTERMEDIAT E TRANSFER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U012

CÓPIA NÃO CONTROLADA

ITB Cleaning

1.D0896021

ITB CLEANING UNI T

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U013

CÓPIA NÃO CONTROLADA

Used Toner

17.B2236472

GEAR - 21Z

20.B2236475

BUSHING - 5X 10X

2.5

16.B2236471

TRANSPORT SCR EW BRACKET

1.04513006N (x18)

TAPPING SCREW 3X6

18.B2236473

TRANSPORT SCR EW SHAFT

19.B2236474

GEAR - 29Z

7.AB030551

PULLEY:IDLER:FU SING

5.AA043583

TIMING BELT - S2 M460

6.AA060722

TENSION SPRING

12.B2231184

PULLEY:TONER S UPPLY:NO.2:ASS'Y

4.08010231

HEXAGONAL HEA D BOLT W/WASHE R:M3X6

14.B2236464

BUSHING - 6X10X6

13.B2236463

GEAR - 20Z

3.04543006Q (x4)

TAPPING SCREW M3X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

2.04513016N (x2)

TAPPING SCREW 3X16

9.AW020160

PAPER FEED SEN SOR

11.B2231174

DRIVE UNIT:COLL ECTION BOTTLE

8.AG070514

MAGNET CATCH

15.B2236467 (x4)

LEVER BRACKET

10.AW500023

PUSH SWITCH

U013

CÓPIA NÃO CONTROLADA

Used Toner

24.B2236507

SET SENSOR BRA CKET

27.D0896509

WASTE TONER BO TTLE

21.B2236476 (x2)

BUSHING - DIA5

26.D0896481

PIPE:REAR:ASS'Y

25.D0296502

BRACKET:USED T ONER SENSOR:C2

23.B2236503

USED TONER SEN SOR FEELER

28.D0896540

PIPE:FRONT:ASS'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

22.B2236496

COLLECTION BOT TLE RAIL

U014_S001

CÓPIA NÃO CONTROLADA

D0894019

FUSING UNIT:D088/D089:120 V

U014.Fusing

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U014

CÓPIA NÃO CONTROLADA

Fusing

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U014_S001

CÓPIA NÃO CONTROLADA

FUSING UNIT:D088/D089:120V

14.AA061062 (x2)

TENSION SPRING: PRESSURE:140N

1.03603006N (x29)

SCREW - M3X6

17.AA066398

COIL SPRING:STRI PPER PLATE:PRES SURE:FRONT

12.AA060989 (x2)

SPRING:FUSING E XIT:PRESSURE

15.AA066385

SPRING:STRIPPER PLATE:FRONT

51.D0894019

FUSING UNIT:D088 /D089:120V

7.07250170E (x2)

RETAINING RING C - M17

20.AA143867 (x15)

SCREW:DIA4:M3

3.07200040E (x7)

RETAINING RING M4

8.07403906 (x2)

BALL BEARING - 6 X15X5

9.07423808 (x4)

BALL BEARING - 8 X16X5

16.AA066386

SPRING:STRIPPER PLATE:REAR

18.AA066399

COIL SPRING:STRI PPER PLATE:PRES SURE:REAR

5.07250100E

RETAINING RING C - M10

11.09543010N (x2)

SCREW:POLISHED ROUND/SPRING:M 3X10

4.07200060E (x5)

RETAINING RING M6

10.08046123 (x24)

HEXAGONAL BOLT :W/WASHER:M3X8

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

2.04543006Q (x6)

TAPPING SCREW M3X6

6.07250120E

RETAINING RING C - M12

13.AA061026 (x2)

COMPRESSION SP RING:DRIVEN ROL LER

19.AA080348 (x2)

BUSHING:DRIVEN ROLLER

U014_S001

CÓPIA NÃO CONTROLADA

FUSING UNIT:D088/D089:120V

36.BA146038 (x2)

PIN:SPRING:PRES SURE RELEASE

28.AE020183

PRESSURE ROLLE R

35.AX430195

HEATER:INFRARE D RAYS:120V:500 W

40.D0294134

GUIDE PLATE:FUSI NG EXIT:LEFT

27.AE010079

HEATING ROLLER

51.D0894019

FUSING UNIT:D088 /D089:120V

30.AE030081

(x2)

BALL BEARING - D IA17X26X5

32.AW100133

TEMPERATURE SE NSOR:NC-F10

37.D0094664

DRIVEN ROLLER

38.D0294103

FUSING COVER:G UIDE:DUPLEX

39.D0294108

HOUSING:THERM OSTAT:PRESSURE

29.AE030080

(x2)

BALL BEARING - D IA12X24X6

23.AB014318

GEAR:HOT ROLLE R

26.AB017759

ENCODER:TURN

21.AB014316

GEAR:IDLER:TURN

24.AB014319

GEAR:IDLER:FUSI NG UNIT

34.AW110072

THERMOSTAT:ASS 'Y

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

31.AW100120

THERMISTOR:FUSI NG

33.AW100137

THERMISTOR:FUSI NG

22.AB014317

GEAR:PRESSURE ROLLER

25.AB014320

GEAR:IDLER:PRES SURE ROLLER

U014_S001

CÓPIA NÃO CONTROLADA

FUSING UNIT:D088/D089:120V

57.D0894115

LEVER:PRESSURE RELEASE:FRONT

44.D0294163

DECAL:WARNING ( HIGH TEMPERATU RE):FUSING:1

43.D0294162

SHEET:C3:LEVER

60.D0894132

FUSING ENTRANC E GUIDE PLATE

61.D0894137

STRIPPER PLATE: HOT ROLLER:ASS' Y

51.D0894019

FUSING UNIT:D088 /D089:120V

56.D0894114

LEVER:AUXILIARY: FRONT

49.D0874101

FUSING COVER:F RONT

42.D0294160 (x2)

DECAL:C2:BLUE:F USING

48.D0294269

GUIDE:HARNESS:F RONT

53.D0894104 (x2)

CAM:ON-OFF:PRE SSURE ROLLER:S 2

45.D0294164 (x2)

DECAL:H-TEMP W ARNING:FUSING:2

59.D0894122

LEVER:PRESSURE RELEASE:REAR

58.D0894121

LEVER:AUXILIARY: REAR

50.D0874102

FUSING COVER:R EAR

54.D0894109

BRACKET:THERMI STOR:HOT ROLLE R

52.D0894100

FUSING COVER:L OWER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

46.D0294169

FUSING CLEANING FELT

41.D0294146

ELECTRODE PLAT E:HEATER:REAR

47.D0294186

TERMINAL:HEATE R:REAR

55.D0894110

BRACKET:THERMI STOR:PRESSURE ROLLER

U014_S001

CÓPIA NÃO CONTROLADA

FUSING UNIT:D088/D089:120V

73.D0894289

HOUSING:TEMPER ATURE SENSOR:N C-F10

65.D0894149

HARNESS:FUSING UNIT:115V

72.D0894253

STRIPPER PLATE: PRESSURE ROLLE R

70.D0894251

GUIDE PLATE:FUSI NG EXIT:RIGHT

51.D0894019

FUSING UNIT:D088 /D089:120V

66.D0894220

LEVER:PRESSURE :FRONT

63.D0894141

HEATER HOLDER: FRONT

69.D0894238 (x4)

PLAIN SHAFT BEA RING:LEVER:CONT ACT POINT

71.D0894252 (x6)

GUIDE:FUSING EXI T:PFA

67.D0894223

LEVER:PRESSURE :REAR

64.D0894142

HEATER HOLDER: REAR

62.D0894140

ENCODER:ON-OFF :PRESSURE ROLL ER

68.D0894225

SHAFT:ON-OFF:PR ESSURE ROLLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

74.D0894391

GEAR:ON-OFF:PR ESSURE ROLLER

U015_S001

CÓPIA NÃO CONTROLADA

D0894405

PAPER EXIT UNIT:MACHINE OR COPIER:ASS'Y

U015.Paper Exit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U015

CÓPIA NÃO CONTROLADA

Paper Exit

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U015_S001

CÓPIA NÃO CONTROLADA

PAPER EXIT UNIT:MACHINE OR COPIER:ASS'Y

15.D0094407

FEELER - OVERFL OW

16.D0094443

DISCHARGE BRUS H - EXIT

9.AW010107 (x2)

PAPER FEED SEN SOR

17.D0294425

BRACKET:SENSO R

14.B2234497

SHAFT:FEELER:OV ERFLOW

26.D0894405

PAPER EXIT UNIT: MACHINE OR COPI ER:ASS'Y

13.B1202063

BUSHING - 4MM

4.08050092 (x2)

RETAINING RING 3M

5.11050511 (x9)

HARNESS CLAMP LWS-0306ZC

2.04563010N (x8)

TAPPING SCREW M3X10

1.04513006N (x13)

TAPPING SCREW 3X6

8.AA082101 (x5)

BUSHING - 6X10X6

12.AW500023

PUSH SWITCH

3.08050089 (x5)

RETAINING RING M4

7.52062684 (x7)

SHOULDER SCRE W - M3

11.AW020145

PHOTOINTERRUP TOR:FLAT

20.D0294439

STOPPER:GATE P AWL:ENTRANCE

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

19.D0294427

BRACKET:POSITIO NING:GUIDE PLAT E:MIDDLE

18.D0294426

BRACKET:SENSO R:GATE

6.11050516

CLAMP

10.AW010147

PHOTO REFLECTI ON SENSOR

U015_S001

CÓPIA NÃO CONTROLADA

PAPER EXIT UNIT:MACHINE OR COPIER:ASS'Y

27.D0894421

GUIDE PLATE:UPP ER LEFT

33.D0894438 (x4)

EXIT ROLLER:DRIV EN:INNER

39.D0894456

EXIT ROLLER

37.D0894453

ROLLER:DECURA: SPONGE

29.D0894434 (x2)

EXIT ROLLER:DRIV EN

26.D0894405

PAPER EXIT UNIT: MACHINE OR COPI ER:ASS'Y

32.D0894437 (x4)

SPRING PLATE:EXI T ROLLER:OUTER

22.D0294443

TENSION SPRING: GATE PAWL:ENTR ANCE

24.D0294474

DC SOLENOID:SU B-ASS'Y

25.D0294478

TENSION SPRING: RELEASE:DC SOL ENOID

21.D0294442

LEVER:GATE PAW L:ENTRANCE

40.D0894461

GEAR:PULLEY:INP UT:27Z

41.D0894462

GEAR:PULLEY:DE CURA:Z27/16T

23.D0294444

COVER:HARNESS

30.D0894435 (x2)

COIL SPRING:EXIT ROLLER

28.D0894427

GUIDE PLATE:UPP ER RIGHT

31.D0894436 (x5)

GUIDE:GUIDE PLA TE:EXIT:LOWER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

34.D0894439

GUIDE PLATE:EXIT :LOWER

36.D0894451

ROLLER:DECURA: ASS'Y

35.D0894445

GATE PAWL:ENTR ANCE:ASS'Y

38.D0894455

TRANSPORT ROLL ER:GATE

U015_S001

CÓPIA NÃO CONTROLADA

PAPER EXIT UNIT:MACHINE OR COPIER:ASS'Y

44.D0894465

SYNCHRONOUS B ELT:S2M:136

42.D0894463

GEAR:PULLEY:IDL ER:Z21/14T

26.D0894405

PAPER EXIT UNIT: MACHINE OR COPI ER:ASS'Y

47.D0894468 (x2)

PLAIN SHAFT BEA RING:DECURA:DRI VEN

45.D0894466

SYNCHRONOUS B ELT:S2M:104

43.D0894464

TIMING PULLEY:18 T

46.D0894467 (x2)

SPRING:DECURA

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U016

CÓPIA NÃO CONTROLADA

Duplex

10.07200030E (x10)

RETAINING RING M3

15.08050092

RETAINING RING 3M

3.04513006N (x30)

TAPPING SCREW 3X6

1.03530100N (x4)

SCREW-M3X10

19.54472681

SNAP RING

11.07200040E

RETAINING RING M4

13.08010231

HEXAGONAL HEA D BOLT W/WASHE R:M3X6

5.04543006Q (x9)

TAPPING SCREW M3X6

14.08050089 (x14)

RETAINING RING M4

6.04543008Q (x2)

TAPPING SCREW: 3X8

16.11050511

HARNESS CLAMP LWS-0306ZC

12.07200060E

RETAINING RING M6

9.04573008N (x2)

TAPPING SCREW M3X8

8.04563010N (x2)

TAPPING SCREW M3X10

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

2.03603006N (x3)

SCREW - M3X6

4.04513008N (x2)

TAPPING SCREW M3X8

7.04563008N (x35)

TAPPING SCREW M3X8

20.A2596754

BUSHING - 6 6MM

17.11050551

CLAMP:LES-0505

18.11050723

CLAMPS:WES-050 7

U016

CÓPIA NÃO CONTROLADA

Duplex

23.AA063568

PRESSURE SPRIN G

39.AB011387

GEAR - 23Z

31.AA100014 (x2)

RETAINING RING C - SEPARATE

37.AA143807 (x2)

SCREW:A

28.AA082144 (x5)

BUSHING - 8X12X7

24.AA080254 (x4)

BUSHING - M4

26.AA082104 (x2)

BUSHING - 8X12X7

32.AA101021 (x4)

RUBBER BUSHING

- 6 45HS

21.AA060872

SPRING

38.AB011223

IDLER GEAR - 25Z

30.AA083018

ROLLER CLUTCH 6X14X10

27.AA082143 (x2)

BUSHING - 6X10X6

36.AA143404

STEPPED SCREW

- M4

25.AA082101 (x6)

BUSHING - 6X10X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

22.AA063499

PRESSURE SPRIN G

40.AB011416

GEAR - 20Z

29.AA083014

ONE-WAY CLUTCH

35.AA143183

STEPPED SCREW

34.AA140936

SHAFT:FEED:MAN UAL FEED

33.AA140778

SHAFT:SEPARATO R:DRIVE

U016

CÓPIA NÃO CONTROLADA

Duplex

48.AW010118

PAPER FEED SEN SOR

50.AW500031

PAPER SIZE SENS OR

47.AW010107 (x2)

PAPER FEED SEN SOR

46.AG070514

MAGNET CATCH

53.B0441825 (x4)

COLLAR

41.AB014161

REVERSE ROLLER GEAR

54.B0441847

SHOULDER SCRE W

49.AW020145 (x2)

PHOTOINTERRUP TOR:FLAT

52.AX200320

ELECTROMAGNET IC CLUTCH

56.B2232608

GEAR:Z16

55.B1802871

SHAFT:SEPARATO R:DRIVEN:ASS'Y

58.B2232621

COVER:MANUAL F EED UNIT

59.B2232622

GUIDE PLATE:EXIT

51.AW500035

PAPER END SENS OR

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

57.B2232620

HOUSING:MANUAL FEED

45.AF032046

SEPARATION ROL LER - MANUAL FE ED

44.AF031046

FEED ROLLER - M ANUAL FEED

43.AF030049

PICK-UP ROLLER

42.AF013016

BOTTOM PLATE P AD

60.B2232623

COVER:GUIDE PLA TE:EXIT

U016

CÓPIA NÃO CONTROLADA

Duplex

79.B2232668

SPRING PLATE:ST OPPER

70.B2232651

ARM:MANUAL FEE D:FRONT

65.B2232636

TORSION SPRING: 27N

74.B2232661

COVER:MANUAL F EED

78.B2232666

GEAR:16Z

75.B2232663

EXTENSION TRAY

80.B2232673

SIDE FENCE:REAR

67.B2232645

DECAL:SIDE FENC E

71.B2232652

ARM:MANUAL FEE D:REAR

73.B2232658

ARM:MANUAL FEE D:SHORT:REAR

66.B2232637

BRACKET:ARM:MA NUAL FEED:REAR

64.B2232634

SUPPORT STAY:A RM

72.B2232657

ARM:MANUAL FEE D:SHORT:FRONT

77.B2232665 (x2)

SPRING:COVER:M ANUAL FEED

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

68.B2232648

GUIDE PLATE:TRA NSPORT UNIT:EXI T

61.B2232629

STAY:FEED

62.B2232632

DC SOLENOID:PIC KUP

63.B2232633

SPRING:RELEASE: PICKUP

69.B2232649 (x2)

SPRING:PRESSUR E:5N

76.B2232664

COVER:MANUAL F EED:ENTRANCE

U016

CÓPIA NÃO CONTROLADA

Duplex

91.B2234494 (x2)

STOPPER- UPPER GATE PAWL

95.B2234512

TIMING BELT:30S2 M182

89.B2232726

GRIP:SIDE FENCE: MANUAL FEED

90.B2232729

DECAL:PAPER SE T DIRECTION:MAN UAL FEED:EXP

93.B2234502

GUIDE PLATE:LEF T LOWER

92.B2234501

GUIDE PLATE:RIG HT

96.B2234514

ROLLER CLUTCH: T24

100.B2234526

TIMING BELT:30S2 M268

84.B2232683

GEAR:25Z

83.B2232681

ARM:TIGHTENER

85.B2232686

GEAR:Z31

81.B2232674

SIDE FENCE:FRON T

94.B2234511

TIMING BELT:30S2 M312

82.B2232676 (x4)

SPRING - 11N

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

99.B2234525

TENSION SPRING: WIRE:180N

88.B2232713 (x2)

RACK:MANUAL FE ED

87.B2232696

DRUM STAY:DRIV E

86.B2232689

GEAR:Z28

97.B2234522

SPACER:WIRE:ST OPPER

98.B2234524

WIRE:STOPPER:DI A1.5

U016

CÓPIA NÃO CONTROLADA

Duplex

119.B2234566

BRACKET:SENSO R:ENTRANCE

104.B2234532

TENSION SPRING: HOOK:STOPPER

102.B2234529

ROLLER CLUTCH: T24

120.B2234567

STAY:TRANSPORT :UPPER:PEEN

113.B2234552 (x4)

BUSHING:DIA4

116.B2234560 (x2)

TENSION SPRING: DRIVEN ROLLER

103.B2234531

GUIDE PLATE:COV ER

117.B2234562

TIGHTENER

118.B2234564

SPRING:TIGHTENE R

107.B2234538 (x2)

COMPRESSION SP RING

114.B2234553 (x2)

TENSION SPRING: DRIVEN ROLLER

111.B2234544

PULLEY:T35/T33

106.B2234536

TIMING BELT:30S2 M234

110.B2234542

TORSION SPRING: FRONT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

112.B2234545

GUIDE PIN:HOLDE R

105.B2234535

ROLLER CLUTCH: T26

108.B2234539

SHEET:COVER:DU PLEX

109.B2234541

TORSION SPRING: REAR

101.B2234527

PULLEY:T26/T24

115.B2234556 (x2)

COMPRESSION SP RING

U016

CÓPIA NÃO CONTROLADA

Duplex

125.B2234579

GRIP:OPEN AND C LOSE:DUPLEX UNI T

130.B2384739

COVER - ENTRAN CE SENSOR

129.B2384733

ENTRANCE SENS OR BRACKET

121.B2234571

GEAR:PULLEY:Z24 /T40

122.B2234572

STEPPER MOTOR: DC4.29V 1.7W

123.B2234573

TIMING BELT:30S2 M128

124.B2234575

BRACKET:STEPPE R MOTOR

126.B2234586 (x2)

PULLEY:T30

138.D0092573 (x6)

PULLEY - VERTICA L TRANSPORT

134.D0092555

TRANSPORT ROLL ER - DUPLEX EXIT

139.D0092574 (x6)

PULLEY - IDLER

133.D0092554

GUIDE SHEET - VE RTICAL TRANSPO RT

132.D0092552

GUIDE SHEET - MA NUAL FEED

140.D0092575 (x2)

SHAFT - IDLER

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

137.D0092571 (x2)

HOLDER - VERTIC AL TRANSPORT

131.D0092510

GUIDE PLATE - EXI T

128.B2234595

PULLEY:DIA13

127.B2234594

SHAFT:PULLEY:WI RE

136.D0092563

GUIDE PLATE - VE RTICAL TRANSPO RT

135.D0092560

DRIVEN ROLLER

U016

CÓPIA NÃO CONTROLADA

Duplex

147.D0094522

TENSION SPRING: GATE PAWL:DUPL EX:0.08N

160.D0094663

TRANSPORT ROLL ER 2

149.D0094540

COVER - DUPLEX UNIT

150.D0094577

DUPLEX GATE

143.D0094504

UPPER GUIDE PLA TE - GATE

142.D0094503

GUIDE PLATE - LE FT UPPER

159.D0094662

TRANSPORT ROLL ER 1

158.D0094661 (x2)

REVERSE ROLLER

- FEED

148.D0094535

HARNESS GUIDE

151.D0094587

TENSION SPRING RELEASE BRACK ET

154.D0094593

STEPPED SCREW

- M3

141.D0092576 (x2)

SHAFT - VERTICAL TRANSPORT

146.D0094513

COMPRESSION SP RING:EARTH:DUPL EX UNIT

144.D0094511

SPACER:DIA8.0:1.5 MM

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

145.D0094512

LINK:STOPPER

156.D0094598

SPRING - SET SHA FT

155.D0094597

BRACKET - WIRE PULLEY SHAFT

152.D0094588

STOPPER BRACKE T - SPRING

153.D0094589

GUIDE - SET SHAF T

157.D0094599

SHAFT - DUPLEX U NIT

U016

CÓPIA NÃO CONTROLADA

Duplex

171.D0294485

LEVER:GATE PAW L:UPPER

172.D0294486

TENSION SPRING: GATE PAWL:1.5N

161.D0094664 (x4)

DRIVEN ROLLER

170.D0294482

GATE PAWL:UPPE R:ASS'Y

174.D0294497 (x2)

COMPRESSION SP RING:DRIVEN ROL LER:GATE

180.D0294590

HOOK:STOPPER:D UPLEX UNIT:ASS'Y

173.D0294488 (x2)

TENSION SPRING: GUIDE PLATE:RIG HT

175.D0294521

BRACKET:HARNES S

166.D0292664

FEELER:PAPER SI ZE SENSOR:MANU AL FEED

176.D0294533

INNER COVER:DU PLEX:REAR

169.D0292710

COVER:HARNESS: MANUAL FEED TA BLE

164.D0292644

DECAL:SCALE:MA NUAL FEED

177.D0294534

INNER COVER:DU PLEX

163.D0292612

GROUND PLATE:F RONT:MANUAL FE ED

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

178.D0294554

BRACKET:GUIDE P LATE:TRANSFER U NIT

179.D0294555

SHEET:TRANSPOR T SUB-UNIT:FEED PAPER AGAIN

165.D0292662

MANUAL FEED TA BLE

162.D0292611

GROUND PLATE:R EAR:MANUAL FEE D

167.D0292677 (x6)

TRANSPORT BELT :DRIVEN:VERTICA L TRANSPORT

168.D0292709

GUIDE PLATE:SEP ARATOR:ASS'Y

U016

CÓPIA NÃO CONTROLADA

Duplex

200.D0896203

PTR UNIT

182.D0296286

CASE:TRANSFER ROLLER

193.D0296335

SHEET:CASE:LOW ER

197.D0894484

GRIP:GATE PAWL: UPPER

195.D0894482 (x7)

GUIDE:GUIDE PLA TE:OPEN AND CLO SE

196.D0894483

DRIVEN ROLLER:P APER EXIT UNIT:V ERTICAL TRANSP ORT

198.D0894485

DECAL:H-TEMP W ARNING:GUIDE PL ATE:OPEN AND CL OSE

194.D0894481

GUIDE PLATE:OPE N AND CLOSE

186.D0296307 (x2)

COMPRESSION SP RING:GUIDE PLAT E:EXIT:3.5N

184.D0296293

DRUM STAY:REAR

181.D0296285

TERMINAL:TRANS FER ROLLER

187.D0296316

STOPPER:HOLDE R:SEPARATION:UP PER

189.D0296321 (x2)

ANCHOR:SPRING

190.D0296322

SHAFT:LEVER:FR ONT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

192.D0296331

GROUND WIRE:PO WER PACK

188.D0296320

BRACKET:LEVER: MIDDLE

183.D0296287 (x2)

PLATE:GROUND W IRE

185.D0296305 (x3)

LEVER:RELEASE

199.D0894663

GUIDE PLATE:TRA NSFER UNIT:HOLD ER

191.D0296323

SHAFT:LEVER:REA R

U016

CÓPIA NÃO CONTROLADA

Duplex

201.D0896310 (x2)

SPRING:TRANSFE R

206.GA001073

DECAL:KNOB:Z

204.G0604435 (x2)

BUSHING - M4

203.G0602932

PICK-UP ARM - MA NUAL FEED

205.G0802900

TORQUE LIMITER

202.G0602652 (x6)

BUSHING - M4

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U017_S001

CÓPIA NÃO CONTROLADA

D0891110

DRIVE UNIT:ENGINE:D088/D 089

U017.Main Drive

U017_S002 B2231354

DRUM STAY:DRIVE UNIT

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

U017

CÓPIA NÃO CONTROLADA

Main Drive

3.03603016N (x2)

SCREW - M3X16

15.07200060E (x4)

RETAINING RING M6

11.04543008Q (x3)

TAPPING SCREW: 3X8

19.11050489

HARNESS CLAMP LWS 1316

6.04503012N (x2)

TAPPING SCREW: 3X12

2.03603006N (x8)

SCREW - M3X6

13.07200030E

RETAINING RING M3

20.11050516

CLAMP

4.03604010N (x5)

SCREW:M4X10

1.03530080N (x4)

SCREW:M3X8

21.54472681 (x2)

SNAP RING

12.04543020Q (x2)

TAPPING SCREW:: 3X20

9.04543005Q (x3)

TAPPING SCREW:: 3X5

7.04513006N (x14)

TAPPING SCREW 3X6

U001 U002 U003 U004 U005 U006 U007 U008 U009 U010 U011 U012 U013 U014 U015 U016 U017 U018 U019 U020

14.07200040E (x4)

RETAINING RING M4

18.11050488

HARNESS CLAMP

17.08050089 (x2)

RETAINING RING M4

5.04340100N (x2)

TAPPING SCREW 4X10

10.04543006Q (x8)

TAPPING SCREW M3X6

8.04514008N (x2)

TAPPING SCREW: 4X8
