PARTS CATALOG
INTRODUCTION
This chapter instructs you the numbers and names of parts on this machine.
INDEX to PARTS CATALOG
1.EXTERIOR (G518).............................................................................. 2
2.TRANSPORT SECTION 1 (G518)...................................................... 4
3.TRANSPORT SECTION 2 (G518)...................................................... 6
4.TRANSPORT SECTION 3 (G518)...................................................... 8
PARTS INDEX ........................................................................................ 11
September, 30’99
Page 3
1.EXTERIOR (G518)
2
Page 4
1.EXTERIOR (G518)
Index
No.
1 G518 6611 Copy Tray 4
2 G518 2282 Sensor Cover - Surface 4
3 G518 1611 Rear Cover 1
4 G518 1711 Upper Cover 1
5 G518 1752 Decal - Misfeed Remuval 1
6 AG07 1010 Magnet Catch 1
7 A048 2838 Nylon Rivet 1
8 G518 2371 Cover Band 1
9 G518 2315 Jam Remuval Cover 1
10 G518 1511 Front Cover 1
11 G518 6641 Flat Screw - Groove Type 2
12 G696 2410 Decal - Bin Display 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3008H Tapping Screw - 3x8
102 0450 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
3
Page 5
2.TRANSPORT SECTION 1 (G518)
4
Page 6
2.TRANSPORT SECTION 1 (G518)
Index
No.
1 G518 2212 Guide Plate 2
2 AF02 2113 Driven Roller - 23MM 2
3 AA08 0034 Bushing - 4x5x7 4
4 AA06 3337 Compression Spring 4
5 AW02 0086 Photointerruptor 4
6 AW01 0088 Sensor Gp2a200lcs - Assembly 2
7 G518 5210 Paper Sensor Harness 2
8 G518 2262 Paper Sensor Actuator - Surface 2
9 AA08 0232 Bushing - M4 1
10 AF02 2075 Driven Roller 1
11 AA12 0095 Discharge Brush 2
12 G518 1235 Silencer Cushion 1
13 G518 1231 Upper Stay 1
14 G518 5100 Main Control Board 1
15 G518 5200 Main Harness 1
16 G518 2291 Guide Plate Cushion 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0283 Clamp
103 0450 3008B Tapping Screw - M3x8
104 1105 0326 Locking Support
105 1105 0328 Harness Clamp - ES-0505
Part No.
Description
Q’ty Per
Assembly
5
Page 7

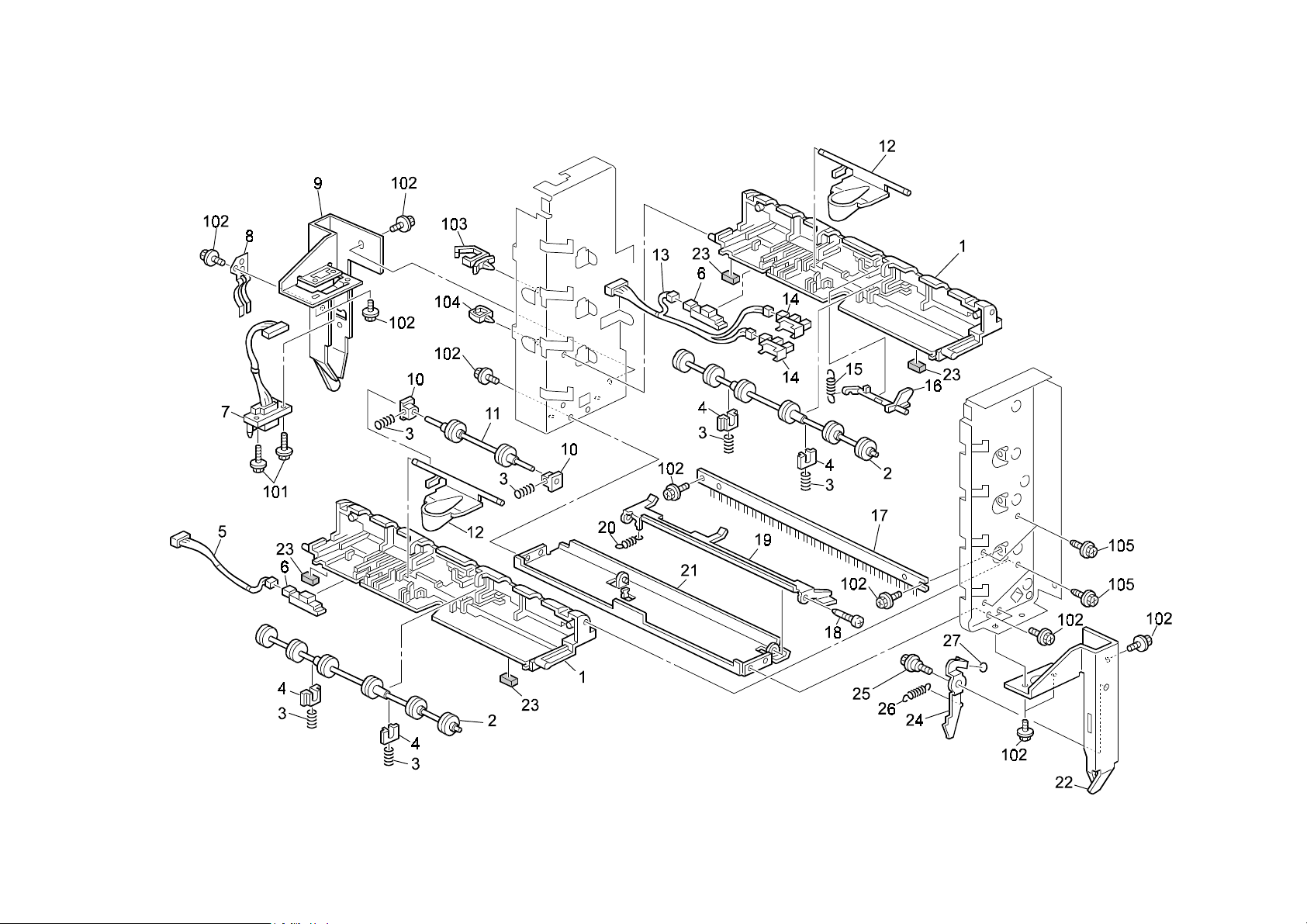

3.TRANSPORT SECTION 2 (G518)
6
Page 8
3.TRANSPORT SECTION 2 (G518)
Index
No.
1 G518 2212 Guide Plate 2
2 AF02 2113 Driven Roller - 23MM 2
3 AA06 3337 Compression Spring 6
4 AA08 0034 Bushing - 4x5x7 4
5 G518 5230 Bin Sensor Harness 1
6 AW01 0088 Sensor Gp2a200lcs - Assembly 2
7 G518 5220 Interface Harness 1
8 G518 1226 Ground Plate 1
9 G518 1225 Rear Bracket - Coupling 1
10 AA08 0232 Bushing - M4 2
11 AF02 2075 Driven Roller 1
12 G518 2262 Paper Sensor Actuator - Surface 2
13 G518 5250 Paper Sensor Harness 1
14 AW02 0086 Photointerruptor 2
15 AA06 0801 Tension Spring 1
16 G518 2272 Transport Actuator 1
17 AA12 0095 Discharge Brush 1
18 5446 2824 Screw - DUPLEX GUIDE PLATE 1
19 G518 1245 Release Lever 1
20 AA06 0800 Pressure Release Spring - 0.5N 1
21 G518 1241 Lower Stay 1
22 G518 1215 Front Bracket - Coupling 1
23 G518 2291 Guide Plate Cushion 4
24 G518 1216 Coupling Arm - Front 1
25 A697 1125 Stepped Screw - Lever 1
26 AA06 0803 Tension Spring 1
27 G518 1217 Seal - 3mm 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3010B Tapping Screw - M3x10
102 0451 3006B Tapping Screw - M3x6
103 1105 0310 Harness Clamp - LWS-1S
104 1105 0229 Clamp
105 0450 3008B Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
7
Page 9

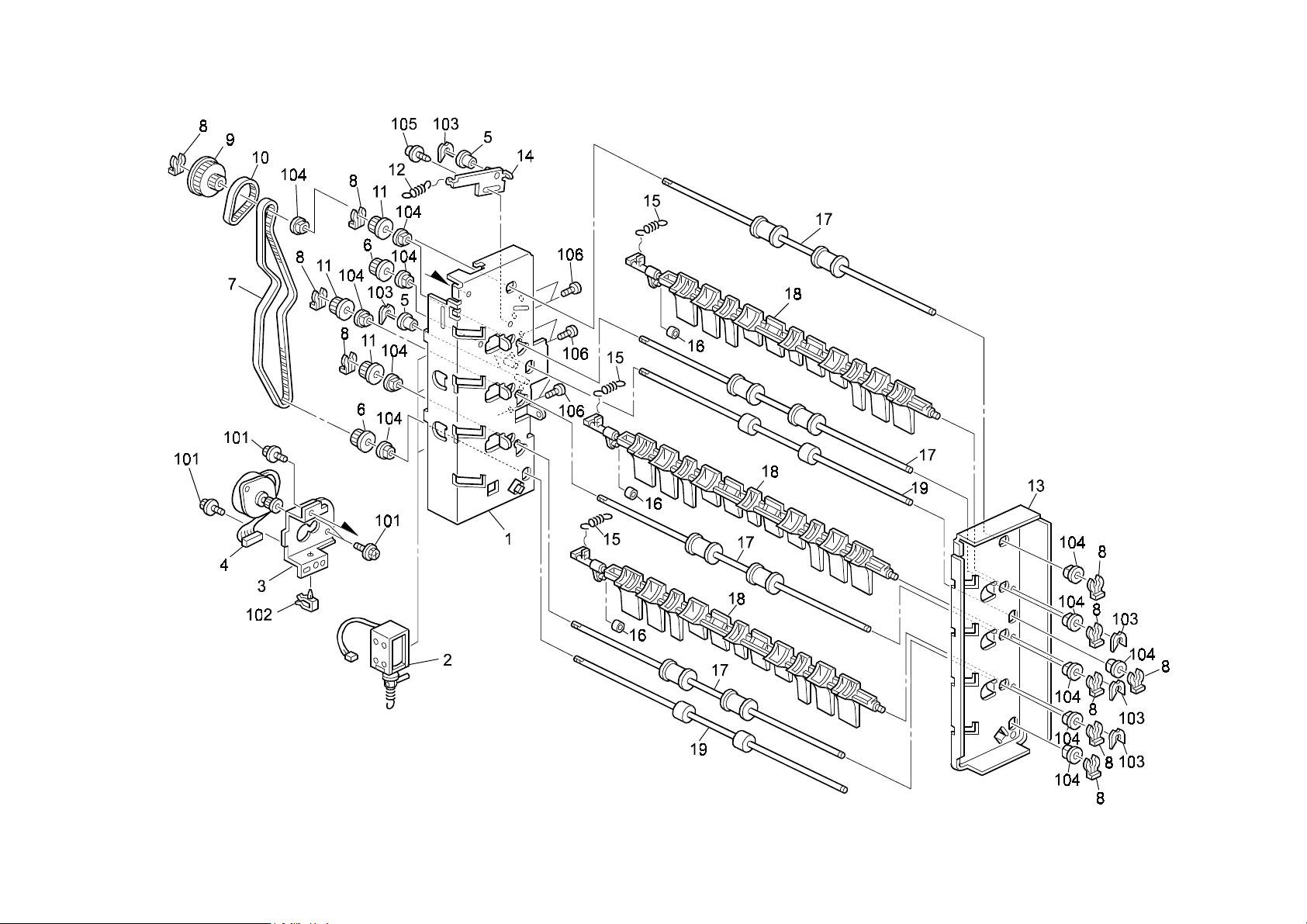

4.TRANSPORT SECTION 3 (G518)
8
Page 10
4.TRANSPORT SECTION 3 (G518)
Index
No.
1 G518 1220 Rear Side Plate 1
2 G518 2710 DC Solenoid - Paper Exit 1
3 G518 2512 Motor Bracket 1
4 AX04 0116 Stepper Motor - DC24V 1
5 A079 4914 Idle Roller - Gate Belt 2
6 AB03 0639 Timing Pulley - T26 S2M 2
7 AA04 3532 Timing Belt - B40S2M560 1
8 5447 2681 Snap Ring 10
9 AB03 0638 Timing Pulley - T57/T28 S2M 1
10 AA04 3531 Timing Belt - B40S2M144 1
11 GB03 0032 Timing Pulley - T28-S2M 3
12 AA06 0803 Tension Spring 1
13 G518 1212 Front Side Plate 1
14 G518 2555 Tightener Bracket 1
15 AA06 0802 Tension Spring 3
16 A458 2251 Cushion - Bin Solenoid Lever 3
17 AF02 0478 Exit Roller 4
18 G518 2412 Polarization Powel 3
19 AF02 0477 Transport Roller 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 1105 0283 Clamp
103 0805 0089 Retaining Ring - M4
104 0805 3480 Bushing - 6mm
105 0951 4006W Philips Screw With Flat Washer - M4x6
106 0313 0030B Philips Pan Head Screw - M3x3
Part No.
Description
Q’ty Per
Assembly
9
Page 11
PARTS INDEX
Page 12
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
G518 1212 Front Side Plate 9- 13
G518 1215 Front Bracket - Coupling 7- 22
G518 1216 Coupling Arm - Front 7- 24
G518 1217 Seal - 3mm 7- 27
G518 1220 Rear Side Plate 9- 1
G518 1225 Rear Bracket - Coupling 7- 9
G518 1226 Ground Plate 7- 8
G518 1231 Upper Stay 5- 13
G518 1235 Silencer Cushion 5- 12
G518 1241 Lower Stay 7- 21
G518 1245 Release Lever 7- 19
G518 1511 Front Cover 3- 10
G518 1611 Rear Cover 3- 3
G518 1711 Upper Cover 3- 4
G518 1752 Decal - Misfeed Remuval 3- 5
G518 2212 Guide Plate 5- 1
G518 2212 Guide Plate 7- 1
G518 2262 Paper Sensor Actuator - Surface 5- 8
G518 2262 Paper Sensor Actuator - Surface 7- 12
G518 2272 Transport Actuator 7- 16
G518 2282 Sensor Cover - Surface 3- 2
G518 2291 Guide Plate Cushion 7- 23
G518 2291 Guide Plate Cushion 5- 16
G518 2315 Jam Remuval Cover 3- 9
G518 2371 Cover Band 3- 8
G518 2412 Polarization Powel 9- 18
G518 2512 Motor Bracket 9- 3
G518 2555 Tightener Bracket 9- 14
G518 2710 DC Solenoid - Paper Exit 9- 2
G518 5100 Main Control Board 5- 14
G518 5200 Main Harness 5- 15
G518 5210 Paper Sensor Harness 5- 7
G518 5220 Interface Harness 7- 7
G518 5230 Bin Sensor Harness 7- 5
G518 5250 Paper Sensor Harness 7- 13
G518 6611 Copy Tray 3- 1
G518 6641 Flat Screw - Groove Type 3- 11
12
Page 13
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
AA04 3531 Timing Belt - B40S2M144 9- 10
AA04 3532 Timing Belt - B40S2M560 9- 7
AA06 0800 Pressure Release Spring - 0.5N 7- 20
AA06 0801 Tension Spring 7- 15
AA06 0802 Tension Spring 9- 15
AA06 0803 Tension Spring 7- 26
AA06 0803 Tension Spring 9- 12
AA06 3337 Compression Spring 7- 3
AA06 3337 Compression Spring 5- 4
AA08 0034 Bushing - 4x5x7 5- 3
AA08 0034 Bushing - 4x5x7 7- 4
AA08 0232 Bushing - M4 7- 10
AA08 0232 Bushing - M4 5- 9
AA12 0095 Discharge Brush 5- 11
AA12 0095 Discharge Brush 7- 17
AB03 0638 Timing Pulley - T57/T28 S2M 9- 9
AB03 0639 Timing Pulley - T26 S2M 9- 6
AF02 0477 Transport Roller 9- 19
AF02 0478 Exit Roller 9- 17
AF02 2075 Driven Roller 7- 11
AF02 2075 Driven Roller 5- 10
AF02 2113 Driven Roller - 23MM 7- 2
AF02 2113 Driven Roller - 23MM 5- 2
AG07 1010 Magnet Catch 3- 6
AW01 0088 Sensor Gp2a200lcs - Assembly 7- 6
AW01 0088 Sensor Gp2a200lcs - Assembly 5- 6
AW02 0086 Photointerruptor 5- 5
AW02 0086 Photointerruptor 7- 14
AX04 0116 Stepper Motor - DC24V 9- 4
G518 1212 Front Side Plate 9- 13
G518 1215 Front Bracket - Coupling 7- 22
G518 1216 Coupling Arm - Front 7- 24
G518 1217 Seal - 3mm 7- 27
G518 1220 Rear Side Plate 9- 1
G518 1225 Rear Bracket - Coupling 7- 9
G518 1226 Ground Plate 7- 8
G518 1231 Upper Stay 5- 13
G518 1235 Silencer Cushion 5- 12
G518 1241 Lower Stay 7- 21
G518 1245 Release Lever 7- 19
G518 1511 Front Cover 3- 10
G518 1611 Rear Cover 3- 3
G518 1711 Upper Cover 3- 4
G518 1752 Decal - Misfeed Remuval 3- 5
G518 2212 Guide Plate 5- 1
G518 2212 Guide Plate 7- 1
G518 2262 Paper Sensor Actuator - Surface 7- 12
G518 2262 Paper Sensor Actuator - Surface 5- 8
G518 2272 Transport Actuator 7- 16
G518 2282 Sensor Cover - Surface 3- 2
G518 2291 Guide Plate Cushion 5- 16
G518 2291 Guide Plate Cushion 7- 23
G518 2315 Jam Remuval Cover 3- 9
G518 2371 Cover Band 3- 8
G518 2412 Polarization Powel 9- 18
G518 2512 Motor Bracket 9- 3
G518 2555 Tightener Bracket 9- 14
G518 2710 DC Solenoid - Paper Exit 9- 2
G518 5100 Main Control Board 5- 14
G518 5200 Main Harness 5- 15
G518 5210 Paper Sensor Harness 5- 7
G518 5220 Interface Harness 7- 7
G518 5230 Bin Sensor Harness 7- 5
G518 5250 Paper Sensor Harness 7- 13
G518 6611 Copy Tray 3- 1
G518 6641 Flat Screw - Groove Type 3- 11
G696 2410 Decal - Bin Display 3- 12
GB03 0032 Timing Pulley - T28-S2M 9- 11
13
Page 14
Part No.
Description
Page and
Index No.
Part No.
Description
Page and
Index No
A048 2838 Nylon Rivet 3- 7
A079 4914 Idle Roller - Gate Belt 9- 5
A458 2251 Cushion - Bin Solenoid Lever 9- 16
A697 1125 Stepped Screw - Lever 7- 25
5446 2824 Screw - DUPLEX GUIDE PLATE 7- 18
5447 2681 Snap Ring 9- 8
14
Page 15
Part No.
0313 0030B Philips Pan Head Screw - M3x3 9-106
0450 3008B Tapping Screw - M3x8 3-102
0450 3008B Tapping Screw - M3x8 7-105
0450 3008B Tapping Screw - M3x8 5-103
0451 3006B Tapping Screw - M3x6 9-101
0451 3006B Tapping Screw - M3x6 7-102
0451 3006B Tapping Screw - M3x6 5-101
0451 3008H Tapping Screw - 3x8 3-101
0451 3010B Tapping Screw - M3x10 7-101
0805 0089 Retaining Ring - M4 9-103
0805 3480 Bushing - 6mm 9-104
0951 4006W Philips Screw With Flat Washer - M4x6 9-105
1105 0229 Clamp 7-104
1105 0283 Clamp 5-102
1105 0283 Clamp 9-102
1105 0310 Harness Clamp - LWS-1S 7-103
1105 0326 Locking Support 5-104
1105 0328 Harness Clamp - ES-0505 5-105
Description
Page and
Index No.
Part No.
Description
Page and
Index No
15
