RICOH GROUP COMPANIES
G081/G092
PARTS CATALOG
001482MIU
PARTS CATALOG
G081/G092
®
®
RICOH GROUP COMPANIES
G081/G092
PARTS CATALOG
001482MIU
f
r
It is the reader's responsibility when discussing the information contained within
this document to maintain a level of confidentiality that is in the best interest o
Ricoh Corporation and its member companies.
NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY
FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH CORPORATION.
All product names, domain names or product illustrations, including desktop
images, used in this document are trademarks, registered trademarks or the
property of their respective companies.
They are used throughout this book in an informational or editorial fashion only and
for the benefit of such companies. No such use, or the use of any trade name, o
web site is intended to convey endorsement or other affiliation with Ricoh products.
2003 RICOH Corporation. All rights reserved.
LEGEND
PRODUCT CODE COMPANY
G081 C7116 LP020c CL3000 CLP1620
G092 - - - -
G342 Paper Feed Unit Type 3000
G343 Duplex Unit AD440
GESTETNER LANIER RICOH SAVIN
DOCUMENTATION HISTORY
REV. NO. DATE COMMENTS
*
2/2003 Original Printing
G081/G092 PARTS CATALOG
TABLE OF CONTENTS
G081/G092 PARTS LOCATION AND LIST
1.EXTERIOR 1 (G081/G092)............................... 2
2.EXTERIOT 2 (G081/G092)............................... 4
3.EXTERIOR 3 (G081/G092)............................... 6
4.LSU/IH UNIT (G081/G092)............................... 8
5.FRONT DOOR (G081/G092)........................... 10
6.PAPER FEED UNIT (G081/G092).................... 12
7.BIAS TERMINAL (G081/G092)........................ 14
8.TRANSFER BELT TENSION UNIT (G081/G092) 16
9.PAPER EXIT (G081/G092) ............................. 18
10.TONER CARTRIDGE DRIVE (G081/G092) ..... 20
11.FUSING UNIT (G081/G092) ........................... 22
12.DRIVE SECTION (G081/G092)....................... 24

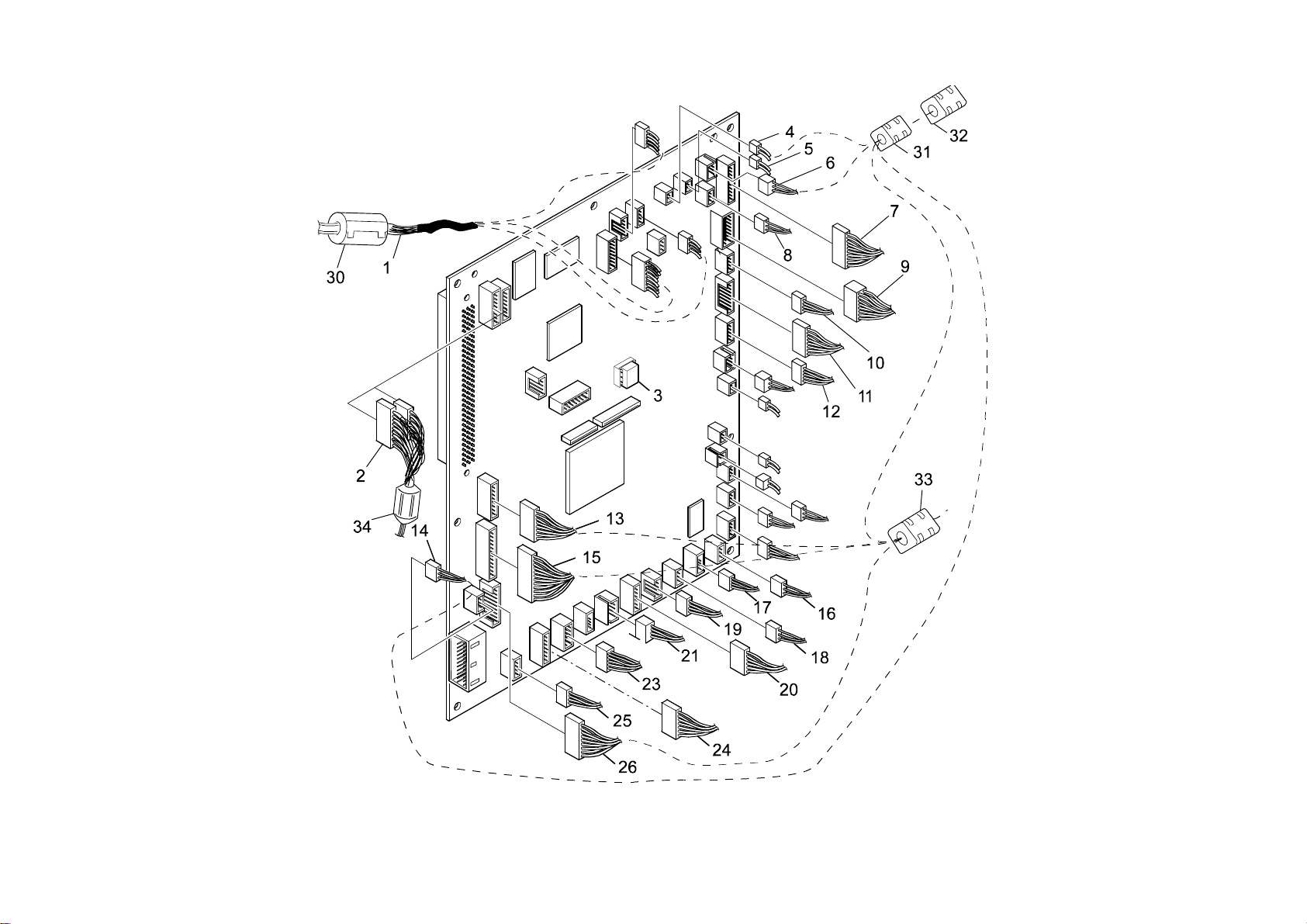

13.ENGINE CONTROL BOARD (G081/G092)...... 26
14.ELECTRICAL (G081/G092) ............................ 28
15.CASSETTE 1 (G081/G092) ............................ 30
16.CASSETTE 2 (G081/G092) ............................ 32
17.MAIN CO NTROL BOARD (G081/G092) .......... 34
18.DOCUMENT & SPECIAL TOOLS (G081/G082) 44
G081/G092 PARTS INDEX
PARTS INDEX ..................................................... 2
PAPER FEED UNIT TYPE 3000 (G342) PARTS
LOCATION AND LIST
1.PAPER FEED UNIT 1 (G342) ........................... 2
2.PAPER FEED UNIT 2 (G342) ........................... 4
3.PAPER FEED UNIT 3 (G342) ........................... 6
PAPER FEED UNIT TYPE 3000 G342 PARTS INDEX
PARTS INDEX ..................................................... 2
DUPLEX UNIT AD440 (G343) PARTS LOCATION AND
LIST
1.DUPLEX UNIT AD440 (G343) ........................... 2
DUPLEX UNIT AD440 (G343) PARTS INDEX
PARTS INDEX ..................................................... 3
G081/G092
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine.
1.EXTERIOR 1 (G081/G092)
G081/G092 2 Parts Location And List
1.EXTERIOR 1 (G081/G092)
Index
No.
1 G081 1208 LCD Panel Cover 1
2 G081 1223 Stopper Guide 1
3 G081 1940 Operation Panel - NA 1
4 G081 1205 Rear Cover (G081-17) 1
4 G081 1225 Rear Cover (G081-22) 1
4 G081 1224 Rear Cover (G081-27) 1
4 G081 1209 Rear Cover (G092-22) 1
4 G081 1220 Rear Cover (G092-27) 1
5 G081 1204 Top Cover 1
7 G081 1206 Cover - Option Paper Unit Harness 1
8 G081 1207 Cassette Cover 1
9 G081 1211 Left Pivot - Front Cover 1
10 G081 1212 Front Support Lever 1
11 G081 1213 Right Pivot - Front Cover 1
12 G081 1214 Lever Spring 1
13 G081 1215 Toner Cartridge Cover 1
14 G081 1202 Left Cover 1
15 G081 1203 Right Cover 1
16 G081 5307 Sensor - Toner Cartridge Cover 1
17 G081 1217 Cartridge Lever B 1
18 G081 1218 Cartridge Lever A 1
19 G081 1219 Right Cover Hook 2
20 G081 4536 Screw - 3x8 1
21 G081 4519 Screw - 3x12 2
22 G081 4537 Screw - 3x12 1
23 G081 1222 Stopper Base 1
24 G081 5206 Ferrite Core 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 3 Parts Location And List
2.EXTERIOR 2 (G081/G092)
G081/G092 4 Parts Location And List
2.EXTERIOR 2 (G081/G092)
Index
No.
1 G081 5210 Fan Motor - DC24V-2.88W 1
2 G081 5307 Sensor - Toner Cartridge Cover 1
3 G081 2211 Interlock Switch Bracket 1
4 G081 5316 Interlock Switch 1
5 G081 2212 Fixing Plate - Transfer Belt 2
6 G081 2213 Left Holder - Waste Toner Cartridge 1
7 G081 2214 Interlock Lever 1
8 G081 2231 Interlock Lever Spring 2
9 G081 2215 IH Harness Cover 1
10 G081 2216 Interlock Cover 1
11 G081 2217 Protect Cover 1
12 G081 2218 Right Cover Plastic Strap 1
13 G081 5308 Sensor - Waste Toner Full 1
14 G081 2219 Blind Plate 1
15 G081 2220 Right Holder - Waste Toner 1
16 G081 2221 PCU Guide 1
17 G081 2290 Transfer Belt Tension Unit 1
26 G081 4521 Screw 3x35 1
27 G081 4519 Screw 3x12 14
29 G081 4524 Screw 3x8 1
31 G081 5309 Interlock Switch 1
32 G081 4513 Screw 2.2x16 2
35 G081 4525 Screw 3x8 2
36 G081 2233 Fusing Fan Connector Sheet 1
37 G081 2232 PC Holder Unit 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 5 Parts Location And List
g
3.EXTERIOR 3 (G081/G092)
Note:
Letters shown circled
illustrate associated
locations. These
references help map the
various components to
their correct locations on
this dia
G081/G092 6 Parts Location And List
ram.
3.EXTERIOR 3 (G081/G092)
Index
No.
1 G081 2030 Access Panel 1
2 G081 2031 Engine Board Shield Cover 1
3 G081 5101 Engine Control Board 1
4 G081 2032 Engine Board Large Bracket 1
5 G081 2013 Engine Board Small Bracket 1
6 G081 5210 Fan Motor - DC24V-2.88W 1
7 G081 2014 Fan Motor Duct 1
8 G081 2015 Grounding Plate 1
9 G081 5301 Sensor - Temp.-humidity 1
10 G081 2016 Plate 1
11 G081 5211 Motor - DC24V-8.16W 1
12 G081 2017 Bracket - Paper Pickup Motor 1
13 G081 2018 Paper Pickup Gear 1
15 G081 2020 Duplex Unit Gear 1
16 G081 2021 Inner Cover 1
17 G081 5302 Paper Size Detector 1
18 G081 2022 Transfer Terminal 1
19 G081 2023 Grounding Plate - Fusing Unit 1
20 G081 5303 Sensor - Duplex Unit Jam 1
21 G081 5304 Sensor - Duplex Unit 1
22 G081 2024 Toner Cartridge Holder 1
23 G081 4531 Screw 3x6 2
24 G081 4522 Screw 3x6 26
25 G081 4521 Screw 3x35 4
26 G081 4519 Screw 3x12 21
27 G081 4517 Screw 3x10 1
28 G081 4524 Screw 3x8 1
29 G081 2025 Grounding Plate 1
30 G081 2026 Exit Fg Harness 1
32 G081 2027 Sub Fusing Fan Duct 1
33 G081 5318 Sub Fusing Fan 1
34 G081 2041 Fusing Fan Duct 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 7 Parts Location And List
4.LSU/IH UNIT (G081/G092)
G081/G092 8 Parts Location And List
4.LSU/IH UNIT (G081/G092)
Index
No.
1 G081 2382 Grounding Plate - Laser Unit 1
2 G081 2383 Laser Unit 1
3 G081 2384 Sensor Protector 1
4 G081 2385 IH Shield Cover 1
6 G081 2386 IH Assembly - 120V 1
6 G081 2392 IH Assembly - 230V 1
7 G081 2387 Fusing Unit Lock Lever 2
8 G081 2388 IH Harness Cover 1
9 G081 2389 Cassette Stopper 1
10 G081 2371 Cassette Stopper Roller 1
11 G081 5311 Sensor - Paper Detection - MPT 1
12 G081 5312 Sensor - Home Position - MPT 1
13 G081 2372 Sensor Cover 1
14 G081 2312 Grounding Plate 1
15 G081 4522 Screw 3x6 5
16 G081 4519 Screw 3x12 7
17 G081 4550 Washer 1
18 G081 4517 Screw 3x10 3
19 G081 2373 PCU SUB Guide 1
20 G081 2487 Paper Feed Unit Ass'y 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 9 Parts Location And List
5.FRONT DOOR (G081/G092)
G081/G092 10 Parts Location And List
5.FRONT DOOR (G081/G092)
Index
No.
1 G081 1301 Front Cover Assembly 1
2 G081 1302 Lock Lever Spring 1
3 G081 1303 Lock Lever - Front Cover 1
4 G081 1304 Transfer Roller Holder 1
5 G081 1305 Plastic Belt 1
6 G081 1306 Plate - Transfer Roller 1
7 G081 1307 Spring - Transfer Roller 2
8 G081 1308 Right Bushing - Transfer Roller 1
9 G081 1309 Left Bushing - Transfer Roller 1
10 G081 1310 Paper Guide - Transfer Roller 1
11 G081 4519 Screw 3x12 4
12 G081 2311 Emblem - RIC 1
12 G081 2313 Emblem - GES 1
12 G081 2314 Emblem - NSA 1
12 G081 2315 Emblem - REX 1
12 G081 2316 Emblem - SVN (NA) 1
12 G081 2318 Emblem - GES (NA) 1
12 G081 2334 Emblem - DN - GES 1
12 G081 2335 Emblem - DN - REX 1
12 G081 2336 Emblem - DN - NSA 1
12 G081 2337 Emblem - DN - RIC 1
13 G081 1311 Transfer Roller Assembly 1
14 G081 1313 Front Door Support Plate 1
15 G081 4517 Screw - 3x10 1
16 G081 1314 Grounding Plate 1
17 G081 4542 Screw - 2.6x6 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 11 Parts Location And List
6.PAPER FEED UNIT (G081/G092)
G081/G092 12 Parts Location And List
6.PAPER FEED UNIT (G081/G092)
Index
Index
No.
No.
1 G081 5325 Clutch - Dc24v-3w 1
2 G081 2401 Registration Roller Joint Gear 1
3 G081 2471 Pickup Gear 1
4 G081 2403 Inner Gear 2
5 G081 2404 Outer Gear 1
6 G081 2405 Inner Gear - B 1
7 G081 2255 Bushing 1
8 G081 2407 Gear 1
9 G081 2408 Idle Gear 1
10 G081 2409 Feed Gear 1
11 G081 2410 Ratchet Arm 1
12 G081 2411 Gear Bracket 1
13 G081 5326 Solenoid - DC24V-4.8W 1
14 G081 2412 Actuator - Paper Empty Sensor 1
15 G081 5315 Sensor - Paper Present/Empty 1
16 G081 2413 Actuator - Paper Registration 1
17 G081 2414 Spring 1
18 G081 2415 Bushing 2
19 G081 2416 Spring 2
20 G081 2417 Registration Roller Tension 2
21 G081 2418 Registration Pinch Roller 1
22 G081 2419 Registration Pinch Roller Gear 1
23 G081 2420 Pin 2
24 G081 2421 Registration Roller Gear 1
25 G081 2422 Registration Roller 1
26 G081 2423 Registration Paper Guide 1
27 G081 2424 Pinch Roller 4
28 G081 2425 Pinch Roller Spring 2
29 G081 2426 Pinch Roller Holder 1
30 G081 2450 Paper Guide Spring 1
31 G081 2427 Pinch Roller Shaft 1
32 G081 2428 Pickup Rubber Frame 2
33 G081 2429 Pickup Rubber Surface 2
34 G081 2430 Pickup Roller Shaft 1
35 G081 2431 Pin 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 G081 2432 Paper Feed Roller 1
37 G081 2433 Bushing 1
38 G081 2434 Plastic Washer 1
39 G081 4522 Screw 3x6 1
40 G081 2435 Paper Feed Unit Frame 1
41 G081 2472 Bushing 2
42 G081 5330 Varistor 1
43 G081 2489 Snap Ring - D4 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 13 Parts Location And List
7.BIAS TERMINAL (G081/G092)
G081/G092 14 Parts Location And List
7.BIAS TERMINAL (G081/G092)
Index
No.
1 G081 2205 Bias Terminal Assembly 1
2 G081 2206 Middle Terminal Spring 4
3 G081 2207 Long Terminal Spring 8
4 G081 2208 Short Terminal Spring 4
5 G081 2209 Bias Terminal Plate A 8
6 G081 2210 Bias Terminal Plate B 8
7 G081 4514 Screw 2.3x6 16
8 G081 4533 Charge Harness 1
9 G081 4534 Harness - Charge Output Process 1
10 G081 4535 Harness - Charge Output Ftr 1
11 G081 5422 Harness - Interface 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 15 Parts Location And List
8.TRANSFER BELT TENSION UNIT (G081/G092)
G081/G092 16 Parts Location And List
8.TRANSFER BELT TENSION UNIT (G081/G092)
Index
Index
No.
No.
1 G081 2251 Drive Cam - Waste Toner Cartridge 1
2 G081 2252 Gear - Waste Toner Cartridge 1
3 G081 2253 Planetary Gear - Waste Toner 4
4 G081 2254 Planetary Gear Base 1
5 G081 2255 Bushing 3
6 G081 2256 Cam Clutch Core 1
7 G081 2289 Clutch Spring 1
8 G081 2257 Cam Clutch Slider 1
9 G081 2258 Planetary Gear Base 1
10 G081 2259 Planetary Gear 4
11 G081 2260 Outer Gear 1
12 G081 2261 Double Teeth Gear 1
13 G081 2262 Cam Shaft Bushing 1
14 G081 2263 Plastic Washer 1
15 G081 2264 Cam Solenoid Spring 1
16 G081 2265 Cam Ratchet 1
17 G081 5252 Solenoid - DC24V-15W 1
18 G081 5310 Sensor - Transfer Belt Home 1
19 G081 2266 Base - Transfer Belt Tension Unit 1
20 G081 2267 Bracket - Transfer Belt Tension 1
21 G081 2268 Changer Lever Spring 1
22 G081 2269 Changer Lever 1
23 G081 5253 Solenoid - DC24V-15W 1
24 G081 2270 Left Tension Cam Link 1
25 G081 2271 Left Transfer Roller Cam 1
26 G081 2272 Left Transfer Roller Cam Link 1
27 G081 2273 Bushing 2
28 G081 2274 Plate 2
29 G081 2275 Left 1st Transfer Roller Cam Link 1
30 G081 2276 Left 1st Transfer Roller Cam 1
31 G081 2277 Damper Cam Link Assembly 1
32 G081 2278 Home Tab 1
33 G081 2279 Tension Spring 3
34 G081 2280 Spring Support 3
35 G081 2281 Sub Shaft 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 G081 2282 Pin 6
37 G081 2283 Cam Shaft 1
38 G081 2284 Right 1st Transfer Roller Cam 1
39 G081 2285 Right 1st Transfer Roller Cam Link 1
40 G081 2286 Right Transfer Roller Cam Link 1
41 G081 2287 Right Transfer Roller Cam 1
42 G081 4528 E-ring 1
43 G081 4529 E-ring 5
44 G081 2288 Right Tension Cam Link 1
45 G081 2374 Cam Ratchet Bracket 1
46 G081 2391 Plastic Washer 1
47 G081 2290 Transfer Belt Tension Unit 1
48 G081 2291 Main Stay Support Plate 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 17 Parts Location And List
9.PAPER EXIT (G081/G092)
G081/G092 18 Parts Location And List
9.PAPER EXIT (G081/G092)
Index
No.
1 G081 2375 Paper Exit Roller Coupling Gear 1
2 G081 2376 Rotation Switching Gear - A 1
3 G081 2377 Rotation Switching Gear - B 1
4 G081 2378 Outer Gear 4
5 G081 2379 Intermediate Gear 1
6 G081 2380 Double Teeth Gear 1
7 G081 2403 Inner Gear 4
8 G081 2381 Coupling Gear 4
9 G081 2338 Switching Lever Spring 1
10 G081 2339 Switching Lever 1
11 G081 5324 Solenoid - DC24V-3.6W 1
12 G081 2340 Paper Exit Gear Cover 1
14 G081 2342 Holder - Paper Exit Roller 1
15 G081 2343 Pinch Roller - A 6
16 G081 2344 Pinch Roller Spring 8
17 G081 2345 Pinch Roller - B 2
18 G081 2346 Star Rubber 2
19 G081 2347 Discharge Brush 1
20 G081 2348 Exit Paper Guide 1
21 G081 2349 Spring 1
22 G081 2350 Actuator - Paper Full Sensor 1
23 G081 5313 Sensor - Paper Jam 1
24 G081 5314 Sensor - Paper Full/Jam 1
25 G081 2351 Paper Exit Roller 1
26 G081 2352 Exit Roller Rubber 4
27 G081 4522 Screw 3x6 2
28 G081 4519 Screw 3x12 5
29 G081 2353 Paper Stopper - B 2
30 G081 2354 Paper Stopper - A 1
31 G081 2355 Paper Exit Roller Assembly 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 19 Parts Location And List
10.TONER CARTRIDGE DRIVE (G081/G092)
G081/G092 20 Parts Location And List
10.TONER CARTRIDGE DRIVE (G081/G092)
Index
No.
1 G081 2142 Shaft - Toner Cartridge Drive 1
2 G081 2201 Base - Toner Cartridge Drive 1
3 G081 5306 Sensor - Toner Empty 1
4 G081 2202 Gear - Toner Cartridge Drive 3
5 G081 2203 Gear - Toner Cartridge Drive 1
6 G081 2204 Grounding Plate 1
7 G081 4528 E-ring 2
8 G081 4552 Washer 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 21 Parts Location And List
11.FUSING UNIT (G081/G092)
G081/G092 22 Parts Location And List
11.FUSING UNIT (G081/G092)
Index
Index
No.
No.
1 G081 4001 Paper Guide 1
2 G081 4002 Left Spring - Guide Plate 1
3 G081 4003 Right Spring - Guide Plate 1
4 G081 4004 Upper Stay 1
5 G081 4005 Guide Support Band 2
6 G081 4006 Actuator - Fusing 1
7 G081 4007 Actuator - Support Plate 1
8 G081 4008 Actuator Spring 1
9 G081 4009 Actuator Spring B 1
10 G081 4010 Paper Separator 1
11 G081 4011 Right Spring - Separator 1
12 G081 4012 Left Spring - Separator 1
13 G081 4013 Fusing Belt 1
14 G081 4014 Heat Roll Flange 2
15 G081 4015 Support Ring 2
16 G081 4016 Heat Roller 1
17 G081 4017 Heat Roller Shaft 1
18 G081 4018 Thermistor Ass'y 1
19 G081 4019 Thermistor Holder 2
20 G081 4020 Thermistor Stay 1
21 G081 4021 Fusing Roller 1
22 G081 4022 Pressure Roller 1
23 G081 4023 Heat Roller Bearing 2
24 G081 4024 Heat Roller Bush 2
26 G081 4026 Pressure Spring 1
27 G081 4027 Right Frame 1
28 G081 4028 Right Pressure Plate 1
29 G081 4029 Right Release Lever 1
30 G081 4030 Plastic Washer 1
31 G081 4031 Left Pressure Plate 1
32 G081 4032 Left Release Lever 1
33 G081 4033 Left Frame 1
34 G081 4034 Left Grounding Plate 1
35 G081 4035 Pressure Roll Gear Z30 1
36 G081 4036 Belt Tension Spring 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
37 G081 4037 Gear - Z18 1
38 G081 4038 Rotation Plate 1
39 G081 4039 Fusing Board 1
40 G081 4040 Harness - Fusing 1
41 G081 4041 Stay Stopper 2
42 G081 4042 Right Grounding Plate 1
43 G081 4043 Fusing Base 1
44 G081 4044 Base Shutter 1
45 G081 4045 Right Shutter Spring 1
46 G081 4046 Left Shutter Spring 1
47 G081 4538 E-ring 2
48 G081 4529 E-ring 4
49 G081 2282 Pin 2
50 G081 4540 Screw - 2.6x10 1
51 G081 4555 Washer 1
52 G081 4517 Screw 3x10 4
53 G081 4539 Screw 2x8 1
54 G081 4554 Washer 1
55 G081 4047 Paper Guide Plate 1
56 G081 4048 Separator Holder 1
57 G081 4543 Screw - 3x5 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 23 Parts Location And List
12.DRIVE SECTION (G081/G092)
G081/G092 24 Parts Location And List
12.DRIVE SECTION (G081/G092)
Index
Index
No.
No.
1 G081 5212 Motor - DC24V-40.56W 1
2 G081 5213 Motor - DC24V-31.63W 1
3 G081 2101 Clutch Arm 1
4 G081 5251 Solenoid - DC24V-19.2W 1
5 G081 2102 Clutch Spring 1
6 G081 2103 Feed Idle Gear 1
7 G081 2104 Fuser Idle Gear 1
8 G081 2105 Cam Gear 1
9 G081 2106 Left - PCU Idle Gear 4
10 G081 2107 Right - PCU Idle Gear 1
11 G081 2108 Left - Transfer Belt Idle Gear 2
12 G081 2109 Right - Transfer Belt Idle Gear 1
13 G081 2110 PCU Gear 4
14 G081 2111 Developer Coupling 4
15 G081 2112 Developer Spring 4
16 G081 2113 Developer Gear 4
17 G081 2114 Developer Bushing 4
18 G081 2115 Grounding Plate - Transfer Belt 1
19 G081 2116 CMY Home Lever 1
20 G081 2117 PCU Home Spring 1
21 G081 2118 PCU Home Lever 1
22 G081 5305 Sensor - PCU Cam Home Position 1
23 G081 2119 Bushing - Transfer Belt 1
24 G081 2120 Bracket - Drive Unit 1
25 G081 2121 Feed Pulley Gear 1
26 G081 2122 Pulley Gear - Transfer Belt 1
27 G081 2123 Feed Belt 1
28 G081 2124 Tension Roller 1
29 G081 2125 Flange - Feed Pulley Gear 1
30 G081 2126 Flange - Transfer Belt Pulley Gear 1
31 G081 2127 CMY Change Gear 2
32 G081 2128 Coupling Gear 1
33 G081 2129 Outer Gear 1
34 G081 2130 Planetary Gear 1
35 G081 2131 Planetary Gear Bracket 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
36 G081 2132 Inner Gear 1
37 G081 2133 Tension Roller Bracket 1
38 G081 2134 Bk Change Gear 1
39 G081 2135 Hopper Change Gear 1
40 G081 2136 Coupling Gear 1
41 G081 2137 Hopper Gear A 2
42 G081 2138 Hopper Gear B 2
43 G081 2139 Hopper Gear C 1
44 G081 2141 Tension Roller Spring 1
45 G081 4522 Screw 3x6 8
46 G081 4532 Screw 3x8 16
47 G081 4530 Screw 2.6x6 2
48 G081 4524 Screw 3x8 1
49 G081 4529 E-ring 1
50 G081 2143 Main Drive Unit Ass'y 1
51 G081 4541 Screw - 2.6x10 4
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 25 Parts Location And List
13.ENGINE CONTROL BOARD (G081/G092)
G081/G092 26 Parts Location And List
13.ENGINE CONTROL BOARD (G081/G092)
Index
No.
1 G081 5401 Harness - CN1/CN2/CN3 1
2 G081 5432 Harness - CN4 1
3 G081 5102 Engine EEPROM 1
4 G081 5404 Harness - CN11 1
5 G081 5405 Harness - CN7 1
6 G081 5406 Harness - CN9 1
7 G081 5407 Harness - CN10 1
8 G081 5408 Harness - CN30 1
9 G081 5409 Harness - CN12 1
10 G081 5410 Harness - CN17 1
11 G081 5411 Harness - CN15 1
12 G081 5412 Harness - CN39 1
13 G081 5413 Harness - CN33 1
14 G081 5414 Harness - CN35 1
15 G081 5415 Harness - CN34 1
16 G081 5416 Harness - CN8 1
17 G081 5417 Harness - CN13 1
18 G081 5418 Harness - CN14 1
19 G081 5419 Harness - CN18 1
20 G081 5420 Harness - CN23 1
21 G081 5421 Harness - CN29 1
23 G081 5423 Harness - CN5 1
24 G081 5424 Harness - CN27 1
25 G081 5425 Harness - CN28 1
26 G081 5426 Harness - CN32 1
30 G081 5202 Ferrite Core 1
31 G081 5203 Ferrite Core 1
32 G081 5204 Ferrite Core 1
33 G081 5205 Ferrite Core 1
34 G081 5206 Ferrite Core 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 27 Parts Location And List
14.ELECTRICAL (G081/G092)
Note:
Letters shown circled illustrate
associated locations. These references
help map the various components to
their correct locations on this diagram.
G081/G092 28 Parts Location And List
14.ELECTRICAL (G081/G092)
Index
Index
No.
No.
1 G081 5121 High Voltage Board 1
2 G081 2436 Cover - High Voltage Board 1
3 G081 2437 Grounding Plate 1
4 G081 2438 Grounding Plate 2
5 G081 2439 Cover - Main Control Board 1
6 G081 2440 Base - Main Control Board 1
7 G081 2441 Guide Rail - MCB 2
8 G081 5602 Main Controller Board (G081) 1
8 G081 5632 Main Controller Board (G092) 1
9 G081 5853 Grip - MCB Bracket 1
10 G081 2442 Cover - Power Supply Unit 1
11 G081 2443 Duct - Power Supply Unit 1
12 G081 5131 IH Power Supply Board (120V) 1
12 G081 5132 IH Power Supply Board (230V) 1
13 G081 5151 Power Supply Unit (120V) 1
13 G081 5154 Power Supply Unit (230V) 1
14 G081 5430 Harness 1
15 G081 5431 Harness -120V 1
15 G081 5433 Harness -230V 1
16 G081 2444 Base - Power Supply Unit 1
17 G081 2445 Spring 1
18 G081 5317 Sensor - Color Registration 1
19 G081 2446 Harness 1
20 G081 2447 Registration Sensor Shutter 1
21 G081 2448 Bottom Stay 1
22 G081 2449 Rubber Foot 4
23 G081 4522 Screw 3x6 37
24 G081 4524 Screw 3x8 1
26 G081 4519 Screw 3x12 17
27 0451 3005B Tapping Screw - M3x5 7
28 G081 4551 Washer 1
31 G081 2488 Ground Plate - PSU 1
32 G081 5436 Harness - Str 1
33 G069 6006 Knob Screw 2
34 G081 5851 Stay - MCB Bracket (G081) 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
34 G081 5871 Stay - MCB Bracket (G092) 1
35 G081 5852 Bracket - Main Controller Board 1
36 G330 5700 SDRAM 64MB 133 1
37 B525 5660 USB Board 1
38 B463 5700 IEEE 1284 Board 1
39 G081 5201 Thermistor 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 29 Parts Location And List

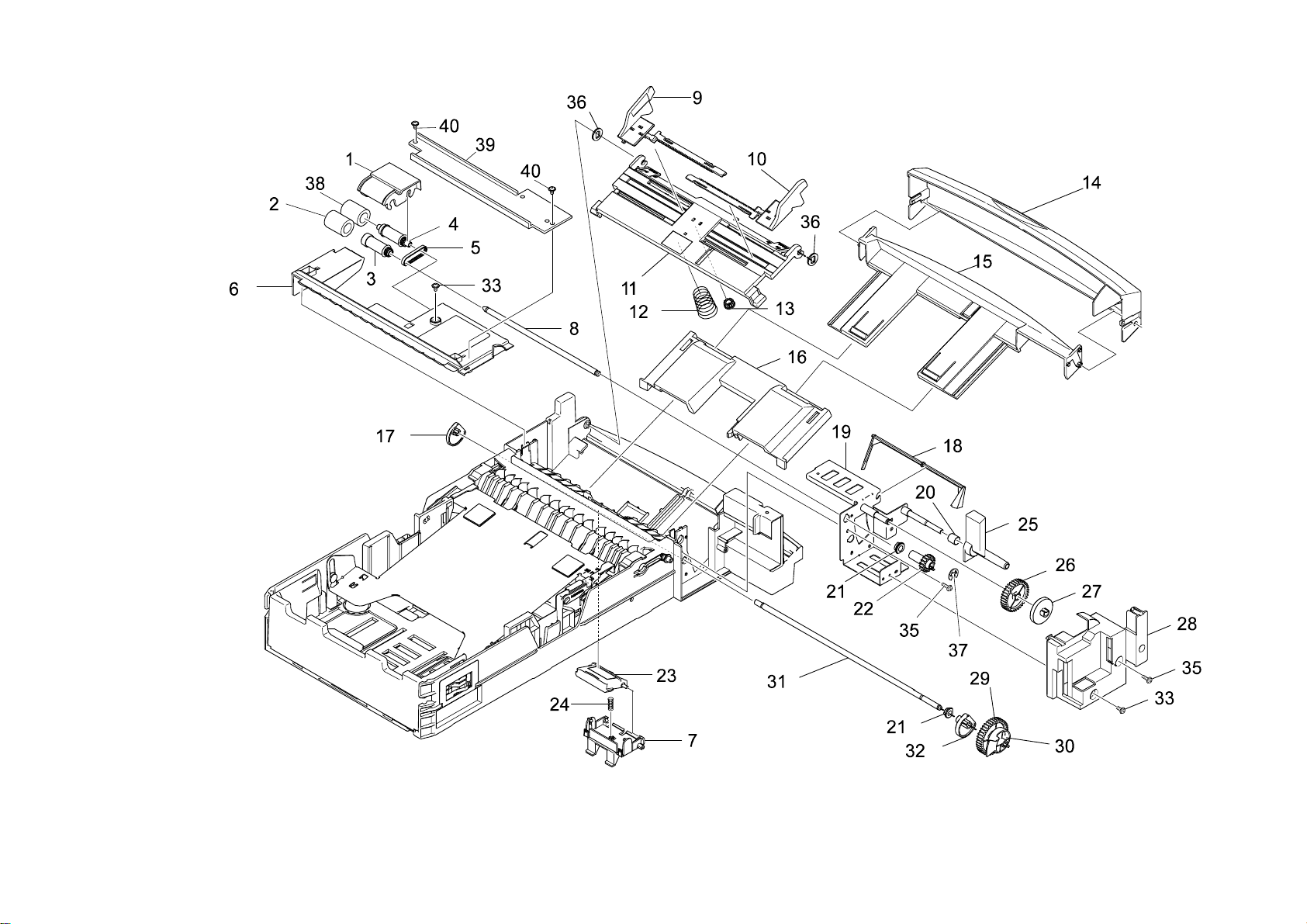

15.CASSETTE 1 (G081/G092)
G081/G092 30 Parts Location And List
15.CASSETTE 1 (G081/G092)
Index
Index
No.
No.
1 G081 2452 Pickup Roller Holder 1
2 G081 2453 Pickup Roller Surface 1
3 G081 2481 One Way Clutch 1
4 G081 2454 Pick-up Roller 1
5 G081 2455 Belt - Pickup Roller 1
6 G081 2456 Paper Guide - Upper Cassette 1
7 G081 2457 Separation Pad Holder 1
8 G081 2458 Pickup Roller Shaft 1
9 G081 2460 Right Paper Guide 1
10 G081 2459 Left Paper Guide 1
11 G081 2461 Paper Holder 1
12 G081 2462 Paper Holder Spring 1
13 G081 2463 Pinion Gear 1
14 G081 2464 Cover - Main Cassette 1
15 G081 2465 Paper Tray 1
16 G081 2466 Paper Tray Base 1
17 G081 2467 Left Cam 1
18 G081 2468 Actuator - Paper Empty Sensor 1
19 G081 2469 Cassette Gear Bracket 1
20 G081 2470 Spring 1
21 G081 2472 Bushing 2
22 G081 2473 Roller Gear 1
23 G081 2474 Separation Pad 1
24 G081 2475 Separation Pad Spring 1
25 G081 2476 Tray Protector 1
26 G081 2477 Idle Gear 1
27 G081 2478 Gear Spacer 1
28 G081 2479 Gear Cover 1
29 G081 2480 Cam Gear 1
30 G081 2482 Roller Position Arm 1
31 G081 2483 Cam Shaft 1
32 G081 2484 Right Cam 1
33 G081 4522 Screw 3x6 1
35 G081 4517 Screw 3x10 2
36 G081 2485 Friction Pad 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
37 G081 4538 E-ring 1
38 G081 2292 Pick-up Roller Surface 1
39 G081 2490 Paper Guide Support 1
40 G343 1113 Screw - 3x6 2
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 31 Parts Location And List
16.CASSETTE 2 (G081/G092)
G081/G092 32 Parts Location And List
16.CASSETTE 2 (G081/G092)
Index
No.
1 G081 2501 Paper Guide - Paper Feed Unit 1
2 G081 2502 Cassette Base Plate 1
3 G342 1136 Spring - Base Plate 2
4 G081 2504 Side Pressure Spring 1
5 G081 2505 Left Corner Separator 1
6 G081 2506 Left Paper Side Guide 1
7 G081 2507 Spring 2
8 G081 2508 Slider 2
9 G081 2509 Left Lift Plate 1
10 G081 2510 Bushing 2
11 G081 2511 Plastic Washer 2
12 G081 2512 Paper Size Selector 1
13 G081 2513 Right Lift Plate 1
14 G081 2514 Cassette Base 1
15 G081 2515 Right Corner Separator 1
16 G081 2516 Right Paper Side Guide 1
17 G081 2517 Rack 2
18 G081 2518 Pinion Gear 1
19 G081 2519 Paper Size Adjuster 1
20 G081 4523 Screw 3x8 1
21 G081 2520 Paper Size Selector Support 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 33 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 34 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 35 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 36 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 37 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 38 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 39 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
G081/G092 40 Parts Location And List
17.MAIN CONTROL BOARD (G081/G092)
Index
Index
No.
No.
1 G081 5602 Main Control Board 1
2 G081 5785 IC - COMIC 1
3 G081 5790 IC - KLAVIER21 1
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
Index
Index
No.
No.
101 1102 7615 Connector - B8B-XH-A
102 1102 8153 Connector - FCN-568P068-G/05A-V4
103 1102 8357 Connector - 52777-0809
104 1102 8584 Connector - 52777-0409
105 1102 8631 Connector
106 1102 8829 Connector - DM-1D4-N3210
107 1102 8832 Connector - DM-3D4-B3210
108 1102 8938 Connector - 128A-096P3A-L14A
109 1102 9091 Connector - 406549-1
110 1102 9092 Connector - KKS-RTR44-323N
111 1104 0764 IC Socket - 8 PIN
112 1104 0771 IC Socket - 28PIN
113 1107 0605 Fuse-250v/1a
114 1204 1422 DIP Switch - 51D-0401
115 1400 0801 Transistor - DTC113ZUA
116 1401 1209 IC - HAT2093R
117 1402 1343 Diode - RB106L-40
118 1402 1547 Diode - RB491D
119 1407 2187 TTLIC - SN74LS07NS
120 1407 5275 CMOS Logic - 74LVCHR16245A TSSOP
121 1407 5281 IC - EEPROM-I2C BUS 1K SOP
122 1407 5300 CMOS Logic - 74LVC16244A TSSOP
123 1407 5309 IC - MICROWIRE BUS 1K DIP
124 1407 5320 CMOS Logic 74lvc374a TSSOP
125 1407 5321 CMOS Logic - 74LVCH16374A TSSOP
126 1407 5334 IC - CMOS LOGIC 74LVC244A TSSOP
127 1407 5335 RAM - Stk12c68-p55
128 1407 5353 IC - SN74LV244APW
129 1407 5364 IC - SN74AHCT244PW
130 1407 5366 IC - 74LVC08A TSSOP
131 1407 5511 IC - SN74LVC14APW
132 1407 5518 IC - SN74AHCT125PW
133 1407 5520 IC - SN74LVC125APW
134 1407 5604 IC - SN74LVC16245ADGG
135 1407 5674 IC - LVDS- DP83846AVHG
Part No.
Part No.
Description
Description
Q’ty Per
Q’ty Per
Assembly
Assembly
G081/G092 41 Parts Location And List
Index
No.
136 1407 5717 IC - ICS960001AF
137 1407 5772 IC - SN74AHC2G32HDCT
138 1407 5883 IC - RM7065A-400T-REV1.4
139 1408 1388 Detector Rn5vd28c
140 1408 1398 Detector - RN5VD42A
141 1408 1565 IC - RN5VD21A
142 1408 1596 IC - RN5VD15A
143 1408 1668 IC - Regulator-R1170H251B
144 1408 1761 IC - SI-8011NTS
145 1503 0842 Oscillator - 14.31818MHZ
146 1503 0959 Crystal Oscillator - 25MHZ
147 1601 7752 Resistor Array - 10K Ω ±5%
148 1601 7759 Resistor Array - 100K Ω ±5% 0.06
149 1601 7760 Resistor Array
150 1601 7781 Resistor - 10 Ω ±5%
151 1601 7867 Resistor - 33 Ω ±5% 1/16W
152 1601 7877 Resistor Array 4.7k Ω ±5% 1/32w
153 1601 7879 Resistor - 22 Ω ±5% 1/16W
154 1601 7898 Resistor Array
155 1601 7913 Resistor 22 Ω ±5% 1/32w
156 1601 7915 Resistor Array - 33 Ω ±5% 1/16W
157 1604 4840 Capacitor - 100µF±20% 16V
158 1604 4847 Capacitor - 3.3µF±20% 50V
159 1604 4998 Capacitor - 150µF±20% 4V
160 1604 5008 Capacitor - 100µF±20% 4V
161 1604 5031 Capacitor - 470µF±20% 16V
162 1605 0832 Capacitor - 8PF ±0.5pF 50V
163 1605 1025 Capacitor - 1000pF ±10% 2KV
164 1605 1072 Capacitor - 4.7µF±10% 16V
165 1605 1162 Capacitor - 10µF+80 -20% 10V
166 1607 0987 Inductor - Tla-6t103
167 1607 1206 Filter - Acc2012l-250
168 1607 1228 Inductor - Slf7045-4r7m2r0
169 1607 1296 Filter - Mmz1608s601a
170 1610 1486 Resistor - 2KΩ ±0.5% 1/16W
Part No.
Description
Q’ty Per
Assembly
Index
No.
171 1610 1506 Resistor - 1K Ω ±0.5% 1/16W
172 1610 1630 Resistor - 0.05 Ω ±5% 1/2W
173 1610 1681 Resistor - 1.27K Ω ±0.5% 1/10W
174 1632 0000 Resistor - 0 Ω 1/8W
175 1632 4999 Resistor 49.9Ω ±1% 1/8w
176 1632 5499 Resistor - 54.9 Ω ±1% 1/8W
177 1634 0000 Resistor - 0 Ω 1/16W
178 1644 0100 Capacitor - 10µF±20% 10V
179 1644 6101 Capacitor - 100µF±20% 6.3V
180 1650 4100 Resistor - 10Ω ±5% 1/10W
181 1650 4101 Resistor - 100Ω±5%1/10W
182 1650 4102 Resistor - 1KΩ ±5% 1/10W
183 1650 4103 Resistor - 10KΩ ±5% 1/10W
184 1650 4104 Resistor - 100KΩ±5%1/10W
185 1650 4109 Resistor - 1Ω ±5% 1/10W
186 1650 4122 Resistor - 1.2KΩ ±5% 1/10W
187 1650 4150 Resistor - 15Ω ±5% 1/10W
188 1650 4200 Resistor - 20Ω ±5% 1/10W
189 1650 4220 Chip Resistor - 22Ω ±5% 1/10w
190 1650 4222 Resistor - 2.2KΩ±5%1/10W
191 1650 4271 Resistor - 270Ω±5%1/10W
192 1650 4330 Chip Resistor - 33Ω ±5% 1/10w
193 1650 4332 Resistor - 3.3KΩ±5%1/10W
194 1650 4470 Resistor - 47Ω±5%1/10W
195 1650 4472 Resistor - 4.7KΩ ±5% 1/10W
196 1650 4473 Resistor - 47KΩ±5%1/10W
197 1650 4512 Resistor - 5.1KΩ±5%1/10W
198 1650 4561 Resistor - 560Ω ±5% 1/10W
199 1650 4680 Resistor - 68Ω±5%1/10W
200 1650 4681 Resistor - 680Ω ±5% 1/10W
201 1650 4750 Resistor - 75Ω±5%1/10W
202 1650 4911 Resistor - 910Ω±5%1/10W
203 1654 9311 Resistor - 9.31KΩ ±1% 1/10W
204 1660 0100 Capacitor - 10PF ±0.5pF 50V
205 1660 2101 Capacitor - 100pF - ±10% - 50V
Part No.
Description
Q’ty Per
Assembly
G081/G092 42 Parts Location And List
Index
No.
206 1660 2150 Capacitor - 15pF ±5% 50V
207 1660 2220 Capacitor - 22pF ±20% 35V
208 1660 2221 Capacitor - 220pF +80-20% 50V
209 1660 2330 Capacitor - 33pF - ±5% - 50V
210 1660 2471 Capacitor - 470pF - ±5% - 50V
211 1660 4102 Capacitor - 1000pF ±10% 50V
212 1660 6103 Capacitor - 10000pF - +80%-20%50V
213 1660 6473 Capacitor - 47000pF +80,-20% 50V
214 1660 8104 Capacitor - 0.1µF+80-20% 25V
215 1906 0017 Flash Memory - Lh28f320bj-pbtl70
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 43 Parts Location And List
18.DOCUMENT & SPECIAL TOOLS (G081/G092)
G081/G092 44 Parts Location And List
18.DOCUMENT & SPECIAL TOOLS (G081/G092)
Index
No.
* G081 8719 Sheet - Color Chart 1
1 N803 6701 Flash Memory Card - 4MB (PCMCIA Card) 1
2 G021 9350 Loopback Connector - Parallel 1
3 G081 9310 Color PCU Skew Adjustment Knob 1
4 G004 9668 Grease: KS660: Shin-Etsu 1
5 5203 9501 Grease 501 1
6 G081 6507 Manuals For This Printer - G081 (NA) 1
7 G081 6527 Quick Installation Guide - G081 (NA) 1
8 G081 6537 Option Setup Guide - G081 (NA) 1
9 G081 6557 Maintenance Guide - G081 (NA) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
G081/G092 45 Parts Location And List
G081/G092
PARTS INDEX
This section instructs you as to the numbers and names of parts on this machine
Page and
Page and
Parts Index
Part No.
G081 1202 Left Cover 3 - 14
G081 1203 Right Cover 3 - 15
G081 1204 Top Cover 3 - 5
G081 1205 Rear Cover (G081-17) 3 - 4
G081 1206 Cover - Option Paper Unit Harness 3 - 7
G081 1207 Cassette Cover 3 - 8
G081 1208 LCD Panel Cover 3 - 1
G081 1209 Rear Cover (G092-22) 3 - 4
G081 1211 Left Pivot - Front Cover 3 - 9
G081 1212 Front Support Lever 3 - 10
G081 1213 Right - Pivot - Front Cover 3 - 11
G081 1214 Lever Spring 3 - 12
G081 1215 Toner Cartridge Cover 3 - 13
G081 1217 Cartridge Lever B 3 - 17
G081 1218 Cartridge Lever A 3 - 18
G081 1219 Right Cover Hook 3 - 19
G081 1220 Rear Cover (G092-27) 3 - 4
G081 1222 Stopper Base 3 - 23
G081 1223 Stopper Guide 3 - 2
G081 1224 Rear Cover (G081-27) 3 - 4
G081 1225 Rear Cover (G081-22) 3 - 4
G081 1301 Front Cover Assembly 11 - 1
G081 1302 Lock Lever Sprin g 11 - 2
G081 1303 Lock Lever - Front Cover 11 - 3
G081 1304 Transfer Roller Holder 11 - 4
G081 1305 Plastic Belt 11 - 5
G081 1306 Plate - Transfer Roller 11 - 6
G081 1307 Spring - Transfer Roller 11 - 7
G081 1308 Right Bushing - Tr ansfer Roller 11 - 8
G081 1309 Left Bushing - Transfer Roller 11 - 9
G081 1310 Paper Guide - Transfer Roller 11 - 10
G081 1311 Transfer Roller Assembly 11 - 13
G081 1313 Front Door Support Plate 11 - 14
G081 1314 Grounding Plate 11 - 16
G081 1940 Operation Panel - NA 3 - 3
Index No.
Part No. Description
G081 2013 Engine Board Small Bracket 7 - 5
G081 2014 Fan Motor Duct 7 - 7
G081 2015 Grounding Plate 7 - 8
G081 2016 Plate 7 - 10
G081 2017 Bracket - Paper Pickup Motor 7 - 12
G081 2018 Paper Pickup Gear 7 - 13
G081 2020 Duplex Unit Gear 7 - 15
G081 2021 Inner Cover 7 - 16
G081 2022 Transfer Terminal 7 - 18
G081 2023 Grounding Plate - Fusing Unit 7 - 19
G081 2024 Toner Cartridge Holder 7 - 22
G081 2025 Grounding Plate 7 - 29
G081 2026 Exit Fg Harness 7 - 30
G081 2027 Sub Fusing Fan Duct 7 - 32
G081 2030 Access Panel 7 - 1
G081 2031 Engine Board Shield Cover 7 - 2
G081 2032 Engine Board Large Bracket 7 - 4
G081 2041 Fusing Fan Duct 7 - 34
G081 2101 Clutch Arm 25 - 3
G081 2102 Clutch Spring 25 - 5
G081 2103 Feed Idle Gear 25 - 6
G081 2104 Fuser Idle Gear 25 - 7
G081 2105 Cam Gear 25 - 8
G081 2106 Left - PCU Idle Gear 25 - 9
G081 2107 Right - PCU Idle Gear 25 - 10
G081 2108 Left - Transfer Belt Idle Gear 25 - 11
G081 2109 Right - Transfer Belt Idle Gear 25 - 12
G081 2110 PCU Gear 25 - 13
G081 2111 Developer Coupling 25 - 14
G081 2112 Developer Spring 25 - 15
G081 2113 Developer Gear 25 - 16
G081 2114 Developer Bushing 25 - 17
G081 2115 Grounding Plate - Transfer Belt 25 - 18
G081 2116 CMY Home Lever 25 - 19
G081 2117 PCU Home Spring 25 - 20
Description
Index No.
G081/G092 2 Parts Index
Page and
Page and
Part No.
G081 2118 PCU Home Lever 25 - 21
G081 2119 Bushing - Transfer Belt 25 - 23
G081 2120 Bracket - Drive Unit 25 - 24
G081 2121 Feed Pulley Gear 25 - 25
G081 2122 Pulley Gear - Transfer Belt 25 - 26
G081 2123 Feed Belt 25 - 27
G081 2124 Tension Roller 25 - 28
G081 2125 Flange - Feed Pulley Gear 25 - 29
G081 2126 Flange - Transfer Belt Pulley Gear 25 - 30
G081 2127 CMY Change Gear 25 - 31
G081 2128 Coupling Gear 25 - 32
G081 2129 Outer Gear 25 - 33
G081 2130 Planetary Gear 25 - 34
G081 2131 Planetary Gear Bracket 25 - 35
G081 2132 Inner Gear 25 - 36
G081 2133 Tension Roller Bracket 25 - 37
G081 2134 Bk Change Gear 25 - 38
G081 2135 Hopper Change Gear 25 - 39
G081 2136 Coupling Gear 25 - 40
G081 2137 Hopper Gear A 25 - 41
G081 2138 Hopper Gear B 25 - 42
G081 2139 Hopper Gear C 25 - 43
G081 2141 Tension Roller Spring 25 - 44
G081 2142 Shaft - Toner Cart ridge Drive 21 - 1
G081 2143 Main Drive Unit Ass'y 25 - 50
G081 2201 Base - Toner Cartridge Drive 21 - 2
G081 2202 Gear - Toner Cartridge Drive 21 - 4
G081 2203 Gear - Toner Cartridg e Drive 21 - 5
G081 2204 Grounding Plate 21 - 6
G081 2205 Bias Terminal Assembly 15 - 1
G081 2206 Middle Terminal Spring 15 - 2
G081 2207 Long Terminal Spring 15 - 3
G081 2208 Short Terminal Spring 15 - 4
G081 2209 Bias Terminal Plate A 15 - 5
G081 2210 Bias Terminal Plate B 15 - 6
Index No.
Part No. Description
G081 2211 Interlock Switch Bracket 5 - 3
G081 2212 Fixing Plate - Transfer Belt 5 - 5
G081 2213 Left Holder - Was te Toner Cartridge 5 - 6
G081 2214 Interlock Lever 5 - 7
G081 2215 IH Harnes s Cover 5 - 9
G081 2216 Interlock Cover 5 - 10
G081 2217 Protect Cover 5 - 11
G081 2218 Right Cover Plastic Strap 5 - 12
G081 2219 Blind Plate 5 - 14
G081 2220 Right Holder - Waste Toner 5 - 15
G081 2221 PCU Guide 5 - 16
G081 2231 Interlock Lever Spring 5 - 8
G081 2232 PC Holder Unit 5 - 37
G081 2233 Fusing Fan Connector Sheet 5 - 36
G081 2251 Drive Cam - Waste Toner Cartridge 17 - 1
G081 2252 Gear - Waste Toner Cartridge 17 - 2
G081 2253 Planetary Gear - Waste Toner 17 - 3
G081 2254 Planetary Gear Base 17 - 4
G081 2255 Bushing 17 - 5
G081 2255 Bushing 13 - 7
G081 2256 Cam Clutch Core 17 - 6
G081 2257 Cam Clutch Slider 17 - 8
G081 2258 Planetary Gear Base 17 - 9
G081 2259 Planetary Gear 17 - 10
G081 2260 Outer Gear 17 - 11
G081 2261 Double Teeth Gear 17 - 12
G081 2262 Cam Shaft Bushing 17 - 13
G081 2263 Plastic Washer 17 - 14
G081 2264 Cam Solenoid Spring 17 - 15
G081 2265 Cam Ratchet 17 - 16
G081 2266 Base - Transfer Belt Tension Unit 17 - 19
G081 2267 Bracket - Transfer Belt Tension 17 - 20
G081 2268 Changer Lever Spring 17 - 21
G081 2269 Changer Lever 17 - 22
G081 2270 Left Tension Cam Link 17 - 24
Description
Index No.
G081/G092 3 Parts Index
Page and
Page and
Part No.
G081 2271 Left Transfer Roller Cam 17 - 25
G081 2272 Left Transfer Roller Cam Link 17 - 26
G081 2273 Bushing 17 - 27
G081 2274 Plate 17 - 28
G081 2275 Left 1st Transfer Roller Cam Link 17 - 29
G081 2276 Left 1st Transfer Roller Cam 17 - 30
G081 2277 Damper Cam Link Assembly 17 - 31
G081 2278 Home Tab 17 - 32
G081 2279 Tension Spring 17 - 33
G081 2280 Spring Support 17 - 34
G081 2281 Sub Shaft 17 - 35
G081 2282 Pin 17 - 36
G081 2282 Pin 23 - 49
G081 2283 Cam Shaft 17 - 37
G081 2284 Right 1st Transfer Roller Cam 17 - 38
G081 2285 Right 1st Transfer Roller Cam Link 17 - 39
G081 2286 Right Transfer Roller Cam Link 17 - 40
G081 2287 Right Transfer Roller Cam 17 - 41
G081 2288 Right Tension Cam Link 17 - 44
G081 2289 Clutch Spring 17 - 7
G081 2290 Transfer Belt Tension Unit 5 - 17
G081 2290 Transfer Belt Tension Unit 17 - 47
G081 2291 Main Stay Support Plate 17 - 48
G081 2292 Pick-up Roller Surface (Bypass) 31 - 38
G081 2311 Emblem - RIC 11 - 12
G081 2312 Grounding Plate 9 - 14
G081 2313 Emblem - GES 11 - 12
G081 2314 Emblem - NSA 11 - 12
G081 2315 Emblem - REX 11 - 12
G081 2316 Emblem - SVN (NA) 11 - 12
G081 2318 Emblem - GES (NA) 11 - 12
G081 2334 Emblem - DN - GES 11 - 12
G081 2335 Emblem - DN - REX 11 - 12
G081 2336 Emblem - DN - NSA 11 - 12
G081 2337 Emblem - DN - RIC 11 - 12
Index No.
Part No. Description
G081 2338 Switching Lever Spring 19 - 9
G081 2339 Switching Lever 19 - 10
G081 2340 Paper Exit Gear Cover 19 - 12
G081 2342 Holder - Paper Exit Roller 19 - 14
G081 2343 Pinch Roller - A 19 - 15
G081 2344 Pinch Roller Spring 19 - 16
G081 2345 Pinch Roller - B 19 - 17
G081 2346 Star Rubber 19 - 18
G081 2347 Discharge Brush 19 - 19
G081 2348 Exit Paper Guide 19 - 20
G081 2349 Spring 19 - 21
G081 2350 Actuator - Paper Full Sensor 19 - 22
G081 2351 Paper Exit Roller 19 - 25
G081 2352 Exit Roller Surface 19 - 26
G081 2353 Paper Stopper - B 19 - 29
G081 2354 Paper Stopper - A 19 - 30
G081 2355 Paper Exit Roller Assembly 19 - 31
G081 2371 Cassette Stopper Roller 9 - 10
G081 2372 Sensor Cover 9 - 13
G081 2373 PCU SUB Guide 9 - 19
G081 2374 Cam Ratchet Bracket 17 - 45
G081 2375 Paper Exit Roller Joint Gear 19 - 1
G081 2376 Rotation Switching Gear - A 19 - 2
G081 2377 Rotation Switching Gear - B 19 - 3
G081 2378 Outer Gear 19 - 4
G081 2379 Intermediate Gear 19 - 5
G081 2380 Double Teeth Gear 19 - 6
G081 2381 Coupling Gear 19 - 8
G081 2382 Grounding Plate - Laser Unit 9 - 1
G081 2383 Laser Unit 9 - 2
G081 2384 Sensor Protector 9 - 3
G081 2385 IH Shield Cover 9 - 4
G081 2386 IH Assembly - 120V 9 - 6
G081 2387 Fusing Unit Lock Lever 9 - 7
G081 2388 IH Harness Cover 9 - 8
Description
Index No.
G081/G092 4 Parts Index
Page and
Page and
Part No.
G081 2389 Cassette Stopper 9 - 9
G081 2391 Plastic Washer 17 - 46
G081 2392 IH Assembly - 230V 9 - 6
G081 2401 Registration Roller Coupling Gear 13 - 2
G081 2403 Inner Gear 13 - 4
G081 2403 Inner Gear 19 - 7
G081 2404 Outer Gear 13 - 5
G081 2405 Inner Gear - B 13 - 6
G081 2407 Gear 13 - 8
G081 2408 Idle Gear 13 - 9
G081 2409 Feed Gear 13 - 10
G081 2410 Ratchet Arm 13 - 11
G081 2411 Gear Bracket 13 - 12
G081 2412 Actuator - Paper Empty Sensor 13 - 14
G081 2413 Actuator - Paper Registration 13 - 16
G081 2414 Spring 13 - 17
G081 2415 Bushing 13 - 18
G081 2416 Spring 13 - 19
G081 2417 Registration Roller Tension 13 - 20
G081 2418 Registration Pinch Roller 13 - 21
G081 2419 Registration Pinch Roller Gear 13 - 22
G081 2420 Pin 13 - 23
G081 2421 Registration Roller Gear 13 - 24
G081 2422 Registration Roller 13 - 25
G081 2423 Registration Paper Guide 13 - 26
G081 2424 Pinch Roller 13 - 27
G081 2425 Pinch Roller Spring 13 - 28
G081 2426 Pinch Roller Holder 13 - 29
G081 2427 Pinch Roller Shaft 13 - 31
G081 2428 Pickup Rubber Frame 13 - 32
G081 2429 Pickup Rubber Surface 13 - 33
G081 2430 Pickup Roller Shaft 13 - 34
G081 2431 Pin 13 - 35
G081 2432 Paper Feed Roller 13 - 36
G081 2433 Bushing 13 - 37
Index No.
Part No. Description
G081 2434 Plastic Washer 13 - 38
G081 2435 Paper Feed Unit Frame 13 - 40
G081 2436 Cover - High Voltage Board 29 - 2
G081 2437 Grounding Plate 29 - 3
G081 2438 Grounding Plate 29 - 4
G081 2439 Cover - Main Control Board 29 - 5
G081 2440 Base - Main Control Board 29 - 6
G081 2441 Guide Rail - MCB 29 - 7
G081 2442 Cover - Power Supply Unit 29 - 10
G081 2443 Duct - Power Supply Unit 29 - 11
G081 2444 Base - Power Supply Unit 29 - 16
G081 2445 Spring 29 - 17
G081 2446 Harness 29 - 19
G081 2447 Registration Sensor Shutter 29 - 20
G081 2448 Bottom Stay 29 - 21
G081 2449 Rubber Foot 29 - 22
G081 2450 Paper Guide Spring 13 - 30
G081 2452 Pickup Roller Holder 31 - 1
G081 2453 Pickup Rubber Surface 31 - 2
G081 2454 Pickup Roller 31 - 4
G081 2455 Belt - Pickup Roller 31 - 5
G081 2456 Paper Guide - Upper Cassette 31 - 6
G081 2457 Separation Pad Holder 31 - 7
G081 2458 Pickup Roller Shaft 31 - 8
G081 2459 Left Paper Guide 31 - 10
G081 2460 Right Paper Guide 31 - 9
G081 2461 Paper Holder 31 - 11
G081 2462 Paper Holder Spring 31 - 12
G081 2463 Pinion Gear 31 - 13
G081 2464 Cover - Main Cassette 31 - 14
G081 2465 Paper Tray 31 - 15
G081 2466 Paper Tray Base 31 - 16
G081 2467 Left Cam 31 - 17
G081 2468 Actuator - Paper Empty Sensor 31 - 18
G081 2469 Cassette Gear Bracket 31 - 19
Description
Index No.
G081/G092 5 Parts Index
Page and
Page and
Part No.
G081 2470 Spring 31 - 20
G081 2471 Pickup Gear 13 - 3
G081 2472 Bushing 31 - 21
G081 2472 Bushing 13 - 41
G081 2473 Roller Gear 31 - 22
G081 2474 Separation Pad 31 - 23
G081 2475 Separation Pad Spring 31 - 24
G081 2476 Tray Protector 31 - 25
G081 2477 Idle Gear 31 - 26
G081 2478 Gear Spacer 31 - 27
G081 2479 Gear Cover 31 - 28
G081 2480 Cam Gear 31 - 29
G081 2481 One Way Clutch 31 - 3
G081 2482 Roller Position Arm 31 - 30
G081 2483 Cam Shaft 31 - 31
G081 2484 Right Cam 31 - 32
G081 2485 Friction Pad 31 - 36
G081 2487 Paper Feed Unit Ass'y 9 - 20
G081 2488 Ground Plate - PSU 29 - 31
G081 2489 Snap Ring - D4 13 - 43
G081 2490 Paper Guide Support 31 - 39
G081 2501 Paper Guide - Paper Feed Unit 33 - 1
G081 2502 Cassette Base Plate 33 - 2
G081 2504 Side Pressure Spring 33 - 4
G081 2505 Left Corner Separator 33 - 5
G081 2506 Left Paper Side Guide 33 - 6
G081 2507 Spring 33 - 7
G081 2508 Slider 33 - 8
G081 2509 Left Lift Plate 33 - 9
G081 2510 Bushing 33 - 10
G081 2511 Plastic Washer 33 - 11
G081 2512 Paper Size Selector 33 - 12
G081 25 13 Right Lift Plate 33 - 13
G081 2514 Cassette Base 33 - 14
G081 2515 Right Corner Separator 33 - 15
Index No.
Part No. Description
G081 2516 Right Paper Side Guide 33 - 16
G081 2517 Rack 33 - 17
G081 2518 Pinion Gear 33 - 18
G081 2519 Paper Size Adjuster 33 - 19
G081 2520 Paper Size Selector Support 33 - 21
G081 4001 Paper Guide 23 - 1
G081 4002 Left Spring - Guide Plate 23 - 2
G081 4003 Right Spring - Guide Plate 23 - 3
G081 4004 Upper Stay 23 - 4
G081 4005 Guide Support Band 23 - 5
G081 4006 Actuator - Fusing 23 - 6
G081 4007 Actuator - Support Plate 23 - 7
G081 4008 Actuator Spring 23 - 8
G081 4009 Actuator Spring B 23 - 9
G081 4010 Paper Separat or 23 - 10
G081 4011 Right Spring - Separat or 23 - 11
G081 4012 Left Sprin g - Separator 23 - 12
G081 4013 Fusing Belt 23 - 13
G081 4014 Heat Roll Flange 23 - 14
G081 4015 Support Ring 23 - 15
G081 4016 Heat Roller 23 - 16
G081 4017 Heat Roller Shaft 23 - 17
G081 4018 Thermistor Ass'y 23 - 18
G081 4019 Thermistor Holder 23 - 19
G081 4020 Thermistor Stay 23 - 20
G081 4021 Fusing Roller 23 - 21
G081 4022 Pressure Roller 23 - 22
G081 4023 Heat Roller Bearing 23 - 23
G081 4024 Heat Roller Bush 23 - 24
G081 4026 Pressure Spring 23 - 26
G081 4027 Right Frame 23 - 27
G081 4028 Right Pressure Plate 23 - 28
G081 4029 Right Release Lever 23 - 29
G081 4030 Plastic Washer 23 - 30
G081 4031 Left Pressure Plate 23 - 31
Description
Index No.
G081/G092 6 Parts Index
Page and
Page and
Part No.
G081 4032 Left Release Lever 23 - 32
G081 4033 Left Frame 23 - 33
G081 4034 Left Grounding Plate 23 - 34
G081 4035 Pressure Roll Gear Z30 23 - 35
G081 4036 Belt Tension Spring 23 - 36
G081 4037 Gear - Z18 23 - 37
G081 4038 Rotation Plate 23 - 38
G081 4039 Fusing Board 23 - 39
G081 4040 Harness - Fusin g 23 - 40
G081 4041 Stay Stopper 23 - 41
G081 4042 Right Grounding Plate 23 - 42
G081 4043 Fusing Base 23 - 43
G081 4044 Base Shutter 23 - 44
G081 4045 Right Shutter Spring 23 - 45
G081 4046 Left Shutter Spring 23 - 46
G081 4047 Paper Guide Plate 23 - 55
G081 4048 Separator Holder 23 - 56
G081 4513 Screw 2.2x16 5 - 32
G081 4514 Screw 2.3x6 15 - 7
G081 4517 Screw 3x10 23 - 52
G081 4517 Screw 3x10 7 - 27
G081 4517 Screw 3x10 9 - 18
G081 4517 Screw - 3x10 11 - 15
G081 4517 Screw 3x10 31 - 35
G081 4519 Screw 3x12 7 - 26
G081 4519 Screw 3x12 29 - 26
G081 4519 Screw 3x12 5 - 27
G081 4519 Screw - 3x12 3 - 21
G081 4519 Screw 3x12 9 - 16
G081 4519 Screw 3x12 19 - 28
G081 4519 Screw 3x12 11 - 11
G081 4521 Screw 3x35 5 - 26
G081 4521 Screw 3x35 7 - 25
G081 4522 Screw 3x6 9 - 15
G081 4522 Screw 3x6 29 - 23
Index No.
Part No. Description
G081 4522 Screw 3x6 7 - 24
G081 4522 Screw 3x6 13 - 39
G081 4522 Screw 3x6 31 - 33
G081 4522 Screw 3x6 19 - 27
G081 4522 Screw 3x6 25 - 45
G081 4523 Screw 3x8 33 - 20
G081 4524 Screw 3x8 29 - 24
G081 4524 Screw 3x8 7 - 28
G081 4524 Screw 3x8 5 - 29
G081 4524 Screw 3x8 25 - 48
G081 4525 Screw 3x8 5 - 35
G081 4528 E-ring 17 - 42
G081 4528 E-ring 21 - 7
G081 4529 E-ring 25 - 49
G081 4529 E-ring 23 - 48
G081 4529 E-ring 17 - 43
G081 4530 Screw 2.6x6 25 - 47
G081 4531 Screw 3x6 7 - 23
G081 4532 Screw 3x8 25 - 46
G081 4533 Charge Harness 15 - 8
G081 4534 Harness - Charge Output Process 15 - 9
G081 4535 Harness - Charge Output Ftr 15 - 10
G081 4536 Screw - 3x8 3 - 20
G081 4537 Screw - 3x12 3 - 22
G081 4538 E-ring 31 - 37
G081 4538 E-ring 23 - 47
G081 4539 Screw 2x8 23 - 53
G081 4540 Screw - 2.6x10 23 - 50
G081 4541 Screw - 2.6x10 25 - 51
G081 4542 Screw - 2.6x6 11 - 17
G081 4543 Screw - 3x5 23 - 57
G081 4550 Washer 9 - 17
G081 4551 Washer 29 - 28
G081 4552 Washer 21 - 8
G081 4554 Washer 23 - 54
Description
Index No.
G081/G092 7 Parts Index
Page and
Page and
Part No.
G081 4555 Washer 23 - 51
G081 5101 Engine Control Board 7 - 3
G081 5102 Engine EEPROM 27 - 3
G081 5121 High Voltage Board 29 - 1
G081 5131 IH Power Supply Board (120V) 29 - 12
G081 5132 IH Power Supply Board (230V) 29 - 12
G081 5151 Power Supply Unit (120V) 29 - 13
G081 5154 Power Supply Unit (230V) 29 - 13
G081 5201 Thermistor 29 - 39
G081 5202 Ferrite Core 27 - 30
G081 5203 Ferrite Core 27 - 31
G081 5204 Ferrite Core 27 - 32
G081 5205 Ferrite Core 27 - 33
G081 5206 Ferrite Core 3 - 24
G081 5206 Ferrite Core 27 - 34
G081 5210 Fan Motor - DC24V -2.88W 7 - 6
G081 5210 Fan Motor - DC24V -2.88W 5 - 1
G081 5211 Motor - DC24V -8.16W 7 - 11
G081 5212 Motor - DC24V -40.56W 25 - 1
G081 5213 Motor - DC24V -31.63W 25 - 2
G081 5251 Solenoid - DC24V -19.2W 25 - 4
G081 5252 Solenoid - DC24V -15W 17 - 17
G081 5253 Solenoid - DC24V -15W 17 - 23
G081 5301 Sensor - Temp. -humidity 7 - 9
G081 5302 Paper Size Detector 7 - 17
G081 5303 Sensor - Duplex Unit Jam 7 - 20
G081 5304 Sensor - Duplex Unit 7 - 21
G081 5305 Sensor - PCU Cam Home Position 25 - 22
G081 5306 Sensor - Toner Empty 21 - 3
G081 5307 Sensor - Toner Cartridge Cover 5 - 2
G081 5307 Sensor - Toner Cartridge Cover 3 - 16
G081 5308 Sensor - Waste Toner Full 5 - 13
G081 5309 Interlock Switch 5 - 31
G081 5310 Sensor - Transfer Belt Home 17 - 18
G081 5311 Sensor - Paper Detection - MPT 9 - 11
Index No.
Part No. Description
G081 5312 Sensor - Home Position - MPT 9 - 12
G081 5313 Sensor - Paper Jam 19 - 23
G081 5314 Sensor - Paper Full/Jam 19 - 24
G081 5315 Sensor - Paper Resist/Empty 13 - 15
G081 5316 Interlock Switch 5 - 4
G081 5317 Sensor - Color Registration 29 - 18
G081 5318 Sub Fusing Fan 7 - 33
G081 5324 Solenoid - DC24V -3.6W 19 - 11
G081 5325 Clutch - Dc24v-3w 13 - 1
G081 5326 Solenoid - DC24V -4.8W 13 - 13
G081 5330 Varistor 13 - 42
G081 5401 Harness - CN1/CN2/CN3 27 - 1
G081 5404 Harness - CN11 27 - 4
G081 5405 Harness - CN7 27 - 5
G081 5406 Harness - CN9 27 - 6
G081 5407 Harness - CN10 27 - 7
G081 5408 Harness - CN30 27 - 8
G081 5409 Harness - CN12 27 - 9
G081 5410 Harness - CN17 27 - 10
G081 5411 Harness - CN15 27 - 11
G081 5412 Harness - CN39 27 - 12
G081 5413 Harness - CN33 27 - 13
G081 5414 Harness - CN35 27 - 14
G081 5415 Harness - CN34 27 - 15
G081 5416 Harness - CN8 27 - 16
G081 5417 Harness - CN13 27 - 17
G081 5418 Harness - CN14 27 - 18
G081 5419 Harness - CN18 27 - 19
G081 5420 Harness - CN23 27 - 20
G081 5421 Harness - CN29 27 - 21
G081 5422 Harness - Interface 15 - 11
G081 5423 Harness - CN5 27 - 23
G081 5424 Harness - CN27 27 - 24
G081 5425 Harness - CN28 27 - 25
G081 5426 Harness - CN32 27 - 26
Description
Index No.
G081/G092 8 Parts Index
Page and
Page and
Part No.
G081 5430 Harness 29 - 14
G081 5431 Harness -120V 29 - 15
G081 5432 Harness - CN4 27 - 2
G081 5433 Harness -230V 29 - 15
G081 5436 Harness - Str 29 - 32
G081 5602 Main Control Board 43 - 1
G081 5602 Main Control Board (G081) 29 - 8
G081 5632 Main Control Board (G092) 29 - 8
G081 5785 IC - COMIC 43 - 2
G081 5790 IC - KLAVIER21 43 - 3
G081 5851 Stay - MCB Bracket (G081) 29 - 34
G081 5852 Bracket - Main Controller Board 29 - 35
G081 5853 Grip - MCB Bracket 29 - 9
G081 5871 Stay - MCB Bracket (G092) 29 - 34
G081 6507 Manuals For This Printer - G081 (NA) 45 - 6
G081 6527 Quick Installation Guide - G081 (NA) 45 - 7
G081 6537 Option Setup Guide - G081 (NA) 45 - 8
G081 6557 Maintenance Guide - G081 (NA) 45 - 9
G081 8719 Sheet - Color Chart 45 - *
G081 9310 Color PCU Skew Adjustment Knob 45 - 3
Index No.
Part No. Description
B463 5700 IEEE 1284 Board 29 - 38
B525 5660 USB Board 29 - 37
G004 9668 Grease:KS660:Shin-Etsu 45 - 4
G021 9350 Loopback Connector - Parallel 45 - 2
G069 6006 KNOB SCREW 29 - 33
G330 5700 SDRAM 64MB 133 29 - 36
G342 1136 Spring - Base Plate 33 - 3
G343 1113 Screw - 3x6 31 - 40
Description
Index No.
G081/G092 9 Parts Index
Page and
Page and
Part No.
N803 6701 Flash Memory Card - 4MB (PCMCIA Card) 45 - 1
Index No.
Part No. Description
0451 3005B Tapping Screw - M3x5 29 - 27
1102 7615 Connector - B8B -XH-A 43 -101
1102 8153 Connector - FCN-568P068-G/05A-V4 43 -102
1102 8357 Connector - 52777 -0809 43 -103
1102 8584 Connector - 52777 -0409 43 -104
1102 8631 Connector 43 -105
1102 8829 Connector - DM-1D4-N3210 43 -106
1102 8832 Connector - DM-3D4-B3210 43 -107
1102 8938 Connector - 128A -096P3A-L14A 43 -108
1102 9091 Connector - 406549-1 43 -109
1102 9092 Connector - KKS-RTR44-323N 43 -110
1104 0764 IC Socket - 8 PIN 43 -111
1104 0771 IC Socket - 28PIN 43 -112
1107 0605 Fuse-250v/1a 43 -113
1204 1422 DIP Switch - 51D-0401 43 -114
1400 0801 Transistor - DTC113ZUA 43 -115
1401 1209 IC - HAT2093R 43 -116
1402 1343 Diode - RB106L-40 43 -117
1402 1547 Diode - RB491D 43 -118
1407 2187 TTLIC - SN74LS07NS 43 -119
1407 5275 CMOS Logic - 74LVCHR16245A TSSOP 43 -120
1407 5281 IC - EEPROM-I2C BUS 1K SOP 43 -121
1407 5300 CMOS Logic - 74LVC16244A TSSOP 43 -122
1407 5309 IC - MICROWIRE BUS 1K DIP 43 -123
1407 5320 CMOS Logic 74lvc374a TSSOP 43 -124
1407 5321 CMOS Logic - 74LVCH16374A TSSOP 43 -125
1407 5334 IC - CMOS LOGIC 74LVC244A TSSOP 43 -126
1407 5335 RAM - Stk12c68 -p55 43 -127
1407 5353 IC - SN74LV244APW 43 -128
1407 5364 IC - SN74AHCT244PW 43 -129
1407 5366 IC - 74LVC08A TSSOP 43 -130
1407 5511 IC - SN74LVC14APW 43 -131
1407 5518 IC - SN74AHCT125PW 43 -132
1407 5520 IC - SN74LVC125APW 43 -133
1407 5604 IC - SN74LVC16245ADGG 43 -134
Description
Index No.
G081/G092 10 Parts Index
Page and
Page and
Part No.
1407 5674 IC - LVDS - DP83846AVHG 43 -135
1407 5717 IC - ICS960001AF 43 -136
1407 5772 IC - SN74AHC2G32HDCT 43 -137
1407 5883 IC - RM7065A -400T-REV1.4 43 -138
1408 1388 Detector Rn5vd28c 43 -139
1408 1398 Detector - RN5VD42A 43 -140
1408 1565 IC - RN5VD21A 43 -141
1408 1596 IC - RN5VD15A 43 -142
1408 1668 IC - Regulator-R1170H251B 43 -143
1408 1761 IC - SI-8011NTS 43 -144
1503 0842 Oscillator - 14.31818MHZ 43 -145
1503 0959 Crystal Oscillator - 25MHZ 43 -146
1601 7752 Resistor Array - 10K Ω ±5% 43 -147
1601 7759 Resistor Array - 100K Ω ±5% 0.06 43 -148
1601 7760 Resistor Array 43 -149
1601 7781 Resistor - 10 Ω ±5% 43 -150
1601 7867 Resistor - 33 Ω ±5% 1/16W 43 -151
1601 7877 Resistor Array 4.7k Ω ±5% 1/32w 43 -152
1601 7879 Resistor - 22 Ω ±5% 1/16W 43 -153
1601 7898 Resistor Array 43 -154
1601 7913 Resistor 22 Ω ±5% 1/32w 43 -155
1601 7915 Resistor Array - 33 Ω ±5% 1/16W 43 -156
1604 4840 Capacitor - 100 µF ±20% 16V 43 -157
1604 4847 Capacitor - 3.3µF ±20% 50V 43 -158
1604 4998 Capacitor - 150 µF ±20% 4V 43 -159
1604 5008 Capacitor - 100 µF ±20% 4V 43 -160
1604 5031 Capacitor - 470 µF ±20% 16V 43 -161
1605 0832 Capacitor - 8PF ±0.5pF 50V 43 -162
1605 1025 Capacitor - 1000pF ±10% 2KV 43 -163
1605 1072 Capacitor - 4.7µF ±10% 16V 43 -164
1605 1162 Capacitor - 10µF +80 -20% 10V 43 -165
1607 0987 Inductor - Tla-6t103 43 -166
1607 1206 Filter - Acc2012l -250 43 -167
1607 1228 Inductor - Slf7045 -4r7m2r0 43 -168
1607 1296 Filter - Mmz1608s601a 43 -169
Index No.
Part No. Description
1610 1486 Resistor - 2K Ω ±0.5% 1/16W 43 -170
1610 1506 Resistor - 1K Ω ±0.5% 1/16W 43 -171
1610 1630 Resistor - 0.05 Ω ±5% 1/2W 43 -172
1610 1681 Resistor - 1.27K Ω ±0.5% 1/10W 43 -173
1632 0000 Resistor - 0 Ω 1/8W 43 -174
1632 4999 Resistor 49.9Ω ±1% 1/8w 43 -175
1632 5499 Resistor - 54.9 Ω ±1% 1/8W 43 -176
1634 0000 Resistor - 0 Ω 1/16W 43 -177
1644 0100 Capacitor - 10µF ±20% 10V 43 -178
1644 6101 Capacitor - 100 µF ±20% 6.3V 43 -179
1650 4100 Resistor - 10Ω ±5% 1/10W 43 -180
1650 4101 Resistor - 100Ω±5%1/10W 43 -181
1650 4102 Resistor - 1K Ω ±5% 1/10W 43 -182
1650 4103 Resistor - 10K Ω ±5% 1/10W 43 -183
1650 4104 Resistor - 100K Ω±5%1/10W 43 -184
1650 4109 Resistor - 1Ω ±5% 1/10W 43 -185
1650 4122 Resistor - 1.2K Ω ±5% 1/10W 43 -186
1650 4150 Resistor - 15Ω ±5% 1/10W 43 -187
1650 4200 Resistor - 20Ω ±5% 1/10W 43 -188
1650 4220 Chip Resistor - 22Ω ±5% 1/10w 43 -189
1650 4222 Resistor - 2.2K Ω±5%1/10W 43 -190
1650 4271 Resistor - 270Ω±5%1/10W 43 -191
1650 4330 Chip Resistor - 33Ω ±5% 1/10w 43 -192
1650 4332 Resistor - 3.3K Ω±5%1/10W 43 -193
1650 4470 Resistor - 47Ω±5%1/10W 43 -194
1650 4472 Resistor - 4.7K Ω ±5% 1/10W 43 -195
1650 4473 Resistor - 47K Ω±5%1/10W 43 -196
1650 4512 Resistor - 5.1K Ω±5%1/10W 43 -197
1650 4561 Resistor - 560Ω ±5% 1/10W 43 -198
1650 4680 Resistor - 68Ω±5%1/10W 43 -199
1650 4681 Resistor - 680Ω ±5% 1/10W 43 -200
1650 4750 Resistor - 75Ω±5%1/10W 43 -201
1650 4911 Resistor - 910Ω±5%1/10W 43 -202
1654 9311 Resistor - 9.31K Ω ±1% 1/10W 43 -203
1660 0100 Capacitor - 10PF ±0.5pF 50V 43 -204
Description
Index No.
G081/G092 11 Parts Index
Page and
Page and
Part No.
1660 2101 Capacitor - 100pF - ±10% - 50V 43 -205
1660 2150 Capacitor - 15pF ±5% 50V 43 -206
1660 2220 Capacitor - 22pF ±20% 35V 43 -207
1660 2221 Capacitor - 220pF +80 -20% 50V 43 -208
1660 2330 Capacitor - 33pF - ±5% - 50V 43 -209
1660 2471 Capacitor - 470pF - ±5% - 50V 43 -210
1660 4102 Capacitor - 1000pF ±10% 50V 43 -211
1660 6103 Capacitor - 10000pF - +80% -20%50V 43 -212
1660 6473 Capacitor - 47000pF +80, -20% 50V 43 -213
1660 8104 Capacitor - 0.1µF +80-20% 25V 43 -214
1906 0017 Flash Memory - Lh28f320bj -pbtl70 43 -215
Index No.
Part No. Description
5203 9501 Grease 501 45 - 5
Description
Index No.
G081/G092 12 Parts Index
Loading...
