Ricoh C252 Part List

®

RICOH GROUP COMPANIES

C252

PARTS CATALOG

001702MIU

PARTS CATALOG

C252

®

RICOH GROUP COMPANIES

C252

PARTS CATALOG

001702MIU

A

r

It is the reader's responsibility when discussing the information contained within this document to maintain a level of confidentiality that is in the best interest of Ricoh Corporation and its member companies.

NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY

FASHION AND DISTRIBUTED WITHOUT THE PRIOR

PERMISSION OF RICOH CORPORATION.

ll product names, domain names or product illustrations, including desktop images, used in this document are trademarks, registered trademarks or the property of thei respective companies. They are used throughout this book in an informational or editorial fashion only and fo the benefit of such companies. No such use, or the use of any trade name, or web site is intended to convey endorsement or other affiliation with Ricoh products.

LEGEND

PRODUCT CODE COMPANY

C252

GESTETNER LANIER RICOH SAVIN

JP730

DOCUMENTATION HISTORY

REV. NO. DATE COMMENTS

*

6/2003 Original Printing

C252 PARTS CATALOG

PARTS LOCATION AND LIST

This section instructs you as to the numbers and names of parts on this machine.

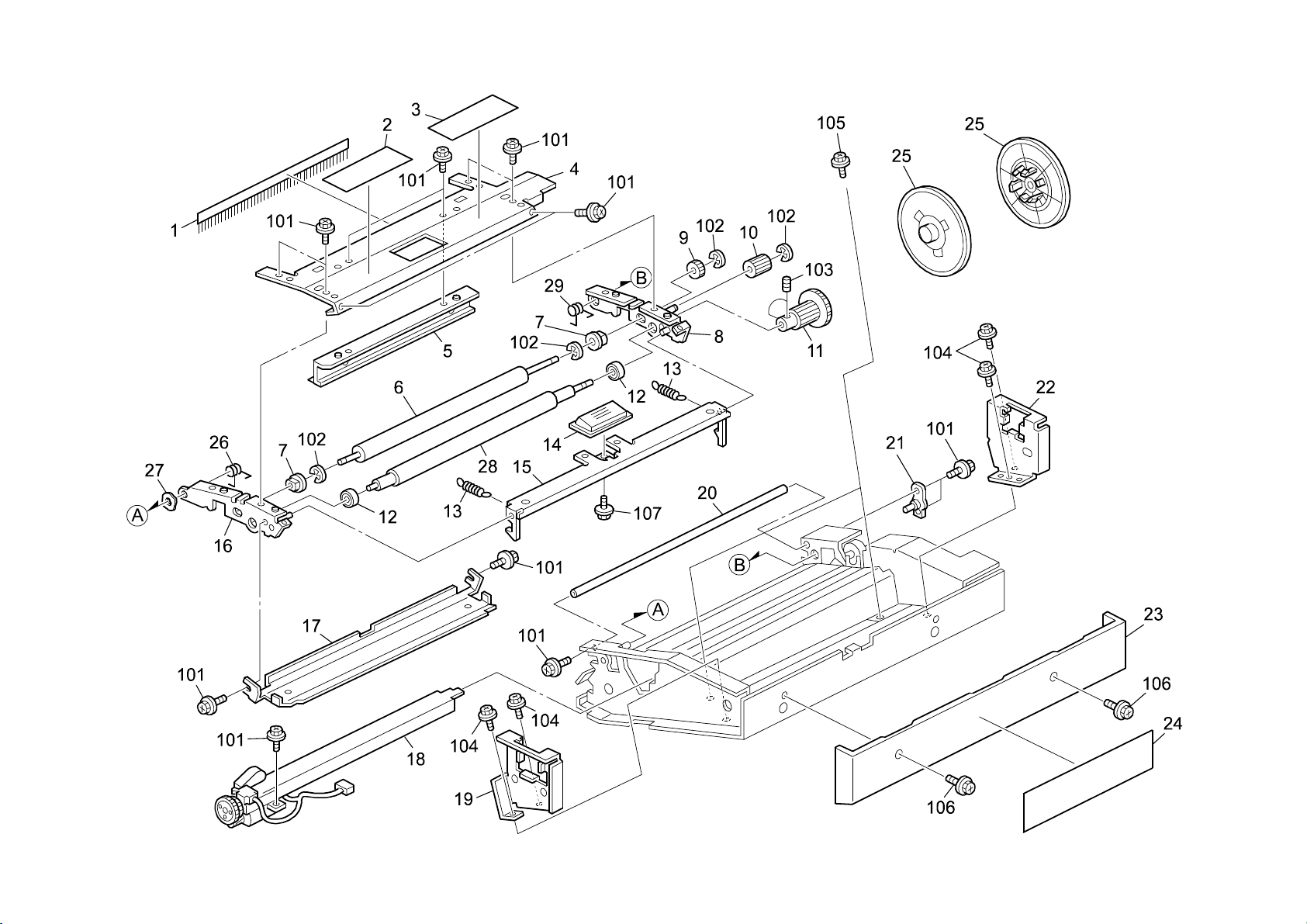

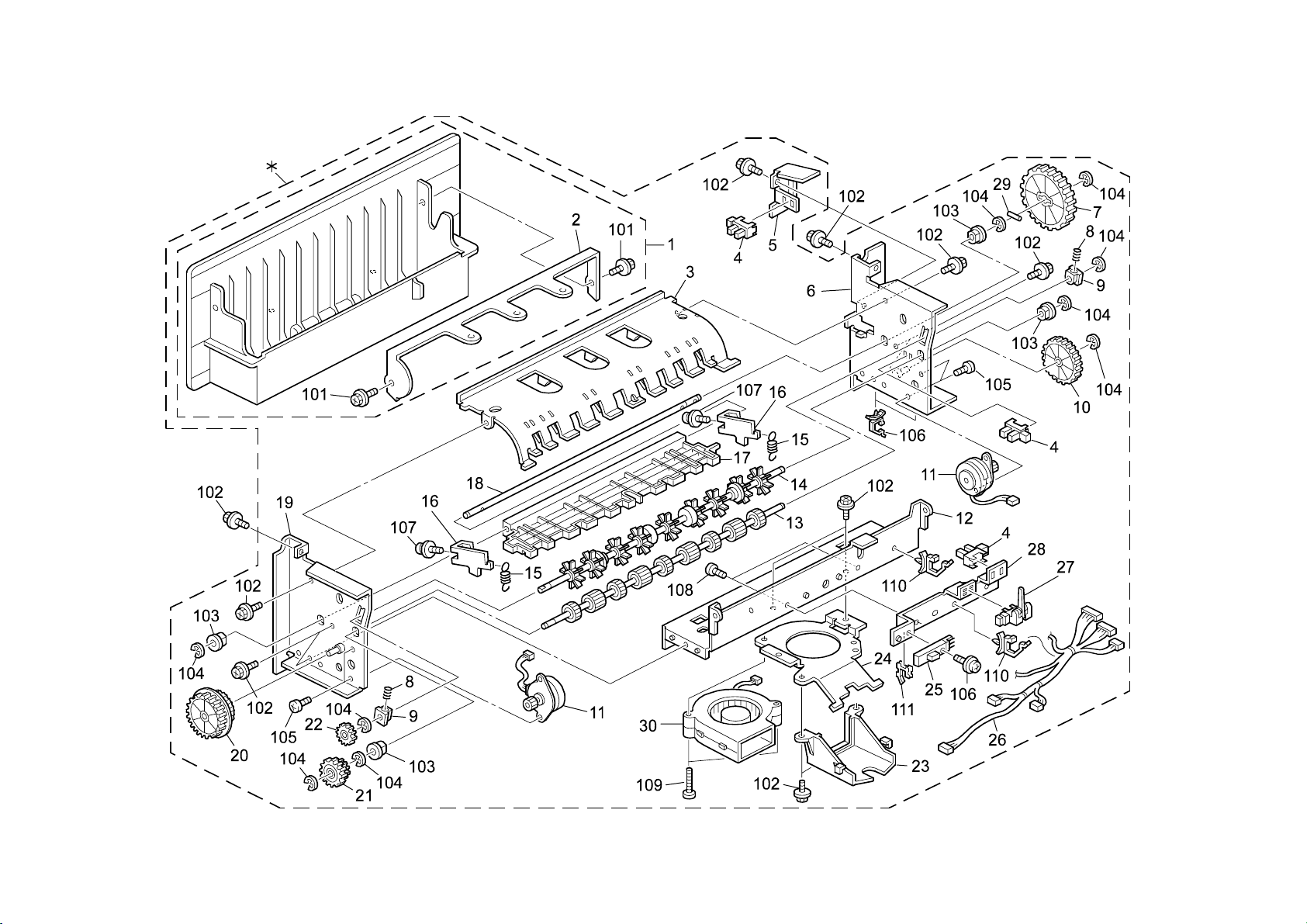

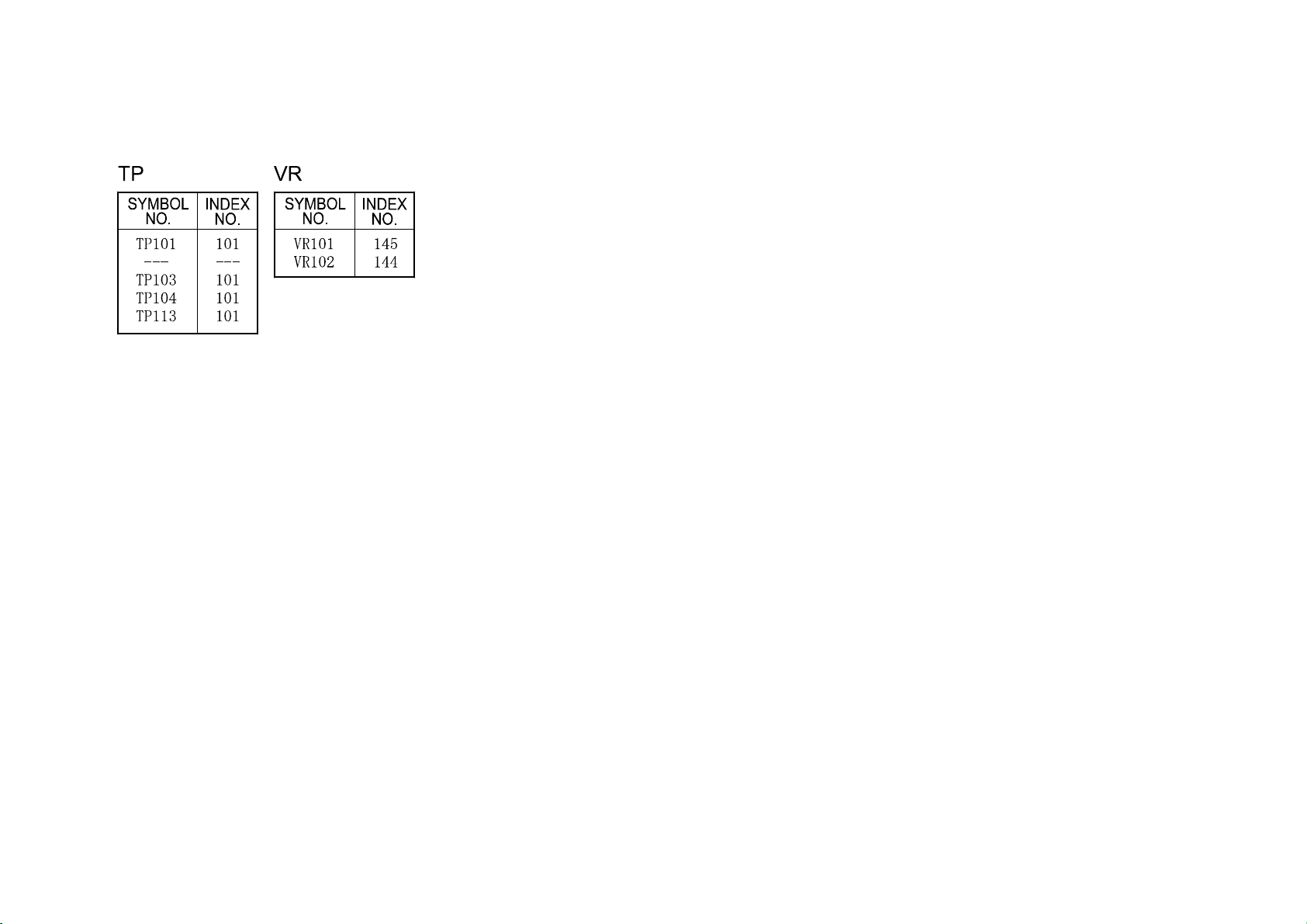

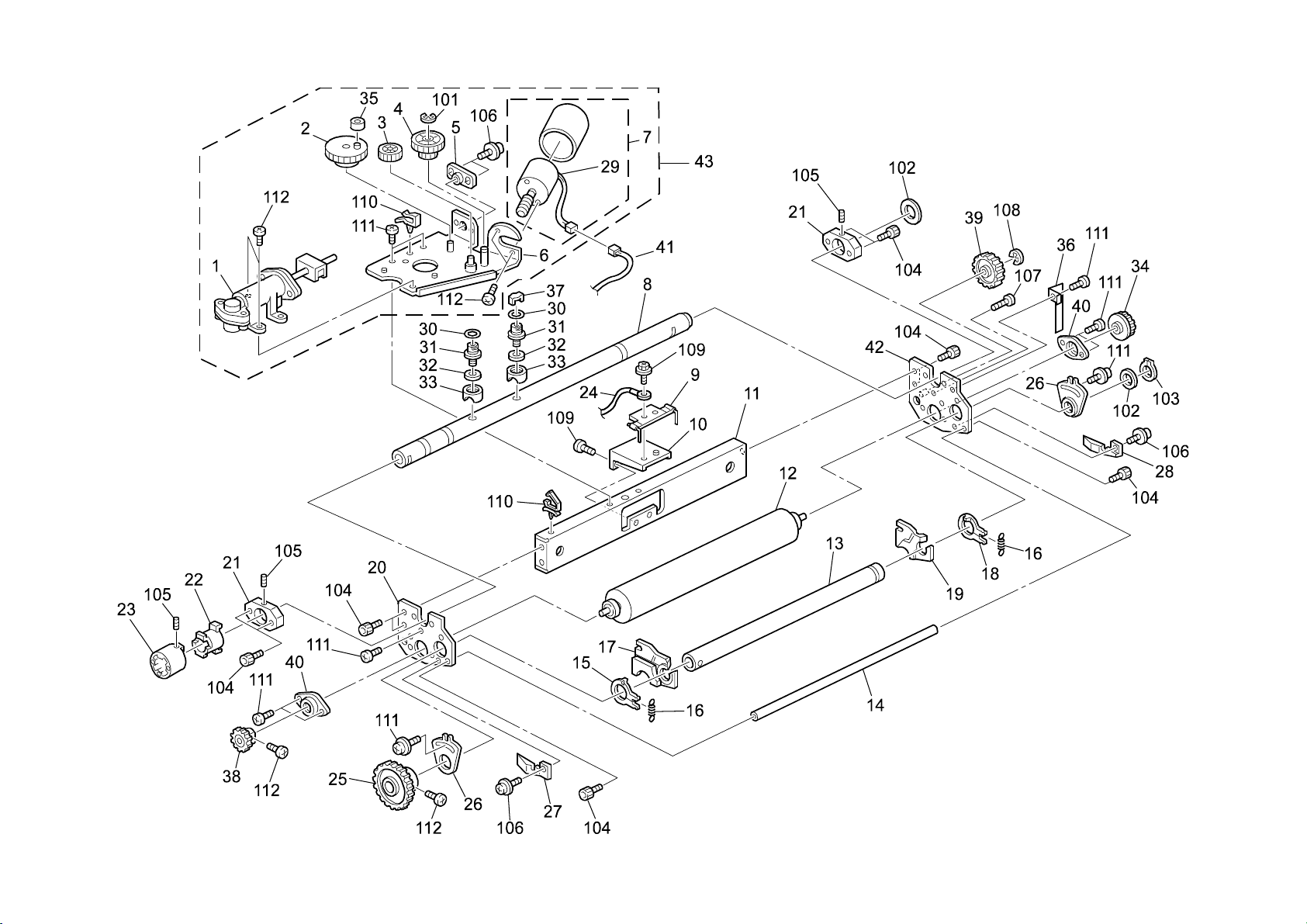

LOCATIONS OF UNITS LOCATIONS OF UNITS

LOCATIONS OF UNITS

1. EXTERIOR (C252)

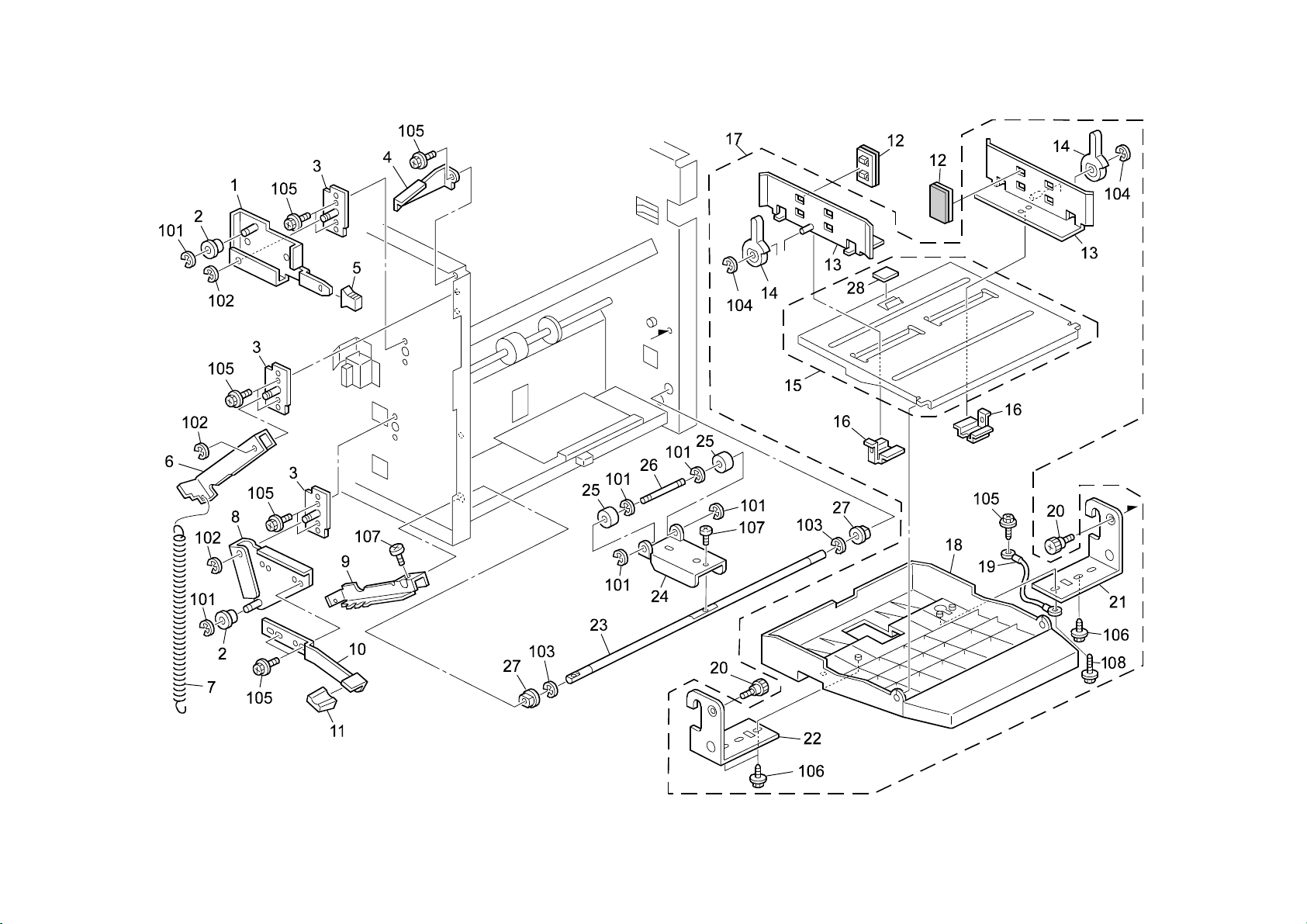

4. PAPER TABLE (C252)

See Page 7

2. OPERATION PANEL (C252)

See Page 9

5. PAPER REGISTRATION (C252)

3. SCANNER SECTION (C252)

See Page 11

6. PAPER FEED SECTION (C252)

See Page 13

C252 3 Parts Location and List

See Page 15

See Page 17

LOCATIONS OF UNITS LOCATIONS OF UNITS

LOCATIONS OF UNITS

7. PLOTTER UNIT 1 (C252)

See Page 19

10. DRUM UNIT 1 (C252)

8. PLOTTER UNIT 2 (C252)

See Page 21

11. DRUM UNIT 2 (C252)

9. PRESS ROLLER SECTION (C252)

See Page 23

12. DRUM UNIT 3 (C252)

See Page 25

C252 4 Parts Location and List

See Page 27

See Page 29

LOCATIONS OF UNITS LOCATIONS OF UNITS

LOCATIONS OF UNITS

13. VACUUM FAN UNIT (C252)

See Page 31

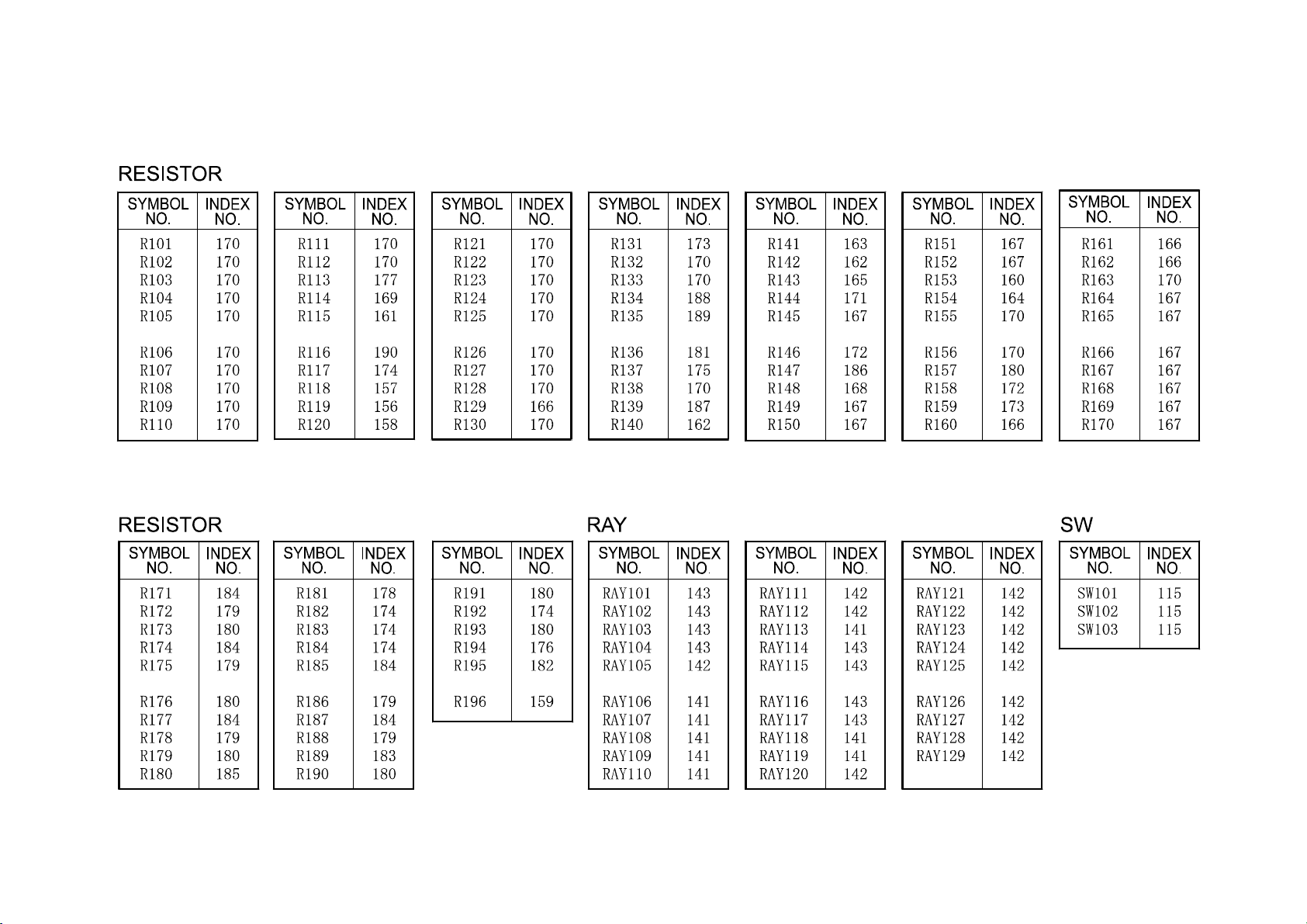

16. ELECTRICAL AND DRIVE SECTION

14. DELIVERY TABLE (C252)

See Page 33

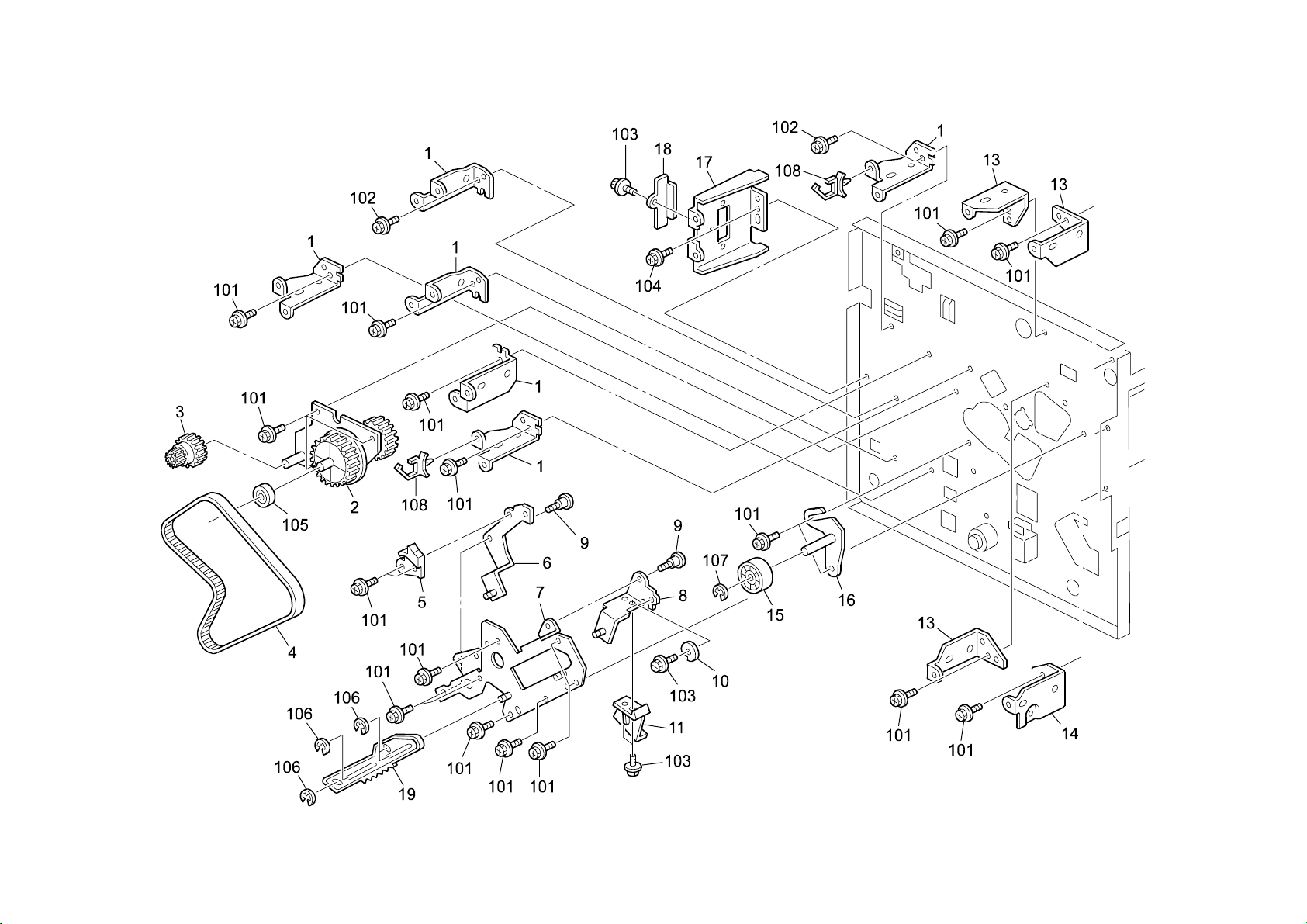

17. DRIVE AND FRAME SECTION (C252)

15. MASTER EJECT UNIT (C252)

See Page 35

18. FRAME SECTION (C252)

See Page 37

C252 5 Parts Location and List

See Page 39

See Page 41

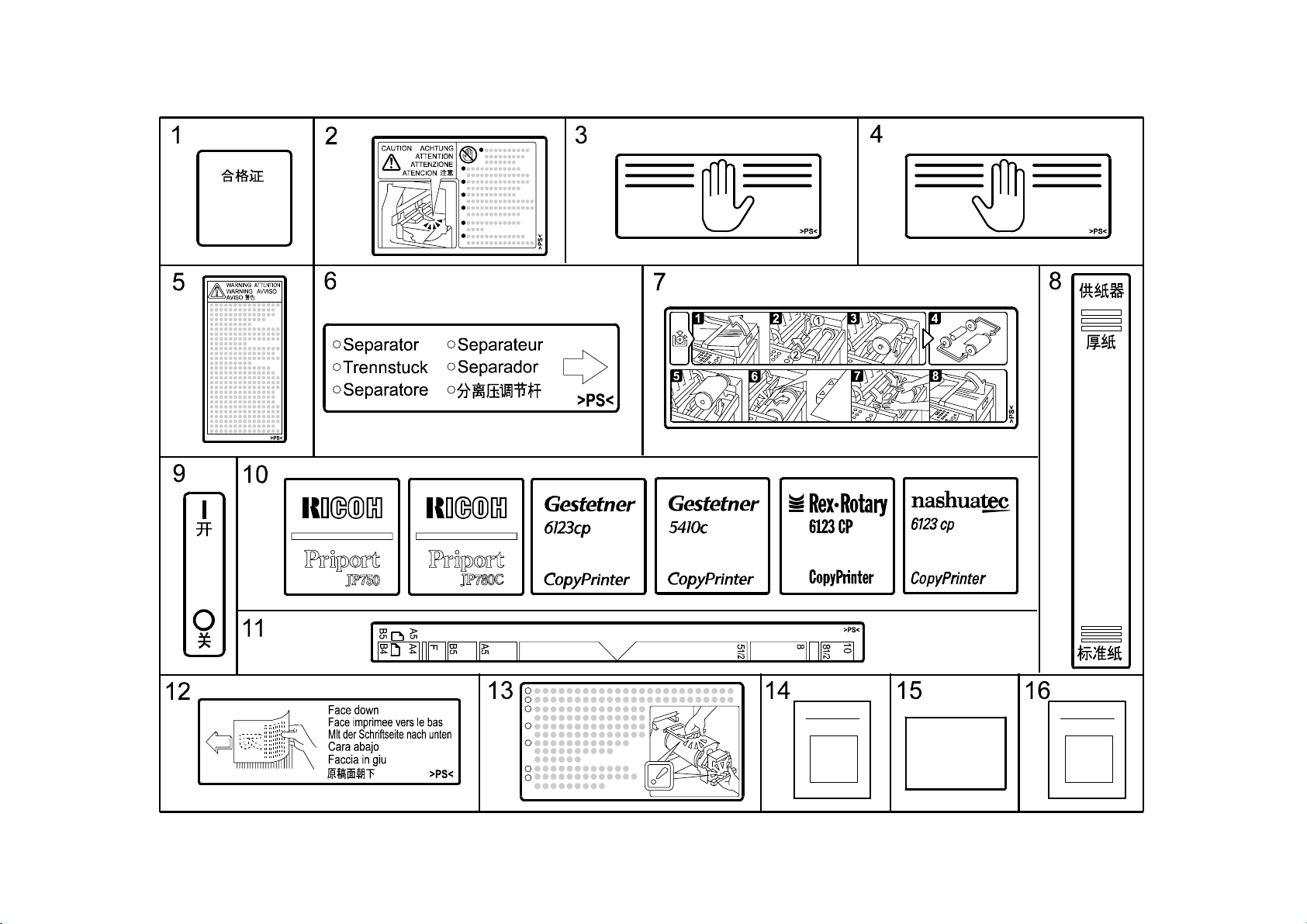

1.EXTERIOR (C252)

C252 6 Parts Location and List

1.EXTERIOR (C252)

Index

No.

1 H545 4315 Document Tray Extension 1 2 H535 4201 Document Tray 1 3 H545 4311 Document Table - 1 1 4 2803 0006 Cord Binder 1 5 C252 1734 Side Fence - Original 2 6 C252 1739 Decal - Original Insert 1 7 C252 1344 Decal - Paper Feed Pressure - CHN 1 8 C252 1731 Cover - Fix - Image Reading Unit 1 9 C252 1732 Rack - Original - Guide 2 10 C252 1735 Gear - Original - Guide 1 11 C252 1303 Cover - Rear 1 12 A204 1299 Decal (CHN) 1 12 AA00 1381 Label - FCC/15-B - CSA - CLASS-A 1 13 C252 1325 Spring Washer - 6.4x11x1.5 2 14 5419 5714 Stepped Screw - M4 2 15 C252 1304 Cover - Plotter 1 16 AG07 0004 Magnetic Catch 1 17 C252 1322 Guide - Rear - Cover - Plotter 1 18 C252 1321 Guide - Front - Cover - Plotter 1 19 C252 1302 Cover - Front 1 20 C252 1342 Decal - Separation Change 1 21 C238 1312 Decal - Exit Pawl 1 22 C252 1311 Hinge - Door - Upper - Ass'y 1 23 C252 1341 Decal - Caution Chart 1 24 C252 1312 Hinge - Door - Lower - Ass'y 1 25 C252 1301 Cover - Door 1 26 AG07 0014 Magnet Catch 1 27 C252 1345 Decal - Main Switch - CHN 1 28 AA13 2169 Spacer - 5.7x16x1.5

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 4008H Tapping Screw - 4x8 102 0450 3006B Tapping Screw - M3x6 103 0450 3008B Tapping Screw - M3x8 104 0452 3008B Tapping Screw - M3x8 105 0450 4008B Tapping Screw - 4x8 106 0353 0060Z Screw - M3X6

Part No.

Description

Q’ty Per

Assembly

C252 7 Parts Location and List

2.OPERATION PANEL (C252)

C252 8 Parts Location and List

2.OPERATION PANEL (C252)

Index

No.

* C252 1450 Operation Panel - English - mm - Ass'y 1 * C252 1451 Operation Panel - English - Inch - Ass'y 1 * C252 1452 Operation Panel - Chinese - Ass'y 1 1 C252 1481 Shield - Paper Jam - English - Inch 1 1 C252 1482 Shield - Paper Jam - English - mm 1 1 C252 1483 Shield - Paper Jam - Chinese 1 2 C252 1486 Shield - Start - English 1 2 C252 1487 Shield - Start - Chinese 1 3 C252 1484 Shield - On Line - English 1 3 C252 1485 Shield - On Line - Chinese 1 4 C252 1460 Case - Operation Panel 1 5 C252 1477 Keytop – Auto Cycle 1 6 C252 1472 Keytop - Proof 1 7 C252 1473 Keytop – Master Making 1 8 C252 1474 Keytop – Print Start 1 9 C252 1471 Keytop – Clear/Stop 1 10 C252 1470 Keytop - 10key 1 11 C252 1475 Keytop - On Line 1 12 C252 1476 Keytop - Clear Modes/Recovery 1 13 C252 1491 Bracket - Operation Sub-unit 1 14 C252 1492 Lens - LED 1 15 C252 5160 PCB - Operation Sub-unit - Ass'y 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0452 3008B Tapping Screw - M3x8

Part No.

Description

Q’ty Per

Assembly

C252 9 Parts Location and List

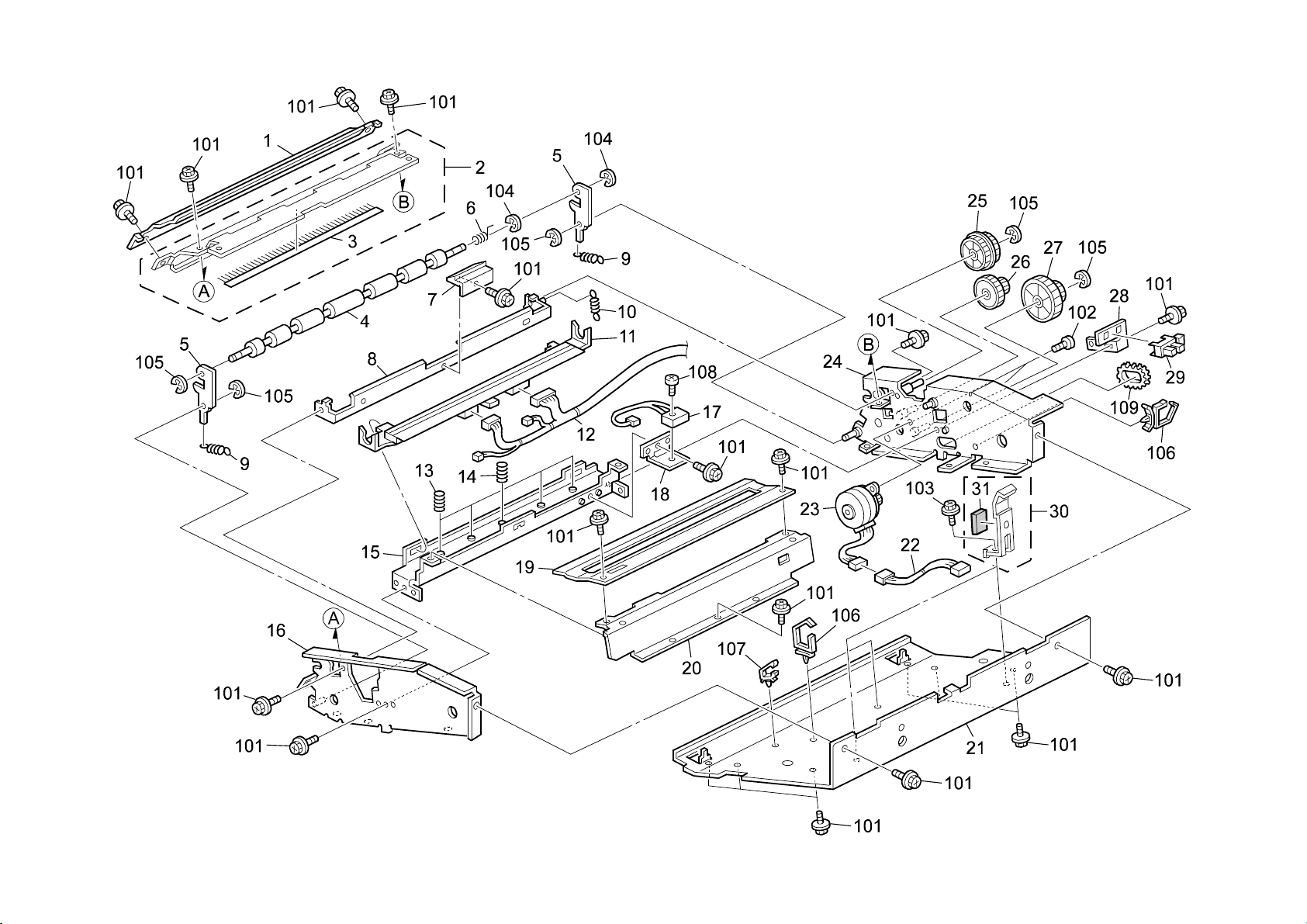

3.SCANNER SECTION (C252)

C252 10 Parts Location and List

3.SCANNER SECTION (C252)

Index

No.

1 C252 1733 Cover - Open And Close 1 2 C252 1738 Decal - Scale 1 3 C252 1721 Guide Plate - Fix - Ass'y 1 4 C252 1740 Contact Image Sensor 1 5 C252 1706 Exit Roller - Fix - Image Reading Unit 1 6 C252 1702 Transport Roller - Fix - Image Reading Unit 1 7 C252 5280 Harness - Cis - Ass'y 1 8 C252 1696 Stay - Fix - Image Reading Unit 1 9 C252 1670 Side Plate - Fix - Front - Ass'y 1 10 C252 1804 Bracket - Grip - Open And Close 1 11 C252 2783 Knob - Lever - Pressure - Paper Feed Tray 1 12 C252 1785 Spring Plate - Pressure - Paper Feed Roller 4 13 C252 1805 Tension Spring - Grip - Open And Close 2 14 C252 1803 Hook - Open And Close - Rear 1 15 C252 1757 Pressure Plate - Shading - Ass'y 1 16 C252 1660 Frame - Open And Close 1 17 C252 1784 Spacer - Roller - Open And Close 2 18 C252 1792 Exit Roller - Open And Close 2 19 C252 1766 Guide Plate - Open And Close - Image Read 1 20 C252 1767 Guide Plate - Open And Close - Image Read 1 21 AW01 0098 Photointerrupter - GP2A231LRSA 1 22 C252 5281 Harness-Original Sensor-Leading Edge-Ass'y 1 23 C252 1802 Hook - Open And Close - Front 1 24 C252 1712 Gear - Transport Roller - Image Reading Unit 2 25 C252 1711 Gear - Idler - 2 - Image Reading Unit 1 26 C252 2133 Gear - Idler - 1 - Platen 1 27 C252 2134 Gear - Idler - Stepper Motor 1 28 C252 1680 Side Plate - Fix - Rear - Ass'y 1 29 C252 5843 Stepper Motor - mm42 - Plotter - Ass'y 1 30 C252 1801 Shaft - Grip - Open And Close 1 31 C252 1753 Screw - M3x8 1 32 C252 1762 Compression Spring - Pressure Plate - Image 1 33 C252 1782 Paper Feed Roller - Open And Close 1

Part No.

Description

Q’ty Per

Assembly

Index

No.

101 0451 3006B Tapping Screw - M3x6 102 0353 0060Z Screw - M3X6 103 0720 0030Z Retaining Ring - M3 104 0720 0040E Retaining Ring - M4 105 0805 0092 Retaining Ring - 3m 106 0451 3008W Tapping Screw M3x8 107 0805 3480 Bushing - 6mm 108 0353 0060Z Screw - M3X6 109 1105 0522 Edge Saddle - Les0510 110 1105 0511 Harness Clamp - LWS-0306ZC 111 1105 0516 Clamp 112 1105 0488 Harness Clamp

Part No.

Description

Q’ty Per

Assembly

C252 11 Parts Location and List
