RICOH GROUP COMPANIES
C226
PARTS CATALOG
PN: RCPC2250
PARTS CATALOG
C226
®
®
®
RICOH GROUP COMPANIES
C226
PARTS CATALOG
LEGEND
PRODUCT CODE COMPANY
GESTETNER RICOH SAVIN
C226 5328L VT2250 3250DNP
C532 TAPE MARKER TYPE 20
DOCUMENTATION HISTORY
REV. NO. DATE COMMENT
* 1/97 Original Printing
C226
TABLE OF CONTENTS
C226 PARTS LOCATION AND LIST
LOCATION OF UNIT ........................................................... 2
1. EXTERIOR 1 (C226)...................................................... 8
2. EXTERIOR 2 (C226)...................................................... 10
3. ADF UNIT 1 (C226)........................................................ 12
4. ADF UNIT 2 (C226)........................................................ 14
5. SCANNER UNIT 1 (C226).............................................. 16
6. SCANNER UNIT 2 (C226).............................................. 18
7. PAPER TABLE (C226)................................................... 20
8. PAPER TABLE DRIVE (C226)....................................... 22
9. PAPER FEED AND SEPARATION ROLLER (C226) .... 24
10. PAPER SEPARATION ROLLER (C226)........................ 26
11. PAPER FEED DRIVE (C226)......................................... 28
12. 2ND FEED ROLLER (C226) .......................................... 30
13. 2ND FEED DRIVE (C226).............................................. 32
14. PRESS ROLLER (C226)................................................ 34
15. AIR KNIFE SECTION (C226)......................................... 36
16. PAPER DELIVERY 1 (C226) ......................................... 38
17. PAPER DELIVERY 2 (C226) ......................................... 40
18. DELIVERY TABLE (C226) ............................................. 42
19. DRUM SECTION 1 (C226)............................................. 44
20. DRUM SECTION 2 (C226)............................................. 46
21. DRUM SECTION 3 (C226)............................................. 48
22. DRUM SECTION 4 (C226)............................................. 50
23. MASTER FEED SECTION 1 (C226).............................. 52
24. MASTER FEED SECTION 2 (C226).............................. 54
25. MASTER FEED SECTION 3 (C226).............................. 56
26. MASTER FEED SECTION 4 (C226).............................. 58
27. MASTER EJECT SECTION 1 (C226)............................ 60
28. MASTER EJECT SECTION 2 (C226)............................ 62
29. MASTER EJECT SECTION 3 (C226)............................ 64
30. DRIVE SECTION 1 (C226)............................................. 66
31. DRIVE SECTION 2 (C226)............................................. 68
32. DRIVE SECTION 3 (C226)............................................. 70
33. ELECTRICAL SECTION (C226) .................................... 76
34. FRAME 1 (C226)............................................................ 7
2
35. FRAME 2 (C226)............................................................ 74
36. MAIN CONTROL BOARD (C226).................................. 78
37. DC DRIVE BOARD (C226) ............................................ 84
38. DECAL AND DOCUMENT (C226)................................. 86
39. ACCESSORIES AND SPECIAL TOOLS (C226) ........... 88
C226PARTS INDEX
PARTS INDEX ..................................................................... 2
TAPE MARKER TYPE 20 C532 PARTS LOCATION AND
LIST
1. EXTERIOR (C532).......................................................... 2
2. DECAL (C532)................................................................. 4
TAPE MARKER TYPE 20 C532 PARTS INDEX
PARTS INDEX ..................................................................... 2
C226
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine.
Location of Unit
1. Exterior 1 (C226)
See Page 8
4. ADF Unit 2 (C226)
2. Exterior 2 (C226)
See Page 10
5. Scanner unit 1 (C226)
3. ADF Unit 1 (C226)
See Page 12
6. Scanner unit 2 (C226)
See Page 14
C226 2 Parts Location and List
See Page 16
See Page 18
Location of Unit
7. Paper Table (C226)
See Page 20
10. Paper Separation Roller (C226)
8. Paper Table Drive (C226)
See Page 22
11. Paper Feed Drive (C226)
9. Paper Feed And Separation Roller (C226)
See Page 24
12. 2nd Feed Roller (C226)
See Page 26
C226 3 Parts Location and List
See Page 28
See Page 30
Location of Unit
13. 2nd Feed Drive (C226)
See Page 32
16. Paper Delivery 1 (C226)
14. Press Roller (C226)
See Page 34
17. Paper Delivery 2 (C226)
15. Air Knife Section (C226)
See Page 36
18. Delivery Table (C226)
See Page 38
C226 4 Parts Location and List
See Page 40
See Page 42
Location of Unit
19. Drum Section 1 (C226)
See Page 44
22. Drum Section 4 (C226)
20. Drum Section 2 (C226)
See Page 46
23. Master Feed Section 1 (C226)
21. Drum Section 3 (C226)
See Page 48
24. Master Feed Section 2 (C226)
See Page 50
C226 5 Parts Location and List
See Page 52
See Page 54
Location of Unit
25. Master Feed Section 3 (C226)
See Page 56
28. Master Eject Section 2 (C226)
26. Master Feed Section 4 (C226)
See Page 58
29. Master Eject Section 3 (C226)
27. Master Eject Section 1 (C226)
See Page 60
30. Drive Section 1 (C226)
See Page 62
C226 6 Parts Location and List
See Page 64
See Page 66
Location of Unit
31. Drive Section 2 (C226)
See Page 68
34. Frame 1 (C226)
32. Drive Section 3 (C226)
See Page 70
35. Frame 2 (C226)
33. Electrical Section (C226)
See Page 76
See Page 72
C226 7 Parts Location and List
See Page 74
1. Exterior 1 (C226)
C226 8 Parts Location and List
1. Exterior 1 (C226)
Index
No.
1 C217 2454 Rear Cover Cap- Large 1
2 C218 2455 Master Eject Door 1
3 C217 2455 Key Counter Cover 1
4 C203 2130 Master Eject Cover 1
5 C226 2456 Sponge 1
6 AG07 0004 Magnetic Catch 1
7 C226 2440 Front Upper Cover 1
8 C226 2450 Plotter Upper Cover 1
9 C203 2430 Rear Cover Bracket 1
10 C226 2415 Rear Cover Ass’y 1
11 C226 2430 Rear Auxiliary Cover 1
12 C217 2453 Rear Cover Cap- Small 1
13 C226 2751 Decal - Ink Supply 1
14 C224 2436 Plotter Cover 1
15 C224 2431 Paper Feed Support Cover 1
16 C218 2825 Decal - Master Eject Open 1
17 C224 2742 Decal - Drum Operation 1
18 C226 2400 Front Cover Ass’y (RIC)(A4) 1
18 C226 2414 Front Cover Ass’y (RIC)(LT) 1
18 C226 2495 Front Cover Ass’y (SVN) 1
18 C226 2810 Front Cover Ass’y (NRG)(LT) 1
18 C226 2800 Front Cover Ass’y (NRG)(A4) 1
18 C226 2900 Front Cover Ass’y (AB-Dick) 1
19 C224 2766 Decal - Counter 1
20 C226 2420 Left Upper Cover 1
21 C226 2410 Front Door Ass’y (RIC) 1
21 C226 2730 Front Door Ass’y (SVN) 1
21 C226 2805 Front Door Ass’y (NRG) 1
21 C226 2905 Front Door Ass’y (AB-Dick) 1
22 C225 2866 Decal - Key Top Cover 1
22 C225 2867 Decal - Cover - Panel - Nashua 1
23 C226 2404 Upper Hinge 1
24 C226 2406 Lower Hinge 1
25 C226 2434 Switch Rod 1
26 C226 2435 Magnetick Catch 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
27 C226 2451 Magnet Holder 1
28 C226 2452 Left Plotter Cover Hinge 1
29 C226 2453 Right Plotter Cover Hinge 1
30 C226 2815 Model Name Plate - Ges 5329l 1
30 C226 2816 Model Name Plate - Rex 1254l 1
30 C226 2817 Model Name Plate - Nsa Cp329l 1
31 C226 2732 Emblem 1
31 C226 2740 Emblem 1
32 C226 2736 Decal - Caution 1
33 C218 2525 Stepped Screw - M4 1
100 0433 0080Z Tapping Screw - M3x8
101 0323 0100Z Philips Sunken Head Screw - M3x10
102 0314 0080Z Philips Screw - 4x8
103 0801 1004 Screw - M4X4
104 0344 0080D Philips Truss Head Screw - M4x8
105 0434 0082Z Tapping Screw - M4x8
106 0951 3006Z Philips Screw With Flat Washer - M3
107 0333 0080D Philips Counter Sunk Screw - M3x8
108 0450 4008W Philips Tapping Screw - M4x8
Part No.
Description
Q’ty Per
Assembly
C226 9 Parts Location and List
2. Exterior 2 (C226)
C226 10 Parts Location and List
2. Exterior 2 (C226)
Index
No.
1 C226 2720 Operation Panel Ass’y (LT) 1
1 C226 2725 Operation Panel Ass’y - A4 1
2 C226 2979 Sheet - Switching Plate 4 (LT) 1
2 C226 2989 Sheet - Switching Plate 4 (A4) 1
3 C226 2976 Sheet - Switching Plate 1 (LT) 1
3 C226 2986 Sheet - Switching Plate 1 (A4) 1
4 C226 2978 Sheet - Switching Plate 3 (LT) 1
4 C226 2988 Sheet - Switching Plate 3 (A4) 1
5 C226 2977 Sheet - Switching Plate 2 (LT) 1
5 C226 2987 Sheet - Switching Plate 2 (A4) 1
6 C226 2972 Sheet - Operation A (LT) 1
6 C226 2982 Sheet - Operation A (A4) 1
7 C226 2973 Sheet - Operation B (LT) 1
7 C226 2983 Sheet - Operation B (A4) 1
8 H521 4313 Seal - Operation Panel - D (LT) 1
8 C226 2985 Sheet - Operation D (A4) 1
9 C226 2974 Sheet Operation C (LT) 1
9 C226 2984 Sheet - Operation C (A4) 1
10 C226 3341 Operation Panel Harness 1
11 H521 1105 Platen Cover Ass’y 1
12 C226 3301 Original Scale 1
13 H521 1124 Scale - Side 1
14 C226 3336 Connector Cover 1
15 H521 1103 Cover - Original Tray 1
16 H521 1110 Exposure Glass 1
17 C226 2971 Switching Plate (LT) 1
17 C226 2981 Switching Plate - A4 1
18 C226 3305 Decal - Front Original Set 1
19 H521 1356 Sheet 1
20 H521 1324 Original Guide Cover 1
21 H521 1357 Decal - Original Level 1
22 H521 1323 Rear Guide - Original 1
23 H521 1322 Front Guide - Original 1
24 H521 1325 Original Guide Gear 1
25 H521 1320 Original Table 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
26 H521 1359 Decal - Original Table 1
27 H521 1160 Stopper Pressure Plate 1
28 C226 3306 Decal - Rear Original Set 1
29 C226 3335 ADF Cover 1
30 C226 8080 Operation Panel Board 1
31 C226 2980 Operation Panel Cover- A4 1
31 C226 2970 Operation Panel Cover (LT) 1
32 H521 1104 Shading Sheet 1
33 C226 3302 Both Adhesive Tape 1
101 0951 3006B Philips Screw With Flat Washer - M3x6
102 0353 0060Z Screw - M3X6
103 0353 0080Z Philips Trass Head Screw - M3x8
104 0353 0100Z Bind Screw - M3x10
Part No.
Description
Q’ty Per
Assembly
C226 11 Parts Location and List
3. ADF Unit 1 (C226)
C226 12 Parts Location and List
3. ADF Unit 1 (C226)
Index
No.
1 H521 1257 Upper Cover - ADF 1
2 H521 1342 Guide Mylar - Rear 1
3 H521 1334 Guide Mylar - Front 1
4 H521 1304 Spring R1 3
5 H521 1303 Spring Plate - R0 2
6 H521 1354 Collar R1 6
7 H521 1307 Guide Roller Shaft 3
8 H521 1301 Pressure Roller - R1 3
9 H521 1318 Cover - Front 1
10 H521 1306 Guide Roller Shaft 2
11 H521 1348 Collar R0 2
12 H521 1337 Guide Roller R0 1
13 H006 2316 Spacer - Pick-up Clutch 2
14 H521 1314 Spring Clutch - M6 1
15 H081 3407 Snap Ring - M2.5 2
16 H521 1294 Shaft - Pickup 1
17 H521 1292 Shaft - Feed Roller 1
18 H521 1286 Gear - Feed Roller 1
19 H521 1316 Spring Clutch - M9 1
20 H521 1367 Feed Roller 1
21 H521 1268 Bracket - Pickup 1
22 H521 1328 Cover - Rear - ADF 1
23 H521 1366 ADF Pickup Roller 1
24 H521 1288 Collar - Pickup 1
25 H521 1287 Gear - Pickup Roller 1
26 H081 1046 Idler Gear - ADF Pick-up Roller 1
27 H521 5332 Grounding Wire - 70 1
28 H521 1330 Cover - Rear/lower - ADF 1
29 H521 1259 Guide Plate R2 1
30 H521 5331 Grounding Wire - 125 1
31 H521 1305 Spring Plate R2 2
32 H521 1319 Exit Roller Collar 1
33 H521 1302 Guide Roller R2 1
34 H521 1368 Sheet - Interlock SW. 1
35 H521 1214 Base - ADF 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 H521 1310 Pin Shaft 2
37 H521 1278 Exposure Glass - ADF Option 1
38 H521 1338 Cover - Front - Lower 1
39 H521 1364 Guide Sheet 1
40 H521 1317 Pressure Spring 1
41 H521 1210 ADF Roller Unit 1
101 0802 5230 Tapping Screw - M3x10
102 0720 0040E Retaining Ring - M4
103 0323 0060B Philips Sunk Screw - M3x6
104 0805 3386 Bushing - 8mm
105 0313 0030B Philips Pan Head Screw - M3x3
106 0951 3006B Philips Screw With Flat Washer - M3x6
107 0313 0060B Philips Pan Head Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
C226 13 Parts Location and List
4. ADF Unit 2 (C226)
C226 14 Parts Location and List
4. ADF Unit 2 (C226)
Index
No.
1 H521 1261 Front Side Plate 1
2 H521 1308 Lock Spring 2
3 H521 1336 Lock Spring 1
4 H521 1281 R2 Drive Gear 1
5 H521 1311 Busing 8
6 H521 1297 Lock Lever 2
7 H521 1282 Joint Gear 1
8 H521 1283 Front Drive Gear - Reverse 1
9 H521 1284 Front Drive Gear - Feed 1
10 H521 1290 Busing 1
11 H521 1293 Joint Shaft 1
12 H521 1372 Reverse Roller 1
13 H521 1374 Bracket - Reverse 1
14 H081 3407 Snap Ring - M2.5 1
15 H521 1295 Shaft - Separation Roller 1
16 H521 1276 Shaft - Separation Unit 1
17 H521 1296 Bushing 2
18 H521 1285 Middle Drive Gear - Reverse 1
19 H521 1250 R0 Roller 1
20 H521 1251 R1 Roller 1
21 H521 1258 Separation Guide 1
22 H521 1350 Pad - Pick-up 1
23 H521 1280 Pulley R1 2
24 H521 1340 Pulley R2 1
25 H521 1300 Spring Plate 1
26 H081 1065 Timing Belt - Idler 2 1
27 H521 1335 Bushing - 8x10mm 1
28 H521 1264 Rear Side Plate 1
29 H515 5018 Cover Switch - Fusing Exit 1
30 H521 1279 Joint Gear 1
31 H521 1309 Timing Belt 1
33 H521 1267 Motor Bracket 1
34 H521 5010 Scanner Motor - ADF 1
35 H521 1358 Motor Cushion 1
36 H521 5336 Harness - ADF - L 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
37 H521 5011 Document Sensor - S1/S3 2
38 H521 5012 Document Sensor - S2 1
39 H521 1254 Lower Guide Plate 1
40 H521 1331 Antistatic Brush 1
41 H521 1341 Pressure Spring 2
42 H521 1252 R2 Roller 1
43 H521 1299 Lock Shaft 1
44 H521 1312 Pressure Shaft Holder 2
45 C575 3420 Standard White Sheet 1
46 H521 1289 Pressure Plate 1
47 H521 1321 Release Lever 1
48 H521 1360 Spring 1
49 H521 1365 Antistatic Brush 1
101 0802 5205 Tapping Screw - M3x6
102 0720 0040E Retaining Ring - M4
103 0720 0060E Retaining Ring - M6
104 0720 0070E Retaining Ring - M7
105 0802 5206 Tapping Screw - M3x8
106 1105 0283 Clamp
107 0313 0030B Philips Pan Head Screw - M3x3
108 1105 0153 Clamp
109 1105 0260 Wire Saddle
Part No.
Description
Q’ty Per
Assembly
C226 15 Parts Location and List
5. Scanner unit 1 (C226)
C226 16 Parts Location and List
5. Scanner unit 1 (C226)
Index
No.
1 H521 1143 Spring - Stopper 1
2 H521 1151 Grip - Stopper 1
3 H521 1141 Stopper - Lower 1
4 H521 1142 Pin - Stopper 1
5 H521 1140 Stopper - Upper 1
6 H521 1164 Bracket - Stopper - Upper 1
7 H521 1155 Bracket - Stopper - Base 1
8 H521 1072 Bracket - Flat Cable Holder 1
9 H521 1085 Ground Plate - Rear 1
10 H521 1082 Ground Plate - Front 1
11 H521 5004 Scanner Motor - DC24V 0.7A 1
12 H521 1150 Cushion - Scanner Motor 1
13 H521 1064 Motor Bracket 1
14 H521 1081 Pulley - Scanner 1
15 H521 1074 Timing Belt 1
16 H006 2383 Snap Ring 2
17 H521 1071 Spring Plate 1
18 H081 1065 Timing Belt - Idler 2 1
19 H521 1222 Holder - Sponge 1
20 H521 1062 Rail - Scanner 1
21 H521 1069 Holder - Flat Cable 1
22 H521 1078 Pulley - Scanner 1
23 H521 5305 Sensor Harness 1
24 H521 1127 Stopper - Shaft - Scanner 1
25 H521 1075 Bracket - Pulley - Scanner 1
26 H521 1061 Shaft - Slider 1
27 C226 3320 Contact Image Sensor - B4 1
28 H521 1050 Carriage - Scanner 1
29 H521 1054 Slider - Carriage 1
30 H521 1057 Spring - Image Sensor 2
31 H521 1122 Bracket - Wire 1
32 H521 1079 Wire - Scanner Drive 1
33 H521 5001 Lamp Stabilizer 1
34 H521 1080 Spring - Wire 1
35 C226 3340 Xenon Lamp Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C226 3332 Edging - Small 1
37 H521 1169 Sheet - Flexible Board - 2 1
38 H521 1121 Roller 2
39 C226 3331 Enging - Long 1
40 H521 1221 Sponge - Shaft - Scanner 1
101 0720 0040E Retaining Ring - M4
102 0353 0100Z Bind Screw - M3x10
103 0451 3006B Tapping Screw - M3x6
104 0951 3006B Philips Screw With Flat Washer - M3x6
105 1105 0310 Wire Clamp
106 0720 0030E Retaining Ring - M3
107 0802 5205 Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
C226 17 Parts Location and List
6. Scanner unit 2 (C226)
C226 18 Parts Location and List
6. Scanner unit 2 (C226)
Index
No.
1 C226 3011 Sector Gear 1
2 H521 1073 Bushing - M10 1
3 H006 2383 Snap Ring 1
4 H521 1101 Spring - Center 2
5 H521 1115 Pin - CTM 2
6 H521 1112 Bracket - Center 2
7 H521 1162 Base - Front 1
8 H521 1058 Base - Main 1
9 C226 3027 Master Guide Plate 1
10 H521 1172 Sheet - Lever - Lock 1
11 H521 1170 Sheet - Flexible Board - 3 1
12 H521 5317 Harness - ADF 1
13 H521 1099 Handle - Lock - Lever 1
14 H521 1130 Bracket - Harness - 1 1
15 H521 1132 Bracket - Harness - 2 1
16 H004 3755 Square Bushing 1
17 H521 5318 Harness - Book H.P. Sensor 1
18 H521 1117 Base - Rear 1
19 AW02 0021 Photointerruptor - 175487-3 2
20 H521 1089 Fulcrum - Scanner Unit - Rear 1
21 C226 3025 Lock Lever Bracket 1
22 C226 3026 Rear Lever Lock Pin 1
23 C226 3018 Lock Lever Ass’y 1
24 H521 1090 Bracket - Lock Lever - Front 1
25 H521 1096 Spring - Lock Lever 1
26 H521 1100 Spring - CTM 1
27 H521 1144 Pin - CTM - Long 1
28 H521 5319 Harness - ADF Motor 1
29 H521 1189 Sheet - Flexible Board - 1 1
30 H521 1196 Sheet - Flexible Board - 4 1
31 H521 1177 Sponge - Base 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1105 0310 Wire Clamp
102 0951 3006B Philips Screw With Flat Washer - M3x6
103 0720 0030E Retaining Ring - M3
104 1105 0283 Clamp
Part No.
Description
Q’ty Per
Assembly
C226 19 Parts Location and List
7. Paper Table (C226)
C226 20 Parts Location and List
7. Paper Table (C226)
Index
No.
1 5506 1536 Screw - M4X6 2
2 5070 0923 Spring Washer - Rotating Table 2
3 C200 5285 Side Pad 2
4 C203 8098 Grounding Wire 1
5 C201 5015 Seal - M10 2
6 C215 5095 Seal 1
7 C207 5279 Left Side Plate - Paper Feed 1
8 C200 5274 Right Side Plate - Paper Feed 1
9 5214 5235 Paper Feed Sensor 1
10 C203 5087 Rubber Plate - Feed Table 1
11 C215 5089 Paper Feed Table 1
12 C213 2453 Decal - Paper Feed Table 1
13 C203 5121 Bushing - 8x12x9mm 4
14 5600 1107 Snap Retainer - 12 4
15 C218 5054 Table Position Knob 1
16 C203 5114 Bushing - 3x6x3mm 1
17 C218 5116 Washer - 6x13x12mm 1
18 C203 5113 Bushing - 6x9x3mm 2
19 C203 8365 Grounding Wire 1
20 C203 5131 Gear Cover 4
21 C200 5335 Side Plate Slider 2
22 C207 5028 Paper Feed Rack 2
23 C203 5142 Rack Shaft 4
24 5606 2310 Roller 4
25 C224 5126 Right Rack - Paper Feed 1
26 C200 5042 Rear Shaft - Paper Feed 1
27 C203 5122 Front Shaft - Paper Feed 1
28 C226 5074 Lift Sensor Actuator 1
29 5505 7197 Spring - Hinge - Inking 1
30 5309 1023 Pinion Paper Feed Table 1
31 C219 5079 Supporter 1
32 C222 5121 Position Indicator 1
33 C219 5073 Stepped Screw 2
34 C224 5056 Hinge 2
35 C201 5125 Shoulder Screw - M4 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
36 C203 5119 Arm - Paper Feed Table 1
37 AG07 0004 Magnetic Catch 1
38 C224 2426 Paper Feed Table Cover 1
39 C224 2716 Decal - Paper Size - LT 1
39 C224 2718 Decal - Paper Size - A4 1
40 C224 5128 Left Rack - Paper Feed 1
41 C224 2421 Paper Feed Table Cover (LT) 1
41 C224 2426 Paper Feed Table Cover (A4) 1
42 C209 5092 Rubber Plate Lever 2
100 0701 0080Z Flat Washer - M8
101 0323 0100Z Philips Sunken Head Screw - M3x10
102 0313 0100Z Philips Pan Head Screw - M3x10
103 0951 4010Z Philips Screw With Flat Washer M4x10
104 0720 0040Z Retaining Ring - M4
105 0720 0060Z Retaining Ring - M6
106 0951 4008Z Philips Screw With Flat Washer M4x8
107 0710 0030Z Hex Nut 3
108 0701 0040Z Flat Washer - M4
109 0951 3006Z Philips Screw With Flat Washer - M3
110 0324 0060Z Philips Sunken Head Screw - M4x6
111 0434 0062W Pan Head Tapping Screw - M4x6
112 0314 0080Z Philips Screw - 4x8
Part No.
Description
Q’ty Per
Assembly
C226 21 Parts Location and List
8. Paper Table Drive (C226)
C226 22 Parts Location and List
8. Paper Table Drive (C226)
Index
No.
1 C203 5135 Bushing - 10x14x5.9 2
2 C201 5051 Pinion - 24t 2
3 C224 5162 Switch Bracket 1
4 C223 5133 Paper Lift Shaft 1
5 C218 3073 Timing Belt - B60S2M126 1
6 C223 5093 Lift Motor Bracket 1
7 C223 5097 Worm Wheel 1
8 C223 5095 Worm Wheel 1
9 C223 5096 Lift Gear 1
10 C224 8213 DC Motor 1
11 5506 6314 Mylar - Master Feed Table 1
12 C203 5152 Safety Switch Shaft 1
13 C224 5158 Safety Switch Plate 1
14 5506 4608 Bushing - Paper Hold/down Roller - 1
15 C203 5153 Safety Switch Actuator 1
16 C226 5150 Tension Spring 1
17 C223 5099 Worm Gear Shaft 1
18 C223 5091 Gear Shaft 1
19 C223 5126 Timing Pulley 1
20 C224 5090 Paper Feed Motor Cover 1
21 AB03 0216 Pulley - 15Z 1
22 C223 5098 Support Gear Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0951 4005Z Philips Screw With Flat Washer - M4x5
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0720 0080Z Retaining Ring - M8
103 0624 0160E Spring Pin - 4x16mm
104 0624 0220E Spring Pin - 4x20mm
105 0574 0040E Hexagon Headless Set Screw - M4x4
106 0314 0080Z Philips Screw - 4x8
107 0720 0120Z Retaining Ring - M12
108 0807 4076 Washer - 8.2x6.1x0.3mm
109 0741 3706 Ball Bearing - 6x10x3
110 0960 4006Z Philips Frang Screw - M4x6
111 0951 3006Z Philips Screw With Flat Washer - M3
112 0720 0050Z Retaining Ring - M5
113 1204 2424 Micro Switch - V-15-2A5(10e)
114 0313 0140Z Philips Pan Head Screw - M3x14
Part No.
Description
Q’ty Per
Assembly
C226 23 Parts Location and List

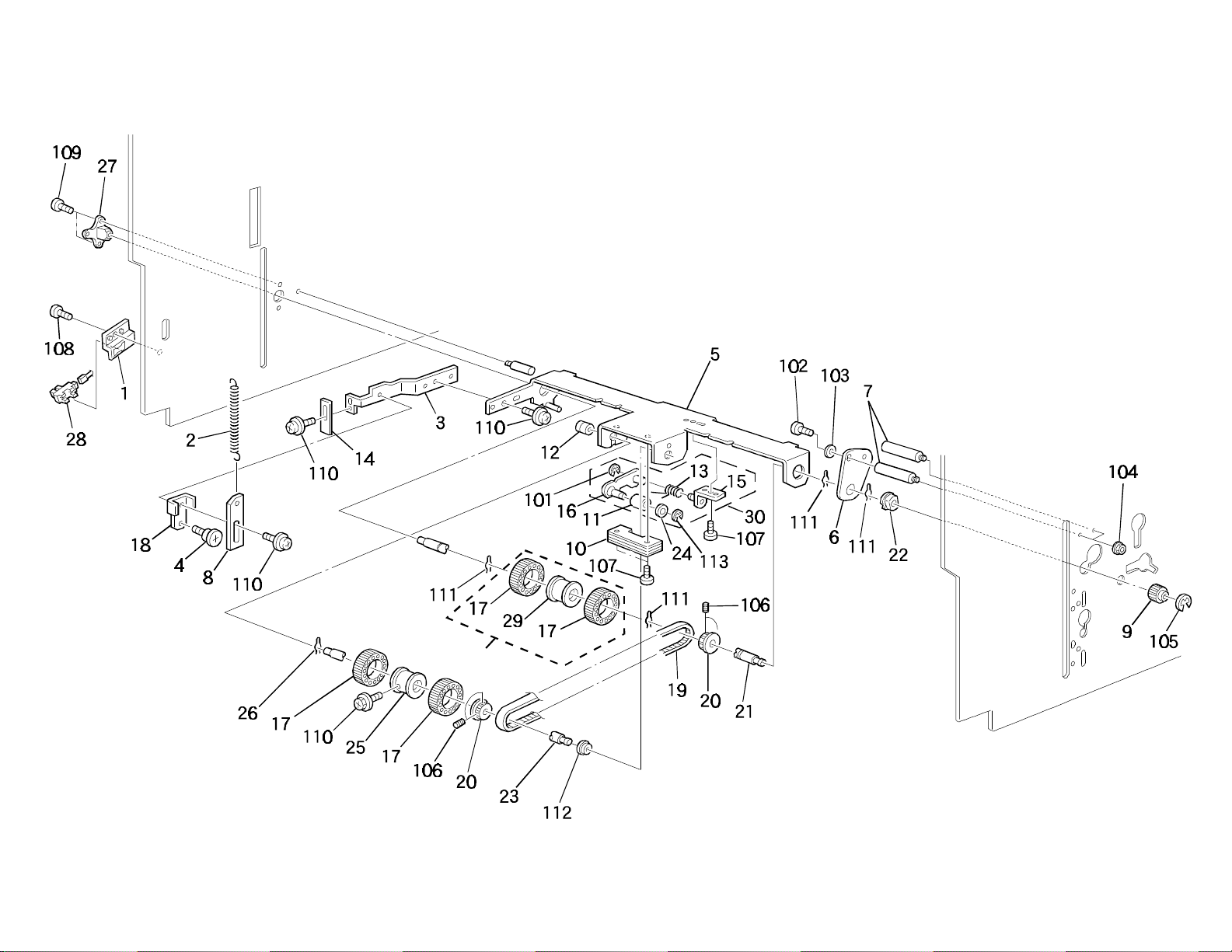

9. Paper Feed And Separation Roller (C226)
3
1
C226 24 Parts Location and List
9. Paper Feed And Separation Roller (C226)
Index
No.
1 C226 5081 Sensor Bracket 1
2 C224 5031 Spring - Paper Feed Pressure 1
3 C224 5034 Spring Link 1
4 5403 2075 Stepped Screw 1
5 C224 5037 Feed Roller Holder 1
6 C219 5030 Bushing 1
7 C219 5029 Rear Bushing Shaft 2
8 C219 5157 Adjusting Plate 1
9 C203 5220 Gear - 18T 1
10 C224 5073 Arm Balancer - Feed Roller 1
11 C203 5200 Tension Roller 1
12 5600 1081 Right Bushing - Paper Feed Roller 1
13 C203 5215 Tension Spring 1
14 C203 5055 Actuator - Paper Feed Table 1
15 C203 5208 Tension Bracket 1
16 C203 5201 Tension Arm 1
17 5506 4169 Rubber Roller - Paper Feed 4
18 C219 5158 Spring Link 1
19 5507 6035 Timing Belt - 162XL 1
20 5507 6032 Timing Belt Pulley - 30T 2
21 C219 5025 Upper Roller Shaft 1
22 5053 0419 Bushing - 10mm 1
23 C219 5026 Pick-up Roller Shaft 1
24 C203 5225 Spacer - Tension - Paper Feed 1
25 C219 5033 Paper Feed Roller 1
26 5600 1107 Snap Retainer - 12 1
27 C203 5045 Bushing - 18x24x28mm 1
28 AW02 0021 Photointerruptor - 175487-3 1
29 C219 5036 Paper Feed Roller 1
30 C203 5205 Belt Tensioner Ass’y 1
31 C224 5041 Reverse Roller 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0720 0040Z Retaining Ring - M4
102 0594 0080E Bolt - M4x8
103 0701 0040Z Flat Washer - M4
104 0713 0040B Hexagon Nut - M4
105 0720 0050Z Retaining Ring - M5
106 0574 0040E Hexagon Headless Set Screw - M4x4
107 0314 0080Z Philips Screw - 4x8
108 0314 0060Z Philips Pan Head Screw - M4x6
109 0434 0080Z Pan Head Self-tapping Screw - M4x8
110 0951 3006Z Philips Screw With Flat Washer - M3
111 0804 4055 Pin
112 0805 3263 Bearing - 6x10x6mm
113 0720 0060Z Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
C226 25 Parts Location and List

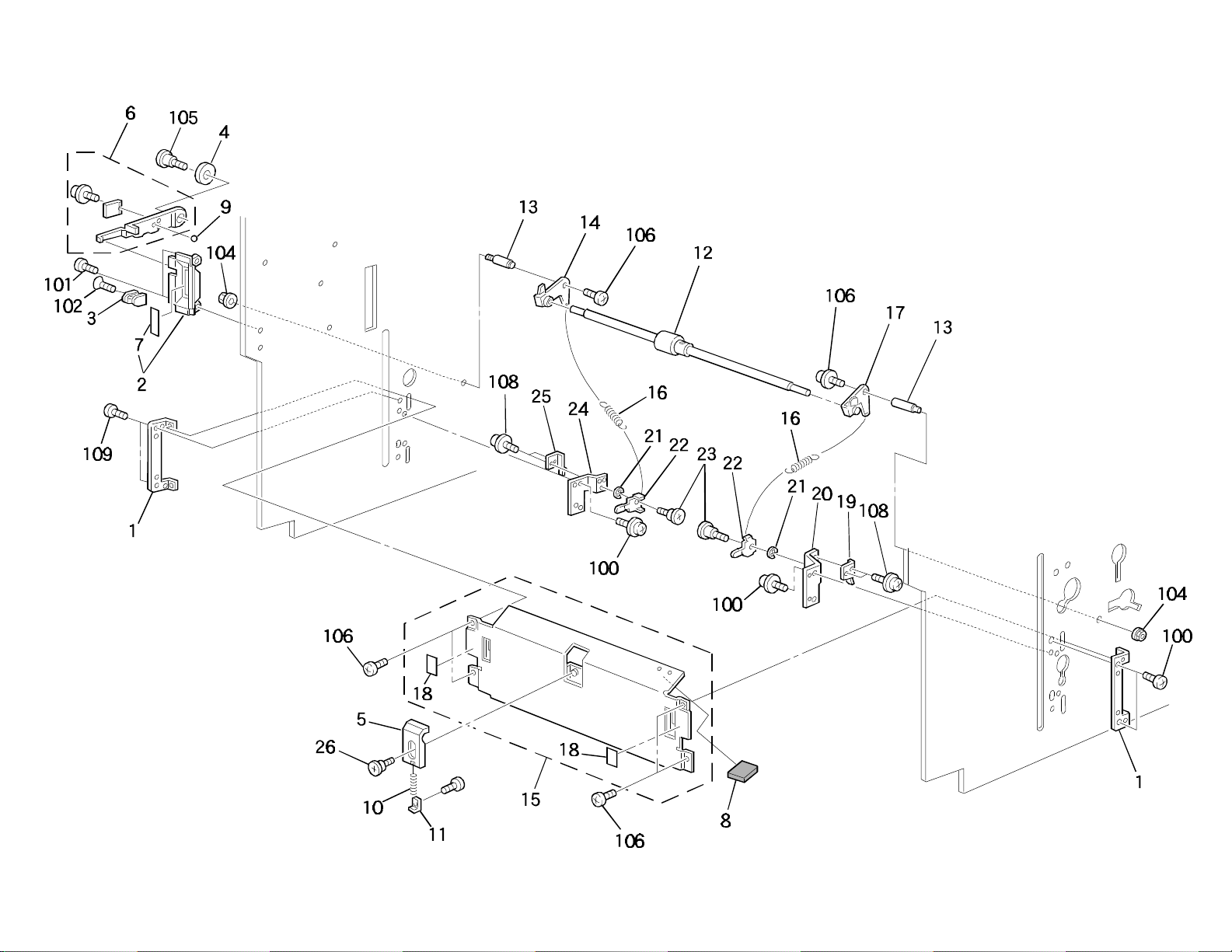

10. Paper Separation Roller (C226)
C226 26 Parts Location and List
10. Paper Separation Roller (C226)
Index
No.
1 C201 5075 Guide Plate Bracket 2
2 C226 2743 Paper Feed Lever Cover 1
3 C201 2425 Adjusting Lever 1
4 C209 5220 Spacer - 4x20x6 1
5 5507 6055 Front Guide Plate 1
6 C219 5152 Paper Feed Lever 1
7 C224 2737 Decal - Paper Feed 1
8 5507 6828 Rubber Plate - Feed Table 1
9 5501 8195 Steel Ball 3/16, 1
10 C200 5106 Paper Feed Pressure Spring 1
11 5507 6058 Spring Hook - Separator Pressure 1
12 C201 5077 Lower Separation Roller Ass’y 1
13 C201 5090 Separation Roller Pressure Stud 2
14 C203 5062 Left Arm - Separation 1
15 C203 5086 Guide Plate 1
16 C201 5080 Separation Roller Pressure Spring 2
17 C203 5066 Right Arm - Separation 1
18 C203 2728 Decal - Paper Separator 2
19 C201 5086 Spring Plate - Right 1
20 C201 5084 Right Bracket - Separation Pressure 1
21 C201 5089 Washer - M6 2
22 C201 5088 Separation Pressure Lever 2
23 5403 2075 Stepped Screw 2
24 C201 5083 Left Bracket - Separation Pressure 1
25 C201 5082 Spring Plate - Left 1
26 5507 6060 Guide Screw - Front Plate 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0314 0080Z Philips Screw - 4x8
101 0801 1004 Screw - M4x4
102 0323 0100Z Philips Sunken Head Screw - M3x10
103 0951 3006Z Philips Screw With Flat Washer - M3
104 0713 0040B Hexagon Nut - M4
105 0314 0120Z Philips Screw - 4x12
106 0951 4008Z Philips Screw With Flat Washer M4x8
107 0434 0080Z Pan Head Self-tapping Screw - M4x8
108 0951 3005Z Philips Pan Head Screw - M3x5
109 0434 0080Z Pan Head Self-tapping Screw - M4x8
Part No.
Description
Q’ty Per
Assembly
C226 27 Parts Location and List
11. Paper Feed Drive (C226)
C226 28 Parts Location and List
11. Paper Feed Drive (C226)
Index
No.
1 C213 5120 Second Feed Roller Cam 1
2 C203 5194 Shoulder Screw - M4 1
3 C219 5127 Sector Gear Shaft 1
4 C219 5122 Paper Feed Sector Cam 1
5 C224 5101 Sector Gear 1
6 5600 1086 Spacer - 10.2x20 1
7 C200 5222 Sector Spring 1
8 C200 5205 Paper Feed Spring 1
9 C219 5105 Sector Gear Stopper 1
10 C203 5170 Feed Cam Shaft 1
11 C213 5110 Paper Feed Cam 1
12 C219 5108 Sector Stopper - Feed Roller 1
13 C200 5235 Paper Feed Solenoid Spring 1
14 C224 8458 Release Solenoid 1
15 C200 5226 Link - Paper Feed Solenoid 1
16 C200 5225 Bracket - Paper Feed Solenoid 1
17 C219 2073 Stopper Stud - Paper Feed 1
18 C201 5101 Link 1
19 C223 2229 Feed Cam Gear 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0725 0220Z Retaining Ring - M22
101 0740 3007 Ball Bearing - 7x19x6mm
102 0807 5004 Washer
103 0713 0040B Hexagon Nut - M4
104 0807 7018 Washer - M10
105 0720 0060Z Retaining Ring - M6
106 0720 0080Z Retaining Ring - M8
107 0701 0040Z Flat Washer - M4
108 0807 7013 Spacer - 10.2x14x0.2mm
109 0712 0060Z Hexagon Nut - M6
110 0594 0060E Socket Screw - 4X6
111 0807 7055 Holder - Main Shaft
112 0741 3807S Ball Bearing - 7x14x5
113 0720 0040Z Retaining Ring - M4
114 0623 0100E Spring Pin - 3x10mm
115 0951 4006Z Philips Screw With Flat Washer - M4
116 0313 0040Z Philips Pan Head Screw - M3x4
117 0713 0050B Hexagon Nut - M5
Part No.
Description
Q’ty Per
Assembly
C226 29 Parts Location and List
12. 2nd Feed Roller (C226)
C226 30 Parts Location and List
12. 2nd Feed Roller (C226)
Index
No.
1 C200 5150 Bushing - 7x18x9mm 2
2 C200 5137 Left Bracket - Guide Plate 1
3 5505 6528 Spring - Press Roller 2
4 C200 5154 Left Spring Arm 1
5 C201 5125 Shoulder Screw - M4 4
6 C224 5008 Upper Feed Roller 3
8 C200 5155 Right Spring Arm 1
9 C224 5122 Lower Guide Plate 1
10 C201 5134 Bearing Holder 2
11 C200 5153 Bushing Supporter 2
12 C207 5231 Gear - 2nd Feed Roller 1
13 C224 5515 Pressure On/Off Lever 1
14 5600 1080 Bush - Paper Feed Roller - Left 1
15 C201 5505 Height Sensor Bracket 1
16 C200 5504 Paper Detecting Pin 2
17 C200 5503 Paper Detecting Shaft 1
18 C224 5230 Lower Feed Roller 1
19 C203 5198 Feed Roller Brake Ass’y 1
20 5501 8328 Spring - Feed Roller Brake 1
21 C224 5006 Upper Feed Roller Ass’y 1
22 C200 5138 Right Bracket - Guide Plate 1
23 C207 5125 Guide Plate Spacer 2
24 C219 5003 Upper Guide Plate 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0060Z Retaining Ring - M6
101 0314 0080Z Philips Screw - 4x8
102 0740 3010 Ball Bearing - 10x26x8mm
103 0720 0050Z Retaining Ring - M5
104 0314 0200Z Philips Screw - 4x20
105 0573 0050E Hexagon Headless Set Screw - M3x5
106 0951 4006Z Philips Screw With Flat Washer - M4
107 0313 0050Z Philips Screw - 3x5
108 0801 1004 Screw - M4X4
Part No.
Description
Q’ty Per
Assembly
C226 31 Parts Location and List
13. 2nd Feed Drive (C226)
C226 32 Parts Location and List
13. 2nd Feed Drive (C226)
Index
No.
1 C219 5109 Feed Sector Stopper 1
2 C201 5101 Link 1
3 C219 2075 Feed Gear Stopper Shaft 1
4 C200 5222 Sector Spring 1
5 C219 5106 Sector Gear Stopper 1
6 C203 5184 Sector Gear 1
7 C200 5223 Lift Cam 1
8 C219 5120 Feed Cam Shaft 1
9 C224 5142 Feed Roller Arm 1
10 C201 5145 Lift Arm Spring 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0080Z Retaining Ring - M8
101 0720 0040Z Retaining Ring - M4
102 0713 0050B Hexagon Nut - M5
103 0807 7018 Washer - M10
104 0594 0060E Socket Screw - 4X6
105 0701 0040Z Flat Washer - M4
106 0951 4010Z Philips Screw With Flat Washer M4x10
107 0740 3808 Ball Bearing - 8x16x5mm
108 0713 0040B Hexagon Nut - M4
109 0804 6090 Hexagon Bolt - M4
110 0585 0100Z Bolt - M5x10
Part No.
Description
Q’ty Per
Assembly
C226 33 Parts Location and List
14. Press Roller (C226)
C226 34 Parts Location and List
14. Press Roller (C226)
Index
No.
1 C200 5566 Pressure On/Off Lever 1
2 C200 5526 Print Pressure Bushing 2
3 C200 5565 Print Pressure Stopper 1
4 5501 7559 Spring - Master Feed 1
5 C224 8456 Release Solenoid 1
6 C200 6002 Adjusting Arm 1
7 C224 5553 Right Arm - Print Pressure 1
8 C203 5505 Print Pressure Shaft 1
9 C203 5507 Shielding Plate 1
10 C224 5552 Left Arm - Print Pressure 1
11 5053 0223 Bushing - 8mm 1
12 C226 2034 Count Sensor Bracket 1
13 AW02 0021 Photointerruptor - 175487-3 1
14 C213 6050 Exit Pawl 1
15 C213 6003 Pawl Shaft 1
16 C200 6004 Exit Pawl Lever 1
17 C224 2225 Joint Cam Shaft 1
18 C200 2224 Plate Nut - Print Pressure Cam 1
19 C213 5560 Print Pressure Cam 1
20 C200 5541 Print Pressure Arm 1
21 C209 5543 Press Roller Spring Link 1
22 5607 3261 Print Pressure Spring 1
23 5607 2814 Roller Spring 1
24 C201 5550 Printing Pressure Stay 1
25 C224 6004 Pawl Cam 1
26 C219 5557 Rear Guide Plate 2
27 C224 5554 Press Roller Ass’y 1
28 C209 5521 Joint Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0740 3206 Ball Bearing - 6x19x6
101 0623 0100E Spring Pin - 3x10mm
102 0700 0060G Flat Washer - M6
103 0594 0060E Socket Screw - 4x6
104 0584 0121Z Hexagon Bolt - M4x12
105 0710 0040Z Hex Nut 4
106 0313 0060Z Philips Pan Head Screw - M3x6
107 0951 4008Z Philips Screw With Flat Washer M4x8
108 0720 0060Z Retaining Ring - M6
109 0720 0120Z Retaining Ring - M12
110 0314 0080Z Philips Screw - 4x8
112 0314 0100Z Philips Screw - 4x10
113 0720 0080Z Retaining Ring - M8
114 0804 6092 Hexagonal Set Screw
115 0713 0050B Hexagon Nut - M5
116 0720 0040Z Retaining Ring - M4
117 0433 0080Z Tapping Screw - M3x8
118 0593 0080E Bolt - M3x8
119 0804 6101 Hexagon Bolt - M3
120 0740 3007 Ball Bearing - 7x19x6mm
121 0701 0040Z Flat Washer - M4
122 0586 0451Z Hexagon Bolt - M6x45
Part No.
Description
Q’ty Per
Assembly
C226 35 Parts Location and List

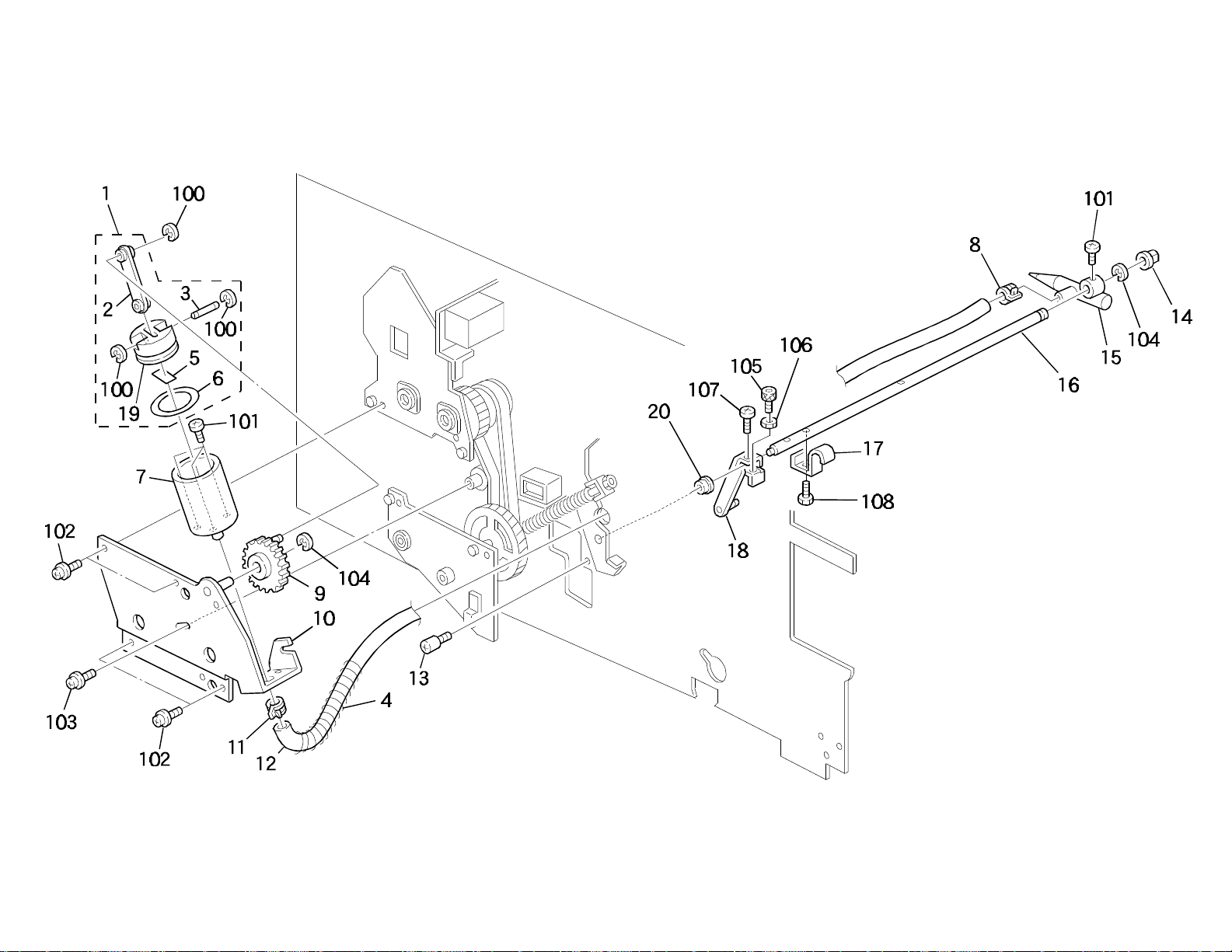

15. Air Knife Section (C226)
C226 36 Parts Location and List
15. Air Knife Section (C226)
Index
No.
1 C213 6037 Air Piston Ass’y 1
2 C213 6038 Piston Link 1
3 C209 6213 Piston Pin - Air Pump 1
4 AA06 3014 Spring - Supply Tube 1
5 C213 6042 Piston Valve 1
6 C213 6041 O Ring - 33.7 1
7 C213 6043 Air Pump Cylinder 1
8 C209 4713 Hose Band 1
9 C224 6033 Pump Drive Gear 1
10 C213 6030 Reinforcement Plate 1
11 C209 4711 Hose Band 1
12 C219 6219 Air Hose 1
13 5506 6073 Stopper - Holder - Master Hold/Down 1
14 C200 5526 Print Pressure Bushing 1
15 C213 6050 Exit Pawl 1
16 C213 6003 Pawl Shaft 1
17 C209 6225 Hose Clamp 1
18 C200 6004 Exit Pawl Lever 1
19 C213 6040 Piston 1
20 5053 0223 Bushing - 8mm 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0030Z Retaining Ring - M3
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0960 4008Z Flange Head Screw - 4x8
103 0960 5008Z Philips Flange Screw - M5x8
104 0720 0060Z Retaining Ring - M6
105 0584 0121Z Hexagon Bolt - M4x12
106 0710 0040Z Hex Nut 4
107 0584 0121Z Hexagon Bolt - M4x12
108 0593 0080E Bolt - M3x8
Part No.
Description
Q’ty Per
Assembly
C226 37 Parts Location and List

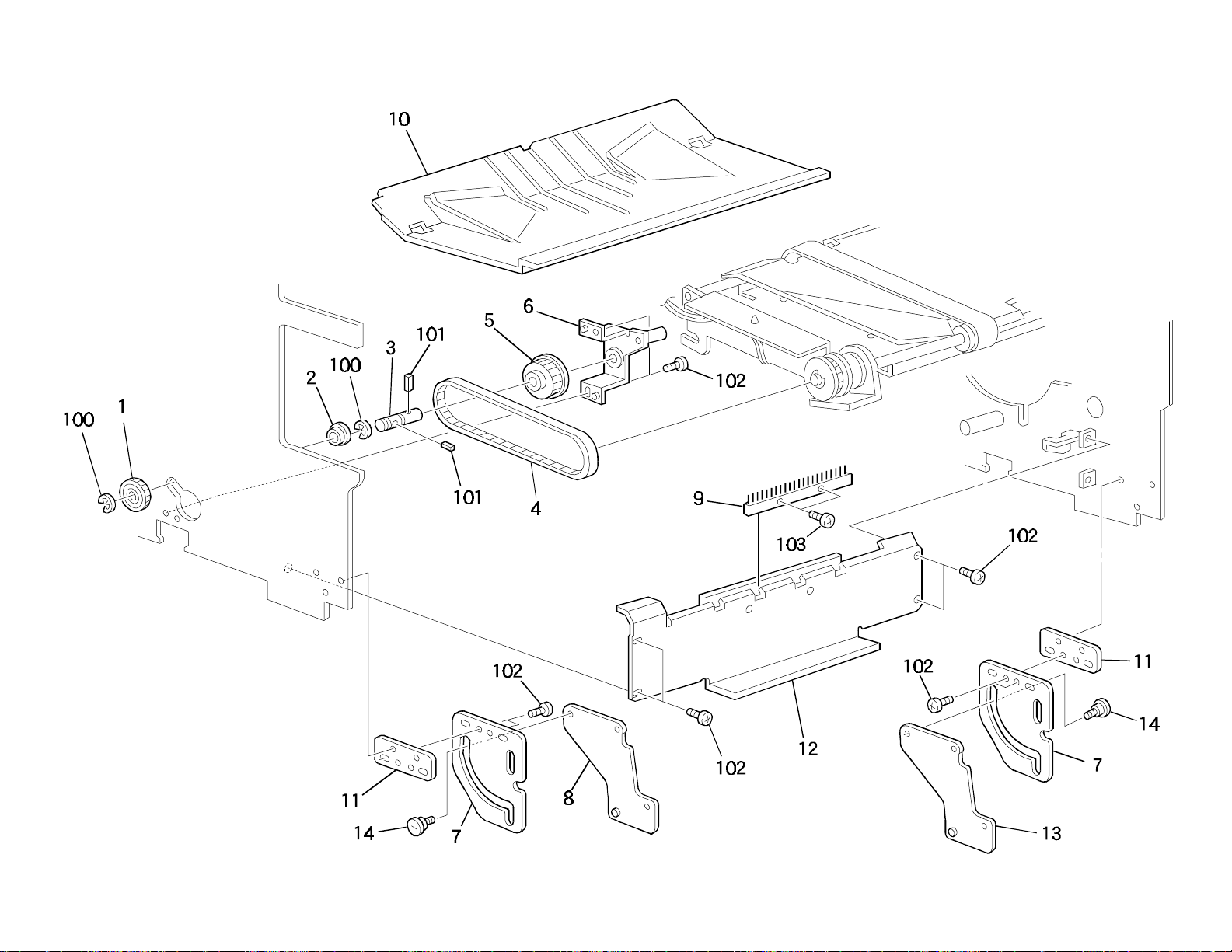

16. Paper Delivery 1 (C226)
C226 38 Parts Location and List
16. Paper Delivery 1 (C226)
Index
No.
1 C200 6058 Gear - 28T 1
2 5070 0719 Bushing - 10mm 1
3 C203 6064 Idol Shaft 1
4 C200 6060 Timing Belt - 170XL 1
5 C200 6059 Pulley - 25T 1
6 C224 6060 Vacuum Drive Bracket 1
7 C226 6161 Exit Guide Rail 2
8 C226 6165 Hinge Bracket - Rear Exit 1
9 C219 6084 Antistatic Brush 1
10 C213 6201 Shelter Plate 1
11 C226 6163 Exit Hinge Spacer 2
12 C213 6081 Paper Delivery Plate 1
13 C226 6164 Hinge Bracket - Front Exit 1
14 C226 6152 Exit Guide Pin 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0080Z Retaining Ring - M8
101 0623 0180E Spring Pin - 3x18mm
102 0314 0080Z Philips Screw - 4x8
103 0313 0040Z Philips Pan Head Screw - M3x4
Part No.
Description
Q’ty Per
Assembly
C226 39 Parts Location and List

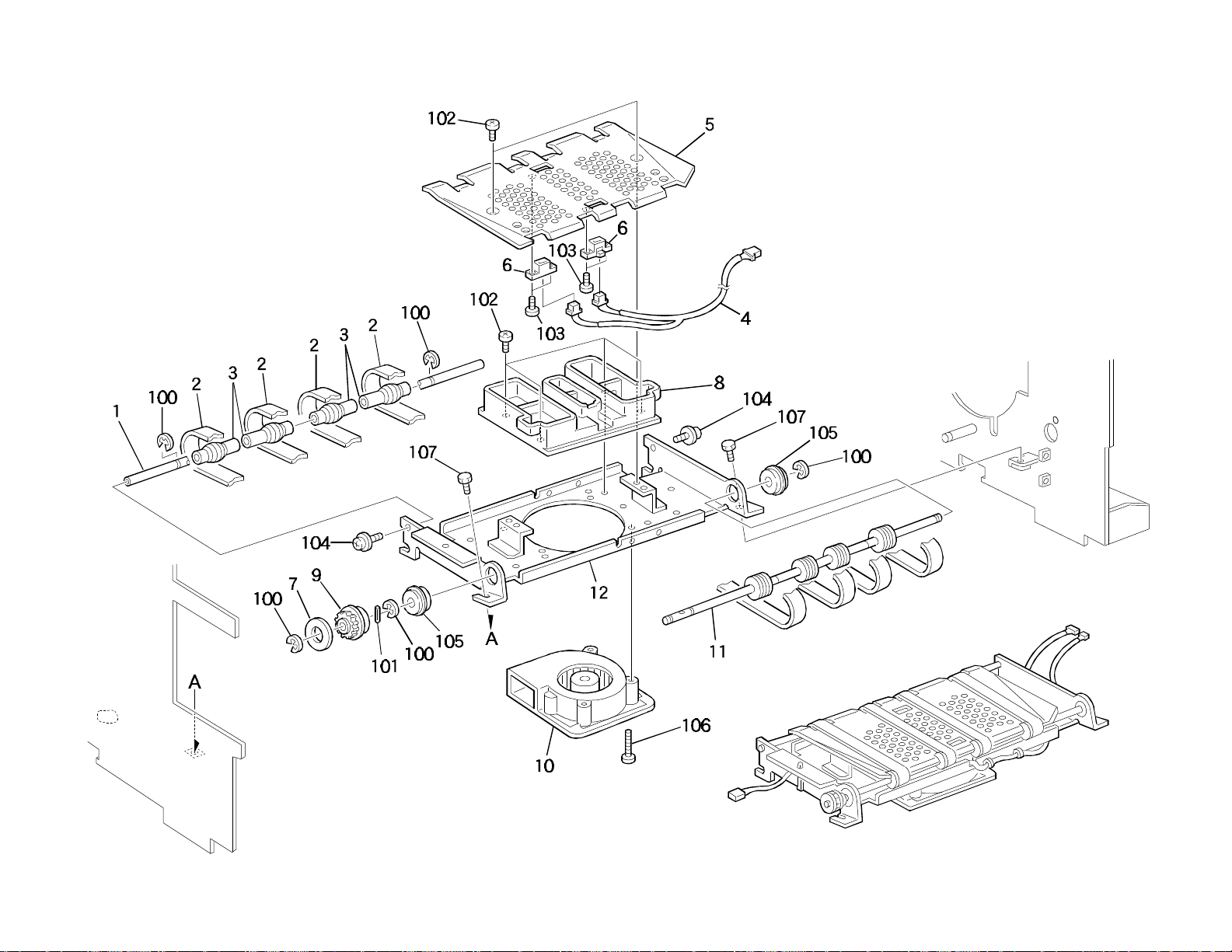

17. Paper Delivery 2 (C226)
C226 40 Parts Location and List
17. Paper Delivery 2 (C226)
Index
No.
1 C224 6019 Idler Roller Shaft 1
2 C207 6011 Transport Belt 4
3 C219 6008 Driven Roller - Transport Belt 4
4 C224 8107 Paper Exit Unit Harness 1
5 C213 6005 Vacuum Plate 1
6 1403 0456 Photosensor - EE-SB5-C3 2
7 C203 6065 Pulley Flange 1
8 C213 6017 Vacuum Duct 1
9 C219 6080 Driven Roller Pulley 1
10 C219 8204 Vacuum Fan Motor - DC24V 0.3A 1
11 C224 6009 Drive Roller - Transport Belt 1
12 C224 6001 Vacuum Plate Base 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0080Z Retaining Ring - M8
101 0623 0160E Spring Pin - 3x16mm
102 0434 0060Z Pan Head Self-tapping Screw - M4x6
103 0313 0100Z Philips Pan Head Screw - M3x10
104 0960 4008Z Flange Head Screw - 4x8
105 0805 3452 Ball Bearing - 10x22x6mm
106 0314 0350Z Screw - M4X35
107 0593 0080E Bolt - M3x8
Part No.
Description
Q’ty Per
Assembly
C226 41 Parts Location and List
18. Delivery Table (C226)
C226 42 Parts Location and List
18. Delivery Table (C226)
Index
No.
1 C227 6184 End Fence 1
2 C227 6169 Sponge Seal - 4.5x65x175 1
3 C226 6167 End Fence Shaft 2
4 C209 6160 End Fence Base 1
5 C227 6159 End Fence Spring - Large 2
6 C209 6158 End Fence Bracket 2
7 C209 6162 Right Rail - End Fence (A4) 1
7 C210 6255 Right Rail - End Fence (LT) 1
8 C209 6163 Spacer - 10x18x1 2
9 C209 6164 Rail Spring - End Fence 2
10 C209 6168 End Fence Washer 2
11 C226 6166 End Fence Support Plate 1
12 C209 6161 Left Rail - End Fence (A4) 1
12 C210 6254 Left Rail - End Fence (LT) 1
13 C209 6183 Small End Fence 1
14 C209 6144 Guide Fence Shaft 1
15 C209 6151 End Fence Support Rail 1
16 C209 6142 Guide Fence Slider 1
17 C209 6150 End Fence Spring 1
18 C209 6153 Bracket - Support End Fence 1
19 C209 6136 Magnet Plate 1
20 C210 6253 Delivery Table (LT) 1
20 C210 6262 Delivery Table (A4) 1
21 C218 6119 Delivery Table Cover 1
22 C226 6146 Rear Guide Fence 1
23 C226 6147 Front Guide Fence 1
24 C209 6144 Guide Fence Shaft 2
25 C209 6143 Guide Fence Knob 2
26 C209 6141 Guide Fence Rail 1
27 C227 6142 Guide Fence Slider 2
28 C227 6157 Guide Fence Spring 2
29 C227 6145 Guide Fence Bracket 2
30 C227 6173 Upper Guide - Rear Fence 1
31 C227 6172 Upper Guide - Front Fence 1
32 C221 6131 Right Stay - Delivery Table 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
33 C221 6130 Left Stay - Delivery Table 1
34 C226 6169 Exit Guide 2
35 C226 6170 End Fence Guide 2
36 5607 3927 Stepped Screw - M3x8 2
37 C209 6137 Magnet Catch Cover 1
38 C227 6166 Lower Guide - Rear Fence (A4) 1
38 C222 6166 Lower Guide - Rear Fence (LT) 1
39 C227 6167 Lower Guide - Front Fence (A4) 1
39 C222 6167 Lower Guide - Front Fence (LT) 1
40 C227 6155 Lower Guide Shaft 4
41 C227 6156 Upper Guide Shaft 4
42 C227 6158 Guide Stopper 4
43 C227 6160 Upper Guide Spring Plate 2
44 C227 6162 Upper Guide Link 2
100 0720 0030Z Retaining Ring - M3
101 0343 0060W Philips Pan Head Screw - M3x6
102 0707 8105B Bushing - M8x10.5
103 0323 0060Z Philips Sunk Screw - M3x6
104 0313 0060Z Philips Pan Head Screw - M3x6
105 0450 3008W Philips Tapping Screw - M3x8
106 0965 3012W Tapping Screw With Flat Washer - M3
107 0450 4008W Philips Tapping Screw - M4x8
Part No.
Description
Q’ty Per
Assembly
C226 43 Parts Location and List

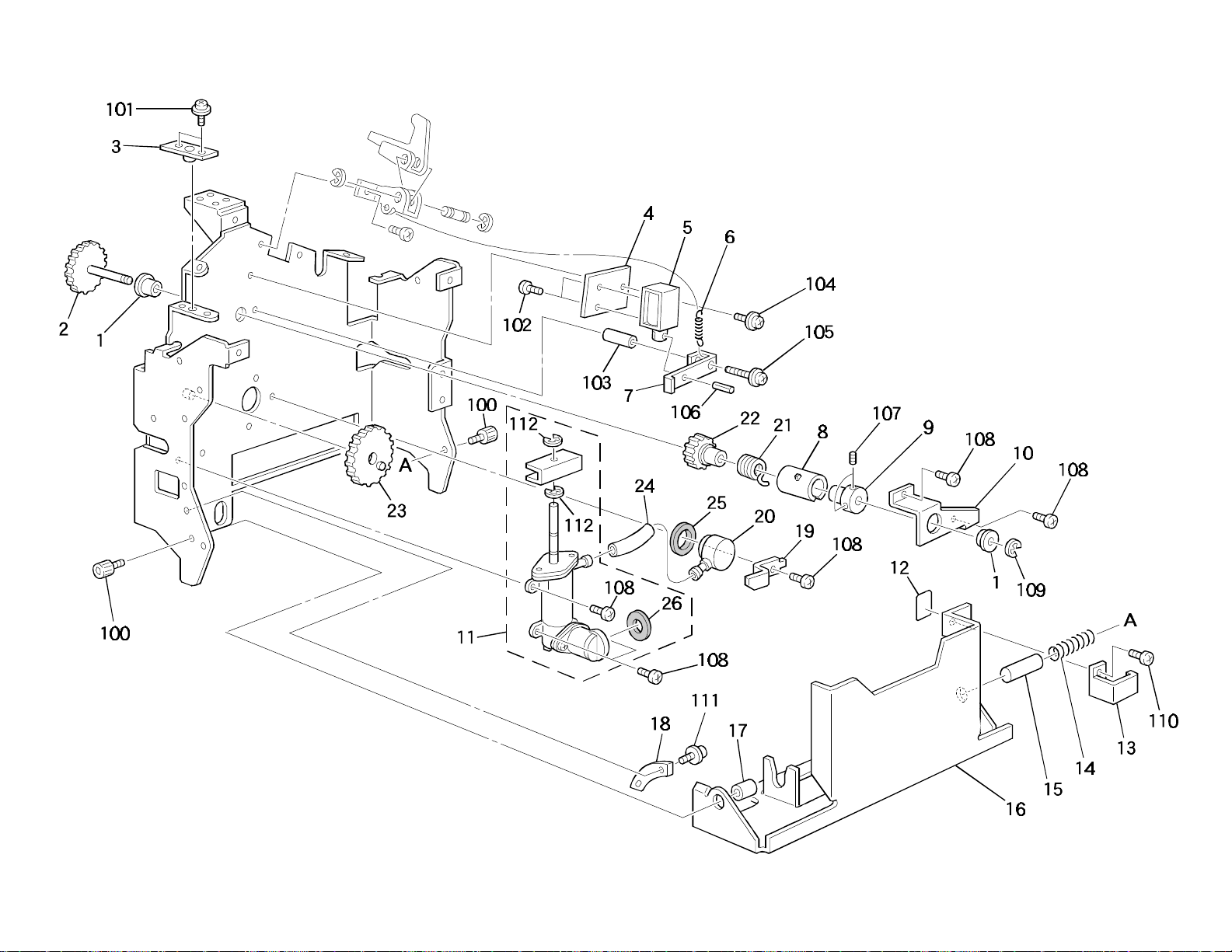

19. Drum Section 1 (C226)
C226 44 Parts Location and List
19. Drum Section 1 (C226)
Index
No.
1 5507 6624 Bushing - 8x16x45mm 2
2 C200 4852 Gear - 50T 1
3 C200 4814 Bushing - 6x10x55mm 1
4 C200 4864 Bracket - Ink Supply Solenoid 1
5 C224 8460 Ink Supply Solenoid 1
6 5607 3705 Drive Spring 1
7 C200 4862 Ink Stopper 1
8 C200 4861 Pump Clutch Sleeve 1
9 C201 4067 Pump Clutch Collar 1
10 C201 4677 Clutch Bracket 1
11 C224 4670 Ink Pump Ass’y 1
11 C224 4680 Ink Pump Ass’y (AB Dick) 1
12 C200 4928 Seal - 0.5x14x9 1
13 C201 4639 Ink Holder Handle 1
14 C201 4682 Ink Cartridge Spring 1
15 C200 4924 Right Shaft - Ink Holder 1
16 C203 4553 Ink Holder 1
17 C200 4923 Left Shaft - Ink Holder 1
18 C200 4926 Ink Holder Cam 1
19 C200 4813 Support Plate - Ink Antechamber 1
20 C213 4810 Ink Antechamber 1
21 C201 4676 Clutch Spring 1
22 C209 4674 Gear - 25Z 1
23 C200 4867 Gear - 50T 1
24 C557 4817 Ink Tube 1
25 C200 4826 Pump Rubber 1
26 C200 4827 Packing - Pump Socket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0595 0080Z Bolt - M5x8
101 0951 4006Z Philips Screw With Flat Washer - M4x6
102 0313 0040Z Philips Pan Head Screw - M3x4
103 0707 4160B Bushing - 4x16mm
104 0960 4006Z Philips Frang Screw - M4x6
105 0951 4020Z Philips Screw With Flat Washer - M4x20
106 0623 0080E Spring Pin - 3x8mm
107 0574 0050E Hexagon Headless Set Screw - M4x5
108 0434 0080Z Pan Head Self-tapping Screw - M4x8
109 0720 0060Z Retaining Ring - M6
110 0314 0060Z Philips Pan Head Screw - M4x6
111 0951 4010Z Philips Screw With Flat Washer M4x10
112 0720 0050Z Retaining Ring - M5
Part No.
Description
Q’ty Per
Assembly
C226 45 Parts Location and List

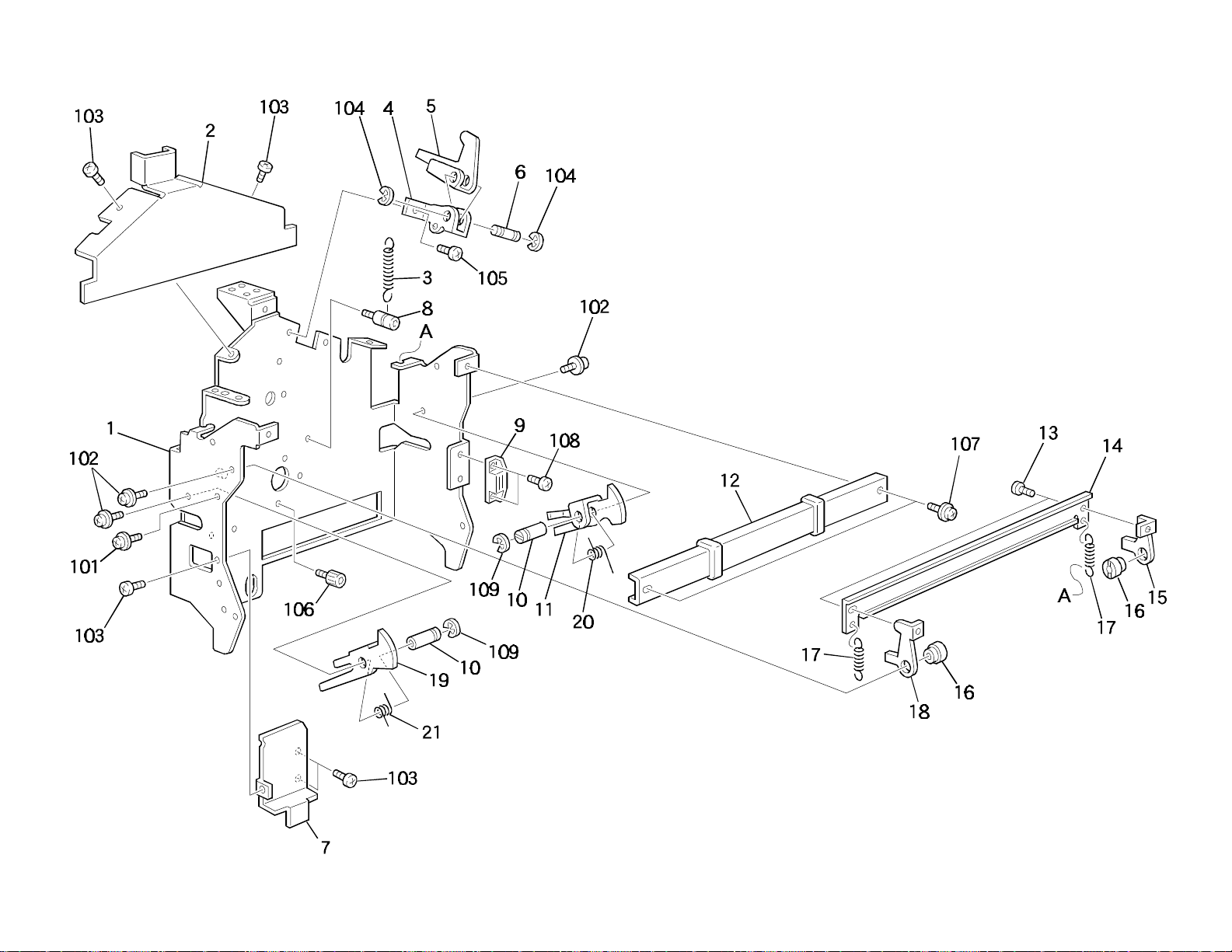

20. Drum Section 2 (C226)
C226 46 Parts Location and List
20. Drum Section 2 (C226)
Index
No.
1 C201 4621 Drum Side Plate (B4 Model) 1
1 C211 4570 Drum Side Plate (A4 Model) 1
2 C200 4622 Side Plate Cover - Drum 1
3 C200 4914 Drum Stopper Spring 1
4 C200 4912 Drum Stopper Bracket 1
5 C203 4532 Drum Stopper 1
6 C200 4913 Drum Stopper Shaft 1
7 C200 4623 Rear Cover - Drum Side Plate 1
8 5413 2266 Spring Anchor 1
9 5054 0536 Magnet Catch Ass’y 1
10 C200 4633 Drum Lock Shaft - Long 2
11 C200 4632 Right Arm - Drum Lock (B4 Model) 1
11 C211 4632 Right Arm - Drum Lock (A4 Model) 1
12 C201 4636 Drum Unit Handle 1
13 5400 3404 Stepped Screw 2
14 C200 4639 Release Lever - Drum Lock 1
15 C200 4637 Right Stopper - Drum Lock 1
16 C200 4638 Drum Lock Shaft - Small 2
17 C200 4640 Stopper Spring - Drum Lock 2
18 C200 4636 Left Stopper - Drum Lock 1
19 C200 4631 Left Arm - Drum Lock (B4 Model) 1
19 C211 4631 Left Arm - Drum Lock (A4 Model) 1
20 C200 4635 Drum Lock Spring - Right 1
21 C200 4634 Drum Lock Spring - Left 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0434 0100Z Pan Head Self-tapping Screw - M4x10
102 0951 4006Z Philips Screw With Flat Washer - M4
103 0434 0060Z Pan Head Self-tapping Screw - M4x6
104 0720 0050Z Retaining Ring - M5
105 0434 0080Z Pan Head Self-tapping Screw - M4x8
106 0594 0080E Bolt - M4x8
107 0964 4008Z Tapping Screw W/Washer - M4x8
108 0314 0060Z Philips Pan Head Screw - M4x6
109 0720 0060Z Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
C226 47 Parts Location and List
21. Drum Section 3 (C226)
C226 48 Parts Location and List
21. Drum Section 3 (C226)
Index
No.
1 C200 8524 Color Drum Harness 1
2 C200 4613 Rear Side Plate - Drum 1
3 C200 4653 Drum Shaft Bracket 4
4 5506 6069 Step Screw - Etching Middle Roller 1
5 C200 4946 Clamper Sector Shaft 1
6 C200 4944 Sector Gear - 9t 1
7 C200 4945 Sector Gear Spring 1
8 C200 8522 Ground Wire 1
9 C219 4686 Drum H.P Sensor Actuator 1
10 C200 4674 Drive Flange - Ink Roller (B4 Model) 1
10 C211 4674 Drive Flange - Ink Roller (A4 Model)
11 C200 4672 Gear - 48T 1
12 C207 4612 Rear Roller Guide 1
13 C201 4613 Drum Rail Cover 1
14 C201 2543 Decal - Drum Caution 1
15 C207 4611 Front Stopper Guide 1
16 C201 4604 Drum Rail Roller 2
17 C200 4627 Drum Rail Shaft 1
18 C215 4690 Metal Screen (B4 Model) 1
18 C226 4691 Metal Screen (A4 Model) 1
19 C200 4650 Drum Shaft 1
20 C201 4681 Stopper Plate 1
21 C201 4609 Stopper Releasing Lever 1
22 5506 6111 Stepped Screw - M4 1
23 C201 4606 Stopper Releasing Plate 1
24 C201 4610 Drum Slider Spring 1
25 C200 4625 Drum Rail 1
26 C200 4673 Gear - 50T 1
27 C207 4938 Clamper Plate 1
28 C557 4648 Front Drum Flange 1
29 C207 4938 Clamper Plate 1
30 C219 4941 Clamper Shaft 1
31 C219 4560 Rear Drum Flange 1
32 C215 4950 Drum Clamper Base Ass’y 1
33 C200 4682 Screen Front Plate (B4 Model) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
33 C211 4682 Screen Front Plate (A4 Model) 1
34 C200 4942 Pinion - 9t 1
35 C200 4683 Screen Rear Plate (B4 Model) 1
35 C211 4683 Screen Rear Plate (A4 Model) 1
36 C203 4524 Screen Plate Spring 1
37 C219 4583 Tetron Screen - B4 1
37 C226 4588 Tetron Screen - A4 1
38 C207 4550 Sensor Sheet - 8x20 1
100 0314 0080Z Philips Screw - 4x8
101 1102 1341 Connector - 8p
102 0595 0140E Hexagon Bolt - M5x14
103 0575 0080E Hexagon Headless Set Screw - M5x8
104 0807 4126 Flat Washer - 6.2x12x0.2mm
105 0807 5044 Spacer - 8.1mm x 11.5mm x 0.2
106 0807 5076 Washer - 8x13x2.2mm
107 0807 3103 Washer - 4x13x2.3mm
108 0951 4006Z Philips Screw With Flat Washer - M4x6
109 0720 0050Z Retaining Ring - M5
110 0314 0060Z Philips Pan Head Screw - M4x6
111 0323 0050Z Philips Sunken Head Screw - M3x5
112 0960 4006Z Philips Frang Screw - M4x6
113 0594 0080Z Bolt - M4x8
114 0804 6091 Hexagonal Set Screw - M2x5
115 0574 0050E Hexagon Headless Set Screw - M4x5
116 0951 4008Z Philips Screw With Flat Washer M4x8
117 0807 7114 Washer - 16x24x0.3mm
Part No.
Description
Q’ty Per
Assembly
C226 49 Parts Location and List

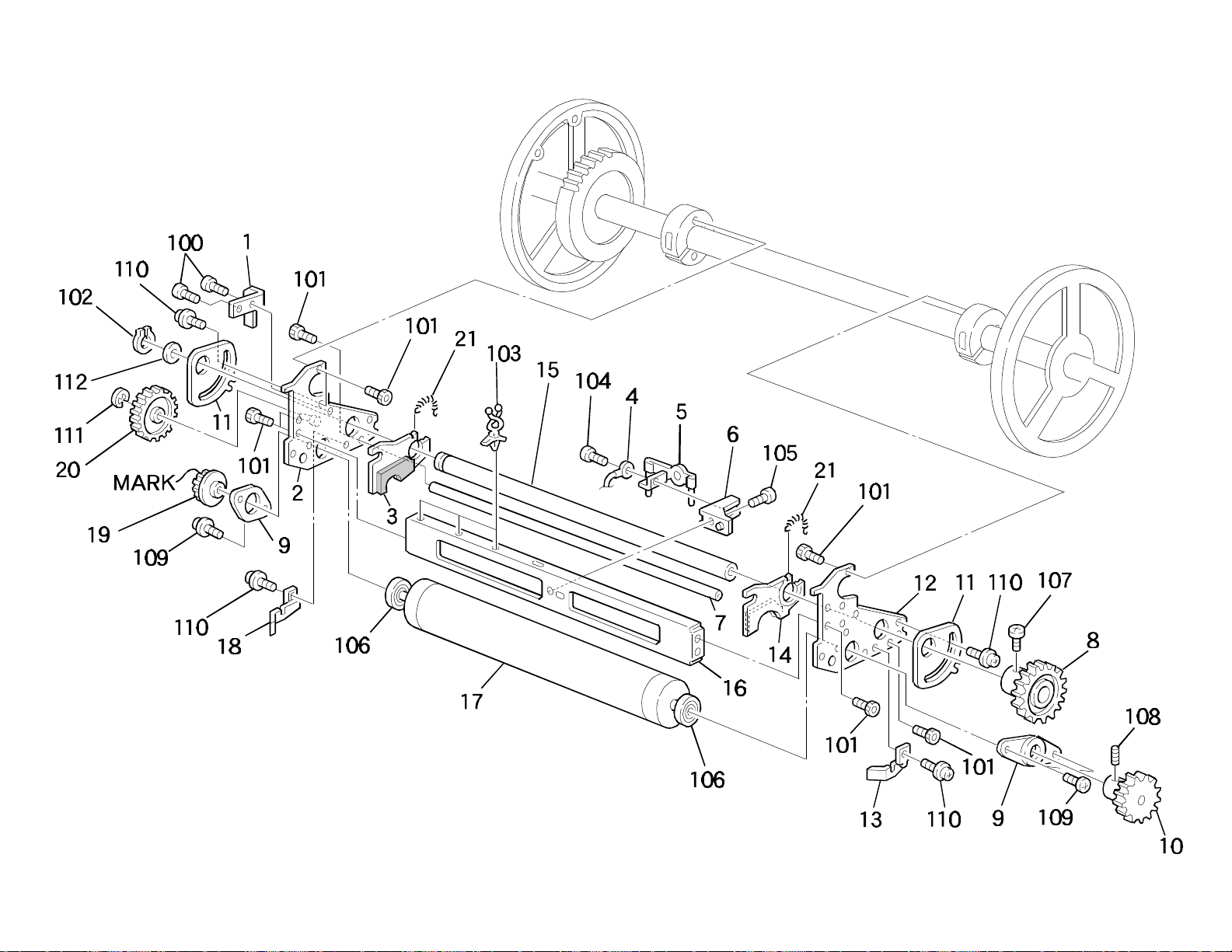

22. Drum Section 4 (C226)
C226 50 Parts Location and List
22. Drum Section 4 (C226)
Index
No.
1 C200 4749 Ground Plate 1
2 C207 4665 Rear Side Plate - Ink Roller 1
3 C217 4594 Rear Bank Plate 1
4 C200 8520 Ink Detector Harness 1
5 C203 4543 Ink Detector 1
6 C200 4733 Ink Detector Bracket 1
7 C200 4715 Shaft Stay - Ink Roller (B4 Model) 1
7 C211 4715 Shaft Stay - Ink Roller (A4 Model) 1
8 C200 4748 Gear - 45T 1
9 C201 4665 Bearing Holder 2
10 C200 3629 Gear - 20T 1
11 C200 4723 Adjusting Plate - Doctor Roller 2
12 C207 4664 Front Side Plate - Ink Roller 1
13 C217 4598 Front Drum Blade 1
14 C217 4592 Front Bank Plate 1
15 C200 4722 Drum Doctor Roller (B4 Model) 1
15 C211 4722 Drum Doctor Roller (A4 Model) 1
16 C201 4664 Ink Roller Stay (B4 Model) 1
16 C211 4664 Ink Roller Stay (A4 Model) 1
17 C201 4666 Drum Ink Roller (B4 Model) 1
17 C211 4666 Drum Ink Roller (A4 Model) 1
18 C217 4599 Rear Drum Blade 1
19 C207 4670 Gear - 24Z 1
20 C207 4672 Gear - 36Z 1
21 C215 4557 Spring 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0314 0080Z Philips Screw - 4x8
101 0594 0060E Socket Screw - 4x6
102 0725 0160E Retaining Ring C - M16
103 1105 0209 Clamp
104 0434 0082Z Tapping Screw - M4x8
105 0314 0060Z Philips Pan Head Screw - M4x6
106 0740 3206 Ball Bearing - 6x19x6
107 0313 0050Z Philips Screw - 3x5
108 0573 0040E Hexagon Headless Set Screw - M3x4
109 0313 0040Z Philips Pan Head Screw - M3x4
110 0951 4006Z Philips Screw With Flat Washer - M4x6
111 0720 0050Z Retaining Ring - M5
112 0807 7114 Washer - 16x24x0.3mm
Part No.
Description
Q’ty Per
Assembly
C226 51 Parts Location and List
23. Master Feed Section 1 (C226)
C226 52 Parts Location and List
23. Master Feed Section 1 (C226)
Index
No.
1 C224 8031 Thermal Head - B4 1
2 C222 4001 Guide Plate - Thermal Head 1
3 C209 4180 Thermal Head Spacer 2
4 C222 4002 Thermal Head Spacer 1
5 C222 4003 Thermal Head Base 1
6 C209 4139 Spring Plate 2
7 C219 4007 Spring - B4 (B4 Model) 2
7 C219 4154 Spring - LG (A4 Model) 2
8 C222 4136 Pressure Spring 2
9 C209 4040 Left Adjusting Plate 1
10 C222 4111 Left Side Plate 1
11 C219 4026 Sensor Shaft 1
12 C218 2827 Decal - Master Feed 1
14 C226 8164 Harness - Power Supply 1
15 C226 8163 Thermal Head Harness 1
16 C209 4076 Tension Release Arm 1
17 C226 8128 Plotter Harness 1
18 C219 4015 Plotter Base 1
19 C219 4012 Plotter Lower Cover 1
20 C218 4038 Bushing Washer - M8 1
21 C203 4013 Brake Plate 2
22 C219 4022 Master Roll Catcher 1
23 AG07 0004 Magnetic Catch 1
24 C209 4059 Lever Knob 1
25 C219 4019 Thermal Head Cover 1
26 C226 4250 Right Connector Bracket 1
27 C219 4101 Right Side Plate 1
28 C219 4028 Sensor Spring 1
29 C209 4027 Master End Sensor Bracket 1
30 5203 5230 Master Sensor 1
31 C219 4029 Lever Shaft 1
32 C219 4031 Platen Release Lever 1
33 C226 8129 Sensor Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0040Z Philips Pan Head Screw - M3x4
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0313 0050Z Philips Screw - 3x5
103 0314 0060Z Philips Pan Head Screw - M4x6
104 0434 0080Z Pan Head Self-tapping Screw - M4x8
105 1105 0144 Harness Clamp
106 0720 0040Z Retaining Ring - M4
107 0720 0070Z Retaining Ring - M7
108 0720 0050Z Retaining Ring - M5
109 0323 0100Z Philips Sunken Head Screw - M3x10
110 0434 0060Z Pan Head Self-tapping Screw - M4x6
Part No.
Description
Q’ty Per
Assembly
C226 53 Parts Location and List

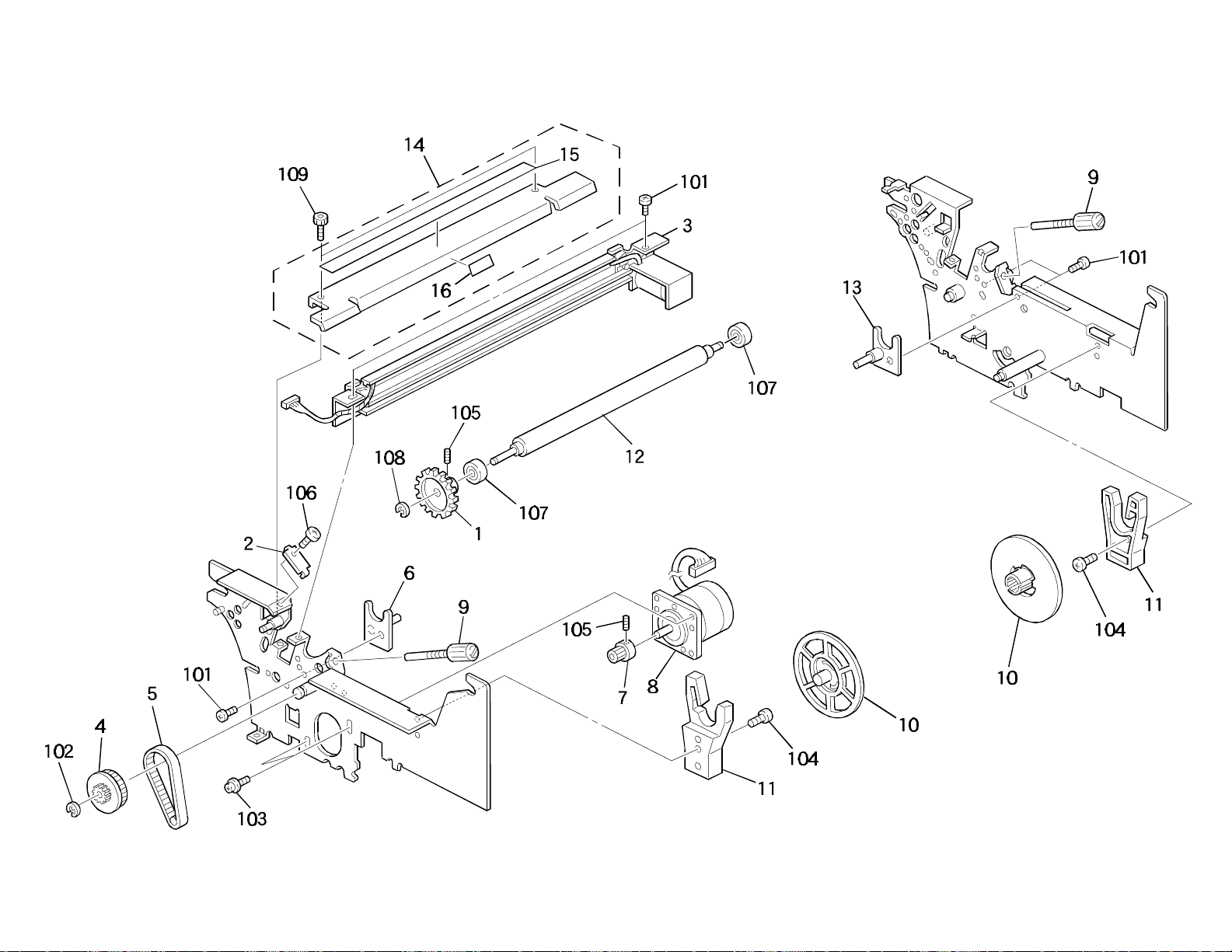

24. Master Feed Section 2 (C226)
C226 54 Parts Location and List
24. Master Feed Section 2 (C226)
Index
No.
1 C209 4049 Gear - 48Z 1
2 C219 4130 Left Gear Cover 1
3 C224 4065 Cutter Unit 1
4 C222 4070 Gear - 42Z 1
5 C222 4072 Timing Belt 1
6 C222 4037 Left Holder 1
7 C219 4071 Gear - 17Z 1
8 C215 8121 Master Motor - DC24V/38.4W 1
9 C207 4150 Fixing Screw 2
10 C213 4042 Master Roll Flange (B4 Model) 2
10 C201 4005 Master Roll Flange (A4 Model) 2
11 C213 4040 Master Holder (B4 Model) 2
11 C211 4040 Master Holder (A4 Model) 2
12 C222 4044 Platen Roller (B4 Model) 1
12 C226 4244 Platen Roller (A4 Model) 1
13 C222 4036 Right Holder 1
14 C226 4232 Cutter Unit Cover 1
15 C226 2842 Decal - Master Setting 1
16 C218 2827 Decal - Master Feed 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0314 0060Z Philips Pan Head Screw - M4x6
102 0720 0070Z Retaining Ring - M7
103 0951 4010Z Philips Screw With Flat Washer M4x10
104 0434 0080Z Pan Head Self-tapping Screw - M4x8
105 0574 0040E Hexagon Headless Set Screw - M4x4
106 0314 0060Z Philips Pan Head Screw - M4x6
107 0740 3008 Ball Bearing - 8x22x7
108 0720 0060Z Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
C226 55 Parts Location and List

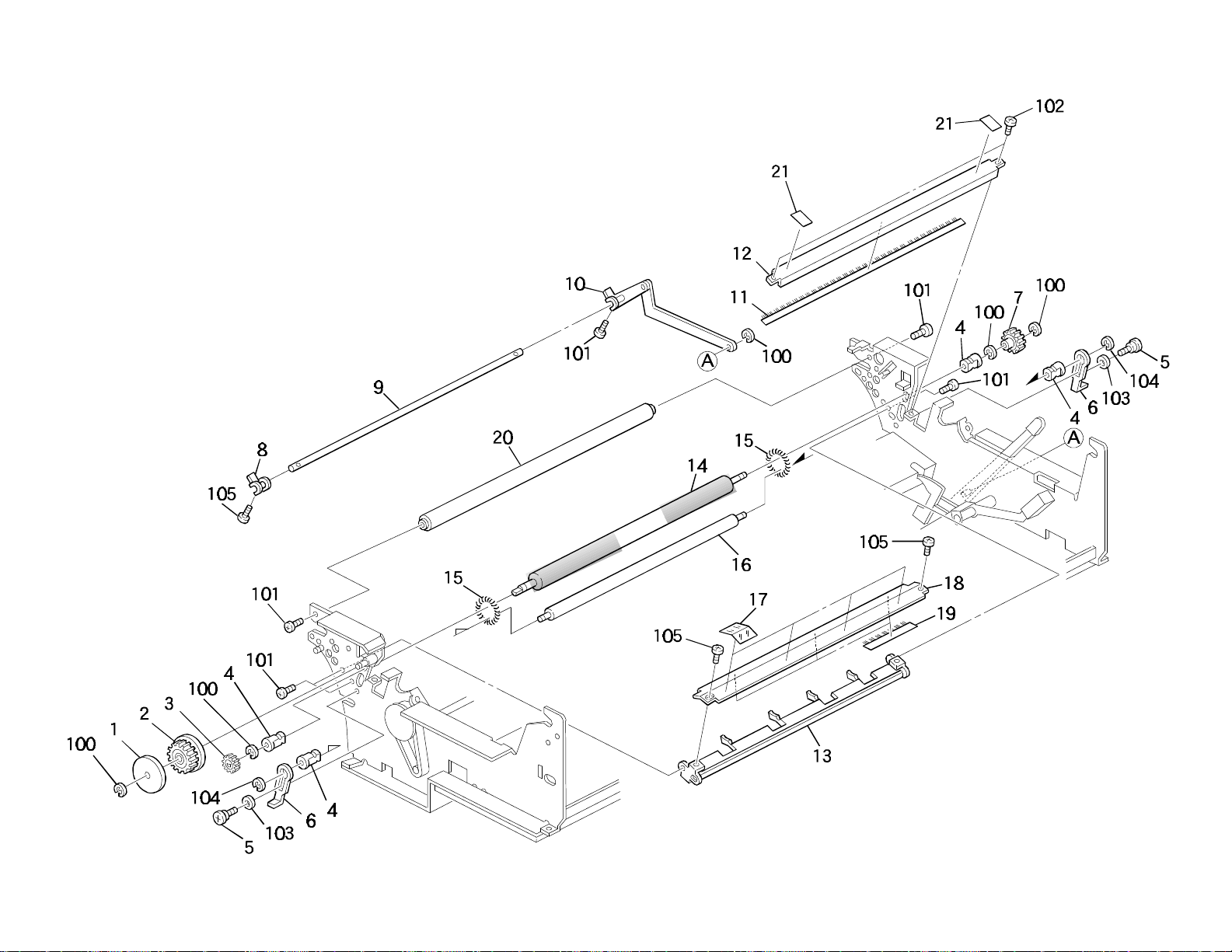

25. Master Feed Section 3 (C226)
C226 56 Parts Location and List
25. Master Feed Section 3 (C226)
Index
No.
1 C209 4116 Spacer - 6x36x0.3 1
2 C209 4115 Gear - 30Z 1
3 C222 4071 Gear - 30Z 1
4 5056 0188 Bushing - 6mm - Long 4
5 5403 2075 Stepped Screw 2
6 C203 4060 Tension Release Slider 2
7 C209 4072 Gear - 24Z 1
8 C209 4075 Left Arm - Tension Release 1
9 C219 4048 Tension Release Shaft 1
10 C209 4076 Tension Release Arm 1
11 C219 4054 Antistatic Brush 1
12 C219 4056 Master Guide Plate 1
13 C219 4055 Reverse Guide 1
14 C224 4052 Upper Tension Roller 1
15 C200 4184 Tension Spring 2
16 C219 4052 Lower Master Feed Roller 1
17 C203 4038 Master Guide - Large 4
18 C219 4053 Lower Master Guide Plate 1
19 C209 4321 Antistatic Brush 3
20 C219 4120 Plotter Stay 1
21 C224 4057 Tension Roller Guide Seal 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0720 0040Z Retaining Ring - M4
101 0313 0060Z Philips Pan Head Screw - M3x6
102 0312 5050Z Philips Pan Head Screw - M2.5x5
103 0701 0060Z Flat Washer - M6
104 0720 0050Z Retaining Ring - M5
105 0313 0050Z Philips Screw - 3x5
Part No.
Description
Q’ty Per
Assembly
C226 57 Parts Location and List

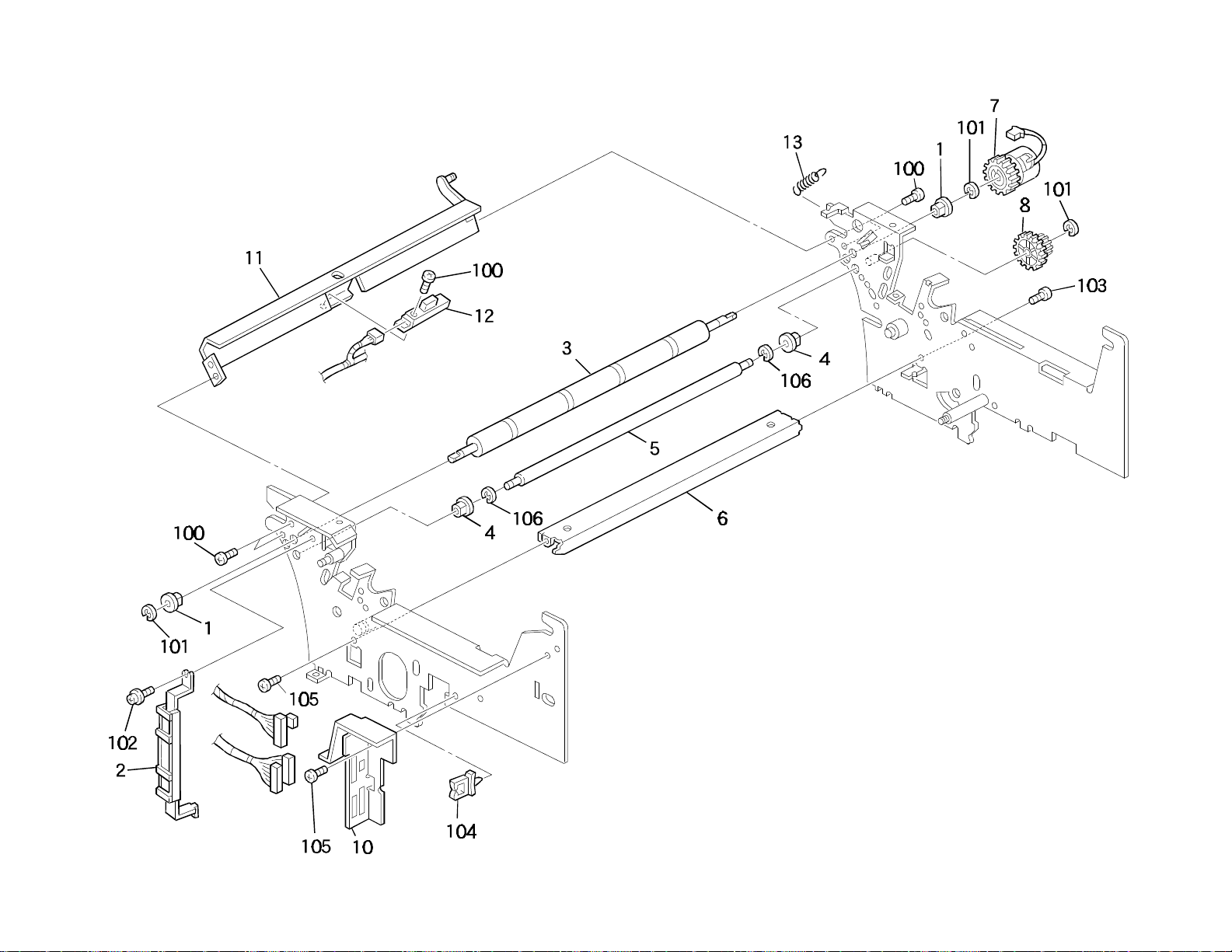

26. Master Feed Section 4 (C226)
C226 58 Parts Location and List
26. Master Feed Section 4 (C226)
Index
No.
1 H012 1181 Bushing- 6mm 2
2 C209 4128 Harness Bracket 1
3 C224 4063 Upper Invertor Roller 1
4 0805 3263 Bearing - 6x10x6mm 2
5 C213 4045 Lower Reverse Roller 1
6 C219 4065 Plotter Middle Stay 1
7 C219 8239 Reverse Roller - Magnetic Clutch 1
8 C209 4114 Gear - 20/27Z 1
9 C219 4061 Master Guide 1
10 C226 4061 Left Connector Bracket 1
11 C226 4082 Upper Master Guide Plate 1
12 C203 8137 Master Sensor 1
13 C219 4058 Spring 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0313 0060Z Philips Pan Head Screw - M3x6
101 0720 0040Z Retaining Ring - M4
102 0964 4008Z Tapping Screw W/Washer - M4x8
103 0313 0060Z Philips Pan Head Screw - M3x6
104 1105 0144 Harness Clamp
105 0434 0060Z Pan Head Self-tapping Screw - M4x6
106 0720 0050Z Retaining Ring - M5
Part No.
Description
Q’ty Per
Assembly
C226 59 Parts Location and List

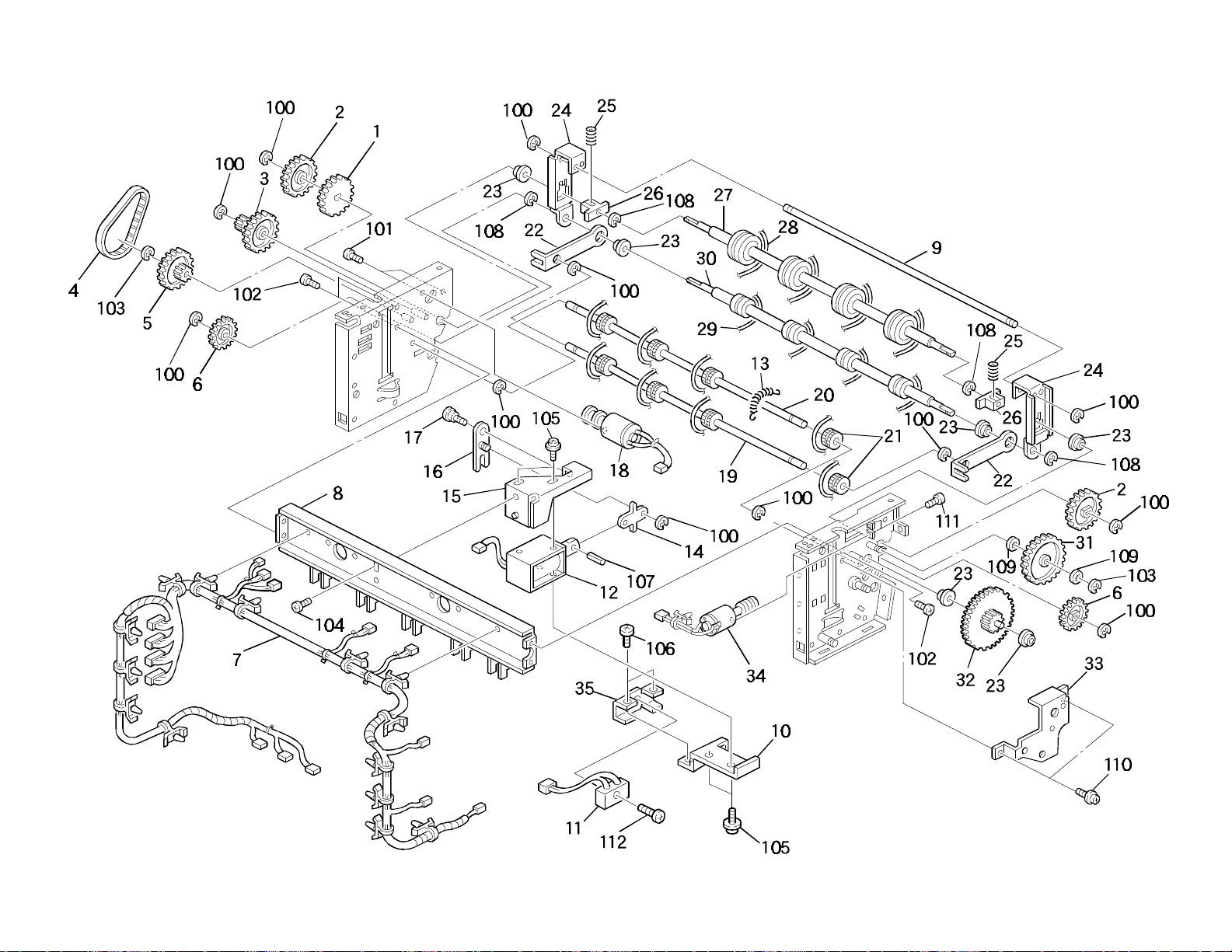

27. Master Eject Section 1 (C226)
C226 60 Parts Location and List
27. Master Eject Section 1 (C226)
Index
No.
1 C209 3545 Gear - 62Z 1
2 C200 3627 Gear - 30T 2
3 C200 3606 Coupled Gear - 62T & 20T 1
4 C207 3612 Timing Belt - B30S2M126 1
5 C207 3604 Pulley - 40Z 1
6 C200 3628 Gear - 20T 2
7 C224 8122 Master Eject Harness 1
8 C219 3517 Master Eject Stay 1
9 C200 3537 Arm Connect Shaft 1
10 C207 3559 Sensor Bracket 1
11 C209 8117 Drum Master Detection Sensor 1
12 C224 8452 Master Eject Solenoid 1
13 C203 3501 Tension Spring 1
14 C209 3661 Solenoid Plate 1
15 C200 3553 Solenoid Bracket 1
16 C200 3554 Solenoid Arm 1
17 5403 2075 Stepped Screw 1
18 C209 8260 Micro Motor - Master Eject 1
19 C201 3529 Lower Pulley Shaft 1
20 C219 3526 Upper Pulley Shaft - B4 (B4 Model) 1
20 C219 3726 Upper Pulley Shaft - LG (A4 Model) 1
21 C200 3547 Pulley 2
22 C200 3529 Pulley Plate 2
23 5506 4608 Bushing - Paper Hold/down Roller - 6
24 C200 3535 Supporter 2
25 C201 3527 Pressure Spring 2
26 C200 3536 Separation Arm Bushing 2
27 C224 3541 Upper Eject Roller (B4 Model) 1
27 C226 3722 Upper Eject Roller - A4 (A4 Model) 1
28 C219 3605 Upper Belt 4
29 C219 3606 Lower Belt 4
30 C224 3545 Lower Eject Roller (B4 Model) 1
30 C226 3724 Lower Eject Roller - A4 (A4 Model) 1
31 C209 3550 Worm Gear - 16/50Z 1
32 C209 3551 Gear - 16/116Z 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
33 C209 3557 Bracket 1
34 C217 8447 DC Motor - 24V/7.2W 1
35 C213 3561 Master Eject Sensor Bracket 1
100 0720 0040Z Retaining Ring - M4
101 0252 0080Z Philips Pan Head Screw - M2x8
102 0434 0060Z Pan Head Self-tapping Screw - M4x6
103 0720 0030Z Retaining Ring - M3
104 0314 0050Z Philips Pan Head Screw - M4x5
105 0951 3006Z Philips Screw With Flat Washer - M3x6
106 0313 0050Z Philips Screw - 3x5
107 0623 0120E Spring Pin - M3x12
108 0720 0050Z Retaining Ring - M5
109 0807 3041 Spring Washer
110 0964 4008Z Tapping Screw W/Washer - M4x8
111 0313 0030Z Philips Pan Head Screw - M3x3
Part No.
Description
Q’ty Per
Assembly
C226 61 Parts Location and List

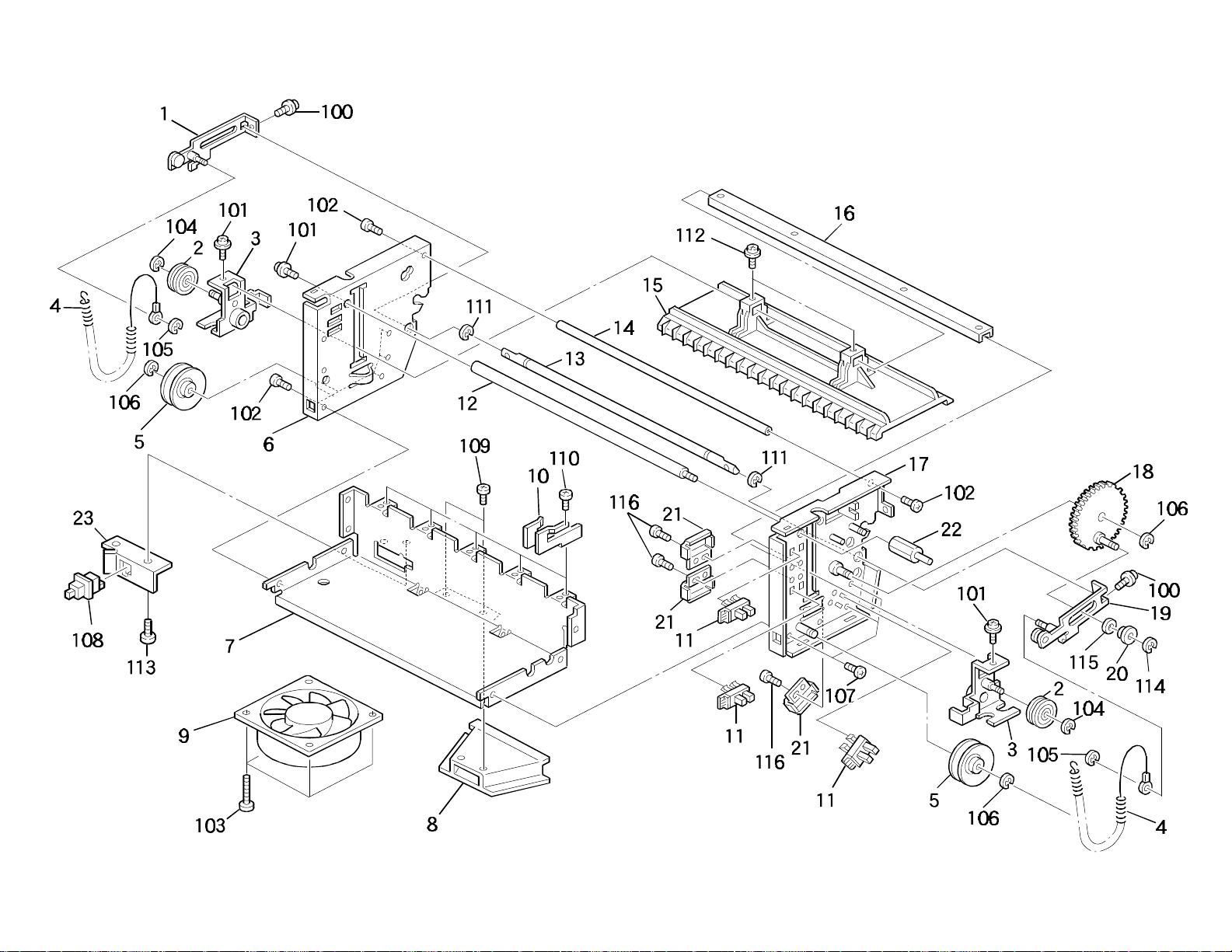

28. Master Eject Section 2 (C226)
C226 62 Parts Location and List
28. Master Eject Section 2 (C226)
Index
No.
1 C209 3543 Rear Pressure Arm 1
2 C209 3536 Pulley 2
3 C209 3533 Pressure Plate Arm 2
4 C221 3537 Pressure Spring 2
5 C200 3712 Pulley 2
6 C209 3512 Rear Side Plate 1
7 C224 3727 Bottom Plate - Master Eject 1
8 C201 6015 Air Knife Nozzle 1
9 C219 8204 Vacuum Fan Motor - DC24V 0.3A 1
10 C218 3532 Pulley Guide 5
11 AW02 0075 Photointerrupter 3
12 C209 3642 Master Eject Stay - Large 1
13 C209 3539 Pressure Arm Shaft 1
14 C200 3508 Master Eject Stay - Small 1
15 C219 3531 Pressure Plate - B4/LG 1
16 C209 3532 Pressure Plate Shaft 1
17 C209 3501 Front Side Plate 1
18 C209 3554 Gear - 60Z 1
19 C209 3540 Front Pressure Arm 1
20 C209 3615 Spacer - 6x12x3 1
21 C209 3507 Master Exit Sensor Cover 3
22 C209 3643 Lock Stay 1
23 C222 3526 Sensor Bracket - Master Eject Box 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0960 4010Z Philips Flange Screw - M4x10
101 0960 4005Z Philips Flange Screw - M4x5
102 0314 0080Z Philips Screw - 4x8
103 0314 0350Z Screw - M4X35
104 0720 0040Z Retaining Ring - M4
105 0720 0030Z Retaining Ring - M3
106 0720 0060Z Retaining Ring - M6
107 0434 0060Z Pan Head Self-tapping Screw - M4x6
108 AW50 0012 Push Switch
109 0964 3008Z Tapping Screw W/flat Washer - M3x8
110 0314 0060Z Philips Pan Head Screw - M4x6
111 0720 0080Z Retaining Ring - M8
112 0801 1135 Philips Pan Head Screw - M3x3
113 0313 0050Z Philips Screw - 3x5
114 0720 0050Z Retaining Ring - M5
115 0807 4118 Flat Washer
116 0433 0080Z Tapping Screw - M3x8
Part No.
Description
Q’ty Per
Assembly
C226 63 Parts Location and List
29. Master Eject Section 3 (C226)
M
a
C226 64 Parts Location and List
29. Master Eject Section 3 (C226)
Index
No.
1 C203 3504 Hinge Shaft 1
2 C209 3671 Master Eject Hinge 1
3 C219 3680 Master Eject Hinge - Small 1
4 C224 2461 Master Eject Cover 1
5 C224 3768 Upper Inner Cover 1
6 C209 3558 Master Eject Box 1
7 C203 3511 Arm - Master Eject Box 1
8 AG07 0004 Magnetic Catch 1
9 C224 2460 Maser Eject Cover Ass’y 1
10 C218 2455 Master Eject Door 1
11 C224 2171 Safety Switch Bracket - Eject Box 1
12 C218 2172 Safety Switch Lever 1
13 C218 2173 Support Plate - Safety Switch 1
14 C219 3673 Inner Cover - Master Eject 1
15 C218 2185 Stepper Screw 1
16 C203 8204 Grounding Wire 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0434 0080Z Pan Head Self-tapping Screw - M4x8
101 0964 4010Z Tapping Screw W/Washer - M4x10
102 0314 0080Z Philips Screw - 4x8
103 0434 0060Z Pan Head Self-tapping Screw - M4x6
104 1105 0108 Nylon Clip
106 0434 0062W Pan Head Tapping Screw - M4x6
108 0314 0060Z Philips Pan Head Screw - M4x6
109 1204 2376 Micro Switch - V-162-3C25
110 0313 0050Z Philips Screw - 3x5
111 0313 0140Z Philips Pan Head Screw - M3x14
112 0801 1004 Screw - M4X4
Part No.
Description
Q’ty Per
Assembly
C226 65 Parts Location and List
30. Drive Section 1 (C226)
C226 66 Parts Location and List
30. Drive Section 1 (C226)
Index
No.
1 C213 2218 Stud & Gear - 30T 1
2 C213 6030 Reinforcement Plate 1
3 C201 2211 Stud 2
4 C203 2304 Support Side Plate 1
5 C200 2308 Image Shifting Arm - Small 1
6 C200 2311 Image Shifting Link 2
7 C223 2217 Gear Shaft 1
8 C224 8061 Motor - DC25.8W 1
9 C200 2248 Fixing Plate 1
10 C219 2315 Tension Shaft 1
11 C203 2317 Pulley - 26Z 1
12 C203 2316 Timing Belt 1
13 C203 2303 Snap Bushing 1
14 C200 2339 Blake Spring 1
15 C200 2338 Gear - 20T 1
16 C209 8280 Image Position Sensor 1
17 C224 2321 Bracket - Image Shifting Unit 1
18 C201 2221 Gear - 40T 1
19 C201 2222 Coupled Gear - 20t & 60t 1
20 C200 2331 Gear - 20T 2
21 C200 2332 Gear - 16T 1
22 C219 2226 Gear - 22Z 2
23 C224 2302 Image Shifting Arm - Large 1
24 C200 2266 Bearing Holder 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0713 0050B Hexagon Nut - M5
101 0701 0030Z Flat Washer - M3
102 0801 1135 Philips Pan Head Screw - M3x3
103 0951 5008Z Philips Screw With Flat Washer - M5x8
104 0720 0040Z Retaining Ring - M4
105 0707 6120B Bushing - 6x12mm
106 0707 6080B Bushing - 6x8mm
107 0805 3104 Ball Bearing - 8x22x7mm
108 0960 4008Z Flange Head Screw - 4x8
109 0720 0080Z Retaining Ring - M8
110 0807 7013 Spacer - 10.2x14x0.2mmm
111 0804 4046 Spring Pin - 4x16
112 0594 0080E Bolt - M4x8
113 0804 4048 Spring Pin - 4x20
114 0725 0100Z Retaining Ring - M10
115 0805 3134 Ball Bearing - 10x26x8mm
116 0720 0120Z Retaining Ring - M12
117 0740 3010 Ball Bearing - 10x26x8mm
118 0707 6040B Bushing - 6x4mm
119 0807 2071 Washer - 3.1x7x0.2mm
120 0573 0050E Hexagon Headless Set Screw - M3x5
121 0313 0040Z Philips Pan Head Screw - M3x4
Part No.
Description
Q’ty Per
Assembly
C226 67 Parts Location and List
31. Drive Section 2 (C226)
C226 68 Parts Location and List
31. Drive Section 2 (C226)
Index
No.
1 C215 4538 Slid Lock Arm 1
2 C201 4561 Drum Clamper Roller 2
3 C200 4551 Slide Guide 2
4 C207 4554 Solenoid Lever 2
5 C200 4561 Clamper Spring 2
6 C224 8450 Drum Clamper Solenoid 2
7 C224 2080 Solenoid Bracket 1
8 C215 8116 Ink Detecting Board 1
9 C200 4553 Slide Shaft 2
10 C219 8119 Drum Relay Harness 1
11 5403 2075 Stepped Screw 3
12 C215 4539 Connector Spring 2
13 C215 4537 Connector Lock Lever 1
14 C215 4535 Connector Bracket 1
15 C215 4517 Connector Lock Arm 1
16 C207 4555 Rubber Seal - 8x14x2 2
17 C215 4536 Ink Detecting Board Bracket 1
18 C201 5080 Separation Roller Pressure Spring 1
19 C224 8462 Drum Lock Solenoid 1
20 C209 4516 Slide Guide - Drive Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0314 0080Z Philips Screw - 4x8
102 0622 0060E Spring Pin - 2x6mm
103 0623 0120E Spring Pin - M3x12
104 0951 3005Z Philips Pan Head Screw - M3x5
105 0951 3006Z Philips Screw With Flat Washer - M3x6
106 0314 0100Z Philips Screw - 4x10
107 0313 0050Z Philips Screw - 3x5
108 0623 0140E Spring Pin - 3x14mm
109 0720 0050Z Retaining Ring - M5
Part No.
Description
Q’ty Per
Assembly
C226 69 Parts Location and List
32. Drive Section 3 (C226)
C226 70 Parts Location and List
32. Drive Section 3 (C226)
Index
No.
1 C207 8451 Main Motor - DC80W 1
2 C200 2221 Collar - Pressure Cam Shaft 1
3 C224 2225 Joint Cam Shaft 1
4 C200 2224 Plate Nut - Print Pressure Cam 1
5 C213 5560 Print Pressure Cam (B4 Model) 1
5 C211 5595 Print Pressure Cam (A4 Model) 1
6 C203 2312 Pulley 1
7 C207 2209 Pulley - 60Z 1
8 C203 2327 Pulley Flange 1
9 C224 2326 Gear - 90Z 1
10 AW02 0021 Photointerruptor - 175487-3 1
11 C200 2267 Spacer 1
12 C219 2217 Collar 1
13 C203 8453 Rectification Brush 2
14 C207 2210 Timing Belt - 100S4.5M297 1
15 C203 2311 Gear Flange 1
16 C203 2215 Gear - 18T 1
17 C219 2214 Gear - 40Z 1
18 C209 2216 Driver Shaft 1
19 C203 2309 Pulse Disk 1
20 C219 2205 Bracket - Drum Rotation Sensor 1
21 C207 2207 Pulley - 12Z 1
22 C207 2211 Bearing Stopper 1
23 C203 2306 Support Side Plate - Aid 1
24 C200 2232 Drive Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
100 0960 4008Z Flange Head Screw - 4x8
101 0713 0050B Hexagon Nut - M5
102 0574 0040E Hexagon Headless Set Screw - M4x4
103 0720 0080Z Retaining Ring - M8
104 0807 7013 Spacer - 10.2 x 14 x 0.2 mm
105 0804 6092 Hexagonal Set Screw
106 0960 4008Z Flange Head Screw - 4x8
107 0595 0120E Socket Screw - M5x12
108 0314 0120Z Philips Screw - 4x12
109 0712 0060Z Hexagon Nut - M6
110 0314 0080Z Philips Screw - 4x8
111 0741 3908S Ball Bearing - 8x19x6
112 0314 0060Z Philips Pan Head Screw - M4x6
113 0315 0060Z Philips Screw - 5x6
114 0623 0200E Spring Pin - 3x20mm
115 0741 3807S Ball Bearing - 7x14x5
116 0804 4046 Spring Pin - 4x16
117 0574 0050E Hexagon Headless Set Screw - M4x5
Part No.
Description
Q’ty Per
Assembly
C226 71 Parts Location and List

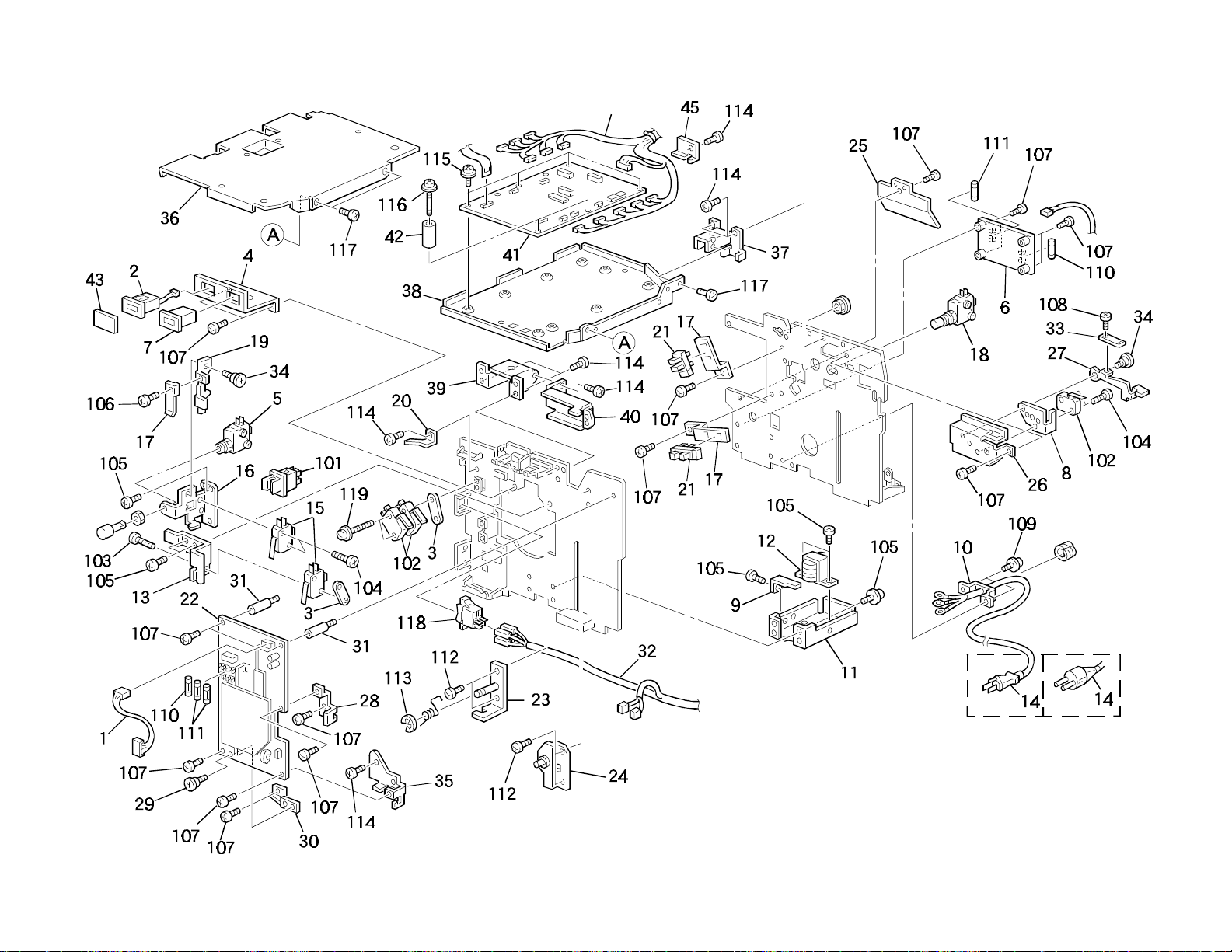

33. Electrical Section (C226)
4
4
C226 72 Parts Location and List
33. Electrical Section (C226)
Index
No.
1 C226 8165 Relay Harness - Power Supply 1
2 C222 8461 Master Counter 1
3 5056 0509 Nut Plate - Microswitch 2
4 C224 2160 Total Counter Bracket 1
5 C219 8171 Microswitch 1
6 C226 8058 AC Drive Board 1
6 C226 8063 AC Drive Board - 230V 1
7 C222 8462 Total Counter 1
8 C218 2071 Safety Switch Stopper 1
9 C203 2131 Transformer Cover 1
10 C203 2119 Bracket - Power Supply Cord 1
11 C215 8116 Ink Detecting Board 1
11 C224 2018 Transformer Bracket 1
12 C224 8151 Transformer - 115V 1
12 C224 8156 Transformer - 230V 1
13 C201 4541 Bracket - Drum Detecting Switch 1
14 C226 8242 Power Supply Cord - 120V 1
14 C224 8252 Power Supply Cord - 230V 1
15 C219 8296 Safety Switch 2
16 C224 2551 Switch Bracket 1
17 C219 2306 Drum Sensor Bracket 2
18 C219 8174 Microswitch 1
19 C224 2172 Safety Switch Lever 1
20 C224 2051 Switch Cover 1
21 AW02 0021 Photointerruptor - 175487-3 2
22 C226 8301 Power Supply Unit - 115V 1
22 C226 8341 Power Supply Unit - 230V 1
23 C226 3031 Lower Stopper Bracket 1
24 C226 2031 Front Lock Bracket 1
25 C226 2127 AC Drive Board Cover 1
26 C226 2036 Safety Switch Bracket 1
27 C226 2172 Safety Switch Lever 1
28 C226 2412 Cover Bracket 1
29 C219 3950 Stepped Screw 1
30 C226 2103 PSU Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
31 C226 2596 PSU Stud 2
32 C226 8110 AC Drive Harness - 115V 1
32 C226 8120 AC Drive Harness - 230V 1
33 C218 2173 Support Plate - Safety Switch 1
34 C218 2185 Stepper Screw 2
35 C226 2015 Right Lower Bracket - Power Supply 1
36 C226 2111 Main Board Cover 1
37 C226 2107 Rear Base Bracket 1
38 C226 2110 Main Board Base 1
39 C226 2106 Front Base Bracket 1
40 C226 2115 Front Harness Cover 1
41 C226 8042 Main Board 1
42 C226 2063 Stud 1
43 C226 2161 Key Counter Cover 1
44 C226 8102 DC Drive Harness 1
101 1204 2382 Interlock Switch - Fail-CA22
102 1204 2376 Micro Switch - V-162-3C25
103 0960 3016B Philips Flange Screw - M3x16
104 0313 0140Z Philips Pan Head Screw - M3x14
105 0801 1135 Philips Pan Head Screw - M3x3
106 0434 0080Z Pan Head Self-tapping Screw - M4x8
107 0314 0080Z Philips Screw - 4x8
108 0313 0050Z Philips Screw - 3x5
109 0960 4008Z Flange Head Screw - 4x8
110 1107 0389 Fuse - 2.5A
111 1107 0392 Fuse (glass Case) - 6.3A - 125V
112 0951 3006B Philips Screw With Flat Washer - M3x6
113 0720 0040E Retaining Ring - M4
114 0314 0060Z Philips Pan Head Screw - M4x6
115 0951 4008Z Philips Screw With Flat Washer M4x8
116 0960 4010Z Philips Flange Screw - M4x10
117 0951 3006Z Philips Screw With Flat Washer - M3x6
118 1204 1545 Main Switch
119 0951 3025Z Philips Screw With Flat Washer - M3x25
Part No.
Description
Q’ty Per
Assembly
C226 73 Parts Location and List

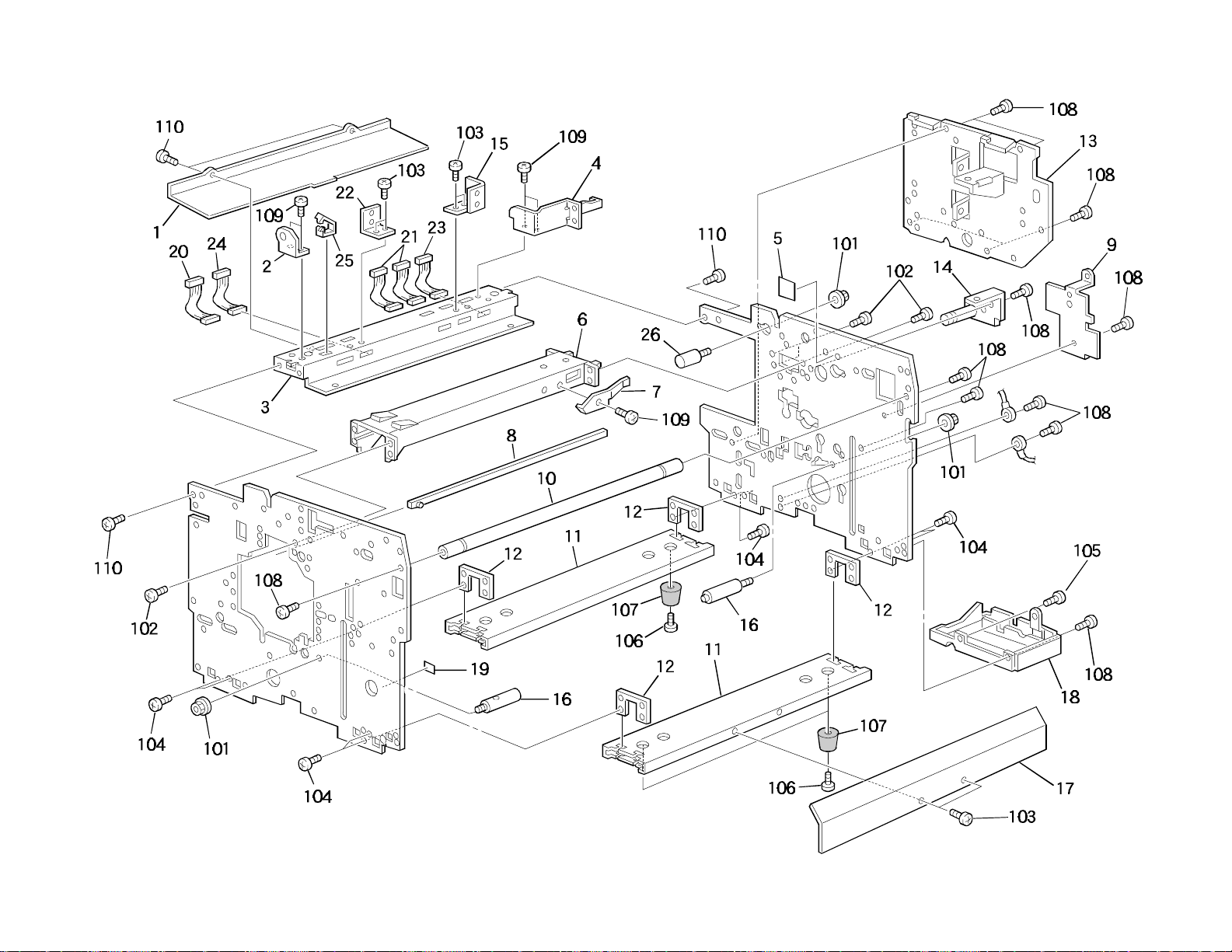

34. Frame 1 (C226)
C226 74 Parts Location and List
34. Frame 1 (C226)
Index
No.
1 C226 2055 Stay Cover - Upper Left 1
2 C226 2044 Support Plate - Front Hinge 1
3 C226 2040 Upper Left Stay 1
4 C226 2041 Rear Hinge Bracket 1
5 C203 2759 Master Cutter Decal 1
6 C215 4502 Drum Rail Stay 1
7 C215 4528 Plate Spring - Drum Rail 1
8 C215 4515 Drum Lock Link 1
9 C226 2066 Rear Cover Bracket - Left Upper 1
10 C219 2050 Front Stay 1
11 C222 2072 Bottom Stay 2
12 C203 2096 Bottom Stay Nut 4
13 C226 2117 Right Grip - Paper Delivery 1
14 C219 2057 Right Fixing Plate 1
15 H521 3140 Bracket - Ground - 2 1
16 C200 2232 Drive Shaft 2
17 C226 6168 Paper Delivery Plate 1
18 C203 2107 Right Grip 1
19 C207 2005 Seal - 30 1
20 C226 8130 Relay Harness - Operation 1
21 C226 8131 Relay Harness - Scanner 2
22 H521 3139 Bracket - Ground - 1 1
23 C226 8134 Relay Harness - ADF Sensor 2 1
24 C226 8133 Relay Harness - ADF 1
25 H521 3171 Clamp - Flat Cable 1
26 C201 3004 Stopper Stud 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0713 0050B Hexagon Nut - M5
102 0434 0100Z Pan Head Self-tapping Screw - M4x10
103 0594 0080E Bolt - M4x8
104 0315 0120Z Philips Screw - 5x12
105 0801 1004 Screw - M4x4
106 0951 5035Z Philips Screw W/T Flat Washer - M3x35
107 0805 6009 Rubber Foot
108 0314 0080Z Philips Screw - 4x8
109 0434 0080Z Pan Head Self-tapping Screw - M4x8
110 0314 0060Z Philips Pan Head Screw - M4x6
Part No.
Description
Q’ty Per
Assembly
C226 75 Parts Location and List

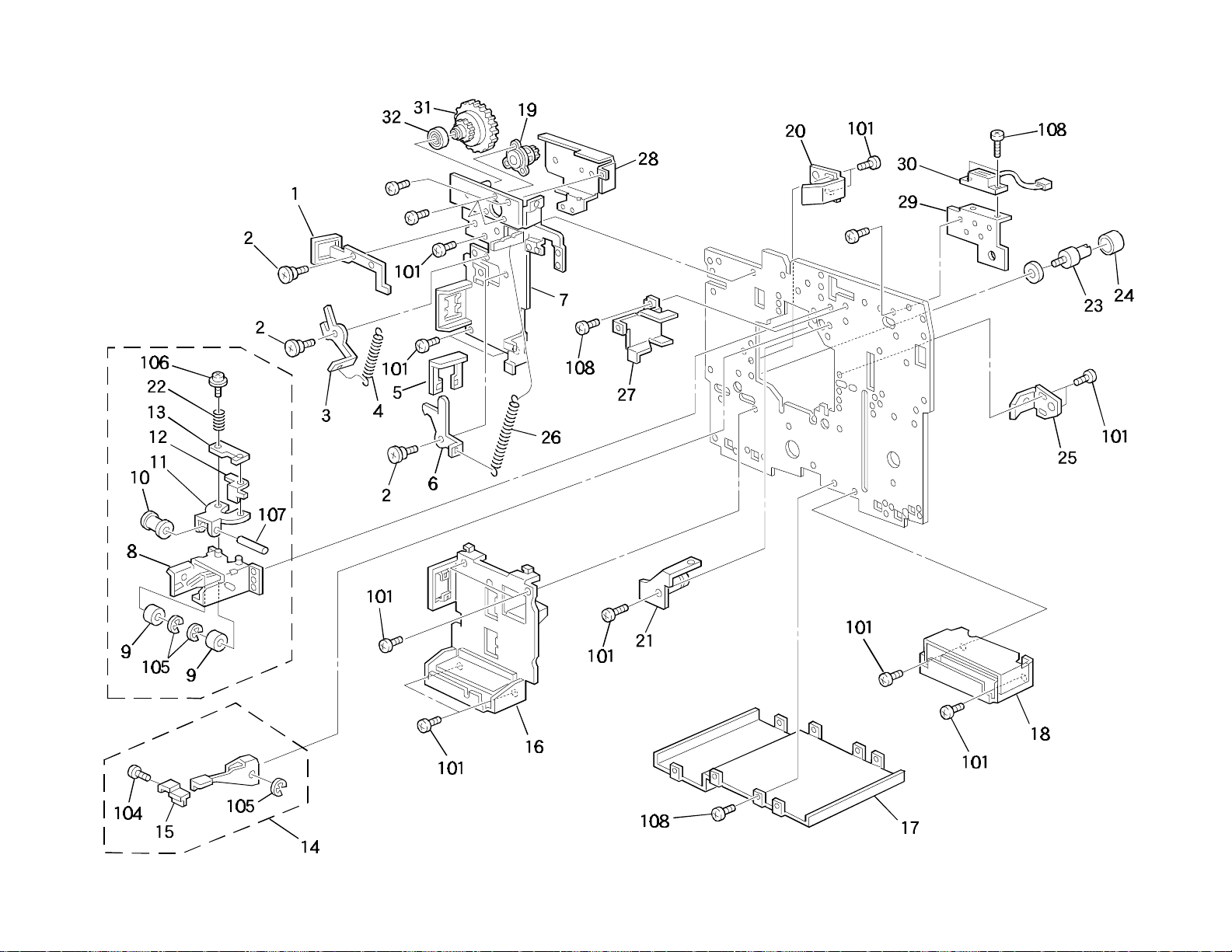

35. Frame 2 (C226)
C226 76 Parts Location and List
35. Frame 2 (C226)
Index
No.
1 C224 3509 Upper Lever 1
2 C219 3950 Stepped Screw 3
3 C200 3954 Lower Lever 1
4 C200 3957 Lower Lever Spring 1
5 A030 1339 Plate Nut - Key Counter 1
6 C200 3953 Middle Lever 1
7 C226 2048 Left Side Plate 1
8 C219 4506 Stopper Base 1
9 C201 4604 Drum Rail Roller 2
10 C201 4532 Drum Stopper Roller 1
11 C201 4531 Drum Stopper Pawl 1
12 C215 4532 Locking Arm 1
13 C215 4533 Spring Plate 1
14 C215 4510 Drum Release Knob Ass’y 1
15 C215 4514 Drum Lock Knob 1
16 C224 2052 Left Grip - Paper Delivery 1
17 C224 2094 Bottom Cover 1
18 C224 2112 Left Grip - Paper Feed 1
19 H521 3116 Oil Damper 1
20 C224 4520 Drum Lock Pin (B4 Model) 1
20 C211 4520 Left Lock Pin - Drum(A4 Model) 1
21 C219 2053 Left Fixing Plate 1
22 C201 4533 Drum Stopper Spring 1
23 C200 3716 Cushion Shaft 1
24 5501 4719 Rubber Ring - Stopper 1
25 C224 4520 Drum Lock Pin (B4 Model) 1
25 C211 4523 Drum Lock Pin (A4 Model) 1
26 C200 3956 Middle Lever Spring 1
27 C226 2057 Cover Bracket - Front Right 1
28 C226 2056 Gear Bracket 1
29 C226 2064 Sensor Bracket 1
30 C226 8411 Positioning Sensor 1
31 H521 3117 Gear - Oil Damper 1
32 H521 3118 Collar - Oil Damper 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0314 0080Z Philips Screw - 4x8
102 0434 0100Z Pan Head Self-tapping Screw - M4x10
103 0951 5035Z Philips Screw W/T Flat Washer - M3x35
104 0801 1135 Philips Pan Head Screw - M3x3
105 0720 0050Z Retaining Ring - M5
106 0951 3006Z Philips Screw With Flat Washer - M3
107 0622 0250E Spring Pin M2x250
108 0584 0061W Hexagon Bolt - M4x6
Part No.
Description
Q’ty Per
Assembly
C226 77 Parts Location and List
36. Main Control Board (C226)

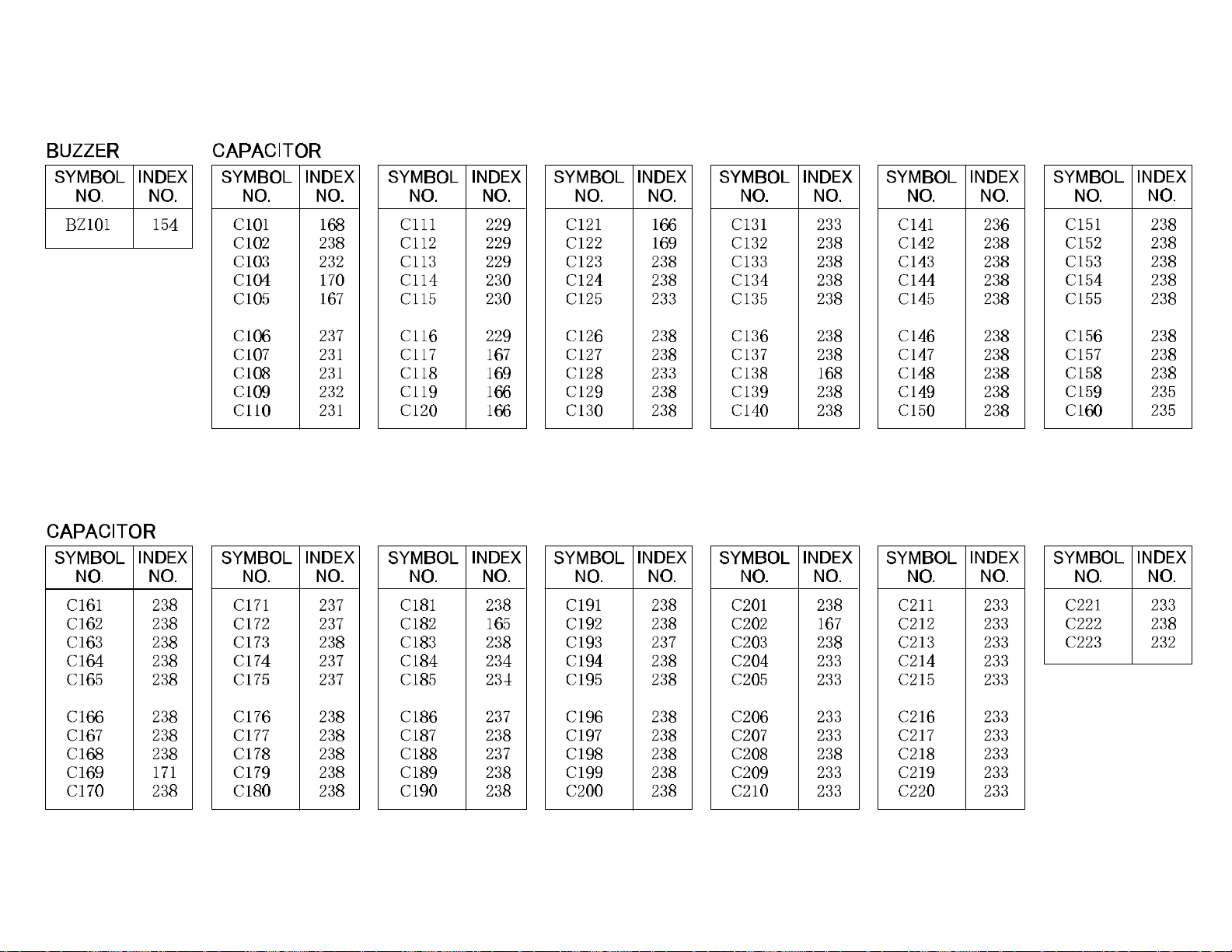

C226 78 Parts Location and List
36. Main Control Board (C226)
C226 79 Parts Location and List
C226 79 Parts Location and List
A

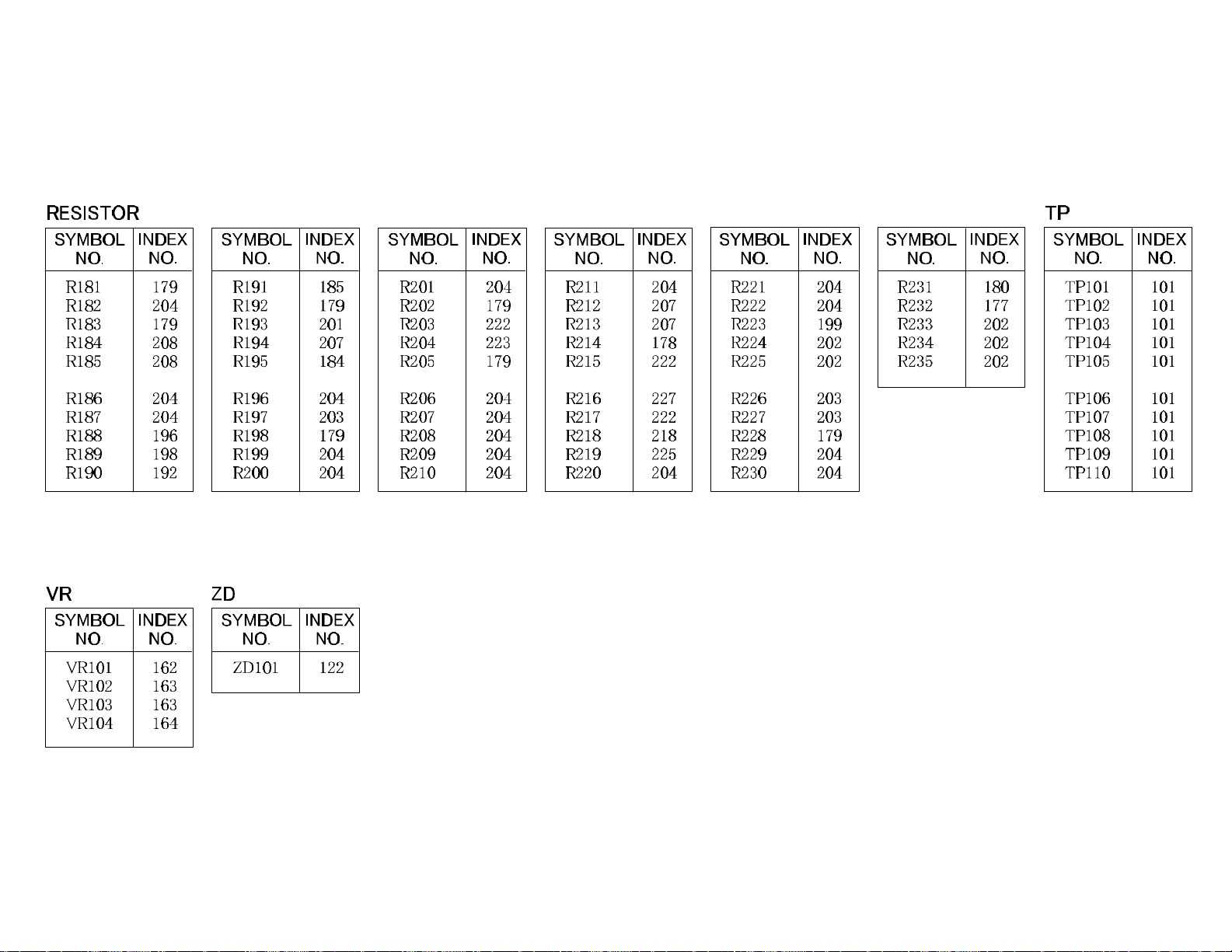

36. Main Control Board (C226)
C226 80 Parts Location and List
36. Main Control Board (C226)
Index
No.
*C226 8042 Main Board 1
1 C222 8030 IC - UPD65622GF-203-3B9 1
2 C226 8007 IC - LZ9GH12 1
3 C226 8008 IC - LC821031 1
4 C226 8009 Oscillator - HC-49/U-S 13.1 Mhz 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 1101 0328 Connector Pin Contact
102 1102 0907 Connector - 6p
103 1102 4210 Connector - 11p
104 1102 4212 Ct Header - 15p
105 1102 4497 Connector - 13p
106 1102 4512 Connector - 28p
107 1102 4623 Ct Connector - 6p
108 1102 4635 Connector - 6p
109 1102 5009 Connector - 26p
110 1102 5411 Connector - 24p
111 1102 5413 Connector - 28p
112 1102 5414 Connector - 30p
113 1102 5420 Connector - 30p
114 1102 6595 Connector - 11p
115 1102 7031 Connector - SlEM11S-2
116 1104 0378 IC Socket - 24P - DICF-24CS-E
117 1104 0473 32p - IC Socket
118 1204 1015 Dip Switch
119 1400 0429 Transistor - Npn Tr:2SC3070
120 1401 0400 Transistor Array - SLA4060
121 1401 0977 Transistor - LB1213M
122 1402 0694 Zener Diode - 02CZ2.7
123 1402 0804 Silicon Diode - 45V - 0.3A
124 1402 1263 Diode - 200v - 1A
125 1403 0669 Red LED - SLM-13VW
126 1407 1598 TTLIC - SN74LS125ANS
127 1407 1600 TTLIC - SN74LS244NS
128 1407 1813 IC - SN74LS11NS
129 1407 1882 TTLIC - SN74LS373NS
130 1407 1984 IC - SH74LS123NS
131 1407 2058 IC - 82C54FP-6
132 1407 2077 TTLIC - SN74LS138NS
133 1407 2182 IC SN74HC244NS
134 1407 2187 TTLIC - SN74LS07NS
135 1407 2218 TTLIC - SN74LS06NS
Part No.
Description
Q’ty Per
Assembly
C226 81 Parts Location and List
36. Main Control Board (C226)
Index
No.
136 1407 2231 IC - TD62308AF
137 1407 2261 IC - NJM2902M
138 1407 2273 IC - TA8050P
139 1407 2339 TTLIC - SN74LS241NS
140 1407 2348 IC - TC4051BF
141 1407 3281 IC - TC74HCU04AF
142 1407 4286 IC - MK48Z52B - 15
143 1407 4401 LSI-TE6250A
144 1407 4462 IC - UPD78217AGC-AB8
145 1407 4612 IC - CY7C167A-35VC
146 1408 0565 IC - UPC311G
147 1408 0569 IC - NJM78M05FA
148 1408 0571 IC - NJM79M05F-A
149 1408 0595 IC - NJM2904M
150 1408 0611 IC - 3771
151 1408 1050 IC - STK6712BMK4
152 1408 1104 IC - MB2803PF-G
153 1408 1134 Operational Amplifier - AD817AN
154 1502 0052 Buzzer - MEB-12C-5
155 1503 0071 Oscillator - 12Mhz
156 1601 1413 Resistor - RCB8C330J
157 1601 7751 Resistor - 4.7K
158 1601 7752 Resistor Array - 10K
159 1601 7758 Resistor - 4.7K
160 1601 7791 Resistor Array - 1K Ω ±5%
161 1601 7796 Resistor Array - 2.2K
162 1601 8145 Variable Resistor - 5K
163 1601 8157 Variable Resistor - 100K
164 1601 8186 Variable Resistor - 200K Ω
165 1604 2089 Capacitor - 1.0µF 1/8W ±20%
166 1605 0237 Capacitor - 0.033
167 1605 0599 Capacitor - 0.1
168 1605 0744 Capacitor - EMK212F105Z
169 1605 0780 Capacitor - 0.022
Part No.
Description
Ω ±5%
Ω ±5%
Ω
Ω ±5%
Ω 0.5W
Ω
µF 25V
µF ±10%
µF ±5% 25V
Q’ty Per
Assembly
Index
No.
170 1606 1983 Capacitor - 0.015
171 1606 2028 Capacitor - 0.22
172 1607 0001 Coil - SN-8S-500
173 1607 0477 Coil - BLM21A121SPB
174 1611 6361 Resistor - 360
175 1611 6470 Resistor - 47
176 1630 1101 Resistor - 100
177 1630 2201 Resistor - 200
178 1630 2220 Resistor - 22
179 1630 3102 Resistor - 1K
180 1630 3103 Resistor - 10K
181 1630 3105 Resistor - 1M
182 1630 3111 Resistor - 100
183 1630 3121 Resister - 120
184 1630 3124 Resistor - 120
185 1630 3133 Resistor - 13K
186 1630 3151 Resistor - 150
187 1630 3154 Resistor - 150K 0HM
188 1630 3203 Resistor - 20
189 1630 3221 Resistor - 220
190 1630 3222 Resistor - 2.2K
191 1630 3223 Resistor - 22k
192 1630 3242 Resistor - 2.4K
193 1630 3243 Resistor - 24K
194 1630 3244 Resistor - 240K
195 1630 3271 Resistor - 270
196 1630 3302 Resistor - 3k
197 1630 3303 Resistor - 30K
198 1630 3332 Resistor - 3.3K
199 1630 3333 Resistor - 33K
200 1630 3361 Resistor - 360
201 1630 3391 Resistor - 390
202 1630 3470 Resistor - 47
203 1630 3471 Resistor - 470
Part No.
Description
µF ±5% 50V
µF ±5%
Ω 1/8T ±5%
Ω 1/2T ±5%
Ω 1/4W ±5%
Ω ±5% 1/8W
Ω 1/8W ±5%
Ω 1/10W ±5%
Ω 1/10W ±5%
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10w
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω 1/10W ±5%
Ω - 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω +5% 1/10W
Ω - 1/10W
Ω ±5% 1/10W
Ω 1/10W ±5%
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω 1/10W ±5%
Ω 1/10W ±5%
Ω - 1/10W
Q’ty Per
Assembly
±5% 1/10W
C226 81 Parts Location and List
A
36. Main Control Board (C226)
Index
No.
204 1630 3472 Resistor - 4.7KΩ 1/10W ±5%
205 1630 3473 Resistor - 47K
206 1630 3474 Resistor - 470K
207 1630 3511 Resistor - 510
208 1630 3513 Resistor - 51K
209 1630 3514 Resistor - 510K
210 1630 3562 Resistor - 5.6K
211 1630 3681 Resistor - 680
212 1630 3682 Resistor - 6.8k
213 1630 3683 Resistor - 68K
214 1630 3750 Resistor 75
215 1630 3823 Resistor - 82K
216 1630 3824 Resistor - 820K
217 1633 3601 Resistor - 3.6K
218 1633 3741 Resistor - 3.7K
219 1633 3901 Resistor - 3.9
220 1633 4121 Resistor - 4.12K
221 1633 4991 Resistor - 4.99K
222 1633 5100 Resistor - 510
223 1633 6040 Resistor - 604
224 1633 6041 Resistor - 6.04K
225 1633 7500 Resistor - 750
226 1633 7501 Resistor - 7.5K
227 1633 8870 Resistor - 887
228 1633 9101 Resistor - 9.1K
229 1640 1101 Capacitor - 100
230 1640 2470 Capacitor - 47
231 1640 3101 Capacitor - 100
232 1640 5100 Capacitor - 10
233 1660 2151 Capacitor - 150PF
234 1660 2220 Capacitor - 22PF
235 1660 2270 Capacitor - 27PF
236 1660 2471 Capacitor - 470pf -
Part No.
Description
Ω 1/10W ±5%
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω +5% 1/10W
Ω ±5% 1/10W
Ω - 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10w
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±1% 1/10W
Ω ±1%
Ω ±1%
Ω ±1%1/10W
Ω ±5% 1/10W
Ω ±1%
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω ±5% 1/10W
Ω 1/10W
µF - ±20% 16V
µF ±20% 25V
µF ±20% 35V
µF +20% 35V
±20% 35V
±20% 35V
±20% 35V
±5% - 50V
Q’ty Per
Assembly
Index
No.
237 1660 3102 Capacitor - 1000PF
238 1660 5103 Capacitor - 10000PF
239 1902 0002 IC - 64K X8 70NS G1
240 C226 8045 EPROM - 1M X 8 150NS
Part No.
Description
±5% 50V
±10% 50V
Q’ty Per
Assembly
C226 81 Parts Location and List
B
37. DC Drive Board (C226)
C226 82 Parts Location and List
37. DC Drive Board (C226)

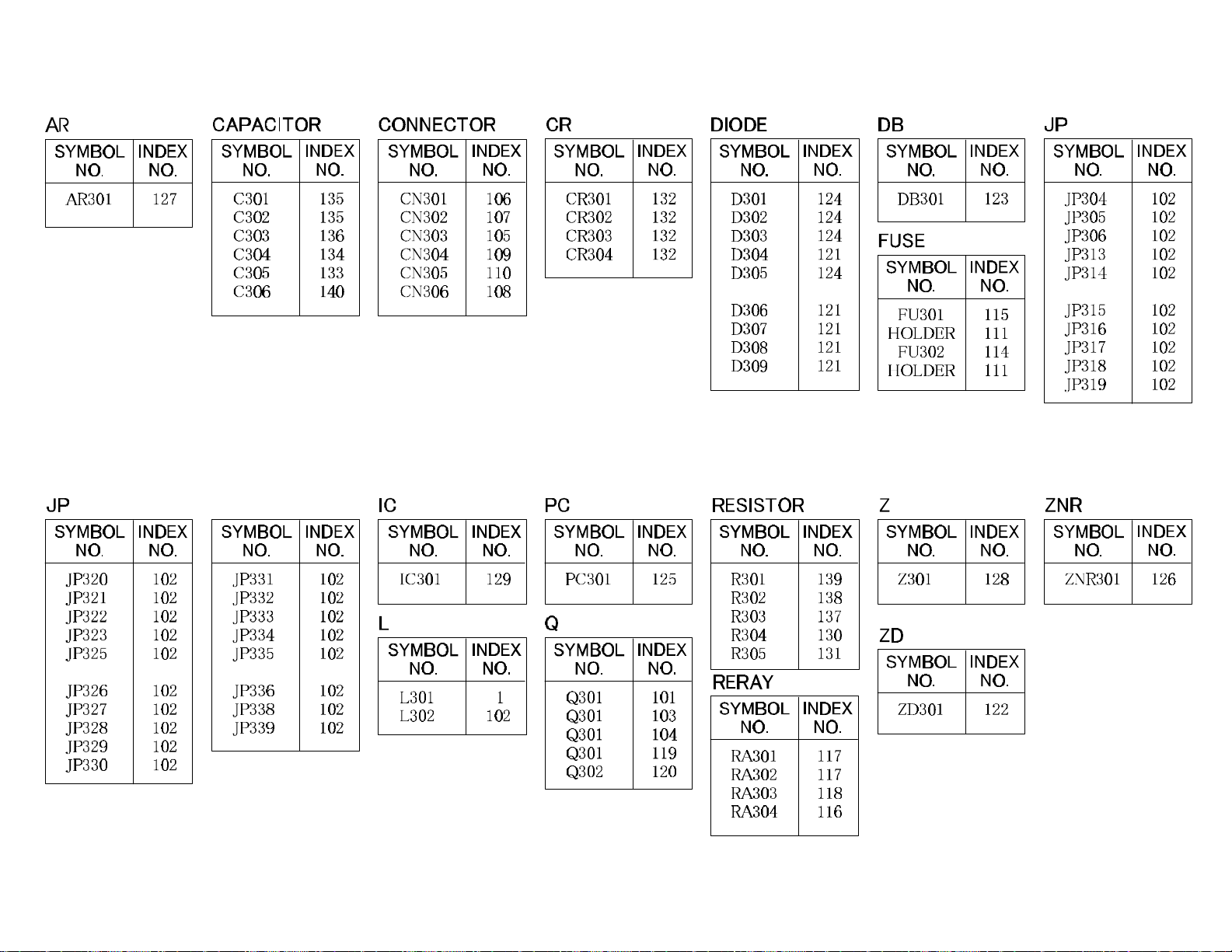

Index
No.
*C226 8058 AC Drive Board (115V) 1
*C226 8063 AC Drive Board - 230V 1
1 C213 8319 Choke - SC-08-30J-C 1
101 0950 3010B Philips Screw With Spring Was
102 1002 0307 Jumper Wire
103 1004 0126 Insulating Sheet - 19x24
104 1005 0820 Heat Sink - T220n(31)
105 1102 0913 Connector - 9p
106 1102 4201 Connector - 2p
107 1102 4206 Connector - 7p
108 1102 6612 Connector - 2p
109 1102 7282 Connector - 4p
110 1102 7283 Connector - 3p
111 1104 0351 Fuse Holder (115V)
111 1106 0793 Fuse Holder Cover
112 1106 0302 One Touch Bushing - NB410
Part No.
Description
Q’ty Per
Assembly
Index
No.
113 1106 0303 One Touch Bushing - NB400
114 1107 0389 Fuse - 2.5A (115V)
114 1107 0749 Fuse - 2.5A (230V)
115 1107 0392 Fuse (glass Case) - 6.3A - 12
115 1107 0751 Fuse - 4A 250V
116 1208 1263 Relay - G2r-2a-tu - AC100V
117 1208 1353 Relay - AC250V 10A
118 1208 1354 Relay - AC250V 5A (115V)
118 1208 1041 Relay - G2R-2-TU - DC24V (230V)
119 1401 0289 Transistor - 2SC2749
120 1401 0366 Transistor - 2SD799
121 1402 0110 Silicon Diode - 200V - 1.7a(r
122 1402 0426 Zener Diode - RD12FB2
123 1402 0646 Diode - S5VB20
124 1402 0959 Silicon Diode - 1S2076A
125 1403 0519 Photocoupler - TLP621
126 1404 0126 Serge Absorber (115V)
126 1404 0247 Varistor - 470V - 0.4W (230V)
127 1404 0318 Lightning Arrestor - 3KV/1KA127 1404 0275 Lightning Arrestor - 3600V - 1000A
128 1404 0335 Varistor - NV220D20
129 1408 0827 IC - TA8429H
130 1600 1522 Resistor - 6.8K
131 1600 1523 Resistor - 1
132 1602 1501 Resistor - 120
133 1604 1534 Capacitor - 100
134 1604 2359 Capacitor - 100
135 1605 0794 Capacitor - 3300PF
136 1606 1861 Capacitor - 0.1
137 1611 4511 Resistor - 510
138 1611 4911 Resistor - 910
139 1611 6474 Resistor - 470K
140 1640 5100 Capacitor - 10
141 1640 5470 Capacitor - 47
Part No.
Description
Ω 7W ±10%
Ω 10W ±10%
Ω 0.1µF
µF 200V
µF Dc50v ±20%
±20% 400V
µF ±10% 250V
Ω 1/4T ±5%
Ω 1/4T 5%
Ω 1/2W
µF +20% 35V
µF +20%
Q’ty Per
Assembly
C226 83 Parts Location and List
38. Decal And Document (C226)
C226 84 Parts Location and List
1
9
O
perating Instructions
C226 84 Parts Location and List
A
38. Decal And Document (C226)

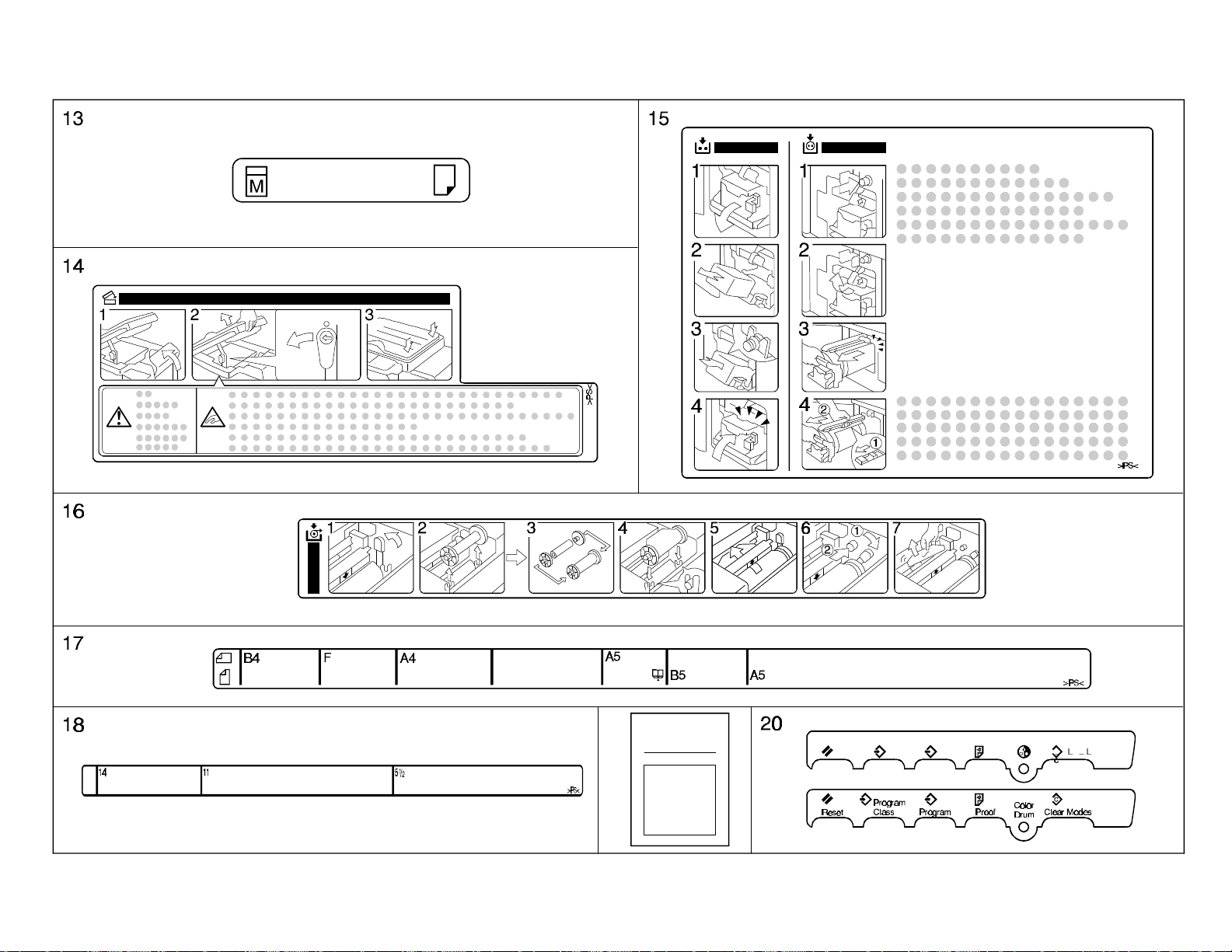

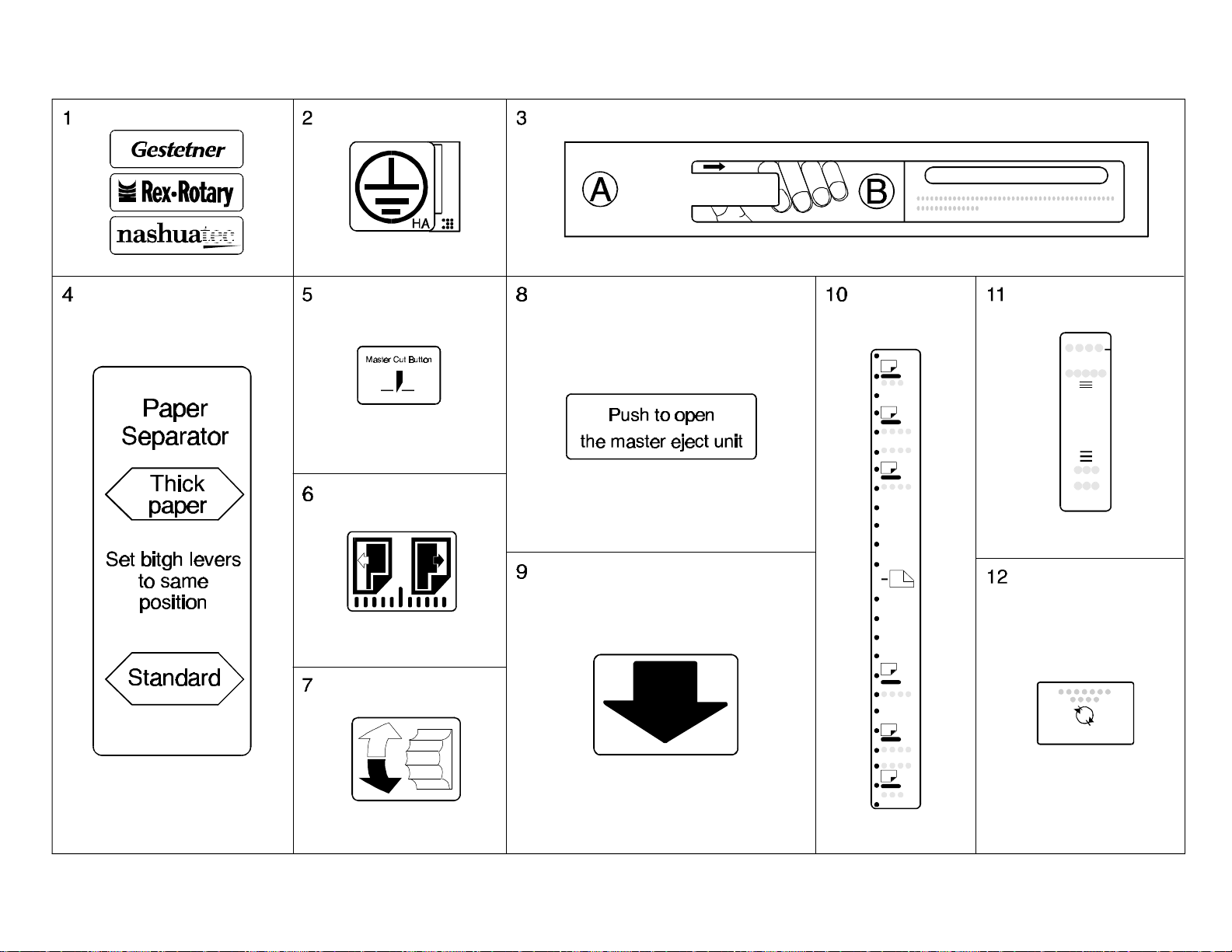

Index
No.
1 A153 6409 Decal - Keytop Cover 1
1 C225 2866 Decal - Key Top Cover 1
1 C225 2867 Decal - Cover - Panel - Nashua 1
2 AA00 1190 Decal - Ground 1
3 C201 2543 Decal - Drum Caution 1
4 C203 2728 Decal - Paper Separator 1
5 C203 2759 Master Cutter Decal 1
6 C213 2453 Decal - Paper Feed Table 1
7 C213 2454 Decal - Paper Feed Knob 1
8 C218 2825 Decal - Master Eject Open 1
9 C218 2827 Decal - Master Feed 1
10 C224 2716 Decal - Paper Size - LT 1
10 C224 2718 Decal - Paper Size - A4 1
11 C224 2737 Decal - Paper Feed 1
12 C224 2742 Decal - Drum Operation 1
13 C224 2766 Decal - Counter 1
14 C226 2736 Decal - Caution 1
15 C226 2751 Decal - Ink Supply 1
16 C226 2842 Decal - Master Setting 1
17 C226 3305 Decal - Front Original Set 1
18 C226 3306 Decal - Rear Original Set 1
19 C226 8607 Operating Instructions - LT 1
19 C226 8650 Operating Instructions - English LT 1
19 C226 8690 Operating Instructions - English A4 1
19 C226 8698 Operating Instructions - Eng Asia 1
20 C226 2984 Sheet - Operation C (A4) 1
20 C226 2974 Sheet Operation C (LT) 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
C226 85 Parts Location and List
Loading...
