B470 COVER INTERPOSER TRAY
TYPE 1075
PARTS LOCATION AND LIST
This section instructs you as to names and numbers of parts on this machine.
1.EXTERIOR (B470)
B470 2 Parts Location and List
1.EXTERIOR (B470)
Index
No.
1 B470 4572 Lower Cover Bracket 4
2 B470 4571 Lower Cover 2
3 B470 4552 Door Hinge 2
4 B470 4557 Door Stopper 1
5 B470 4551 Front Door 1
6 B470 4531 Upper Front Cover 1
7 B470 4591 Spacer Cover 1
8 B470 4523 Decal - Paper Feed Table 1
9 B470 4522 Paper Feed Table - Back 1
10 AW01 0087 Photo Sensor - Ass'y 3
11 B470 5270 Long Relay Harness - Paper Size 1
12 B470 4521 Paper Feed Table 1
13 B470 4541 Upper Rear Cover 1
14 B470 4561 Middle Rear Cover 1
15 B470 4581 Base Cover 1
16 AA14 3062 Shoulder Screw - M4 3
17 B470 4596 Right Front Spacer Cover 1
18 B470 4597 Right Rear Spacer Cover 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 0451 3008H Tapping Screw - M3x8
103 0450 4008B Tapping Screw - 4x8
104 0451 3006B Tapping Screw - M3x6
Part No.
Description
Q’ty Per
Assembly
B470 3 Parts Location and List
2.ORIGINAL FEED 1 (B470)
B470 4 Parts Location and List
2.ORIGINAL FEED 1 (B470)
Index
No.
1 5446 2824 Screw - Duplex Guide Plate 2
2 B387 4661 Front Rack - Side Fence 1
3 B470 2375 Rear Rack 1
4 AW01 0057 Registration Sensor 1
5 B470 2372 Base - Paper Feed Table 1
6 B470 2377 Sensor Bracket 1
7 AW02 0086 Photointerrupter 3
8 B470 5260 Relay Harness - Paper Size 1
9 B387 4646 Side Fence Pad 4
10 B470 2373 Front Side Fence 1
11 A859 4665 Gear - 16Z 1
12 B470 2365 Rear Side Fence 1
13 B470 7101 Decal - Side Fence 1
14 B470 2378 Original Table Holder 1
15 AG07 0014 Magnet Catch 2
16 B470 7104 Decal - Misfeed Removal 1
17 B470 4511 Cover - Paper Feed 1
18 B470 4515 Pressure Plate 1
19 AF02 2106 Driven Roller 1
20 AA08 0242 Bushing - 4mm 2
21 B470 4514 Compression Spring 2
22 B470 4513 Roller Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0450 3008B Tapping Screw - M3x8
102 1105 0511 Harness Clamp - LWS-0306ZC
103 0451 3006B Tapping Screw - M3x6
104 0450 4008B Tapping Screw - 4x8
Part No.
Description
Q’ty Per
Assembly
B470 5 Parts Location and List
3.ORIGINAL FEED 2 (B470)
B470 6 Parts Location and List
3.ORIGINAL FEED 2 (B470)
Index
No.
1 A806 2153 Timing Pulley - T27 S2M 1
2 A806 4118 Timing Belt - B40S2M148 1
3 AA13 2171 Spacer - 6x20x1 1
4 A806 1321 Pickup Roller 1
5 A858 6022 Decal Blue 1
6 5053 0447 Bushing - 6mm 2
7 5447 2681 Snap Ring 2
8 B470 2261 Pick-up Roller Bracket 1
9 A806 2151 Timing Pulley - T19/Z23 S2M/M0.6 1
10 A806 2271 Gear - Z18 1
11 B470 2211 Drive Shaft 1
12 AW02 0086 Photointerrupter 2
13 B470 5280 Sensor Relay Harness 1
14 AW02 0006 Photointerrupter - EE-SX460-P2 1
15 B470 2214 Entrance Guide Plate 1
16 5304 1639 Bushing - 8mm 1
17 A628 1225 Bushing - 8mm 4
18 A806 1293 Feed Belt Drive Roller 1
19 B470 2212 Drive Gear - Pick-up 1
20 A806 1292 Feed Belt Bracket 1
21 A806 4261 Spring Belt Guide Roller 2
22 A806 1295 Feed Belt 1
23 A806 1294 Feed Belt Driven Roller 1
24 A806 1298 Transport Belt Roller Shaft 1
25 B470 2213 Entrance Guide Plate 1
26 AA13 2013 Spacer 2
27 AA06 3315 Spring - Belt Drive Shaft 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0632 0120G Parallel Pin - 2x12
102 0720 0040B Retaining Ring - M4
103 0720 0060B Retaining Ring - M6
Part No.
Description
Q’ty Per
Assembly
B470 7 Parts Location and List

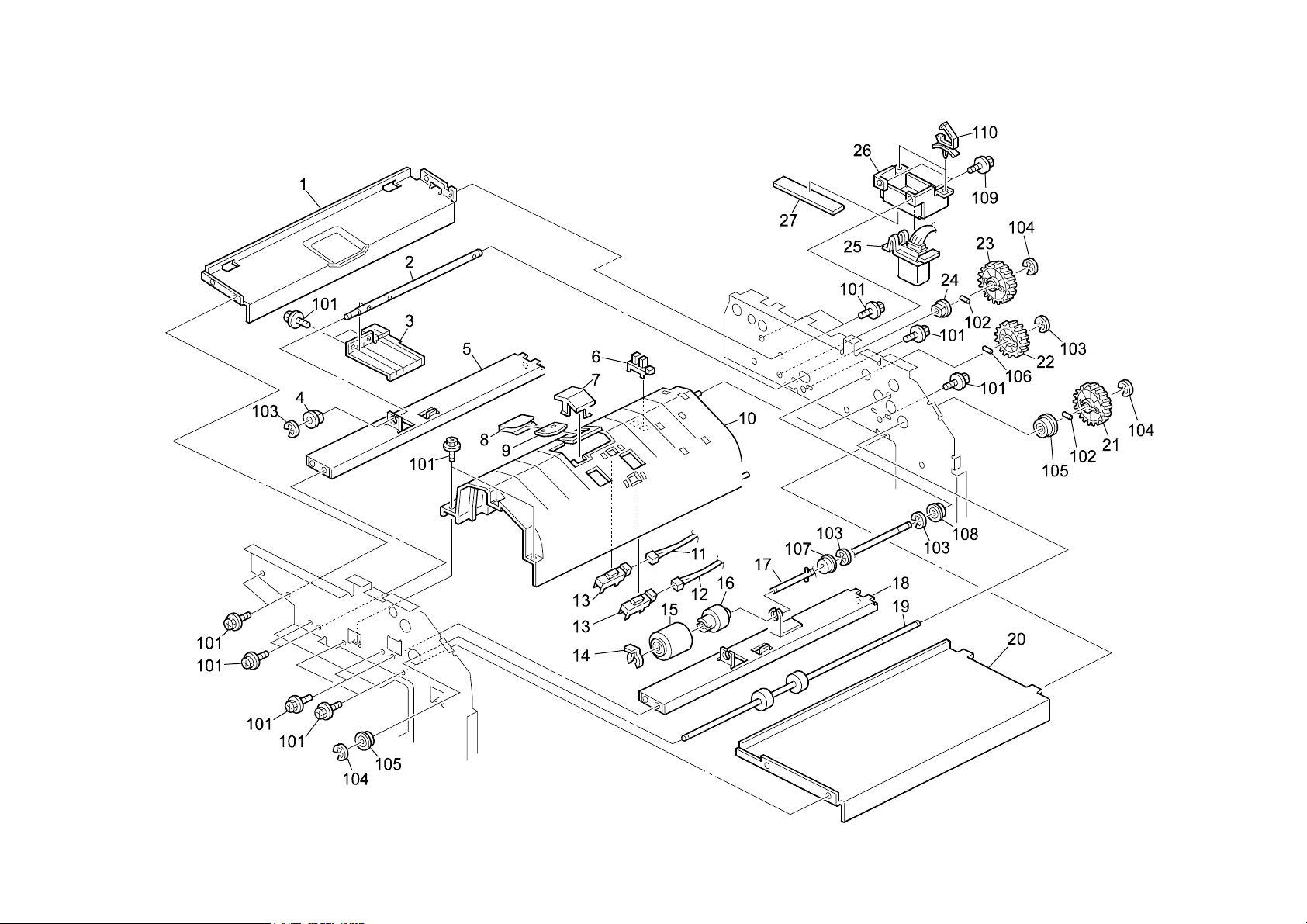

4.ORIGINAL FEED 3 (B470)
B470 8 Parts Location and List
4.ORIGINAL FEED 3 (B470)
Index
No.
1 B470 1511 Left Stay 1
2 B470 2321 Base Shaft 1
3 A806 1342 Base Lever 1
4 5053 0447 Bushing - 6mm 1
5 B470 1621 Stay - Reverse Roller 1
6 AW02 0086 Photointerrupter 1
7 B470 2112 Upper Guide Plate 1
8 B470 2113 Separation Pad Holder 1
9 B301 1155 Separation Support Pad 1
10 B470 2111 Guide Plate - Paper Feed 1
11 B470 5230 Relay Harness 1
12 B470 5240 Relay Harness 1
13 AW01 0057 Registration Sensor 2
14 5447 2681 Snap Ring 1
15 A859 2241 Reverse Roller 1
16 A247 2900 Torque Limiter - 53mnxm 1
17 B470 3141 Reverse Roller Shaft 1
18 B470 1710 Stay - Reverse Roller 1
19 B470 2511 Drive Roller 1
20 B470 1811 Base Frame 1
21 B470 3151 Gear - 36Z 1
22 B301 2221 Gear - 31Z 1
23 A806 2281 Gear - Z47 1
24 5304 1639 Bushing - 8mm 1
25 B470 5200 Interface Harness 1
26 B470 5170 Connector Bracket 1
27 B470 5165 Gasket - Connector Bracket 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0632 0140G Parallel Pin
103 0720 0040B Retaining Ring - M4
104 0720 0060B Retaining Ring - M6
105 0741 3808 Ball Bearing - 8x16x5mm
106 0632 0120G Parallel Pin - 2x12
107 0741 3706 Ball Bearing - 6x10x3
108 0741 3506 Ball Bearing - 6x12x4 mm
109 0802 5276 Tapping Screw With Washer - M3x6
110 1105 0516 Clamp
Part No.
Description
Q’ty Per
Assembly
B470 9 Parts Location and List

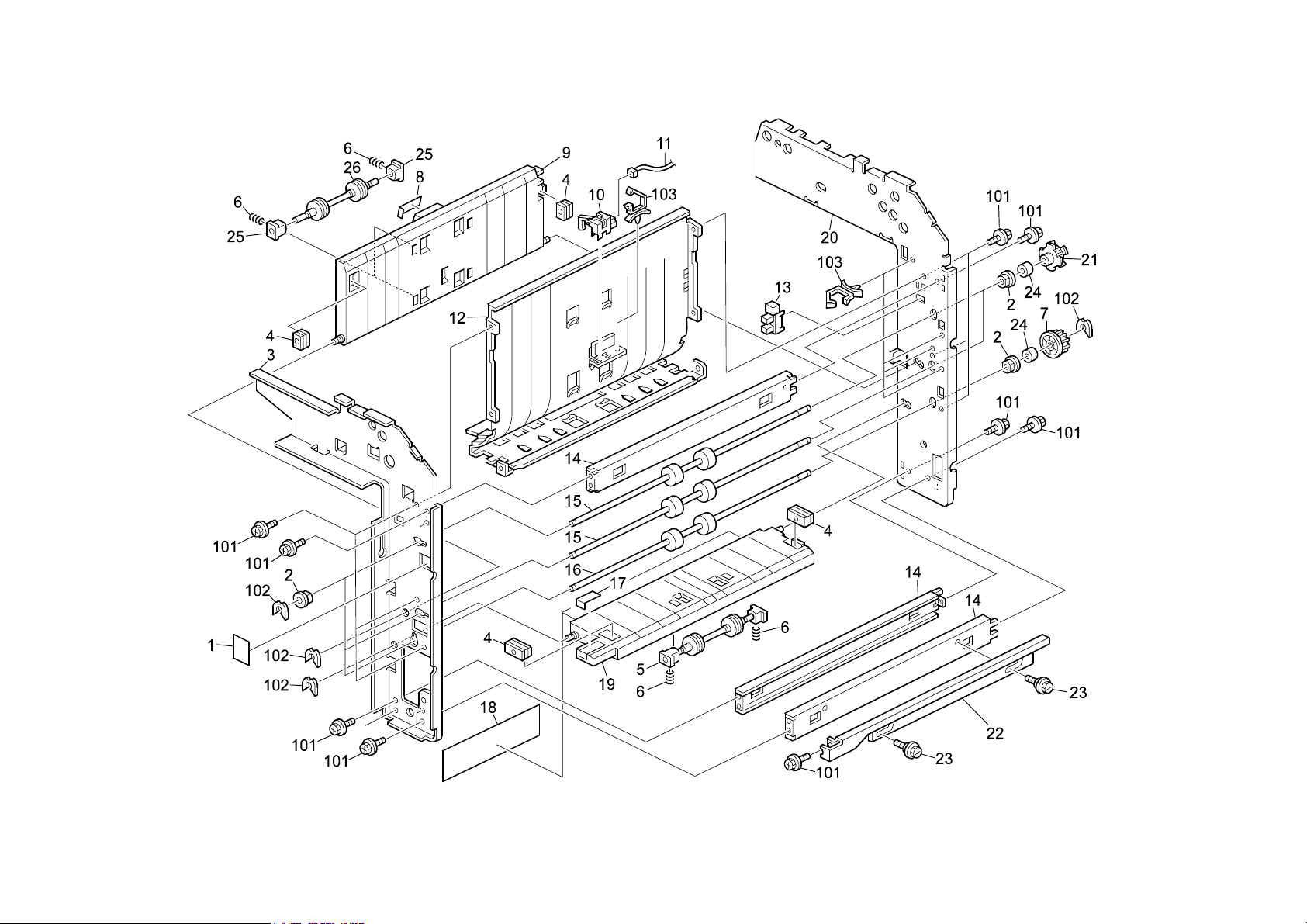

5.TRANSPORT SECTION (B470)
B470 10 Parts Location and List
5.TRANSPORT SECTION (B470)
Index
No.
1 B470 7105 Decal - Misfeed Removal 1
2 5053 0447 Bushing - 6mm 6
3 B470 1111 Front Side Plate 1
4 AG07 0014 Magnet Catch 4
5 AF02 2147 Driven Roller 1
6 AA06 3529 Pressure Spring - 14.5mm 6
7 GB03 0032 Timing Pulley - T28-S2M 1
8 B470 7102 Decal - Q1 1
9 B470 4311 Guide Plate 1
10 AW02 0095 Photointerrupter 1
11 B470 5250 Relay Harness 1
12 B470 4112 Guide Plate - Vertical Transport 1
13 AW02 0086 Photointerrupter 1
14 B408 1413 Coupling Stay 3
15 B352 2620 Lower Transport Roller 2
16 AF02 0501 Transport Roller 1
17 B470 7103 Decal - Q2 1
18 B470 4225 Guide Plate Mylar 2
19 B470 4223 Side Guide Plate 1
20 B470 1121 Rear Side Plate 1
21 B352 1607 Timing Pulley - T20-S3M 2
22 A697 1128 Joint Lever 1
23 A697 1125 Stepped Screw - Lever 2
24 A376 1295 Spacer - M6x10x5 3
25 AA08 0242 Bushing - 4mm 4
26 AF02 2106 Driven Roller 2
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0451 3006B Tapping Screw - M3x6
102 0805 0089 Retaining Ring - M4
103 1105 0511 Harness Clamp - LWS-0306ZC
Part No.
Description
Q’ty Per
Assembly
B470 11 Parts Location and List
6.ELECTRICAL AND DRIVE (B470)
B470 12 Parts Location and List
6.ELECTRICAL AND DRIVE (B470)
Index
No.
1 B470 3131 Drive Shaft 1
2 A806 2285 Gear - Z20/Z47 1
3 A806 2287 Gear - Z20/Z47 1
4 A806 2283 Gear - Z20/Z47 2
5 B470 2351 Timing Pulley - T30/Z20 1
6 A806 4117 Timing Belt - B40S2M158 1
7 A806 2362 Base Bracket 1
8 A806 2911 Stepper Motor Ass`y - DC 13W 1
9 B470 3161 Timing Belt - B40S2M224 1
10 B470 3171 Timing Belt - B40S2M176 1
11 B470 3133 Timing Pulley - T48S2M 2
12 B470 3181 Drive Bracket 1
13 B470 5510 Stepper Motor - Paper Feed 2
14 B301 2222 Gear - 20Z 1
15 B470 3134 Gear - 23Z 1
16 B470 3211 Idler Pulley - T20/Z30 1
17 B470 3250 Timing Belt - B40S3M456 1
18 A300 3151 Support Bracket 2
19 B470 5301 Base Bracket 4
20 5442 4121 Spring - Oil Blade 1
21 A697 1125 Stepped Screw - Lever 1
22 B312 1605 Tightener 1
23 B470 3322 Timing Belt - B40S2M146 1
24 B312 1524 Motor Bracket 1
25 B470 5500 Stepper Motor 1
26 B470 5120 Main Control Board 1
27 B470 5220 Main Sensor Harness 1
28 B470 5210 Main Motor Harness 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
101 0453 3006B Tapping Screw - M3x6
102 0451 3006B Tapping Screw - M3x6
103 0632 0120G Parallel Pin - 2x12
104 0632 0140G Parallel Pin
105 0720 0060B Retaining Ring - M6
106 0741 3808 Ball Bearing - 8x16x5mm
107 0802 5276 Tapping Screw With Washer - M3x6
108 0720 0040B Retaining Ring - M4
109 0805 0089 Retaining Ring - M4
110 1105 0518 Edge Saddle - LES-1010
111 1105 0511 Harness Clamp - LWS-0306ZC
112 1105 0516 Clamp
113 1105 0489 Harness Clamp - LWS 1316
114 1607 0704 Ferrite Core - ESD-SR-25
115 1607 0623 Ferrite Core TFC16-8-13
Part No.
Description
Q’ty Per
Assembly
B470 13 Parts Location and List
7.DECAL AND DOCUMENTS (B470)
B470 14 Parts Location and List
7.DECAL AND DOCUMENTS (B470)
Index
No.
1 B470 4523 Decal - Paper Feed Table 1
2 B470 7101 Decal - Side Fence 1
3 B470 7104 Decal - Misfeed Removal 1
4 B470 7105 Decal - Misfeed Removal 1
5 B470 7102 Decal - Q1 1
Part No.
Description
Q’ty Per
Assembly
Index
No.
Part No.
Description
Q’ty Per
Assembly
B470 15 Parts Location and List
B470 COVER INTERPOSER TRAY
TYPE 1075
PARTS INDEX
This section instructs you as to names and numbers of parts on this machine.
PM Parts Index
Section Name
3.ORIGINAL FEED 2 (B470) A806 1321 Pick-up Roller Pickup Roller 1 7- 4
A806 1295 Feed Belt Feed Belt 1 7- 22
4.ORIGINAL FEED 3 (B470) A859 2241 Separation Roller Reverse Roller 1 9- 15
Part No.
Description in Service Manual
Description in Parts Catalog
Q’ty Per
Assembly
Page and
Index No.
B470 2 Parts Index
Parts Index
Part No.
B470 1111 Front Side Plate 11 - 3
B470 1121 Rear Side Plate 11 - 20
B470 1511 Left Stay 9 - 1
B470 1621 Stay - Reverse Roller 9 - 5
B470 1710 Stay - Reverse Roller 9 - 18
B470 1811 Base Frame 9 - 20
B470 2111 Guide Plate - Paper Feed 9 - 10
B470 2112 Upper Guide Plate 9 - 7
B470 2113 Separation Pad Holder 9 - 8
B470 2211 Drive Shaft 7 - 11
B470 2212 Drive Gear - Pick-up 7 - 19
B470 2213 Entrance Guide Plate 7 - 25
B470 2214 Entrance Guide Plate 7 - 15
B470 2261 Pick-up Roller Bracket 7 - 8
B470 2321 Base Shaft 9 - 2
B470 2351 Timing Pulley - T30/Z20 13 - 5
B470 2365 Rear Side Fence 5 - 12
B470 2372 Base - Paper Feed Table 5 - 5
B470 2373 Front Side Fence 5 - 10
B470 2375 Rear Rack 5 - 3
B470 2377 Sensor Bracket 5 - 6
B470 2378 Original Table Holder 5 - 14
B470 2511 Drive Roller 9 - 19
B470 3131 Drive Shaft 13 - 1
B470 3133 Timing Pulley - T48S2M 13 - 11
B470 3134 Gear - 23Z 13 - 15
B470 3141 Reverse Roller Shaft 9 - 17
B470 3151 Gear - 36Z 9 - 21
B470 3161 Timing Belt - B40S2M224 13 - 9
B470 3171 Timing Belt - B40S2M176 13 - 10
B470 3181 Drive Bracket 13 - 12
B470 3211 Idler Pulley - T20/Z30 13 - 16
B470 3250 Timing Belt - B40S3M456 13 - 17
B470 3322 Timing Belt - B40S2M146 13 - 23
B470 4112 Guide Plate - Vertical Transport 11 - 12
Page and
Index No.
Part No.Description
B470 4223 Side Guide Plate 11 - 19
B470 4225 Guide Plate Mylar 11 - 18
B470 4311 Guide Plate 11 - 9
B470 4511 Cover - Paper Feed 5 - 17
B470 4513 Roller Bracket 5 - 22
B470 4514 Compression Spring 5 - 21
B470 4515 Pressure Plate 5 - 18
B470 4521 Paper Feed Table 3 - 12
B470 4522 Paper Feed Table - Back 3 - 9
B470 4523 Decal - Paper Feed Table 3 - 8
B470 4523 Decal - Paper Feed Table 15 - 1
B470 4531 Upper Front Cover 3 - 6
B470 4541 Upper Rear Cover 3 - 13
B470 4551 Front Door 3 - 5
B470 4552 Door Hinge 3 - 3
B470 4557 Door Stopper 3 - 4
B470 4561 Middle Rear Cover 3 - 14
B470 4571 Lower Cover 3 - 2
B470 4572 Lower Cover Bracket 3 - 1
B470 4581 Base Cover 3 - 15
B470 4591 Spacer Cover 3 - 7
B470 4596 Right Front Spacer Cover 3 - 17
B470 4597 Right Rear Spacer Cover 3 - 18
B470 5120 Main Control Board 13 - 26
B470 5165 Gasket - Connector Bracket 9 - 27
B470 5170 Connector Bracket 9 - 26
B470 5200 Interface Harness 9 - 25
B470 5210 Main Motor Harness 13 - 28
B470 5220 Main Sensor Harness 13 - 27
B470 5230 Relay Harness 9 - 11
B470 5240 Relay Harness 9 - 12
B470 5250 Relay Harness 11 - 11
B470 5260 Relay Harness - Paper Size 5 - 8
B470 5270 Long Relay Harness - Paper Size 3 - 11
B470 5280 Sensor Relay Harness 7 - 13
Description
Page and
Index No.
B470 3 Parts Index
Part No.
Page and
Index No.
B470 5301 Base Bracket 13 - 19
B470 5500 Stepper Motor 13 - 25
B470 5510 Stepper Motor - Paper Feed 13 - 13
B470 7101 Decal - Side Fence 5 - 13
B470 7101 Decal - Side Fence 15 - 2
B470 7102 Decal - Q1 15 - 5
B470 7102 Decal - Q1 11 - 8
B470 7103 Decal - Q2 11 - 17
B470 7104 Decal - Misfeed Removal 5 - 16
B470 7104 Decal - Misfeed Removal 15 - 3
B470 7105 Decal - Misfeed Removal 15 - 4
B470 7105 Decal - Misfeed Removal 11 - 1
Part No.Description
Description
Page and
Index No.
A247 2900 Torque Limiter - 53mnxm 9 - 16
A300 3151 Support Bracket 13 - 18
A376 1295 Spacer - M6x10x5 11 - 24
A628 1225 Bushing - 8mm 7 - 17
A697 1125 Stepped Screw - Lever 13 - 21
A697 1125 Stepped Screw - Lever 11 - 23
A697 1128 Joint Lever 11 - 22
A806 1292 Feed Belt Bracket 7 - 20
A806 1293 Feed Belt Drive Roller 7 - 18
A806 1294 Feed Belt Driven Roller 7 - 23
A806 1295 Feed Belt 7 - 22
A806 1298 Transport Belt Roller Shaft 7 - 24
A806 1321 Pickup Roller 7 - 4
A806 1342 Base Lever 9 - 3
A806 2151 Timing Pulley - T19/Z23 S2M/M0.6 7 - 9
A806 2153 Timing Pulley - T27 S2M 7 - 1
A806 2271 Gear - Z18 7 - 10
A806 2281 Gear - Z47 9 - 23
A806 2283 Gear - Z20/Z47 13 - 4
A806 2285 Gear - Z20/Z47 13 - 2
A806 2287 Gear - Z20/Z47 13 - 3
A806 2362 Base Bracket 13 - 7
A806 2911 Stepper Motor Ass`y - DC 13W 13 - 8
A806 4117 Timing Belt - B40S2M158 13 - 6
A806 4118 Timing Belt - B40S2M148 7 - 2
A806 4261 Spring Belt Guide Roller 7 - 21
A858 6022 Decal Blue 7 - 5
A859 2241 Reverse Roller 9 - 15
A859 4665 Gear - 16Z 5 - 11
B301 1155 Separation Support Pad 9 - 9
B301 2221 Gear - 31Z 9 - 22
B301 2222 Gear - 20Z 13 - 14
B312 1524 Motor Bracket 13 - 24
B312 1605 Tightener 13 - 22
B352 1607 Timing Pulley - T20-S3M 11 - 21
B470 4 Parts Index
Part No.
Page and
Index No.
B352 2620 Lower Transport Roller 11 - 15
B387 4646 Side Fence Pad 5 - 9
B387 4661 Front Rack - Side Fence 5 - 2
B408 1413 Coupling Stay 11 - 14
Part No.Description
Description
Page and
Index No.
AA06 3315 Spring - Belt Drive Shaft 7 - 27
AA06 3529 Pressure Spring - 14.5mm 11 - 6
AA08 0242 Bushing - 4mm 11 - 25
AA08 0242 Bushing - 4mm 5 - 20
AA13 2013 Spacer 7 - 26
AA13 2171 Spacer - 6x20x1 7 - 3
AA14 3062 Shoulder Screw - M4 3 - 16
AF02 0501 Transport Roller 11 - 16
AF02 2106 Driven Roller 11 - 26
AF02 2106 Driven Roller 5 - 19
AF02 2147 Driven Roller 11 - 5
AG07 0014 Magnet Catch 11 - 4
AG07 0014 Magnet Catch 5 - 15
AW01 0057 Registration Sensor 9 - 13
AW01 0057 Registration Sensor 5 - 4
AW01 0087 Photo Sensor - Ass'y 3 - 10
AW02 0006 Photointerrupter - EE-SX460-P2 7 - 14
AW02 0086 Photointerrupter 7 - 12
AW02 0086 Photointerrupter 9 - 6
AW02 0086 Photointerrupter 11 - 13
AW02 0086 Photointerrupter 5 - 7
AW02 0095 Photointerrupter 11 - 10
GB03 0032 Timing Pulley - T28-S2M 11 - 7
B470 5 Parts Index
Part No.
Page and
Index No.
0450 3008B Tapping Screw - M3x8 5 -101
0450 3008B Tapping Screw - M3x8 3 -101
0450 4008B Tapping Screw - 4x8 3 -103
0450 4008B Tapping Screw - 4x8 5 -104
0451 3006B Tapping Screw - M3x6 3 -104
0451 3006B Tapping Screw - M3x6 13 -102
0451 3006B Tapping Screw - M3x6 5 -103
0451 3006B Tapping Screw - M3x6 11 -101
0451 3006B Tapping Screw - M3x6 9 -101
0451 3008H Tapping Screw - M3x8 3 -102
0453 3006B Tapping Screw - M3x6 13 -101
0632 0120G Parallel Pin - 2x12 9 -106
0632 0120G Parallel Pin - 2x12 7 -101
0632 0120G Parallel Pin - 2x12 13 -103
0632 0140G Parallel Pin 13 -104
0632 0140G Parallel Pin 9 -102
0720 0040B Retaining Ring - M4 7 -102
0720 0040B Retaining Ring - M4 13 -108
0720 0040B Retaining Ring - M4 9 -103
0720 0060B Retaining Ring - M6 9 -104
0720 0060B Retaining Ring - M6 7 -103
0720 0060B Retaining Ring - M6 13 -105
0741 3506 Ball Bearing - 6x12x4 mm 9 -108
0741 3706 Ball Bearing - 6x10x3 9 -107
0741 3808 Ball Bearing - 8x16x5mm 9 -105
0741 3808 Ball Bearing - 8x16x5mm 13 -106
0802 5276 Tapping Screw With Washer - M3x6 13 -107
0802 5276 Tapping Screw With Washer - M3x6 9 -109
0805 0089 Retaining Ring - M4 11 -102
0805 0089 Retaining Ring - M4 13 -109
1105 0489 Harness Clamp - LWS 1316 13 -113
1105 0511 Harness Clamp - LWS-0306ZC 11 -103
1105 0511 Harness Clamp - LWS-0306ZC 5 -102
1105 0511 Harness Clamp - LWS-0306ZC 13 -111
1105 0516 Clamp 9 -110
Part No.Description
Description
Page and
Index No.
1105 0516 Clamp 13 -112
1105 0518 Edge Saddle - LES-1010 13 -110
1607 0623 Ferrite Core TFC16-8-13 13 -115
1607 0704 Ferrite Core - ESD-SR-25 13 -114
B470 6 Parts Index
Part No.
Page and
Index No.
5053 0447 Bushing - 6mm 7 - 6
5053 0447 Bushing - 6mm 9 - 4
5053 0447 Bushing - 6mm 11 - 2
5304 1639 Bushing - 8mm 7 - 16
5304 1639 Bushing - 8mm 9 - 24
5442 4121 Spring - Oil Blade 13 - 20
5446 2824 Screw - Duplex Guide Plate 5 - 1
5447 2681 Snap Ring 7 - 7
5447 2681 Snap Ring 9 - 14
Part No.Description
Description
Page and
Index No.
B470 7 Parts Index
Loading...
